Product Type	Wireless Phone Charger
Brand	IKEA
Model	LIVBOJ 704.652.46
Category	Phone Charger
Dimensions	100 x 100 x 10 mm (3.9 x 3.9 x 0.4 in)
Weight	100 g (3.5 oz)
Input Power	5V ⎓ 2A (USB-C)
Output Power	5W / 7.5W / 10W (automatic detection)
Charging Standard	Qi wireless charging
Charging Distance	Up to 8 mm
LED Indicator	Yes, charging status (blue when charging, off when idle)
Material	Plastic (ABS) with silicone non-slip surface
Color	White
Overcharge Protection	Yes
Overheat Protection	Yes, temperature monitoring
Foreign Object Detection	Yes, LED flashes if metal is detected
Compatibility	Qi-enabled smartphones (iPhone 8+, Samsung Galaxy S6+, etc.)
Included Items	Charging pad, USB-C cable (1.5 m)
Cable Length	1.5 m (59 in)
Maintenance	Wipe with a soft dry cloth; unplug before cleaning
Safety Certifications	CE, RoHS, Qi certification
Warranty	1 year

Frequently Asked Questions - LIVBOJ 704.652.46 IKEA

Which devices are compatible with the IKEA LIVBOJ charger?

Any Qi-compatible device works, including iPhone 8 and newer, Samsung Galaxy S6 and newer, and many Android phones with wireless charging.

How do I know if my phone is charging?

Place your phone on the pad. A blue LED will light up to indicate charging. The LED turns off when the phone is fully charged or removed.

Does the LIVBOJ support fast charging?

Yes, it supports 5W, 7.5W, and 10W output, depending on your device. For fast charging, use a compatible quick charger (e.g., QC 2.0/3.0 or USB-C PD).

Can I charge through a phone case?

Yes, as long as the case is thinner than 8 mm and does not contain metal, magnets, or credit cards. Thick or metal cases may block charging.

What is the maximum charging distance?

The charging distance is up to 8 mm (0.3 in) between the pad and the device.

Is the LIVBOJ charger safe for iPhones?

Yes, it is safe for all iPhones with wireless charging (iPhone 8 and later). It includes overcharge, overheat, and foreign object detection for safety.

Does the charger come with a power adapter?

No, only the charging pad and a USB-C cable are included. You need a USB power adapter (5V/2A minimum) to plug into a wall outlet.

How do I clean the LIVBOJ charger?

Unplug the charger. Clean with a soft, dry cloth. Do not use water, cleaning agents, or abrasive materials.

What does a flashing LED mean?

A flashing LED indicates a foreign object (e.g., metal) is detected between the pad and device. Remove the object and try again.

Can I use the LIVBOJ with a power bank?

Yes, if the power bank has a USB output (5V/2A or higher) and supports Qi charging. However, charging speed may be limited by the power bank's output.

USER MANUAL LIVBOJ 704.652.46 IKEA

Design and Quality IKEA of Sweden

English

Czech 10

Italian 14

Hungarian 18

Polish 22

Estonian 26

Latvian 30

Lithuanian 34

Romanian 38

Slovak 42

Bulgarian 46

Croatian 50

Russian 54

Ukrainian 58

Serbian 62

Slovenian 66

Hebrew

Charger features

- USB power adapter (5.0V, 2.0A) and USB Type-C cable not included.

- Wirelessly charges Qi-certified devices.

• Certified according to specification Qi 1.2.4 BPP.

• Temperature and power monitor for safety.

• LED status indicator.

Instructions for use

- Connect the USB cable to the power adapter and to LIVBOJ. Plug it into the wall socket.

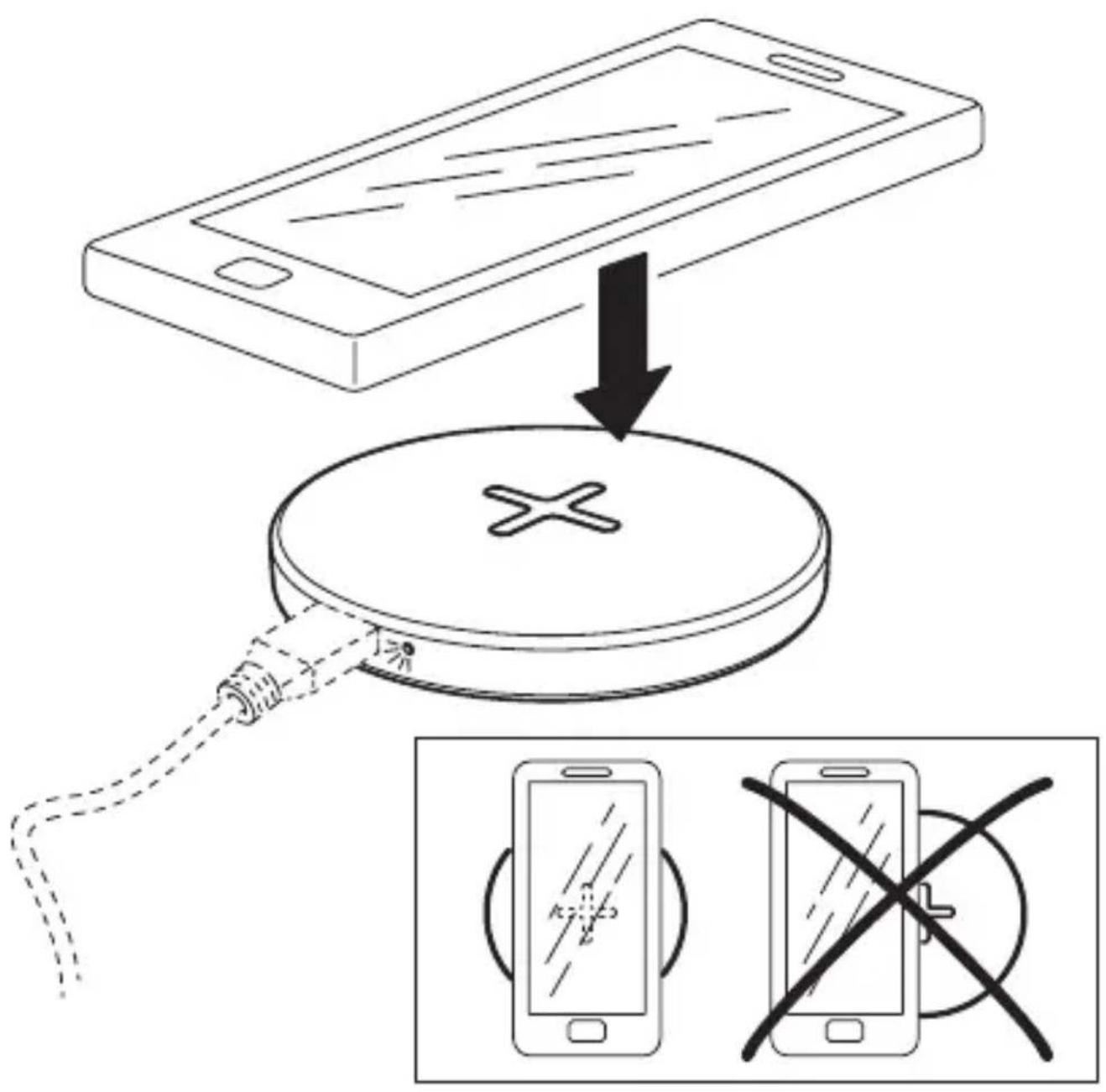

- For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.

- If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.
2. Charging: LED on.
3. Charging completed: LED off.
4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance. Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0°C to 40°C.
• Unplug the charger from the power source before cleaning and when it is not in use. To clean the charger, wipe with a moist cloth.
• Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-certified.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damaged or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2130

Input: 5.0V DC, 2.0A USB Type-C

Indoor use only

Operating frequency: 112 kHz - 148 kHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Producer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Keep these instructions for future reference.
