Product type	Wireless phone charger
Brand	IKEA
Model	NORDMÄRKE 604.780.65
Compatibility	Qi-compatible devices (Qi standard v1.2.4 BPP)
Power supply	5V DC, 2A, 10W
Operating frequency	110 - 148 kHz
Output power	-2 dBuA/m at 10m
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 25°C
LED indicator	LED: lights up for 3s when powered on, stays on during charging, turns off when charging complete, blinks on error
Usage	Indoor use only, place the device above the (+) sign on the charger
Cleaning	Wipe with a damp cloth, do not submerge
Safety	Temperature and power control; do not repair yourself; unplug if not in use
Compliance	FCC Part 15, Innovation, Science and Economic Development Canada
Recycling	Sort according to local regulations (crossed-out wheelie bin symbol)
Dimensions	Not specified in the manual; estimated 80x80x10 mm
Weight	Not specified in the manual; estimated 50 g
Connector type	Suitable for a wall outlet (cable included)
Included accessories	Cable and power adapter
RF safety distance	Minimum 10 cm

Frequently Asked Questions - NORDMÄRKE 604.780.65 IKEA

Which devices can I charge with this IKEA NORDMÄRKE charger?

This charger is compatible with all devices supporting the Qi standard (Wireless Power Consortium), including most recent smartphones.

How to use the wireless charger?

Plug the adapter into a wall outlet, then place your device exactly above the (+) sign on the charger. If necessary, enable wireless charging in your phone's settings.

What does the LED indicator mean?

The LED lights up for 3 seconds when the charger is powered on, stays solid during charging, turns off when charging is complete, and blinks on error.

Why is my phone not charging?

Check that your device is Qi-compatible, centered on the (+) sign, the charger is plugged in, and the LED is not blinking. Some phones require enabling wireless charging in the settings.

Does the charger heat up?

It is normal for the charger and device to warm up slightly during charging. They will cool down once charging is complete. The charger has temperature control for added safety.

Can I use the charger in the bathroom?

No, the charger is designed for indoor use in dry places only. Avoid humidity and water.

How to clean the charger?

Unplug it before cleaning, then wipe it with a damp cloth. Never submerge the charger in water.

What to do in case of malfunction?

If the LED blinks, try repositioning your device. If the problem persists, check the cable and adapter. Do not attempt to repair the charger yourself; contact IKEA.

What is the safety distance from the body?

To comply with radiofrequency exposure standards, maintain a distance of at least 10 cm between the charger and your body during use.

How to recycle this charger?

Do not dispose of the charger with household waste. Take it to an electronic waste collection point, in accordance with local regulations. The crossed-out wheelie bin symbol indicates it must be recycled.

USER MANUAL NORDMÄRKE 604.780.65 IKEA

Line drawing of a smartphone with a hand pointing at it, showing the screen and lens (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

3.

Line drawing of a smartphone with a pointing hand beside it (no text or symbols)

Battery icon with a lightning bolt symbol (no text or numbers)

4.

Line drawing of a hand holding a device with a magnifying glass, no text or symbols present

English 4

Français 9

Español 14

English 4

Charger features

• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
  • Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

• Connect the charger cable to the power adapter and plug it into the wall socket.
• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.
• If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

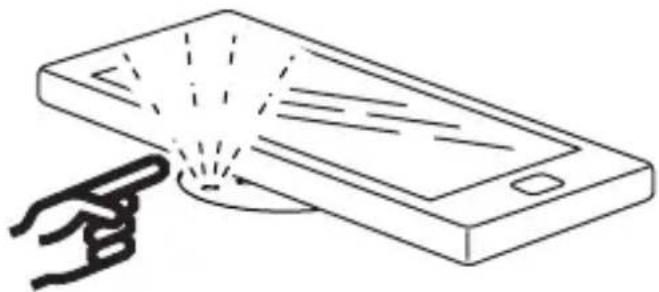

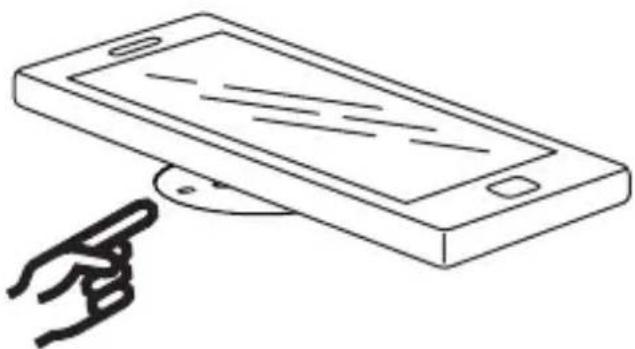

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.
2. Charging: LED on.
3. Charging completed: LED off.
4. Error: LED flashes.

Good to know

• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.

• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20^ to 25^ (-4°F to 77°F).
• Charger operating temperature: 0^ to 40^ (32°F to 104°F).
• Unplug the charger from the power source before cleaning and when it is not in use.
• To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data. See the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• If the cord is damaged the appliance shall be destroyed.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1905 NORDMÄRKE.

Input: 5V DC, 2A, 10W

Indoor use only

Operating frequency: 110 - 148 kHz

Output power: -2 dBuA/m at 10m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

This device complies with Part 15 of the FCC Rules/Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Français

RÉPARATION DU PRODUIT

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE
