USER MANUAL CBL3518EB CANDY

Discover extra contents and create your inventory list

QR code image containing encoded data, no visible human-readable text

EN

SUMMARY

PRODUCT DESCRIPTION....2

SPACE REQUIREMENTS....3

CONTROL PANEL....4

USE....4

Use....5

Fine Tuning ....5

Super Cool function ....5

Eco mode....5

Defrosting....6

Demo mode 6

APP CONNECTION (Content only)....7

IN APP PAIRING PROCEDURE 7

Step 1....7

Step 2....7

Step 3....7

TROUBLESHOOTING....8

EN

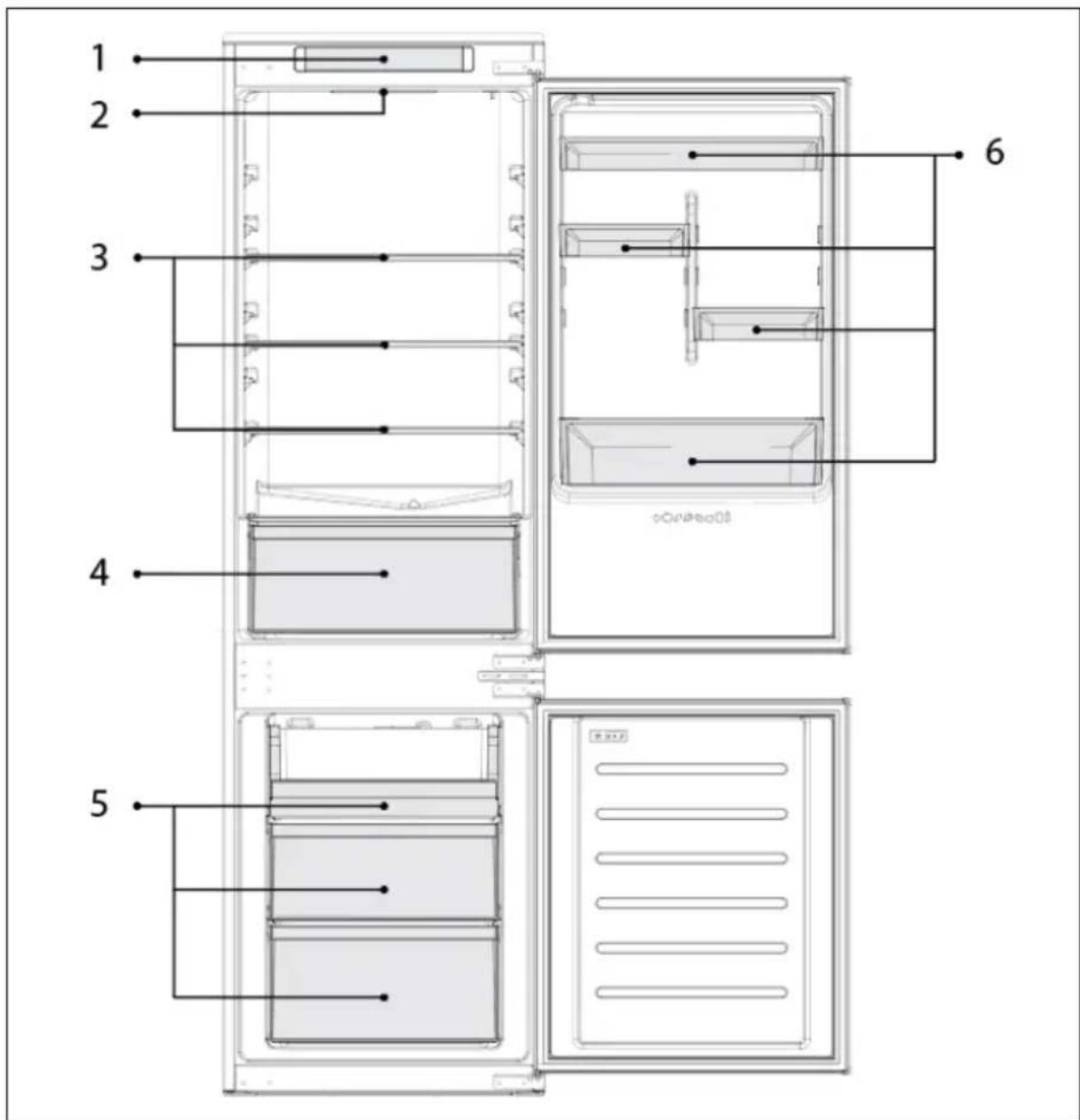

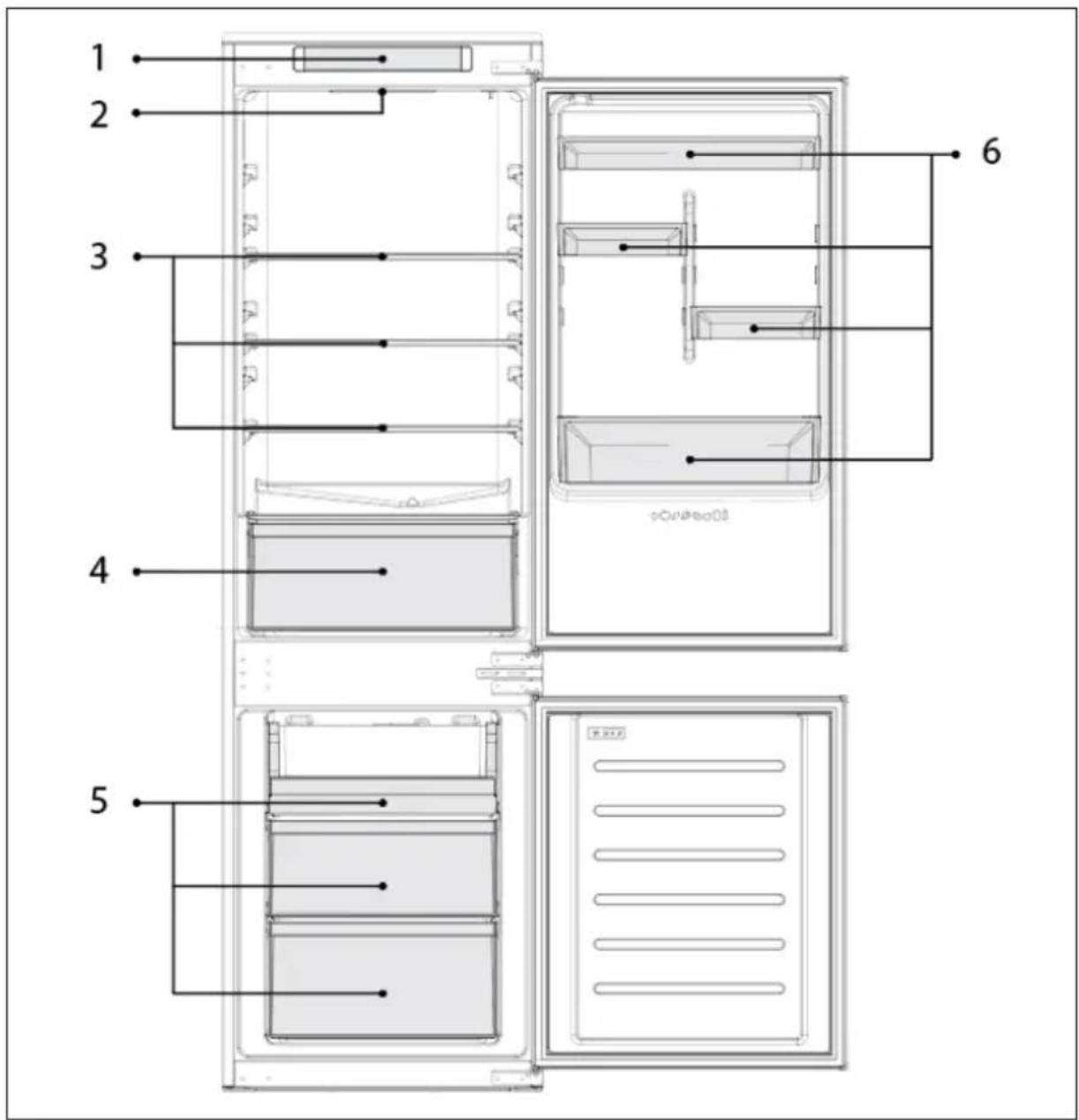

PRODUCT DESCRIPTION

1 2 3 4 5 6

18M R54 DC CLASS E Basic

1. Control Panel
2. Lighting
3. Shelves
4. Crisper
5. Freezer Boxes
6. Door Rack

EN

SPACE REQUIREMENTS

* The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product and fan to be off, please refer to the above pictures.
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

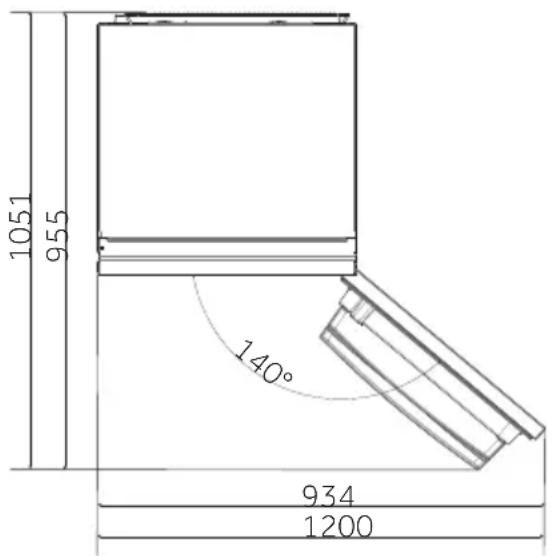

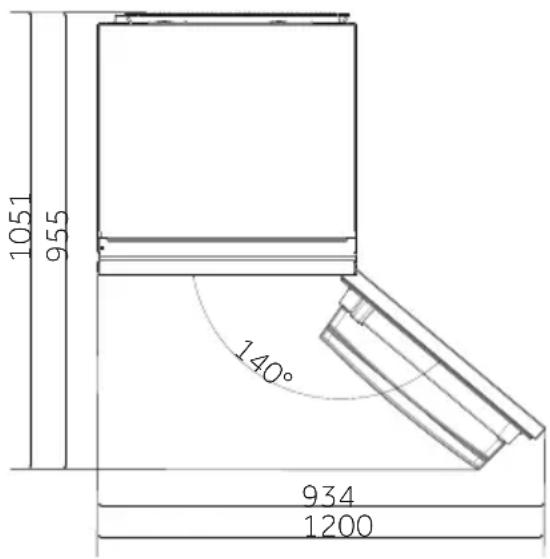

Space requirements

The unit's door must be able to fully open as shown.

Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

540 mm Cabinet: Width: 934 mm

Depth: 955 mm

700 mm Cabinet: Width: 1200 mm

Depth: 1051 mm

1051 955 140° 934 1200

EN

CONTROL PANEL

1° 3° Mode 1* 2* 3* 4* + # ① ② ③ ④ ⑤

① ON/OFF key, used to switch on/off the appliance.
② Mode key, used to adjust the temperature or to select Super Cool or Eco functions.
③ Cooling levels, show which is the selected cooling level.
④ Super Cool icon, shows if the function is activated.
⑤ Eco icon, shows if the function is activated.

EN

USE

- Plug on the appliance, it automatically turns on. The temperature will automatically set at 2.

NOTE: wait at least 2/3 hours before putting food in the appliance, so as to ensure the temperature inside the fridge.

- To change the temperature, press the mode key. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the Mode key is pressed and the temperature is changed. After 5 seconds without pressing any key, the setting is confirmed and an acoustic signal is made.

NOTE: 1 indicates the highest temperature, while 4 indicates the lowest temperature.

• In case of power loss, the last cooling level set is restored.
- To restore the default setting, with the door closed, press the ON/OFF key for 5 seconds.
- Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 2. In summer when the ambient temperature is high, it is recommended to set temperature at 1-2, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 3-4 to avoid frequent start/stop of the refrigerator.

EN

USE

Fine Tuning

The fine tuning selection mode gives the possibility to set the temperatures by sublevels; each temperature level has four sublevels.

• Press the Mode key for 8 seconds, to enter fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of currently selected cooling level blinks.
• By short pressing the Mode key within 5 seconds, the fine tuning setting increases and, at each pressing, an acoustic signal is made.
• During fine tuning, the LED of the selected cooling level is fixed, while the LED of the selected sublevel blinks.
• If no key is pressed for 5 seconds, the system will automatically exit from fine tuning selection mode. The fine tuning setting is saved and the LED of the selected fridge temperature is fixed.
• If the fine tuning is activated again, the setting will be starting from the previously stored level.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. The temperature is automatically set at the minimum temperature for the fridge compartment.

How to use the Super Cool function:

• The function can be activated by pressing many times the Mode key until the Super Cool LED is turned ON.
  • To exit the Super Cool function, press the Mode key again.
  • The Super Cool function automatically ends after 24 hours running.
• When the Super Cool ends, the icon of the control panel is switched off and the previously set cooling level will be restored.

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage, by setting the best combination of fridge and freezer temperatures.

How to activate the Eco mode:

• The function can be activated by pressing many times the Mode key until the Eco mode LED is turned ON.
  • To exit the Eco mode, press the Mode key again.
• To exit the Eco mode, press the Mode key again; the previous temperature setting will be restored. The Eco mode automatically ends when another function is chosen from the control panel.

Defrosting

When the layer of frost present in the freezer compartment exceeds 3mm, it is recommended to proceed with the defrosting as it increases energy consumption.

• Switch off the appliance and disconnect the power cord.
• Remove the frozen food and temporarily place them in a cool place.
• Leave the freezer door open and collect the water on the bottom of the product
• When defrosting is completed, dry the interior thoroughly
• Reconnect the power cord and set the desired values.
• Wait a moment and reintroduce the frozen foods.

Demomode

To enter or exit the demo mode, with the door open, long press the ON/OFF key and simultaneously quick press the MODE key 5 times (within 5 seconds).

IN APP PAIRING PROCEDURE

Step 1

- Download the hOn app on the stores

Step 2

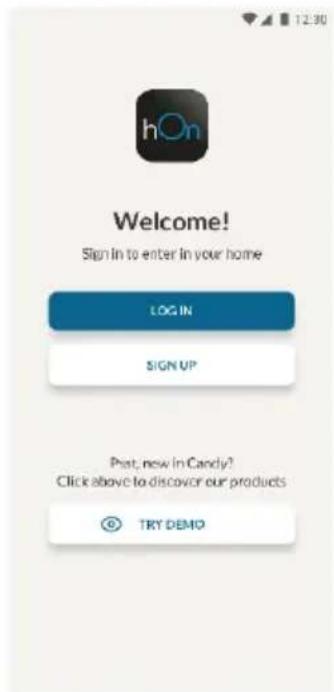

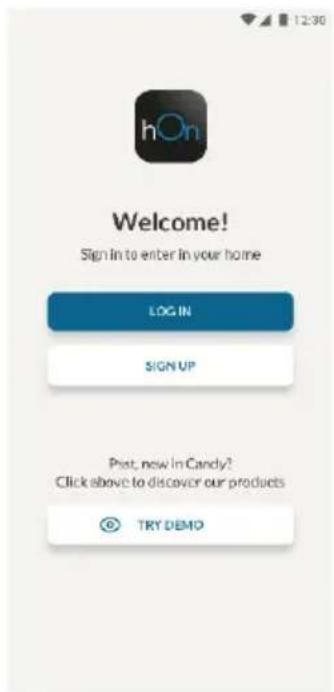

• Create your account on the hOn App or log in if you already have an account

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Step 3

• Follow pairing instructions in the hOn App

The inside light bulb does not turn on.	No electricity.	The power cable is not properly plugged in.Check if the appliance is switched off (see Temperature Adjustment).Check the power socket is working correctly (e.g. with another electric device).
	Holiday Mode is activated.	Deactivate Holiday mode.
The internal temperature of the refrigerator and/or freezer is not cold enough.	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
	Incorrect temperature setting.	Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment).
	The refrigerator and/or freezer are too full.	Wait for the temperature of the refrigerator/ freezer to stabilise.Avoid filling the refrigerator and freezer excessively.
	The surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	Warm items have been stored.	Always allow items to cool before storing them.
The food in the refrigerator freezes.	Incorrect temperature setting.	Check the temperature setting and, if possible, increase the temperature.
	Food in contact with the back wall.	Keep the food away from the refrigerator's back wall.
The bottom of the refrigerator compartment is wet or water droplets are present.	The drain hose could be clogged.	Clean the drain hose with a stick or similar item to allow the water to drain.
Presence of drops of water or frost on the rear wall of the refrigerator.	Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation.	It is not a defect.
	Warm items have been stored.	Always allow items to cool before storing them.
	There are open food containers or liquids.	Always cover food and liquids.
	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
Presence of water in the vegetable drawer.	Lack of air circulation.	Verify that your appliance is not too full.
	Vegetables and fruit with too much moisture.	Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers.
The motor runs continuously.	The doors are not closed.	Make sure the doors are closed and check the seals close properly.
	The doors are opened frequently.	Avoid opening the doors unnecessarily for some time.
	Ambient temperature is very high.	Verify that the ambient temperature is in the range set out in the specifications on the appliance tag.Set the display screen/thermostat to a warmer temperature.
	The appliance has been off (no power) for some time.	It normally takes the appliance 8-12h to cool completely.
The frozen food is thawing.	Surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	The freezer door is not closed.	Make sure the door is closed and that the gasket is sealing properly.
Fridge door alarm.	Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes.	Avoid leaving the door open when not needed. The beep ceases when the door is closed.
The appliance makes noises such as gurgling, buzzing, clicking, creaking.	No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off.	No action needed.
	The appliance is not located on level ground.	Adjust the feet to level the appliance.
	The appliance touches an object around it.	Remove objects around the appliance.
The appliance does not cool, the temperature and lighting indicators are on.	Demo mode is activated.	Deactivate DEMO mode.
Strong ice and frost in the freezer compartment.	The items were not adequately packaged.	Always pack the items well.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace it with a new one.
	Something on the inside prevents the door/drawer from closing properly.	Reposition the shelves, door racks or internal containers to allow the door/drawer to close.
The sides of the appliance are warm.	This is normal.

BG

PE3HOME

ОПИСАНИЕ НА ПРОДУКТА 2

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Стъпка 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

Стъпка 3

POŽADAVKY NA MÍSTO....3

OVLÁDACÍ PANEL 4

POUŽÍVÁNÍ 4

Používání 5

Jemné nastavení 5

18M R54 DC CLASS E Basic

POSTUP PÁROVÁNÍ S APLIKACÍ

Krok 1

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Krok 3

PRODUKTBESKRIVELSE....2

PLADSKRAV....3

BETJENINGSPANEL....4

BRUG 4

Brug 5

Finjustering....5

Super Cool-funktion....5

Eco-tilstand 5

Afrimning....6

Demotilstand....6

APP-FORBINDELSE (kun indhold) 7

FREMGANGSMÅDE VED PARRING I APP 7

Trin 1....7

Trin 2....7

Trin 3....7

FEJLFINDING....8

1 2 3 4 5 6

18M R54 DC CLASS E Basic

1. Betjeningspanel
2. Belysning
3. Hylder
4. Grøntsagsskuffe
5. Frysebokse
6. Lågestativ

DA

PLADSKRAV

FREMGANGSMÅDE VED PARRING I APP

Trin 1

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Trin 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Trin 3

18M R54 DC CLASS E Basic

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Schritt 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Βήμα 2

12:30 hOn Welcome! Sign In to enter In your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Bήμα 3

18M R54 DC CLASS E Basic

12:30 hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Paso 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Vaihe 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Vaihe 3

DESCRIPTION DU PRODUIT....2

ESPACE REQUIS....3

PANNEAU DE COMMANDE....4

UTILISATION....4

Utilisation....5

Réglage fin ....5

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Étape 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

Étape 3

18M R54 DC CLASS E Basic

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

3. korak

- Pridržavajte se uputa za uparivanje u aplikaciji hOn

Ne uključuje se žarulja unutarnjeg osvjetljenja.	Nema struje.	Kabel napajanja nije propisno ukopčan.Provjerite da uređaj nije isključen (pogledajte Podešavanje temperature).Provjerite radi li električna uličnica ispravno (npr. s drugim električnim uređajem).
	Aktiviran je način rada Holiday.	Deaktivirajte način rada Holiday.
Unutarnja temperatura hladnjaka i/ili zamrzivača nije dovoljno niska.	Vrata nisu zatvorena.	Provjerite zatvaraju li se vrata i brtve pravilno.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
	Neodgovarajuća postavka temperature.	Provjerite postavku temperature i po mogućnostl smanljite je (pogledajte odjeljak Podešavanje temperature).
	Hladnjak i/ili zamrzivač je/su prepuni.	Pričekajte da se temperatura hladnjaka/zamrzivača stabilizira.Izbjegavajte prekomjerno punjenje hladnjaka i zamrzivača.
	Temperatura okoline je preniska.	Premjestite uređaj na toplije mjesto ili zagrijlte prostoriju.
	Pohranjene su tople namirnice.	Uvljek pričekajte da se namirnice ohlade prije nego ih spremite.
Hrana u hladnjaku se zamrzava.	Neodgovarajuća postavka temperature.	Provjerite postavku temperature i, ako je moguće, povećajte je.
	Hrana dodiruje stražnju stijenku.	Držite hranu dalje od stražnje stijenke hladnjaka.
Donji dio odjeljka hladnjaka je mokar ili su prisutne kapljice vode.	Odvodno crijevo možda je začepljeno.	Očistite odvodno crijevo štapom ili sličnim predmetom kako biste omogućili odvod vode.
Kapljice vode ili mraz na stražnjoj stijenci hladnjaka.	Ovisno o funkciji, kapljice vode ili mraz formiraju se na stražnjoj stijenci hladnjaka tijekom rada.	To nije znak kvara.
	Pohranjene su tople namirnice.	Uvijek pričekajte da se namirnice ohlade prije nego ih spremite.
	Otvoreni su spremnici hrane ili tekućine.	Uvijek prekrijte hranu i tekućine.
	Vrata nisu zatvorena.	Provjerite zatvaraju li se vrata i brtve pravilno.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
U ladici s povrćem ima vode.	Nema cirkulacije zraka.	Provjerite da uređaj nije prepun.
	Povrće i voće sadrži previše vlage.	Zamctajte voće i povrće u plastične materijale, npr. prianjajuću foliju, vrećice ili spremnike.
Motor radi neprekidno.	Vrata nisu zatvorena.	Provjerite jesu li vrata zatvorena i jesu li brtve propisno zatvorene.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
	Temperatura okoline vrlo je visoka.	Provjerite je li temperatura okoline u rasponu navedenom u specifikacijama na oznaci uređaja.Postavite zaslon/termostat na višu temperaturu.
	Uređaj je isključen (nema napajanja) već neko vrijeme.	Obično je potrebno 8 do 12 sati da se uređaj potpuno ohladi.
Zamrznuta hrana se odmrzava.	Temperatura okoline je preniska.	Promjestite uređaj na toplijo mjesto ili zagrijte prostoriju.
	Vrata zamrzivača nisu čvrsto zatvorena.	Provjerite jesu li vrata zatvorena i ispravnost brtve.
Alarm za vrata hladnjaka.	Alarm za vrata hladnjaka (zvučni signal) aktivira se uvijek kada su vrata otvorena dulje od 3 minute.	Ne ostavljajte vrata otvorena kada to nije potrebno. Zvučni signal prestaje nakon zatvaranja vrata.
Uređaj proizvodi zvukove kao što su grgljanje, zujanje, klikanje, škripanje.	Nema kvarova. Motor radi, npr. rashladna jedinica, ventilator. Rashladno sredstvo ulazi u cijevi. Motor, prekidači i elektromagnetski ventili uključeni su ili isključeni.	Nije potrebno ništa poduzimati.
	Uređaj se ne nalazi na ravnom tlu.	Podesite nožice za niveliranje uređaja.
	Uređaj dodiruje predmet u svojoj okolini.	Uklonite predmete oko uređaja.
Uređaj se ne hladi, indikatori temperature i osvjetljenja uključeni su.	Aktiviran je demonstracijski način rada.	Deaktivirajte demonstracijski način rada.
Mnogo je leda i mraza u odjeljku zamrzivača.	Namirnice nisu primjereno zapakirane.	Uvljek dobro zapakirajte namimice.
	Ladica ili vrata uređaja nisu dobro zatvorena.	Zatvorite vrata/ladicu.
	Vrata/ladica su/je otvarana prečesto ili predugo.	Ne otvarajte vrata/ladicu prečesto.
	Brtva vrata/ladice je prljava, istrošena, napuknuta ili nepravilno postavljena.	Očistite brtvu vrata/ladice ili je zamijenite novom.
	Nešto u unutrašnjosti onemogućuje pravilno zatvaranje vrata/ladice.	Premjestite police, police na vratima ili unutarnje spremnike kako bi se vrata/ladica mogla zatvoriti.
Bočne strane uređaja su tople.	To je normalno.

HU

ÖSSZEGZÉS

TERMÉKLEÍRÁS....2

HELYIGÉNY....3

VEZÉ RLÓP ULT 4

HASZNÁLAT 4

Használat 5

Finomhangolás 5

Super Cool funkció....5

Eco mód 5

Leolvasztás....6

Demo mód....6

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. lépés

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

3. lépés

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Fase 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, new in Candy? Click above to discover our products TRY DEMO

Fase 3

PRODUCTBESCHRIJVING....2

BENODIGDERUIMTE....3

BEDIENINGSPANEEEL 4

GEBRUIK....4

Gebruik....5

Fijnafstelling....5

18M R54 DC CLASS E Basic

PRODUKTBESKRIVELSE....2

PLASSBEHOV 3

KONTROLLPANEL 4

BRUK 4

Bruk 5

Finjustering....5

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Trinn 2

- Opprett kontoen din på hOn-appen, eller logg på hvis du allerede har en konto

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Trinn 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, new in Candy? Click above to discover our products TRY DEMO

Krok 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Passo 2

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Passo 3

18M R54 DC CLASS E Basic

540 mm Dulap: Latime: 934 mm

Adâncime: 955 mm

700 mm Dulap: Latime: 1200 mm

Adâncime: 1051 mm

1051 955 140° 934 1200

RO

PANOU DE COMENZI

1 3° Mode 1* 2* 3* 4* + + ① ② ③ ④ ⑤

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy! Click above to discover our products TRY DEMO

Pasul 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

War 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

War 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Krok 3

- Postupujte podl'a pokynov na párovanie v aplikácii hOn

NADZORNA PLOŠČA....4

UPORABA....4

Uporaba ....5

Fina Nastavitev 5

Funkcija Super Cool 5

Način ECO 5

Odmrzovanje....6

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. korak

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Past, new in Candy? Click above to discover our products TRY DEMO

3. korak

REŠAVANJE PROBLEMA 8

1 2 3 4 5 6

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. korak

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

3.korak

• Pratite uputstva za uparivanje u hOn aplikaciji

Unutrašnja sijalica se ne uključuje.	Nema struje.	Kabl za napajanje nije pravilno priključen.Proverite da li je uređaj isključen (pogledajte Podešavanje temperature).Proverite da li utičnica radi ispravno (npr. sa drugim električnim uređajem).
	Režim Holiday je aktiviran.	Deaktivirajte režim Holiday.
Unutrašnja temperatura frižidera i/ili zamrzivača nije dovoljno hladna.	Vrata nisu zatvorena.	Proverite da li su vrata i zaptivke pravilno zatvoreni.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebn otovaranje vrata.
	Pogrešno podešavanje temperature.	Proverite podešavanje temperature i, ako je moguće, podesite nižu temperaturu (pogledajte Podešavanje temperature).
	Frižider i/ili zamrzivač su previše puni.	Sačekajte da se temperatura frižidera/ zamrzivača stabilizuje.Izbegavajte prekomerno punjenje frižidera i zamrzivača.
	Temperatura okoline je previše niska.	Pomerite jedinicu na toplije mesto ili zagrejte prostoriju u kojoj se trenutno nalazi.
	Topli artikli su uskladišteni.	Uvek ostavite artikle da se ohlade pre skladištenja.
Hrana u frižideru se zamrzava.	Pogrešno podešavanje temperature.	Proverite podešavanje temperature i, ako je moguće, povećajte temperaturu.
	Hrana je u kontaktu sa zadnjim zidom.	Držite hranu dalje od zadnjeg zida frižidera.
Dno odeljka frižidera je mokro ili su prisutne kapljice vode.	Možda je zapušeno odvodno crevo.	Očistite odvodno crevo štapićem ili sličnim predmetom kako biste omogućili odvod vode.
Prisustvo kapljica vode ili mraza na zadnjem zidu frižidera.	U zavisnosti od funkcije, kapljice vode ili mraza se tokom rada formiraju na zadnjem zidu frižidera.	To nije kvar.
	Topli artikli su uskladišteni.	Uvek ostavite artikle da se ohlade pre skladištenja.
	Postoje otvorene posude za hranu ili tečnosti.	Uvek pokrijte hranu i tečnosti.
	Vrata nisu zatvorena.	Proverite da li su vrata i zaptivke pravilno zatvoreni.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebn otovaranje vrata.
Prisustvo vode u fioci za povrće.	Nedostatak cirkulacije vazduha.	Uverite se da uređaj nije previše pun.
	Povrće i voće sadrži previše vlage.	Voće i povrće umotajte u plastične materljale, npr. plastičnu foliju, kese ili posude.
Motor radi neprekidno.	Vrata nisu zatvorena.	Proverite da li su vrata zatvorena i da li su zaptivke pravilno zatvorene.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebn otovaranje vrata.
	Temperatura okruženja je veoma visoka.	Proverite da li je temperatura okruženja u opsegu navedenom u specifikacijama na nalepnici uređaja.Podesite displej/termostat na višu temperaturu.
	Uređaj je isključen (nema struje) već neko vreme.	Obično je potrebno 8-12 sati da se uređaj potpuno ohladi.
Zamrznuta hrana se ołapa.	Temperatura okoline je previše niska.	Pomerite jedinicu na toplije mesto ili zagrejte prostoriju u kojoj se tronutno nalazi.
	Vrata zamrzivača nisu zatvorena.	Proverite da li su vrata zatvorena i da li zaptivka pravilno zaptiva.
Alarm za vrata frižidera.	Alarm za vrata frižidera (zvučni signal) se aktivira kad god su vrata otvorena duže od 3 minuta.	Ne ostavljajte vrata otvorena kada to nije potrebno. Zvučni signal prestaje kada se zatvore vrata.
Uređaj proizvodi zvukove kao što su klokotanje, zujanje, škljocanje, škripanje.	Nema kvarova. Motor radi, npr. rashladna jedinica, ventilator. Rashladno sredstvo teče u cevima. Motor, prekidači i elektromagnetni ventili su uključeni ili isključeni.	Nikakva radnja nije potrebna.
	Uređaj se nalazi na neravnoj površini.	Podesite stopice za nivelisanje uređaja.
	Uređaj dodiruje neki predmet do njega.	Uklonite predmete oko uređaja.
Uređaj ne hladi, indikatori temperature i osvetljenja su uključeni.	Aktiviran je Demo režim.	Deaktivirajte DEMO režim.
Velike količine leda i mraza su se formirale u zamrzivaču.	Artikli nisu adekvatno upakovani.	Uvek dobro upakujte predmete.
	Vrata/fioka uređaja nije dobro zatvorena.	Zatvorite vrata/fioku.
	Vrata/fioka je otvorena prečesto ili predugo.	Ne otvarajte vrata/fioku prečesto.
	Zaptivka vrata/fioke je prljava, istrošena, napukla ili neodgovarajuća.	Očistite zaptivku vrata/fioke ili je zamenite novom.
	Nešto iznutra sprečava da se vrata/fioka pravilno zatvore.	Promenite položaj polica, polica za vrata ili unutrašnjih posuda kako biste omogućili zatvaranje vrata/fioke.
Bočne strane uređaja su tople.	Ovo je normalna pojava.

SV

SAMMANFATTNING

PRODUKTBESKRIVNING 2

UTRYMME SOM KRÄVS....3

KONTROLLPANEL 4

ANVÄNDNING 4

Användning....5

Finjustering....5

Super Cool-funktion....5

Ekoläge 5

Avfrostning 6

Demoläge....6

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Steg 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Steg 3

18M R54 DC CLASS E Basic

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Крок 2

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Крок 3

18M R54 DC CLASS E Basic

1. loحة الت하게 م

إضاءة. 2

. 3

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

QR code image containing encoded data, no visible human-readable text

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

3الخطوة
