USER MANUAL PM1010 KENMORE

Vacuum Cleaner Help Line:

1-877-531-7321 (US) / 1-844-608-3081 (CA)

8:00am-5:00pm EST, M-F

www.kenmorefloorcare.com

Kenmore ®/MD

TABLE OF CONTENTS

Before Using Your New Air Purifier....2

Packing List....2

Important Safety Instructions....3-5

Air Purifier Warranty....6

Parts and Features....7-8

Assembly Instructions....9-10

Operating Instructions....10-12

Air Purifier Maintenance and Care....13-14

Troubleshooting....15-16

Requesting Assistance or Service...... Back Cover

BEFORE USING YOUR NEW AIR PURIFIER

Read this Use & Care Guide. It will help you assemble and operate your new Kenmore air purifier in the safest and most effective way.

For more information about air purifier care and operation, call the Air Purifier Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model and serial numbers when requesting information.

Your air purifier's model and serial numbers are located on the Model and Serial Number Plate. Use the space below to record the model number and serial number of your new Kenmore carpet cleaner.

Model No.

Serial No. ____

Date of Purchase ____

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE AIR PURIFIER is packaged with the following parts and components included separately in the carton:

1 Air Purifier

1 Power Adapter

1 Composite Filter (Pre-installed)

5 Aroma Pads (with 1 Pre-installed inside the Air Purifier)

1 Use & Care Guide

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your air purifier.

WARNING!

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your air purifier, follow basic safety precautions including the following:

• Use your air purifier only as described in this Use & Care Guide. Use only manufacturer's recommended attachments.
• Disconnect the air purifier from the power supply before servicing or cleaning.
• Do not use without removing the plastic wrap from the filter. The purifier will not filter air, and may overheat, causing a fire hazard.
• To reduce the risk of electrical shock - Do not use outdoors.
• Keep the air purifier away from water, and wet or damp areas. Never place in water or liquid.
• Keep the air purifier away from heat sources.
• Do not use in excessively humid areas.
• Do not use where combustible gases, vapors, metallic dust, aerosol (spray) products, or fumes from industrial oil are present.
• Keep 5 ft / 1.5 m away from where oxygen is being administered.
• Supervise children when they are near the air purifier. Do not allow children to play with the air purifier.
  • Children should not clean or perform maintenance on the air

purifier without supervision.

• Do not put any objects into any opening on the air purifier.
• Do not sit or place heavy objects on the air purifier.
• Do not block the air inlet and air outlet.
• Keep the inside of the air purifier dry. To prevent moisture buildup, avoid placing in rooms with major temperature changes or underneath air conditioners.
• Do not use with a damaged cord, plug, or other parts.
• Do not use your air purifier if it is damaged or not working correctly. Do not try to repair it yourself. Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
• Do not run the cord under carpeting. Do not cover the cord with rugs, runners, or other coverings. Do not route the cord under furniture or appliances. Direct the cord away from traffic areas where it will not be tripped over.
• Never place the cord near any heat sources.
• Keep the air purifier near the outlet it is plugged into.
• Do not touch the power plug or power adapter with wet hands.

IMPORTANT SAFETY INSTRUCTIONS

• Be careful when cleaning the air purifier. Strong corrosive detergent will damage the surface of the air purifier.
• Remove the dust from the air purifier body and power plug periodically.
• Do not rinse or reuse the high-efficiency composite filter.
• Only use the power adapter provided with this air purifier.
• If the power adapter cord is damaged, immediately discontinue use and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
• This air purifier is not to be used by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

WARNING

To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed control device.

Electromagnetic Fields (EMF)

Your air purifier complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this Use

& Care Guide, the appliance is safe to use based on scientific evidence available today.

FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.

WARNING

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

IMPORTANT SAFETY INSTRUCTIONS

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your air purifier are your responsibilities. Your air purifier is intended for Household Use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

AIR PURIFIER WARRANTY

LIMITED WARRANTY

FOR TWO YEARS from the date of sale (or, for deliveries in the State of California, two years from the date of delivery), this product is warranted against defects in material or workmanship.

WITH PROOF OF SALE a defective product will be replaced free of charge.

The Kenmore brand is used under license. Direct all claims for warranty service to: 1-877-531-7321 (US) / 1-844-608-3081 (CA).

This warranty does not cover the filter which is an expendable part that can wear out from normal use within the warranty period.

This warranty is void if this product is ever used for anything other than private household purposes. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cleva North America, Inc., Greenville SC 29607

PARTS AND FEATURES

It is important to know your air purifier's parts and features to ensure its proper and safe use. Review these before using your air purifier.

REPLACEMENT PARTS

Item Part No.(US) Part	No.(CA)
Composite Filter 7010	02102 7010021	02
Power Adapter 70100	2101 701002101

To order a replacement part, call 1-877-531-7321 (US) / 1-844-608-3081 (CA) or order from www.kenmorefloorcare.com.

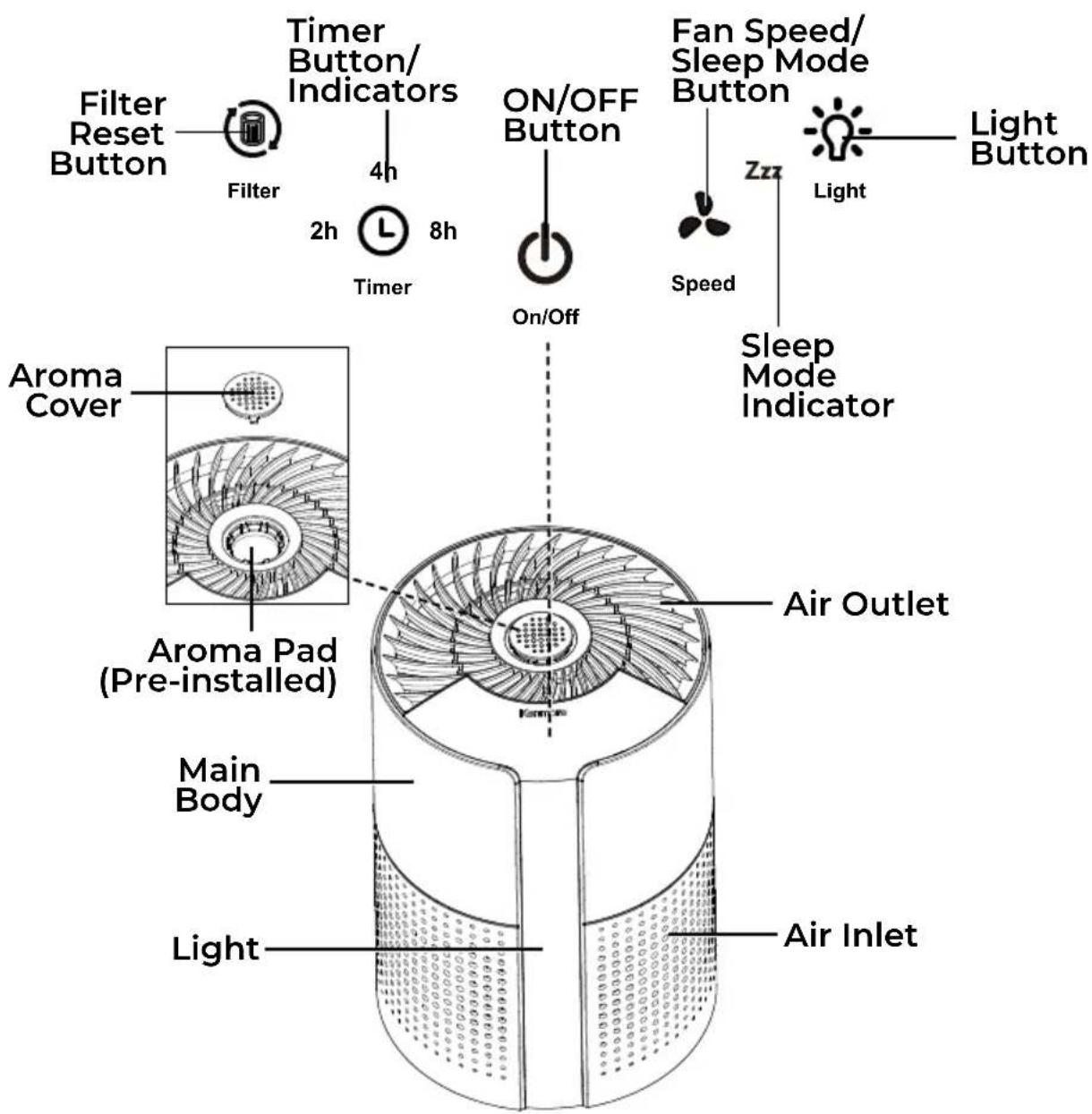

Filter Reset Button Filter Timer Button/Indicators 4h 2h Timer 8h ON/OFF Button Fan Speed/Sleep Mode Button Zzz Light On/Off Speed Sleep Mode Indicator Light Button Aroma Cover Aroma Pad (Pre-installed) Main Body Light Air Outlet Air Inlet

PARTS AND FEATURES

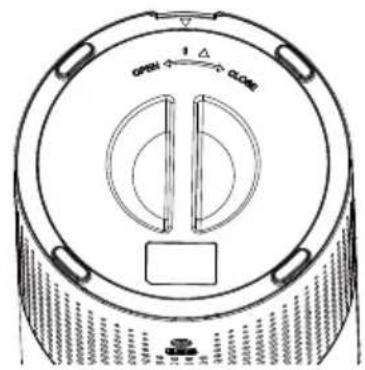

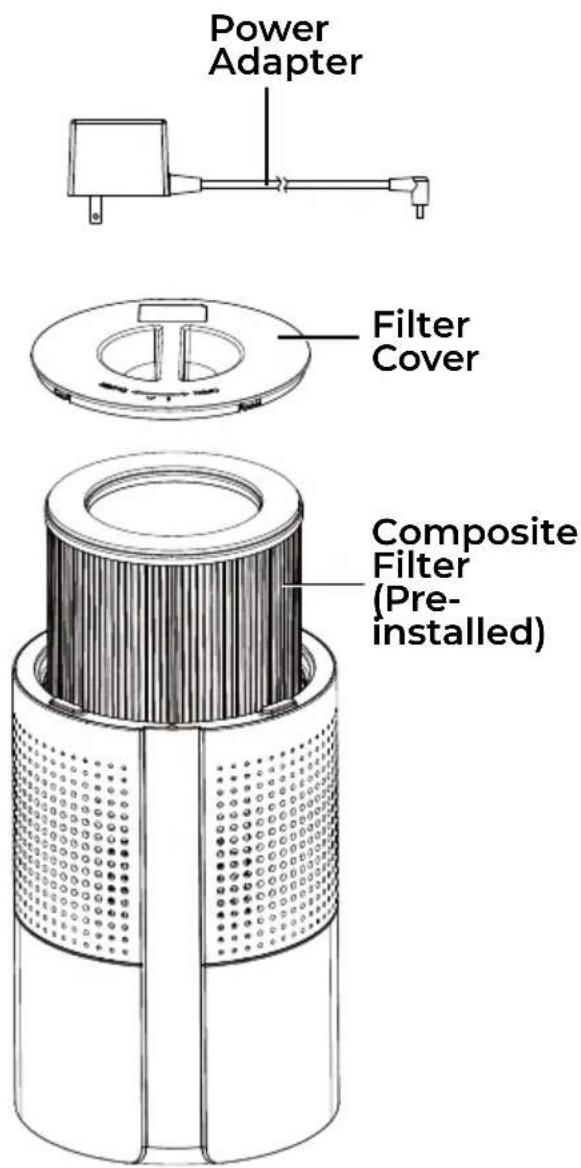

Power Adapter Filter Cover Composite Filter (Pre-installed)

NOTE: The pre-filter, HEPA filter, and activated carbon filter are combined in the composite filter.

• Pre-filter: Intercept hair, fiber fleece, large particles, dander, etc.
• High Efficiency HEPA Filter: Filter out particles as small as 0.3 microns, such as PM2.5, smoke, pollen, etc.
• Activated Carbon Filter: Purify gaseous harmful pollutants.

Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury. CAUTION statements alert you to such dangers as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling the air purifier, check the PACKING LIST (page 2). Use this list to verify that you have received all the components of your new Kenmore air purifier.

WARNING

Electrical Shock Hazard

DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury. To reduce the risk of electric shock, do not expose to rain.

CAUTION

The included filter is placed inside the air purifier. Make sure the plastic packaging on the filter is removed and the filter is installed correctly before use.

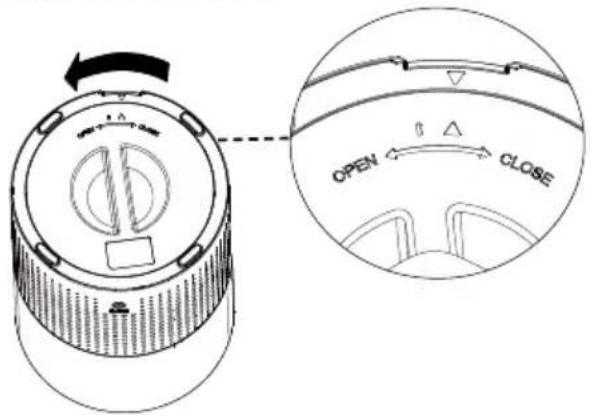

1. Flip the air purifier over. Twist the filter cover counterclockwise and remove it.

OPEN CLOSE

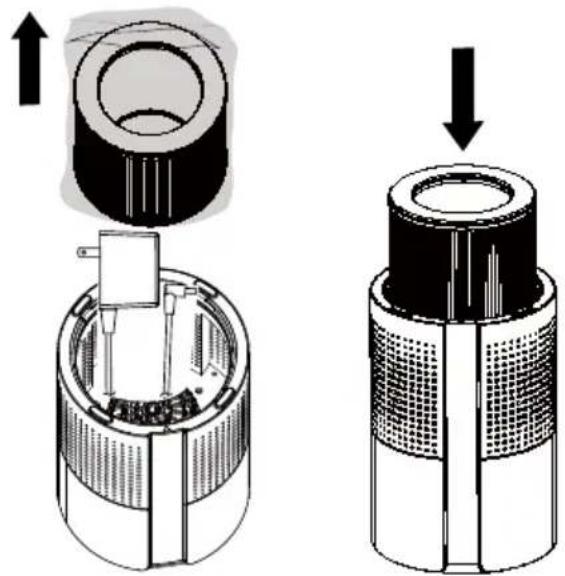

1. Remove the plastic packaging from the filter and take out the power adapter, then place the filter back into the air purifier.

NOTE: The power adapter comes stored inside the air purifier filter.

Diagram showing two views of a mechanical component with internal structure and directional arrows (no text or symbols)

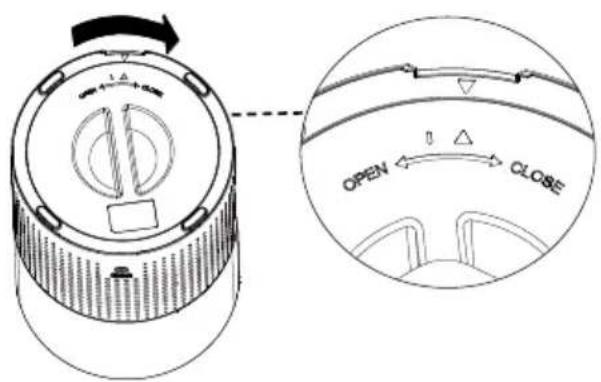

1. Replace the filter cover. Make sure the triangle on the filter cover aligns with the triangle on the bottom edge of the air purifier. Then twist clockwise to lock.

OPEN CLOSE

ASSEMBLY INSTRUCTIONS

1. Flip the air purifier back. Insert the power adapter into the power port on the lower part of the air purifier.

Power Port

OPERATING INSTRUCTIONS

USING THE AIR PURIFIER

1. When using the air purifier, keep it away from anything that would block airflow, such as curtains.

2. Plug the power adapter into the outlet. When powered on, the buzzer makes a "Di" sound. The ON/OFF button glows a red light. Timer button is in dim light. The air purifier is in the standby state.

3. Tap to turn on the air purifier. The fan will default to the first speed setting. The light of the air purifier will illuminate and can be switched between seven colors.

4. To adjust fan speed, tap to switch between all three speeds and the sleep mode.

5. Tap to turn off the air purifier. A "Di" sound will be heard. The ON/OFF button will turn red and the timer button is in dim light. The air purifier enters into the standby state.

CONTROLS & DISPLAY

ON/OFF Button

Tap ⏻ to turn on/off the air purifier.

• In the standby state, ON/OFF button glows red. Tapping the button will turn on the air purifier. The ON/OFF button, fan speed button and light button light up. Timer button and filter reset button are in dim light.
• In the working state, tapping ⏻ will turn off the air purifier. The air purifier enters into the standby state.
• When the air purifier is turned off but still plugged in, to turn it on again, it will remember its previous speed and color settings.

Fan Speed/Sleep Mode Button

Tap 🍻 to adjust fan speed between I, II, III and then sleep mode.

• Fan speed III is the loudest, but cleans air the quickest.
• For best results, or to address a specific air quality issue such as smoke, run the air purifier at high speed (level III) for 15–20 minutes before using a lower speed.
• To effectively clean air, keep windows and doors closed while the air purifier is on.
• When switching to sleep mode, all other button lights will shut off. Only the sleep mode indicator Zzz will illuminate.

After 10 seconds, the sleep mode indicator light will shut off.

- Tapping any button will wake up the sleep mode indicator. Tapping any button again will exit the sleep mode.

Light Button

Tap 🙏 to set your desired color.

- When the air purifier is plugged in and turned on, the light of the air purifier will illuminate and can be changed between seven colors. Tapping ⚙️ will set one color.

- Tapping 🙏 again will turn off the light and all buttons.

- Tapping any button will wake up the light button.

- When the air purifier is turned off but still plugged in, to turn it on again, it will display a blue light for 3 seconds, and then show its previous color setting.

Child Lock

This function prevents settings from being accidentally changed.

• In the working state, press and hold the Light button and the Fan Speed button for more than 3 seconds at the same time, the child lock function will activate.
• When child lock is activated, all buttons become unresponsive except for Light and Fan Speed. These two buttons will flash for 3 seconds to signal the child lock is on.

CONTROLS & DISPLAY

- Press the Light button and Fan Speed button at the same time for 3 seconds to exit the child lock state. All other buttons can now be used.

4h

2h 8h Timer Button/Indicators

Tap Ⓛ to manually set a timer for 2, 4, or 8 hours.

- The corresponding timer indicator 2h, 4h or 8h will light up when active.

- Once the timer has finished, the air purifier will automatically turn off.

- To cancel a timer, tap Ⓛ until all timer indicators are off.

• Fan speed can be changed at any time while the timer is on.

- The timer will restart if the time is changed.

Filter Reset Button

- The filter life is about 6 months. When the remaining filter life is less than 200 hours, the Filter Reset indicator will flash red to remind users to replace the filter until the filter life is reset.

- Filter life reset: When the Filter Reset indicator flashes red, replace with a new filter (page 14). Turn on the air purifier. Press and hold the Filter Reset button for more than 3 seconds to reset the Filter Reset button. The Filter Reset indicator will be in dim light again.

NOTE: When the remaining filter life is more than 200 hours, the Filter Reset Button cannot be operated. Only a "Di" sound will be heard.

- Forced Filter Life Reset: Within 30 seconds of powering on, in the standby state, press and hold the ON/OFF Button and Filter Reset Button at the same time for more than 5 seconds. All indicators of the buttons will flash for 6 times to indicate that the filter life is reset. The air purifier will enter standby state.

Aroma Cover

The option to add an essential oil to the air purifier is available if needed.

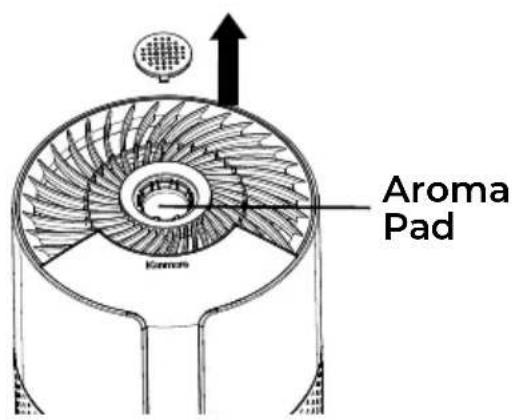

1. Open the aroma cover on the top of the air purifier.

Aroma Pad Kanoma

1. Add the essential oil on the aroma pad inside the air purifier.

2. Replace the aroma cover.

AIR PURIFIER MAINTENANCE AND CARE

Always follow all safety precautions when performing maintenance to the air purifier.

WARNING

Electrical Shock and Personal Injury Hazard

Disconnect the power adapter cord from electrical supply before servicing or cleaning the air purifier. Failure to do so could result in electrical shock or personal injury.

CLEANING AND MAINTENANCE

NOTE: The machine must be unplugged before cleaning.

1. Cleaning the main body.

1) Use a soft cloth to wipe down main body.
2) Use a soft cloth and mild detergent to remove tough stains.

NOTE: Do not scratch the main body with hard objects during maintenance. Please operate according to the instructions and do not damage the machine parts when removing the filter covers.

1. Replacing the filter.

1) The filter life may vary depending on the environment and fan speed. The filter may need to be replaced if there is increased noise when the air purifier is on, decreased airflow, unusual odors, or the filter is visibly clogged.

2) When the surface of the outer pre-filter is dusty, cleaning it with soft cloth can extend the filter life.
3) The filter is recommended to be replaced when the Filter Life indicator flashes.

NOTE: The filter lifespan may be shorter or longer based upon fan speed, run time and environment.

Please dispose the used filters as combustible rubbish.

CLEANING & REPLACING THE FILTER

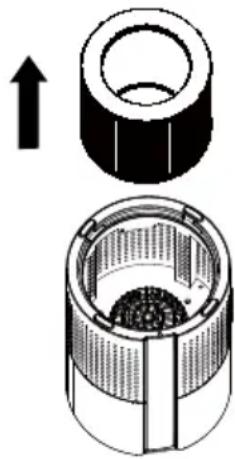

1. Unplug the air purifier. Flip the unit over and remove the filter cover (see ASSEMBLY INSTRUCTIONS).
2. Remove the filter from the air purifier.

Technical illustration of a cylindrical mechanical component with an upward arrow indicating motion (no text or symbols present)

1. The outer surface of the filter should be cleaned every 2–4 weeks to increase the efficiency and extend the life of the filter. Clean the outer surface of the filter using a soft cloth to remove hair, dust, and large particles.

NOTE: Do not clean the filter with water or other liquids.

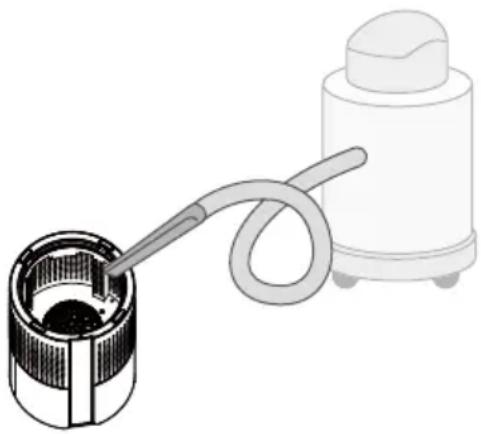

1. Clean out any remaining dust or hair inside the air purifier using a vacuum hose. Do not use water or liquids to clean the air purifier.

2. If required, replace with a new filter. Unwrap the new filter from the packaging. See page 7 for instructions on how to order a new filter.

3. Replace the cleaned or new filter into the air purifier (see ASSEMBLY INSTRUCTIONS).

4. Replace the filter cover.

5. Plug in the air purifier. Reset the filter reset button (see Filter Reset Button section).

Diagram of a mechanical device with a coiled cable and a cylindrical housing (no text or symbols)

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any service needed, other than maintenance described in this Use & Care Guide, should be performed by a qualified service agent.

WARNING

Disconnect electrical supply before performing maintenance to the air purifier. Failure to do so could result in electrical shock or personal injury.

PROBLEM POSSIBLE CAUSE SOLUTION
Air purifier will not turn on or respond to button controls.	Connection problem.	Make sure that the power adapter is fully inserted into the power port on the lower part of air purifier and is also plugged into the wall outlet.
	Filter cover is not placed properly.	Re-install the filter and the filter cover correctly.
	Defective wall outlet.	Check with a good appliance or lamp. Be sure the power adapter plug is fully plugged into a good wall outlet.
	The power adapter is damaged.	Call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
Fresh air cannot be delivered smoothly from the air outlet.	The plastic packaging on the new filter has not been removed.	Remove the plastic packaging.
	The air outlet of the air purifier is blocked by foreign objects.	Remove the foreign objects.

TROUBLESHOOTING

Poor air purification quality.	Low fan speed. Tap	to change fan speed.
	The air inlet or outlet is blocked by foreign objects.	Remove the foreign objects.
	Room size and outside air quality may affect air purifier cleaning ability.	Air purification may take longer if room is larger than 348 sq. ft. Close doors and windows while using the air purifier.
	The composite filter needs to be replaced.	Replace the filter (See page 7 for instructions on how to order a new filter).
Abnormal noises during operation.	The plastic packaging on the new filter has not been removed.	Remove the plastic packaging.
	The air purifier is not placed on a level surface during operation.	Make sure the air purifier is operating on a hard, flat, level surface.
	The air inlet or outlet is blocked by foreign objects.	Remove the foreign objects.
	The composite filter needs to be replaced.	Replace the filter. See page 7 for instructions on how to order new filters.
	Foreign object may be inside the air purifier.	Stop using the air purifier and call 1-877-531-7321 (US) / 1-844-608-3081 (CA) for assistance.
Strange odor coming from the air purifier.	The composite filter needs to be cleaned or replaced.	Clean the filter or replace if necessary.
	High humidity.	Avoid using in an area with high humidity.

TABLA DE CONTENIDOS

Cleva North America, Inc., Greenville SC 29607

PIEZAS Y CARACTERÍSTICAS

OPEN CLOSE

Diagram of a mechanical component with two views showing internal structure and directional arrows (no text or symbols)

INSTRUCCIONES DE ENSAMBLAJE

OPEN CLOSE

open 1 Δ close

Cross-sectional diagram of a mechanical component showing top and side views with no text or symbols

Illustration of a vacuum cleaner emitting liquid from a cylindrical container (no text or symbols)

Cleva North America, Inc., Greenville SC 29607

PIÈCES ET FONCTIONNALITÉS

OPEN CLOSE

open 1 Δ close

Cross-sectional diagram of a mechanical component showing top and side views with no text or symbols

Illustration of a mechanical device with a coiled cable and a cylindrical component inserted into a housing (no text or symbols)
