USER MANUAL DXGNR7000 DEWALT

If you have questions or comments, contact us.

1-888-431-6871 • dewalt.com

INSTRUCTION MANUAL

DEWALT®

Generator DXGNR 7000

WARNING

To reduce the risk of injury, read and follow these instructions before operating product.

WARNING

California Proposition 65. Engine exhaust and some of its constituents are known to the state of California to cause cancer, birth defects, and other reproductive harm.

(000004)

WARNING

California Proposition 65. This product contains or emits chemicals known to the state of California to cause cancer, birth defects, and other reproductive harm.

(000005)

Safety 1

Safety Guidelines and Definitions ....1

Safety Rules ....1

Accessories 3

Service Information ....4

Repairs 4

Free Warning Label Replacement ....4

Assembly 5

Unpacking 5

Install Accessory Kits ....5

Battery Replacement/Connection ....5

Emissions Information 6

Operation 7

Know the Generator ....7

Connection Plugs 8

How to Use the Generator ....8

Know Generator Limits 9

Wattage Reference Guide 9

Before Starting Generator ....10

Starting Pull Start Engines 11

Starting Electric Start Engines 11

Manual Start 12

Generator Shut Down 12

Low Oil Level Shutdown System 12

Charging the Battery (electric start units only) 12

Maintenance 13

Maintenance Recommendations ....13

Maintenance Schedule 13

Product Specifications ....13

Preventive Maintenance ....14

Engine Maintenance ....14

Battery Replacement/Connection 15

Valve Clearance 15

Inspect Spark Arrester Screen (CARB models) ....15

Storage 16

Troubleshooting ....17

This page intentionally left blank.

Safety Guidelines and Definitions

! DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

000657

This instruction manual contains information important for you to know and understand so that your generator may properly, safely, and effectively be applied and operated. All operators, users and subsequent owners of this generator must read and understand all instructions before operating the generator. Save these instructions for future reference.

To help you recognize information important to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS, we use the symbols below.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result

in minor or moderate injury.

NOTICE:

Indicates a practice not related to personal injury which, if not avoided, may

result in property damage.

Safety Rules

SPARK ARRESTING MUFFLER

Certain States and Jurisdictions require that engine driven equipment be fitted with spark arresting mufflers. Depending on the generator model, spark-arresting mufflers may or may not be fitted. If spark-arresting mufflers are required for your location and the generator muffler is not spark arresting, contact your local dealer for instructions for a retrofit.

SPARK ARRESTOR

If the product will be used around flammable materials, such as agricultural crops, forests, brush, grass, or other similar items, then an approved spark arrester should be installed and is legally required in the State of California. The California statutes requiring a spark arrester are Sections 13005(b), 4442 and 4443. Spark Arresters are also required on some U.S. Forest Service land and may also be legally required under other statutes and ordinances. An approved spark arrester is provided and is also available from our product dealers, or may be ordered from DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286. 1-888-431-6871.

EXHAUST EMISSION CONTROL SYSTEM

The exhaust emission control system for this generator complies with the standards set forth by the California Air Resources Board (CARB) and the Environmental Protection Agency (EPA). The respective engine manufacturers administer warranties for the exhaust emission system. Refer to the engine documentation for warranty information.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

RISK OF ASPHYXIATION

DANGER

DO NOT OPERATE THIS GENERATOR WITHIN AN ENCLOSED AREA.

THE EXHAUST GASES OF THIS GENERATOR EMIT "DEADLY" CARBON MONOXIDE. EXPOSURE TO CARBON MONOXIDE CAN CAUSE CARBON MONOXIDE POISONING, HEADACHES, NAUSEA, SEVERE SICKNESS OR DEATH.

RISK OF ELECTROCUTION OR SHOCK

DANGER

THIS GENERATOR SET PRO- DUCES ELECTRICAL CURRENT.

THEREFORE, SAFETY GUIDELINES MUST BE FOLLOWED. IMPROPER USE OF THIS GENERATOR CAN RESULT IN ELECTROCUTION, INJURY OR DEATH. DO NOT OPERATE, SERVICE OR REPAIR THIS GENERATOR UNLESS FULLY QUALIFIED TO DO SO.

DANGER

THIS GENERATOR SET IS DESIGNED TO BE OPERATED IN

DRY CONDITIONS AND FOR OUTDOOR AREAS ONLY. NEVER OPERATE THIS GENERATOR INDOORS. NEVER OPERATE THIS GENERATOR IN RAIN, SNOW, SLEET OR GENERALLY WET CONDITIONS. DAMAGE TO THE GENERATOR, BODILY INJURY, OR DEATH COULD RESULT FROM ELECTROCUTION.

DANGER

IF THIS GENERATOR IS CONNECTED TO A BUILDING, HOME, BUSINESS, OR ANY OTHER ELECTRICAL CIRCUIT NORMALLY FED BY UTILITY POWER, STEPS MUST BE TAKEN TO INSURE THE GENERATOR OUTPUT AND THE UTILITY POWER ARE POSITIVELY ISOLATED. THIS IS TYPICALLY ACCOMPLISHED THROUGH THE USE OF A PROPERLY INSTALLED TRANSFER SWITCH. FAILURE TO ISOLATE THE UTILITY AND GENERATOR ELECTRICAL SYSTEMS WILL RESULT IN GENERATOR DAMAGE AND COULD RESULT IN INJURY OR DEATH TO UTILITY WORKERS DUE TO THE BACKFEED OF ELECTRICITY.

DANGER

TO AVOID BACKFEEDING INTO UTILITY SYSTEMS, ISOLATION OF THE RESIDENCE ELECTRICAL SYSTEM IS REQUIRED. BEFORE CONNECTION OF A GENERATOR TO THE RESIDENCE ELECTRICAL SYSTEM TURN OFF THE MAIN SWITCH. BEFORE MAKING PERMANENT CONNECTIONS A DOUBLE THROW TRANSFER SWITCH MUST BE INSTALLED. TO AVOID ELECTROCUTION OR PROPERTY DAMAGE, ONLY A TRAINED ELECTRICIAN SHOULD CONNECT GENERATOR TO RESIDENCE ELECTRICAL SYSTEM. CALIFORNIA LAW REQUIRES ISOLATION OF THE RESIDENCE ELECTRICAL SYSTEM BEFORE CONNECTING A GENERATOR TO RESIDENCE ELECTRICAL SYSTEMS. TEMPORARY CONNECTION NOT RECOMMENDED DUE TO BACKFEEDING.

ALWAYS FOLLOW LOCAL CODES AND REGULATIONS THAT APPLY TO THE INSTALLATION OF ANY ITEM THAT CONCERNS THIS PRODUCT.

1. NFPA 70 - National Electrical Code.
2. NFPA 37 - Standard for Installation and Use of Stationary Combustible Engines.
3. Agricultural Wiring handbook of Farm Standby Electric Power.

DANGER

DO NOT MODIFY OR MISAPPLY YOUR GENERATOR SET. OPERA-TION OF THE GENERATOR OTHER THAN INTENDED COULD RESULT IN GENERATOR SET DAMAGE, BODILY INJURY OR EVEN DEATH FROM ELECTROCUTION.

DANGER

NEVER TOUCH A RECEPTACLE OR BARE WIRE. ELECTROCUTION OR SHOCK COULD RESULT.

RISK OF FIRE OR EXPLOSION

WARNING

ALWAYS INSURE THAT AT LEAST 6 FEET OF CLEARANCE ON ALLSIDES OF THE GENERATOR ARE MAINTAINED DURING OPERATION. FAILURE TO MAINTAIN PROPER CLEARANCE COULD DAMAGE YOUR GENERATOR AND POTENTIALLY LEAD TO FIRES.

WARNING

GASOLINE IS HIGHLY FLAMMABLE AND ITS VAPORS ARE EXPLOSIVE. FAILURE TO PROPERLY HANDLE GASOLINE CAN RESULT IN EXPLOSION OR FIRE. DO NOT PERMIT SMOKING WITHIN 50FT OF THIS GENERATOR SET.

WARNING

NEVER REFILL A HOT GENERATOR WITH FUEL. NEVER REFILL THE GENERATOR WHILE IT IS RUNNING. SPILLAGE ONTO THE ENGINE OR GENERATOR COULD RESULT IN AN EXPLOSION OR FIRE. ALWAYS ALLOW THE GENERATOR SET TO COOL BEFORE REFILLING.

WARNING

DO NOT STORE THIS GENERATOR SET IN ANY LOCATION WHEREGASOLINE FUMES COULD POTENTIALLY COME INTO CONTACT WITH SPARKS, A PILOT LIGHT OR AN OPEN FLAME. IMPROPER STORAGE OF THIS GENERATOR COULD RESULT IN AN EXPLOSION OR FIRE.

WARNING

INSPECT THE SPARK ARRESTOR PERIODICALLY. SPARK ARRES-TORS ARE REQUIRED IN SOME AREAS AND MINIMIZE THE RISK OF FIRE FROM SPARKS EMMITTED FROM THE EXHAUST.

WARNING

DO NOT OPERATE THIS GENERATOR IF THE AMBIENT TEMPERA-104°F/40°C.

TURE EXCEEDS

WARNING

DO NOT EXCEED THE RATED CAPACITY OF THE GENERATOR. THE TOTAL ELECTRICAL LOADS AT EACH OUTLET MUST BE ADDED TO DETERMINE THE TOTAL ELECTRICAL LOAD. THE TOTAL LOAD MUST NOT EXCEED THE RATED CAPACITY OF THE GENERATOR. IF THE DRIVEN APPARATUS DOES NOT LIST WATTAGE, BUT ONLY AMPERAGE, WATTAGE MAY BE DETERMINED BY MULTIPLYING AMPERAGE TIMES VOLTAGE (WATTS = AMPS X VOLTS).

GENERAL SAFETY

Always follow National and Local electrical codes pertaining to generators. All local and national codes supersede rules or information provided in this manual.

WARNING

REFER TO LOCAL AND NATIONAL ELECTRICAL CODES TO DETER-MINE GROUNDING REQUIREMENTS AS THIS CAN VARY PER APPLICATION. THE GENERATOR IS GROUNDED INTERNALLY NEUTRAL TO FRAME. WHERE APPLICATIONS REQUIRE EXTERNAL GROUNDING, A CONNECTION MUST BE MADE FROM THE GENERATOR TO A SOLID EARTH GROUND. A CONTINUOUS LENGTH OF SPLICE-FREE COPPER CABLE, NO SMALLER THAN 6 AWG, SHALL BE USED FOR THE CONDUCTOR.

• When moving or transporting this generator, take proper precautions to avoid fuel spillage. Further, always use common sense when lifting this generator. An adequate number of people and proper lifting methods must be used.
• Do not cover the generator while it is running or immediately after shutdown. Always allow time to cool down before covering.
• Do not operate this generator unless it is in good mechanical and electrical condition.
• Always keep hands, body parts, hair and clothing well away from the rotating parts of the generator.
• Do not start this generator with connected devices turned "ON". Always make sure that connected devices are disconnected from the generator or turned "OFF" before starting the generator.
• Generators operating on job or construction sites may be required to have GFCI (Ground Fault Circuit Interrupters) receptacles.
• Use only grounded extension cords in good condition and make sure that the wire size within the extension cords is of sufficient size to safely carry the surge output of the generator.
• Never handle extension cords or electrical circuits if standing in water or if standing in a damp area.

RISK OF BODILY INJURY

WARNING

KEEP HANDS, BODY PARTS, HAIR AND CLOTHING AWAY FROM THE

"HOT" PARTS OF THE GENERATOR SET DURING AND AFTER OPERATION. THE EXHAUST SYSTEM, AND THE GENERATOR IN GENERAL, CAN REMAIN VERY HOT EVEN AFTER BEING SHUT DOWN.

WARNING

DO NOT TAMPER WITH THE ENGINE-GOVERNED SPEED. THE

GENERATOR OPERATES AT A NOMINAL SPEED OF 3600 RPM. INCREASES IN SPEED OVER THE 3600 RPM NOMINAL WILL INCREASE THE CHANCE OF PERSONAL INJURY DUE TO ROTATIONAL STRESSES ON THE ROTATING MEMBERS. OPERATION OF THE GENERATOR AT SPEEDS BELOW THE NOMINAL 3600 RPM COULD CAUSE DAMAGE TO THE GENERATOR OR DRIVEN APPARATUS DUE TO LOW VOLTAGE OUTPUT.

BATTERY SAFETY

WARNING

STORAGE BATTERIES PRODUCE AND RELEASE EXPLOSIVE

HYDROGEN GAS WHEN CHARGING. THE SLIGHT-EST SPARK, FLAME OR BURNING ASH CAN IGNITE THESE GASES CAUSING A SERIOUS EXPLOSION THAT COULD RESULT IN BLINDNESS OR OTHER SERIOUS INJURIES. WEAR EYE PROTECTION, RUBBER APRON AND RUBBER GLOVES WHEN WORKING AROUND A BATTERY OR PERFORMING BATTERY SERVICE. BATTERY FLUID IS AN EXTREMELY CAUSTIC SULFURIC ACID, WHICH CAN CAUSE SEVERE BURNS. ALWAYS DISCONNECT THE NEGATIVE (-) BATTERY CABLE FROM THE BATTERY BEFORE PERFORMING BATTERY SERVICE OR BEFORE PERFORMING ANY ELECTRICAL SERVICE ON THE GENERATOR OR ENGINE.

ENVIRONMENTAL PROTECTION

CAUTION

INSPECT THE EXHAUST SYSTEM REGULARLY TO ENSURE IT IS

FUNCTIONING PROPERLY. LEAKY EXHAUST SYSTEMS WILL INCREASE NOISE LEVELS.

CAUTION

DIRECT THE "LOUD" SIDES OF THE GENERATOR INTO OPEN SPACES

AVOIDING REVERBERATION FROM WALLS OR BUILDINGS THUS AMPLIFYING THE SOUND.

NOTICE:

NEVER DRAIN OR DISPOSE OF ENGINE OIL INTO THE GROUND OR

DOMESTIC WASTE WATER SYSTEMS.

RAISING OR SUSPENDING GENERATOR

WARNING

Always use cables, chains or straps rated at 2000 lbs. working load or

more to raise or suspend generator.

WARNING

Never operate generator while suspended. This could cause property

damage, serious injury or death.

WARNING

Make sure all fasteners in frame and lifting hook are tight.

NOTICE:

Make sure the generator is in a level position before raising or suspending to

prevent damage.

Accessories

Recommended accessories for use with your tool are available for purchase from your local dealer or authorized service center. If you need assistance in locating any accessory for your tool, please contact DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-888-431-6871 or visit our website www.dewalt.com.

• 006948 - Lifting Eye Kit

Service Information

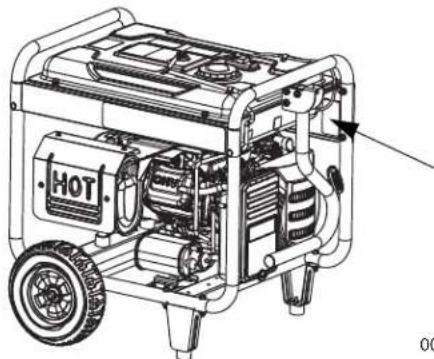

Please have the following information as shown listed on the data label available for all service calls:

Model No.
Serial No.
Date of Purchase
Place of Purchase

Technical line drawing of a portable gasifier with motor and wheels (no text or symbols)

Repairs

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by a DEWALT factory service center, a DEWALT authorized service center or other qualified service personnel. Always use identical replacement parts.

Free Warning Label Replacement

If your warning labels become illegible or are missing, call 1-888-431-6871 for a free replacement.

▲ DANGER Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home or garage, EVEN IF doors and windows are open. Only use OUTSIDE and far away from windows, doors, and vents. ▲ DANGER Utiliser un générateur à l'intérieur PEUT VOUS TUER EN QUELQUES MINUTES. Les gaz d'échappement du générateur contiennent du monoxide de carbone. C'est un gaz toxique invisible et inodore. • NE JAMAIS utiliser à l'intérieur d'une maison ou d'un garage, MÊME SI les portes et les fenêtres sont ouvertes. • Utiliser UNIQUEMENT à l'EXTÉRIEUR et loin des fenêtres, portes et ventilations. ▲ PELIGRO Si usa un generador en interiores, MORIRA EN POCOS MINUTOS. El escape del generador contiene monóxido de carbono. Es un veneno qui no tiene olor ni se puede ver. • NUNCA lo use dentro de una casa o garaje, AUN si las puertas y ventanas están abiertas. • Solo isels EN EXTERIORES y lejos de ventanas, puertas y ductos de ventilación.

• Remove all packaging material.
• Remove separate accessory kit box.
• Remove generator from carton.

Accessories

Check contents against the list in Table -1. If any parts are missing or damaged, or if any problems occur during assembly, call the Generator Helpline at 1-888-431-6871.

Table -1. Contents

Item Qty.
Generator 1
Owner's Manual 1
Product Registration Card(English, Spanish, and French)	3
Service and Emissions Warranty 1
Liter SAE 30 Oil 1
Battery Charger (electric start models) 1
Wheel (A) 2
Frame Foot (B) 2
Handle Assembly (C)	1
Axle (D)	1
Hardware Bag
Rubber Foot (E)	2
Hair Pin (F)	2
1/2" Flat Washer (G)	2
M8 Carriage Bolt (H)	2
M8 Bolt (long) (J)	4
M8 Hex Flange Nut (K)	8
Axle Bracket (L) 2
M6 bolt (M)	4

Install Accessory Kits

The generator requires some minor assembly before use.

Tools Required

Obtain the following tools:

- Two 8mm, 10mm, 12mm and 13mm box wrenches

Install Wheel Kit (If Equipped)

The wheels are specially designed to enhance portability.

NOTICE:

The wheels are not intended for over-the-road use.

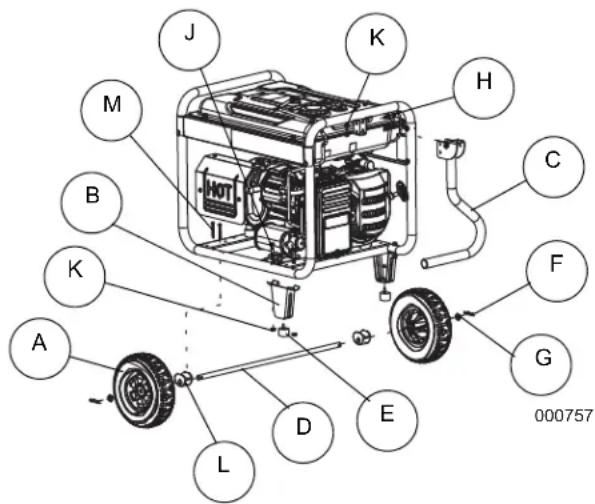

1. Slide M6 bolt (M) through holes in frame rail. Install into axle bracket (L).
2. Slide axle (D) through axle bracket (L), wheel (A), and into 12 " flat washer (G). Insert hair pin (F) through axle (D).

J K H M B C F K A D E G 000757 L

Install frame foot and rubber bumpers.

1. Slide rubber foot (E) through frame foot (B). Install locking flange nuts (K).
2. Slide M8 bolt (J) through holes in frame rail. Slide frame foot (B) onto M8 bolts. Install locking flange nuts (K).

Install Handle

1. Slide M8 carriage bolt (H) through handle bracket and handle assembly (C) by first inserting the bolt through the square hole in the handle assembly (C).
2. Install M8 flange nut (K).

Battery Replacement/Connection

NOTICE:

The battery shipped with the generator has been fully charged. A battery may

lose some charge when not in use for prolonged periods of time. If battery is unable to crank engine, plug in the 12V charger included in the accessory box (see Charging the Battery (electric start units only)

IMPORTANT: Running the generator does not charge battery.

WARNING

Accidental Start-up. Disconnect the negative battery cable, then the posi-

tive battery cable when working on unit. Failure to do so could result in death or serious injury.

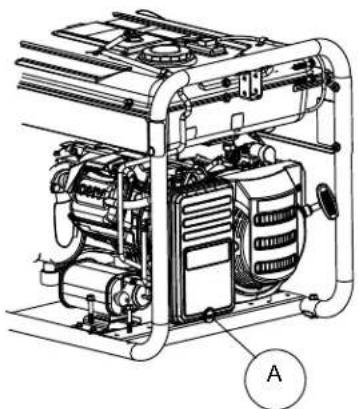

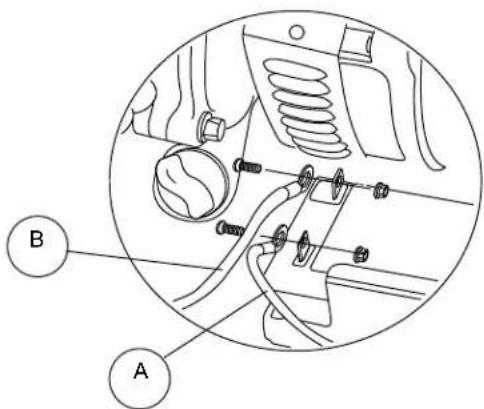

1. Disconnect negative (-) battery terminal FIRST (A).
2. Disconnect positive (+) battery terminal SECOND (B).

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a vehicle or automotive component.

000224

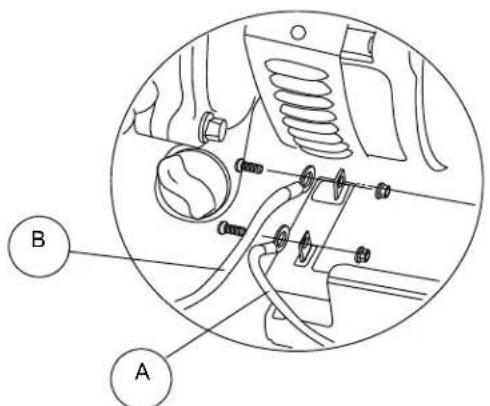

1. Install new battery. Install hold down bracket and tighten.
2. Connect positive (+) battery terminal (B) FIRST (B). Slide rubber boot over connection hardware.
3. Connect negative (-) battery terminal (A) SECOND.
4. Slide rubber boot over connection hardware.

Emissions Information

The Environmental Protection Agency and California Air Resource Board for generators certified to CA standards requires that this generator comply with exhaust and evaporative emission standards. Locate the emissions compliance decal on the engine to determine what standards the generator meets, and to determine which warranty applies. This generator is certified to operate on gasoline. The emission control system includes the following components (if equipped):

• Air Induction System
- Intake Pipe / Manifold
- Air Cleaner

- Fuel System

• Carburetor
• Fuel Tank / Cap
• Fuel Lines
• Evaporative Vent Lines
• Carbon Canister

- Ignition System

- Spark Plug

- Ignition Module

- Exhaust System

• Exhaust Manifold
• Muffler
• Pulsed Air Valve
  -Catalyst

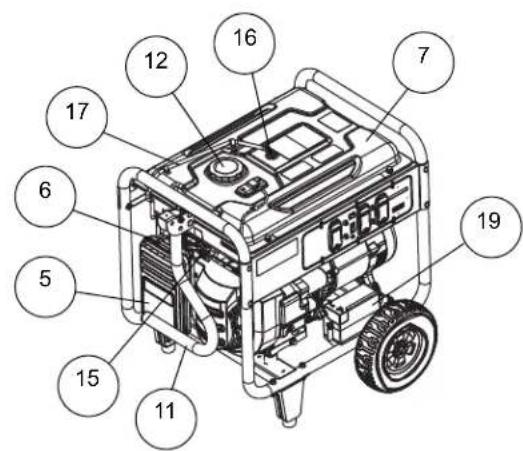

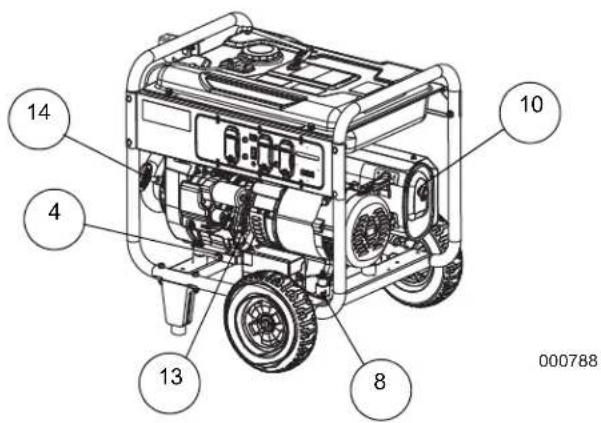

Know the Generator

Carefully read the Owner's Manual and Safety Rules before operating the generator. Save this manual for future reference.

Become thoroughly familiar with the locations of all components.

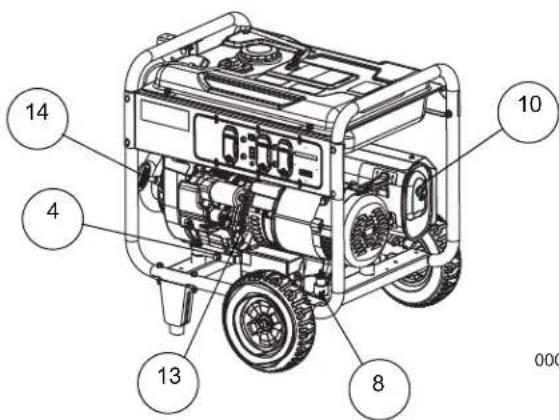

1. 120 Volt AC, 20 Amp GFCI Duplex Outlets – Supplies electrical power for the operation of 120 Volt AC, 20 Amp, single-phase, 60 Hz, electrical lighting, appliance, tool and motor loads. It also provides protection with an integral Ground Fault Circuit Interrupter, complete with a press to TEST and RESET button (NEMA 5-20R).

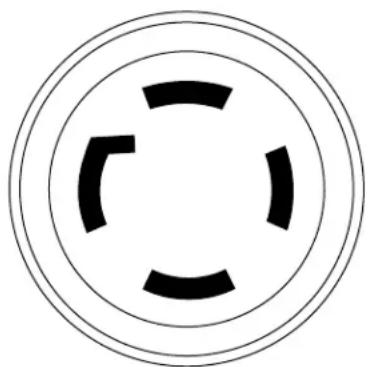

2. 120/240 Volt AC, 30 Amp Locking Receptacle – Supplies electrical power for the operation of 120 and/or 240 Volt AC, 30 Amp, single-phase, 60 Hz, electrical lighting, appliance, tool and motor loads (NEMA L14-30R).
3. Circuit Breakers (AC) – Each receptacle is provided with a push-to-reset circuit breaker to protect the generator against electrical overload.
4. Oil Drain – Use to drain engine oil.
5. Air Filter – Filters intake air as it is drawn into the engine.
6. Choke Lever – Used when starting a cold engine.
7. Fuel Tank – See generator Specifications for tank capacity.

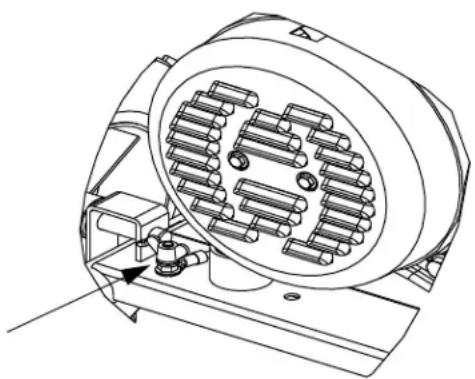

8. Grounding Lug – Ground the generator to an approved earth ground here. See Grounding Generator If Used as Portable for details.
9. Start/Run/Stop Switch - Used to start engine from the starter motor (electric start models only). Must be in Run position to start manually.
10. Muffler – Quiets the engine.
11. Handle - Pivot and retract for storage. Press the spring-loaded button to move handle.
12. Gas Cap – Fuel fill location.

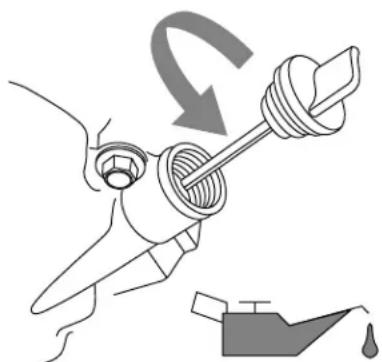

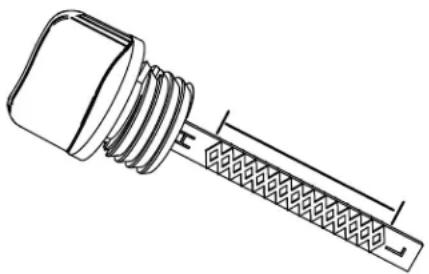

13. Oil Fill – Add and check oil here.
14. Recoil Starter – Use to start engine manually.
15. Fuel Shut Off – Valve between fuel tank and carburetor.
16. Roll Over Valve – Passes fuel vapors to the engine airbox.
17. Recovery Hose – Install between the carbon canister and the roll over valve (if equipped).
18. Battery Charger Input - This receptacle allows the capability to recharge the 12 volt DC storage battery provided with the 12 Volt Adaptor Plug Charger which is included in the Accessory Box. Located behind the battery charger input is a 1.50 Amp in-line fuse which is inside the control panel to protect the battery (electric start models only).
19. Battery – Powers the electric starter (electric start models only).
20. Wattage Meter – Indicates the amount of power being used from the generator.
21. Runtime Meter – Displays the total unit run hours for a short duration before providing available run time given the load currently applied, and remaining fuel volume.

NOTICE:

Operate unit on level ground for runtime meter accuracy.

1. Idle Control Switch – Operates the engine at normal (high) rpm when there is an electrical load present and automatically reduces the engine to a lower rpm when a load is not present. The system can also be turned off to operate the engine at a higher rpm at all times.

2 22 1 290 DC-WALL DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WALL DC-WORK DC-WOLL DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WORK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WMARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WARK DC-WASK

Technical diagram of a portable gas generator with numbered components for identification

000786

10 14 4 13 8 000

000788

Connection Plugs

120 VAC, 20 Amp, GFCI Duplex Receptacle

This is a 120 Volt outlet protected against overload by a 20 Amp push-to-reset circuit breaker. Use each socket to power 120 Volt AC, single phase, 60 Hz electrical loads requiring up to a combined 2400 watts (2.4 kW) or 20 Amps of current. Use only high quality, well-insulated, 3-wire grounded cord sets rated for 125 Volts at 20 Amps (or greater).

Keep extension cords as short as possible to prevent voltage drop and possible overheating of wires.

Pure electrical circuit lines without any symbols

000203

120/240 VAC, 30 Amp Receptacle

Use a NEMA L14-30 plug with this receptacle (rotate to lock/unlock). Connect a suitable 4-wire grounded cord set to the plug and to the desired load. The cord set should be rated for 250 Volts AC at 30 Amps (or greater). Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps or 240 Volt AC, 60 Hz, single phase loads requiring up to 7200 watts (7.2 kW) of power at 30 Amps. The outlet is protected by two 25 Amp (5.5 kW) or two 30 Amp (6.5 kW) push-to-reset or one 30 Amp 2-pole toggle switch or two 30 Amp push button to reset (6.5/7.5 kW) circuit breaker.

Circular diagram with concentric rings and a central cross-like pattern, no text or symbols present.

000204

How to Use the Generator

If there are any problems operating the generator, call the generator helpline at 1-888-431-6871.

DANGER

Never operate in an enclosed area or indoors! NEVER use in the home, in a

vehicle, or in partly enclosed areas such as garages, EVEN IF doors and windows are open! ONLY use outdoors and far from open windows, doors, vents, and in an area that will not accumulate deadly exhaust.

DANGER

The engine exhaust fumes contain carbon monoxide, which cannot be

seen or smelled. The gas is poisonous, and if breathed in sufficient concentrations, can cause unconsciousness or even death.

DANGER

Adequate, unobstructed flow of cooling and ventilating air is critical to gen-

erator operation. Do not alter the installation or permit even partial blockage of ventilation provisions, as this can seriously affect safe operation of the generator. The generator MUST be operated outdoors.

DANGER

The exhaust system must be properly maintained. Do nothing that might

render the exhaust system unsafe or in noncompliance with any local codes and/or standards.

DANGER

Always use a battery operated carbon monoxide alarm indoors. Be sure it is

properly installed according to the manufacturers instructions.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

000657

Grounding Generator If Used as Portable

An equipment ground connects the generator frame components to ground terminals on the AC output receptacles. This allows the generator to be used as a portable without grounding the frame as specified in NEC 250.34. Neutral bonded to frame.

Special Requirements

There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator.

Consult a qualified electrician, electrical inspector, or the local agency having jurisdiction:

• In some areas, generators are required to be registered with local utility companies.
• If the generator is used at a construction site, there may be additional regulations which must be observed.

Connecting to Building Electrical System

Use a manual transfer switch when connecting directly to a building electrical system. Installation and connections must be performed by a qualified electrician and in strict compliance with all national and local electrical codes and laws.

Technical line drawing of an electric motor with internal stator and mounting bracket (no text or symbols)

000227

Know Generator Limits

Overloading a generator in excess of its rated wattage capacity can result in damage to the generator and to connected electrical devices. Observe the following rules to avoid overloading:

• Add up the total wattage of all electrical devices to be connected at one time. The total should NOT be greater than the wattage capacity of the generator.
• The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances and motors can usually be found on a data label or decal affixed to the device.
• If the appliance, tool or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).

• Some electric motors, such as induction types, require about three times more watts of power for starting than for running. This power surge lasts only a few seconds. To allow for high starting wattage when selecting electrical devices to connect to the generator, proceed as follows:

• Figure the watts needed to start the largest motor.

• Add to that figure the running watts of all other connected loads.
• See Subsection Wattage Reference Guide for help in determining how many items the generator can operate at one time.

NOTICE:

All figures are approximate. See data label on appliance for actual wattage

requirements.

Wattage Reference Guide

Device	Running Watts
*Air Conditioner (12,000 Btu)	1700
*Air Conditioner (24,000 Btu)	3800
*Air Conditioner (40,000 Btu)	6000
Battery Charger (20 Amp)	500
Belt Sander (3")	1000
Chain Saw	1200
Circular Saw (6-1/2")	800 to 1000
*Clothes Dryer (Electric)	5750
*Clothes Dryer (Gas)	700
*Clothes Washer	1150
Coffee Maker	1750
*Compressor (1 HP)	2000
*Compressor (3/4 HP)	1800
*Compressor (1/2 HP)	1400
Curling Iron	700
*Dehumidifier	650
Disc Sander (9")	1200
Edge Trimmer	500
Electric Blanket	400
Electric Nail Gun	1200
Electric Range (per element)	1500
Electric Skillet	1250
*Freezer	700
*Furnace Fan (3/5 HP)	875
*Garage Door Opener	500 to 750
Hair Dryer	1200
Hand Drill	250 to 1100
Hedge Trimmer	450
Impact Wrench	500
Iron	1200
*Jet Pump	800
Lawn Mower	1200
Light Bulb	100
Microwave Oven	700 to 1000
*Milk Cooler	1100
Oil Burner on Furnace	300
Oil Fired Space Heater (140,000 Btu)	400
Oil Fired Space Heater (85,000 Btu)	225
Oil Fired Space Heater (30,000 Btu)	150
*Paint Sprayer, Airless (1/3 HP)	600
Paint Sprayer, Airless (handheld)	150
Radio	50 to 200
*Refrigerator	700
Slow Cooker	200
*Submersible Pump (1-1/2 HP)	2800
*Submersible Pump (1 HP)	2000
*Submersible Pump (1/2 HP)	1500
*Sump Pump	800 to 1050
*Table Saw (10")	1750 to 2000
Television	200 to 500
Toaster	1000 to 1650
Weed Trimmer	500

* Allow 3 times the listed watts for starting these devices.

Before Starting Generator

Add engine oil and gasoline to the generator before operation. Proceed as follows:

Add Engine Oil

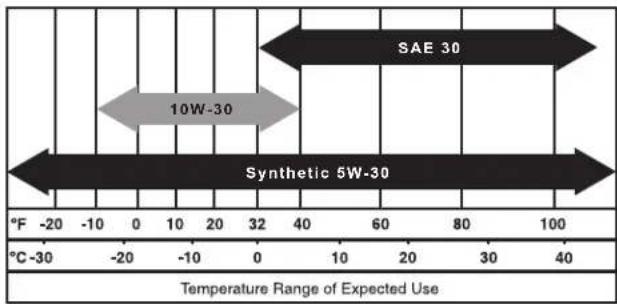

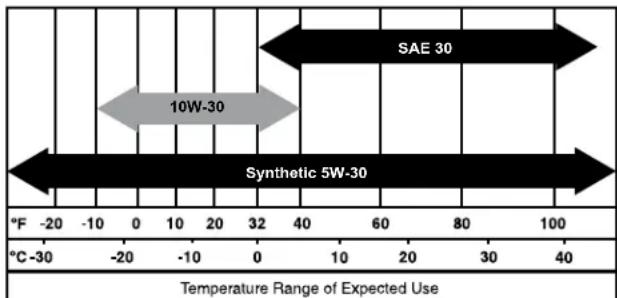

All oil should meet minimum American Petroleum Institute (API) Service Class SJ, SL or better. Use no special additives. Select the oil's viscosity grade according to the expected operating temperature (also see chart).

• Above 40^ F, use SAE 30
• Below 40^ F and down to 10^ F, use 10W-30
• All temperatures, use synthetic 5W-30

Use petroleum based oil for engine break-in before using synthetic oil.

SAE 30 10W-30 Synthetic 5W-30 °F -20 -10 0 10 20 32 40 60 80 100 °C-30 -20 -10 0 10 20 32 40 60 80 100 Temperature Range of Expected Use

000399

CAUTION

Any attempt to crank or start the engine before adding the recom-

mended type and quantity of engine oil can result in engine damage.

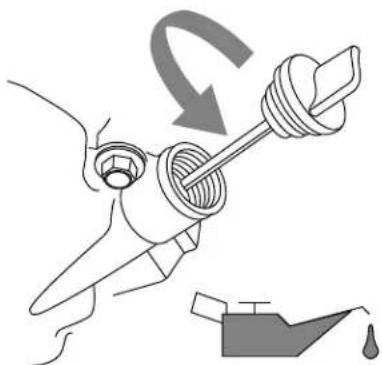

Inspect engine oil level prior to each use, or every 8 hours of operation.

1. Place generator on a level surface.
2. Clean area around oil fill.
3. Remove oil fill cap and wipe dipstick clean.

Illustration of a hand turning a valve with a circular arrow indicating rotation (no text or symbols)

000115

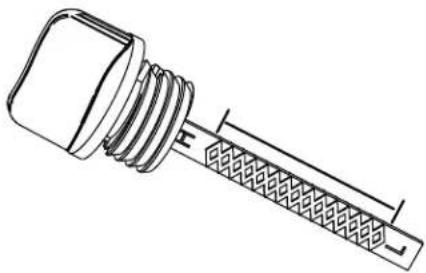

1. Screw dipstick into filler neck. Verify oil level is within safe operating range as shown.

Technical line drawing of a connector with threaded tip and internal mesh structure (no text or symbols)

000116

1. Add recommended engine oil as necessary.
2. Replace oil fill cap and hand-tighten.

NOTICE:

Some units have more than one oil fill location. It is only necessary to use one

oil fill point.

Fuel

DANGER

Never fill fuel tank indoors. Never fill fuel tank when engine is running or

hot. Do not spill gasoline on a hot engine. Allow engine to cool before filling fuel tank.

DANGER

Do not overfill fuel tank. Always leave room for fuel expansion. If fuel tank is

overfilled, fuel can overflow onto a hot engine causing FIRE or EXPLOSION. Wipe up any spilled fuel immediately.

DANGER

Gasoline is highly FLAMMABLE and its vapors are EXPLOSIVE. Never

permit smoking, open flames, sparks or heat in the vicinity while handling gasoline.

Fuel requirements are as follows:

• Clean, fresh, unleaded gasoline.
  • Minimum rating of 87 octane/87 AKI (91 RON).
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol premium fuel is recommended).

- DO NOT use E85.

- DO NOT use a gas oil mix.

- DO NOT modify engine to run on alternate fuels. Stabilize fuel prior to storage.

1. Verify unit is OFF and cooled for a minimum of two minutes prior to fueling.

2. Place unit on level ground in a well ventilated area.

3. Clean area around fuel cap and remove cap slowly.

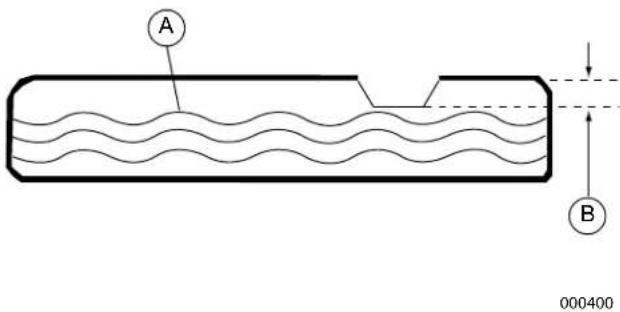

4. Slowly add recommended fuel (A). Do not fill above lip (B).
5. Install fuel cap.

A B 000400

NOTICE:

Allow spilled fuel to evaporate before starting unit.

IMPORTANT: It is important to prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. See the Storage section. Never use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.

Starting Pull Start Engines

CAUTION

Equipment and property damage. Disconnect electrical loads prior to start-

ing or stopping unit. Failure to do so could result in equipment and property damage.

1. Unplug all electrical loads from the unit's receptacles before starting engine.
2. Place generator on a level surface.

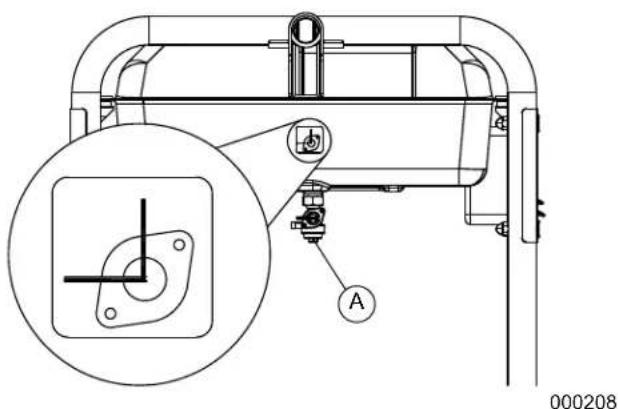

3. Open the fuel shut-off valve (A).

Technical diagram of a mechanical assembly with labeled component A and circular detail view

1. Turn engine Run/Stop switch (B) to Run (manual start only).

B DEWALT LWY RACUMBER LEWATO DEWALT LWY RACUMBER LEWATO DEWALT LWY RACUMBER LEWATO 0000 000787

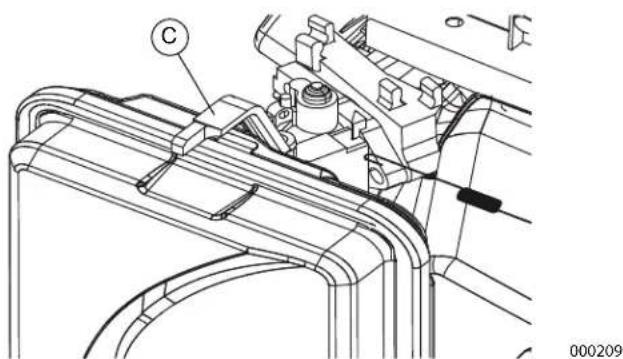

1. Slide engine choke (C) to Full Choke position (left).

Technical line drawing of a mechanical assembly with labeled component (C), no readable text or symbols present

1. Firmly grasp recoil handle and pull slowly until increased resistance is felt. Pull rapidly up and away.
2. When engine starts, move choke knob to 1/2-choke position until engine runs smoothly, then fully into Run position. If engine falters, move choke back to 1/2-choke position until engine runs smoothly, then to Run position.
3. If engine fires, but does not continue to run, move choke lever to Full Choke and repeat starting instructions.

IMPORTANT: Do not overload the generator. Also, do not overload individual panel receptacles. These outlets are protected against overload with push-to-reset type circuit breakers. If amperage rating of any circuit breaker is exceeded, that breaker opens and electrical output to that receptacle is lost. Read "Don't Overload the Generator" carefully.

Starting Electric Start Engines

CAUTION

Equipment and property damage. Disconnect electrical loads prior to start-

ing or stopping unit. Failure to do so could result in equipment and property damage.

1. Unplug all electrical loads from the unit's receptacles before starting the engine.
2. Place generator on a level surface.
3. Open the fuel shut-off valve.
4. Move engine choke knob outward to Full Choke.
5. Press and hold Start/Run/Stop switch in the Start position. When engine starts, release the switch to the Run position.
6. When engine starts, move choke knob to 1/2 choke position until engine runs smoothly, then fully to RUN position. If engine falters, move choke knob back to 1/2 choke position until engine runs smoothly, then move to Run position.

Manual Start

The generator is equipped with a manual recoil starter which may be used if the battery is discharged.

NOTICE:

The switch must be in the Run position. Use one of the generator's receptacle

outlets along with the included battery charger to charge the battery while the generator is running.

To start manually:

1. Firmly grasp the recoil handle and pull slowly until increased resistance is felt.
2. Pull rapidly up and away to start engine.
3. Follow the same choke sequence.

NOTICE:

If engine fires, but does not continue to run, move choke lever to Full Choke and

repeat starting instructions.

IMPORTANT: Do not overload generator or individual panel receptacles. These outlets are overload protected with push-to-reset circuit breakers. If amperage rating of any circuit breaker is exceeded, that breaker opens and electrical output to that receptacle is lost. Read Know Generator Limits carefully.

Generator Shut Down

CAUTION

Equipment and property damage. Disconnect electrical loads prior to start-

ing or stopping unit. Failure to do so could result in equipment and property damage.

1. Shut off all loads and unplug electrical loads from generator panel receptacles.
2. Let engine run at no-load for several minutes to stabilize internal temperatures of engine and generator.
3. Move Run/Stop switch to Stop.
4. Close fuel valve.

NOTICE:

Under normal conditions, close fuel valve and allow generator to run carbure-

tor bowl out of fuel. For emergencies, switch to Stop.

Low Oil Level Shutdown System

The engine is equipped with a low oil level sensor that shuts down the engine automatically when the oil level drops below a specified level. The engine will not run until the oil has been filled to the proper level.

If the engine shuts down and there is sufficient fuel, check engine oil level.

Charging the Battery (electric start units only)

WARNING

Explosion. Batteries emit explosive gases while charging. Keep fire and

spark away. Wear protective gear when working with batteries. Failure to do so could cause death or serious injury.

WARNING

Risk of burns. Batteries contain sulfuric acid and can cause severe chemi-

cal burns. Wear protective gear when working with batteries. Failure to do so could cause death or serious injury.

NOTICE:

The battery shipped with the generator has been fully charged. A battery may

lose some of its charge when not in use for prolonged periods of time. If the battery is unable to crank the engine, plug in the 12V charger included in the accessory box. RUNNING THE GENERATOR DOES NOT CHARGE THE BATTERY.

Use battery charger plug to keep the battery charged and ready for use. Battery charging should be done in a dry location.

1. Plug charger into Battery Charger Input jack, located on the control panel. Plug wall receptacle end of battery charger into 120 Volt AC wall outlet.
2. Unplug battery charger from wall outlet and control panel jack when generator is to be in use.

NOTICE:

Do not use the battery charger for more than 48 hours at one charge.

BATTERY

CHARGER

INPUT

000423

Maintenance

Maintenance Recommendations

Regular maintenance will improve performance and extend generator life. See a qualified dealer for service.

Generator warranty does not cover items subjected to operator abuse or negligence. To receive full warranty value, operator must maintain generator as instructed in this manual, including proper storage as detailed in Winter Storage and Long Term Storage.

NOTICE:

Call 1-888-431-6871 with questions about component replacement.

Maintenance Schedule

Follow maintenance schedule intervals, whichever occurs first according to use.

NOTICE:

Adverse conditions will require more frequent service.

NOTICE:

All required service and adjustments should be each season as detailed in the

following chart.

Maintenance Task	As Needed	At Each Use	Every Season	Every 100 Hours	Every 200 Hours or Yearly
Clean Exterior Surfaces	X
Check Engine Oil Level		X
Change Engine Oil *			X	X
Clean/Replace Air Filter **			X		X
Replace Spark Plug			X
Check/Adjust Valve Clearance ***			X
* Change engine oil afterfirst 30 hoursof operation. Change every month when operating under heavy load or in high temperatures.** Clean air filter more often under dirty or dusty conditions. Replace parts if they cannot be adequately cleaned.*** Check valve clearance afterfirst 50 hoursof operation and adjust if necessary.

Product Specifications

Generator Specifications
Rated Power	7.0 kW**
Surge Power 8.75 kW
Rated AC Voltage 120/240
Rated AC LoadCurrent @ 240VCurrent @ 120V	29.2 Amps**58.3 Amps**
Rated Frequency 60 Hz @3600 RPM
Phase Single Phase
Unit Weight	90.7 kg (200 lb.)
Unit Dimensions	L = 692mm (27.25") x W = 696mm (27.4") x H = 724mm (28.5")
** Operating Temperature Range: -18 deg. C (0 deg. F) to 40 Deg. C (104 Deg. F). When operated above 25 deg. C (77 deg. F) there may be a decrease in power.** Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperature, altitude, engine condition, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 6°C (10°F) above 16°C (60°F) ambient temperature.
Engine Specifications
Displacement 420cc
Spark Plug Part Number	0J00620106
Spark Plug Type NHSP LDF7TC
Spark Plug Gap 0.028-0.031 inch or (0.70-0.80 mm)
Gasoline Capacity	28.4 L (7.5 U.S. gallons)
Oil Type	See Chart in Before Starting Generator
Oil Capacity 1.0 Liters (1.06 qt.)
Run Time (50% Load) 10.5 Hours
Battery	12 VDC, 10 Amp Hour

Preventive Maintenance

Dirt or debris can cause improper operation and equipment damage. Clean generator daily or before each use. Keep area around and behind muffler free from combustible debris. Inspect all cooling air openings on generator.

WARNING

Do not insert any object through the air cooling slots. Generator can start

at any time and could result in death, serious injury and unit damage.

• Use a damp cloth to wipe exterior surfaces clean.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum to pick up loose dirt and debris.
• Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect cooling air slots and openings on generator. These openings must be kept clean and unobstructed.

NOTICE:

DO NOT use a garden hose to clean generator. Water can enter engine fuel

system and cause problems. If water enters generator through cooling air slots, some water will be retained in voids and crevices of rotor and stator winding insulation. Water and dirt buildup on generator internal windings will decrease insulation resistance of windings.

Engine Maintenance

WARNING

Accidental start-up. Disconnect spark plug wires when working on unit. Fail-

ure to do so could result in death or serious injury.

Engine Oil Recommendations

All oil should meet minimum American Petroleum Institute (API) Service Class SJ, SL or better. Use no special additives. Select the oil's viscosity grade according to the expected operating temperature (also see chart).

• Above 40^ , use SAE 30
• Below 40^ and down to 10^ , use 10W-30
• All temperatures, use synthetic 5W-30

Use petroleum based oil for engine break-in before using synthetic oil.

SAE 30 10W-30 Synthetic 5W-30 °F -20 -10 0 10 20 32 40 60 80 100 °C-30 -20 -10 0 10 20 32 40 60 80 100 Temperature Range of Expected Use

000399

CAUTION

Any attempt to crank or start the engine before adding the recom-

mended type and quantity of engine oil can result in engine damage.

Inspect engine oil level prior to each use, or every 8 hours of operation.

1. Place generator on a level surface.
2. Clean area around oil fill.
3. Remove oil fill cap and wipe dipstick clean.

Illustration of a hand holding a tool with a curved arrow indicating rotation (no text or symbols)

000115

1. Screw dipstick into filler neck. Verify oil level is within safe operating range as shown.

Technical line drawing of a mechanical connector or connector assembly (no text or symbols)

000116

1. Add recommended engine oil as necessary.
2. Replace oil fill cap and hand-tighten.

NOTICE:

Some units have more than one oil fill location. It is only necessary to use one

oil fill point.

Change Engine Oil

WARNING

Accidental start-up. Disconnect spark plug wires when working on unit. Fail-

ure to do so could result in death or serious injury.

When using generator under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently.

NOTICE:

Don't pollute. Conserve resources. Return used oil to collection centers.

Change oil while engine is still warm from running, as follows:

1. Place generator on a level surface.
2. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
3. Clean area around oil fill, and oil drain plug.
4. Remove oil fill cap.
5. Remove oil drain plug and drain oil completely into a suitable container.

6. Install oil drain plug and tighten securely.

7. Slowly pour oil into oil fill opening until oil level is between L and H marks on dipstick. DO NOT overfill.

8. Install oil fill cap, and finger tighten.
9. Wipe up any spilled oil.
10. Properly dispose of oil in accordance with all applicable regulations.

Air Filter

Engine will not run properly and may be damaged if run with a dirty air filter. Service air filter more frequently in dirty or dusty conditions.

To service air filter:

1. Turn knob (A) and remove air filter cover.
2. Wash in soapy water. Squeeze filter dry in clean cloth (DO NOT TWIST).
3. Clean air filter cover before re-installing it.

NOTICE:

To order a new air filter, contact the nearest authorized service center at 1-888-

431-6871.

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

000809

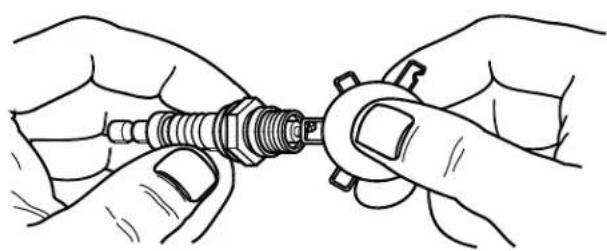

Service Spark Plug

To service spark plug:

1. Clean area around spark plug.
2. Remove and inspect spark plug.
3. Inspect electrode gap with wire feeler gauge and reset spark plug gap to 0.028 - 0.031 in (0.70 - 0.80 mm).

Line drawing of two hands adjusting a mechanical component (no text or symbols present)

000211

NOTICE:

Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use

ONLY recommended replacement plug. See Specifications.

1. Install spark plug finger tight, and tighten an additional 3/8 to 1/2 turn using spark plug wrench.

Battery Replacement/Connection

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time. If battery is unable to crank engine, plug in the 12V charger included in the accessory box (see the Charging a Battery section).

IMPORTANT: RUNNING THE GENERATOR DOES NOT CHARGE BATTERY.

WARNING

Accidental Start-up. Disconnect the

negative battery cable, then the posi-

tive battery cable when working on unit. Failure to do so could result in death or serious injury.

1. Disconnect negative (-) battery terminal FIRST (A).
2. Disconnect positive (+) battery terminal SECOND (B).

B A

000224

1. Install new battery. Install hold down bracket and tighten.
2. Connect positive (+) battery terminal (B) FIRST (B). Slide rubber boot over connection hardware.
3. Connect negative (-) battery terminal (A) SECOND.
4. Slide rubber boot over connection hardware.

Valve Clearance

IMPORTANT: If uncomfortable about doing this procedure, or the proper tools are not available, take generator to the nearest service center to have valve clearance adjusted.

Check valve clearance after the first fifty-hours of operation. Adjust as necessary.

• Intake - 0.09 ± 0.02mm (cold), (0.004" ± 0.001" inches)
• Exhaust - 0.14 ± 0.02mm (cold), (0.006" ± 0.001" inches)

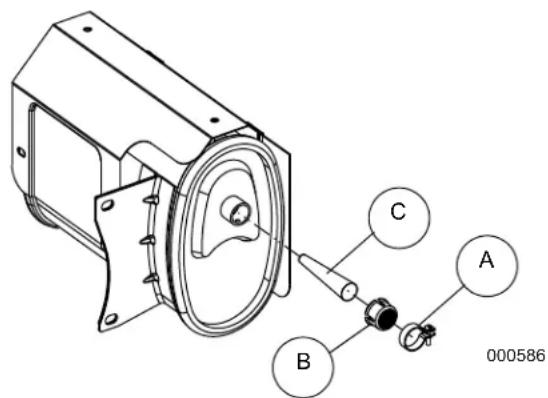

Inspect Spark Arrester Screen (CARB models)

WARNING

Hot Surfaces. When operating

machine, do not touch hot surfaces.

Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire.

1. Loosen clamp (A) and remove screw.
2. Inspect screen (B) and replace if torn, perforated or otherwise damaged. If screen is not damaged, clean with commercial solvent.
3. Replace spark arrestor cone (C) and screen (B). Secure with clamp and screw.

C A B 000586

Storage

General

It is recommended to start and run the generator for 30 minutes, every 30 days. If this is not possible, refer to the following list to prepare unit for storage.

• DO NOT place a storage cover on a hot generator. Allow unit to cool to room temperature before storage.
• DO NOT store fuel from one season to another unless properly treated.
• Replace fuel container if rust is present. Rust in fuel will cause fuel system problems.
• Cover unit with a suitable protective, moisture resistant cover.
• Store unit in a clean and dry area.
• Always store generator and fuel away from heat and ignition sources.

Prepare Fuel System/Engine for Storage

Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer. If fuel stabilizer is added to fuel system, prepare and run engine for long term storage. Run engine for 10-15 minutes to circulate stabilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months.

NOTICE:

If fuel has not been treated with fuel stabilizer, it must be drained into an

approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

1. Change engine oil.
2. Remove spark plug.
3. Pour tablespoon (5-10cc) of clean engine oil or spray a suitable fogging agent into cylinder.

WARNING

Vision Loss. Eye protection is required to avoid spray from spark

plug hole when cranking engine. Failure to do so could result in vision loss.

1. Pull starter recoil several times to distribute oil in cylinder.
2. Install spark plug.
3. Pull recoil slowly until resistance is felt. This will close valves so moisture cannot enter engine cylinder. Gently release recoil.

Change Oil

Change engine oil before storage. See, subsection Change Engine Oil.

Troubleshooting

PROBLEM CAUSE CORRECTION
Engine is running, but AC output is not available.	1. Circuit breaker OPEN.2. Poor connection or defective cord set.3. Connected device is bad.4. Fault in generator.5. GFCI receptacle is OPEN (if equipped).	1. Reset circuit breaker.2. Check and repair.3. Connect another device that is in good condition.4. Contact Independent Authorized Service Dealer.5. Correct ground fault and press reset button on GFCI receptacle (if equipped).
Engine runs well at no-load, but bogs when load is applied.	1. Short circuit in a connected load.2. Generator is overloaded.3. Engine speed is too slow.4. Shorted generator circuit.	1. Disconnect shorted electrical load.2. See Know Generator Limits.3. Contact Independent Authorized Service Dealer.4. Contact Independent Authorized Service Dealer.
Engine will not start; or starts and runs rough.	1. Fuel shut-off is OFF.2. Dirty air filter.3. Out of fuel.4. Stale fuel.5. Spark plug wire not connected to spark plug.6. Bad spark plug.7. Water in fuel.8. Overchoking.9. Low oil level.10. Excessive rich fuel mixture.11. Intake valve stuck open or closed.12. Engine lost compression.	1. Turn fuel shut-off ON.2. Clean or replace air filter.3. Fill fuel tank.4. Drain fuel tank and fill with fresh fuel.5. Connect wire to spark plug.6. Replace spark plug.7. Drain fuel tank; fill with fresh fuel.8. Set choke to no choke position.9. Fill crankcase to correct level.10. Contact Independent Authorized Service Dealer.11. Contact Independent Authorized Service Dealer.12. Contact Independent Authorized Service Dealer.
Engine shuts down during operation.	1. Out of fuel.2. Low oil level.3. Fault in engine.	1. Fill fuel tank.2. Fill crankcase to correct level.3. Contact Independent Authorized Service Dealer.
Engine lacks power. 1. Load is too high.2. Dirty air filter.3. Engine needs to be serviced.4. Choke is partially closed.	1. Reduce load (see Know Generator Limits).2. Clean or replace air filter.3. Contact Independent Authorized Service Dealer.4. Set choke lever to no choke position.
Engine surges or stumbles. 1. Choke is opened too soon.2. Carburetor is running too rich or too lean.	1. Set choke to halfway position until engine runs smoothly.2. Contact Independent Authorized Service Dealer.

This page intentionally left blank.

Part No. 0L3561 Rev. B 08/31/15 Printed in USA

Specifications are subject to change without notice.

No reproduction allowed in any form without prior written consent from DeWalt.

DEWALT Industrial Tool Co.

701 East Joppa Road

Baltimore, MD 21286

1-888-431-6871

www.dewalt.com

Technical line drawing of a portable gasifier with visible cooling unit and wheels (no text or symbols)

Reparaciones

J K H M B C F K A D E G 000757 L

Technical diagram of a portable gas generator with numbered components for identification

000786

10 14 4 13 8 000788

Pure diagram of abstract geometric shapes without any text, numbers, or symbols

000203

Tomacorriente de 120/240 VCA, 30 A

Circular diagram with concentric rings and a central cross-like pattern, no text or symbols present.

000204

Technical line drawing of an electric motor with visible stator and rotor blades (no text or symbols)

000227

Illustration of a hand turning a valve with a circular arrow indicating rotation (no text or symbols)

000115

Technical line drawing of a mechanical connector or connector assembly (no text or symbols)

000116

Technical diagram of a mechanical assembly with labeled component A and circular detail view

Illustration of a hand turning a valve with a curved arrow indicating rotation (no text or symbols)

000115

Technical line drawing of a connector with threaded end and textured internal structure (no text or symbols)

000116

Technical line drawing of a portable gas generator unit with visible internal components and labeled component A (no text or symbols beyond label)

000809

Line drawing of two hands adjusting a mechanical component (no text or symbols)

000211

Technical diagram of a mechanical device with labeled components A, B, and C, including a pressure gauge symbol.

Almacenamiento

Normas generales

DEWALT Industrial Tool Co.

701 East Joppa Road

MANUEL D'INSTRUCTIONS

DEWALT®

PRODUISENT ET LIBÈRENT DE

L'HYDROGÈNE GAZEUX EXPLOSIF LORS DE LA RECHARGE. LA MOINDRE ÉTINCELLE, FLAMME OU CENDRE BRÛLANTE PEUT ENFLAMMER CES GAZ ET PROVOQUER UNE GRAVE EXPLOSION POUVANT ENTRAÎNER LA CÉCITÉ OU D'AUTRES BLESSURES GRAVES. PORTEZ DES LUNETTES DE PROTECTION, UN TABLIER DE CAOUTCHOUC ET DES GANTS DE CAOUTCHOUC LORSQUE VOUS TRAVAILLEZ PRÈS D'UNE BATTERIE OU LORSQUE VOUS FAITES L'ENTRETIEN DE LA BATTERIE. LE LIQUIDE DE LA BATTERIE EST UN ACIDE SULFURIQUE EXTRÊMEMENT CAUSTIQUE POUVANT CAUSER DE GRAVES BRÛLURES. DÉBRANCHEZ TOUJOURS LE CÂBLE NÉGATIF (-) DE LA BATTERIE AVANT D' EFFECTUER L'ENTRETIEN DE LA BATTERIE OU AVANT DE RÉALISER TOUT ENTRETIEN ÉLECTRIQUE SUR LE GÉNÉRATEUR OU LE MOTEUR.

PROTECTION DE L'ENVIRONNEMENT

MISE EN GARDE

INSPECTEZ LE SYSTÈME

D'ÉCHAPPEMENT

RÉGULIÈREMENT POUR VOUS ASSURER QU'IL FONCTIONNE CORRECTEMENT. LES SYSTÈMES D'ÉCHAPPEMENT QUI FUIENT AUGMENTENT LE NIVEAU DE BRUIT.

MISE EN GARDE

Technical line drawing of a portable electricity generator with visible cooling unit and wheels (no text or symbols)

Réparations

J K H M B C F K A D E G 000757 L

Technical diagram of a portable gas generator with numbered components for identification

000786

10 14 4 13 8 000

000788

Pure electrical circuit lines without any symbols

000203

Prise de courant de 120/240 V c.a., 30 A

Circular diagram with concentric rings and four black curved segments arranged in a cross pattern (no text or symbols)

000204

Technical line drawing of an electric motor with visible stator and rotor blades (no text or symbols)

000227

Illustration of a hand turning a valve with a circular arrow indicating rotation (no text or symbols)

000115

Technical line drawing of a connector with threaded tip and textured internal structure (no text or symbols)

000116

Technical diagram of a mechanical assembly with labeled component A and circular detail view

B DEWALX LPG LPG DEWALX LPG LPG 000787

Technical line drawing of a mechanical assembly with labeled component (C), no readable text or symbols present

000209

Illustration of a hand holding a tool with a curved arrow indicating rotation (no text or symbols)

000115

Technical line drawing of a connector with threaded end and textured internal structure (no text or symbols)

000116

Technical line drawing of a portable industrial machine with visible internal components and labeled component A (no text or symbols beyond label)

000809

Entretien de la bougie

Line drawing of two hands adjusting a mechanical component (no text or symbols)

000211

AVIS :

Technical diagram of a car dashboard with labeled parts A and B, showing wiring and adjustment tools.

000224

DEWALT Industrial Tool Co.

701 East Joppa Road

Baltimore, MD 21286

1-888-431-6871

www.dewalt.com
