Brand	Pando
Model	PI-3110
Product Type	Built-in induction hob
Glass Dimensions (W x D)	520 x 590 mm
Cut-out Dimensions (W x D)	495 x 565 mm
Total Height	60 mm
Glass Thickness	4 mm
Approximate Weight	10 kg
Power Supply	220-240 V ~ 50/60 Hz
Maximum Total Power	7200 W (estimated)
Number of Cooking Zones	3
Zone A (front left)	180 mm, 1500 W / Boost 2100 W
Zone B (rear left)	180 mm, 1500 W / Boost 2100 W
Zone C (right, double ring)	290 mm, 3000 W / Boost 3800 W
Booster Function	Yes, on all zones
Timer	Up to 99 minutes
Safety Lock	Yes, dedicated key
Automatic Safety Shut-off	Yes
Residual Heat Indicator	Yes ("H" display)
Pan Detection	Yes, with error indication
Ceramic Glass Surface	Schott tempered bevelled glass
Control Panel Color	Blue
Care and Cleaning	Ceramic glass cleaner and scraper for burnt residues
Warranty	3 years (subject to conditions)

Frequently Asked Questions - PI-3110 Pando

How to use the Booster function?

To activate Booster, set the desired power level then press the B key. The level automatically increases to maximum (Boost). To deactivate, press B again or set the slider to 0. Booster lasts 10 minutes, then the zone returns to level 9.

How to lock the controls to prevent use by children?

Simultaneously press the - and + keys of the timer for a few seconds until the lock icon appears (Lo). To unlock, repeat the same procedure. The ON/OFF key remains active in case of emergency.

What to do if an error code appears (E1, E2, etc.)?

Note the error code. Turn off the hob and unplug it from the mains for a few minutes. If the error persists, contact Pando technical service. For example, E1 indicates too high voltage, E3 indicates glass overheating.

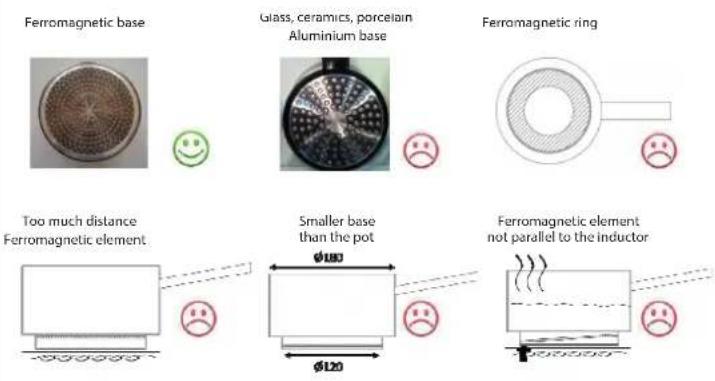

What types of pans are compatible with induction?

Use pans with a ferromagnetic base (steel, cast iron, stainless steel with magnetic base). Check with a magnet: if it sticks to the base, the pan is compatible. Avoid aluminum, copper, glass, and ceramic.

How to clean the ceramic glass without scratching it?

Use a special ceramic glass cleaner and a soft cloth. For burnt residues, gently scrape with a blade scraper (careful on hot surfaces). Never use abrasive pads or products containing sand.

The hob emits a humming noise, is this normal?

Yes, a slight humming is normal due to the induction energy transmission. A clicking sound comes from pan detection. If the noise becomes very loud or abnormal, reduce the power or check the pan.

What is the minimum safety distance above the hob?

Maintain a gap of at least 50 mm between the underside of the hob and any surface or drawer. Ventilation is essential: air inlets and outlets must not be obstructed.

Can I install the hob above an oven?

Yes, provided the oven is equipped with a cooling fan. Maintain a minimum distance of 20 mm between the hob and the oven, and install a thermal separation barrier.

How to use the timer?

Press the timer setting key (clock) to display the time screen. Use the + and - keys to set the duration (max 99 minutes). After confirmation, the screen shows the remaining time. The zone automatically turns off at the end.

What to do if the hob does not turn on?

Check that the appliance is properly plugged in and that the circuit breaker has not tripped. If the controls are locked (display Lo), unlock them. If the problem persists, contact a qualified electrician or Pando technical service.

USER MANUAL PI-3110 Pando

PI-3110 / PI-3111 PI-3150 / PI-3151 PI-3210 / PI-3211

The Global Kitchen Partner

Simple line drawing of a trash bin with no text or symbols

DEL MEDIOAMBIENTE Y TRATAMIENTO DEL RESIDUO

GARANTÍA DEL PRODUCTO....44

Diagram of a steam locomotive emitting smoke from a platform, with no text or symbols present

Olla de hierro

Diagram showing two hand-drawn symbols: a checkmark and an X, likely indicating correct and incorrect states.

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

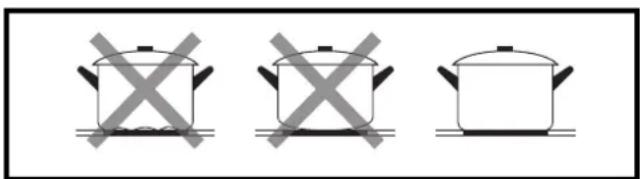

Three identical cooking pots with crossed-out kitchen pan symbols, no text or labels present

Four identical illustrations of a cooking pot with crossed x marks, shown in different positions (no text or symbols)

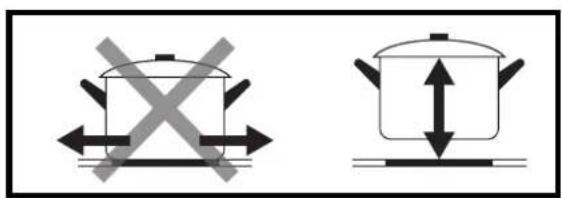

Diagram showing two cooking pots with crossed arrows indicating heating or resistance, likely illustrating a cooking or cooking process.

Pure geometric diagram with concentric circles and alignment markers on a dark background (no text or symbols)

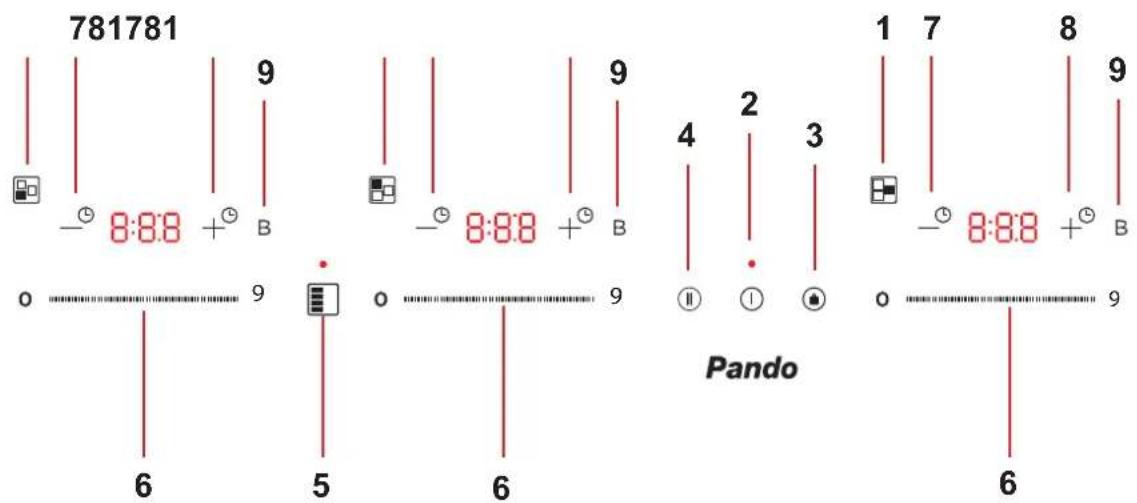

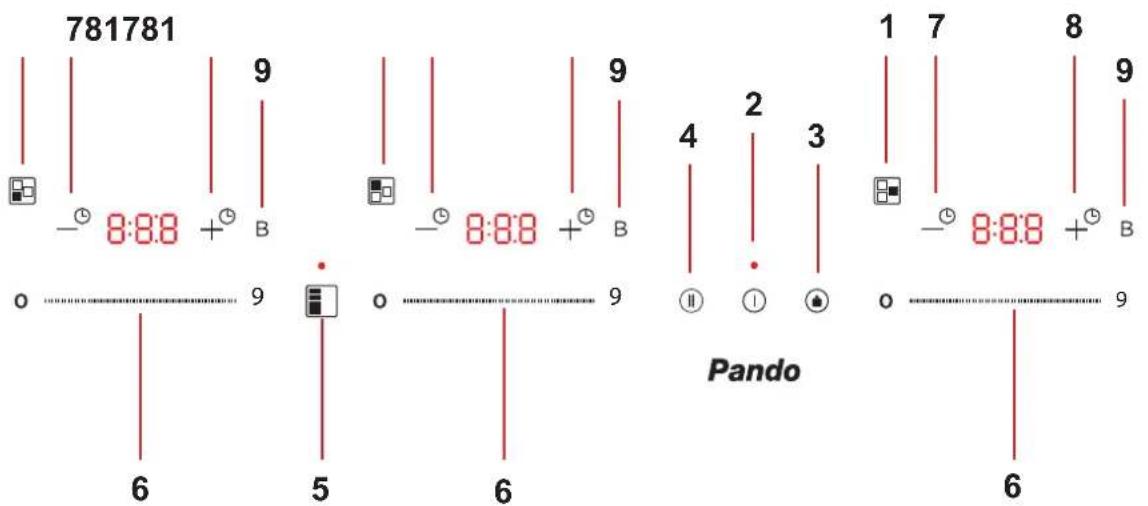

781781 9 - 8:88 + B 0 9 6 5 6 9 Pando 1 7 8 9 - 8:88 + B 0 9 6 6 Pando

Cropped image showing a grid of white geometric symbols and a control panel with numerical values and 'Pands' label at bottom.

TARGET 2003 605 300 605 Panda

1 7 8 9 1 7 8 9 -① 8:8B +① B -① 8:8B +① B 0 9 9 9 4 2 3 ⑪ ① ② Pando 1 7 8 9 1 7 8 9 -① 8:8B +① B -① 8:8B +① B 0 6 5 6 5 6 6 5 6

Line drawing of a cooking pot on a stove with a lid, no text or symbols present

0 9 Power up 0 9 Power down ③

0 9 Power down

0 Power down 9

Nota:

Diagram showing a finger pointing at a control panel and a vertical sequence of numbers on the right.

Simple line drawing of a finger with a circle labeled 'II' above it, no text or symbols present.

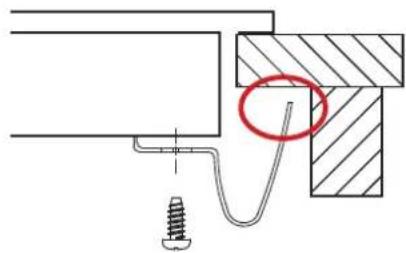

Technical diagram showing a mechanical assembly with a spring and threaded rod, no text or symbols present

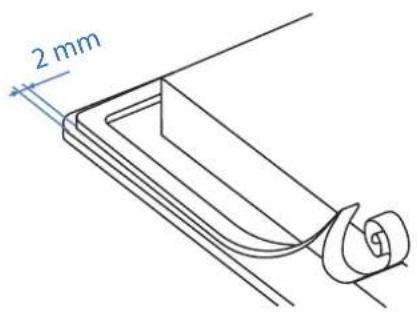

Ventilación

Illustration of a hand using a tool to mark a black cross on a white surface (no text or symbols)

2 mm

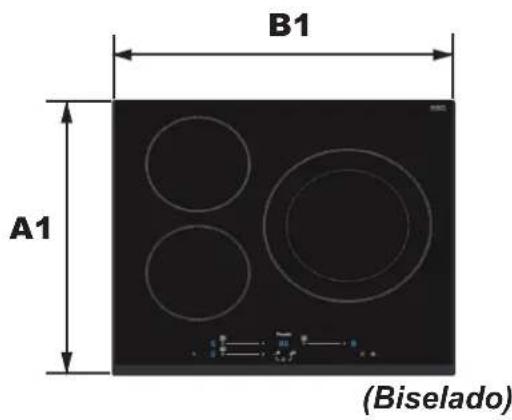

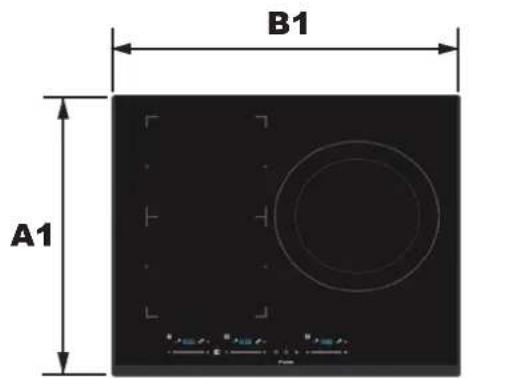

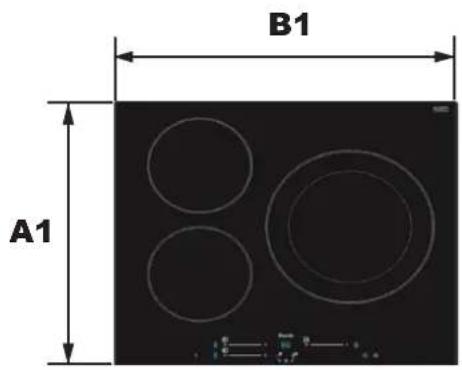

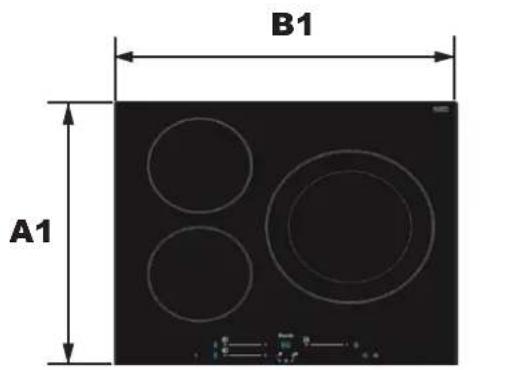

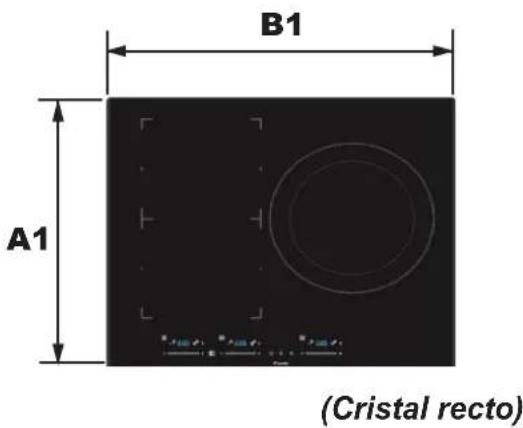

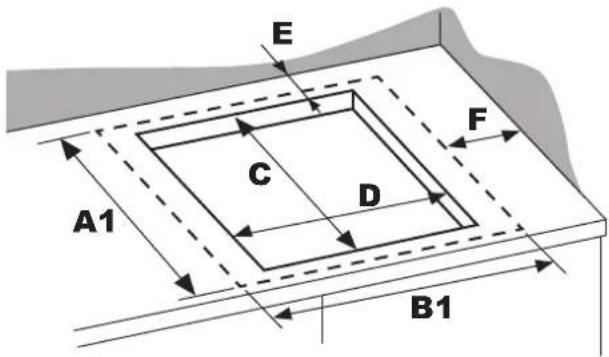

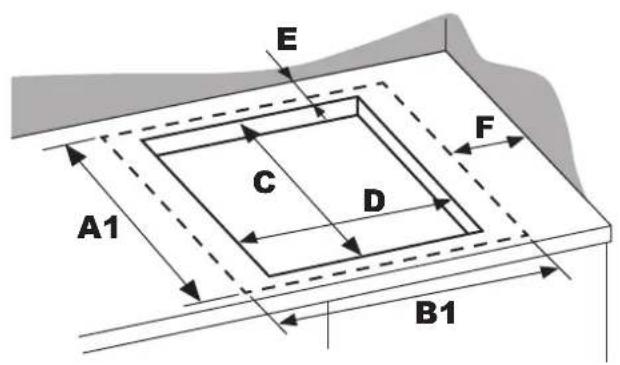

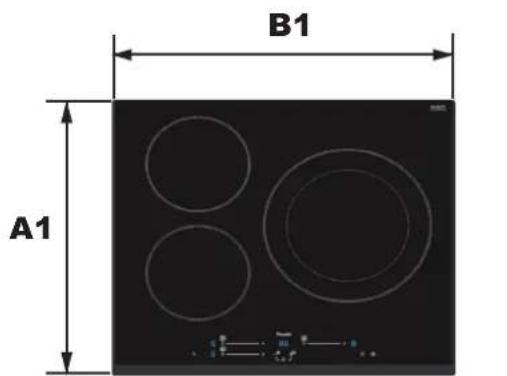

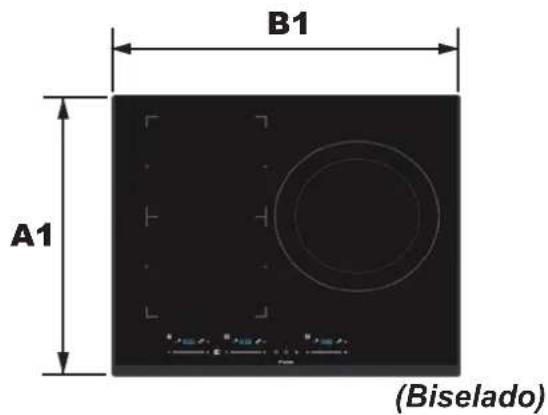

E C D F A1 B1

B1 A1 (Biselado)

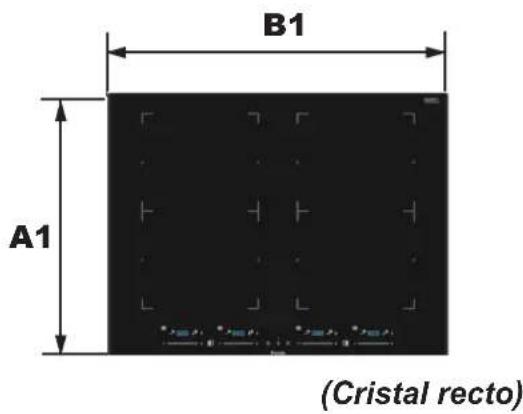

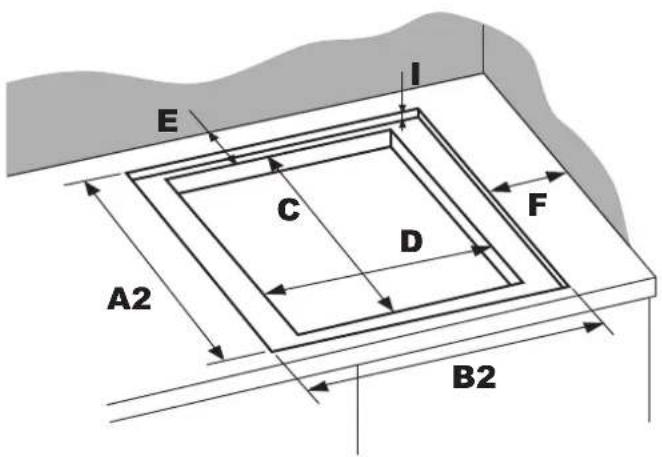

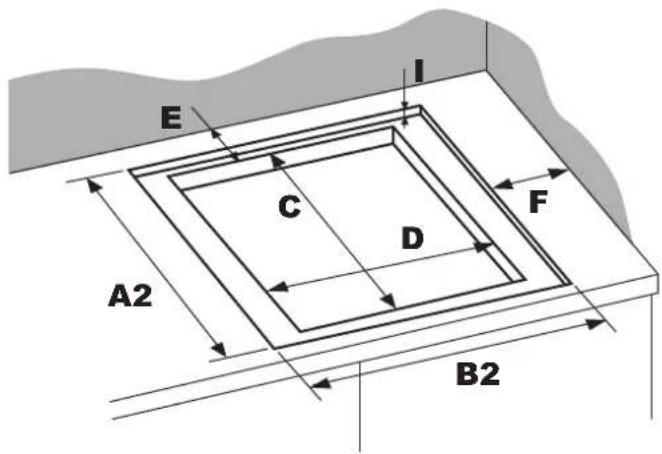

E I C D F A2 B2

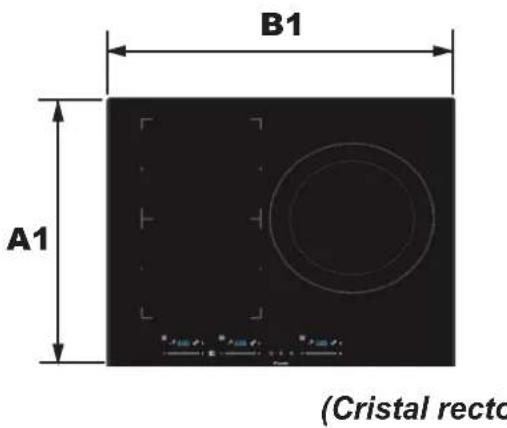

B1 A1 (Cristal recto)

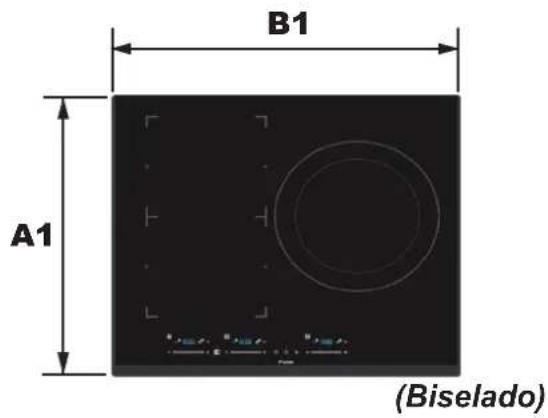

E C D A1 F B1

B1 A1 (Biselado)

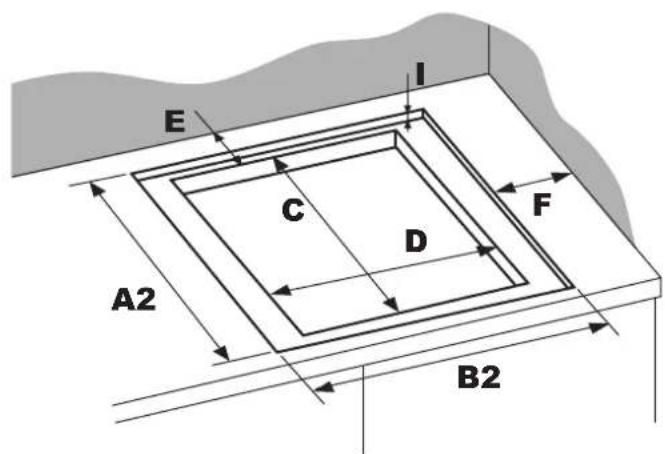

E I C D F A2 B2

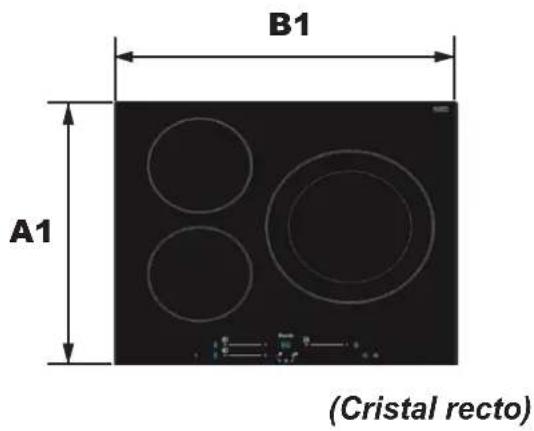

B1 A1 (Cristal recto)

E C D F A1 B1

B1 A1

(Biselado)

E I C D F A2 B2

B1 A1 (Cristal recto)

Simple line drawing of a trash bin with no text or symbols

Diagram showing two hand-drawn symbols: a checkmark and an X, likely indicating correct and incorrect conditions.

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

Three identical cooking pots with crossed X marks, no text or symbols present

Four identical illustrations of a cooking pot with crossed X marks, shown in different positions (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating heating or cooling conditions, likely illustrating a cooking or cooking process.

Three circular ovens on a dark electrical stove, with a digital display showing 'Panda' and measurement scales (no text or symbols on the ovens themselves)

24/07 Panda 8 —— —— 23 —— —— 8 8 —— —— —— 0

Pure electrical circuit lines without any symbols

Pure geometric diagram with concentric circles and alignment markers on dark background (no text or symbols)

781781 9 - 8:8.8 + B 0 9 Pando 1 7 8 9 - 8:8.8 + B 0 9 6 5 6 6 9 Pando

Line drawing of a cooking pot on a stove with a lid, no text or symbols present

0 9 Power up 0 9 Power down ③

0 9 Power down

0 9 Power down

Note:

Diagram showing a hand pointing at a small icon with an arrow, next to a vertical sequence of numbers 5 and 3.

Simple line drawing of a hand holding a circle with the number 'II' above it, no text or symbols present.

Technical diagram showing a mechanical assembly with a spring and threaded rod, no text or symbols present

Ventilação

Illustration of a hand holding a tool near a mechanical component with a black mark (no text or symbols)

2 mm

E C D F A1 B1

B1 A1 (Biselado)

E I C D F A2 B2

B1 A1 (Cristal recto)

E C D A1 F B1

B1 A1 (Biselado)

E I C D F A2 B2

B1 A1 (Cristal recto

E C D F A1 B1

B1 A1

(Biselado)

E I C D F A2 B2

B1 A1 (Cristal recto)

Simple line drawing of a trash bin with no text or symbols

PROTECTION DE L'ENVIRONNEMENT ET TRAITEMENT DES DÉCHETS

GARANTIE DES PRODUITS....128

AVIS DE SÉCURITÉ

VOTRE SÉCURITÉ EST IMPORTANTE POUR NOUS. VEUILLEZ LIRE ATTENTIVEMENT CES INFORMATIONS AVANT D'UTILISER LE CUISEUR.

Diagram of a steam locomotive with wheels and motion indicators (no text or symbols)

Casserole en fonte

Diagram showing two hand-drawn symbols: a checkmark on a horizontal line and an X on a horizontal line, likely indicating correct or incorrect conditions.

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical illustrations of a cooking pot with crossed X marks, shown from different angles (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating heating or cooling conditions, likely illustrating a cooking or cooking process.

CONSEILS DE CUISSON : Dimensions

Diagram of a three-cylinder electrical circuit with labeled components and control signals

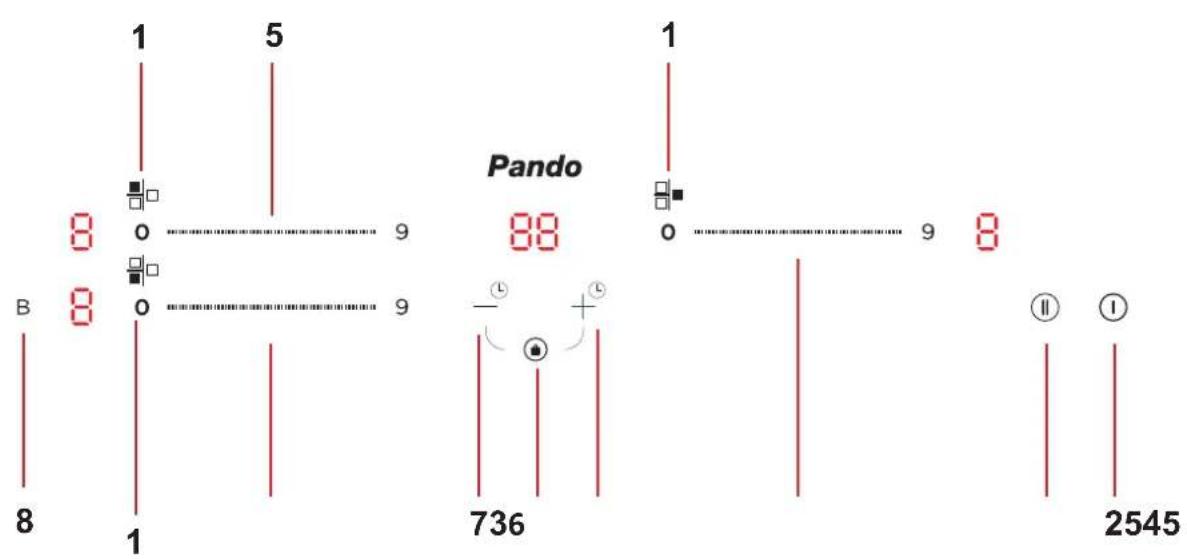

1 5 8 0 9 Pando 8 8 8 B 8 0 9 736 2545

TARELL Pands

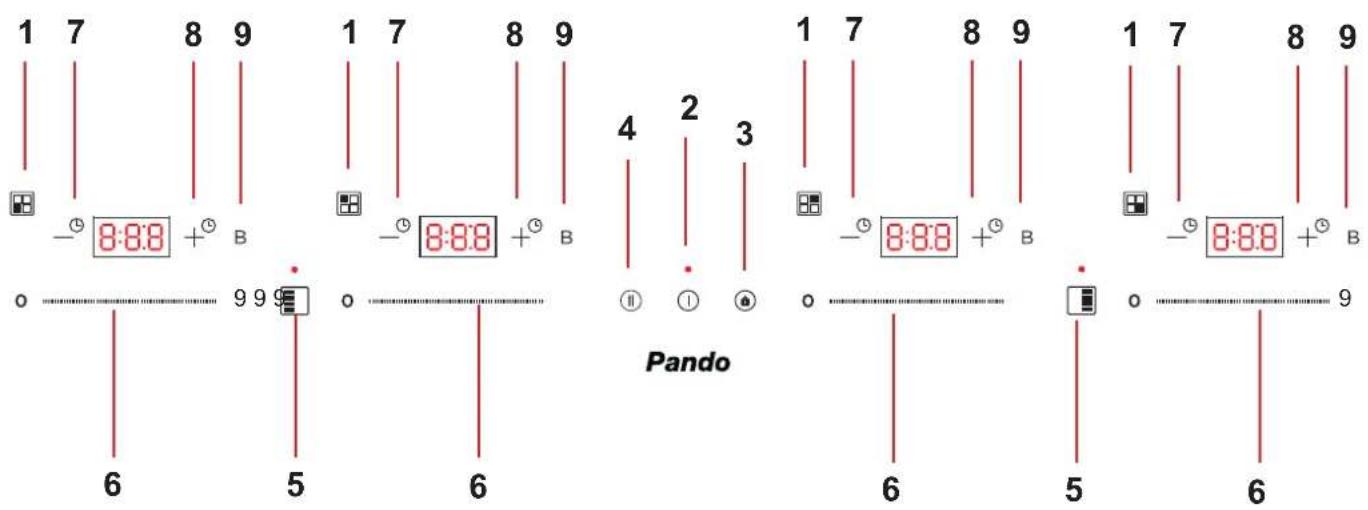

1 7 8 9 1 7 8 9 -① 8:8B +① B -① 8:8B +① B 4 2 3 ⑪ ① Pando 1 7 8 9 1 7 8 9 -① 8:8B +① B -① 8:8B +① B 6 5 6 6 5 6 6 6 5 6

Simple line drawing of a cooking pot on a stand, no text or symbols present

0 9 Power down

Simple line drawing of a hand holding a circular object with a vertical line, no text or symbols present

Attention aux surfaces chaudes

0 Power down 9

Nota:

Diagram showing a finger pointing at a control panel and a vertical sequence of numbers on the right.

Simple line drawing of a hand holding a circle with the number 'II' above it, no text or symbols present.

Simple line drawing of a two-cup pan with a handle and lid, no text or symbols present

Simple line drawing of a magnifying glass hovering above two circular objects (no text or symbols)

Simple line drawing of an oval object with a handle, no text or symbols present

Simple diagram of a circle with three small protrusions and a central dot, enclosed in rectangular boxes (no text or symbols)

Simple line drawing of a document with two circular items and a cross mark below (no text or symbols)

Modèles de cuisson

Technical diagram showing a mechanical assembly with a spring and threaded rod, no text or symbols present

Ventilation

E C D F A1 B1

B1 A1

(biseauté)

E I C D F A2 B2

B1 A1

(Verre droit)

E C D F A1 B1

B1 A1

(biseauté)

E I C D F A2 B2

B1 A1

(Verre droit)

E C D F A1 B1

B1 A1

(biseauté)

E I C D F A2 B2

B1 A1

(Verre droit)

GARANTIE DES PRODUITS

Pando reserves the right to change or cancel any measures of the articles in the manual without prior notice, without affecting the essential characteristics of functionality and safety, and is not responsible for any errors or omissions that may occur in the manual.

Technical specifications valid except for typographical errors, omission, or printing. The images and content of this manual are the exclusive property of Pando - INOXPAN S.L., and any appropriation of images and total or partial reproduction without prior written authorization is strictly prohibited.

THE IMAGES SHOWN IN THIS MANUAL ARE NOT CONTRACTUAL.

Pando's Technical Management reserves the right to modify, alter, or improve the technical drawings displayed in this manual without prior notice.

The paper version of this manual cannot be updated in real-time, to ensure the latest version of your product's instructions, we recommend consulting the digital version at www.pando.es

Dear customer... First of all, we would like to thank you for your confidence you have placed your trust in us by purchasing one of our products. We are sure that you have made the right decision.

At Pando, not only do we offer top quality products, but we also have a large team of professionals who will assist and advise you with any queries you may have during installation or operation.

We invite you to visit our website (www.pando.es) to get to know us better and where you will be able to see our full range of products with complete commercial and technical information.

We also show you our collection of essential appliances in any home. Appliances such as our collection of high-performance Ovens and Microwaves, Induction and Gas Hobs that will allow you to take your recipes to another level, Wine cellars and ageing cellars to maintain and preserve your wines in the best conditions and integrated dishwashers with the latest technology.

All this under a brand with a very long history of more than 40 years in the market, which produces its products as a true craftsman. Our products reflect the best of our experience in order to satisfy all your needs.

We sincerely hope that you will have fun, experience and enjoy the comfort and capabilities of what is already your new kitchen ally.

Many Thanks

El equipo de Pando

ENVIRONMENTAL PROTECTION

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2012/19/EU on electrical and electronic appliance waste (WEEE).

COLLECTION OF HOUSEHOLD APPLIANCES

Simple line drawing of a trash bin with no text or symbols

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT

DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.

In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.

To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.

This ensures the correct treatment and reuse of packaging materials.

ÍNDICE

SAFETY WARNINGS....134

Use of the device:....136

Precautions during cleaning:....136

Before using your induction hob....140

Operation....140

Touch controls 140

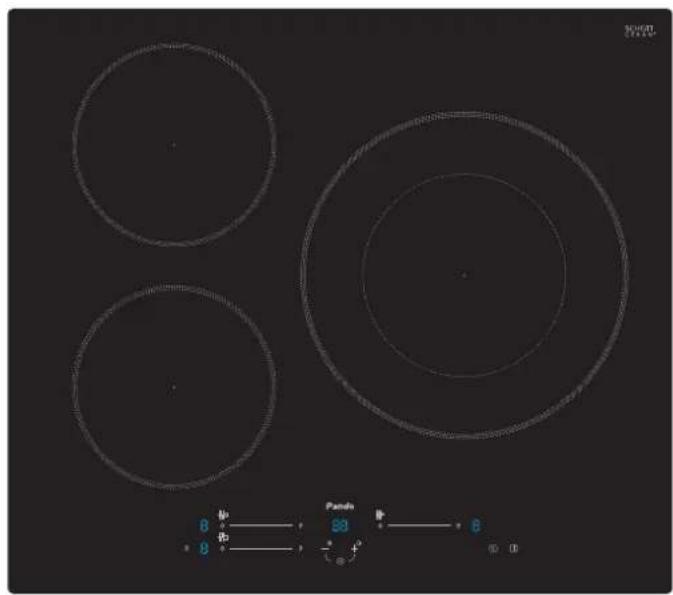

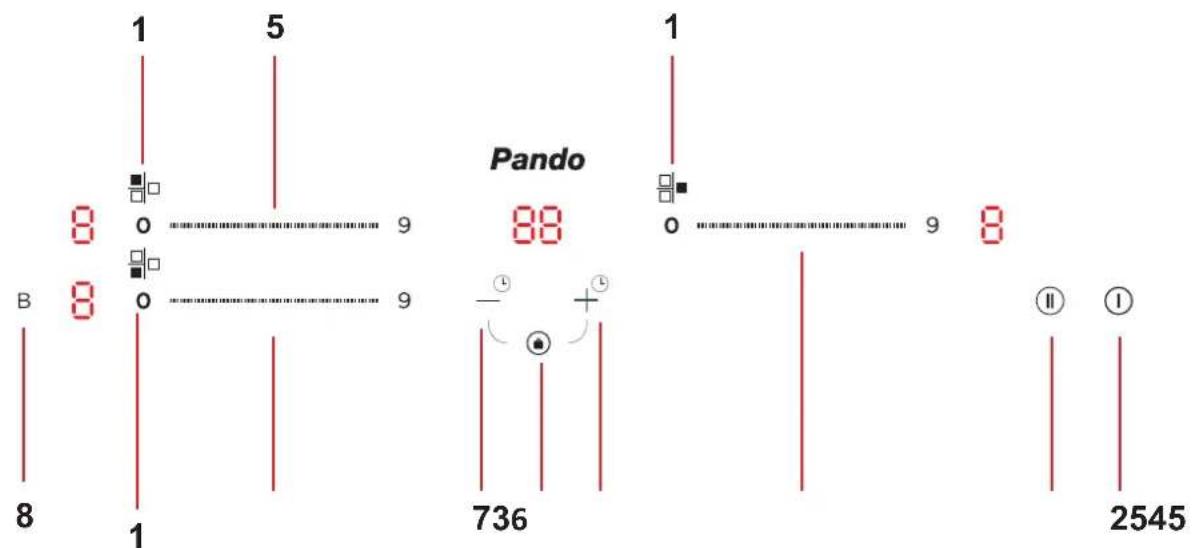

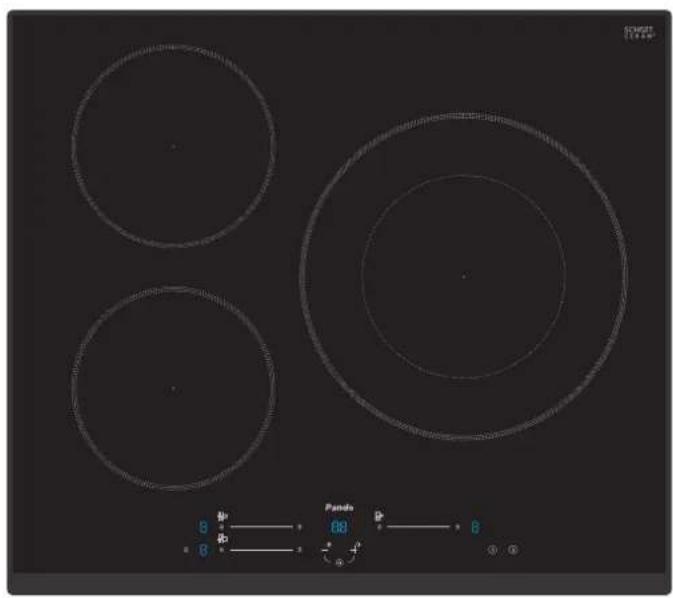

DISPLAY PI3110 - 3111....142

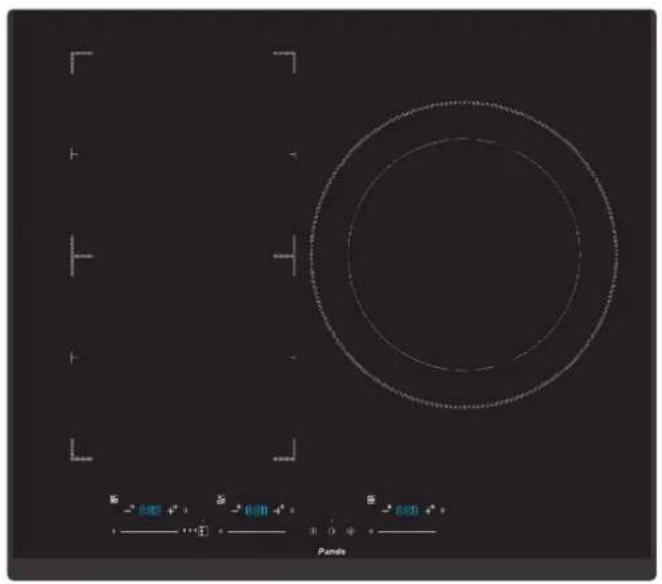

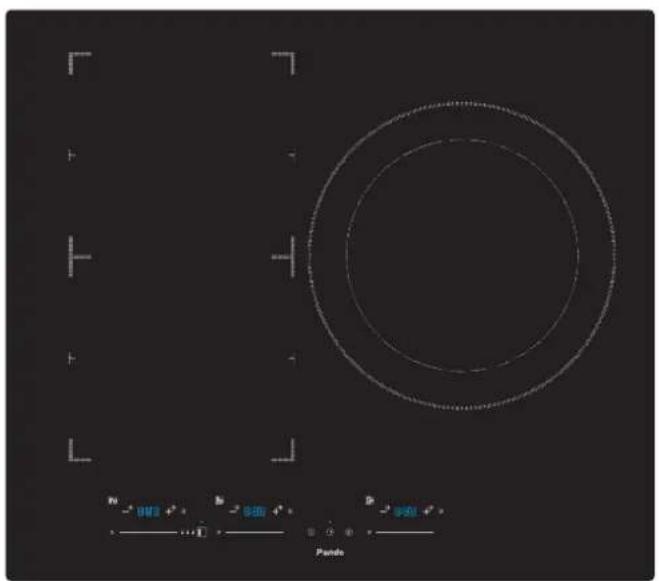

DISPLAY PI3150 - 3151....143

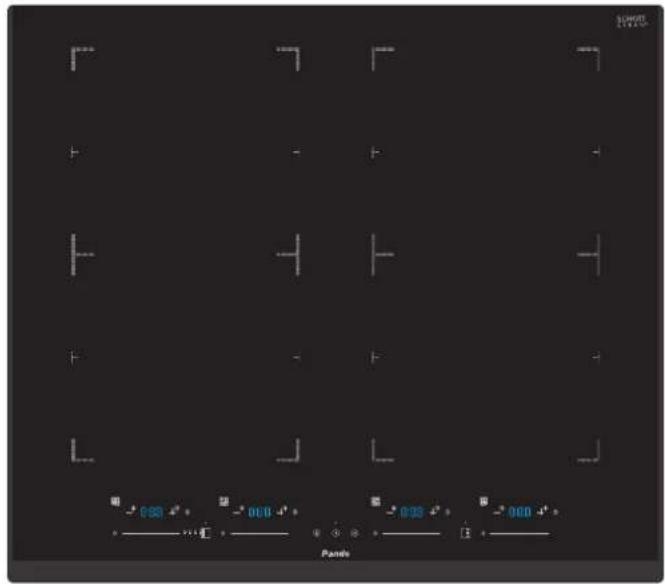

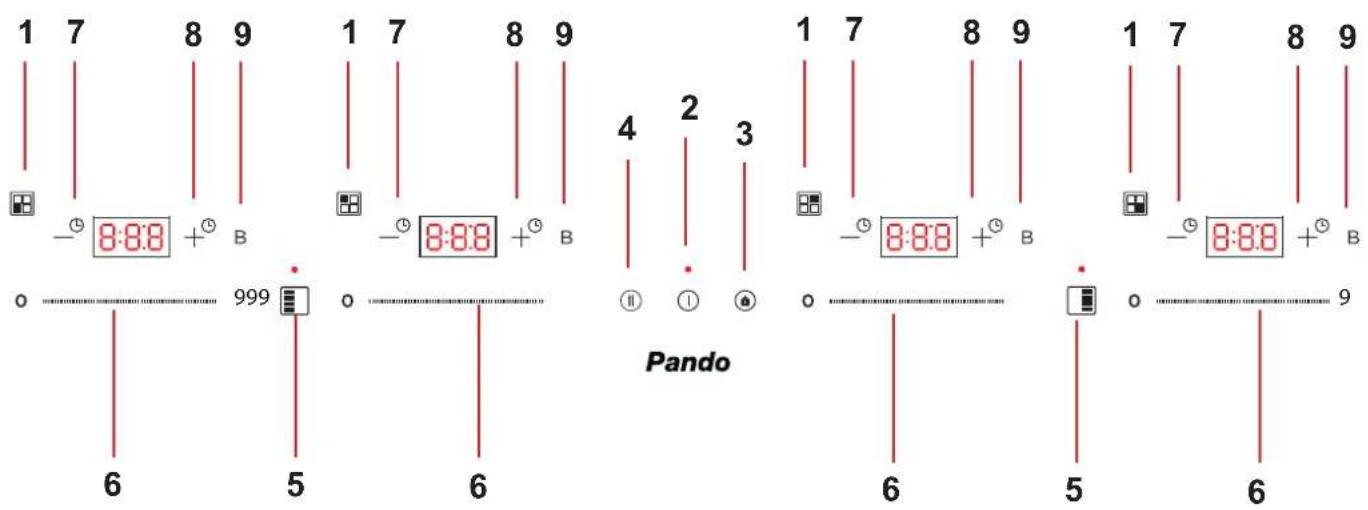

DISPLAY PI3210 - 3211....144

How to use your induction hob....145

Start of cooking 145

End of cooking 145

Beware of hot surfaces 145

Using the Booster function....146

Locking the controls 146

Timer control 146

Flexible zone/bridge (Solo para modelos PI 3150 - 3151 - 3210 - 3211)......148

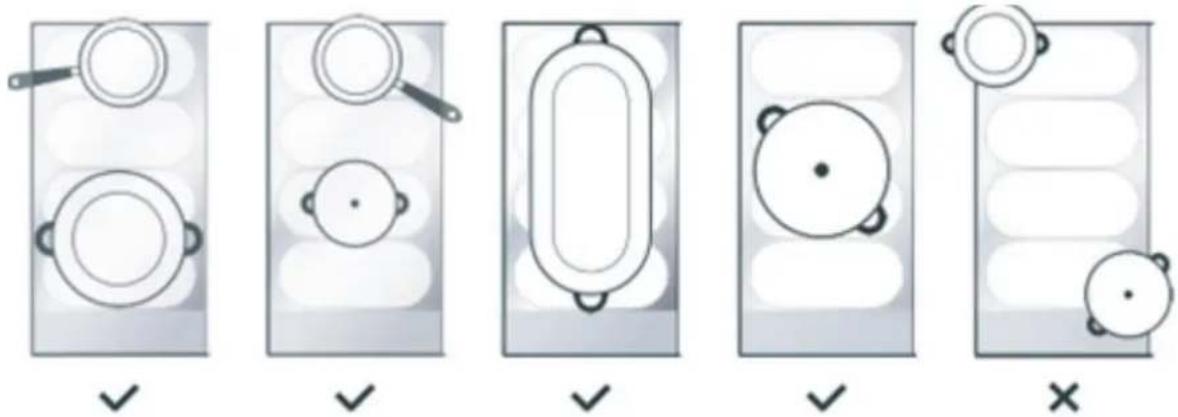

Pause 148

Cooking Guidelines....149

Cooking tips 149

Detection of small items....149

Temperature settings 150

Care and cleaning....151

Tips and suggestions....152

Fault visualisation and inspection....153

Specific for PI3110 - 3111....154

Specific for PI3150 - 3151....154

Specific for PI3210 - 3211 ....155

Installation....156

Before Installing the Hob....156

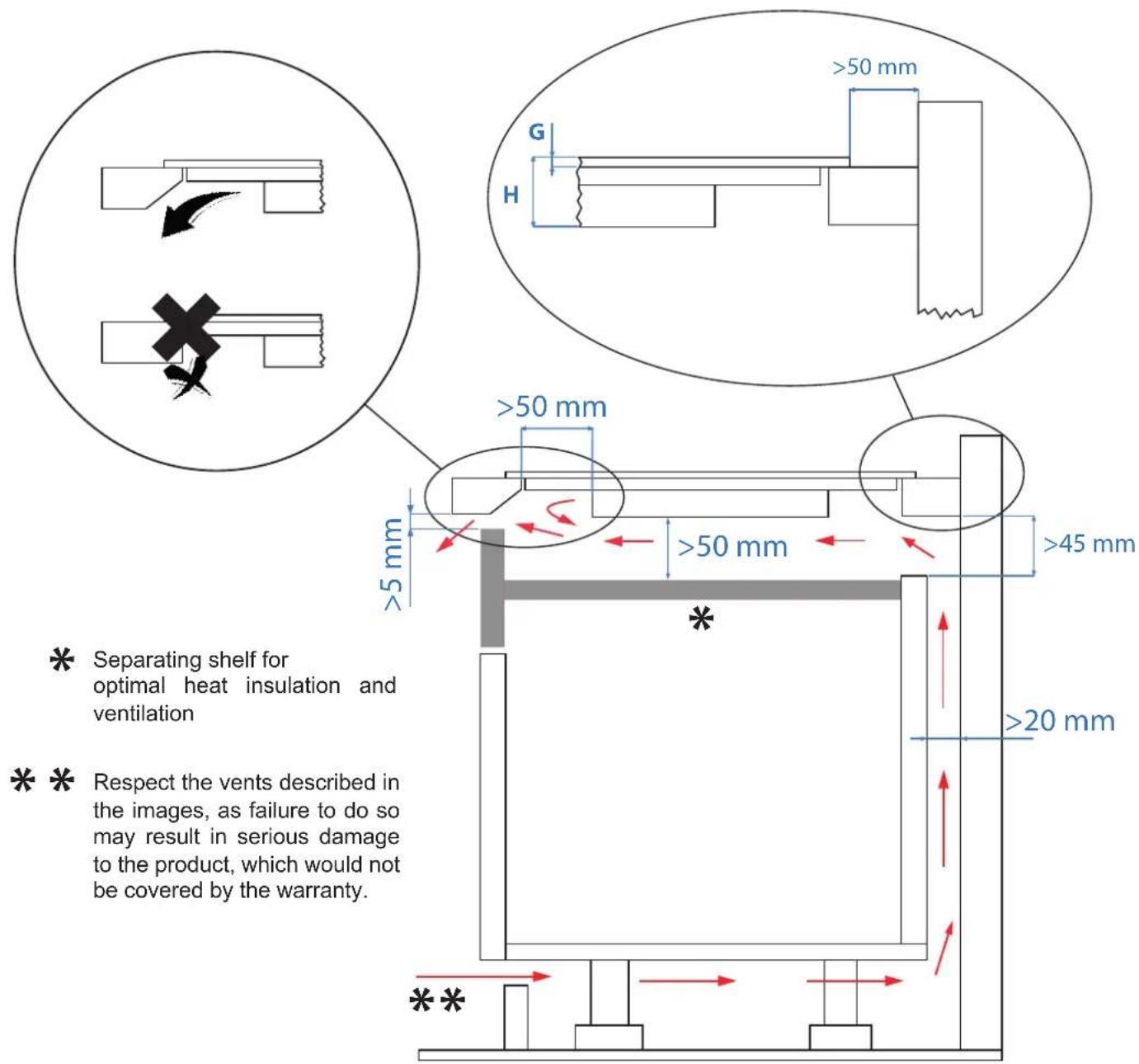

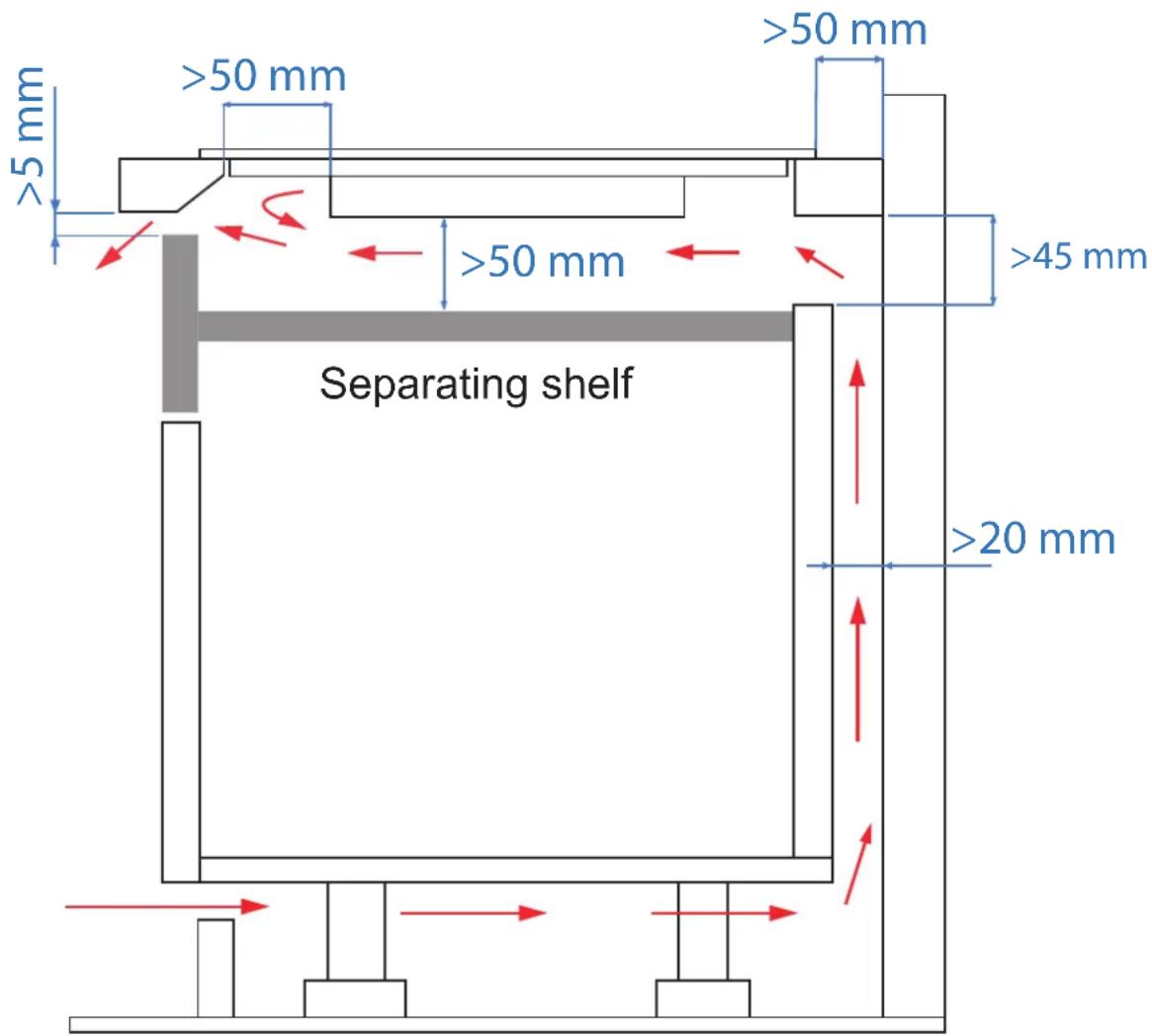

Ventilation....157

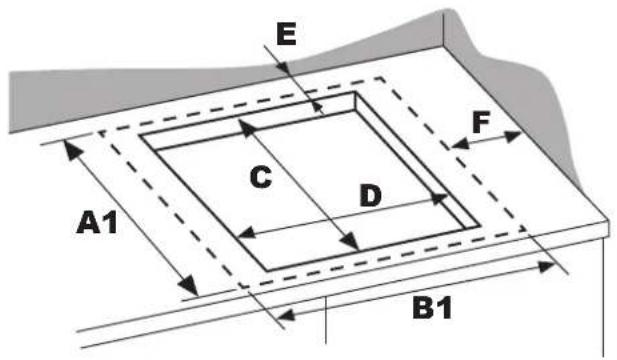

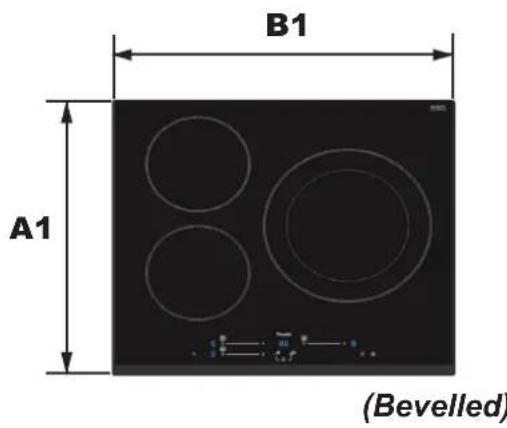

Scope of delivery Model PI - 3110 ....160

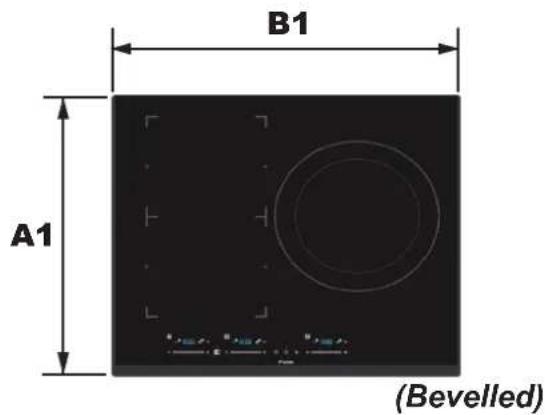

Scope of delivery Model PI - 3111....160

Scope of delivery Model PI - 3150....161

Scope of delivery Model PI - 3151 161

Scope of delivery Model PI - 3210 162

Scope of delivery Model PI - 3211 162

After installing the hob....163

Mains Power Board Connection ....164

TECHNICAL SPECIFICATIONS ....166

PRODUCTWARANTY....170

SAFETY WARNINGS

YOUR SAFETY IS IMPORTANT TO US. PLEASE READ THIS INFORMATION CAREFULLY BEFORE USING THE COOKER.

It will not be covered by warranty:

- If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid further danger. It must be carried out by a sat de pando specialist. If any damage occurs during this process that has been carried out by an unauthorised user or unauthorised personnel, it will not be covered by the warranty, even if it remains valid!

- If you repair or replace any part of the appliance unless specifically recommended in the manual. Any other repairs must be carried out by a sat pando specialist. If any damage occurs during this process that has been carried out by an unauthorised user or personnel, it will not be covered by the warranty, even if it is still valid! If you cook on a broken or cracked cooking surface.

- If the cooktop surface is broken or cracked, immediately disconnect the appliance from the mains.

(wall switch) and contact the manufacturer. It must be carried out by a pando sat specialist. If any damage occurs during this process that has been carried out by an unauthorised user or personnel, it will not be covered by the warranty, even if it is still valid!

Incorrect installation of the appliance may invalidate any warranty or liability claims.

Safety instructions important:

Make this information available to the person responsible for the installation of the appliance.

• To avoid hazards, this appliance must be installed in accordance with these installation instructions.
• Remove all packaging, labels and stickers from the ceramic glass.
• Never leave the appliance unattended when in use.
• The appliance must not be used on top of a dishwasher or tumble dryer: the water vapours given off could damage the electronics.

• Do not transform or modify the appliance.

• Do not place or leave magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the device as they may be affected by its electromagnetic field.

• Never use the appliance to heat or warm the room.
• The appliance must only be used if it is mounted and installed on an approved and suitable piece of furniture or work surface.
• It is intended for domestic use only (food preparation), to the exclusion of any other domestic, commercial or industrial use.
• Do not use the plate as a support or work surface.
• Do not use extension cords for connection to the mains.
• This appliance is not intended for operation with an external timer or remote control.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience if they have been given supervision when using the appliance and understand the hazards involved.

• Children or persons with a disability that limits their ability to use the appliance must have a responsible and competent person instruct them in its use. The instructor must be convinced that they can use the appliance without danger to themselves or their environment.

• Children must not play with the device. Cleaning and maintenance must not be carried out by unsupervised children. Do not allow children to play with the appliance or to sit, stand or climb on it. Do not store objects of interest to children in cabinets above the appliance. Children climbing on the hob could be seriously injured. Do not leave children unattended or unattended in the area where the appliance is in use.
• Metal objects such as knives, forks, spoons and lids must not be placed on the hob surface as they may become hot.

Use of the device:

• After use, always turn off the coo-king zones and hob as described in this manual (i.e. using the touch controls). Do not rely on the pot detection function to turn off the coo-king zones when removing pots.
• Keep a constant eye on stews that use fats and oils, as they are susceptible to rapid ignition.
• Never leave the appliance unattended when in use. Boiling produces smoke and fat spillage which can ignite.
• Never leave objects or utensils on the appliance.
• Do not drop heavy objects on the hob.
• Do not stand on the hob.
• Make sure that no electrical cables, fixed or mobile, from the appliance touch the glass or hot pan.
• Do not place any metal objects, except for the containers to be heated. In the event of accidental ignition or residual heat, this object, depending on the material, may melt or start to burn.
• Do not use plastic or aluminium containers: they could melt on hot hobs.
• Never cover the appliance with a cloth or a protective sheet, as it could become very hot and ignite.

• Always make sure that the cooking pan is centred in the cooking zone. The bottom of the pan should cover the cooking zone as much as possible.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge of the product if they have been given supervision and instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Do not use pans with serrated edges or drag pans across the Induction Cooktop glass surface as this may scratch the glass.
• Do not use scouring pads or other abrasive cleaning agents to clean the hob as they may scratch the induction glass.
• WARNING: The appliance and its accessible parts become hot during use.
• Care must be taken not to touch the heating elements.

Precautions during cleaning:

• Do not use a steam cleaner to clean the hotplate.
• Unplug the cooktop before cleaning or maintenance.

Danger of electric shock:

Disconnect the appliance from the mains before carrying out any work or maintenance on it.

(Failure to comply with this warning can result in electric shock or death).

Caution: If the surface is cracked, turn off the appliance to avoid the possibility of electric shock.

• This appliance must be connected to a circuit incorporating an isolation switch which provides a complete disconnection from the power supply.
• Connection to a good earth wiring system is essential and mandatory.

Modifications to the domestic electrical installation may only be carried out by a qualified electrician must only be carried out by a qualified electrician. IF ANY DAMAGE DURING THIS PROCESS THAT WAS DONE BY AN UNAUTHORISED USER OR BY AN UNAUTHORISED USER OR UNAUTHORISED PERSONNEL, IT WILL NOT BE COVERED BY THE WARRANTY, EVEN IF IT IS STILL VALID!

Cutting hazard:

• Be careful: the edges of the panel are sharp.
• The sharp blade of a worktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store in a safe place out of the reach of children.
• Failure to use caution may result in injury or cuts.

Danger of hot surface:

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not allow your body, clothing or any object other than a suitable cooking utensil to come into contact with the induction glass until the surface is cool.
• Keep children away.
• Failure to comply with this advice may result in burns and scalds.
• Pan handles may be hot to the touch. Check that pan handles do not protrude from other cooking zones that are lit. Keep handles out of the reach of children.
• WARNING: Fire hazard: do not store objects on cooking surfaces.
• The cooking process must be supervised. A short cooking process must be continuously monitored.
• WARNING: Unattended cooking on a greasy or oily hob can be dangerous and may cause a fire. NEVER attempt to extinguish the fire with water, turn off the appliance and cover the flame, e.g. with a lid or fire blanket.

Precautions to avoid damaging the appliance:

• Pans with an unpolished base (un-glazed cast iron,...) or a damaged base can damage the glass ceramic.
• The presence of sand or other abrasive materials may damage the glass ceramic.
• Avoid dropping objects, even small ones, on the glass ceramic.
• Do not strike the edges of the glass with pans.
• Make sure that the appliance is ventilated according to the manufacturer's instructions.
• Do not place or leave empty pans on the hob.
• Do not allow sugar, synthetic materials or aluminium foil to touch hot areas. These substances may cause cracks or other changes to the glass ceramic surface when they cool down: switch off the appliance and remove them immediately from the cooking zone while it is still hot (caution: danger of burns).
• WARNING: Fats and oils on the hob can catch fire.
• It is important to take great care when using fats or oils for cooking/frying and to monitor the cooking process at all times.

• It is important to be very careful when using fats or oils for cooking/frying and to monitor the cooking process at all times.

• CAUTION: The cooking process must be supervised at all times. at all times. A short cooking time must be monitored continuously.

• WARNING: Danger of fire. Do not place or store objects on the hob.
• Do not store objects on the hob.
• Never place hot containers on the control panel.
• If there is a drawer under the built-in appliance, make sure that there is sufficient distance (2 cm) between the contents of this drawer and the bottom of the appliance to ensure good ventilation.
• Do not place flammable objects (e.g. sprays) in the drawer under the hob. Any cutlery trays must be made of heat-resistant material.

Precautions in case of appliance failure:

• If a fault is detected, the appliance must be switched off and the power supply must be disconnected.
• In the event of chipping or cracks in the glass ceramic hob, it is imperative that the appliance is disconnected from the mains and the customer service department is notified.
  • Repairs may only be carried out by qualified personnel.

• Do not open the appliance yourself under any circumstances.

• If a fault is detected, the appliance must be switched off and the power supply must be disconnected.

• In the event of chipping or cracks in the glass ceramic hob, it is imperative that the appliance is disconnected from the mains and the customer service department is notified.
  • Repairs may only be carried out by qualified personnel.
• Do not open the appliance yourself under any circumstances.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other precautions:

• Always ensure that the cooking vessel is centred in the cooking zone. The bottom of the pan should cover the cooking zone as much as possible.
- For users with a pacemaker, the magnetic field may influence the function of the pacemaker. We recommend that you seek advice from your supplier or doctor.
- Do not use plastic or aluminium containers: they may melt on the hot cooker.
- Disposal of this device requires a special procedure.

- Check with your local authority for recycling possibilities. Never put out a fire with water. Switch off the cooking area. Carefully smother the flames with a lid, extinguishing cap or other similar means.

THE USE OF UNSUITABLE POTS OR CONTAINERS, OR THE USE OF AN GLASS ADAPTER FOR INDUCTION MAY CAUSE A MALFUNCTION OR BREAKDOWN AND WOULD LEAD TO THE WOULD RESULT IN PREMATURE TERMINATION OF THE WARRANTY. PREMATURE TERMINATION OF THE WARRANTY. THE MANUFACTURER ASSUMES MANUFACTURER ASSUMES NO LIABILITY FOR DAMAGE TO THE COOKTOP OR ITS THE COOKTOP OR ITS SURROUNDINGS.

Before using your induction hob

• Read this guide, paying particular attention to the “Safety warnings” section.
• Remove any protective lm that may still be on your induction hob.
• Wipe it with a damp cloth and then dry it.

Operation

Induction cooking is a safe, advanced, e-cient and economical cooking technology. It works by means of electromagnetic vibrations that generate heat directly in the pan, rather than indirectly through heating the glass surface. The glass is heated only because the frying pan eventually heats it.

Diagram of a steam locomotive emitting smoke from a platform, with no text or symbols present.

Iron pot
Magnetic circuit Ceramic glass plate Induction coil Induced currents

Touch controls

• Controls respond to touch, so there is no need to apply pressure.
• Use your ngertip, not the tip.
• You will hear a beep each time a touch is registered.
• Make sure that the knobs are always clean, dry and that there are no objects (e.g. a utensil or cloth) covering them. Even a thin 1m of water can hinder the operation of the controls.

Diagram showing two hand-drawn symbols: a checkmark on a horizontal line and an X on a vertical line, likely indicating correct or incorrect conditions.

COOKING TIPS: Quality of pans

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by performing a magnetic test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction cooking.

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

If you do not have a magnet:

1. Put some water in the pan you want to test.
2. If it does not ash on the display and the water gets hot, the pot is suitable.

Cookware made of the following materials is not suitable: pure stainless steel, aluminium or copper, without magnetic base, glass, wood, porcelain, ceramic and earthenware. Do not use cookware with serrated edges or curved bases.

Three identical cooking pots with crossed-out X marks, placed on a surface (no text or symbols)

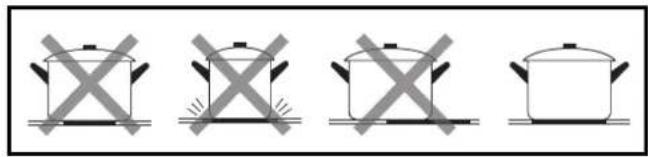

Make sure that the base of the pan is smooth, lies at against the glass and is the same size as the cooking zone. Size as the cooking zone. Use pans with a diameter that is as large as the of the selected zone. Using a slightly wider pan will maximise the use of energy. Using a smaller pan may result in lower efficiency than expected. A pan smaller than 140 mm may not be detected by the hob.

Always centre the pan on the cooking zone.

Four identical illustrations of a cooking pot with crossed X marks, shown from different angles (no text or symbols)

Always lift frying pans from the induction hob, do not slide them, as they could scratch the glass.

Diagram showing two cooking pots with crossed arrows indicating pressure or movement, likely illustrating a cooking or heating process.

COOKING TIPS: Dimensions

The cooking zones adapt automatically, up to a certain limit, to the diameter of the pan. However, the bottom of the pan must have a minimum diameter corresponding to the corresponding cooking zone. To get the best performance from your hob, place the pan in the centre of the cooking zone.

Cooking zone	Pot base diameter
	∅ Mínimo (mm)	∅ Máximo (mm)
A-B-C-D 100	220
Flexi Bridge zones	210 220 x	380

Suitable materials: steel, enamelled steel, cast iron, stainless steel with ferro-magnetic base, aluminium with ferro-magnetic bottom

Unsuitable materials: aluminium and stainless steel with non-ferro-magnetic bottom, copper, brass, glass, ceramics, porcelain, etc.

Ferromagnetic base Glass, ceramics, porcelain Aluminium base Ferromagnetic ring Too much distance Ferromagnetic element Smaller base than the pot φ100 φ120 Ferromagnetic element not parallel to the inductor

Manufacturers specify whether their products are induction compatible.

NOTE: Overheating of an empty pot with a curved or logoed bottom or a recess stamped in the centre could damage the inductor.

SONIDOS DURANTE EL USO:

• Noises during firing. May be due to the quality of the ferritic base of the vessels.
• A faint “click click” sound is heard. This sound is normal. It is a safety indicator which detects the presence of the pan on the inductor. It is activated automatically when the hob is switched on and during cooking.
• A slight humming sound is heard. This is a normal sound that comes from the transmission of energy from the inductor to the base of the vessel (electromagnetic waves).

If the pan or frying pan is not detected, it is possible that the cookware is not suitable for induction. Bear in mind the above recommendations to avoid any problems or inconveniences when cooking.

DISPLAY PI3110 - 3111

BEVELING

Three circular ovens on a dark electrical stove, with a digital display showing 'Panda' and measurement scales (no text or symbols on the ovens themselves)

Panda 8 —— —— 23 V —— 8 8 —— —— 10 V 0 0

1. Cooking zone indicator icon
2. ON/OF control
3. Blocking

4. Pause

5. Power slider touch control

6. Decrease of timer time
7. Increasing the timer time
8. Booster

DISPLAY PI3150 - 3151

BEVELING

Pands

Punds

781781 9 - 8:8:8 + B 0 9 6 5 6 9 Pando 4 2 3 ① ① ② 1 7 8 9 - 8:8:8 + B 0 9 6

1. Cooking zone indicator icon
2. ON/OF control
3. Blocking
4. Pause

5. Activation/Deactivation of the flexible/Brigde

6. Power slider touch control

7. Decrease of timer time
8. Increasing the timer time
9. Booster

DISPLAY PI3210 - 3211

BEVELING

Ponds 0.00 0.00 0.00 0.00 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3D Pands

1 7 8 9 1 7 8 9 -① 8:8B +① B -① 8:8B +① B 0 999 0 6 Pando 1 7 8 9 1 7 8 9 -① 8:8B +① B -① 8:8B +① B 0 6 5 6 6 6 6 5 6

1. Cooking zone indicator icon
2. ON/OF control
3. Blocking
4. Pause

5. Activation/Deactivation of the flexible/Brigde

6. Power slider touch control

7. Decrease of timer time
8. Increasing the timer time
9. Booster

How to use your induction hob

Start of cooking

Press the ON/OFF sensor for three seconds. After switching on, the buzzer will beep and all displays will show “-” or “- - “, indicating that the induction hob has entered standby mode. Place a suitable container on the cooking zone you wish to use.

Set the desired power level, using the power adjustment slider:

- If you do not choose a temperature setting within 1 minute, the induction hob will automatically switch o and you will have to start again.

- You can change the temperature setting at any time

① ①

Line drawing of a cooking pot on a stand with a circular base and a numbered label (2) in the corner.

0 9 Power up 0 9 Power down ③

If the display flashes alternately with the temperature setting it means that:

• You have not placed a frying pan on the correct cooking zone.
• The pan you are using is not suitable for induction cooking.
• The pan is too small or not properly centred on the cooking zone.
• No heating occurs unless there is a suitable pan on the cooking zone.
• The display will automatically switch o after 2 minutes if a suitable pan is not placed on the cooking zone.

End of cooking

Switch o the cooking zone by moving it to "0" or Press the ON/OFF sensor key for three seconds.

0 9 Power down

Beware of hot surfaces

The residual heat indicator will display H indicating which cooking zone is hot to the touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat more pans, use the hotplate that is still hot.

Using the Booster function

Activate the booster function

Once the desired power level has been set, press sensor B, the power value indicator changes and the maximum heating power is reached.

Deactivate the booster function

To cancel the booster function press sensor B again or slide the slider to 0.

0 Power down 9

Note:

• The BOOSTER function can be used on all cooking zones.
• The cooking zone returns to its original setting after 10 minutes.
• When the booster function of the 1st cooking zone is activated, start the 2nd cooking zone, and the 1st cooking zone will automatically change to level 9 and vice versa.

Locking the controls

• You can lock the controls to prevent unintentional use (e.g. children accidentally switching on the cooking zones).
• When the controls are locked, all controls except the ON/OFF control are disabled.

To lock the controls

Press and hold the icons — ^① and + ^② simultaneously for a few seconds until the hob emits a beep indicating that the locking function has started and the “Lo” icon starts flashing.

To unlock the controls

Press and hold down both the — ^⑨ and + icons for a moment.

ATTENTION

When the hob is in lock mode, all controls are disabled except ON/OFF, you can always switch off the induction hob with the ON/OFF control in case of emergency, but you must unlock the hob first in the next operation.

Timer control

• Models PI-3150,3151 and PI-3210,3211 have independent time increase and decrease buttons for each cooking zone.
• Pressing the timer setting sensor will display:

0:0:0 0:0:0

- Press the key to increase or decrease the time.

• If you have the timer already set and then activate the flex/bridge mode, the timer will be deactivated and you will have to set it again (only for PI 3150 - 3151 - 3210 - 3211 models).
  • The maximum adjustable time is 9:59.
  • After programming the cooking time, the display will only show the remaining time.

Tables of automatic safety shutdown times

The automatic switch-off is a safety protection function for your induction hob. It switches off automatically if you ever forget to turn off the hob. The preset operating times for different power levels are shown in the table below.

PI 3110 - 3111

Power level	1 2 3		4 5 6 7 8 9
Default working timer (Time)	8 8 8 4 4 4				2 2 2

PI 3150 - 3151

Power level		1Pause 2 3 4 5 6 7 8 9
Default working timer (Time)	8 8 8 6 6 4						4 2 2			1.5

PI 3210 - 3211

Power level		1Pause 2 3 4 5 6 7 8 9
Default working timer (Time)	8 8 8	6 6 4 4						2	2	1.5

When the pan is removed, the induction hob can stop heating immediately and the hob switches off automatically after 2 minutes.

Persons with a cardiac pacemaker should consult their physician before using this unit.

Flexible zone/bridge (Solo para modelos PI 3150 - 3151 - 3210 - 3211)

This zone can be used as a single zone or as two different zones, depending on the cooking requirements at any given time.

The exible zone consists of two independent inductors which can be controlled separately. When operating as a single zone, the part that is not covered by the cookware is automatically switched o after one minute.

Cooking utensils is automatically switched o after one minute.

To ensure correct detection of the pans and even heat distribution, the pans must be positioned correctly:

At the front or rear of the exible zone when the cookware is less than 22 cm.

1. Anywhere with larger pots
2. To activate the bridge zone press the sensor with the icon

Diagram showing a hand pointing at a small icon with an arrow, next to a vertical sequence of numbers 5 and 3.

The power adjustment works like any other normal zone.

If the pot is moved from the front to the back (or vice versa), the ex zone automatically detects the new position, maintaining the same power.

To add another pot, press the dedicated keys again, to detect the cookware.

As two independent zones

To use the ex zone as two different zones with different powers, press the Flex zone knob.

Pause

1. When the cooking zones are in operation, touch the "II" key. control, all the displays will show " " and heating by level 2 at this point only the " II " and " " controls can be operated.
2. Touch "II" again, the displays show the original setting and the cooking zones continue to heat up.

Simple line drawing of a hand holding a circle with the number 'II' above it, no text or symbols present.

Examples of good and bad placement:

Cooking Guidelines

Be careful when frying, as oil and fat heat up very quickly, especially when using PowerBoost. At extremely high temperatures, oil and fat ignite spontaneously, posing a serious fire hazard.

Cooking tips

When food starts to boil, reduce the temperature. Using a lid will reduce cooking time and save energy by retaining heat.

Minimise the amount of liquid or fat to reduce coo-king times.

Start cooking on high heat and reduce heat when food is very hot.

▶ Simmer the rice

- Simmering occurs below boiling point, at about 85 °C, when bubbles only occasionally rise to the surface of the cooking liquid. It is the key to delicious soups and tender stews, because the flavours develop without overcooking the food. You should also cook thickened egg and flour-based sauces below boiling point.

- Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure that the food is cooked properly in the recommended time.

▶ Grilled fillet steak

For cooking juicy and tasty steaks:

1. Allow the meat to stand at room temperature for about 20 minutes before cooking.

2. Heat a heavy frying pan.

3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan, then lower the meat into the hot pan.

4. Turn the fillet only once during cooking. The exact cooking time will depend on the thickness of the steak and how well done you want it. The time can vary between 2 and 8 minutes per side. Press the steak to measure the degree of doneness: the firmer it is, the more done it is.

5. Let the steak rest on a warm plate for a few minutes to relax and tenderise before serving.

Para saltear

1. Choose an induction-compatible flat wok or a large frying pan.

2. Have all ingredients and equipment ready. Cooking should be quick. If cooking large quantities, cook the food in several smaller batches.

3. Preheat the pan briefly and add two tablespoons of oil.

4. Cook the meat first, set aside and keep warm.

5. Sauté the vegetables. When they are hot but crisp, lower the cooking zone, return the meat to the pan and add the sauce.

6. Gently stir the ingredients to make sure they are heated through.

7. Serve immediately.

Detection of small items

When an improperly sized or non-magnetic frying pan (e.g. aluminium), or any other small object (e.g. knife, fork, key) is left on the hob, the hob automatically switches to standby mode in 1 minute. The fan will continue to cook on the induction hob for a further 1 minute.

Temperature settings

The settings given below are for guidance only. The exact setting will depend on a number of factors, including the cookware and the amount you cook.

Experiment with the induction hob to and the settings that suit you best.

THERMAL SETTING	FUNCTIONS
1-2	Gentle heating for small quantities of food.
	Melt chocolate, butter and foods that burn quickly.
	Simmering/heating.
3-4	Reheating
	Fast simmering.
	Rice cooker
5-6 Pancakes
7-8	Sautéed
	Cooking pasta.
9 / B	Sautéed.
	Abrasador.
	Bring the soup to the boil
	Boiling water

Care and cleaning

WHAT?	How?	Important!
Everyday dirt of the glass (fingerprints, marks, food stains or non-gaseous spills on the glass).	1. Switch off the power supply to the hob.2. Apply a hob cleaner while the glass still tempered (but not hot!).3. Rinse and dry with a clean cloth paper.4. Switch the hob back on.	- When the power to the hob is switched off, there will be no "hot surface" indication, but the cooking zone may still be hot! Extreme caution should be exercised.- Strong scouring pads, some nylon scouring pads and strong/abrasive cleaning products can scratch glass. Always read the label to check your cleaner or pad is suitable.- Never leave cleaning residues on the hob: the glass may become stained.
Boiled, melted and hot sugary spills on glass	Remove them with a spatula or raz blade scraper suitable for induction gla cooktops, but be careful of hot surfac in the cooking zone:1. Switch off the power supply to the hob at the wall.2. Hold the blade or utensil at a 30 angle and scrape the dirt or spilla onto a cool area of the hob.3. Wipe off any dirt or spillage with kitchen towel or paper towel.4. Follow steps 2 to 4 for "Daily dirt of the glass".	- Remove stains left by melted and sugary food or spills as soon as possible. If left to cool or the glass, they may be difficult to remove. remove or even permanently damage the surface of the glass.- Cutting hazard: when the safety cover retracts, the blade of a scraper is razor-sharp. Use with extreme cautioncare and safe storage at all times y out of the reach of children.
Overflow of touch controls	1. Switch off the power supply to the hob.2. Absorb the spill3. Clean the touch control area with clean, damp sponge or cloth.4. Dry the area completely with a paper towel.5. 5. Switch the hob back on.	- The hob can beep off and the touch controls can be switched on and off. may not work as long as there is liquid on them. Be sure to dry the touch contr area before switching the hob back on.

Tips and suggestions

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
The induction hob cannot be switched on.	There is no power.	Make sure that the induction hob is connected to the power supply.and that it is switched on.Check for power, (power outage in your home or area) you have checked everything and the problem persists, call a qualified technician.
Touch controls do not respond.	The controls are locked.	Unlock the controls. See section "Refer to the instructions for use of the induction hob".
Touch controls are difficult to operate.	There may be a slight film of water on the controls.	Make sure the touch control area is dry and use your fingertip when touching the controls.
The glass is scratching. Kitchen	en utensils with rough edges.Not suitable, abrasive scouring pad or cleaning products used.	Use cookware with flat, smooth bases. See "Cooking tips" - See "Care and cleaning".
Some frying pans make crackling or popping noises.	This may be due to the construction of your cookware (layers of different metals vibrating together in a different).	This is normal for kitchen utensils and does not indicate a fault.
The induction cooktop emits a slight buzzing sound when used on a high heat setting.	This is due to the technology of induction cooking.	This is normal, but the noise should attenuate or disappear. completely by reducing the heat setting.
Fan noise from the induction hob.	The cooling fan integrated in your induction cooktop has been switched on to prevent the electronic components from overheating.switch off.	This is normal and does not require any action. Do not disconnect the induction hob power supply from the wall while the fan is operating.
The pans do not heat up and appears on the display.	The induction hob cannot detect the frying pan because it is not suitable for induction cookers.The induction hob does not detect the frying pan because it is too small for the cooking zone. or is not well focused on it.	Use cookware that is suitable for use in the cooker. induction. See section "Cooking tips".Centre the pan and ensure that the base of the pan matches the size of the cooking zone.
The induction hob or a cooking zone has been switched off unexpectedly, a tone sounds and an error code is displayed.(usually alternating with one or two digits on the display of the cooking timer).	Technical failure.	Note the error letters and numbers, change the power supply to the induction hob on the wall, and contact a PANDO SAT. MUST BE PERFORMED BY A PANDO SAT SPECIALIST IF ANY DAMAGE OCCURS DURING THIS PROCESS THAT HAS BEEN CARRIED OUT BY A USER OR A PANDO SAT SPECIALIST, PLEASE CONTACT A PANDO TAS.UNAUTHORISED PERSONNEL WILL NOT BE COVERED BY THE WARRANTY, EVEN IF IT IS STILL VALID!

Fault visualisation and inspection

FAIL	PROBLEM	SOLUTION
The LED does not light up when the unit is plugged in.	No power is supplied.	Check that the plug is securely fitted into the socket and that the socket is working.
	Connected accessory power supply board and display board fail.	Check the connection.
	The accessory power supply board is damaged.	Please contact the technical service.
	The display board is damaged.
Some buttons do not work or the LED display is not normal.	The display board is damaged.
The cooking mode indicator lights up, but heating does not start.	High hotplate temperature.	Ambient temperature may be too high. The air inlet or outlet may be blocked.If the problem persists, contact technical support.
	Something is wrong with the fan.
	The power supply board is damaged.
The heating suddenly stops during operation and "u" flashes on the display.	Pan Type is wrong.	Use the appropriate pot (see instruction manual).
	The diameter of the pot is too small.
	The pan has overheated;	The unit is overheated. Wait for the temperature to return to normal.Press the "ON/OFF" button to reset the unit.
Heating zones on the same side (such as the first and second zone) would show "u".	Failure in the connection of the power board and the display board;	Check the connection.
	The display board of the communication part is damaged.	Please contact the technical service.
	The main board is damaged.
The fan motor sounds abnormally.	The fan motor is damaged.

Specific for PI3110 - 3111

FAULT CODE	PROBLEM	SOLUTION
Automatic recovery
E1	The supply voltage is higher than the nominal voltage.	Check if the power supply is normal.Switch on after the power supply food is normal.
E2	Switch on after the power supply food is normal.
E3	High board sensor temperature ceramics. (1#)	Wait for the temperature of the ceramic h to return to normal.Touch the "ON/OFF" button to restart the unit.
E4	High board sensor temperature ceramics. (2#)
E5	High temperature of IGBT. (1#)	Wait for the IGBT temperature to return to normal.Touch the "ON/OFF" button to reset the unit.Check for any obstruction in the ventilatio If the problem persists call the service technical.
E6	High temperature of the IGB (2#)

Specific for PI3150 - 3151

PROBLEM	POSSIBLE CAUSES WHAT TO DO
E1, E2, E7	Temperature sensor failure	Contact the supplier.
E3、E4	Failure of the temperature sensor of the IGBT.	Contact the supplier.
EU	The connection between the display board and the main board fails, or touch IC communication fails.	Contact the supplier.
EL/EH	Abnormal supply voltage	Check if the power supply is normal.
C1	Ceramic glass plate temperature sensor Is high	Please restart after the induction hob cools down.
C2	IGBT temperature sensor It is high
F5	Fan malfunction	Contact the supplier.
EF	Two or more keys are triggered for an extended period of time.	Clean up of the area of operations

Specific for PI3210 - 3211

Troubleshooting for zones 1 and 2

PROBLEM	POSSIBLE CAUSES	WHAT TO DO
E1,E2,E7,C1	Temperature sensor failure	Contact the supplier.
E3,E4	allo of the temperature sensor of the IGBT.	Contact the supplier.
EU	Failure of the connection between the display and the main board	Contact the supplier.
EL,EH	Abnormal supply voltage	Check if the power supply is normal. Switch on after the is normal.
C3	Temperature sensor of the glass ceramic hob Is high	Please restart after the induction hob cools down.
C2	IGBT temperature sensor It is high

Troubleshooting for zones 3 and 4

Fault code	Problem Solution
Self-Recovery
EL	The supply voltage is higher than the nominal voltage.	Check if the power supply is normal.Switch on after the power supply food is normal.
EH	The supply voltage is lower than the nominal voltage.
C1,C3	High temperature of the ceramic plate sensor.	Wait for the temperature of the ceramic hob to return to normal.Touch the "ON/OFF" button to reset the unit.
C2	High temperature of IGBT . (1#)	Wait for the IGBT temperature to return to normal.Touch the "ON/OFF" button to reset the unit.Check if the fan is working properly; if it i not, call the SAT Pando technical service.

Installation

Before Installing the Hob

• Ensure that the work surface is square and level, and there are no structural or other obstructions that interfere with the space requirements.
• Certify that the work surface is of a heat-resistant and insulating material.
• If the hob is installed above an oven, check that it has a built-in cooling fan.
• Ensure that the installation will meet all clearance requirements and applicable standards and regulations.
• Ensure that a suitable isolation switch providing total disconnection from the mains supply is incorporated in the permanent wiring, mounted and fitted in accordance with local wiring rules and regulations.
• The isolating switch must comply with electrical regulations and provide 3 mm contact separation on all poles.
• The isolating switch must be easily accessible to the customer with the hob installed.
• If in doubt about the installation, please consult. SAT PANDO

Precautions

• The induction hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never carry out the operation on your own.
• The hob SHALL NOT be installed directly above a dishwasher, refrigerator, freezer, washing machine or clothes dryer, as moisture may damage the electronics of the hob.
• The wall and induced heating zone above the table surface must withstand the heat.
• To avoid any damage to the adhesive they must be heat resistant.
• A steam cleaner should not be used.

Before placing the staples.

The appliance should be placed on a stable and smooth surface (use the packaging).

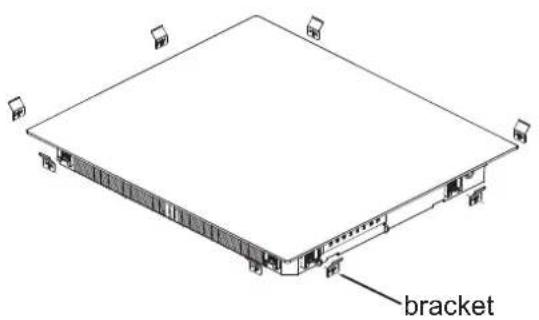

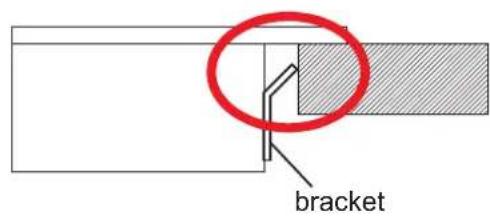

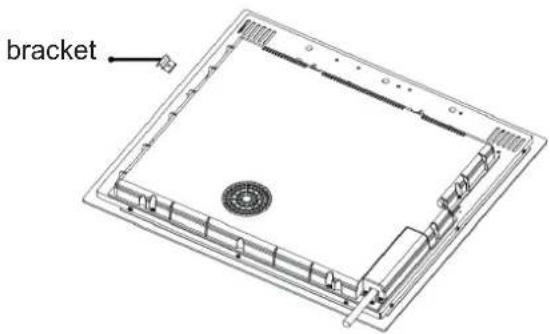

Adjustment of the staple position.

Secure the countertop to the work surface by inserting 2 to 8 staples on the underside of the board (see image) prior to installation.

Adjust the staple position to accommodate different tabletop thicknesses.

PI3150-3151 PI3210-3211

bracket

bracket

PI3110-3111

bracket

Technical diagram showing a mechanical assembly with a spring and threaded rod, no text or symbols present

Ventilation

Cut out the work surface according to the dimensions shown in the drawing.

For installation and use, a minimum clearance of 5 cm around the hole must be maintained. Make sure that the thickness of the work surface is at least 30 mm. Select a heat-resistant and insulating work surface material (wood and other similar fibrous or hygroscopic materials should not be used as work surface material unless impregnated) to avoid electric shocks and major deformations caused by heat radiation from the hob. As shown below:

WARNING: Ensure adequate ventilation.

Make sure that the induction hob is well ventilated and that the air inlet and outlet are not blocked. To avoid accidental contact with the overheated underside of the hob, or receiving an unexpected electric shock during work, it is necessary to place a wooden insert, fixed with screws, at a minimum distance of 50 mm from the underside of the hob. Observe the following requirements.

There are ventilation holes around the outside of the hob. MUST ensure that these holes are not blocked by the hob when fitting the hob.

• Please note that the glue that joins the plastic or wood material to the cabinet must be able to withstand temperatures of not less than 150^ C to prevent the paneling from peeling off.
• Therefore, the back wall and the adjacent and surrounding surfaces must be able to withstand a temperature of 90^ C.

>50 mm >50 mm >50 mm >45 mm Separating shelf >20 mm

CORRECT AND NECESSARY VENTILATION

INSTALLATION DIAGRAM

Separating shelf for optimal heat insulation and ventilation Respect the vents described in the images, as failure to do so may result in serious damage to the product, which would not be covered by the warranty. >50 mm >50 mm >45 mm >20 mm **

Illustration of a hand using a tool to mark a black cross on a white surface (no text or symbols)

2 mm

The joint between the hob and the worktop must NOT be made with sealants or silicone. The use of these types of products in the installation may damage the product and make it difficult for the service technician to access or remove. Damage or expenses resulting from non-compliance will not be covered by the product warranty.

The perimeter edge must be finished with the gasket included in the product by gluing it to the lower edge of the panel 2 mm from the outer edge, after removing the protective film.

Scope of delivery Model PI - 3110

E C D F A1 B1

B1 A1 (Bevelled)

Glass size Size of		the cut Glass thickness				Total height product
A1 B1 C	D E F G H
520 590	495 ± 1 565	± 1 50 50 4	60

Scope of delivery Model PI - 3111

E I C D F A2 B2

B1 A1

(Straight glass)

Glass size Size of the cut Glass thickness						Total height product		Installation of glass recessedo
A1	B1	C	D	E	F	G	H	A2	B2	I
520	590	495 ± 1	565 ± 1	50	50	4	60	524	594	5

Scope of delivery Model PI - 3150

E C D F A1 B1

B1 A1 (Bevelled)

Glass size		Size of the cut		Glass thickness		Total height product
A1	B1	C	D	E	F	G	H
520	590	480 ± 1	560 ± 1	50	50	4	50

Scope of delivery Model PI - 3151

E I C D F A2 B2

B1 A1

(Straight glass)

Glass size Size		of the cut Glass thickness				Total height product		Installation of glass recessed
A1 B1	C D E F G	H A2 B2 I
520	590	480 ± 1	560 ± 1	50	50	4	50	524	594	5

Scope of delivery Model PI - 3210

E C D F A1 B1

B1 A1

(Bevelled)

Glass size		Size of the cut		Glass thickness		Installation of glass recessed
A1	B1	C	D	E	F	G	H
520	590	480 ± 1	560 ± 1	50	50	4	50

Scope of delivery Model PI - 3211

E I C D F A2 B2

B1 A1

(Straight glass)

Glass size Size		of the cut Glass thickness				Total height product		Installation of glass recessed
A1 B1	C D E F G	H A2 B2 I
520	590	480 ± 1	560 ± 1	50	50	4	50	524	594	5

After installing the hob

• The power cord is not accessible through cabinet doors or drawers.
  • There is an adequate flow of fresh air from the outside of the cabinet to the base of the hotplate.
• If the hotplate is installed above a drawer or cabinet, a thermal protection barrier is installed under the base of the hotplate.
• The customer can easily access the isolation switch.

Mains Power Board Connection

This hob must only be connected to the mains by a suitably qualified person.

Before connecting the hob to the mains, check that:

1. The domestic electrical installation is suitable for the power consumed by the hob.
2. The voltage corresponds to the value indicated on the rating plate.
3. The power cable cross-sections can withstand the load specified on the rating plat

When connecting the hob to the mains, do not use adapters, reducers or shunts, as these can cause overheating and fire.

The power cable must not touch any hot parts and must be positioned so that its temperature does not exceed 75^ C at any time.

Check with an electrician whether the domestic wiring system is suitable without alterations.

Any modifications must only be carried out by a qualified electrician or SAT PANDO.

• If the cable is damaged or needs to be replaced, the operation must be carried out by the after-sales agent with specific tools to avoid any accidents.
• If the appliance is connected directly to the mains, an omnipolar circuit breaker with an opening of at least 3 mm between the contacts must be installed.
• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked periodically and replaced by authorised technicians.

The bottom surface and the power cable The bottom surface and the power cable of the cooktop must not must not be accessible after installation. installation.

Web	Connection	Cable	Cable	Protective gauges
220-240V~ 50-60Hz	L1+N1L1+NL2+N2L2+N	5x1.5mm^2	H07RN-F	16A
220-240V~ 50-60Hz	L1&L2+N1&N2L1&L2+N	5x2.5mm^2		32A
400V~ 50-60Hz	L1+L2; N1&N2L1+L2; N1	4x2.5mm^2		16A
* Calculado con el coeficiente de simultaneidad según la norma EN 60 335-2-6.* Calculated with the simultaneity coefficient according to the standard EN 60 335-2-6.

	Blue Grey	N2 L1
	Brown Black	N1L2
	Yellow / Green
	Blue Grey	N2 L1
	Brown	N1L2
	Black
	Yellow / Green
	Blue	N2
	Grey	N1 L2 L1
	Brown
	Black
	Yellow / Green

TECHNICAL SPECIFICATIONS

MODELOS	PI - 3110PI - 3111
Specifications - EN	DATA / DATA
INSTALLATION
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
TECHNICAL CHARACTERISTICS
Cooking surfaceCrystal Schoot
Firing zone A - silk-screen printing dimension (mm)	∅180
Cooking zone A - power (W)	1.500
Cooking zone A - Boost power (W)	2.100
Firing zone B - screen printing dimension (mm)	∅180
Cooking zone B - power (W)	1.500
Cooking zone B - Boost power (W)	2.100
Firing zone C - screen printing dimension (mm)	Double ring ∅ 290 mm
Cooking zone C - power (W)	3.000
Cooking zone C - Boost power (W)	3.800
AESTHETIC FEATURES
Control panel colour	Azul / Blue
Bevelled tempered glass ceramic glass	PI 3110
Tempered glass, straight edge tempered glass	PI 3111
FUNCTIONS
Constant and uninterrupted cooking	√
Timer 99 min	√
Bridge zone0
Power adjustment10
Frying pan detection	√
Low noise cooling fan	√
Automatic safety shutdown	√
Residual heat indicators	√
Security lock	√
Full induction	√
MODELS	PI - 3150PI - 3151
Specifications - EN	DATA / DATA
INSTALLATION
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
TECHNICAL CHARACTERISTICS
Cooking surface Crystal Schoot
Firing zone A - screen printing dimension (mm)	205 x 185
Cooking zone A - power (W)	2.000
Cooking zone A - Boost power (W)	3.200
Firing zone B - screen printing dimension (mm)	205 x 185
Cooking zone B - power (W)	2.000
Cooking zone B - Boost power (W)	3.200
Firing zone C - screen printing dimension (mm)	∅ 280
Cooking zone C - power (W)	2.800
Cooking zone C - Boost power (W)	3.700
AESTHETIC FEATURES
Control panel colour Azul / Blue
Bevelled tempered glass ceramic glass	PI 3150
Tempered glass ceramic glass with straight edge	PI 3151
FUNCTIONS
Constant and uninterrupted cooking	√
Timer 99 min	√
Bridge zone	2
Power adjustment 10
Frying pan detection	√
Low noise cooling fan	√
Automatic safety shutdown	√
Residual heat indicators	√
Security lock	√
Full induction	√
Flexible zone circuit control panel	√
MODELS	PI - 3210PI - 3211
Specifications - EN	DATA / DATA
INSTALLATION
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
TECHNICAL CHARACTERISTICS
Cooking surface Crystal Schoot
Firing zone A screen printing dimension(mm)	205 x 185
Cooking zone A - power (W)	2.200
Cooking zone A - Boost power (W)	3.200
Firing zone B - silk-screen printing dimension(mm)	205 x 185
Cooking zone B - power (W)	2.200
Cooking zone B - Boost power (W)	3.200
Firing zone C - screen printing dimension (mm)	205 x 185
Cooking zone C - power (W)	2.200
Cooking zone C - Boost power (W)	3.200
Firing zone D - screen printing dimension (mm)	205 x 185
Cooking zone D - power (W)	2.200
Cooking zone D - Boost power (W)	3.200
AESTHETIC FEATURES
Control panecolour	Azul / Blue
Bevelled tempered glass ceramic glass	PI 3210
Tempered glass with straightedges	PI 3211
FUNCTIONS
Constant and uninterrupted cooking	✓
Timer 99 min	✓
Bridge zone	2
Power adjustment	10
Frying pan detection	✓
Low noise cooling fan	✓
Automatic safety shutdown	✓
Residual heat indicators	✓
Security lock	✓
Full induction	✓
Flexible zone circuit control panel	✓

PRODUCT WARRANTY

INOXPAN S.L., thanks you for choosing and placing your trust in a product of our brand Pand o, which is distinguished by its Quality, Design and Innovation, being faithful to its origins and commitments.

CONDITIONS OF GUARANTEE PANDO:

This appliance is guaranteed for 3 years from the date of purchase. This warranty exclusively covers the Pando product against any manufacturing defect that aff ects its proper functioning. In order for the warranty to be valid, it is essential to present the invoice or purchase receipt together with a photo of the label or registration number of the product to the Pando Authorised Service technician.

During this period, the Company undertakes to replace or repair free of charge any defective part due to a defect or manufacturing defect in the appliance, until it is working properly, as well as the necessary labour and expenses incurred as a result of such repair or replacement.

EXCLUSIONS FROM THE WARRANTY PANDO:

It will not be covered by the guarantee of the product or ind uc tion, and could be cause for cancellation of the same, and in these cases the user will be responsible for the costs of materials, labour and travel of the technical service, in the following cases:

• The installation, servicing, cleaning or maintenance of the device.
• If the installation of the induction hob has not been carried out by an Authorised Professional, Qualified Electrician or Pando Technical Service personnel, who meet the requirements of the safety standards and electrical power regulations.
• Any breakdown, malfunction or malfunction caused by incorrect installation or use.
• Breakdowns or damage caused by failure to observe or follow the safety instructions, recommendations for use and maintenance in the equipment manuals.
  • Where the product is intended for commercial or non-residential use, for which it is not intended.
• Malfunctions or damage to the appliance due to non-compliance with the instructions described in the user manual, installation and ventilation instructions for the appliance.
• Breakdowns or damage caused by transport or transfer, and handling of the appliance by unauthorised personnel not authorised by this company or the Pand brand or.
  • Stains, discolouration, dents, dings, dents, scratches, scratches or glass breakage.
• Presence of foreign bodies foreign to the apparatus, inside or outside the product.
• The product is not accessible because there are elements that prevent easy and safe access. The means required for the authorised Pando technician to access the appliance shall be at the user's expense and responsibility.
• Improper handling of product wiring and connections.
• Faults or damage to the product caused by incorrect power supply or electrical connection.
• Breakdowns or damage caused by variations in the electricity supply or fortuitous and natural causes of atmospheric or geological origin such as storms, lightning, earthquakes, floods, etc.
• Appliances from resale, second-hand, trade-in, trade-in of the original owner of the appliance or from exhibitions which are more than three years old from the date of manufacture.

INOXPAN, S.L., is expressly excluded from any liability for any direct or indirect damage to persons or things caused by a product improperly installed, handled, used and/or maintained.

Official Auto riz ado Pando Technical Service Contact Data

ESPAÑA, PORTUGAL AND ANDORRA OTHER COUNTRIES:
www.pando.es/asistencia-tecnica/		https://www.pando.es/en/after-sales-services/

Pol. Ind. El Cros

QR code image containing encoded data, no visible human-readable text

SERVICIO POST VENTA España, Portugal y Andorra

QR code with a central logo featuring crossed hammer and sickle symbols

Environmental Management System Certification

UNE-EN ISO 14001:2015

ES20/208675
