USER MANUAL SC-322C QSC

• Two-way, bi-amplified screen channel system
  • HF-63 provides 90° horizontal by +20° to -30° vertical coverage
  • LF-3215 is constructed of MDF and features single woofer chambers
• Low-distortion waveguide provides highly articulate dialogue
• Shallow depth (20") facilitates installation

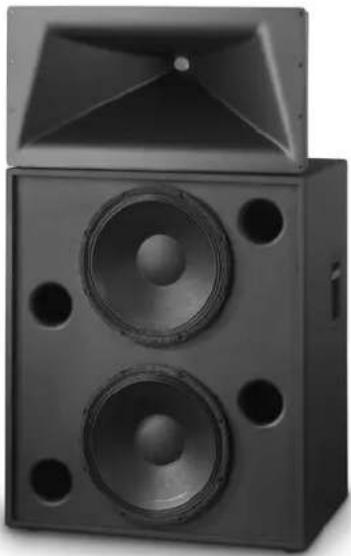

Black speaker chamber with two speakers and a top panel, no visible text or symbols

Developed specifically for the unique requirements of professional motion picture playback, the SC-322 extends QSC's commitment to the cinema market. As a member of the DCS Digital Cinema Speaker Series, the SC-322 is a two-way, bi-amplified screen channel loudspeaker system comprised of two main units—the HF-63 high-frequency system and the LF-3215 low-frequency system.

The HF-63 high-frequency system features a 2.5" (63mm) titanium diaphragm compression driver mounted on a custom designed high-frequency cinema horn with an adjustable pan and tilt bracket. The HF-63 includes a driver protection and equalization network. DC blocking capacitors protect against DC or low-frequency signals that would likely destroy an unprotected driver. Power limiter circuitry protects the driver from overpowering and a response correction filter smoothes the frequency response of the horn/ driver combination. The driver and equalization network provides for more reliable operation, ensuring the show will go on. The LF-3215 dual 15" (381mm) low- frequency enclosure is designed specifically to address the extended low-frequency response required for cinema applications.

The LF-3215 covers the frequency range from 35 Hz to 1000 Hz, depending upon the high-frequency system requirements. Close Coupled Woofers (CCW), with their tight spacing between woofers, improves coupling and keeps coverage angles wide over a greater frequency range than more widely spaced designs.

The SC-322 is designed for ease of installation. The HF-63 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the HF-63 to the top of the LF-3215 enclosure.

Specifications SC-322

Nominal Coverage	90° horizontal x +20 to -30° vertical
Frequency Range	32 Hz - 16 kHz (-6 dB)
Crossover Frequency	1000 Hz, 24 dB per octave
	LF-3215	HF-63
Impedance	4Ω	8Ω
Sensitivity 1 watt/1 meter, half space	98.5 dB	107.5 dB
Maximum Input Power ^1
8 hours of 6 db crest factor IEC 268 noise spectrum	600 W RMS	40 W RMS
2 hours of 6 db crest factor pink noise, 50 Hz - 20 kHz, AES method	800 W RMS	60 W RMS
Recommended Amplifier Power	1200 W RMS maximum	100 W RMS maximum
Recommended Processing	Subsonic filter below 30 Hz, >18 dB per octave	4th order LR crossover at 1000 Hz
Connectors	Barrier strip screw terminals accept up to #10 AWG stranded wire, four terminals; two inputs and two parallel outputs	Barrier strip screw terminals accept up to #10 AWG stranded wire, four terminals; two inputs and two parallel outputs
Transducers	Two 15" (381mm) high efficiency, extended bass woofer featuring 3" copper voice coils	1.5" (38mm) exit, 2.5" titanium diaphragm compression driver
Enclosure	Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts	Tilt/Pan Bracket ±10° vertical tilt ±10° horizontal pan

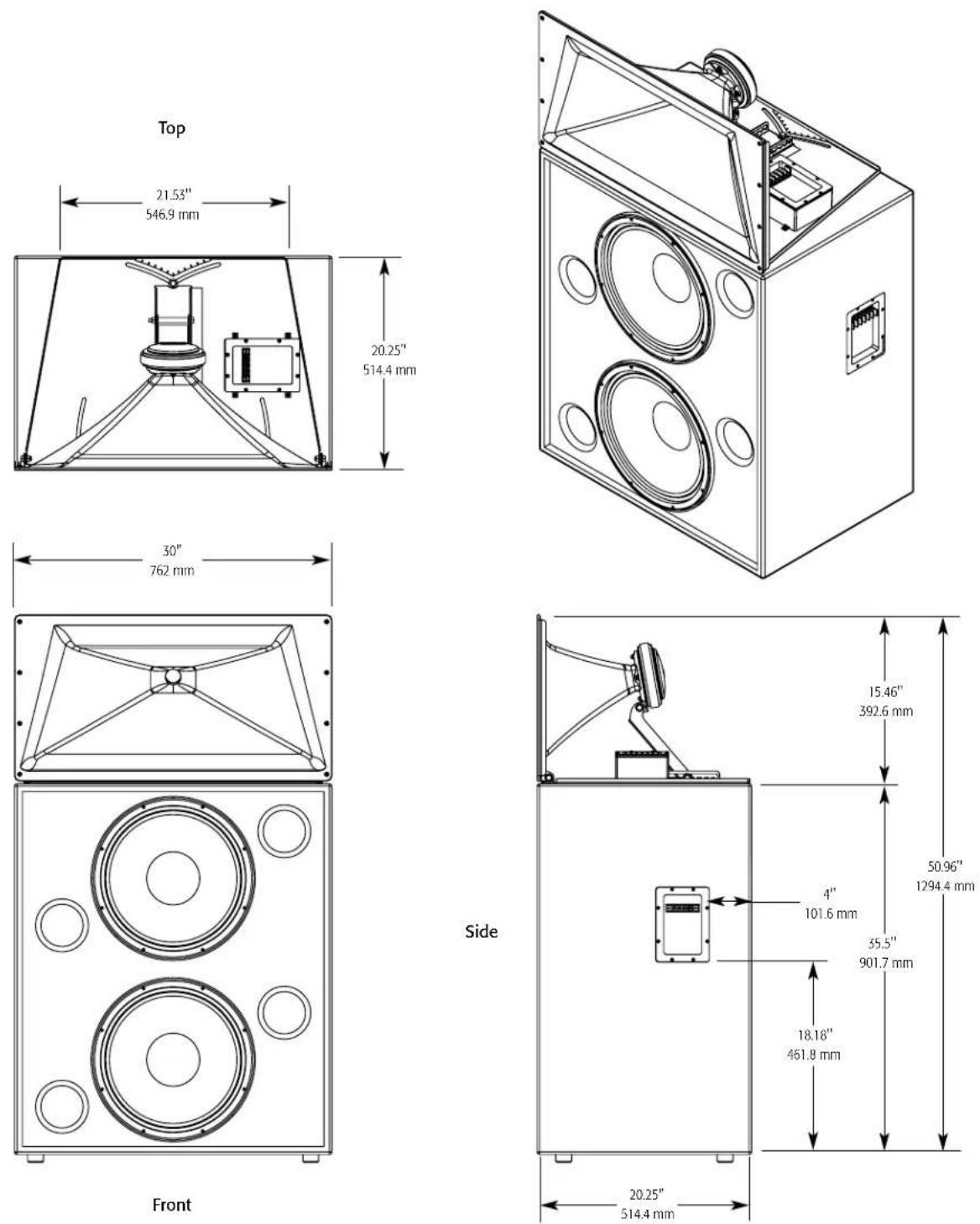

Dimensions (HWD)	36" x 30" x 20.3" (910 mm x 762 mm x 516 mm)	16" x 30" x 20" (406 mm x 762 mm x 508 mm)
Weight - Net	172 lbs (78 kg)	40 lbs (18.4 kg)
System Weight	212 lbs (96.4 kg)
Baffle Cut-Out	53" x 32"

1) Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz - 20 kHz band limiting, 6 dB signal crest factor.

Specifications subject to change without notice.

Cinema Loudspeaker Systems User Manual

HF-63 High Frequency Component

Introduction

The HF-63 is the high frequency component of two-way, biamplified screen channel loudspeaker systems for high performance cinema applications. It was designed to operate with and be directly mounted on QSC's LF-3115 or LF-3215 cinema woofer.

The HF-63 high-frequency system features a large format, 2.5" (63.5mm) titanium diaphragm compression driver mounted on a custom designed high-frequency cinema horn with an adjustable pan and tilt bracket. The horn features broad horizontal and vertical coverage angles to ensure coverage of every seat in the auditorium. The horn is a low-distortion waveguide providing highly articulate dialogue without coloration associated with conventional horn loudspeakers.

The HF-63 includes a driver protection and equalization network to assure reliable operation. DC blocking capacitors protect against DC or low-frequency signals that could damage an unprotected driver. Power limiter circuitry protects the driver from over-powering and a response correction filter smoothes the frequency response of the horn/driver combination. Outboard processing is required, however, as the response correction filter is not a crossover.

The HF-63 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the HF-63 to the top of a QSC low frequency enclosure.

Mounting

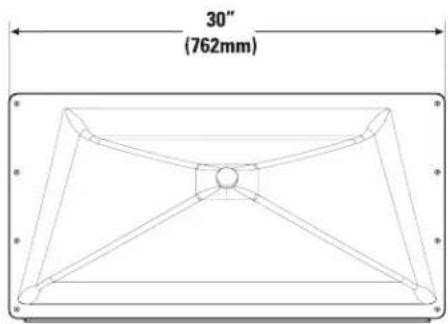

Refer to the illustration for mounting information. The HF-63 attaches to the top of the LF-3115 or LF-3215 with three 5/16-18 bolts, 0.75" long, with lock washers. This hardware ships installed on the low frequency cabinet. We recommend the use of serviceable thread locking compound when installing the bolts to prevent loosening due to vibration. Aim the horn in the horizontal plane (pan) before tightening. Adjust the vertical tilt with the bracket adjustment.

Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.

WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

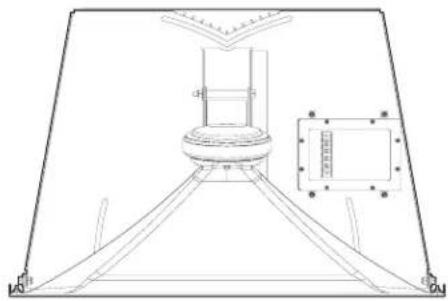

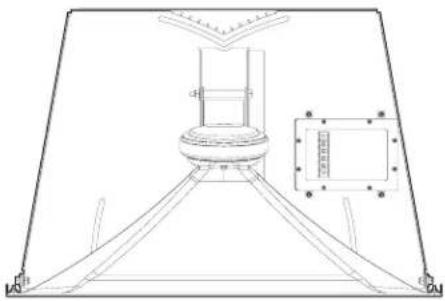

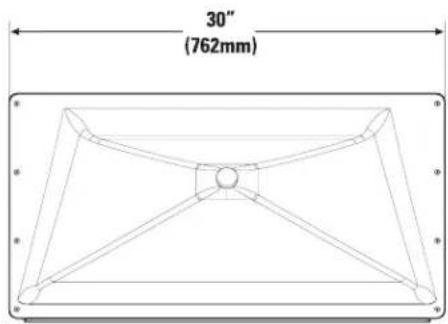

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

30" (762mm)

16" (406mm) 20" (508mm)

TD-000170-00 rev.C
© Copyright 2004, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office

Connections

HF INPUT Terminals

The HF-63 has barrier strip screw terminals that accept up to #10 AWG (5.3mm ^2 ) stranded loudspeaker wire. Connect the amplifier's high frequency output signal to the loudspeaker's HF INPUT terminals. Observe proper polarity; amplifier's + signal to loudspeaker + HF INPUT, amplifier's - signal to loudspeaker - HF INPUT. Use the largest wire size and shortest wire length for the application.

NOTE! Maintain proper loudspeaker connection polarity throughout the entire system for maximum performance. Do not apply full range signal to the HF-63! There is no crossover in the HF-63, only an equalization and protection network. All required signal processing must be done before the signal is applied to the HF-63.

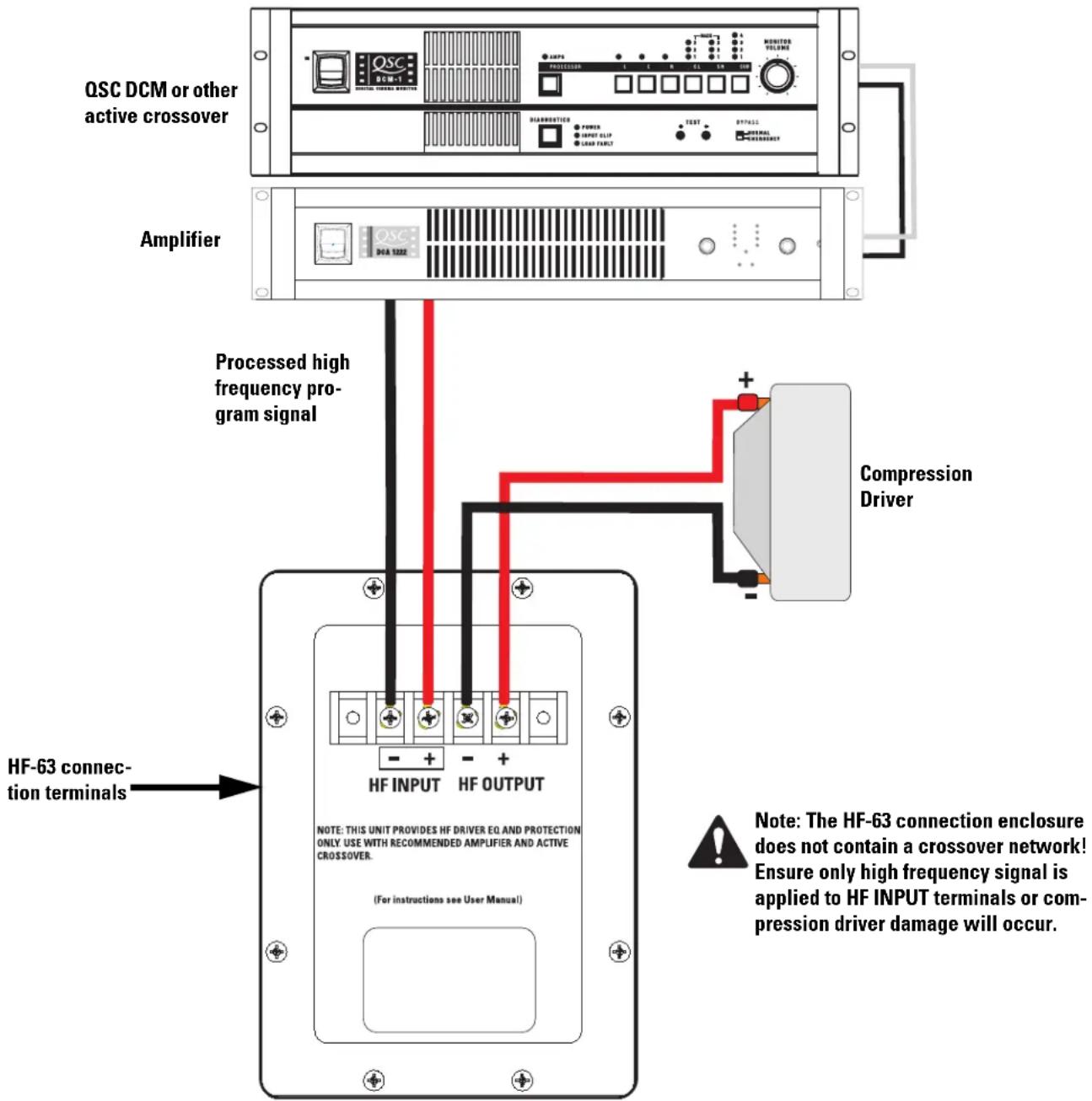

HF OUTPUT Terminals

The HF OUTPUT terminals are factory-connected to the compression driver. These terminals should ONLY be connected to the HF-63's compression driver.

QSC DCM or other active crossover Amplifier Processed high frequency program signal Compression Driver HF-63 connection terminals NOTE: THIS UNIT PROVIDES HF DRIVER EQ AND PROTECTION ONLY USE WITH RECOMMENDED AMPUIFIER AND ACTIVE CROSSOVER. (For instructions see User Manual) Note: The HF-63 connection enclosure does not contain a crossover network! Ensure only high frequency signal is applied to HF INPUT terminals or compression driver damage will occur.

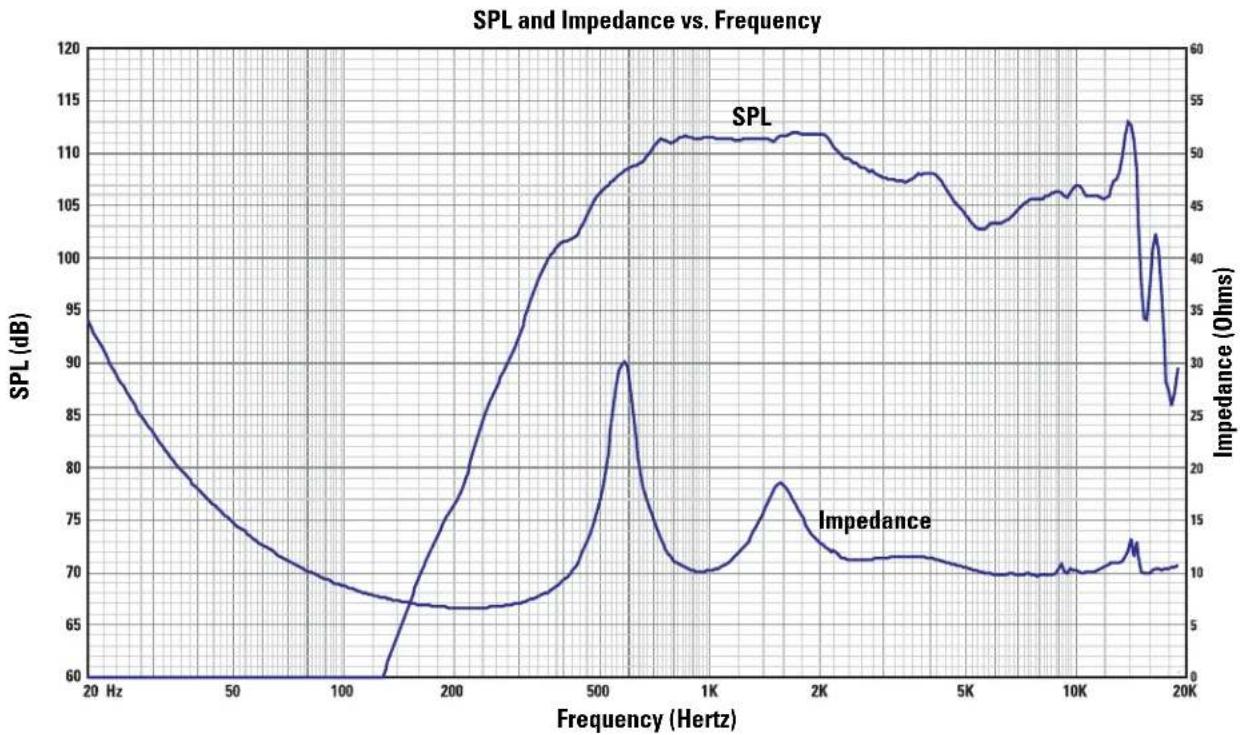

HF-63 Specifications (subject to change without notice)

Frequency Range: 400 - 16kHz (-6 dB, full space)

Nominal Coverage:

90^ horizontal X +15 to -35^ vertical ( 50^ total, adjustable mount provides for vertical plane adjustments. The horizontal plane can be adjusted by altering mounting position on the low frequency enclosure before tightening bolts.

DI: 9.0 dB (600 to 16,000 Hertz average)

Q: 8.0 (600 to 16,000 Hertz average)

Maximum Output: 131.5 dB SPL calculated peak, 1 meter, half space.

Impedance: 8 ohms nominal

9.0 ohms minimum at 8,000 Hertz

30 ohms maximum at 475 Hertz

Maximum Input Power:

50 watts rms (8 hours of 6 dB crest factor pink noise, 1,000 to 10,000 Hertz)

60 watts rms (2 hours of 6 dB crest factor pink noise, 1,000 - 10,000 Hertz, AES method)

Sensitivity: 107.5 dB half space, 1 watt, 1 meter

Crossover Frequency: 1,000 Hertz or higher, 24 dB per octave

Connectors:

Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals: (two HF INPUT and two post compensation HF OUTPUT). HF OUTPUT factory wired to compression driver.

Transducers: 1.5" (38mm) exit, 2.5" (63.5mm) titanium diaphragm compression driver.

Mounting Hardware:

Attaches to top of the low frequency cabinet using three 5/16"-18 x 3/4" long bolts.

Size: 30" wide X 16" high X 20" deep (762mm X 406mm X 508mm)

Weight:

50 lbs. (shipping), 40 lbs. (net), 22.7/18.4 kilograms

Warranty (USA only; other countries, see your dealer or distributor)

Disclaimer

QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.

QSC Audio Products 3 Year Limited Warranty

QSC Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.

Customer may have additional rights, which vary from state to state.

In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.

Contacting QSC Audio Products

Mailing address: QSC Audio Products, Inc.

1675 MacArthur Boulevard

Costa Mesa, CA 92626-1468 USA

Telephone Numbers:

Main Number [phone]

Sales & Marketing [phone] or toll free (USA only) [phone]

Customer Service(714) 957-7150 or toll free (USA only) [phone]

Facsimile Numbers:

Sales & Marketing Fax[phone]

Customer Service Fax[phone]

World Wide Web:www.qscaudio.com

E-mail:[e-mail]

[e-mail]

Cinema Loudspeaker Systems User Manual

LF-3215 Low Frequency Loudspeaker

Introduction

The LF-3215 dual 15" (381mm) low frequency enclosure is designed specifically for cinema applications. Meeting cinema requirements for extended low frequency response differentiates the LF-3215 from more conventional "rock-and-roll" woofer systems. The LF-3215 covers the frequency range from 32 Hertz to 1500 Hertz, depending upon the high frequency system requirements. With its tight spacing between woofers, the LF-3215 offers improved coupling and keeps coverage angles wide over a greater frequency range than more widely spaced designs.

The 300 watt, 15" transducers are well suited for cinema use. They feature 3" (76mm) voice coils, 120 oz.(3.4kg) ceramic magnets, and vented pole pieces to ensure cool operation. Cooler temperatures increase transducer lifespan and decrease the problem of power compression at high power levels. The suspension and voice coil of each transducer have been designed to provide low distortion and high impact bass at high power levels.

The enclosure is constructed of high quality medium density fiberboard panels with stiffening braces on all panels and features separate woofer chambers. This prevents over-excursion of a transducer caused by improper box loading in the rare event of a transducer failure. The eight stiffening braces reduce panel resonance.

Both internal and external port openings are fully radiused ensuring smooth air flow at high power. This prevents audible port turbulence noise.

With symmetrical port loading, bass ports are evenly spaced on each side of the transducers, making internal pressure more uniform across the back surface of the transducer. This prevents the cone from being displaced to one side or another by unbalanced forces, reducing the chance of driving the voice coil out of the center of the gap at high power levels.

Three T-nuts in the top of the enclosure provide easy mounting of QSC's HF-63 high frequency system, or MH-1063 mid-high frequency system.

Enclosure is not designed to be suspended, flown, or rigged. Do not suspend, fly, or rig this enclosure.

This product is capable of producing sound pressure levels that can permanently damage human hearing. Always keep sound pressure levels in the listening area below levels that can damage human hearing.

Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.

WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

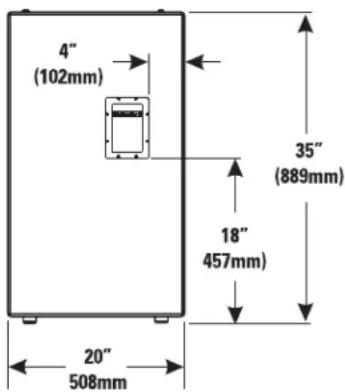

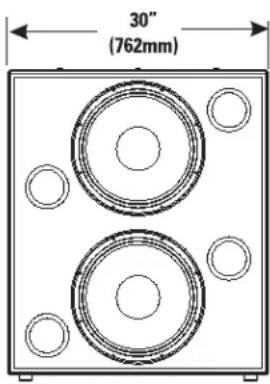

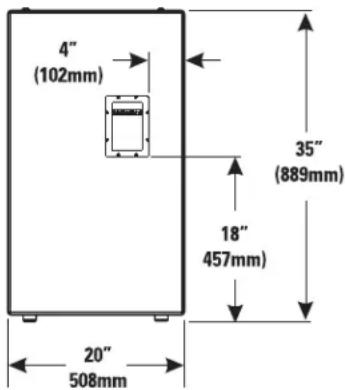

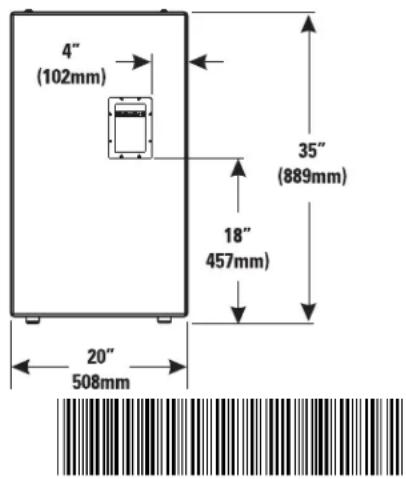

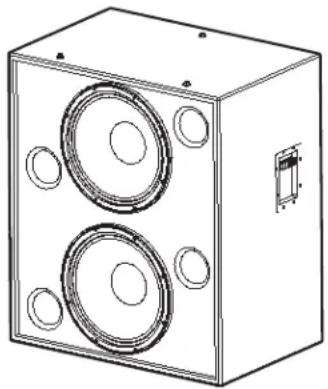

Technical line drawing of a two-tiered speaker chamber with circular cutouts and mounting holes (no text or symbols)

Mounting points for mid- high or high frequency system

30" (762mm)

4" (102mm) 35" (889mm) 18" 457mm) 20" 508mm

TD-000173-00 rev.C
© Copyright 2004, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office

Connections

Normal Connection

The LF-3215 has barrier strip screw terminals for connection. The terminals accept up to #10 AWG (5.3mm ^2 ) stranded loudspeaker wiring. Use the largest wire size and shortest wire length possible for the application. Observe the polarity markings and keep polarity consistent throughout the system for best performance.

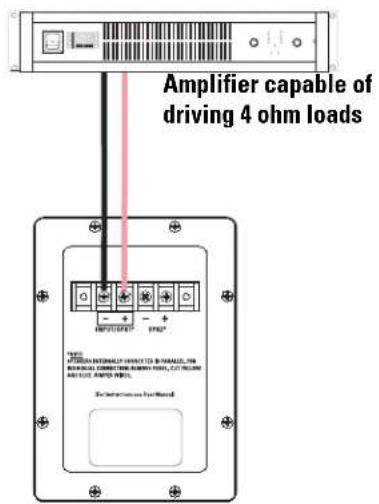

Normal Connection Example:

Amplifier capable of driving 4 ohm loads

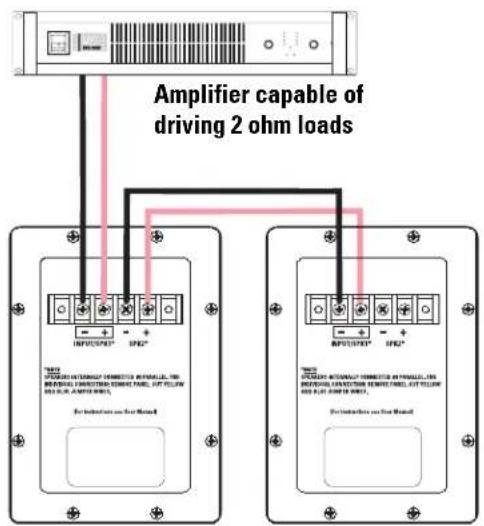

Parallel Connection of Second LF-3215

The terminals marker SPK2 may be used to connect another LF-3215 in parallel. Connect the wires as shown in the illustration, at right. Note: If the LF-3215's internal wiring has been modified in any way, this may not function. If this is the case, remove the terminal cup and verify the presence of the factory yellow jumper and blue jumper wires; remedy as required or have the loudspeaker serviced.

Parallel Connection Example:

Amplifier capable of driving 2 ohm loads

Individual Transducer Connection (requires modification)

The transducers are wired in parallel inside the enclosure. If individual transducer connection is required, remove the terminal cup and remove the yellow and the blue jumper wires that are connected between the SPK1 and SPK2 terminals. Replace the terminal cup and mark the enclosure with a note of the modification.

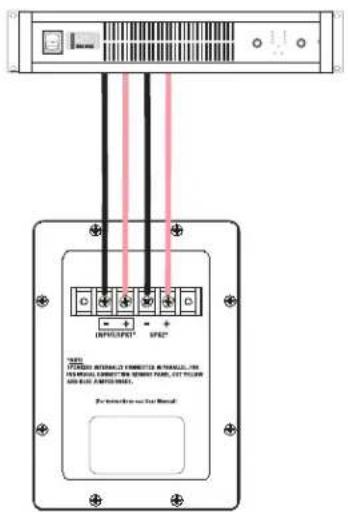

Individual Transducer Connection Example:

CAUTION! Requires removal of terminal cup and removing both the yellow and the blue jumper wires that connect the SPK1 and SPK2 terminals.

INFLUFPST® SPED® "TEL ITAMAL INTENDED FEMESTS INTENDED, IN FAMOUS CONNECT TO CURRENT TIME, LET TOLER AND BUY AMOUNTED. Pre-Intended use for Manual

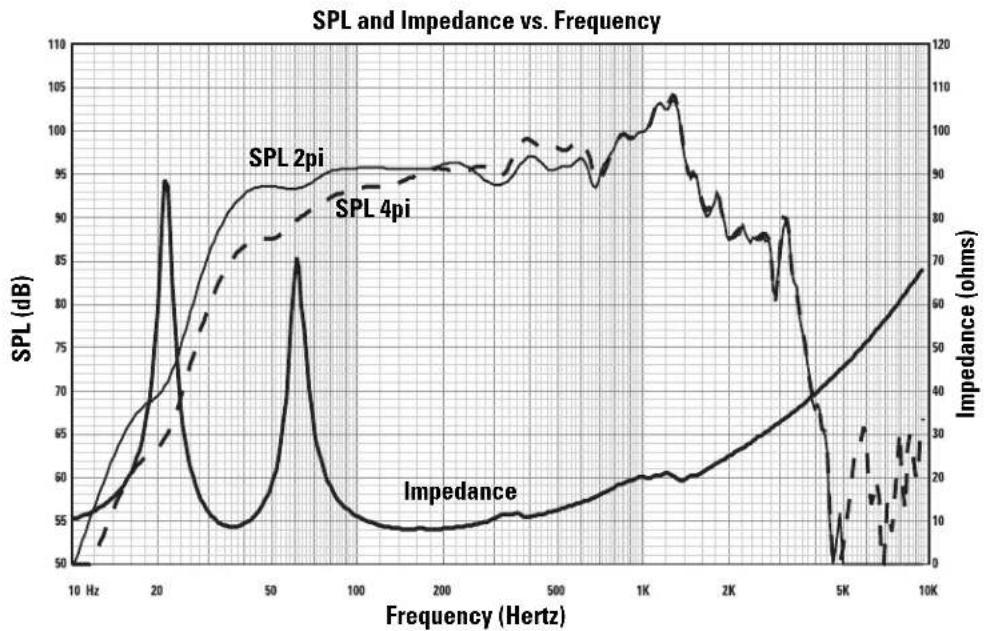

LF-3215 Specifications (subject to change without notice)

Frequency Range: 32 - 1500 Hertz (-6dB)

28 - 3300 Hertz useable range (-10dB)

Nominal Coverage: 100° horizontal X 55° vertical at 600 Hertz

Maximum Output:

132.5 dB SPL calculated peak, 1 meter, half space, at rated rms power with 6 dB crest factor pink noise input, 25 - 250 Hertz. 126.5 dBA SPL calculated maximum continuous, 1 meter. The dBA scale is typically used to identify sound sources which can cause permanent hearing loss.

Impedance: 4 ohms nominal

4.1 ohms minimum, 180 Hertz

55 ohms maximum, 21 Hertz

Maximum Input Power:

600 watts rms (8 hours of 6 dB crest factor pink noise, 40 - 400 Hertz)

750 watts rms (2 hours of 6 dB crest factor pink noise, 40 - 400 Hertz)

Recommended amplifier power capability- 1200 watts rms maximum into 4 ohms (per LF-3215)

Sensitivity: 98.5 dB half space, 97.5 dB full space, 35 - 1000 Hertz, 1 watt, 1 meter

Recommended Processing:

Subsonic filter below 30 Hertz, >18 dB per octave, maximum recommended crossover frequency is 1000 Hertz. QSC DSP configurations are available at www.qscaudio.com. Parameters for alternative processing hardware are available upon request.

Connectors:

Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals: (two INPUT and two PARALLEL OUT). Transducers are internally wired in parallel. For independent transducer connection, remove blue jumper wire and yellow jumper wire on internal-side of terminal cup and mark enclosure accordingly.

Transducers:

Two 15" (381mm) high efficiency low frequency transducers featuring vented 3" (76mm) copper voice coils on Kapton® formers. High excursion/low distortion design, with extremely high power handling, and low thermal and port compression.

Enclosure:

Quasi B4 alignment, ported enclosure with fully flared ports, low turbulence symmetrical port design, tuned to 36 Hertz, constructed of medium density fibreboard and heavily braced. Features vandal resistant woofer mounting bolts.

Size: 30" wide X 35" high X 20" deep (762 mm X 889 mm X 508 mm)

Weight: 195 lbs. shipping, 172 lbs. net (88/78 kg.)

Warranty (USA only; other countries, see your dealer or distributor)

Disclaimer

QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.

QSC Audio Products 3 Year Limited Warranty

QSC Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.

Customer may have additional rights, which vary from state to state.

In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.

Contacting QSC Audio Products

Mailing address: QSC Audio Products, Inc.

1675 MacArthur Boulevard

Costa Mesa, CA 92626-1468 USA

Telephone Numbers:

Main Number [phone]

Sales & Marketing [phone] or toll free (USA only) [phone]

Customer Service(714) 957-7150 or toll free (USA only) [phone]

Facsimile Numbers:

Sales & Marketing Fax[phone]

Customer Service Fax[phone]

World Wide Web:www.qscaudio.com

E-mail:[e-mail]

[e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

30" (762mm)

16" (406mm) 20" (508mm)

Conexiones

Terminales de ENTRADA de HF

[e-mail]

QSC™

Line drawing of a two-tiered speaker chamber with circular cutouts and a small rectangular component on the right side (no text or symbols)

30" (762mm)

4" (102mm) 35" (889mm) 18" 457mm) 20" 508mm

TD-000173-00 rev. C

© Derechos de autor 2004, QSC Audio Products, Inc.

[e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Montage

30" (762mm) m

16" (406mm) 20" (508mm)

Branchements

Bornes HF INPUT (Entrée HF)

Adresse postale : QSC Audio Products, Inc.

1675 MacArthur Boulevard

[e-mail]

Technical line drawing of a two-tiered speaker chamber with circular cutouts and a small inset component (no text or symbols)

30" (762mm)

4" (102mm) 35" (889mm) 18" 457mm) 20" 508mm

Branchements

Branchement normal

Adresse postale : QSC Audio Products, Inc.

1675 MacArthur Boulevard

[e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

30" (762mm)

16" (406mm) 20" (508mm)

Verbindungen

[e-mail]

Technical line drawing of a two-tiered speaker chamber with circular cutouts and a small inset component (no text or symbols)

30" (762mm)

4" (102mm) 35" (889mm) 18" 457mm) 20" 508mm

Verbindungen

Normaler Anschluss

[e-mail]

QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

装配

30" (762mm)

16" (406mm) 20" (508mm)

连接

HF 输入终端

[e-mail]

影院扬声器系统用户手册

LF-3215 低频扬声器

简介

Technical line drawing of a two-tiered speaker unit with circular cutouts and mounting holes (no text or symbols)

30" (762mm)

4" (102mm) 35" (889mm) 18" 457mm) 20" 508mm

连接

正常连接

INFRSF201 SPR2 "ALL" STRAWING ITEMS OF FRESHING ITEMS FOR ALL ITEMS FROM THE SHEET NAME, LET TOLER AND BUY ITEMS For instructions for Manual

[e-mail]

QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA
