USER MANUAL Mobile Mica 99400 TREBS

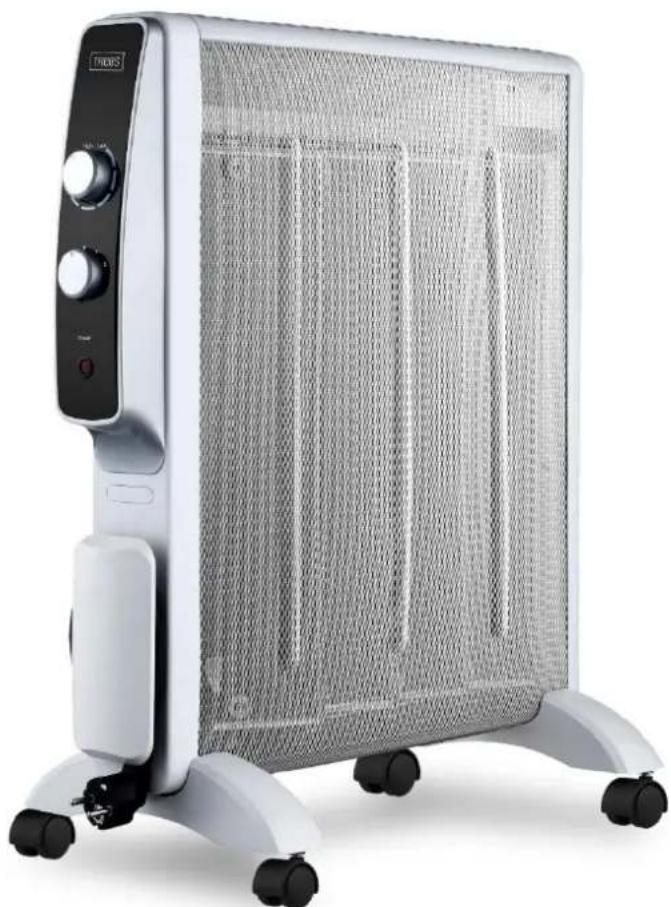

Mobile Mica heather with wheels

Model: 99400

Manual Mica heather with wheels

Index

Nederlands 3

Francais. 8

Deutsch 13

English 18

1. Important safety regulations

Read this user manual carefully before using the appliance and save it for future use. Only install this device if it complies with local/national laws, regulations and standards. This product is intended to be used as a mobile heater in residential homes and is only suitable for use in normal domestic conditions, indoors. This device is only suitable for earthed sockets, connection voltage 220V - 240V 50Hz .

1. Make sure the voltage is the same as that indicated on the rating plate of the appliance.
2. Do not operate this appliance if the cable or plug becomes damaged.
3. Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
4. If the cord is damaged, it must be replaced by the professional service people, in order to avoid a hazard, please don't repair it yourself.
5. Ensure the appliance is switched off before connecting to the mains power supply.
6. Switch off the power supply and disconnect from mains supply when not in use, before cleaning or other maintenance.
7. Do not operate it in areas where gasoline, paint or other flammable liquids are used or stored.
8. In order to avoid overheating, do not cover the heater.
9. To prevent a possible fire, do not block air intakes or exhaust in any manner.
10. Don't touch the hot surfaces.
11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
12. Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and socket-outlet.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
14. Children should be supervised to ensure that they do not play with the appliance.
15. Do not leave this appliance unattended when it's in use.
16. The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by disconnect the appliance and vacuum cleaning air vents and grilles.
17. Do not place the heater on a carpet, don't place the cable under carpets. Arrange cord away from traffic areas so that it will not be tripped over.
18. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into a bathtub or other water container. It is life danger!

19. If you want to use it to warm up the bathroom before shower/bath, special attention should be paid: make sure it is far away enough from the liquid sprays and remove it from the bathroom before having a shower or a bath to avoid the moisture. Make sure it is far away from the soft things like clothes, cushions or blankets which are easy to be burned in case of overheating.

20. When heating up and cooling down the heater, you may hear a ticking sound. This is normal.

21. There may be a paint smell when using your heater for the first time. This will disappear after several hours of using the heater.
22. Do not store away the heater until the heater is cool down. Store the heater in a cool dry location when not in use.
23. When in use, keep the distance between window(wall) at least 50cm .

2. Device

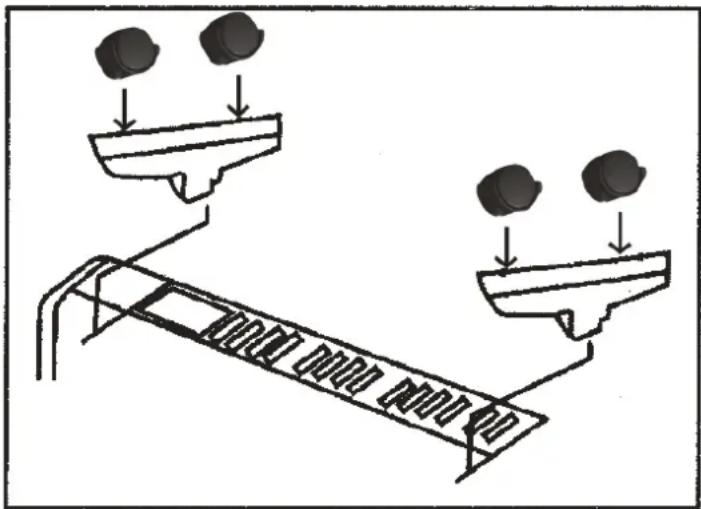

2.1 Assembly

After unpacking, check the appliance for any damage. If in doubt, do not use the appliance but contact your local dealer's customer service. Keep packaging materials (plastic bags, etc.) away from children as they may cause dangerous situations for children.

1. Turn the radiator upside down on a scratch-free and stable surface to avoid damage to the paint of the appliance or your floor.
2. Insert the wheels on the bottom part. Make sure they are tight enough and fix them to the appliance.

2.2 Utilization

1. Connect the appliance to safety socket.

2. Turn on the switch to the heating position (I or II).

3. The heating functions

	99400
Heat setting I	1000W
Heat setting II	2000W

1. Turn the thermostat knob in the direction of clockwise until reaching the maximum temperature.

2. Once the room temperature is reached, slowly turn the thermostat knob in the direction of anticlockwise until you get your required temperature.

3. Turn the switch to "0" position to switch off the heater. Unplug the appliance afterwards.

2.3 Overheat safety device

1. Your heater is fitted with a safety device to switches off the heater in the event of overheating. If the safety device is operating, please turn the heater off, unplug the appliance and let it cool down, inspect for blockage of air inlet or outlet, attempting to restart the heater then afterwards.
2. If the heater fails to operate or the safety device switches the heater off again, return the heater to your nearest service center for examination or repair.

3. Maintenance and storing

1. Always disconnect the appliance and let it completely cool down before any maintenance or storing.
2. Use a vacuum cleaner to remove dust on grilles.
3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, nor let water drip into the unit. Avoid using detergents to clean the heater. Never let any water get inside cause this can be hazardous.
4. If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.
5. Do not place any heavy items on top of carton during storing as this may damage the appliance.

4. Recycling (Disposal of the product)

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste.

Remark: Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information. Make sure that your old device, until it's picked up, is safely stored out of reach of children.

5. Warranty

We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials. Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.

The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant.

This device is designed for household use and has the right performance levels. Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use. In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded. When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

6. Technical Specifications:

Model	99400
Rated Voltage	220V - 240V~
Rated Frequency	50 Hz
Rated Power	1000W/2000W

7. Service

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service on www.trebsshop.com

8. CE regulations

Products with the CE marking comply with the EMC Directive (2014/30/EU) and the Low Voltage Directive (2014/35/EU) issued by the Commission of the European Community. Hereby, Commaxx BV, Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands, declares that this product is in compliance with the essential requirements. The declaration of conformity may be consulted on [e-mail]
