USER MANUAL SKSIT3001GE SIGNATURE

Scan to see the online manual.

SIGNATURE

KITCHEN SUITE

OWNER'S MANUAL

CERAMIC-GLASS INDUCTION COOKTOP

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

SKSIT3001GE

MFL72051005

Rev.01_061224

www.signaturekitchensuite.com

Copyright © 2024 Signature Kitchen Suite. All Rights Reserved.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

2

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE
3 WARNING STATEMENTS
7 CAUTION STATEMENTS

9 PRODUCT OVERVIEW

9 Product Features

10 INSTALLATION

10 Before Installing

15 Installing the Cooktop

19 OPERATION

19 Introduction to Induction Cooking
19 Cookware
23 Control Panel

34 SMART FUNCTIONS

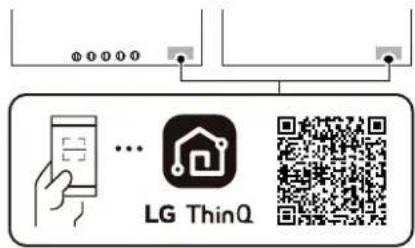

34 LG ThinQ Application

37 MAINTENANCE

37 Care and Cleaning

39 TROUBLESHOOTING

39 Before Calling for Service

42 LIMITED WARRANTY

42 USA
44 CANADA

Pure geometric diagram with intersecting lines and circles, no text or symbols present

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING STATEMENTS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

Installation

• Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States, and all local code requirements. Install only per installation instructions.
  • The safety aspects of this appliance comply with accepted technical standards.
• Never modify or alter the construction of an appliance such as removal of panels, wire covers or any other permanent part of the product.
• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material.
• The installation and connection of the new appliance must only be carried out by qualified personnel.
• Flush-mounted appliances may only be operated following installation in suitable cabinets and workplaces which conform to the relevant standards. This ensures sufficient protection against electric shock as required by certification agencies.

Operation

• Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency. Mark the breaker or fuse for ease of identification and swift action if necessary.
• Never use your appliance for warming or heating a room.

4 IMPORTANT SAFETY INSTRUCTIONS

- Persons with a pacemaker or similar medical device should exercise caution using or standing near an induction unit while it is in operation, as the electromagnetic field may affect the working of the pacemaker or similar medical device. It would be advisable to consult your doctor or the pacemaker or medical device manufacturer about your particular situation.

- DO NOT touch cooking zones or areas near these surfaces. Cooking zones may be hot from residual heat even though they are dark in color. Areas near the cooking zones may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch, these areas until they have had sufficient time to cool.

- Never wear loose fitting or hanging garments while using this appliance.

• Always turn off all controls when cooking is completed.

- Do not use water or flour on grease fires. Smother the fire with a pan lid, or use baking soda or a dry chemical or foam-type extinguisher.

- Use only dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units. Do not use a towel or other bulky cloth instead of a pot holder.

- Do not heat unopened food containers. A buildup of pressure may cause the container to burst and result in injury.

- Flammable materials should not be stored near or on the cooking surface. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- Never place combustible items on the cooktop.

- Never keep any combustible items or aerosol cans in a drawer located under the cooktop.

- When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become too hot.

• Overheated fats and oils catch fire quickly. You should supervise cooking when preparing foods in fat or oil.

- Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.

- If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do not reuse your cooktop until the glass surface has been replaced.

- When using the cooktop, never use aluminum foil, products wrapped in aluminum foil, or deep-frozen food in aluminum cookware.

- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

- Young children should be supervised to ensure that they do not play with the appliance.

- Accessible parts may become hot during use. Young children should be kept away.

- Items of interest to children should not be stored in cabinets above a cooktop or on the backsplash of a cooktop – children climbing on the cooktop to reach items could be seriously injured.

- Children should not be left alone or unattended in the area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

• Take care when plugging in electric appliances near the cooktop. Cords must not come into contact with the hot surface. Doing so could cause damage to the cooktop and cable insulation.

• After use, switch off the cooktop element by its control and do not rely on the pan detector.

- Avoid placing metal objects such as knives, forks, spoons and lids on the cooking surface areas. Metal objects can become hot and cause burns.

- Do not place any object on or near the display area in order to prevent accidental activation of the cooktop controls.

- Cookware handles should be turned inward and not extend over adjacent surface units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the

cookware, the handles of cookware should be positioned so that they are turned inward, and do not extend over adjacent surface units.

• Never leave prepared food on the cooking zones. Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt or become damaged.
• Do not use aluminum foil to line any part of the cooktop. Only use aluminum foil as recommended after the cooking process, if used as a cover to be placed over the food. Any other use of aluminum foil may result in the risk of electric shock, fire or short circuit.
• Do not clean or operate a broken cooktop. If the cooktop breaks, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.
• Never leave surface units unattended at high heat settings. Boilover causes smoking and greasy spillovers that may ignite.
  • Always turn off all controls when cooking is completed.
• Keep pets away from the product to avoid risk of fire or burns. Do not allow pets to climb on the product even when it is not in operation.

• Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling, due to surface tension of the liquid. Visible bubbling or boiling is not always present when the container is removed from the cooktop. This could result in very hot liquids suddenly boiling over when the container is disturbed or a spoon or other utensil is inserted into the liquid. To reduce the risk of injury to persons:

• Do not overheat the liquid.

• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand on the cooktop for a short time before moving the container.

• Use extreme care when inserting a spoon or other utensil into the container after heating.

• Do not use the cooktop as a work surface or storage space.

• Do not operate the cooking zones with empty pots or pans.
• Do not turn on the cooking zones with no pots or pans on the element.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• The appliance must not be installed behind a decorative door in order to avoid overheating.

Maintenance

• Do not repair or replace any part of the appliance. All servicing should be done only by a qualified technician to avoid the risk of personal injury and damage to the appliance.
  • Take care to avoid steam burns if using a wet sponge or cloth to wipe spills on a hot cooking area.
• Wait for the cooktop to cool before using cooktop cleaners. Some cleaners can produce NOXIOUS FUMES if applied to a hot surface.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If your appliance malfunctions or fractures, switch off all cooking zones, and contact a SIGNATURE KITCHEN SUITE Customer Information Center for service.
• Always keep the control panel clean and dry. Do not let liquids or grease remain on the cooktop display area. Spilled or burnt-on foods can activate or deactivate the appliance. Clean the display area thoroughly to resume normal operation of the appliance.
• Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate on the hood or filters. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's instructions for cleaning.

6 IMPORTANT SAFETY INSTRUCTIONS

Safety Standard for Button Cell or Coin Batteries

WARNING

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN.
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

- Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children.

- Do NOT dispose of batteries in household trash or incinerate.

- Even used batteries may cause severe injury or death.

- Call a local poison control center for treatment information.

• Non-rechargeable batteries are not to be recharged.

- Do not force discharge, recharge, disassemble, heat above 140^ (60 °C) or incinerate.

- Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.

- Product contains non-replaceable batteries.

- Battery Type : MS621FE

• Nominal Voltage : 3.0 V

CAUTION STATEMENTS

CAUTION

- To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Operation

• This appliance may only be used for normal cooking and frying in the home. It is not designed for commercial or industrial purposes.
• Use proper pan sizes. This appliance is equipped with one or more surface units of different sizes.
• Select cookware having flat bottoms large enough to cover the cooking zones. The pan detection sensors will not allow the affected cooking zones to operate without a pan present.

- Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed cookware are suitable for rangetop service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for cooktop use.

- Do not place hot cookware on cold cooktop glass. This could cause the glass to break.

- Do not slide pans across the cooktop surface. They may scratch the cooktop surface.

- Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not covered by your warranty.)

- Cook meat and poultry thoroughly, meat to at least an INTERNAL temperature of 160 °F and poultry to at least an INTERNAL temperature of 180 °F. Cooking to these temperatures usually protects against foodborne illnesses.

- Prior to using the cooktop for the first time, apply the recommended cooktop cleaning cream to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when the cooktop gets soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

- Please be careful of the cooktop edges when moving pots and pans.

- Ceramic glass is very tough, and impervious to sharp temperature changes, but is not unbreakable. It can be damaged if hard or sharp objects fall on it.

- Be very cautious if using pots made of cast iron, or other pots with rough edges or burrs. Moving these can cause scratches on the glass.

- Do not slide metal or glass across the cooktop surface.

- Do not use cookware with any dirt buildup on the bottom.

- Do not use cookware with rough or uneven bottoms. This cookware can mark and scratch the cooktop surface.

- Do not use the glass cooktop surface as a cutting board.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Maintenance

• Always switch off the appliance before cleaning.
- For safety reasons, do not clean the appliance with a steam jet or high-pressure cleaner.
- Clean the cooktop in accordance with the maintenance and cleaning instructions in this manual.
- Do not use harsh abrasive cleaners or rough metal scrapers to clean the cooktop glass since they can scratch the surface, which may result in shattering of the glass.
- Clean the cooktop cautiously. Do not use sponges or cloth to wipe spills on a hot cooking area. Use a proper metal scraper.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

8 IMPORTANT SAFETY INSTRUCTIONS

• If sugar or a mixture containing sugar falls onto a hot cooking zone and melts, remove it with a metal scraper immediately, while still hot. If left to cool down, it may damage the surface when removed. Use caution and wear an oven mitt to avoid burns.
• Keep meltable objects or materials away from the ceramic glass surface, for example, plastic utensils, aluminum foil, or cooking wraps. If any materials or foodstuffs melt on the ceramic-glass surface, these should be cleaned up immediately.
• Use oven mitts to avoid burns when using a metal scraper on a hot cooking zone.
• Refer to the Maintenance section for proper cleaning and maintenance of the cooktop.

Disposal of Old Appliances

To protect the environment, it is important that worn-out appliances are disposed of in the correct manner.

• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates or public refuse disposal sites from your local government or waste collection service.
• Before disposing of old appliances make them inoperable so they cannot be a source of danger. To do this, have a qualified person disconnect the appliance from the house circuitry.

PRODUCT OVERVIEW

Product Features

⑤Type A Screws (2 ea)

Parts and Features

Throughout this manual, features and appearance may vary from your model.

Parts and Features

1 Dual Cooking Zone 11 1/8" / 7 1/16" (283 mm / 180 mm)
Single Cooking Zone 8 1/2" x 7 1/8" (216.2 mm x 180.2 mm)
3 Flexible Cooking Zone 8 1/2" x 14 3/16" (216.2 mm x 360.4 mm)
4 Single Cooking Zone 6 1/2" (165 mm)
5 Control Panel
6 Rating Label Model and Serial Number Plate

Accessories

Cleaner

① Cooktop Cleaner (1 ea)
② Non-scratch Scouring Pad (1 ea)

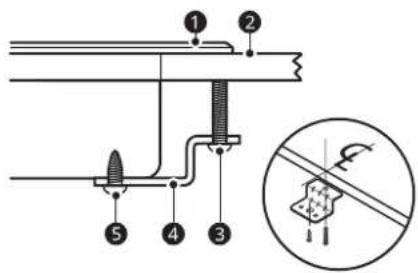

3 Retainer Brackets (2 ea)
④Bolts (2 ea)

10 INSTALLATION

INSTALLATION

Before Installing

Before You Begin

Installation and service must be performed by a qualified installer.

Important: Save these instructions for the local electrical inspector's use. Read and save these instructions for future reference.

Read these instructions completely and carefully.

CAUTION

- If storage is located under the cooktop, do not use it to store flammable or heat-sensitive items such as detergents, aerosols, cleaners, water, food, or plastics.

NOTE

Installer:

• Read all installation instructions before installing the cooktop.
• Remove all packing material before connecting the electrical supply to the cooktop.
• Observe all governing codes and ordinances.
• Only certain cooktop models may be installed over certain built-in electric oven models.
• Be sure to leave these instructions with the consumer.

NOTE

Consumer:

- Keep the owner's manual and installation instructions for future reference.

NOTE

• This appliance must be properly grounded.
- Damage caused by failure to follow these instructions is not covered by the cooktop warranty.

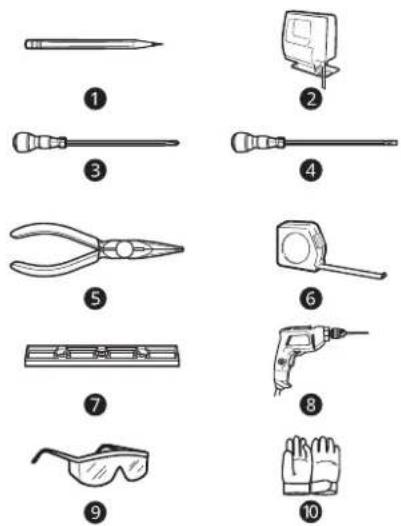

Tools Needed

Illustration showing ten different types of office supplies with numbered labels, including pens, pliers, and gloves.

①Pencil
② Saber Saw
3 Phillips Screwdriver
4 Flat-Blade Screwdriver
5 Pliers
⑥Tape Measure
7 Level
8 Drill
9 Safety Glasses
10Gloves

Parts not Provided

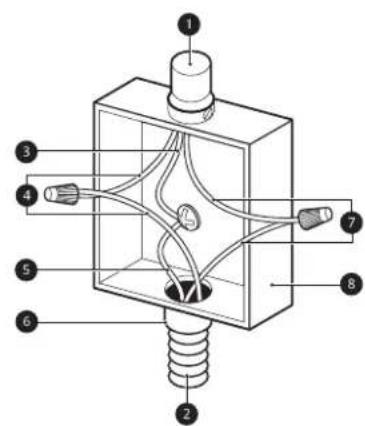

Four technical illustrations of mechanical components labeled 1 to 3, including a box, flutes, and a device (no text or symbols beyond labels)

①Junction Box
② Wire Nuts
③ Strain Relief (Conduit Connector)

Pure geometric lines and shapes without any text, numbers, or symbols

Unpacking the Cooktop

1 Unpack and visually inspect the cooktop for any damage or missing components.
2 Be sure the bottle of cleaner and conditioner packed in the literature bag is left where the user can find it easily. It is important that the

ceramic-glass cooktop be pretreated before use. See Care and Cleaning.

Model and Serial Number Location

The model and serial numbers are located on a plate on the front side of the cooktop. Please record them in this guide; you will need them for warranty registration.

Technical Specifications

Models SKSIT3001GE
Description Induction Cooktop
Electrical Specifications	Connection voltage	240/208 VAC 60 Hz., 39.2 A / 37.0 A
	Maximum connected power load	9400 W / 7688 W
Cooktop Dimensions		30 11/16" (781 mm) (W) × 4 1/8" (105 mm) (H) × 21 1/16" (534 mm) (D)
Countertop Cutout Dimensions		Standard Installation28 1/2" (724 mm) (W) × 5 3/4" (146 mm) (H) × 19 5/8" (498 mm) (D)Flush Installation31" (787 mm) (W) × 6 1/16" (153 mm) (H) × 21 1/4" (540 mm) (D)
Cooking Zones		Position Size Power (Level 9 / Boost)
		Front Left	8 1/2" x 7 1/8"(216.2 mm x 180.2 mm)	1513/3026 W (208 V)1850/3700 W (240 V)
		Front Right	6 1/2"(165 mm)	1145/1472 W (208 V)1400/1800 W (240 V)
		Rear Left	8 1/2" x 7 1/8"(216.2 mm x 180.2 mm)	1513/3026 W (208 V)1850/3700 W (240 V)
		Flex Left	8 1/2" x 14 3/16"(216.2 mm x 360.4 mm)	2699/3026 W (208 V)3300/3700 W (240 V)
		Center	11 1/8" / 7 1/16"(283 mm / 180 mm)	Inner Burner:1513/3026 W (208 V)1850/3700 W (240 V)Dual Burner:3026/4662 W (208 V)3700/5700 W (240 V)

NOTE

- The maximum power of each cooking zone depends on the size and material of the cookware used.

12 INSTALLATION

Preparing the Installation Location

Important Installation Information

• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC-only electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (762 mm).
• Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 93 °C [200 °F]) generated by the cooktop.

Dimensions and Clearances

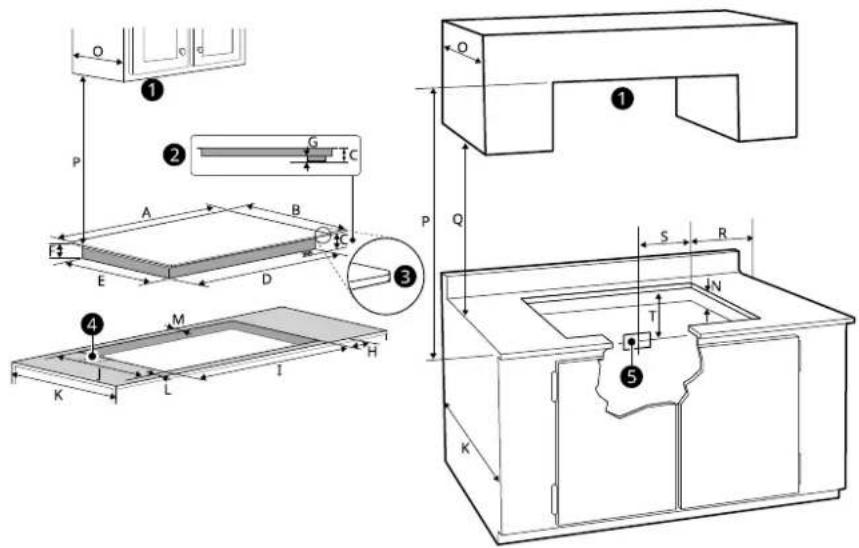

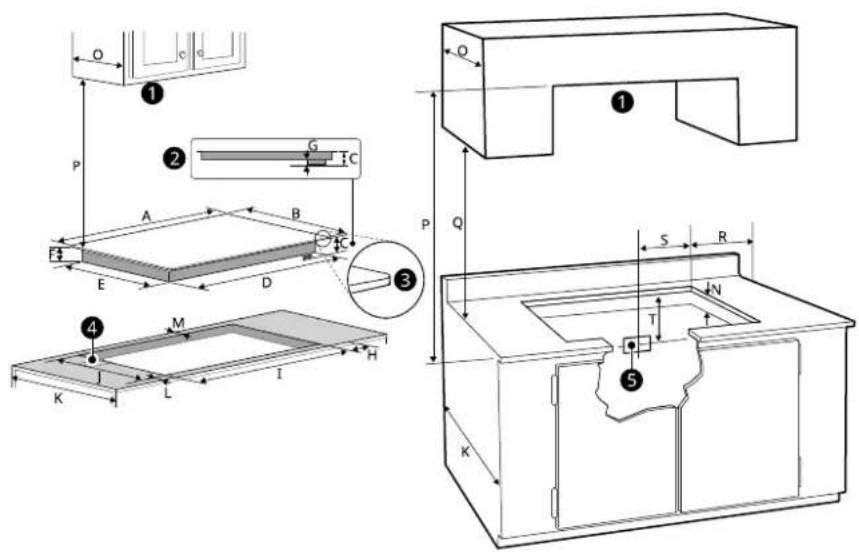

Standard Installation

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

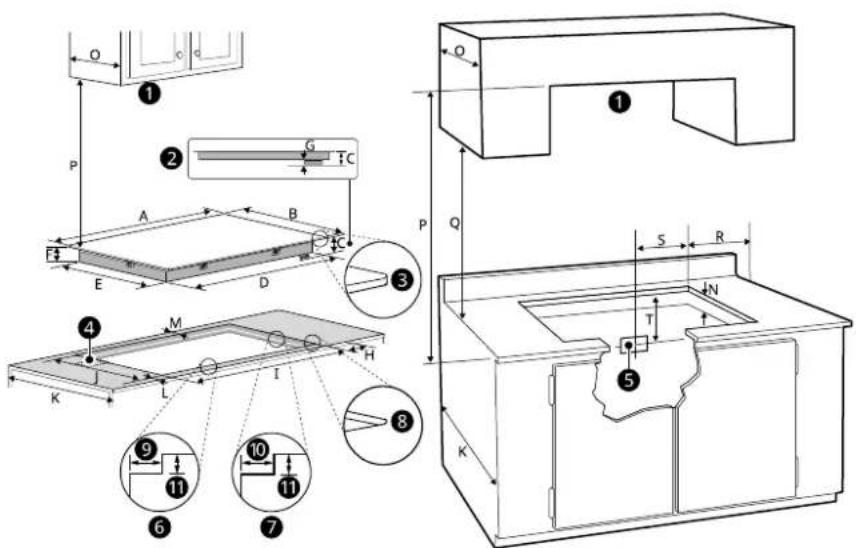

Flush Installation

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

① Do not obstruct these areas.
2 Right side
③ Radius: 3/8" (10 mm)
4" X 8" (102 mm x 203 mm) opening to route armored cable if panel is present.
⑤ Approximate location of junction box
6 Front and Back Side
⑦ Right and Left Side
8 Radius: 1/2" (13 mm)
93/4" (19 mm)
10 1 1/4" (32 mm)
11 1/4" (7 mm)

-	Dimension/Clearance	30" Cooktop
		Standard Installation	Flush Installation
A	Width of upper plate 30 11/16" (781 mm) 30 11/16" (781 mm)
B	Depth of upper plate 21 1/16" (534 mm) 21 1/16" (534 mm)
C	Distance from bottom of upper plate to bottom of conduit	3 15/16" (101 mm) 3 15/16" (101 mm)
D	Width of cooktop base 27 15/16" (710 mm) 27 15/16" (710 mm)
E	Depth of cooktop base 18 13/16" (477 mm) 18 13/16" (477 mm)
F	Distance from bottom of upper plate to bottom of cooktop base	2 1/2" (64 mm) 2 1/2" (64 mm)
G	Height of conduit 1 7/16" (37 mm) 1 7/16" (37 mm)
H	Stance from side edge of cutout to side of counter	≥1 1/8" (28 mm) ≥1 1/8" (28 mm)
I	Width of cutout	≥28 1/2" (724 mm)≤28 5/8" (727 mm)	≥31" (787 mm)≤31 1/16" (789 mm)
J	Depth of cutout	≥19 5/8" (498 mm)≤19 11/16" (501 mm)	≥21 1/4" (540 mm)≤21 3/4" (542 mm)
K	Depth of bottom cabinets	23 13/16" (605 mm) 23 13/16" (605 mm)
L	Distance from front of counter to front edge of cutout	≥2 3/16" (55 mm)	≥1 7/16" (36 mm)
M	Distance from rear edge of cutout to nearest combustible surface	≥2 1/16" (52 mm)	≥1 5/16" (33 mm)
N	Height below cutout (Empty space is needed underneath the cooktop for optimum performance.)	≥5 3/4" (146 mm)	≥6 1/16" (153 mm)
O	Depth of overhead cabinets	≤13" (330 mm)	≤13" (330 mm)

14 INSTALLATION

-	Dimension/Clearance	30" Cooktop
		Standard Installation	Flush Installation
P C	Clearance from top of cooking surface to bottom of overhead cabinets	≥30" (762 mm) ≥30" (762 mm)
Q C	Clearance from countertop to bottom of adjacent cabinets	≥18" (457 mm)	≥18" (457 mm)
R D	stance from edge of cooktop to nearest combustible wall (either side of unit)	≥2" (50 mm) ≥2" (50 mm)
S	Junction box (approximate location)	10" (254 mm)	10" (254 mm)
T	Junction box (approximate location)	12" (305 mm)	12" (305 mm)

Cleat Option

For this installation, the countertop cut-out will be the same size as the outer edge of the cooktop glass.

Attach L-shaped support cleats ① to the perimeter of the countertop cut-out.

The top edge of the cleat will be attached 1/4" (7 mm) below the surface of the countertop.

Refer to the illustration below. Attach the cleats to the countertop. Consult a countertop supplier for proper methods of attachment.

Simple geometric diagram with a central black circle and four crosshairs, no text or symbols present.

L-shaped Cleat (Front and Back) L-shaped Cleat (Right and Left)

1/4" (7 mm) 3/4" (19 mm) ③ ① ②

1/4" (7 mm) 1 1/4" (32 mm) ③ ① ②

① L-Shaped Support Cleat
2 Cooktop
3 Counter Top

All dimensions are stated in inches and millimeters (mm).

Allow 2" (50 mm) below the armored cable opening to clear the electric cable and allow space for installation of the junction box on the wall at the back of the cooktop.

Thickness of glass: 3/16" (4 mm)

CAUTION

• To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (127 mm) beyond the face of the cabinets.
• It is very important to keep 3 5/16" (85 mm) distance between the cooktop and a drawer or oven ① underneath it.

Standard Installation Flush Installation

Installing the Cooktop

Electrical Connections

Important Safety Instructions

• Be sure the cooktop is installed and grounded properly by a qualified installer or service technician.
• This cooktop must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States.

WARNING

- The electrical power to the cooktop must be shut off while line connections are being made. Failure to do so could result in serious injury or death.

Providing the Electrical Connection

• Install the junction box under the cabinet and run 120/240 or 120/208 Volt, AC wire from the main circuit panel.

NOTE

- DO NOT connect the wire to the circuit panel at this time.

Electrical Requirements

Observe all governing codes and local ordinances

1

A 3-wire or 4-wire single-phase 120/240 or 120/208 Volt, 60 Hz AC-only electrical supply is required on a separate circuit fused on both sides of the line (time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral. The fuse size must not exceed the circuit rating of the appliance specified on the nameplate.

2

30" induction cooktop can consume up to 9400 W at 240 VAC. A 40 Amp circuit breaker with #8 AWG must be used.

WARNING

- Do not use an extension cord with this appliance. Doing so may result in a fire, electrical shock, or other personal injury.

NOTE

- Wire sizes and connections must conform to the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition, and local codes and ordinances.

3

The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be

16 INSTALLATION

connected directly to the grounded junction box. The junction box should be located as shown in Dimensions and Clearances with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.

4 A suitable strain relief must be provided to attach the flexible armored cable to the junction box.

Electrical Connection

Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable strain relief at the point the armored cable enters the junction box. Then make the electrical connection as follows.

Electrical ground is required on this appliance.

This appliance is manufactured with a supply wire and a frame-connected green or bare copper grounding wire.

NOTE

TO ELECTRICIAN:

• The armored cable leads supplied with the appliance are UL-listed for connection to larger gauge household wiring. The insulation of the leads is rated at temperatures much higher than the temperature rating of household wiring. The current-carrying capacity of the conductor wire is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

WARNING

• DO NOT ground to a gas supply pipe. DO NOT connect to electrical power supply until appliance is permanently grounded. Connect the ground wire before turning on the power.
• This appliance is equipped with a copper conductor flexible cable. If connection is made to aluminum house wiring, use only special connectors which are approved for joining copper and aluminum wires in accordance with the National Electrical Code and local codes and ordinances. Improper connection of aluminum house wiring to copper leads can result in a short circuit or fire. Follow the connector manufacturer's recommended procedure closely.

Where Local Codes Permit Connecting the Appliance-Grounding Conductor to the Neutral (White) Wire

Observe all governing codes and local ordinances.

1 Disconnect the power supply.

2 At the circuit breaker box, fuse box or junction box, connect appliance and power supply cable wires as shown.

WARNING

- You may not ground the cooktop through the neutral (white) wire if cooktop is used in a new branch circuit installation (1996 NEC), mobile home, recreational vehicle, or where local codes do not permit grounding to the neutral (white) wire. When grounding to the neutral (white) wire is prohibited, you must use a 4-wire power supply cable. Failure to heed this warning may result in electrocution or other serious personal injury.

3-Wire Grounded Junction Box

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 8.

① Cable from Power Supply
② Cable from Cooktop
③ White Wire (Neutral)
4 Red Wires
⑤ Green Wire (Ground)
6 UL-listed Conduit Connector
7 Black Wires
8 Junction Box

If Cooktop is Used in a New Branch Circuit Installation (1996 NEC), Mobile Home, Recreational Vehicle, or where Local Codes Do Not Permit Grounding to the Neutral (White) Wire

Observe all governing codes and local ordinances.

1 Disconnect the power supply.

2 At the circuit breaker box, fuse box or junction box, connect appliance and power supply cable wires as shown.

WARNING

- If connecting to a 4-wire power supply cable electrical system, the appliance frame connected ground wire MUST NOT be connected to the neutral wire of the 4-wire electrical system.

4-Wire Grounded Junction Box

Technical diagram of a mechanical or electrical component with numbered parts for identification.

① Cable from Power Supply
② Cable from Cooktop
3 Ground Wire
4 Red Wires
⑤ Green Wire (Ground)
⑥UL-listed Conduit Connector
⑦ Black Wires
8 Junction Box
⑨ White Wire (No Connection)

Installing the Cooktop Unit

1 Visually inspect the cooktop for damage. Make sure all cooktop screws are tight (see below for locations).

Simple line drawing of a rectangular object with two arrows pointing to its sides (no text or symbols)

①3 Screws (Same Both Side)
②3 Screws (Same Both Side)

2 Check and prepare the installation location.

• See Dimensions and Clearances.

3 Carefully lower the cooktop into the countertop cutout, making sure not to trap any wires.

Isometric line drawing of two stacked rectangular blocks with a diagonal line and a small circular symbol at the bottom (no text or labels)

NOTE

- Do not use caulking compound. The cooktop must be removable, should service be required.

4 Attach the retainer brackets ① to the bottom of the cooktop; then snug the bolts against the bottom of the countertop as shown.

Isometric diagram of two stacked rectangular plates with a small inset showing a small component, no text or symbols present.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

18 INSTALLATION

NOTE

• The retainer brackets MUST be installed to meet local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition.
- For flush installation

- Finish a flush installation by running sealant around the edges of the cooktop.

Technical diagram showing a mechanical assembly with numbered components and an inset close-up of a component with force arrows.

①Cooktop
2 Countertop
3Bolt
④Retainer Brackets
⑤Type A Screw

Final Check

Perform a final operational check of the cooktop, making sure the cooktop powers on properly and that each cooking zone operates correctly. Refer to the Operating Instructions in this guide for details.

OPERATION

Introduction to Induction Cooking

How Induction Cooking Works

An induction coil beneath the ceramic glass cooking surface generates magnetic fields, which act directly on the base of the pots and pans.

Simple line drawing of a heating setup with a cylindrical tank on a base and a power outlet connected to a switch (no text or symbols)

Instead of heating the ceramic glass, this method heats the base of the pan immediately, saving time and energy. Since the heat required for cooking is generated directly in the base of the pan, the cooking zone itself warms up only slightly. The cooktop does become hot when heat is transferred from the cookware.

IMPORTANT:

• Electromagnetic fields can affect electronic circuits and interfere with portable radios and phones.
• Do not put magnetically active objects (e.g., credit cards, computer diskettes, cassettes) on or near the ceramic glass surface while one or more induction cooking zones are in use.
• Do not put any metal objects (e.g., spoons, pan lids) on the cooking zones as they can become hot when the cooking zones are in use.

Cookware

Induction Cookware

NOTE

- Before using the induction cooking elements, carefully read and follow these cookware recommendations and the instructions in the pan sensing sections.

When purchasing pans for use on the induction cooktop, look for cookware identified by the manufacturer as "induction ready" or "induction capable", or that is marked by the manufacturer as specifically designed for induction cooking.

The base material of the cookware must be magnetic for the cooking elements to activate. Use a magnet to check if the cookware base material is suitable. If the magnet sticks to the bottom of the cookware, the cookware can be used for induction cooking.

For the best possible surface cooking results, use only high-quality, heavy gauge steel cookware on the induction cooking elements. Follow manufacturer's recommendations when using induction cookware.

Induction Cookware Types

The three most common induction cookware types available are stainless steel, cast iron, and porcelain-enamel-coated metals.

• Stainless Steel is generally excellent for induction cooking. It is durable, easy to clean, and resists staining.

NOTE

• Not all stainless steel cookware is magnetic; stainless steel is not always suitable for induction cooking.
• Cast iron cooks evenly and is also good for induction cooking. Do not slide cast iron cookware on the cooktop; cast iron cookware with a rough surface will scratch the ceramic cooktop.
• Porcelain-enamel-coated metals have variable heating characteristics depending on the quality of the base metal. Make sure the porcelain-enamel coating is smooth to avoid scratching the ceramic cooktop.

Incompatible Cookware

• Aluminum, nickel-silver pots
- Heat-resistant glass pots
- Roasting pans
- Stone pots
• Stainless steel pots (without the IH mark)

20 OPERATION

IH mark

- Without the IH mark, heating may not work well.

- Pots with partially magnetic base

- Even if there is an IH mark, a container that only has magnetic material on part of the bottom of the container may not be automatically detected or the product may not work properly.

Illustration of a steamer with labeled parts (no text or symbols present)

① Material that sticks to the magnet

② Material that does not stick to magnet

• A pot with legs

• A pot with a round bottom

- The smaller contact area may give poor results.

- Do not use a container with a flat bottom surface smaller than the burner size.

Pan Preheat Recommendations

Induction cooking may decrease the amount of time required to preheat cookware compared to cooking on a radiant element cooktop or gas surface burner.

Pay close attention to all food items while cooking on the cooktop and until all cooking processes are complete.

CAUTION

- Remember that induction surface cooking initially heats the cookware VERY QUICKLY if the cookware does not contain food.

Noises during Cooktop Operation

The electronic processes involved with induction cooking may create some background noises. You may hear a slight buzzing sound when cooking on the cooktop. These noises are part of the induction cooking process and are considered normal.

Some cookware will buzz, depending on the construction or base material. The buzz may be more noticeable if the contents of the pan are cold. As the pan heats up, the noise will decrease. The noise will also decrease if the power level setting is reduced.

NOTE

• When using the induction cooktop, operational noises are more noticeable while cooking in Boost mode. But very loud noises are not normal when induction cooking.
  • The cooktop fan may turn on to reduce the temperature of the product, even when the surface elements are not being used.
• Cookware that is not marked "IH" may make a loud noise.
  • Under certain conditions, your cookware may produce a high-pitched whistling noise when two elements are in use at the same time. The power levels at which this occurs may vary depending on the kind of cookware being used. Change the power level to eliminate the noise or reduce its volume.

Use Flat-Bottomed Cookware

Cookware must fully contact the surface of the cooking element. Use flat-bottomed pans sized to fit the cooking element and amount of food being prepared. Check for flatness by rotating a ruler across the bottom of the cookware.

①Pan Size

21OPERATION

Recommended Cookware Size

Correct

- Cookware is centered correctly on surface of cooking element.

- Pan has flat bottom and straight sides.

Pan size

1 Dual Cooking Zone	Single: 5 13/16" - 8" (147 mm - 203 mm)Dual: 9" - 11 1/8" (228 mm - 283 mm)
2 Single Cooking Zone	5 13/16" - 7 1/8" (147 mm - 180 mm)
3 Flexible Cooking Zone	4 3/4" x 10 5/8" (120 mm x 270 mm)
4 Single Cooking Zone	5 13/16" - 6 1/2" (147 mm - 165 mm)

• The center area is a dual cooking zone which activates single or dual elements depending on pot/pan size. If the cooktop detects cookware that is less than 9" in diameter, only the inner ring (single element) will activate. If it detects cookware larger than 9" in diameter, it will activate both the inner and outer rings (dual element).
• To quickly boil a very large quantity of water, set the center element to Boost, use a pot that is at least 9" in diameter so that the center dual element is activated, and turn off all other elements.

- Pan size meets or exceeds the recommended minimum size for the cooking element.

- Pan rests completely on the cooktop surface.

- Pan is properly balanced.

Incorrect

• Cookware is not centered on surface of cooking element.
• Pan has curved or warped bottom or sides.
• Pan does not meet the minimum size required for the cooking element used.
• Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface.

Minimum Cookware Size

• Use cookware with a bottom surface diameter of 5 13/16" (147 mm) or greater.
• For flexible cooking zone, minimum cookware size is 4 3/4" x 10 5/8" (120 mm x 270 mm).

Cookware Placement

Use the proper cookware and place it correctly on the cooktop. One or more of the cooking elements will not heat if any of the incorrect conditions shown is detected by the sensors located below the ceramic cooktop surface. Correct the problem before attempting to use the cooktop.

22 OPERATION

- Pan is unbalanced by heavy handle.

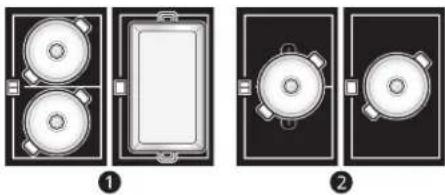

Cookware Placement in Flexible Cooking Zones

Four-panel diagram showing top-down views of a device with circular components, labeled ① and ② (no text or symbols on diagrams)

① Compatible

② Not compatible

Avoiding Scratches

Use heavier gauge stainless steel cookware on your ceramic cooktop surface. This will help reduce the possibility of developing scratches on the ceramic surface.

Low-quality cookware can scratch the cooktop surface.

Cookware should always be lifted over the ceramic cooktop surface to prevent scratching.

Over time, sliding ANY type of cookware over the ceramic cooktop may alter the overall appearance of the cooktop. Eventually, the buildup of scratches can make cleaning the surface difficult and degrade the overall appearance of the cooktop.

Scratches can also result from grains of sand (from washing vegetables) which are dragged with the pot across the cooking surface.

- Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marring that can affect the ceramic cooktop. (This type of damage is not covered by your warranty.) - Match the pan size and cooking zone to the amount of food being prepared.

Tips for Saving Energy

• Always position pots and pans before switching on the cooking zone.

Illustration showing three cooking steps: heating a pot, boiling in a pan, and frying pan with a pan.

1 not aligned

②bottom not flat

③handle too heavy

- Dirty cooking zones and cookware use more electricity.

- Whenever possible, place lids firmly on pots and pans so that they are completely covered.

Illustration showing three cooking pots with steam and prohibition symbols, labeled ①, ②, and ③ respectively.

- The base of the pot should be the same size as the cooking zone.

Diagram showing directional arrows and a magnifying glass with a prohibition symbol, likely illustrating a directional concept or process.

For Best Results

Always follow the recommendations for proper cookware type and size. In addition:

• Do not use dirty pans with grease buildup. Always use pans that are easy to clean after cooking, and make sure that the bottoms of the pans are clean and dry.
• When cooking with large amounts of liquid, use large pots so that nothing can boil over.

Control Panel

Control Panel Features

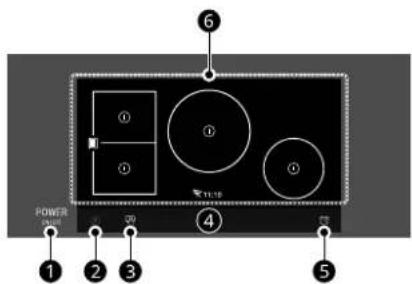

Locations of Surface Elements and Controls

The surface burner elements are positioned in the same locations on the cooktop and the control panel for ease of use.

POWER ON/OFF ON ON 1 2 3 4 5 6 T1-18

	Surface elements and controls
1	POWER: Press and hold for 1 second to turn the entire cooktop ON. When it is ON, the cooktop is in standby mode until a cooking zone is activated.
2	Pause: Sets the active cooking zone to minimum output. Press to activate or deactivate.
3	Clean Lock: Press to lock the control panel before cleaning it.
4	SETTINGS: Press to adjust settings. For a list of configurable settings, see "Operating Instructions".
5	Kitchen Timer: Press to set a kitchen timer. For details, see "Operating Instructions".
6	Cooktop Control: To check the status of a cooking zone and adjust the cooking zone. For details, see "Operating Instructions".

To Set the Element Power Level

Select the number on the element power settings for the active cooking zone to adjust the power level from 1 to 9.

If you've set 17 power levels in the SETTINGS menu, press the dots between the numbers to adjust the power level up or down half a step.

Hot Surface Indicator

Hot surface indicator

• If this icon is displayed on the screen, be careful because the ceramic glass surface is hot.
• Failure to do so may result in burns or injuries.

• After turning off the burner, the icon is displayed continuously until the ceramic glass surface cools down.

- If the temperature near the product is high, it may take longer for the ceramic glass surface to cool down.

• Even after the indicator light has turned off, be careful since the surface may still be hot.

Getting Started

The first time that power is supplied to the cooktop, the SIGNATURE KITCHEN SUITE and LG ThinQ Application logos are displayed for 1 second each in order. After turning on the cooktop for the first time, adjust the settings to suit your preferences.

To operate the control panel, press the button firmly with the flat part of your fingertip.

1 After the startup animation, select the desired language and press NEXT.
2 Set the correct time of day and choose between a 12-hour or 24-hour time format. (The 12-hour format is not available in French.) Then press NEXT.
3 Read through the application guide in the display and press DONE.
4 The main screen appears in the display.

Abstract geometric diagram with three circles and a square, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

24 OPERATION

Changing Cooktop Settings

Settings

To adjust settings after the initial setup, press the display to open the main screen. Press SETTINGS at the bottom center of the main screen. Swipe the screen or press the "<, >" arrow keys to navigate through the settings screens.

① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ①

1:19

①

SETTINGS

Location of Settings

• Page 1: Lockout, Clock, Wi-Fi, Brightness, Power Levels, Language Selection
• Page 2: Volume, Factory Reset, Open Source License

Lockout

The Lockout feature automatically prevents most cooktop controls from being turned on. It does not disable the clock or timer.

- I f Lockout is turned on, all cooktop functions are disabled except the POWER button.

Lock

1 Press SETTINGS at the center bottom of the main screen.
2 Press Lockout on the first Settings screen.
3 Press LOCK on the screen.
4 When Lockout is turned on, the lock icon 🔊 appears at the center bottom of the display.

Unlock

1 Press any part of the screen while Lockout is on.

2 A popup screen appears. Press UNLOCK for 3 seconds.
3 The lock icon disappears from the bottom of the display.

Clock

The clock is displayed on the LCD display when the cooktop is turned on.

Setting Time of Day

1 Press SETTINGS at the center bottom of the main screen.
2 Press Clock, then set the correct hour and minutes by scrolling. You can also press the number pad icon 1/2 3/4 and enter the desired numbers.
3 Select either a 12-hour or 24-hour clock mode (12H/24H). The 12-hour mode is not available in French.
4 Press OK.

Wi-Fi

Connect the appliance to a home Wi-Fi network.

Setting Up Wi-Fi

1 Press SETTINGS at the center bottom of the main screen, and then press Wi-Fi in the first settings screen.
2 Follow the instructions in the Wi-Fi Guide in the display.
3 Select ON, OFF, or RESET and press OK.
4 If ON is selected, the Wi-Fi icon 🔺 appears at the bottom of the display.
5 If you select RESET, you will have to re-enter the Wi-Fi password.

Brightness

Adjust the brightness of the LCD display from 20 % to 100 % in increments of 20 %.

Setting Display Brightness

1 Press SETTINGS at the center bottom of the main screen, and press Brightness.
2 Adjust the display brightness by pressing and dragging the dot across the bar, by tapping anywhere on the bar, or by pressing + or -.
3 Press OK.

Power Levels

1 Press SETTINGS at the center bottom of the main screen, and press Power Levels.
2 Choose between 17 levels and 9 levels. (The output of each maximum level is the same.)
3 Press OK.

Language Selection

Set the display language to English, Spanish, or French.

Selecting a Language

1 Press SETTINGS at the center bottom of the main screen, and press Language Selection.
2 Select the desired language.
3 Press OK.

Volume

Adjust the volume of the cooktop controls.

Setting the Volume

1 Press SETTINGS at the center bottom of the main screen, swipe to the second settings screen, and press Volume.

2 Select MUTE, LOW, or HIGH.

3 Press OK.

Factory Reset

This function returns all settings to the factory defaults.

1 Press SETTINGS at the center bottom of the main screen, swipe to the second settings screen, and press Factory Reset.
2 If you want to reset data to the factory defaults, press RESET and then OK.

NOTE

- All stored data will be deleted.

Open Source License

This screen contains open source software licensing information.

1 Press SETTINGS at the center bottom of the main screen and swipe to the second settings screen.
2 Press Open Source License.

Before Using the Cooktop

Before using the cooktop for the first time, clean it thoroughly with the included cleaner or ceramic cooktop cleaner according to the Care and Cleaning instructions in this guide. This will help protect the ceramic surface and make future cleanup easier.

CAUTION

- Never use abrasive scrubbing pads or cleaners. They can cause permanent damage to the cooktop surface.

Activating the Cooktop

To turn on the cooktop, press the POWER key for approximately 1 second. The LCD panel will turn on. To turn off the cooktop, press the POWER key.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

26 OPERATION

NOTE

• After turning on the cooktop with the POWER key, you must select one of the cooking zones within 60 seconds. If no selection is made, the cooktop will turn off for safety.

Automatic Detection

• The automatic detection function checks whether or not a container is placed on top of the burner.
- When a container is placed on the burner, the words "Auto Detected" will be displayed. (The words "Auto Detected" will disappear after 30 seconds or when the burner is running.)
- The words "Auto Detected" will not be displayed if a container is not placed on the burner, and this function is activated initially only once after the power is turned on.
- Depending on the conditions of use (whether the burner is being used, the container material, status of the container base, etc.), the automatic detection time may differ or the cookware may not be detected automatically.

NOTE

• If the cookware is too small, the words "Auto Detected" may not be displayed.
  • Minimum cookware size

• Use cookware with a bottom surface diameter of 5 13/16" (147 mm) or greater.

• For flexible cooking zone, minimum cookware size is 4 3/4" x 10 5/8" (120 mm x 270mm).

Selecting the Cooking Zone

Place an induction-compatible pan on top of the desired cooking zone.

Three circular diagrams with numbered circles and a label '11-18' at the bottom (no readable text or symbols)

Press the icon ① in the desired cooking zone on the display to set the power level.

Diagram showing three circular shapes with numbered annotations and a hand cursor pointing to one square, likely illustrating a basic layout or positioning concept.

NOTE

- Once the cooking zone has been selected the power level must be selected within 3 seconds with the element power settings. Otherwise, the power settings will turn off for safety.

Setting the Power Level

The power level for the selected cooking zone can be set from 1 to 9.

Selecting the Power Level

1 Press a number in the Power Levels popup to set the power level from 1 to 9. If you've set 17 power levels in the settings menu, press the dots between the numbers to adjust the power level up or down half a step.

① ① ① 11:19

2 Selecting a power level turns on the cooking zone. The cooking zone indicator remains lit and the power level is stored.

① 5.0 ② ③ 11.29

1

8.5 11:14

2
① Figure A ② Figure B

NOTE

- If a power level is not selected, the power settings will turn off after 3 seconds.

Readjusting the Power Level

1 Press the desired cooking zone in the display to bring up the Power Levels popup.

① 5.0 ① ① 11:29

① 4.0 ② ① ① 11:15

2 Press the desired level in the Power Levels popup. If no selection is made, the Power Levels popup disappears after 3 seconds and the power level remains the same.

NOTE

- Once the power level is changed, the burner operation is temporarily stopped and then restarted at the changed power level.

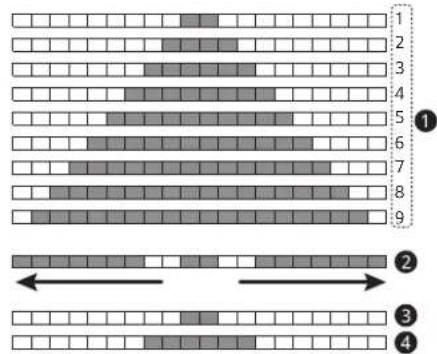

Power Level Indicator

• Cooking element LED bar

- The range provides an LED bar for each cooking element on the cooktop. Check the display and use the LEDs to monitor the power levels of the elements.

1 2 3 4 5 6 7 8 9 ① ② ③ ④

①9 Step
2Boost
3Melt
4Simmer

• Available power level settings

- The cooktop control's LED bar displays the element's power level settings, ranging from Level 1 to Level 9 to Boost.

Turning Off the Cooking Zone

1 After cooking is complete, press the x icon on the display to turn off the cooking zone.

2 The cooking zone corresponding to the display will turn off.
3 To turn off all cooking zones, press the POWER key.

WARNING

- Your cooktop has a residual heat indicator for each cooking zone. This indicator will warn that this area has been used and is still giving off enough heat to cause burns. Avoid touching the cooking zone when this indicator is shown. Although the cooktop is off, the popup message will stay lit until the cooktop has cooled down.

28 OPERATION

WARNING

- Popup message: Surface is hot. Do not place hot cookware on the display. The display could be damaged.

① ② ③ ① ② 110V

①

Surface is hot

NOTE

• If the following pop-up screen appears during operation, check for the following issues.
• The cookware is not centered within the cooking zone.
• The cookware is not compatible with induction cooking.
• There is no cookware on the cooking zone.

① 11:18

①

Please confirm whether an appropriate container is placed on the cooktop.

Tips for Induction Cooking

Getting the results you want when cooking can take a bit of time and effort. If you are not familiar with induction cooking, it may take a bit of practice or adjusting of your usual methods to achieve the expected results. Using the cooking chart and these cooking tips as a guide, you will soon be enjoying the benefits of induction cooking.

• The quantity or quality of some foods can affect their cooking times.
- When safe, allow food to come to room temperature before cooking to take advantage of induction's ability to heat food quickly.

• Cookware heats up very quickly when induction cooking. Check food or liquids occasionally and stir or reduce heat to avoid scorching, overcooking, splattering, or boilovers.
• Sauces, soups, and stews may heat up more quickly than you are used to and boil over if not watched. For best results, stir frequently.
  • Overcooked food loses moisture and tastes dry, while undercooked food can cause illness. For best results, use a thermometer to ensure that food is heated to a safe internal temperature.
• Use nonstick or seasoned pans when cooking to reduce the amount of additional fat added to a recipe.
• Don't overcrowd cookware. To avoid slow cooking times and poor results, use cookware that is appropriately sized for the amount of food you are cooking.
• When boiling water on the center element, an 11" diameter pot gives the best performance and saves the most time.
• Use the Boost setting to quickly boil water, or whenever you need extra heating power in one element.
• To quickly boil a very large quantity of water, set the center element to Boost, use a pot that is at least 9" in diameter so that the center dual element is activated, and turn off all other elements.
• To prevent damage to the product, the cooking zones are separated into two groups, and you can only use the Boost function on one cooking zone in each group at once. As shown, you can use Boost on a cooking zone in group ① and a cooking zone in group ② at the same time. If the power range is exceeded by selecting the Boost function, a power management function automatically reduces the heat setting of the cooking zone. If you try to use Boost on two cooking zones in the same group, the power level is automatically set to 9 rather than Boost.

Diagram showing two rectangular panels with circular patterns and a central rectangle, labeled 1 and 2 (no text or symbols beyond labels)

Cooking Function	Example Food Item	Power Level	Notes/Comments
Melting	Chocolate Over Direct Heat	1 or Melt	Stir continuously to prevent scorching.If using a double boiler to melt chocolate, use power level 2.
	Butter	2 Monitor carefully to prevent poor results.
Reheating	Soups & Ste	w s3-4	Monitor carefully and stir frequently to achieve desired results.
Sweating Vegetables	OnionsCarrotsCeleryPeppers	5-6	To sweat vegetables, cook them until they release moisture, without browning.
Simmering	Tomato SauceCheese Sauce	Simmer	Monitor carefully to prevent spillovers.To steam vegetables or grains, bring cooking liquid to a simmer, cover the pot, and reduce heat to power level 2.
	PotatoesGrainsStocks/Broths or Stews	4-5-6
Sautéing or Other	Steaks/ChopsEggsBreakfast MeatsFrozen VegetablesStir Frying	5-6-7	Monitor carefully and stir frequently to achieve desired results.
Searing/Browning	Browning Beef For Chili or StewsSteaks or Chops	8-9	Room temperature meats will sear and brown more effectively.Fat may splatter if power level is too high.
Frying/Deep Frying	Fried ChickenFrench FriesBattered Fish/Shellfish	7-8 Fat may splatter if power level is too high.
Blanching Vegetables	BroccoliCauliflowerGreen Beans	8-9 Monitor carefully to prevent spillovers.
Boiling	Pasta WaterShellfish	8-9-Boost	Do not fill pot to rim. Water can boil over if the power level is too high.

ENGLISH

NOTE

• These settings are recommended guidelines for cooking. You may need to adjust the power level for the type of food and pan. Cooking times for some foods will vary depending on quantity or quality.

Using the Cook Modes

SIMMER

Use SIMMER to simmer sauces or stews.

30 OPERATION

Turning Simmer On

Place the cookware on any cooking zone except for the front right cooking zone. Activate the Power Levels popup and press the SIMMER key.

1

S

NOTE

- The Simmer function is not available when using the flex mode in the Flexible Cooking Zone.

MELT

Use MELT to melt items such as chocolate or butter without scorching.

Turning Melt On

Place the cookware on the front right cooking zone. Activate the Power Levels popup and press the MELT key.

1

M

BOOST

Use the Boost function to boil water or heat up large quantities of food quickly.

To prevent damage to the product, the cooking zones are separated into two groups, and you can only use the Boost function on one cooking zone in each group at once. As shown, you can use Boost on a cooking zone in group ① and a cooking zone in group ② at the same time. If the power range is exceeded by selecting the Boost function, a power management function automatically reduces the heat setting of the cooking zone. If you try to use Boost on two cooking zones in the same group, the power level is automatically set to 9 rather than Boost.

For safety, after 6 minutes the Boost setting will automatically revert to either power level 9 or the previously set power level.

Diagram showing two panels (① and ②) with geometric shapes and lines, no readable text or symbols present.

Turning Boost On

Place the cookware on a cooking zone. Activate the Power Levels popup and press the BOOST key.

1

B

WARNING

- Never use the Boost mode to preheat empty cookware or to heat oil, butter or lard. The cookware may be damaged and the fat or grease may catch fire if overheated.

NOTE

• Under certain conditions, the Boost function will turn off automatically to protect electronic elements inside the cooktop.
• This can occur if the product is used for long periods, when frying, or if cookware is lifted or moved in the Boost mode.

Using the Flexible Cooking Zone

Adjoining cooking zones can be combined to create one large cooking zone with the Flex function. This is especially convenient when cooking in Dutch ovens or other large oblong pans.

Activating the Flexible Cooking Zone

1

Place the cookware over the 2 side cooking zones and make sure both cooking zones are activated. The Flex icon will show 2 divided zones.

Pure geometric diagram with circles and rectangles on black background, no text or symbols

NOTE

- If one of the two burners in the Flex Cooking Zone is functioning, cancel the burner to use the Flex feature.

2 To merge the 2 cooking zones, press the Flex icon. The icon will change to show one combined zone.

① ① ① ① 11:16

Three circular white shapes on a black background, one rectangular and two smaller circles, with no visible text or symbols.

3 Select the desired power level.

4 To turn off Flex mode, press the Flex icon again.

① ① ① 11:16

Pure electrical circuit lines without any symbols

Using the Dual Cooking Zone

The dual element, located in the center position, offers two differently sized elements to accommodate different pan sizes. The cooking zone automatically activates the single or double cooking zone, supplying the proper power to optimize cooking results. The effectiveness of the pan sensing depends on the material and properties of the cookware being used.

Pure geometric diagram with circles and rectangles on black background, no text or symbols

Activating the Dual Cooking Zone

1 To activate the larger cooking zone, place a pan that is at least 9" (23 cm) in diameter on the cooking zone.

2 Select the desired power level.

Other Functions

Pause

The pause function reduces the power level of a cooking zone to level 1 and maintains it at that level until deactivated. To use the pause function, press the Pause icon. To turn off the pause function, press Pause again to return the cooking zone to the previous power level.

Clean Lock

Use this function when cleaning the screen area of the cooktop. Press the Clean Lock icon to lock the controls for 30 seconds. To unlock the controls, wait 30 seconds or press the Clean Lock icon for 1 second.

① ② ④ ⬤ SETTINGS

32 OPERATION

1	Clean Lock ON
2	To cancel the Clean Lock function, press Clean Lock for 1 second.

Timer

Kitchen Timer

The Kitchen Timer acts as a simple timer and does not turn off the cooking zone. It is not tied to any specific cooking zone. When the set time has passed, it sounds an alarm.

- Press the Kitchen Timer icon. Scroll (or use the keypad icon) to set the desired hours, minutes, and seconds, then press OK.

Game interface screenshot showing numbered circular and rectangular elements with status indicators and a play button

1	SETTINGS
2	hr
3	min
4	sec
5	OK

- When the set time has passed, a popup screen with "Timer finished" appears with the alarm sound.

Cooking Timer

The Cooking Timer also acts as a simple timer. This timer can be set for each cooking zone, and sounds an alarm when the set time has passed.

- If the cooking zone is in use, press the Cooking Timer icon on the active cooking zone. Scroll (or

use the keypad icon) to set the desired hours and minutes, then press OK.

1	hr
2	min
3	OK

• When the set time has passed, a popup screen appears with the alarm sound.
• Press YES to turn off the cooking zone.

WARNING

- The Timer function does not automatically turn off the cooktop or cooking zones. Be sure to press the POWER key to turn the cooktop off after cooking.

Automatic Power Level Control

The power level displayed may be different from the actual power level at the high end of the temperature range. To prevent the cooktop from overheating, the power level is controlled automatically.

NOTE

- Power Cycling

- It is normal for heating elements to cycle On/Off during use to control output power.

Cookware Compatibility Indicator

The cookware compatibility indicator can be used to determine if a container will heat well on an induction burner.

• The compatibility indicator may vary due to conditions such as voltage, cookware size, or cookware temperature. Use cookware with a bottom diameter that is suitable for the size of the cooking zone.
• The compatibility indicator may vary depending on the cooking zone.

- The cookware compatibility indicator displayed on this product is based on internal manufacturer standards. Environmental conditions may cause inaccurate or variable results. Use the results only as a reference point.

be low. Try again with a different size element.

Using the Compatibility Indicator

1 Turn off all cooking zones.
- If more than one burner is running, this function will not work.
2 Place one piece of cookware on the cooktop you want to use.
- Place cookware in the center of the cooking zone.
3 Set the output level to 9.
4 Long press (more than 3 seconds) on the power level area to display the cookware compatibility indicator.

①Long press (more than 3 seconds) on level 9.
②The cookware compatibility indicator is displayed.

Indicator Compatibility
0 - 30 Low
40 - 80 Medium
90 - 100 High

• The higher the indicator, the better the cookware heats up (in the range of 0 to 100%, in 10% increments).
- If the indicator is low, check the material, size and shape of the cookware base.

• Even if the cookware has an IH mark, if the indicator is low the cookware may not heat properly on this appliance.
• If the cookware size does not properly match the element size, the indicator may

34 SMART FUNCTIONS

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

• Monitoring

- This function helps you check the current status, remaining time and cook settings in one place.

• Product Notifications

- Turn on the Push Alerts to receive appliance status notifications. The notifications are triggered even if the LG ThinQ application is not open.

- Interworking Function

- The LG ThinQ application automatically turns on/off the vent fan when paired with the cooktop. Both products must be connected to the LG ThinQ application and have an interworking function.

- Firmware Update

- Keep the appliance updated.

NOTE

• If you change your wireless router, Internet service provider, or password, delete the connected appliance from the LG ThinQ application and connect it again.
  • To disconnect the appliance from the Wi-Fi network, delete the cooktop from the list of connected products in the LG ThinQ application.
  • The appliance is not intended to be operated by means of remote control system.
• This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing LG ThinQ Application and Connecting an LG Appliance

Models with QR Code

Scan the QR code attached to the product using the camera or a QR code reader application on your smartphone.

LG ThinQ

Models without QR Code

1 Search for and install the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with your existing account or create an LG account to sign in.
3 Touch the add (+) button on the LG ThinQ application to connect your LG appliance. Follow the instructions in the application to complete the process.

NOTE

• To verify the Wi-Fi connection, check that the 📞 icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
  • The surrounding wireless environment can make the wireless network service run slowly.
• If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the application.

• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
  • The network connection may not work properly depending on the Internet service provider.
• The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.
• If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
  • The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again.

LG UP Feature (USA Only)

Experience new features by updating the product through the LG ThinQ application.

If an updatable feature is available, an update notification appears on the product's LCD screen when the power key is pressed to turn off the product.

If the product is not connected to the LG ThinQ application, a product connection notification appears.

1 Update notifications are sent to your smartphone when updatable features are available.
2 Press the update notification on your smartphone to enter the LG UPdate Center in the LG ThinQ application.
3 In the LG UPdate Center, select a new function and press the Update button.

- Do not unplug the product during the update, as doing so may interrupt the update process.

4 After the update is complete, check the guide in the LG ThinQ app for detailed feature settings.

NOTE

• This feature is only available on some models.
• After the update is complete, the actual product features may differ from those described in the owner's manual.

RF Module Specifications

Type Frequency Range	Output Power (Max)
Wi-Fi 2412 MHz - 2462 MHz	< 30 dBm
Bluetooth 2402 MHz - 2480 MHz

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules for transmitter module and part 18 of the FCC Rules for this equipment. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device (transmitter module contained in this product) complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

36 SMART FUNCTIONS

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

SIGNATURE KITCHEN SUITE will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

NOTE

- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

MAINTENANCE

Care and Cleaning

Make sure that the electrical power is off and all surfaces are cool before cleaning any part of the cooktop.

Cleaning the Cooktop

Normal Daily Use Cleaning

CAUTION

• If any sugar or food containing sugar spills, or plastic or foil melts on the cooktop, remove the material IMMEDIATELY with a metal razor scraper while the cooking surface is still hot to avoid the risk of damage to the glass-ceramic surface. When used correctly, the scraper will not damage the cooktop surface. For your safety, please use an oven mitt or pot holder while scraping the hot cooking surface.
• If water or food containing water spills, remove the spill IMMEDIATELY with a dry paper towel.
• Do not use scrub pads or abrasive cleaning pads. They may damage your cooktop surface.
• For your safety, wear an oven mitt or pot holder while cleaning the hot cooking surface.

Use ceramic cooktop cleaner on the glass cooktop. Other creams may not be as effective or may scratch, damage or stain the cooktop surface. To maintain and protect the surface of the glass cooktop, follow these steps:

1 Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
2 Use ceramic cooktop cleaner regularly to help keep the cooktop looking new. Always allow the cooktop to cool before using ceramic cooktop cleaner.
3 Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4 Use a paper towel to clean the entire cooktop surface.

5 Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.

NOTE

• Any damage or failure of the product resulting from the items below may not be covered under the LIMITED WARRANTY.
• Sugary spillovers (such as preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, or chocolate) or melted plastics can cause pitting on the surface of your cooktop.
• If food or water containing calcium (such as baking powder, wine, milk, spinach, or broccoli) is spilled on the cooktop, it can permanently stain or discolor the surface.

Burned-On Residue

1 While the cooktop is still warm, remove any burnt on deposits or spilled food from the glass-ceramic cooking surface with a suitable metal razor scraper. To prevent burns, wear an oven mitt or pot holder while using the metal scraper.

Hand holding a tool over scattered objects on a flat surface (no text or symbols visible)

NOTE

• Do not use a dull or nicked blade.
• Hold the scraper at approximately a 30^ angle to the cooktop.
  • The razor scraper will not damage the markings on the cooking surface.

2 When the cooking surface has completely cooled, apply a few fingertip-sized dabs of a glass-ceramic cooktop cleaner in each burner area. Work the cleaning cream over the cooktop surface with a damp paper towel. Leave the cleaner on for 10 minutes before rinsing it off.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

38 MAINTENANCE

Illustration of two hands using a pipette to apply paint on a flat surface (no text or symbols)

3 Rinse with clean water and wipe the cooktop surface with a clean, dry cloth.

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Maintaining the Cooktop

CAUTION

• Do not use chlorine bleach, ammonia, or other cleaners not specifically recommended for use on glass-ceramic cooktops.
• Let your glass-ceramic cooking surface cool off before cleaning.

	Wipe off with a damp towel and mild detergent	Use a metal scraper	Apply cooktop cleaning cream. Rub with a towel.	Rinse with a damp towel, then wipe dry.
Regular (Recommended after each use)
Occasional (Recommended every week)
Thorough (Recommended for tough stains or burnt-on food)

NOTE

- For additional product information, visit our website at www.signaturekitchensuite.com

Metal Marks and Scratches

CAUTION

• Cookware with rough or uneven bottoms can mark or scratch the cooktop surface.

Diagram showing a hand using a tool to interact with a bowl on a surface, with directional arrows indicating movement or force.

• Do not slide metal or glass across the cooktop surface.
• Do not use cookware with any dirt build-up on the bottom.

- Do not use cookware if there is foreign matter on the cooktop surface. Always clean the cooktop surface before cooking.

NOTE

- Any damage or failure of the product resulting from the items below may not be covered under the LIMITED WARRANTY.

• Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
• If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave a black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent.

TROUBLESHOOTING

Before Calling for Service

Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of a defect in workmanship or materials.

Parts and Features

Problem Possible	Cause & Solution
Cooktop does not work	Cooktop controls are locked.· See Clean Lock to turn off the Clean Lock feature.
	Circuit breaker has tripped or fuse is blown.· Reset the circuit breaker.
	Power outage.· Check house lights to confirm power outage.
	Installation wiring not complete.· Contact the installer or dealer.
Cooktop does not heat	Incorrect cooking zone selected.· Make sure the correct control is ON for the cooking zone being used.
	No power to cooktop.· See "Cooktop does not work" above.
Elements turn off while cooking.	Cooktop inner temperature is too high.· Check that cooktop has been installed according to the installation instructions.
Elements do not get hot enough.	Control panel may not be set properly.· Check the power level.
	Cookware that is not marked IH or convection compatible may not heat properly.· Use cookware with the IH mark.
	Cookware may not be flat or the correct shape or size.· Use cookware with a flat bottom.· Minimum cookware size· Use cookware with a bottom surface diameter of 5 13/16" (147 mm) or greater.· For Flexible Cooking Zone, minimum cookware size is 4 3/4" x 10 5/8" (120 mm x 270 mm)· For best results when using the Dual cooking zone, use cookware with a bottom surface that is 9" in diameter or larger.· Use the recommended cookware. See Induction Cookware.
A fan sound can be heard.	Cooktop inner temperature is high.· This is normal.The cooling fan will run when any element is turned on. With heavy use the fan may continue to run after the controls are turned off until the cooktop has cooled.
Noises are heard during cooking. The following noises are normal.	Humming/buzzing sound· Caused by the magnetic field transmitting power to the cookware. It is most noticeable at high power settings and becomes quieter if the power is reduced.

40 TROUBLESHOOTING

Problem Possible	Cause & Solution
Noises are heard during cooking. The following noises are normal.	Whistling soundMost noticeable with lighter weight cookware or when cookware is empty.Under certain conditions, your cookware may produce a high-pitched whistling noise when two elements are in use at the same time. The power levels at which this occurs may vary depending on the kind of cookware being used. Change the power level to eliminate the noise or reduce its volume.
	Cracking soundMay occur when using composite cookware as the different materials resonate and heat at different rates. This will not damage or impair the performance of the cookware.
	Clicking soundCaused by the electrical switches.It is normal to hear a clicking noise when operating burners below power level 6.
	Ticking soundCaused by the cookware detection.
The Boost function has been deactivated or cannot be activated.	To prevent damage to the product, if one of the right-side elements is turned on when the center dual element is using the Boost setting, the power setting of the center dual element is automatically reduced to power level 9.To maintain the Boost setting on the center dual element, use any of the left side elements instead.For safety, after 6 minutes the Boost setting will automatically revert to either power level 9 or the previously set power level.
The cookware cannot be detected automatically.	There is no cookware on the burner.Place cookware on the burner. The words "Auto Detected" will be displayed.
	Cookware is not compatible with induction cooktop.Use only cookware that is compatible with the induction cooktop. For details of compatible cookware, see Induction Cookware
Cookware has been damaged.	Cookware is overheated.Never use the Boost mode to preheat empty cookware or to heat oil, butter or lard.Use the Boost function to boil water or heat up large quantities of food quickly.
Output power is different when the same type of burner is used.	Cooktop is overheated.The power level displayed may be different from the actual power level at the high end of the temperature range. To prevent the cooktop from overheating, the power level is controlled automatically.
Power cycling This is normal.	normal.During use, the heating element cycles on/off to control the output power.
The LCD screen does not work properly.	Hot cookware is placed on top of the LCD screen.To prevent malfunction, do not place hot cookware on top of the LCD screen.
	It may not be operated by touch sensitivity.Press the correct button firmly.
Timer does not turn off the cooking zone.	This is normal.The kitchen timer/cooking timer acts as a simple timer and does not turn off the cooking zone.
The hot surface indicator stays on after the burners are turned off.	This is normal.After you turn off the burners, the indicator remains on until the ceramic glass surface cools down.If the temperature near the product is high, it may take longer for the ceramic glass surface to cool down.

Problem Possible Cause & Solution

Error code FC, F1, or F5 appears on the display.

Electronic control has detected a fault condition.

• Turn the power off and then on again to turn off the error code.
• If the issue recurs, call for service.

Wi-Fi

Problem Possible Cause & Solution

Trouble connecting appliance and smartphone to Wi-Fi network

The password for the Wi-Fi network was entered incorrectly.

- Delete your home Wi-Fi network and begin the connection process again.

Mobile data for your smartphone is turned on.

- Turn off the Mobile data on your smartphone before connecting the appliance.

The wireless network name (SSID) is set incorrectly.

- The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

The router frequency is not 2.4 GHz.

- Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.

The appliance and the router are too far apart.

- If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.

During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones).

• Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name.
• If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345.
• If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password. For example, if the network name appears as LGE_Appliance_8b92, then you would enter 8b928b92 as your password. In this instance, the password is case sensitive and the last 4 characters are unique to your appliance.

42 LIMITED WARRANTY

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

Should your SIGNATURE KITCHEN SUITE Induction Cooktop ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S. Territories.

Warranty Period Scope of Warranty HOW SERVICE IS HANDLED
Three (3) years from date of original retail purchase	Parts and Labor (internal / functional parts only)	SIGNATURE KITCHEN SUITE will provide, free of charge, all labor and in-home service to replace defective part(s).

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of SIGNATURE KITCHEN SUITE.
• Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of SIGNATURE KITCHEN SUITE.

• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by SIGNATURE KITCHEN SUITE.
• Damage or missing items to any display or open box Product.
• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
  • Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner's manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-855-790-6655 and select the appropriate option from the menu.

Or visit our website at .http://www.signaturekitchensuite.com

Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

44 LIMITED WARRANTY

CANADA

TERMS AND CONDITIONS

Should your SIGNATURE KITCHEN SUITE Induction Cooktop ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased from an authorized retailer and used within Canada, as determined at the sole discretion of SIGNATURE KITCHEN SUITE.

WARRANTY PERIOD: (Note: If the original date of purchase cannot be verified, the warranty will begin sixty (60) days from the date of manufacture).

Parts and Labor (internal/functional parts only)

Three (3) years from the date of original retail purchase

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of SIGNATURE KITCHEN SUITE.
  • Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

SIGNATURE KITCHEN SUITE'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, SIGNATURE KITCHEN SUITE MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON SIGNATURE KITCHEN SUITE. SIGNATURE KITCHEN SUITE DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL SIGNATURE KITCHEN SUITE, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. SIGNATURE KITCHEN SUITE'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service;
• Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE or the manufacturer;
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by SIGNATURE KITCHEN SUITE. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual;
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by SIGNATURE KITCHEN SUITE;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to SIGNATURE KITCHEN SUITE within one (1) week of delivery of the Products:
• Damage or missing items to any display, open box, refurbished or discounted Product;
  • Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of SIGNATURE KITCHEN SUITE:
  • Increases in utility costs and additional utility expenses in any way associated with the Product;
  • Any noises associated with normal operation of the Product;
• Replacement of any part that was not originally included with the Product;
• Replacement of light bulbs, filters, fuses or any other consumable parts;
  • Costs associated with removal and/or reinstallation of the Product for repairs; and
• Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

All costs and expenses associated with the above excluded circumstances, listed under the heading. This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:

• Call 1-888-289-2802 and select the appropriate option from the menu.
• Visit our website at https://www.signaturekitchensuite.com
  • By mail: 20 Norelco Drive, North York, ON, M9L 2X6

en-us_main.book.book Page 46 Wednesday, June 12, 2024 1:28 PM 46 Memo

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

8 M E N S A J E S D E P R E C A U C I Ó N

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Warning symbol with exclamation mark inside triangle and plus/minus signs below, indicating hazard or error

Diagram showing labeled components of a device with numbered parts and a separate 3D model below.

Cleaner ① ② ③ ④ ⑤

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

Simple geometric diagram with a central black dot labeled '1' surrounded by four black dots on a gray background (no text or symbols)

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 8.

Labeled diagram of a mechanical or electrical component with numbered parts for identification.

Simple line drawing of a rectangular object with two arrows pointing to its sides (no text or symbols)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

20 INSTALACIÓN

Isometric line drawing of two stacked rectangular blocks with a central dimension labeled 'c' (no text or symbols beyond the label)

NOTA

Isometric diagram of two stacked rectangular panels with embedded pins, no text or symbols present

NOTA

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts and an inset image of a device with a diagonal line.

1 Placa de cocción

2 Mostrador

3 Perno

Diagram of a cooking pan with labeled parts, showing a perforated lid and handle.

Diagram with numbered regions and circular elements, likely illustrating a spatial or measurement system layout.

Four identical diagrams showing circular components inside rectangular chambers, labeled ① and ② (no text or symbols on the diagrams themselves)

①Compatible

② No compatible

Evitar rayas

Diagram showing directional arrows and a magnifying glass with a prohibition symbol, likely illustrating a directional control or movement.

Illustration showing three cooking steps: boiling pot, boiling pan with no mark, and frying pan with no mark.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Three circular diagrams with numbered symbols, one large rectangle and two smaller circles, all on a black background (no text or labels)

① ① ① 11:19 ①

1

Ajustes

Pure geometric diagram with circles and rectangles, no text or symbols present

① ① ① 11:19

NOTA

Pure electrical circuit lines without any symbols

1	Favor de confirmar si se ha colocado un recipiente adecuado sobre la parrilla.

Diagram showing two rectangular shapes with internal line patterns and circular elements, labeled 1 and 2 (no text or symbols present)

Diagram showing two labeled panels (① and ②) with geometric shapes and symbols, possibly illustrating a basic electrical or mechanical layout.

Encendido de Boost

Pure geometric diagram with circles and rectangles on black background, no text or symbols

34 FUNCIONAMIENTO

NOTA

Diagram showing three circles with numbered labels and a hand cursor icon, likely illustrating a basic layout or selection system.

Three circular shapes with internal symbols and a label '11:18' at the bottom (no readable text or numbers)

Pure electrical circuit lines without any symbols

① ① ① ① 11.14

① ② SETTINGS

①

① ① ① 11:19 ① ① ① ①

1	Ajustes
2	h
3	min
4	seg
5	ACEPTAR

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

36 FUNCIONAMIENTO

Hand applying paint to a surface with scattered particles (no text or symbols visible)

NOTA

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Illustration of two hands using a tool to apply small objects on a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Diagram showing a hand using a tool to press a bowl on a surface with directional arrows, including a prohibition symbol.

es-us_main.book.book Page 48 Wednesday, June 12, 2024 1:34 PM

48 Memorándum

10 APERÇU DU PRODUIT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES CONSIGNES AVANT L'UTILISATION

Warning symbol with exclamation mark inside triangle and plus/minus signs below, indicating hazard or error

10 APERÇU DU PRODUIT

APERÇU DU PRODUIT

Diagram showing labeled components of a device with numbered parts and a separate 3D model below.

Cleaner ① ② ③ ④ ⑤

Illustration showing ten different types of electrical tools with numbered labels from pencil to gloves

Four line drawings of mechanical components: a box, two cylindrical fittings, a dome-shaped device, and a tripod-mounted device (no text or symbols)

Installation standard

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

14 INSTALLATION

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

Simple geometric diagram with a central black circle and four crosshairs, no text or symbols present.

16 INSTALLATION

1/4" (7 mm) 3/4" (19 mm) ③ ① ②

1/4" (7 mm) 1 1/4" (32 mm) ③ ① ②

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 8.

Labeled diagram of a mechanical or electrical component with numbered parts for identification.

Simple line drawing of a rectangular object with two arrows pointing to its sides (no text or symbols)

Isometric line drawing of two stacked rectangular blocks with a diagonal line and a central symbol (no text or labels)

FRANÇAIS

REMARQUE

Isometric diagram of two stacked rectangular plates with a small inset showing a small component, no text or symbols present.

REMARQUE

fr-ca_main.book.book Page 20 Wednesday, June 12, 2024 2:04 PM

20 INSTALLATION

Technical diagram showing labeled components of a mechanical or electrical assembly with numbered parts and an inset magnified view.

Simple line drawing of a heating setup with a cylindrical tank and heating element (no text or symbols)

Illustration of a steamer with labeled parts (no text or symbols present)

Diagram with numbered regions and circular waveforms, likely illustrating signal or sound propagation

	Taille de la casserole ou de la poêle
1 Zone de cuisson double	Simple : 5 13/16 po - 8 po (147 mm - 203 mm)Double : 9 po - 11 1/8 po (228 mm - 283 mm)
2 Zone de cuisson simple	5 13/16 po - 7 1/8 po (147 mm - 180 mm)
3 Zone de cuisson flexible	4 3/4 po x 10 5/8 po (120 mm x 270 mm)
4 Zone de cuisson simple	5 13/16 po - 6 1/2 po (147 mm - 165 mm)

Four identical diagrams showing circular components inside rectangular chambers, labeled ① and ② (no text or symbols on the diagrams themselves)

1 Compatible

② Non compatible

Éviter les rayures

Diagram showing directional arrows and a magnifying glass over a circular object, with a prohibition symbol below.

Pure geometric diagram with circles and rectangles, no text or symbols present

① ① ① 11:10

①

Réglages

Pure geometric diagram with intersecting lines and circles, no text or symbols present

28 FONCTIONNEMENT

Volume

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure electrical circuit lines without any symbols

① ① ① 11:19

REMARQUE

① ① ① 11:19

① 5.0 ② ③ 11.29 ① ② ① ① ①

① 8.5 ② 11:46 ② ① ②

① Figure A ② Figure B

REMARQUE

Diagram showing three circular components with numbered labels, likely representing a mechanical or electrical component layout.

①

Diagram showing two rectangular panels with internal geometric shapes and lines, labeled 1 and 2 (no text or symbols present)

32 FONCTIONNEMENT

Diagram showing two panels with geometric shapes and lines, no readable text or symbols present

Activation du mode Boost

Pure geometric diagram with circles and rectangles, no text or symbols present

REMARQUE

① ① ① 11/18

① ② ③ 11:18

① ② ① ① 11.18

Pure geometric diagram with circles and rectangles, no text or symbols present

① ② SETTINGS

Game interface screenshot showing three circular UI elements with numbered labels and a cursor hovering over the button

FRANÇAIS

1	Réglages
2	h
3	min
4	s
5	OK

Application LG ThinQ

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

40 ENTRETIEN

ENTRETIEN

Soin et nettoyage

Hand holding a tool applying paint to a surface with scattered particles (no text or symbols visible)

REMARQUE

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Illustration of two hands using a pipette to apply liquid onto a surface with scattered particles (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

FRANÇAIS

Diagram showing a hand using a tool to interact with a bowl on a surface, with directional arrows indicating movement or force.

42 ENTRETIEN

MISE EN GARDE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

DÉPANNAGE

fr-ca_main.book.book Page 49 Wednesday, June 12, 2024 2:04 PM 49AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fr-ca_main.book.book Page 50 Wednesday, June 12, 2024 2:04 PM 50 AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

fr-ca_main.book.book Page 51 Wednesday, June 12, 2024 2:04 PM 51AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

52 AIDE-MÉMOIRE

fr-ca_main.book.book Page 53 Wednesday, June 12, 2024 2:04 PM 53AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

fr-ca_main.book.book Page 56 Wednesday, June 12, 2024 2:04 PM

SIGNATURE KITCHEN SUITE

Pure geometric lines forming a crosshair symbol (no text or labels)

Customer Information Center

For inquires or comments, call;

1-855-790-6655 USA, Consumer User

1-888-289-2802 CANADA, Consumer User

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present
