USER MANUAL 5CR394FD0 BLAUPUNKT

Line drawings of various hand tools including a hammer, wrench, screwdriver, screwdriver, pliers, scissors, and gloves (no text or labels)

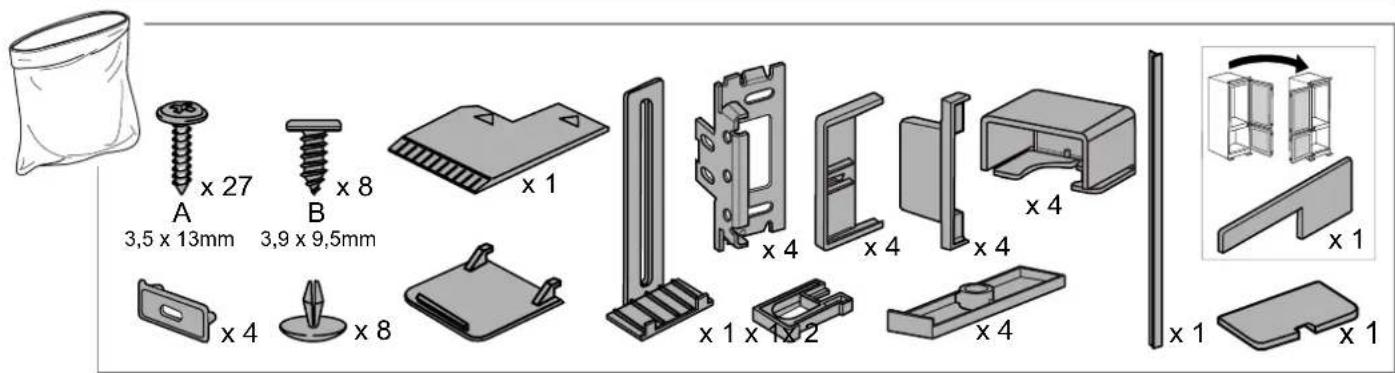

A x 27 3,5 x 13mm B x 8 3,9 x 9,5mm x 1 x 4 x 8 x 1 x 1x 2 x 4 x 4 x 4 x 4 x 1 x 1 x 1

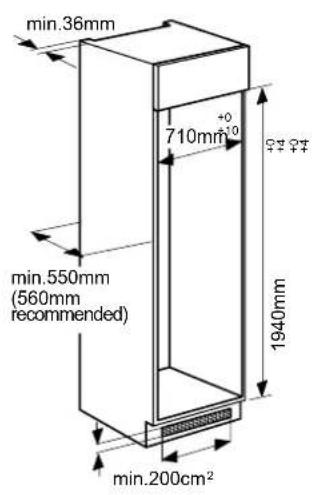

min.36mm 710mm +0 +4 +4 min.550mm (560mm recommended) 1940mm min.200cm²

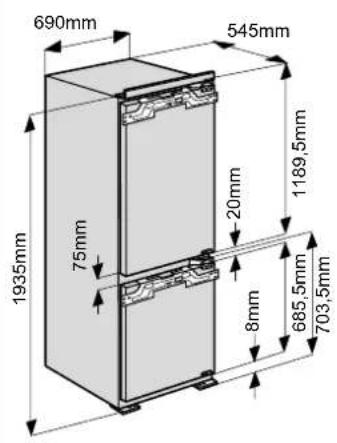

690mm 545mm 1189,5mm 20mm 75mm 1935mm 8mm 685,5mm 703,5mm

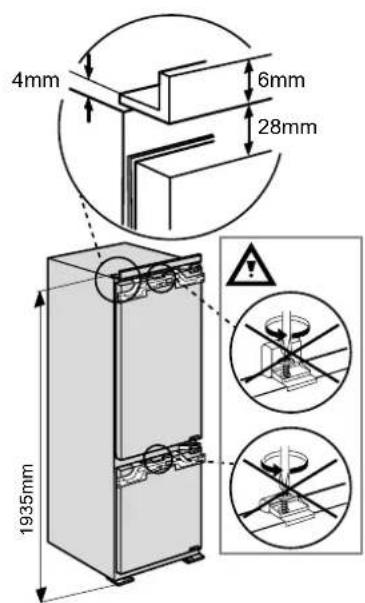

4mm 6mm 28mm 1935mm

20mm

<20mm

x 4

\~3mm

\~3mm

x 4

\~3mm

B

x 4

× 4 × 8

36mm

min.200cm²

min.200cm²

min.200cm²

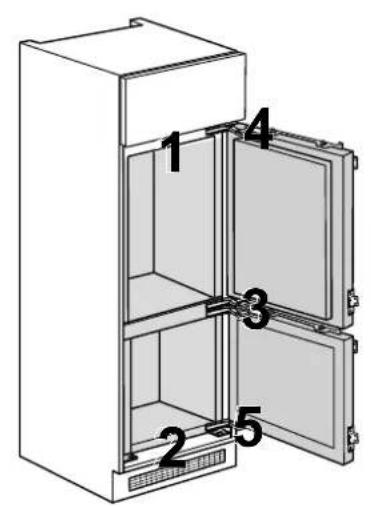

Diagram of a refrigerator interior with numbered compartments for identification

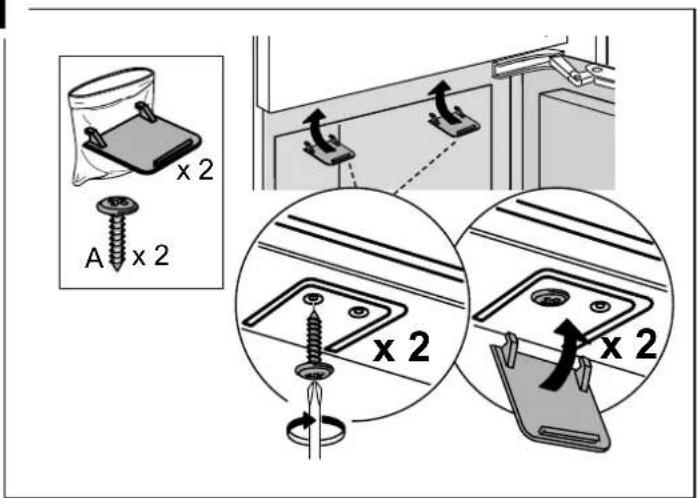

1

x 2 A x 2 x 2 x 2

2

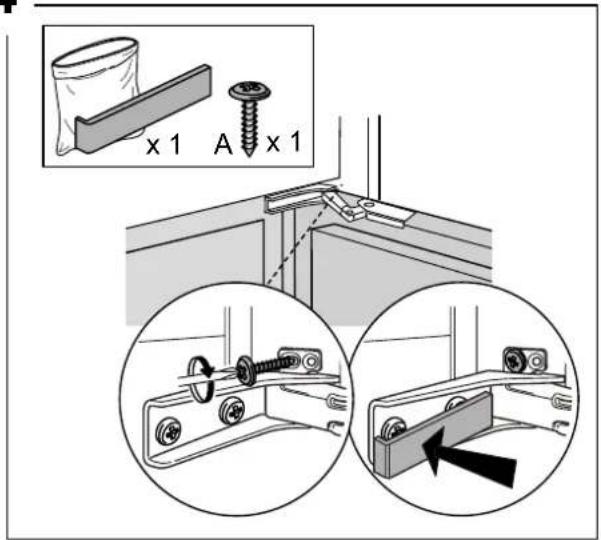

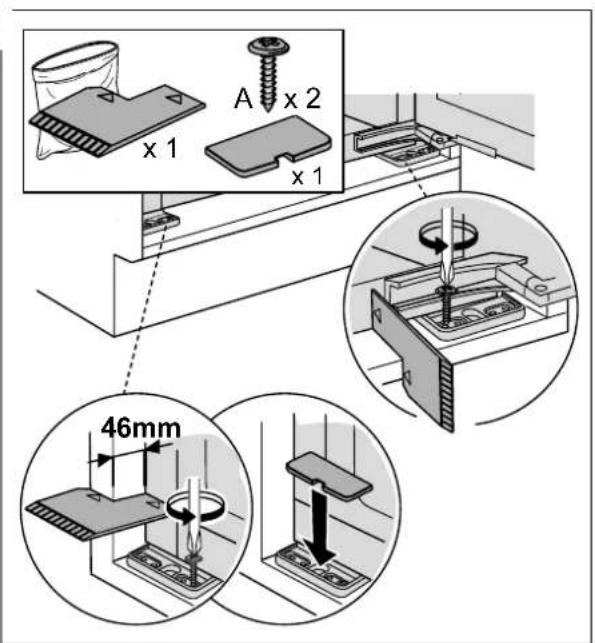

A x 2 x 1 x 1 46mm

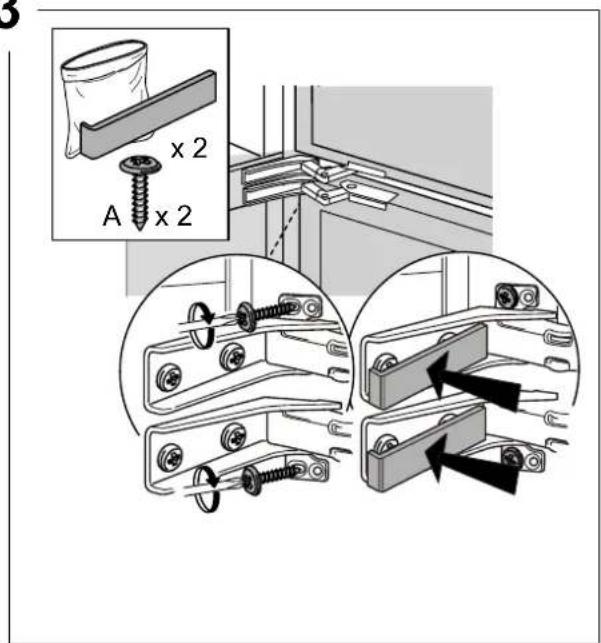

3

x 2 A x 2

4

x 1 A x 1

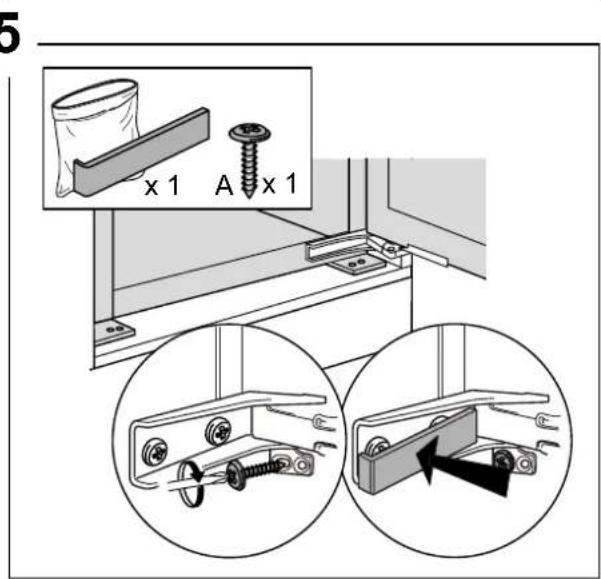

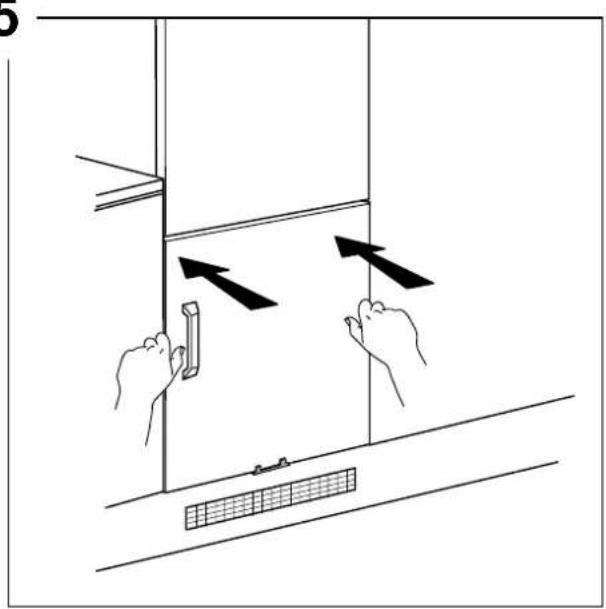

5

5 x 1 A x 1

Diagram of an open refrigerator with internal compartments and directional arrows indicating movement (no text or symbols)

1

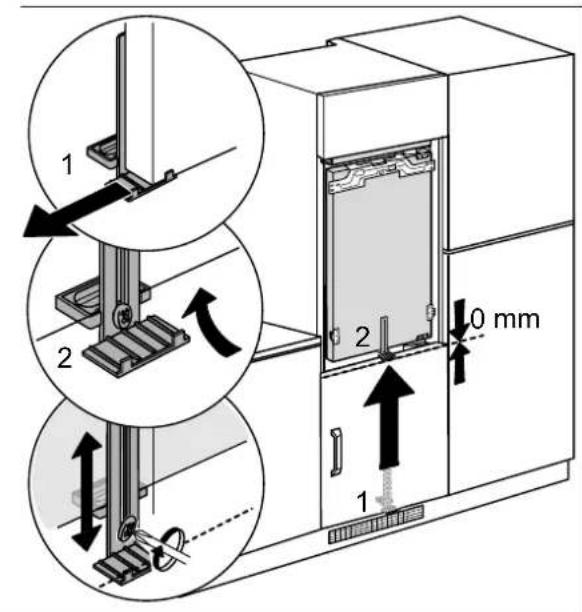

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or transformation.

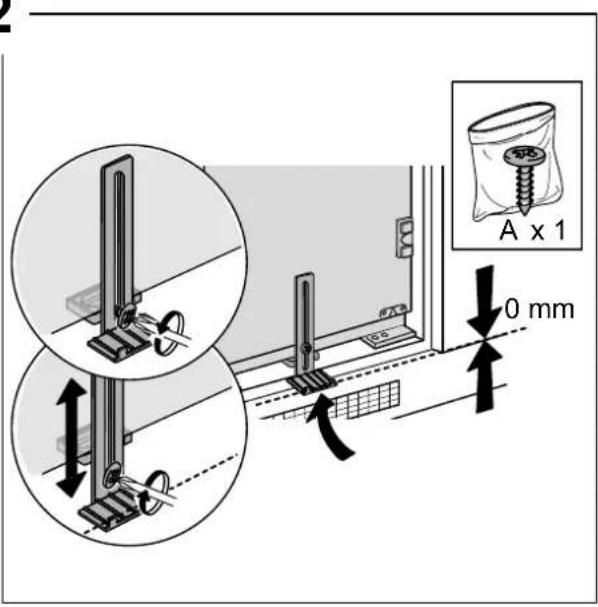

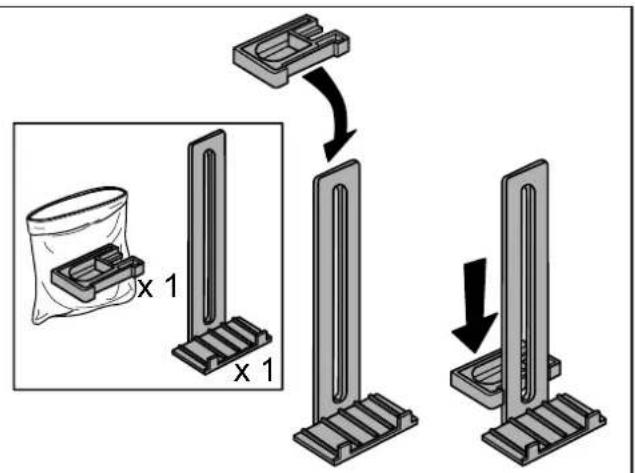

2

A x 1 0 mm

3

Diagram of a computer monitor with a cable inserted into the cover panel (no text or symbols)

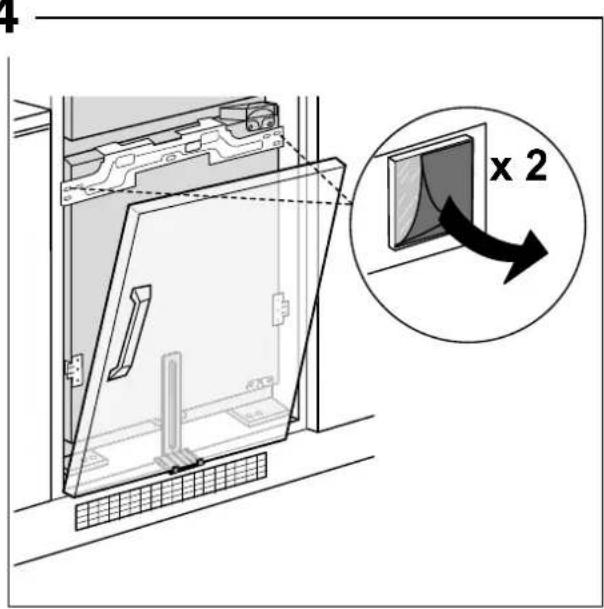

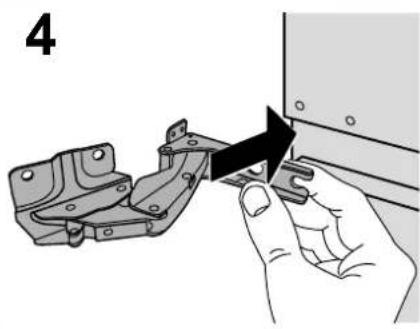

4

x 2

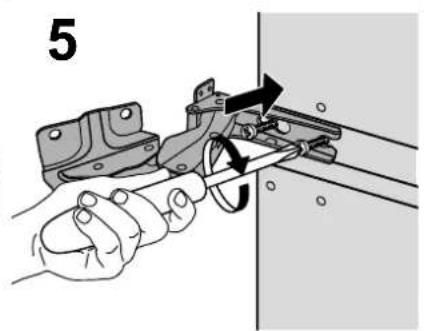

5

Diagram showing hand positioning of a window with arrows indicating movement, including a grid bar and a scroll.

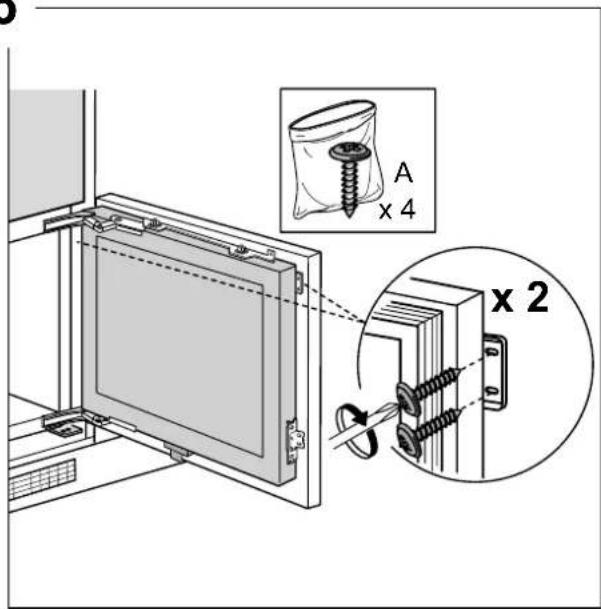

6

A x 4 x 2

7

1 2 2 0 mm 1

8

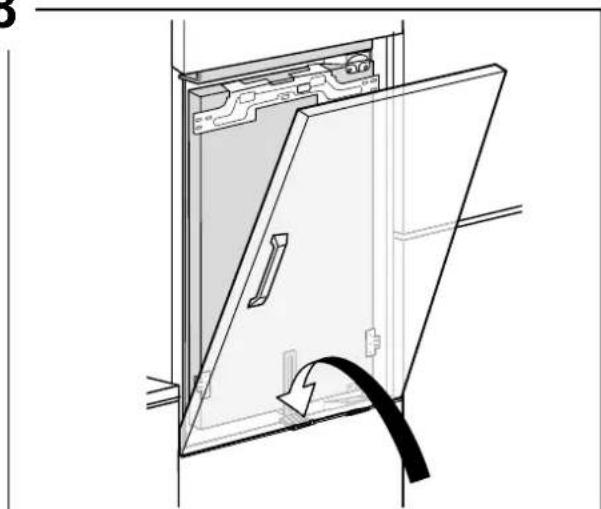

Diagram of a door with open lid and cable inserted, showing internal components (no text or symbols)

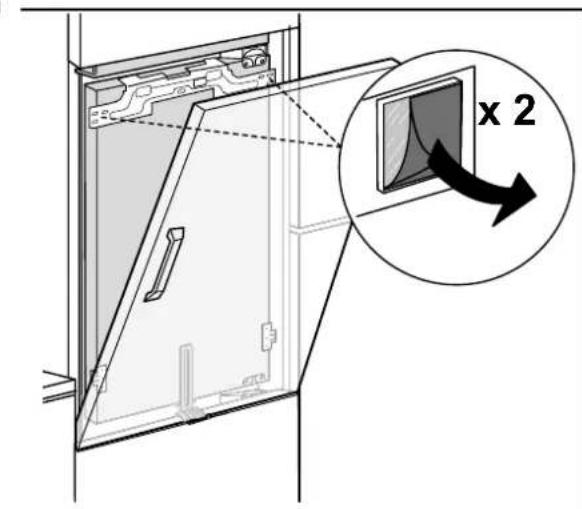

9

x 2

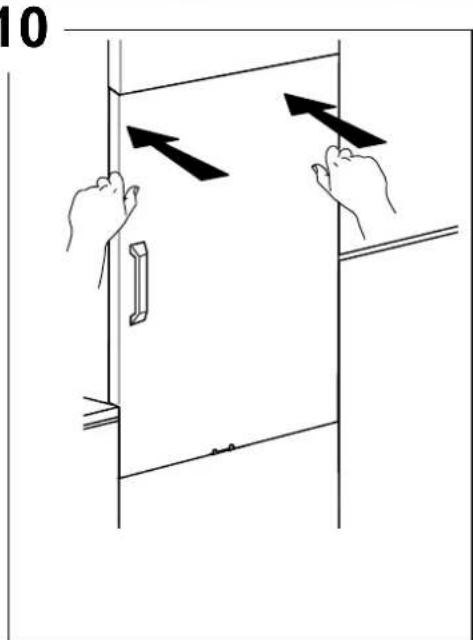

10

10

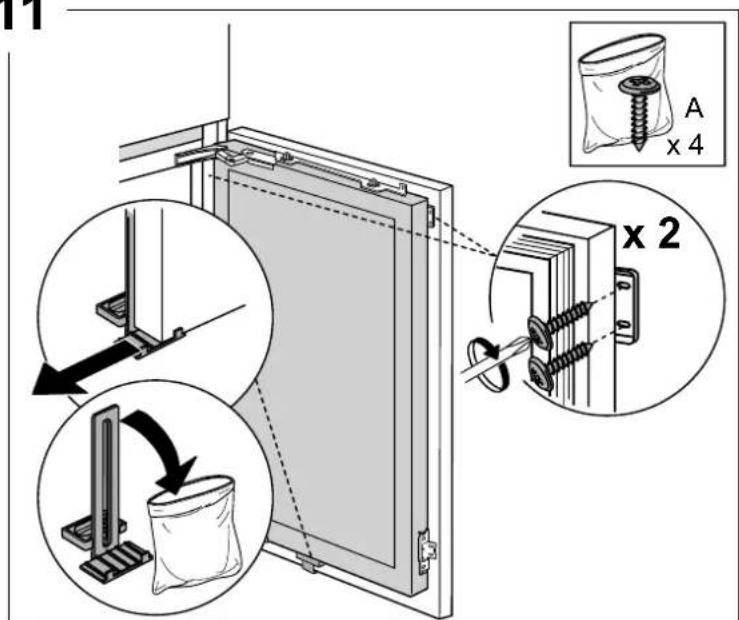

11

Diagram illustrating a door hinge mounting mechanism with labeled parts and zoomed-in insets showing pin positioning and assembly steps.

12

Diagram illustrating refrigerator interior and door assembly, showing step-by-step assembly and tool application steps.

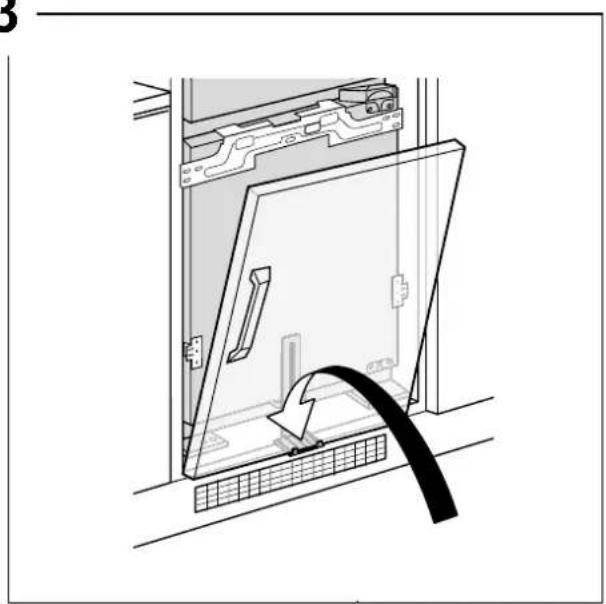

13

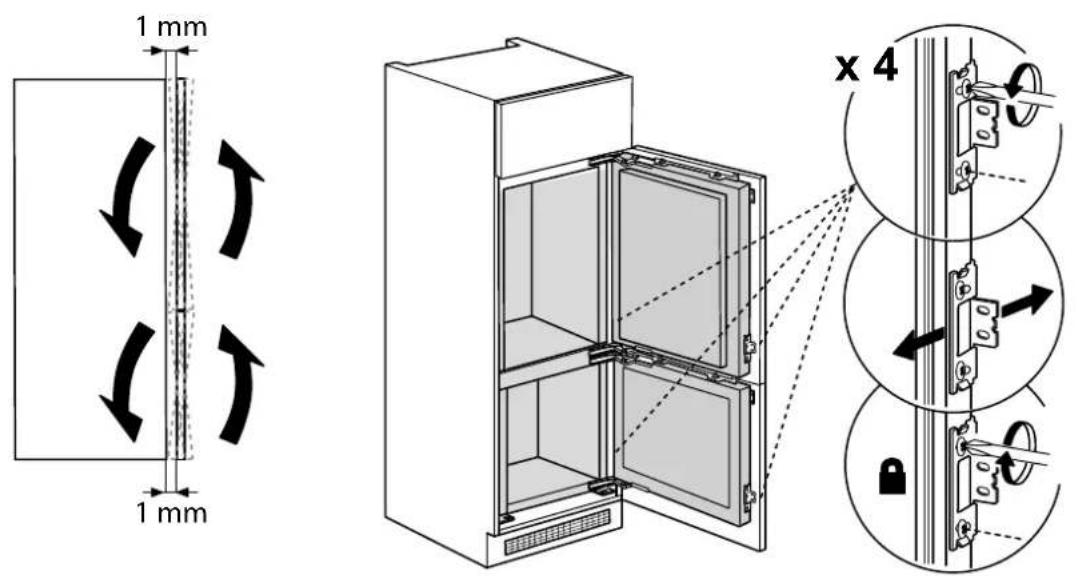

1 mm 1 mm x 4

14

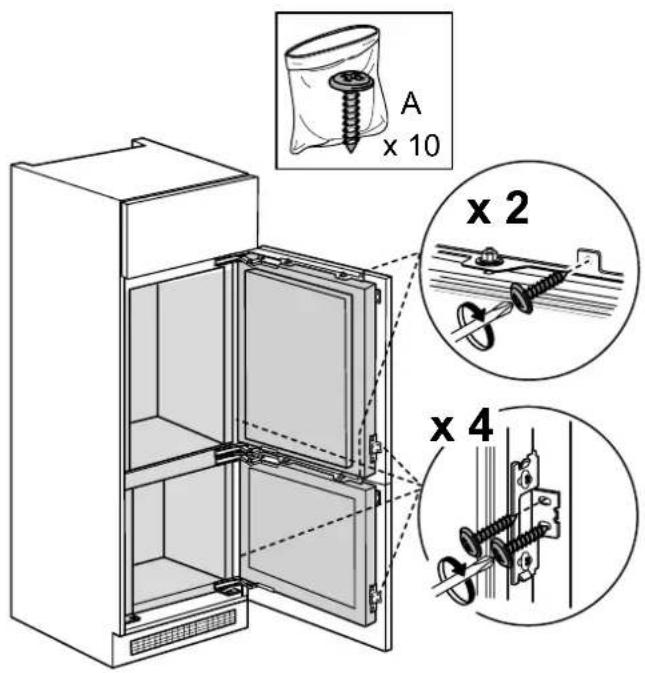

A x 10 x 2 x 4

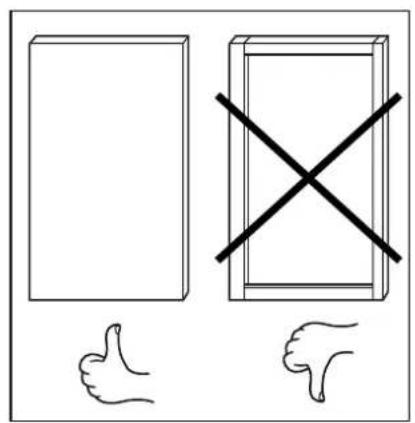

Diagram showing two document shapes with thumbs and a cross symbol crossed out, likely indicating cancellation or rejection.

15

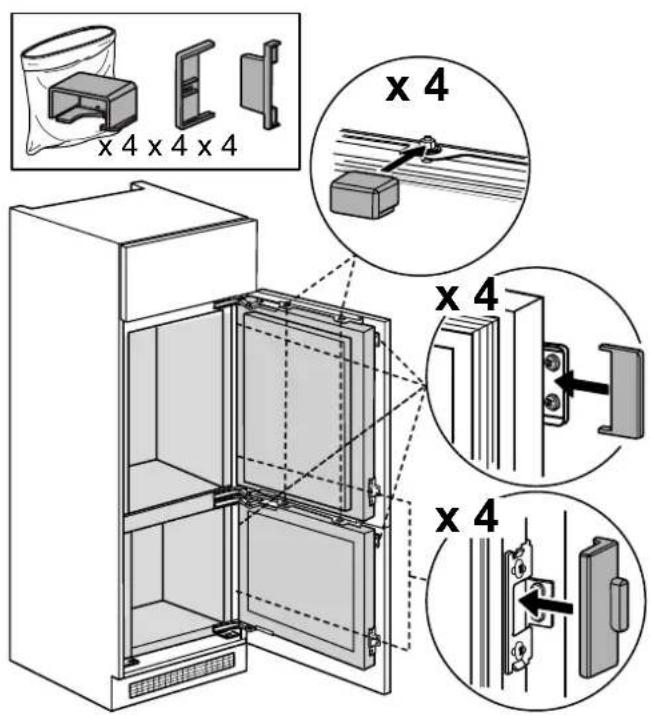

x 4 x 4 x 4 x 4 x 4 x 4

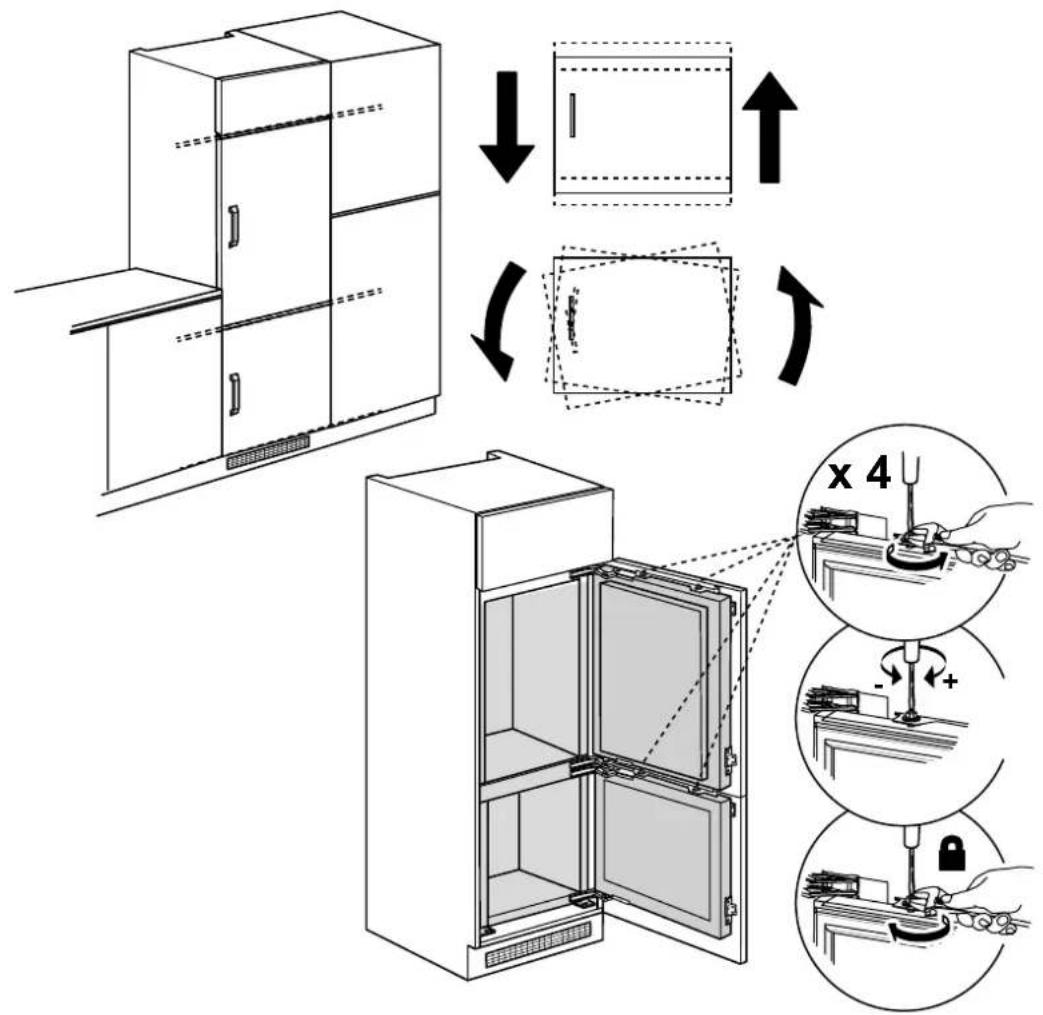

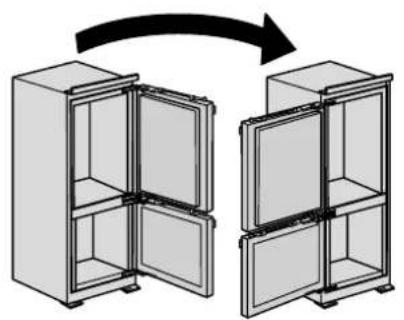

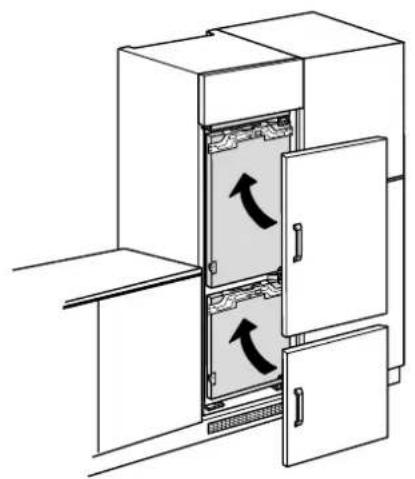

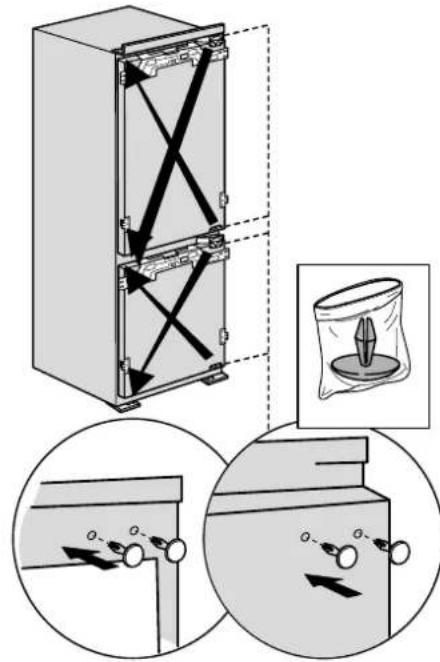

Diagram showing two refrigerator units with doors open, one rotated to the other (no text or symbols)

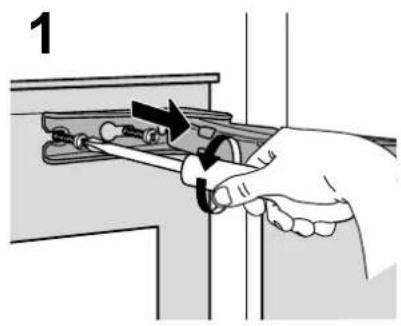

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

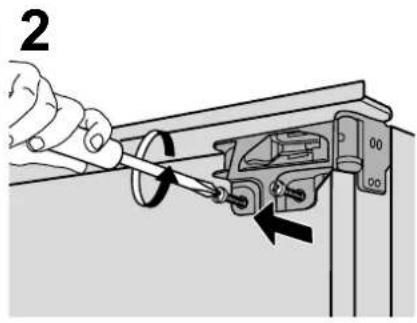

2

Diagram illustrating a mechanical assembly with force directions and component placement, including magnified views of the device.

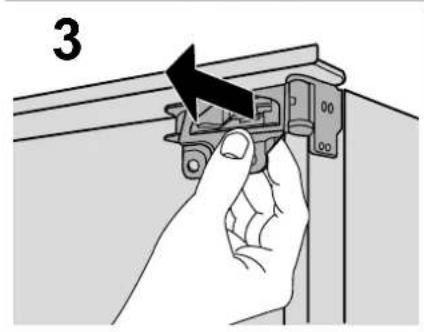

Hand holding a mechanical latch or bracket component, with a black arrow pointing to the handle (no text or symbols visible)

Illustration of a hand turning a bracket component with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

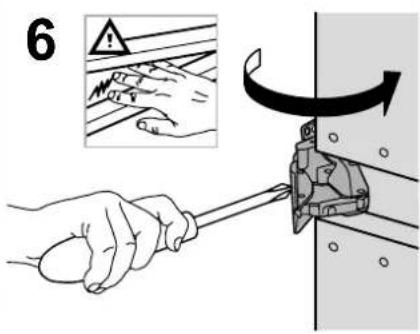

6

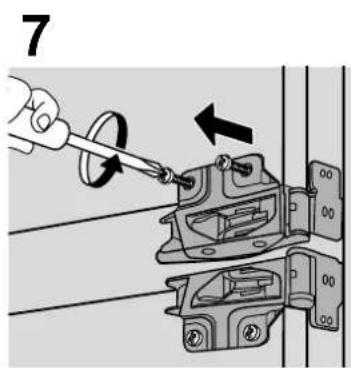

7

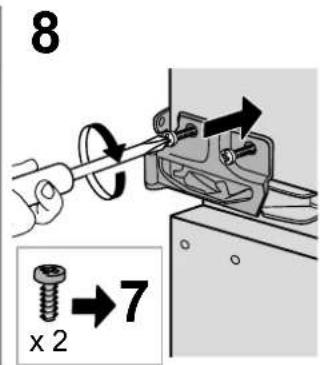

8 x 2 7

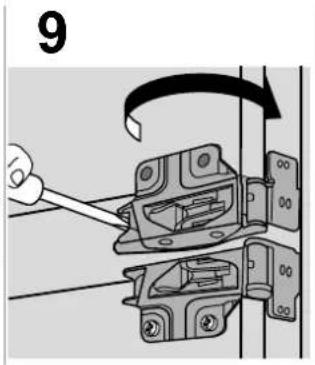

Mechanical assembly diagram showing a hand turning a component with an arrow indicating rotation (no text or symbols present)

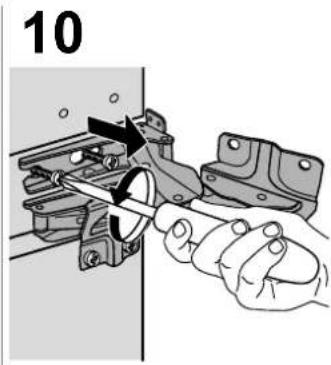

10

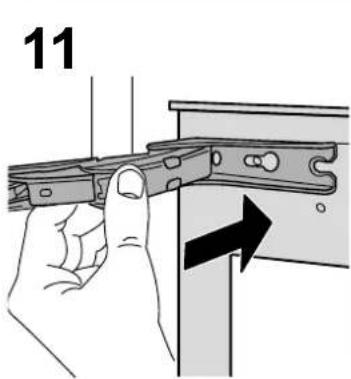

11

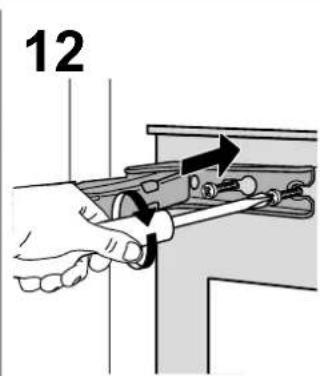

12

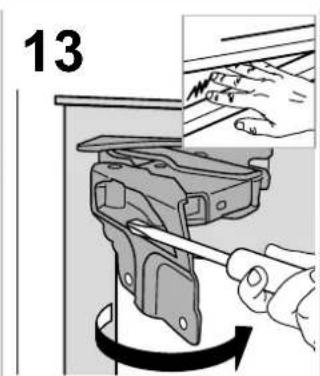

13

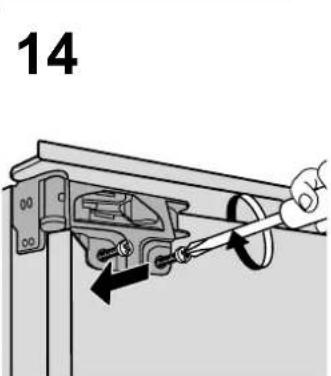

14

INHALT

ÜBERSICHT....12

Allgemeine Informationen.... 12

Bedienfeld....12

FUNKTIONSWEISE 14

Diagram of a refrigerator interior showing front and side views (no text or symbols)

Zeichenerklärung

TEMPERATUR BEREICH

Two document layout diagrams with horizontal lines, one showing a grid and the other a blank sheet (no text or symbols)

Zeichenerklärung

SCHUBFÄCHER DES GEFRIERRAUMS

GEFRIERBEREICH-FACH

Refrigerator compartment and food storage 24

How to store fresh food and beverages....24

Freezer compartment food storage....25

Freezer compartment 25

Removing drawer and "sliding tray" (removable shelf) 26

Functional sounds....27

Recommendation in case of no use of the appliance....27

CLEANING AND MAINTENANCE....28

Refrigerator light 28

Shelves 28

Door....28

TROUBLESHOOTING....29

SUPPORT 30

OVERVIEW

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption.

DISPOSAL

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

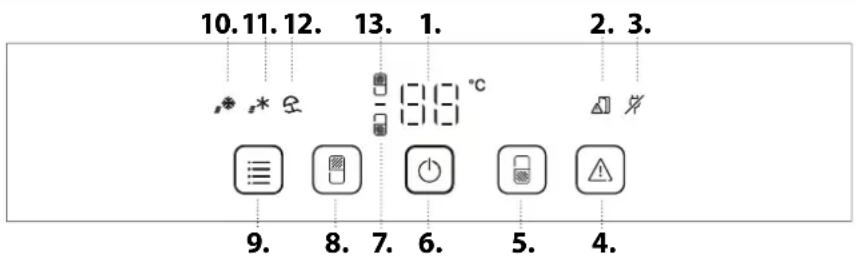

ONTROL PANEL

To put the product in Stand-by, press and hold the On/ Stand By Ⓞ button for 3 seconds. All the indicators turn off except On/Standby indicator. In Stand-by mode the light in the refrigerator compartment does not turn on Press again to reactivate the appliance.

FAN

The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food. The fan will start/stop working depending on the temperature and/or humidity level inside the fridge. If the appliance has the Fan it can be equipped with the antibacterial filter.

TEMPERATURE DISPLAY

The display may alternately show the refrigerator compartment temperature (between 2^ C and 8^ C) or the temperature of the freezer compartment (between -16^ C and -24^ C).

FRIDGE COMPARTMENT TEMPERATURE

To adjust the Fridge Temperature, press the Fridge button. The Fridge Temperature can be adjusted between +2°C and +8°C, as shown by the Fridge Temperature display. Recommended setting for the refrigerator compartment is +4°C.

TURNING OFF THE SOUND ALARM

To turn off the sound alarm, briefly press the button.

FREEZER COMPARTMENT TEMPERATURE

To adjust the Freezer Temperature, press ☐ the Freezer button. The Freezer Temperature can be adjusted between -16°C and -24°C, as shown by the Freezer Temperature display. Recommended setting for the freezer compartment is -18°C.

FUNCTION MENU

Press ☐ FUNCTION MENU button repeatedly to select and activate one or more of the functions available: "Fast Freeze" ☐, "Fast cool" ☐, "Vacation mode" ☐. To disable one or more functions: press ☐ FUNCTION MENU repeatedly until no option is highlighted.

To avoid an increase of food waste, refer to recommended setting and Storage Time in OPERATION chapter

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment.

24 hours before freezing fresh food, press ✕ the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the bottom freezing zone of freezer compartment. The function is automatically disabled after 50 hours, or can be manually disabled by pressing ✕ Fast Freeze button again.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press ✕* the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing ✕* Fast Cool button again.

VACATION

You can use this function in the event of a prolonged absence from home. Press ☑ the Vacation button for 3 sec to engage Vacation Mode.

The display will show the temperature of the refrigerator compartment (+12°C) and the Vacation mode icon will light up.

After activating this function, remove the food from the refrigerator compartment and keep both doors closed - the refrigerator will maintain a suitable temperature to prevent odours from forming.

The freezer, however, remains at the temperature originally set. A deep clean (of both refrigeration and freezer compartment) is recommended before activating this function in order to prevent the spread of bacteria. Press again the same button for 3 sec to deactivate Vacation.

Changing the setpoint will automatically deactivate the function.

NOTE: Fast Freeze and Fast Cool deselect after approximately 10 hours.

Vacation mode also deselects if the user modifies the Fridge Temperature button.

OPERATION

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

REFRIGERATOR COMPARTMENT AND FOOD STORAGE

The refrigerator compartment allows for the storage of fresh food and drink. The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors. In very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one. All of the drawers, door shelves and shelves can be removed.

AIR VENTILATION

The ventilation air allows a better distribution of the temperatures inside the compartments and, consequently, better preservation of the food and reduction of excess humidity. Do not obstruct the ventilation area.

LIGHT SYSTEM

This product contains 4 lateral light sources of energy efficiency class F and a top light source of energy class G

HOW TO STORE FRESH FOOD AND BEVERAGES

Foods which give off a large amount ethylene gas (apples, apricots, pears, peaches, avocado, figs, prunes, blueberries, mellons, beans) and those that are sensitive to this gas, such as fruit vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage. Do not store food too close together to enable sufficient air circulation.

Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment. Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them. To avoid bottles falling over, you can use the bottle holder (available on selected models).

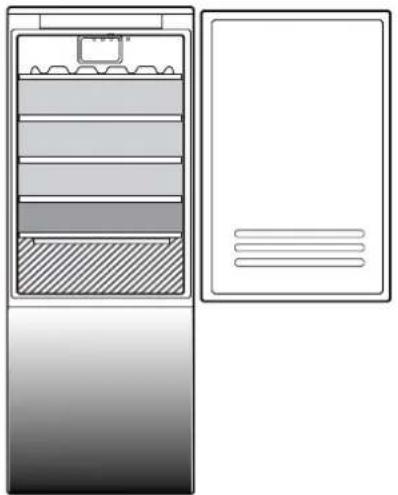

0°C COMPARTMENT / COLD ZONE

The drawer is specifically designed to maintain a low temperature to preserve fresh food for longer time (for example, fresh pasta, sour cream, pesto/salsa, homemade preparation, pastry cream, pudding, cream cheese, cold cuts, desserts, meat and fish).

The internal temperature of the drawer is between +3 °C and -2 °C. For the correct functioning of the drawer, it is necessary that Vacation mode option is not selected.

Diagram of a refrigerator interior showing front and side views with no text or symbols

Legend

TEMPERATURE ZONE

Suggested for storage of tropical fruit, cans, drink, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for storage of cheese, milk, daily food, delicatessen, yoghurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

FRUIT & VEGETABLE DRAWER

FREEZER COMPARTMENT FOOD STORAGE

The freezer compartment ☐ ☐☐ allows long time storage of frozen food and freezing of fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment, leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

Two document icons: a clipboard on the left and a blank sheet with horizontal lines on the right (no text or symbols)

Legend

FREEZER DRAWERS

FREEZING ZONE DRAWER

(Max cool zone)

Suggested to freeze fresh/cooked food

REMOVING THE DRAWERS

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers. Make sure that the door is closed properly after putting the food back on the grilles/shelves.

FREEZER COMPARTMENT

Freezing fresh food

1. It is advisable to set the temperature colder or turn on the Fast Freeze/Fast Cool at least four hours before removing the food from the freezer compartment, to prolong the preservation of the food during the defrosting phase.
2. To defrost, unplug the appliance and remove the drawers. Leave the door open to allow the frost to melt. To prevent the water from escaping during the defrost, it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.
3. Clean the inside of the freezer compartment and dry it carefully.
4. Turn the appliance back on and put the food back inside.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

Ice cubes

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate.

Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

REMOVING THE DRAWERS

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers. Make sure that the door is closed properly after putting the food back on the grilles/shelves.

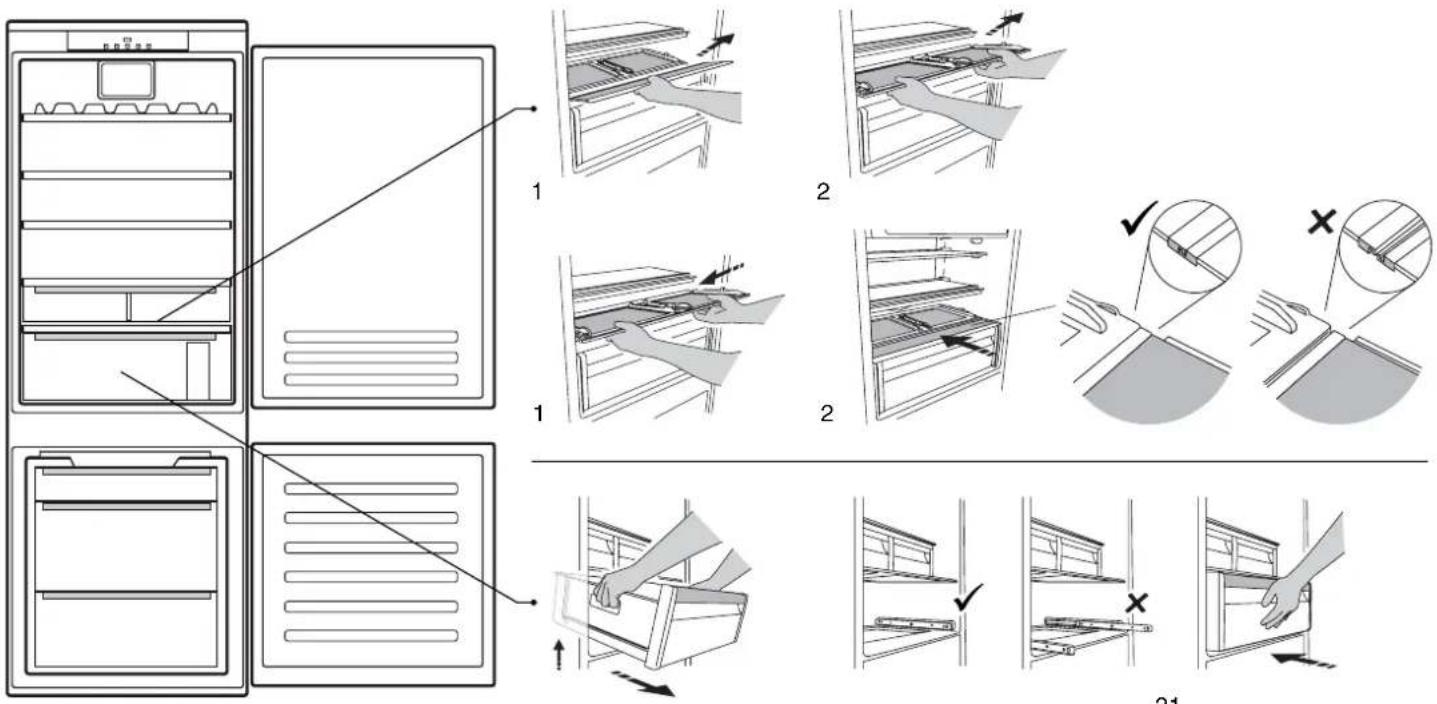

REMOVING DRAWER AND "SLIDING TRAY" (REMOVABLE SHELF)

21

FUNCTIONAL SOUNDS

1. A buzz generated by the compressor is normal while the product is working.

Illustration of a person holding a speech bubble next to a globe, a server with a speech bubble, and a cabinet (no text or symbols present)

1. Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit, therefore these are normal noises.

Guide Guide

1. It's possible to "hear" creaks when the compressor is active and inactive: it is a normal sound of the product's structure.

1. Check that the balconies on the inside of the refrigerator door, the shelves and the drawers in the refrigerator compartment are attached and positioned properly, to avoid possible vibrations.

2. Don't place glass containers (bottles, jars, etc.) in direct contact with each other, to avoid vibrations.

3. This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption. So it may happen that in certain situations (in summer or if large quantities of food are introduced) that the compressor increases the speed and therefore it is more noisy than usual.

RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

In the event of non-use of the applicance

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

In the event of an interruption to the power supply

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Never use abrasives. Never clean refrigerator parts with flammable fluids.

Do not use steam cleaners.

The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator.

REFRIGERATOR LIGHT

The light system inside the refrigerator compartment uses LEDs light, allowing a better lighting than traditional light bulbs as well as a very low energy consumption. Contact the Technical Assistance Service if you need a replacement.

Important: The refrigerator compartment light switches on when the refrigerator door is opened.

SHELVES

All of the drawers, door shelves and shelves can be removed.

DOOR

DOOR REVERSIBILITY

Note: The direction of door opening can be changed. If this operation is not performed by After-sales Service it is not covered by the warranty. Follow instruction in Installation chapter.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	The appliance may be in On / Stand-by mode.There may be an appliance power supply problem.	Turn the appliance on pressing the On/Stand-by button. Check that:there is not a power outage;the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e. allows the appliance to be powered);the household electrical system protection devices are efficient;the power cable is not damaged.
The inside light does not work.	The light may need to be replace. Models with LED lights: contact the authorised Technical Assistance Service.
	The appliance may be in On / Stand-by mode.	Turn the appliance on by briefly pressing the button (see On/Stand-by function).
The temperature inside the compartments is not low enough.	There could be various causes (see "Solutions").	Check that:the doors close properly;the appliance is not installed near a heat source;the set temperature is adequate;the circulation of air through the ventilation grilles on the base of the appliance is not obstructed.
There is water on the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrosting water drain (see section "Cleaning and Maintenance").
The front edge of the appliance, at the door striker seal, is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
Door open alarm indicator and Alarm indicators blink, the acoustical alarm is activated.	Door open alarm The Fridge door remained open for more than 2 minutes	Close the door or press the Stop Alarm to mute the acoustical alarm.
The freezer temperature display blinks, the acoustical alarm is activated and the Alarm Indicator blinks	Blackout alarmInside the Freezer the temperature is not adequate	Press the Stop Alarm button to stop the acoustical alarm; the freezer temperature display continues blinking and the Alarm Indicator remains on until the adequate temperature in the freezer is restored.
The red icon is lit up (without flashing), a sound signal is activated and the freezer temperature display is flashing.	Freezer compartment temperature alarmThe freezer compartment temperature alarm indicates that the compartment is not at the optimum temperature. This may occur: when using for the first time, after defrosting and/or cleaning, when freezing large quantities of food or when the door to the freezer does not close completely.	To turn off the sound signal, briefly press the "Turn off sound alarm" button (the temperature display will stop flashing). When the optimum temperature conditions have been reached, the red icon will automatically turn off. If the freezer compartment temperature alarm continues, contact the Authorised Technical Assistance Service.

SUPPORT

When contacting our Service Centre, please state the codes provided on your product's identification plate.

SOMMAIRE

APERÇU....32

Diagram of a refrigerator interior showing front and side views with no text or symbols

Légende

TEMPÉRATURE ZONE

Two document icons: a gray clipboard on the left and a white sheet with horizontal lines on the right, both without any text or symbols.

Légende

BACS DU CONGÉLATEUR

Illustration of three industrial components: a person with a hand, a globe with a dome structure, and a server unit (no text or symbols)

Illustration of a wine bottle pouring liquid into a sink, next to a cabinet with a coiled tube (no text or symbols)

PROBLEEMOPLOSSING....49

ONDERSTEUNING....50

GEBRUIKERSHANDLEIDING

OVERZICHT

ALGEMENE INFORMATIE

FAST COOL (SNEL KOELEN)

Diagram of a refrigerator interior showing front and side views with no text or symbols

Legenda

TEMPERATUURZONE

Two document panels: one with a clipboard and one with a blank sheet (no text or symbols)

Legenda

LADEN VRIESVAK

LADE DIEPVRIESGEDEELTE

(Max koelzone)

Illustration of three industrial equipment components: a globe, a cabinet with a labeled component, and a handbag (no text or symbols present)

Diagram of a refrigerator interior showing front and side views (no text or symbols)

Legenda

ZONA TEMPERATA

Two document icons: a left-side clipboard with horizontal lines and a right-side blank sheet with horizontal lines (no text or symbols)

Legenda

CASSETTI CONGELATORE

CASSETTO ZONA CONGELAMENTO

Illustration of three objects: a tree with flowers, a globe, and a cabinet labeled 'Braer' (no text or symbols on objects)

Gurdle Gurdle

Illustration of three industrial equipment components: a person holding a globe, a dome-shaped structure, and a cabinet with a label (no readable text or symbols)

Girdle Girdle

Diagram of a refrigerator interior showing front and side views (no text or symbols)

Forklaring

TEMPERATURZONE

Two document sheets: one with a clipboard and one with a blank sheet (no text or symbols)

Forklaring

FRYSERSKUFFER

FRYSEOMRÅDETS SKUFFE

(Max køleområde)

DRIFTSRELATEREDE LYDE

Brm Gurdle Crack Cnkr

ANBEFALING NÅR APPARATET IKKE ER I BRUG

INNEHÅLLSFÖRTECKNING

ÖVERSIKT 82

Allmän information....82

Kontrollpanel....82

FUNKTION....84

Diagram of a refrigerator interior showing front and side views (no text or symbols)

Förklaring

TEMPERATURZON

Two document panels with horizontal lines, one showing a grid and the other a blank sheet (no text or symbols)

Förklaring

FRYSLÅDOR

FRYSDELSLÅDA

(Extra kall zon)

Illustration of three industrial equipment components: a globe, a cabinet with a labeled component, and a handbag (no text or symbols present)

Gurdle Gurdle
