USER MANUAL GHPH-MM08 GRUNDIG

Stylized icon of a person with a yellow head and blue body, resembling a stylized letter 'E' or logo (no text or symbols)

041

Diagram showing a thermometer symbol inside a box, with a minus sign and a minus sign on the right side.

GHPH-MM08

GHPH-MM14

GHPH-MM10

GHPH-MM16

GHPH-MM12

EN - FR

CONTENTS

ENGLISH 3-135

FRANÇAIS 136-276

Advanced Important Notice

Cautions:

1. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
2. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.).
3. Do not pierce or burn.
4. Be aware that refrigerants may not contain an odour.
5. Appliance shall be installed, operated and stored in a room with a floor area larger than X m ^2 (refer to specifications sheet).
6. The installation of pipe-work shall be kept to a minimum X m2 (refer to specifications sheet).
7. Spaces where refrigerant pipes shall be compliance with national gas regulations.
8. Servicing shall be performed only as recommended by the manufacturer.
9. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
10. All working procedure that affets safety means shall only be carried by competent persons.

General Notice:

1. Transport of equipment containing flammable refrigerants Compliance with the transport regulations
2. Marking of equipment using signs Compliance with local regulations

3. Disposal of equipment using flammable refrigerants Compliance with national regulations

4. Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions.

5. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

Please read this user manual first!

Dear Customer,

Thank you for preferring a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning to actions that must never perform.

Warning for electric shock.

This symbol shows that information is available such as the operating manual or installation manual.

Do not cover it.

This symbol shows that the operation manual should be read carefully.

This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.

Warning sign depicting a flame symbol in a triangular frame

(For R32/R290 gas type)

This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

CONTENTS

1 Safety precautions 8

2 General introduction 17

3 Accessories 21

3.1 Accessories supplied with the unit 21

3.2 Accessories from local supplier .....21

4 Before installation 22

5 Important information for the refrigerant 24

6 Installation site 25

6.1 Selecting a location in cold climates....27

6.2 Selecting a location in hot climates....27

7 Installation precautions 28

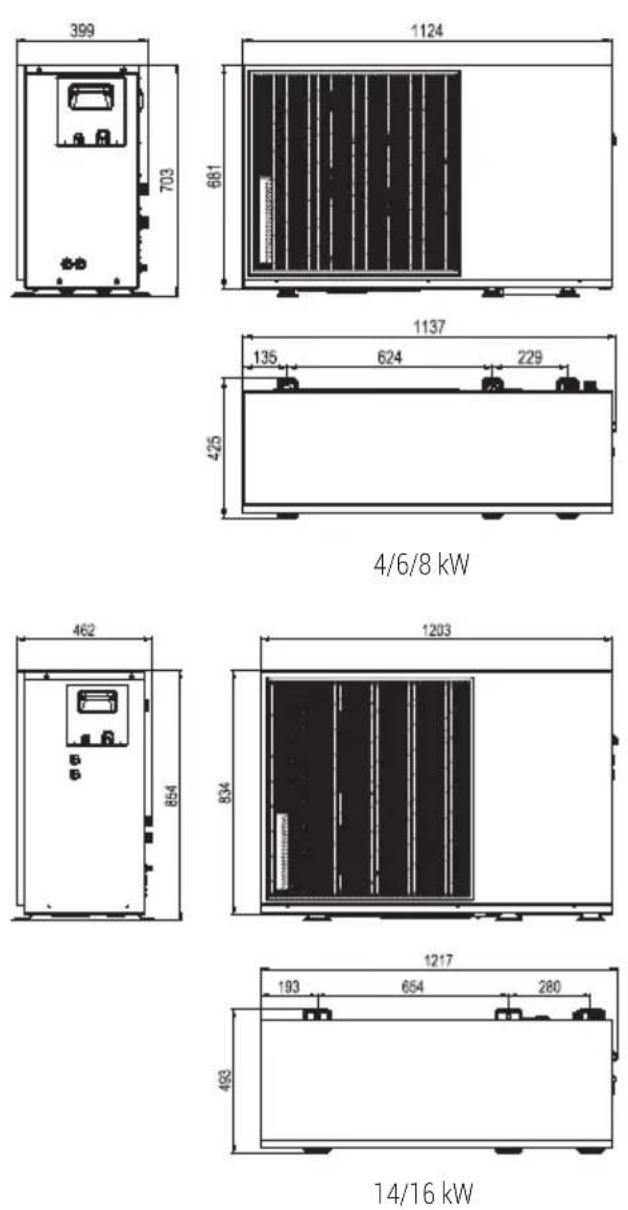

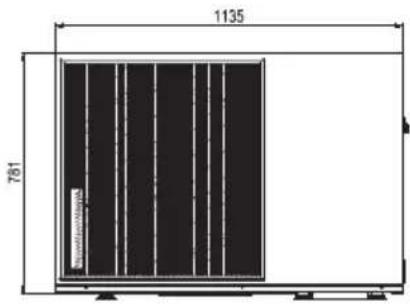

7.1 Dimensions 28

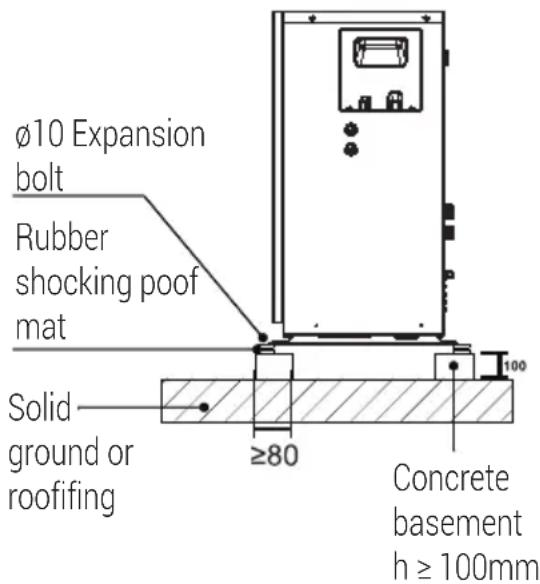

7.2 Installation requirements....29

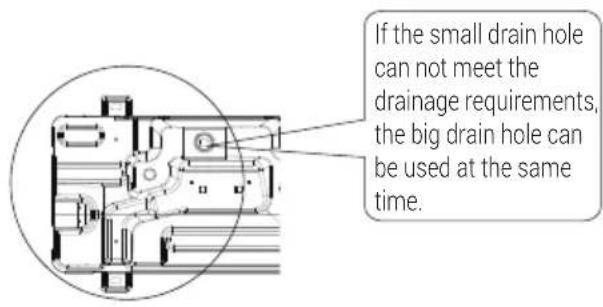

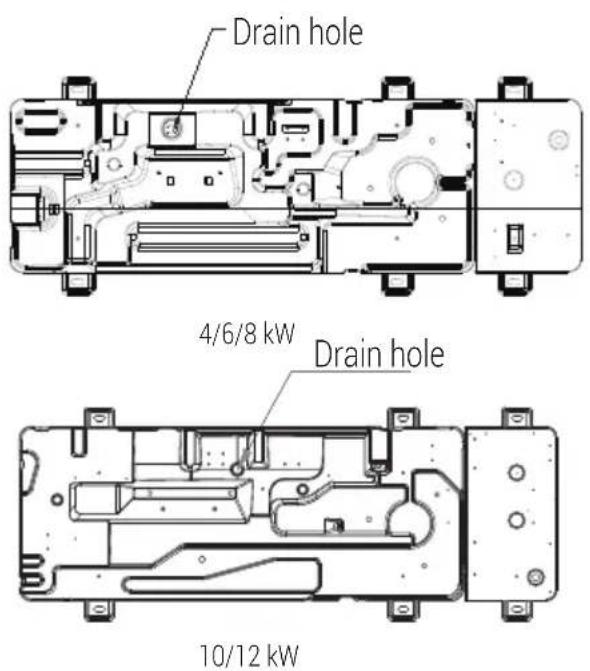

7.3 Drain hole position 30

7.4 Servicing space requirements .....31

7.5 Reference: Recommended water circulation characteristics during installation. 33

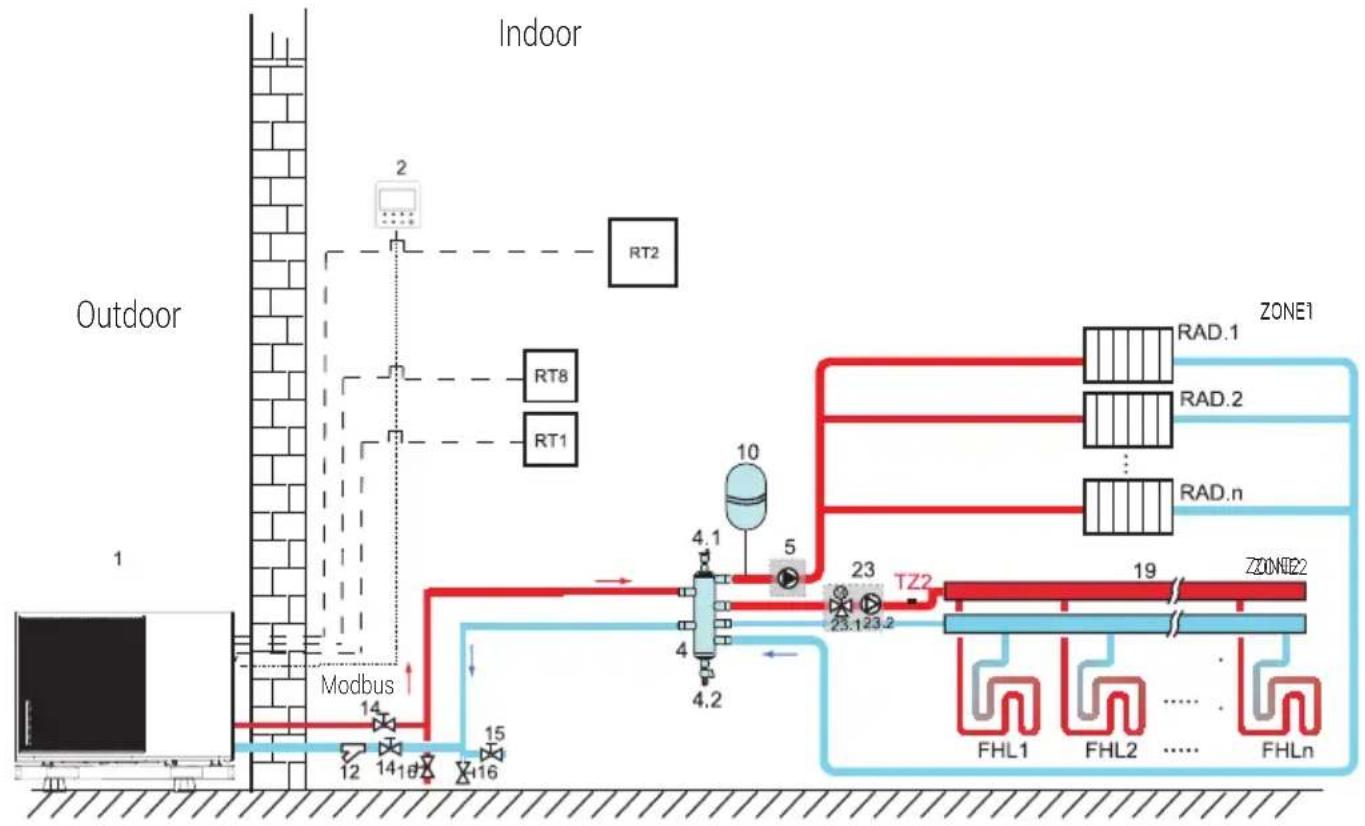

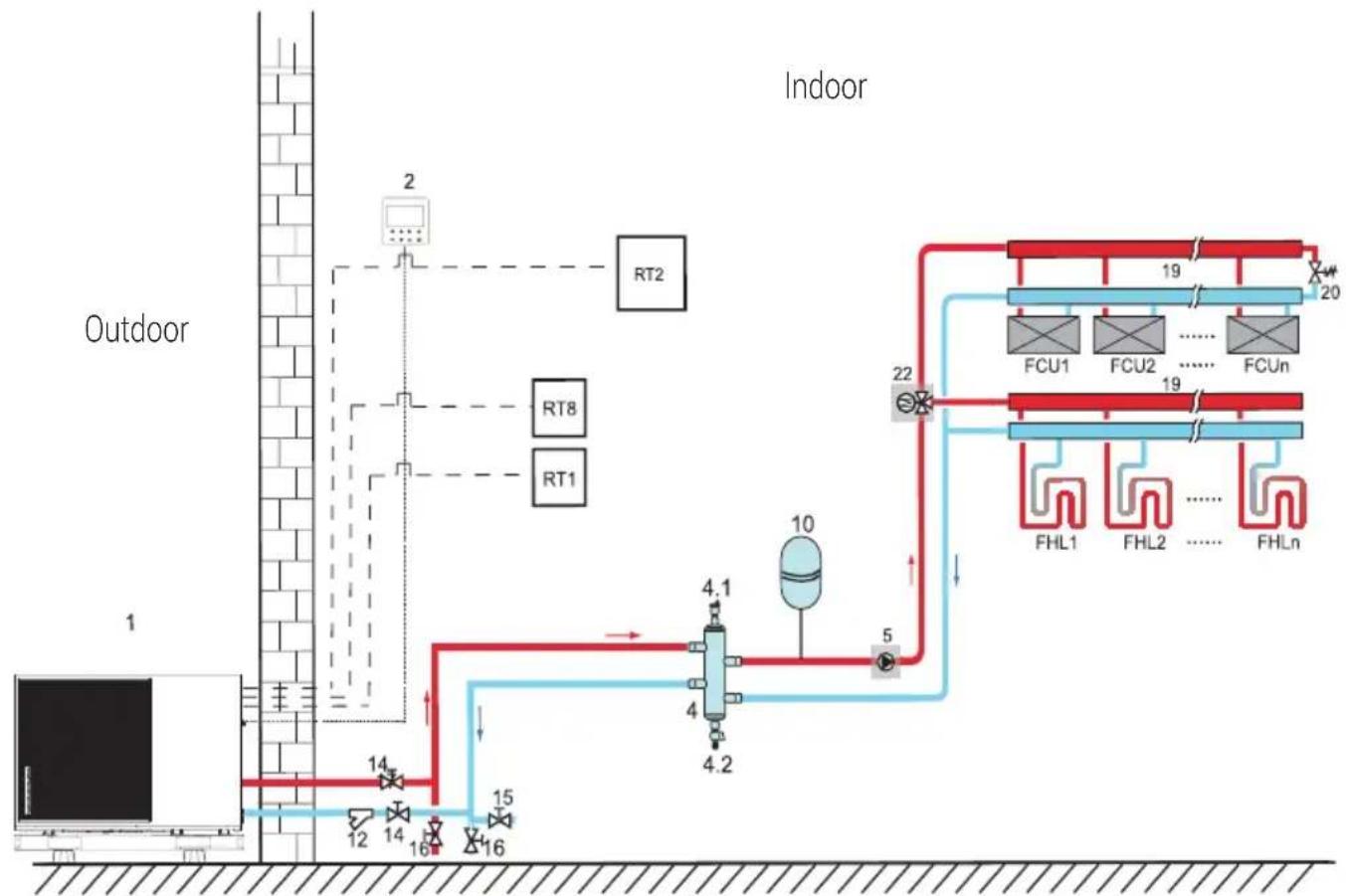

8 Typical applications 34

8.1 Application 1....34

8.2 Application 2....36

8.3 Application 3.42

8.4 Balance tank volume requirement 47

9 Overview of the unit 48

9.1 Disassembling the unit....48

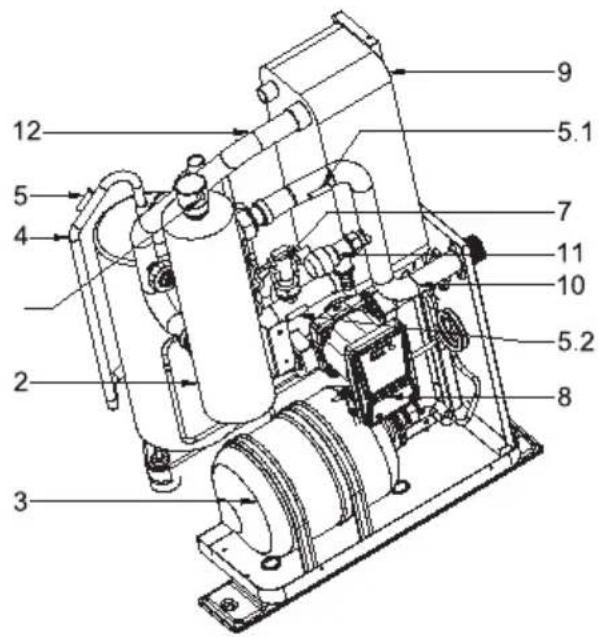

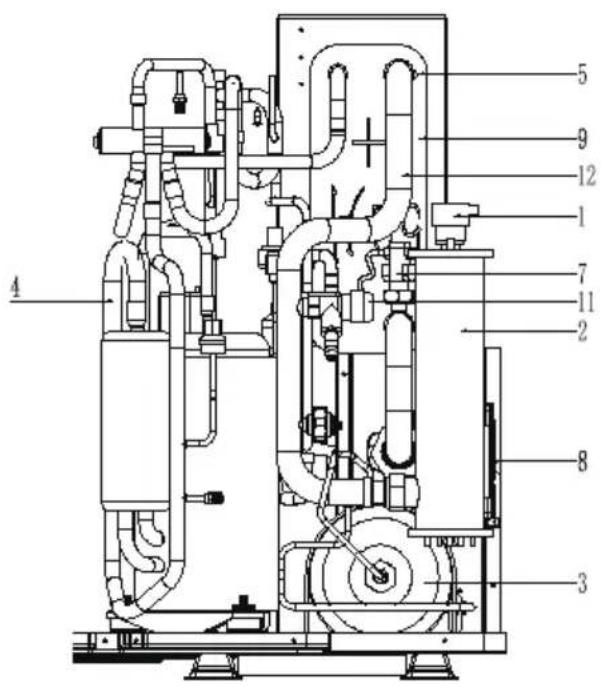

9.2 Main components....49

CONTENTS

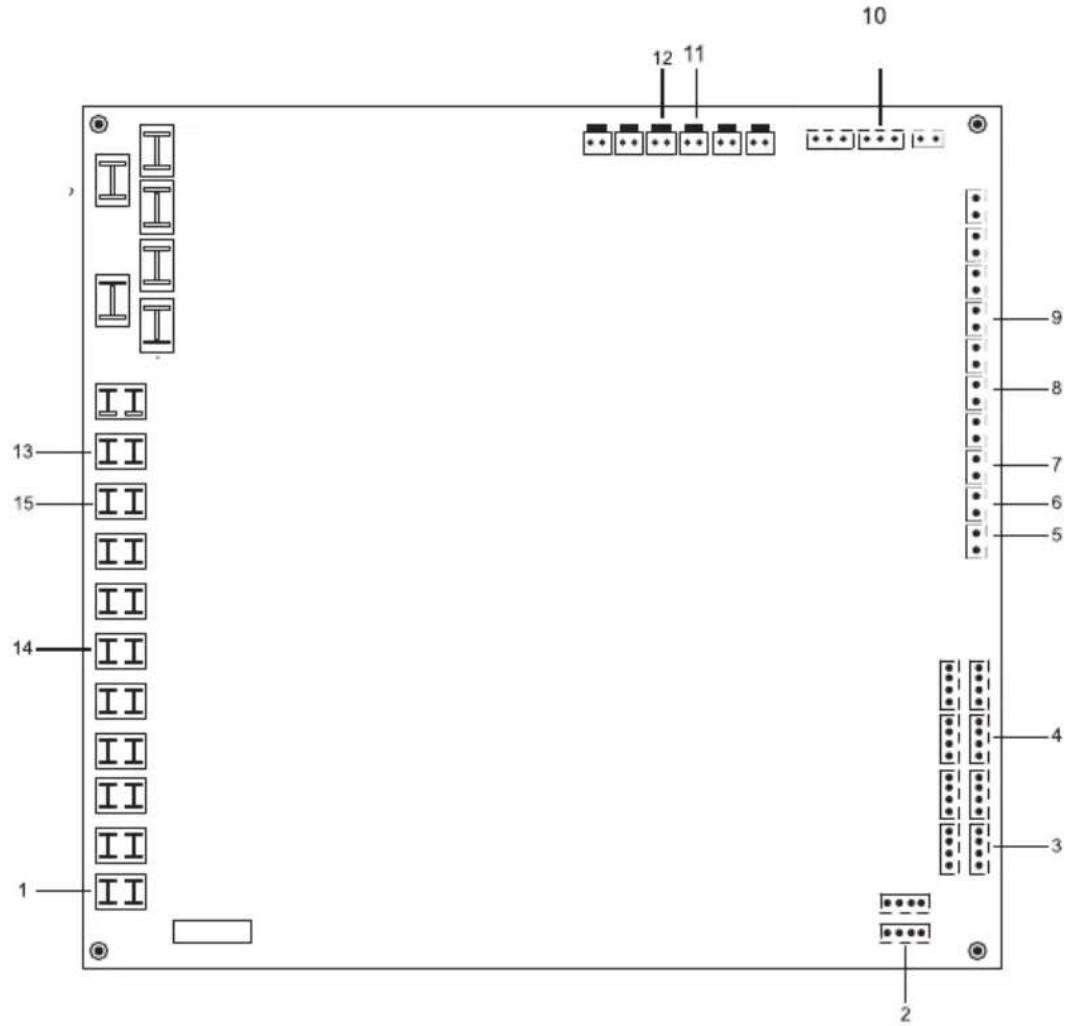

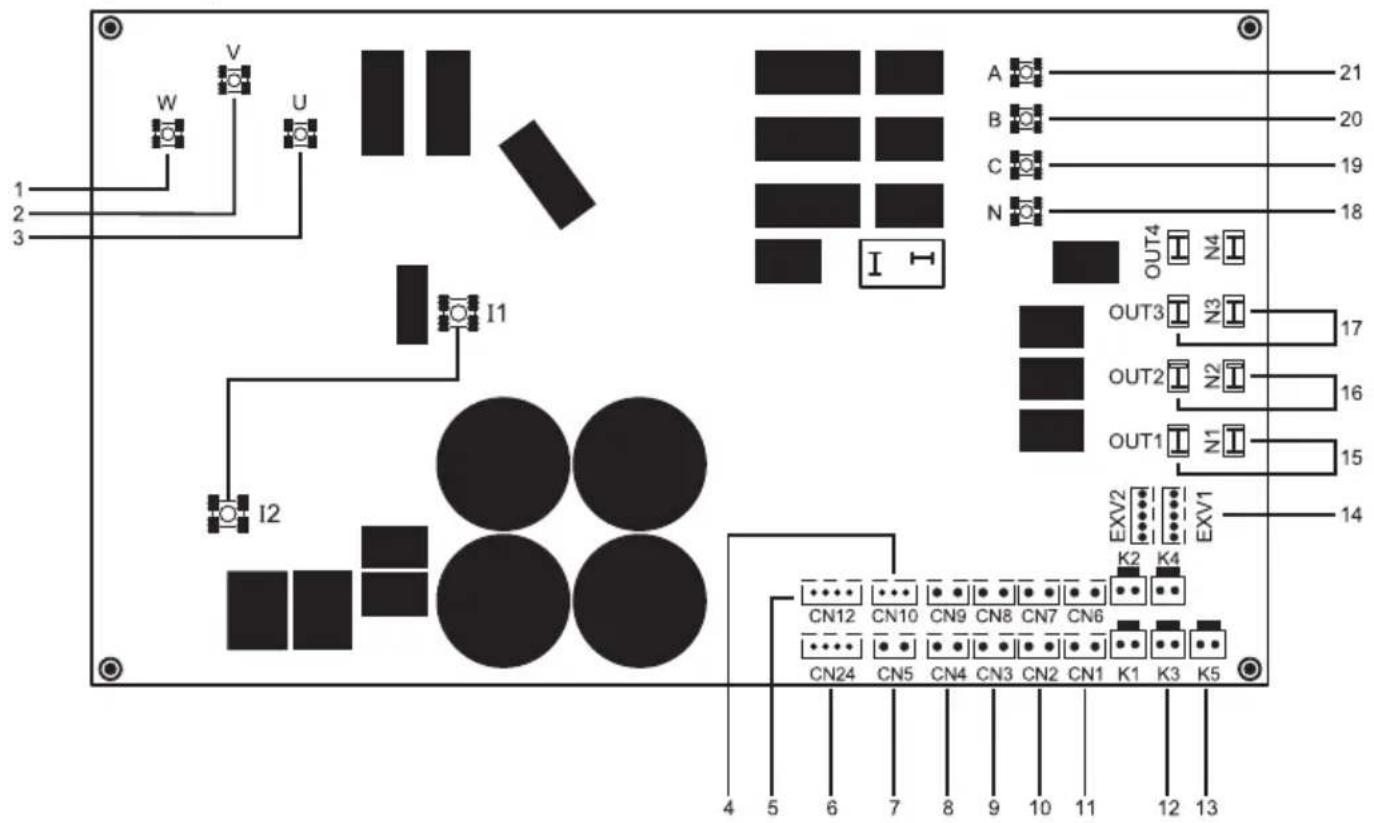

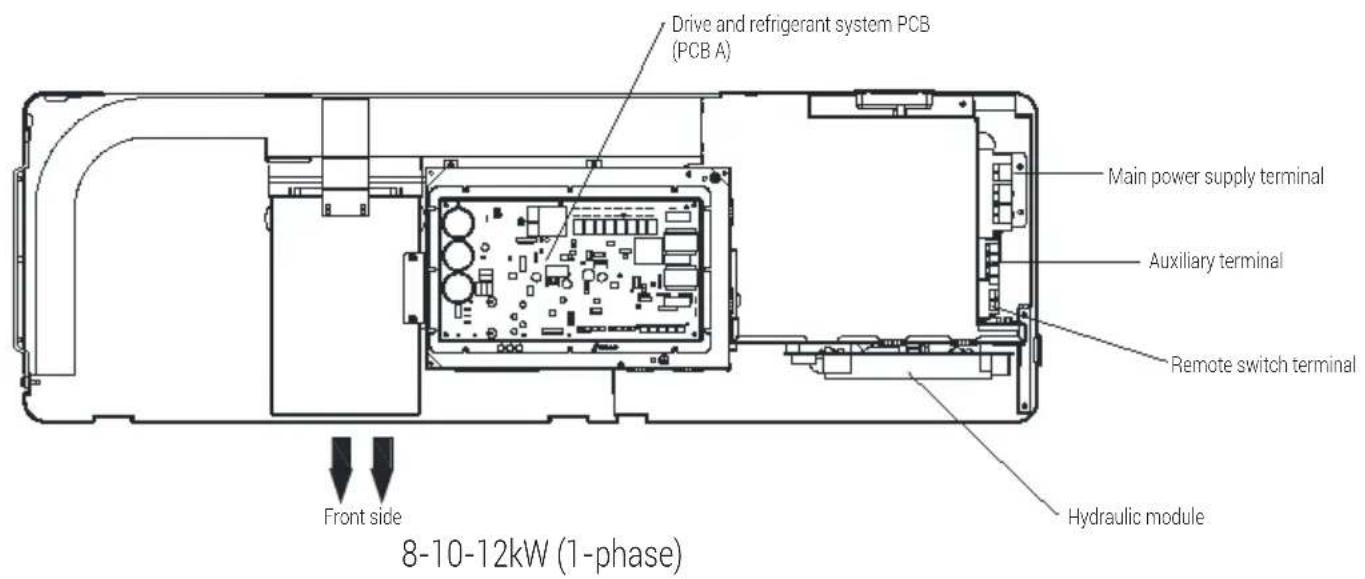

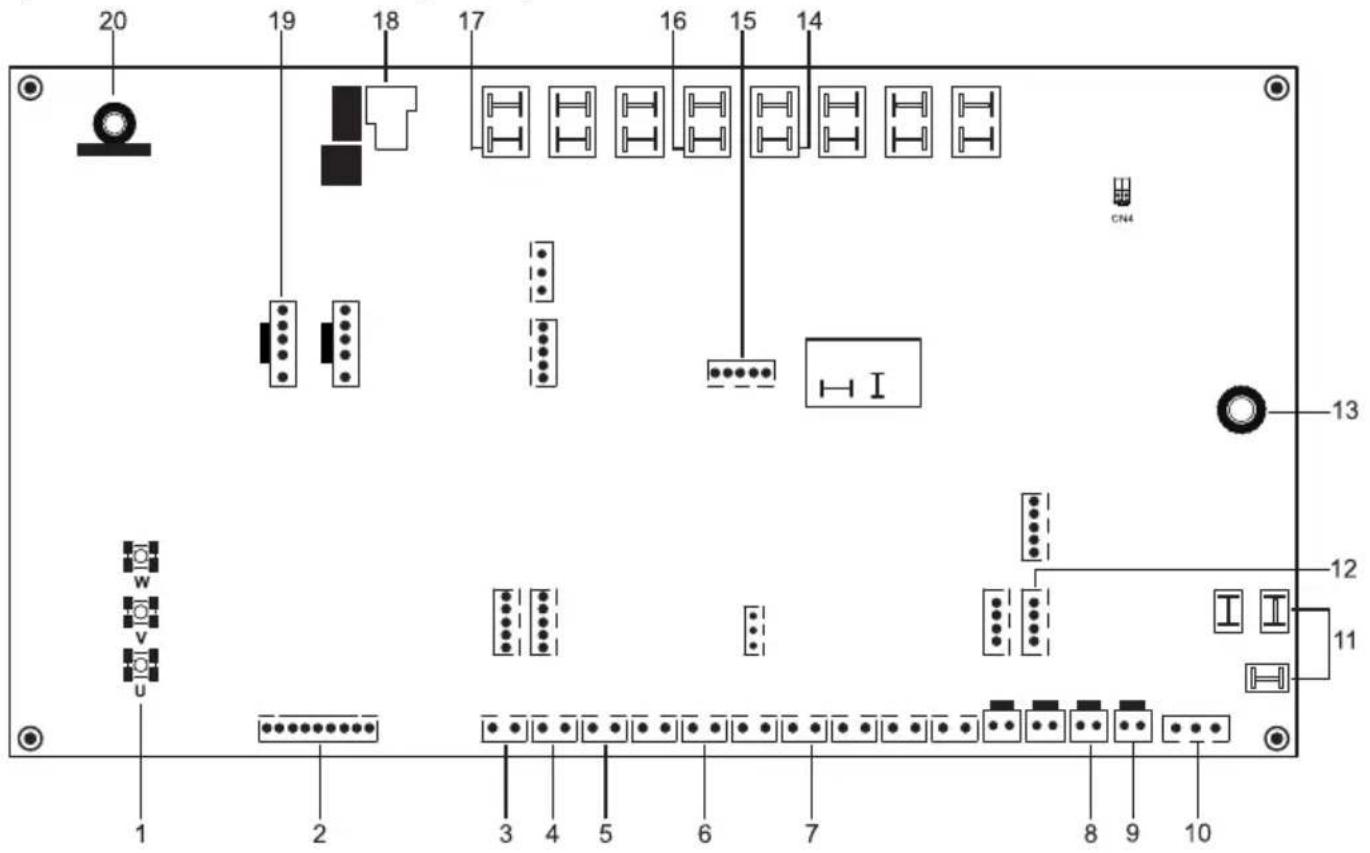

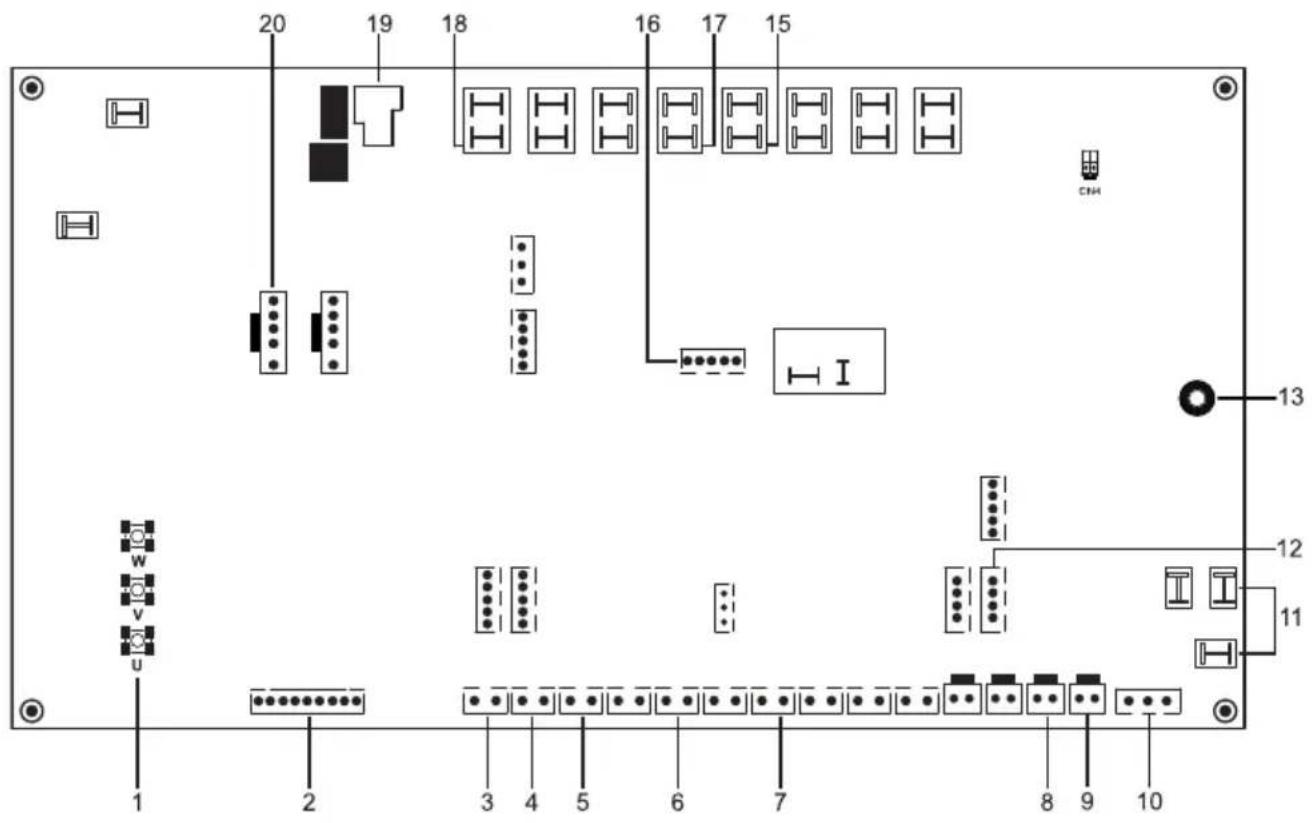

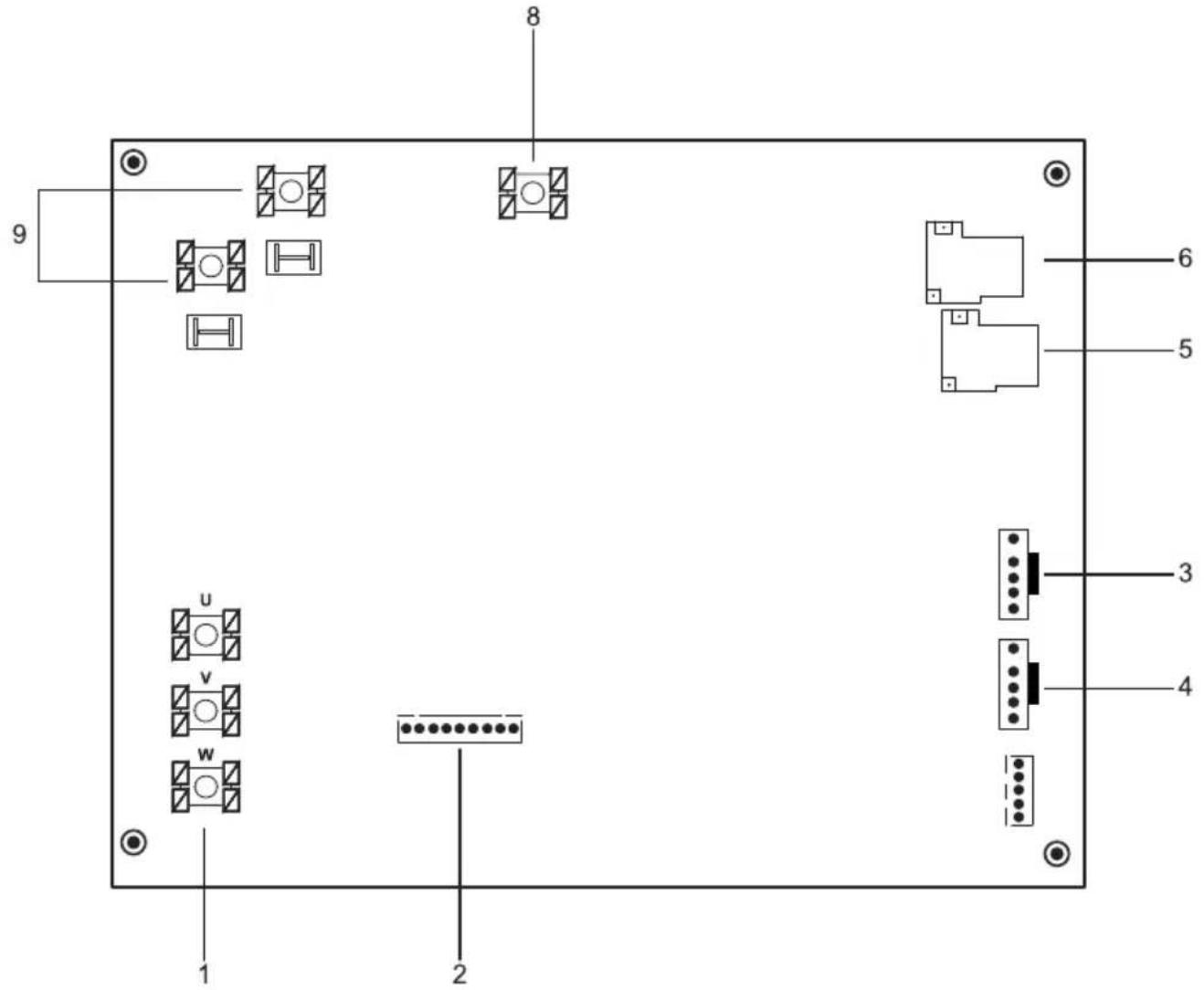

9.3 Electronic control box....51

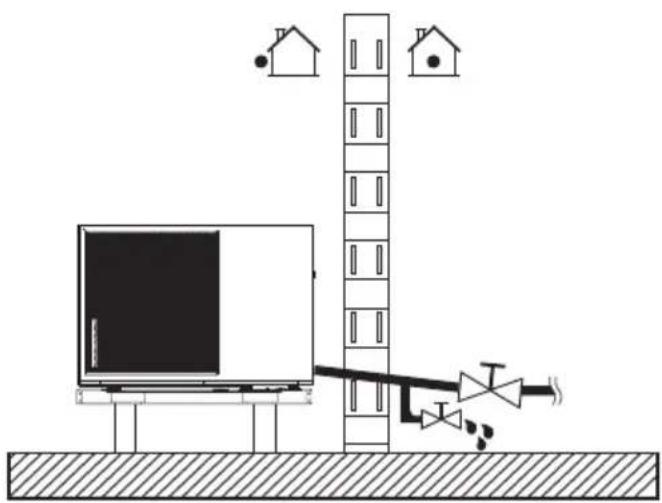

9.4 Water piping....64

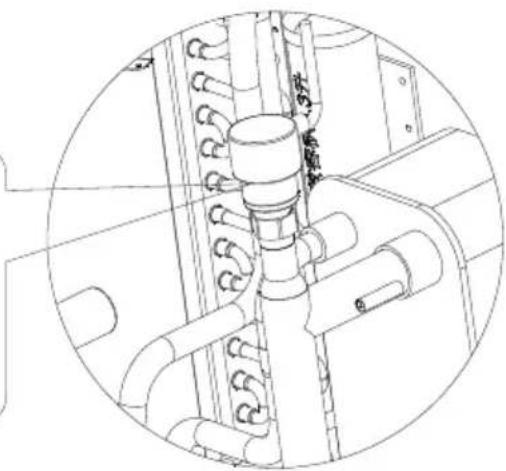

9.5 Filling water 69
9.6 Water piping insulation....70

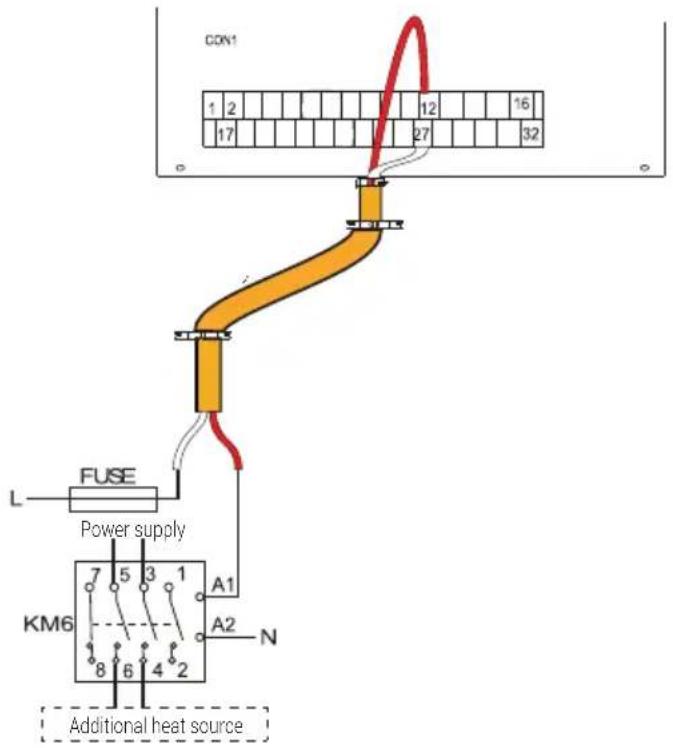

9.7 Field wiring 71

10 Start-up and configuration 87

10.1 DIP switch settings overview .....87
10.2 Initial start-up at low outdoor ambient temperature .....87
10.3 Pre-operation checks....88

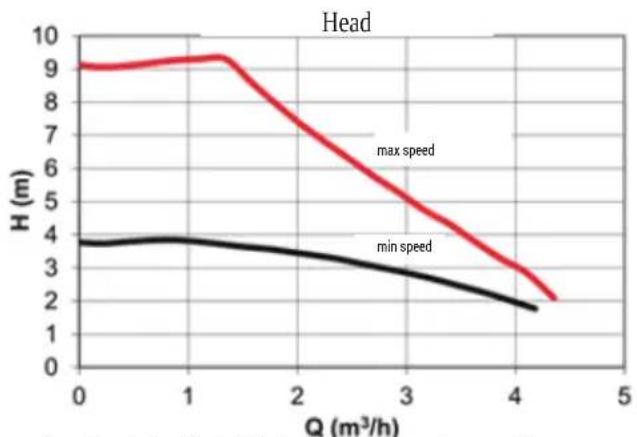

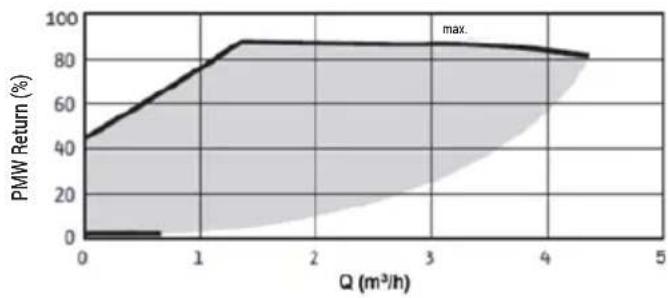

10.4 The circulation pump .....89
10.5 Field settings .....89

11 Test run and final checks 101

11.1 Final checks.... 101

12 Maintenance and service 102

13 Trouble shooting 104

13.1 General guidelines.... 104
13.2 General symptoms 104

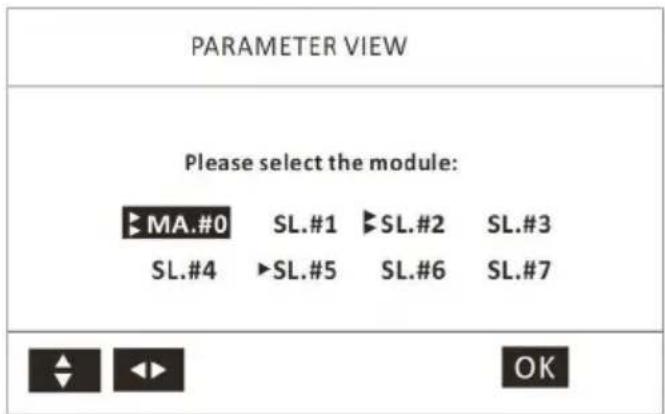

13.3 Parameter view 106
13.4 Error codes.... 107

14 Technical specifications 116

14.1 General 116
14.2 Electrical specifications.... 117
14.3 General (3-Phase).... 117
14.4 Electrical specifications (3-Phase) 118
14.5 Energy rating label and Specification sheet.... 118

CONTENTS

15 Information servicing 123
16 European disposal guidelines 134
17 F-Gas instruction 135

1 Safety precautions

Warning:

• Before touching electric terminal parts, turn off power switch.
• When service panels are removed, live parts can be easily touched by accident.
• Never leave the unit unattended during installation or servicing when the service panel is removed.
• Do not touch water pipes during and immediately after operation as the pipes may be hot and could burn your hands. To avoid injury, give the piping time to return to normal temperature or be sure to wear protective gloves.
• Do not touch any switch with wet fingers. Touching a switch with wet fingers can cause electrical shock.
• Before touching electrical parts, turn off all applicable power to the unit.
• Tear apart and throw away plastic packaging bags so that children will not play with them. Children playing with plastic bags face danger of death by suffocation.
• Safely dispose of packing materials such as nails and other metal or wood parts that could cause injuries.

Warning:

• Ask your dealer or qualified personnel to perform installation work in accordance with this manual. Do not install the unit yourself. Improper installation could result in water leakage, electric shocks or fire.
• Be sure to use only specified accessories and parts for installation work. Failure to use specified parts may result in water leakage, electric shocks, fire, or the unit falling from its mount.
  • Install the unit on a foundation that can withstand its weight. Insufficient physical strength may cause the equipment to fall and possible injury.
• Perform specified installation work with full consideration of strong wind, hurricanes, or earthquakes. Improper installation work may result in accidents due to equipment falling.
• Make certain that all electrical work is carried out by qualified personnel according to the local laws and regulations and this manual using a separate circuit. Insufficient capacity of the power supply circuit or improper electrical construction may lead to electric shocks or fire.
• Be sure to install a ground fault circuit interrupter according to local laws and regulations. Failure to install a ground fault circuit interrupter may cause electric shocks and fire.

Warning:

- Make sure all wiring is secure. Use the specified wires and ensure that terminal connections or wires are protected from water and other adverse external forces. Incomplete connection or affixing may cause a fire.

- When wiring the power supply, form the wires so that the front panel can be securely fastened. If the front panel is not in place there could be overheating of the terminals, electric shocks or fire.

- After completing the installation work, check to make sure that there is no refrigerant leakage.

- Never directly touch any leaking refrigerant as it could cause severe frostbite. Do not touch the refrigerant pipes during and immediately after operation as the refrigerant pipes may be hot or cold, depending on the condition of the refrigerant flowing through the refrigerant piping, compressor and other refrigerant cycle parts. Burns or frostbite are possible if you touch the refrigerant pipes. To avoid injury, give the pipes time to return to normal temperature or, if you must touch them, be sure to wear protective gloves.

- Do not touch the internal parts (pump, backup heater, etc.) during and immediately after operation. Touching the internal parts can cause burns. To avoid injury, give the internal parts time to return to normal temperature or, if you must touch them, be sure to wear protective gloves.

Warning:

• Ground the unit.
• Grounding resistance should be according to local laws and regulations.
• Do not connect the ground wire to gas or water pipes, lightning conductors or telephone ground wires.

• Incomplete grounding may cause electric shocks.

• Gas pipes: Fire or an explosion might occur if the gas leaks.

• Water pipes: Hard vinyl tubes are not effective grounds.
• Lightning conductors or telephone ground wires: Electrical threshold may rise abnormally if struck by a lightning bolt.

- Install the power wire at least 3 feet (1 meter) away from televisions or radios to prevent interference or noise. (Depending on the radio waves, a distance of 3 feet (1 meter) may not be sufficient to eliminate the noise.)

- Do not wash the unit. This may cause electric shocks or fire. The appliance must be installed in accordance with national wiring regulations. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Warning:

- Do not install the unit in the following places:

• Where there is mist of mineral oil, oil spray or vapors. Plastic parts may deteriorate, and cause them to come loose or water to leak.
• Where corrosive gases (such as sulphurous acid gas) are produced. Where corrosion of copper pipes or soldered parts may cause refrigerant to leak.
• Where there is machinery which emits electromagnetic waves. Electromagnetic waves can disturb the control system and cause equipment malfunction.
• Where flammable gases may leak, where carbon fiber or ignitable dust is suspended in the air or where volatile flammables such as paint thinner or gasoline are handled. These types of gases might cause a fire.
• Where the air contains high levels of salt such as near the ocean.
• Where voltage fluctuates a lot, such as in factories.
• In vehicles or vessels.
• Where acidic or alkaline vapors are present.

Warning:

- This appliance can be used by children 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instruction on using the unit in a safe manner and understand the hazards involved. Children should not play with the unit. Cleaning and user maintenance should not be done by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person.
• DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Do not dispose of electrical appliances as municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substance can leak into the groundwater and get into the food chain, damaging your health and well-being.

Warning:

• The wiring must be performed by professional technicians in accordance with national wiring regulation and this circuit diagram. An all-pole disconnection device which has at least 3mm separation distance in all pole and a residual current device (RCD) with the rating not exceeding 30mA shall be incorporated in the fixed wiring according to the national rule.
• Confirm the safety of the installation area (walls, floors, etc.) without hidden dangers such as water, electricity, and gas. Before wiring/pipes.
• Before installation, check whether the user's power supply meets the electrical installation requirements of unit (including reliable grounding, leakage, and wire diameter electrical load, etc.). If the electrical installation requirements of the product are not met, the installation of the product is prohibited until the product is rectified.
• When installing multiple air conditioners in a centralized manner, please confirm the load balance of the three-phase power supply, and multiple units are prevented from being assembled into the same phase of the three-phase power supply.

1 Safety precautions

Warning:

• Product installation should be fixed firmly. Take reinforcement measures, when necessary.
• This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons"
• The A-weighted emission sound pressure level at workstations, where this exceeds 70 dB (A). If the A-weighted sound pressure level is below 70 dB, no value needs to be given, but the instructions shall state that the A-weighted sound pressure level is below 70 dB.

1 Safety precautions

Note:

- About Fluorinated Gasses

- This air-conditioning unit contains fluorinated gasses. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself. Compliance with national gas regulations shall be observed.

- Installation, service, maintenance and repair of this unit must be performed by a certified technician.

- Product uninstallation and recycling must be performed by a certified technician.

- If the system has a leak-detection system installed, it must be checked for leaks at least every 12 months. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.

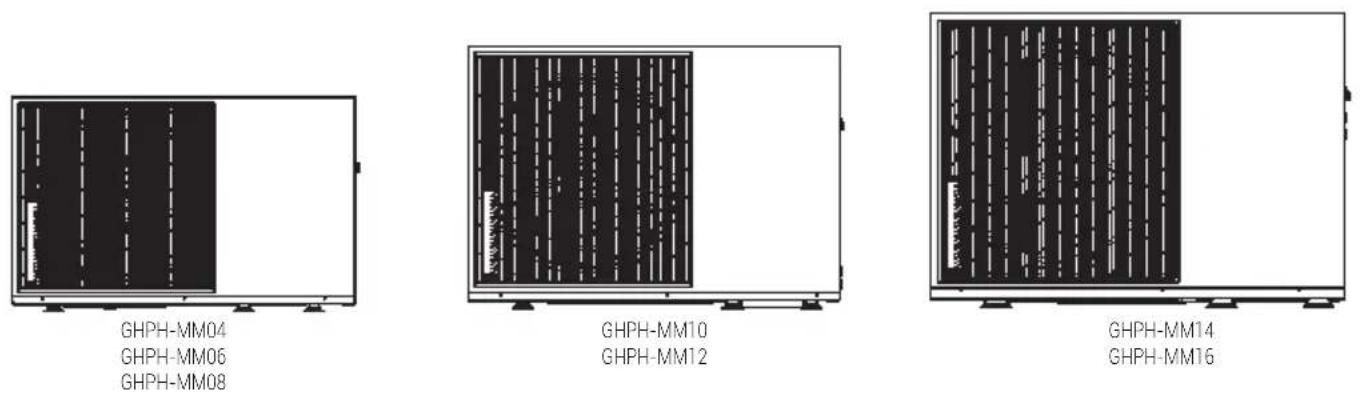

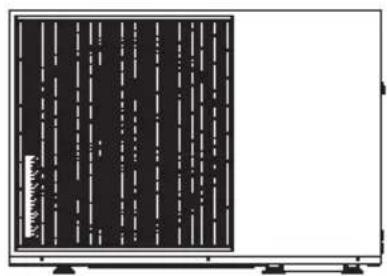

2 General introduction

GHPH-MM04
GHPH-MM06
GHPH-MM08
GHPH-MM10
GHPH-MM12
GHPH-MM14
GHPH-MM16

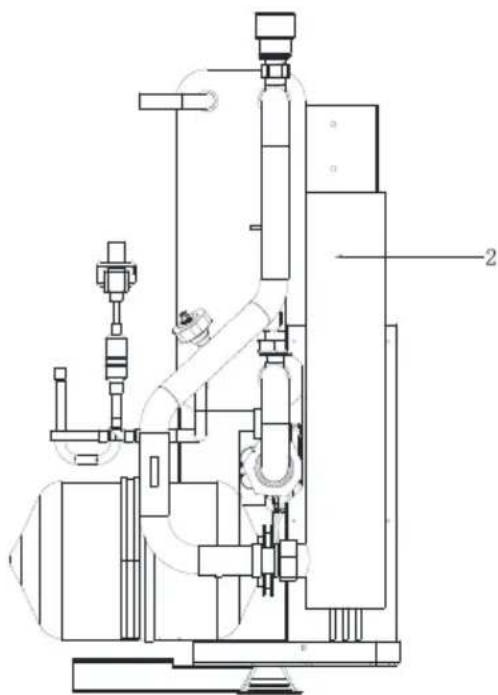

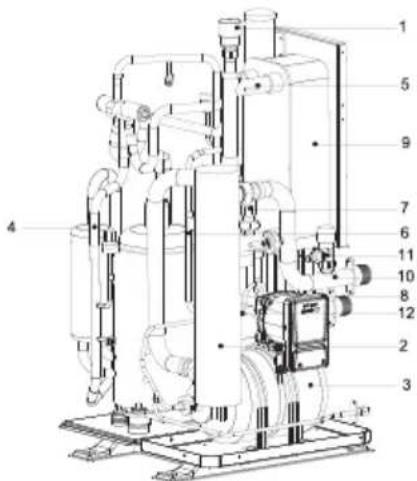

Internal layout: GHPH-MM14, GHPH-MM16 for example

High pressure switch Four-way valve Medium pressure switch Electric control box Electric control box DC inverter compressor Built-in electric heater

Pure technical diagram of a rectangular enclosure with internal diagonal patterned structure (no text or symbols)

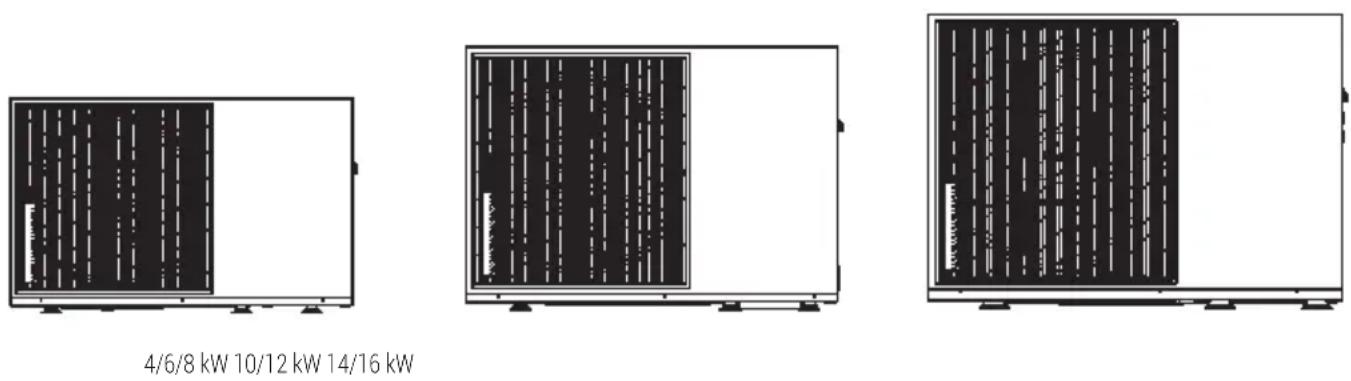

4/6/8 kW

Pure mechanical component diagram with no text, numbers, or symbols

10/12 kW

Pure diagram of a rectangular frame with a patterned internal structure, no text or symbols present.

14/16 kW

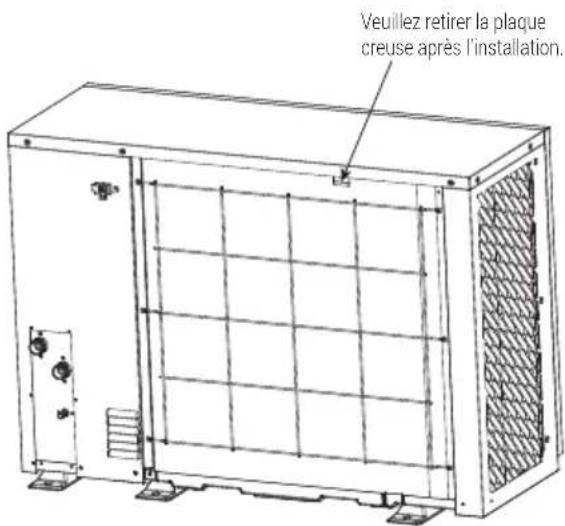

Please remove the hollow plate after installation.

Note:

The picture and function described in this manual contain the backup heater components.

Pictures in this manual are for reference only, please refer to the actual product.

2 General introduction

Unit	1-phase 3-phase
	4 6 8	10 12 14 1	6 10 12 14 16
Capacity of backup heater	3kW (1-phase)GHPH-MM04 GHPH-MM06 GHPH-MM08GHPH-MM10 GHPH-MM12 GHPH-MM14 GHPH-MM16							9kW (3-phase)GHPH-MM312GHPH-MM314GHPH-MM316

• These units are used for both heating and cooling applications and domestic hot water tanks. They can be combined with fan coil units, floor heating applications, low temperature high efficiency radiators, domestic hot water tanks and solar kits, which are all field supplied.

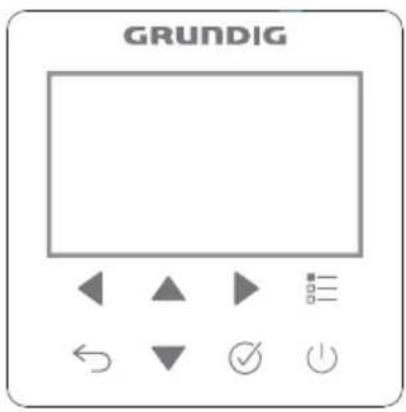

• A wired controller is supplied with the unit.
- If you choose the built-in backup heater unit, the backup heater can increase the heating capacity during cold outdoor temperature. The backup heater also serves as a backup in case of malfunctioning and for frozen protection of the outside water piping during winter time.

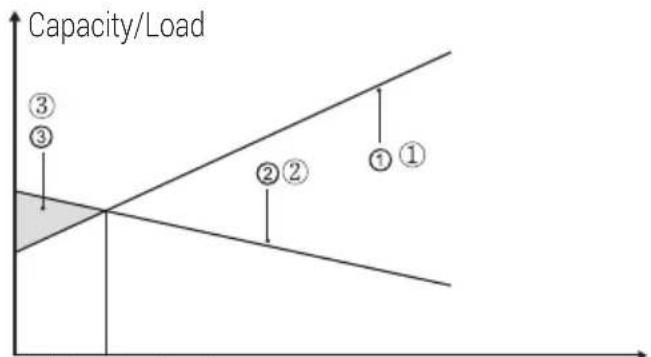

Tbivalent Outdoor temperature

1. Heat pump capacity.
2. Required heating capacity (site dependent).
3. Additional heating capacity provided by backup heater.

Domestic hot water tank (field supply)

A domestic hot water tank (with or without booster heater) can be connected to the unit.

The requirement of the tank is different for different unit and material of heat exchanger.

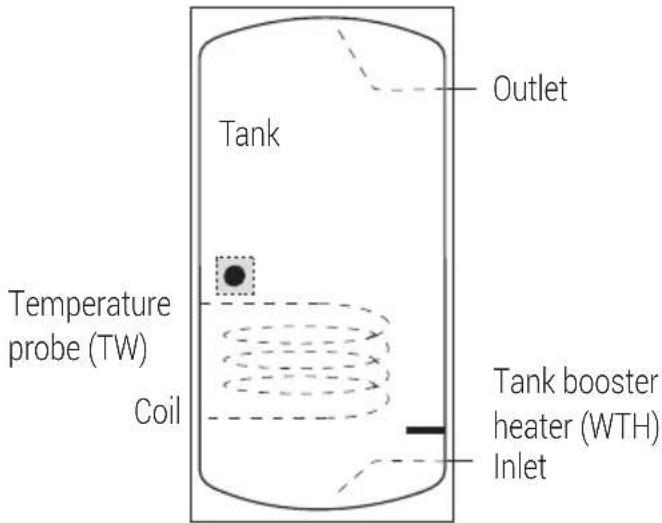

Tank Temperature probe (TW) Coil Outlet Tank booster heater (WTH) Inlet

The booster heater should be installed below the temperature probe (TB).

The heat exchanger (coil) should be installed below the temperature probe.

The pipe length between the outdoor unit and tank should be less than 5 meters.

2 General introduction

Model 4~6kW 8~10kW 12~16kW
Volume of tank/L Recom	mended 100~250	150~300 200~500
Heat exchange area/ m^2 (Stainless steel coil)	Minimum 1.4 1.4 1.6
Heat exchange area/ m^2 (Enamel coil)	Minimum 2.0 2.0 2.5

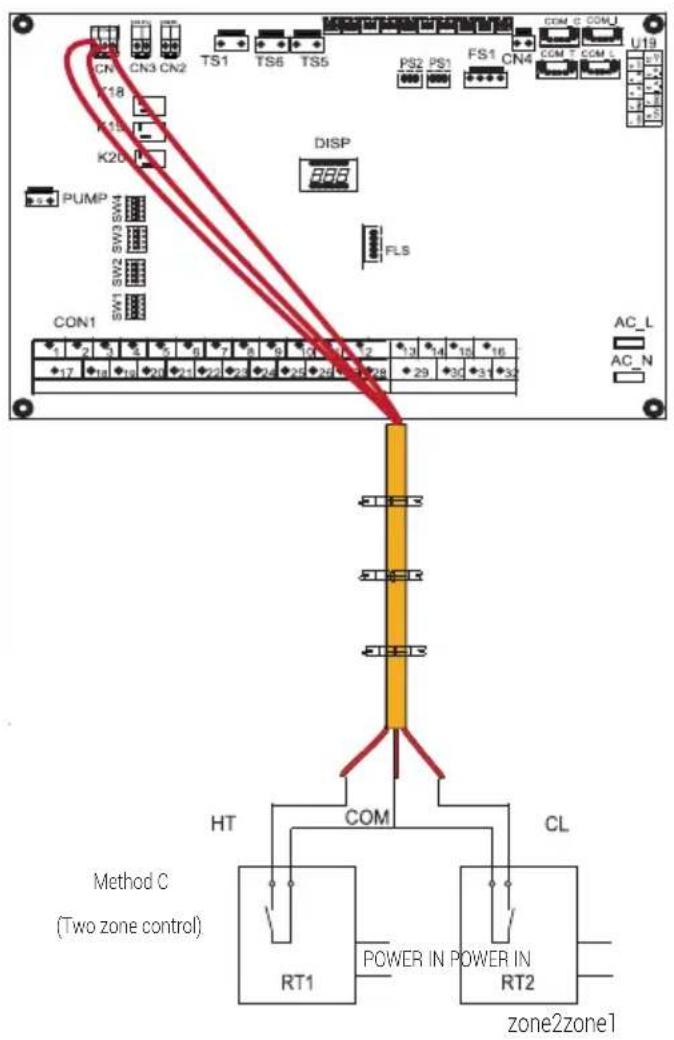

Room thermostat (field supplied)

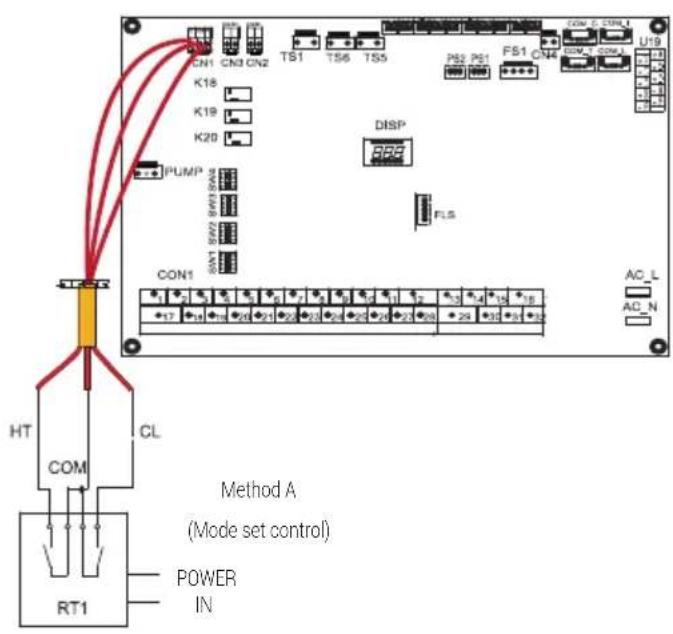

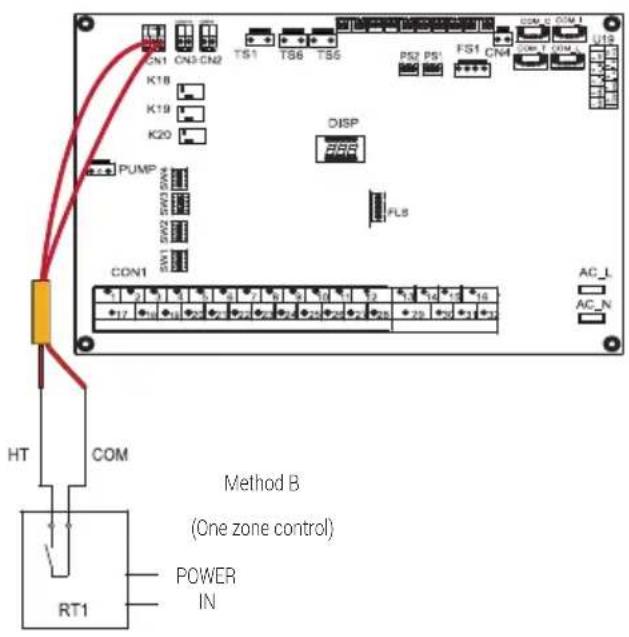

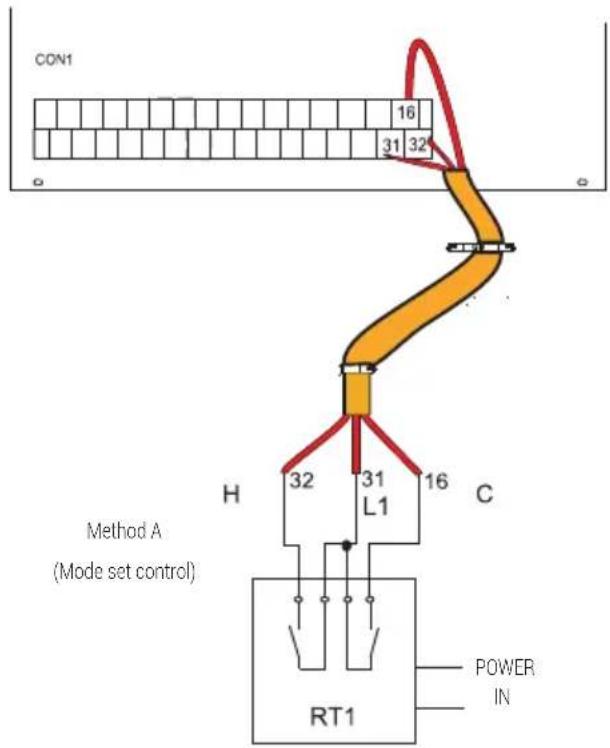

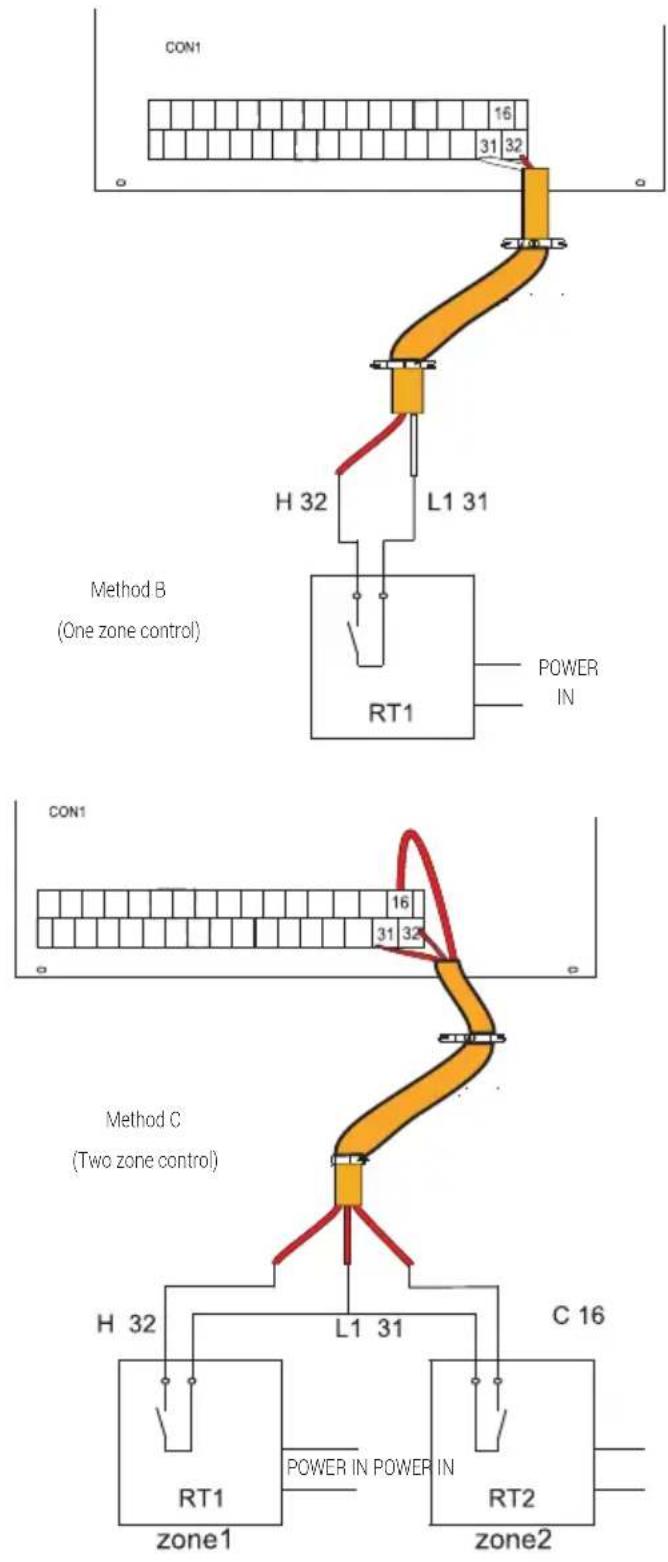

Room thermostat can be connected to the unit (room thermostat should be kept away from heating source when selecting the installation place).

Solar kit for domestic hot water tank (field supplied)

Operation range

Outlet water (Heating mode) +1		2 ~ +65°C
Outlet water (Cooling mode) +5		~ +25°C
Domestic hot water +12 ~ +60°C
Ambient temperature 5 ~ +35°C
Water pressure 0.1~0.3MPa
Water flow	4kW 10~20lt/minute
	6kW 10~20lt/minute
	8kW 10~35lt/minute
	10kW	10~35lt/minute
	12kW	10~50lt/minute
	14kW	10~50lt/minute
	16kW	10~50lt/minute

The unit have anti-freezing function that uses the heat pump or backup heater (Customized model) to keep the water system safe from freezing in all conditions. (Refer to 9.4 "Water piping").

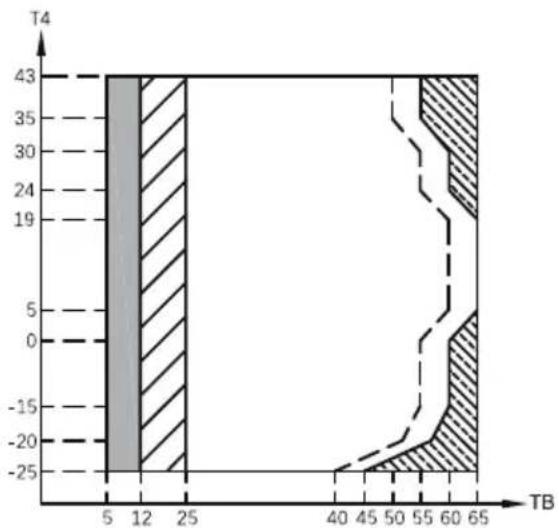

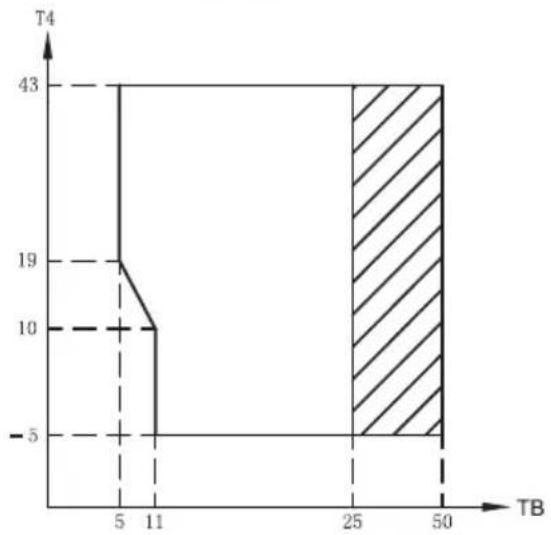

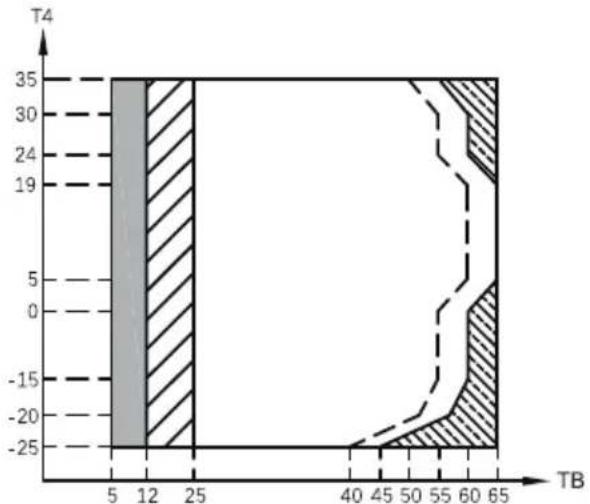

In cooling mode, the water flowing temperature (TB) range in different outdoor temperature (T4) is listed below:

Operation range by heat pump with possible limitation and protection.

In heating mode, the water flowing temperature (TB) range in different outdoor temperature (T4) is listed below:

If IPH/AHS setting is valid, only IPH/AHS turns on; If IPH/AHS setting is invalid, only heat pump turns on, limitation and protection may

2 General introduction

occur during heat pump operation.

Operation range by heat pump with possible limitation and protection.

Heat pump turns off, only IPH/AHS turns on.

-- Maximum inlet water temperature line for heat pump operation.

In DHW mode, the water flowing temperature (TB) range in different outdoor temperature (T4) is listed below:

If IPH/AHS setting is valid, only IBH/AHS turns on; If IPH/AHS setting is invalid, only heat pump turns on, limitation and protection may occur during heat pump operation.
Operation range by heat pump with possible limitation and protection.
Heat pump turns off, only IPH/AHS turns on.
—— Maximum inlet water temperature line for heat pump operation.

3 Accessories

3.1 Accessories supplied with the unit

Installation Fittings
Name Shape Quantity
Installation and owner's manual		1
Wired controller manual 1
Product fiche 1
Y-shape filter 1
Wired controller 1
20m extension cord 1
Water outlet connection pipe assembly		1
Energy label 1
Shockproof 6
DHW sensor (8m) 1

3.2 Accessories from local supplier

Thermistor for balance tank (TE1)		1
Thermistor for Zone flow temp. (TZ2)		1
Thermistor for solar temp. (Tsolar)		1

4 Before installation

• Before installation
  Be sure to confirm the model name and the serial number of the unit.
• Handling
  Due to relatively large dimensions and heavy weight, the unit should only be handled using lifting tools with slings. The slings can be fitted into foreseen sleeves at the base frame that are made specifically for this purpose.

Warning:

• To avoid injury, do not touch the air inlet or aluminum fins of the unit.
- Do not use the grips in the fan grills to avoid damage.

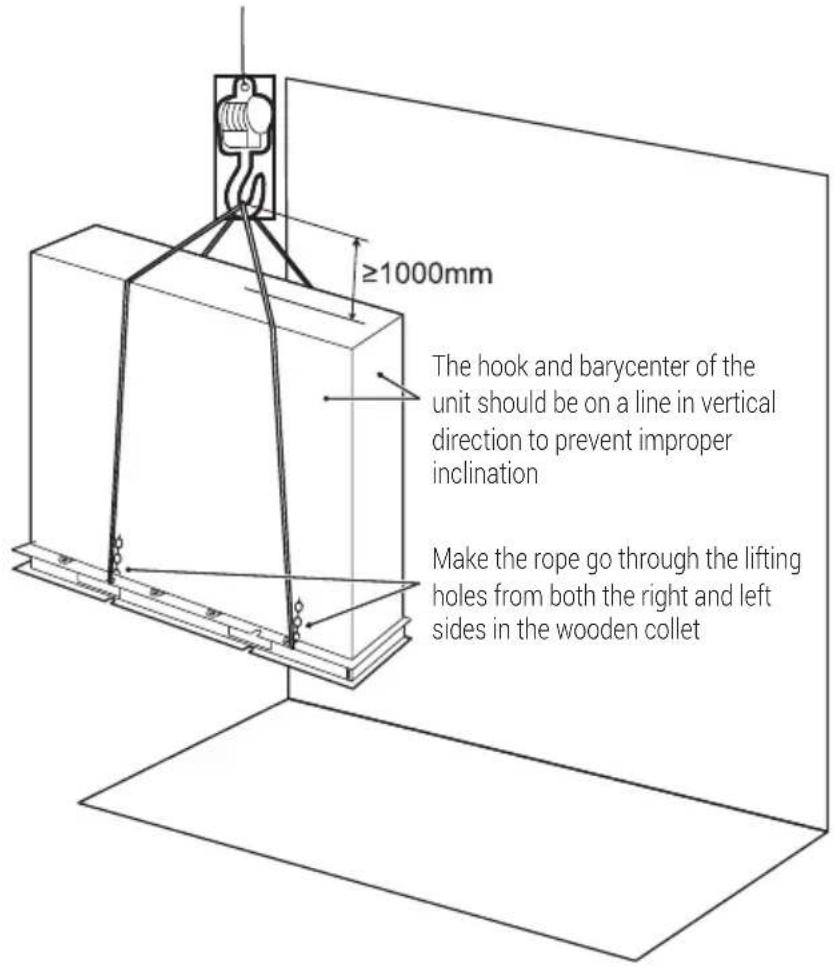

- The unit is top heavy! Prevent the unit from falling due to improper inclination during handling.

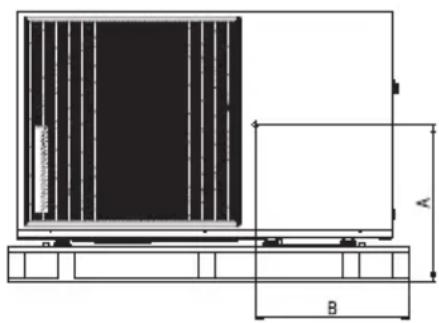

≥1000mm The hook and barycenter of the unit should be on a line in vertical direction to prevent improper inclination Make the rope go through the lifting holes from both the right and left sides in the wooden collet

4 Before installation

Model A B C
1 phase 4/6/8kW 470	460 220	GHPH-MM04	GHPH-MM06 GHPH-MM08
1 phase 10/12kW 450	440 230	GHPH-MM10	GHPH-MM12
1 phase 14/16kW 500	490 235	GHPH-MM14	GHPH-MM16
3 phase 12kW 450	440 230 G	HPH-MM312
3 phase 14/16kW 500	490 235	GHPH-MM314, GHPH-MM316

A C

A B

4/6/8 kW (unit: mm)

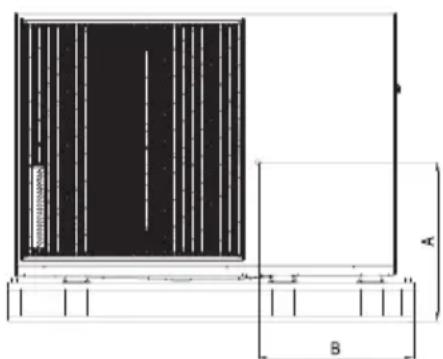

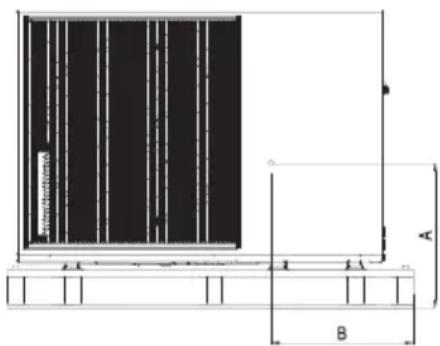

The position of barycenter for different units can be seen in the picture below.

A C

A B

10/12 kW (unit: mm)

A C

Technical diagram of a rectangular panel with internal vertical lines and labeled dimensions A and B (no text or symbols beyond labels)

14/16 kW (unit: mm)

5 Important information for the refrigerant

This product has the fluorinated gas, which is forbidden to release to air.

Refrigerant type: R32; Volume of GWP: 675.

GWP = Global Warming Potential

Model	Factory charged refrigerant volume in the unit
	Refrigerant/kg Tonnes CO	_2 equivalent
4kW (1 Phase) 1.03 0.695
6kW (1 Phase) 1.03 0.695
8kW (1 Phase) 1.30 0.878
10kW (1 Phase) 1.50 1.013
12kW (1 Phase) 1.75 1.181
14kW (1 Phase) 2.10 1.417
16kW (1 Phase) 2.10 1.417
12kW (3 Phase) 1.75 1.181
14kW (3 Phase) 2.10 1.417
16kW (3 Phase) 2.10 1.417

Warning:

• Frequency of Refrigerant Leakage Checks

• For unit that contains fluorinated greenhouse gases in quantities of 5 tonnes of CO2 equivalent or more, but of less than 50 tonnes of CO2 equivalent, at least every 12 months, or where a leakage detection system is installed, at least every 24 months.
• For unit that contains fluorinated greenhouse gases in quantities of 50 tonnes of CO2 equivalent or more, but of less than 500 tonnes of CO2 equivalent at least every six months, or where a leakage detection system is installed, at least every 12 months.
• For unit that contains fluorinated greenhouse gases in quantities of 500 tonnes of CO_2 equivalent or more, at least every three months, or where a leakage detection system is installed, at least every six months.
• This air-conditioning unit is a hermetically sealed equipment that contains fluorinated greenhouse gases.
• Only certificated person is allowed to do installation, operation and maintenance.

Warning:

• There is flammable refrigerant in the unit and it should be installed in a well-ventilated site. If the unit is installed inside, an additional refrigerant detection device and ventilation equipment must be added in accordance with the standard EN378. Be sure to adopt adequate measures to prevent the unit from being used as a shelter by small animals.
• Small animals making contact with electrical parts can cause malfunction, smoke or fire. Please instruct the custom- er to keep the area around the unit clean.

- Select an installation site where the following conditions are satisfied and one that meets with your customer's approval.

• Places that are well-ventilated.
• Places where the unit does not disturb neighbors.
• Safe places which can bear the unit's weight and vibration and where the unit can be installed at an even level.
• Places where there is no possibility of flammable gas or product leak.
• The equipment is not intended for use in a potentially explosive atmosphere.
• Places where servicing space can be well ensured.

• Places where the units' piping and wiring lengths come within the allowable ranges.

• Places where water leaking from the unit cannot cause damage to the location (e.g. in case of a blocked drain pipe).

• Places where rain can be avoided as much as possible.
• Do not install the unit in places often used as a work space. In case of construction work (e.g. grinding etc.) where a lot of dust is created, the unit must be covered.
• Do not place any object or equipment on top of the unit (top plate).
• Do not climb, sit or stand on top of the unit.
• Be sure that sufficient precautions are taken in case of refrigerant leakage according to relevant local laws and regulations.
• Don't install the unit near the sea or where there is corrosion gas.

- When installing the unit in a place exposed to strong wind, pay special attention to the following.

Strong winds of 5 m/sec or more blowing against the unit's air outlet causes a short circuit (suction of discharge air), and this may have the following consequences:

• Deterioration of the operational capacity.
• Frequent frost acceleration in heating operation.
• Disruption of operation due to rise of high pressure.
• When a strong wind blows continuously on the front of the unit, the fan can start rotating very fast until it breaks.

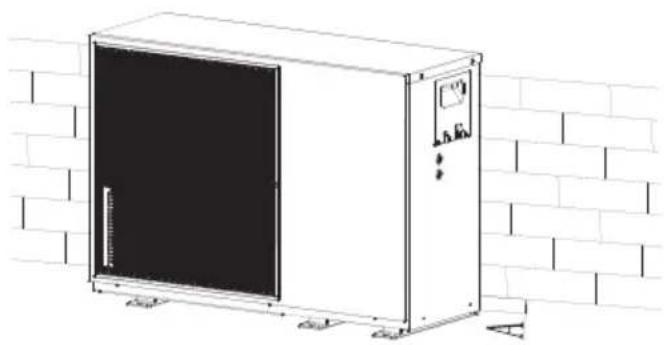

In normal condition, refer to the figures below for installation of the unit:

6 Installation site

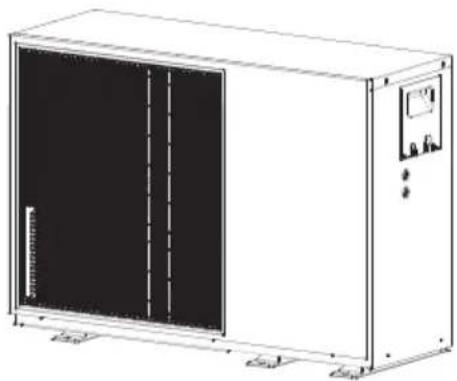

Line drawing of a white industrial enclosure with a black panel, mounted on a brick wall (no text or symbols)

Unit A (mm)
4~16kW ≥300

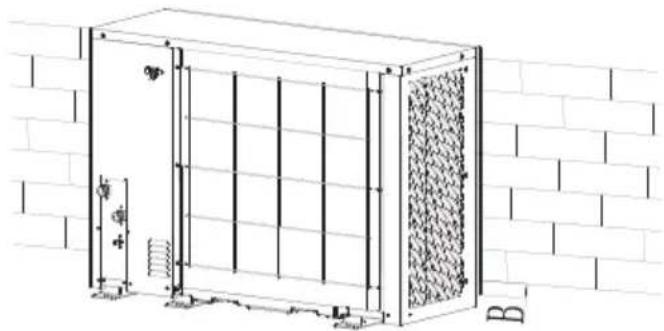

In case of strong wind and the wind direction can be foreseen, refer to the figures below for installation of the unit (any one is OK):

Turn the air outlet side toward the building's wall, fence or screen.

Technical line drawing of a modular storage unit with vertical supports and a textured panel, set against a brick wall (no text or symbols)

Unit B (mm)
4~6kW ≥1000
8~16kW ≥1500

Make sure there is enough room to do the installation. Set the outlet side at a right angle to the direction of the wind.

Line drawing of a rectangular industrial machine with a black panel and control panel (no text or symbols)

• Prepare a water drainage channel around the foundation, to drain waste water from around the unit.
- If water does not easily drain from the unit, mount the unit on a foundation of concrete blocks, etc. (the height of the foundation should be about 100 mm (3.93 in).
- If you install the unit on a frame, please install a waterproof plate (about 100 mm) on the underside of the unit to prevent water from coming in from the low side.
- When installing the unit in a place frequently exposed to snow, pay special attention to elevate the foundation as high as possible.
- If you install the unit on a building frame, please install a waterproof tray (field supply) (about 100mm, on the underside of the unit) in order to avoid drain water dripping. (See the picture in the right).

Simple line drawing of a house with a hanging structure and a cross symbol (no text or labels)

6 Installation site

6.1 Selecting a location in cold climates

Refer to "Handling" in section "4 Before installation"

Note:

When operating the unit in cold climates, be sure to follow the instructions described below.

• To prevent exposure to wind, install the unit with its suction side facing the wall.
- Never install the unit at a site where the suction side may be exposed directly to wind.
• To prevent exposure to wind, install a baffle plate on the air discharge side of the unit.
- In heavy snowfall areas, it is very important to select an installation site where the snow will not affect the unit. If lateral snowfall is possible, make sure that the heat exchanger coil is not affected by the snow (if necessary construct a lateral canopy).

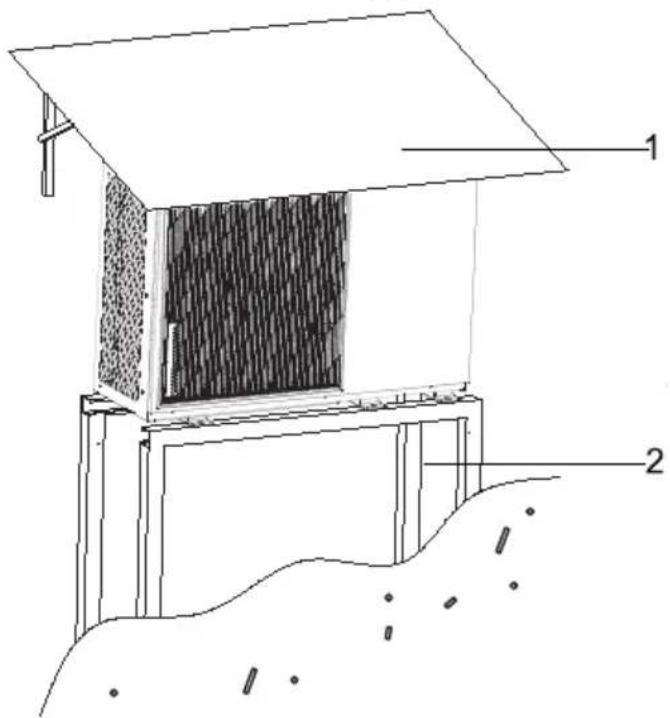

Technical diagram of a building structure with labeled components, showing structural layers and ground layer.

1. Construct a large canopy.
2. Construct a pedestal.

Install the unit high enough off the ground to prevent it from being buried in snow.

6.2 Selecting a location in hot climates

As the outdoor temperature is measured via the outdoor unit air thermistor, make sure to install the outdoor unit in the shade or a canopy should be constructed to avoid direct sunlight, so that it is not influenced by the sun's heat, otherwise protection may be possible to the unit.

7 Installation precautions

7.1 Dimensions

424 802

1135 781

1149 170 640 239 448

10/12 kW

7 Installation precautions

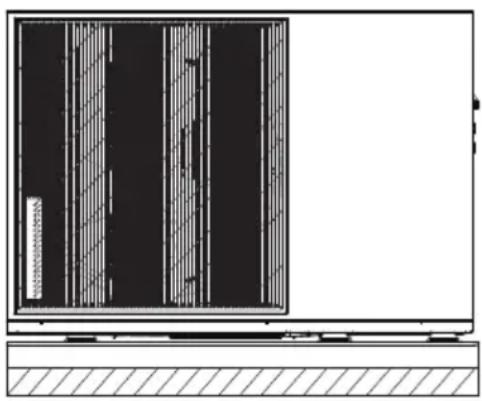

7.2 Installation requirements

• Check the strength and level of the installation ground so that the unit may not cause any vibrations or noise during its operation.
• In accordance with the foundation drawing in the figure, fix the unit securely by means of foundation bolts. (Prepare four sets each of 10 Expansion bolts, nuts and washers which are readily available in the market.)
• Screw in the foundation bolts until their length is 20 mm from the foundation surface.

Ø10 Expansion bolt Rubber shocking proof mat Solid ground or roofing ≥80 Concrete basement h ≥ 100mm

(unit: mm)

Diagram of a window with vertical slats and a horizontal base, no text or symbols present

- Location guidance on not installing unit adjacent to a bedroom or living room due to noise and vibration.

7 Installation precautions

7.3 Drain hole position

Drain hole 4/6/8 kW Drain hole 10/12 kW

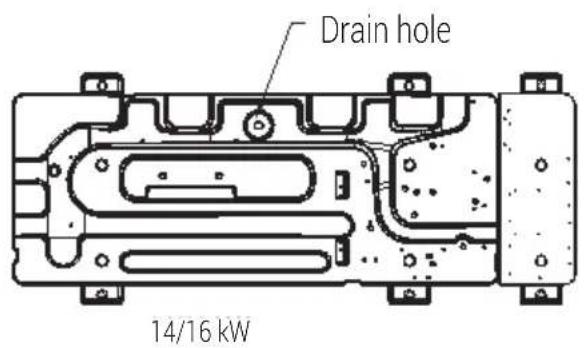

Drain hole 14/16 kW

If the small drain hole can not meet the drainage requirements, the big drain hole can be used at the same time.

Note:

It's necessary to install an electrical heating belt if water can't drain out in cold weather even the big drain hole has opened.

7 Installation precautions

7.4 Servicingspace requirements

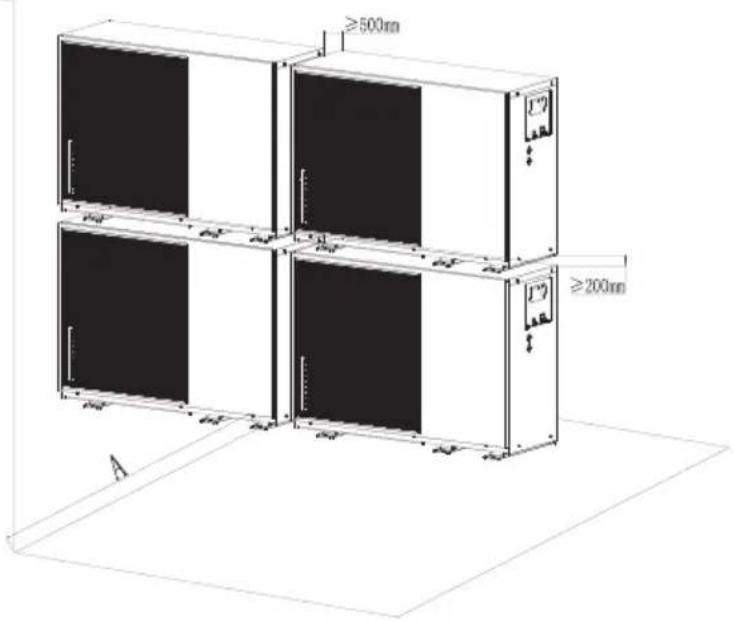

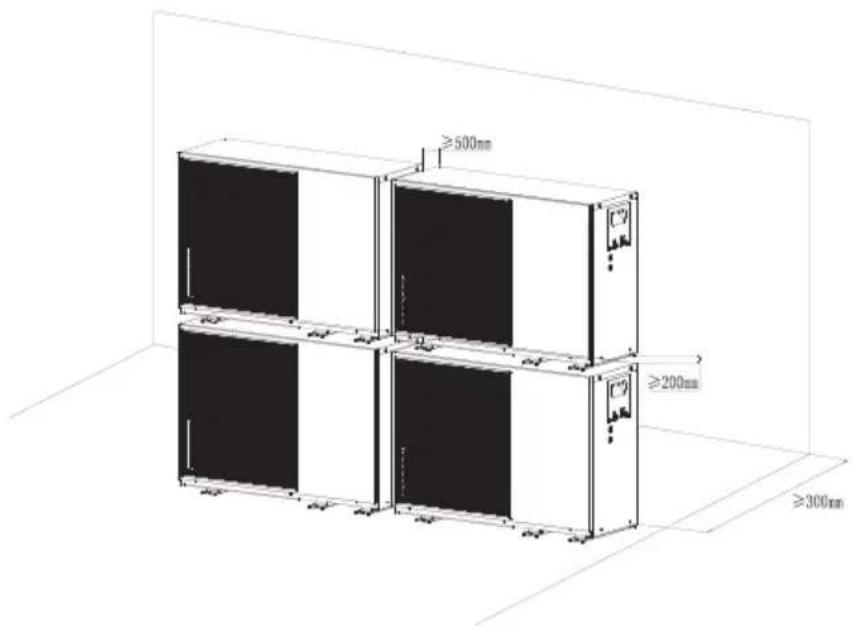

7.4.1 In case of stacked installation

1) In case obstacles exist in front of the outlet sid

≥500mm ≥200mm A

2) In case obstacles exist in front of the air inle

≥500mm ≥200mm ≥300mm

7 Installation precautions

Unit A (mm)
4~12kW ≥1000
14~16kW ≥1500

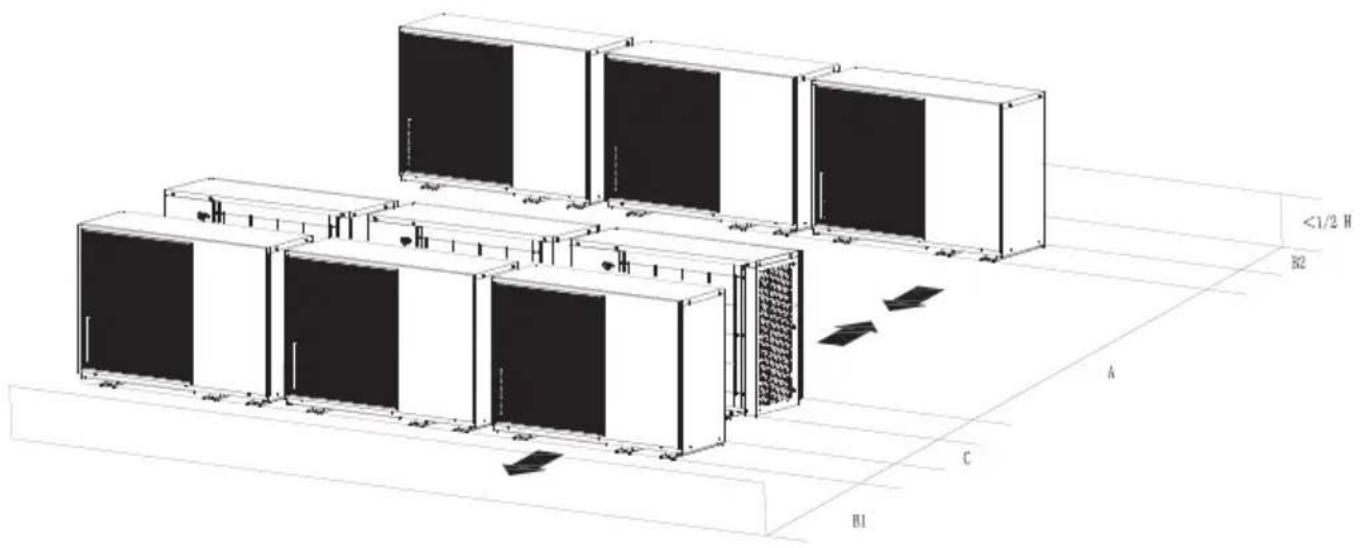

7.4.2 In case of multiple-row installation (for roof top use, etc.)

In case of installing multiple units in lateral connection per row.

<1/2 H B2 A C H1

Unit A (mm) B1 (mm) B2 (mm) C (mm)
4~12kW ≥2500 ≥1000		≥300 ≥600
14~16kW ≥3000 ≥1500

7 Installation precautions

7.5 Reference: Recommended water circulation characteristics during installation.

MAXIMUM CHEMICAL-PHYSICAL PROPERTIES ALLOWED FOR THE CIRCUIT WATER
PH 7.5 - 9
Electrical conductivity	100 - 500 μs/cm
Total hardness 4,5	-8,5 dH
Temperature <65°C
Oxygen content <0,1	ppm
Max glycol quantity 10%
Phosphates (PO4) <2	ppm
Manganese(Mn) <0,05 ppm
Iron (Fe) <0,3 ppm
Alkalinity (HCO3) 70	-300 ppm
Chloride ions (Cl-) <50 ppm
Sulphate ions (SO4) <50 ppm
Sulphide ions (S) No one
Ammonium ions (NH4)	No one
silica (SiO2)	<30 ppm

Note:

We must maintain and inspect the unit regularly to ensure equipment safety. It is strongly recommended that the unit must be inspected after 1 month, 4 months, 6 months and 12 months of operation.

8 Typical applications

The application examples given below are for illustration only.

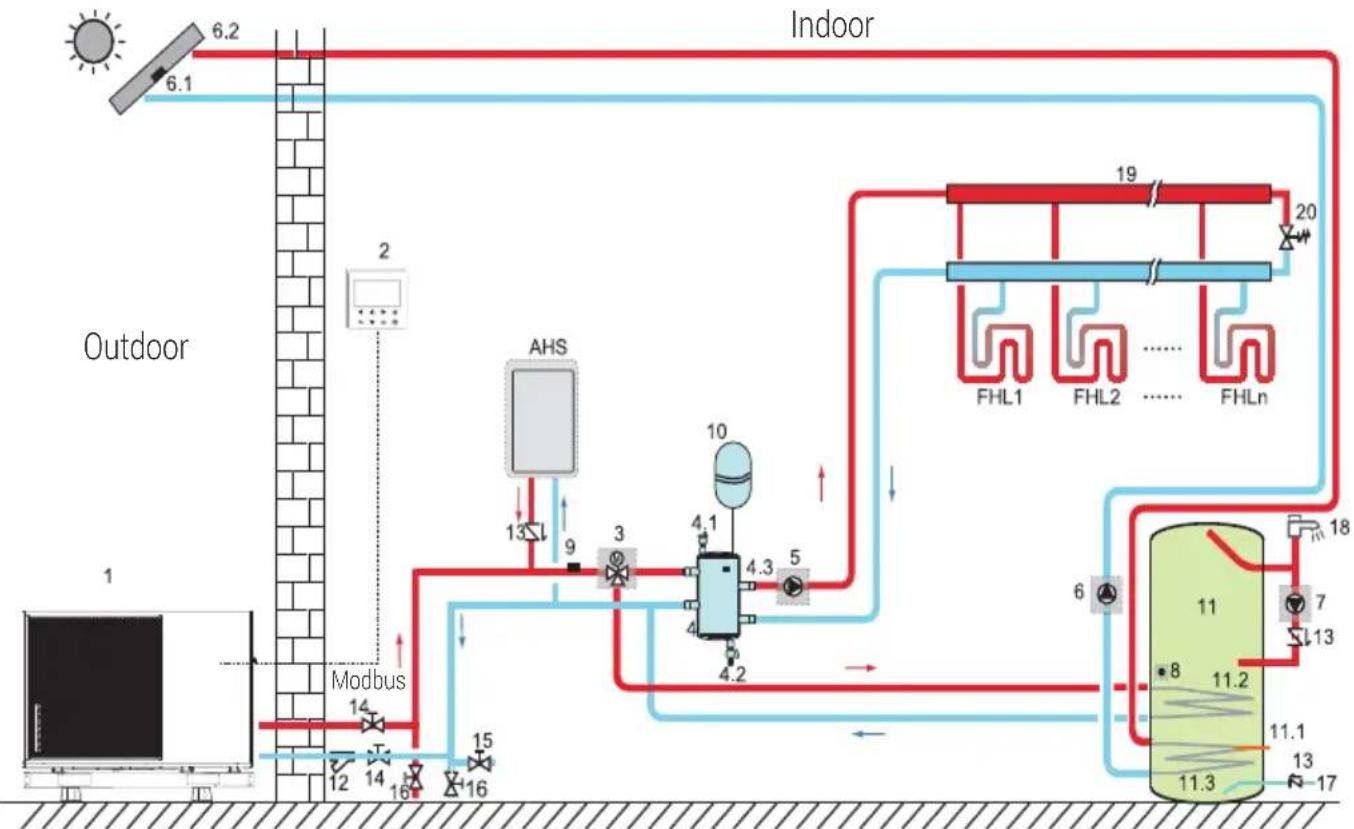

8.1 Application 1

Code Assembly unit Code Assembly unit
1 Main unit 11 Domestic hot water tank (Field supply)
2 User interface 11.1		WTH: Domestic hot water tank booster heater (Field supply)
3 SV1:3-way valve (Field supply) 11.2 Coil 1, heat exchanger for heat pump
4 Balance tank (Field supply) 11.3 Coil 2, heat exchanger for Solar energy
4.1 Automatic air purge valve 12 Filter (Accessory)
4.2 Drainage valve 13 Check valve (Field supply)
4.3	TE1: Balance tank upper temperature sensor (optional reserved)	14 Shut-off valve (Field supply)
5	P_o: Outside circulation pump (Field supply)	15 Filling valve (Field supply)
6 P_s: Solar pump (Field supply)	16 Drainage valve (Field supply)
6.1	Tsolar: Solar temperature sensor (optional)	17 Tap water inlet pipe (Field supply))

8 Typical applications

Code Assembly unit Code Assembly unit
6.2 Solar panel (Field supply) 18 Hot water tap (Field supply)
7 P_d: DHW pipe pump (Field supply) 19 Collector/distributor (Field supply)
8	TW: Domestic water tank temperature sensor (Accessory)	20 Bypass valve (Field supply)
		FHL1...n	Floor heating loop (Field supply)
9	TC: Total water flow temperature sensor (Optional)
		AHS Auxiliary heat source (Field supply)
10 Expansion vessel (Field supply)

- Space heating

The ON/OFF signal and operation mode and temperature setting are set on the user interface. P_o keeps running as long as the unit is ON for space heating, SV1 keeps OFF.

• Domestic water heating

The ON/OFF signal and target tank water temperature (TWS) are set on the user interface. P_o stops running as long as the unit is ON for domestic water heating, SV1 keeps ON.

• AHS (auxiliary heat source) control

The AHS function is set on the wired controller (See "wired controller manual")

1) When the AHS is set to be valid only for heating mode, AHS can be turned on in the following ways:

a. Turn on the AHS via BACKUPHEATER function on the user interface;

b. AHS will be turned on automatically if initial water temperature is too low or target water temperature is too high at low ambient temperature.

P_o keeps running as long as the AHS is ON, SV1 keeps OFF.

2) When the AHS is set to be valid for heating mode and DHW mode. In heating mode, AHS control is same as part 1); In DHW mode, AHS will be turned on automatically when the initial domestic water temperature TW is too low or the target domestic water temperature is too high at low ambient temperature. P_o stops running, SV1 keeps ON.

• WTH (tank booster heater) control

The WTH function is set on the user interface. (See "wired controller manual")

1) When the WTH is set to be valid, WTH can be turned on via BACKUPHEATER function on the user interface; In DHW mode, WTH will be turned on automatically when the initial domestic water temperature TW is too low or the target domestic water temperature is too high at low ambient temperature.

8 Typical applications

- Solar energy control

Hydraulic module recognizes solar energy signal by judging Tsolar or receiving SL1SL2 signal from user interface. The recognition method can be set via SOLAR INPUT on the user interface. Please refer to 9.7.6/1). For solar energy input signal" for wiring.

1) When Tsolar is set to be valid, Solar energy turns ON when Tsolar is high enough, P_s starts running; Solar energy turns OFF when Tsolar is low, P_s stops running.
2) When SL1SL2 control is set to be valid, Solar energy turns ON after receiving Solar kit signal from user interface, P_s starts running; Without solar kit signal. Solar energy turns OFF, P_s stops running.

Warning:

The highest outlet water temperature may reach 70^ C, please beware of burn.

Note:

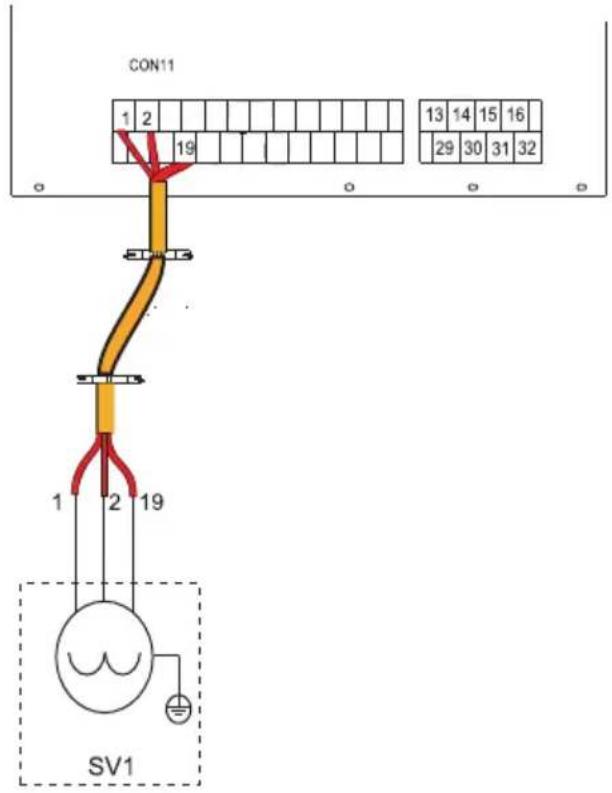

Make sure to fit the (SV1) 3-way valve correctly. For more details, please refer to 9.7.6 "Connection for other components. At extremely low ambient temperature, the domestic hot water is exclusively heated by WTH, which assures that heat pump can be used for space heating with full capacity.

8.2 Application 2

ROOM THERMOSTAT Control for Space heating or cooling need to be set on the user interface. It can be set in three ways: MODE SET/ONE ZONE/TWO ZONE. The monobloc can be connected to a high voltage room thermostat and a low voltage room thermostat. Please refer to 9.7.6/5) "For room thermostat" for wiring. (see 10.5.7 "ROOM THERMOSTAT" for setting)

8 Typical applications

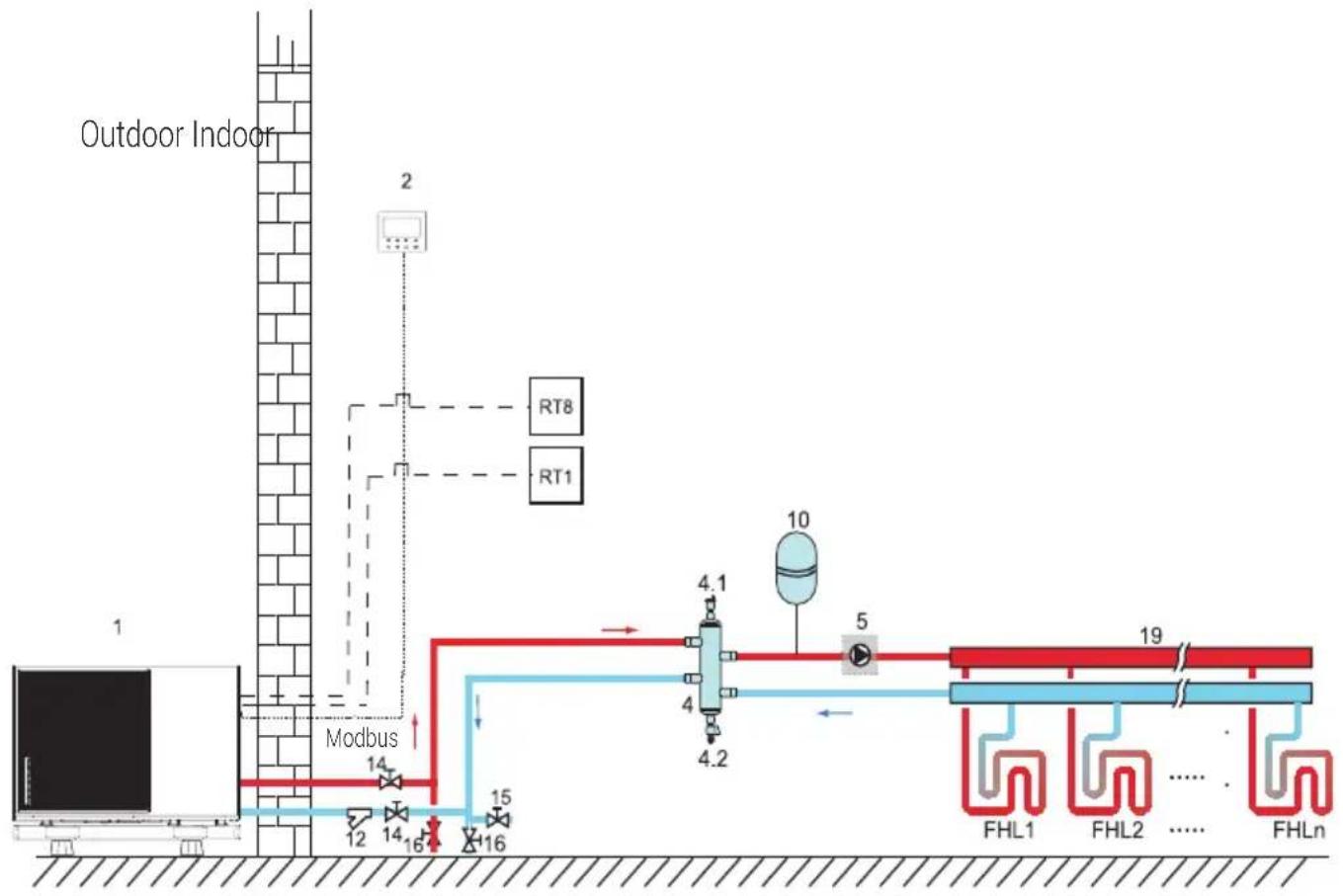

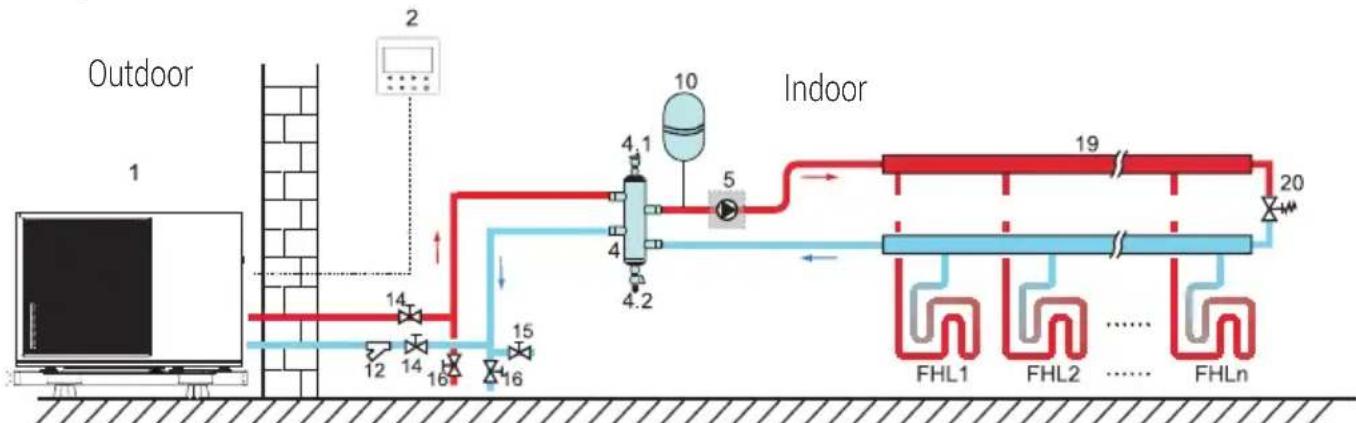

8.2.1 One zone control

Code Assembly unit Code Assembly unit
1 Main unit 14 Shut-off valve (Field supply)
2 User interface 15 Filling valve (Field supply)
4 Balance tank (Field supply) 16 Drainage valve (Field supply)
4.1 Automatic air purge valve 19 Collector/distributor (Field supply)
4.2 Drainage valve RT 1 Low voltage room thermostat		(Field supply)
5 P_o: Outside circulation pump (Field supply)	RT8	High voltage room thermostat (Field supply)
10 Expansion vessel (Field supply)	FHL 1...n	Floor heating loop (Field supply)
12 Filter (Accessory)

8 Typical applications

- Space heating

One zone control: the unit ON/OFF is controlled by the room thermostat, cooling or heating mode and outlet water temperature are set on the user interface. System is ON when any "HL" of all the thermostats closes. When all "HL" open, system turns OFF.

- The circulation pumps operation When the system is ON, which means any "HL" of all the thermostats closes, P_o starts running; When the system is OFF, which means all "HL" close, P_o stops running.

8.2.2 Mode set control

Code Assembly unit Code Assembly unit
1 Main unit 16 Drainage valve (Field supply)
2 User interface 19 Collector/distributor
4 Balance tank (Field supply) 20 Bypass valve (Field supply)
4.1 Automatic air purge valve 22 SV2: 3-way valve (Field supply)
4.2 Drainage valve RT 1/2 Low voltage room thermostat
5	P_o: Outside circulation pump (Field supply)	RT8 High voltage room thermostat

8 Typical applications

10 Expansion vessel (Field supply)	FHL1...n	Floor heating loop (Field supply)
12 Filter (Accessory)	FCU1...n	Fan coil unit (Field supply)
14 Shut-off valve (Field supply)
15 Filling valve (Field supply)

- Space heating

Cooling or heating mode is set via the room thermostat, water temperature is set on the user interface.

1) When any "CL" of all the thermostats close, system will be set at cooling mode.
2) When any "HL" of all the thermostats close and all "CL" open, system will be set at heating mode.

• The circulation pumps operation

1) When the system is in cooling mode, which means any "CL" of all the thermostats closes, SV2 keeps ON, P_o starts running.
2) When the system is in heating mode, which means one or more "HL" close and all "CL" open, SV2 keeps OFF, P_o starts running.

8.2.3 Double zone control

8 Typical applications

Code Assembly unit Code Assembly unit
1 Main unit 19 Collector/distributor (Field supply)
2 User interface 21 Thermostat transfer board (Field supply)
4 Balance tank (Field supply) 23 Mixing station (Field supply)
4.1 Automatic air purge valve 23.1 SV3: Mixing valve (Field supply)
4.2 Drainage valve 23.2 P_c: zone 2 circulation pump			(Field supply)
5 P_o: zone 1 circulation pump(Field supply)		RT 1/2 Low voltage room thermostat(Field supply)
10	Expansion vessel (Field supply)	RT8	High voltage room thermostat(Field supply)
12 Filter (Accessory) TZ2		Zone	2 water flow temperature sensor(Field supply)
14 Shut-off valve (Field supply) FHL		1...n	Floor heating loop (Field supply)
15 Filling valve (Field supply) RAD.		1...n	Radiator (Field supply)
16 Drainage valve (Field supply)

- Space heating

Zone1 can operate in cooling mode or heating mode, while zone2 can only operate in heating mode; While installation, for all thermostats in zone1, only "H, L" terminals need to be connected. For all thermostats in zone2, only "C, L" terminals need to be connected.

1) The ON/OFF of zone1 is controlled by the room thermostats in zone1. When any "HL" of all thermostats in zone1 closes, zone1 turns ON. When all "HL" turn OFF, zone1 turns OFF; Target temperature and operation mode are set on the user interface.

2) In heating mode, the ON/OFF of zone2 is controlled by the room thermostats in zone2. When any "CL" of all thermostats in zone2 closes, zone2 tums ON. When all "CL" open, zone2 tums OFF. Target temperature is set on the user interface; Zone 2 can only operate in heating mode. When cooling mode is set on the user interface, zone2 keeps in OFF status.

8 Typical applications

• The circulation pump operation

When zone 1 is ON, P_o starts running; When zone 1 is OFF, P_o stops running;

When zone 2 is ON, sV3 switches between ON and OFF according to the set TZ2, P_C keeps ON; When zone 2 is OFF, Sv3 is OFF, P_c stops running.

The floor heating loops require a lower water temperature in heating mode compared to radiators or fan coil unit. To achieve these two set points, a mixing station is used to adapt the water temperature according to requirements of the floor heating loops. The radiators are directly connected to the unit water circuit and the floor heating loops are after the mixing station. The mixing station is controlled by the unit.

Warning:

1. Make sure to connect the SV2/SV3 terminals in the wired controller correctly, please refer to 9.7.6/2) for 3-way valve SV1, SV2, SV3.
2. Thermostat wires to the correct terminals and to configure the ROOM THERMOSTAT in the wired controller correctly. Wiring of the room thermostat should follow method A/B/C as described in 9.7.6 "Connection for other components/5) For room thermostat".

Notes:

1. Zone 2 can only operate in heating mode. When cooling mode is set on user interface and zone 1 is OFF, "CL" in zone 2 closes, system still keeps "OFF". While installation, the wiring of thermostats for zone 1 and zone 2 must be correct.
2. Drainage valve (2) must be installed at the lowest position of the piping system.

8 Typical applications

8.3 Application 3

8.3.1 Cascade application

8.3.1.1 Hydraulic system

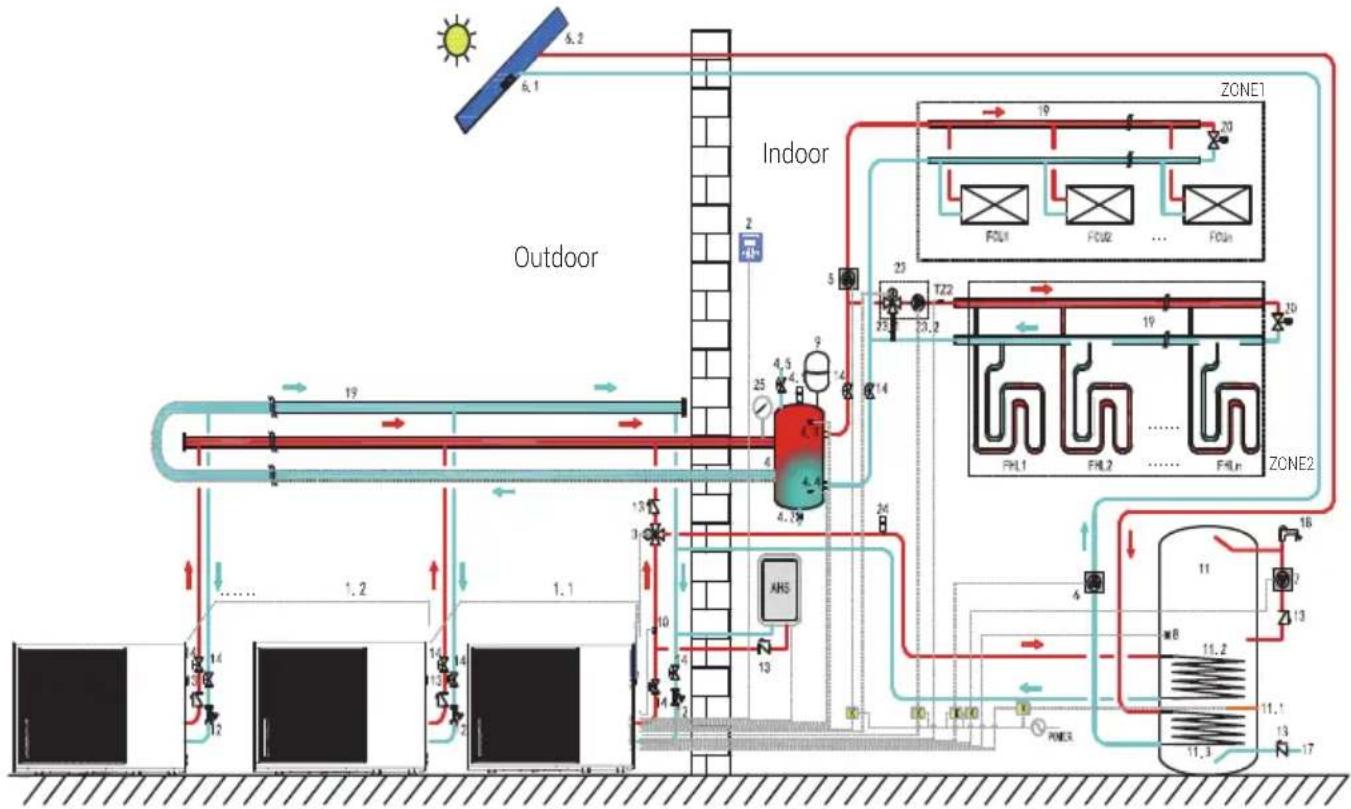

Cascade hydraulic system

Legend
1.1 Master unit 11.3 Coil 2: heat exchanger for solar water			heater kit
1.2...n Slave unit 12 Filter (Accessor y)
2 User interface 13 Check valve (Field supply)
3 SV1: 3-way valve (Field supply) 14 Shut-off valve (Field supply)
4 Balance tank (Field supply) 17 Tap water inlet pipe (Field supply)
4.1 Automatc bleed valve 18 Hot water tap (Field supply)
4.2 Drainage valve		19 Collector/Distributor (Field supply)
4.3 TE1: Balance tank upper temperature sensor for CASCADE application		20 Bypass valve (Field supply)

8 Typical applications

Legend
4.4 TE2	Balance tank lower temperature sensor (reserved)	23 Mixing station (Field supply)
4.5 Filling valve 23.1 SV3: Mixing valve (Fieldsupply)
5 P_O:	Outside circulaton pump (Field supply)	23.2 P_C: Zone B circulation pump (Field supply)
6 P_S:	Solar pump (Field supply) 24 Automatic	bleed valve (Field supply)
6.1 Tsolar: Solar temperature sensor (Optional)		25 Water manometer (Field supply)
6.2 solar collector (Field supply) TZ2 Zone B water flow t emperature sensor (Optional)
7 P_D:	DHW pipe pump (Field supply) RAD 1...n	Radiator (Field supply)
8 TW:	Domestic water tank temperature sensor (Accessory)	FHL 1...n Floor heating loop (Field supply)
9 Expansion vessel (Field supply) K Contactor (Field supply)
10 TC:	Total water flow temperature sensor (optional)	ZONE 1 The space cooling or heating mode
11 Domestc water tank (Field supply) ZONE 2 The space heating mode
11.1 WTH:	Domestic water tank heater	AHS Auxiliary heat source (Field supply)
11.2 Coil:	1: heat exchanger for heat pump

Notes:

• The example is just for application illustration, please confirm the exact installation method according to the installation manual.
  • At most 8 units can be controlled in group.
• The group control system can control and view the operation of the entire system only by connecting the master to the wire controller.
• If the DHW function is required, the water tank can only be connected to the master unit water circuit through a 3-way valve, and controlled by the master unit.
• If AHS is needed, it can only be connected to the master waterway and controlled by the master unit.
• The TE1 temperature sensor must be installed in the parallel system (otherwise unit cannot be started).
• If the balance tank is too large, TE2 needs to be added in order to improve the control accuracy.
  • TE2 is set in the lower part of the balance tank.
• The water inlet and outlet pipe joints of each unit of the parallel system should be connected with soft connections and one-way valves must be installed at the water outlet pipe.

• Space heating

All salve units can operate in space heating mode. The operation mode and setting temperature are set on the user interface (2). Due to changes of the outdoor temperature and therequired load indoors, multiple outdoor units may opreate at different times.

In cooling mode with FCU, SV3 (23.1) and P_C (23.2) keep OFF, P_O (5) keeps ON;

In heating mode, when both ZONE 1 and ZONE 2 work, P_C (23.2) and P_O (5) keep OFF, SV3 (23.1) switches between ON and OFF according to the set TZ2.

In heating mode, when only ZONE 1 work, P_O (5) keep ON, SV3 (23.1) and P_C (23.2) keep OFF.

In heating mode, when only ZONE 2 work, P_O (5) keep OFF, SV3 (23.1) and P_C (23.2) keep ON. switches between ON and OFF. according to the set TZ2.

• Domestic water heating

Only master unit (1.1) can operate in DHW mode. Desired hot water temperature is set on the ser interface (2). In DHW mode, SV1 (3) keeps ON. When master unit operated in DHW mode, slave units can operate in space cooling/heating mode.

8 Typical applications

- AHS control

AHS is only controlled by master unit. When master unit operates in DHW mode, AHS can only be used for producing domestic hot water; when master unit operates in heating mode, AHS can only be used for heating mode.

- WTH control

WTH is only controlled by master unit.

- Solar energy control

Solar water heater kit is only controlled by Master unit.

8.3.2 Wiring


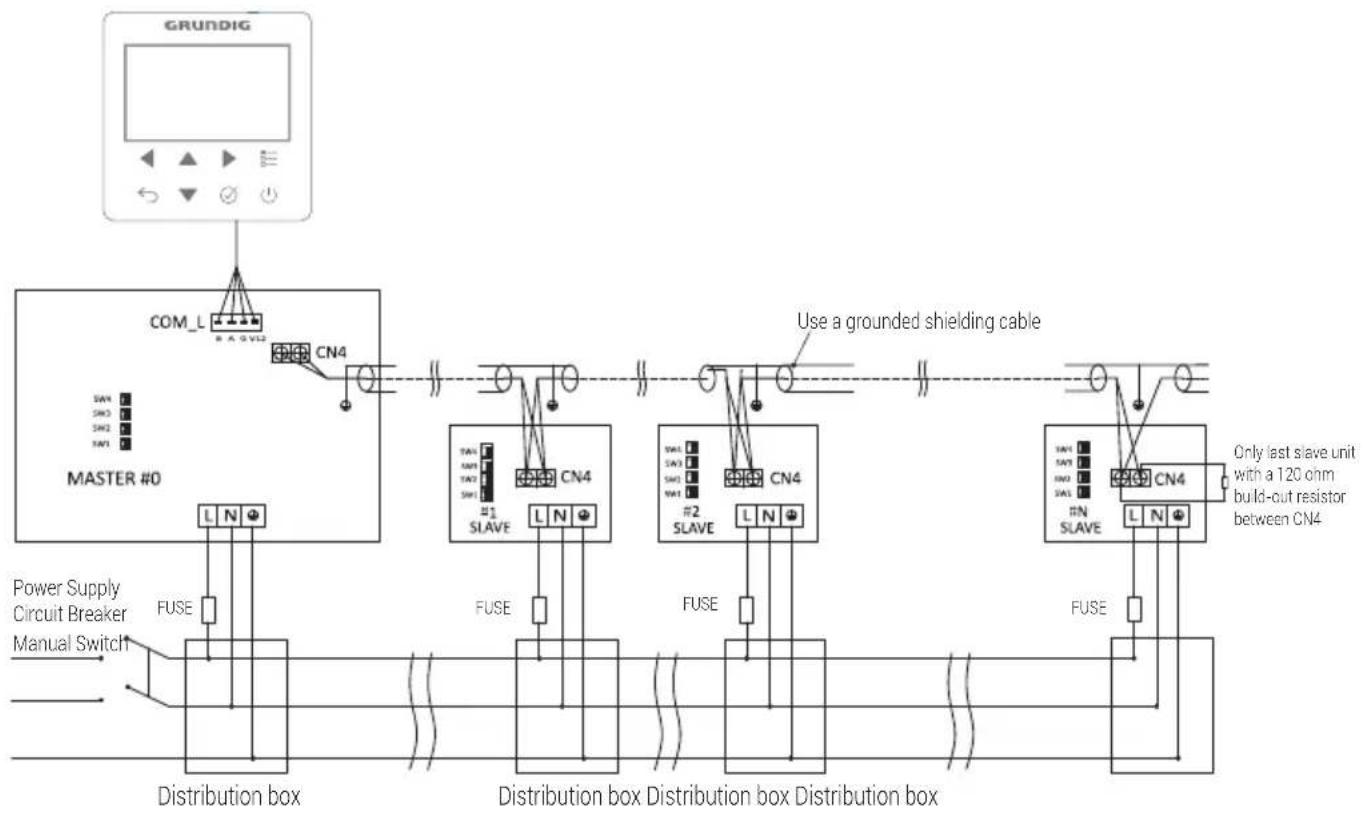

Cascade system wiring diagram for single phase 4\~16kW models

8 Typical applications

Dip Switch
SW4	1	SINGLE OFF
		CASCADE ON
	2/3/4	MASTER#0 OFF/OFF/OFF
		SLAVE#1 OFF/OFF/ON
		SLAVE#2 OFF/ON/OFF
		SLAVE#3 OFF/ON/ON
		SLAVE#4 ON/OFF/OFF
		SLAVE#5 ON/OFF/ON
		SLAVE#6 ON/ON/OFF
		SLAVE#7 ON/ON/ON

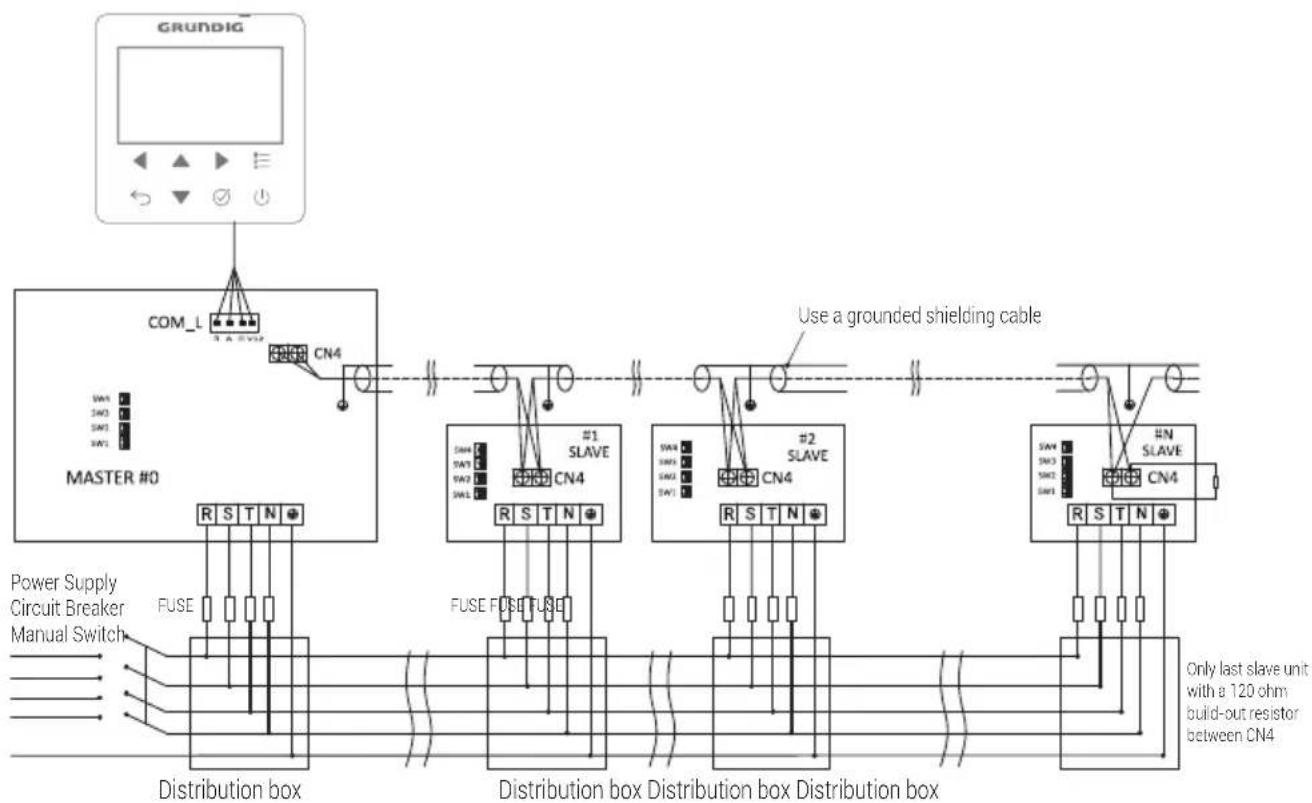

Cascade system wiring diagram for three phase 10\~16kW models

8 Typical applications

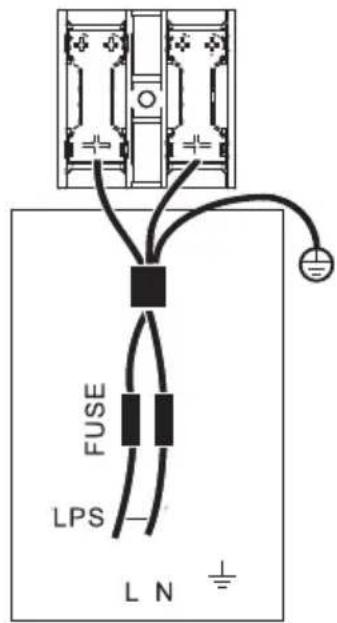

8.3.3 Power supply

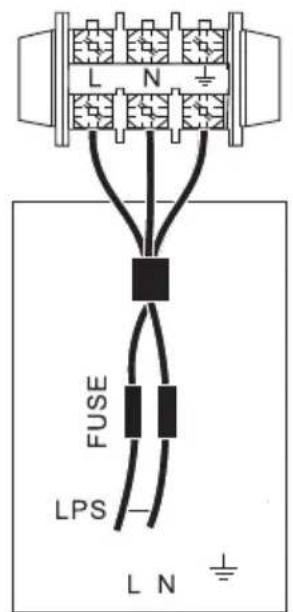

Power Supply Circuit Breaker Manual switch Wire Distribution Box

8.4 Balance tank volume requirement

NO. model Balance tank (L)
1 4~10 kW ≥25
2 12~16 kW ≥40

9 Overview of the unit

9.1 Disassembling the unit

Door 1 To access the compressor and electrical parts and hydraulic compartment

Warning:

• Switch off all power — i.e. unit power supply and backup heater and domestic hot water tank power supply (if applicable) — before removing door 1
  • Parts inside the unit may be hot.

9 Overview of the unit

9.2 Main components

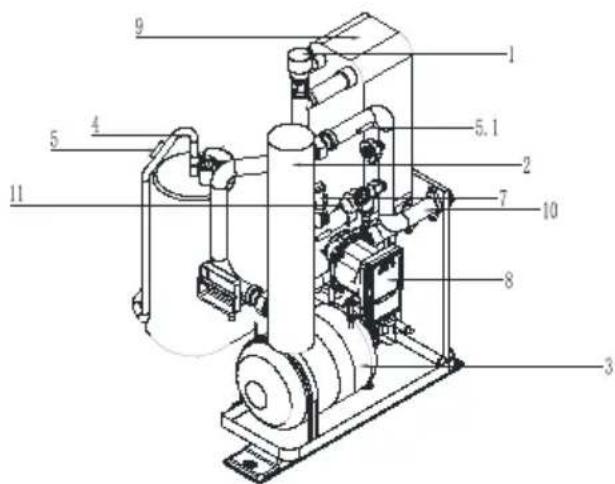

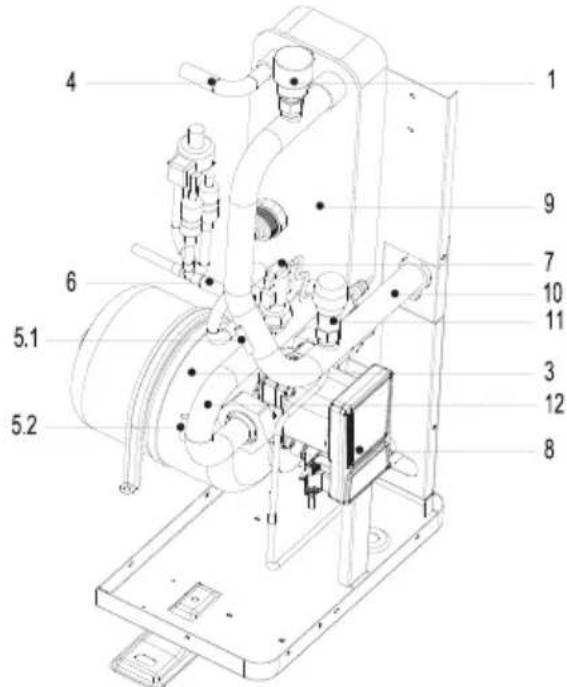

9.2.1 Hydraulic module

Technical diagram of a mechanical device with numbered components for identification

4\~6 kW without backup heater

Technical line drawing of an industrial machine or processing unit with no visible text or symbols

4\~6 kW with backup heater (optional)

Technical diagram of an industrial piping system with numbered components for identification

10\~12 kW with backup heater (standard)

Technical diagram of an industrial machine with numbered components for identification

14\~16 kW with backup heater (standard)

9 Overview of the unit

Technical schematic diagram of an industrial machine with numbered components for identification

10\~12 kW (3-Phase) with backup heater (standard)

Technical diagram of a mechanical device with numbered components for identification

14\~16 kW (3-Phase) with backup heater (standard)

Code Assembly unit Explanation
1 Automatic air purge valve	Remaining air in the water circuit will be automatically removed from the water circuit.
2 Backup heater (optional)	Provides additional heating capacity when the heating capacity of the heat pump is insufficient due to very low outdoor temperature. Also protects the external water pipes from freezing.
3 Expansion vessel Balances water system pressure.
4 Refrigerant gas pipe /
5 Temperature sensor	Three temperature sensors determine the water and refrigerant temperature at various points in the water circuit.
6 Refrigerant liquid pipe /
7 Flow switch	Detects water flow rate to protect compressor and water pump in the event of insufficient water flow.
8 Pump Circulates water in the water circuit.

9 Overview of the unit

Code Assembly unit Explanation
9 Plate heat exchanger Transfer heat from the refrigerant to the water.
10 Water outlet pipe /
11 Pressure relief valve	Prevents excessive water pressure by opening at 3 bar and discharging water from the water circuit.
12 Water inlet pipe /

9.3 Electronic control box

Note:

The picture is for reference only, please refer to the actual product.

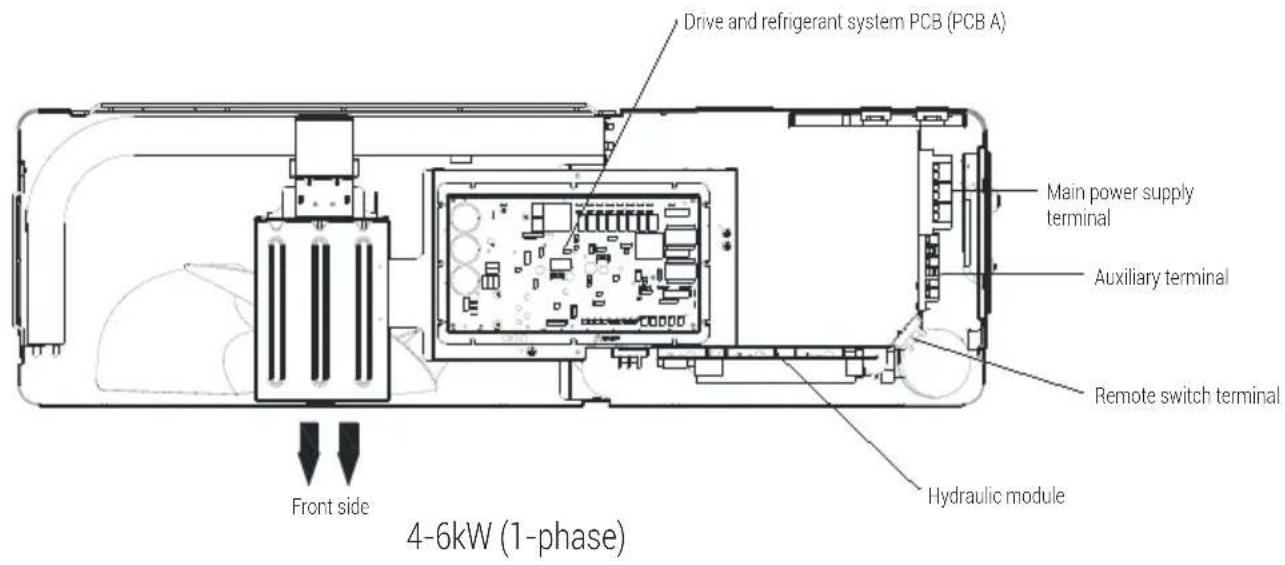

Drive and refrigerant system PCB (PCB A) Main power supply terminal Auxiliary terminal Remote switch terminal Hydraulic module Front side 4-6kW (1-phase)

9 Overview of the unit

Drive and refrigerant system PCB (PCB A) Main power supply terminal Auxiliary terminal Remote switch terminal Hydraulic module Front side 8-10-12kW (1-phase)

Drive PCB (PCB A) Refrigerant PCB (PCB B) Main power supply terminal Remote switch terminal Auxiliary terminal Hydraulic module Front side 14-16kW (1-phase)

Overview of the unit

Drive and refrigerant system PCB (PCB A)

DC fan drive board (PCB B)

Main power supply terminal

Manual temperature protector

Remote switch terminal

Electromagnetic contactor (IBH, 9kW)

Front side

10-12kW (3-phase)

Auxiliary terminal

Hydraulic module

Drive and refrigerant system PCB (PCB A)

DC fan drive board (PCB B)

Main power supply terminal

Remote switch terminal

Electromagnetic contactor (IBH, 9kW)

Manual temperature protector

Front side

14-16kW (3-phase)

Hydraulic module

Auxiliary terminal

9 Overview of the unit

PCB specification

Model/Number 4kW/6kW 8kW/10kW 12kW 14kW/16kW					10/12/14kW/16kW(3-Phase)
Refrigerant system module	1 1 1			1	1
Inverter module				1
DC Fan drive board 1
Hydraulic module PCB 1 1 1 1 1
Total 2 2 2 2 3

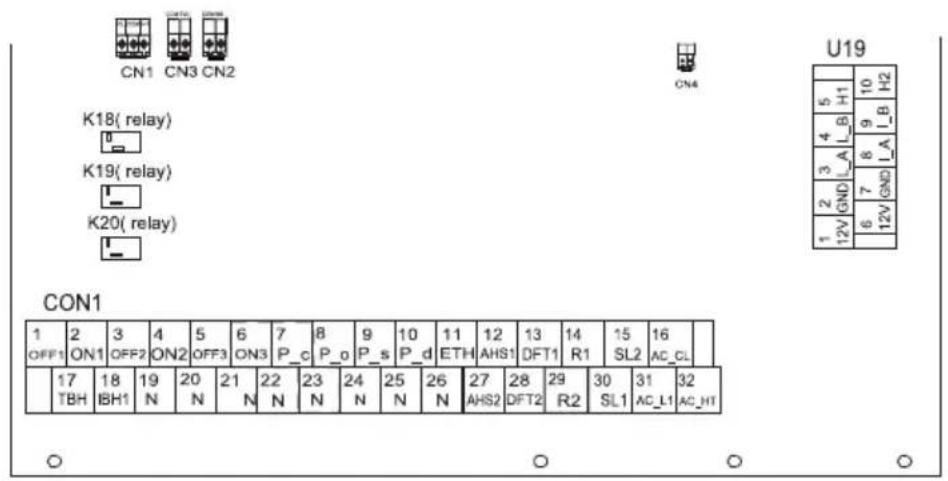

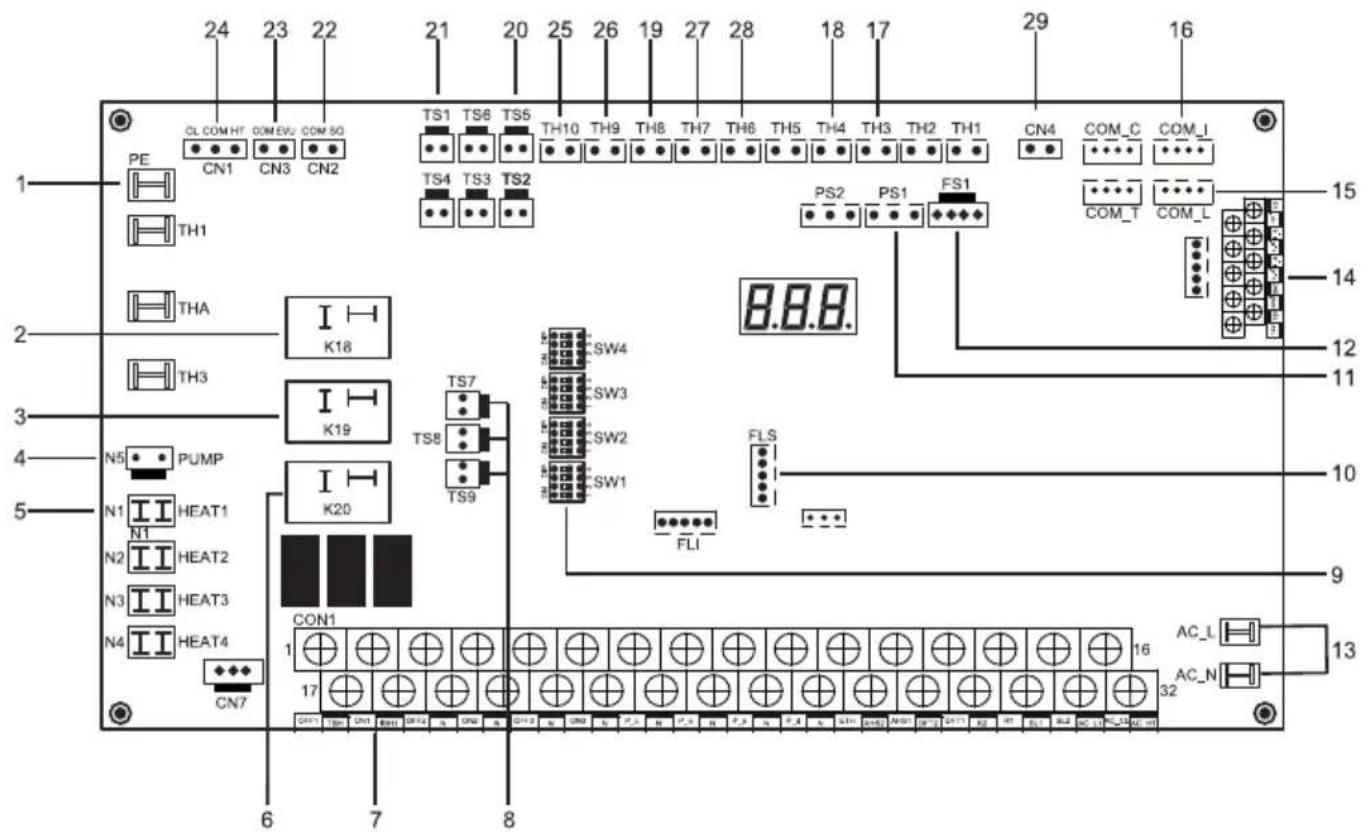

9.3.1 Main control board of hydraulic module

24 23 22 21 20 25 26 19 27 28 18 17 29 16 PE CL COM HT COM EVU COM SO TS1 TS6 TS5 TH10 TH9 TH8 TH7 TH6 TH5 TH4 TH3 TH2 TH1 CN4 COM_C COM_I CN1 CN3 CN2 TS4 TS3 TS2 PS2 PS1 FS1 COM_T COM_L TH1 THA I H K18 TH3 I H K19 TS7 SW4 TS8 CSW3 CSW2 CSW1 FLS N5 PUMP I H N1 HEAT1 K20 N2 HEAT2 N3 HEAT3 N4 HEAT4 CON1 AC_L CN7 17 16 15 14 13 FLI AC_N 32 6 7 8

Items Port label function
1 PE Port for ground
2 K18		Relay for internal backup heater (IPH, 3 kW)
3 K19		Relay for domestic water tank heater (3 kW)
4 Pump Power supply of internal pump
5 HEAT 1		Plate heat exchange anti-freezing heater
Items Port label function
6 K20 Relay	(Reserved,3 kW)
7 CON1 Terminals (Reserved)
8	TS7/TS9 High temperature protection switch for IPH
	TS8 High temperature protection switch for WTH
9 SW1/2/3/4 Dipswitch
10 FLS Program update
11 PS1 Water pressure sensor
12 FS1 Internal pump speed feedback
13 AC Power supply
14 U19 Communication ports
15 COM_L Wired controller
16 COM_I Communication port
17 TH3 Inlet water temperature
18 TH4 Outlet water temperature
19 TH8 Domestic water tank temperature

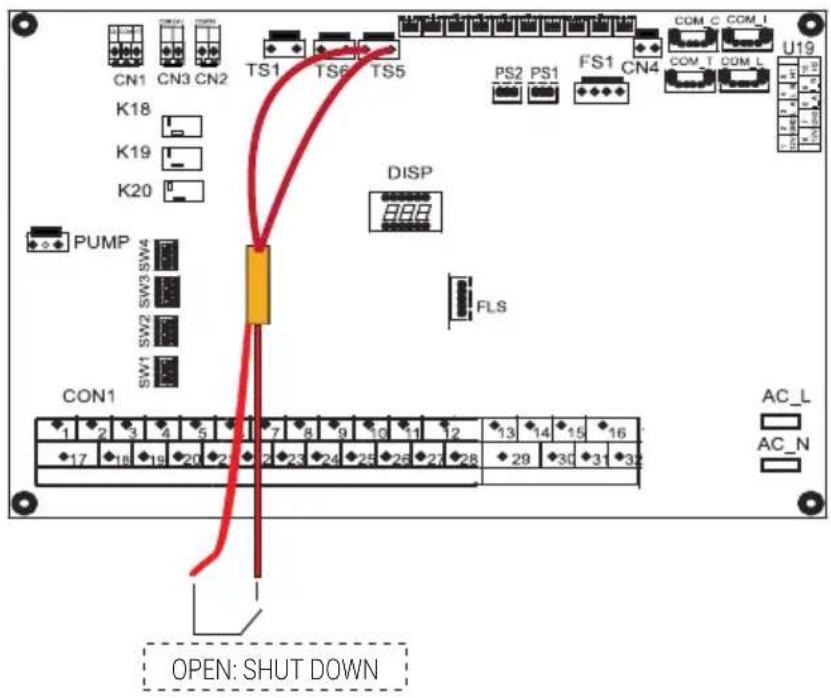

20 TS5 Remote switch
21 TS1 Water flow switch

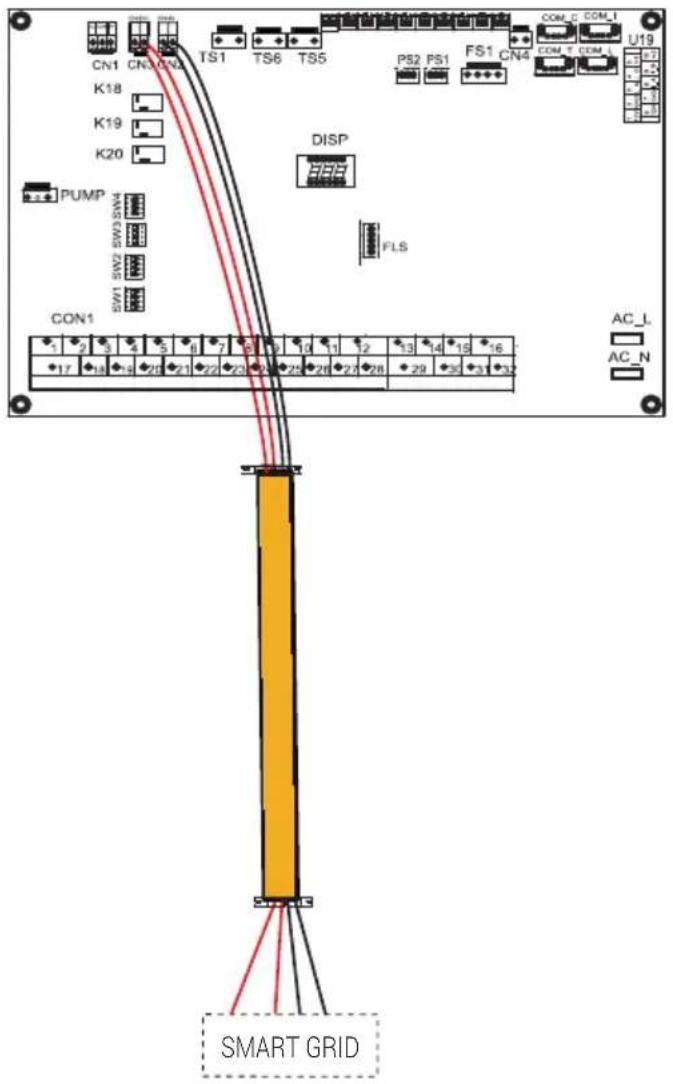

22 SG Smart Grid
23 EVU Commercial power
24 CN1 Low voltage thermostat
25 Tso	Solar temperature
26 TZ2 Zone 2 temperature
27 TE2 Reserved
28 TE1 Buffer temp. sensor for CASCADE
29 CN4 Communication port

9 Overview of the unit

9.3.2 1-phase for 4-16kW units

1) PCB A, 4-6kW, Drive and refrigerant system PCB

20 19 18 17 16 15 14 CN4 I 13 12 11 W V U 1 2 3 4 5 6 7 8 9 10

Items	Port label function	Items Port label function
1 U/V/W Compressor output 11 AC Power supply
2 JTAG Drive program update 12 COM4 Communication with hydraulic module PCB
3	TH1	Coil temperature sensor	13	PE1	Port for ground
4 TH2	Outdoor ambient temperature sensor	14	OUT4	Filter components
5 TH3	Refrigerant liquid temperature sensor	15	FLS	PCB Program update
6	TH5	Discharge temperature sensor	16	OUT5	Chassis heater
7	TH7	Suction temperature sensor	17	OUT8	Crankcase heater
8	TS3	HP2: Middle pressure switch	18	K9	Relay for PFC
9	TS4	HP1: High pressure switch	19	FAN1	DC Fan
10	TS5	LPS: low pressure sensor	20	L1	Common mode inductance

9 Overview of the unit

2) PCB A, 8-10-12kW, Drive and refrigerant system PCB

Note:

8kw and 10-12kw models has different PCB A but same connect ports

20 19 18 16 17 15 CN4 I 13 W V U 1 2 3 4 5 6 7 8 9 10 12 11

9 Overview of the unit

Items Port label function

1 U/V/W Compressor output

2 JTAG Drive program update

3 TH1 Coil temperature sensor

4 TH2 Outdoor ambient temperature sensor

5 TH3 Refrigerant liquid temperature sensor

6 TH5 Discharge temperature sensor

7 TH7 Suction temperature sensor

8 TS3 HP2: Middle pressure switch

9 TS4 HP1: High pressure switch

10 TS5 LPS: low pressure sensor

11 AC Power supply

12 COM4 Communication with hydraulic module PCB

13 PE1 Port for ground

14 / Filter components

15 OUT4 4- way valve

16 FLS PCB Program update

17 OUT 5 Chassis heater

18 OUT 8 Crankcase heater

19 K9 Relay for PFC

20 FAN1 DC fan

21 / Drive components

9 Overview of the unit

3) PCB A, 14-16kW, Drive PCB

8 9 6 5 3 4 1 2

Items Port label function
1 U/V/W Compressor output
2 JTAG Drive program update
3 FAN1 DC fan
4 FAN2 Reserved
5 K2 Relay for PFC
6 K1 Relay for PFC
7 / Filter components
8 PE Port for ground
9 AC Power supply
10 / Drive components

9 Overview of the unit

4) PCB B, 14-16kW, Refrigerant system PCB

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Items Port label function
1 AC (L/N) Power supply
2 EXV1 Electric expansive valve
3 COM_L/I Communication with hydraulic module PCB
4 COM_D Communication with inverter module PCB
5 TH1 T3: Coil temperature sensor
6 TH2 T4: Outdoor ambient temperature sensor
7 TH3 T5: liquid temperature sensor
8 TH5 TP: Discharge temperature sensor
9 TH7 TH: Suction temperature sensor
10 TS8 LPS: Low pressure sensor

9 Overview of the unit

Items Port	label function
11 TS4 HP2: Middle pressure switch
12 TS3 HP1: High pressure switch
13 Output 4 Four-way valve
14 Output 8 Crankcase heater
15 Output 5 Chassis heater

9.3.3 3-phase for 10-16kW units

1) PCB A, 3-phase for 10-16kW, Drive and refrigerant system PCB

1 2 3 W V U I1 I2 A 21 B 20 C 19 N 18 OUT4 N4 OUT3 N3 17 OUT2 N2 16 OUT1 N1 15 EXV2 EXV1 14 CN12 CN10 CN9 CN8 CN7 CN6 CN24 CN5 CN4 CN3 CN2 CN1 K1 K3 K5 4 5 6 7 8 9 10 11 12 13

9 Overview of the unit

Items	Port label	Function Items Port label Function
1	u	Eosupress switch connection port electronic expansion valve	12 K3	Medium pressure switch
2 v 1	3 K5 High pre
3 w 1	4 EXV1
4	CN10	Low pressure sensor	15	OUT1, N1	Four way valve
5 CN	12	Communication between PCB A and PCB B	16	OUT2, N2	Chassis heater
6 CN	24	Communication between PCB A and Main control board of hydraulic module	17	OUT3, N3	Crankcase heater
7	CN5 Suction temperature		18	N	Power supply
8	CN4 Discharge temperature		19 C
9	CN3 EEV Liquid temperature		20 B
10 CN2 Ambient temperature 21 A
11 CN1 Coil temperature

9 Overview of the unit

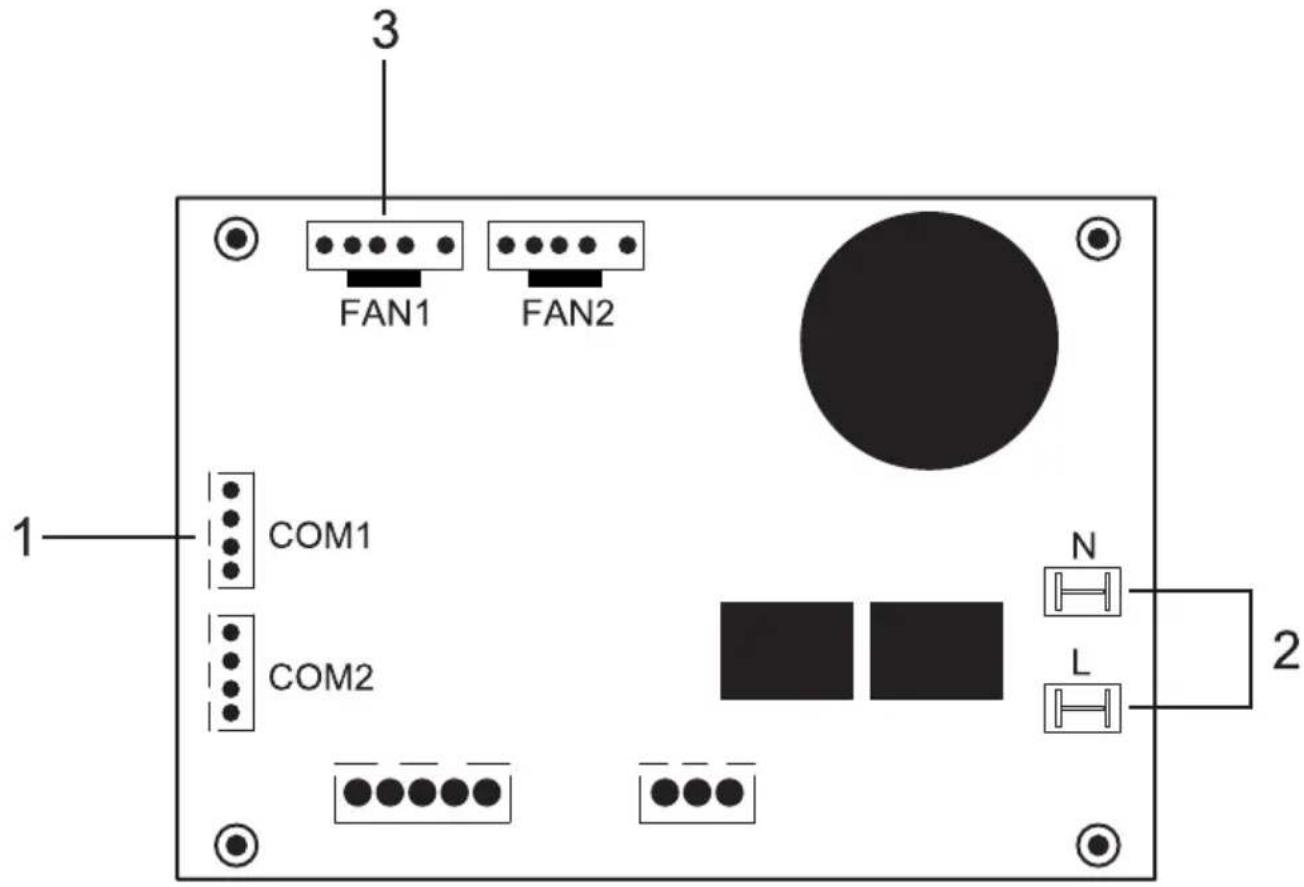

2) PCB B, 3-phase for 10-16kW, DC Fan drive board

3 FAN1 FAN2 COM1 COM2 N L 1 2

Items Port label Function
1 COM1		Communication between control PCB A and Fan control board
2 L, N Power supply
3 FAN1 DC FAN

9 Overview of the unit

9.4 Water piping

All piping lengths and distances have been taken into consideration.

Warning: The maximum allowed thermistor cable length is 20m. This is the maximum allowable distance between the domestic hot water tank and the unit (only for installations with a domestic hot water tank). The thermistor cable supplied with the domestic hot water tank is 10m in length. In order to optimize efficiency we recommend installing the 3-way valve and the domestic hot water tank as close as possible to the unit.

Note:If the installation is equipped with a domestic hot water tank (field supply), please refer to the domestic hot water tank Installation And Owner's Manual. If there is no glycol (anti-freeze) in the system there is a power supply or pump failure, drain the system (as shown in the figure below).

Diagram of a room with a monitor, ladder, and air flow system (no text or symbols)

Note:

If water is not removed from the system in freezing weather when unit is not used, the frozen water may damage the water circle parts.

9 Overview of the unit

9.4.1 Check the water circuit

The unit is equipped with a water inlet and water outlet for connection to a water circuit. This circuit must be provided by a licensed technician and must comply with local laws and regulations.

The unit is only to be used in a closed water system. Application in an open water circuit can lead to excessive corrosion of the water piping.

Example:

Code Assembly unit Code Assembly unit
1 Main unit 12 Filter (Accessory)
2 User interface (accessory) 14 Shut-off valve (Field supply)
4 Balance tank (Field supply) 15 Filling valve (Field supply)
4.1 Automatic air purge valve 16 Drainage valve (Field supply)
4.2 Drainage valve 19 Collector/distributor (Field supply)
5 P_o: Outside circulation pump (Field supply) 20 Bypass valve (field supply)
10 Expansion vessel (field supply)	FHL1...n	Floor heating loop (Field supply)

Before continuing installation of the unit, check the following:

• The maximum water pressure ≤ 3 bar.
• The maximum water temperature ≤ 70°C according to safety device setting.

• Always use materials that are compatible with the water used in the system and with the materials used in the unit.
- Ensure that components installed in the field piping can withstand the water pressure and temperature.

9 Overview of the unit

• Drain taps must be provided at all low points of the system to permit complete drainage of the circuit during maintenance.
• Air vents must be provided at all high points of the system. The vents should be located at points that are easily accessible for service. An automatic air purge valve is provided inside the unit. Check that this air purge valve is not tightened so that automatic release of air in the water circuit is possible.

9.4.2 Water volume and sizing expansion vessels

The units are equipped with an expansion vessel of 5L that has a default pre-pressure of 0.15 bar. To assure proper operation of the unit, the pre-pressure of the expansion vessel might need to be adjusted.

1) Check that the total water volume in the installation, excluding the internal water volume of the unit, is at least 40L. See 14 "Technical specifications" to find the total internal water volume of the unit.

Notes:

• In most applications this minimum water volume will be satisfactory.
• In critical processes or in rooms with a high heat load though, extra water might be required.
- When circulation in each space heating loop is controlled by remotely controlled valves, it is important that this minimum water volume is kept even if all the valves are closed.

2) Expansion vessel volume must fit the total water system volume.
3) To size the expansion for the heating and cooling circuit.

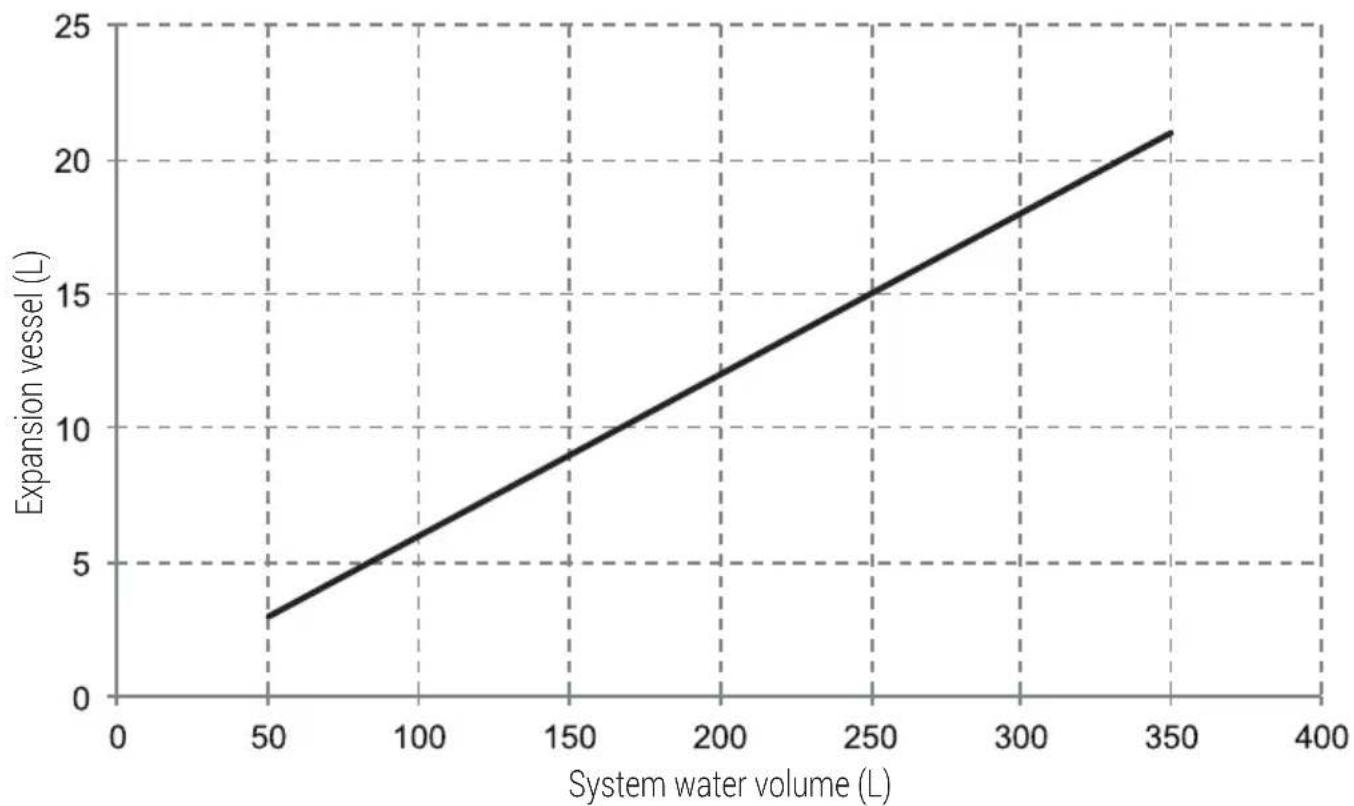

The expansion vessel volume can follow the figure below:

9 Overview of the unit

9.4.3 Water circuit connection

Water connections must be made correctly in accordance with labels on the outdoor unit, with respect to the water inlet and water outlet.

Warning:

Be careful not to deform the unit's piping by using excessive force when connecting the piping. Deforming the piping can cause the unit to malfunction.

If air, moisture or dust gets in the water circuit, problems may occur. Therefore, always take into account the following when connecting the water circuit:

• Use clean pipes only.
- Hold the pipe end downwards when removing burrs.

• Cover the pipe end when inserting it through a wall to prevent dust and dirt entering.
- Use a good thread sealant for sealing the connections. The sealing must be able to withstand the pressures and temperatures of the system.
- When using non-copper metallic piping, be sure to insulate two kind of materials from each other to prevent galvanic corrosion.
- For copper is a soft material, use appropriate tools for connecting the water circuit. Inappropriate tools will cause damage to the pipes.

Technical line drawing of a mechanical assembly with rollers and shafts (no text or symbols)

9 Overview of the unit

Notes:

The unit is only to be used in a closed water system. Application in an open water circuit can lead to excessive corrosion of the water piping:

• Never use Zn-coated parts in the water circuit. Excessive corrosion of these parts may occur as copper piping is used in the unit's internal water circuit.
• When using a 3-way valve in the water circuit. Preferably choose a ball type 3-way valve to guarantee full separation between the domestic hot water and floor heating water circuit.
• When using a 3-way valve or a 2-way valve in the water circuit. The recommended maximum changeover time of the valve should be less than 60 seconds.

9.4.4 Water circuit anti-freeze protection

All internal hydronic parts are insulated to reduce heat loss. Insulation must also be added to the field piping.

In event of a power failure, the above features would not protect the unit from freezing.

The software contains special functions using the heat pump and backup heater (if it is available) to protect the entire system against freezing. When the temperature of the water flow in the system drops to a certain temperature, the unit will heat the water, either using the heat pump, the electric

heating tap, or the backup heater. The freeze protection function will turn off only when the temperature increases to a certain valve.

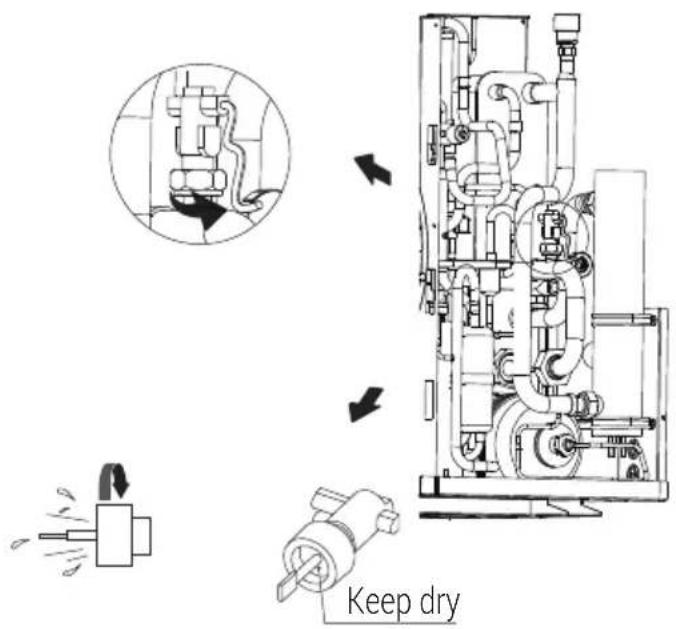

Water may enter into the flow switch and cannot be drained out and may freeze when the temperature is low enough. The flow switch should be removed and dried, then can be reinstalled in the unit.

Keep dry

Note:

Counterclock wise rotation, remove the flow switch. Drying the flow switch completely.

9 Overview of the unit

Warning:

When the unit is not running for a long time, make sure the unit is powered on all the time. If you want to cut off the power, the water in the system pipe needs to be drained clean, avoid the unit and pipeline system be damaged by freezing. Also the power of the unit needs to be cut off after water in the system is drained off.

Warning:

Ethylene Glycol and Propylene Glycol are TOXIC

9.5 Filling water

• Connect the water supply to the filling valve and open the valve.
  • Make sure the manual air purge valve is open (at least 2 turns).
• Fill with water pressure of approximately 2.0 bar. Remove air in the circuit as much as possible using the air purge valves. Air in the water circuit could lead to malfunction of the backup electric heater.

Do not fasten the black plastic cover on the vent valve at the topside of the unit when the system is running. Open air purgevalve, turn anticlockWise at least2 full turnsto releaseair from the system.

Technical line drawing of a mechanical assembly with pipes and components (no text or symbols)

Notes:

During filling, it might not be possible to remove all air in the system. Remaining air will be removed through the automatic air purge valves during the first operating hours of the system. Topping up the water afterwards might be required.

• The water pressure will vary depending on the water temperature (higher pressure at higher water temperature). However, at all times water pressure should remain above 0.3 bar to avoid air entering the circuit.
• The unit might drain-off too much water through the pressure relief valve.
  • Water quality should be complied with EN 98/83 EC Directives.
  • Detailed water quality condition can be found in EN 98/83 EC Directives.

9.6 Water piping insulation

The complete water circuit including all piping, water piping must be insulated to prevent condensation during cooling operation and reduction of the heating and cooling capacity as well as prevention of freezing of the outside water piping during winter. The insulation material should at least of B1 fire resistance rating and complies with all applicable legislation. The thickness of the sealing materials must be at least 13 mm with thermal conductivity 0.039 W/mK in order to prevent freezing on the outside water piping.

If the outdoor ambient temperature is higher than 30^ C and the humidity is higher than RH 80%, then the thickness of the sealing materials should be at least 20 mm in order to avoid condensation on the surface of the seal.

9.7 Field wiring

Warning:

A main switch or other means of disconnection, having a contact separation in all poles, must be incorporated in the fixed wiring in accordance with relevant local laws and regulations. Switch off the power supply before making any connections. Use only copper wires. Never squeeze bundled cables and make sure they do not come in contact with the piping and sharp edges. Make sure no external pressure is applied to the terminal connections. All field wiring and components must be installed by a licensed electrician and must comply with relevant local laws and regulations.

The field wiring must be carried out in accordance with the wiring diagram supplied with the unit and the instructions given below.

Be sure to use a dedicated power supply. Never use a power supply shared by another appliance.

Be sure to establish a ground. Do not ground the unit to a utility pipe, surge protector, or telephone ground. Incomplete grounding may cause electrical shock.

Be sure to install a ground fault circuit interrupter (30 mA). Failure to do so may cause electrical shock. Be sure to install the required fuses or circuit breakers.

9.7.1 Precautions on electrical wiring work

• Fix cables so that cables do not make contact with the pipes (especially on the high pressure side).
• Secure the electrical wiring with cable ties as shown in figure so that it does not come in contact with the piping, particularly on the high-pressure side.
  • Make sure no external pressure is applied to the terminal connectors.
• When installing the ground fault circuit interrupter make sure that it is compatible with the inverter (resistant to high frequency electrical noise) to avoid unnecessary opening of the ground fault circuit interrupter.

Note:

The ground fault circuit interrupter must be a high-speed type breaker of 30 mA (<0.1 s).

- This unit is equipped with an inverter. Installing a phase advancing capacitor not only will reduce the power factor improvement effect, but also may cause abnormal heating of the capacitor due to high-frequency waves. Never install a phase advancing capacitor as it could lead to an accident.

9 Overview of the unit

9.7.2 Wiring overview

The illustration below gives an overview of the required field wiring between several parts of the installation.

Note:

Please use H07RN-F for the power wire, all the cable are connect to high voltage except for thermistor cable and cable for user interface.

• Equipment must be grounded.
- All high-voltage external load, if it is metal or a grounded port, must be grounded.
- All external load current is needed less than 0.2A, if the single load current is greater than 0.2A, the load must be controlled through AC contactor.
- AHS1" "AHS2", "A1" "A2", wiring terminal ports provide only the switch signal. Please refer to image of 9.7.6 to get the ports position in the unit.

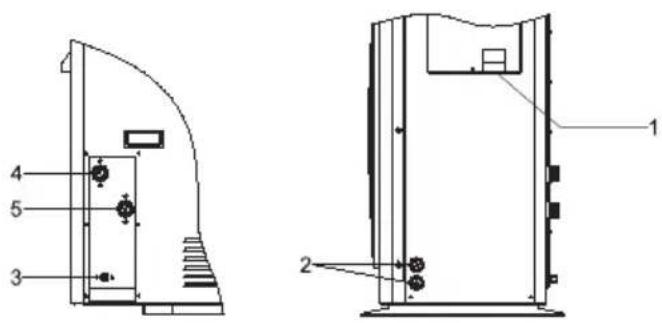

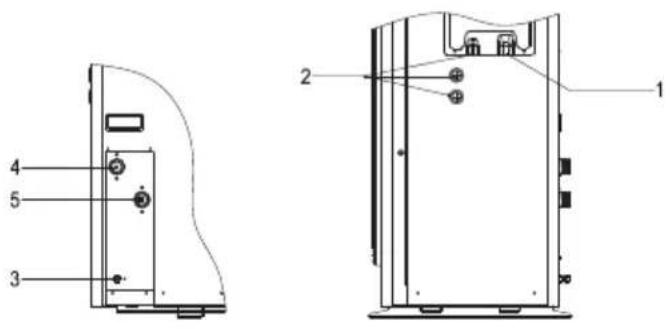

Figure 3-4.2.1: Wiring hole for 4/6/8kW models

4 5 3 2 1

Figure 3-4.2.2: Wiring hole for 10/12kW models

Technical diagram of a device with numbered components, showing front and side views with labeled parts 1 and 2.

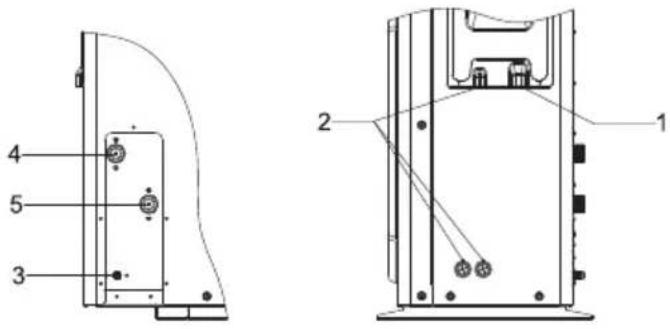

Figure 3-4.2.3: Wiring hole for 14/16kW models

4 5 3 2 1

Code Assembly unit

1 High voltage wire hole
2 Low voltage wire hole
3 Drainage pipe hole
4 Water outlet
5 Water inlet

Field wiring guidelines

- Most field wiring on the unit is to be made on the terminal block inside the switch box. To gain access to the terminal block, remove the switch box service panel (door 1).

Warning:

Switch off all power including the unit power supply and backup heater and domestic hot water tank power supply (if applicable) before removing the switch box service panel.

9 Overview of the unit

• Fix all cables using cable ties.
- A dedicated power circuit is required for the backup heater.
• Installations equipped with a domestic hot water tank (field supply) require a dedicated power circuit for the booster heater. Please refer to the domestic hot water tank Installation & Owner's Manual. Secure the wiring in the order shown below.
- Lay out the electrical wiring so that the front cover does not rise up when doing wiring work and attach the front cover securely.
- Follow the electric wiring diagram for electrical wiring works (the electric wiring diagrams are located on the rear side of door 2.

• Install the wires and fix the cover firmly so that the cover may be fit in properly.

9.7.3 Precautions on wiring of power supply

• Use a round crimp-style terminal for connection to the power supply terminal board. In case it cannot be used due to unavoidable reasons, be sure to observe the following instructions.
• Do not connect different gauge wires to the same power supply terminal. (Loose connections may cause overheating.)
• When connecting wires of the same gauge, connect them according to the figure below.

Simple icon of two cylindrical objects with a checkmark below (no text or symbols)

Simple diagram of a device with three cylindrical components and a cross symbol (no text or labels)

Simple diagram of a roof structure with circular openings and a cross symbol (no text or labels)

• Use the correct screwdriver to tighten the terminal screws. Small screwdrivers can damage the screw head and prevent appropriate tightening.
  • Over-tightening the terminal screws can damage the screws.
• Attach a ground fault circuit interrupter and fuse to the power supply line.
• In wiring, make certain that prescribed wires are used, carry out complete connections, and fix the wires so that outside force cannot affect the terminals.

9.7.4 Safety device requirement

1. Select the wire diameters (minimum valve) individually for each unit based on the table 9-1 and table 9-2, where the rated current in table 9-1 means MCA in table 9-2. In case the MCA exceeds 63A, the wire diameters should be selected according to the national wiring regulation.
2. Maximum allowable voltage range variation between phases is 2%.
3. Select circuit breaker that having a contact separation in all poles not less than 3 mm providing full disconnection, where MFA is used to select the current circuit breakers and residual current operation breakers.

9 Overview of the unit

1-phase 4-16kW standard and 3-phase 10-16kW standard

System	Outdoor Unit Power Current Compressor OFM
	Voltage (V)	Hz	Min. (V)	Max. (V)	MCA (A)	TOCA (A)	MFA (A)	MSC (A)	RLA (A) KW FLA (A)
4kW 220-240~50	198 26	4 12	18 25 -	11.50	0.10	0.50
6kW 220-240~50	198 26	4 14	18 25 -	13.50	0.10	0.50
8kW 220-240~50	198 26	4 16	19 25 -	14.50	0.17	1.50
10kW 220-240~50	198 26	4 19	23 25 -	15.50	0.17	1.50
12kW 220-240~50	198 26	4 26	30 35 -	23.50	0.17	1.50
14kW 220-240~50	198 26	4 27	30 35 -	24.50	0.17	1.50
16kW 220-240~50	198 26	4 27	30 35 -	25.50	0.17	1.50
10kW 3-PH	380-415~	50	342	456	6	11	16	-	5.15	0.17	1.50
12kW 3-PH	380-415~	50	342	456	10	14	16	-	9.15	0.17	1.50
14kW 3-PH	380-415~	50 342	456	12 14 16	-10.15	0.17	1.50
16kW 3-PH	380-415~	50 342	456	12 14 16	-11.15	0.17	1.50

1-phase 4-16kW standard with backup heater 3kW

System	Outdoor Unit				Power Current Compressor OFM
	Voltage (V)	Hz	Min. (V)	Max. (V)	MCA (A)	TOCA (A)	MFA (A)	MSC (A)	RLA (A)	KW	FLA (A)
4kW	220-240~	50	198	264	25	31	38	-	11.50	0.10	0.50
6kW	220-240~	50	198	264	27	31	38	-	13.50	0.10	0.50
8kW	220-240~	50	198	264	29	32	38	-	14.50	0.17	1.50
10kW	220-240~	50	198	264	32	36	38	-	15.50	0.17	1.50
12kW	220-240~	50	198	264	39	43	48	-	23.50	0.17	1.50
14kW	220-240~	50	198	264	40	43	48	-	24.50	0.17	1.50
16kW	220-240~	50	198	264	40	43	48	-	25.50	0.17	1.50

9 Overview of the unit

3-phase 10-16kW standard with backup heater 9kW

System	Outdoor Unit Power Current Compressor OFM
	Voltage (V)	Hz	Min. (V)	Max. (V)	MCA (A)	TOCA (A)	MFA (A)	MSC (A)	RLA (A)	KW FLA (A)
10kW 3	80-415~50	342 456 20	25 30 - 5	.15 0.1	7 1.50
12kW 3	80-415~50	342 456 24	28 30 - 9	.15 0.1	7 1.50
14kW 3	80-415~50	342 456 25	28 30 - 1	0.15	0.17 1.50
16kW 3	80-415~50	342 456 26	28 30 - 1	1.15	0.17 1.50

Notes:

MCA: Max. Circuit Amps. (A)

TOCA: Total Over-current Amps. (A)

MFA: Max. Fuse Amps. (A)

MSC: Max. Starting Amps. (A)

RLA: In nominal cooling or heating test condition, the input Amps of compressor where MAX. Hz can operate Rated Load Amps. (A)

KW: Rated Motor Output

FLA: Full Load Amps. (A)

9 Overview of the unit

9.7.5 Remove the switch box cover

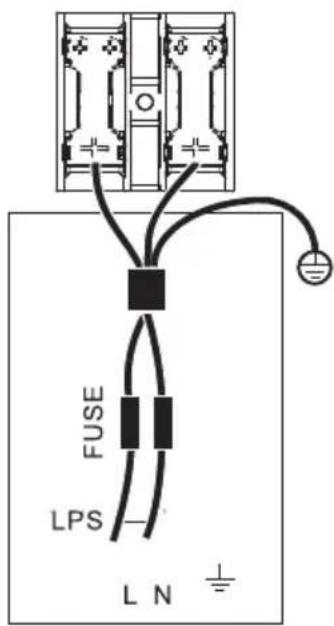

L N FUSE LPS L N

UNIT POWER SUPPLY 1-phase

FUSE LPS LN

UNIT POWER SUPPLY 1-phase

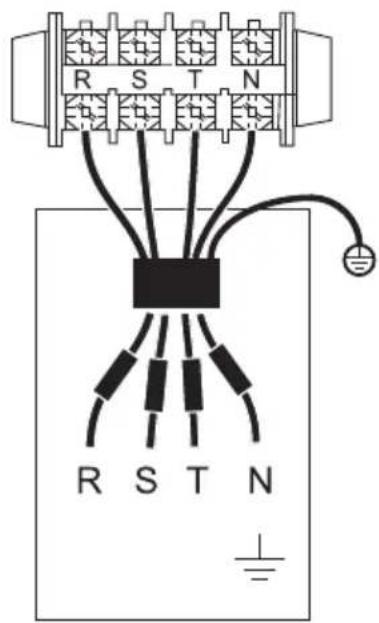

R S T N R S T N

UNIT POWER SUPPLY 3-phase

Notes:

The ground fault circuit interrupter must be 1 high-speed type of 30mA (<0.1s). Please use 3-core shielded wire.

The default of backup heater is option 3 (for 9kW backup heater).

Stated values are maximum values (see electrical data for exact values).

When connecting to the power supply terminal, use the circular wiring terminal with the insulation casing (see Figure 9.1).

Use power cord that conforms to the specifications and connect the power cord firmly. To prevent the cord from being pulled out by external force, make sure it is fixed securely.

If circular wiring terminal with the insulation casing cannot be used, please make sure that:

- Do not connect two power cords with different diameters to the same power supply terminal (may cause overheating of wires due to loose wiring) (See Figure 9.2).

9 Overview of the unit

9.7.6 Connection for other components

unit 4-16kW

CN1 CN3 CN2 K18( relay) K19( relay) K20( relay) CON1 1 OFF1 2 ON1 3 OFF2 4 ON2 5 OFF3 6 ON3 7 P_c 8 P_o 9 P_s 10 P_d 11 ETH 12 AHS1 13 DFT1 14 R1 15 SL2 16 AC_CL 17 TBH 18 BH1 19 N 20 N 21 N 22 N 23 N 24 N 25 N 26 N 27 AHS2 DFT2 28 R2 29 SL1 AC_L1 AC_HT U19 1 2 GND 3 _A 4 L_B 5 H1 6 7 GND 8 _A 9 L_B 12V 6 12V O O O O

CON I	Code	Print		Canned to
	1	1	OFF1	SV1 (5-way valve)
		2	ON1
		19	N
	2	3	OFF2	SV2 (5-way valve)
		4	ON2
		20	N
	3	5	OFF3	SV3 (5-way valve)
		6	ON3
		21	N
	4	7	P, c	Pumpc (zoned pump)
		22	N
	5	8	P, o	Outside circulation pump of zoned pump
		23	N
	6	9	P, s	Solar energy pump
		24	N
	7	10	P, d	DHR pipe pump
		25	N
	8	11	ETH	Reserved
		26	N
	9	12	AH51	Additional heat source
		27	AH52
	10	13	DFTI	Reserved
		28	DFT2
	11	14	R, t	Reserved
		29	R, 2
	12	15	SL7	Solar energy input signal
		30	SL1
	13	16	AC, CL	Roan thermostat input (high voltage)
		31	AC, L1
		32	AC, HT

	Code	Print	Converted to
	1	CL

Port provide the control signal to the load. Two kind of control signal port:

Type 1: Dry connector without voltage.

Type 2: Port provide the signal with 220V voltage. If the current of load is <0.2A, load can connect to the port directly. If the current of load is >=0.2A, the AC contactor is required to connected for the load.

Diagram of a yellow cable or pipe connecting a grid structure with a hook, no text or symbols present

Type 1 For additional heat source control

9 Overview of the unit

Voltage 220-240~VACMaximum running current (A) 0.2Wiring size (mm ^2 ) 0.75

2) For 3-way valve SV1, SV2 and SV3:

CON11 1 2 19 13 14 15 16 29 30 31 32 1 2 19 SV1

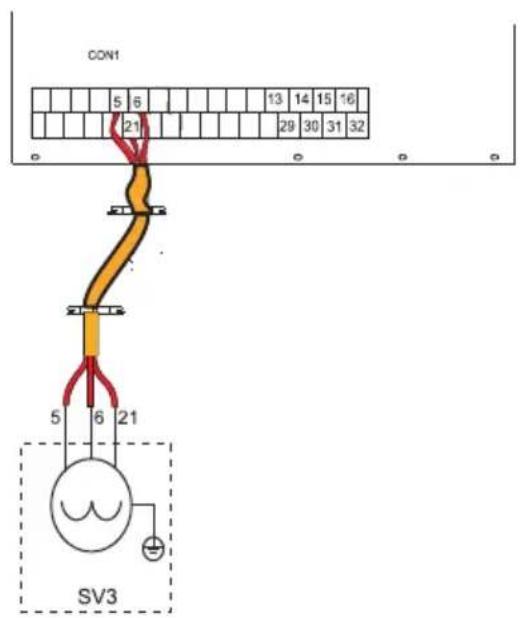

CON1 5 6 13 14 15 16 21 29 30 31 32 5 6 21 SV3

Voltage 220-240~VACMaximum running current (A) 0.2Wiring size ( mm^2 ) 0.75Control port signal type Type 2

a) Procedure

• Connect the cable to the appropriate terminals as shown in the picture.
• Fix the cable reliably.

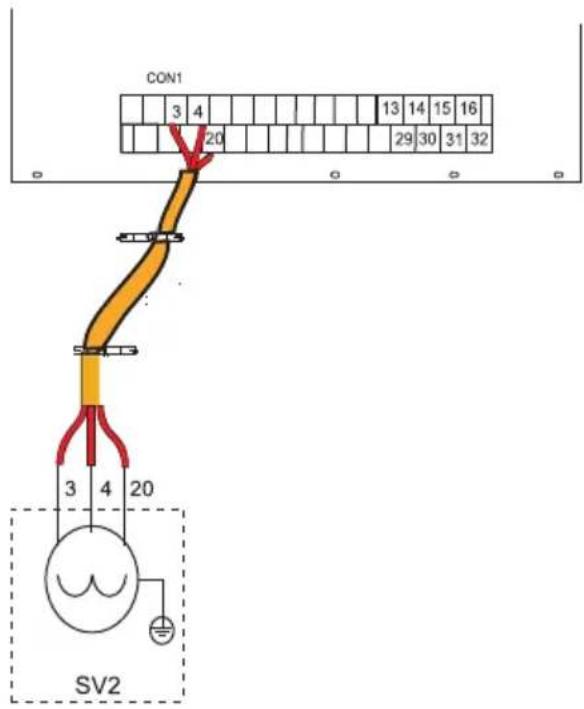

CON1 3 4 13 14 15 16 20 29 30 31 32 3 4 20 SV2

9 Overview of the unit

3) For remote shut down:

CN1 CN3 CN2 K18 K19 K20 PUMP SW3 SW4 SW1 SW2 CON1 TS1 TS6 TS5 DISP FLS OPEN: SHUT DOWN AC_L AC_N COM_C COM_I U19 PS2 PS1 FS1 CN4 COM_T COM_L

9 Overview of the unit

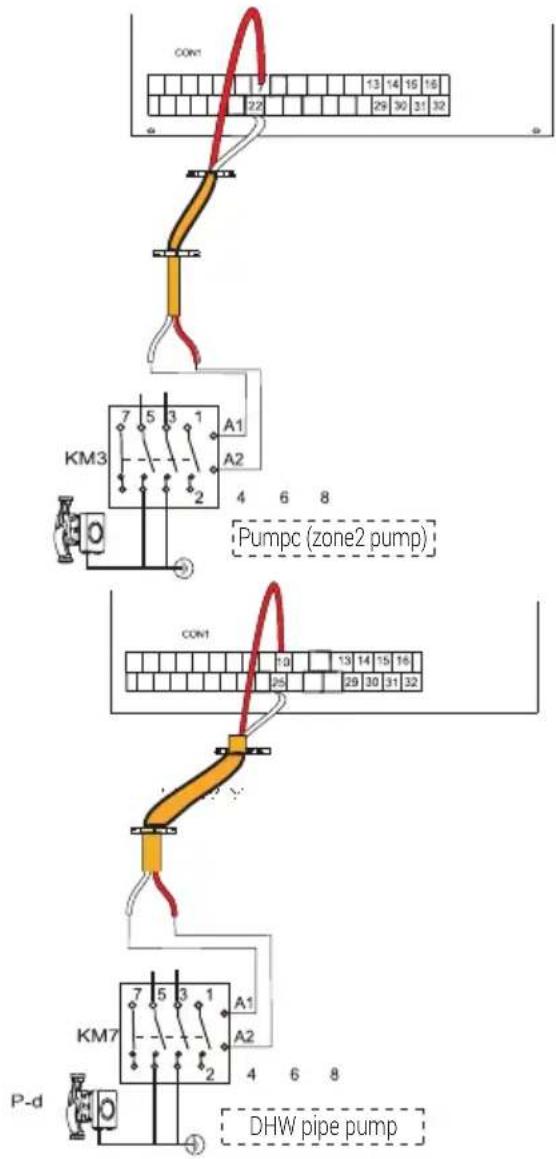

4) For Pumpc and DHW pipe pump:

CON1 13 14 15 16 22 29 30 31 32 KM3 A1 A2 Pumpc (zone2 pump) CON1 10 13 14 15 16 25 29 30 31 32 KM7 A1 A2 P-d DHW pipe pump

Voltage 220-240~VACMaximum running current (A) 0.2Wiring size (mm2) 0.75Control port signal type Type 2

a) Procedure

• Connect the cable to the appropriate terminals as shown in the picture.
• Fix the cable reliably.

5) For room thermostat:

Room thermostat type 1 (High voltage):

"POWER IN" provide the working voltage to the RT, doesn't provide the voltage to the RT connector directly. Port "31 L1" provide the 220V voltage to the RT connector. Port "31 L1" connect from the unit main power supply port L of 1- phase power supply.

Room thermostat type 2 (Low voltage):

"POWER IN" provide the working voltage to the RT.

Note:

There are two optional connect method depend on the room thermostat type.

Room thermostat type 1 (High voltage):

CON1 16 31 32 Method A (Mode set control) H 32 31 L1 16 C RT1 POWER IN

9 Overview of the unit
    subgraph_Method_B["Method B\n(One zone control)"]
        A["CON1"] --> B["H 32"]
        B --> C["L1 31"]
        C --> D["RT1"]
        D --> E["POWER IN"]
    end
    subgraph_Method_C["Method C\n(Two zone control)"]
        F["CON1"] --> G["H 32"]
        G --> H["L1 31"]
        H --> I["RT1"]
        I --> J["POWER IN POWER IN"]
        J --> K["C 16"]
        K --> L["RT2"]
        L --> M["zone1"]
    end
    style Method_B fill:#f9f,stroke:#333
    style Method_C fill:#f9f,stroke:#333

Voltage 220-240~VACMaximum running current (A) 0.2Wiring size ( mm^2 ) 0.75

There are three methods for connecting the thermostat cable (as described in the picture above) and it depends on the application.

• Method A (Mode set control)

RT can control heating and cooling individually, like the controller for 4-pipe FCU. When the hydraulic module is connected with the external temperature controller, user interface set ROOM THERMOSTAT to MODE SET:

A.1 When unit detect voltage is 230VAC between C and L1, the unit operates in the cooling mode.
A.2 When unit detect voltage is 230VAC between H and L1, the unit operates in the heating mode.
A.3 When unit detect voltage is 0VAC for both side (C-L1, H-L1) the unit stop working for space heating or cooling.
A.4 When unit detect voltage is 230VAC for both side (C-L1, H-L1) the unit working in cooling mode.

• Method B (One zone control)

RT provide the switch signal to unit. User interface set ROOM THERMOSTAT to ONE ZONE:

B.1 When unit detect voltage is 230VAC between H and L1, unit turns on.
B.2 When unit detect voltage is 0VAC between H and L1, unit turns off.

9 Overview of the unit

• Method C (Two zone control)

Hydraulic Module is connected with two room thermostat, while user interface set ROOM THERMOSTAT to ZONES:

C.1 When unit detect voltage is 230VAC between H and L1, zone1 turns on. When unit detect voltage is 0VAC between H and L1, zone1 turns off.
C.2 When unit detect voltage is 230VAC between C and L1, zone2 turns on according to climate temp curve. When unit detect voltage is 0V between C and L1, zone2 turns off.
C.3 When H-L1 and C-L1 are detected as OVAC, unit turns off.
C.4 When H-L1 and C-L1 are detected as 230VAC, both zone1 and zone2 turn on.

Room thermostat type 2 (Low voltage):

HT COM CL RT1 Power IN Method A (Mode set control) CON1 CON2 CN1 CN3 CN4 TS1 TS6 TS5 PSS PS1 FS1 CN4 DISP FLS CON L CON N U19 AC_L AC_N

CN1 CN3 CN2 TS1 TS6 TS5 K18 K19 K20 PUMP SWI SW2 SW3 SW4 CON1 DISP FL8 AC_L AC_N HT COM Method B (One zone control) POWER IN RT1

CN1 CN3 CN2 TS1 TS6 TS5 PS2 PS1 FS1 CN4 COM C CONJ U19 K18 K16 K20 DISP PUMP SW1 SW2 SW3 SW4 FLS CON1 AC_L AC_N HT COM CL Method C (Two zone control) RT1 POWER IN POWER IN RT2 zone2zone1

9 Overview of the unit

There are three methods for connecting the thermostat cable (as described in the picture above) and it depends on the application.

• Method A (Mode set control)

RT can control heating and cooling individually, like the control- ler for 4-pipe FCU. When the hydraulic module is connected with the external temperature controller, user interface set ROOM THERMOSTAT to MODE SET:

A.1 When unit detect voltage is 12VDC between CL and COM, the unit operates in the cooling mode.
A.2 When unit detect voltage is 12VDC between HT and COM, the unit operates in the heating mode.
A.3 When unit detect voltage is OVDC for both side (CL-COM, HT-COM) the unit stop working for space heating or cooling.
A.4 When unit detect voltage is 12VDC for both side (CL-COM, HT-COM) the unit working in cooling mode.

• Method B (One zone control)

RT provide the switch signal to unit. User interface set ROOM THERMOSTAT to ONE ZONE:

B.1 When unit detect voltage is 12VDC between HT and COM, unit turns on.
B.2 When unit detect voltage is OVDC between HT and COM, unit turns off.
• Method C (Two zone control)

Hydraulic Module is connected with two room thermostat, while user interface set ROOM THERMOSTAT to ZONES:

C.1 When unit detect voltage is 12VDC between HT and COM, zone 1 turn on. When unit detect voltage is 0VDC between HT and COM, zone1 turn off.

C.2 When unit detect voltage is 12VDC between CL and COM, zone2 turn on according to climate temp curve. When unit detect voltage is 0V between CL and COM, zone2 turn off.
C.3 When HT-COM and CL-COM are detected as OVDC, unit turn off.
C.4 When HT-COM and CL-COM are detected as 12VDC, both zone1 and zone2 turn on.

Notes:

The wiring of the thermostat should correspond to the settings of the user interface.

Power supply of machine and room thermostat must be connected to the same Neutral Line.

Zone 2 can only operate in heating mode, When cooling mode is set on user interface and zone1 is OFF, "CL" in zone 2 closes, system still keeps 'OFF'. While installation, the wiring of thermostats for zone1 and zone 2 must be correct.

9 Overview of the unit

6) For additional heat source control:

CON1 1 2 12 16 17 27 32 L FUSE Power supply KM6 A1 A2 N 8 6 4 2 Additional heat source

Voltage 220-240~VACMaximum running current (A) 0.2Wiring size ( mm^2 ) 0.75Control port signal type Type 2

Warning:

This part only applies to the unit without an interval backup heater. If there is an interval backup heater in the unit, the hydraulic module should not be connected to any additional heat source.

Voltage 220-240~VAC
Maximum running current (A) 0.2
Wiring size (mm ^2 ) 0.75
Control port signal type Type 1

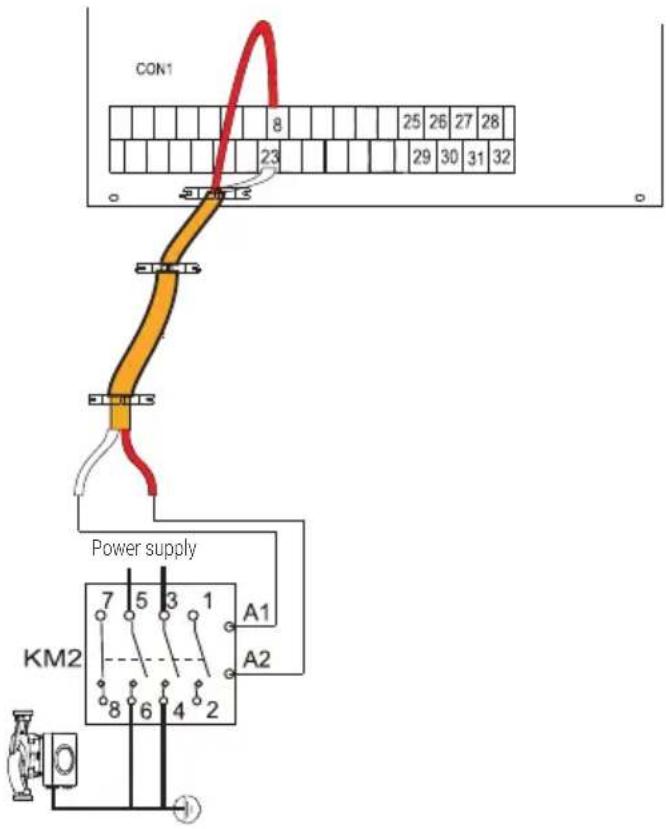

7) For outside circulation pump P_o:

CON1 8 25 26 27 28 23 29 30 31 32 Power supply KM2 A1 A2 ①

Voltage 220-240~VACMaximum running current (A) 0.2Wiring size ( mm^2 ) 0.75Control port signal type Type 2

a) Procedure

• Connect the cable to the appropriate terminals as shown in the picture.
• Fix the cable with cable ties to the cable tie mountings to ensure stress relief.

9 Overview of the unit

8) For smart grid:

The unit has smart grid function, there are two ports on PCB to connect SG signal and EVU signal as following:

CN1 CN3 CN2 TS1 TS6 TS5 P52 PS1 FS1 CN4 COM_C COM_L U19 K18 K19 K20 PUMP SW1 SW2 SW3 SW4 DISP FLS CON1 AC_L AC_N SMART GRID

1. when EVU signal is on, the unit operate as below:

DHW mode turn on, the setting temperature will be changed to 70^ C automatically, and the WTH operate as below: TW < 69^ C, the WTH is on, TW ≥ 70^ C, the WTH is off. The unit operate in cooling/heating mode as the normal logic.

1. When EVU signal is off, and SG signal is on, the unit operate normally.

2. When EVU signal is off, SG signal is off, the DHW mode is off, and the WTH is invalid, disinfect function is invalid. The max running time for cooling/heating is "SG RUNNIN TIME", then unit will be off.

10 Start-up and configuration

The unit should be configured by the installer to match the installation environment (outdoor climate, installed options, etc.) and user expertise.

Warning:

It is important that all information in this chapter is read sequentially by the installer and that the system is configured as applicable.

10.1 DIP switch settings overview

10.1.1 Function setting

DIP switch SW1, SW2 SW3 and SW4 are located on the main control hydraulic module board (see "9.3.1 main control board of hydraulic module").

Warning:

Switch off the power supply before making any changes to the DIP switch settings.

Refer to eletrically controlled wiring diagram

10.2 Initial start-up at low outdoor ambient temperature

During initial start-up and when water temperature is low, it is important that the water is heated gradually. Failure to do so may result in concrete floors cracking due to rapid temperature change. Please contact the responsible cast concrete building contractor for further details.

10.3 Pre-operationchecks

Checks before initial start-up.

Warning:

Switch off the power supply before making any connections.

After the installation of the unit, check the following before switching on the circuit breaker:

• Field wiring: Make sure that the field wiring between the local supply panel and unit and valves (when applicable), unit and room thermostat (when applicable), unit and domestic hot water tank, and unit and backup heater kit have been connected according to the instructions described in the chapter 9.7 "Field wiring", according to the wiring diagrams and to local laws and regulations.
• Fuses, circuit breakers, or protection devices Check that the fuses or the locally installed protection devices are of the size and type specified in 14 "Technical specifications". Make sure that no fuses or protection devices have been bypassed.
• Backup heater circuit breaker: Do not forget to turn on the backup heater circuit breaker in the switchbox (it depends on the backup heater type). Refer to the wiring diagram.
• Booster heater circuit breaker: Do not forget to turn on the booster heater circuit breaker (applies only to units with optional domestic hot water tank installed).
• Ground wiring: Make sure that the ground wires have been connected properly and that the ground terminals are tightened.
• Internal wiring: Visually check the switch box for loose connections or damaged electrical components.
• Mounting: Check that the unit is properly mounted, to avoid abnormal noises and vibrations when starting up the unit.
• Damaged equipment: Check the inside of the unit for damaged components or squeezed pipes.
• Refrigerant leak: Check the inside of the unit for refrigerant leakage. If there is a refrigerant leak, call your local dealer.
  • Power supply voltage: Check the power supply voltage on the local supply panel. The voltage must correspond to the voltage on the identification label of the unit.
  • Air purge valve: Make sure the air purge valve is open (at least 2 turns).
• Shut-off valves: Make sure that the shut-off valves are fully open.

10 Start-up and configuration

10.4 The circulation pump

The relationships between the head and the water flow rated, the PMW Return and the water flow rated are shown in the graph below.

Area of regulation is included in between the max speed curve and the min speed curve.

Warning:

If the valves are at the incorrect position, the circulation pump will be damaged.

Warning:

If it's necessary to check the running status of the pump when unit power on, please do not touch the internal electronic control box components to avoid electric shock.

Failure diagnosis at first installation

- If nothing is displayed on the user interface, it is necessary to check for any of the following abnormalities before diagnosing possible error codes.

- Disconnection or wiring error (between power supply and unit and between unit and user interface).

- The fuse on the PCB may be broken.

- If the user interface shows "P01" as an error code, there is a possibility that there is air in the system, or the water level in the system is less than the required minimum.

- If the error code E01 is displayed on the user interface, check the wiring between the user interface and unit.

More error code and failure causes can be found in 13.4 "Error codes".

10.5 Field settings

The unit should be configured to match the installation environment (outdoor climate, installed options, etc.) and user demand. A number of field settings are available. These settings are accessible and programmable through "FUNCTION PARAMETER SET" in user interface.

Procedure

To change one or more field settings, proceed as follows.

Note:

Temperature values displayed on the wired controller (user interface) are in °C.

GRUNDIG

Keys Function
	Go to the menu structure (on the home page)
	Navigate the cursor on the displayNavigate in the menu structureAdjust settings
	Turn on/off the space heating/cooling operation or DHW modeTurn on/or off functions in the menu structure
	Come back to the up level
	Go to the next step when programming a schedule in the menu structure; and confirm a selection to enter in the submenu of the menu structure.

About FUNCTION PARAMETER SET

"FUNCTION PARAMETER SET" is designed for the installer to set the parameters.

• Setting the composition of equipment.
• Setting the parameters.

How to go to FUNCTION PARAMETER SET

Go to ➞ FUNCTION PARAMETER SET. Press : √

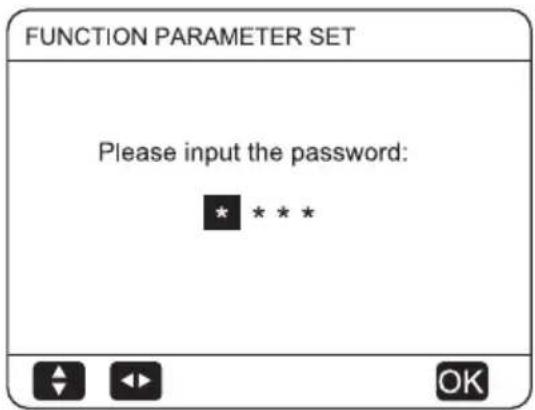

FUNCTION PARAMETER SET Please input the password: * * * *

Press ◀▶ to navigate and press ▼▲ to adjust the numerical valve. Press ☑The password is 1212, the following pages will be displayed after putting the password:

10 Start-up and configuration

FUNCTION PARAMETER SET 1/2

1. GENERAL PARAMETER

2.DHW MODE Set

3. HEAT MODE Set

4. COOL MODE Set

5. AUTO MODE Set

FUNCTION PARAMETER SET 2/2

6. TEMP. TYPE SET

7. ROOM THERMOSTAT SET

8. OTHER HEAT SOURCE

9. AUTO RESTART

10. RESTORE FACTORY Set

Press ▼ ▲ to scroll and use "OK" to enter submenu.

10.5.1 GENERAL PARAMETER

Go to > FUNCTION PARAMETER SET>

1. GENERAL PARAMETER. Press ☑The following pages will be displayed:

1 GENERAL PARAMETER	1/5
1.1 Ta	2°C
1.2 Mp	0
1.3 T4L	-25°C
1.4 PUMP_TYPE	DC
1.5 SB-PWMout	35%
	OK

1 GENERAL PARAMETER	2/5
1.6 RUN-PWMout	45%
1.7 IP	251
1.8 TH4	1
1.9 a	3°C
1.10 WPS	1
	OK

1 GENERAL PARAMETER	3/5
1.11 TE1	NON
1.12 TE2	NON
1.13 TZ2	NON
1.14 SMART GRID	NON
1.15 dTE	15°C
	OK

1 GENERAL PARAMETER	4/5
1.16 t_SV3_ON	5MIN
1.17 t_SV3_OFF	2MIN
1.18 dT_SV3_ON	5°C
1.19 dT_SV3_OFF	0°C
1.20 dTro	1.0°C
	OK

1 GENERAL PARAMETER	5/5
1.21 Tro-adj	0°C

DHW = domestic hot water

Go to ➞ FUNCTION PARAMETER SET> 2. DHW MODE. Press ⚙The following pages will be displayed

2 DHW MODE	1/3
2.1 Tb	5°C
2.2 Tx	65°C
2.3 Td	30MIN
2.4 Teh	4°C
2.5 P_d_DHW	NON
	OK

10 Start-up and configuration

2 DHW MODE	2/3
2.6 P_d_DIS	YES
2.7 P d TIME KEEP	YES
2.8 t_P_d_ON	15MIN
2.9 t P d OFF	120MIN
2.10 P_d_AUTO	YES
	OK

Go to ➞ FUNCTION PARAMETER SET>3. HEAT MODE. Press ⚙The following pages will be displayed

3 HEAT MODE	1/4
3.1 HEAT TEMP. AUTO ADJUST	0
3.2 Hi_A	5°C
3.3 Lo_A	0°C
3.4 A	5°C
3.5 HIGH TEMP HEAT OFF	0
	OK

3 HEAT MODE	2/4
3.6 T4h	24°C
3.7 H-PUMP	3
3.8 HD	1
3.9 T4g	-10°C
3.10 ZONE A HEAT-TYPE	RAD
	OK

3 HEAT MODE	3/4
3.11 ZONE B HEAT-TYPE	FLH
3.12 t_T4_FRESH_H	30MIN
3.13 T4_ha1	-5°C
3.14 T4_ha2	7°C
3.15 SPTch_set1	35°C
	OK

3	HEAT MODE	4/4
3.16	SPTch_set2	28°C

10.5.4 COOL MODE SETTING

Go to ➞ FUNCTION PARAMETER SET> 4. COOL MODE. Press ☑ The following pages will be displayed

4 COOL MODE	1/2
4.1 C-Pump	3
4.2 ZONE A COOL -TYPE	FCU
4.3 ZONE B COOL -TYPE	FCU
4.4 t_T4_FRESH_C	30MIN
4.5 T4_ca1	25°C
	OK

4 COOL MODE	2/2
4.6 T4_ca2	35°C
4.7 SPTcc set1	16°C
4.8 SPTcc set2	10°C

10 Start-up and configuration

10.5.5 AUTO MODE SETTING

Go to ➕ FUNCTION PARAMETER SET> 5. AUTO MODE. Press ☑The following pages will be displayed

5 AUTO MODE	1/1
5.1 AUTO HEAT MAX T4	17°C
5.2 AUTO COOL MIN T4	25°C

10.5.6 TEMP. TYPE SETTING

About TEMP. TYPE SETTING

The TEMP. TYPE SETTING is used for selecting whether the water flow temperature or room temperature is used to control the ON/OFF of the heat pump.

When ROOM TEMP. is enabled, the target water flow temperature will be calculated from climate-related curves.

Go to > FUNCTION PARAMETER SET >

1. TEMP. TYPE SET. Press ✅ The following pages will be displayed

10.5.7 ROOM THERMOSTAT

About ROOM THERMOSTAT

The ROOM THERMOSTAT is used to set whether the room thermostat is available.

How to set the ROOM THERMOSTAT

Go to ➞ FUNCTION PARAMETER SET >

1. ROOM THERMOSTATSET. Press The following pages will be displayed

7 ROOM THERMOSTAT TYPE SET 1/1
7.1 ROOM THERMOSTAT	NONE
7.2 SINGLE ZONE RT OPERATION	0
7.3 DUAL ZONE RT OPERATION	0

Notes:

ROOM THERMOSTAT = NON, no room thermostat.

ROOM THERMOSTAT = MODE SET, the wiring of room thermostat should follow method A.

ROOM THERMOSTAT=ONE ZONE, the wiring of room thermostat should follow method B.

ROOM THERMOSTAT=TWO ZONES, the wiring of room thermostat should follow method C (refer to 9.7.6 "Connection for other components/- For room thermostat")

10 Start-up and configuration

10.5.8 OTHER HEATING SOURCE

The OTHER HEATING SOURCE is used to set the parameters of the backup heater, additional heating sources and solar energy kit.

How to enter the TEMP. TYPE SETTING

Go to > FUNCTION PARAMETER SET >

1. OTHER HEAT SOURCE. Press ☑The following pages will be displayed

8 OTHER HEAT SOURCE	1/1
8.1 dTso	10 °C
8.2 tso	30 MIN
8.3 Solar_Type	0
8.4 AHS_Type	0
	OK

10.5.9 AUTO RESTART

sources and solar energy kit.

How to enter the AUTO RESTART

Go to ➤ FUNCTION PARAMETER SET > 9. AUTO RESTART. Press ⚙The following pages will be displayed

9 AUTO RESTART	1/1
9.1PR	1

10.5.10 RESTOREFACTORY SETTINGS

The RESTORE FACTORY SETTING is used to restore all the parameters set in the user interface to the factory setting.

How to enter the RESTORE FACTORY SET

Go to ➞ FUNCTION PARAMETER SET >

1. RESTORE FACTORY SET Press ☑ The following pages will be displayed

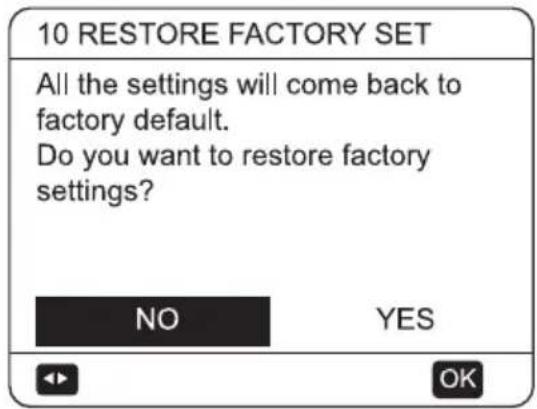

10 RESTORE FACTORY SET All the settings will come back to factory default. Do you want to restore factory settings? NO YES OK

Press ◀▶ to scroll the cursor to YES and press √.

10 Start-up and configuration

The parameters related to this chapter are shown in the table below.

Order number	Code State Default	Minimum Maximum				Setting interval	Unit
1.1 Ta		Temperature difference between target LWT and real LWT for startup heat pump	2 1 5	1 °C
1.2 Mp	Select priority mode 0 0 2 1 /
1.3 T4L		Minimum ambient temp. of compressor operation for heating and hot water	-25 -40	-21 1 °C
1.4	PUMP_TYPE	Internal DC pump type	DC	DC	AC	1	/
1.5	SB-PWMout	Standby DC pump output	35	10	100	1	%
1.6	RUN-PWMout	Minimum DC pump operation output	40	30	100	1	%
1.7	IP	Address code	0	0	15	1	/
1.8 TH4		Enabel or disable chassis heater, 1=Enable, 0=Disable	1 0 1	1 /
1.9	a	Return difference in leaving water controller	3	1	10	1	°C
1.10	WPS	Enable or disable water pressure detect, 1=Enable, 0=Disable	1 0 1	1 /
1.11	TE1	Enable or disable TE1, NON=Disable, YES=Enable	NON	NON	YES	/	/
1.12	TE2	Enable or disable TE2, NON=Disable, YES=Enable	NON	NON	YES	/	/
1.13	TZ2	Enable or disable TZ2, NON=Disable, YES=Enable	NON	NON	YES	/	/
1.14	SMART GRID	Enable or disable SG, NON=Disable, YES=Enable	NON	NON	YES	/	/
1.15	dTE	Temperature difference between TE1 and target temp.	15	0	50	1 °C
1.16	t_SV3_ON	SV3 on time	5	0	120	1	MIN
1.17	t_SV3_OFF	SV3 off time	2	0	120	1	MIN
1.18	dT_SV3_ON	Temperature difference for SV3 ON	5	0	10	1	°C
1.19	dT_SV3_OFF	Temperature difference for SV3 OFF	0	-10	0	1	°C
1.20	dTro	dTro means the control error of room temperature Tro to ON/OFF heat pump when enable room temperature Tro	1	0.5	3	0.5	°C
1.21	Tro-adj	Accuracy correction of room temperature sensor Tro	0	-10	10	1 °C
2.1 Tb		Temperature difference between target hot water and real tank water for startup heat pump	5 2	15	1 °C

10 Start-up and configuration

Order number	Code State Default	Minimum Maximum				Setting interval	Unit
2.2 Tx	Target disinfect temperature 65 55 75 1 °C
2.3 Td	Disinfect running time 30 20 120 1 MIN
2.4	Teh	Ambient temperature of tank heater startup	4	-10	40	1	°C
2.5 P_d_DHW		Enable or disable tank pump control, NON=Disable, YES=Enable	NON	NON YES /	/
2.6 P_d_DIS		Enable or disable tank pump in disinfect mode, NON=Disable, YES=Enable	YES	NON YES /	/
2.7 P_d_TIME KEEP		Enable or disable tank pump operation timing, NON=Disable, YES=Enable	YES	NON YES /	/
2.8	t_P_d_on	Tank pump ON time	15	5	120	1	MIN
2.9	t_P_d_off	Tank pump OFF time	120	5	180	1	MIN
2.10	P_d_AUTO	Enable or disable tank pump normal ON, NON=Disable, YES=Enable	YES	NON YES /	/
2.11	TANK HEATER	Enable or disable tank heater, NON=Disable, YES=Enable	YES	NON YES /	/
3.1	HEAT TEMP. AUTO ADJUST	Enable or disable auto adjust in heating, 0=Disable, 1=Enable	0	0	1	1	/
3.2	Hi_A	High temperature compensation value	5	0	20	1	°C
3.3	Lo_A	Low temperature compensation value	0	-20	0	1	°C
3.4	A	Maximum temperature compensation value	5	0	10	1	°C
3.5	HIGH TEMP HEAT OFF	Enable or disable high temperature shutdown, 0=Disable, 1=Enable	0	0	1	1	/
3.6 T4h	Maximum shutdown T4 temperature		24 10 30 1 °C
3.7	H-PUMP	DC pump standby speed for heating	3	0	3	1	/
3.8 HD		Enable or disable IPH or AHS, 0=Enable IPH, 1=Enable AHS	1	0	1	1	/
3.9 T4g		Ambient temperature of Enabling IPH or AHS	-20	-20	20 1 °C
3.10	ZONE A HEAT-TYPE	Zone A heating terminal device type, 0=FCU, 1=RAD, 2=FLH	RAD	FCU	FLH	1	/
3.11	ZONE B HEAT-TYPE	Zone B heating terminal device type, 0=FCU, 1=RAD, 2=FLH	FLH	FCU	FLH	1	/
3.12	t_T4_FRESH_H	Refresh time of climate curve for heating	30	30	360	10	MIN
3.13	T4_ha1	Auto climate curve ambient temp. 1 for heating	-5	-25	35 1 °C
3.14	T4_ha2	Auto climate curve ambient temp. 2 for heating	7	-25	35 1 °C

10 Start-up and configuration

Order number	Code State Default	Minimum Maximum				Setting interval	Unit
3.15 SPTch_set1		Auto climate curve target temp. 1 for heating	35 25	60 1 °C
3.16 SPTch_set2		Auto climate curve target temp. 2 for heating	28 25	60 1 °C
4.1 C-Pump DC pump standby speed for cooling 3 0 3 1 /
4.2	ZONE A COOL TYPE	Zone A cooling terminal device type, 0=FCU, 1=RAD, 2=FLH	FCU FCU	FLH	1	/
4.3	ZONE B COOL TYPE	Zone B cooling terminal device type, 0=FCU, 1=RAD, 2=FLH	FCU FCU	FLH	1	/
4.4	t_T4_FRESH_C	Refresh time of climate curve for cooling	30	30	360	10	MIN
4.5 T4_ca1		Auto climate curve ambient temp. 1 for cooling	25	-5	46 1 °C
4.6 T4_ca2		Auto climate curve ambient temp. 2 for cooling	35	-5	46 1 °C
4.7	SPTcc_set1	Auto climate curve target temp. 1 for cooling	16	5	25	1	°C
4.8	SPTcc_set2	Auto climate curve target temp. 2 for cooling	10	5	25	1	°C
5.1	AUTO HEAT MAX T4	Maximum ambient temp. of auto-heating mode	17 10	17 1 °C
5.2	AUTO COOL MIN T4	Minimum ambient temp. of auto-cooling mode	25 20	29 1 °C
6.1 ZONE TYPE		Two zones, ONE= single zone, TWO=duan zone	ONE	ONE	TWO	1	/
6.2	SINGLE ZONE OPERATION SET	Single zone target temperature type 0 0 3 1	/
6.3	DUAL ZONE OPERATION SET	Dual zone target temperature type (2 and 6 for reserved)	0 0 7 1	/
7.1	ROOM THERMOSTAT	Room thermostat type, 0=NON=without room thermostat, 1=MODE SET, 2=ONE ZONE, 3=TWO ZONES	0 0 3 1	/
7.2	SINGLE ZONE RT OPERATION	Target temperature type on ROOM THERMOSTAT = MODE SET or ONE ZONE	0 0 1 1	/
7.3	DUAL ZONE RT OPERATION	Target temperature type on ROOM THERMOSTAT = TWO ZONES	0 0 3 1	/
8.1 dTso		Temperature difference for startup solar pump	10	2	20 1 °C
8.2	tso	Solar pump running time	30	0	90	1	MIN

10 Start-up and configuration

Order number	Code State Default	Minimum Maximum				Setting interval	Unit
8.3 Solar_Type		Solar type, 0=NON, 1=Solar temp. sensor, 2=SL1SL2	0 0 2	1 /
8.4 AHS_Type		OF AHSDisable, 1=AHS with only heating, 2=AHS both heating and DHW	0 0 2	1 /
9.1 PR		Enable or disable auto restart, 1=Enable, 0=Disable	1 0 1	1 /
10.1		YES to restore factory parameter setting, NO to exit restoring factory parameter setting

The function description in the table below.

Previous No.	parameter value function
1.2 Mp		0 hot water priority
		1 space heating/cooling priority
		2 Preemtpy
1.3	T4L		if ambient temperature less than T4L, do not turn on heat pump, but can turn on backup heater or AHS
1.4	PUMP_TYPE		AC means internal water pump is alternating current; DC means internal water pump is PWM;
1.5	SB-PWMout		means PWM pump running speed when heat pump is standby mode in which the compressor shuts down because of getting a target temperature
1.6	RUN-PWMout		PWM pump must not operate below this speed when PWM pump is in speed adjustment
1.7	IP		heat pump address code in group controller
1.11	TE1		to activate temperature sensor mounted on top of buffer tank in cascade mode, but the function is for reserved.
1.12	TE2		to activate temperature sensor mounted on bottom of buffer tank in cascade mode, for reserved
1.13	TZ2		to activate Zone 2 inlet temperature sensor function to get a low zone 2 target water temperature
1.15	dTE		to activate Zone 2 inlet temperature sensor function to get a low zone 2 target water temperature
2.4	Teh		if ambient temperature is higher than Teh, heat pump can't turn on hot water tank heater automatically unless manully turn on tank heater.

10 Start-up and configuration

Previous No.	parameter value function
2.10 P_d_AUTO		NON	water tank pump always runs and doesn't stop unless manully turn off tank pump
		YES and P_d_TIME KEEP is NON	water tank pump runs for the time (set by t_p_d_on) and then off
		YES and P_d_TIME KEEP is YES	water tank pump runs by the cycle: on for the time (set by t_p_d_on) and then off for the time (set by t_p_d_off)
3.1	HEAT TEMP. AUTO ADJUST		to enable or disable adjusting the target water temperature by ambient temperature in heating mode
3.2 Hi_A			When T4 > Hi_A, the target temperature is judged according to SPTh-K, K= (T4-Hi_A)/2, and K does not exceed A (T4: ambient temp.)
3.3 Lo_A			When T4 < Lo_A, the target temperature is judged according to SPTh+K, K= (Lo_A-T4)/2, and K does not exceed A (SPTh is setting water temperature)
3.4 A			When Lo A≤T4≤Hi A, the target temperature is judged by SPTh
3.5	HIGH TEMP HEATOFF		enable or disable the function: don't turn on heat pump if ambient temperature is higher than T4h in heating mode
3.6 T4h
3.7 H-PUMP		0-State 1;1-State 2;2-State 3;3-State 4	When the unit switches off in cooling or heating mode, the running state of DC pump can be set by the wire controller:State 1: the cycle is to be on 1 minute at the minimum output (30%) first, and then off 3 minutes.State 2: the cycle is to be on 1 minute at the minimum output (30%) first, and then off 10 minutes.State 3: the cycle is to be on 2 minutes at the minimum output (30%) first, and then off 15 minutes.State 4 (default state): to keep running at the minimum output (30%).
3.12 t_T4_FRESH_H			the controller refresh the ambient temperature by the time interval (set by t_T4_FRESH_H) when use weather temperature curve function in heating mode
4.1 C-Pump to refer to the 3.9 H-PUMP
4.4 t_T4_FRESH_C			the controller refresh the ambient temperature by the time interval (set by t_T4_FRESH_H) when use weather temperature curve function in cooling mode

10 Start-up and configuration

Previous No.	parameter value function
6.2	SINGLE ZONE OPERATION SET	0=set water temp. (manually adjustment)1=set watertemp. (weather curve temp.)2=for reserved3=set room temp. (real weather curve temp.)	use it to set target temperature type when 6.1 ZONE TYPE = ONE (only one zone)
6.3	DUAL ZONE OPERATION SET	1)=0: Zone 1 and Zone 2 are both water temp. (manually adjustment)2)=1: Zone 1 is water temp. (manually adjustment); Zone 2 is water temp. (weather curve temp.)3)=2: for reserved4)=3: Zone 1 is water temp. (manually adjustment); Zone 2 is room temp. (real weather curve temp.)5)=4: Zone 1 is water temp. (real weather curve temp.); Zone 2 is water temp. (manually adjustment)6)=5: Zone 1 and Zone 2 are both weather curve temp.7)=6: for reserved8)=7: Zone 1 is weather curve temp.; Zone 2 is room temp. (real weather curve temp.).	use it to set target temperature type when 6.1 ZONE TYPE=TWO (two zones)

11 Test run and final checks

The installer is obliged to verify correct operation of unit after installation.

11.1 Final checks

Before switching on the unit, read following recommendations:

• When the complete installation and all necessary settings have been carried out, close all front panels of the unit and refit the unit cover.
• The service panel of the switch box may only be opened by a licensed electrician for maintenance purposes.

Note:

That during the first running period of the unit, required power input may be higher than stated on the nameplate of the unit. This phenomenon originates from the compressor that needs elapse of a 50 hours run in period before reaching smooth operation and stable power consumption.

In order to ensure optimal availability of the unit, a number of checks and inspections on the unit and the field wiring have to be carried out at regular intervals.

This maintenance needs to be carried out by your local technician.

A

Warning:

ELECTRIC SHOCK

• Before carrying out any maintenance or repairing activity, must switch off the power supply on the supply panel.
• Do not touch any live part for 10 minutes after the power supply is turned off.
• The crank heater of compressor may operate even in standby.
• Please note that some sections of the electric component box are hot.
• Forbid touch any conductive parts.
• Forbid rinse the unit. It may cause electric shock or fire.
  Forbid leave the unit unattended when service panel is removed.

The following checks must be performed at least once a year by qualified person.

• Water pressure

Check the water pressure, if it is below 1 bar, fill water to the system.

- Water filter

Clean the water filter.

• Water pressure relief valve

Check for correct operation of the pressure relief valve by turning the black knob on the valve counter-clockWise:

• If you do not hear a clacking sound, contact your local dealer.
• In case the water keeps running out of the unit, close both the water inlet and outlet shut-off valves first and then contact your local dealer.

• Pressure relief valve hose
Check that the pressure relief valve hose is positioned appropriately to drain the water.
• Backup heater vessel insulation cover
Check that the backup heater insulation cover is fastened tightly around the backup heater vessel.
- Domestic hot water tank pressure relief valve (field supply) Applies only to installations with a domestic hot water tank. Check for correct operation of the pressure relief valve on the domestic hot water tank.
• Domestic hot water tank booster heater

Applies only to installations with a domestic hot water tank. It is advisable to remove lime buildup on the booster heater to extend its life span, especially in regions with hard water. To do so, drain the domestic hot water tank, remove the booster heater from the domestic hot water tank and immerse in a bucket (or similar) with lime-removing product for 24 hours.

- Unit switch box

- Carry out a thorough visual inspection of the switch box and look for obvious defects such as loose connections or defective wiring.

12 Maintenance and service

- Check for correct operation of contactors with an ohm meter. All contacts of these contactors must be in open position.

• Use of glycol (Refer to 9.4.4 "Water circuit anti-freeze protection") Document the glycol concentration and the pH-valve in the system at least once a year.
• -A PH-valve below 8.0 indicates that a significant portion of the inhibitor has been depleted and that more inhibitor needs to be added.
• -When the PH-valve is below 7.0 then oxidation of the glycol occurred, the system should be drained and flushed thoroughly before severe damage occurs.

Make sure that the disposal of the glycol solution is done in accordance with relevant local laws and regulations.

13 Trouble shooting

This section provides useful information for diagnosing and correcting certain troubles which may occur in the unit.

This troubleshooting and related corrective actions may only be carried out by your local technician.

13.1 General guidelines

Before starting the troubleshooting procedure, carry out a thorough visual inspection of the unit and look for obvious defects such as loose connections or defective wiring.

Warning:

When carrying out an inspection on the switch box of the unit, always make sure that the main switch of the unit is switched off.

When a safety device was activated, stop the unit and find out why the safety device was activated before resetting it. Under no circumstances can safety devices be bridged or changed to a valve other than the factory setting. If the cause of the problem cannot be found, call your local dealer.

If the pressure relief valve is not working correctly and is to be replaced, always reconnect the flexible hose attached to the pressure relief valve to avoid water dripping out of the unit!

Note:

For problems related to the optional solar kit for domestic water heating, refer to the troubleshooting in the Installation and owner's manual for that kit.

13.2 General symptoms

Symptom 1: The unit is turned on but the unit is not heating or cooling as expected

Possible causes	Corrective action
The water flow is too low.	Check that all shut off valves of the water circuit are in the right position.Check if the water filter is plugged.Make sure there is no air in the water system.Check the water pressure.The water pressure must be >1 bar (water is cold).Make sure that the expansion vessel is not broken.Check that the resistance in the water circuit is not too high for the pump.
The water volume in the installation is too low.	Make sure that the water volume in the installation is above the minimum required valve (refer to "9.4.2 Water volume and sizing expansion vessels").

13 Trouble shooting

Symptom 2: Pump is making noise (cavitation)

Possible causes	Corrective action
There is air in the system.	Purge air.
Water pressure at pump inlet is too low.	Check the water pressure.The water pressure must be >1 bar (water is cold).Check that the expansion vessel is not broken.Check that the setting of the pre- pressure of the expansion vessel is correct (refer to “9.4.2” Water volume and sizing expansion vessels”).

Symptom 4: The water pressure relief valve leaks

Possible causes	Corrective action
Dirt is blocking the water pressure relief valve outlet.	Check for correct operation of the pressure relief valve by turning the red knob on the valve counter clockWise:If you do not hear a clacking sound, contact your local dealer.In case the water keeps running out of the unit, close both the water inlet and outlet shut-off valves first and then contact your local dealer.

Symptom 3: The water pressure relief valve opens

Possible causes	Corrective action
The expansion vessel is broken.	Replace the expansion vessel.
The filling water pressure in the installation is higher than 0.3MPa.	Make sure that the filling water pressure in the installation is about 0.10~0.20 MPa (refer to "9.4.2 Water volume and sizing expansion vessels").

13 Trouble shooting

13.3 Parameter view

This menu is for installer or service engineer reviewing the operation parameters.

At home page, go to "■> "PARAMETER VIEW".

Press "OK". There are twelve pages for the operating parameter as following. Use "▶", "◀", "▼", "▲" to scroll.

Press "▶" and "◀" to check slave units' operation parameter in cascade system. The address code in the upper right corner

PARAMETER VIEW	1/12
1 COMP. FREQUENCY	55Hz
2 EEV-1 OPEN	480STEP
3 AMBIENT TEMP. T4	30°C
4 OUT WATER TEMP. TB	30°C
5 DISCHARGE TEMP. TP	60°C

PARAMETER VIEW	2/12
6 SUCTION TEMP. TH	60°C
7 COIL TEMP. T3	50°C
8 LIQUID TEMP. T5	48°C
9 PWM PUMP	OFF
10 4-WAY VALVE	OFF

PARAMETER VIEW	3/12
11 AC FAN	OFF
12 SV1 STATUS	OFF
13 SV2 STATUS	OFF
14 IPH HEATER	OFF
15 TANK HEATER	OFF

PARAMETER VIEW	4/12
16 AC CURRENT	0.0A
17 INPUT VOLTAGE	225V
18 OIL RETURN	OFF
19 HP2	OFF
20 CHASSIS HEATER	OFF

PARAMETER VIEW	5/12
21 BUS VOLTAGE	0VDC
22 COMP.CURRENT	0.0A
23 PFC TEMP.	0°C
24 IPM TEMP.	0°C
25 DC FAN SPEED 1	770RPM

PARAMETER VIEW	6/12
26 DC FAN SPEED 2	0RPM
27 ECO. IN TEMP.	0°C
28 ECO. OUT TEMP.	0°C
29 TANK TEMP.	50°C
30 IN WATER TEMP.TA	30°C

PARAMETER VIEW	7/12
31 EEV-2 OPEN	OSTEP
32 I-PUMP OUTPUT	100%
33 LOW SAT. TEMP.	2°C
34 CRANKCASE HEATER	OFF
35 PLATE HEATER	OFF

PARAMETER VIEW	8/12
36 IN WATER PRE.	0.0bar
37 OUT WATER PRE.	2.0bar
38 WATER FLOW	0.0(m^3/h)
39 WATER FLOW PWM	100%
40 UNIT MODEL	4KW

PARAMETER VIEW	9/12
41 SV3	OFF
42 FINAL TEMP. TC	0°C
43 SOLAR TEMP. Tso	90°C
44 BUFFER TEMP. TE1	20°C
45 BUFFER TEMP. TE2	20°C

PARAMETER VIEW	10/12
46 MIX IN TEMP. TZ2	20°C
47 C-A CURVE TEMP.	8°C
48 H-A CURVE TEMP.	32°C
49 C-B CURVE TEMP.	10°C
50 H-B CURVE TEMP.	35°C

PARAMETER VIEW	11/12
51 AHS	OFF
52 P_d	OFF
53 P_o	OFF
54 B ZONE P_c	OFF
55 P_s	OFF

PARAMETER VIEW	12/12
56 SG	OFF
57 ROOM TEMP. Tro	31°C
58 SUC. PRESSURE	0kPa
59 GAS LEAKAGE RATE	0%

Note:

The flow rates parameters are calculated according to the pump running parameters, the deviation is different at different flow rates, the maximum of deviation is 15%. The flow parameters are calculated according to the electrical parameters of the pump operation.

For cascade application, after you select "PARAMETER VIEW" at home page, the screen will appear the page of selecting the module to be viewed:

Use four arrow keys to select the module and then press "OK" to go into "PARAMETER VIEW" menu. "MA." means master module, "SL." means slave module. Black arrow on the left of the module means the modules are online: one black arrow means the modules are online but currently not running, two black arrows means the modules are online and currently running. It's the online module that can be viewed the parameter.

PARAMETER VIEW Please select the module: ▶ MA.#0 SL.#1 ▶SL.#2 SL.#3 SL.#4 ▶SL.#5 SL.#6 SL.#7 OK

13.4 Error codes

When a safety device is activated, an error code (which does't include external failure) will be displayed on the user interface.

A list of all errors and corrective actions can be found in the table below.

Reset the safety by turning the unit OFF and back ON.

In case this procedure for resetting the safety is not successful, contact your local dealer.

Fault number	Fault name Failure analysis Diagnosis method Solution
P01	Water flow protection	1. Lack of water in water system.2. Water flow switch is fault.3. Water system is blocked.	1. Check whether the valve of water replenishing is off.2. Check whether the water flows witch is damage.3. Check whether the Y shape filter is blocked.	1. Open the valve.2. Change the water flows witch.3. Clean or change the filternet.
P02	High pressure protection	1. Water flow is over low.2. High pressure switch is fault.3. Refrigerant system is blocked.4. EXV is locked.	1. Check whether there is water shortage or insufficient pump flow;2. Check whether the high pressure switch is damage.3. Check whether the refrigerant system is blocked.4. Check whether there is EXV reset sound when the unit is standby, and power on or off.	1. Refill water or Add an additional water pump.2. Change high pressure switch.3. Change the filter of refrigerant system.4. Change the EXV.
P03	Low pressure protection	1. Lack of refrigerant.2. Refrigerant system is blocked3. The unit is not running in regulations operating condition.	1. Check whether the refrigerant system is leakage.2. Check whether the filter in refrigerant system is blocked.3. Check whether the outdoor ambient and the inlet water temperature is normal.	1. Repair the leakage point.2. Change the filter of refrigerant system.3. If the ambient temperature and water temperature is too high or low, the unit will stop.
P04	Condenser temperature over-heat protection	1. Airflow of outdoor fan is insufficient.2. Condenser is too dirty.3. The temperature sensor (T3) is fault.	1. Check whether there is any obstacle which is preventing the airflow.2. Check whether the condenser is too dirty.3. Check whether the condenser pipe temperature sensor (T3) is normal.	1. Clean the vents2. Clean the condenser.3. Replace the temperature sensor.
P05	Discharge temperature protection	1. Lack of refrigerant.2. Discharge temperature sensor is fault.	1. Check whether the refrigerant system is leakage.2. Check whether the discharge temperature sensor is normal.	1. Repair the leakage point.2. Replace the temperature sensor
Fault number	Fault name Failure analysis Diagnosis method Solution
P06	Anti-freezing protection of leaving water	1. Water flow is too low.2. Heat-exchanger is blocked.3. Y shape filter in water system is blocked.4. Load is too low.	1. Check whether there is some air in water circuit system.2. Check whether the heat-exchanger is blocked.3. Check whether the Y shape filter is blocked.4. Check whether the water circuit system is reasonable.	1. If there is a problem with the drain valve, replace it with a new one;2. Blow the plate heat exchanger with water or high-pressure gas in the opposite direction for cleaning;3. Clean the filter;4. The water circulation system must have a shunt.
P07	Anti-freezing protection of condenser pipe	1. Lack of refrigerant.2. Water circuit system is blocked.3. Refrigerant system is blocked.	1. Check for leaks in the system;2. Check whether Y shape filter is blocked.3. Check whether filter in refrigerant system is blocked.	1. Repair the leakage point.2. Clean the filter.3. Replace the filter
P08	Middle pressure protection	Middle pressure switch off	Check whether the middle pressure switch is open circuit, when turn off the unit.	Replace the middle pressure switch.
P10	Low pressure sensorprotection	1. Lack of refrigerant;2. The refrigeration system is blocked;3. Exceeding the scope of system work.	1. Check whether the system is leaking;2. Check if the filter net is blocked;3. Check whether the ambient temperature or water temperature exceeds the limit.	1. Repair the leak and refill the refrigerant;2. Replace the filter;3. Exceed the system working limit, can't run
P11 DC	Fan 1 failure	1. The fan is faulty or stuck;2. The main control board is faulty	1. Check whether the fan is stuck, or replace with a new fan;2. Replace the main control board	1. Check if the fan is stuck, or replace with a new fan;2. Replace the main control board
P13 4-way valve fault		1. Entering/leaving water temperature sensors are reversely inserted.2. 4-way valve is fault.3. PCB is fault.	1. Check whether the entering and leaving temperature sensors are reversely inserted.2. Check whether action of 4-way valve is normal.3. Check whether the sample temperature of motherboard is accurate	1. Correct the wrong place;2. Try to switch repeatedly to see if it works, if not, replace it;3. If it is wrong, replace it;
Fault number	Fault name Failure analysis Diagnosis method Solution
P21	DC pump is abnormal	The water pump is faulty or stuck;The system lacks water and is blocked;Main control board failure	Check whether the water pump is blocked, or replace with a new water pump;Check whether the system is short of water, whether it is blocked, and whether the valve is closed;Replace the main control board	Check if the water pump is blocked, or replace with a new water pump;Refill water or clean or replace the filter net and open the valve;Replace the main control board
P25	Outlet pressure sensor failure	The sensor connection line is open or short-circuited;Sensor failure;The main control board is faulty;	Use a multimeter to check whether the sensor and connection are abnormal;Replace the faulty sensor with a normal sensor to confirm whether it is normal;Replace the main control board and confirm whether it is normal	Repair the connecting wire and plug or replace the sensor;Replace the mother-board;
E01	Communication error of controller	The communication cable is disconnected;The wire controller is faulty;The main control board is faulty;	Check whether the communication cable is open or the plug is in poor contact;Confirm whether the wire controller is normal on a normal machine;Use a normal wire controller to confirm whether it is normal on the faulty machine;	Replace the communication cable or repair;Replace the line controller;Replace the main control board;
E02	TP exhaust temperature sensor failure	The sensor connection line is open or short-circuited;Sensor failure;The main control board is faulty;	Use a multimeter to check whether the sensor and connection are abnormal;Replace the faulty sensor with a normal sensor to confirm whether it is normal;Replace the main control board and confirm whether it is normal;	Repair the connecting wire and plug or replace the sensor;Replace the mother-board;
Fault number	Fault name Failure analysis Diagnosis method Solution
E03	T3 coil temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;
E04	T4 Ambient temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;2. Replace the main control board and confirm whether it is normal;
E05	T5 liquid pipe temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;
E06	TH return air temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board; 1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;
E07	TW water tank temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;
E08	T6 Inlet water temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;4.
E09	T7 outlet water temperature sensor failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. Main control board failure	1. Use a multimeter to check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board:3.
E10	Communication failure between main control board and drive board	1. The communication cable is disconnected;2. The main control board is faulty;3. The drive module is faulty;	1. Check whether the communication cable is open or the plug is in poor contact;2. Replace the main control board and confirm whether it is normal;3. Replace the drive board and confirm whether it is normal;	1. Replace or repair the communication cable;2. Replace the main control board;3. Replace the drive module;4.
E14	Low pressure sensor LPS failure	1. The sensor connection line is open or short-circuited;2. Sensor failure;3. The main control board is faulty;	1. Check whether the sensor and connection are abnormal;2. Replace the faulty sensor with a normal sensor to confirm whether it is normal;3. Replace the main control board and confirm whether it is normal;	1. Repair the connecting wire and plug or replace the sensor;2. Replace the mother-board;3.

13 Trouble shooting

Fault number	Fault name Failure analysis Diagnosis method Solution
E15	DC bus voltage is too low	Wiring error or IPM module failureCheck whether the wiring is wrong, reconnect the cable or replace the IPM module
E16	DC bus voltage is too high
E17	AC current protection (input current)
E18	IPM module is abnormal
E19 PFC abnormal

13 Trouble shooting

Fault number	Fault name Failure analysis Diagnosis method Solution
E20	Compressor failed to start	Wiring error or IPM module failureCheck whether the wiring is wrong, reconnect the cable or replace the IPM module
E21	Compressor phase loss
E22 IPM	Module reset
E23	Compressor over-current
E24	PFC module temperature is too high
E25	Current detection circuit failure
E26 Out of step
E27	PFC module temperature sensor is abnormal
E28	communication fail
E29	IPM module temperature is too high
E30	IPM module temperature sensor failure
E31 Reserved
E32 Reserved
E33 Reserved
E34	AC input voltage is abnormal
E35	Drive EEPROM error
E36 Power off reset
E37 Reserved
E38 Reserved

13 Trouble shooting

Fault number	Fault name Failure analysis Diagnosis method Solution
E49	TC error the final water temperature sensor	Wiring error or the sensor fault:Check whether the wiring is wrong, reconnect the cable;Replace the sensor.
E50	Solar temperature sensor Tso error
E51	The built-in temperature sensor Tro of the wire controller is faulty
E52	Zone 2 temperature sensor TZ2 error
E53	Up temperature sensor TE1 of buffer tank error
E54	Down temperature sensor TE2 of buffer tank error
E56	outlet water pressure sensor PS1error
E57	GAS SENSOR OFFLINE
E58	GAS SENSOR FAULT
E59	MODULE OFFLINE	For CASCADE application, there are communication errors between master module and slave modules, please check whether the wiring is correct.

14 Technical specifications

14.1 General

Model	1 phase
	GHPH-MM04	GHPH-MM06	GHPH-MM08	GHPH-MM10	GHPH-MM12	GHPH-MM14	GHPH-MM16
Nominal capacity Refer to the Technical Data
Weight
Net weight 78.5kg 80.5kg 82.5kg	99kg				108kg 1	24kg 124kg
Gross weight 93.5kg 95.5kg 96kg	114kg 1	23kg 142kg	142kg
Connections
water inlet/outlet 33mm
Water drain hose nipple
Expansion vessel
volume 5L
Maximum working pressure (MWP)	3 bar
Pump
Type	water cooled
No. of speed	Variable speed
Pressure relief valve water circuit	3 bar
Operation range - water side
heating	+12~+65°C
cooling	+5~+25°C
Operation range - air side
heating	-25 to 35°C
cooling	-5 to 43°C
domestic hot water by heat pump	-25 to 43°C

Technical specifications

14.2 Electrical specifications

Model GHPH-MM04 GHPH-MM06 GHPH-MM08 GHPH-MM10 GHPH-MM12 GHPH-MM14 GHPH-MM16

Power Supply 220-240V\~50Hz Standard unit Nominal Running Current See "9.7.4 Safety device requirement"

Backup heater Power Supply Nominal Running Current See "9.7.4 Safety device requirement"

14.3 General (3-Phase)

Model	3 phase12kW 14kW 16kW	Model	3 phase12kW 14kW 16kW
Nominal capacity Refer to the Technical Data		Operation range - air side
Weight		heating	-25 to 35°C
Net weight 115kg 140kg 140kg		cooling	-5 to 43°C
Gross weight 132kg 159kg 159kg		domestic hot water by heat pump	-25 to 43°C
Connections
water inlet/outlet 33mm
Water drain hose nipple
Expansion vessel
volume 5L
Maximum working pressure (MWP)	3 bar
Pump
Type water cooled
No. of speed	Variable speed
Pressure relief valve water circuit	3 bar
Operation range - water side
heating	+12~+65°C
cooling	+5~+25°C

14 Technical specifications

14.4 Electrical specifications (3-Phase)

Model 3-phase 10/12/14/16kW
Standard unit	Power Supply 380-415V~ 50Hz
	Nominal Running Current See "9.7.4" Safety device requirement"
Backup heater	Power Supply	See "9.7.4" Safety device requirement"
	Nominal Running Current

14.5 Energy rating label and Specification sheet

Energy rating label
GHPH-MM08 GHPH-MM10 GHPH-MM12

ENERG ENERGIE CVEPUEB IE IA GRUNDIG GHPH-MM08 55 °C 35 °C A*** A** A' A A++ A++ -- dB -- 7 -- 8 kW kW 60 dB 2019 811/2013

ENERG Y UA ENERG evergreen IE IA GRUNDIG 55 °C 35 °C A*** A** A' A B C D A++ A ++++ -- dB 60 dB 2019 8/11/2013

ENERG ekepris-evapycin IE IA GRUNDIG GHPH-MM12 55 °C 35 °C A** A** A' A A++ A++ -- dB 64 dB 2019 8/11/2013

14 Technical specifications

GHPH-MM14 GHPH-MM16

ENERG Y UA ENERG - 2019 IE IA GRUNDIG GHPH-MM16 55 °C 35 °C A*** A** A* B C D A++ A++ -- dB 68 dB 2019 8/11/2013

14 Technical specifications

Model name		GHPH-MM08	GHPH-MM10	GHPH-MM12	GHPH-MM14	GHPH-MM16
Refrigerant R32 R32 R32 R32 R32
Total Refrigerant Amount	g 1300 1500 1750 2100 2100
GWP 675 675 675 675 675 675
Equivalent CO 2	tonnes	0.878	1.013	1.181	1.417	1.417
PdesignC Capacity		7.6	9.4	11.4	13.5	15.5
PdesignH Capacity (for low-temperature application)		7.6	8.7 11.3	13.2	15
PdesignH Capacity (for medium-temperature application)		6.6	7.3 10.8	12.6	13
Cooling Capacity (Outdoor air temperature 35°C DB,24°C WB; EWT 23°C, LWT 18°C)	kW	8.2	10.0	11.9	14.1	15.7
EER (Outdoor air temperature 35°C DB,24°C WB; EWT 23°C, LWT 18°C)		4.65	4.14	4.36	4.56	3.90
Heating Capacity (Outdoor air temperature 7°C DB,6°CWB;EWT 30°C,LWT 35°C)	kW	8.1	10.1	12.0	14.5	16.0
COP (Outdoor air temperature 7°C DB,6°CWB; EWT 30°C, LWT 35°C)		4.50	4.83	4.57	4.84	4.59

14 Technical specifications

Heating Capacity(Outdoor air temperature 7°CDB,6°C WB;EWT 47°C,LWT 55°C)	kW 7.7	9.6	12.3	14.4	16.2
COP(Outdoor air temperature 7°CDB,6°CWB;EWT 47°C,LWT 55°C)			2.58	2.98	2.77	3.09	2.90
Rated Water Flow m	^3/h	1.38	1.72	2.06	2.41	2.75
Rated Air Flow m	^3/h	3350	4050	4050	4650	4650
Air Volume Of The Machine At Low Temperature Rated Condition	m^3/h	3350	4050	4050	4650	4650
Fan Input Power W 100	100	100	170	170
Rated Speed Of Fan rpm			795	825	825	825
Sound power level	dBA		60		60	64	65	68
Voltage/Frequency/Phase	V/Hz/Ph		220-240V~/50Hz/1 phase		220-240V~/50Hz/1 phase	220-240V~/50Hz/1 phase	220-240V~/50Hz/1 phase	220-240V~/50Hz/1 phase
Machine starting current	A		1.87	2.42	2.65	3.24	3.24
Cooling Rated Power Input	kW 3.7	4.3			5.5	5.9	6.8
Cooling Rated Current	A		16.1	18.7	23.9	25.6	29.5
Heating Rated Power Input(It relates to auxiliary electric heating power of 3kW)	kW 6.8	7.5			8.7	9.1	9.5
Heating Rated Current(It relates to auxiliary electric heating power current of 13.6A)	A		29.5	32.6	37.8	39.6	41.3

14 Technical specifications

Outlet water (Heating mode)	°C +25 ~ +65°C +25 ~ +65°C +25 ~ +65°C +25 ~ +65°C
Outlet water (Cooling mode)	°C +7 ~ +25°C +7 ~ +25°C +7 ~ +25°C +7 ~ +25°C
Domestic hot water °C	+25 ~ +60°C +25 ~ +60°C +25 ~ +60°C +25 ~ +60°C
Ambient temperature °C	-25 ~ +43°C -25 ~ +43°C -25 ~ +43°C -25 ~ +43°C
Max Water Pressure MPa 1.0 1.0 1.0 1.0
Rated Water Pressure	MPa 0.3 0.3 0.3 0.3
Operation Pressure (Low Side)	MPa 2.6 2.6 2.6 2.6
Operation Pressure (High Side)	MPa 4.5 4.5 4.5 4.5 4.5
Maximum Allowable Pressure	MPa 4.5 4.5 4.5 4.5 4.5
Waterproof Level		IPX4	IPX4	IPX4	IPX4	IPX4
Electric Shock Proof Grade		I	I	I	I	I
Water Side Connection Diameter	mm	33	33	33	33	33
Electric Heater Power Input	kW	3	3	3	3	3
Power Supply Cord Specification	mm^2	3G10 mm^2	3G10 mm^2	3G10 mm^2	3G10 mm^2	3G10 mm^2
Dimension (L×W×H)	mm	1125*370*703	1135*396*803	1135*396*803	1203*436*860	1203*436*860
Net Weight	kg	82.5	99	108	124	124
Water system capacity	L	7	7.2 7.4 7.7	7.7
Compressor oil type		FW68S	FW68S	FW68S	FW68S	FW68S

15 Information servicing

1) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Works shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. work in confined sapces shall be avoided. The area around the work space shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. no sparking, adequately sealed or intrinsically safe.

5) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be

available to hand. Have a dry power or CO_2 fire extinguisher adjacent to the charging area.

6) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repair- ing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. NO SMOKING signs shall be displayed.

7) Ventilated area

Ensure that the area is in the open or that it it adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants.

15 Information servicing

• The charge size is in accordance with the room size within which the refrigerant containing parts are installed.
• The ventilation machinery and outlets are operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being used, the secondary circuits shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible.
• Marking and signs that are illegible shall be corrected.
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, and adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

- That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.

• That there no live electrical components and wiring are exposed while charging, recovering or purging the system.
  • That there is continuity of earth bonding.

10) Repairs to sealed components

a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
b) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

• Ensure that apparatus is mounted securely.

- Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

Notes:

The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Instrinsically safe components do not have to be isolated prior to working on them.

11) Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

12) Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

13) Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

14) Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (- Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed or extinguished. If a leakage of refrigerat is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

15) Removal and evacuation

When breaking into the refrigerant circuit to make repairs of for any other purpose conventional procedures shall be used, However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

• Remove refrigerant;
  • Purge the circuit with inert gas;
• Evacuate;

15 Information servicing

• Purge again with inert gas;
- Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times.

Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.

When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place.

Ensure that the outlet for the vacuum pump is not closed to any ignition sources and there is ventilation available.

16) Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed:

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
  • Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with

refrigerant.

• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

17) Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerator sample shall be taken.

In case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically
c) Before attempting the procedure ensure that:

- Mechanical handling equipment is available, if required, for handling refrigerant cylinders.

- All personal protective equipment is available and being used correctly.

- The recovery process is supervised at all times by a competent person.

- Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from

15 Information servicing

various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80% volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

18) Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

19) Recovery

When removing refrigerant from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.

When tranferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct numbers of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and

labelled for that refrigerant (i.e special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order.

Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order.

Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to retruning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

15 Information servicing

Notes:

Only VC (VCL) compressor oil can be added.

20) Transportation, marking and storage for units

Transport of equipment containing flammable refrigerants Compliance with the transport regulations.

Marking of equipment using signs Compliance with local regulations.

Disposal of equipment using flammable refrigerants Compliance with national regulations.

Storage of equipment/appliances.

The storage of equipment should be in accordance with the manufacturer's instructions.

Storage of packed (unsold) equipment.

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

ANNEX A: Refrigerant cycle

15 Information servicing

ANNEX K:

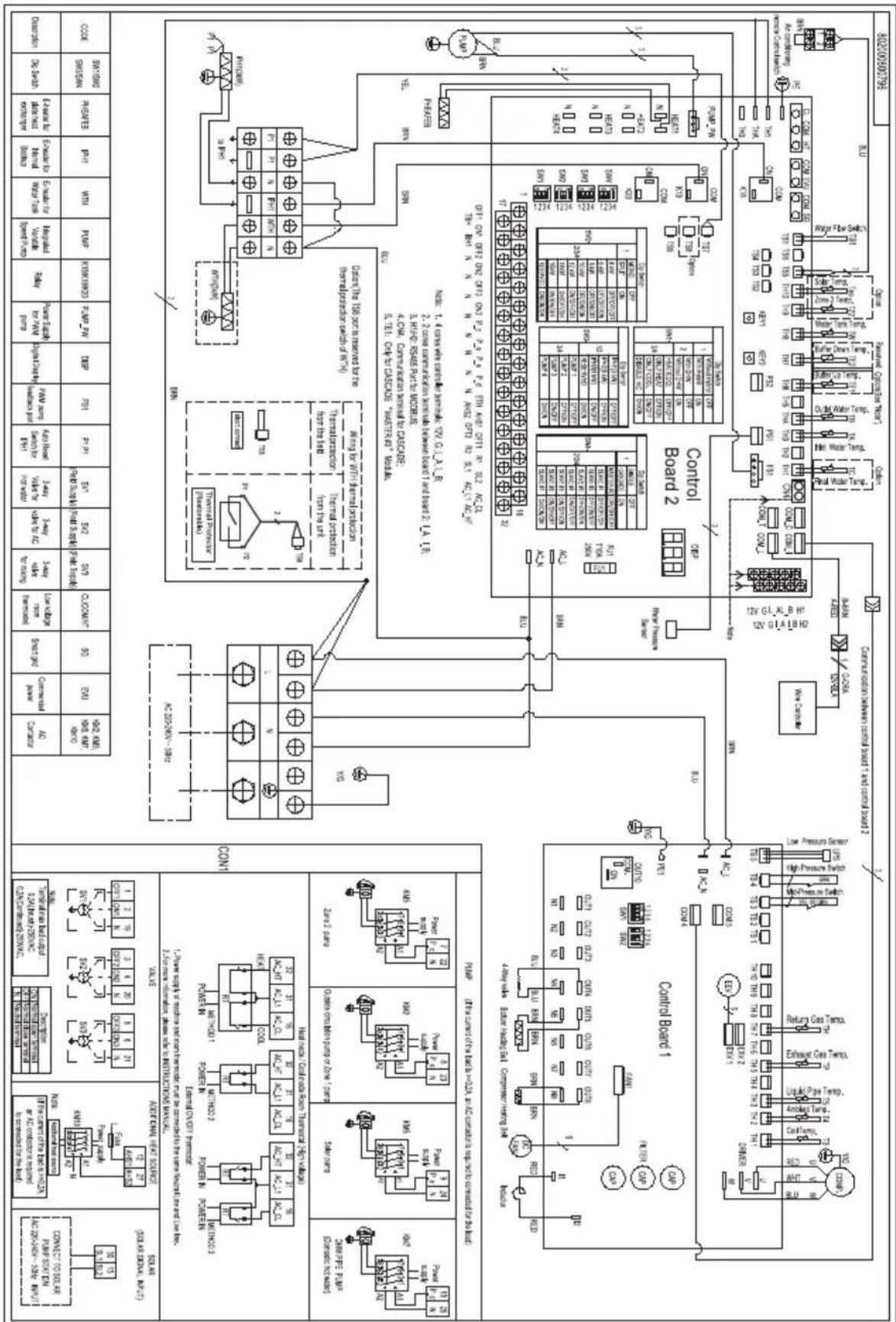

Electrical wiring diagram of the unit (GHPH-MM04, GHPH-MM06)

Electrical schematic diagram of a control board system with labeled components and wiring connections

15 Information servicing

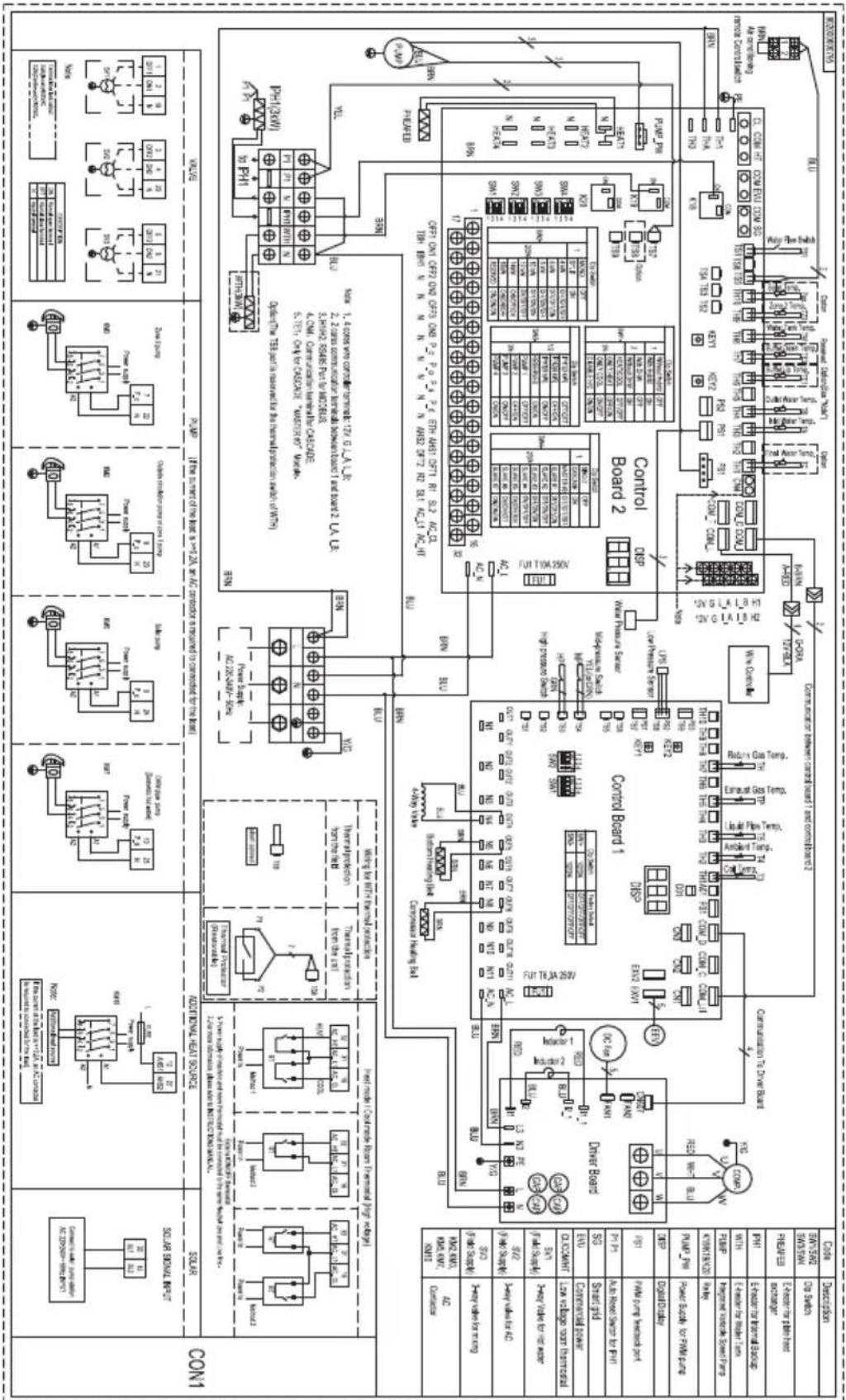

Electrical wiring diagram of the unit (GHPH-MM08, GHPH-MM10, GHPH-MM12)

Electrical schematic diagram of a control panel system with labeled components and wiring connections

15 Information servicing

ANNEX K:

Electrical wiring diagram of the unit (GHPH-MM14, GHPH-MM16)

Electrical schematic diagram of a power system with labeled components, wiring, and connections for control panel and board.

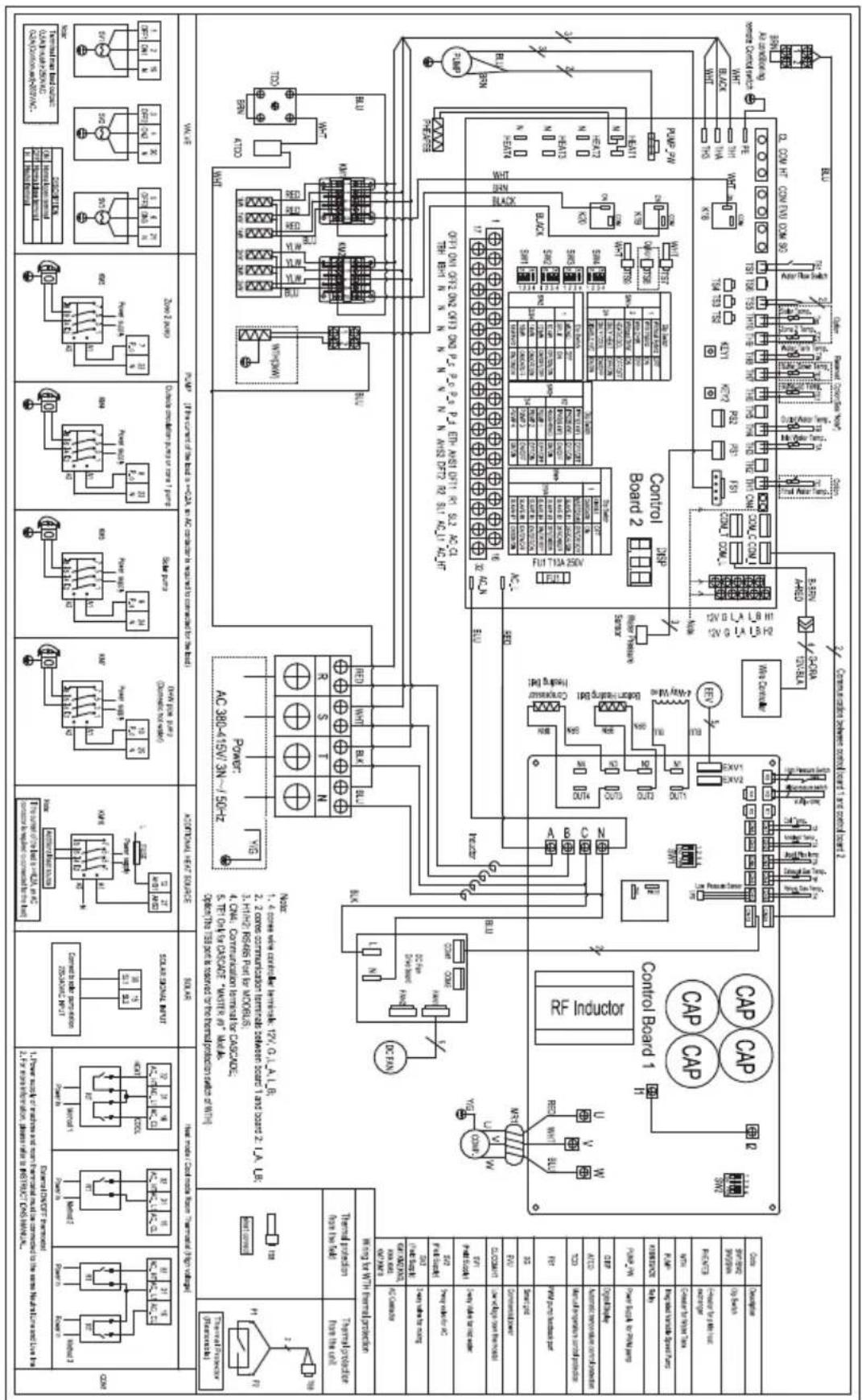

Electrical wiring diagram of the unit (3-phase 10\~16kW)

AC 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99. 100. CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPL) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) (LFG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER (LPG) (LPG) (LPG) (LPG) (LPG) (LPG) CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER CONJAL POWER

16 European disposal guidelines

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment, Do not dispose of this product as household waste or unsorted municipal waste.

When disposing of this appliance, you have the following options:

• Dispose of the appliance at designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.

Special notice: Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

17 F-Gas instruction

This product contains fluorinated greenhouse gases.

The fluorinated greenhouse gases are contained in hermetically sealed equipment.

Installs, services, maintains, repairs, checks for leaks or decommissions equipment and product recycling should be carried out by natural persons that hold relevant certificates.

If the system has a leakage detection system installed, leakage checks should be performed at least every 12 months, make sure system operate properly.

If product must be performed leakage checks, it should specify Inspection cycle, establish and save records of leakage checks.

For hermetically sealed equipment, portable air conditioner, window air conditioner and dehumidifier, if CO_2 equivalent of fluorinated greenhouse gases is less than 10 tonnes, it should not perform leakage checks.

Warning sign depicting a flame symbol in a triangular shape

Front view of a computer monitor with a black screen and dashed lines, no visible text or symbols on the screen or surroundings.

GHPH-MM04
GHPH-MM06
GHPH-MM08

Pure electrical circuit lines without any symbols

GHPH-MM10
GHPH-MM12

Front view of a computer monitor with a grid of vertical bars on the left side (no visible text or symbols)

GHPH-MM14
GHPH-MM16

Pure electrical circuit lines without any symbols

4/6/8 kW

Pure mechanical component diagram with no text, numbers, or symbols

10/12 kW

Pure diagram of a rectangular frame with a patterned internal structure, no text or symbols present.

14/16 kW

Technical diagram of a rectangular panel with vertical slats and a side view labeled A and B (no text or symbols beyond labels)

Line drawing of a white industrial enclosure with a black panel, set against a brick wall (no text or symbols)

Unité A (mm)
4~16 kW ≥300

Technical line drawing of a modular storage unit mounted on a brick wall, showing internal vertical supports and mounting feet (no text or symbols)

Unité B (mm)
4~6 kW ≥1000
8~16 kW ≥1500

Line drawing of a rectangular industrial machine with a black panel and control panel (no text or symbols)

Simple line drawing of a house with a hanging box and a cross symbol (no text or labels)

Technical diagram of a solar panel installation with labeled components 1 and 2

Diagram of a window with vertical slats and a horizontal hatched base, no text or symbols present

≥500mm ≥200mm A

≥500mm ≥200mm ≥300mm

<1/2 H B2 A C H1

Unité A (mm) B1 (mm) B2 (mm)			C (mm)
4~12 kW ≥2500 ≥1000			≥300 ≥600
14~16 kW ≥3000 ≥1500

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of an industrial piping system with numbered components for identification

Technical schematic diagram of a mechanical device with labeled components and numbered parts

Technical diagram of an industrial machine with numbered components for identification

Technical schematic diagram of an industrial machine with numbered components for identification

Technical diagram of an industrial machine with numbered components for identification

Diagram of a room with a monitor, ladder, and air flow system (no text or symbols)

Remarque :

Technical line drawing of a mechanical assembly with rollers and shafts (no text or symbols)

Remarques :

Technical line drawing of a mechanical assembly with pipes and housing (no text or symbols)

Remarques :

Technical diagram of a device with numbered components, showing front and side views with labeled parts 1 and 2.

Simple icon of two cylindrical objects inside a container with a checkmark (no text or symbols)

Simple diagram of a device with two cylindrical components and a cross symbol (no text or labels)

Simple diagram of a roof structure with circular openings and a cross symbol (no text or labels)

L N FUSE LPS L N

UNIT POWER SUPPLY (ALIMENTATION DE L'APPAREIL) monophasé

FUSE LPS LN

UNIT POWER SUPPLY (ALIMENTATION DE L'APPAREIL) monophasé

R S T N R S T N

UNIT POWER SUPPLY (ALIMENTATION DE L'APPAREIL) triphasée

Remarques :

Diagram of a yellow cable or pipe connecting a grid structure with a hook, no text or symbols present

FUNCTION PARAMETER SET Please input the password: * * * *

3	HEAT MODE	4/4
3.16	SPTch_set2	28°C

10.5.4 COOL MODE SETTING (RÉGLAGE DU MODE REFROIDISSEMENT)

10 RESTORE FACTORY SET All the settings will come back to factory default. Do you want to restore factory settings? NO YES OK

PARAMETER VIEW Please select the module: ▶ MA.#0 SL.#1 ▶SL.#2 SL.#3 SL.#4 ▶SL.#5 SL.#6 SL.#7 OK

13.4 Codes d'erreur

Electrical schematic diagram of a control board system with labeled components and wiring connections

Electrical schematic diagram of a control panel system with labeled components and wiring connections

ANNEXE K :

Electrical schematic diagram of a power system with labeled components, wiring, and connections for control panel and board.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
