USER MANUAL MFW7020RW MAYTAG

FRONT LOAD WASHER OWNER'S MANUAL MANUEL DE L'UTILISATEUR DE LA LAVEUSE À CHARGEMENT FRONTAL

Table of Contents/Table des matières

WASHER SAFETY 2

CHOOSING THE RIGHT DETERGENT....4

Choosing the Right Detergent....4

Adding Laundry Products 4

WASHER MAINTENANCE AND CARE ....5

Cleaning the Washer Location 5

Water Inlet Hoses 5

Washer Care....5

Clean Washer Cycle Reminder 7

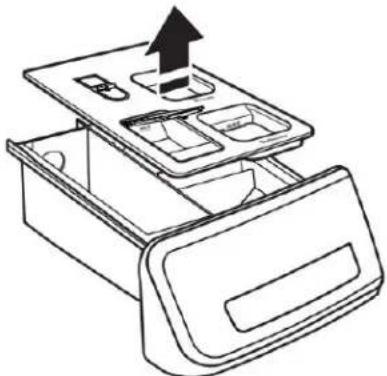

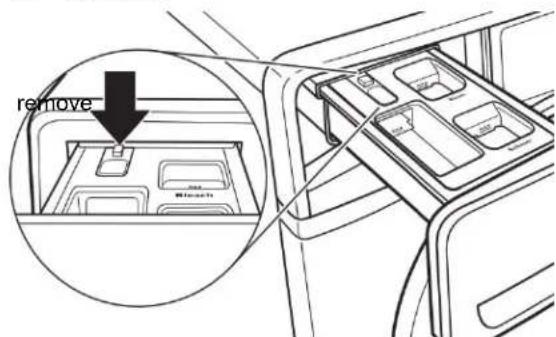

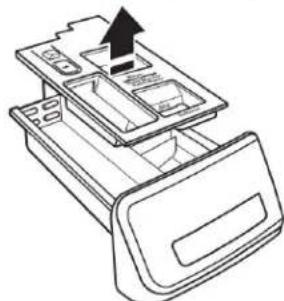

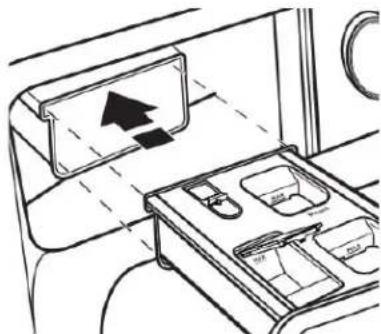

Removing the Dispenser 7

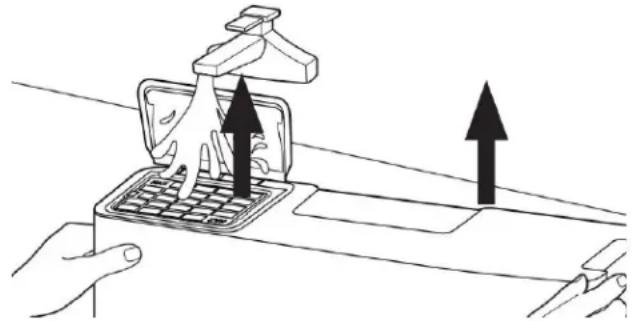

Cleaning Load & Go™ Containers (on some models)

Nonuse and Vacation Care 8

Winter Storage Care....8

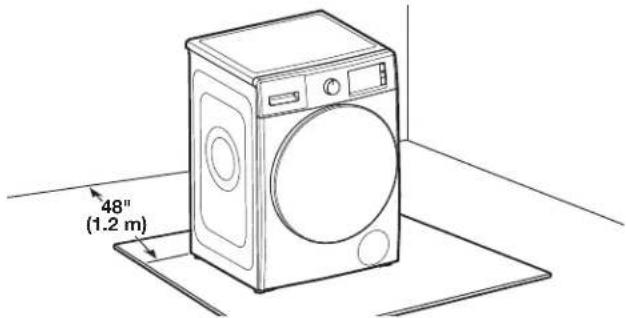

Transporting Your Washer 8

Reinstalling/Using Washer Again......8

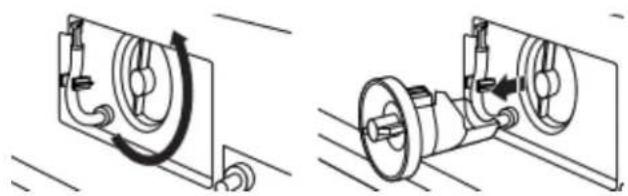

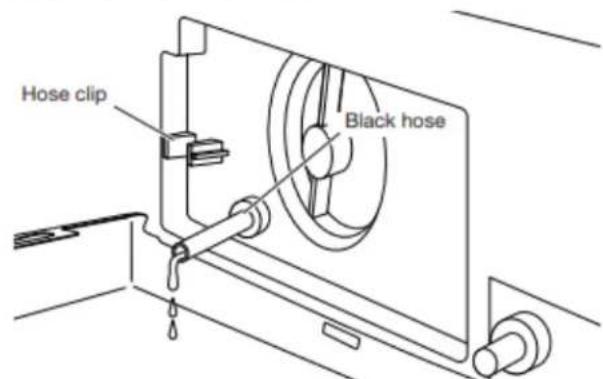

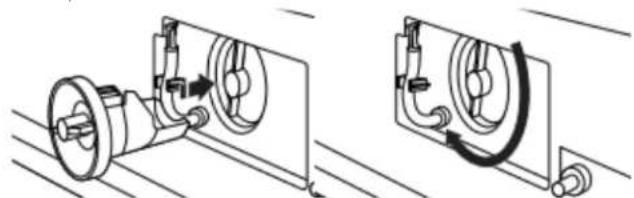

Cleaning the Drain Pump/Draining Residual Water (on models) 9

Additional Cleaning 9

INSTALLATION INSTRUCTIONS 10

REQUIREMENTS.... 10

Tools and Parts 10

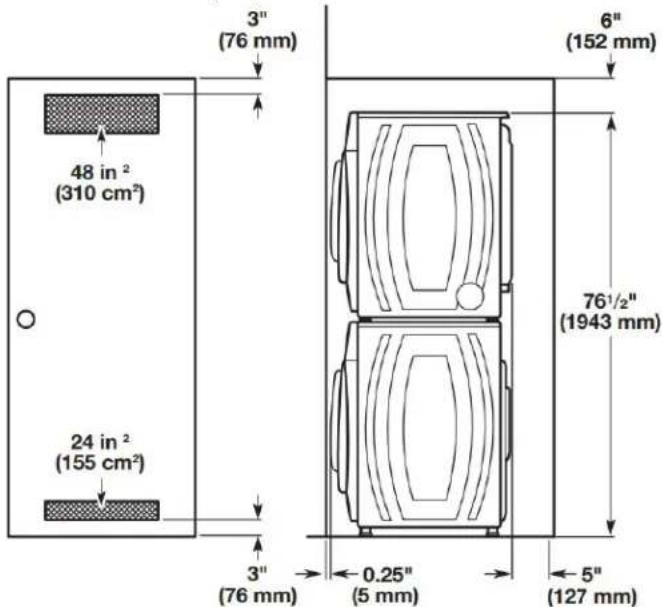

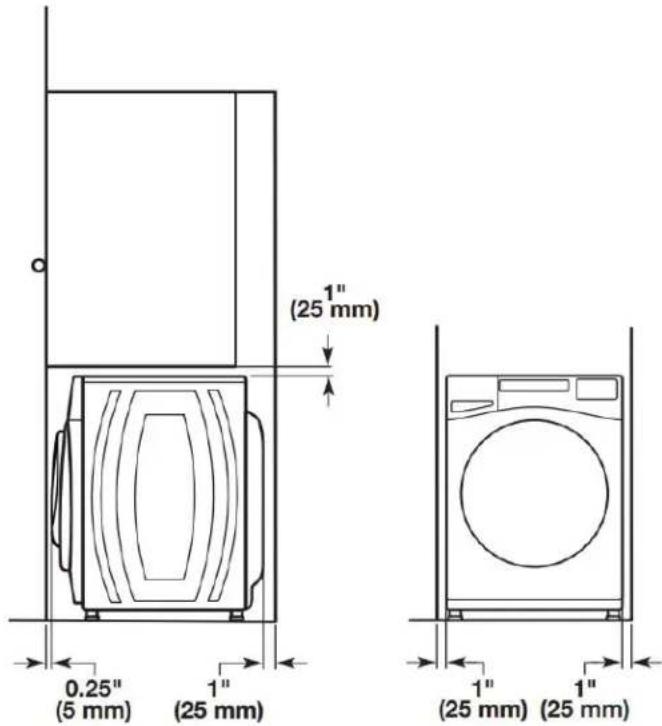

Location Requirements 10

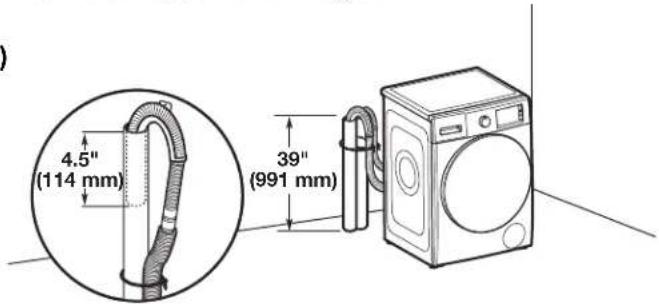

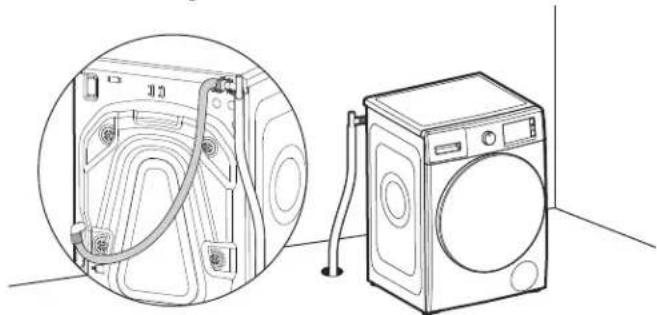

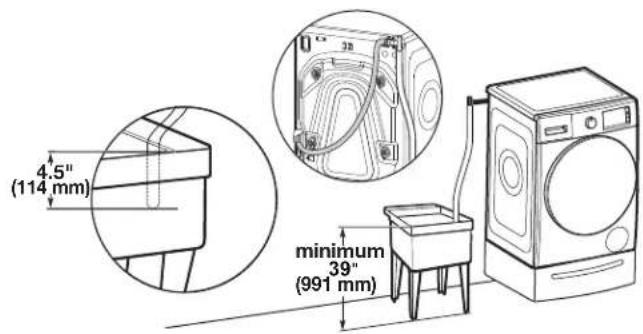

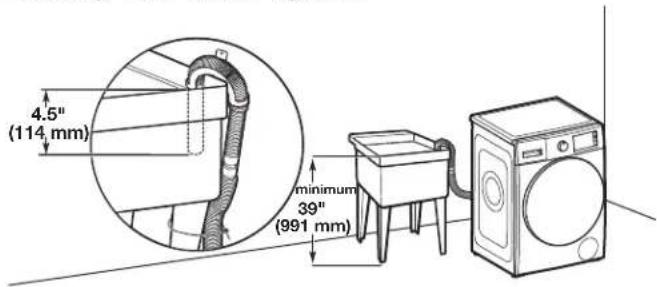

Drain System 11

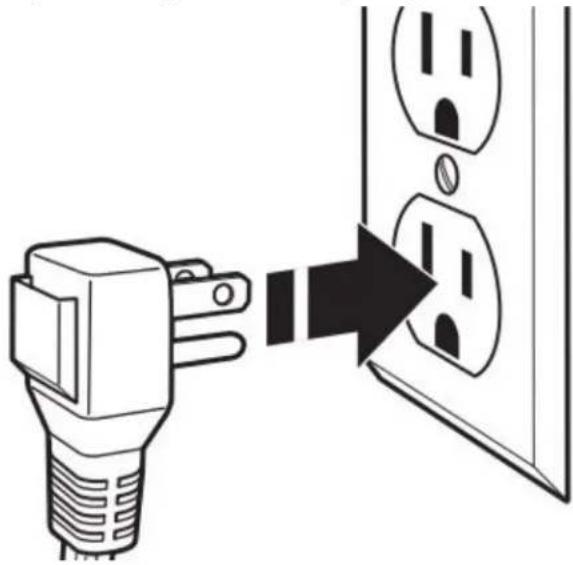

Electrical Requirements 12

INSTALLATION 13

Unpacking.... 13

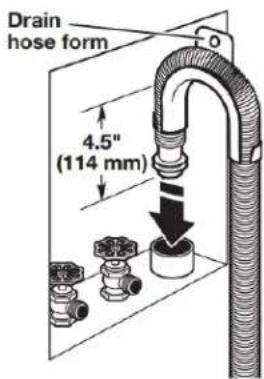

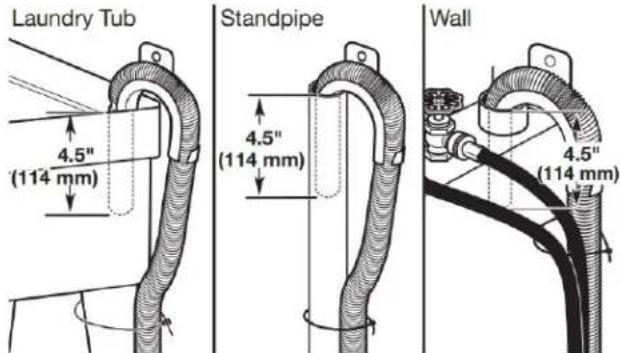

Connect Drain Hose 13

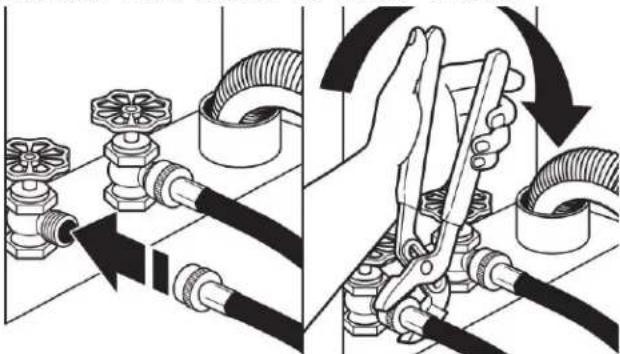

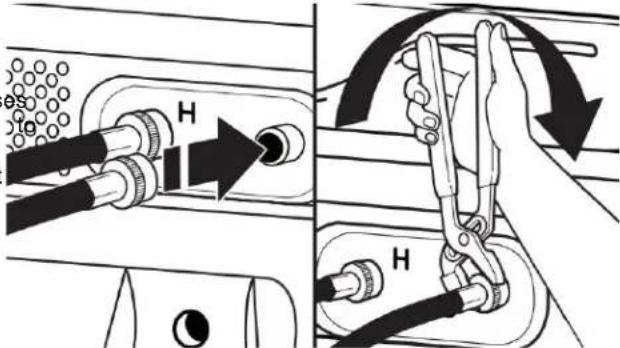

Connect Inlet Hoses 14

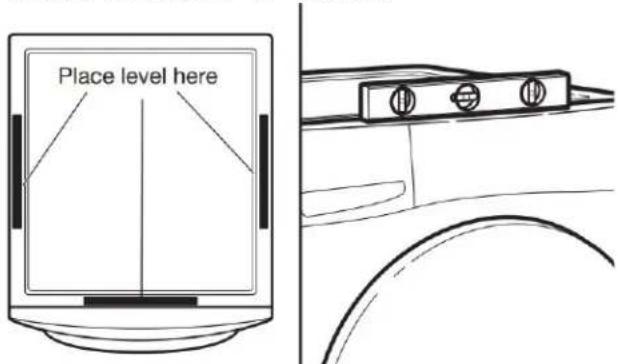

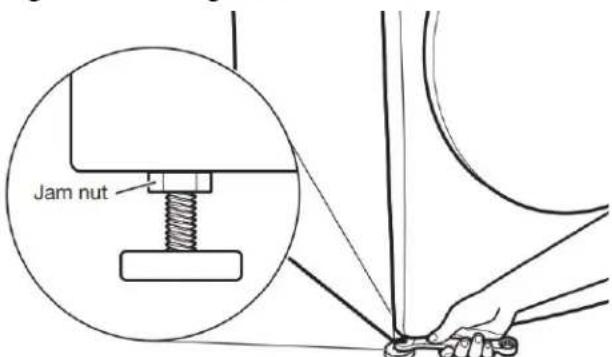

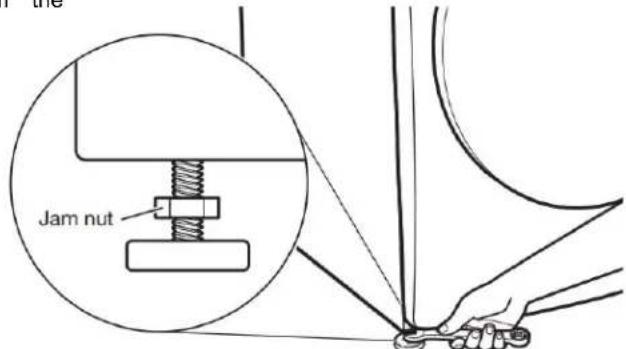

Level Washer 15

Complete Installation Checklist 16

SÉCURITÉ DE LA LAVEUSE 17

CHOIX DU DÉTERGENT APPROPRIÉ 19

CHOIX DU DÉTERGENT APPROPRIÉ 19

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

■ Read all instructions before using the appliance. ■ Before the appliance is removed from service or discarded
■ Do not wash articles that have been previously cleaned remove the door. washed in, soaked in, or spotted with gasoline, dry-cleaning not reach into the appliance if the tub or agitator is solvents, or other flammable or explosive substances, asmoving.

they give off vapors that could ignite or explode.

■ Do not install or store this appliance where it will be exposed to the weather.

■ Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. ■ Do not tamper with controls. These substances give off vapors that could ignite or ■ Do not repair or replace any part of the appliance or explode.

■ Under certain conditions, hydrogen gas may be produced maintenance instructions or in published user-repair in a hot-water system that has not been used for 2 instructions that you understand and have the skills to c more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water out. system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the recommended by the manufacturer (e.g. parts made at water flow from each for several minutes. This will release home using a 3D printer). any accumulated hydrogen gas. As the gas is flammable do not smoke or use an open flame during this time. See the Installation Instructions for grounding requirements and installation.

■ Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

SAVE THESE INSTRUCTIONS

WARNING

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the thermostat bracket while the appliance is energized.

Internet Connectivity Guide for Connected Appliances Only

IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the installation instructions that came with your appliance.

Connectivity requires Wi-Fi and account creation. App features and functionality are subject to change. Data rates may apply. Once installed, launch the app. You will be guided through the steps to set up a user account and to connect your app

You Will Need:

A home wireless router supporting Wi-Fi, 2.4 Ghz with WPA2 security. If you are unsure of your router's capabilities, refer to the router manufacturer's instructions.
■ The router to be on and have a live internet connection.
■ The 10-character SAID code for your appliance. The SAID code is either printed on a label on the appliance or found on the LCD screen.

Federal Communications Commission (FCC) Compliance Notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
   Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Industry Canada (IC) Compliance Notice

This Device complies with Industry Canada License-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
   Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

To comply with FCC and Industry Canada RF radiation exposure limits for general population, antenna(s) used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and

■ Connect the equipment into an outlet on a circuit different receiver, to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

CHOOSING THE RIGHT DETERGENT

Use only High Efficiency detergents. The package will be "HE" or "High Efficiency." Low-water washing creates excess sudsing with a non-HE detergent. Using non-HE detergent likely result in longer cycle times and reduced rinsing performance. It may also result in component failure and, time, buildup of mold or mildew. HE detergents should be sudsing and quick-dispersing to produce the right amount for the best performance. They should hold soil in suspe is not redeposited onto clean clothes. Not all detergents as High Efficiency are identical in formulation and their a reduce suds. For example, natural, organic, or homemade detergents may generate a high level of suds. If you use

these and see an "Sd" or "Sud" error code appear in IMPORTANT: Do not overfill, dilute, or use more than the consider using a different HE detergent. Always follow the manufacturer-recommended quantity of fabric softener. Do not detergent manufacturer's instructions to determine the amount of the "MAX" line. Overfilling dispenser will cause fabric so detergent to use. Do not go over the Max line on the dispensately dispense into washer.

Adding Laundry Products

Adding HE detergent to basket:

Single-dose laundry packets, Oxi-type boosters, color-safe bleach, or scented crystals can be added to the drum prior to adding laundry. When using single-dose laundry packets, make sure that the bulk dispenser is disabled (on some models) or off.

NOTE: Follow the manufacturer's instructions to determine amount of laundry products to use.

Adding liquid chlorine bleach to single-load dispenser:

Add liquid chlorine bleach to the bleach compartment. Do not overfill, dilute, or use more than 2/3 cup (165 mL). Do not use color-safe bleach or Oxi in the same cycle with liquid chlorine bleach.

Diagram showing a hand pouring liquid into a container, with partial text labels visible on the left.

IMPORTANT:

■ Always measure liquid chlorine bleach. Use a measuring of laundry.
with a pour spout; do not guess.
■ Do not fill beyond the "MAX" line. Overfilling could catch a fine fill bulk dispensers (on some models): garment damage.
■ Do not use thickened, easy-pour, or no-splash bleach when running the Clean Washer with® afflesh as excess suds may occur.
■ On some models: Do not add liquid chlorine bleach to the bulk dispenser.
■ Slowly close dispenser drawers. Make sure the drawers are closed completely (on some models).

Adding liquid fabric softener to single-load dispenser:

Pour a measured amount of liquid fabric softener into liquid fabric softener compartment.

Always follow manufacturer's will directions for correct amount of fabric softener, based on over load size. Disable the 1

e_Liter^Load &TM Gdispenser if of suds not used to dispense

nsion, so it detergent (on some models). labeled

District to softener is always dispensed in the last rinse, even Extra Rinse is selected.
se one of

IMPORTANT: Do not overfill, dilute, or use more than the manufacturer-recommended quantity of fabric softener. Do not impact of the "MAX" line. Overfilling dispenser will cause fabric so that dispenseately dispense into washer.

■ Do not spill or drip any fabric softener onto the clothes.
■ Do not use liquid fabric softener dispenser balls in this w They will not dispense correctly.
■ Do not use fabric softener sheets, as they can stain the

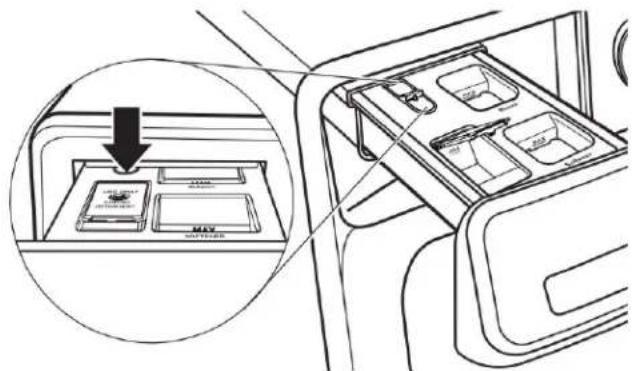

Adding HE detergent to Optimal Dispense Drawer (on some models):

This compartment holds up to -14.3 oz (424 ml) of liquid HE detergent allowing you to avoid having to refill detergent for each load. Also, this

will use just the right amount of detergent required for a particular load/cycle.

NOTE: Do not add single-dose laundry packets, Oxi-type boosters, color-safe bleach, or fabric softener crystals to dispensers. They will not dispense correctly. The Optimal Dispense Drawer cannot be disabled.

Adding HE detergent to Load &TMGo dispenser (on some models):

Use only High Efficiency (HE) liquid detergents. The bulk dispensers will hold about 67.6 oz (2 L) or 33.8 oz (1 L) HE detergent, depending on dispenser, or enough for many

Line drawing of a hand pressing down on a car rear panel (no text or symbols)

Open the dispenser drawer by pulling on the handle at the the washer. If desired, the drawer can be completely removed from the washer.

Locate the Load & Bulk dispenser. Gently pull up on the tab located on the bulk lid to lift the fill door.

Fill to the "MAX" line (see illustrations at right) with HE liquid detergent or liquid fabric softener (1 liter dispenser only). Close fill door. It will click into place. Make sure the concentration setting is correct (see the online "Cycle Guide"). It is recommended that you rinse out the Load & Go™ containers when refilling, when changing detergent types or concentrations, or when the washer will not be used for an extended period. For instructions on cleaning the dispenser cartridge, see "Washer Care" in the "Washer Maintenance and Care" section of your Owner's Manual.

Adding HE detergent to single-load dispenser:

Pour a measured amount of HE detergent into detergent compartment. For powdered detergent, lift the selector to the high position. For liquid detergent, push down the selector to the low position.

Do not overfill; adding too much detergent may cause to be dispensed into the washer too early.

IMPORTANT:

■ Disable the Load &™ Option before starting a single load (on some models). The Optimal Dispense Drawer cannot be disabled.
■ Do not add single-dose laundry packet to dispenser

Powdered detergent: Liquid detergent:

Lift the selector to the high push down the selector to position. Add directly to throw position. Add directly to compartment. the compartment.

NOTE: Unless the Optimal Dispense Drawer is empty, it recommended to use powdered detergent.

WASHER MAINTENANCE AND CARE

Cleaning the Washer Location

Keep washer area clear and free from items that would blow airflow. This includes clearing piles of laundry in front of the washer.

Water Inlet Hoses

Replace inlet hoses after 5 years of use to reduce the risl failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found.

When replacing your inlet hoses:

■ Mark the date of replacement on the label with a permal marker.
- Check that the old washers are not stuck on the washer valves.
■ Use new washers in the new inlet hoses to ensure a p seal.

Washer Care

Recommendations to Help Keep Your Washer Clean and Performing at Its Best

1. Always use High Efficiency (HE) detergents and follow the bad detergent manufacturer's instructions regarding the amount of the detergent to use. Do not use more than the recom amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which, in turn, may result in undesirable odor.

2. Use warm or hot water washes sometimes (not exclusively cold water washes), because they do a better job of controlling the rate at which soils and detergent accumula

3. Always leave the washer door open between uses to help out the washer and avoid the buildup of odor-causing re:
4. Periodically clean residue from all interior surfaces of the window. For better care, wipe the entire inside of the d-a damp cloth.

Cleaning Your Front-Loading Washer

Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer.

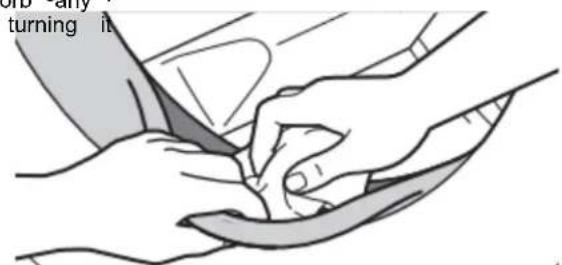

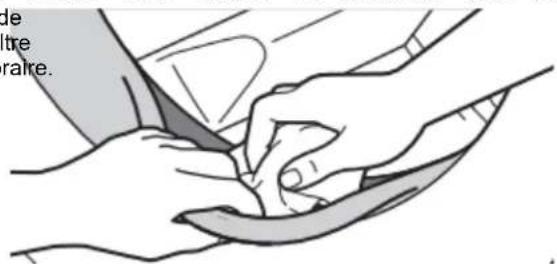

Cleaning the Door Seal

1. Open the washer door and remove any clothing or items the washer.

2. Inspect the gray-colored seal between the door opening and the drum for stained areas, soil buildup, or lint. Pull back seal to inspect all areas under the seal and to check foreign objects or lint.

3. If stained areas, soil buildup, or lint are found, wipe 2do@chlorine Bleach Procedure:

these areas of the seal using either of the following two procedures: a. Open the washer door and remove any clothing or it b. Open the dispenser drawer and add liquid chlorine ble

a. Affresh® Machine Cleaning Wipes Procedure:

romanNum.When the cycle is complete, gently the rubber door seal and clean the entire the textured side of an® Mreshme Cleaning Wipe.

b. Dilute Liquid Chlorine Bleach Procedure:

romanNum.Mix a dilute bleach solution, using 3/4 cc (177 mL) of liquid chlorine bleach and 1 gallon of warm tap water.

romanNum.Wipe the seal area with the dilute solution, using a damp cloth.

romanNum.Let stand 5 minutes.

romanNum.Wipe down area thoroughly with a dry cloth and let washer interior air dry with door open.

IMPORTANT:

■ Wear rubber gloves when cleaning with bleach.

■ Refer to the bleach manufacturer's instructions for proper use.

1. Open the washer door and remove any clothing or it

b. Open the dispenser drawer and add liquid chlorine ble to the Max level in both the bleach compartment and

black fabric softener compartment. Either traditional or HE with chlorine bleach can be used.

IMPORTANT: Do not use thickened, easy-pour, or no-splash bleach as excess suds may occur.

NOTE: Use of more liquid chlorine bleach than is

recommended above could cause washer damage over tim

(3.8) Close the washer door and the dispenser drawer.

d. Do not add any detergent or other chemicals to the washer when following this procedure.

e. Select the Clean Washer with ^® affosh

f. On some models: Select the FanF®/TsimbleFresh™/

th Fresh HoldFresh Spin™ option to help dry the washer interior after the cycle is complete.

NOTE: The washer remembers your last option selection a will use it for future wash cycles until you deselect that

- Touch and hold Start/Pause to begin the cycle. See "Description of Clean Washer with © affresh Operation" section.

NOTE: For best results, do not interrupt cycle.

volumes in

Description of Clean Washer with affreCycle Operation

Cleaning the Inside of the Washer

This washer has a special cycle that uses higher water combination with affres Washer Cleaner or regular liquid chlorine bleach to thoroughly clean the inside of the wa Steam washer models also utilize steam to enhance clea this special cycle.

IMPORTANT: Do not use thickened, easy-pour, or no-splash bleach when running the Clean Washer with biceffresh excess suds may occur.

NOTE: Read these instructions completely before beginning the cleaning process.

Begin Procedure

1. Clean Washer with affreshCycle Procedure (Recommended for best performance):

a. Open the washer door and remove any clothing or
b. Use an affres machine Cleaning Wipe or a soft, dam cloth or sponge to clean the inside door window.
c. Add an affres Washer Cleaner tablet to the washer drum.
d. Do not add the air/washer Cleaner tablet to the dispenser drawer.
e. Do not add any detergent or other chemical to when following this procedure.
f. Close the washer door.
g. Select the Clean Washer with ^® afflesh
h. On some models: Select the FanFreshbleFresh™/Fresh HotFresh Spin™ option to help dry the interior after the cycle is complete.

NOTE: The washer remembers your last option select will use it for future wash cycles until you deselect

i. Touch and hold Start/Pause to begin the cycle. "Description of Clean Washer with ^ Fresh Operation" section.

1. The Clean Washer with affinity will determine whether clothing or other items are in the washer.
2. If no items are detected in the washer, it will proceed a cycle.

a. If any items are detected in the washer, "rL" (remove load) will be displayed. The door will unlock. Open washer and remove any garments from the washer dr b. Touch Power to clear the "rL" code.

c. Touch and hold Start/Pause to restart the cycle.

1. Steam models only: During the first 20 minutes of the cycle, it will activate the steamer but the drum will not spin or water. You may see condensation on the door window d

this initial phase. If you are using® WashafreCleaner tablet, it will not dissolve completely during the steam ph This is normal.

After the cycle is complete, leave the door open slightly allow for better ventilation and drying of the washer inter

Cleaning the Dispensers

After a period of using your washer, you may find some buildup in the washer's dispensers.

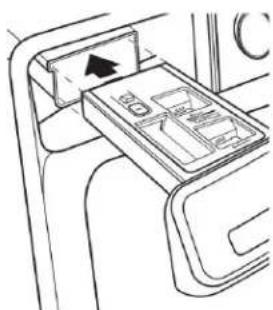

For the Single-Load or Optimal dispenser: Remove the drawer and wipe the surfaces with an Mafrish Cleaning Wipe or

washedamp cloth, and towel dry either before or after you run Clean Washer with affresble. Use an all-purpose surface

pleanned, if needed.

that option For the Load & Godispenser: Lift the handle on the dispenser

Sehousing and pull to remove it from the washer cabinet; then the dispenser thoroughly with running water. Wipe the outside dispenser surface with an air machine Cleaning Wipe or a damp cloth, and towel dry. Use an all-purpose surface clean needed.

Replace the dispenser in the washer cabinet and make sure is correctly seated.

IMPORTANT: Dispensers are not dishwasher-safe.

Cleaning the Outside of the Washer

IMPORTANT: To avoid damaging the washer's finish, do abrasive products.

Use an affresh machine Cleaning Wipe or a soft, damp cloth of sponge to wipe up any spills. Occasionally wipe the outside of your washer to help keep it looking new. Use machineaffresh Cleaning Wipe or mild soap and water.

Clean Washer Cycle Reminder

NOTE: Not all models have the Clean Washer® withle affresh reminder light.

The Clean Washer with affressage will flash at the end of a wash cycle when the washer has run 30 wash cycles. This is a reminder to run the Clean Washer with bycliffresh

If the Clean Washer with®efreshis not run, the message will stop flashing at the end of a wash cycle after running three more regular wash cycles. After 30 more wash cycles are completed, the Clean Washer with®afmessage will again flash at the end of a wash cycle as a reminder.

Removing the Dispenser

Optimal Dispenser Drawer (on some models)

To remove:

1. Pull dispenser drawer out until it stops.

2. Press down on the release tab and pull straight out to the dispenser.

Diagram showing a car interior with a zoomed-in view of the main panel, highlighting a component labeled 'MAX METHENS' and an arrow pointing to it.

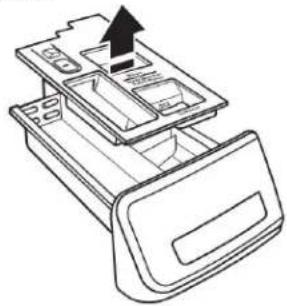

1. Lift off cover panel by pulling straight up.

Line drawing of a drawer with an upward arrow indicating a process or operation (no text or symbols present)

To replace:

not Slide cover panel back onto posts on dispenser.

1. Align edges of dispenser with guides in washer; then slide both dispenser back into slot.

Line drawing of a car interior showing a tray with compartments and a directional arrow (no text or symbols)

Single-Load Dispenser Drawer (on some models) To remove:

1. Pull dispenser drawer out until it stops.

2. Press down on the release tab and pull straight out to the dispenser.

remove

1. Lift off cover panel by pulling straight up.

Line drawing of a printer drawer with an arrow indicating the paper's direction (no text or symbols present)

To replace:

1. Position cover panel back onto posts on dispenser. Apply slight pressure on cover panel to seat it.
2. Align edges of dispenser with guides in washer; then slide dispenser back into slot.

Line drawing of a car interior showing a door handle and seatbelt with a directional arrow (no text or symbols)

Cleaning Load & Go™ Containers (on some models)

IMPORTANT: Containers are not dishwasher-safe.

It is recommended that you rinse out theTM LoadtaiersGo when refilling, when changing detergent types or concent or when the washer will not be used for an extended

1. Pull the dispenser drawer out until it stops.
2. Lift out the Load & c@tainers.
3. Lift the fill lid and flush interior thoroughly with warm

Illustration of hands using a handheld device to press or install a grid, with two upward arrows indicating motion (no text or symbols present)

1. Allow to air dry.

Nonuse and Vacation Care

Operate your washer only when you are home. If moving using your washer for a period of time, follow these ste

1. Unplug or disconnect power to washer.
2. Turn off water supply to washer to avoid flooding due pressure surges.

HELPFUL TIP: Attach a reminder note to the washer the water back on before washer's next use.

1. Clean the dispensers. See "Cleaning the Dispensers."

Winter Storage Care

IMPORTANT: To avoid damage, install and store washer will not freeze. Because some water may stay in hoses can damage washer. If storing or moving during freezing winterize your washer.

To winterize washer:

1. Shut off both water faucets; disconnect and drain water hoses.

HELPFUL TIP: Attach a reminder note to the washer the water back on before washer's next use.

1. Remove drain pump filter.
2. Put 1 quart (1 L) of R.V.-type antifreeze in drum and washer on Normal cycle for about 2 minutes to mix and remaining water.
3. Unplug washer or disconnect power.

Transporting Your Washer

1. Shut off both water faucets. Disconnect and drain water in hoses.

2. If washer will be moved during freezing weather, follow "Winter Storage Care" directions before moving.

3. Disconnect drain hose from drain system and from back a period washer.

4. Unplug power cord.

5. Place inlet hoses and drain hose inside drum.

6. wBtendle power cord with a rubber band or cable tie to h from hanging to the ground.

IMPORTANT: Call for service to install new transport bolts. D reuse transport bolts. Washer must be transported in the up position. To avoid structural damage to your washer, it must properly set up for relocation by a certified technician.

Reinstalling/Using Washer Again

WARNING

, or not

Electrical Shock Hazard

Plug into a grounded 3 prong outlet. do water Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

There install washer after nonuse, vacation, winter storage, or moving:

1. Refer to Installation Instructions to locate, level, and conne washer.
2. Before using again, run washer through the following er inlet recommended procedure:

To use washer again:

10 Flush water pipes and hoses.
2. Reconnect water-inlet hoses.
3. Turn on both water faucets.
4. Plug into a grounded 3-prong outlet or reconnect power.
5. Rum Washer through Heavy Duty/Power Wash cycle to clean washer and remove antifreeze, if used. Use only HE detergent. Use half the manufacturer's recommended amount for a medium-size load.

Cleaning the Drain Pump/Draining Residual Water (on some models)

1. Remove large clumps of lint by hand from the filter and lint in a suitable waste container. Remove remaining resid from the filter by rinsing with water.

IMPORTANT: Make sure the washer is off before cleaning the drain pump filter.

NOTE: Perform the following procedure occasionally.

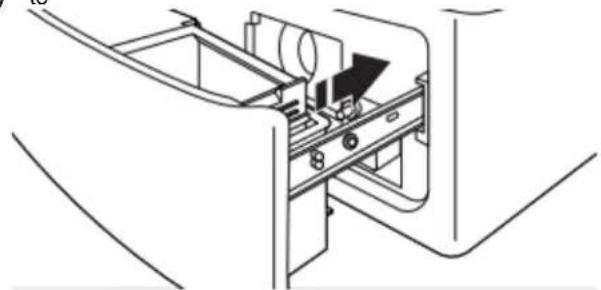

1. Open the dispenser drawer by pulling on the handle at the base of the washer. This will reveal the drain pump filter. Remove the drawer by releasing the tab on each side.

Drain pump filter

With your finger, push down on tab on right side and up on tab on left side of drawer.

1. Reinsert the drain pump filter by turning it clockwise. Make sure to turn it in as far as it will go, with the filter remaining as close as possible to the vertical position.

Mechanical assembly diagram showing two components with rotating parts and a shaft (no text or labels)

1. Place a broad, flat container beneath the drain pump filter to collect the drain water. Release the black hose from the hose in both rails simultaneously when replacing the drawer. You clip, remove the plug, and drain the hose into the container. Empty the container. Repeat this procedure if necessary until all the water has drained. Make sure that the black hose is unsure proper placement of the drawer, pull out fully. The water is clearly dry, replace the plug, and secure the hose in the clip. Make sure the drain hose is secured in the hose clip tucked underneath the cutout.

NOTE: If water does not drain well, push in hose slightly to remove any possible kinks.

Hose clip Black hose

1. Lay a cotton cloth beneath the drain pump filter to water still in it. Then remove the drain pump filter counterclockwise.

Technical line drawing of two mechanical components with rotating parts and guide rails (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

Additional Cleaning

Gently pull back the rubber door seal and clean any staine soil buildup, or lint with the textured side® Machineaffresh Cleaning Wipe.

by turning it

Illustration of hands performing a medical procedure on a curved object (no text or symbols visible)

INSTALLATION INSTRUCTIONS REQUIREMENTS

Tools and Parts

Gather required tools and parts before starting installation.

Tools Needed:

Simple line drawing of a wrench (no text or symbols)

Simple diagram with three circular symbols inside a rectangular box (no text or labels)

Adjustable or open end Level wrenches 1/2" (13 mm), 5/8" (16 mm), and 9/16" (14.3 mm)

4" minimum (102 mm)

Simple line drawing of a tape measure (no text or symbols)

Wood block Ruler or measuring tape

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Adjustable pliers that open to 9/16" (39.7 mm)

Simple line drawing of a bucket with a handle (no text or symbols)

Flashlight

Bucket

Parts Supplied:

NOTE: All parts supplied for installations are in the wash

Available Accessories

An optional matching pedestal is available for your washer. I contact your retailer for ordering information, or see your Qu Start Guide.

Alternate Parts (not supplied with washer)

Your installation may require additional parts. To order, please refer to contact information on your Quick Start Guide.

If you have: You will need:
Overhead sewer St	Standard 20 gallons (76 L) 39" (99 mm) tall drain tub or utility sink, pump, and connectors (available f local plumbing suppliers)

Location Requirements

IMPORTANT: Do not install, store, or operate washer where be exposed to weather or in temperatures below 32°F (0°C). Water remaining in washer after use may cause damage in temperatures. See "Washer Maintenance and Care" for winterizing information.

Select proper location for your washer to improve performance and minimize noise and possible "washer walk." Install your washer in a basement, laundry room, closet or recessed are Proper installation is your responsibility.

You will need

■ A water heater set to 120^ F ( 49^ C).
■ A grounded electrical outlet located within 6 feet (1.8 m) power cord on back of washer.
■ Hot and cold water faucets located within 4 feet (1.2 m) and cold water fill valves on washer, and water pressure 20-100 psi (137.9-689.6 kPa).
■ A level floor with maximum slope of 1" (25 mm) under washer. Installing on carpet or surfaces with foam backing not recommended.
■ Floor must support washer's total weight (with water and 1 of 315 pounds (143 kg).

All dimensions show minimum spacing allowed. For each arrangement, consider allowing more space for ease of installation and servicing, and spacing for companion appliance and clearances for walls, doors, and floor moldings. Space n be large enough to allow door to fully open. Add spacing (25 mm) on all sides of washer to reduce noise transfer. I must be louvered or equivalent and have at(155 easton)24 in bottom and 48(3in0 cm) top open area.

NOTE: For additional details (or information) specific to your model, refer to your Quick Start Guide.

Drain hose with clamp, U-form, and cable tie

Parts Needed: (if not supplied with washer)

Coiled black hose with connectors and two small black connectors (no text or symbols visible)

NOTE: Various inlet hose options are available; check your Quick Start Guide for ordering information.

Inlet hoses with flat washers

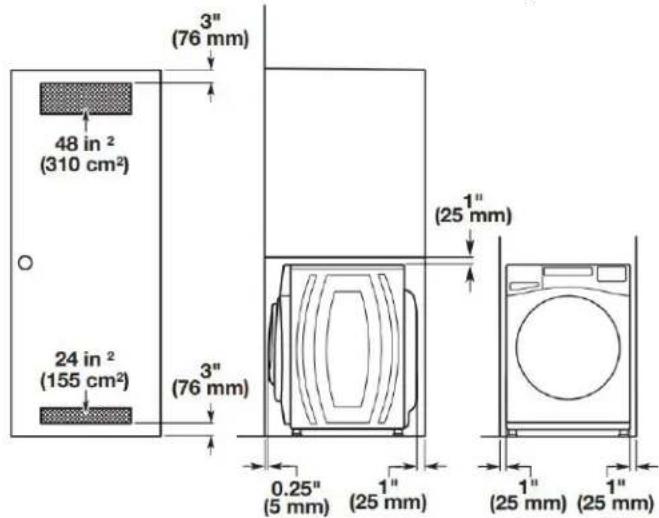

Recessed area or closet installation (stacked washer and dryer)

3" (76 mm) 48 in 2 (310 cm2) 24 in 2 (155 cm2) 3" (76 mm) 0.25" (5 mm) 6" (152 mm) 76½" (1943 mm) 5" (127 mm)

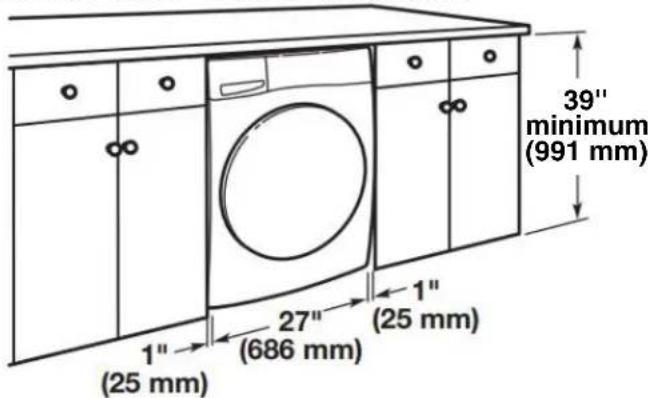

Custom under counter installation

39" minimum (991 mm) 1" (25 mm) 27" (686 mm) 1" (25 mm)

Custom cabinet installation

0.25" (5 mm) 1" (25 mm) 1" (25 mm) 1" (25 mm) 1" (25 mm)

Drain System

It is the responsibility of the installer to install and secure hose in to the provided plumbing/drain in a manner that will the drain hose coming out of or leaking from the plumbing/ Drain system can be installed using a floor drain, wall stand floor standpipe, or laundry tub. Select the method you need. IMPORTANT: To avoid siphoning, only 4.5" (114 mm) of drain hose should be inside standpipe. Always secure drain hose cable tie.

Floor standpipe drain system
Recessed area or closet installation (washer only)

48 in 2 (310 cm²) 24 in 2 (155 cm²) 3" (76 mm) 3" (76 mm) 0.25" (5 mm) 1" (25 mm) 1" (25 mm) 1" (25 mm)

4.5" (114 mm) 39" (991 mm)

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gallons (64 L) per minute. A 1/4" (diameter to 1" (25 mm) diameter Standpipe Adapter Kit is available; refer to the Quick Start Guide for online ordering information. Top of standpipe must be at least 39" (762 mn install no higher than 48" (1.2 m) from bottom of washer. have an overhead sewer and need to pump higher than 48 (1.2 m), a sump pump and associated hardware are needed "Alternate Parts."

Wall standpipe drain system

4.5" (114 mm)

See requirements in "Floor standpipe drain system."

Laundry tub drain system

4.5" (114 mm) minimum 39" (991 mm)

Minimum capacity: 20 gallons (76 L). Top of laundry tub at least 39" (991 mm) from the floor; install no higher (1.2 m) from bottom of washer.

4.5" (114 mm) minimum 39" (991 mm)

Floor drain system

Line drawing of a washing machine next to an open refrigerator, showing internal wiring and mounting points (no text or symbols)

Floor drain system requires a Siphon Break Kit, 2 Conn and an Extension Drain Hose that may be purchased se refer to the Quick Start Guide for online ordering informa Minimum siphon break height: 28" (710 mm) from bottom washer. (Additional hoses may be needed.)

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ A 120 V, 60 Hz, AC only, 15 or 20 A, fused electrical required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit breaker serving this appliance be provided.
■ This washer is equipped with a power supply cord having 3-prong grounding plug.
■ To minimize possible shock, the cord must be plugged into mating, 3-prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating has not available, it is the personal responsibility and obliga of the customer to have the properly grounded outlet inst. by a qualified electrician.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
■ Do not ground to a gas pipe.
■ Check with a qualified electrician if you are not sure the washer is properly grounded.
■ Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord have an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are doubt as to whether the appliance is properly grounded. D not modify the plug provided with the appliance: If it will the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

INSTALLATION

Unpacking

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

1. Move washer

48" (1.2 m)

It is necessary to remove all shipping materials for operation and to avoid excessive noise from washer. Move washer to within 4 feet (1.2 m) of its final must be in a fully upright position.

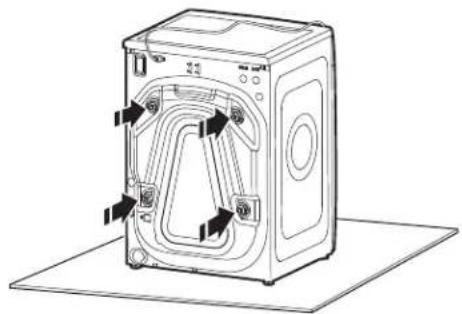

2. Locate transport bolts

Technical diagram of a washing machine with labeled ports and internal components

Locate four transport bolts on rear of washer.

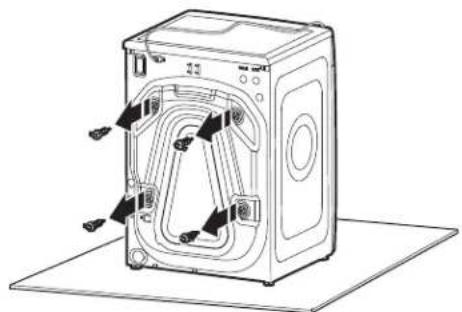

3. Remove transport bolts from washer

Line drawing of a washing machine casing with internal components and connectors (no text or symbols)

Loosen bolts with a 5/8" (16 mm) wrench. Slide each bolt and spacer to center of hole. Pull bolts and plastic spacers from back of washer. Discard bolts and spacers.

IMPORTANT: Do not plug washer in until installation has been completed.

Connect Drain Hose

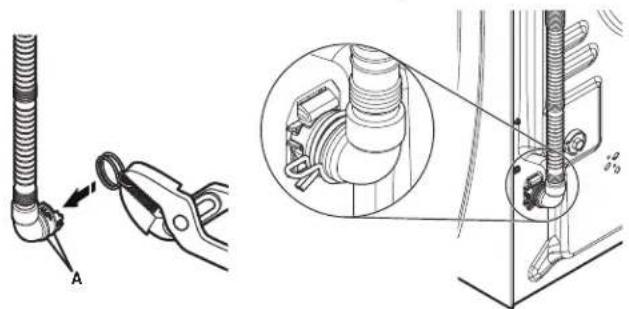

4. Attach drain hose to drain port

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a threaded component.

A - Ribs

If clamp is not already in place on elbow end of drain squeeze clamp with pliers and slide it over end of hos centering it between the ribs, as shown. Squeeze clamp pliers and slide elbow end of drain hose onto drain po secure with clamp.

For a laundry tub or standpipe drain, go to step 6.

For a floor drain, remove the preinstalled drain hose for shown in step 5. You may need additional parts with s directions. See "Alternate Parts."

It is the responsibility of the installer to install and secu proper drain hose into the provided plumbing/drain in a manner will avoid the drain hose coming out of or leaking from location. It

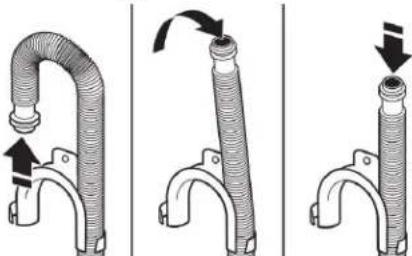

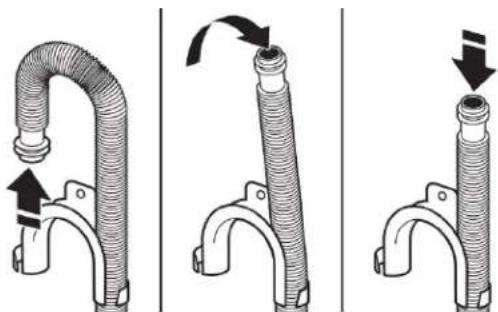

5. Remove drain hose form (floor drain installations only)

Three-step diagram showing a coiled hose assembly with arrows indicating direction of movement (no text or symbols)

For floor drain installations, you will need to remove the hose form from the end of the drain hose. You may add additional parts with separate directions; refer to the Quick Start Guide.

6. Place drain hose in standpipe

Drain hose form 4.5" (114 mm)

Technical line drawing of a pipe fitting with multiple valves and fittings, mounted on a wall (no text or symbols)

9. Clear water lines

Line drawing of a bucket with two buckets and handles (no text or symbols)

Place hose into standpipe (shown in picture) or over side of water for a few seconds through hoses into a laur tub, drainpipe, or bucket to avoid clogs. Water should run laundry tub.

IMPORTANT: 4.5" (114 mm) of drain hose should be inside standpipe; do not force excess hose into standpipe or lay on 10. Connect inlet hoses to washer

Connect Inlet Hoses

IMPORTANT: To avoid leaks, check that your water inlet hos have flat washers at both ends. Washer must be connected water faucets with new inlet hoses with flat washers (not provided). Do not use old hoses. Do not use hoses without washers.

7. Insert new flat washers

Coupling
Washer

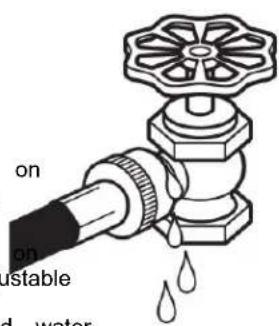

8. Connect inlet hoses to water faucets

Illustration of two mechanical pipe fittings with valve fittings and tubing, showing hand positioning and rotation (no text or symbols)

IMPORTANT: Do not overtighten or use tape or sealants valve when attaching to faucets or washer. Damage can result.

Attach the hose labeled hot to hot water faucet. Screw on coupling by hand until it is seated on washer. Use adjustable pliers to tighten couplings an additional two-thirds turn. Repeat this step with the hose labeled cold for the cold water faucet. Both hoses must be connected for washer to work slowly properly. amount

HELPFUL TIP: Make note of which hose is connected to hot water to help in attaching hoses to washer correctly. In most standard configurations, hoses will cross over each other when attached correctly.

Diagram illustrating cable connection and hand-pulling mechanism with labeled components H

IMPORTANT: To reduce risk of hose failure, replace the hoses every 5 years. Record hose installation or replaced dates for future reference.

■ Do not overtighten hose or use tape or sealants on valve. Damage to the valves can result.
■ Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Attach hot water hose to hot water inlet valve. Screw coupling by hand until it is snug. Use adjustable pliers tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve.

11. Check for leaks

on on stable d water

Diagram of a pipe with water droplets falling, no text or symbols present

Slowly turn on water faucets to check for leaks. A small amount of water may enter washer. It will drain later.

1. Secure drain hose


Laundry Tub 4.5" (114 mm) Standpipe 4.5" (114 mm) Wall 4.5" (114 mm)

Secure drain hose to laundry tub leg, drain standpipe, hoses for wall standpipe with cable tie or beaded tie. It is the responsibility of the installer to install and s drain hose in to the provided plumbing/drain in a ma will avoid the drain hose coming out of or leaking in plumbing/drain.

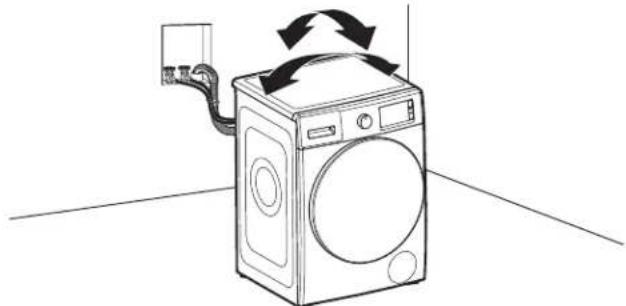

1. Rock washer to test foot contact


Line drawing of a washing machine with attached cable and fan, showing airflow direction (no text or symbols)

Grip washer from top and rock back and forth, making all four feet are firmly on floor. Repeat, rocking washer side to side. If washer rocks, go to step 15 and adjust feet. If all four feet are in firm contact with floor, go

1. Adjust leveling feet

Level Washer

IMPORTANT: Leveling your washer properly reduces excess noise and vibration.

1. Check levelness of washer


Place level here

Remove cardboard from beneath washer. Place a level top edges of washer, checking each side and front. Level, tip washer and adjust feet up or down as short steps 15 and 16, repeating as necessary.

Jam nut

If washer is not level, use a 9/16" (14.3 mm) open-end adjustable wrench to turn jam nuts clockwise on feet up they are about 1/2" (13 mm) from the washer cabinet. turn the leveling foot clockwise to lower the washer or counterclockwise to raise the washer. Do not exceed 2" (50 mm) from bottom of foot to bottom of cabinet. Rec levelness of washer and that all four feet are firmly in with the floor. Repeat as needed.

el on HELPFUL TIP: You may want to prop up front of washer about 4" (102 mm) with a wood block or similar object will support weight of washer.

Not Level

LEVEL

Not Level

1. Tighten leveling feet


Jam nut

When washer is level and all four feet are firmly in with the floor, use a 9/16" (14.3 mm) open-end or adjwrench to turn jam nuts counterclockwise on leveling feet tightly against washer cabinet.

HELPFUL TIP: You may want to prop washer again with wooden block.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

17. Plug into a grounded 3 prong outlet

Diagram showing a plug inserted into an electrical outlet with three socket slots (no text or symbols)

Complete Installation Checklist

■ Check electrical requirements. Be sure you have correct electrical supply and recommended grounding method.
■ Check that all parts are now installed. If there is an exit go back through steps to see what was skipped.
■ Check that you have all of your tools.
■ Check that shipping materials were completely removed from washer.

■ Check that the washer is level.

■ Check that water faucets are on.

■ Check for leaks around faucets and inlet hoses.

■ Remove protective film from console and any tape remainir on washer.

■ Check that washer is plugged into a grounded 3-prong ou

■ Dispose of/recycle all packaging materials.

- Read the "Washer Maintenance and Care" section.

■ To test and clean your washer, press Power and choose Quick cycle and run it without clothes. Use only HE dete Use 1/2 the manufacturer's recommended amount for a medium-size load.

SÉCURITÉ DE LA LAVEUSE

CHOIX DU DÉTERGENT APPROPRIÉ

Line drawing of a hand holding a circular object on a vehicle rear panel (no text or symbols)

Diagram showing a vehicle interior with a zoomed-in inset of the first three compartments, highlighting one compartment with a downward arrow.

Line drawing of a drawer with an open lid and internal compartments, showing an upward arrow indicating process (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Pour replacer :

Line drawing of a car interior showing a tray with compartments and an upward arrow indicating direction (no text or symbols)

Diagram showing a car interior with a highlighted component and a magnified view of the tray area.

Line drawing of a car interior showing a door handle and seatbelt with a device panel (no text or symbols)

Illustration of hands using a keyboard to press up a device, with two arrows indicating upward movement (no text or symbols present)

Technical line drawing of a mechanical component with a central shaft and flange (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical diagram showing two configurations of a pulley system with rotating components (no text or labels)

de tre raire.

INSTRUCTIONS D'INSTALLATION SPÉCIFICATIONS

Outils et pièces

Simple line drawing of a wrench (no text or symbols)

Simple diagram with three circular symbols inside a rectangular frame (no text or labels)

Niveau

4 po minimum (102 mm)

Simple line drawing of a tape measure (no text or symbols)

mètre ruban

Line drawing of a pair of pliers (no text or symbols)

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Lampe de poche

Simple line drawing of a bucket with a handle (no text or symbols)

Seau

Pièces fournies :

Coiled black hoses with connectors and small black dots below (no text or symbols)

Line drawing of a washing machine next to an open rear door panel, showing internal wiring and mounting brackets (no text or symbols)

Line drawing of a washing machine casing with internal components and mounting holes (no text or symbols)

Line drawing of a washing machine interior with labeled ports and buttons (no text or symbols)

Technical diagram showing mechanical assembly with labeled component A and magnified detail view

A - Côtes

1. Remove drain hose form (floor drain installations only)

Three-step diagram showing a pipe fitting with arrows indicating direction (no text or symbols)

Diagram showing two mechanical assembly steps: left with pipe fittings and directional arrows, right with clamping mechanism (no text or symbols)

Diagram showing cable connection with labeled components and directional arrows indicating movement or force

Diagram showing two different types of plumbing fittings: one with a valve and droplet, the other with a hose and droplet (no text or symbols present)

Line drawing of a washing machine with airflow arrows indicating circulation (no text or symbols)

Simple line drawing of an electrical outlet with a plug and socket (no text or symbols)
