Product Type	Bubble Waffle Maker
Brand	Royal Catering
Model	RC-BWM01
Rated Voltage	230 V ~ / 50 Hz
Rated Power	1,415 kW
Temperature Range	50 °C to 300 °C
Integrated Timer	0 to 5 minutes with audible signal
Heating Plate Dimensions	∅195 mm
Protection Rating	IPX3
Dimensions (W x D x H)	240 x 540 x 260 mm
Weight	4.8 kg
Plate Rotation	180° (left and right)
Overheat Protection	Yes, with Reset button
Cleaning	Damp cloth, mild detergent; do not immerse
Plate Material	Non-stick coating
Protection Class	I (earthing mandatory)
Usage	Indoor only
Max. Ambient Temperature	40 °C
Max. Relative Humidity	85 %
Minimum Lateral Distance	50 cm

Frequently Asked Questions - RC-BWM01 Royal Catering

How do I clean the RC-BWM01 waffle maker?

Unplug and let cool completely. Clean with a damp cloth and a mild detergent. Never immerse the appliance in water and avoid metal or abrasive objects.

What is the power of the appliance?

The rated power is 1,415 kW at a voltage of 230 V ~ / 50 Hz.

How do I adjust the temperature?

Use the temperature control knob to select a value between 50 and 300 °C. The appliance automatically maintains the set temperature.

Does the timer automatically turn off the appliance?

No, the timer emits a beep when the set time is up, but does not turn off the appliance. You must do so manually.

What should I do in case of overheating?

The appliance has overheat protection. If it triggers, unplug the appliance, let it cool down, then press the Reset button located on the back of the unit.

Can I use the appliance outdoors?

No, this appliance is designed for indoor use only. It should not be exposed to moisture or weather.

What is the size of the heating plates?

The heating plates have a diameter of 195 mm.

How do I flip the waffles?

The appliance can perform a 180° rotation to the left or right to distribute the batter evenly.

What type of batter should I use?

Use a bubble waffle batter. Be careful not to overfill the plates as the batter expands during cooking.

Does the appliance need to be earthed?

Yes, the appliance is protection class I. Use the earthing terminal located on the back of the unit.

USER MANUAL RC-BWM01 Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

RC-BWM01

PRODUKTNAME BUBBLE WAFFLES WAFFELEISEN
PRODUCT NAME BUBBLE WAFFLE MAKER
NAZWA PRODUKTU GOFROWNICA DO WAFLI EGG BUBBLE
NÁZEV VÝROBKU VAFLOVAČ TYPU BUBBLE
NOM DU PRODUIT MACHINE DE GAUFRE PAR BULLE
NOME DEL PRODOTTO PIASTRA PER BUBBLE WAFFEL
NOMBRE DEL PRODUCTO MÁQUINA DE POPCAKE
MODELL
PRODUCT MODEL
MODEL PRODUKTU
MODEL VÝROBKU	RC-BWM01
MODELE
MODELLO
MODELO
IMPORTEUR
IMPORTER
IMPORTER
DOVOZCE	EXPONDO POLSKA SP. Z O.O. SP. K.
IMPORTATEUR
IMPORTATORE
IMPORTADOR
ADRESSE VON IMPORTEUR
IMPORTER ADDRESS
ADRES IMPORTERA
ADRESA DOVOZCE	UL. NOWY KISIELIN-INNOWACYJNA 7, 66002 ZIELONA GÓRA | POLAND, EU
ADRESSE DE L'IMPORTATEUR
INDIRIZZO DELL'IMPORTATORE
DIRECCIÓN DEL IMPORTADOR

Technische Daten

Close-up of a metallic industrial device with coiled tubing and a circular top component (no visible text or symbols)

Parameter description	Parameter value
Product name	BUBBLE WAFFLE MAKER
Model	RC-BWM01
Rated voltage [V~] / Frequency [Hz]	230/50
Rated power [kW]	1,415
Temperature range [°C]	50-300
Timer [min]	0-5
Heating Surface dimensions [mm]	∅195
Protection rating IP	IPX3
Dimensions [Width x Depth x Height; mm]	240x540x260
Weight [kg]	4,8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	Class I protection device.
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to BUBBLE WAFFLE MAKER.

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Do not use in very humid environments or in the direct vicinity of water tanks.
j) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Use the device in a well-ventilated space.

g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.
j) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Do not cover the ventilation openings!
o) When using the device, never touch the heating plate or its enclosure, as they constitute a scalding hazard. When opening hot device, remember that steam will be released.
p) During operation, the appliance reaches high temperatures. Do not place the appliance near flammable or easily melting surfaces or near flammable materials.
q) When operating, the device is hot. Take special care and grasp the device using handles only. Before maintenance, service or transport, let the device cool down.
r) Use kitchen utensils that are intended for use with food and that will not scratch the appliance. Do not use sharp and metal objects.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the

device.

3. Use guidelines

The device is designed for baking bubble waffles.

The user is liable for any damage resulting from unintended use of the device.

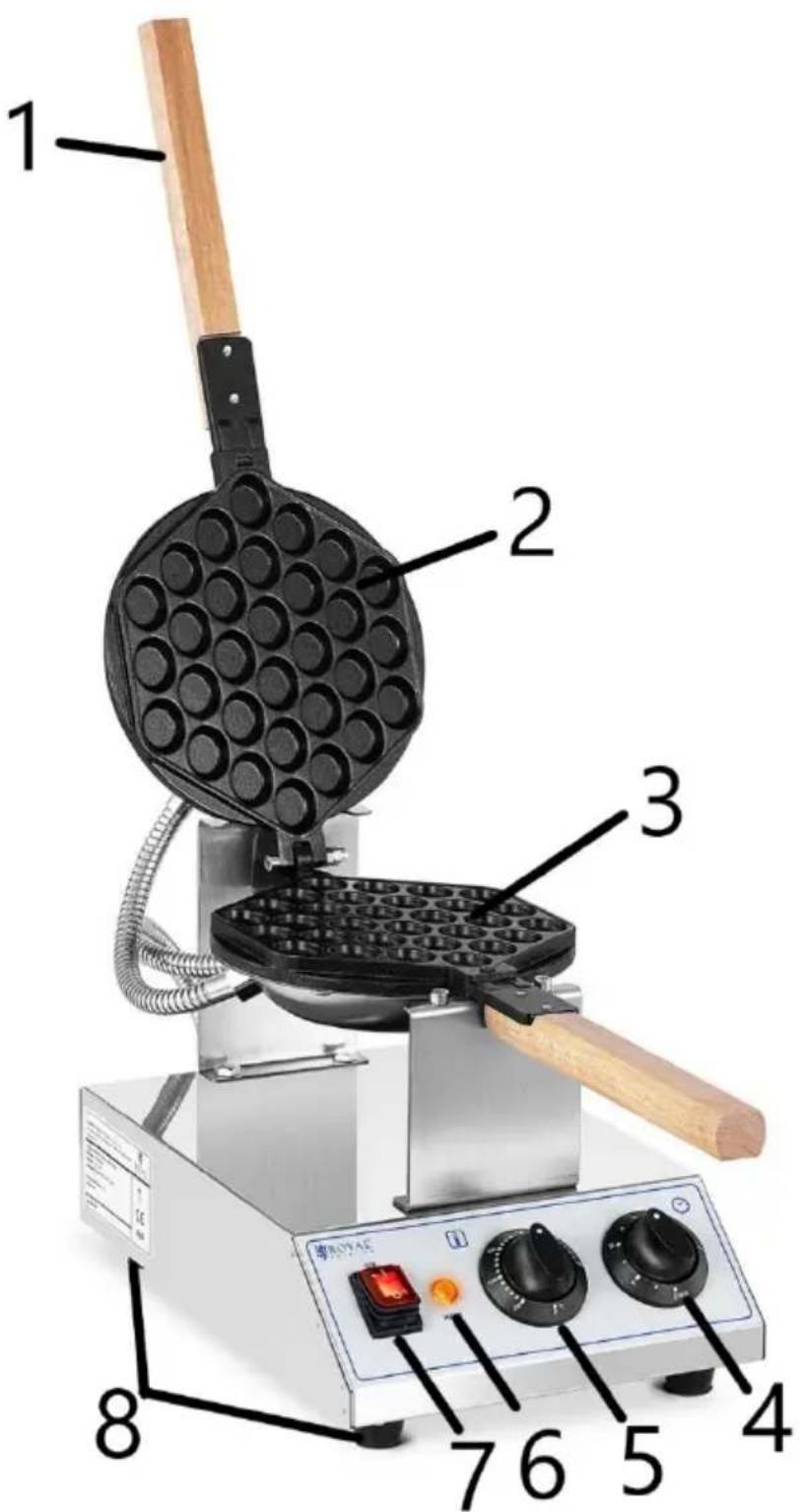

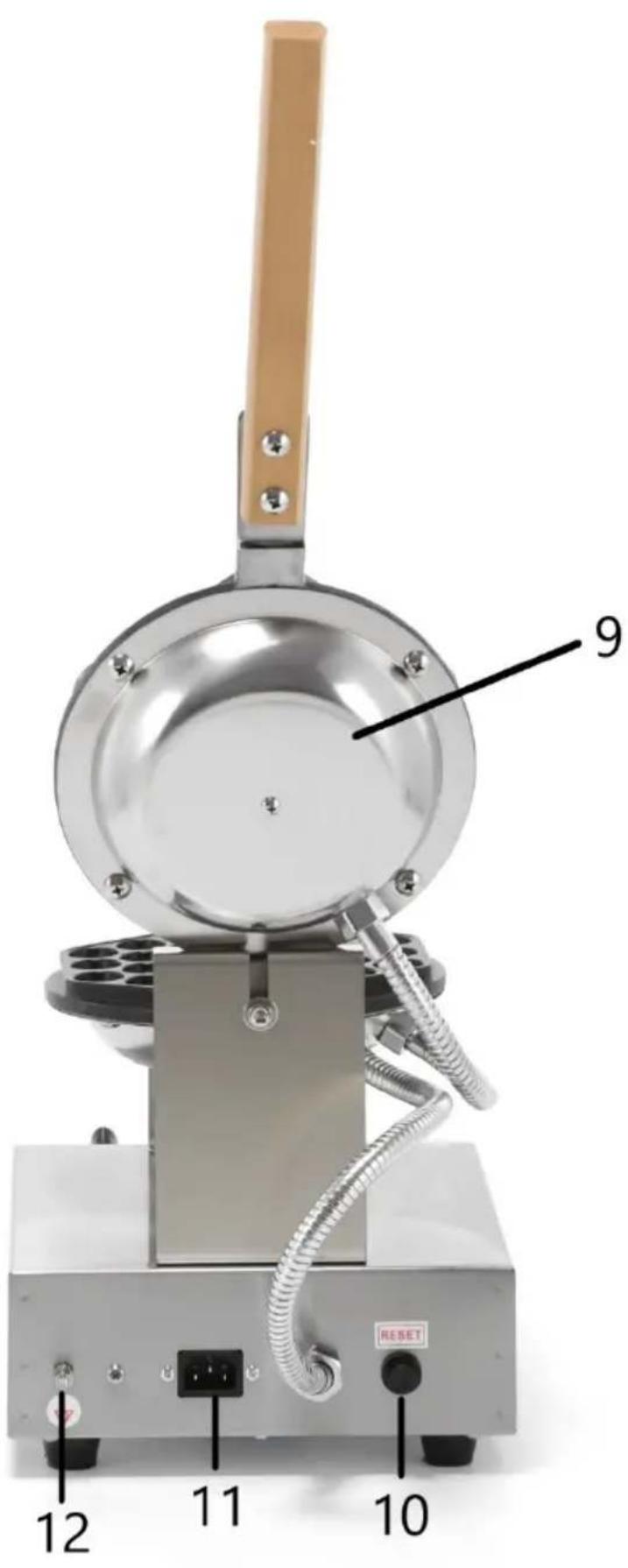

3.1. Device description

1 2 3 7 6 5 4 8 W.ROYAL

9 12 11 10 RESET

1. Handle
2. Upper heating plate
3. Lower heating plate
4. Time adjustment
5. Temperature control
6. Heating indicator
7. On / Off button
8. Feet
9. Cover
10. Reset button
11. Power socket
12. Earthing clamp

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 50 cm distance between each side of the device and the wall or other objects.

Place the unit on a heat resistant basis!

The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Only use the device in a horizontal position. Do not shake the device.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

1. Ground the device (the grounding terminal is located on the back of the device).
2. Connect the power cord to a power outlet, plug the other end of the cord into the power socket.
3. Turn on the device by setting the On / Off button to "I". In models with two heating plates, each of them has a separate control, i.e. On / Off button, heating indicator, temperature and time control knobs.
4. Use the temperature control knob to set the preferred temperature for baking waffles and wait for the device to heat up. The waffle maker automatically maintains the set temperature. The heating time under normal conditions is approx. 12 minutes to a temperature of 250^ C.
   Note: When used for the first time, the heating elements may emit a small amount of smoke.
5. Apply cooking oil to the hot heating plates with e.g. a silicone brush. Then pour the prepared batter over the waffles, bearing in mind that depending on the ingredients used, the volume may increase during baking. Applying too much batter will cause it to leak from the device and may damage it.

6. When baking waffles, turn the waffle iron several times to evenly distribute the batter. The device rotates 180 degrees to the left and right.

7. The device has a built-in timer. The time is set using the time adjustment knob. The device beeps when the set time is over.

Important! The timer only signals that the set time is over, it does not turn the device off!

1. Remove the baked waffles using a non-scratch kitchen utensil. Be careful when removing the waffles to avoid burns.

2. After finishing the baking process, set the thermostat to "0", the On / Off button to "0", and disconnect the appliance from the power supply.

The device is equipped with overheating protection. In the event of a protection trip, remove the cause and reset the device by removing the cover and pressing the Reset button located on the back of the appliance.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only mild, food-safe detergents to wash the device.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
← Clean the device regularly, preferably after each use.

Dane techniczne

Close-up of a metallic industrial device with a circular lid and coiled tubing (no visible text or symbols)

Close-up of a metallic mechanical device with coiled tubing and a circular top component (no visible text or symbols)

Close-up of a metallic industrial device with coiled tubing and a circular top component (no visible text or symbols)

Close-up of a metallic industrial device with coiled tubing and a circular top component (no visible text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.
