RC-TBE1 - Insulated electric lunch box Royal Catering - Free user manual and instructions

USER MANUAL RC-TBE1 Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Beheizt isolierte Thermobox
EN	Product name	Electric insulated food box
PL	Nazwa produktu	Termos cateringowy grzewczy
CZ	Název výrobku	Elektrická izolovaná krabička na jídlo
FR	Nom du produit	Boîte alimentaire isolée électrique
IT	Nome del prodotto	Scatola termica elettrica per alimenti
ES	Nombre del producto	Caja de alimentos aislada eléctricamente
HU	Termék neve	Elektromosan szigetelt ételdoboz
DA	Produktnavn	Elektrisk isoleret madkasse
FI	Tuotteen nimi	Sähköisesti eristetty ruokalaatikko
NL	Productnaam	Elektrisch geïsoleerde voedseldoos
NO	Produktnavn	Elektrisk isolert matboks
SE	Produktnamn	Elektrisk isolerad matlåda
PT	Nome do produto	Caixa de alimentos isolada eletricamente
SK	Názov produktu	Elektricky izolovaná krabička na jedlo
BG	Име на продукта	Електрически изолирана кутия за храна
EL	Όνομα προϊόντος	Ηλεκτρικά μονωμένο κουτί φαγητού
HR	Naziv proizvoda	Električno izolirana kutija za hranu
LT	Produkto pavadinimas	Elektrinė izoliuota maisto dėžutė
RO	Numele produsului	Cutie pentru alimente izolată electric
SL	Ime izdelka	Električno izolirana posoda za hrano
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtéλο προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RC-TBE1
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

Technical diagram of an internal device with numbered components for identification

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Electric insulated food box
Model	RC-TBE1
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	200
Capacity [l]	90
Protection rating IP	IPX3
Dimensions [width x depth x height; mm]	665 x 460 x 625
Weight [kg]	20

Product is already assembled. No assembly is required.

NOTE: Remove packing tape, tags or documents from inside compartments before operating.

Description

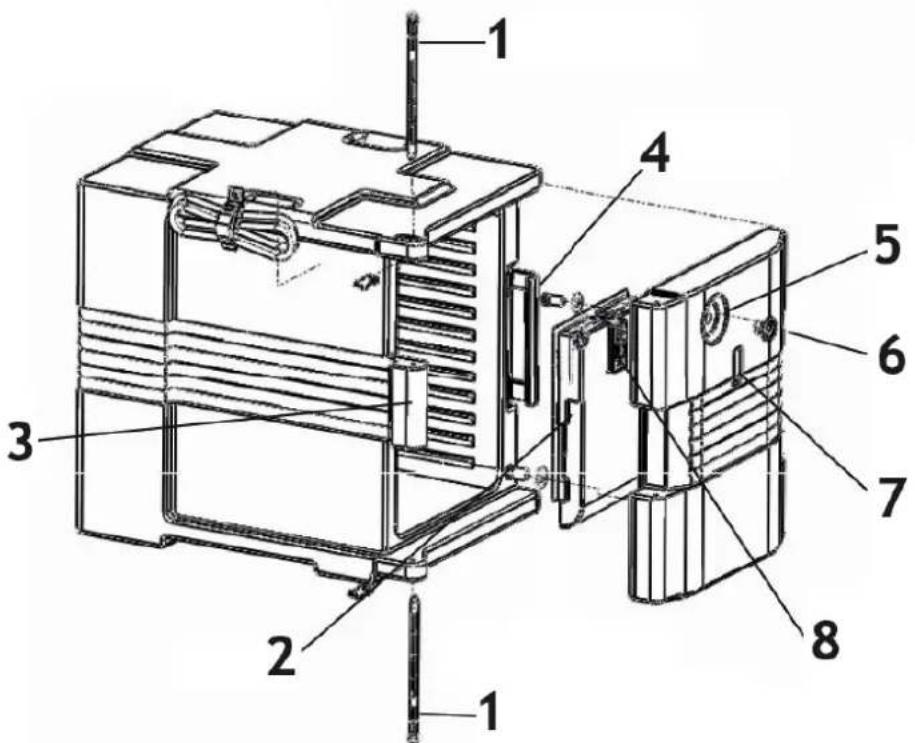

Technical diagram of an internal device with numbered components for identification

1. Hinge Pin

2. Heater

3. Door Hinge

4. Door Latch

5. Thermometer socket

6. Thermometer

7. AC Inlet

8. AC Inlet

Safety Instructions

IMPORTANT: Read all instructions prior to use and save for future reference.

• Follow all warnings marked on unit.
• Use only type of power supply (voltage, phase, frequency) indicated on the heater unit label.
• Do not use if power cord is frayed or damaged.
• Connect unit to properly grounded power source.
• Use only manufacturer authorized power cord and replacement parts.
• Warning! Do not use this equipment in wet or damp conditions.
• Warning! Unplug unit prior to cleaning or service.
• Warning! Remove power cord from heater prior to cleaning. Clean with damp cloth only.
• Warning! Do not submerge heater in water and never spray water on or near it.

- Warning! Do not get the thermometer wet in any way.

- Warning! Unplug the power cord before removing the heater from the door.

- Warning! Only qualified foodservice equipment technician should open the inner cover of the heater for servicing.

- During normal operation, check the heater thumbscrews for tightness at least once a week.

- Any operating problems not identified and corrected by instructions in this manual should be referred to qualified service personnel (electrician or foodservice equipment technician).

Operating Instructions

NOTE: Units are designed to hold pre-heated hot food only. NEVER use to pre-heat or re-heat food. WARNING! Never use in wet or damp conditions.

1. Connect the device to 230VAC main power supply.
2. A red light on the front of the heated door indicates that the power is on - there is no power switch, the unit automatically switches on when plugged in. An amber light on the same switch indicates that the heater is active. The light will remain on until the heater reaches the factory preset temperature and then turn off. NOTE - the heater will turn on and off as necessary during operation to maintain the factory set temperature.
3. Heat the empty chamber(s) for 45 minutes with the door closed before loading hot food. When the thermometer in the door indicates 150^ F ( 65^ C), place dishes with hot food in the conveyor before placing them on the plastic rails.
4. When transporting a container/cart filled with hot food, disconnect the cord(s) and store on the strap(s) on the side of the container or cart before moving. Insulated units will maintain the temperature of hot food for more than 4 hours after being unplugged.
5. If necessary, open the vent located in the door to release moisture/steam. Firmly grasp and pull outwards until you hear a click. To close the vent, push in until you hear a click.

Cleaning and maintenance

1. Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
2. Always unplug the device before cleaning or putting it away.
3. Use only non-corrosive cleaners to clean the surface.
4. Use only mild, food-safe detergents to wash the device.
5. After cleaning the device, all parts should be dried completely before using it again.
6. Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
7. Do not spray the device with a water jet or submerge it in water.

EN

1. Do not allow water to get inside the device through vents in the housing of the device.
2. The device must be regularly inspected to check its technical efficiency and spot any damage.
3. Use a soft, damp cloth for cleaning.
4. Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
5. Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an internal combustion engine with numbered components for identification

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an internal combustion engine with numbered components for identification

Technical diagram of an internal device with numbered components for identification

Technical diagram of an internal combustion engine with numbered components for identification

1. Scharnierpen

2. Verwarming

3. Deur 4. Deurslot scharnier

4. Thermometeraansluiting

5. Thermometer

6. AC- 8. AC-inlaat inlaatopening

Technical diagram of an electrical enclosure with numbered components for identification

1. Hengselpinne

2. Varmeapparat

3. Dørhengsel

4. Dørlås

5. Termometeruttak

6. Termometer

7. AC-

8. AC-inntak

inntaksåpning

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an internal device with numbered components for identification

Technical diagram of an internal device with numbered components for identification

1. Zatik šarke

2. Grijač

3. Šarke za vrata

4. Zasun za vrata

5. Utičnica za termometar

6. Termometar

7. Otvor AC ulaza

8. AC ulaz

Sigurnosne upute

Technical diagram of an electrical enclosure with numbered components for identification

Technical diagram of an internal device with numbered components for identification

For the disposal of the device please consider and act according to the national and local rules and regulations.
