USER MANUAL DW24T3IXV BERTAZZONI

BERTAZZO ITALIA

EN	INSTALLATION MANUALUSER AND MAINTENANCE MANUALDW24T3IXV – DW24T3IPV	3
ES	MANUAL DE INSTALACIÓNMANUAL DE USO Y MANTENIMIENTODW24T3IXV – DW24T3IPV	51
FR	MANUEL D’INSTALLATIONMANUEL D’UTILISATION ET D’ENTRETIENDW24T3IXV – DW24T3IPV	103

FROM THE DESK OF OUR PRESIDENT

Dear new owner of a Bertazzoni appliance,

I want to thank you for choosing one of our beautiful products for your home.

My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food.

Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners.

By making beautiful products we respond to our customers' flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure.

This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.

Enjoy!

Paolo Bertazzoni

President

Pedro Sectorzom

USER MANUAL VALIDITY

The following manual is valid for all the product codes mentioned below:

• DW24T3IXV
• DW24T3IPV

GENERAL INFORMATION 7

SAFETY INFORMATION 7

RECYCLING 8

INSTALLATION MANUAL 9

SPECIFICATIONS 9

GENERAL APPEARANCE 9

TECHNICAL SPECIFICATIONS 9

INSTALLATION 10

CUTOUT DIMENSIONS 10

CUSTOM DOOR PANEL (FOR PANEL-READY MODELS) 10

ELECTRICAL REQUIREMENTS 10

PLUMBING REQUIREMENTS 11

INSTALLATION 13

USER AND MAINTENANCE MANUAL 23

USE 23

GETTING STARTED 23

PLATE ARRANGEMENT 24

RACKS 28

OPERATION 33

LIGHTS 38

DETERGENT & RINSE-AID DISPENSER 38

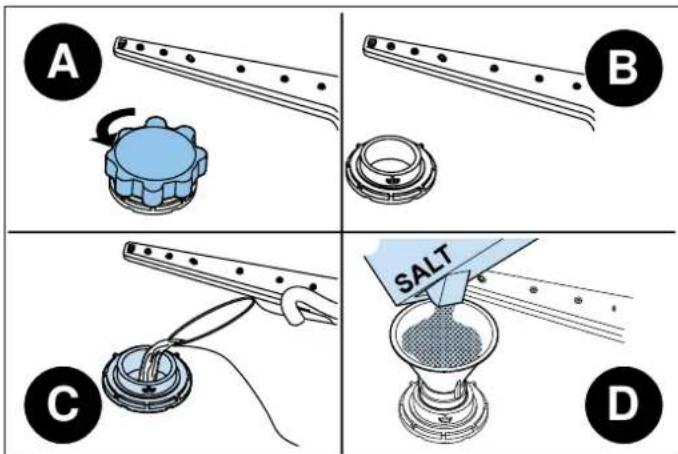

SALT DISPENSER (FOR MODELS WITH WATER SOFTENER) 40

CLEANING AND CARE 42

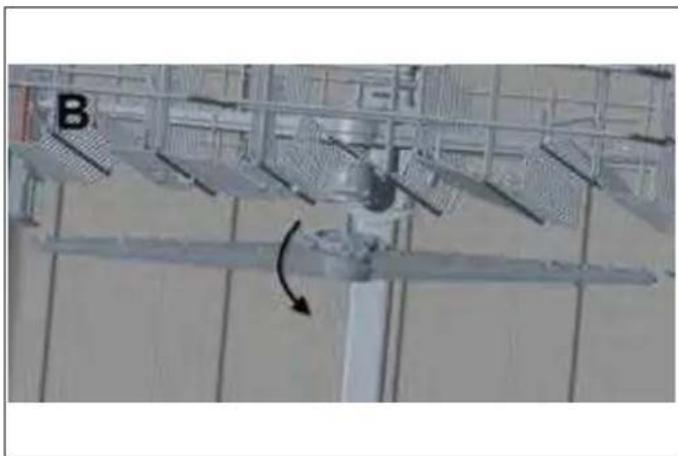

SPRAY ARMS 42

FILTER 43

TROUBLESHOOTING 44

TROUBLESHOOTING 44

AUTOMATIC FAULT WARNINGS AND WHAT TO DO 45

PRACTICAL INFORMATION 46

WARRANTY AND ASSISTANCE 47

TWO-YEAR LIMITED WARRANTY STATEMENT 47

WHAT THIS LIMITED WARRANTY COVERS 47

GLASS PROTECTION POLICY 47

HOW TO OBTAIN SERVICING 47

WARRANTY EXCLUSIONS – WHAT IS NOT COVERED 47

These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not include or support.

The images and illustrations in this document refer to various models and may differ slightly from the product purchased.

The manufacturer does not accept any liability for personal injury or damage to property arising from incorrect installation or misuse of the appliance.

The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force.

In the event of complaints, please contact customer service. Read the instructions provided in this manual thoroughly before installing and/or using the appliance. This will help you get to know your new appliance. Keep this document at hand so that you can consult it at any moment, and pass it on to any subsequent owners.

Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes, such as: "Attention", "Warning" and "Danger" which appear in the text.

DANGER

This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents.

WARNING

This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potentially dangerous accidents.

CAUTION

This symbol indicates a procedure which could put the appliance's structure or components at risk. Take particular care over these procedures.

NOTE

This symbol highlights methods or procedures for correct use of the appliance.

The Model, Sales Code and Serial Number are printed on the nameplate. Refer to the Specifications section of this manual for nameplate location.

NOTE

You are advised to make a note of the appliance's data and serial numbers so they are immediately available if required.

NOTE

State the information provided on the nameplate to improve the efficiency of the after-sales and parts services. For warranty purposes, you will also need the date of installation and name of your authorized Bertazzoni dealer.

WARNING

When using your dishwasher, follow basic precautions. Read all instructions before using the dishwasher. Save these instructions and pass them on to any future user.

Use the dishwasher only for its intended purpose.

This appliance is intended for residential use only.

Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

When loading items to be washed:

• place sharp items so they are not likely to damage the door seal, and

• load sharp knives with the handles up to reduce the risk of injury.

• Do not wash plastic items unless they are marked "dishwasher safe" or equivalent. For unmarked plastic items, check the manufacturer's recommendations.

• Do not touch the heating element during or immediately after use.
• Do not tamper with the controls.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Do not remove the dishes from the appliance until the wash cycle is complete.
• To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape.
• Check that the detergent dispenser is empty after the completion of each wash cycle.
• Do not misuse, sit on, or stand on the door or dish rack of the dishwasher.
• The cup racks are designed to hold cups, glasses, and kitchen utensils. Do not lean on or use the cup racks to support your bodyweight.
• To avoid a tripping hazard, do not leave the dishwasher door open.

GENERAL INFORMATION

• Do not allow children to play in or on a dishwasher.
• When children become old enough to operate the appliance, it is your responsibility to ensure that they are properly instructed about the safety practices contained in this manual.
• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance if it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING

Before any maintenance operation, turn off the appliance and disconnect the mains plug from the socket.

• Do not use high pressure water sprays and/or steam to clean the appliance.
• Ensure there are no visible water leaks during and after first use of the appliance.
• To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.
• To avoid dishwasher damage, do not allow water to remain in your dishwasher system through extended freezing periods.
• Do not store or use flammable liquids or vapors inside, near, or on the appliance.

- Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for two or more weeks, before using the dishwasher, turn on all hot water faucets and let the water flow from each for several minutes. This releases any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

- Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by. Replace it immediately when it is torn, cut, swollen, or there is water leakage.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Remove the door to the washing compartment when removing an old dishwasher from service or disposing of it. Ensure that the appliance presents no danger to children while being stored for disposal. Before disposing of the dishwasher:

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and dispose of it.
• Remove the door catch to prevent children and pets getting confined in the appliance.
• Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.
• Please keep the dishwasher package out of the reach of children after unpacking it.

WARNING

Risk of injury or suffocation! Ensure that any plastic wrappings, bags, small pieces, etc., are disposed of safely and kept out of the reach of children.

SAVE THESE INSTRUCTIONS

Remove the door to the washing compartment when removing an old dishwasher from service or disposing of it. Ensure that the appliance presents no danger to children while being stored for disposal. Before disposing of the dishwasher:

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and dispose of it.
• Remove the door catch to prevent children and pets getting confined in the appliance
  Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Please keep the dishwasher package out of the reach of children after unpacking it.

WARNING

Risk of injury or suffocation! Ensure that any plastic wrappings, bags, small pieces, etc., are disposed of safely and kept out of the reach of children.

SAVE THESE INSTRUCTIONS

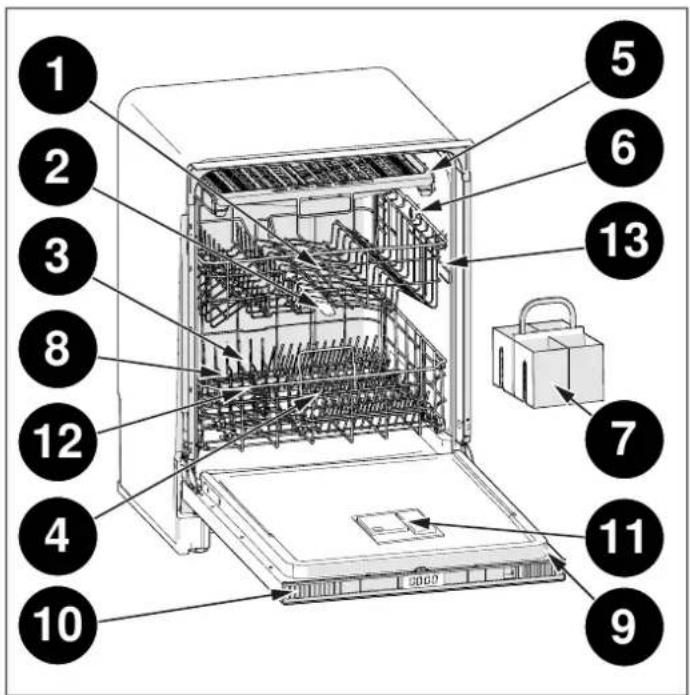

1 2 3 8 12 4 10 5 6 13 7 11 9

Fig. 1

GENERAL APPEARANCE

1) Upper basket
2) Upper spray arm

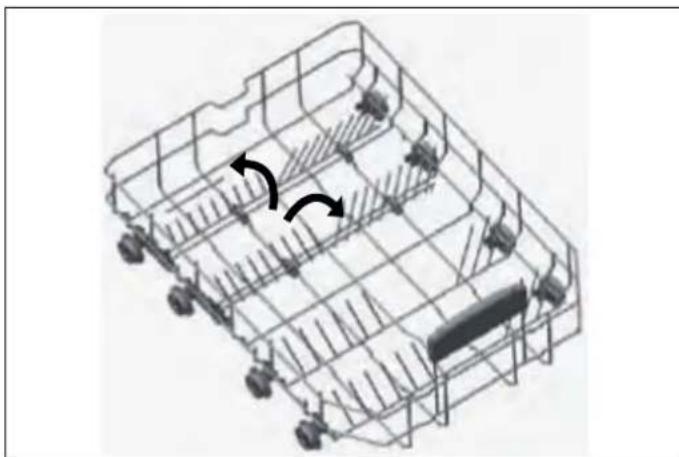

3) Lower basket
4) Lower spray arm
5) Third rack (depending on model)
6) Top nozzle (depending on model)

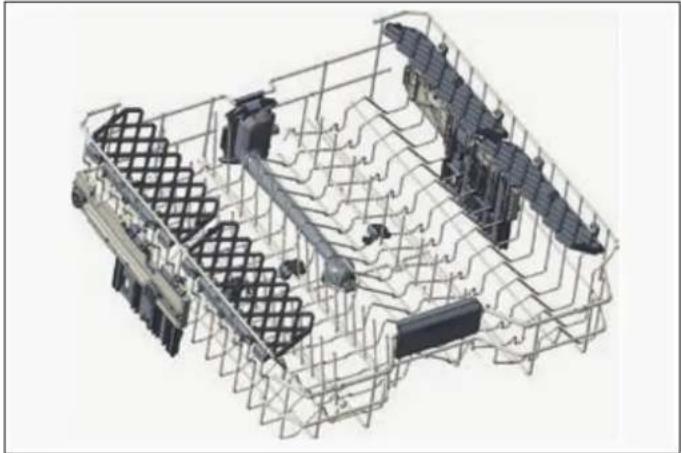

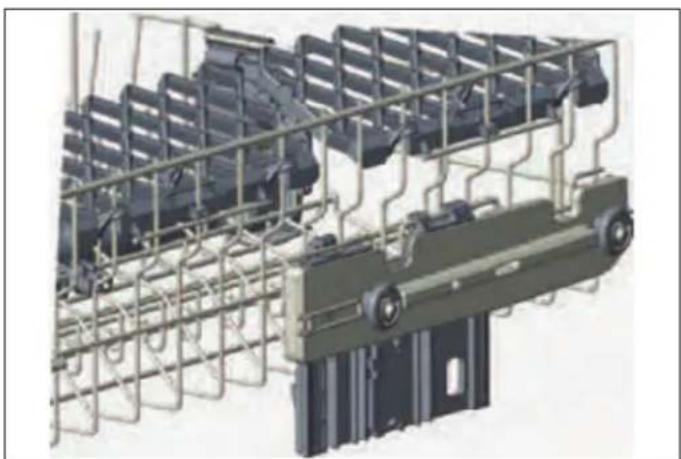

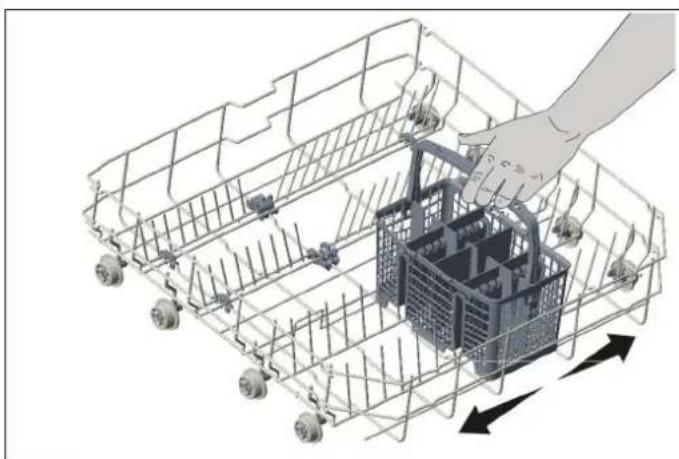

7) Silverware basket (depending on model)
8) Filters
9) Rating plates

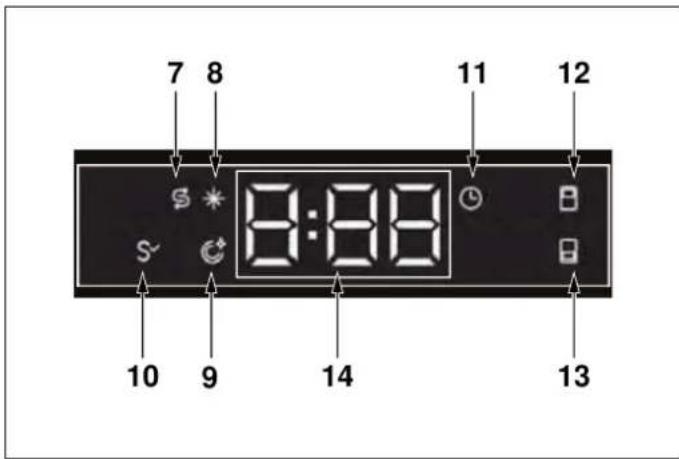

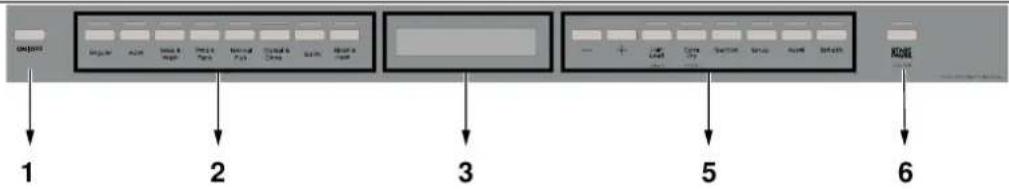

10) Control panel
11) Detergent and rinse-aid dispenser
12) Salt dispenser (depending on model)
13) Upper basket track latch

TECHNICAL SPECIFICATIONS

Permissible water pressure	4.35-145psi (0.3 - 10 bars)
Electrical connection	120 V (volts), 12 A (amps), 60Hz (hertz)
Total power	1400 (W)
Heater power	1100 (W)

NOTE

Because we continually strive to improve our products, we may change our specifications and design without prior notice. This device corresponds to the following directives:

UL 749 Household Dishwasher Directive.

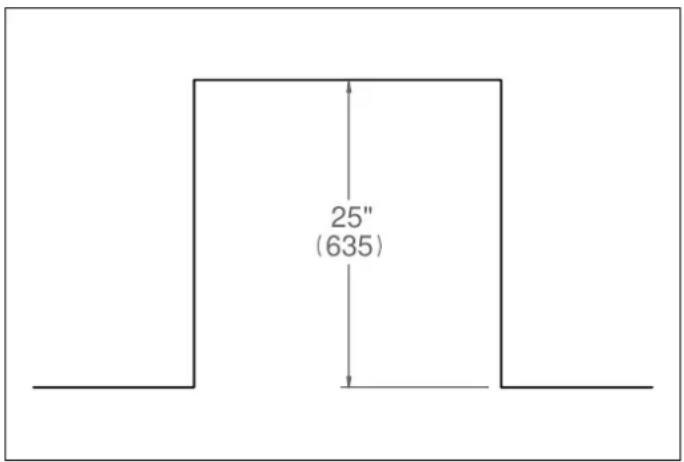

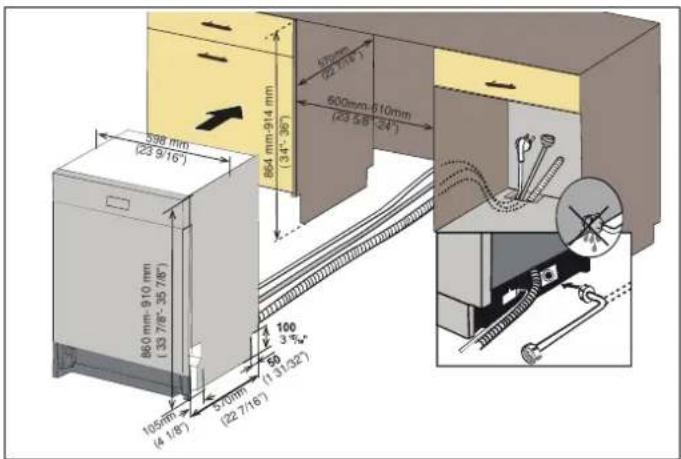

CUTOUT DIMENSIONS

Cabinet depth shown includes kitchen cabinet front panel. For a flush installation, a minimum inset depth of 22 1/2" (570) is required with a custom door panel thickness of 3/4" (20).

TOP VIEW

25" (635)

Fig. 2

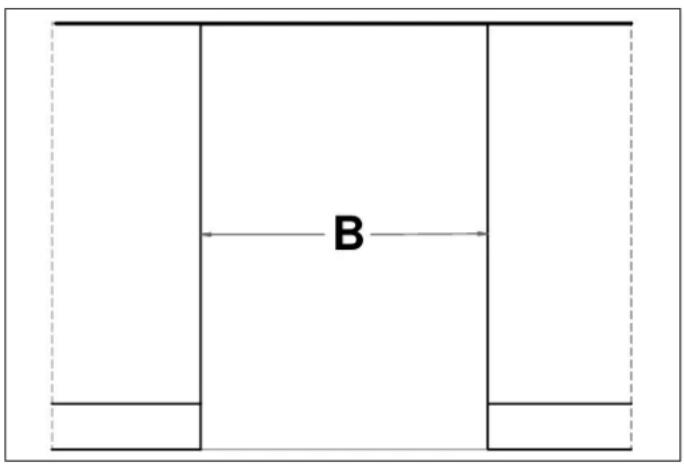

FRONT VIEW

B

Fig. 3

• B 23 5/8" (600mm)* or 24" (610mm)**

* without side trims
** with side trims installed

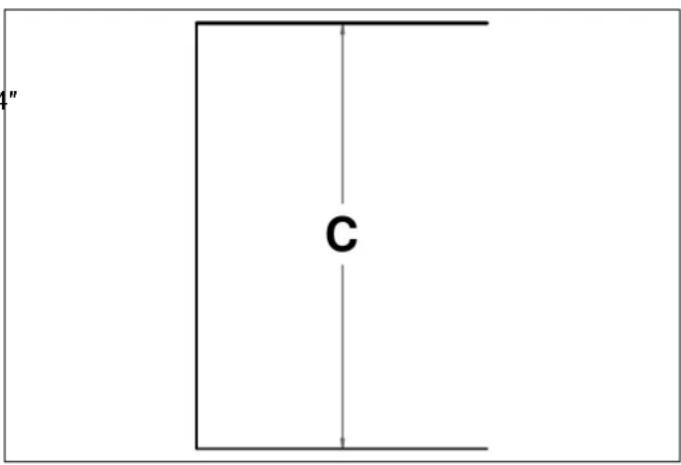

SIDE VIEW

" C

Fig. 4

• C 34" - 36" (864mm-914mm)

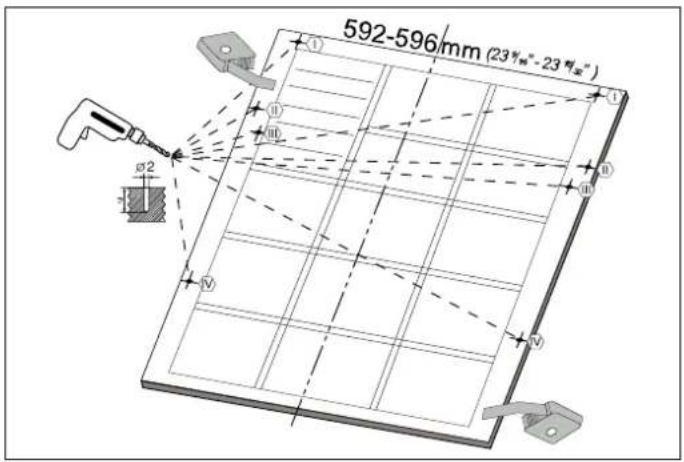

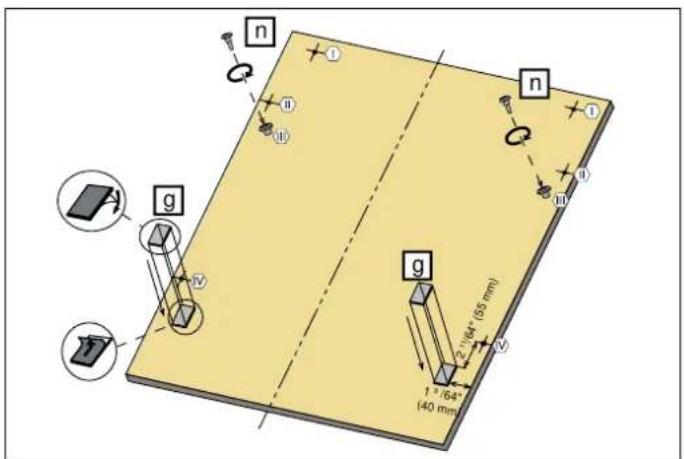

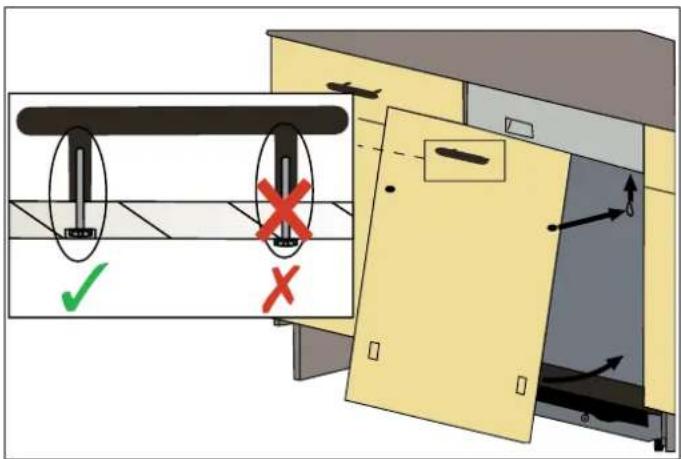

CUSTOM DOOR PANEL (FOR PANEL-READY MODELS)

The thickness of the custom panel may vary. A minimum 1/2" (13 mm) thick panel is required, but the thickness can be increased provided the panel does not exceed 18 lb (8 kg). The custom door panel template provided accommodates 25" 5/16 (592 mm) – 23" 7/16 (596 mm) wide panels.

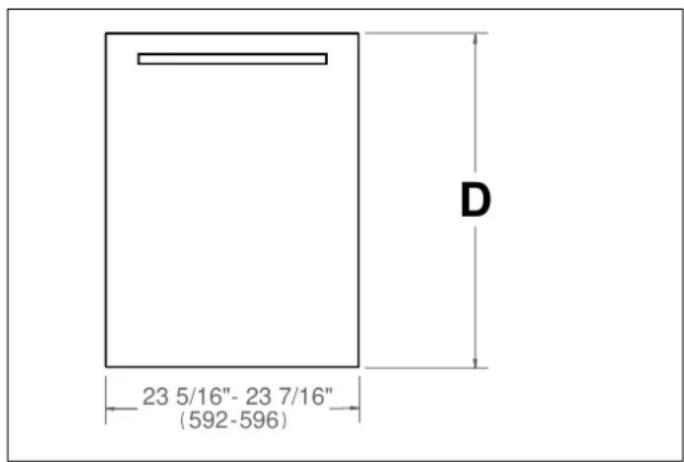

FRONT VIEW

23 5/16"- 23 7/16" (592-596) D

Fig. 5

D 27 1/16" - 29 13/16" (687mm-757mm)

ELECTRICAL REQUIREMENTS

Please check the electrical standards and local codes before installing the appliance.

Connect to a properly rated, protected, and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply of 120 V (volts), 60 Hz (hertz), AC, connected to a separate, properly-grounded electrical circuit servicing only this appliance, with a fuse or

breakers rated for 15 amperes. Electrical supply conductors shall be a minimum of # 16 AWG copper wire rated at 167 °F (75 °C) or higher.

Never connect the ground wire to gas lines, or hot water pipes, plumbing lines.

Do not use any extension cord or portable outlet device connect the dishwasher to a power supply.

These requirements must be met to prevent injury and damage to the machine. Consult a qualified electrician if doubt.

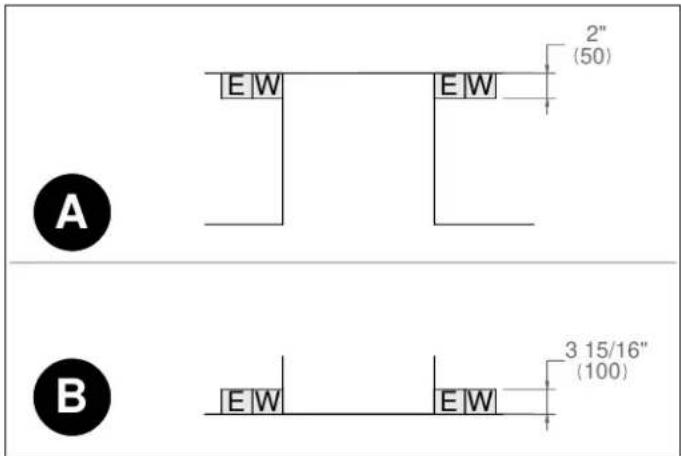

A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.

Connections placement must be located on either side of the cutout.

PLUMBING REQUIREMENTS

Installation must comply with all applicable plumbing codes.

Place the water supply and drain in an adjacent cabinet.

Connect the water supply to a hot water household supply with an easily accessible shut-off valve between the supply and the unit.

The edges of the opening must be smooth and round.

The water supply may be connected to the dishwasher either:

• A metal braided hose
- Copper tubing

Use minimum 34 " O. D. copper tubing or metal braided dishwasher supply line.

The dishwasher water inlet valve has an inlet coupling thread dimension of 34'' - 11.5NH according to ASME B1.20.7-1991. When buying a water inlet hose for your dishwasher, please choose an inlet hose with thread dimension compatible with the water inlet valve coupling thread dimension ( 34'' - 11.5NH ) of your dishwasher.

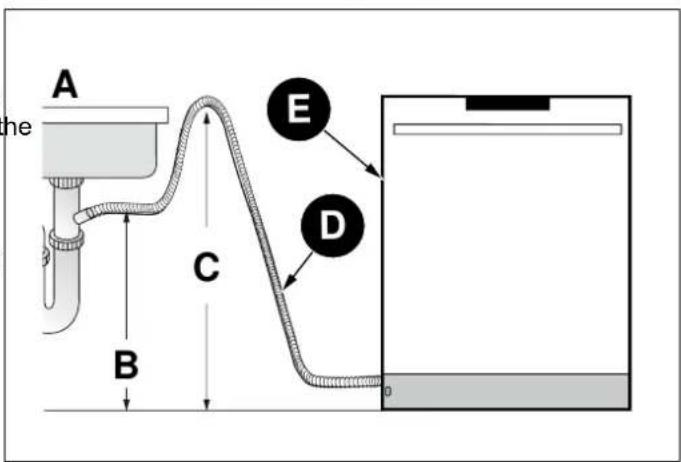

A high loop drain line is factory installed on the unit. Do not inremove the high loop clamp. If necessary, the drain tubing can be extended by a maximum of 5" (1.5m). The dishwasher drain hose must be installed with a drain loop at least 28" (710) off the cabinet floor; otherwise, the dishwasher may not drain properly.

The temperatures required for soldering and sweating will damage the dishwasher's water inlet valve, so if any such operation is needed, keep the heat source min. 77/8" (200mm) away from the dishwasher's water inlet valve. There should not be any sharp bends in the water line that may restrict the water flow.

Teflon tape or pipe thread compound must be used for sealing the connection. Before connecting the copper water supply line to the dishwasher, flush it with hot water to clear any foreign material.

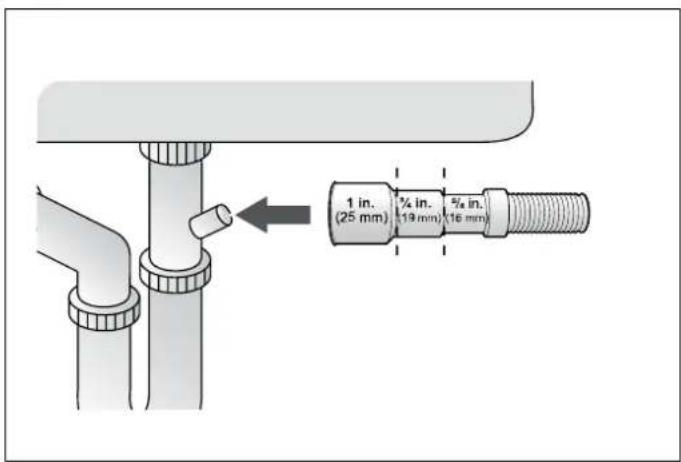

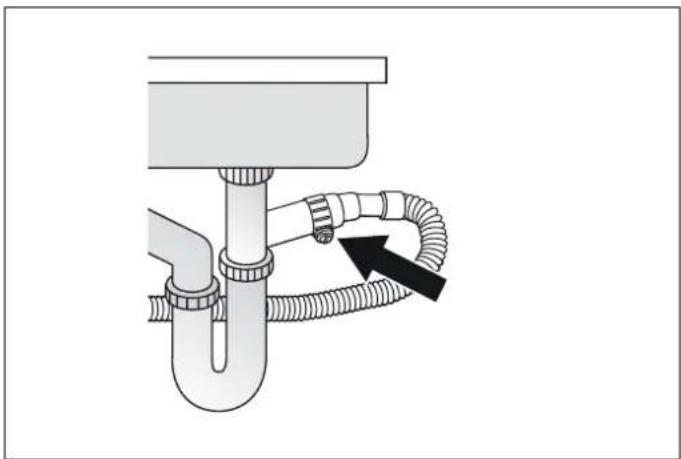

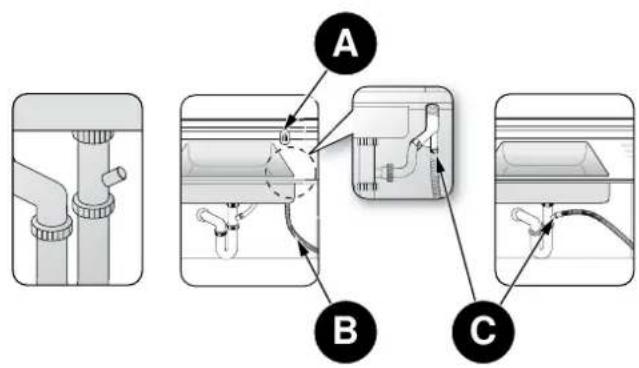

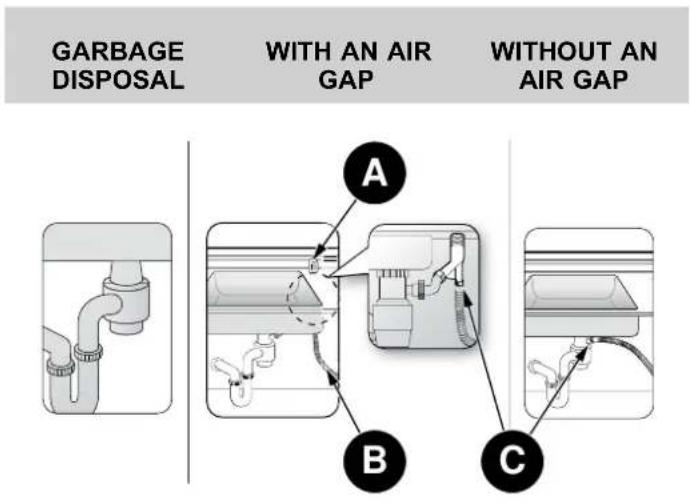

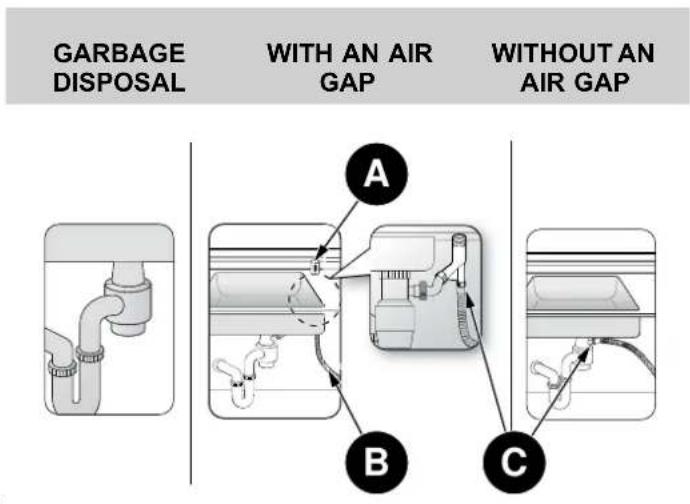

GARBAGE DISPOSAL WITH AN AIR GAP WITHOUT AN AIR GAP A B C

A Air gap
B Drain hose
C Hose clamp

Purge the water supply prior to final connection to the unit.

This will remove any debris that may be present in the tubing when installing the new water supply. Connect the braided tubing from the unit to the household water supply with the fitting provided.

Check all water supply fittings for leaks.

Fig. 7

• A TOP VIEW
• B FRONT VIEW

To connect the water mains to the water inlet valve thread, use a 3/8" water inlet hose and 3/4" metal adapter with a length of 60" (1524) (not supplied).

INSTALLATION

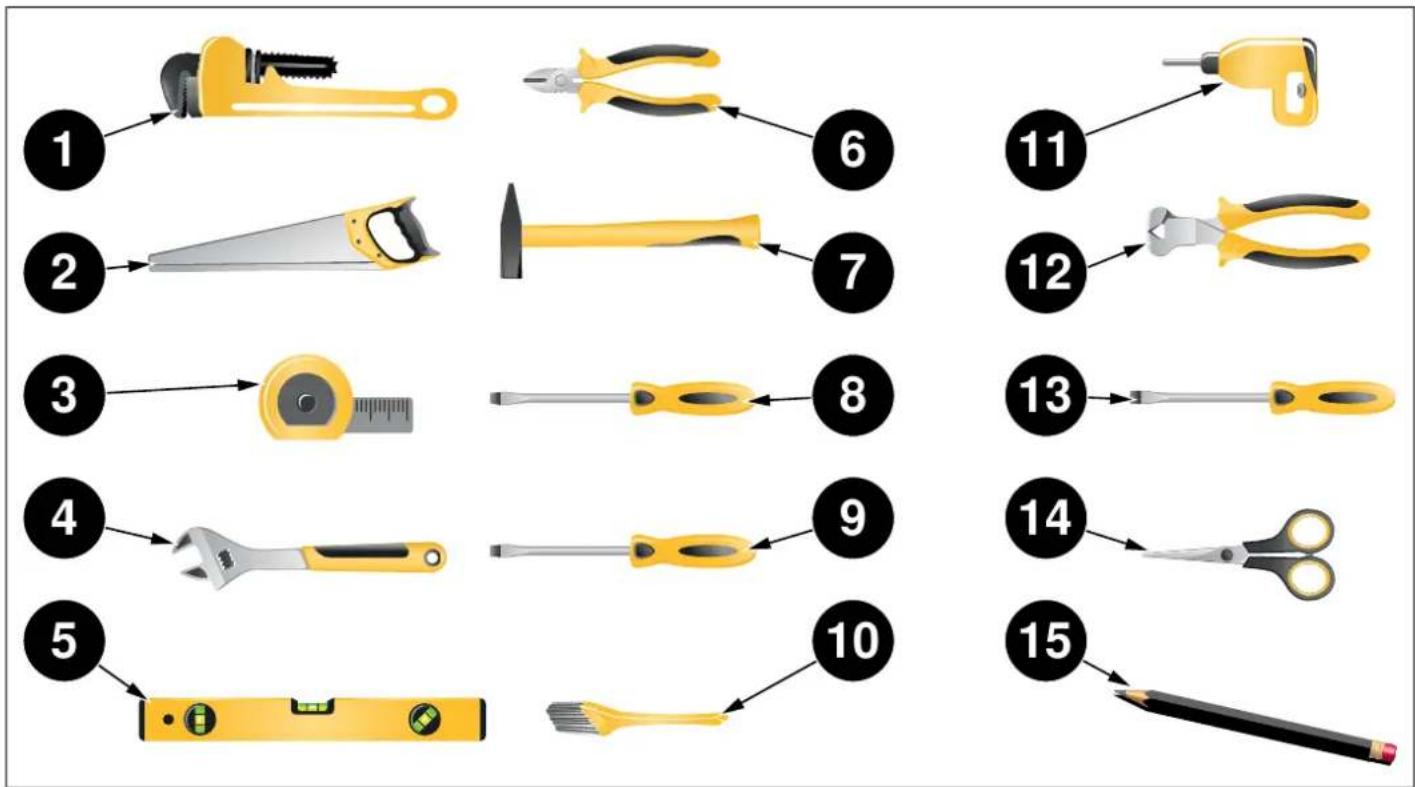

TOOLS THAT MAY BE REQUIRED

    F["6: Sliding Tool"] --> G["7: Handrail"]
    G --> H["8: Screwdriver"]
    H --> I["9: Screwdriver"]
    I --> J["10: Brushbrush"]

    K["11: Glazing Tool"] --> L["12: Clipstick Tool"]
    L --> M["13: Screwdriver"]
    M --> N["14: Scissors"]
    N --> O["15: Pencil"]

Fig. 8

(Additional materials may be required to comply with local codes)

Hot Water Supply Line - Minimum 3/4" O.D. copper tubing or metal braided dishwasher supply line.

UL listed conduit connector or strain relief.

Teflon tape or other pipe thread compound to seal plumbing connections.

Shut-off valve and fittings appropriate for hot water supply line (copper tubing/compression fitting, or braided hose).

Silicone

Glue

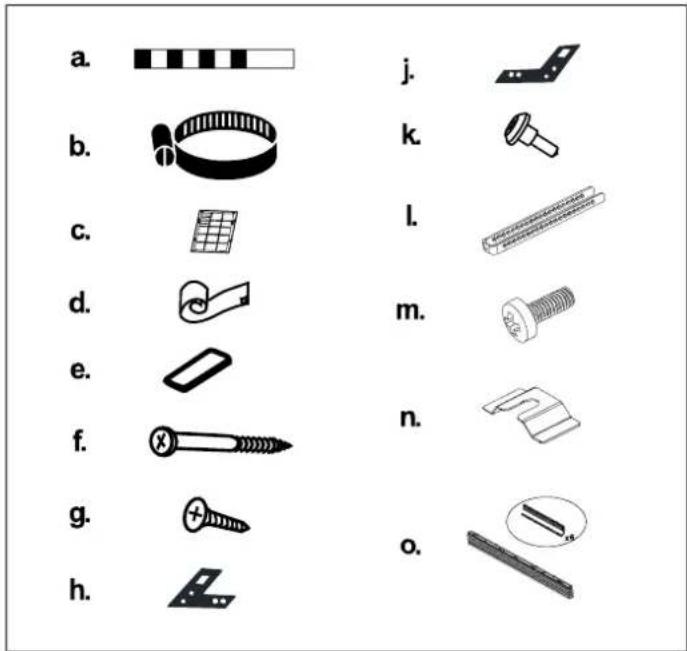

MATERIALS SUPPLIED

The parts required for positioning the dishwasher are in plastic bags. Check that all of the following parts are contained in plastic bags.

MANUAL BAG

The dishwasher comes with a manual bag containing: User manual, Installation manual.

DISHWASHER PARTS BAG 1

This dishwasher bag comes with the following parts:

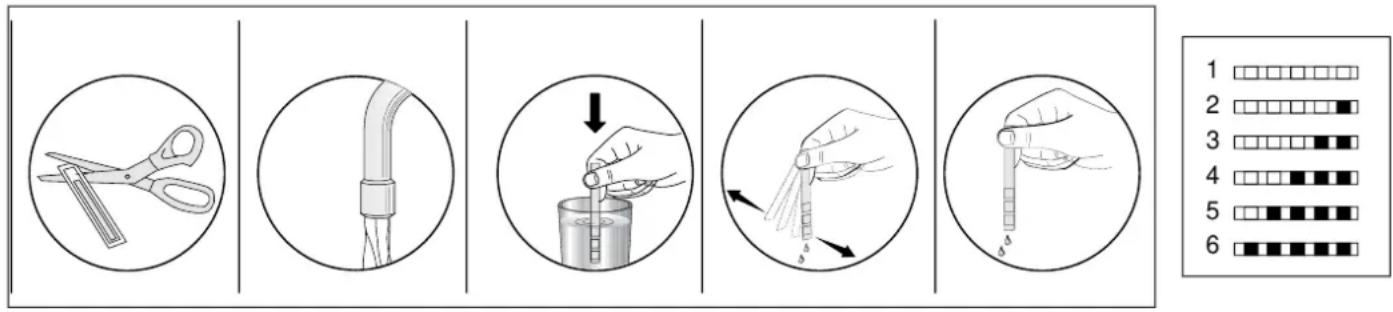

a. Test Strip(x1)(depending on model)
b. Hose Clamp(x1)

DISHWASHER PARTS BAG 2

c. Assembly plan(x1)

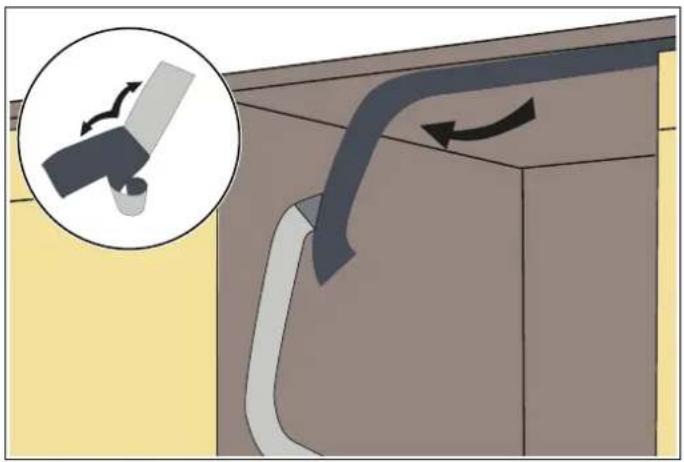

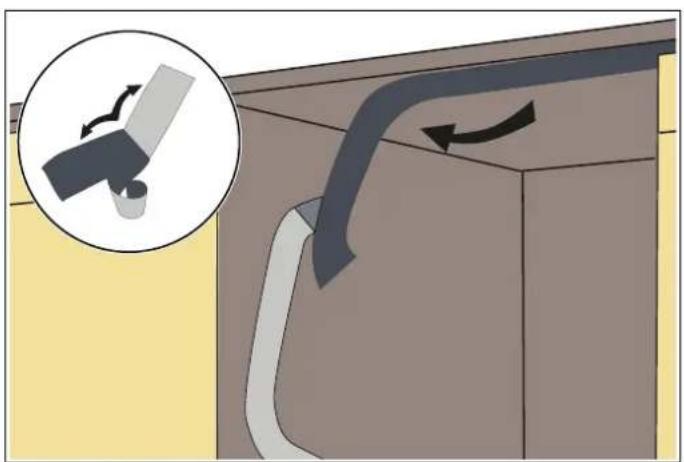

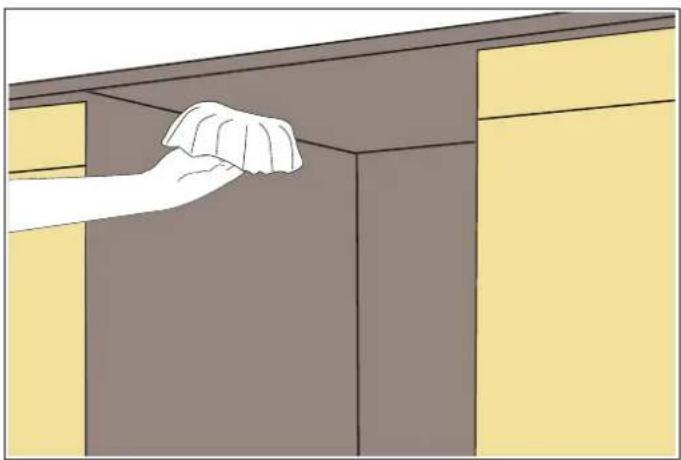

d. Steam Protection Foil(x1)
e. Wooden Door Fixing Strips(x2)

DISHWASHER PARTS BAG 3

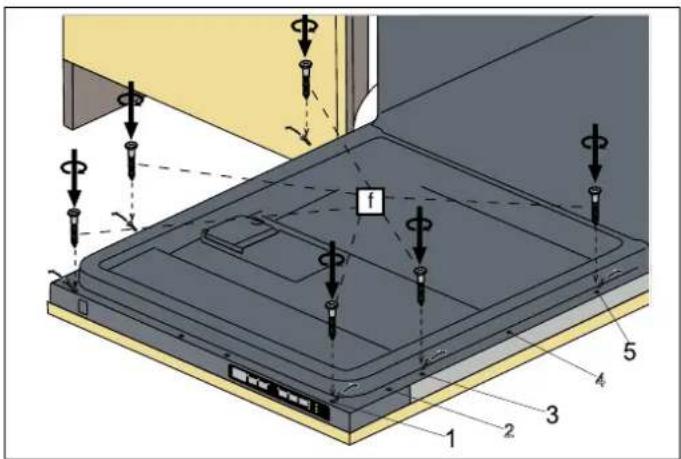

f. Screws 5/32" x 53/32" (4mm x 42.5mm)(x6)
g. Screws 5/32" x 19/32" (4mm x 15mm)(x2)
h. Left Mounting Bracket(x1)

j. Right Mounting Bracket(x1)
k. Screws 5/32" x 27/32" (4mm x 21.5mm)(x2)

DISHWASHER PARTS BAG 4 (DEPENDING ON MODEL)

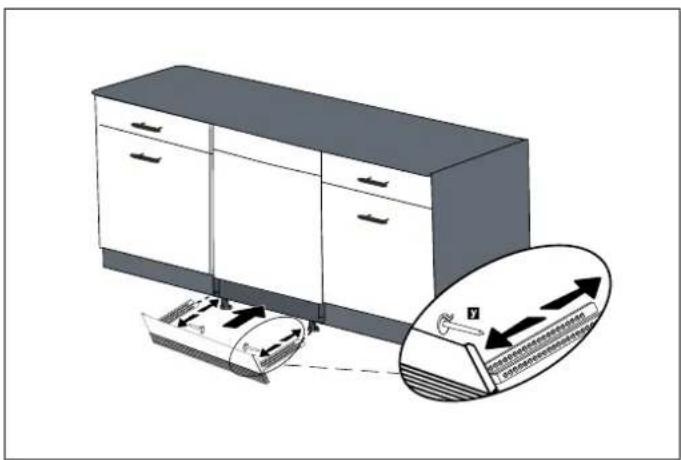

I. Toe Kick Bracket(x2)
m. Screws 5/32" x 7/32" (4mm×6mm)(x2)

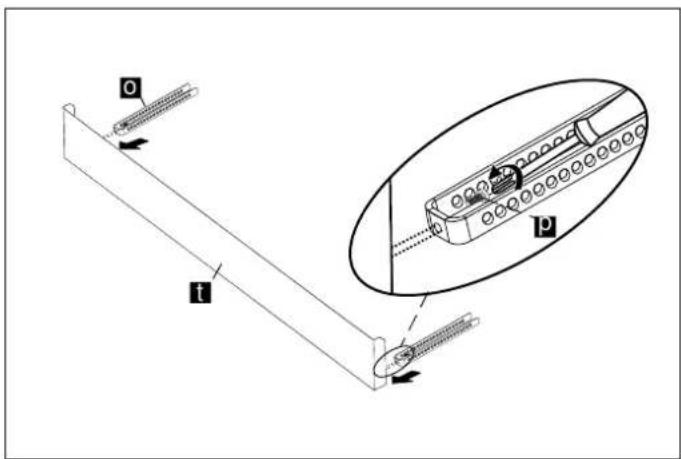

n. Plinth Fixing Metal(x4)
o. Adjustable Plinth(x1)
p. Adjustable Plinth Metal (130mm) depending on model (x1)
r. Adjustable Plinth Metal (80mm) depending on model (x1)
s. Plinth Locking(x2)

DISHWASHER PARTS BAG 5 (DEPENDING ON MODEL)

t. Long Legs(x3)

IMPORTANT SAFETY INSTRUCTIONS

In addition to these instructions, the dishwasher shall be installed:

• In accordance with all local codes or, in the absence of a local code:
  • In the United States, with the National Electric Code,
• In Canada, with the Canadian Electric Code C22.1-latest edition/Provincial and Municipal codes and/or local codes.

When installing the dishwasher, follow basic precautions, including the following:

• Installation and repair should be performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.

NOTE

The dishwasher should be installed by an insured licensed plumber, contractor, or trained installer. Installation performed by persons other than these could result in improper installation and damage to property.

• Do not operate the appliance if damaged, malfunctioning, partially disassembled or if it has missing or broken parts.
• Before installation or service, disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.
• Only connect the dishwasher to the power supply when all installation and plumbing work is complete.
• Never connect the ground wire to gas lines, or hot water pipes, plumbing lines.
• If the dishwasher is installed in a location that is subjected to freezing temperatures (e.g., vacation home, cabin, etc.), you must drain all water from the dishwasher's interior. Water system breakdowns that occur due to freezing water are not covered under warranty.
• The dishwasher must be secured to adjacent cabinetry using the brackets provided. Failure to do so may cause damage to property or bodily injury.
• The dishwasher is intended for residential use only and should not be used in commercial establishments.

NOTE

Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

WARNING

Danger of suffocation! Ensure that any plastic wrappings, bags, small pieces, etc., are disposed of safely and kept out of the reach of children.

PREPARATION FOR INSTALLING MOUNTING BRACKETS

The mounting brackets in the plastic bag should be used when the dishwasher is installed in the cabinetry. Use of any parts other than mounting brackets may result in damage to property or bodily injury.

NOTE

There shall be an opening through the partition between the compartments that is large enough for the attachment plug to pass through. The longest dimension of the opening shall not be more than 38.1 mm (1.5")

NOTE

If the partition is in wood, the edges of the cabinetry should be smooth and rounded, or, if the partition is in metal, the edges of the cabinetry should be covered with an edge protector; when the appliance is installed or removed, take care to reduce the likelihood of damage to the power supply cord.

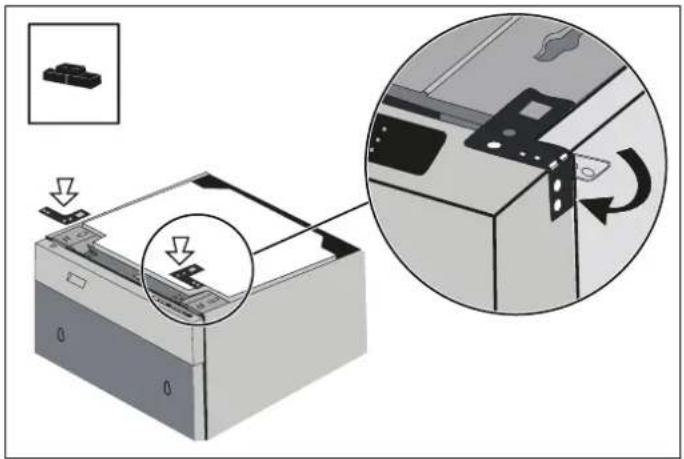

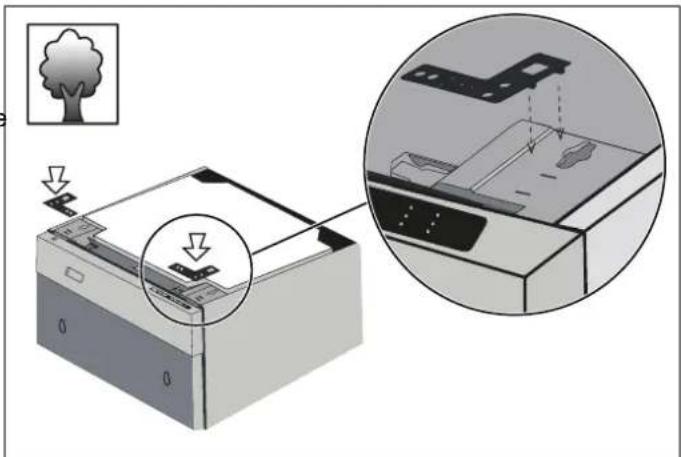

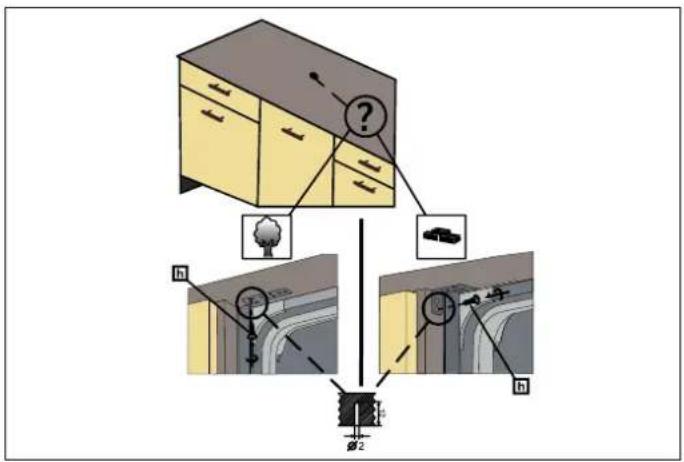

1) Place the two mounting brackets into the top corners of the dishwasher.
2) If necessary (depending on countertop board material), bend the sides of the mounting brackets.

If countertop board material is wood, etc.;

Diagram illustrating the process of printer printing or assembly, showing a tree icon and magnified view with arrows indicating steps.

Fig. 11

If countertop board material is ceramic, etc.;

Diagram illustrating a printer's internal structure and assembly process, with magnified view showing the printer's internal components.

Fig. 12

Diagram illustrating kitchen fixture positioning with labeled parts and directional arrows indicating movement or adjustment.

Fig. 13

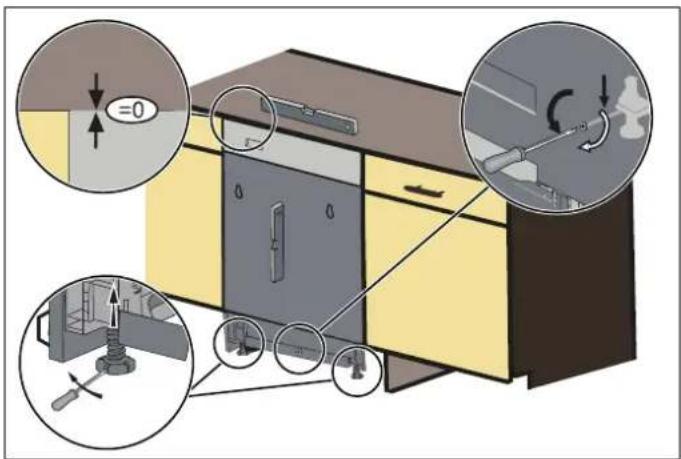

ADJUSTING THE HEIGHT

1) Keep the front feet at the minimum height before and while positioning the dishwasher into the cabinet cutout.
2) Adjust the front foot level with a slot screwdriver to stabilize the dishwasher and raise it to the enclosure height.
3) Adjust the rear foot level with a Phillips screwdriver to balance and raise the dishwasher to the enclosure height.

NOTE

Make sure the dishwasher is plumb and note that the dishwasher can be placed with a small clearance under the countertop.

For front feet; turning the feet in the direction of the black arrows with the slot screwdriver moves the dishwasher downwards.

For rear feet; turning the Phillips screwdriver in the direction of the black arrows will move the dishwasher feet downwards.

If the height of the enclosure is 34" - 36" (864mm-914mm), use short supports as shown in the figure.

$$ \text { ops. } (+ 5 0) \mathrm{H} = 3 6 ^ {\prime \prime} - 3 8 ^ {\prime \prime} (9 1 4 \mathrm{mm} - 9 6 4 \mathrm{mm}) $$

If the height of the enclosure is above 36" (914mm), use long supports as shown in the figure.

STEAM PROTECTION FOIL

Steam will be released when the dishwasher door is opened during operation of the dishwasher and after completion of the working cycle. In order to prevent the resulting steam from collecting and damaging the underside of the countertop, use a steam protection foil included in the plastic bag.

Clean the surface with a damp cloth before applying steam protection to the underside of the countertop.

Illustration of a hand cleaning a cabinet with a cloth (no text or symbols)

Fig. 14

Diagram showing a device with a curved arrow indicating rotation or movement, and an inset magnified view of the device's motion (no text or symbols present)

Fig. 15

598 mm (23 9/16") 860 mm-910 mm (33 7/8"-35 7/8") 106mm (4 1/8") 510mm (22 7/16") 864 mm-914 mm (34"-36") 600mm-610mm (23 5/8"-24") 100 3 5/4" 60 (1 31/32)

Fig. 17

CAUTION

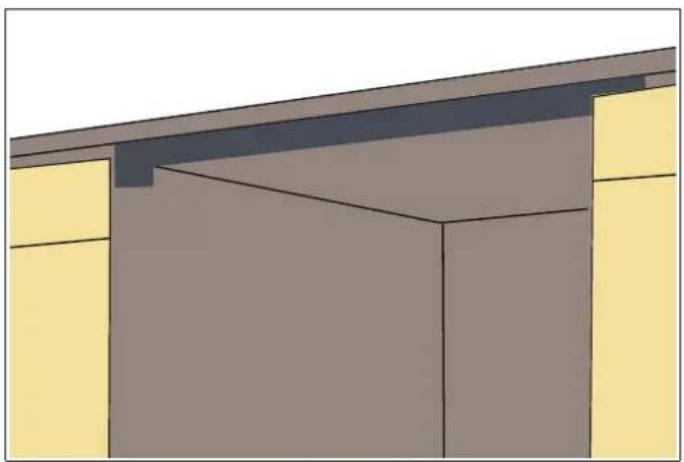

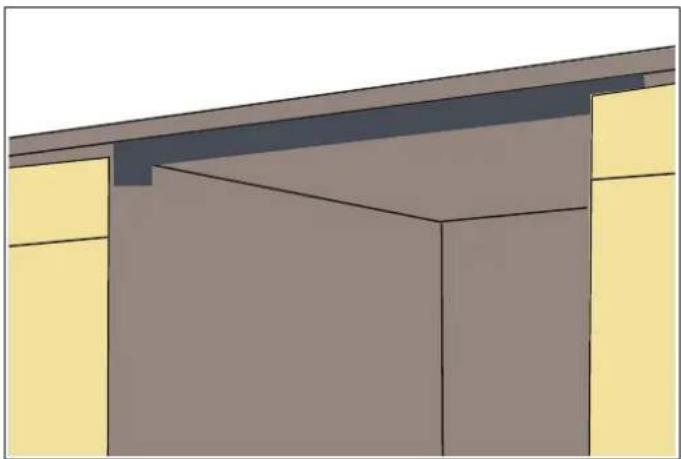

Steam protection foil must be applied where the steam escapes when the door is first opened. Failure to install the steam protection foil during installation can lead to damage to the cabinets and countertop.

Architectural diagram showing a roof structure with yellow walls and gray walls (no text or symbols)

Fig. 16

PLACEMENT OF DISHWASHER INTO THE OPENING

Now place the dishwasher into the opening and get ready to connect all hoses and electrical connections.

CAUTION

Make sure that all hoses are pulled through the side opening of the cabinet, that no hoses are kinked and that all slack is taken out as shown in the figure.

DRAIN HOSE CONNECTION

1) Check the parts on the sink to which the drain hose will be connected.
2) There are several ways to insert the drain hose into the drain hose connector of the sink, as shown in the following figures. You must connect the drain hose in accordance with the water pipe installation regulations in your region.

GARBAGE DISPOSAL WITH AN AIR GAP WITHOUT AN AIR GAP

Diagram illustrating three-step plumbing or plumbing installation process with labeled components A, B, and C

• A Air gap
B Drain hose
C Hose clamp

GARBAGE DISPOSAL WITH AN AIR GAP WITHOUT AN AIR GAP A B C

• A Air gap
B Drain hose
C Hose clamp

3) Check the size of the sink drain hose connector. If needed, cut the drain hose so its end fits onto the sink connector (5/8", 3/4". or 1". - as shown in Fig. 18). If the end of the drain hose does not fit onto the drain hose connector of the sink, use an adapter purchasable at a plumbing/hardware supply store.

If necessary, cut off the dotted line of the drain hose to fit the size.

1 in. (25 mm) ¼ in. (19 mm) ½ in. (16 mm)

Fig. 18

4) Slide a hose clamp over the end of the drain hose. Attach the drain hose to the sink connector, slide the hose clamp to the end of the hose, and then tighten the hose clamp.

NOTE

You must use a hose clamp. Failure to do so may cause water leakage.

Use a hose clamp as shown in Fig. 19 for assembling the drain hose to the sink.

Diagram of a plumbing sink with tubing and a black arrow indicating direction (no text or symbols)

Fig. 19

5) If there is no air gap, make sure to suspend the middle of the drain hose well above the sink cabinet base to prevent back flow (see Fig. 20).

A the B C E D

Fig. 20

A Sink
B Min. 20" (508 mm)
C Min. 30" (762 mm)
• D Drain hose
E Dishwasher

6) When drilling a hole for the drain hose on the cabinet wall, make sure the drain hose is not damaged by the sharp edges of the hole. On wooden walls, sand the hole to soften the edges. On metal walls, use insulation tape or duct tape to cover the sharp edges around the hole.

Take care not to damage the drain hose when installing the dishwasher on the floor, wall, or cabinet. To prevent leaks or drainage problems, make sure the drain hose is not damaged, kinked, or twisted.
8) Do not cut the wrinkled area of the drain hose to fit the size. When arranging the drain hose, make sure not to touch the sharp edges of the cabinet or under-sink.
- Be careful when cutting off the end of the drain hose as there is a risk of injury. Clean around the sink drain

connection so that it does not damage the hose. Check for any foreign items in the drain hose and remove them.

- When arranging the drain hose, make sure the drain hose is not cut, torn, or broken by any sharp edges on the floor, the product itself, or the cabinet. A damaged drain hose causes a leak.

ADJUSTING THE MOVABLE TOE KICK (DEPENDING ON MODEL)

Now that you have successfully installed the dishwasher, you need to attach the toe kick to the dishwasher. The two-piece toe kick can be adjusted to the height and depth needed for your kitchen.

1)

A. If the height is 34" to 36" (864mm-914mm) and using short supports: adjustable plinth metal 3 1/8" (80mm) in length (v), toe kick brackets (o) are installed. Mounting is done using Screws 5/32" x 7/32" (4mm x 6mm) with a Phillips Screwdriver.
B. If the height is over 36" (914mm) and using short supports: adjustable plinth metal 5 1/8" (130mm) in length (v), toe kick brackets (o) are installed. Mounting is done using Screws 5/32" x 7/32" (4mm x 6mm) with a Phillips Screwdriver.

Technical diagram showing a mechanical assembly with labeled parts O, I, and D, including directional arrows and a magnified inset of a component.

Fig. 21

2) The adjustable plinth number is determined according to the required distance and assembled to each other.
3) As shown in Fig. 22, the cylindrical feet of the adjustable plinth are attached to the plinth fixing metal parts and inserted through the cavity of the part.

Depending on the desired depth, plinth locking (y) is attached to the toe kick bracket (o).

Technical diagram showing a device with three labeled views (a, b, c) illustrating different component configurations.

Fig. 22

4) Finally, toe kick brackets (o) are attached to the gaps under the machine and the installation is completed.

Illustration of a cabinet with drawers and a receipt, showing airflow direction (no text or symbols)

Fig. 23

INSTALLING THE OUTER DOOR (DEPENDING ON MODEL)

As shown in Fig. 24, you must measure the height and depth of the cabinetry to determine the dimensions of the outer door.

1) The installation plan is in the plastic bag secured to the inside of the Dishwasher door.

NOTE

While securing the installation plan, make sure that the plan adheres to the inside of the door. When fastening is complete, the installation plan must remain straight on the outer door.

2) As shown in Fig. 24, the screw hole is opened to the outer door from the points marked on the installation plan. Diameter of Drill Bit: 5/64" (2 mm) Depth of Drill Bit: 15/32" (12 mm)

592-596mm (23"×"-23"×") Ø2 V V V ① ② ③ ④ ⑤ ⑥

Fig. 24

Diagram illustrating door lock operation with checkmark and cross symbols indicating status or failure

Fig. 26

3) As shown in Fig. 25, Screws 5/32" x 27/32" (4mm x 21.5mm) are installed in positions III.
4) As shown in Fig. 25, Wooden Door Fixing Strips are installed in the positions shown in the figure.

NOTE

Before attaching the Wooden Door Fixing Strips, remove the white papers from the surface on both sides.

n ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ g ⑨ 1°/64" (40 mm) 2°/64 (55 mm)

Fig. 25

7) As shown in Fig. 27, Screws 5/32" x 53/32"(4mm x 42.5mm) are installed in positions I, III and V.

NOTE

Before mounting the Screws/32" x 53/32" (4mm x 42.5mm); Screws in positions I, III and V must be removed.

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement

Fig. 27

5) Before mounting the wooden door on the dishwasher, mount the handle on the wooden door as in Fig. 26.
6) The screws located on the wooden door are fitted to the dishwasher at the discharges located on the door outer sheet and are assembled as shown in Fig. 27.

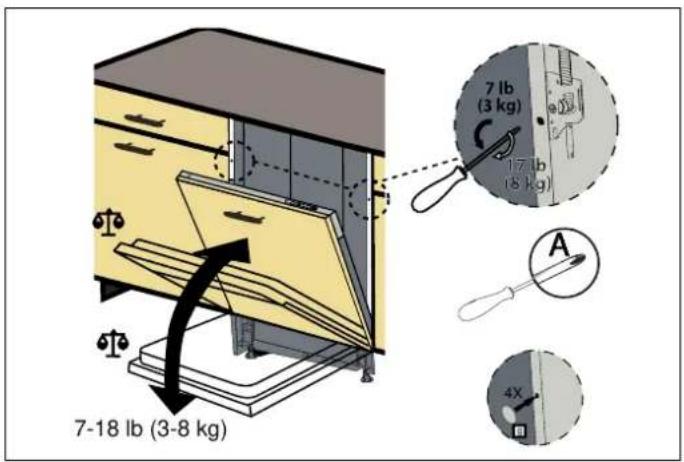

8) According to the weight of the assembled wooden door, the balancing must be provided by the mechanism shown in Fig. 28.

If the wooden door tends to open because the hinge springs are adjusted for a heavier custom panel, the mechanism must be turned in the direction of the white arrow with a Phillips screwdriver.

- If the wooden door tends to close because the hinge springs are adjusted for a lighter custom panel, the mechanism must be turned in the direction of the white arrow with a Phillips screwdriver.

NOTE

Minimum Phillips Screwdriver Diameter is 15/64" (6mm) for this application.

9) After balancing the door, hole covers are glued to the empty holes and the holes are closed.

7-18 lb (3-8 kg) 7 lb (3 kg) 1/7 lb (8 kg) A 4X

Fig. 28

10) Mounting brackets previously fastened to the dishwasher are also fastened to the cabinetry with Screws 3/32" x 19/32" (4mm x 15mm).

Diagram illustrating a furniture or bathroom fixture setup with labeled components and annotations in Chinese

Fig. 29

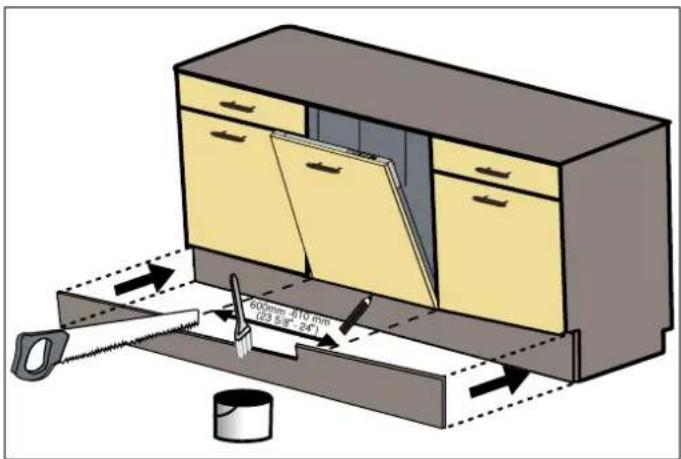

11) Check whether the bottom of the door hits the toe kick of the kitchen cabinet.

• If the door hits the toe kick, cut the required section out of the toe kick.
• Apply silicone or sealant to the cut edge of the kitchen cabinet toe kick or paint it so that it does not absorb moisture.

600mm 510 mm (23.5" 24")

Fig. 30

INSTALLER CHECKLIST

Your installer must have completed and checked the following:

The dishwasher is square and level.
☐ The dishwasher is fastened securely to the cabinetry.
☐ The dishwasher door opens and closes freely. The dishwasher door must close without hitting any cabinetry or countertop.
☐ The inlet water supply is turned on and checked for leaks.
☐ The drain hose has been connected and checked for leaks. There must be no kinks or obstructions in the drain hose.
☐ The drain hose must be installed with a 30" (762 mm) high drain loop for drain hook-ups without any air removed.

If you connect the water drain hose to a trap spigot under the sink, remove the plastic membrane. If you do not remove the entire membrane, leftover food could cause a blockage in the drain hose spigot. Ensure a hose clamp is used to secure the hose to the spigot.

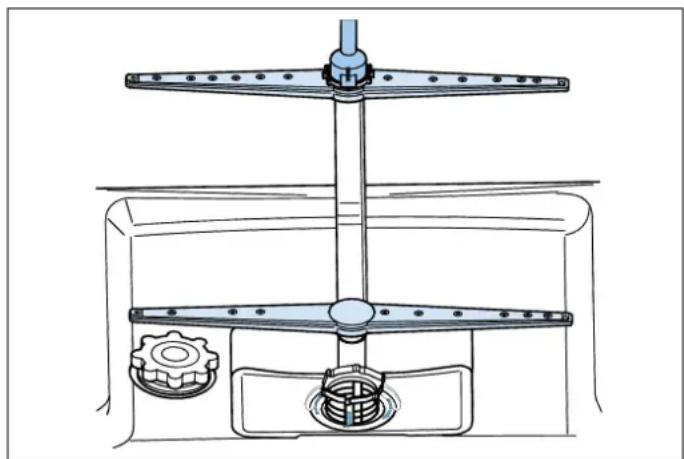

☐ The spray arms are free and rotate freely.
The rinse cycle has been run.
☐ The water level will be below the filter screen after the end of the wash program. It is normal to find some water in the drain filter area.

FINAL INSTRUCTIONS

1) Press the On/Off button to turn the dishwasher on.
2) Power indicator light comes on.
3) Use the Program Select button to choose a washing program.

4) Start the program with the Start/Pause/Cancel button.
5) Run the dishwasher through one complete cycle. When the wash cycle is completed, use the On/Off button to turn the dishwasher off.

NOTE

If the dishwasher does not operate properly, see the Self Help Tips.

SELF-HELP TIPS

The screen does not come on:

• Check to make sure the breaker to the dishwasher is in the ON position.
• Check to make sure that the supply cord is plugged.

No water is coming into the dishwasher:

- Check to make sure the water shutoff is in the ON position.

Water does not drain:

• Make sure the drain hose is not kinked or sticking out of the air gap next to the sink.
• Remove the drain hose from the garbage disposal making sure the plug is removed.

NOTE

If your dishwasher is not operating properly after following these steps: Contact your dealer to schedule an authorized service agent to inspect your new dishwasher for any function-related failure.

The manufacturer warranty does not cover installation, conversion or customer training service visits.

MADE IN TURKEY (Fabrique en Turque) 572244

~120 V 60 Hz 12A M 0,9 A C US LISTED (List) HOUSEHOLD DISHWASHER (LAVE-VAISSELLE)

XXXXXXXXXX Serial Number: XXXXXXXXXXXX

Fig. 31

You will find the model and serial number information on the label located on the right-hand side of the inner door of your dishwasher, as shown above.

NOTE

Please make a copy of your invoice and keep it with this manual and register your dishwasher on-line.

GETTING STARTED

PREPARING YOUR DISHWASHER FOR FIRST USE

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level according to the instructions in this manual (depending on model).
• Set the rinse-aid dosage according to the instructions in this manual.

SETTING THE WATER SOFTENER (DEPENDING ON MODEL)

The dishwasher needs soft water for good cleaning results. Hard water results in a build-up of limescale deposits on dishware and in the dishwasher. Your dishwasher has a special water softening system to remove tap water hardness. Setting this system correctly will increase washing effectiveness.

Water supplies with a hardness level higher than 5 gpg (9° f) need to be softened.

If the hardness level of the water that you use is above 53 gpg (90° f) or if you are using well water, then we recommend using filter and water purification devices.

The dishwasher is preset at level 1 (inactive) water hardness. If this setting matches the hardness of your water, you do not need to do anything else. The dishwasher must be programmed for the water hardness of your area.

To find out the water hardness level of your area, contact your local Water Board, or determine the water hardness level using the test strip provided.

WARNING

If you move to a different location, the water hardness level could be different. It is essential to reset the water hardness in order to obtain optimum washing efficiency.

Follow the steps in the image when using the test strip.

Run water through the tap (1min.)

Keep the strip in the water (1sec)

Shake the strip

Wait (1min.)

Set the hardness level of your machine

Illustration showing a hand holding a pipette with six sequential steps, each labeled with a corresponding color-coded legend.

NOTE

The level is set to 1 as default. If the water is well water or has a hardness level above 90 dF, we recommend using filter and refinement devices.

WATER HARDNESS TABLE

Level	Grains per gallon	French dF Indicator
1	0-5 gpg	0–9	SL1 is shown on the display.
2	6-12 gpg	10-20	SL2 is shown on the display.
3	13-18 gpg	21-30	SL3 is shown on the display.
4	19-23 gpg	31-40	SL4 is shown on the display.
5	24-32 gpg	41-60	SL5 is shown on the display.
6	33-53 gpg	61-90	SL6 is shown on the display.

Adjust the water hardness setting of your machine according to the level specified on the test strip (if available).

In order to change the water hardness level, follow the steps below:

1) Turn on the machine and press the Extra Dry button for 3 seconds to enter Menu settings: the water hardness level will appear on the display (SL1 is the factory setting)
2) press the Half Load button once and the water hardness level (e.g. SL1) will start flashing
3) Change the water hardness level by pressing the Delay buttons
4) Press the Half Load button again to save desired level: the newly selected level will stop flashing
5) Exit Menu settings by pressing the Extra Dry button for 3 seconds or turn the machine off.

WARNING

In order for the water softening system to work properly, the dishwasher must be filled with dishwasher salt before the first wash. See instructions in the salt dispenser chapter.

PLATE ARRANGEMENT

If you place your dishes into the machine properly, you will be using it in the best way in terms of energy consumption, washing and drying performance.

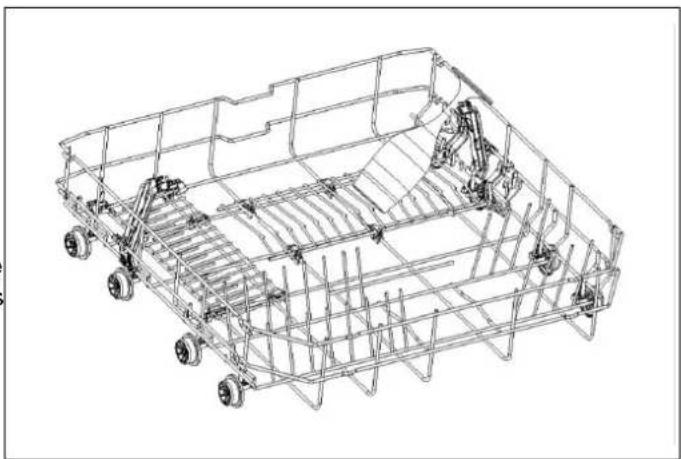

Into the lower basket, you can load round and deep items such as pots with long handles, pot lids, plates, salad plates, cutlery sets. The upper basket has been designed for dessert plates, salad bowls, cups and glasses. When placing long stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they will lose their balance and may be damaged. It is more appropriate to place thin narrow parts into the middle sections of baskets. You can place spoons among other cutlery sets in order to prevent them from sticking to one another.

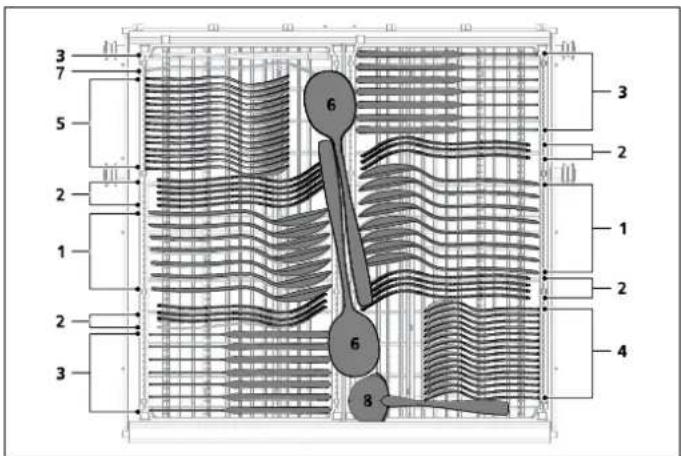

We recommend that you use the cutlery grid for best results. To avoid possible injury, always place long-handled and sharp-pointed utensils such as serving forks, bread knives, etc., with their sharp points facing downwards or horizontally on the baskets.

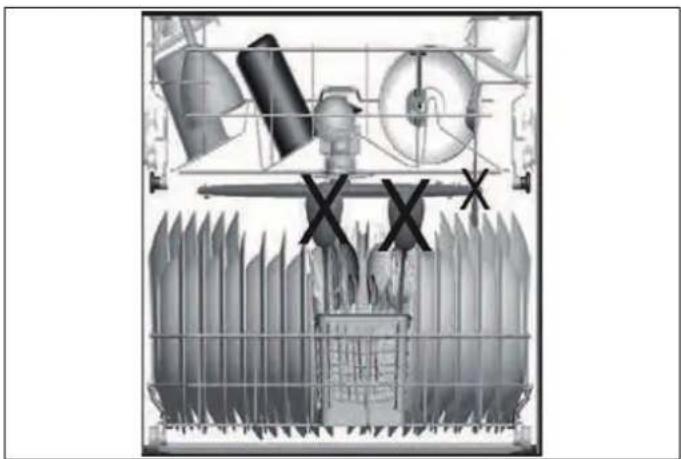

WARNING

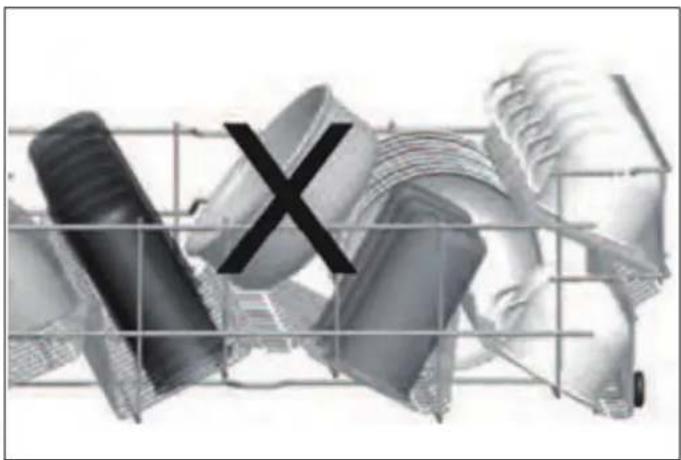

Place your dishes into your machine so that they will not prevent the upper and lower spray arms from spinning.

WARNING

Do not put into the appliance items that can absorb water (sponges, dishcloths).

NOTE

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards (so that they cannot collect water).

NOTE

Dishes and cutlery should not be placed above one another.

NOTE

Do not overload your dishwasher and pay attention to manufacturer instructions regarding dishes which are appropriate for use in a dishwasher. Only with suitable dishes (mentioned in section 5) will you obtain optimal washing results with a sensible use of energy.

High temperature water and dishwasher detergent may form a chemical synthesis that can damage certain items.

USE

WARNING

Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury.

Follow the steps below before loading dishwasher.

1) Open the door.
2) Remove leftover food remains from tableware.
3) Load the dishwasher.

NOTE

If you open the door while the appliance is running, all functions are automatically interrupted. Once the door is closed, functions will resume operation.

UPPER RACK

Load the upper rack with dessert plates, cups, glasses, etc.

Additional load pattern for 12 place settings.

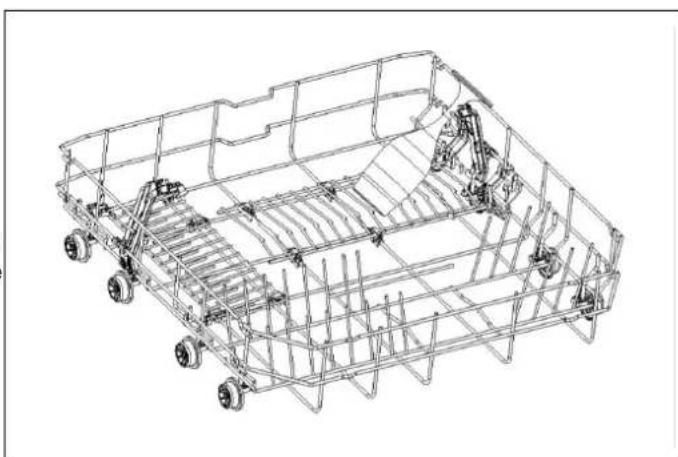

LOWER RACK

Into the lower basket, you can load round and deep items such as pots with long handles, pot lids, plates, salad plates, cutlery sets. The lower rack should not be used for small items such as cups, wine glasses.

Fig. 34

Bottom rack load pattern for 10 place settings.

Fig. 32

Top rack load pattern for 10 place settings.

Fig. 35

Additional load pattern for 12 place settings.

NOTE

Place all large and very dirty items in the lower rack.

WARNING

Large knives and other utensils with sharp tips and edges must be placed horizontally on the upper rack due to the risk of injury. Other smaller knives and sharp utensils should be placed sharp side down in the cutlery basket.

Fig. 33

NOTE

Make sure that large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening.

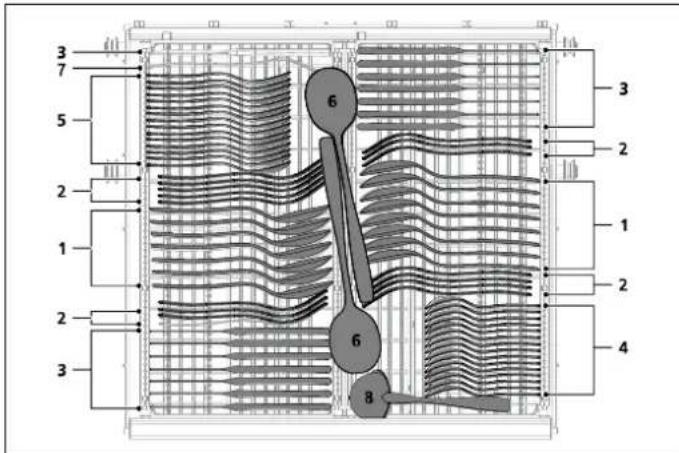

THIRD RACK (DEPENDING ON MODEL)

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and make sure utensils do not nest into each other, as this may cause poor performance. For top quality cleaning, place the silverware in the basket making sure that:

• They do not nest into each other.
- Load silverware with pointed and sharp sides downwards.

- Long utensils are in the middle.

3 7 5 2 1 2 3 6 6 8 3 2 1 2 4

Fig. 36

Cutlery Basket load pattern for 12 place settings.

WARNING

Sharp cutlery may shift position during the wash cycle, and may be also wet and slippery. Take care when removing them to prevent injury.

NOTE

Small items should therefore be placed in the cutlery tray or cutlery basket (depending on model), as small items can fall from the baskets through the holders.

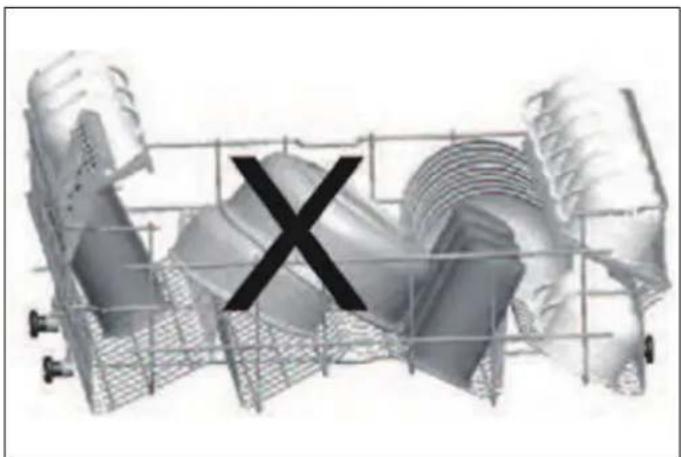

INCORRECT LOADS

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer recommendations for good results.

Black X symbol inside a wireframe container filled with circular objects (no text or symbols)

Fig. 38

3D rendered mechanical components with a central 'X' mark, no visible text or symbols

Fig. 41

Cross-sectional diagram of a mechanical or industrial system with no visible text, numbers, or symbols.

Fig. 39

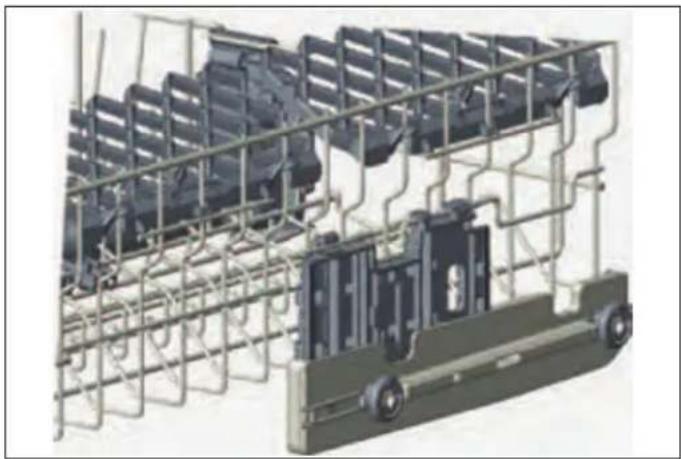

WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER?

• All items to be placed in the dishwasher should be dishwasher-safe.
• Only plastics with "dishwasher safe" or equivalent label may be placed in dishwashers. Plastics may lose their shape or color. Check with the manufacturer for recommendations.
• Any dishes made out of wood, or that include wooden parts, are not suitable for washing in dishwashers. High temperatures can cause the wood to swell or crack.
  Silver items without a "dishwasher safe" label should not be washed in the dishwasher as high temperatures and detergent can damage the silver. Check with the manufacturer for recommendations.
• "Dishwasher safe" silver items and stainless steel items should not come into contact, as the silver can become discolored.
• Porcelain and glassware with decorations and hand-painted utensils may lose their color and patterns due to the high temperatures. Non-decorated items are dishwasher-proof. Check with the manufacturer for recommendations.
• Aluminum can turn dark in the dishwasher due to the heat, the detergent used or even just certain minerals in your water.
  Do not wash sponges or dishcloths in the dishwasher.
• Do not wash any materials such as acrylic, copper, brass, pewter, iron, bronze or tin.
• Pots without a non-stick coating are safe to be cleaned by your dishwasher but some non-stick pots and pans can lose their coating and also sticking ability.
• Glued dishes or cutlery are not suitable for machine washing since adhesives that join materials such as plastic, wood, bone, steel, copper, tin, etc., may loosen.

Abstract grayscale illustration of mechanical components with a 'X' symbol overlay (no text or symbols present)

Fig. 40

Remember, if you have any questions or concerns regarding items to be washed in the dishwasher, follow the instructions of the items' manufacturers, or wash the items by hand.

WARNING

If in doubt, wash by hand, or follow the instructions from the manufacturer of the utensils, dishes, glasses or pots and pans. Do not wash items soiled with cigarette ash, candle wax, varnish, paints or chemicals since they can damage your dishwasher.

WARNING

Empty the lower rack first and then the upper rack. This will avoid water dripping from the upper rack onto dishes in the lower rack.

WARNING

In general, it is not advisable to open the door while the dishwasher is in operation. the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door immediately following the cycle, as steam may escape.

RACKS

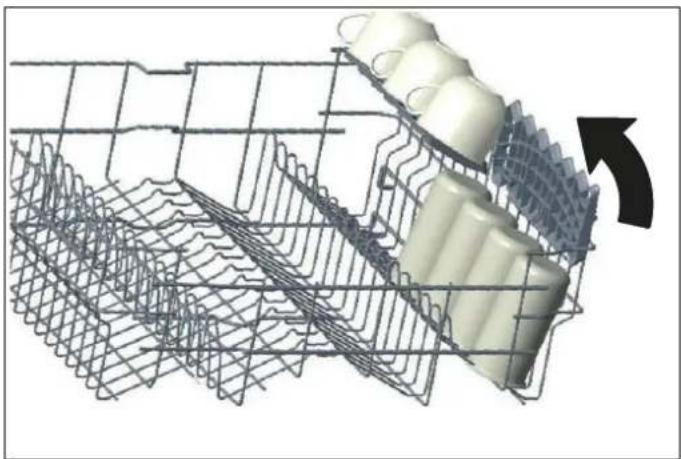

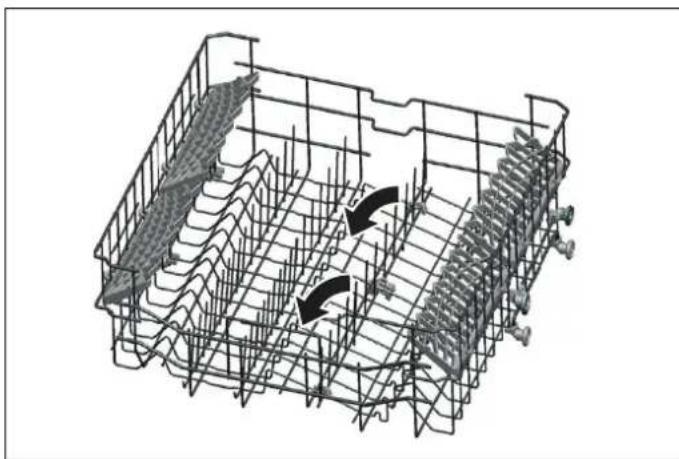

UPPER BASKET FOLDING TINES AND ÉTAGÈRES

The étagères are designed to increase the capacity of the top basket. You can place cups and glasses on these. Thanks to the adjustable nature of the étagères, you can place glasses of different sizes under them.

Height-adjustable étagères mounted on the basket allow mug and glass shelves to be in 2 different positions.

You can also place long knives, forks and spoons on the étagères horizontally so they do not to block the movement of the spray arms.

3D wireframe diagram of a structural grid with embedded rebar and anchor bolts, showing directional arrows (no text or symbols)

Fig. 42

3D wire mesh structure with a curved arrow indicating rotation or force direction (no text or symbols)

Fig. 43

The horizontal wire located on the top basket allows you to place your plates and bowls where required. You can also wash kitchenware such as pots or pans by closing the folding tines.

NOTE

Bringing the wires to the horizontal position by holding them from the ends may cause them to bend. It is therefore a good idea to bring the wires in the middle to the horizontal or vertical position by holding them from their stems and pushing.

NOTE

Make sure that both levers catch in the same height position.

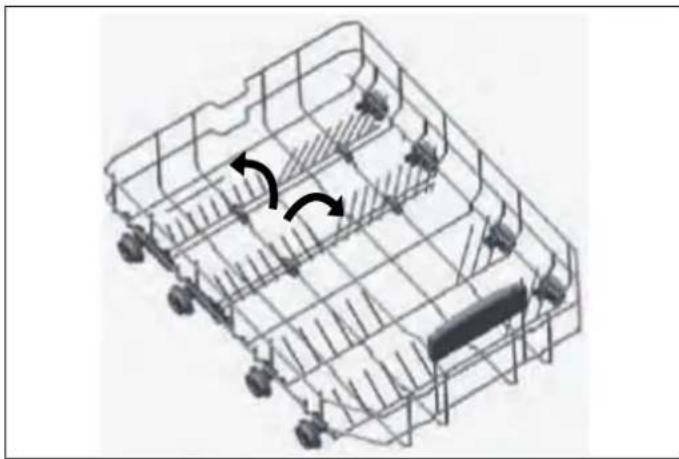

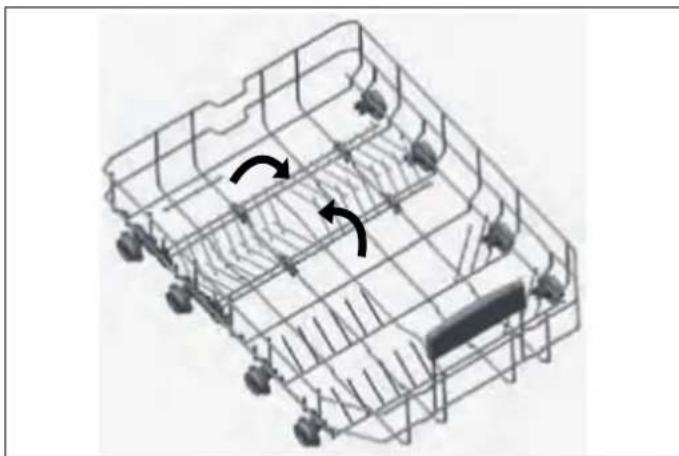

LOWER BASKET FOLDING TINES

Folding tines consist of four parts located on the lower basket of your machine, and are designed to make it easier to place big items such as pots, pans, etc. If necessary, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding tines by raising them upwards, or by folding them.

3D wireframe model of a shopping cart with wheels and internal compartments (no text or symbols)

Fig. 44

Isometric technical diagram of a multi-level mechanical or electronic device structure with no visible text or symbols

Fig. 45

SILVERWARE BASKET (DEPENDING ON MODEL)

• The silverware basket is designed to wash knives, forks, spoons, etc.
• According to the model purchased, you may have a sliding basket, or a standard one.

3D wireframe illustration of a shopping cart with a hand interacting with it, showing no text or symbols.

Fig. 46

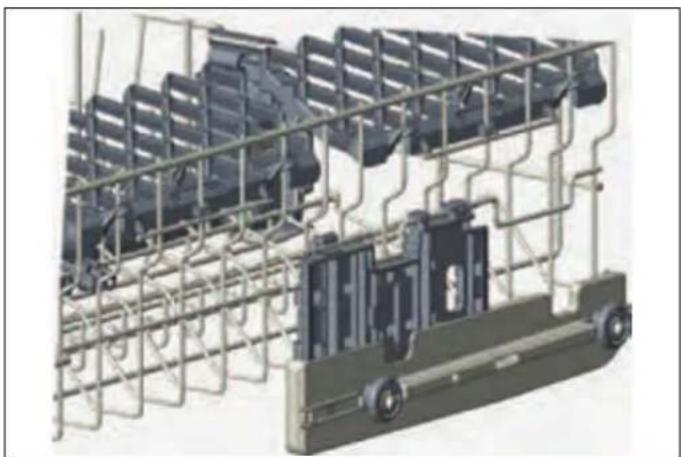

1) Height adjustment with load (depending on model)

The upper basket includes a mechanism which enables the height of the basket to be adjusted up (1) or down (2), without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.

3D wireframe model of a mechanical assembly with internal components (no text or symbols visible)

Fig. 47

3D rendering of a mechanical assembly with metal frame and internal components (no visible text or symbols)

Fig. 48

3D rendering of a military vehicle chassis with mounted gun system (no visible text or symbols)

Fig. 49

2) Height adjustment without load (depending on model)

In certain models, the height setting of the upper rack may be changed using the wheels which are present at two height levels.

CAUTION

Make sure that the rack is empty. Changing the height setting while the rack contains tableware could cause the contents to dislodge, causing personal injury or damage to the tableware.

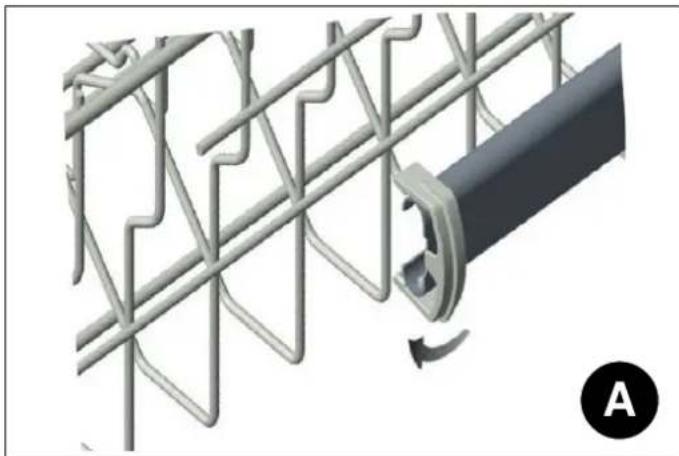

- Release the latches on both the right and left tracks of the upper rack by turning them outwards, A.

Mechanical assembly diagram showing a meshed structure with a rotating component and directional arrow (no text or symbols)

Fig. 50

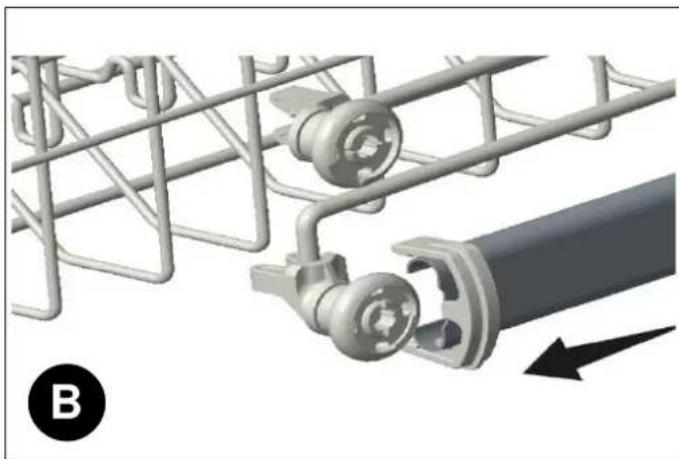

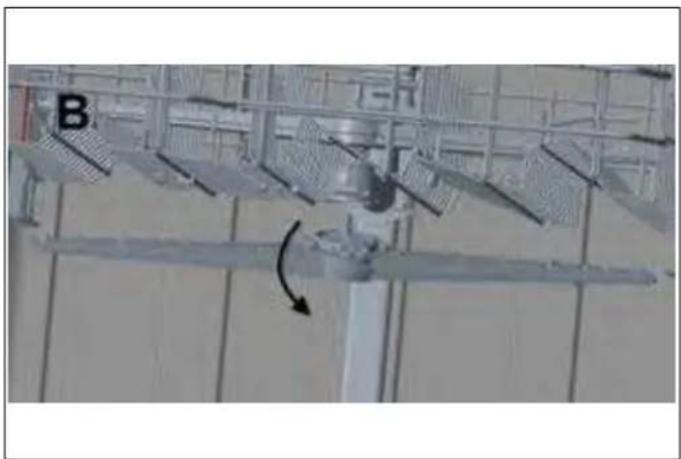

- Pull out the rack completely, B.

Mechanical assembly diagram showing a wire cage and shaft with mounting holes, no text or symbols present

Fig. 51

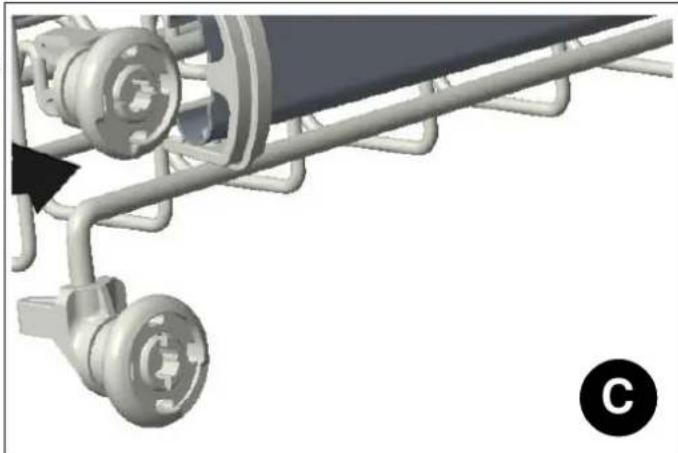

- Place the rack into the tracks again at the desired height, C.

Mechanical assembly diagram showing a conveyor belt with rollers and a shaft, no text or symbols present

Fig. 52

- Push the latches back into the correct position.

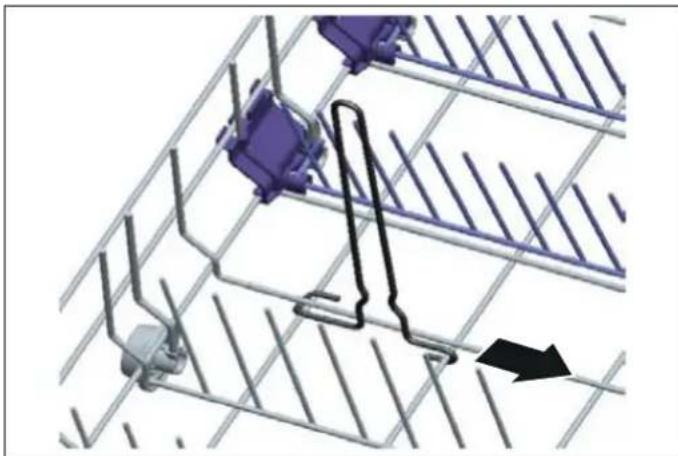

BOTTLE HOLDER (DEPENDING ON MODEL)

The bottle rack lets you wash large open containers, such as bowls, pans, or Tupperware, as well as tall items, such as jugs. The bottle rack can be pulled out in the direction of the arrow, as shown below.

3D wireframe diagram of a mechanical assembly with purple components and a black arrow indicating direction (no text or symbols)

Fig. 53

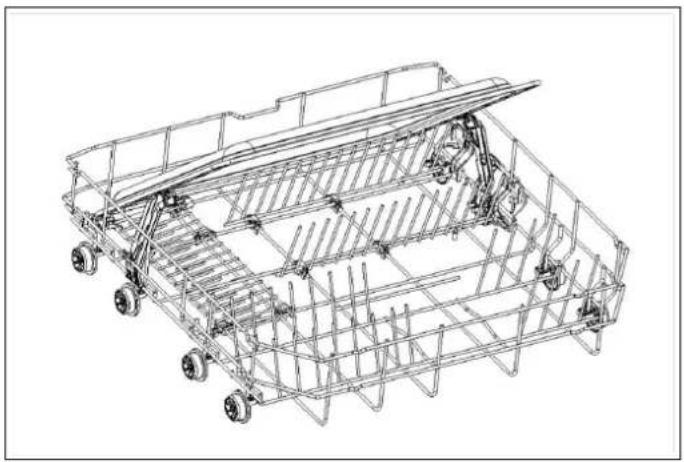

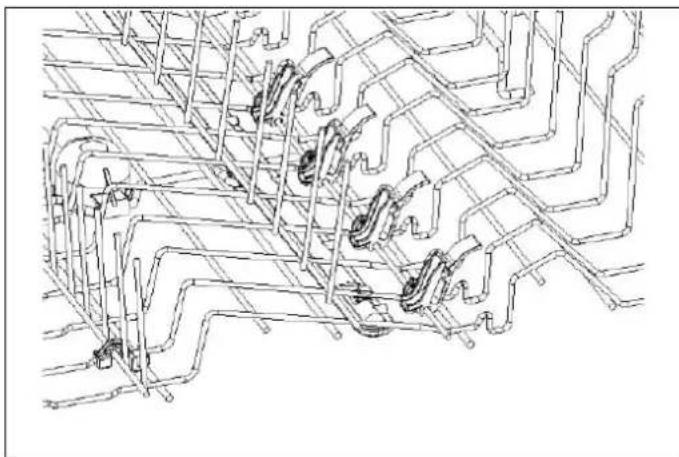

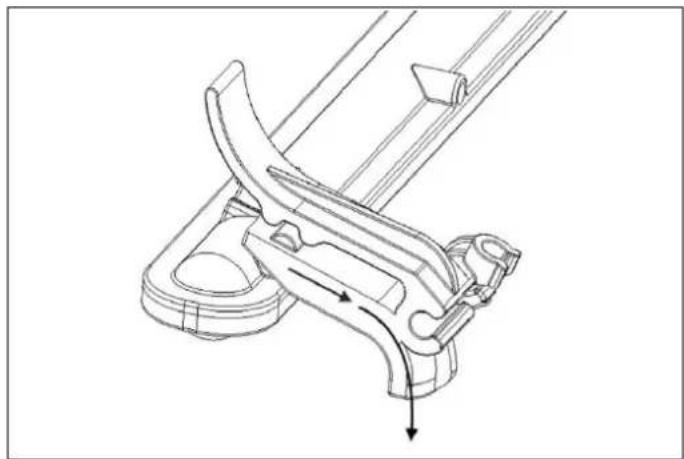

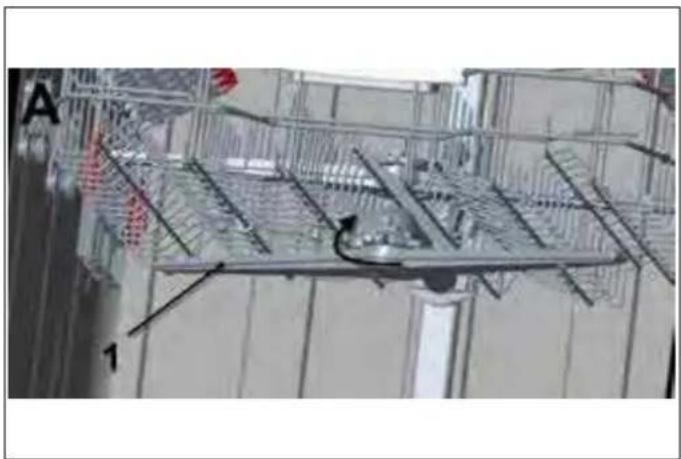

TRAY HOLDER (DEPENDING ON MODEL)

The tray holder lets you easily place trays and pots of various sizes in the lower basket and provide the best washing performance.

Technical line drawing of a wheeled agricultural machine (no text or symbols visible)

Fig. 54

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fig. 57

Technical line drawing of a wheeled vehicle chassis frame with visible structural components and wheels (no text or symbols)

Fig. 55

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

Fig. 58

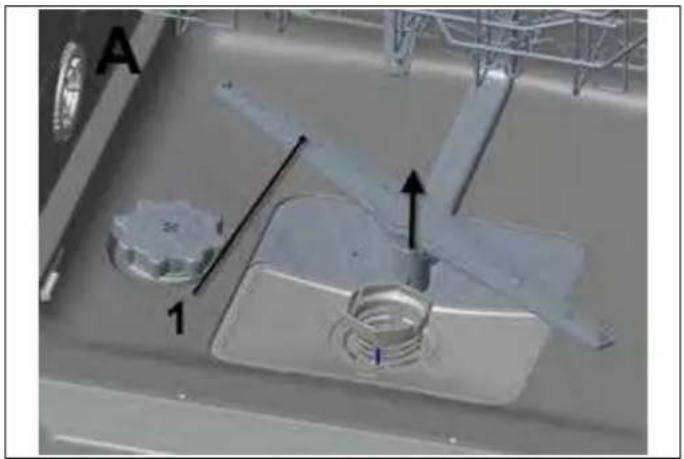

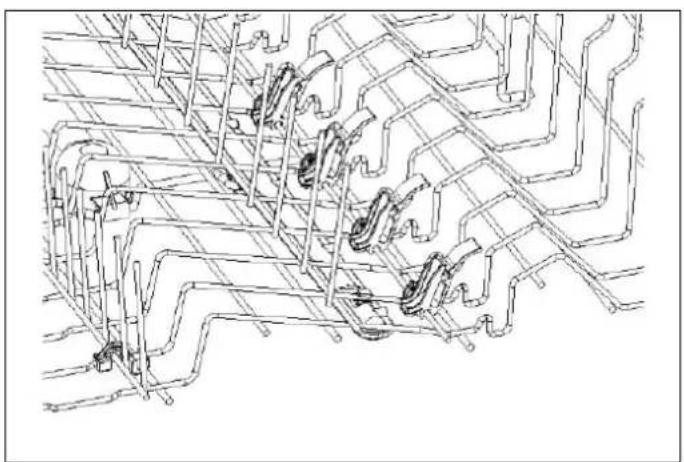

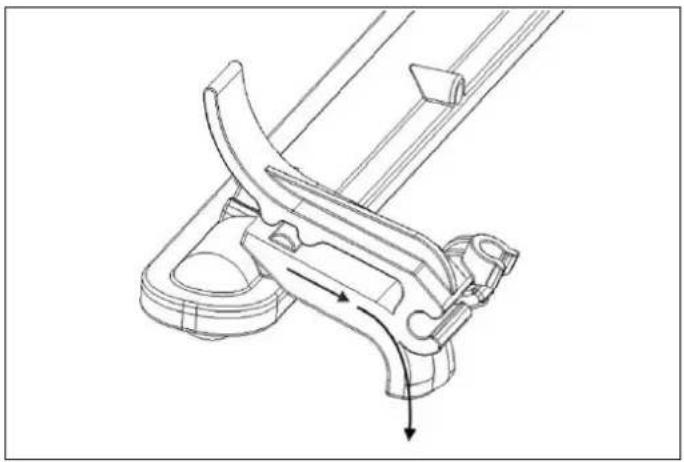

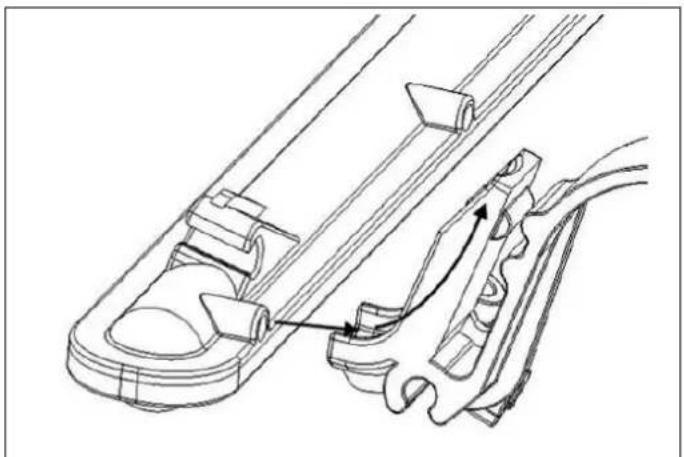

DIRECT WASH ZONE (DEPENDING ON MODEL)

This function is used to wash glasses, bottles and the like by directing the water upwards when the apparatus in the upper basket shown in the figure is in the vertical position. When the apparatus is in the horizontal position, the water goes down, which allows the lower basket to be washed.

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 56

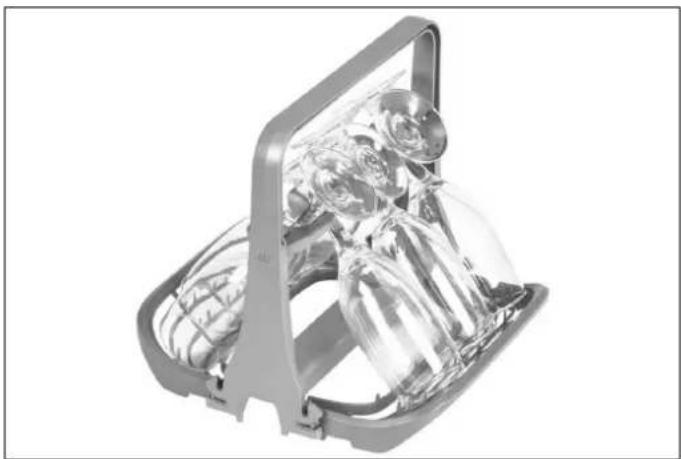

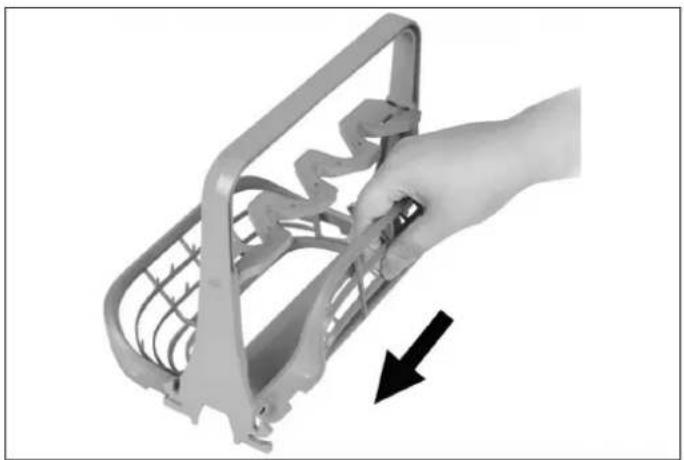

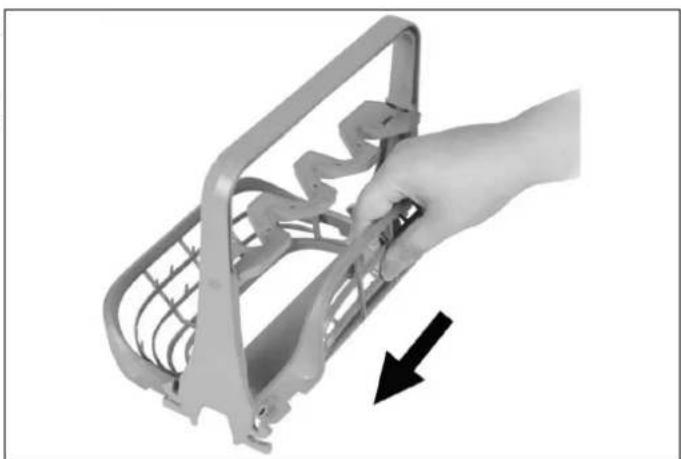

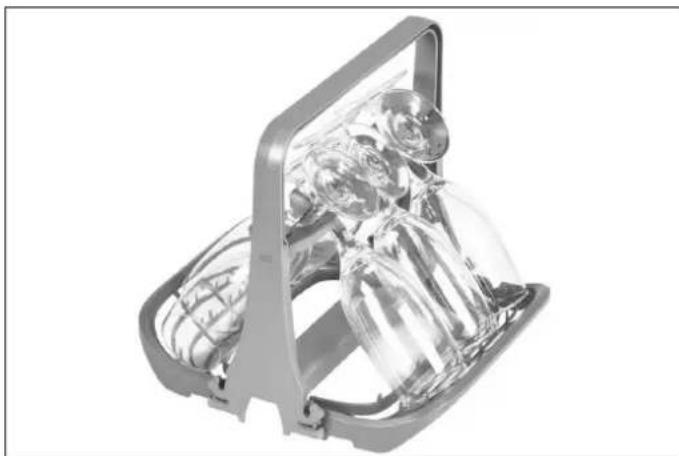

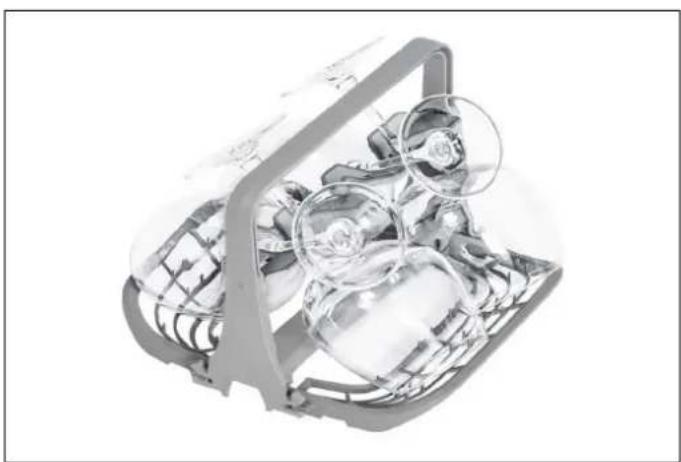

STEMWARE HOLDER (DEPENDING ON MODEL)

Hand holding a metal mechanical component with a black arrow indicating direction (no text or symbols)

Fig. 59

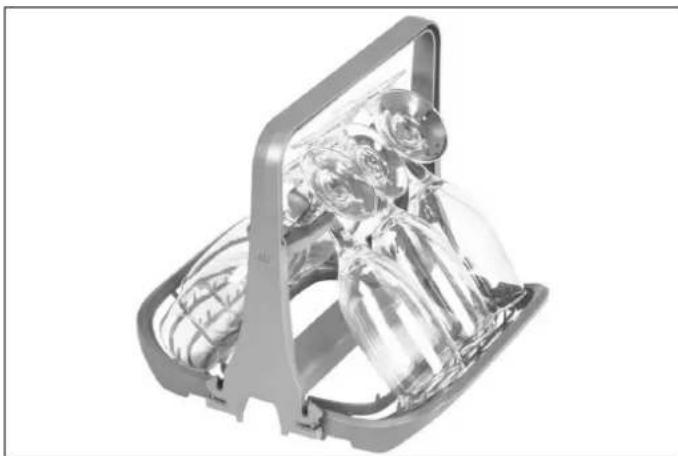

The sides of the stemware holder can be folded up so as to make the accessory more compact for storage when not needed.

3D rendered mechanical component with transparent housing and internal cavities (no text or symbols visible)

Fig. 60

Cross-sectional illustration of a mechanical device with internal components (no visible text or symbols)

Fig. 61

Unfold the stemware holder before placing it on the dishwasher's lower rack.

OPERATION

ON/OFF 1 2 3 5 6

Fig. 62

1) On/Off Button
2) Cycle Buttons
3) Display
4) Delay Start
5) Option Buttons
6) Start/Pause Button

7 8 11 12 8:88 10 9 14 13

Fig. 63

7) Salt Indicator(Model Dependent)
8) Rinse-aid Indicator
9) End Step Indicator
10) Sanitized Indicator
11) Delay Indicator
12) Upper Half Load Indicator
13) Lower Half Load Indicator
14) Program Time indicator

WASH CYCLES

Setting a wash cycle:

1) Press the button for the desired wash cycle. Cycle time will appear on the display alternated with cycle number.
2) Press Start/Pause and close the door within 4 seconds. The cycle will start right after.

NOTE

To incorporate a cycle option to the wash cycle, select the desired option button before pressing Start. See Cycle Options.

Changing a cycle:

To change the wash cycle while the dishwasher is running, open the door and press the Start/Pause button. Select a new cycle, then press the Start/Pause button. After closing the door within 4 seconds, the newly selected cycle will resume the course of the old one.

Canceling a cycle:

To cancel a program while the dishwasher is running, open the door and press and hold the Start/Pause button for 3 seconds. "0:01" will appear on the display. Press the Start/Pause button and close the door within 4 seconds. The water discharge process will start and will take 30 seconds to complete. A buzzer will then sound 5 times.

Switching the dishwasher off:

"0" will appear on the display when the selected program is complete. The buzzer will also sound 5 times. You can then switch your machine off using the Power On/Off button. Disconnect the plug and turn off the water tap.

NOTE

If the door of the machine is opened or the power is cut off while a cycle is in operation, the program will resume when the door is closed or the power returns.

NOTE

If the power is cut off during the drying process, the program will terminate. Your machine will be ready for a new program selection.

WASH CYCLES

CYCLE DESCRIPTION		CYCLE TIME	WATER USAGE	DETERGENT* OPTIONS
Regular	For normally soiled dishes in typical everyday use. Washing time adjusts automatically according to the degree of soiling of the dishes. Lowest energy and water consumption.	2:02 to 2:25	3.0 gal	1 3/4 tbsp (25 ml)	Half Load, Sanitize, Accel, Extra Dry, Scrub, Delay, Stealth
Auto	For all soil levels. Automatically adjusts to the optimal wash time, water temperature, and water consumption.	1:50 to 2:35	3.7 to 6.2 gal	1 3/4 tbsp (25 ml)	Half Load, Sanitize, Accel, Extra Dry, Scrub, Delay, Stealth
Pots & Pans	For heavily soiled pots, pans and casserole dishes. Increases wash time, water temperature and consumption.	02:10	4.8 gal	1 3/4 tbsp (25 ml)	Half Load, Sanitize, Accel, Extra Dry, Scrub, Delay, Stealth
Crystal & China	For temperature-sensitive and lightly-soiled delicate dishes.	01:30	3.7 gal 1 tbsp (15 ml)		Half Load, Accel, Extra Dry, Delay, Stealth
Quick	For lightly-soiled dishes. Reduces overall wash time.	:50	3.6 gal	1 3/4 tbsp (25 ml)	Half Load, Sanitize, Extra Dry, Scrub, Delay
Rise & Hold	For all soil levels. Rinses and holds dishes for a future wash cycle.	:15	1.2 gal	No	Half Load, Delay
Soak & Wash**	For the most heavily soiled dishes that are not washed right away. Significantly increases wash time and slightly increases water temperature and consumption.	02:45	5.9 gal	1 3/4 tbsp (25 ml)	Half Load, Sanitize, Accel, Extra Dry, Scrub, Delay, Stealth
Normal Plus**	For freshly soiled everyday dishes.	01:57	4.7 gal	1 3/4 tbsp (25 ml)	Half Load, Sanitize, Accel, Extra Dry, Scrub, Delay, Stealth

**Depending on model.

NOTE

More detergent may be necessary, depending on the degree of soiling and water hardness.

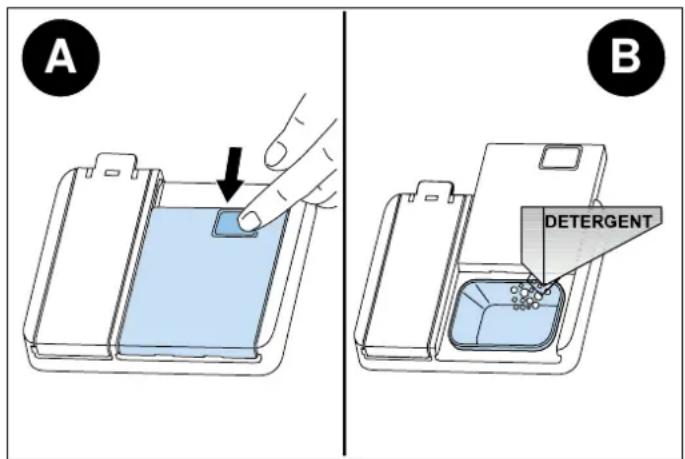

The detergent pod can take a maximum 2 3/4 tbsp (40 ml) detergent.

*Powdered detergent.

WASH CYCLES FLOW CHART

RINSE & HOLD	CRYSTAL & CHINA	REGULAR	NORMAL PLUS	QUICK	POTS & PANS	SOAK & WASH	AUTO
Prewash	Prewash	Prewash 95°F (35°C)	Prewash	×	Prewash 113°F (45°C)	Prewash 113°F (45°C)	Prewash 104°F (40°C)
×	Main Wash 113°F (45°C)	Main Wash 131°F (55°C)	Main Wash 140°F (60°C)	Main Wash 122°F (50°C)	Main Wash 149°F (65°C)	Main Wash 149°F (65°C)	Main Wash 149°F (65°C)
×	×	Rinse Rinse	Rinse Rinse	Rinse Rinse
× × × × × ×						Intermediate Rinse 140°F (60°C)	Intermediate Rinse
×	Dry Hot Rinse 140°F (60°C)	Dry Hot Rinse 149°F (65°C)	Dry Hot Rinse 149°F (65°C)	Dry Hot Rinse 149°F (65°C)	Dry Hot Rinse (68°C)	Dry Hot Rinse 155°F (68°C)	Dry Hot Rinse 155°F (68°C)
×	Drying Drying	Drying		×	Drying Drying	Drying

WASH OPTIONS

OPTION DESCRIPTION ACTIVATION

Half Load Directs	wash functions to either the upper rack, lower rack, or both. Shortens the selected cycle wash time and reduces energy and water consumption.	Press the Half Load button 1 time to activate the Upper Half Load, 2 times to activate the Lower Half Load or 3 times to activate the Half Load option on both upper and lower racks. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option.
Sanitize1	Ensures maximum hygiene with increased rinse water temperature to eliminate bacteria up to 99.9%.	Press the Sanitize button until the LED light comes on. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option. At the end of a successful sanitization, the corresponding indicator will light up. If the washing cycle is interrupted or adequate water heating cannot be achieved, the sanitizing LED may not light.
Scrub	Increases wash time and water temperature to reach optimal washing conditions and perfectly dissolve the detergent.	Press the Scrub button until the LED light comes on. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option.
Extra Dry Adds	extra heating and drying steps to the selected wash cycle to get perfectly dry dishes. Increases the rinse water temperature and extends the dry time.	Press the Extra Dry button until the LED light comes on. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option.
Delay	Delays the start of the selected wash cycle by 1-24 hours at 1-hour increments.	Press the "+" button to delay the cycle start time by 1 hour. The display will show cycle duration and programmed delay time alternately for 2 seconds. Continue to press "+" until you reach the desired delay time. Press the "-" button to decrease the delay time. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option.

OPTION DESCRIPTION ACTIVATION

Accel2*	Decreases cycle duration with less water consumption.	Press the Accel button until the LED light comes on. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option.
Stealth*	Reduces sound rating by 2 dBA increasing wash time of selected cycle.	Press the Stealth button until the LED light comes on. The corresponding indicator will also appear on the display. Press the "Start/Pause" button and close the door within 4 seconds to activate the option.

*Depending on model
MENU SETTINGS

1 Sanitizes as per NSF/ANSI standard 184 for residential dishwashers.
2Shortened cycle time impacts drying performance.
Press the Extra Dry button (6) for 3 seconds to enter the menu. The water hardness setting (e.g. SL1) will appear on the display. Press the Delay buttons (4) to navigate the menu. Then, press the Half Load button (5) to enter the levels of the setting you want to change in the menu. Now the display (3) will start flashing, which means this setting can be changed by pressing the Delay buttons(4). Set the new level with the Delay buttons(4) and press the Half Load button (5) to save the new level. After that, the display (3) will light up steadily, which means this setting level is saved. You can change another setting with these steps or
exit the menu by pressing the Extra Dry button(6) for 3 *Default setting seconds or turning off/on.

No	SETTING	OPTIONS	DESCRIPTION
4	Start Program	LP0*	Set a default program for when the appliance is switched on.
		LP1
5	Save Power Mode	SP0	Set Save Power Mode.
		SP1*
		SP2
6	Factory Settings	FS0*	Restore changed settings to factory settings.
		FS1

No	SETTING	OPTIONS	DESCRIPTION
1	Water Hardness	SL1	Set the water hardness.
		SL2
		SL3*
		SL4
		SL5
		SL6
2	Rinse-aid	r:1	Set the amount of rinse-aid.
		r:2
		r:3
		r:4*
		r:5
3	Buzzer Sound Control	b:0	Set the buzzer sound level.
		b:1
		b:2
		b:3*

*Default setting

1) Water Hardness

To change the water hardness setting, see paragraph WATER HARDNESS TABLE.

2) Rinse-aid

To change the rinse-aid setting, see paragraph RINSE-AID USAGE.

3) Buzzer Sound Control

To change the buzzer sound control, see "Menu Settings". "b:3" level is the highest sound level. "b:0" level means all sounds are off.

4) Start Program

To change the start program selection, see "Menu Settings". In level "LP0", the machine turns on with Eco program. In level "LP1", the machine turns on with last selected program and option.

5) Save Power Mode

To change the save power mode setting, see “Menu Settings”. In level “SP0”, interior lights (if available) will always be off, the screen will turn off after 4 minutes, and the machine will turn off after 15 minutes of no activity in order to save energy. In level “SP1”, interior lights will turn off after 4 minutes when the door is opened, the screen will turn off after 4 minutes, and the machine will turn off after 15 minutes of no activity in order to save energy. In level “SP2”, when the machine is in the off position, interior lights will turn off after 4 minutes when the door is opened. When the machine is in the ON position, interior lights are on as long as the door stays open and the machine will not turn off except by pressing the On/Off button.

6) Factory Settings

To change the factory settings, see "Menu Settings". If you change the level to "FS1" in factory settings, all settings return to the default setting.

LIGHTS

Your dishwasher is equipped with an internal LED light and/or floor projection status light.

The latter is positioned on the bottom part of the dishwasher and projects light onto the floor to indicate the current status of the dishwasher during a cycle.

LED INDICATOR MACHINE STATUS

Red, continuous	The machine is running a program.
Red, flashing A program is canceled.
Red, flashing rapidly	The machine has a fault.Refer to section"Automatic fault warnings and what to do".
Green, continuous	A program is finished

DETERGENT & RINSE-AID DISPENSER

WARNING

Only use detergents specifically designed for household dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers. Add the proper detergent for the selected program to ensure the best performance. Use less detergent if the dishes are only lightly soiled. Using excess detergent can leave a film on dishes and in the dishwasher resulting in poor wash performance.

NOTE

The amount of detergent needed depends on the cycle, load size, and soil level of dishes. Too much detergent in soft water may cause glass corrosion and does not dissolve in water.

WARNING

Do not use too much detergent if your water supply is soft.

WARNING

Keep your detergents in a cool, dry place out of the reach of children. See the detergent manufacturer's instructions for further information.

WARNING

Detergent tablets do not fully dissolve with short programs. To prevent detergent residue on tableware, we recommend using tablets with long programs.

WARNING

Do not use detergent in the Rinse cycle (depending on model). If you do not know the hardness of your water supply, use 15 ml / 3 tsp detergent. Increase the amount of detergent if you see white watermarks, especially on the surface of glassware.

Should you need more information concerning the detergent you intend to use, contact the detergent manufacturers directly. Check that the detergent dispenser is empty after the completion of each wash program.

FILLING THE DETERGENT

NOTE

The dispenser should be refilled just before the start of each program.

1) Push the latch to open the detergent container as shown in the image (Fig. A)

A B DETERGENT

Fig. 64

2) Pour/put the detergent into the dispenser (Fig. B)
3) Close the lid and press it until it locks in place.

NOTE

The dispenser should be refilled just before the start of each program. If the dishes are heavily soiled, increase the dose of detergent.

USE

NOTE

The flap is always open at the end of a program.

WARNING

Follow the instructions on the detergent package when using liquid dishwasher detergent, concentrated powder detergent, or tablet detergent.

WARNING

Amounts may vary if you use liquid or concentrated powder detergent. Tablet detergents should be placed in the detergent container.

USING COMBINED DETERGENTS

Combined detergents must be used according to manufacturers' instructions.

Never put combined detergents inside the dishwasher's tub or the cutlery basket.

Always put tablets in the detergent dispenser.

Combined detergents contain not only the detergent, but also rinse-aid, salt replacement substances and additional components depending on the combination.

If you stop using combined detergents, make sure that water hardness and rinse-aid settings are set to the correct level.

If you want to obtain better results while using combined detergents, add salt and rinse-aid into your machine and adjust the water hardness setting and the rinse-aid setting to the lowest position.

CAUTION

The solubility of the tablet detergents produced by different companies may vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. Please use powder detergents in such programs.

WARNING

Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

RINSE-AID USAGE

Rinse-aid helps dry the dishes without streaks or stains. Rinse-aid is required for stain-free utensils and clear glasses and is automatically released during the hot rinse phase.

If rinse-aid dosage is set too low, white stains will remain on glasses and dishes. If rinse-aid dosage is set too high, light blue stains will remain on glasses and dishes.

CAUTION

Only use rinse-aid intended for residential dishwashers.

Filling the rinse-aid dispenser with detergent will damage the dispenser.

NOTE

When the rinse-aid indicator lights up, the rinse-aid dispenser contains enough rinse-aid for 2 - 3 programs only. When using "Tab" detergents, rinse-aid is not needed.

FILLING THE RINSE-AID AND SETTING

Fig. 65

1) To fill the rinse-aid compartment, open the rinse-aid compartment cap (Fig.A)
2) Fill the compartment with rinse-aid to the MAX level and then close the cap. Be careful not to overfill the rinse-aid compartment and wipe any spills.
3) Close the cap until it clicks.
1) Turn on the machine and press the Extra Dry button for 3 seconds to enter Menu settings: the water hardness level will appear on the display (SL1 is the factory setting)
2) Press the Delay (+) button to move to the rinse-aid setting (r:4 is the factory setting)
3) Then, press the Half Load button once and the rinse-aid level (e.g. r:4) will start flashing
4) Change the rinse-aid level by pressing the Delay buttons

In order to change the rinse-aid level, follow the steps below:

5) Press the Half Load button again to save desired level: the newly selected level will stop flashing
6) Exit Menu settings by pressing the Extra Dry button for 3 seconds or turn the machine off.

The factory setting is "4".

NOTE

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

LEVEL	BRIGHTENER DOSE	INDICATOR
1	Rinse-aid not dispensed	r:1 is shown on the display.
2	1 dose is dispensed	r:2 is shown on the display.
3	2 doses are dispensed	r:3 is shown on the display.
4	3 doses are dispensed	r:4 is shown on the display.
5	4 doses are dispensed	r:5 is shown on the display.

SALT DISPENSER (FOR MODELS WITH WATER SOFTENER)

Please check the salt indicator on the control panel to see whether there is enough softening salt in the dishwasher. The salt dispenser must be refilled with salt whenever the salt warning indicator appears on the control panel of your machine.

FILLING THE DISHWASHER SALT DISPENSER

WARNING

Cooking and table salts do not dissolve in water easily, using these kinds of salts will damage the water softener system of your machine.

NOTE

The machine can only use special dishwasher salt to soften the water. Do not use any small-grained or powder-type salts which are easily soluble. Using any other type of salt can damage your machine. The manufacturer is not liable for damages resulting from using the wrong type of salt.

WARNING

Dishwasher detergent will damage the softener assembly. Do not fill the salt container with dishwasher detergent.

WARNING

If the water in your area is very soft and consistently lower than 5 gpg (9 °f) you do not have to add dishwasher salt.

A B C SALT D

Fig. 66

1) To fill the dishwasher with salt, first remove the lower basket and then open the salt compartment cap by turning it counterclockwise. (Fig. A-B)
2) First, fill the compartment with 1 kg salt and water (Fig. C) to the overflow level. If available, using the funnel (Fig. D) provided will make filling easier.
3) Refit the cap and close it.

WARNING

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

NOTE

Fill the salt compartment with water only the first time you fill the salt compartment.

NOTE

If the salt warning lamp on the control panel lights up, fill the salt compartment with salt again.

WARNING

Use softener salt specifically made for use in dishwashers.

SALT REFILL INDICATOR

WARNING

If the salt indicator light comes on during a program, wait until the end of the program to fill the salt dispenser with dishwasher salt. After the salt dispenser has been filled, the refill indicator may still be lit up if the salt concentration has not yet reached the correct level. It will go out when the correct concentration is reached.

NOTE

The salt refill indicator will turn off if you have programmed the dishwasher for a water hardness below 5 gpg (9 °f).

WARNING

Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap. Your dishwasher can only be repaired by an authorized service agent.

WARNING

All surfaces are susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolor all surfaces.

WARNING

Keep the floor around your dishwasher clean and dry to prevent any possible injury. We recommend keeping your dishwasher clean, empty and with door cracked open to allow air to circulate in case of any extended unused time.

The dishwasher door can be damaged by abrasive cleaners, scouring pads, abrasive cloths. Cleaning the machine at regular intervals prolongs the machine's service life.

Oil and limescale may accumulate in the machine's washing section. In case of such accumulation, fill the detergent compartment without loading any dishes into the appliance, select a program that runs at a high temperature, and start the dishwasher. If not enough, use special cleansing agents available on the market.

To clean any residue that has accumulated in the door seals, wipe the seals regularly using a damp cloth.

Clean the appliance, filter, and spray arms at least once month. Unplug your machine and turn off its tap before cleaning. Do not use hard materials when cleaning your machine. Wipe with a soft cleaning material and a damp cloth.

MATERIAL

Stainless steel	Use a non-abrasive steel detergent and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe surface with a water-dampened microfiber cloth followed by a dry polishing chamois. Always follow the grain of the stainless steel.
Control panel	Wipe with a damp cloth.
Dishwasher racks	Wipe with a damp cloth.

MATERIAL

Interior	Wipe interior, door edge, and rubber seal with a damp cloth. If necessary, spray household cleaner on the cloth. Do not spray directly on the door. Use a dishwasher cleaner (follow the instructions on the package) or place 1 cup of vinegar and 2 tbsp of baking soda in a container on the middle rack and run a Heavy Wash cycle.
Spray arms	Place under running water and use a paper clip or similar to remove debris from holes.
Filter	Clean with soap and water. For hard-to-remove soils or calcium deposits, use a soft brush. Do not use a wire brush or scouring pad.
Gasket	Wipe with a damp cloth. Use warm soapy water and a toothbrush. If mold or mildew are present, spray with 3% hydrogen peroxide.

SPRAY ARMS

The upper and lower spray arms can be removed for cleaning.

Periodically check whether the holes for the upper and lower spray arms are clogged. If you see any clogging, remove the spray arms and clean them under running water.

The impellers should be cleaned once a week for the appliance to operate efficiently.

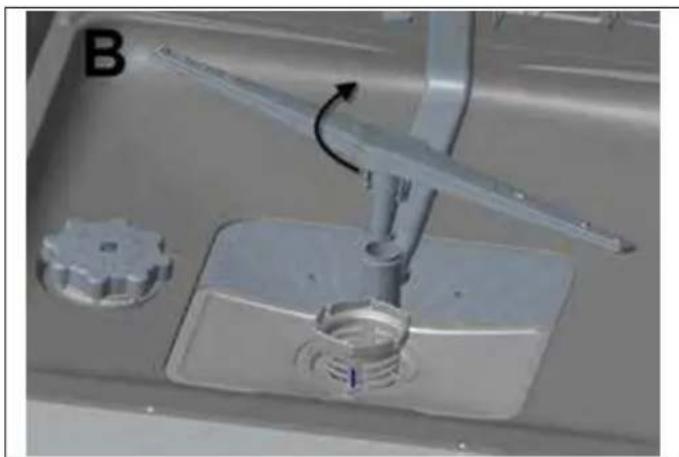

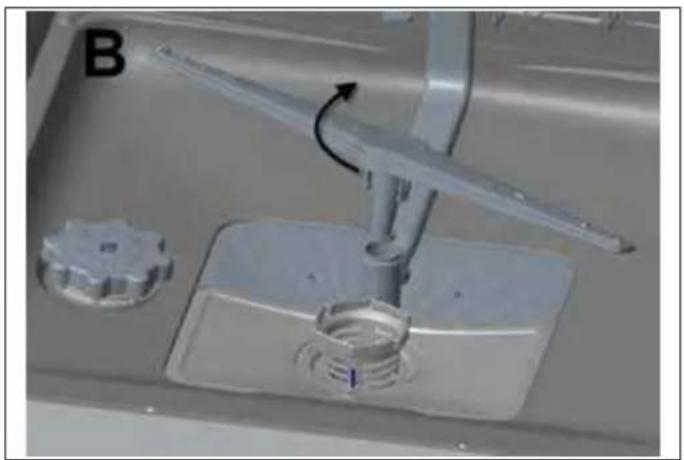

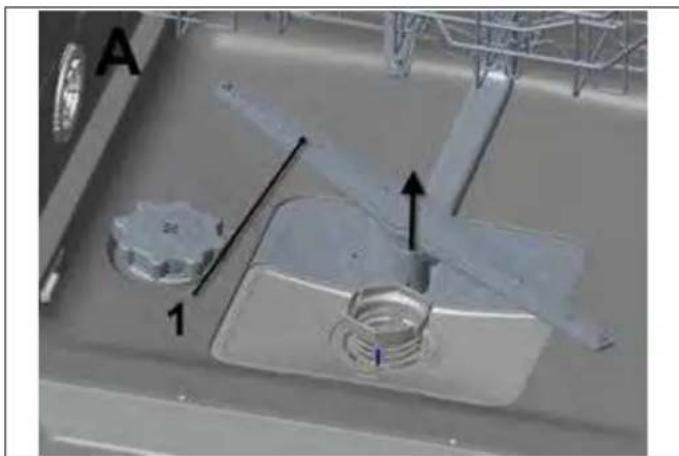

To remove the lower spray arm:

1) Pull the spray arm upwards (A, B).
2) Place under running water and use a paper clip or similar to remove debris from holes.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Fig. 67

Close-up of a mechanical assembly with labeled parts (no readable text or symbols)

Fig. 68

Exterior view of a modern office building (no signage)

Fig. 71

Close-up of a kitchen sink with a tool and component, no visible text or symbols

Fig. 69

Make sure to tighten the nut well when reinstalling the upper spray arm.

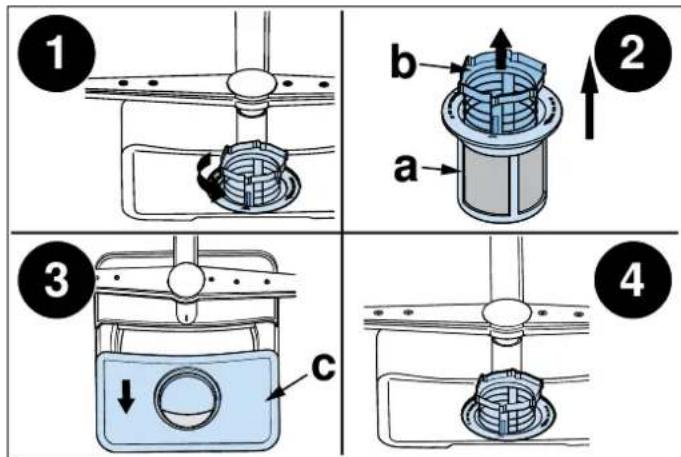

FILTER

The filter should be cleaned often. Heavy use may require more frequent cleaning.

Periodically check whether there is any food waste left on the coarse and fine filters. If there is any food waste left, remove the filters, and clean them thoroughly under running water.

To take out the filter from the dishwasher, first remove the lower rack and lower spray arm.

a. Micro Filter

b. Coarse Filter

c. Metal/Plastic

Diagram illustrating four steps of a washing machine component with labeled parts and directional arrows

Fig. 72

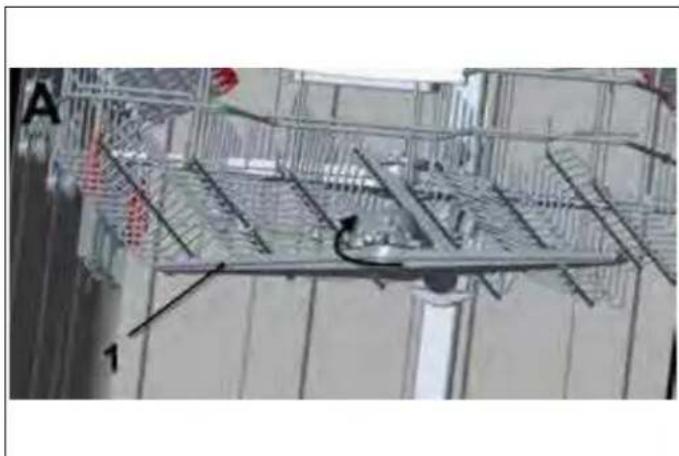

To remove the upper spray arm:

1) Turn its nut to the left (A, B).
2) Place under running water and use a paper clip or similar to remove debris from holes.

Interior view of a metal rack with structural supports and a central mechanical component (no visible text or symbols)

Fig. 70

Diagram illustrating four steps of a washing machine component with labeled parts and directional arrows

FAULT POSSIBLE CAUSE TROUBLESHOOTING

The program does not start.	Your dishwasher is not plugged in. Plug your dishwasher in.
	Your dishwasher is not switched on.	Switch your dishwasher on by pressing the On/Off key.
	Fuse blown.	Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your dishwasher door is open.	Close the dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged.	Clean the filters.
	The program is not finished yet. Wait until the program is finished.
Machine stops during washing.	Power failure.	Check mains power.
	Water inlet failure.	Check water tap.
Shaking and bumping noises are heard during a wash cycle.	The spray arm is hitting the dishes in move or remove items blocking the lower basket.	Move or remove items blocking the spray arm.
Food waste partially left on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning against each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the program table.
	Wrong wash program selected.	Use the information in the program table to select the most appropriate program.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check that the drain hose and filters are correctly fitted.
There are whitish stains left on the dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the program table.
	Rinse-aid dosage and/or water softener setting set too low.	Increase rinse-aid and/or water softener level.
	High water hardness level.	Increase water softener level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a program with a drying option.
	Rinse-aid dosage set too low. Increase rinse-aid dosage setting.

FAULT POSSIBLE CAUSE TROUBLESHOOTING

Rust stains have formed on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using the water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the dishwasher while filling it with salt.	Use funnel while filling compartment with salt to avoid spillage.
	Poor mains grounding.	Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

FAULT CODE POSSIBLE FAULT WHAT TO DO

FF	Water inlet system failure	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the hose filter.
		Contact service if the error continues.
F5	Pressure system failure	Contact service.
F3	Continuous water input Close the tap and contact service.
F2	Inability to discharge water	Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact service.
F8 Heater error Contact service.
F1 Overflow		Unplug the machine and close the tap.
		Contact service.
FE	Faulty electronic card	Contact service.
F7	Overheating	Contact service.
F9	Divisor position error	Contact service.
F6	Faulty heater sensor	Contact service.
HI	High voltage failure	Contact service.

1) When the machine is not in operation:
- Disconnect the plug and close the tap.
- Leave the door slightly open to prevent the formation of odors.
2) Select the dry option to remove water droplets.
3) Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. Please see the program and consumption table for more information.
4) Rinse dirty dishes before placing them in the dishwasher.
5) Only use the Rinse program when necessary.
6) Do not place the machine near a refrigerator as it will reach high temperatures.
7) If the machine is located in an area at risk of freezing, close the tap, disconnect the inlet hose from the tap, and drain the water inside the hose and the machine completely.

WHAT THIS LIMITED WARRANTY COVERS

The Warranty coverage provided by Bertazzoni SpA ("Bertazzoni") in this statement applies exclusively to the original Bertazzoni appliance ("Product") sold to the consumer ("Purchaser") by an authorized Bertazzoni dealer/distributor/retailer, purchased and installed in the United States, District of Columbia, or Canada, and which has always remained within the country of original purchase (United States, District of Columbia, or Canada).

The warranty coverage is activated on the date of original retail purchase of the Product and has a duration of two (years.

Warranty coverage is non-transferable.

In the event parts are replaced or the entire product is replaced, the replacement Product (or parts) shall assume the remaining original Warranty activated with the original retail purchase document. This Warranty shall not be extended with respect to such replacement.

Bertazzoni SpA will repair or replace any component/part which fails or proves defective due to materials and/or workmanship within 2 years from the date of original retail purchase and under conditions of normal residential, non-commercial use. Repair or replacement shall be free of charge, including labor at standard rates and shipping expenses. Purchaser is responsible for making the Product reasonably accessible for servicing. Repair service must be performed by a Bertazzoni Authorized Service company during normal working hours. Labor performed at overtime or premium rates shall not be covered by the Warranty.

IMPORTANT

Retain proof of original purchase to establish the warranty period.

• issues resulting from incorrect transport, handling and/or installation (i. e: dents, broken, bent or deformed structures or components, broken glass components)
• slight color variations in painted/enameled components
• differences caused by natural or artificial lighting, location or other similar factors
  • stains/corrosion/discoloration caused by external substances and/or environmental factors
• labor costs, display, floor, B-stock, out-of-box, "as is" appliances and demo units.

(2) GLASS PROTECTION POLICY

This warranty covers range oven door glass breakage for the following duration:

EXTERNAL & MIDDLE GLASSES: 90 days after original purchase date.

INNER GLASS: 180 days after original purchase date.

HOW TO OBTAIN SERVICING

To receive warranty servicing, the Purchaser must contact Bertazzoni Service for determining the problem and correct service procedures.

Model number, serial number and date of original retail purchase will be requested.

IMPORTANT

Retain proof of original purchase to establish the warranty period.

If located in the USA

866 905 0010

Bertazzoni's liability on any claim of any kind, with respect https://us.bertazzoni.com/more/support

to the goods and/or services provided, shall in no event exceed the value of the goods or service or part thereof which gives origin to the claim.

30-Day Cosmetic warranty

Inspection of the product must be made by the Purchaser at time of delivery. Bertazzoni warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from the date of original retail purchase of the Product.

This coverage includes:

- Paint blemishes

- Chips

• Macroscopic finish defects.

Cosmetic warranty does NOT cover:

https://us.bertazzoni.com/more/support

If located in CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

WARRANTY EXCLUSIONS – WHAT IS NOT COVERED

• Use of the Product in any non-residential, commercial application.
• Use of the Product for anything other than its intended purpose.
  • Repair service provided by a party other than a Bertazzoni authorized service agency.
• Damage or repair service to correct servicing provided by an unauthorized agency or the use of unauthorized parts.

• Installation not in accordance with local/state/city/county fire codes, electrical codes, gas codes, plumbing codes, building codes, regulations, or laws.
- Defects or damage due to improper storage of the Product.
- Defects or damage or missing parts on products sold out of the original factory packaging or from displays.
• Service calls or repairs to correct the incorrect installation of the product and/or related accessories.
- Replacement of parts/service calls to connect, convert or otherwise repair the electrical wiring and/or gas line properly use the Product.
- Replacement of parts/service calls to provide instructions and training on the use the Product.
- Replacement of parts/service calls to correct issues due to product usage in a manner other than what is normal and customary for residential use.
- Replacement of parts/service calls due to wear and tear such as gaskets, knobs, pan supports, shelving, cutlery baskets, buttons, touch displays, scratched or broken ceramic glass tops.
- Replacement of parts/service calls for lack of/improper maintenance such as but not limited to: residue build up stains, scratches, discoloration, corrosion.
- Replacement of glass components and light bulbs if claim arises after 30 days from original retail purchase date.
- Defects and damages arising from accidents, alteration, misuse, abuse, improper installation.
- Defects and damages arising from transport, logistics and handling of the Product. Inspection of the Product must be made at the time of delivery. Any issues from handling, transport or logistics must be notified to the vending dealer/delivery company after receipt and inspection.
- Defects and damage arising from external forces beyond the control of Bertazzoni SpA, including, but not limited to: wind, rain, sand, fires, floods, mudslides, freezing temperatures, excessive moisture or extended exposure to humidity, power surges, lightning, structural failures surrounding the appliance and other acts of God.
- Products with altered/damaged/tampered serial number.
• Water line connection must be done by a trained and licensed professional. Issues due to incorrect water line connections such as, but not limited to, leakage and water damage to flooring and/or cabinetry, are not considered a Product issue and are not covered under manufacturer warranty.
In no case shall Bertazzoni be held liable or responsible for damage to surrounding property, including furniture, cabinetry, flooring, panels and other structures surrounding the Product.
technicians are not reasonably available. The Purchaser must bear any transportation and delivery costs of the Product to the nearest authorized Service center or for the additional displacement rates of a certified trained technician.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MARKETABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON BERTAZZONI. BERTAZZONI SHALL NOT BE HELD LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, TIME AWAY FROM WORK, MEALS, LOSS OF FOOD OR BEVERAGES, TRAVELING OR HOTEL EXPENSES, EXPENSES TO RENT OR PURCHASE APPLIANCES, REMODELING/CONSTRUCTION EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BERTAZZONI, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF BERTAZZONI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST BERTAZZONI BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY BERTAZZONI AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY BERTAZZONI NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF BERTAZZONI. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NON-TRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Bertazzoni does not assume any responsibility for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you or specific legal rights and you may also have other rights which may vary from state to state or province to province.

Bertazzoni is not liable nor responsible for the Product if located in a remote area or an area where certified trainedIf located in the USA

Any questions about this Limited Warranty may be directed to Bertazzoni Customer Care.

866 905 0010

https://us.bertazzoni.com/more/support

If located in CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

B 23 5/8" (600 mm)*o 24" (610 mm)**

*sin embellecedores laterales

    F["6: Sliding Tool"] --> G["7: Screwed Tool"]
    G --> H["8: Screwed Tool"]
    H --> I["9: Screwed Tool"]
    I --> J["10: Beam Splitter"]

    K["11: Glue Tool"] --> L["12: Screwed Tool"]
    L --> M["13: Screwed Tool"]
    M --> N["14: Screwed Tool"]
    N --> O["15: Pencil/Brusher"]

Fig. 8

Diagram showing a printer with a tree icon and an inset close-up of its internal structure (no text or symbols)

Fig. 11

Diagram illustrating the process of a printer's internal structure with zoomed-in detail and rotation arrow, showing component placement.

Fig. 12

AJUSTE DE ALTURA

Diagram illustrating kitchen appliance positioning with labeled parts and directional arrows indicating alignment or adjustment.

Fig. 13

Illustration of a hand cleaning a cabinet interior (no text or symbols)

Fig. 14

Architectural diagram of a modern building corner with yellow walls and gray walls (no text or symbols)

Fig. 16

Diagram showing a cabinet interior with a curved duct and a magnified inset of a device (no text or symbols)

Fig. 15

1 in. (25 mm) ¼ in. (19 mm) ½ in. (16 mm)

Fig. 18

Diagram of a subway drain with tubing and a black arrow indicating direction (no text or symbols)

Fig. 19

Technical diagram showing a mechanical assembly with labeled components O, t, and D, including directional arrows and a magnified inset of a component.

Fig. 21

Technical diagram showing a device with labeled components and three circular insets illustrating different grid configurations.

Fig. 22

Illustration of a cabinet with drawers and a printer, showing a magnified view of the printer's internal structure (no text or symbols present)

Fig. 23

Diagram illustrating a door lock mechanism with checkmark and cross symbols indicating status or failure, alongside a diagram showing the lock panel.

Fig. 26

Technical diagram of a device rear panel with labeled components and directional arrows indicating assembly or movement.

Fig. 27

7-18 lb (3-8 kg) 7 lb (3 kg) 17 lb (8 kg) A 4X

Fig. 28

Diagram illustrating a furniture or furniture installation with labeled components and annotations in Chinese

Fig. 29

Illustration showing a hand holding a tool with six steps of cleaning and color-coded pattern, labeled 1 to 6.

NOTA

3D rendered image of a multi-tiered industrial machine with cylindrical components and a central dome (no text or symbols visible)

Fig. 32

3D technical illustration of a mechanical assembly with insulators and housing (no text or symbols)

Fig. 33

Interior view of a kitchen appliance rack with various kitchen utensils and utensils (no visible text or labels)

Fig. 34

Cross-sectional diagram of a mechanical or electrical component with layered structure (no visible text or symbols)

Fig. 35

3 7 5 2 1 2 3 6 6 8 3 2 1 2 4

Fig. 36

Abstract 3D rendering of mechanical components with a central 'X' mark, no text or symbols present

Fig. 40

CARGAS INCORRECTAS

Black X symbol inside a grid of circular objects, no text or symbols present

Fig. 38

3D rendered mechanical component with a large 'X' symbol overlay, no text or symbols present

Fig. 41

Cross-sectional diagram of a washing machine showing internal components and fan blades (no text or labels)

Fig. 39

3D wireframe diagram of a structural grid with directional arrows indicating movement or flow (no text or symbols)

Fig. 42

ADVERTENCIA

3D wire mesh structure with a cylindrical component inserted, showing internal grid patterns and an arrow indicating rotation (no text or symbols)

Fig. 43

Isometric line drawing of a shopping cart with wheels and structural ribs (no text or symbols)

Fig. 44

Isometric technical drawing of a multi-level mechanical or electrical component with no visible text or symbols

Fig. 45

CESTA PARA CUBIERTOS (SEGÚN MODELO)

3D wireframe diagram of a shopping cart with wheels and a hand holding a basket, showing directional arrows (no text or symbols)

Fig. 46

3D wireframe model of a mechanical assembly with internal components (no visible text or symbols)

Fig. 47

3D rendering of a vehicle chassis with internal battery packs and metal frame structure (no text or symbols visible)

Fig. 48

Illustration of a military vehicle with mounted equipment and grid structure (no visible text or symbols)

Fig. 49

Mechanical assembly diagram showing a meshed metal frame connected to a cylindrical component with a curved arrow indicating rotation (no text or symbols)

Fig. 50

Mechanical assembly diagram showing a chain with rollers and a shaft, no text or symbols present

Fig. 51

Mechanical assembly diagram showing a conveyor belt system with wheels and a directional arrow (no text or symbols)

Fig. 52

3D diagram of a grid structure with purple components and black arrows indicating direction (no text or symbols)

Fig. 53

PORTABANDEJAS (SEGÚN MODELO)

Technical line drawing of a wheeled agricultural machine with visible structural framework and wheels (no text or symbols)

Fig. 54

Technical line drawing of a wheeled vehicle chassis frame with visible structural components (no text or symbols)

Fig. 55

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 56

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fig. 57

3D rendered mechanical component with transparent housing and internal components (no visible text or symbols)

Fig. 60

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

Fig. 58

Cross-sectional illustration of a mechanical device with internal components (no visible text or symbols)

Fig. 61

PORTAVASOS (SEGÚN MODELO)

Hand holding a metal bracket with a black arrow pointing to the handle (no text or symbols visible)

Fig. 59

A B DETERGENT

Fig. 64

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Fig. 67

Interior view of a building with metal shelving units and labeled points A and 1 (no readable text or symbols)

Fig. 70

Mechanical assembly diagram showing components labeled A and 1, with no readable text or symbols beyond labels

Fig. 68

Interior view of a building ceiling with structural elements and a labeled component 'B' (no readable text or symbols beyond label)

Fig. 71

Close-up of a kitchen sink with a hand holding a tool and a valve, showing no text or symbols.

Fig. 69

Diagram illustrating four steps of a washing machine component with labeled parts and directional arrows

Fig. 72

https://us.bertazzoni.com/more/support

https://ca.bertazzoni.com/more/support

EXCLUSIONES DE LA GARANTÍA - QUÉ NO ESTÁ CUBIERTO

https://us.bertazzoni.com/more/support

https://ca.bertazzoni.com/more/support

DU BUREAU DE NOTRE PRÉSIDENT

MANUEL D'INSTALLATION 110

SPÉCIFICATIONS 110

ASPECT GÉNÉRAL 110

CARACTÉRISTIQUES TECHNIQUES 110

INSTALLATION 111

DIMENSIONS DE L'OUVERTURE 111

PANNEAU DE PORTE PERSONNALISÉ (POUR LES MODÈLES AVEC PANNEAU PERSONNALISÉ) . 111

EXIGENCES ÉLECTRIQUES 111

EXIGENCES EN MATIÈRE DE PLOMBERIE 112

INSTALLATION 114

MANUEL D'UTILISATION ET D'ENTRETIEN 125

UTILISATION 125

INFORMATIONS PRATIQUES 150

GARANTIE ET ASSISTANCE 151

DÉCLARATION DE GARANTIE LIMITÉE DE DEUX ANS 151

CE QUE COUVRE CETTE GARANTIE LIMITÉE 151

POLITIQUE DE PROTECTION DU VERRE 151

COMMENT OBTENIR UN SERVICE 151

EXCLUSIONS DE LA GARANTIE – CE QU'ELLE NE COUVRE PAS 151

• B 23 5/8" (600 mm)*OU 24" (610 mm)**

Diagram showing three-step installation of a plumbing system with labeled components A, B, and C.

Diagram illustrating the process of printer attachment with magnified view showing internal structure and tree icon

Fig. 11

Diagram illustrating a printer's internal structure and assembly process, with magnified views showing component alignment.

Fig. 12

Diagram illustrating kitchen appliance positioning with labeled parts and directional arrows indicating movement or adjustment.

Fig. 13

Illustration of a hand cleaning a cabinet with a cloth (no text or symbols)

Fig. 14

Architectural diagram showing a window frame with yellow walls and gray panels (no text or symbols)

Fig. 16

Diagram showing a mechanical component with a magnified inset of its motion, no text or symbols present

Fig. 15

MISE EN PLACE DU LAVE-VAISSELLE DANS LE MEUBLE D'ENCASTREMENT

Diagram illustrating three-step installation of a pipe fitting with labeled components A, B, and C.

Diagram showing three-step installation of a water pipe system with labeled components A, B, and C.

1 in. (25 mm) ¼ in. (19 mm) ¾ in. (16 mm)

Fig. 18

Diagram of a sink pipe with hoses and tubing, showing a black arrow indicating direction (no text or symbols)

Fig. 19

Illustration of a cabinet with drawers and a printer, showing a close-up of the printer's internal structure (no text or symbols present)

Fig. 23

INSTALLATION DE LA PORTE EXTÉRIEURE (SELON LE MODÈLE)

ert ✓ X X

Fig. 26

Technical diagram of a device with labeled components and directional arrows indicating assembly or movement

Fig. 27

7-18 lb (3-8 kg) 7 lb (3 kg) 7 lb (8 kg) A 4X

Fig. 28

Diagram illustrating furniture and lighting installation with labeled components and measurement indicators

Fig. 29

600mm x 110mm x 23.5/8" x 24"

Fig. 30

LISTE DE CONTRÔLE DE L'INSTALLATEUR

3D rendered diagram of a mechanical assembly with multiple cylindrical components and a central dome component (no text or symbols)

Fig. 32

MISE EN GARDE

3D rendering of industrial insulators arranged in a grid structure (no text or symbols visible)

Fig. 33

Interior view of a kitchen appliance rack with multiple plates and utensils (no visible text or labels)

Fig. 34

Cross-sectional diagram of a mechanical or electrical component with layered components (no visible text or symbols)

Fig. 35

Diagram of a grid with circular objects and a black 'X' symbol overlay (no text or labels)

Fig. 38

Cross-sectional diagram of a kitchen appliance showing internal components and fan base (no text or labels)

Fig. 39

Abstract 3D rendering of fragmented metallic and glass components with a large 'X' symbol overlay (no text or symbols present)

Fig. 40

Abstract 3D wireframe structure with a large 'X' symbol overlay, no readable text or symbols present.

Fig. 41

QU'EST-CE QUI NE DOIT PAS ÊTRE LAVÉ DANS VOTRE LAVE-VAISSELLE ?

3D wireframe diagram of a structural grid with directional arrows indicating flow or movement (no text or symbols)

Fig. 42

Isometric line drawing of a shopping cart with wheels and internal structure (no text or symbols)

Fig. 44

3D wire mesh structure with a white cylindrical component inserted, showing internal layered structure and an arrow indicating rotation (no text or symbols)

Fig. 43

Isometric technical diagram of a multi-level mechanical or electrical component with no visible text or symbols

Fig. 45

3D wireframe model of a shopping cart with wheels and a hand holding a tray, showing internal components and directional arrows (no text or symbols)

Fig. 46

3D wireframe model of a mechanical assembly with internal components (no visible text or symbols)

Fig. 47

3D rendering of a mechanical assembly with metal frame and internal components (no visible text or symbols)

Fig. 48

Technical illustration of a military vehicle chassis with mounted equipment (no visible text or symbols)

Fig. 49

Diagram of a mechanical or electrical component with interlocking metal framework and a rotating shaft (no text or symbols)

Fig. 50

Mechanical assembly diagram showing a chain with rollers and a shaft, no text or symbols present

Fig. 51

Mechanical assembly diagram showing a conveyor belt system with rollers and shafts (no text or symbols)

Fig. 52

3D diagram of a grid structure with purple components and a black arrow indicating direction (no text or symbols)

Fig. 53

SUPPORT À PLATEAUX (SELON MODÈLE)

Technical line drawing of a wheeled agricultural machine chassis (no text or symbols)

Fig. 54

Technical line drawing of a wireframe chassis frame with no visible text or symbols

Fig. 55

ZONE DE LAVAGE DIRECT (SELON LE MODÈLE)

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 56

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fig. 57

3D rendered mechanical component with transparent housing and internal cavities (no visible text or symbols)

Fig. 60

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Fig. 58

Cross-sectional diagram of a mechanical device with internal components and a magnified inset showing internal features (no text or symbols)

Fig. 61

SUPPORT DE PORTE-VERRES À PIED (SELON MODÈLE)

Hand holding a metal cage with a black arrow pointing to the handle (no text or symbols visible)

Fig. 59

A B DETERGENT

Fig. 64

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Fig. 67

3D mechanical assembly diagram showing components like a valve, screw, and housing (no text or labels visible)

Fig. 68

Close-up of a kitchen sink with a tool and mechanical components, no visible text or symbols

Fig. 69

Architectural or engineering diagram showing a grid-like structure with labeled points A and 1, no readable text or symbols present.

Fig. 70

Interior view of a building ceiling with metal grating and a curved arrow indicating rotation (no text or symbols)

Fig. 71

https://us.bertazzoni.com/more/support

866 561 7265

https://ca.bertazzoni.com/more/support

EXCLUSIONS DE LA GARANTIE – CE QU'ELLE NE COUVRE PAS

https://us.bertazzoni.com/more/support

Si situé au CANADA

866 561 7265

https://ca.bertazzoni.com/more/support

www.bertazzoni.com

Via Palazzina. 8.

42016 Guastalla RE
