DW60EPRS - Dishwasher BERTAZZONI - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Bertazzoni
Model	DW60EPRS
Width	60 cm
Height	85 cm (adjustable)
Depth	57 cm
Net Weight	Approximately 45 kg
Energy Rating	A+
Noise Level	44 dB(A)
Number of Place Settings	13
Number of Programs	6 (Eco, Intensive, Normal, Quick, Rinse, Delicate)
Display	Electronic with LED indicators
Water Consumption	10 L per cycle (Eco)
Electrical Connection	220-240 V, 50 Hz, 10 A
Installation Type	Under counter
Door Panel	Integrated panel ready
Drying System	Condensation drying
Safety Features	Child lock, anti-flood system
Cleaning	Self-cleaning filter
Spare Parts Availability	Yes, via authorized service centers

Frequently Asked Questions - DW60EPRS BERTAZZONI

How do I install the dishwasher?

Follow the installation manual. Ensure proper water and electrical connections. The dishwasher must be level and secured under the counter. Use a qualified technician if needed.

What detergent should I use?

Use only dishwasher detergent (powder, gel, or tablets). Do not use hand dish soap. Follow the dosage recommended on the detergent package.

How to clean the filter?

Remove the lower rack, turn the coarse filter counterclockwise, lift it out, and rinse under running water. Clean fine filter with a soft brush. Reassemble and ensure proper locking.

Why is my dishwasher not draining?

Check for clogged filters or kinked drain hose. Ensure the drain hose is not blocked by food debris. If persistent, the drain pump may need service.

How to reset the dishwasher?

Press and hold the Start/Pause button for 3 seconds to cancel a cycle. Then turn off the dishwasher, wait 10 seconds, and restart. This resets the control board.

What do the error codes mean?

Error codes indicate specific issues: e.g., E1 for water fill failure, E2 for drainage issues, E4 for water leakage. Refer to the manual for exact codes and solutions.

Can I use rinse aid?

Yes, fill the rinse aid dispenser (usually near the detergent compartment). It improves drying and prevents water spots. Adjust the setting according to water hardness.

How to load dishes properly?

Place larger items on the bottom rack, smaller on the top. Ensure spray arms can rotate freely. Avoid nesting items. Face dirty surfaces inward and downward.

Why is there water left at the bottom?

A small amount of water may remain after the rinse cycle. If excessive, check the filter and drain hose. A clogged air gap or drain pump could be the cause.

Where can I find spare parts?

Spare parts are available through Bertazzoni authorized service centers or online retailers. Provide your model number DW60EPRS for accurate parts.

USER MANUAL DW60EPRS BERTAZZONI

Dishwasher bottom

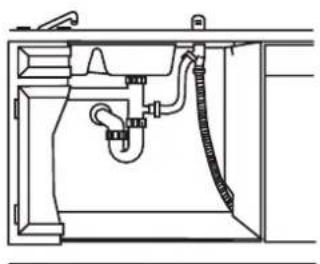

Technical line drawing of a mechanical or electrical component with pipes and tubing (no text or symbols)

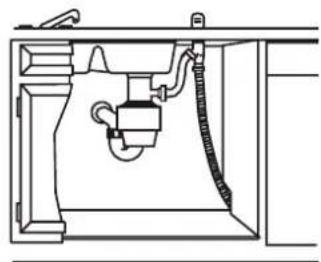

Technical line drawing of a mechanical assembly inside a rectangular housing (no text or symbols)
