Product Type	Pet Water Fountain
Brand	PetSafe
Model	Drinkwell FCB-EU-45
Reservoir Capacity	1.5 liters
Power Supply	12V, 2.5W AC adapter
Input Voltage	100-240V AC (depending on adapter)
Pump Type	Low-noise submersible pump, adjustable flow
Materials	BPA-free plastic
Filtration	Activated carbon filter (triple layer) + pre-filter
Filter Replacement Frequency	Every 2 to 4 weeks
Recommended Cleaning	Fountain: once a week; Pump: every 2 weeks
Pump Maintenance	Removable for manual cleaning or with diluted vinegar
Dishwasher Safe	Plastic parts (except pump) dishwasher safe (top rack)
Noise Level	Quiet (slight humming is normal)
Features	Adjustable water flow, refreshing cascade, splash reduction
Safety	Low voltage 12V, in-line plug, automatic shut-off if water level is low
Usage	Indoor use only
Warranty	2-year limited (see website)
Included Accessories	Bowl, compartment, lid, pump with flow control knob, charcoal filter, power adapter, manual

Frequently Asked Questions - Drinkwell FCB-EU-45 PETSAFE

Why isn't the pump working or is the flow weak?

First check the water level: it should not drop below the flow adjustment knob. Then, clean the pump every 2 to 4 weeks as hair or debris can clog it. Also make sure the in-line plug is properly connected.

How to clean the pump?

Unplug the fountain, remove the pump, then disassemble it by removing the front cover, inlet plate, and impeller. Clean each part with soapy water (or diluted vinegar for limescale) and rinse thoroughly. Never put the pump in the dishwasher.

How often should I change the charcoal filter?

It is recommended to replace the filter every 2 to 4 weeks. Change it more often if you have multiple pets or if your pet drools heavily.

The fountain is making a loud noise, what should I do?

A louder than usual noise may indicate low water level or debris in the impeller. Fill the bowl, unplug for 15 seconds, then clean the impeller. You can also lubricate the magnetic shaft with a little vegetable oil.

Black particles appear in the water, are they dangerous?

This is harmless carbon dust from the new filter. Always rinse the filter under cold water before installing to remove excess dust.

Why is the fountain slimy to the touch?

Animal saliva or insufficient rinsing after cleaning can leave a slimy residue. Clean the fountain more often and rinse thoroughly with clean water.

The fountain is leaking, what should I check?

Make sure the compartment is properly snapped in and the pump's rubber gasket is correctly inserted. Place a waterproof mat under the fountain to protect the floor.

Chalky white deposits are forming, how to prevent them?

These deposits are due to limescale. Clean the pump weekly with a mixture of water and vinegar (80/20) and use filtered or bottled water.

Can I put the plastic parts in the dishwasher?

Yes, the bowl, compartment, and lid can go in the top rack of the dishwasher. Never put the pump in the dishwasher.

My pet is afraid of the fountain, how to get them used to it?

Let your pet adjust at their own pace. Place the fountain away from their feeding area and add ice cubes to make the water more appealing. Some animals take several days to get used to it.

USER MANUAL Drinkwell FCB-EU-45 PETSAFE

Line drawing of a toilet with a handle and seat, enclosed in a circular frame (no text or symbols)

PetSafe

protect. teach. love.

Please read this entire guide before beginning

Hereinafter Radio Systems Corporation, Radio Systems PetSafeEurope Ltd., Radio Systems Australia Pty Ltd. and any other affiliate or Brand of Radio Systems Corporation may be referred to collectively as "We" or "Us".

IMPORTANT SAFETY INFORMATION

Explanation of Attention Words and Symbols used in this guide

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

⚠ WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION, used without the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in harm to your pet.

NOTICE

NOTICE is used to address safe use practices not related to personal injury.

⚠ WARNING

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:

• To reduce the risk of injury, close supervision is necessary when an appliance is used by or near children.
• To protect against electric shock, do not place electrical Power Cord or plug in water or other liquids.
• Do not use outdoors. FOR INDOOR HOUSEHOLD USE ONLY.
• Do not pull on the electrical Power Cord to remove the plug from the electrical outlet. To unplug, grasp the plug, not the electrical Power Cord.
• Do not operate any appliance if it has a damaged electrical Power Cord or plug, or if it is malfunctioning or has been damaged. Call Customer Care Centre immediately for further instructions.
• For a portable appliance - To reduce the risk of electric shock, do not place or store an appliance where it can fall or be pulled into a bath tub or sink.
• Always unplug any appliance when not in use, before putting on or taking off parts and before cleaning.
• Do not use an appliance for anything other than its intended use.
• If the plug of this device gets wet, turn off the electricity to that electrical outlet. Do not attempt to unplug.
• Examine this appliance after installation. Do not plug into electrical outlet if there is water on the electrical Power Cord or plug.

CAUTION

- Do not allow pets to chew on or swallow any parts. If you are concerned about the electrical Power Cord, purchase a cord conduit (a hard plastic protector) at any hardware store.

- The plastic Pet Fountain parts are BPA-FREE. However, some animals have been known to be sensitive to plastic food and water containers. If your animal shows signs of an allergic reaction to the plastic, please discontinue use until you have consulted with your veterinarian.

NOTICE

- The Pet Fountain is intended to run continuously (always plugged into an electrical outlet), as long as the water level is maintained and the Pet Fountain is cleaned regularly. Be sure to check the Pet Fountain regularly to help prevent damage to the Pump, as the water may get consumed or evaporate causing the Pump to run dry.

- Do not attempt repairs on the Pump.

- To avoid the possibility of the plug or electrical outlet getting wet, the electrical outlet should always be above the level of the Pet Fountain.

- If an extension cord is necessary, an extension cord with a proper rating should be used.

• The electrical use of this appliance is 2.5 watts.

- The use of attachments not recommended or sold by the manufacturer may cause an unsafe condition. Do not modify the appliance.

- Do not install or store appliance where it will be exposed to weather or temperatures below 4.5°C.

- Read and observe all important notices listed on the appliance and in the packaging.

- Never wash the filters with soapy water, as the soap residue will seep into the filters and cannot be removed. Only rinse the filters with water.

- Use only PetSafe® brand authorised replacement filters. If unauthorised filters are used it may void the warranty.

SAVE THESE INSTRUCTIONS

Thank you for choosing the PetSafe® Brand. You and your pet deserve a companionship that includes memorable moments and a shared understanding together. Our products and training tools enhance the relationship between pets and their owners. If you have any questions about our products or training your pet, please visit our website at www.petsafe.net or contact our Customer Care Centre. For a listing of Customer Care Centre telephone numbers, visit our website at www.petsafe.net.

To get the most protection out of your warranty, please register your product within 30 days at www.petsafe.net. By registering and keeping your receipt, you will enjoy the product's full warranty and should you ever need to call the Customer Care Centre, we will be able to help you faster. Most importantly, your valuable information will never be given or sold to anyone. Complete warranty information is available online at www.petsafe.net.

Table of Contents

Components....5

Features 5

Key Definitions....6

Operating Instructions....7

Pet Fountain Disassembly & Cleaning 8

Pump Maintenance....9

Pet Fountain Reassembly.... 10

The Pet Fountain and Your Environment....11

General Tips....11

Troubleshooting 12

Warranty 13

Compliance....14

Important Recycling Advice 15

Terms of Use and Limitation of Liability 15

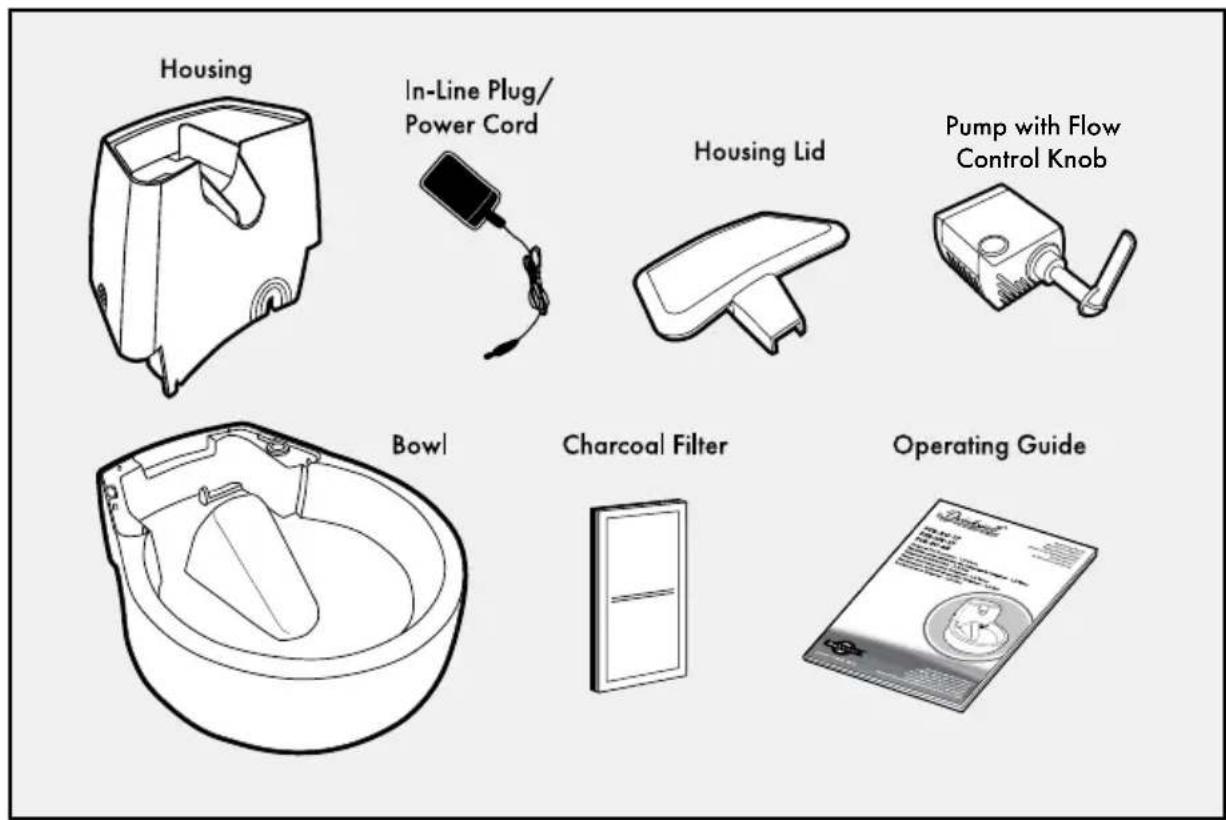

Components

Housing In-Line Plug/ Power Cord Housing Lid Pump with Flow Control Knob Bowl Charcoal Filter Operating Guide

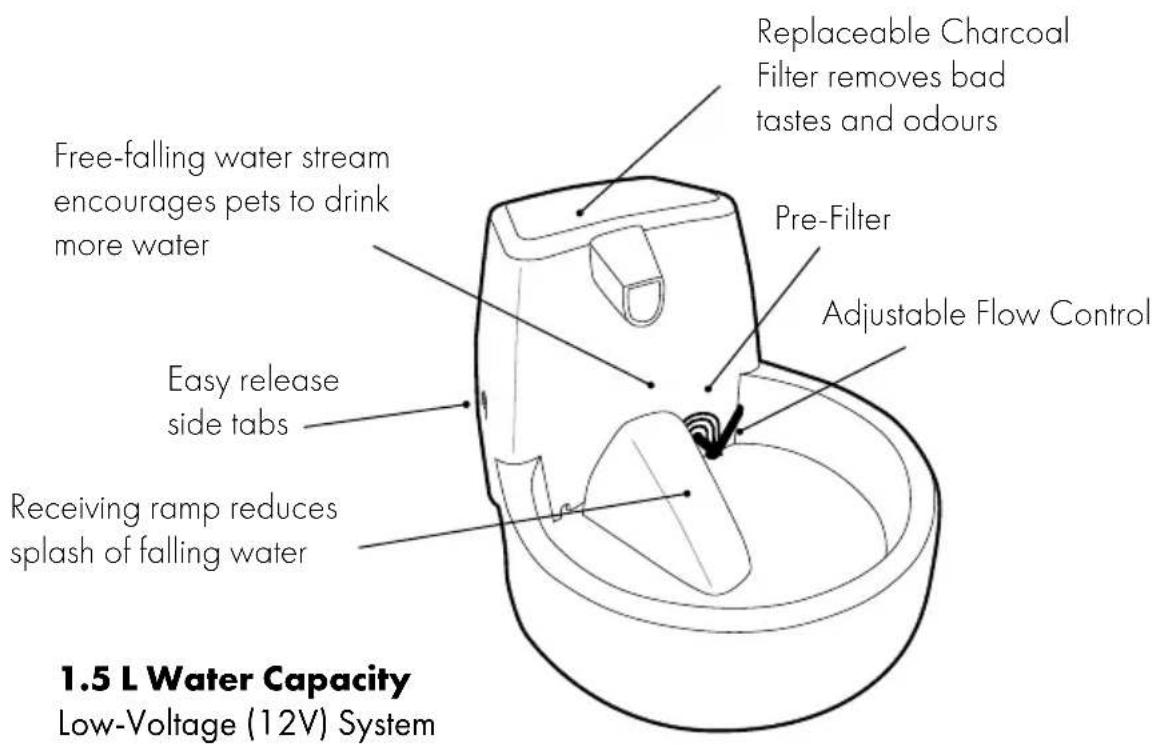

Features

Free-falling water stream encourages pets to drink more water Easy release side tabs Receiving ramp reduces splash of falling water Replaceable Charcoal Filter removes bad tastes and odours Pre-Filter Adjustable Flow Control 1.5 L Water Capacity Low-Voltage (12V) System

Key Definitions

Bowl: The Bowl is the foundation of the Pet Fountain. It features two handles on either side of the Pet Fountain as well as a "cord channel" to hide the electrical Power Cord from view.

Housing: Water is pumped up through the Housing to cycle through the Charcoal Filter and out the spout to create a waterfall into the Bowl.

Housing Lid: The Housing Lid snaps in place over the Housing, keeping pets out of the Charcoal Filter.

Charcoal Filter: The 3-layer Charcoal Filter is made with granulated carbon derived from coconut shells. The Charcoal Filter absorbs bad tastes and odours as the water passes through and helps keep the water tasting fresh and more appealing to pets.

Pre-Filter: This is a small intake grate which catches large particles such as hair, debris, and kibble before they reach the Charcoal Filter.

Flow Control Knob: This knob attaches to the Pump and adjusts the rate of water flow. The Flow Control Knob can be removed by taking apart the Pump (See "Pump Maintenance" section for detailed instructions).

Pump: The small aquarium Pump can be partially dismantled for cleaning. THE PUMP IS NOT DISHWASHER SAFE! Remove Pump from the Pet Fountain before cleaning (See "Pump Maintenance" section for detailed instructions). The Pump also features a removable In-Line Plug for easy attachment and removal.

Operating Instructions

Important: DO NOT RUN DRY - FOR INDOOR USE ONLY. Pet Fountain will come fully assembled and ready for use.

Note: Rinse all fountain parts with warm water before operating the pet fountain. This will remove any dust or residue that remain in the system from the manufacturing process.

Fig. 1 Pump

1. Carefully remove all the Pet Fountain components from the packaging and set aside prior to assembly.

2. As with any electrical device, check the electrical Power Cord for any tears or damage before use.

3. Make sure the In-Line Plug is connected. When connected properly the silver tip is not showing.

4. Remove the Housing by pressing the side tabs and lifting up. Inspect the inside of the Pet Fountain to ensure Pump is securely attached (Fig. 1). Snap Housing back into place.

5. Remove the Housing Lid and set aside.

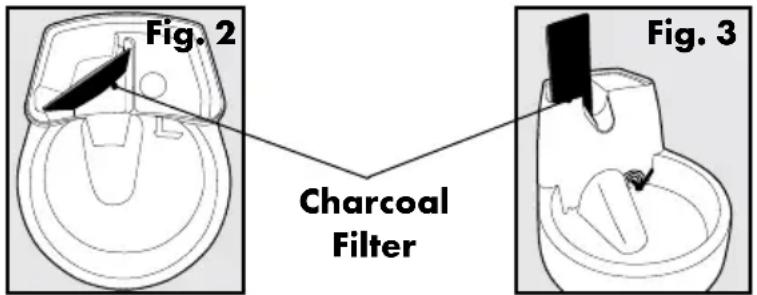

6. Insert the Charcoal Filter. The Charcoal Filter fits diagonally into the two triangular slots located inside the Housing. The Charcoal Filter fits narrow side down, with the black side facing the front of the Pet Fountain towards the spout. The Charcoal Filter will slide easily into place, but make sure it is pushed all the way down (Fig. 2 & 3).

Fig. 2 Charcoal Filter Fig. 3

Important: Rinse the Charcoal Filter thoroughly under cool water before placing in the Pet Fountain. This will remove any loose charcoal dust, which is harmless. A small amount of charcoal dust may be released for the life of the Charcoal Filter. This is normal and is not harmful to your pet.

1. Fill the Bowl with water. Replace the Housing Lid.
2. Place the Pet Fountain in desired location. Do not pick up a full Pet Fountain by the Housing. Only pick up the Pet Fountain by placing both hands underneath the base of the Pet Fountain and grip the sidewalls for a sturdy hold. Important: To protect your floor always use a protective mat such as a towel or water-resistant placement. This will help protect your floor from any splashing or spills caused by your pet.

3. Before you plug in the Pet Fountain, make sure the electrical Power Cord, the plug, and your hands are dry. Plug the Pet Fountain into a standard electrical wall outlet.

4. Set your desired flow rate with the Flow Control Knob, which is located to the right of the receiving ramp inside the Bowl. When the Flow Control Knob is in the 10 o'clock position, flow is at its lowest. When the Flow Control Knob is in the 2 o'clock position, flow is at its highest.

5. Add water to the Bowl as needed. Do not let the water level fall below the Flow Control Knob or you may risk Pump failure. Replacement Pumps are sold separately by contacting the Customer Care Centre. Visit www.petsafe.net for a telephone listing of the Customer Care Centre near you.

Pet Fountain Disassembly & Cleaning

Important: Pet Fountain must be cleaned to continue working normally.

CHARCOAL FILTER: The Charcoal Filter should be changed every two to four weeks.

1. Replace the Charcoal Filter more frequently when using the Pet Fountain for multiple pets or pets that produce a lot of saliva.
2. The Charcoal Filter is an added feature of the Pet Fountain. The use of a filter is not required for normal operation, but using a filter will keep the Pet Fountain water cleaner.
3. The Charcoal Filter may be rinsed out when the Pet Fountain is cleaned.

NOTICE

• Never wash the filters with soapy water, as the soap residue will seep into the filters and cannot be removed. Only rinse the filters with water.
• Use only PetSafe® brand authorised replacement filters. If unauthorised filters are used it may void the warranty.

PET FOUNTAIN: Clean the Pet Fountain once a week.

1. Unplug the Pet Fountain and disconnect the In-Line Plug.
2. Remove Housing Lid and remove the Charcoal Filter.
3. Empty the water out of the Pet Fountain.

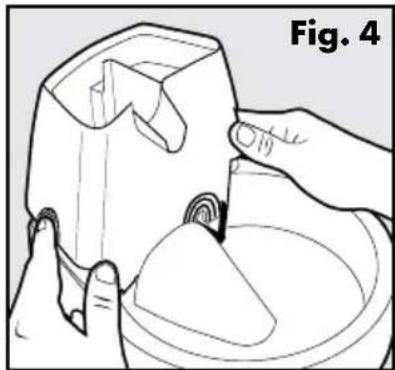

4. Remove the Housing by pressing in the side tabs and lifting up (Fig. 4).

Important: The Flow Control Knob is attached to the Pump. Do not attempt to remove the Pump by pulling on the Flow Control Knob as this can damage or break the Pump.

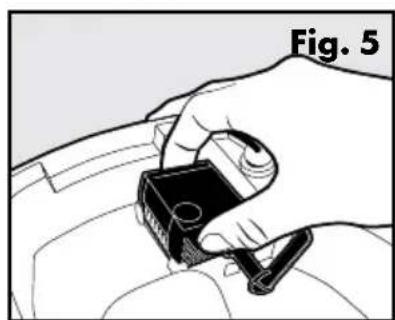

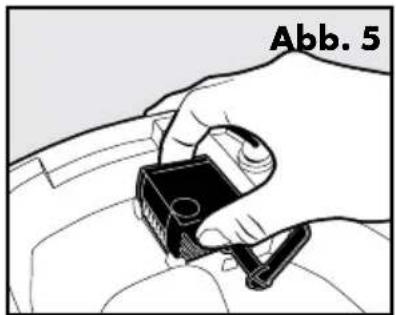

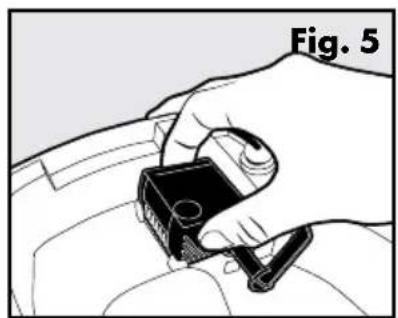

1. Remove the Pump from its cavity by placing your index finger behind Pump and gripping the bottom with your thumb (Fig. 5).

2. Lift the Pump straight up – this may require slight force until the suction cups release.

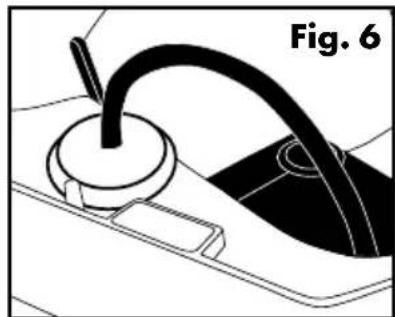

3. Next, remove the Pump from the Pet Fountain by disengaging the rubber gasket (Fig. 6). Pull the In-Line Plug up through the hole located next to the Pump. Clean away any hair, debris or kibble that may have accumulated around the Flow Control Knob and the Faceplate of the Pump.

4. Once the Pet Fountain is completely disassembled you will have 3 plastic parts.

Line drawing of hands holding a small object, possibly a container or tool, with no visible text or symbols.

Hand holding a small black object with circular holes, placed on a curved surface (no text or symbols visible)

Diagram of a mechanical device with a lever and handle, labeled Fig. 6 (no text or symbols on the diagram itself)

1. Clean the Pet Fountain plastic parts with warm water and soap. You can also put the Pet Fountain in the top rack of the dishwasher. Remove the Pump before placing the Pet Fountain in the dishwasher. NEVER PLACE THE PUMP IN THE DISHWASHER! If possible, it is recommended that you turn down the heat of the water inside the dishwasher. The Pet Fountain may also be cleaned with a diluted vinegar solution (20% White Vinegar and 80% Water). Be sure to rinse thoroughly with fresh water.
2. If you have trouble reaching certain spots or hard-to-reach corners, try using a cotton swab or purchase the Drinkwell® Cleaning Kit, a 3-Piece Brush kit. To purchase a Cleaning Kit, visit our website at www.petsafe.net to locate a retailer near you.

Pump Maintenance

Important: Cleaning the Pump is essential to the longevity of the Pet Fountain, as well as the cleanliness of the water. Clean the Pump every two weeks. Warranty may be voided if the Pump's motor is not cleaned regularly.

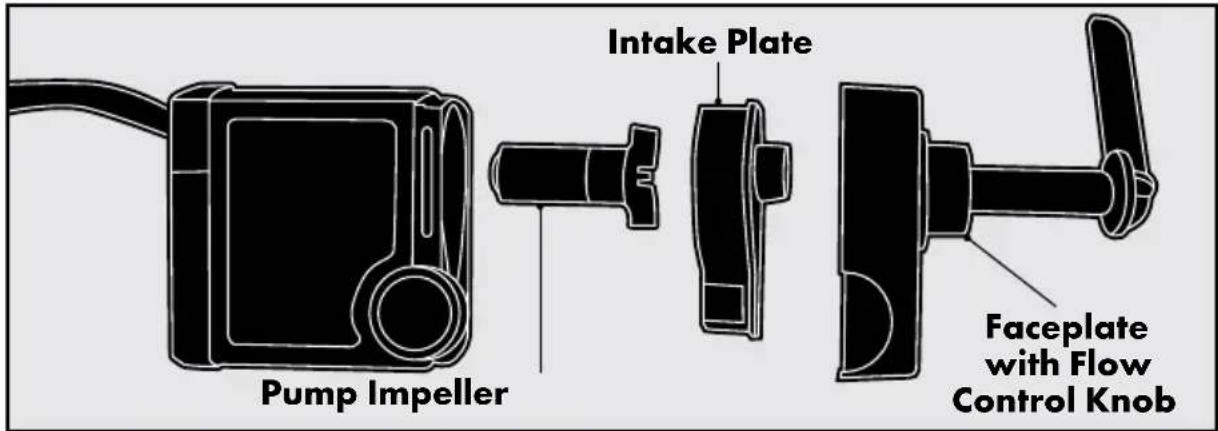

Intake Plate Pump Impeller Faceplate with Flow Control Knob

1. Remove Pump from the Pet Fountain as explained in the "Pet Fountain Disassembly & Cleaning" section.

2. Once the Pump is out of the Pet Fountain, with your thumb and forefinger, gently squeeze on either side of the Faceplate, and pull it off. It may be necessary to insert a fingernail into the seam of the Faceplate to pry it off (Fig. 7 & 8).

Close-up of a hand pressing a component labeled Fig. 7 (no other text or symbols visible)

Technical illustration of a mechanical component with no visible text or symbols

1. Next, you will want to remove the Intake Plate by placing your fingernail underneath the small lip located on the narrow side of the teardrop-shaped Intake Plate Pull-Tab and pull it out (Fig. 9).

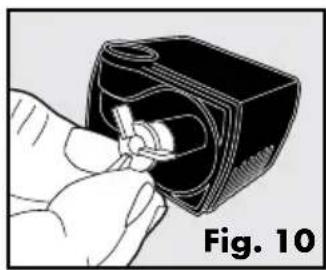

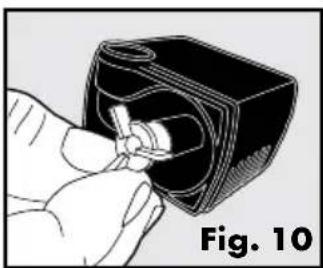

2. Once the Intake Plate is removed, you can also remove the Impeller (white, 3-bladed

propeller) which is held in place magnetically. To remove the Impeller, use a fingernail to get underneath a blade and lift out (Fig. 10).

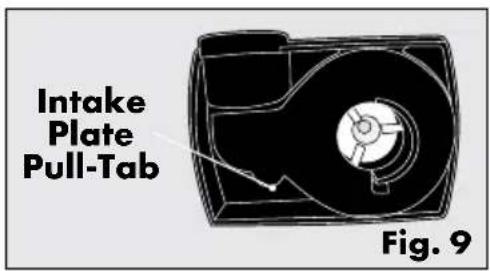

Intake Plate Pull-Tab Fig. 9

Illustration of a hand inserting a small object into a device (no text or symbols visible)

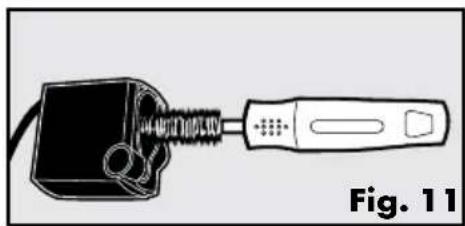

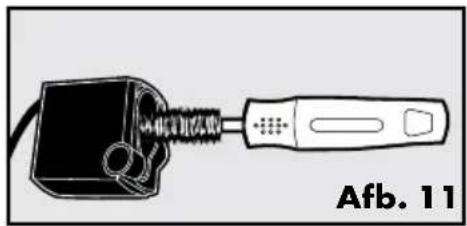

1. Once the Pump is disassembled you can clean the parts with warm water and soap. Use a cotton swab or the "motor" brush from the Drinkwell® Cleaning Kit to get into the Pump's motor cavity and remove any build-up (Fig. 11). For added disinfecting and hard water removal, clean the Pump's motor with a diluted vinegar solution (20% White Vinegar and 80% Water). Be sure to rinse thoroughly with fresh water.
2. Once the parts are clean you can reassemble the Pump for use.

a) Replace the Impeller.
b) Replace the Intake Plate.
c) Replace the Faceplate with the Flow Control Knob attached to it.

Diagram of a handheld electronic device connected to a terminal block, labeled Fig. 11 (no text or symbols on the device itself)

Pet Fountain Reassembly

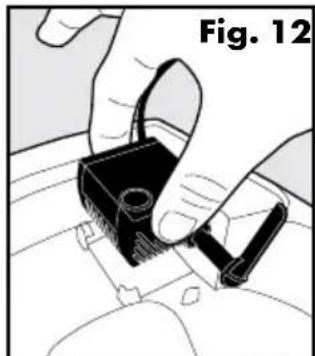

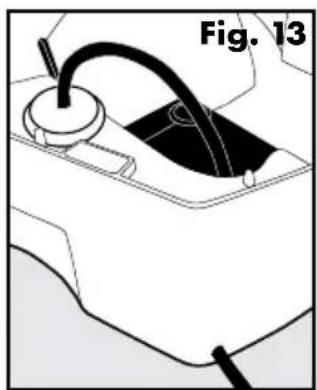

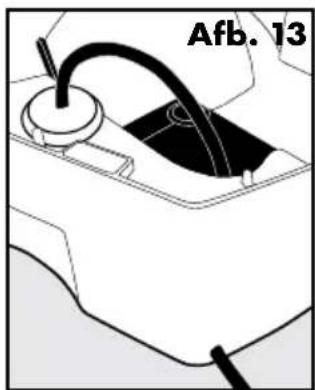

1. Replace the Pump by aligning the unit into its fitted space inside the Bowl (Fig. 12). The suction cups on the Pump should be facing down and the Flow Control Knob facing into the Bowl. Gently push down to engage suction cups.
2. Thread the In-Line Plug of the electrical Power Cord through the hole located next to Pump and push the rubber gasket firmly into the hole. To insure the Pet Fountain Bowl is stable, run the electrical Power Cord along the "cord channel" and through the notch in the base of the Pet Fountain (Fig. 13).

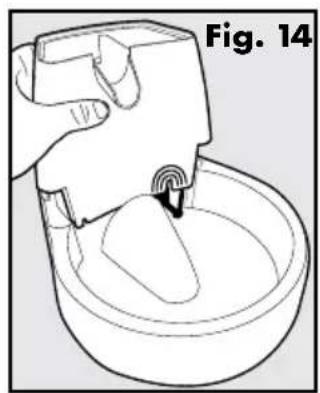

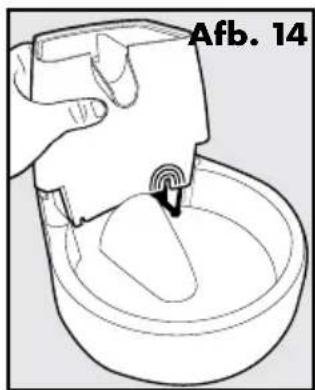

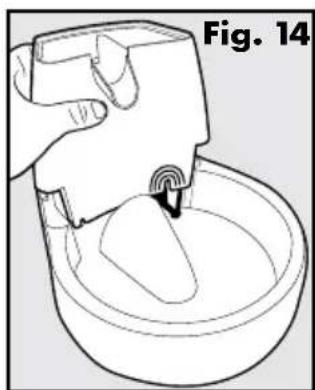

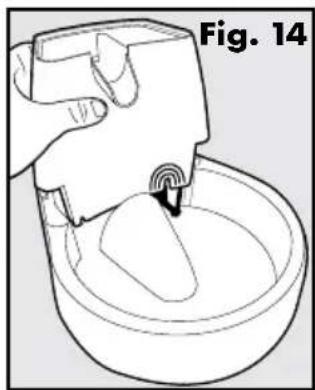

3. Attach the Housing by sliding the cutout in the wall of the Housing down over the Flow Control Knob. The Housing will click into place when the side tabs are inserted in the Bowl (Fig. 14).
4. Replace the Charcoal Filter, with the black side facing the front of the Pet Fountain towards the spout.
5. Fill the Bowl with water and replace the Housing Lid.
6. Place Pet Fountain in desired location. Do not pick up a full Pet Fountain by the Housing. Only pick up the Pet Fountain by placing both hands underneath the base of the Pet Fountain and grip the sidewalls for a sturdy hold. Important: To protect your floor always use a protective mat such as a towel or water-resistant placemat. This will help protect your floor from any splashing or spills caused by your pet.
7. Before you plug in the Pet Fountain make sure the electrical Power Cord, the plug and your hands are dry. Connect the In-Line Plug and makes sure no silver is showing then plug the adaptor into a standard electrical wall outlet.

Illustration of a hand holding a small mechanical component, labeled 'Fig. 12' (no text or symbols on the diagram itself)

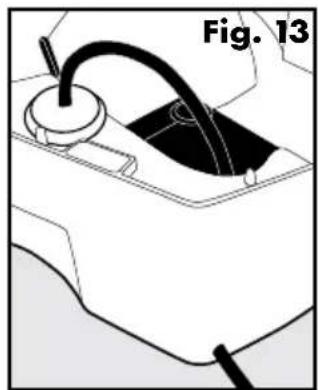

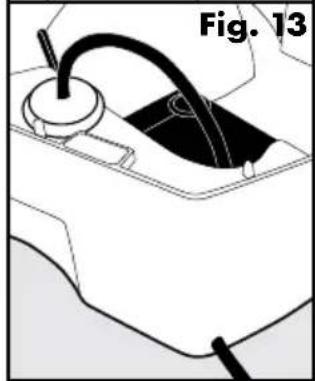

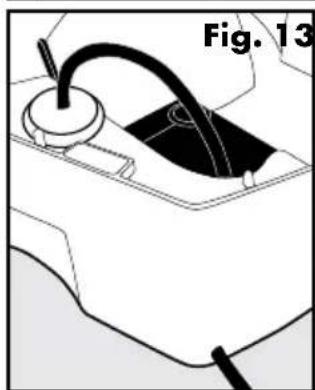

Technical diagram of a mechanical component labeled Fig. 13, showing a lever and base structure without any readable text or symbols.

Line drawing of a hand using a micrometer to lift a bowl (no text or symbols)

The Pet Fountain and Your Environment

If you live in a humid environment and have problems with mold or algae, soak all Pet Fountain parts in a diluted vinegar solution (20% White Vinegar and 80% Water) for 10 minutes after regular cleaning. Also, pour the diluted vinegar solution into the Pump's motor cavity.

If you have hard water, small white mineral deposits may form on or inside the Pump. This can eventually prevent the Impeller from turning properly. To avoid replacement or damage to the Pump, please take the following precautions:

• Clean the Pump more frequently.
• Clean the Pump with a diluted vinegar solution weekly.
• Use bottled water instead of tap water.

General Tips

• When being introduced to the Pet Fountain, your pet may be cautious of this new and unusual object. After beginning operation of your Pet Fountain, simply allow your pet to adjust at his or her own pace. Some pets may take several days or longer to begin use, while others will start right away.
• Your pet may prefer that the Pet Fountain be placed away from their normal feeding area. Try placing it in another location, such as a different area of the kitchen or in a bathroom or utility room.
• Add ice cubes to the bowl for refreshing, ice-cold running water!

Troubleshooting

The answers to these questions should help you solve most problems you may have with the Pet Fountain. If they do not, please contact our Customer Care Centre.

TROUBLESHOOTING
PROBLEM SOLUTION
Pump is not working or the water is not flowing as much as it used to.	Never let the water in the bowl get below the minimum fill level. This can cause the pump to overheat and stop functioning.When refilling the bowl, make sure to add water before turning the pet fountain on.Lack of regular cleaning may result in the pump becoming clogged with pet hair and food debris. The pump must be cleaned every 2-4 weeks to ensure proper function.Fill the pet fountain with water up to the max fill line.
Pet Fountain is loud. • A low	humming noise is normal, but it should not be loud. Check the water level. If water level is too low then the pump will have to work harder causing it to be louder than normal.Unplug the pet fountain for 15 seconds. If the noise does not stop when plugged back in, it's possible that some debris is caught on the impeller. Remove the pump and clean the impeller. Try rubbing a small amount of vegetable oil onto the magnetic pin with a cotton swab to lubricate the impeller.
There are black particles in the bowl.	This is loose granulated charcoal dust from the filter and is completely harmless for your pet to drink. Rinse the charcoal filter in cold water before placing it in the pet fountain to prevent this.
The pet fountain feels slimy.	If you have multiple pets or dogs using the pet fountain, the slimy feeling may be caused by your pet's saliva. Change the water and clean your fountain more frequently to prevent this.Make sure the pet fountain parts are rinsed thoroughly after cleaning the fountain. Soap residue may cause the sliminess.
The power adaptor is warm to the touch.	Unplug the pet fountain and plug it into a surge protector.
The pet fountain is leaking.	Sometimes water around the pet fountain is caused by pets drinking. Some pets are prone to spilling. Watch your pet when he drinks to see if this is the cause. If it is, you can purchase a pet fountain mat or other water-resistant mat to place under the pet fountain.
The pet fountain seems dirty even after cleaning.	If there is a white chalky substance in the pet fountain, your fountain may have a mineral deposit build-up from hard water. To remove these deposits, clean the fountain parts with a 80% water and 20% vinegar solution. Rinse all parts thoroughly afterwards. Use filtered or purified water instead of hard tap water to prevent this.

Warranty

Two Year Non-Transferrable Limited Warranty

This Product has the benefit of a limited manufacturer's warranty. Complete details of the warranty applicable to this Product and its terms can be found at www.petsafe.net and/or are available by contacting your local Customer Care Centre.

Europe – Radio Systems PetSafe Europe Ltd., 2nd Floor, Elgee Building, Market Square, Dundalk, Co. Louth, Ireland

Canada – Radio Systems Corporation, 10427 PetSafe Way, Knoxville, TN 37932 USA

Australia/New Zealand – In compliance with the Australian Consumer Law, Warranties Against Defects, effective January 1, 2012, warranty details of this Product are as follows: Radio Systems Australia Pty Ltd. (hereinafter referred to as "Radio Systems") warrants to the original retail purchaser, and not any other purchaser or subsequent owner, that its Product, when subject to normal and proper residential use, will be free from defects in material or workmanship for a period of two (2) years from the purchase date. An "original retail consumer purchaser" is a person or entity who originally purchases the Product, or a gift recipient of a new Product that is unopened and in its original packaging. When serviced by Radio Systems Customer Service, Radio Systems covers labour and parts for the first two years of ownership; after the first two years, a service or upgrade charge will apply relative to replacement of the Product with new or refurbished items at Radio Systems' sole discretion.

The limited warranty is non-transferrable and shall automatically terminate if the original retail consumer purchaser resells the Radio Systems Product or transfers the property on which the Radio Systems Product is installed. This Limited Warranty excludes accidental damage due to dog chews; lightning damage; or neglect, alteration, and misuse.

Consumers who purchase products outside of Australia, New Zealand, or from an unauthorised dealer will need to return the Product to the original place of purchase for any warranty issues.

Please note that Radio Systems does not provide refunds, replacements, or upgrades for change of mind, or for any other reason outside of these Warranty terms.

Claims Procedure: Any claim made under this Warranty should be made directly to Radio Systems Australia Pty Ltd. Customer Care Centre at:

Radio Systems Australia Pty Ltd.

PO Box 7266, Gold Coast Mail Centre QLD 9726, Australia

Australia Residents: 1800 786 608

New Zealand Residents: 0800 543 054

Email: [e-mail]

To file a claim, a proof of purchase must be provided. Without a proof of purchase, Radio Systems will not repair or replace faulty components. Radio Systems requests the Consumer to contact the Radio Systems Customer Care Centre to obtain a Warranty Return number, prior to sending the Product. Failure to do so may delay in the repair or replacement of the Product.

If the Product is deemed to be faulty within 30 days from date of original purchase, Radio Systems will organise for a replacement to be sent in advance of returning the faulty Product. A Post Bag will be included with the replacement Product for the return of the faulty Product. The Product must be returned within 7 days of receiving the replacement. If the Product is deemed to be faulty after 30 days from the date of original purchase, the consumer will be required to return the Product to Radio Systems at the consumer's own expense. Radio Systems will test and replace the faulty unit or its components and return to the consumer free of charge, provided the Product is within its said warranty period. This warranty is in addition to other rights and remedies available to you under the law. Radio Systems goods come with guarantees that cannot be excluded under the Australia Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Should you have any queries or require any further information, please contact our Customer Care Centre on 1800 786 608 (Australia) or 0800 543 054 (New Zealand).

Compliance

CE

This equipment complies with the EMC and Low Voltage Directives. Unauthorised changes or modifications to the product that are not approved by Radio Systems Corporation may violate EU regulations, could void the user's authority to operate the equipment, and will void the warranty.

The Declaration of Conformity can be found at:

http://www.petsafe.net/customercare/eu_docs.php.

ACMA

This device complies with the applicable EMC requirements specified by the ACMA (Australian Communications and Media Authority).

Important Recycling Advice

Please respect the Waste Electrical and Electronic Equipment regulations in your country. This equipment must be recycled. If you no longer require this equipment, do not place it in the normal municipal waste system. Please return it to where it was purchased in order that it can be placed in our recycling system. If this is not possible, please contact the Customer Care Centre for further information.

Terms of Use and Limitation of Liability

1. Terms of Use

Use of this Product is subject to your acceptance without modification of the terms, conditions and notices contained herein. Use of this Product implies acceptance of all such terms, conditions and notices. If you do not wish to accept these terms, conditions, and notices, please return the Product, unused, in its original packaging and at your own cost and risk to the relevant Customer Care Centre together with proof of purchase for a full refund.

2. Proper Use

If you are unsure whether this Product is appropriate for your pet, please consult your veterinarian or certified trainer prior to use. Proper use includes, without limitation, reviewing the entire Operating Guide and any specific important safety statements.

3. No Unlawful or Prohibited Use

This Product is designed for use with pets only. Using this Product in a way that is not intended could result in violation of Federal, State or local laws.

4. Limitation of Liability

In no event shall Radio Systems Corporation or any of its associated companies be liable for (i) any indirect, punitive, incidental, special or consequential damage and/or (ii) any loss or damages whatsoever arising out of or connected with the misuse of this Product. The Purchaser assumes all risks and liability from the use of this Product to the fullest extent permissible by law.

5. Modification of Terms and Conditions

Radio Systems Corporation reserves the right to change the terms, conditions and notices governing this Product from time to time. If such changes have been notified to you prior to your use of this Product, they shall be binding on you as if incorporated herein.

Line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

Line drawing of a bowl with a handle and lid, labeled 'Bol' (no other text or symbols)

Filtre au charbon

Scanned image of a document with printed text and a central circular emblem featuring a stylized face.

Caractéristiques

Illustration of hands assembling a container with a lid, labeled Fig. 4 (no text or symbols on the diagram itself)

Hand holding a small black object with a handle, against a circular background (no text or symbols)

Diagram of a mechanical device with a lever and base, labeled Fig. 6 (no text or symbols on the diagram itself)

Entretien de la pompe

Close-up of a finger pressing down on a black electronic component, labeled 'Fig. 7' (no other text or symbols)

Technical illustration of a mechanical component with no visible text or symbols

Illustration of a hand holding a small object inside a transparent container, labeled Fig. 10 (no text or symbols on the diagram itself)

Diagram of a handheld electronic device with a cable, showing internal wiring and a handle (no text or symbols)

Illustration of a hand holding a small mechanical component, labeled 'Fig. 12' (no text or symbols on the diagram itself)

Technical diagram of a mechanical component with no visible text or symbols

Line drawing of a hand using a tool to lift a bowl with a submerged object (no text or symbols)

Europe – Radio Systems PetSafe Europe Ltd., 2nd Floor, Elgee Building, Market Square, Dundalk, Co. Louth, Irlande

Illustration of hands assembling a mechanical component (no text or symbols)

Hand holding a small black object with circular holes, placed on a curved surface (no text or symbols visible)

Mechanical component diagram showing a lever and handle assembly (no text or symbols)

Pomponderhoud

Close-up of a finger pressing a black component with a label 'Afb. 7' (no other text or symbols visible)

Technical illustration of a mechanical component with no visible text or symbols

Hand holding a small object inside a dark container, labeled 'Afb. 10' (no other text or symbols)

Diagram of a mechanical device with a spring-loaded connector and a handle, labeled 'Afb. 11' (no text or symbols on the device itself)

Hand holding a black mechanical component with a handle, labeled 'Afb. 12' (no other text or symbols visible)

Diagram of a vehicle's engine compartment with no visible text or symbols

Afb. 14

Radio Systems PetSafe Europe Ltd., 2nd Floor, Elgee Building, Market Square, Dundalk, Co. Louth, Ierland

Conformiteit

CE

http://www.petsafe.net/customercare/eu_docs.php.

Illustration of hands assembling a mechanical component (no text or symbols)

Hand holding a small black object with circular holes, placed on a curved surface (no text or symbols visible)

Diagram of a car interior showing a handle and seat with a knob, labeled Fig. 6 (no text or symbols on the diagram itself)

Close-up of hands holding a black electronic component with a coiled cable, labeled 'Fig. 7' (no other text or symbols)

Technical illustration of a mechanical component labeled Fig. 8 (no text or symbols on the diagram itself)

Illustration of a hand holding a small object through a device, labeled Fig. 10 (no text or symbols on the diagram itself)

Diagram of a handheld electronic device connected to a cable, labeled Fig. 11 (no text or symbols on the device itself)

Hand holding a small black object with a loop handle, no visible text or symbols

Diagram of a car interior showing a handle and seat with no visible text or symbols

Line drawing of a hand pouring liquid into a bowl (no text or symbols)

Radio Systems PetSafe Europe Ltd., 2nd Floor, Elgee Building, Market Square, Dundalk, Co. Louth, Irlanda

Conformidad

CE

http://www.petsafe.net/customercare/eu_docs.php.

Line drawing of a mechanical component or housing (no text or symbols)

Line drawing of a bowl with a handle and lid, labeled 'Ciotola' in the top right corner (no other text or symbols)

Scanned cover of a 3D printer or document with printed text and a clock graphic

Caratteristiche

Illustration of hands assembling a mechanical component (no text or symbols)

Hand holding a small electronic component, labeled Fig. 5 (no text or symbols on the diagram itself)

Diagram of a car interior showing a handle and seat with a circular component, labeled 'Fig. 6' (no text or symbols on the diagram itself)

Close-up of a finger pressing a black electronic component labeled Fig. 7 (no text or symbols on the diagram itself)

Technical illustration of a mechanical component with two views, labeled Fig. 8 (no text or symbols on the diagram itself)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Fig. 9

Illustration of a hand holding a small object inside a device housing (no text or symbols visible)

Diagram of a handheld electronic device with a cable, showing internal components and a handle (no text or symbols)

Illustration of a hand holding a small mechanical component, labeled 'Fig. 12' (no text or symbols on the diagram itself)

Technical diagram of a mechanical component labeled Fig. 13, showing a lever and base structure (no text or symbols beyond label)

Line drawing of a hand using a micrometer to lift a bowl (no text or symbols)

Radio Systems PetSafe Europe Ltd., 2nd Floor, Elgee Building, Market Square, Dundalk, Co. Louth, Irlanda

Conformità

CE

Illustration of hands assembling a mechanical component (no text or symbols)

Hand holding a black plastic clip attached to a curved surface, labeled 'Abb. 5' (no other text or symbols)

Close-up of hands holding a black electronic component, labeled 'Abb. 7' (no other text or symbols visible)

Technical illustration of a mechanical component labeled Abb. 8 (no text or symbols on the diagram itself)

Radio Systems PetSafe Europe Ltd., 2nd Floor, Elgee Building, Market Square, Dundalk, Co. Louth, Irland

Konformität

PetSafe ^® products are designed to enhance the relationship between you and your pet. To learn more about our extensive product range which includes Containment Systems, Training Systems, Bark Control, Pet Doors, Health & Wellness, Waste Management and Play & Challenge products, please visit www.petsafe.net.

Radio Systems Corporation

10427 PetSafe Way

Knoxville, TN 37932

[phone]

Radio Systems PetSafe Europe Ltd.

2nd Floor, Elgee Building, Market Square

Dundalk, Co. Louth, Ireland

[phone]

www.petsafe.net

400-1756-19/1

DO NOT PRINT THIS PAGE

The world leader in pet training products

Material: 80g Wood Free Paper

Color: White

Printing: Black

Finishing: Die Cut, Fold,

2 Saddle Stitch, and Bulk Pack

RSC Part #: 400-1756-19

Description: MANUAL ORIGINAL PET FOUNTAIN UK EU AU ROHS

Created by:TL

Initial Creation Date: June 19, 2013

Approved by: K. Stansell

Date Approved: August 24, 2015

Program used: InDesign CC 2015

Revision: 001 ECO: RSC12191

Revision Description: Content updates

Revision Date: May 20, 2015
