USER MANUAL WCF070W DANBY

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION after filling out a product survey, at www.danby.com/support/product-registration/

Model Number:

Serial Number:

Date of Purchase:

Need Help?

1. Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
• Follow handling instructions carefully.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

SAVE THESE INSTRUCTIONS!

SAFETY REQUIREMENTS

DANGER: Do not add a lock to the door or lid. This can cause child entrapment and harm.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
  Bed and breakfast type environments;
• Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

INSTALLATION INSTRUCTIONS

LOCATION

• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
• Do not use the appliance near water, for example in a wet basement or near a sink.
• This appliance is intended for indoor household use only. It is not designed for outside installation, including anywhere that is not temperature controlled such as porches, vehicles, etc.
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Allow 10.16cm (4 inches) of space between the sides, back and top of the appliance.
• This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

GARAGE READY

This freezer is Garage Ready! It is intended for indoor household and garage use. Freezers are tested to perform in temperatures ranging from -17 to 43^ / 0 to 110^ . It is not designed for outside installation, including anywhere that is not temperature controlled.

OPERATING INSTRUCTIONS

FEATURES

Rust Resistant Interior
Wire Basket
Thermostat Dial
Defrost Drain
- Freezer Lid Handle - Built in handle to aid in raising and lowering lid

TEMPERATURE CONTROL

Power Light: Illuminates when the freezer is connected to a working power source.

NOTE: If the Power Light is off and the freezer is working, the light itself may have burned out.

ACCESSIONS

• Plastic scraper

OPERATING INSTRUCTIONS

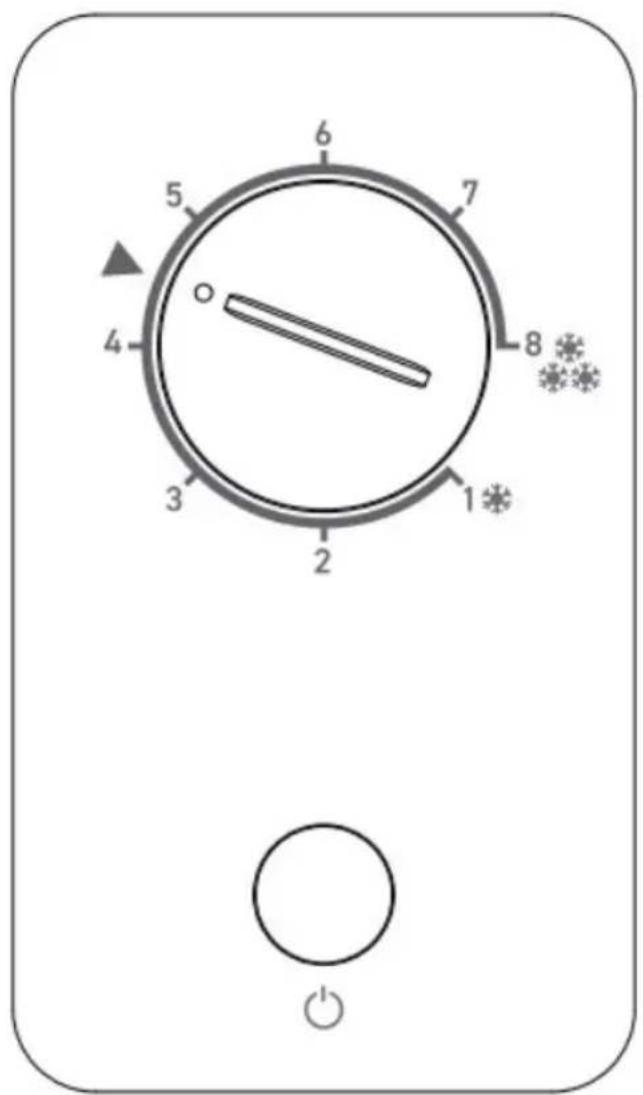

CONTROL PANEL

Turn the thermostat dial on the front of the cabinet to set the temperature.

1 is the warmest setting.
8 is the coldest setting.
4.5 is recommended for regular home use.
- Temperature range: -12 -28^ C / 10.4 -18.4^ F .

Important:

• The temperature inside the freezer can vary based on the ambient room temperature, the amount that the lid is opened and the amount of fresh food that has recently been added.
• Do not overload the freezer as this can affect performance.
• Do not freeze large quantities of fresh food at the same time.
• Do not add warm food to the freezer as this will increase frost formation.

OPERATING INSTRUCTIONS

DEFROSTING

The freezer should be defrosted twice a year or when roughly a 1/4 inch layer of frost has formed on the cabinet walls. Before defrosting unplug the power cord. Remove all contents and leave the lid open.

After defrosting is complete, set the temperature control to maximum for 2 to 3 hours before returning to the desired temperature setting.

NOTE: Never use electrical appliances during defrosting. Do not use pointed or sharp objects to remove frost as this will damage the refrigerant lines. If these lines are accidentally pierced it will render the freezer inoperable and void the manufacturer's warranty.

If the frost is soft, remove it by using a plastic scraper (included in the User Manual bag). If the frost is glazed and hard, defrost as per below.

DEFROST DRAIN

• Place a shallow pan beneath the drain outlet at the front of the freezer.
• Pull the drain outlet plug forward to expose the drain hole in the plug shaft (see Fig.1).
• Rotate the plug so that the plug is facing straight down into the shallow pan. The arrow on the plug will also face straight down (see Fig.2).
• Carefully pry up and remove the interior defrost drain plug inside the freezer (see Fig.4).
• Defrost water will drain out through the hole in the outside drain plug (see Fig.3).
• When defrosting and cleaning are complete, replace the drain plug and reset the drain outlet plug.

Fig. 1

Fig. 2

Fig. 3

CARE & MAINTENANCE

CLEANING

• Unplug the freezer before cleaning.
• Clean the freezer with a soft, damp cloth and some mild detergent. Allow the interior of the freezer to completely dry before plugging it back in and returning food items.
• It is important to clean the area where the lid seals against the cabinet to ensure a tight seal. Clean this area well and make sure it is completely dry.
• Do not use cleaners containing ammonia or alcohol as these will damage the appearance of the freezer. Never use any commercial or abrasive cleaners.
• Never use sharp objects on any part of the freezer.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the freezer. Make sure to minimize the number of times the lid is opened. If the power is going to be off for a longer period of time, take steps to protect your contents such as adding ice to the freezer or moving the contents to alternate storage. Wait 3 to 5 minutes before attempting to restart the freezer after a power failure to allow the circuit board to reboot.

ENERGY SAVING TIP

Place the freezer in the coolest area of the room, away from heat sources, and out of direct sunlight. Do not overload the freezer or block any ventilation openings.

CARE & MAINTENANCE

VACATION

You may leave the freezer running during short vacations. If the freezer will not be used for more than a few weeks, unplug it and remove all items. Defrost, clean and dry the interior thoroughly. To prevent odor and mold growth, leave the lid open slightly, blocking it open if necessary.

MOVING

• Remove all items and ensure the interior is clean and dry.
• Tape the lid shut.
• Be sure the freezer stays in the upright position during transportation.
• Protect the outside of the freezer with a blanket or similar item.
• If the freezer is placed on its back or side during transportation, wait 6 hours before plugging it in to reduce the possibility of a malfunction in the cooling system.

DISPOSAL

This freezer may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office. Disposal of this freezer should be in accordance with federal and local regulations.

Frequently ASKED QUESTIONS

The freezer is making a gurgling noise; why?

This noise is completely normal. The refrigerant inside the freezer will make a gurgling noise as it changes from a liquid to a gas and back again.

What is the electrical rating?

This information can be found on a sticker on the back or side of the cabinet.

How much does it cost to run the freezer per year?

Please refer to the energy guide found at www.Danby.com.

Can I use an extension cord?

No, an extension cord may not be used.

Can I use this freezer in a garage?

Yes, this freezer is Garage Ready! It is intended for indoor household and garage use. Freezers are tested to perform in temperatures ranging from -17 to 43^ / 0 to 110^ . It is not designed for outside installation, including anywhere that is not temperature controlled.

I am having trouble opening the lid; why?

The freezer lid may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the freezer and the warm air that entered when it was opened. The pressure will equalize within a few minutes.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE AND SOLUTIONS
No power • A fuse may be blown or the circuit breaker tripped; check the fuse box or circuit breaker • Plug not fully inserted into the wall outlet; make sure the power cord is plugged in
Internal temperature not cold enough	• Temperature setting is too warm; turn the temperature setting down • The lid is not shut properly or opened excessively; make sure the lid is completely closed • Recently added a large quantity of warm food to the cabinet; remove some of the new items until the freezer cools down • Close proximity to heat source or direct sunlight; move the freezer to another area • Ambient temperature or humidity is very high; move the freezer to another area
Appliance runs continuously	• Temperature setting is too cold: turn the temperature setting up • The lid not shut properly or opened excessively: make sure the lid is completely closed • Recently added a large quantity of warm food to the cabinet: remove some of the new items until the freezer cools down • Close proximity to heat source or direct sunlight; move the freezer to another area • Ambient temperature or humidity is very high; move the freezer to another area

Limited "In-Home" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Dan by, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months

During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service

Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Exclusions

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.
