USER MANUAL VSD1001 Vacmaster

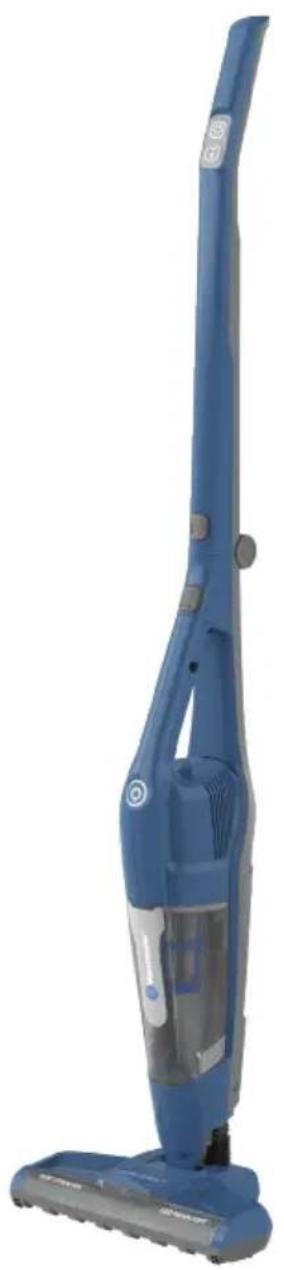

Blue and gray electric vacuum cleaner with extended arm and base (no visible text or symbols)

10.8V 2-in-1 Cordless Stick Vacuum

MODEL NO. VSD1001

www.vacmaster.com

Cleva North America, Inc.

Greenville, SC 29607

[phone]

Made in China

TABLE OF CONTENTS

SECTION PAGE

Important Safety Instructions....3-6

Warranty....7

Technical Data....7

Getting To Know Your Vacuum....8

General Assembly Instructions....9-11

Operating Instructions....12-13

Maintaining Your Vacuum.... 14-17

Troubleshooting....18-19

Thank you for purchasing this Vacmaster ^® vacuum cleaner. With it you are obtaining a high-quality product that is engineered for optimal performance.

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual and your sales check (receipt) in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING - To reduce the risk of fire, electric shock, or injury:

- Use your vacuum only as described in this Use & Care Guide.

- Do not use or charge outdoors or on wet surfaces.

- Do not allow your vacuum to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

- Use only manufacturer's recommended attachments. Do not use attachments other than those supplied with this vacuum.

- Do not handle charger, including charger plug, and charger terminals with wet hands.

- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Use extra care when cleaning on stairs.

- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

- Switch off the appliance before connecting the accessories.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

- Do not pick up toxic solution such as chlorine bleach, ammonia or drain cleaner.

- Do not use without dust cup and filter in place.

- Do not charge the unit outdoors.

- Prevent unintentional starting. Ensure the product does not operate before connecting to hand vacuum, picking up or carrying the appliance.

- Do not carry the appliance with your finger on the switch.

- Do not attempt to charge the appliance with the switch in the on position.

- Do not attempt to use this charging adapter with any other product nor attempt to charge this product with another charging adapter.

- To recharge vacuum, use only JJ018W1-135060UX, XZ1350-0600U, HYCH0101350600U charger.

- Do not use an appliance that is damaged or modified. A damaged or modified appliance may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

- Do not immerse vacuum cleaner, or charging adapter in water or other liquids.

- Always turn the vacuum off before connecting or disconnecting the motorized nozzle.

- Store the cordless vacuum indoors. Put the cordless vacuum away after use to prevent accidents.

- Keep your work area well lit.

- Keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibers.

- Do not vacuum up any liquids.

- Do not use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing substances, flammable dust or other explosive or toxic materials.

- Do not pick up hard or sharp objects such as glass, nails, screws or coins that could damage the vacuum cleaner.

- To avoid excessive heat and damage to unit or batteries, do not operate the vacuum while charging.

- Do not use extension cords or outlets with inadequate current carrying capacity.

- Do not expose an appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may cause explosion.

- Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

- While there is no shock hazard from electrical terminals located on the vacuum, a burn could result from metal objects being inserted into the terminal areas. Vacuum cleaner terminals should always be kept free of objects.

- Store charger indoors in a cool, dry area, not exposed to weather to avoid electrical shock and/or damage to the vacuum cleaner.

- Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the

equipment.

• Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• You are responsible for making sure that your vacuum cleaner is not used by anyone who is unable to operate it properly.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• This appliance is designed for household use only!

SAVE THESE INSTRUCTIONS

WARNING

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Product Disposal

This product contains an internal Lithium-ion battery pack formulated from environmentally sensitive materials. This product must be disposed of properly with due care for the environment. Do not dispose of product with household garbage. Consult your local waste authority for information regarding available recycling or disposal options.

WARRANTY

FOR ONE YEAR from the date of sale, this product is warranted against defects in material or workmanship when it is assembled (or, for deliveries in the State of California, one year from the date of delivery), operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call [phone].

• This warranty does not cover filters, which are expendable parts that can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household purposes.
• This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TECHNICAL DATA

Cordless Vacuum Cleaner

Voltage: 10.8VDC

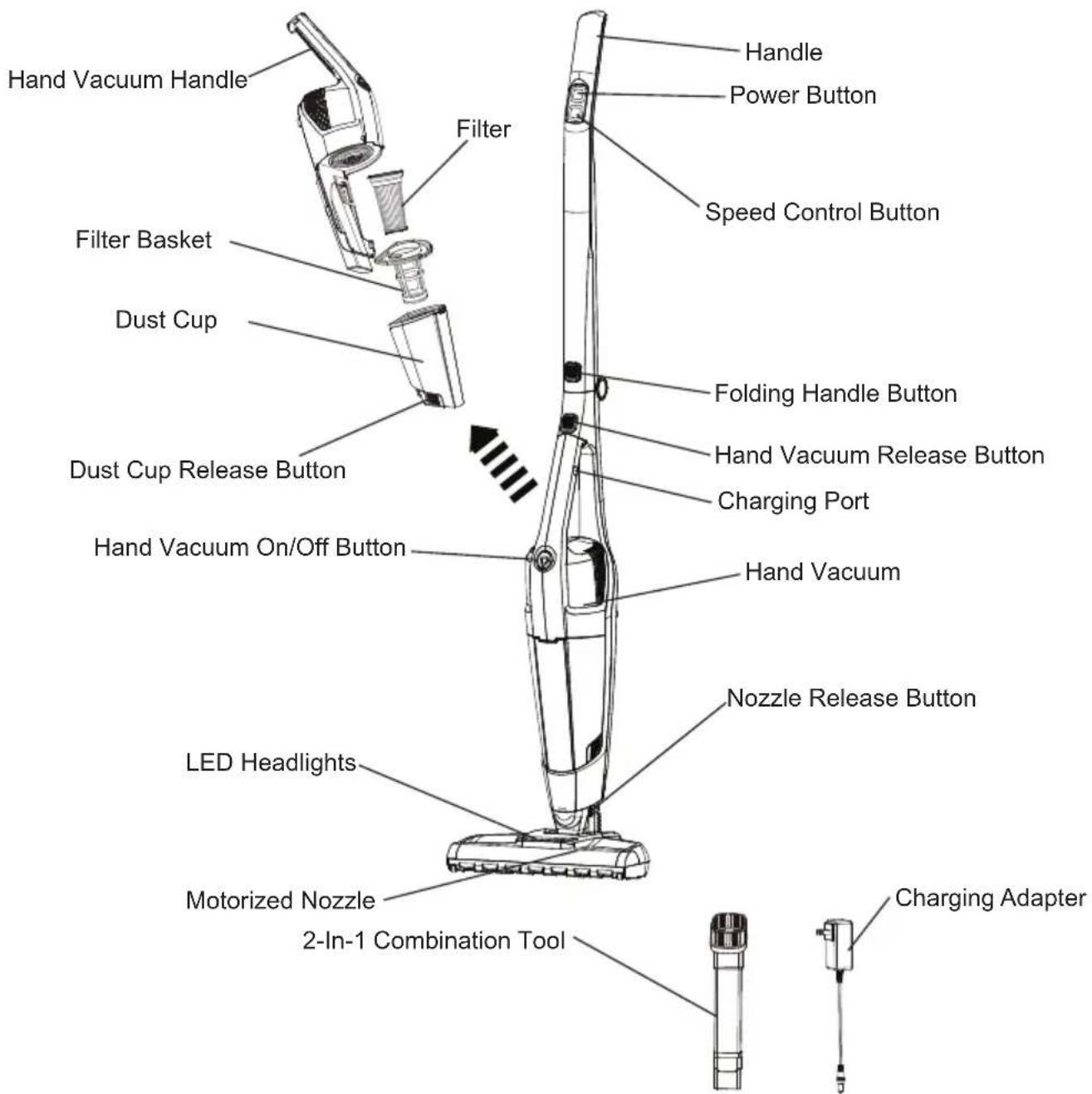

GETTING TO KNOW YOUR VACUUM

Hand Vacuum Handle Filter Filter Basket Dust Cup Dust Cup Release Button Hand Vacuum On/Off Button LED Headlights Motorized Nozzle 2-In-1 Combination Tool Handle Power Button Speed Control Button Folding Handle Button Hand Vacuum Release Button Charging Port Hand Vacuum Nozzle Release Button Charging Adapter

REPLACEMENT PARTS

Item Part No.

Filter 561122105

Combination Tool 561047109

Charging Adapter 561122108

Filter Basket 561047105

Brushroll 561042113

Available online at www.vacmaster.com or call [phone].

GENERAL ASSEMBLY INSTRUCTIONS

Assembly Instructions

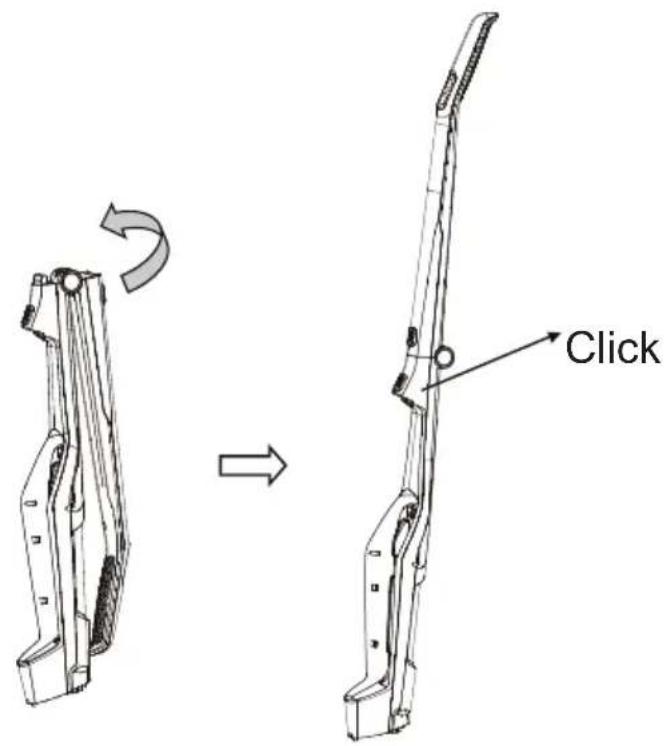

1. Unfold the vacuum folding handle.

Put the vacuum folding handle upward, until there is a click from the folding handle button.

Click

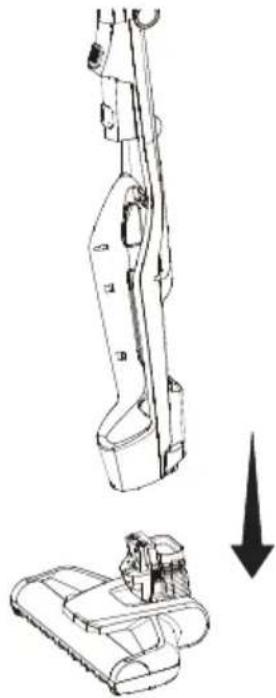

1. Fit the end of the main body onto the neck of the motorized powerhead and click into place.

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

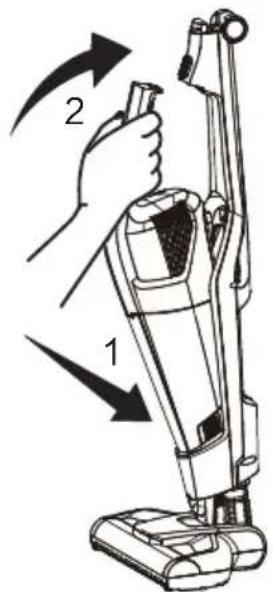

1. Insert the hand vacuum into the slot on the bottom of main body, then press the handle into locked slot and click into place.

Diagram showing a hand holding a vacuum cleaner with labeled parts 1 and 2, illustrating the process of cleaning or repair.

Charging Instructions

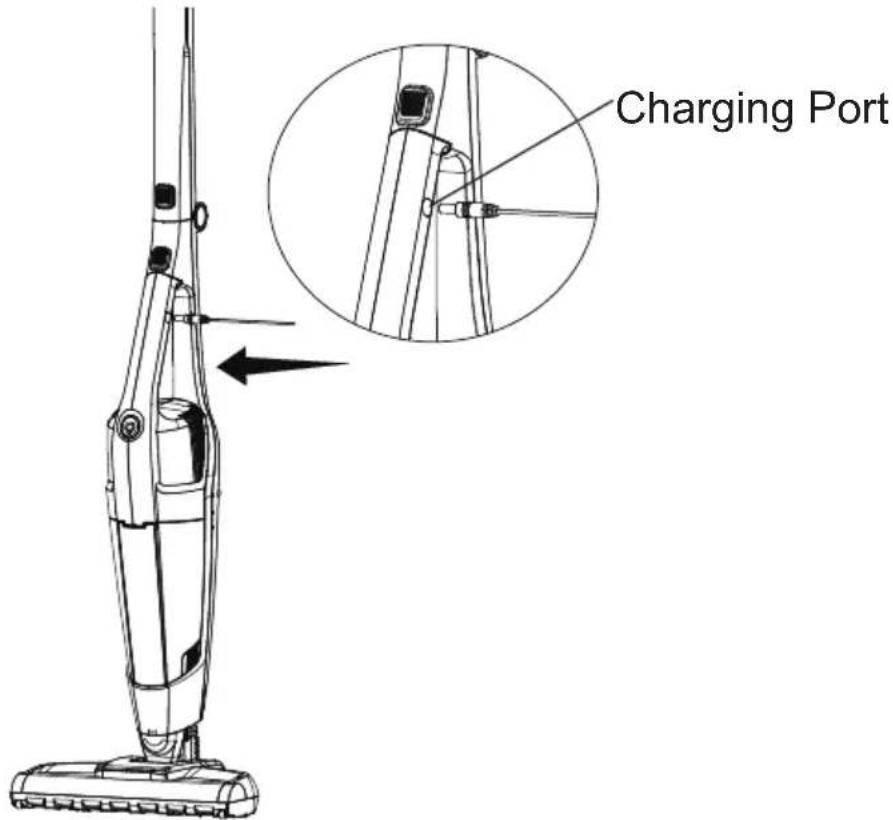

1. Before charging, make sure the cordless vacuum is turned OFF. With the hand vacuum installed in the stick vacuum, insert the charging adapter into the charging port on the hand vacuum as shown.

Charging Port

1. Plug the charging adapter into a wall outlet.

Diagram showing a wall-mounted electrical socket connected to a wall-mounted power outlet, with an arrow indicating direction of movement.

1. The hand vacuum on/off button functions as the charging indicator. While the vacuum is being charged, the battery charging indicator will be flashing. Once fully charged, the indicator will shut off.

Note: The vacuum cleaner can also be charged directly in hand vacuum mode.

Line drawing of a handheld device with handle and control panel (no text or symbols)

On/Off Button & Battery Charging Indicator

Battery Charging indicator	Status
Flashing light Charging
No light Fully charged

Note: If the battery charging indicator does not illuminate when charging, ensure that:

• The charging plug is plugged into the power supply properly.
  • The electrical supply at the outlet is powered on.
• The charging adapter is fully inserted into the charging port.

CAUTION

To optimize the battery longevity, charge the vacuum cleaner for at least 5 hours before using for the first time.

Never charge the batteries in temperatures above 98.6^ F (37°C) or below 32^ F (0°C). It is normal for the charger to become warm when charging.

OPERATING INSTRUCTIONS

Using Your Vacuum Cleaner

When vacuum cleaner is fully charged, disconnect the charging adapter from the vacuum cleaner and then remove from the outlet.

1. To start the vacuum, press the power button. The vacuum automatically starts in the HIGH speed position.

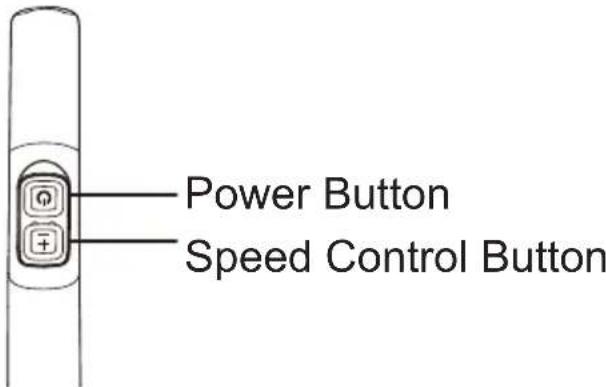

Power Button Speed Control Button

1. To switch the speed to LOW, press the speed control button. Press the speed control button again to switch back to HIGH speed.
2. To turn off the vacuum, press the power button.

Using Your Hand Vacuum

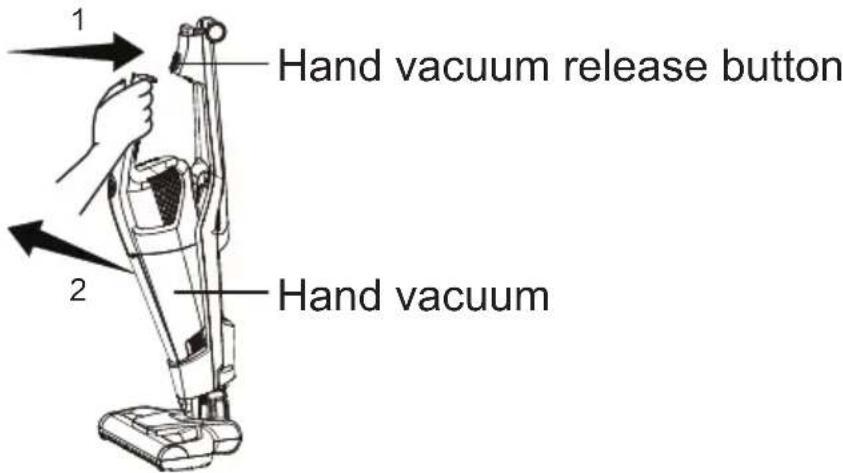

1. To remove the hand vacuum, press the hand vacuum button and detach from the main body.

1 Hand vacuum release button 2 Hand vacuum

1. To turn on, press the power button located on the handle.

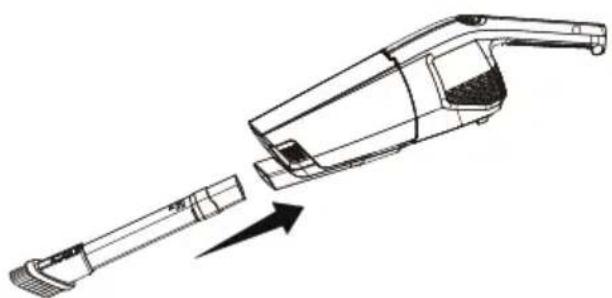

2. To clean areas that are difficult to reach, use the 2-in-1 combination tool by inserting one end of the tool into the hand vacuum.

Line drawing of a hand-operated vacuum cleaner with an arrow indicating motion (no text or symbols)

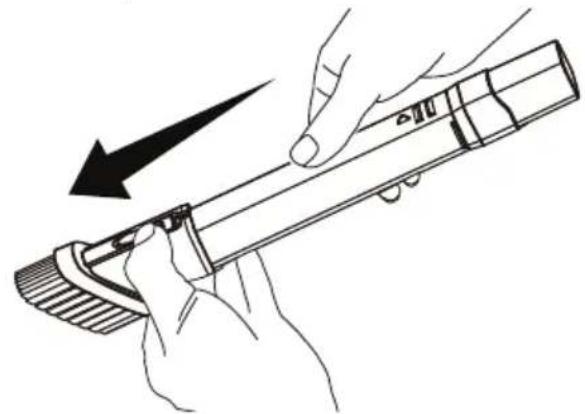

1. The combination tool can be used as a crevice tool or dusting brush. To transition from crevice to dusting brush, depress the latch on the tool and slide the dust brush to the top of the tool.

Line drawing of hands holding a tool with a black arrow indicating direction (no text or symbols)

Storing Your Vacuum

1. Fold handle by pressing handle release button and pulling handle backward.
2. To operate vacuum, unfold the handle by moving it upward until you hear a click.

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum is on. Contacting the brushroll while it is rotating can cut or cause other injuries. Always turn off before servicing. Use caution when operating near

children.

Diagram showing a hand holding a device with a prohibition symbol overlaid, indicating no protection or disapproval.

MAINTAINING YOUR VACUUM

CAUTION

To reduce the risk of an electric shock, ensure the vacuum cleaner is turned off before performing any maintenance.

Emptying the Dust Container & Cleaning the Filter

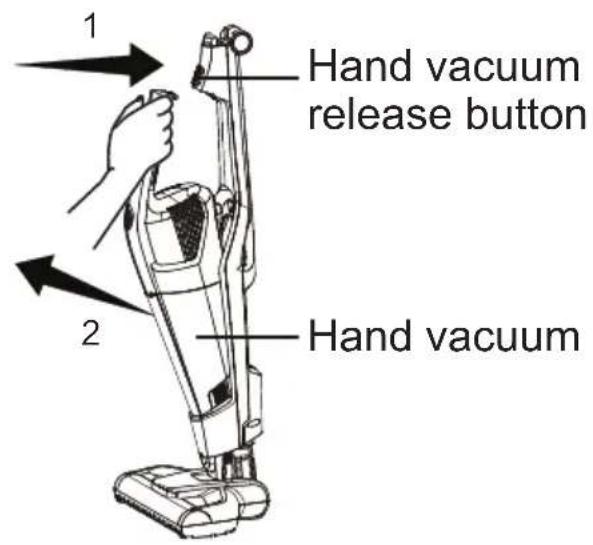

1. Remove the hand vacuum from the main body by pressing the hand vacuum release button.

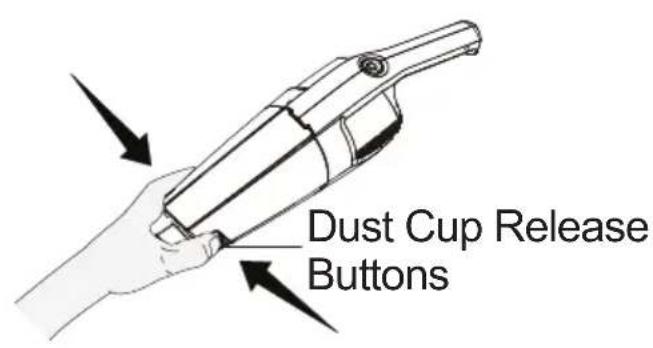

2. Hold the unit over a trash bin and use one hand to press the two dust cup release buttons to separate the dust cup from the hand vacuum body.

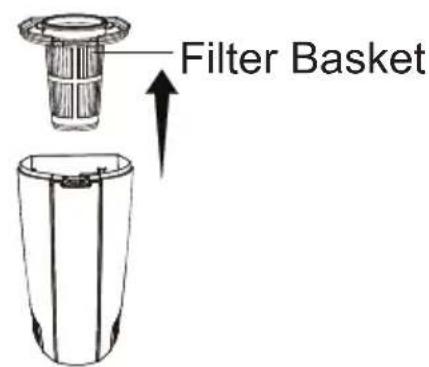

3. Remove the filter basket from the dust cup. Empty the contents of the dust cup into a trash bin.

1 Hand vacuum release button 2 Hand vacuum

Dust Cup Release Buttons

Filter Basket

Simple line drawing of a container with granular substance being poured into it (no text or symbols)

1. Remove the filter from the filter basket. Clean the accumulated debris from the filter basket and the filters.
2. After repeated use, it may be necessary to wash the filter basket and filter, Hand wash in lukewarm water. After washing, set aside and allow to air dry for 24 hours.

Filter Filter Basket 24hrs

IMPORTANT: The filter and the filter basket must be completely dry before reuse.

1. Insert the clean and dry filter into the basket. Fit the basket into the dust cup and reconnect the dust cup to the hand vacuum.

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a turning or assembly process.

WARNING

Do not operate vacuum cleaner without filter installed.

Cleaning the Motorized Nozzle & Blockages

The brushroll may accumulate debris such as strings, hair and fibers. This type of debris can wrap around the brushroll and diminish its ability to clean effectively.

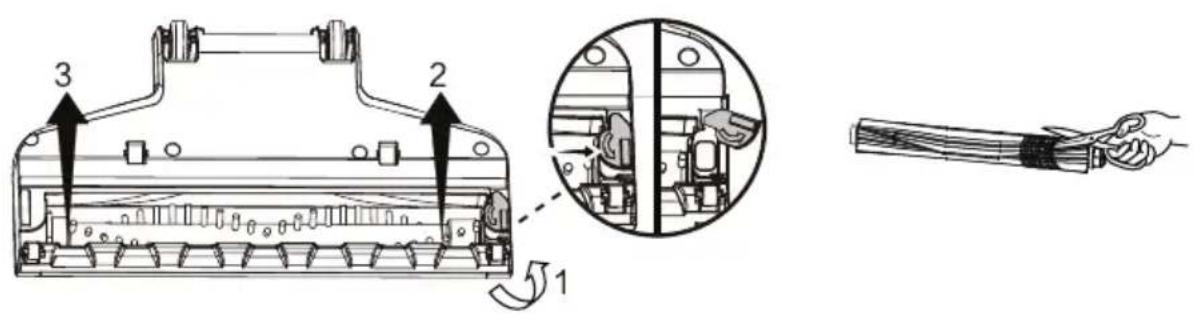

To Remove Brushroll for Manual Cleaning:

1. Make sure the vacuum cleaner is turned OFF then remove the hand vacuum and set aside.

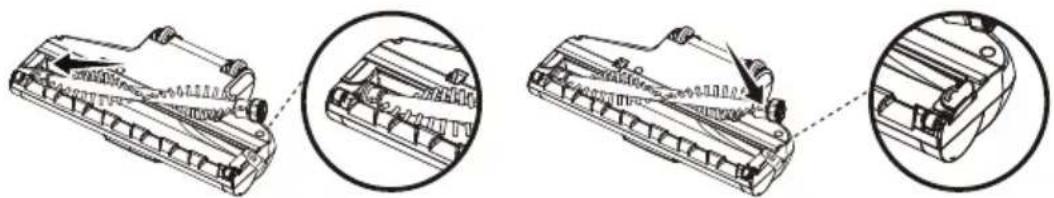

2. Turn the unit over to access the brushroll. As shown below, push and slide the tab to the right to unlock, then lift the brushroll out of housing. Clean off debris and anything wrapped around the brushroll. Use a pair of scissors to remove threads, etc.

Technical diagram showing a mechanical assembly with numbered components and a close-up view of internal components, including a hand holding a cable.

1. Place the brushroll back into the housing by aligning the hexagon end to the nozzle first, then inserting the other end correctly into place and lock the tab.

Technical line drawing of a mechanical component with three views: top, side, and bottom (no text or symbols)

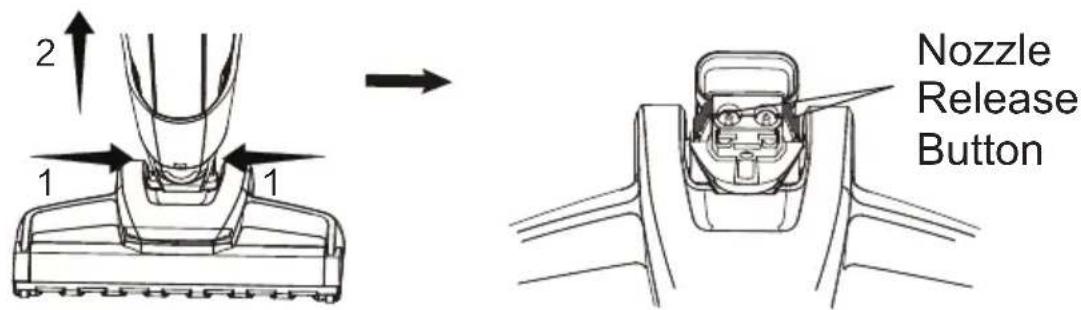

To Remove Blockages in the Nozzle:

1. To clean out the motorized nozzle, press the two nozzle release buttons, and pull the nozzle away from the main vacuum body.

2 1 1 Nozzle Release Button

1. Carefully remove any debris or blockage from the inside of the nozzle.
2. Reattach the motorized nozzle onto the vacuum body.

Note: Do not damage pins; do not use scissors or other sharp objects to remove a blockage from the motorized nozzle as these may damage the nozzle.

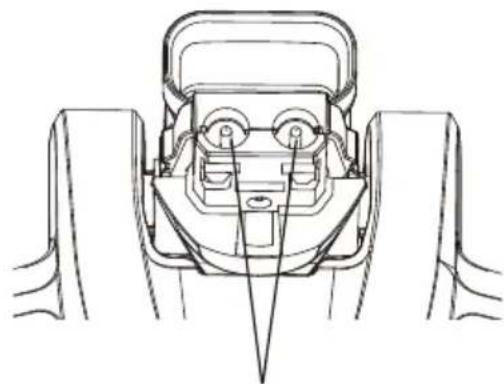

Technical line drawing of a mechanical component with no visible text or symbols

Pins

TROUBLESHOOTING

Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues.

WARNING

Disconnect electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE SOLUTION
Vacuum will not power on.	Battery may be depleted.	Charge the battery as instructed.
	Wrong charger being used.	Be sure to use only the charger supplied with your product.
	Hand vacuum is not installed properly.	Remove hand vacuum and reattach ensuring that it is securely in place.
	Charging plug is not fully inserted into outlet.	Be sure charging plug is fully inserted into outlet.
Battery charge indicator does not illuminate.	Charging plug is not fully inserted into outlet.	Be sure charging plug is fully inserted into outlet.
	Charging adapter is not fully inserted into the charging port.	Be sure the charging adapter is fully inserted into the charging port of the hand vacuum.
	Debris accumulated on the metal charge contacts on the hand vacuum, main body and charging adapter.	Be sure no debris is accumulated on the metal charger contacts on the hand vacuum, main body and charging adapter.
	The electrical outlet is out of power.	Ensure that the outlet is supplying power to the charger.
Motorized brushroll not turning.	Brushroll is jammed. Remove obstruction. Follow instructions.
	Brushroll needs to be reset.	Turn the unit off and remove the obstruction, then turn back on.
	Brushroll is not installed properly.	Remove the brushroll and reinstall following instructions.
Vacuum not picking up or suction power is weak.	Dust cup is full. Empty dust cup.
	Filter needs cleaning. Follow filter cleaning instructions.
	Filter needs to be replaced.	To purchase online at www.vacmaster.com or call [phone].
	Battery may be depleted. Charge the battery as instructed.
	Dust cup is not installed well.	Check dust cup for correct installation and ensure it is snapped firmly in place.
	There are blockages in the motorized nozzle.	Remove any debris or blockage from the inside of the motorized nozzle.
Dust escapes from vacuum.	Filter is missing or installed incorrectly.	Check filter for correct installation.
	Filter is damaged and needs to be replaced.	To purchase online at www.vacmaster.com or call [phone].
	Dust cup installed incorrectly.	Position dust cup correctly and snap firmly into place.
Vacuum turns off on its own.	Battery may be depleted. Charge the battery as instructed.

For further questions, call our support team at [phone].

Blue and gray electric vacuum cleaner with extended arm and base (no visible text or symbols)

Aspiradora de varilla inalámbrica de 10.8 V 2-en-1

MODELO N.O VSD1001

www.vacmaster.com

Cleva North America, Inc.

Greenville, SC 29607

[phone]

Made in China

SECCIÓN

PÁGINA

Technical line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Diagram showing a hand holding a vacuum cleaner with labeled parts 1 and 2, indicating a step in the process.

Technical line drawing of a mechanical linkage component with an inset close-up showing detail (no text or symbols)

Puerto de Carga

Diagram showing a device connected to an electrical outlet with labeled components and directional arrow

Line drawing of a handheld device with handle and spout (no text or symbols)

Line drawing of a handheld vacuum cleaner with an arrow indicating motion (no text or symbols)

Line drawing of hands holding a tool with a curved handle and arrow indicating direction (no text or symbols)

Diagram showing a hand holding a device with a prohibition symbol overlaid, indicating no protection or disapproval.

MANTENIMIENTO PARA SU ASPIRADORA

CPRECAUCIÓN

Diagram showing a hand holding a cylindrical object with labeled parts 1 and 2, indicating directional movement or force.

ADVERTENCIA

Technical diagram showing a device with labeled parts and a close-up inset of internal components, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical component with three views: top view, side view, and close-up (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pasadores

Blue and gray electric vacuum cleaner with extended arm and base (no visible text or symbols)

Cleva North America, Inc.

Greenville, SC 29607

[phone]

Made in China

SOMMAIRE

SECTION

PAGE

Consignes Importantes De Sécurité....42-45

Garantie....46

Informations techniques....46

Line drawing of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Diagram showing a hand holding a vacuum cleaner with labeled parts 1 and 2, illustrating the process of cleaning or usage.

Technical line drawing of a mechanical linkage component with an inset magnified detail (no text or symbols)

Port de Charge

Diagram of a wall-mounted electrical outlet with a power plug and directional arrow (no text or symbols)

Technical line drawing of a handheld vacuum cleaner with internal components and an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool with a curved handle and arrow indicating direction (no text or symbols)

Diagram showing a hand holding a device with a prohibition symbol overlaid, indicating no liability or prohibition against the device.

ENTRETIEN DE L'ASPIRATEUR

ATTENTION

Simple line drawing of a container with granular substance being poured into it (no text or symbols)

Diagram of a mechanical device with labeled parts 1 and 2, showing directional arrows indicating movement or force.

AVERTISSEMENT

Technical diagram showing a device with labeled parts and a close-up inset of internal components, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical component with three views: top, side, and close-up (no text or symbols)

PROBLÈME CAUSE POSSIBLE SOLUTION
