USER MANUAL Bolero Flux IT 755500 Inox A++ CECOTEC

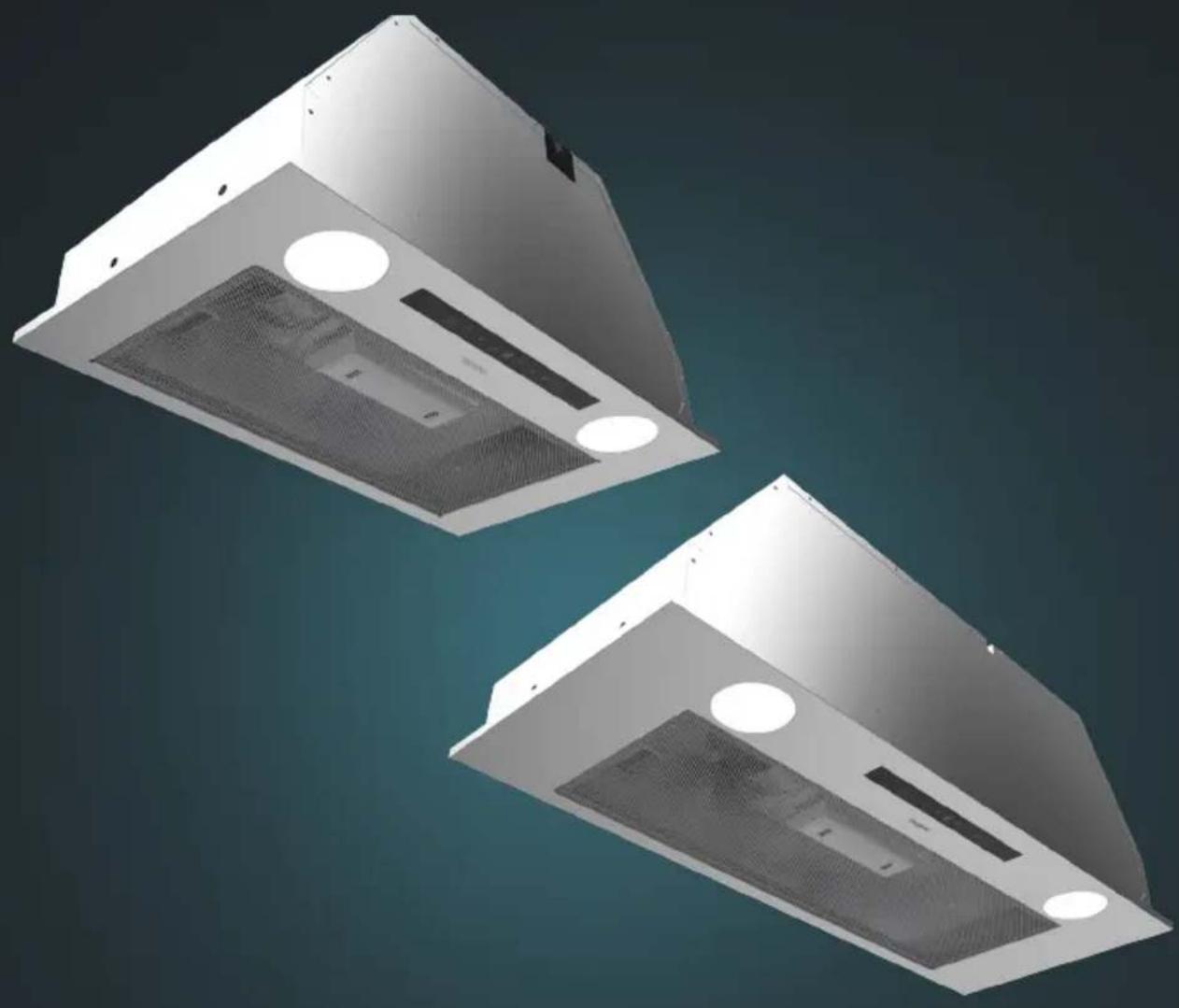

Campana integrable/ Integrated extractor hood

Two white metal ventilation ducts with recessed ventilation grilles, shown against a dark blue background (no text or symbols visible)

bolero

Safety instructions 8

1. Parts and components 48

2. Before use 48

3. Installation 48

4. Operation 49

5. Cleaning and maintenance 50

6. Troubleshooting 52

7. Technical specifications 54

8. Disposal of old electrical and electronic appliances 55

9. Technical support and warranty 56

10. Copyright 56

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.

You must allow the appliance to be disconnected from the power supply after installation.

There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

There is a risk of fire if cleaning is not carried out according to the instructions.

Do not flambé under the kitchen hood.

CAUTION: accessible parts can become hot when used with cooking appliances.

Air must not be discharged into a duct that is used to exhaust fumes from appliances burning gas or other fuels.

The minimum distance between the support surface of the cooking containers on the worktop and the lowest part of

the kitchen hood, when it is located above a gas appliance, must be at least 65 cm. If the installation instructions for the gas appliance specify a greater distance, this must be taken into account. The distance of 65 cm can be reduced for:

III. Non-combustible parts of kitchen hoods.

IV. Parts operating at safety extra-low voltage (provided that these parts do not give access to live parts if they are deformed).

The air discharge regulations must be complied with.

The kitchen hood is intended for installation only over a hob with four cooking zones.

Things you should never do:

IV. Do not attempt to use the kitchen hood without the mesh filter or if the filter is excessively dirty or greasy!

V. Do not install the kitchen hood above a cooker with a high-level grill.

VI. Do not leave pans unattended during use because overheated fats or oils may catch fire.

Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.

Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.

Never leave open flames under the kitchen hood.

If the kitchen hood is damaged, do not attempt to use it.

When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

Important! Always disconnect the power supply during installation and maintenance.

The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.

All installation work must be carried out by a competent person or a qualified electrician.

Dispose of the packaging material carefully. Children are vulnerable to it.

Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.

Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.

Warning: failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards

Warning: before accessing the electrical terminals, all power supply circuits must be disconnected.

There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

Caution: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.

Local air discharge regulations must be complied with.

For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.

You should not use a steam cleaner.

NEVER try to put out the fire with water. Instead, turn off the appliance and smother the flame with, e.g., a fireproof lid or blanket.

Never use extension cables, multiple socket connections or external timer connection elements.

If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified technicians to prevent hazards.

The appliance must not be operated if the power supply cable is damaged or cut.

If the appliance stops working or malfunctions abnormally, disconnect it from the mains and contact the official Cecotec Technical Support Service.

Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

Potencia total: 73 W

Motor: 70 W

Lámpara: 2 x 1,5 W

Caudal de aire: 550 m³/h

ESPAÑOL

1. Power icon (ON/OFF)
2. Booster function icon
3. Increase time/speed icon
4. Display
5. Decrease time/speed icon
6. Delay function icon
7. Light on/off icon

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Kitchen hood
• Assembly kit (depending on model)
• Instruction manual

3. INSTALLATION

• Before installing the kitchen hood, make sure that the area is clean to prevent it from sucking in dust or dirt.
• Please note that the kitchen hood must not share the same ventilation duct with other appliances that use gas or other fuses.

• To facilitate air outlet, the ventilation duct should have a curvature of ≥120^ and should be connected to the outside wall.

• In figure 2, you can see the dimensions (in mm) of the hood model 02866 Bolero Flux IM 525500 Inox A++.

• In figure 3, you can see the dimensions (in mm) of the hood model 02868 Bolero Flux IM 755500 Inox A++.

• After installation, ensure that the kitchen hood is level to prevent grease build-up on the end (Fig. 4).

• The kitchen hood should be placed at a distance of 65-75 cm above the cooking surface for best effect (Fig. 5).

• Drill a rectangular hole in the furniture according to the following dimensions:

Figure 6 > 02866_Bolero Flux IM 525500 Inox A++

Figure 7 > 02868_Bolero Flux IM 755500 Inox A++

1. Drill the holes and fix the hood with the ST4*40 mm screws as shown in fig. 8.

2. Once the kitchen hood has been hung up, you can install the flexible chimney connection pipe at the outlet of the ventilation duct, located at the top of the kitchen hood.

3. Connect the other end of the flexible connection pipe to the wall chimney.

4. Plug the power cable into the outlet.

Black cable (or brown, depending on models) > Phase

Blue cable > neutral

Yellow-Green cable > ground

- You must connect the phase and neutral cables to a 220-240 V\~/ 50 Hz power cable.

- The kitchen hood must be connected to an earthed installation.

4. OPERATION

NOTE: the hoods are equipped with an overheating protection system that acts to prevent possible incidents when the motor temperature exceeds the operating limit value.

Touch control panel

Power icon (ON/OFF)

When the kitchen hood is switched on, the power icon indicator light is red. Press the power icon, the kitchen hood will beep and all icons will light up, indicating that the kitchen hood is in standby mode. Press the icon again, the kitchen hood will beep and then switch off.

Booster function icon

In standby mode, press the Booster icon, the kitchen hood will beep. The number 4 will appear on the display, indicating that the maximum ventilation (booster function) function has been activated. After 5 minutes, it will automatically return to high speed.

ENGLISH

△ / icons

• When the appliance is in standby mode, press the △ icon, a beep will sound. The number 1 will appear on the display, indicating that the hood is operating at low speed.
  Press the △ icon again, the number 2 will appear on the display, indicating that the hood is operating at medium speed. If you press the △ icon a third time, the number 3 will appear on the display, indicating that the hood is operating at the highest speed.
• To reduce the extraction power to the medium level, press the ▽ icon, the number 2 will reappear on the display.
• Press the ▽ icon again, the number 1 will appear on the display, indicating that the hood is operating at the lowest speed.

Delay icon

When the kitchen hood is in operation, press the Delay icon, the hood will beep and the indicator light will flash, indicating that the kitchen hood has entered the delayed switch-off mode. The delay time is 5 minutes. After 5 minutes, the kitchen hood will switch off.

Light on/off icon

Press the light bulb icon to switch on the kitchen hood light. Press it again to switch it off.

Touch sensor

• Slide your finger from left to right to operate the kitchen hood at low speed. The hood will beep and the light icon will light up. Slide your finger again to increase the extraction power and so on up to the boost speed of the Booster function.
• On the other hand, by sliding your finger from right to left, the kitchen hood will go down from Booster speed to speed 3, and so on until it switches off. The light will stay on, so swipe left again to switch it off.

5. CLEANING AND MAINTENANCE

Cleaning aluminium filters

Do not use corrosive detergents to clean grease from the aluminium filters. Regular cleaning of the aluminium filters will prolong the life of the appliance and keep it in good working order. Follow the instructions below:

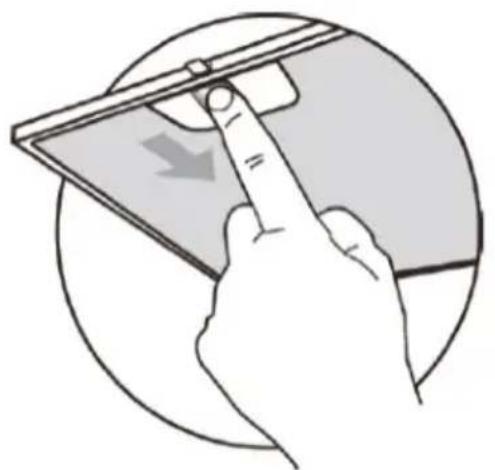

• To remove the filter, press on the tabs as shown in Figure 9 and pull it out.
• Cleaning method 1: Immerse the aluminium filters in hot water (40-50 °C), add neutral detergent and let them soak for 2 to 3 minutes. Protect yourself with gloves and clean the filters with a soft brush or scouring pad. Do not apply too much force, as filters are very delicate and can be easily damaged.

- Cleaning method 2: If you wish, you can also wash the filters in the dishwasher at a temperature of approx. 60 °C.

Cleaning

• Always switch off the power supply before cleaning or performing any maintenance work on the kitchen hood.
• To prevent the outer surface of the kitchen hood from deteriorating over time, it is recommended that it be cleaned with hot water and a non-corrosive detergent every two months.
• Do not use abrasive detergents. Otherwise, the surface of the kitchen hood may be damaged.
• Keep the motor and other parts away from water, as water may damage the appliance.
• The carbon filter must not be exposed to heat.

Carbon filter

This type of filter has activated carbon and purifies air and absorbs cooking odours. The activated carbon becomes saturated after a period of time, which will reduce the adsorption capacity of the filter. The carbon filter cannot be washed nor cleaned in any way. When its service life comes to an end you must replace it with a new one.

• It is recommended to check the condition of carbon filters regularly, at least two or three times a year. Its replacement will depend on how the kitchen hood is used, as well as the daily operating time.
• In case of very frequent frying, shorten the time interval for checking and/or replacing the carbon filters.

Installing the carbon filters

1. Remove the protective metal filters.
2. The carbon filters are located on both sides of the motor. Insert and turn the filters, until they are firmly in place.
3. To replace the carbon filters, proceed in reverse order.
4. Carbon filters must not be exposed to heat.

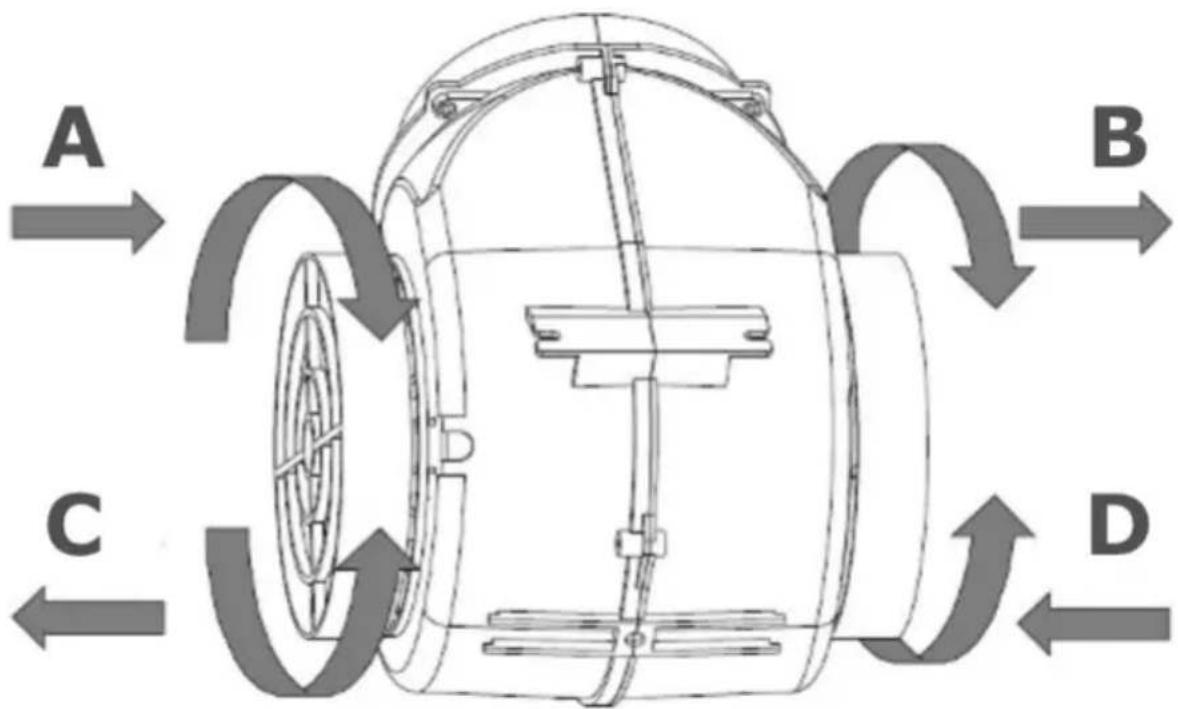

Fig. 10:

A: Closed

B: Opened

C: Opened

D: Closed

Carbon filter size > Φ176 x 35 mm

ENGLISH

Replacing the light bulb/lamp

Please note:

• The light bulb must be replaced by the official Cecotec Technical Support Service or similarly qualified technicians.
• Always disconnect the power supply before performing any operation on the appliance. When handling the bulb, make sure that it has cooled down completely before any direct contact with your hands.
• When handling the bulbs, hold them with a cloth or gloves to prevent sweat from coming into contact with the bulb, as this may reduce the bulb life.

Note:

• Before changing the light bulb, make sure that the appliance is switched off and unplugged.
• Protect yourself from danger when changing the light bulb, e.g. by wearing gloves.

6. TROUBLESHOOTING

Fault Cause Solution
The indicator light is on, but the motor does not work	The kitchen hood is obstructed. Remove what is obstructing the hood.
	The condenser is damaged. Replace the condenser.
	Motor is jammed or bearing damaged.	Replace the motor.
	Motor is burnt or gives off a bad smell.	Replace the motor.
Neither the light bulb nor the motor work	In addition to the above, check the following:
	The light bulb has blown. Replace the light bulb.
	Power cable is loose. Connect the cables according to the wiring diagram.
Grease falls out of the aluminium filters	The filters are very dirty. Clean or replace the aluminium filters immediately.
The kitchen hood vibrates	The fan is damaged, causing the kitchen hood to vibrate when extracting air.
	The motor is not securely fastened.
	The kitchen hood is not securely fastened.
The kitchen hood is not sufficiently extracting	The distance between the kitchen hood and the cooking surface is too large.
	There is too much ventilation in the room due to open doors or windows.
The kitchen hood is tilted	Fastening screws are not tightened properly.
	Plastic plugs are not tightened properly.

If none of these situations match your problem, do not attempt to disassemble, or repair the appliance by yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Contact the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

Any electrical repairs to this appliance must conform to local and/or state laws. Please contact the official Cecotec Technical Support Service in case of doubt and before carrying out any of the above operations. Always disconnect the device from the power supply when opening it.

ENGLISH

7. TECHNICAL SPECIFICATIONS

Product reference: 02866/02868

Product: Bolero Flux IM 525500 Inox A++ _Bolero Flux IM 755500 Inox A++

All technical information is available on the public website of the European Product Register for Energy Labelling (EPREL):

eprel.ec.europa.eu/screen/home

Regulation (EU) 65/2014

EU Directive 2010/30/EU

Rated voltage: 220-240 V\~

Rated frequency: 50 Hz

Total power: 73 W

Motor: 70 W

Light bulb: 2 x 1.5 W

550 m³/h air flow

Bulb type: round LED light

Lamp diameter: 68 mm

ILCOS Code D: DBL-1.5-S-68

	Symbol Value Unit
Model reference		02866(1)/02868(2)
Annual energy consumption AEC	hood	10.3 kWh/a
Time increment factor	f 1.1
Fluid dynamic efficiency	FDE hood	26.2
Energy Efficiency Index (EEIW)	EEI hood	36.8
Measured airflow at maximum efficiency point Q	BEP	210.6 m	^3 /h
Air pressure measured at maximum efficiency point P	BEP	90 Pa
Maximum operating airflow (maximum setting) Q	max	438.6 m	^3 /h
Maximum operating airflow (minimum setting) Q	max	220.1 m	^3 /h
Air flow “Booster” function		566.8	m ^3 /h
Air flow maximum setting		488.9 m	^3/h
Electrical input power measured at maximum efficiency point	W_BFP	20.1 W
Nominal power of the lighting system W	L	1.5 (x 2) W
Measured illumination of the illumination system on the cooking surface	E_med	100(1)91(2)	lux
Standby power consumption P	S	-	W
Power consumption in off mode P	o	0.48 W
Noise level (Highest setting) L	WA	56 dB
Noise level (Lowest setting) L	WA	40 dB
Noise level (Booster function) L	WA	59 dB

This appliance features a light source with an energy efficiency grade A.

The appliance power consumption when off is 0.48 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function. The switch/controller of the appliance was set to the Off position.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Directive 2010/30/UE

6. PROBLEEMOPLOSSING

Technical line drawing of a mechanical enclosure with mounting holes and internal components (no text or symbols)

Fig./Img./Abb./Afb./Rys. 8

Illustration of a hand pressing down on a device with a circular background (no text or symbols)

Fig./Img./Abb./Afb./Rys. 9

A B C D

Fig./Img./Abb./Afb./Rys. 10

www.cecotec.es
