Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning: Keep ventilation openings, in the appliance enclosure clear of obstruction.

English

Safety Instructions

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The lamp is not replaceable.
• Follow the instructions in the chapter Cleaning and care.
• Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
• To avoid contamination of food, please observe the following instructions:
  -Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  -Clean surfaces, that can come in contact with food and accessible drainage systems, on a regular basis.

Safety Instructions

-Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not suitable for the freezing of fresh food.

-If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry it, and leave the door open to prevent mold developing within the appliance.

English

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Do not place any objects on top of the product.
3. Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
4. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Only unplugging from the power socket can separate the product completely from the mains.
7. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
8. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
9. Only unplug from the power socket by the plug itself. Do not pull on the cord.
10. Unplug the product ...
11. when the product is not being used,
12. in case of malfunctions,
13. before attaching / detaching accessories and
14. before cleaning the product.
15. Use this product in dry indoor areas only and never outdoors.
16. This product is not intended for commercial use. It is designed for household use only.

17. Make sure that electrical components, live parts and the power cord do not become wet.

18. Use accessories supplied with the device or recommended by the manufacturer only!

19. Do not cover the product while in use. Fire hazard!
20. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
21. WARNING! Do not locate portable socket-outlets at the rear of the appliance to avoid the possibility of electrical shocks due to water leakage.

Caution: Risk of fire!

Flammable materials.

WARNING! During use, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor). It is the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Please keep clear from it during using, service and disposal.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food and beverages only.

• This product is not intended to be used as a built-in appliance.
• This refrigerant appliance is intended to be used at ambient temperatures ranging from 10^ C to 43^ C.

Any other use may damage the device or cause injuries.

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will

help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Refrigerants must be evacuated and disposed of by a qualified specialist in accordance with federal and local regulations before the appliance is scraped.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Delivery contents

1 x Fridge and freezer combination

1 x Set for reversing the doors

2 x Egg holder for 8 eggs

1 x Ice cube maker

1 x Metal bottle rack

1 x User manual

1x Warranty card

Controls and components

A Temperature and function control panel with display

A1 MODE button

A2 Mode display ECO / SUPER

A3 Temperature display

A4 Zone display FRIDGE / FREEZER

A5 Temperature setting button TEMP

A6 Zone setting button FG&FZ

B Lighting

c Refrigerator

D Fridge safety glass shelf (3x)

E Wine rack

F Vegetable compartment (fresh food compartment)

G Extra refrigeration compartment

H Freezer

Freezers boxes (3x)

J Power cord with plug (not shown)

K Adjustable feet, front

L Freezer door

M Refrigerator door

N Bottle shelf

0 Door shelf (1x large, 1x small)

Accessories

• Hinge cover for changing the door stops (not shown)
• 2x egg holder for 8 eggs (not shown)
• Ice cube maker (not shown)

English

Installation

Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.

Fig. 2 Unevenness can be compensated with the adjustable front feet.

Fig. 3 The refrigerator is equipped with three glass shelves and a wine rack, which, if desired can be removed by pulling them forward. The upper two glass shelves can be used at different heights.

Warning

If the refrigerator has been stored, transported or tipped sideways during transport or installation, it must be left in an upright position for 12 hours before being connected to the mains.

Operation

Fig. 4 Plug in the power plug into an appropriate mains socket outlet.

Note:

Allow the product to precool for about 2-3 hours before storing food in it.

Setting the freezer temperature

Fig. 5 Press the FG&FZ button to select the FREEZER mode. The respective indicator light will shine. By pressing the button TEMP set the temperature from -14 to -22°C in 1°C steps.

Setting the refrigerator temperature

Fig. 6 Press the FG&FZ button to select the FRIDGE mode and the respective indicator light will shine. By pressing the button TEMP set the temperature from 2 to 8°C in 1°C steps or turning off the refrigeration (OFF).

ECO and SUPER modes

Fig. 7 Press the ECO button to activate the energy saving mode indicated by the corresponding LED. In this mode, the temperature of the refrigerator and freezer is automatically set to 5°C and -18°C. The temperatures are not adjustable in this case. The device is operated with lower energy consumption.

By pressing the button SUPER you activate the SUPER mode which is indicated by the corresponding LED. In SUPER mode, the temperature of the freezer is automatically set to -25°C. The temperature in the freezer is quickly reduced. Use this mode, e.g. if you want to freeze a large number of foods, but note, that the energy consumption will be increased. The temperature of the refrigerator remains adjustable. After 50 hours, the unit automatically returns to the previous operating mode.

Vegetable and extra refrigeration compartment - CRISPER-CONVERTER ZOOM regulator

Fig. 8 Depending on the type of food to be cooled, the temperature in the two compartments can be adjusted.

CRISPER function

This is the default setting for storing fruits and vegetables in the vegetable and extra refrigeration compartments. To do this, the CRISPER-CHILLER knob must be moved down to CRISPER.

CONVERTER ZOOM function

Move the slider knob up to CONVERTER ZOOM to lower the temperature in the vegetable and extra refrigeration compartments. Note that it is colder in the extra refrigeration compartment than in the vegetable compartment above. This setting is suitable e.g. to keep quickly perishable foods such as raw fish or raw meat at lower temperatures fresh for a short time until they are processed quickly without freezing.

Ice cube maker

The delivery includes an ice cube maker with extensive functions and collecting tray.

Fig. 9 1 Pour water through the slots into the ice cube moulds, making sure that the water is evenly distributed across all ice cube shapes. Fill the ice cube moulds to max. 3/4. Leave the drip tray in the box to catch any spilled water. After filling, if necessary, pull out the drip tray to disperse any spilled water. Please note that the box must be dry inside, otherwise the collecting tray will freeze and may not be removable.

② Place the ice cube maker in the freezer for at least 2 hours.
3 Turn the knob all the way to the right and release it. This will let the ice cubes drop into the collecting tray.
4 Repeat the process several times until all ice cubes have fallen into the collecting tray. If more ice cubes are needed, repeat steps 1 - 3.

DOOR OPEN ALARM

If one door keeps open for 60 seconds, an alarm will be arisen until the door is closed.

Adjust the sides of the doors

Note:

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow below instructions in the given order.
• The following tools are required: hex-wrench 13 mm, wrench 8 and 10 mm, phillips screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.
• For this work a different cover is needed, which is provided with the unit.
• Remove the door trays to prevent them from being damaged.

Top door

1 Loosen and remove the screws in the plastic caps left and right and remove the caps. Unplug the connector on the right cap switch and store this plastic cap in a safe place. Unscrew the upper hinge plate. When unscrewing, be sure to hold the refrigerator door firmly, otherwise it will be damaged.
② Pull out the door, by moving it upwards and place it on a soft and clean surface.

Bottom door

① Hold the freezer door and remove the two screws on the middle hinge.
② Pull the freezer door upwards and place it on a soft and clean surface.
3 Remove the two blind caps above the freezer compartment and the blind plug on the top of the freezer door and insert them into the holes on the opposite sides.

Refrigerator bottom

Caution

Pull out the mains plug!

① Tilt the refrigerator so you can work at the bottom or place the refrigerator fully on its back. Make sure the back is placed on a soft and clean surface.
Unscrew the feet on both sides using a hex-wrench. Loosen the screws and remove the lower hinge plate.
2 Remove the door hinge bolt, turn the hinge plate over and screw the door hinge pin in the same hole from the other side.
3 Attach the turned hinge plate onto the left side with the screws. Screw the feet into the plates on both sides.
Place the refrigerator back on its feet and adjust them if necessary.

English

Mounting the door

Caution

After you have placed the refrigerator upright on its feet, wait for 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

1 Place the freezer door on the lower hinge. Turn the middle hinge and insert the bolt into the left hole of the freezer door and screw the hinge back on. The freezer door is now fixed. Check for correct function and fitting.
② Unscrew the bolt from the top hinge. Turn the hinge, insert and screw in the bolt from the other side again through the hole.
3 Place the hole provided on the left side of the refrigerator door onto the bolt of the middle hinge and hold the door firmly. Insert the top hinge bolt into the left hole provided on the top of the refrigerator door. Screw the upper hinge plate to the refrigerator. Ensure the correct function and fitting. Insert the plug on the left side into the switch on the underside of the left cap. Place the cables so that they cannot be squeezed.
4 Screw the cover cap onto the upper hinge plate with the refrigerator door open.
5 Attach the cap of the left side to the right side by screwing them on. Make sure the cables are properly placed and not squeezed.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If a layer of ice has built, defrost the unit. A thick layer of ice affects the transmission of the cold, thus the energy consumption will be increased.
• When opening the door and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
• Select the temperature regulator setting according to the filling amount of the product.
• Use drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the energy consumption can be minimized.
• It's advised not to remove all accessories, such as drawers, shelves, balconies, as this might increase the energy consumption.

Cleaning and care

Warning

• Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
- Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
• Make sure that no water enters the product interior (for example, through the display).
• Wipe the door seal with clean water only, and dry it thoroughly afterwards.
• Removable parts e.g. glass shelves, can be taken out for cleaning.

Decommissioning

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
• Unplug the product.
• Clean the interior of the freezer compartment and let it dry.
• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)
• Let the door open to avoid the formation of unpleasant odors and mold.

Technical data

Rated current : 1.3 A

Energy Consumption

kWh/24h : 0.436 kWh

kWh/year : 159 kWh

Ambient temperature : 10°C - 43°C

Net capacity of refrigerator : 219 L

Net capacity of freezer : 104 L

Freezing capacity : 6.4kg/24h

Measurement: 600×685×1850 mm

Depth with door open : 1145 mm

based on EN 62552: 2020

This refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ C to 43^ C.

Climate class	Ambient temperature
SN +10 to	+32 °C
N +16 to	+32 °C
ST +16 to	+38 °C
T	+16 to +43 °C

English

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes	Solution
Product does not work • Interrupted power supply • Check the power supply
Temperature in the compartments is not low enough.	• The door is not closed firmly or it is opened to often.	• Re-arrange the food so that the door can be closed firmly.
	• The ambient temperature is lower than 10°C or higher than 43°C	• The product is intended to be operated in an ambient temperature of 10°C to 43°C
Water gathers in the lower part of the compartment	• The food comes in contact with the rear wall of the compartment	• Move away the food or container from the rear wall
The interior lamp doesn’t shine	• Lamp is defect • Contact service center

Error codes

If there is a fault, the display will show ERROR codes

Cause Codes
Signal transmission between control board and main board. Probably defects of harness (wire and connectors), main board or control board	E0
Temperature sensor of refrigerator compartment E1
Temperature sensor of freezer compartment E2
Defrost temperature sensor in freezer compartment E3
Fan motor in evaporator room of freezer compartment E4
Defrost heater of the fuse connected with heater E5

When you find ERROR codes, please contact the customer service. The respective hotlines are provided in the warranty card.

Storage of food and beverages

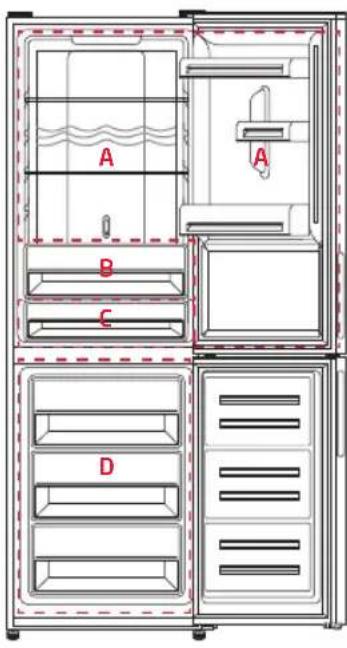

	Area	Recommended food and temperature setting
	A Fridge compartment (4°C) - Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts - Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers
	B Fruit and vegetable compartment (4°C)
	C Extra cooling (0°C) Storage of fish, raw meat that's about to be cooked.
	D Freezer (-18°C) Foods for long-term storage - Top drawer: Storage of frozen food and ice cream. - Middle drawers: storage for raw meat, poultry, fish - Bottom drawers: storage for frozen vegetables, chips

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge compartment

• Use containers made from recycled plastic, metal, aluminum and glass as well as plastic wrap to pack food.
• Liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste should be covered.
• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.
• Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; For example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.

• Do not store food too close to one another to allow sufficient air circulation.

• The recommended temperature for the fridge compartment is 4°C. Foods can be stored for up to three days. Consider the storage times noted on commercially available goods.

Storing food

• Store food when fresh and undamaged. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the minimum sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.
• Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

English

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The storage period specified on the packaging is decisive for commercially available frozen products.

Storing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.
• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.

Note: Storage of foods at the wrong temperature may lead to an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months
  • Fish, shrimp, lamb, meat: 4-8 months
  • Vegetables, fruits, poultry, beef: 6-12 months
