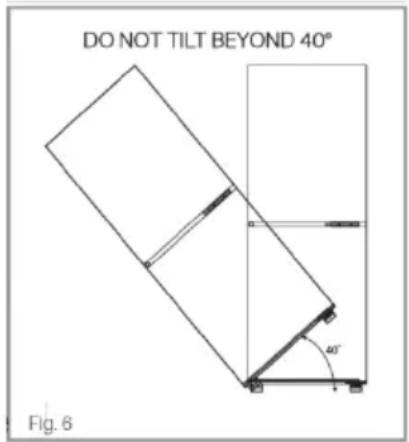

Installation preparation....15

Ventilation....16

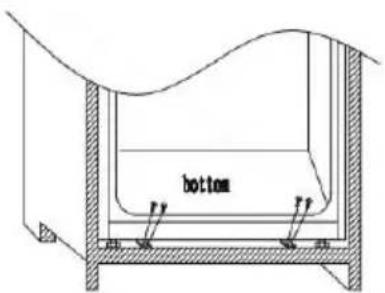

Installation into the cabinet....17

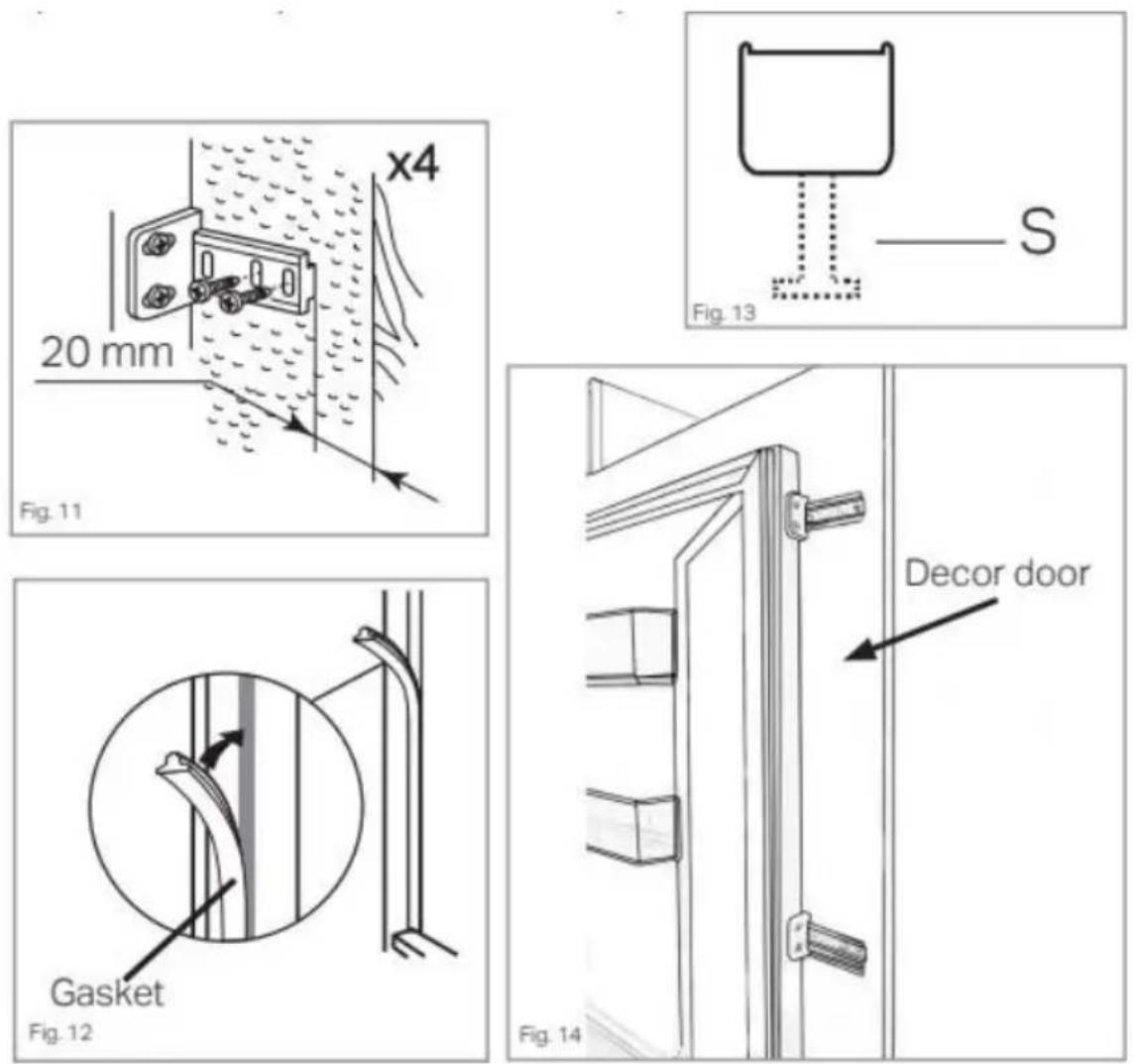

Mounting the fascia door....18

Installation instructions for products with fixed hinges....19

Reversing the appliance door 20

COLDEST AREA THAN THE REFRIGERATOR....21

INSTALLING THE TEMPERATURE GAUGE....20

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, models and other environments of a residential type
• at bed and breakfasts (B & B)
• forcat ering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for anyomissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!

- leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle fi transported horizontally.

- Makesure there is no transport damage.

- Do not damage the refrigerant circuit.

- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

- Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

- Handle the appliance always with at least two persons because it is heavy.

- Install and level the appliance in an area suitable for its size and use.

- Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

- The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

- Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

- Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or

damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or inflammable materials.

- FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

- If you find that the lid of the appliance is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in

the appliance. Risk of explosion!

- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not touch internal cooling element s, especially with wet hands, to avoid cracks or injuries.

- At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

- Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.

• Children should not play with the appliance.

- Children aged from 3 to 8 years are allowed to load and unload this appliance.

- FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!

- FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!

- Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.

- Before performing any operation, unplug the power cord from the power socket.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.

- Supervise children while the appliance is being cleaned or maintained.

- Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

- WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

- If the refrigerant circuit should be damaged: - Switch off the appliance and pull out the mains plug, - Keep naked flames and/or ignition sources away from the appliance, - Thoroughly ventilate the room for several minutes, - Inform customer service.

- WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.

- Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

- The product is designed and built for domestic household use only.

- Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only

these parts satisfy the safety requirements.

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen -food com partments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice -cream and making ice cubes.

- One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

- If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

- FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine

- FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

• FOR appliances without a 4-star compartment: this

refrigerating appliance is not suitable for freezing foodstuffs

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.

• D efrost the appliance in case there is ice to facilitate the transfer of cold.
- In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
- Open or keep the doors of the appliance open as little as possible
• A void adjusting the setting to temperatures too cold.
- Remove dust present on the rear of the appliance

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

Before first use

You must allow the fridge to settle for at least four hours prior to switching the power on.

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior.

The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start on temperature setting 3 and work continuously until it comes down to the correct temperature.

If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor.

Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.

Fridge use

• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
• Make sure food is clean and any extra water is wiped away before putting into the fridge.
• Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
• Sort foods prior to storing. Any foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
• Do not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
• Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Storage

The fridge is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type. Sections 6 and 7 are the coldest parts of the fridge.

1. Butter, cheeses etc.
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yogurts, preserves etc.
   6.75cl bottles or ready meals etc.
6. Fresh meat and fish
   8.Fruit and vegetables

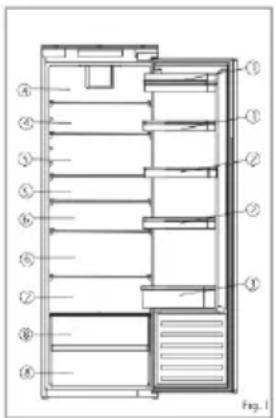

Technical diagram of a multi-level storage or rack system with numbered components, labeled as Fig.1.

The most energy -saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards. To replace, slide the shelf back into the slot, and then lower the rear section.

The wine racks can be deployed or withdrawn as desired.

Illustration of hands holding a tablet with arrows indicating direction (no text or symbols)

• It's suggested to set the temperature at 4^ in the fridge compartment.
• F or most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat

Control panel

A B C 1 2 3 4 5 6 ①

A. Refrigerator temperature adjustment sensor

This button is used to adjust the temperature within the fridge. Press this sensor to make a adjustment, and then as many times as necessary until the desired level is selected. The settings range from 1 to 6 with 1 being the warmest and 6 being the coldest.

Please note: Where possible, avoid having the temperature setting on 6 all of the time. This will help to alleviate strain on the compressor and refrigeration system.

B. Refrigerator temperature setting display

This display will illuminate the current temperature setting. Adjusting the temperature will cycle through this display.

Please note: You do not use numbers 1 to 6 to change the temperature. Instead, use the refrigerator temperature adjustment sensor (A).

Position	Conditions
1-2	Summer or ambient temperature between 25-35 °C
3-4	Spring, autumn or ambient temperature between 15-25 °C
5-6	Winter, or ambient temperature between 5-15 °C

C. Power button

Press the sensor once to rose up the function, and then press for 3 seconds to switch the appliance on or off.

This product has power-off or power failure memory function.

Care and cleaning

Always disconnect the appliance from the power supply before any cleaning or maintenance.

The fridge and crisper sections should be cleaned using a solution

of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.

Clean the shelves, drawers and balconies separately by hand with a mild solution of washing up liquid and water. Do not put them in the dishwasher.

The water drain hole at the back of the fridge compartment should be cleaned periodically to prevent the defrosted water from collecting inside the fridge compartment. The drain plug can be used to clean the drain hole.

If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odors.

Drain Plug Drain hole Fig. 4

Defrosting the fridge

The fridge is self-defrosting. Any water created will run out of the fridge through the channel at the back of the fridge, unless the drain hole is blocked. It is important to keep the channel clear at all times using the cleaning tool/drain plug supplied. The defrosted water is collected in the evaporating tray at the back of the appliance and dissipated by evaporation.

Please note: If you are regularly finding pools of water in the fridge, or you notice that the compressor is always running, then it is likely that the door is not sealing properly. This could be

due to a defective door seal or an incorrectly fitted, or overly heavy, decor door. For more information see the troubleshooting section.

Changing the light

If the LED lighting fails in any way, it should only be replaced by authorized service agents. In the event of light failure within your fridge please contact Customer Care to arrange a service visit. Contact details are on the rear cover of this manual.

Availability of spare parts

• T hermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.
• D oor handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market

Troubleshooting

If you have any problems with your appliance, you should check the troubleshooting prior to calling Customer Care.

If the appliance is not working, check:

• That there is power to the appliance.
• The house fuses are intact and the fuse in the plug has not blown.
  •The fridge has not been turned off.
• The plug socket is functioning fine. To check this, plug another electrical appliance in to see if the socket is faulty.

If the appliance is working, but not very well, check:

•The appliance is not overloaded.
- The thermostat is set to an appropriate temperature.
•The doors are closing properly.
- The cooling system at the rear of the appliance is clean and free of dust, and not touching the rear wall.
- There is enough ventilation at the side and rear walls.
- This can be due to the decor door(s) not being properly fitted, causing the fridge door to not close properly thus letting warm air in. If you are at all unsure, ask your fitter to check the decor doors.

If the appliance is noisy, check:

•The appliance is level and stable.
- The side and rear walls are clear, and there is nothing resting on the appliance.
- Note: The cooling gas in the refrigerator may make a slight bubbling or gurgling noise, even when the compressor is not running.

If the appliance is beeping, check:

- That the door is closed. An alarm will sound after 60 seconds of a door being open.

If there's water in the base of the refrigerator compartment, check:

- The drain hole at the back of the compartment is clear.

If ice has formed on the back wall of the fridge:

• It is normal for some ice droplets to form on the back wall of the fridge. This does not constitute a fault with the appliance.
• Ensure that no items inside the fridge are in contact with the back wall.
• Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If you are at all unsure, ask your fitter to check the decor doors.

If the LED unit within the appliance is not working:

- Contact Customer Care to arrange a service visit.

Technical assistance

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance

Installation preparation

This appliance must never be installed close to heat sources, e.g. heating elements or cookers, nor in damp places.

See k the help of another individual, or two, when installing this appliance. This appliance may have sharp edges. Wear a dequate PPE for the task and environment.

• To ensure the appliance is level, you should use the height a adjustable feet at the front of the appliance.
• The cooling system at the rear of the appliance must not touch the rear wall. The greater the gap, the better.
• The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C'
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'

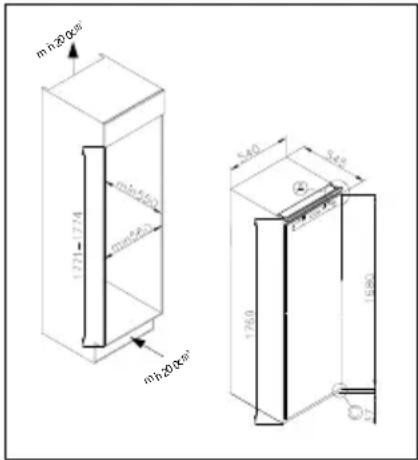

DO NOT TILT BEYOND 40° Fig. 6

m1 @0 cm² 171-172 m1-0.50 m2-0.80 m2-0.60 540 543 1703 180

• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C'
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'

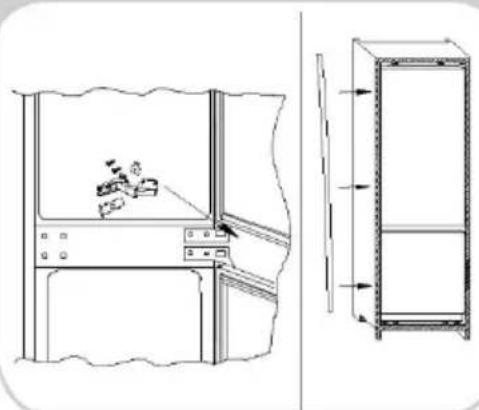

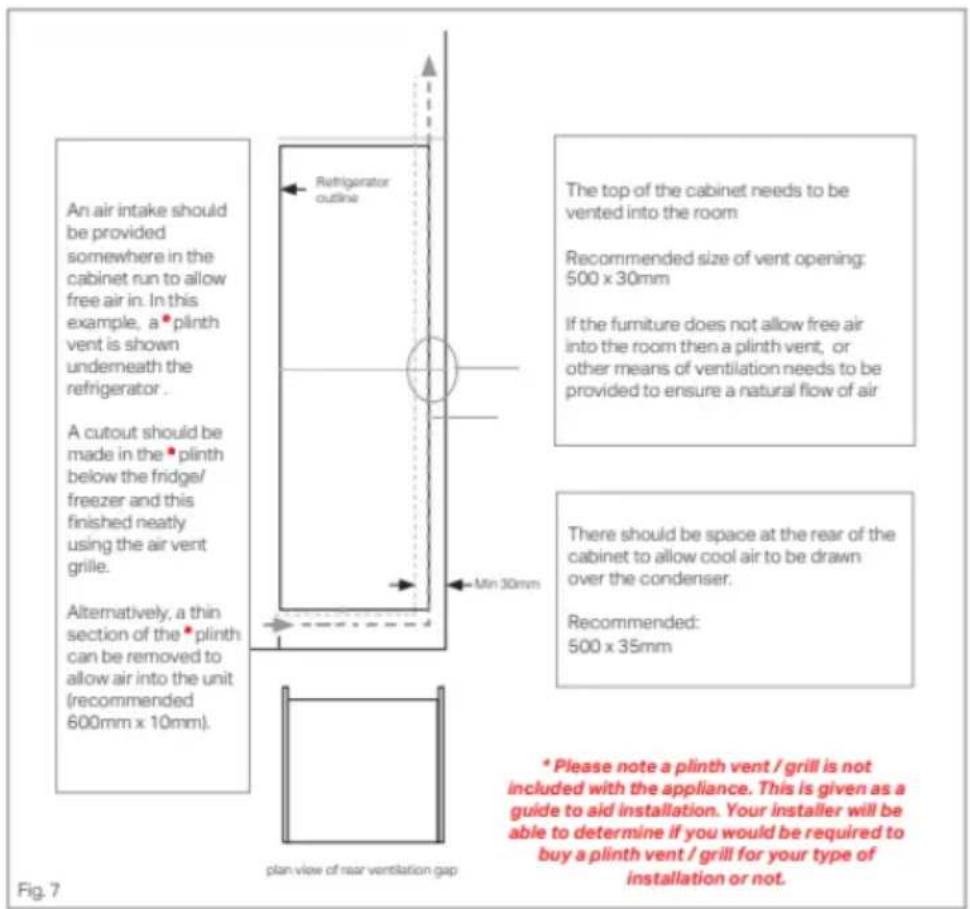

Ventilation

The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive power consumption, total system failure and may invalidate the warranty provided with the appliance. For products intended to be installed into a tall housing unit, the following requirements need to be met:

An air intake should be provided somewhere in the cabinet run to allow free air in. In this example, a plinth vent is shown underneath the refrigerator. A cutout should be made in the plinth below the fridge/ freezer and this finished neatly using the air vent grille. Alternatively, a thin section of the plinth can be removed to allow air into the unit (recommended 600mm x 10mm). Plan view of rear ventilation gap The top of the cabinet needs to be vented into the room Recommended size of vent opening: 500 x 30mm If the furniture does not allow free air into the room then a plinth vent, or other means of ventilation needs to be provided to ensure a natural flow of air There should be space at the rear of the cabinet to allow cool air to be drawn over the condenser. Recommended: 500 x 35mm * Please note a plinth vent / grill is not included with the appliance. This is given as a guide to aid installation. Your installer will be able to determine if you would be required to buy a plinth vent / grill for your type of installation or not.

The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units.

A ventilation hole is required in the plinth of the unit; this allows air to be drawn over the compressor & heat exchange. The required air flow can be achieved by removal of a thin section of plinth (recommended 600mm x 10mm minimum).

As a rule, the more air that can get in and out, the better and more efficient the operation of the product.

Installation into the cabinet

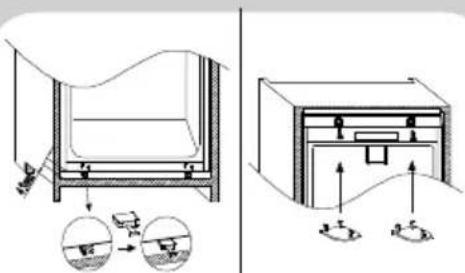

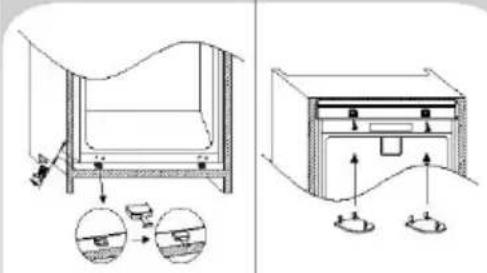

With the help of another individual, or two, move the appliance into the cabinet. There are two metal plates at the base of the appliance. Fit the supplied white spacers (Fig. 8) to these plates, as per Fig. 9.

Insert the appliance into the column placing it on the opposite site of the hinges, and make sure 3–5 mm distance gap.

1

3-5mm

After ensuring the match between appliance door and column door, fix the plastic covers from accessories bag.

2

top

Screw the appliance lower part.

3

bottom

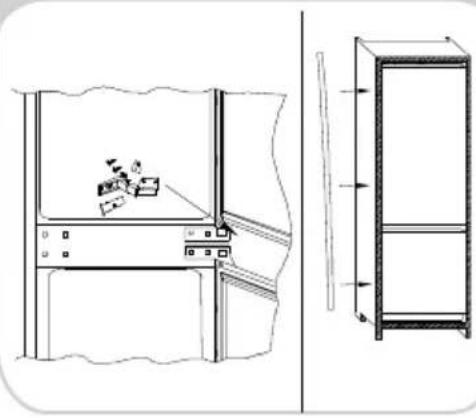

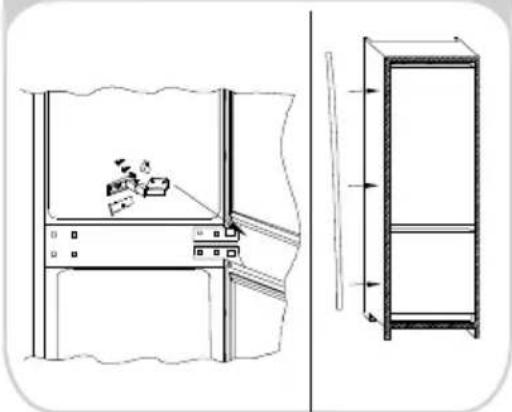

Fit the seal to the appliance, cut off the excessive part if necessary. Fit the bottom parts with plastic covers.

4

Technical line drawing of a rectangular enclosure with directional arrows indicating flow or movement (no text or symbols)

Ensure that the lips of the spacers are level with the lip of the cabinet base.

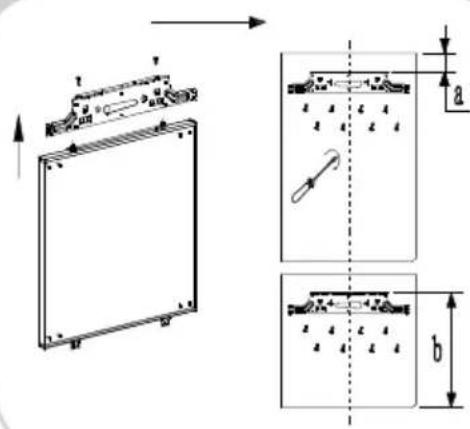

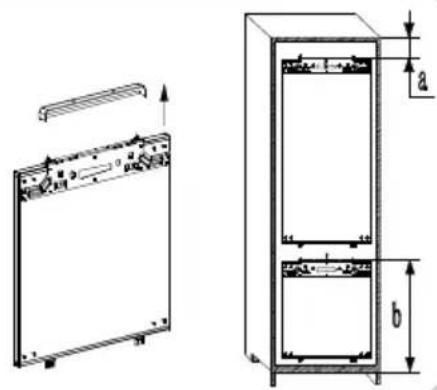

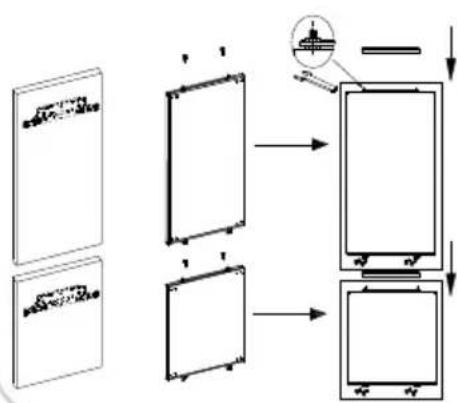

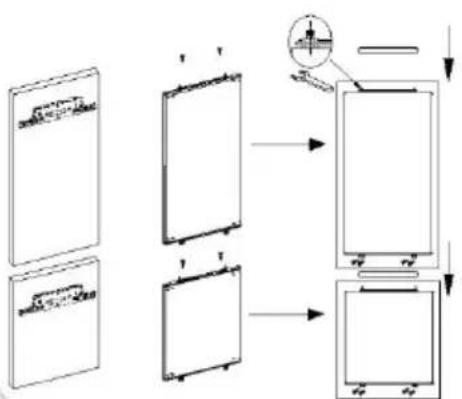

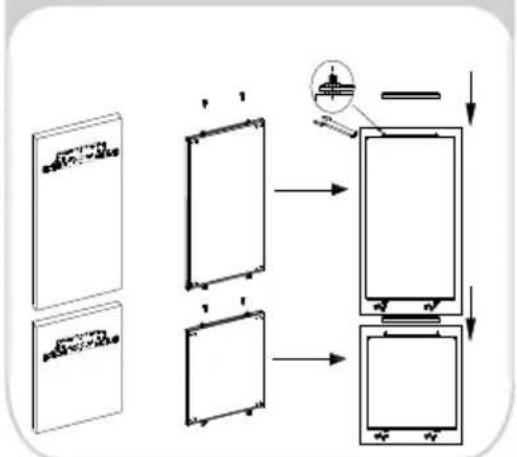

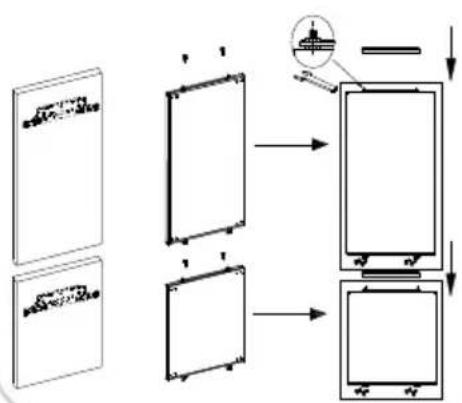

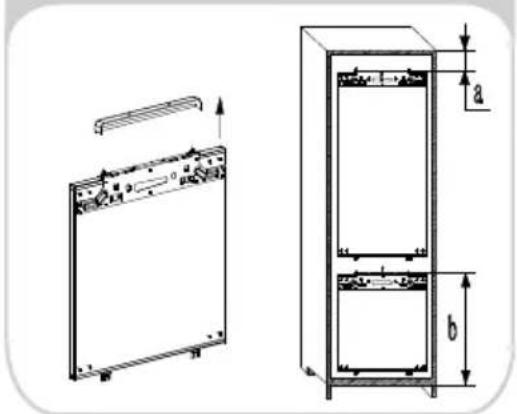

Mounting the fascia door

• Ensure that there is a gap of 3 to 4mm between the non-hinged side and the cabinet wall.

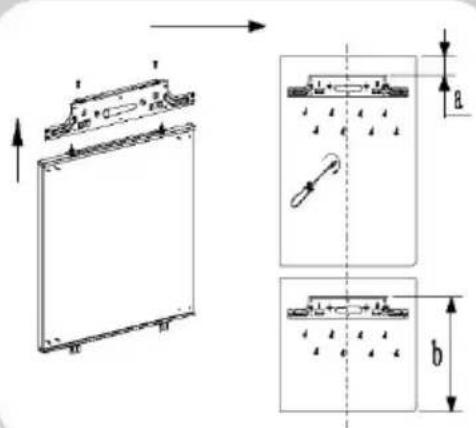

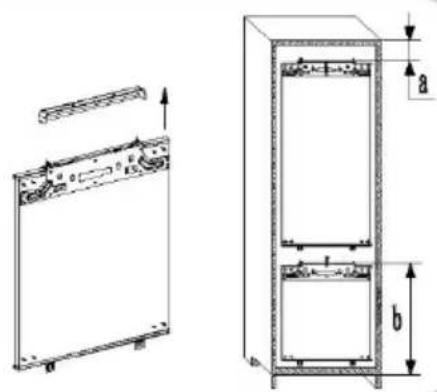

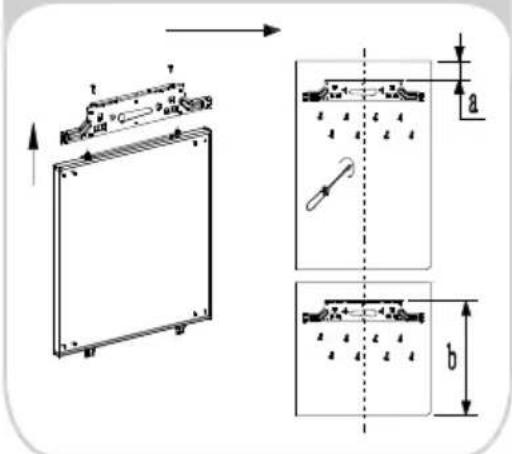

• Locate the slider in the bracket and fix the slider to the fascia door 20 to 22mm from the edge of the fascia as shown in figure 11, ensuring that the slider is positioned centrally and horizontally within the bracket. Tighten securely by hand.

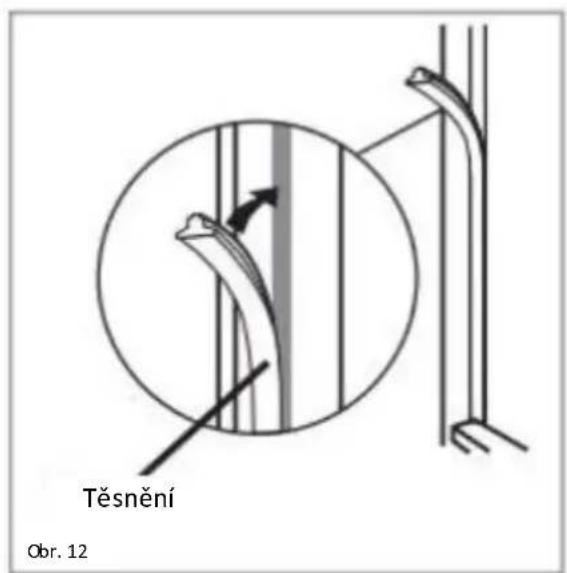

• Fill the gap on the non-hinged side with the gasket/seal strip provided, as shown in Fig. 12.
• The finished look for the door sliders should be similar to those shown in Fig. 14, which shows 2 sliders in place.
• Ensure the appliance door opens, closes and seals properly.

Once complete, and if you are happy with the fit of the appliance in the cabinet, bend and snap the parts of the white spacers marked 'S' as shown by the dotted outline in fig. 13. Leave the rest of the spacer cover in place over the metal plates.

Important: After completing the installation, check that the appliance is secured within the unit and that the door(s) close and open properly. If there is no resistance from the door seals when opening the doors, then it is probable that the appliance and/or decor doors are not fitted properly.

Installation instructions for products with fixed hinges.

1

Diagram showing a device with a labeled component and its 3D view, alongside a separate 2D view of a rectangular cabinet (no text or symbols present)

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet labeled with dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Reversing the appliance door

We recommend you seek the help of another individual to support the doors whilst performing this operation. Always wear adequate PPE (Personal Protective Equipment) for the task at hand. Prepare a surface with a soft, clean towel or similar where you can place the door during these steps.

Remove the right upper hinge cover and hinge by screwdriver.

1

Line drawing of a cabinet with doors and a door, showing internal components (no text or symbols)

Remove the door.

2

Simple line drawing of a roof structure with a sloped corner and a triangular support (no text or symbols)

Remove the right bottom hinge and left plastic plugs, and refit them onto the opposite side.

3

Simple line drawing of a mechanical component with arrows indicating force or movement (no text or symbols)

Assembly the right upper hinge to the left bottom and fit the cover.

4

Diagram of a computer monitor with scroll wheel and stand, showing motion arrows (no text or symbols)

Sit the door on the bottom hinge and assembly the bottom hinge to the top, make sure 1-2-3 are very close

5

③ ② ①

Ensuring the door seals correctly:

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance.

Take care not to use the hair dryer too close to the appliance, which could damage the seal. A distance of approximately 10cm should be adequate.

When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

COLDEST AREA THAN THE REFRIGERATOR

This symbol below indicates the location of the coldest area of the refrigerator. This area is bounded near the fan and above it by the icon or shelf positioned at the same level.

To maintain temperatures in this area, be careful not to move this shelf.

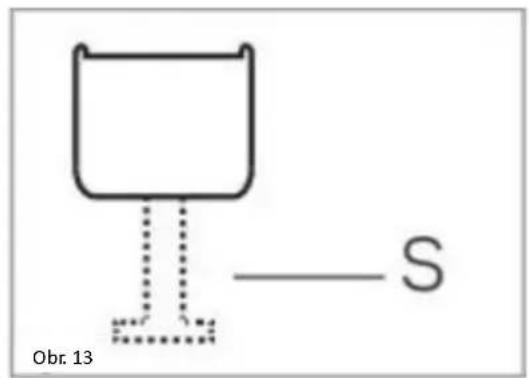

INSTALLING THE TEMPERATURE GAUGE

To help you set up your fridge correctly, it features a temperature gauge that allows you to

monitor the average temperature in the coldest area.WARNING: This ad is only intended for use with the refrigerator. Be careful not to use it in another refrigerator (in fact the coldest area is not the same) or for another use.

Temperature control in the coldest area

Once the installation of the temperature gauge is complete, it is possible

You can periodically check that the temperature of the coldest zone is correct.

If necessary, adjust the thermostat accordingly. The internal temperature of the refrigerator is influenced by several factors such as: B. the ambient temperature in the room, the amount of food stored and the frequency with which the door is opened. Consider these factors when setting the temperature.

Be careful to properly store food in the refrigerator and especially in the coldest area. Make sure the temperature display indicates "OK".

OK

If "OK" does not appear, the temperature of the zone is too high. Set the thermostat to a higher position. Wait at least 12 hours before resetting the thermostat. After loading fresh food into the appliance or opening the door again (or for a long time), it is normal for the "OK" indicator not to appear on the temperature display.

ZUSAMMENFASSUNG

Architectural floor plan with numbered compartments and staircases

Technical line drawing of a rectangular frame with internal components and dimension arrows (no text or symbols)

Diagram showing a hand holding a labeled object with an arrow indicating direction, alongside a 3D diagram of a cabinet or refrigerator.

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet with labeled dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and shelf (no text or symbols)

Simple line drawing of a monitor with arrows indicating motion or force (no text or symbols)

Simple line drawing of a garage with a door and adjacent structure (no text or symbols)

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Simple circular shape with no text, numbers, or symbols

Simple line drawing of a trash bin with crossed handle and no text or symbols

Warning sign depicting a flame symbol in a triangular frame, indicating hazardous or hazardous hazard.

Architectural floor plan with numbered compartments and staircases

Technical line drawing of a mechanical component with angular annotations (40° and 30°), no readable text or symbols present.

m·h·200cm 177H=177A m·h·200cm m·h·200cm

5.40 6.45 1.760 1.850

2 pate superior

Technical line drawing of a rectangular enclosure with internal components and directional arrows, no text or symbols present

Diagram showing a hand holding a labeled object with an arrow indicating direction, alongside a 3D diagram of a cabinet or refrigerator.

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet labeled with dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and shelf (no text or symbols)

Retire la puerta.

2

Simple line drawing of a cabinet or storage unit with an arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular device with arrows indicating force or movement (no text or symbols)

Line drawing of a monitor with a stand and directional arrows indicating motion (no text or symbols)

Architectural floor plan with numbered compartments and ventilation systems, labeled as Figure 1.

Illustration of hands holding a tablet with arrows indicating direction (no text or symbols)

Assistance technique

Technical line drawing of a rectangular frame with directional arrows indicating force or movement (no text or symbols)

Diagram showing a hand holding a labeled object with an arrow indicating direction, alongside a 3D diagram of a cabinet or refrigerator.

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing showing a door opening with a window and a cabinet side view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet with labeled dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and window (no text or symbols)

Retirez la porte.

2

Simple line drawing of a cabinet or storage unit with an arrow indicating direction (no text or symbols)

Simple line drawing of a device with arrows indicating force or movement (no text or symbols)

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

Technical diagram of a multi-level storage or ventilation system with numbered components

N ON INCLINARE OLTRE 40° 40°

m n-20x6" 171-174 m n-450 m n-450 m n-20x6" 540 540 ④ 1760 1980 Ø7

part e alta

Diagram of a rectangular enclosure with a vertical rod and base, showing internal components and directional arrows (no text or symbols)

Diagram showing a hand holding a remote control panel next to a 3D rectangular box with an arrow indicating rotation (no text or symbols present)

2

Diagram illustrating a water filtration or sedimentation process with labeled components and directional arrows

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical line drawing of a two-tiered electrical enclosure with labeled dimensions (a and b), showing internal components and mounting brackets (no text or symbols beyond labels)

5

Technical diagram showing mechanical assembly and dimensional annotations with labeled parts a and b

6

Line drawing of a kitchen appliance with a door, drawer, and window (no text or symbols)

Simple line drawing of a rectangular device with arrows indicating force or movement (no text or symbols)

Simple line drawing of a cabinet or storage unit with an arrow indicating motion (no text or symbols)

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Warning sign depicting a flame symbol in a triangular frame, commonly used to indicate hazardous materials or hazard zones.

Architectural floor plan with numbered compartments and staircases

Alb.1 Alb.2

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present.

Diagram showing a device with a cable and a separate view of a refrigerator (no text or symbols present)

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet labeled with dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and shelf (no text or symbols)

Verwijder de deur.

2

Simple line drawing of a cabinet or enclosure with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a device with arrows indicating motion or force (no text or symbols)

4

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazardous materials or hazard zones.

Architectural floor plan with numbered compartments and staircases

Technical line drawing of a mechanical component with angular dimension (40°) and reference lines, no text or symbols present.

mH2θ cm 1771-1774 mH50 mH20 cm 1769 1769 1769

Technical line drawing of a rectangular frame with internal arrows and dimension lines (no text or symbols)

Diagram showing a door mechanism with a hand pointing to the left panel and a separate view of the door (no text or symbols present)

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet with labeled dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and shelf (no text or symbols)

Zdjąć drzwi.

2

Simple line drawing of a cabinet or enclosure with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a device with arrows indicating motion or force (no text or symbols)

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Simple circular shape with no text, numbers, or symbols

Warning sign depicting a flame symbol in a triangular frame

Architectural floor plan with numbered compartments and staircases

Illustration of hands holding a rectangular object with an upward arrow and a black arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with angular annotations (40° and 30°), no readable text or symbols.

m n-200 gm 1778-1776 m n-200 m n-200 gm m n-200 gm

540 545 Ø1 2.700 Ø80

Technical line drawing of a rectangular enclosure with internal components and directional arrows (no text or symbols)

Line drawing of a kitchen appliance with a door, drawer, and shelf (no text or symbols)

Remova a porta.

2

Simple line drawing of a cabinet or storage unit with an arrow indicating motion (no text or symbols)

Simple line drawing of a device with arrows indicating motion or force (no text or symbols)

4

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Diagram showing a vertical structure with numbered annotations pointing to different components.

Simple circular shape with no text, numbers, or symbols

INSTALACE UKAZATELE TEPLOTY....188

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ Obr. 1

Obr. 8 x2

Technical line drawing of a rectangular frame with internal components and directional arrows, no text or symbols present

20 mm Obr. 11 x4

Obr. 13 — S

Diagram showing a hand holding a labeled object with an arrow indicating direction, alongside a 3D diagram of a cabinet or refrigerator.

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing two views of a rectangular enclosure with labeled dimensions a and b, including internal components and mounting hardware.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and window (no text or symbols)

Line drawing of a device casing with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a kitchen appliance with a door and angled base (no text or symbols)

Line drawing of a computer monitor with a stand and directional arrows indicating movement (no text or symbols)

INSTALACE UKAZATELE TEPLOTY

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ Obr. 1

Pure geometric diagram showing a tilted rectangular structure with an angled cutout and angle标注 (no text or symbols)

m×2.00 m² m×4.50 m×1.00 m×2.00 m²

5.40 5.45 1700 1700 1700

• Subtropická klíma (ST): „Tento chladiaci spotrebič je určený na použitie pri teplotách okolia v rozpätí 16 °C – 38 °C.“
  – Trøpická klíma (T): „Tento chladiaci spotrebič je určený na použitie pri teplotách okolia v rozpätí 16 °C – 43 °C.“

Vetranie

Obr. 8 x2

Diagram of a rectangular enclosure with vertical supports and directional arrows indicating flow or movement (no text or symbols)

Diagram showing a device with a labeled component and its 3D view, alongside a separate 2D view of a refrigerator (no text or symbols present)

2

Technical diagram showing two views of a mechanical or electrical component with labeled parts and directional arrows indicating movement or assembly.

3

Technical line drawing of a refrigerator with an open door and side panel view (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet labeled with dimensions a and b.

5

Technical diagram showing mechanical assembly with labeled components and dimensional annotations

6

Line drawing of a kitchen appliance with a door, drawer, and window (no text or symbols)

Line drawing of a device with arrows indicating motion or force (no text or symbols)

Odmontujte dvere.

Simple line drawing of a kitchen appliance with a door and angled base (no text or symbols)

Line drawing of a computer monitor with a stand and directional arrows indicating movement (no text or symbols)

Simple black-and-white warning symbol with exclamation mark and droplet (no text or numbers)

Architectural floor plan with labeled rooms and dimensions, including section ① and section ②

Pure technical diagram of a rectangular frame with directional arrows and dimension lines, no text or symbols present.

Diagram showing a refrigerator with a hand holding a small object and a separate view of its side panel (no text or symbols present)

2

Technical diagram showing two views of a mechanical or architectural component with internal components and directional arrows (no text or symbols)

3

Technical line drawing of a refrigerator with front and side views (no text or symbols)

4

Technical diagram showing a front panel with mounting bracket and side view of a multi-chamber cabinet with labeled dimensions a and b.

5

Technical diagram showing a panel assembly with labeled dimensions and component footprints

6

Line drawing of a cabinet or rack with a handle and outlet (no text or symbols)

Vegye le az ajtót.

2

Simple line drawing of a cabinet or storage unit with an arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular device with arrows indicating force or movement (no text or symbols)

4

Line drawing of a monitor mounted on a stand with directional arrows indicating motion (no text or symbols)

Diagram of a vertical structure with numbered annotations pointing to different components.
