Microwave Oven

INSTRUCTION MANUAL

MODEL: MLEG 820 FI BK

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:MLEG 820 FI BK
Rated Voltage:230V~50Hz
Rated Input Power(Microwave):1270W
Rated Output Power(Microwave):800W
Rated Input Power(Grill):1000W
Oven Capacity:20L
Turntable Diameter: 255mm
External Dimensions:594x317x386 mm
Net Weight:Approx. 17kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

  1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
  3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

  4. Keep the appliance and its cord out of reach of children less than 8 years.

  5. Only use utensils suitable for use in microwave ovens.

  6. The oven should be cleaned regularly and any food deposits should be removed.

  7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

  8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

  9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

  10. Do not overcook food.

  11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

  12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

  13. Install or locate this oven only in accordance with the installation instructions provided.

  14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

  15. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

  1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  2. Do not store or use this appliance outdoors.

  3. Do not use this oven near water, in a wet basement or near a swimming pool.

  4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

  5. Do not let cord hang over edge of table or counter.

  6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
  8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
  9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  10. Children should be supervised to ensure that they do not play with the appliance.
  11. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
  12. Accessible parts may become hot during use.
    Young children should be kept away.
  13. Steam cleaner is not to be used.
  14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
  15. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

  16. WARNING: Children less than 8 years of age shall be kept away unless continuously supervised.

  17. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
  18. Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubtexists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

  1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
  2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

  1. Clean the cavity of the oven after using with a slightly damp cloth.
  2. Clean the accessories in the usual way in soapy water.
  3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
  4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

  1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
  2. Cook on maximum power for 1 minute.
  3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

UtensilsRemarks
Browning dishFollow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
DinnerwareMicrowave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jarsAlways remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
GlasswareHeat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bagsFollow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cupsUse for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towelsUse to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paperUse as a cover to prevent splattering or a wrap for steaming.
PlasticMicrowave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrapMicrowave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
ThermometersMicrowave-safe only (meat and candy thermometers).
Wax paperUse as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

UtensilsRemarks
Aluminum trayMay cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handleMay cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensilsMetal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist tiesMay cause arcing and could cause a fire in the oven.
Paper bagsMay cause a fire in the oven.
Plastic foamPlastic foam may melt or contaminate the liquid inside when exposed to high temperature.
WoodWood will dry out when used in the microwave oven and may split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES

(In case of any differences between the appliance and the pictures in this manual, the product shall prevail.)

Remove the oven and all materials from the carton and oven cavity.

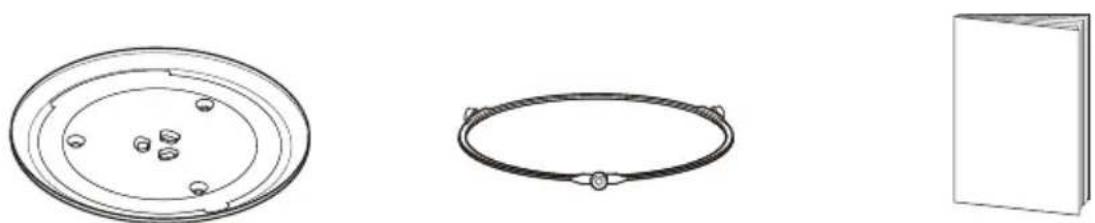

Your oven comes with the following accessories:

TEKA MLEG 820 FI BK - NAMES OF OVEN PARTS AND ACCESSORIES - 1

natural_image Three technical line drawings: a circular component with holes, a circular ring with mounting holes, and a rectangular box (no text or symbols)

Glass Tray Turntable Ring Assembly Instruction Manual

TEKA MLEG 820 FI BK - NAMES OF OVEN PARTS AND ACCESSORIES - 2
Turntable Shaft

TEKA MLEG 820 FI BK - NAMES OF OVEN PARTS AND ACCESSORIES - 3

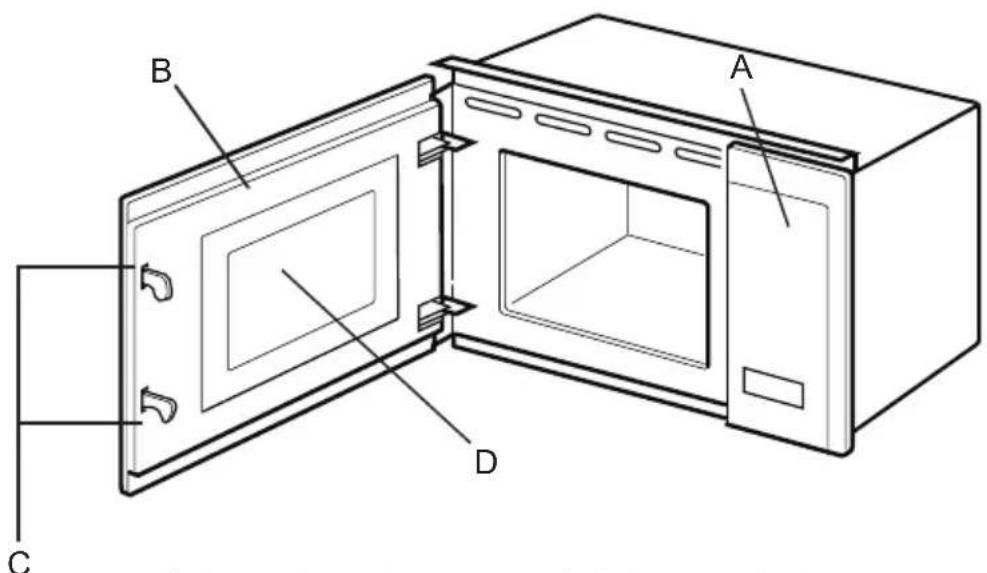

text_image A B D C

A) Control panel
C) Safety interlock system
B) Door assembly
D) Observation window

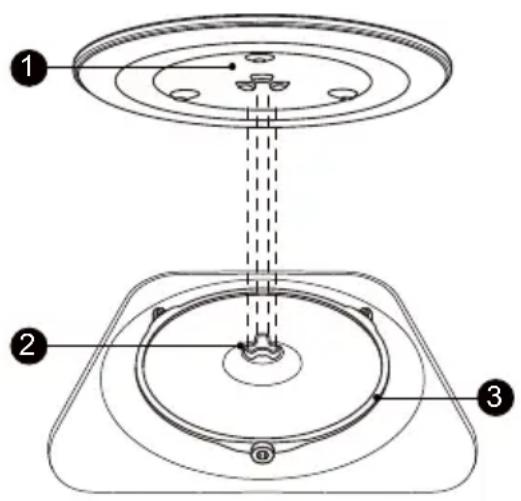

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

TEKA MLEG 820 FI BK - TURNTABLE INSTALLATION - 1

text_image Technical diagram showing three labeled components of a mechanical assembly with concentric rings and a central shaft.

How to put the turntable in place:

  1. Place the turntable ring assembly ③ into the recess in the cooking compartment.
  2. Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

Note:

  1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
  2. Never place the glass tray upside down. The glass tray should never be restricted.
  3. Both glass tray and turntable ring assembly must always be used during cooking.
  4. All food and containers of food are always placed on the glass tray for cooking.
  5. Never restrict the movement of the turntable.
  6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

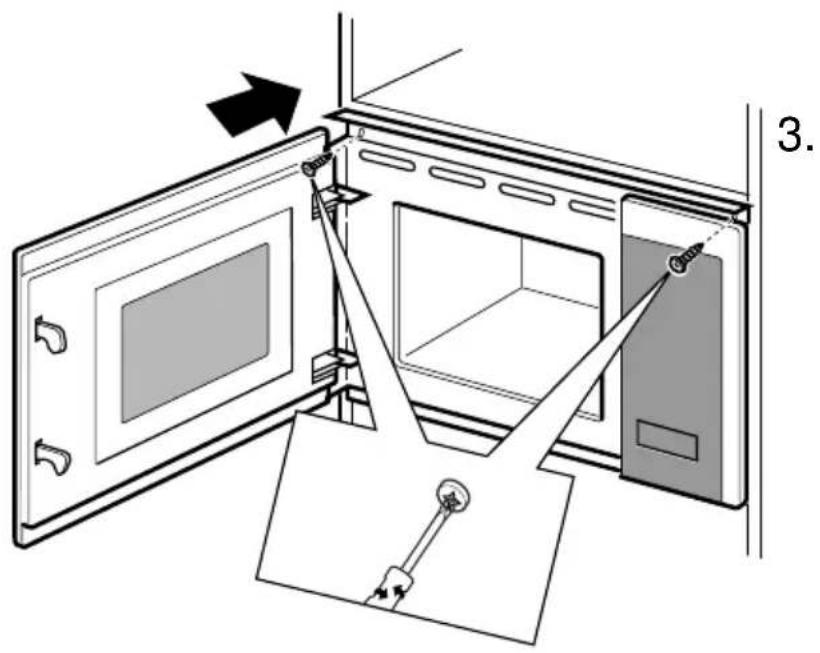

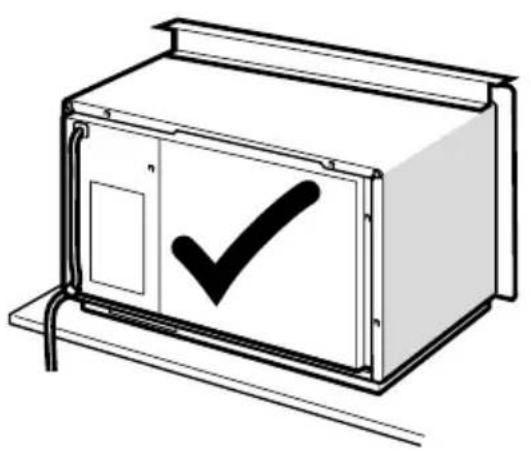

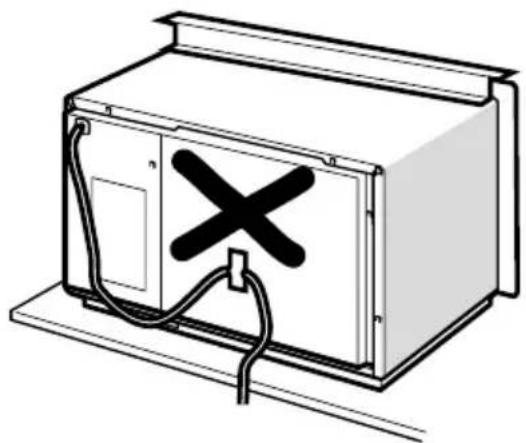

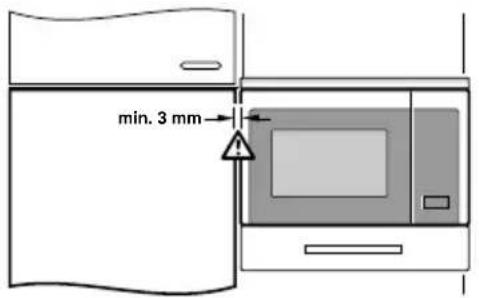

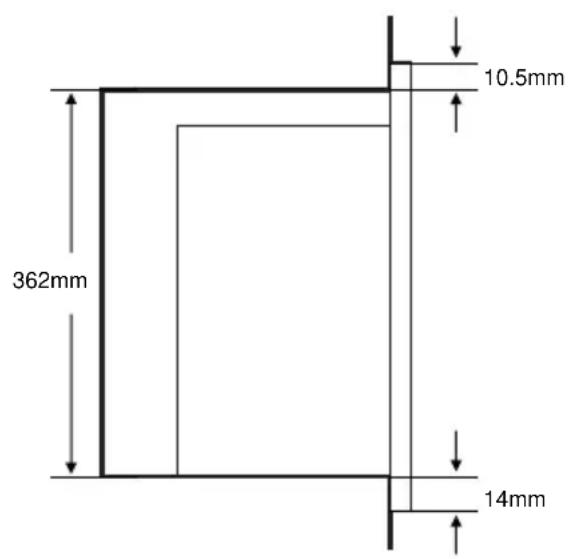

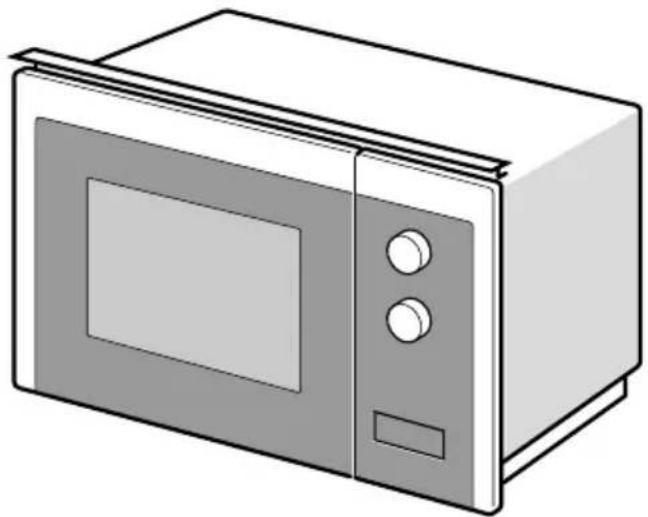

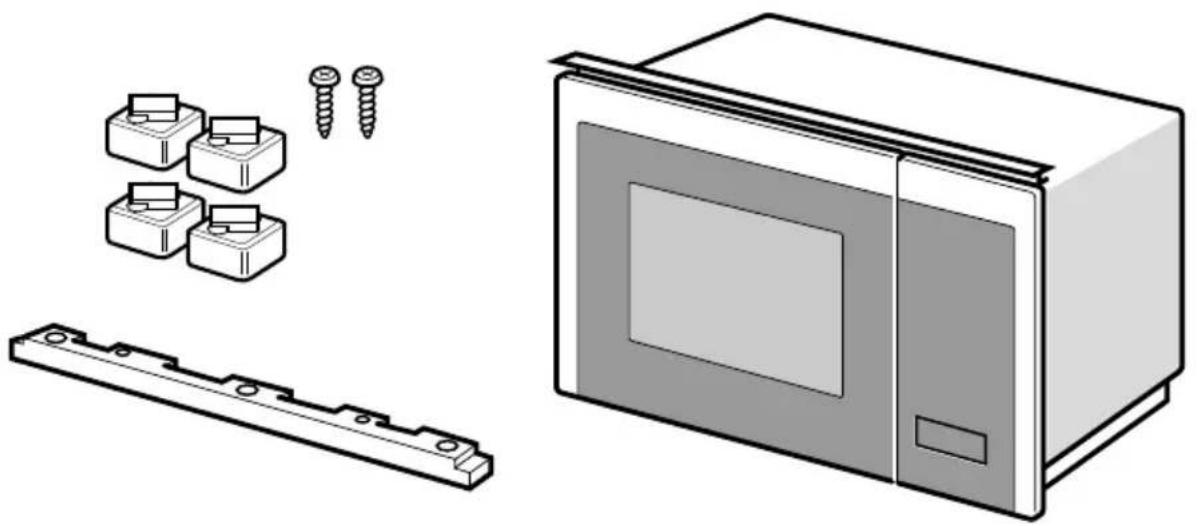

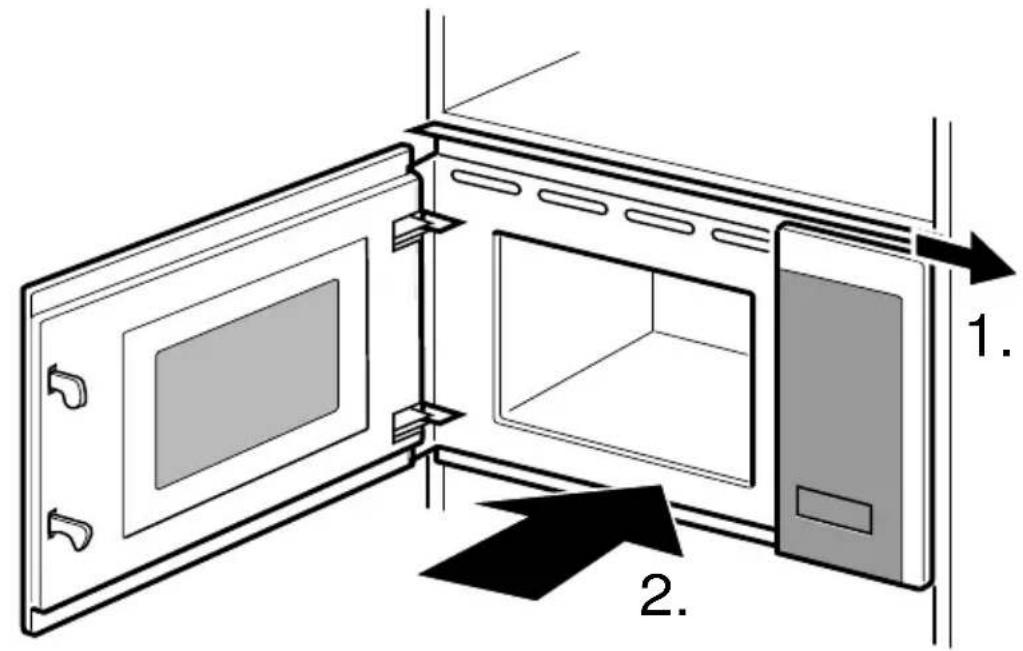

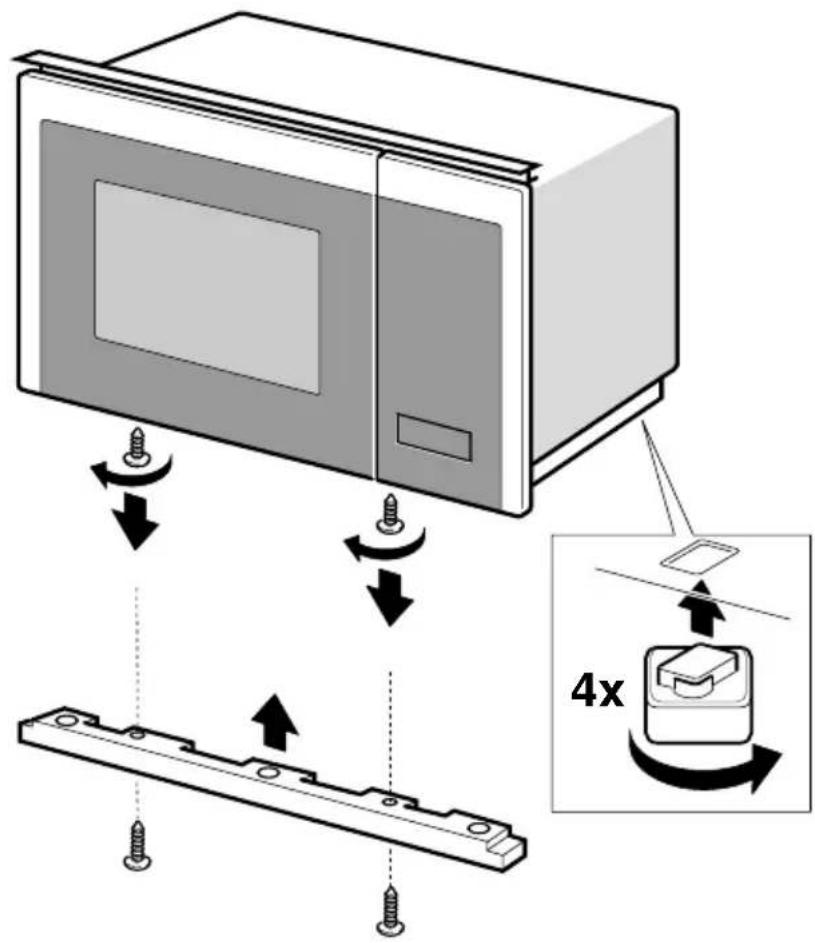

Installation and connection

  1. This appliance is only intended for domestic use.
  2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
  3. Please observe the special installation instructions.

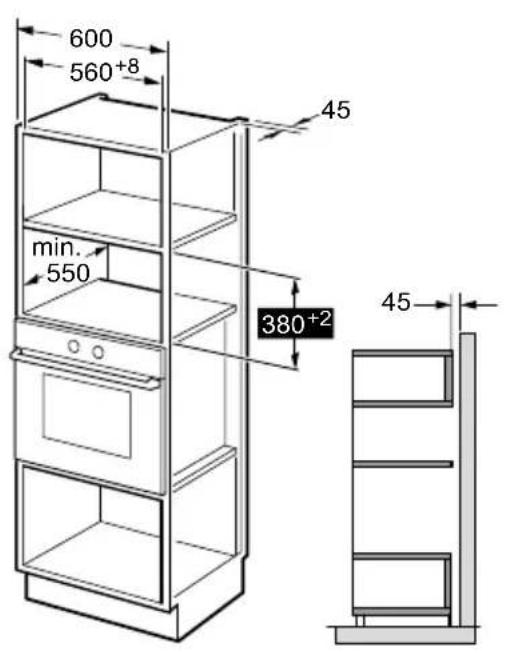

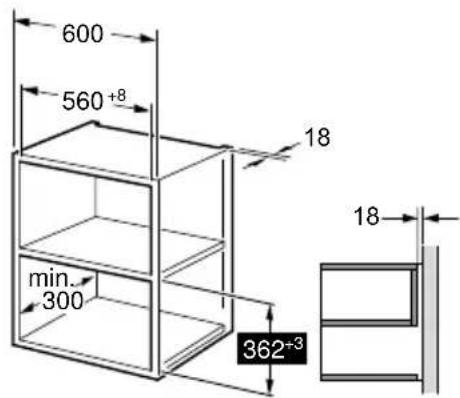

  4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
  5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
  6. The mains voltage must correspond to the voltage specified on the rating plate.
  7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
  8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surfacemay be hot duringoperation.

TEKA MLEG 820 FI BK - Installation and connection - 1

text_image e S S

TEKA MLEG 820 FI BK - Installation and connection - 2

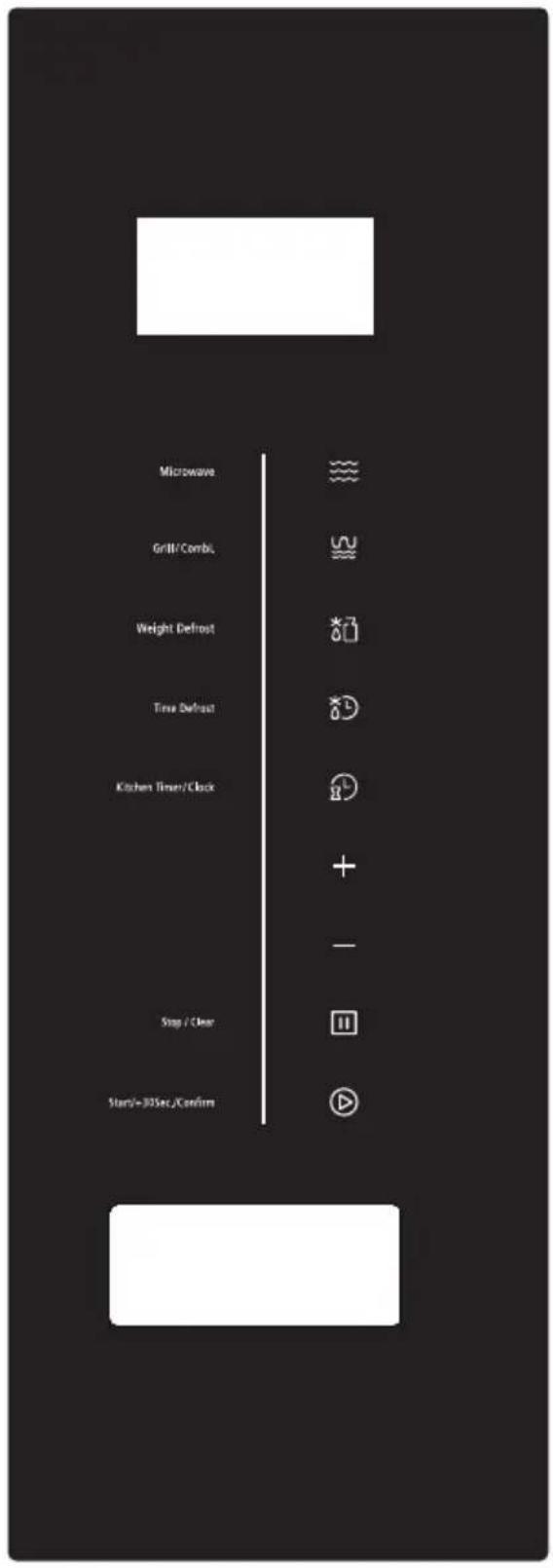

Microwave

TEKA MLEG 820 FI BK - Installation and connection - 3

Grill/Combi.

TEKA MLEG 820 FI BK - Installation and connection - 4

Weight Defrost

TEKA MLEG 820 FI BK - Installation and connection - 5

Time Defrost

TEKA MLEG 820 FI BK - Installation and connection - 6

Clock/ Kitchen Timer

TEKA MLEG 820 FI BK - Installation and connection - 7

Stop/ Clear

TEKA MLEG 820 FI BK - Installation and connection - 8

St art / + 3 0 Sec. / Confirm

TEKA MLEG 820 FI BK - Installation and connection - 9

Time/Weight/Auto Menu

TEKA MLEG 820 FI BK - Installation and connection - 10

text_image Microwave Grill/Cond. Weight Defrost Time Defrost Kitchen Timer/Clock Stop / Clear Start/+30sec./Confirm

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once. The oven will enter to waiting state.

1) Press "Kitchen Timer/Clock" twice, the hour figures will flash;
2) Press " - "or " + " to adjust the hour figures, the input time should be within 0--23.
3) Press "Kitchen Timer/Clock" to confirm, the minute figures will flash.
4) Turn " - "or " + " to adjust the minute figures, the input time should be within 0--59.
5) Press " Kitchen Timer/Clock " to finish clock setting.

":" will flash. The current time will display."

Note: 1) If the clock is not set, it would not function when powered.

2. Microwave Cooking

1) Press the "Microwave" key once, and "P100" will display.
2) Press " Microselect" repeatedly microwave power.

"P100", "P80", "P50", "P30", "P10" will display in order.

3) Press "Start/+ 30Sec./Confirm "
4) Press " = " or " + " to adjust the cooking time.

(The maximum cooking time is 95 minutes)

5) Press "Start/+ 30Sec./Confirm" to start cooking

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave PowerHigh Med.High Med.Med.Low Low
DisplayP100P80P50P30P10

3. Grill or Combi. Cooking

Press "Grill/Combi" screen will display "G", and press "Grill/Combi."

repeatedly to choose the power you want, and "G", "C-1" or "C-2" will display.

Press "Start/+ 30Sec./Conf confirm the power.

Press " - " or " + " to set cooking time. (The maximum cooking time is 95 minutes)

Press "Start/+ 30Sec./Confirm" again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press "Grid/Combo. screen displays "G".

2) Continue to press "Griunobtheiscreen displays "C-1".

3) Press "Start/+ 30Sec./Confirm" to confirm.

4) Press " - " or " + " to adjust the cooking time until the oven displays "10:00".

5) Press "Start/+ 30Sec./Confirm " to start cooking.

Combination Powerinstructions:

ProgramDisplayMicrowave PowerGrill Power
GrillG0%100%
Combi.1C-155%45%
Combi.2C-236%64%

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/+ 30Sec./Confirm" to continue cooking. If no operation, the oven will continue working.

4. Defrost By Weight

1) Press "WeightDefrost screen will display "dEF1".

2) Press " - "or " + " to select the food weight. The range of weight is 100-2000g.

3) Press "Start key 306est a code frosting.

5. Defrost By Time

1) Press " TimeDethescreen will display "dEF2".

2) Press " - "or " + " to select the cooking time. The maximum time is 95 minutes.

3) Press "Start/+ 30Sec./Confirm" key to start defrosting.

6.Multi-Stage Cooking

2 stages can be maximally set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu and speedy cooking cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "TioreDethestcreen will display "dEF2".
2) Press " - "or " + " to adjust the defrost time of 5 minutes;
3) Press "Microwave" once, the screen will display "P100".
4) Press " Microwave " repeatedly to choose microwave power till "P80" displays;
5) Press "Start/+ 30Sec./Confirm" to confirm.
6) Press " - "or " + " to adjust the cooking time of 7 minutes;
7) Press "Start/+30Sec./Confirm" to start cooking.

7. Kitchen Timer

(1) Press "Kitchen Timen/Globe screen will display" 00:00".
(2) Press " - " or " + " to enter the correct timer.

(The maximum cooking time is 95 minutes)

(3) Press " Start/+ 30Sec./Confirm " to confirm setting.

(4) When the kitchen time is reached, the buzzer will ring 5 times.

If the clock has been set(24-hour system), the screen will display the current time. Note: The kitchen Time is different from 24-hour system. Kitchen Timer is a timer.

8. Auto Menu

1) In waiting state, press " + " repeatedly to choose the menu.
2) Press "Start to be Sold Here you choose.
3) Press " - "or" + " to choose the food weight.
4) Press "Start/ta80Sock/Ggnfirm

The menu chart:

MenuWeightPower
Pizza200 g100%(Mic.)
400 g
Meat250 g100%(Mic.)
350 g
450 g
Vegetable200 g100%(Mic.)
300 g
400 g
Pasta50g(with 450 cold water)80%(Mic.)
100g(with 800 cold water)
Potato200 g100%(Mic.)
400 g
600 g
Fish250 g80%(Mic.)
350 g
450 g
Beverage1cup (about 120ml)100%(Mic.)
2cups (about 240ml)
3cups (about 360ml)
Popcorn50 g100%(Mic.)
100 g

9. Speedy Cooking

1) In waiting state, press " Start/+ 30Sec./Confirm " key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.
2) During the microwave, grill, combination cooking and the defrost by time process, press "Start/+ 30Sec./Confirm" to increase the cooking time.
3) Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing"Start/+ 30Sec./Confirm".
4) In waiting state, press " — " to choose the cooking time. After adjusting the cooking time, press " Start/+ 30Sec./Confirm " to start microwave cooking with 100% power lever.

10. Lock Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds to enter the children-lock state and the current time will display if the time has been set, otherwise, the screen will display " [::]:".

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, the lock is released.

11. Inquiring Function

1) In cooking states of microwave or grill and combination. Press "Microwave" or "grill/combi" the current power will be displayed for 3 seconds.
2) If the clock has been set, during cooking state, press "Kitchen Timer/Clock" to check the current time. It will be displayed for 3 seconds.

12. Specification

(1) If the door is opened in the process of cooking, close the door and then press "Start/+ 30Sec./Confirm" to continue cooking.
(2) Once the cooking programme has been set, "Start/Not pressed Confirm in 1 minutes. The current time will be displayed. The setting will be cancelled.
(3) The buzzer sounds once by efficient press, inefficient press will be no response.

Trouble shooting

Normal
Microwave oven interfering TV receptionRadio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven lightIn low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of ventsIn cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.It is forbidden to run the unit without any food inside. It is very dangerous.
TroublePossible CauseRemedy
Oven can not be started.(1) Power cord not plugged in tightly.Unplug. Then plug again after 10 seconds.
(2) Fuse blowing or circuit breaker works.Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
(3) Trouble with outlet.Test outlet with other electrical appliances.
Oven does not heat.(4) Door not closed well.Close door well.

TEKA MLEG 820 FI BK - Specification - 1

natural_image Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Four Micro-ondes

NOTICE D'UTILISATION

MODÈLE: MLEG 820 FI BK

natural_image Simple line drawing of a circular tray with four small objects at the center (no text or symbols)

Plateau en verre

text_image Technical diagram showing three labeled components of a mechanical or electrical assembly with concentric rings and a central shaft.
text_image Warning symbol with steam inside a triangle, indicating heat or smoke hazard

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 1

MICRO-ONDES

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 2

MODES GRILL /COMBI

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 3

DECONGELATION PAR POIDS

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 4

DECONGELATION PAR TEMPS

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 5

HEURE / MINUTEUR

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 6

ARRETER/ANNULER

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 7

DEMARRAGE / +30SECONDES / CONFIRMER

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 8

SELECTION (TEMPS, POIDS, MENUS D'ACCES RAPIDE)

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 9

text_image Microwave Grill/Combl Weight Defrost Time Defrost Kitchen Timer/Clock Stop / Clear Start=30Sec./Confirm
natural_image Three technical line drawings of circular components: a ring with holes, a circular plate with handles, and a rectangular box (no text or symbols)
text_image Technical diagram showing three labeled components of a mechanical assembly with concentric rings and a central shaft.
natural_image Warning symbol of steam inside a triangle (no text or numbers)

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 10

Microwelle

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 11

Grill/Kombi

TEKA MLEG 820 FI BK - MODÈLE: MLEG 820 FI BK - 12

text_image Microwave Grill/Combi. Weight Defrost Time Defrost Kitchen Timer/Clock Stop / Clear Start/+10Sec./Confirm

BEDIENUNG

natural_image Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Installation Instruction

The following must be noted

Electrical connection

The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. Contact protection must be ensured by the installation.

Fitted units

The installation cabinet must not have a back panel behind the appliance. Minimum installation height: 850 mm. Ventilation slots and intakes must not be covered.

Appliance in a wall-hanging unit - Fig. 1A Appliance in a tall unit - Fig.1B

Installing the oven - Fig. 2

Note: Do not trap or kink the mains lead.

FR

text_image 380mm 6.5mm 0mm

TEKA MLEG 820 FI BK - Fitted units - 1

text_image 362mm 10.5mm 14mm

TEKA MLEG 820 FI BK - Fitted units - 2

natural_image Illustration of a microwave oven, battery pack, and plastic housing (no text or symbols)

1

A
TEKA MLEG 820 FI BK - 1 - 1

text_image 600 560+8 18 min. 300 362-3 18

TEKA MLEG 820 FI BK - 1 - 2

natural_image Line drawing of a microwave oven with control panel and door (no text or symbols)

B
TEKA MLEG 820 FI BK - 1 - 3

text_image 600 560+8 45 min. 550 380+2 45

TEKA MLEG 820 FI BK - 1 - 4

text_image Diagram illustrating the assembly of a microwave oven with screw fasteners and a 4x speed indicator.

2
TEKA MLEG 820 FI BK - 1 - 5

natural_image Simple line drawing of a cabinet with a checkmark on the door (no text or symbols)

TEKA MLEG 820 FI BK - 1 - 6

natural_image Diagram of a cabinet with an X-shaped warning symbol on the door, connected to wires (no text or labels)

TEKA MLEG 820 FI BK - 1 - 7

text_image Diagram of a microwave oven with labeled components and directional arrows indicating assembly or installation steps.

TEKA MLEG 820 FI BK - 1 - 8

text_image Diagram showing a microwave oven installation with labeled components and directional arrow indicating assembly or movement.

TEKA MLEG 820 FI BK - 1 - 9

text_image min. 3 mm

Country Subsidiary Address City Phone

AustriaKüppersbusch AustriaEitnergasse, 131231 Wien+43 18 668 022
BelgiumKüppersbusch Belgium S.P.R.L.Doomveld Industrie, Asse 3, No. 11 - Boite 71731 Zellik+32 24 668 740
BulgariaTeka Bulgaria EOODBlvd. "Tsarigradsko Shosse" 1351784 Sofia+359 29 768 330
ChileTeka Chile S.A.Avd El Retiro Parque los Maitenes, 1237. Parque EneaPudahuel, Santiago de Chile+56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.Xuhui, Dist. 200030 Shanghai+86 2 153 076 996
Czech RepublicTeka CZ S.R.O.V Holesovickách, 593182 00 Praha 8 - Liben+420 284 691 940
EcuadorTeka Ecuador S.A.Parque Ind. California 2, Via a Daule Km 12Guayaquil+593 42 100 311
GreeceTeka Hellas A.E.Thesi Roupaki - Aspropyrgos193 00 Athens+30 2 109 760 283
HungaryTeka Magyarország Zrt.Terv u. 929200 Mosonmagyaróvár+36 96 574 500
IndonesiaPT Teka BuanaJalan Menteng Raya, Kantor Taman A9 Unit A312950 Jakarta+62 215 762 272
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie40150 Shah Alam, Selangor Darul Ehsan+60 376 201 600
MexicoTeka Mexicana S.A. de C.V.Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec11000 Mexico D.F.+52 5 551 330 493
MoroccoTeka Maroc S.A.73, Bd. Slimane, Depôt 33, Route de Ain SebaaCasablanca+212 22 674 462
PeruTeka Küchentechnik Perú S.A.Av. El Polo 670 local A 201, CC El polo, SurcoLima+51 14 363 078
PolandTeka Polska Sp. ZO.O.ul. 3-go Maja 8 / A205-800 Pruszkow+48 227 383 270
PortugalTeka Portugal S.A.Estrada da Mota - Apdo 5333834-909 Ilhavo, Aveiro+35 1 234 329 500
RomaniaS.C. Teka Küchentechnik Romania S.R.L.Sevastopol str., no 24, 5th floor, of. 15010992 Bucharest Sector 1+40 212 334 450
Russia/PоссияTeka Rus LLC/OOO "Teka Рус"Neverovskogo 9, Office 417, 121170, Moscow, Russia121087 Россия, Москва+7 4 956 450 064
SingaporeTeka Singapore PTE LtdClemenceau Avenue, 83, 01-33/34 UE Square239920 Singapore+65 67 342 415
SpainTeka Industrial, S.A.C/ Cajo,1739011 Santander+34 942 355 050
ThailandTeka (Thailand) Co. Ltd.364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee10400 Bangkok+66 -26 424 888
TurkeyTeka Teknik Mutfak Aletleri Sanayi VeBüyükdere Cad. 24/1380290 Mecidiyeköy, Istanbul+90 2 122 883 134
UkraineTeka Ukraine LLC86-e, Bozhenko Str .2nd floor,4th entrance03150 Kyiv+380 444 960 680
United Arab EmiratesTeka Middle East FzeBuilding LOB 16, Office 417P.O. Box 18251 Dubai+971 48 872 912
United Arab EmiratesTeka Küchentechnik U.A.E LLCBin Khedia CentreP.O. Box 35142 Dubai+971 42 833 047
VenezuelaTeka Andina S.A.Ctra. Petare-Santa Lucia, km 3 (El Limoncito)1070 Caracas+58 2 122 912 821
VietnamTEKA Vietnam Co., Ltd.803, FI 8th, Daiminh Convention Center, 77, Hoang VanThai, Tan Phu Ward, District 7, Ho Chi Minh+84 854 160 646

'TEKA

TEKA

TEKA MLEG 820 FI BK - 1 - 10

natural_image World map silhouette showing continents and countries with no text or labels

teka.com

Asped mos eriatius sit atet hicil et velit

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : TEKA

Model : MLEG 820 FI BK

Category : Microwave Oven
