Product Type	Solo Microwave Oven
Brand	Teka
Model	MWE 17 IVS INOX
Capacity	17 Liters
Interior Material	Stainless Steel
Microwave Power	700 W
Power Levels	5 Levels
Control Type	Electronic Touch Control
Display	LED Digital
Turntable Diameter	255 mm
Defrost Function	Yes, by weight or time
Timer	Up to 99 minutes
Child Lock	Yes
Interior Light	Yes
Door Opening	Drop-down door with handle
Dimensions (HxWxD)	262 x 455 x 370 mm
Net Weight	11.5 kg
Voltage / Frequency	230 V / 50 Hz
Cleaning	Wipe with damp cloth; avoid abrasives
Safety Certifications	CE, RoHS
Spare Parts Availability	Turntable, wave cover, fuse available

Frequently Asked Questions - MWE 17 IVS INOX TEKA

How do I clean the microwave?

Clean the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The stainless steel can be cleaned with a stainless steel cleaner.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage. Use microwave-safe glass, ceramic, or plastic containers.

How do I set the defrost function?

Press Defrost button, then select weight or time. The microwave will automatically adjust power for even defrosting.

What is the maximum cooking time?

You can set the timer up to 99 minutes for continuous cooking.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds. A lock icon will appear on the display. Repeat to deactivate.

Why is the turntable not rotating?

Ensure the turntable is properly placed on the drive coupling. If still not rotating, check if the glass tray is centered.

What power levels are available?

There are 5 power levels: Low, Medium Low, Medium, Medium High, High (100% power). Adjust by pressing Power Level button.

Can I reheat food in this microwave?

Yes, use the auto-reheat function or manually set time and power. Cover food to retain moisture.

What does 'IVS' stand for?

IVS likely denotes Inverter System for more precise power control and even cooking.

How do I replace the interior light bulb?

The interior light is usually LED and not user-replaceable. Contact service if it fails.

USER MANUAL MWE 17 IVS INOX TEKA

Microwave Oven

DISHWARE

CAUTION

Risk of injury

DEFROST BY WEIGHT

PRESET

DEFROST BY TIME

MENU

AUTO MENU

|

START / + 1 MINUTE

MODE

COOKING KEY

CANCEL / STOP

SELECTOR BUTTON

Read these instructions carefully before using your microwave oven, and keep them in a safe place.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MWE 17 IVS INOX
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1150W
Rated Output Power(Microwave):	700W
Rated Input Power(Grill):	1000W
Oven Capacity:	17L
Turntable Diameter:	245mm
External Dimensions(LxWxH):	461x373x280mm
Net Weight:	Approx. 12.3 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
28. The door or the outer surface may get hot when the appliance is operating.
29. The rear surface of appliance shall be placed against a wall.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heatresistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallictrim. Do not use cracked or chipped dishes.
Ovencooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Grease-proof paper	Use as a cover to prevent splattering, retain moisture or as a wrap for steaming.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Grill Rack (Only for Grill series)

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.

(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

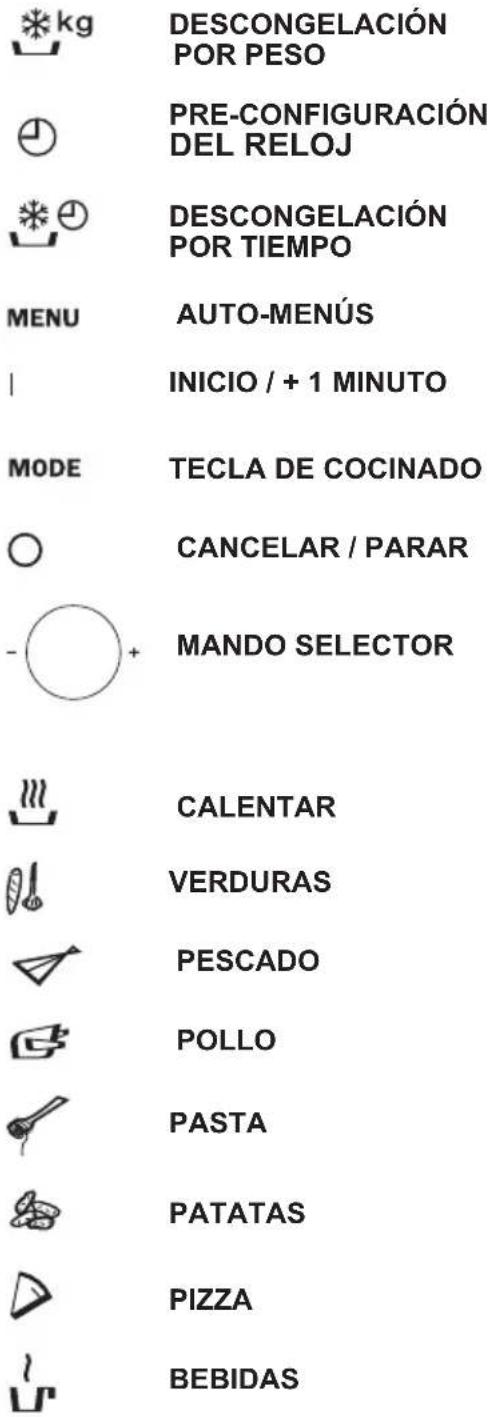

DEFROST BY WEIGHT

CLOCK/PRE-SET

DEFROST BY TIME

MENU

AUTO-MENU

|

QUICK START/START

MODE

MICRO./GRILL/COMBI.

CANCEL/STOP

TIMER/POWER/WEIGHT

AUTO REHEAT

VEGETABLE

FISH

MEAT

PASTA

POTATO

PIZZA

SOUP

LED

MENU

MODE

MWE 17 IVS

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", and the buzzer will ring once.

1) Press "🔍" — the hour figures will flash, and the indicator for clock "🔍" will light.

2) Turn "🔍" to adjust the hour figures; the input time should be within 0-23.

3) Press "🔍" — the minute figures will flash.

4) Turn "🔍" to adjust the minute figures; the input time should be within 0-59.

5) Press "🔍" to finish clock setting. The indicator for clock "🔍" will go out, ":" will flash, and the time will light.

2. Cooking food

Press "MODE" and turn "🔍" to select the function you want. Press "MODE" and turn "🔍" to select the cooking time. Press "I" to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press "MODE", the screen displays "P100".

2) Turn "🔍" to adjust 80% microwave power until the oven displays "P 80".

3) Press "MODE" to confirm, the screen displays "P 80".

4) Turn "🔍" to adjust the cooking time until the oven displays "20:00".

5) Press "I" to start cooking or press "○" to cancel the settings.

Order	LED Display	Microwave Power	Grill Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%
6	G	0%	100%
7	C-1	55%	45%
8	C-2	36%	64%

3. Program set in Advance

1) Set the clock first. (Consult the instruction of clock setting.) 2) Input the cooking program. Three stage power levels can be set at most. Defrost should always be set as the first stage, if it is included in the multi-level program.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

a. Press "MODE", the screen display "P100". b. Turn " 🔍" to adjust 80% microwave power until the oven displays "P 80". c. Press "MODE" to confirm, the screen displays "P 80". d. Turn " 🔥 " to adjust the cooking time until the oven displays "20:00". Be careful not to press " ! " to start cooking.

3) Press " ⊕ ", the hour figures will flash, and the indicator " 🔊 " will light. 4) Turn " " to adjust the hour figures, the input time should be within 0--23. 5) Press "💡", the minute figures will flash. 6) Turn " " to adjust the minute figures, the input time should be within 0--59. 7) Press " | " to finish setting.

4. Start/Quick Start "I"

When the oven is in the waiting states, Press "I" to start cooking with full microwave power for 1 minute. Each press will increase one minute. The maximum cooking time is 95 minutes.

5. Defrost By W .T. *kg

1) Press " *kg " button. LED will display "dEF1".

2) Turn " 🔍 " to select the weight (between 100-2000 g).

3) Press "I" to start defrosting.

6. Defrost By Time

1) Press " ✉ ⊕ " button. LED will display "dEF2".

2) Turn " 🔍 " to select the cooking time (between 0:05-95:00)

3) Press "I" to start defrosting food.

7. Inquiring Function

(1) In cooking state, press "MODE", the current power will be displayed for 4 seconds. After 4 seconds, the oven will turn back to the former state;

(2) In cooking state, press "💡" to inquire the time and the time will flash in the LED for 4 seconds.

8. Multi-section cooking

At most 3 sections can be input for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Note: Auto cooking cannot work in the multi-section cooking.

Example: If you want to use "20 minutes of 100% microwave power + 5 minutes of 80% microwave power" to cook.

1) Press "MODE" pad, the screen display "P100".

2) Press "MODE" to select 100% microwave power.

3) Turn " " to select cooking time.

4) Press "MODE" pad, the screen display "P100".

5) Turn " " to select 80% microwave power.

6) Press "MODE" pad, then turn " " to select cooking time of 80% microwave power.

7) Press " | " to start cooking or press " O" to cancel the setting. The unit will turn back to the clock state.

9. Auto Menu MENU

Example: If you want to use "Auto Menu" to cook fish of 250g.

1) Press "MENU" the oven display "A-1".

2) Turn " " to select the function you want.

3) Press "MENU" button to confirm.

4) Turn " " to select weight of fish. "g" will light.

5) Press " | " to start. "g" will go out.

10. Lock-out Function for Children

Lock: In waiting state, press "O" for 3 seconds, there will be a long beep denoting entering into the children-lock state and LED will display "

Lock quitting: In locked state, press "O" for 3 seconds, there will be a long "beep" denoting that the lock is released.

The automatic menu procedure:

Menu	Weight	Display
A-1	200 g	200
	400 g	400
Auto Reheat	600 g	600
A-2	200 g	200
	300 g	300
Vegetable	400 g	400
A-3	250 g	250
	350 g	350
Fish	450 g	450
A-4	250 g	250
	350 g	350
Meat	450 g	450
A-5	50 g(with water 450g)	50
Pasta	100 g(with water 800g)	100
A-6	200 g	200
	400 g	400
Potato	600 g	600
A-7	200 g	200
	400 g	400
A-8	200 ml	200
	400 ml	400

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

COUNTRY COMPANY CC TELEPHONE E-MAIL / FAX

AUSTRALIA TEKA AUSTRALIA Pty. Ltd. 61 3 9550 6100 [e-mail]

AUSTRIA KÜPPERSBUSCH GesmbH 43 1 866 800 [e-mail]

BELGIUM B.V.B.A. KÜPPERSBUSCH S.P.R.L. 32 2 466 8740 [e-mail]

BULGARIA TEKA BULGARIA LTD. 359 2 9768 330 2 9768 332

CHILE	TEKA CHILE, S.A.	56	2 4386 000	[e-mail]
P. R. CHINA	TEKA INTERNATIONAL TRADING (Shanghai)	86	21 511 688 41	[e-mail]
CZECH REPUBLIC	TEKA CZ S.R.O.	420	2 84 691940	[e-mail]
ECUADOR	TEKA ECUADOR, S.A.	593	4 2100311	[e-mail]
FRANCE	TEKA FRANCE S.A.S.	33	1 343 01597	1 343 01598
GERMANY	TEKA KÜCHENTECHNIK GmbH	49	2771 3950	[e-mail]
GREECE	TEKA HELLAS A.E.	30	210 9760283	[e-mail]
HUNGARY	TEKA HUNGARY KFT	36	1 3542110	[e-mail]
INDONESIA	PT TEKA BUANA	62	21 390 5274	[e-mail]
ITALY	TEKA ITALIA S.P.A.	39	0775 898271	[e-mail]
KOREA (SOUTH REP.) TEKA KOREA CO. LTD.		82 2 599 4444		222 345 668
MALAYSIA	TEKA KÜCHENTECHNIK (MALAYSIA) SDN.	60	3 7620 1600	[e-mail]
MAROC	TEKA MAROC, SA	34	942 355 286	942 355 260
MIDDLE EAST	TEKA KÜCHENTECHNIK MIDDLE EAST FZE	971	4 887 2912	[e-mail]
MEXICO	TEKA MEXICANA S.A. de C.V.	52	555 133 0493	[e-mail]
PAKISTAN	KÜPPERSBUSCH-TEKA PAKISTAN Pvt. Ltd.	92	42 5757676	42 631 2183
POLAND	TEKA POLSKA SP. ZO.O.	48	22 7383270	[e-mail]
PORTUGAL	TEKA PORTUGAL, S.A.	351	234 329 500	[e-mail]
ROMANIA	SC TEKA KÜCHENTECHNIK ROMANIA SRL	40	21 233 44 50	21 233 44 51
RUSSIA	TEKA RUS LLC	7	495 101 31 08	[e-mail]
SINGAPORE	TEKA SINGAPORE PTE. LTD.	65	67342415	[e-mail]
SPAIN	TEKA INDUSTRIAL, S.A.	34	942355050	[e-mail]
THAILAND	TEKA (THAILAND) CO. LTD.	66	2 652 2999	2 652 2740 1
TURKEY	TEKA TEKNIK MUTFAK	90	212 288 3134	[e-mail]
UKRAINE	TEKA UA	380	44 496 0680	[e-mail]
UNITED ARAB EMIRATES	TEKA KÜCHENTECHNIK U.A.E. LLC	971	4 283 3047	[e-mail]
UNITED KINGDOM	TEKA PRODUCTS LTD.	44	1235 861916	[e-mail]
USA	TEKA USA, INC.	1	813 2888820	[e-mail]
VENEZUELA	TEKA ANDINA, S.A.	58	2 1229 12821	[e-mail]
VIETNAM	TEKA VIETNAM CO LTD	848	38 258 746	38 258 747

TEKA INDUSTRIAL, S.A.

C/ Cajo, 17

39011 Santander (Spain)

Tel.: [phone]

Fax: [phone]

[e-mail]

www.teka.com

35708 Haiger (Germany)

Tel.: [phone]

Fax: [phone]

[e-mail]
