USER MANUAL VQU40043S CECOTEC

Front view of a modern flat-screen TV with curved legs (no visible text or symbols)

Safety instructions 14

1. Before use 120

2. Installation 120

3. TV operation 121

4. Remote control operation 129

5. Troubleshooting 132

6. Technical specifications 134

7. Disposal of old electrical and electronic

appliances 134

1. Technical support and warranty 13/4

2. Copyright 135

3. Simplified Declaration of Conformity

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE.
• For any type of incident, breakdown, inspection, or maintenance, please contact the official Cecotec Technical Support Service.
  This symbol means: general warning sign. It is used to draw the user's attention to the main safety instructions related to use or maintenance (routine maintenance). Please pay particular attention to the information marked with this symbol.
  This symbol means: Warning; Electricity. It is used to warn the user of the presence of uninsulated high voltage in the product's system that may be strong enough to constitute a risk of electric shock. Warning: please pay particular attention to the information marked with this symbol.
  ATTENTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE LID (OR BACK PAD). IT DOES NOT CONTAIN PARTS THAT CAN BE CHANGED BY THE USER. CONTACT QUALIFIED TECHNICAL PERSONNEL.
• In extreme weather (storms, lightning) and long periods of inactivity (going on vacation) disconnect the television from the mains.
• The mains plug is used to disconnect the television from the electricity and must therefore always be accessible. If the TV is not disconnected from the mains, the device will still consume power for all situations, even if the TV is in standby mode or switched off.

WARNING: this appliance is not intended to be used by people (including children) without skills/experience in the operation of such a device without supervision unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Please use this appliance at an altitude of less than 5000 meters above sea level, in dry places and in regions with temperate or tropical climates.
- The TV is designed for domestic and similar indoor use.
- To facilitate ventilation, leave at least 5 cm of free space around the TV.
- Ventilation should not be impeded by covering or blocking the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
- The power cable must be easily accessible. Do not place the TV or any furniture etc. on the power cable or step on it. A damaged cable may cause a fire or give you an electric shock. Grasp the power cable by the plug; do not unplug the TV by pulling on the power cable. Never touch the cable with wet hands, as this may cause a short circuit or give you an electric shock. Never tie a knot in the cable or splice it with other cables. You must replace it when it is damaged, being only a professional who can do it. If the cable or any other part of the device is damaged, contact the official Cecotec Technical Support Service.
- Do not expose the TV to dripping and splashing liquids, and do not place objects filled with liquids, such as flower vases, cups, etc., or more on the TV (eg, on shelves above the TV).
- Do not expose the TV to direct sunlight or open flames, such as light candles on top of or near the TV.
- Do not place any heat sources such as electric heaters, radiators, etc. near the TV.

• Do not place the TV on the floor or on inclined surfaces.
• To avoid a suffocation hazard, keep plastic bags out of the reach of babies, children, and pets.
• Carefully attach the bracket to the TV. If the bracket is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the bracket rubbers properly.
• Do not dispose of batteries in fire or with hazardous or flammable materials.
  WARNING: never expose batteries to excessive heat such as sunlight, fire or the like.
• VERY IMPORTANT: You MUST NOT let anyone, especially children, insert any objects into holes, slots, or any opening on the TV.
• Excessive volume on headphones could cause hearing loss problems.
• No part of this product may be repaired or replaced by the user. Repairs and maintenance should only be carried out by qualified personnel. Disassembling the product in any way will void the product warranty.

Use

• This product is intended for domestic use only and not for commercial or industrial use. Use the appliance only as described in this manual.
• This appliance cannot be used by children. Children should not play with the product.

Power supply

- Before plugging in the device, check that the voltage indicated on the rating plate of the product corresponds to the voltage of your electrical installation.

• Connect the plug to an easily accessible socket.
• The mains plug is the only way to completely disconnect the device from the mains. To make sure that the device is no longer powered, you must unplug this plug from the socket.
• Be sure to unplug the power plug from the outlet during a lightning storm or when unused for long periods of time.

Power socket and power cable

• Make sure that the plug and power cable cannot be crushed or jammed, especially at plugs, sockets, and the point of connection to the product.
• Be sure to position the power cable so that it cannot be tripped over or stepped on.
• When unplugging the TV, always pull the power plug. Do not pull the cord.
• Do not touch the product or the power cable with wet hands.
• Never knot the cord or tie it with other cords.
• If the power cable is damaged, it can be replaced by your dealer, your after-sales service, or a similarly qualified person in order to avoid any risk.
• Do not immerse the appliance in water or other liquids.
  This symbol means: Class II equipment. This equipment is a class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety earthed connection.

Installation

• Install the product on a flat, stable surface of sufficient size to accommodate it.
• Do not install the TV set on top of another electrical appliance.
• This product should be used in a temperate climate and indoors only.

Maintenance

• Make sure that the bracket on which you place the appliance is stable. If using a trolley, be careful when moving the product so that it does not tip over and injure someone.
• Use only with brackets and tripods recommended by the manufacturer or sold with the product. If you use a stand, be careful not to turn it when transporting the TV + bracket, to avoid injury. The product must be fixed to the floor or wall as indicated in the instructions to avoid any damage.

Humidity and water

• Do not expose this product to rain or moisture to avoid the risk of fire or electric shock.
• Avoid splashing and do not place objects containing liquids (such as vases) on or near the appliance.
• Do not use this equipment in damp and wet locations (avoid bathrooms, toilets, and locations near a washing machine).
• If liquid or any object enters the TV, unplug it, and do not use it again until it has been checked by the after-sales service.

Heat sources

• Do not install this product near any heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Do not place flammable sources, such as lighted candles, on or near the product.
• Do not expose this product to direct sunlight, dust, or vibration.

Ventilation and entry of objects

- The slots and openings in the product are used for ventilation and to ensure reliable operation.

• Do not obstruct ventilation holes by covering them with objects such as newspapers, tablecloths, curtains, etc.
• Do not place the product on a bed, sofa or other similar surface that may obstruct the ventilation grilles.
• Make sure that there is at least 5 cm of space around the product to ensure good ventilation.
• Make sure that no objects fall, and that no liquid enters the appliance through the slots or ventilation grilles. The device has a high voltage, and the introduction of an object inside the device may cause electric shock and/or short-circuit of the internal parts.

Headphone volume

- To preserve your hearing, we recommend that you never set the headphone volume too high.

Removable USB media

• You can connect external 2.5" and 3.5" hard disks (hard disks with external power cable) to the TV via the USB input.
• NOTE: back up the files on your storage devices before connecting them to the TV. Please note that the manufacturer is not liable for damage to files or loss of data.
• Some types of USB devices (such as MP3 players) or hard disk drives may not be compatible with this TV.
• The TV supports formatting of FAT32 and NTFS discs. However, burning will not be possible with NTFS formatted discs.
• You may experience some problems when formatting USB hard disks with a storage capacity of more than 1TB (Terabyte).
• Wait a moment before connecting or disconnecting the device, as it may not have finished reading the files. If this

happens, it may physically damage the USB drive and the USB device itself. Never remove a USB device while playing a file.

• You can use USB hubs with the USB input of the TV. In this case, USB hubs equipped with an external power supply are recommended.
• We recommend that you use the USB input of the TV directly if you want to connect a USB hard disc.

Cleaning

• Before cleaning the product, unplug it from the wall socket.
• Use only a soft, dry cloth.
• Avoid the use of aerosols.

Technical Assistance

• Refer all maintenance requests to qualified personnel. Servicing is required if the appliance has been damaged in any way: damaged power cable; liquids or objects entering the product; exposure to rain or moisture; malfunction or being dropped.
• No repairs can be carried out by the user. Please consult with the after-sales service of your establishment for maintenance requests.

Spare parts

• When parts need to be replaced, make sure that the service technician has used spare parts specified by your dealer or parts having the same characteristics and performance as the original parts.
• Unauthorised modifications may result in fire, electric shock, or other damage.

Disposal instructions

• The packaging and its components are recyclable and should therefore be recycled. Packaging materials should be kept out of the reach of children.
• The liquid crystal display (LCD) is a high-tech product containing approximately one million transistors that give you a high quality image. Occasionally, some blue, green or red dots (corresponding to non-active pixels) may appear on the display. This does not affect the performance of the product.

Recycling of remote control batteries

• Do not dispose batteries with household waste. To protect the environment, please dispose of batteries in accordance with the applicable regulations.
• Never recharge non-rechargeable batteries, and do not disassemble or dispose of batteries in fire.
• Do not expose to high temperatures or direct sunlight.
• CAUTION: do not ingest batteries, there is a danger of chemical burns.
• This product contains batteries. If swallowed, it can cause severe internal burns in as little as 2 hours, leading to death.
• Keep new and used batteries out of the reach of children.
• If the battery compartment does not close securely, stop using the product and keep it out of the reach of children.
• If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Discharged batteries must be removed from the device for safe disposal.
• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with

soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• If the device is to be stored unused for a long period of time, it is advisable to remove the batteries.
• Batteries must be inserted according to the correct polarity. Check polarity when replacing them.

Electronic equipment

• Your Bluetooth* TV uses Bluetooth* technology. Transmits and receives radio frequencies (HF) around 2.4 GHz. These high-frequency emissions can interfere with the proper functioning of many electronic devices. To avoid accidents, turn off the Bluetooth TV* when you are in the following places:
  a) Places where flammable gases are present, hospitals, trains, aeroplanes, or petrol stations, near automatic doors or fire alarms.
  b) Blast zones.
  c) If you have a pacemaker or other prosthesis, ask your doctor for advice.

INSTRUCTIONS DE SÉCURITÉ

Assistance Technique

00979_TV QLED A4 series VQU40043

00982.TV QLED A4 series VQU400435

https://cecotec.es/es/information/declaration-of-conformity

ENGLISHENGLISH

1. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• TV
• Remote control
• AAA batteries (x2)
• Instruction manual

2. INSTALLATION

Assembling the support base

1. Place the TV with the screen facing downwards on a flat surface. Use a cloth to protect the screen. Place the 2 pieces of the base bracket into the recess at the bottom of the TV.
2. Lock 4 PCS screws below and check that each screw is firmly tightened. Fig. 2
   Note: this bracket is non-rotatable. Do not attempt to rotate the TV.
   Note: the figures shown in this manual are schematic representations and may vary from reality.

Connections

Warning:

• Before making any connections to external devices, make sure that the TV and the various devices are not receiving power.
• This TV offers an AV cluster for convenient connection of VCRs, DVDs, or other video equipment. Refer also to the instruction manual of the equipment to be connected.

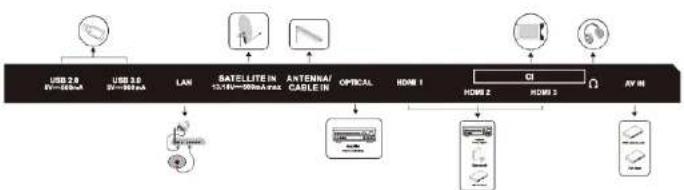

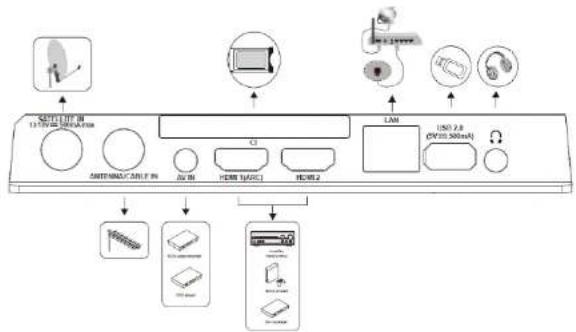

• You can use the input terminals on the back of the TV as shown in figure 2.

Do not touch or come close to the ANTENNA, SATELLITE and HDMI terminals, and avoid electrostatic discharge while the TV is in USB and LAN mode, otherwise the TV will stop working or show abnormal condition.

Installing a bracket

• Call a technician to install the wall bracket. Cecotec is not liable for damage to property or personal injury resulting from installation by the customer.
• Make sure that the hardware used is suitable for your wall.
• Attach your TV only to a brick or concrete wall.
• Make sure that children do not hang on the TV or try to climb on it.

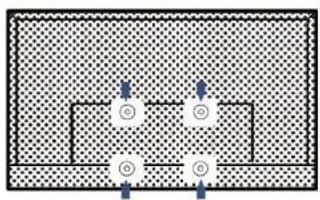

• VESA 300x300 wall bracket is NOT INCLUDED. During installation, refer to the instructions supplied with the wall bracket.
• You need four M8x12 screws to attach the wall bracket to the back of the TV. Fig. 3

3. TV OPERATION

First configuration

Connect the power and antenna to your TV, then turn on the device.

On first start-up, the Welcome screen appears to guide you through the initial setup process. Follow the on-screen instructions to select your preferred language, connect to the network, perform an automatic channel search, etc.

NOTE: in order for the remote control to work, it must be paired with the TV set, please read section 4 beforehand "Remote control operation" to do so.

Google - Initial setup

When you switch on the TV for the first time, a wizard will appear to guide you through the following initial settings.

The settings below are shown in the figures when selecting the English language.

Step 1: this function is used for the remote control pairing code. Once you have entered the code, you can use the Bluetooth remote control to control the TV. Fig. 4 See section 4 of this instruction manual.

Step 2: select the menu language you require. Fig. 5

Note: the illustrations in this manual are provided for reference only.

Step 3: select your Country/Region. Fig. 6.

Step 4: (some countries only) select whether you want to "Set up Google TV". Fig. 7

Option 1. If you select "Set up basic TV". Fig. 8

Step 5: select whether or not you want to connect your TV to the Wi-Fi network. Fig. 9

ENGLISHENGLISH

Step 6: please read and accept Google's Terms of Service and Privacy Policy. Fig. 10

Step 7: room

Use to select your environment and then, press "OK" to move to the next step.

Start Mode: you can see the standard settings for picture and sound modes.

Shop Mode: you can enjoy enhanced picture and sound mode settings. Fig. 11

Step 8: Terms and Conditions

Use to read the Terms and Conditions, then press "OK" to confirm and move on to the next step. Fig. 12

Step 9: channel installation

Use a select Tuner Mode: Antenna, cable, satellite: Type: Digital or Analogue. Press OK to confirm and proceed to the next step. Fig. 13

Step 10: check settings.

When all the settings are completed, the (Please check the settings) interface will appear on the display, press OK to finish the initial configuration. You can also go back to the previous step and make changes with the button←Fig.14

Option 2. If you select 'Setup Google TV'. Fig. 15

Step 5: connect the TV to a Wi-Fi network. Fig. 16

Note: to use GOOGLE TV, you must be connected to a Wi-Fi network.

Step 6: enter your Google account and password. Fig. 17

Step 7: read the Terms of Service and Google's Privacy Policy to accept them. Fig. 18

Step 8: use "Google Assistant". Fig. 19

Step 9: search across all your TV apps. Fig. 20

Step 10: choose your subscriptions. Fig. 21

Step 11: room

Use to select your environment and then, press 'OK' to move to the next step.

Start Mode: you can see the standard settings for picture and sound modes. Shop Mode: you can enjoy enhanced picture and sound mode settings. Fig. 22

Step 12: Terms and Conditions

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU40043S

TV OLED A4 SERIES VQU40043 / TV OLED A4 SERIES VQU40043S

Use A/V to read the Terms and Conditions, then press 'DK' to confirm and move on to the next step. Fig. 23

Channel installation

Step 13: channel installation

Press to select Tuner Mode: Antenna, Cable; Type: Digital or Analogue. Press OK to confirm and proceed to the next step. (If you select "cable" in Tuner Mode, the type can only be analogue). Fig. 24

Step 14: check the configuration

When all the settings are completed, the [Please check the settings] interface will appear on the display, press OK to finish the initial configuration. You can also go back to the previous step and make changes with the button ← Fig. 25

App installation

Step 15: apps installation, Fig. 26

Note: please note that this will take some time.

Step 16: your Google TV is ready. Fig. 27

The setup is complete, and the TV is ready.

Note: if tuning has failed, check the RF cable connection, and follow the on-screen instructions.

General operation

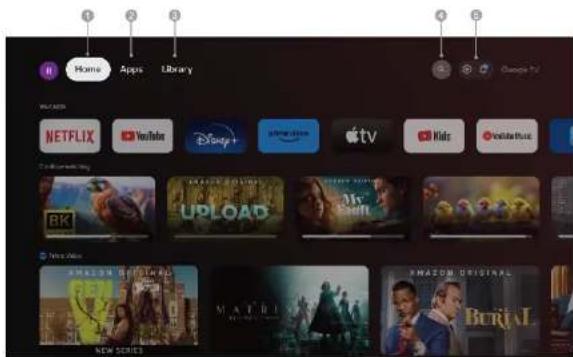

Use of the home page. Fig. 28

Note: this manual is for common use. The figures and illustrations in this User Manual are provided for reference only and may differ from the actual appearance of the product. And on some models, some options are not available.

You can select any function from the home page. (Make sure you are logged in to your Google Account).

After connecting the TV to the Internet, press to go to the home page.

Press to select any icon from the list on the screen.

Press OK to select any option.

Press for to exit the App.

Options

1. Home: select the icons from the list on the screen.

2. Apps: displays the list of favourite applications and allows you to enter the application centre.

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU400435

TV OLED A4 SERIES VQU40043 / TV OLED A4 SERIES VQU40043S

ENGLISHENGLISH

1. Library: your library is empty. Here you can find your purchases, rentals and content listed on TV, mobile and web.
2. : search for films, series, apps and more.
3. : shows the TV settings menu.

Note

• The functions and content of the "Home Page" may vary depending on the country or model.
• Before using the functions on the home page, such as applications, etc., first connect the TV to the network.
• The copyright of the icons belongs to the providers of the application.

Note: the images shown are for illustration and reference only.

Using the menu functions

Source

Press then use to select the desired source and press OK to confirm Fig. 29

Note: the available source may vary depending on the model.

Using the system settings

The 'Settings' menu allows you to configure the TV according to your preferences. Fig. 30

Note: some features may not be available from certain sources. And on some models, some options are not available.

Each menu is designed and detailed to help you get the most out of your TV. To access the menu system:

1. Press ∧∨ to select the desired option, then press OK to open the corresponding submenu.
2. In the submenu, use the ∧/∨ buttons and press OK to confirm the settings. Use ∧/∨ to select an item and press OK to enter its interface and operate according to the screen display.
3. Press ←to return to the previous menu.

Adding a Google account

If you are already signed in to your Google Account, select "Accounts and sign in" in the settings. Fig. 31

Channels

Note: this function is only available in TV mode.

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU40043S

TV OLED A4 SERIES VQU40043 / TV OLED A4 SERIES VQU400435

Depending on the signal source, the menu that appears may be different.

ATV

In TV mode:

1. Press → the remote control and select ATV.
2. Press on the remote control to select:
3. Country and region: shows your country or region.
4. Analogue Auto Scan (automatic channel scan): press OK to start the automatic search process. The search process can take a few minutes. During the process, you can press ← to stop the process.
5. Analogue Manual Scan (manual channel scan): press OK to access the menu. Use to select the Programme, Audio system, Colour system and Frequency, press OK on the Frequency option to start the search.
6. Favourite: configure your favourite channel list.
7. Channel organiser: this option allows you to organise the channels.
8. Teletext: select the Teletext language.

Input type

• HDMI CEC Settings:
• CEC control: select ON/OFF
• Automatic device shutdown: select ON/OFF
• Automatic device switch-on: select ON/OFF
• CEC device list: switch on the devices and select (active) to enable HDMI device control.

Cable

Press → the remote control and select "Cable", scroll to "Digital Cable Tuning Screen".
- Country and region; shows your country or region.
- Auto Tune:
1. Press OK to access the menu.
2. Select a channel from the list.
3. When selecting a channel, you can use to select the frequency (MHz). Auto or Manual.
4. Then select "Start" to begin the automatic search process.
5. If you choose the 'Other' option, use to select 'Search Type' such as 'Full Search', "Quick Search" or 'Network Search'. Then, select 'Start' to begin the automatic search process.
6. The search process can take a few minutes. During the process, you can press ← to stop the process.

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU40043S

TV QLED A4 SERIES VQU40043 / TV QLED A4 SERIES VQU40043S

ENGLISHENGLISH

Antenna

Press → the remote control and select 'Antenna', scroll to 'Digital Antenna Tuning Screen'. - Country and region: shows your country or region.
- Auto Tune: press OK to access the menu. The search process can take a few minutes. During the process, you can press to stop the process.
- Manual search: Use to set the Channel Number, Frequency (KHz) and Bandwidth (M). Then, select "Start Scan" to begin the channel search process.
- LCN: select ON/OFF
- Automatic service update: select ON/OFF - Update search: select ON/OFF

Satellite

Press → on the remote control and select "Satellite", scroll to "Digital Satellite Tuning Screen". Country and region: shows your country or region.

Satellite tuning

A. Automatic search
1. Press OK to access the satellite search menu, select the desired satellite option in the "SATELLITE" column on the left side of the screen.
2. Press the blue button on the remote control, the channel search menu will appear on the screen.

- Search mode: to select Network, Default or Blind scan (the latter option ignores outdated frequencies).

- Channel type: to select all channels or FTA channels (channels viewed via satellite).

Note: the options 'Search mode' and 'Channel type' can be combined in any way.

After choosing the combination, select "Enter" on the screen to start the automatic search process.

The search process can take a few minutes. During the process, you can press to stop the process.

B. Manual search
1. Press OK to access the satellite search menu. Select the desired satellite option in the 'SATELLITE' column on the left side of the screen, select the desired transponder (frequency signal) from the middle column of the screen and select the corresponding LNB type (satellite dish converter that receives the satellite signal and distributes it over the coaxial cable) in the right column of the screen.
2. Once these parameters are selected, the "Signal Level" and "Signal Quality" will be displayed by a blue signal bar. If the signal is normal, the blue bar should be greater than 80.

1. Press the blue button on the remote control, the channel search menu will appear on the screen.

2. Search mode: to select Network. Default or Blind scan (the latter option ignores outdated frequencies).

3. Channel type: to select all channels or FTA channels (channels viewed via satellite).

Note: the options "Search mode" and "Channel type" can be combined in any way.

After choosing the combination, select "Enter" on the screen to start the automatic search process.

The search process can take a few minutes. During the process, you can press to stop the process.

• Automatic service update: in the general "Satellite" option, select ON/OFF.
• LCN: select ON/OFF (allows you to set in which order and position the channels are memorised).
• Press OK/▶ to display information about the current digital channel signal, such as signal strength, frequency, etc.
  Channel organiser: this option allows you to organise the channels as you wish.

Display and sound. Fig. 32

Select this option to adjust the picture mode or advanced settings.

Picture Mode: to select Normal, Dynamic, Cinema, Sport, Game and Custom mode.

ECO: to select Off, Low and High.

Backlight: to select the level from 0-100.

Advanced setting

Colour temperature: to select Standard, Warm and Cool.

Dynamic contrast: to select On or Off.

HDMI PC/ AV Mode: to select Video, PC and Auto.

Overscanning: to select On or Off.

Noise reduction: to select Off, Low, Medium, High and Auto.

Image Reset: to reset the image.

Motion estimation and compensation (MEMC): to select Off, Low, Medium, and High.

Range: to select 2.2 or 2.4.

Display

Select this option to adjust the image size.

ENGLISHENGLISH

Sound

Select this option to configure the sound settings.

Sound Mode: to select Standard. Voice, Music, Stadium and User mode.

Dolby audio processing: to select On or Off.

Surround mode: to select Pure Sound or Surround.

Sleep mode: to select On or Off.

Sound only: select this mode and the TV screen will turn off in 10 seconds.

Advanced settings

1. Dialogue and voice audibility enhancer.

2. Dialogue and voice audibility adjustment levels 1-7.

3. Scale

4. Sound reset

Audio output: select this option to configure the audio settings.

Output device: to select the TV speaker, SPDIF/Optical and HDMI-ARC.

Digital output: to select PCM, ByPass and Auto.

Digital audio delay (ms): to select the level from 0-100.

Digital audio volume: to select the level from 0-100.

eARC: to select off or automatic.

Networks and Internet

Select Wi-Fi or Ethernet to connect the TV to the network and adjust the settings. Fig. 33

1. Use to select the Wi-Fi option.

2. Press OK to access the corresponding submenu.

3. Once the setting is done, press OK to save and return to the previous menu.

Privacy

View or adjust privacy settings for devices, accounts, and applications. Fig. 34

1. Use to select the Privacy option.

2. Press OK to access the corresponding submenu.

3. Once the setting is done, press OK to save and return to the previous menu.

Apps

View or adjust Application Specific Settings. Fig. 35

1. Use to select the Apps option.

2. Press OK to access the corresponding submenu.

3. Once the setting is done, press OK to save and return to the previous menu.

System. Fig. 36

In this menu, you can read the information and settings of the TV.

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU40043S

TV OLED A4 SERIES VQU40043 / TV OLED A4 SERIES VQU40043S

Accessibility: to select Closed Captioning, High Contrast Text, Text to Speech, Accessibility Shortcut, TalkBack Screen Reader, Switchboard Access, and TV Service Manager.

About: you can update the system, view, or change the device name, reboot and read the TV information.

- System update: you can update the TV system.

- Device name: you can see and change the TV name.

- Reset: Google restart. After the restart, your Google Account, and the application you installed will be deleted.

Date and time: to select Automatic date and time, Set date, Set time, Set time zone and Use 24-hour format.

Note: the programmed date and time are available when the Automatic Date and Time option is disabled.

Language: to select the menu language of your choice.

Keyboard: to select the current Keyboard, Keyboard Settings, and Manage Keyboards.

Storage: displays the internal shared storage, if there is an external device, it can also display the external storage settings.

Ambient mode: screen saver settings, you can select the picture, the switching time of the picture, whether to display the time and date, etc.

Power and energy: to select the power on, Screen Saver and Energy Saver.

Google Cast: to select Always, During screening or Never.

Sound system: to select On or Off.

System preferences: to select Shutdown Timer, Standby Mode, Timer Output Settings, Settings, Environment, RCU Firmware Update, Software Version and User ID.

Reset: to reset your TV.

Remote controls and accessories

Turn on Bluetooth and pair the accessories. Fig. 37

Help and feedback

Send your feedback to Google or use the web search screen to access Google Centre. Fig. 38

Inserting the batteries in the remote control

- Open the cover on the back of the remote control. Correctly insert the batteries into the remote control, respecting the "+" and '-' polarities.

- Refit the cover. The remote control is powered by two AAA LR03 1.5 V batteries. We recommend using only alkaline batteries.

TV LED A4 SERIES ALLI40043/ TV LED A4 SERIES ALLI40043S

TV QLED A4 SERIES VQU40043 / TV QLED A4 SERIES VQU40043S

ENGLISHENGLISH

- Remove the batteries from the remote control, if you are not going to use it for a long time (more than one month). Used batteries must be disposed of safely. Deposit them in specially designated collection containers to protect the environment.

Orientation

• Point the remote control at the infrared sensor on the front of the TV at an angle of 30^ so that it can receive the transmitted information.
• The remote control has a range of 6 meters.
• Make sure that there are no obstacles between the remote control and the infrared sensor, and that sunlight or other light sources are not reflected on them.

Pair the Bluetooth\* remote control with the TV

The Bluetooth ^® remote control, which is mainly used to control the TV using the Google voice assistant, needs to be paired with the TV at first power on or later by following the steps below:

Pairing the remote control with the TV

• This is a Bluetooth remote control, before using it, please pair it with the TV first. When the TV is switched on for the first time, the remote control pairing process will start; this occurs during the initial setup. The remote control will automatically pair with the TV.
• You can add an additional remote control to your TV via Google or replace your old one if it has broken. Other devices, such as speakers or console controllers, can also be connected via Bluetooth.

Follow the steps below (Figure 39):

Step 1: press no go to the home page.

Step 2: use to select and enter the interface.

You can also directly press the button on the remote control.

Step 3: use ∧/∨〈/〉 to select 'Remote controls and accessories' and press OK to enter the interface.

Step 4: use ∧/∨〈/〉 to select 'Pair accessory' and press OK to enter the interface.

ATTENTION: in this menu, you can activate or deactivate Bluetooth, add a new remote control or other accessory, or set up a remote control or accessory that is already connected to the TV.

Follow the instructions on the screen to pair it. Press and hold←and for 5 seconds on the new remote control. Once detected, it will appear on the screen.

Then, press OK on your old remote control to confirm that you are adding the new one. ATTENTION: if you have difficulties pairing the remote control with the TV, turn off all other wireless devices and try again.

If you want to unpair your Bluetooth remote, follow these steps:

Step 1: press no go to the home page.
Step 2: use to select and enter the interface.

You can also directly press the button on the remote control.

Step 3: use ∧∨〈/〉 to select 'Unpair remotes or accessories' and press OK to enter the interface.

Step 4: use to select "Delete" and choose "Yes".

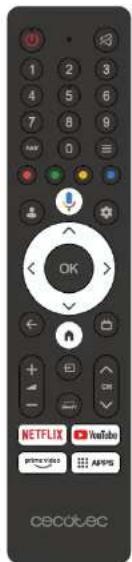

Remote control button functions. Fig. 40

Most of your TV's features are available through the menus that appear on the screen. The remote control supplied with the equipment allows you to navigate through the menus and configure all the general settings.

	On/Off button: to turn the TV on or off.
	To mute and unmute the sound.
0~9	To select the number of the digital keypad.
FAV	To open the favourite channel list menu.
	To enter the quick access menu.
	To select tasks or Teletext pages.
	Microphone (Available only when the network connection is normal.)
	"Accounts and Sign in to Google TV". (When basic TV is set, this button has no effect).
	Shows the TV setup menu.
OK	To confirm your selection.
	(Up, down, left, and right direction buttons) Highlight the various items in the menu system and adjust menu controls.
	To exit the menu and return to the previous one.
	To go to the home page.
	Here you can see the electronic programme guide.
	To increase or decrease the volume.

ENGLISHENGLISH

	To enter the source selection interface.
	To enter the interface of SMART function.
	Channel up/down.
NETFLIX	To go to the NETFLIX home page.
	To go to the YouTube home page.
prime video	To go to the Prime Video home page.
### APPS	To select the apps.

5. TROUBLESHOOTING

Before contacting the after-sales service, perform the following basic checks.

Problem Possible	causes Possible solutions
There is no electricity	The plug is disconnected. Make sure the power cable is properly plugged into a power outlet.
	The power socket is disconnected from the mains.	Try connecting the plug to different power outlets to check.
There is no image or sound	The image settings are incorrectly adjusted.	Check the brightness and contrast settings of the image.
	There is no audio. Check that Nute mode has not been activated.
There are no DTT HD channels, or the image is distorted	Reception of digital terrestrial television channels (DTT) is only possible in areas with coverage. Checks the proximity of a transmitter. Check the quality and strength of the receiving signal.	Check that the antenna cable is well connected to the TV. Reset to factory settings. Have a professional check your installation.

The remote control does not work	There are no batteries in the remote control, or the batteries are dead.	Check that the batteries are correctly inserted in the remote control.Check the batteries. If they don't work, replace them.
Cannot read USB removable media	The format is not compatible.	Check that the formats used are compatible with this device.Disconnect the removable device and reconnect it. Please format the USB media and try again.
The registration has not been fully completed	There is not enough space on the removable media.	Check the available space on the USB media.

Stops during playback

- Keep a distance of at least three meters between the microwave oven, mobile phones, Bluetooth ^4 equipped devices, or any other Wi-Fi compatible devices.

- Try changing the active channel on the WLAN router.

Internet connection not available / Unable to share audio and video

- If the MAC address (a unique identification number) of your TV has been stored according to regulations, your TV may not connect to the Internet. In this case, the MAC address is authenticated every time you connect to the Internet. This is a precautionary measure against unauthorized access. Since your TV has its own MAC address, your Internet provider cannot validate this address. As a result, the TV cannot connect to the Internet. Contact your Internet service provider for information on how to connect a different device, such as the TV, to the Internet.

- It is also possible that the Internet connection is not available due to a firewall related issue. If you suspect that this may be the cause of your problem, contact your Internet service provider. A firewall could explain the connectivity and detection problem when using the TV in Audio/Video Share mode or when browsing using the Audio/Video Share feature.

Invalid domain name

- Make sure you are already logged in to your TV with an authorized username/password and also make sure your domain is active, before sharing any files on your computer's media server program.

- If the domain is invalid, you may have trouble browsing files in Audio/Video Share mode.

ENGLISHENGLISH

1. TECHNICAL SPECIFICATIONS

Product TV LED	A4 seriesALU40043	TV LEDA4 seriesALU400435	TV QLEDA4 seriesVQU40043	TV QLEDA4 seriesVQU400435
Product reference 0097B		00981 00979 00982
QR
		____ ____	____ ____	____ ____
Power 95 W		95 W 105 W 105 W
Voltage 180-240 V~		180-240 V~180	240 V~180-240 V~
Frequency 50/60 Hz		50/60 Hz 50/60	Hz 50/60 Hz
USB output 5 V DC 0.5 A		5 V DC 0.5 A	5 V DC 0.5 A	5 V DC 0.5 A
Service life(approx.)	30,000 h	30,000 h	30,000 h	30,000 h

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU40043S TV OLED A4 SERIES VQU40043 / TV OLED A4 SERIES VQU40043S

It is recommended that repairs be carried out by qualified personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this television, models: 00978_TV LED A4 series ALU40043, 00981_TV LED A4 series ALU40043S, 00979_TV QLED A4 series VQU40043, 00982_TV QLED A4 series VQU40043S. complies with the Directive 2014/53/EU on radio equipment.

The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

TV LED A4 SERIES ALU40043/ TV LED A4 SERIES ALU40043S TV QLED A4 SERIES VQU40043 / TV QLED A4 SERIES VQU40043S

FRANÇAISFRANÇAIS

1. AVANT UTILISATION

00979_TV QLED A4 series VQU40043

00982 TV OLED A4 series VQU40043S

https://cecotec.es/es/information/declaration-of-conformity

1. VOR DEM GEBRAUCH

00979_TV OLED A4 series VQU40043

00982_TV QLED A4 series VQU400435

Passo 15: instale as suas apps. Fig. 26

00979_TV QLED A4 series VQU40043

00979_TV OLED A4 series VQU40043

https://cecotec.es/es/information/declaration-of-conformity

1. VÓÓR U HET APPARAAT GEBRUIKT

- LCN: selecteer ON / OFF

- Automatische service update: selecteer ON / OFF

Surround mode: Om Pure Sound of Surround te selecteren.

5. PROBLEEMOPLOSSING

00979_TV OLED A4 series VQU40043

D0982_TV OLED A4 series VQU400435

https://cecotec.es/es/information/declaration-of-conformity

POLSKIPOLSKI

1. PRZED UŻYCIEM

00981_TV LED A4 series ALU400435

00979_TV OLED A4 series VQU40043

00982_TV OLED A4 series VQU400435

https://cecotec.es/es/information/declaration-of-conformity

ČEŠTINAPOLSKI

1. PŘED POUŽÍVÁNÍM

00981 TV LED A4 series ALU400435

00979_TV QLED A4 series VQU40043

00982_TV QLED A4 series VQU400435

https://cecotec.es/es/information/declaration-of-conformity

1. KULLANMADAN ÖNCE

00982_TV OLED A4 series VQU400435

Technical line drawing of a rectangular panel with a grid pattern and a small inset showing a screw (no text or symbols)

Fig./Img./Abb./Afb./Rys.1

ALU40043 / ALU40043S
Fig./Img./Abb./Afo./Rys.2

VQU40043 / VQU40043S

Fig./Img./Abb./Afb./Bys.2

Diagram of a room layout with numbered circles and directional arrows, no readable text or symbols

i Home press/USB and USB drive commands Enter OK, Cancel

Fig./Img./Abb./Afb./Rys.3 Fig./Img./Abb./Afb./Rys.4

Welcome English: Book Review Search Search Search Search Search

Select your region or country Sales

Fig./Img./Abb./Afb./Rys.5 Fig./Img./Abb./Afb./Rys.6

Google TV The entertainment you love Set up Google TV Set up new TV

Fig./Img./Abb./Afo./Rys.7

With basic TV, you will get Set up basic TV Get up basic TV

Fig./Img./Abh./Afb./Rys.8

Select your Wi-Fi network NETSOL-03-05-1 NETSOL-03-05-2 NETSOL-03-05-3 SOL, CN, Switch L, C48 SOL, IN, Switch L, C48 SOL, CN, Switch L, C48

Fig./Img./Abb./Afb./Rys.9

Hi there! ACCESS Service/Service Help Service/Service Help Service

G Google Services Google Services is a key for the following services: • It is not to be used in the main service (e.g. Google Services). • It is important to use Google Services as a key for the following services. • It is important to use Google Services as a key for the following services.

Fig./Img./Abb./Afo./Rys.10

Environment Please choose your Environment Name: Step: Step with date: PASS/SEE

Fig./Img./Abb./Afb./Rys.11

Terms & Conditions Please read the terms & conditions and system Save • Use your computer to access the system information. • Use your computer to access the system information. • Use your computer to access the system information. • Use your computer to access the system information. • Use your computer to access the system information.

Fig./Img./Abb./Afo./Rys.12

Channel Installation Name: 012345 Size: 100 mm Type: Normal OK OK OK PROCESSED

Fig./Img./Abb./Afb./Rys.13

Please check settings Please verify settings option settings. Save Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save... Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save

Fig./Img./Abb./Afb./Rys.14

Google Assistant Continue

Fig./Img./Abb./Afb./Rys.19

Search across all your TV apps Allow Send to: Download

Fig./Img./Abb./Afb./Rys.20

Google TV The entertainment you love Get up GoogleTV Get up GoogleTV

Fig./Img./Abb./Afb./Rys. 15 Fig./Img./Abb./Afb./Rys. 16

Select your Wi-Fi network NETWORK-15-1 NETWORK-15-2 NETWORK-2-4C VSS_VB_Keuang/2.645 VSS_VB_Keuang/2.645 VSS_VB_Keuang/1.645

Login Hi Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept Google Services Accept

Choose your subscriptions You can choose and choose and access the subscriptions you can choose and choose and access the subscriptions Access? Apple Apple TV Apple Mail

Fig./img./Abb./Afb./Rys.21

Environment People setting your Environment None Yes

Fig./Img./Abb./Afb./Rys.22

Google Sign In I can read Google's name. Name: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Login status: Login number: 123456789 Login location: 123456789 Login type: Windows Login duration: 123456789 Login speed: 123456789 Login location: Windows Login time: 123456789 Login location: Windows Login speed: 123456789 Login location: Windows Login speed: 123456789 Login location: Windows Login speed: 123456789 Login location: Windows Login speed: 123456789 Login location: Windows Login speed: 123456789 Login location: Windows Login speed: 12871234567888888888888888888888888888888888888888888888888888888888888888888888

Fig./Img./Abb./Afb./Rys. 17 Fig./Img./Abb./Afb./Rys. 18

Terms & Conditions Please read the terms & conditions and applies. OK

Fig./Img./Abb./Afb./Rys. 23

Channel installation Channel name: Channel type: Normal Channel size: 100% Channel color: Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal Channel color: Normal

Fig./Img./Abb./Afb./Rys. 24

Please check settings Please verify settings in system settings. Set User UserForm SVM • • • •

Fig./Img./Abb./Afb./Rys.25

Installing your apps This complete

Fig./Img./Abb./Afb./Rys.26

Your Google TV experience is ready Start spring Google TV

Fig./Img./Abb./Afb./Rys.27

Home Apps Library WELCOME NETFLIX YouTube Disney+ Netflix TV Kids YouTube Music BKK UPGDA UPLOAD Mio Safti New Series AMAZON ORIGINAL MATRIAL BERTA

Fig./Img./Abb./Afb./Rys. 28

Fig./Img./Abb./Afb./Rys.29

Fig./Img./Abb./Afb./Rys.30

Settings Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.0000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.000 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1239 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1238 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1237 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1235 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1234 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236 Form 10.1236

Fig./Img./Abb./Afb./Rys.31

Fig./Img./Abb./Afb./Rys. 32

Network & Internet WINS The WINS-2022 Networks WINS-SUBST WINS-WINS Wire of All power network Starting remote network Wire of Not connected Any settings If connections

Fig./Img./Abb./Afb./Rys.33

Fig./Img./Abb./Afb./Rys.34

Apps Live TV 3 minutes ago Down all apps App permissions Special app available Security & Entertainment

Fig./Img./Abb./Afb./Rys. 35

Fig./Img./Abb./Afb./Rys. 36

Settings Properties & Accessories Balance/Adjustment Info/Adjustment

Fig./Img./Abb./Afb./Rys. 37

Fig./Img./Abb./Afb./Rys. 38

OK Searching for accessories...

Fig./Img./Abb./Afb./Rys.39

OK NETFLIX YouTube prime video APPS cecóbec

Fig./Img./Abb./Afb./Rys.40

www.cecotec.es
