USER MANUAL ReadyWarm 1500 Flames CECOTEC

3D model of a simple house-shaped container with arched windows and legs, no visible text or symbols

ES · Este producto no es adecuado para calefacción primaria. Este producto está indicado únicamente para lugares abrigados o para una utilización puntual. EN: This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use. FR: Cet appareil ne convient pas pour une utilisation en tant que chauffage primaire. Cet appareil a été conçu seulement pour être utilisé dans des espaces intérieurs ou pour une utilisation momentanée. DE : Dieses Produkt ist nicht für als Hauptheizgerät geeignet. Dieses Produkt ist nur für geschützten Orten oder zur gelegentlichen Verwendung geeignet. IT: Questo apparecchio non è adatto a scopi di riscaldamento primario. Il suo utilizzo è indicato solo in luoghi riparati o per uso occasionale. PT: Este produto não é adequado para ser utilizado como aquecimento primário. Destina-se a uma utilização ocasional e apenas em locais abrigados. NL: Dit product is niet geschikt voor primaire verwarming. Dit product is alleen geschikt voor gebruik op beschutte plaatsen of voor occasioneel gebruik. PL: Ten produkt nie nadaje się do pierwotnego ogrzewania. Ten produkt jest wskazany tylko do miejsc osłoniętych lub do okazjonalnego użytku. CZ: Tento produkt není vhodný pro primární vytápění. Tento produkt je vhodný pouze na chráněných místech nebo pro príležitostné použití

Manual de instrucciones Instruction manual Manuel d'instructions Bedienungsanleitung Manuale di istruzioni Manual de instruções Handleiding Instrukcja obstugi Návod k použití

Safety instructions 7

1. Parts and components 37

2. Before use 37

3. Operation 37

4. Cleaning and maintenance 38

5. Technical specifications 39

6. Disposal of old electrical and electronic appliances 40

7. Technical support and warranty 41

8. Copyright 41

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• If the power cable is damaged, it must be replaced by the Technical Support Service of Cecotec or similar qualified personnel to avoid risks.

• This symbol means "do not cover".
• WARNING: to avoid overheating, do not cover the appliance.

- The heating appliance must not be placed immediately below a socket outlet.

- Do not use the heating appliance in the immediate vicinity of a bath, shower, or swimming pool.

- Do not use this heating appliance if it has been dropped.

- Do not use if there are visible signs of damage to the heating appliance.

- Use this heating appliance on a horizontal and stable surface, or fix it to the wall, as applicable.

- Keep the device out of the reach of children under 3 years old, unless constantly supervised.

- Children between 3 and 8 years old should only switch the appliance on or off when it has been placed in its normal, intended operating position and if they have been given supervision or instruction concerning the use of

the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years old should not plug in, adjust, and clean the appliance and should not carry out maintenance tasks.

• Supervise children to prevent them from playing with the appliance.
• WARNING: some of the product's parts may become very hot and cause burns. Particular attention should be paid when children and/or vulnerable people are present.
• WARNING: do not use this heating device in small rooms that are occupied by people who cannot leave the room by themselves, unless permanent supervision is provided.
• WARNING: to reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1 m away from the air outlet.
• Do not insert or allow objects to enter any ventilation or exhausted opening as this may cause an electric shock, fire or product damage.
• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Always make sure that your hands are dry before operating or adjusting any switches on the product or touching the plug and socket.
• Never leave the device unattended during use.
• One of the most common causes of overheating is the building up of debris or fluff in the appliance. Be sure to clean these accumulations periodically by vacuuming the vents and grilles.

• Do not place the appliance on carpets, and do not place the cable under carpets. Position the cord in such a way as to avoid obstructing passage and cause tripping hazards.

• Do not store it until it cools down. Store it in a cool, dry place when not in use.

• When using, maintain a minimum distance of 50 cm between the window and the wall.
• Do not insert or allow foreign objects to enter any ventilation openings, as this could result in electric shock or fire, or damage to the heating device.
• To avoid a possible fire, do not obstruct air inlets or outlets in any way. Do not use the appliance on soft surfaces, such as a bed, where the openings may become clogged.

INSTRUCTIONS DE SÉCURITÉ

1. Main selector
2. On/off flame effect switch
3. Medium power switch
4. High power switch

NOTE

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This device is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Electric fireplace
• Instruction manual

3. OPERATION

Assembling the support base

• Simple assembly is required if the feet of your heater arrive disassembled.

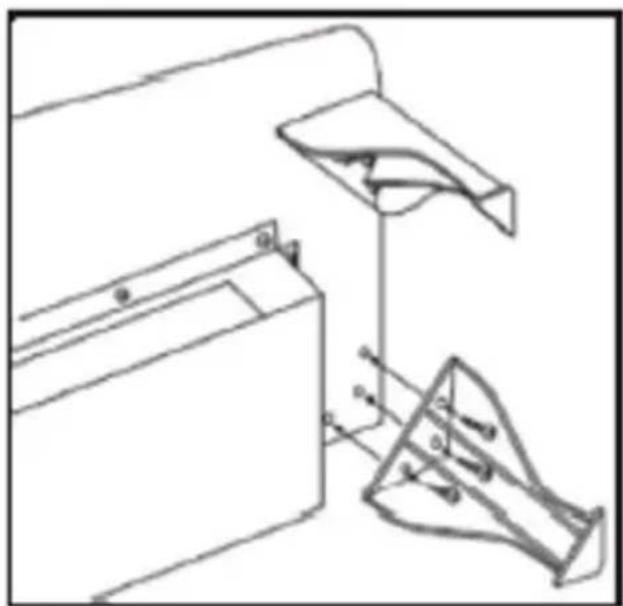

• Using a screwdriver, insert three screws through the holes in each foot as shown in figure 2.
• Tighten the screws counterclockwise on the bottom of the heater.

Note: additional screws are supplied, you may have some left over after assembly.

ENGLISH

Operation

• Always use the heater in an upright position, and follow all instructions and recommendations mentioned in this manual.
• Place the heater in the coldest part of the room.

Turning on the heater

• Flame effect: to activate the flame effect, turn the switch to the on position (1). To deactivate this effect, set the switch to the off position (0). Please note that if all other switches are in the off position, the appliance will operate without providing heat.
• Medium power: turn the main selector to the on position. Set the medium power switch to the on position (1).
• High power: turn the main selector to the on position. Then set both the medium and high power switches to the on position (I and II, respectively).

Main selector

• The main selector has two positions, on and off.
• If the main selector switch is in the off position, the appliance will not heat, even if the medium power switch and the high power switch remain in the on position, i.e. they are de-energised.

Important safety features

The heater is equipped with an automatic overheating protection device, located inside the heating body. If the heater grille is obstructed, or if the heater gets too hot for any reason, the automatic overheat protection device will turn the heater off. To reset the heater, simply switch off and unplug it for 10 minutes until it cools down. The heater can then be plugged in and restarted. Make sure that the heater is on a smooth, level surface without obstacles.

4. CLEANING AND MAINTENANCE

Cleaning

CAUTION: before cleaning the heater, be sure to unplug the power cord and allow it to cool completely.

• Clean the housing with a damp cloth. Do not use chemical or harsh abrasive cleaning agents. Do not immerse the appliance in water or any other liquid or place it under running water. Allow the heater to dry completely before use.
• Use a hoover or duster to keep the heating and ventilation area clean, free of dust and dirt.

Repair

DO NOT USE THE HEATER IF THE GRILLE IS NOT IN PLACE. DO NOT USE THE HEATER IF IT HAS BEEN DAMAGED IN ANY WAY. DO NOT REMOVE THE REAR COVER OF THE HEATER. THERE ARE NO REPAIRABLE PARTS.

5. TECHNICAL SPECIFICATIONS

Product reference: 08267

Product: ReadyWarm 1500 Flames

Power: 1500 W

Voltage: 220-240 V

Frequency: 50 - 60 Hz

Model identifier: 08267_ReadyWarm 1500 Flames
Item Symbol Value Unit Item Unit
Heating power Type of heat input, for electric space heaters only (single select)
Rated heat output	P_nom	1.5 kW M	Manual heat	heat charge control with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.8 kW M	Manual heat	heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.5 kW E	Electronic	heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption Fan assisted				heat output No
At nominal heat output	el_max	0.000 kW	Type of heat output/indoor temperature control (select one)
At minimum heat output	el_min	0.000 kW	Single stage heat output and no room temperature control		No
In standby mode	el_SB	0.000 kW	Two or more manual stages, no room temperature control		No

ENGLISH

With mechanic thermostat room		temperature control	Yes
With electronic room temperature		control	No
Electronic indoor temperature		control and internal/daily timer	No
Electronic indoor temperature		control and internal/weekly timer	No
Other control options (multiple selections possible)
Room temperature control, with		presence detection	No
Room temperature control, with		open window detection	No
With distance control option No
With adaptive start control No
With working time limitation No
With black bulb sensor No
Contact information:	Cecotec innovaciones SL., Av. Reyes Católicos, 60, 46910, Alfafar, Valencia (Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Product: ReadyWarm 1500 Flames

Vermogen: 1500 W

Voltage: 220-240 V

CECOTAC 1 2 3 4

Fig. / Img. / Rys. / Obr. 1

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. / Img. / Rys. / Obr. 2
