TABLE DES MATIÈRES

SÉCURITÉ 5

Optoma Management Suite (OMS)....103

INFORMATIONS SUPPLÉMENTAIRES .... 105

Dimensions....105

65 pouces....105

75 pouces....106

86 pouces....107

Line drawing of a support mobile stand with a chair and wheels (no text or symbols on the device itself)

B Dongle Wi-Fi (régional en option)

444mm600mm 240mm400mm 4-M8×25mm

65 pouces 75 pouces

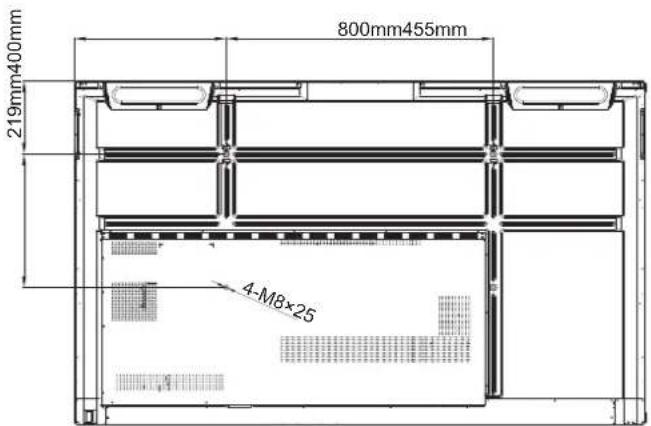

800mm455mm 219mm400mm 4-M8x25

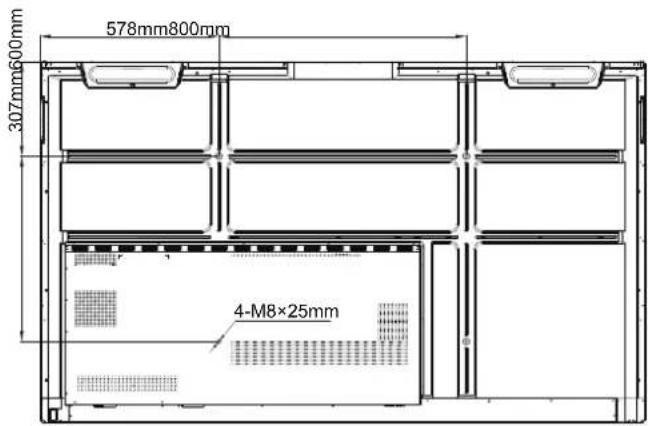

578mm800mm 307mm600mm 4-M8×25mm

86 pouces

CONFIGURATION ET INSTALLATION

Technical diagram of a mechanical assembly with a magnified inset showing a screw and pin (no text or symbols present)

Diagram showing a cylindrical object with a ring attached to a wall, connected to a dashed rectangular box (no text or symbols present)

Diagram of a vertical mechanical assembly with a blue arrow indicating direction, mounted on a wall (no text or symbols present)

Technical diagram of a mechanical assembly with a close-up inset showing a component labeled 'C' (no text or symbols present)

Remarque :

Technical diagram of a mechanical component with a magnified inset showing a screw inserted into a pin (no text or symbols present)

Diagram showing a two-wheeled cart with wheels and a close-up of its mounting bracket (no text or symbols)

Technical line drawing of a vertical mechanical device with wheels and a blue arrow indicating direction (no text or symbols)

CONFIGURATION ET INSTALLATION

Diagram of a smartphone with a blue arrow indicating rotation or change, showing the battery inside (no text or symbols)

Diagram of a mobile phone showing battery charging mechanism with labeled current direction arrows

Diagram of a smartphone with a blue arrow indicating rotation or change, showing the blade and handle (no text or symbols)

MISE EN GARDE

Diagram showing connection between a plug and a power outlet, with a hand pointing to the plug's icon.

CONFIGURATION ET INSTALLATION

Connexion RS232

Simple diagram showing a blue downward arrow between two hanging lights on a horizontal line (no text or symbols)

Diagram showing a blue upward arrow pointing to a gray base labeled 'II' with no text or symbols

Simple diagram of a horizontal beam supported by two hanging lights, with no text or symbols present.

Diagram of a cable connector with a power outlet and cable routing (no text or symbols visible)

Diagram of a device with a plug inserted into a power outlet, showing wiring and ports (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and annotations in Chinese

Remarque :

Diagram showing connection between a plug and a power outlet, with a hand pointing to the plug's icon.

Illustration of a computer monitor with a hand cursor pointing at the button (no text or symbols visible)

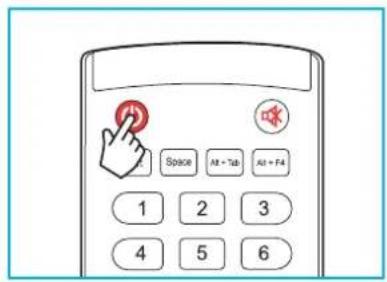

Space All - Tab All + F4 1 2 3 4 5 6

Mise hors tension

Shutdown Please confirm shutdown. The system will shut down in 10 seconds. Cancel OK

Hi there English (United States) Vision settings Start

OPÉRATIONS DE BASE

04:41 March 11,2024 7617

Record Settings Camera recording Video Resolution 3840x2160 Save path /Storage/Record Cancel Confirm

Shortcut Image Display Mode Presentation Brightness 100 Contrast 50 Color 50 Color Temperature Standard Color Correction AI PQ

Are you going to reset image settings to default? Cancel OK

OPÉRATIONS DE BASE

Menu principal Sous-menu Réglages Personalize Network Device Security System < Personalize / Wallpaper Boot Logo Boot Animation Input name Multi-window mode Multi-window mode supports displaying more than one app at the same time, but may use more energy. Windows Control Bar Top Star Floating Point Gestures Screen Lock Password

Remarque :

Personalize Network Device Security System < Personalize / Wallpaper > Boot Logo > Boot Animation > Input name > Multi-window mode Multi-window mode supports displaying more than one app at the same time, but may use more energy Windows Control Bar Top Side Floating Point > Gestures > Screen Lock Password >

OPÉRATIONS DE BASE

Edit custom Cancel Delete

02:11 File Manager Options 9947 Internal Storage / YouTube www.youtube.com wants to send you notifications Block Allow Alarms Audibooks DCIM DisplayShare Documents Feb 06 2024 Feb 06 2024 Feb 30 2024 Mar 07 2024 Feb 06 2024 27.00°C 46.50% 4.00 Good

Personalize / Floating Point / Floating Point Customized Floating Point Customize 3 apps at the bottom of floating point. Floating point 01 Whiteboard Floating point 02 Annotation Floating point 03 Settings

OPÉRATIONS DE BASE

Personalize / Gestures / Enable Gestures Five fingers slide left No Operation Five fingers slide right No Operation Five fingers slide up No Operation Five fingers slide down No Operation Five fingers shrink No Operation Five fingers spread No Operation

Choose a screen lock None Current screen lock Swipe Pattern PIN Password

OPÉRATIONS DE BASE

Personalize Network Device Security System < Network / Wi-Fi / Wi-Fi Wi-Fi and Ethernet connections are mutually exclusive. Enabling one will disable the other. XXXX (2) Connected Available network FT803-Meeting Saved

Personalize Network Device Security System < Network / Ethernet / Ethernet Wi-Fi and Ethernet connections are mutually exclusive. Enabling one will disable the other. MAC address e8.51.9e0:00.64 IP settings DHCP IP address 0.0.0.0 Default gateway 0.0.0.0 Network Prefix Length 0 DNS 1 0.0.0.0

IFP Apparel portable

Pair with XXXX (2)? Bluetooth pairing code 819705 □ Allow access to your contacts and call history Cancel Pair

Bluetooth Pairing Request "UXXSRK" would like to pair with your iPhone. Confirm that this code is shown on "UXXSRK". Do not enter this code on any accessory. 819705 Cancel Pair

Device ID 00 Cancel OK

Personalize Network Device Security System < Device / Other Settings / Side Tool Bar Settings All channel Touch sound Navigation bar settings Sound Input Settings Sound Output Settings Speaker

Personalize Network Device Security System < Security / Advanced Setting >

Advanced settings Password Cancel OK

Personalize Network Device Security System < Security / Advanced Setting / Change password > CA > Permission Unknown source Uninstall app OSD/Launcher setting lock Clone Import Launcher setting > Export Launcher setting >

OPÉRATIONS DE BASE

Change password Current password New password 4 characters length permitted Confirm new password Cancel OK

Dealer Menu Advanced settings Active Standby <= OFF => HDMI Out repeater <= OFF => Exit

Personalize Network Device Security System < System / Date & Time > Language English Keyboard > Startup and Shutdown > Power > HDMI CEC > Power Mode Standby Active Update > Legal >

Personalize Network Device Security System System / Date & Time / Auto Date and Time Date March 13.2024 Time 02:05 PM Timezone Taipei Use 24-hour format (13:00)

Personalize Network Device Security System < System / Startup and Shutdown / Startup input Source Last shutdown input Standby after startup (black screen) Default Startup app None Timer Close Power Off Reminder

Add new timer 5 29 6 30 AM 7 31 PM Repeats Sun Mon Tue Wed Thu Fri Sat Timer Startup timer Shutdown timer Cancel Add

Personalize Network Device Security System System / Startup and Shutdown / Startup Input Source Last shutdown input Standby after startup (black screen) Default Startup app None Timer Close Power Off Reminder 06:30 AM Weekday

Remarque :

Personalize Network Device Security System System / Power / Signal Power On Direct Power On Auto Power Off 240 mins Wake on LAN Power button behavior Optoma

Dealer Menu
Advanced settings
Active Standby	<=	OFF	=>
HDMI Out repeater	<=	OFF	=>
Exit
    F["Active Standby <= OPEN =>"]

Power Mode Standby Update Legal EDD Active

Remarque :

Personalized Network Device Security System System / Update / OTA Software Upgrade > USB Software Upgrade >

Screenshot of OTA software upgrade settings menu showing options for network, device, and security settings

Put firmware file in USB drive and plug in the flat panel. Cancel Start

Personalized Network Device Security System < System / Legal / Terms and Conditions of Use > Privacy Policy > Cookie Policy > Open Source Library >

OPÉRATIONS DE BASE

02:42 March 11,2024 4363 Temperature 26.60°C Humidity 60.38% HOMA 1.00 Good

3:22 Personnel Network Bonus Security System Personnel / Path/Post Box Edge Box Animation Input name Multi-window mode Box window mode contains the following key: any other key is to use this type. Note you want to use this code: Windows Command Bar Text Bar Floating Point Details Screenshot Split

Optoma Internal Storage / Alarms Feb 06 2024 Audiobooks Feb 06 2024 DCIM Feb 06 2024 DisplayShare Mar 07 2024 Documents Feb 06 2024 Download Feb 06 2024 Mark Movies Music Personalize Network Device Security System Personalize / Wallpaper Boot Logo Boot Animation Input name Multi-window mode Multi-window mode supports window Windows Control Bar Floating Point Gestures

OPÉRATIONS DE BASE

Appli d'annotation

Wedding decoration Orchids??

Wedding demination

12:05 Close Not Secure — e.com AA 20240314_120526 a few seconds ago 1Second Look

Airshare http://class.ifpshare.com Follow http://class.ifpshare.com and join the class 703530 Input the numbers to join users have joined: 0 Cancel Enter

09:49 Camera Welcome to Airclass Please input your name Amy Enter

OPÉRATIONS DE BASE

Single choice Multiple choice user: 0/1 00:00 Begin

10:44 Camera Airclass 586830 Hi, Amy Voter Message A B C D E F G H I OK

OPÉRATIONS DE BASE

Press [OK] to responder Start

OPÉRATIONS DE BASE

Set person(s). Up to 2 1 START Amy Selected Reset

OPÉRATIONS DE BASE

d. Message

Airclass 165525 Hi, Amy Voter Message Send a message to the screen Feeling happy! 103 Send

01:37 March 14,2024 Amy: Feeling HAPPY

Remarque :

01:52 March 14,2024 More tools File Edit Balance Check Tools Spotlight Download PP Display server Calculator Login to send your files and your mail:01 Sign in Water 1 Hotel 2 Water 3 Hotel 4 Temperature 28.30°C Sensitivity 49.25% MHz 6.00 Good

Tip No password is set, please set password first. Cancel Confirm

Drag icons to rearrange Click +* or drag to Dock. Freeze Stopwatch Timer Spotlight ScreenLock PIP Display center Calculator

OPÉRATIONS DE BASE

Blue background with eight white circular icons representing different functions: folder, up arrow, refresh, gear, document, pencil, and curved arrow (no text or symbols)

Blue background with three white circular icons: a yellow 'X' symbol, a white circle with a gear and folder icon, and a gray folder icon (no text or labels)

Wallpaper & style Widgets Home settings

3:03 G Display Dark theme, font size, brightness Wallpaper Home, lock screen Accessibility Display, interaction, audio Security Screen lock, Find My Device, app security Privacy Permissions, account activity, personal data Location On - 2 apps have access to location Safety & emergency Emergency SOS, medical info, alerts Passwords & accounts Saved passwords, autofill, synced accounts Wallpaper & style 03 03 03:03 Change wallpaper Dark theme Themed icons Beta Settings EXIT

03:05 × Remove March 14,2024 03:05 March 14,2024

Home settings Notification dots On Add app icons to home screen For new apps

3:09 Thu, Mar 14 Bluetooth On Do Not Disturb Off Auto-rotate Off Battery Save Unavailable Airplane mode Off Screen record Start Quick Share Your devices Google Play services New sign-in on Android Your Google Account was signed in to Your photos aren't backed up Automatically back up your photos and videos to G... Android System Configure physical keyboard Tap to select language and layout Serial console enabled Performance is impacted. To disable, check bootloader. Silent Kiosk ScreenRecorder ADATA USB drive For transferring photos and media 25° in Taipei - 20m

HDMI 1 HDMI 2 HDMI 3 HDMI 4 Display port TYPEC 1 TYPEC 2 Cancel Save Login to see your files and your own OS Sign in Temperature 28.30°C Humidity 53.50% PM2.1 1.00 CO2 Fair

Whiteboard Home Create new session Join with code Sports Create new session Maths Biology Your session Collaboration Science Non-Collaboration Geography Business Tools Arts & Humanities Grids & Tables Reading & Writing Holidays & Seasonal Badminton Football Soccer Tennis Volleyball Rugby American football Create

User interface toolbar with colorful dots, arrows, and icons (no readable text or symbols)

Theme Color General Vintage Navy

WPS-3891 2874 FTSD Meeting Display Share App Download https://www.optima.com/displayshare Or by scanning code Launch APP or Connect by Web: http://192.168.50.77 Get connected in 3 easy steps 1: Same Network PTSGI-Meeting 2: Connect to WPS-3891 3: Enter Login Code 2874 iOS/ Mac Users Screen Mirroring

17:53 App Store Display Share IP WPS-3891 17:53 Everything on your screen, including notifications, will be recorded. Enable Do Not Disturb to prevent unexpected notifications. Screen Broadcast Display Share ✓ Start Broadcast

UTILISATION DES APPLICATIONS

17:57 WPS-3891

Ordinateur

WPS-3891 Mirroring Remote View

WPS-3891 Moderation Mode Enter the password to start moderator management of screen sharing. Enter password Start

WPS-4586 Please drag sender here SPT screen 7 Please drag sender here SPT screen 8 Please drag sender here SPT screen 9 Please drag sender here SPT screen 10 Playing (R) Split Screen1 Split Screen2 Split Screen3 Split Screen4 Standby (T) Search Irritatsas (Yes)

Settings
General	Admin Password ......
Moderator

Settings
General	Version VJ108	>
Moderator	Open Source License	>
About

UTILISATION DES APPLICATIONS

Optoma Storage Internal Storage 28.9% 45 GB free from 64 GB ADATA UFD 0.1% 62 GB free from 62 GB Cloud Storage Downloads Collections Images Videos Documents Music Cloud Storage / Shared Drive No public cloud connected. Add account

Security PIN Set a 4-digit PIN to secure your cloud account on this device. Skip Setup

Optoma Storage Internal Storage 28.9% 45 GB free from 64 GB ADATA UFD 0.1% 62 GB free from 62 GB Cloud Storage Downloads Cloud Storage / Shared Drive AMY SMITH

Security PIN Set a 4-digit PIN to secure your cloud account on this device. Skip Setup

Enter your PIN Enter a new PIN Enter the PIN again Cancel 1 2 3 4 5 6 7 8 9 0 Delete

UTILISATION DES APPLICATIONS

Enter your PIN Cancel 1 2 3 4 5 6 7 8 9 0 Delete

Aerial view of koi fish swimming in water, captured in a video player interface (no text or symbols on the fish or background)

Exit Playback Are you sure you want to exit the current playback? Cancel Confirm

UTILISATION DES APPLICATIONS

Lecture de musique

file_example_MP3_700KB.mp3 unknown — No lyrics — 00:07 00:42

Exit Playback Are you sure you want to exit the current playback? Cancel Confirm

UTILISATION DES APPLICATIONS

Regarder des photos

Close-up of white and pink orchid flowers with green leaves, set against a wooden lattice background (no text or symbols visible)

My Account Home / Devices / DevicesAdd Add new device Enter Serial Number 2 Confirm the PIN Code 3 Device Settings Enter Serial Number 1. Make sure that your device has network connectivity and the date and time settings are accurate. 2. Open device's OMS page (Settings>Device>OMS or Settings>OMS) and enter the serial number assigned to the device. Serial number ( How to find?) Success Add list Cancel Next

UTILISATION DES APPLICATIONS

My Account Home / Devices / DevicesAdd Add new device 1 Enter Serial Number 2 Confirm the PIN Code 3 Device Settings Confirm the PIN Code 1. Confirm the PIN Code 2. Confirm the PIN Code on the device. Serial number PIN Code PIN Code expired in: 244 Sec Cancel Next

My Account Home / Devices / DevicesAdd Add new device 1 Enter Serial Number 2 Confirm the PIN Code 3 Device Settings Device Settings Name Serial number Type IFP QC0N347KAAAVA9011 Way Cancel Done
