USER MANUAL VP6150 Concept

VJMJUTIPRACHOV NADOBY

OCHRANA ZIVOTNÉHO PROSTMEDIA

• Preferujte recyklaciu obalovych materiakov a starch spotreblcov.
• Skatuu od spotrebica mozete dat do zberu triedeneho odpau.
• Plastové vrecúska z polyetylenu (PE) odovzdajte do zberu materiálu na recykláciu.

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before Initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Battery voltage DC 29,6 V
Input 500 W
Sound level ≤85 dB
Battery 2 200 mAh
Max. operating time at MIN power 50 min
Full charging time 3-4 hrs.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Make sure the mains voltage and current protection correspond to the values on the rating plate of the charging station.
• Do not leave the appliance without supervision when it is switched on.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use a charger with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Keep the appliance away from heat sources such as radiators, ovens and other, protect it from direct sunlight and humidity.
• Do not touch the appliance with wet hands.
• Do not insert any objects into the openings. Do not use the appliance if any of the openings is clogged.
  Take extra caution when vacuuming on stairs.

• If the appliance intake is clogged, switch off the appliance and remove the dirt before switching on again.
• When attaching accessories during cleaning or in the event of a malfunction, switch off the appliance and disconnect the charger from wall socket.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not vacuum anything burning like cigarettes, matches or hot ash.
• Do not use the appliance in rooms with increased air humidity, do not vacuum flammable liquids such as petrol and do not use the appliance in rooms where these substances may be present.
• Never vacuum without vacuum cleaner filters. Every time you use the appliance, make sure the vacuum cleaner filters are properly installed.
• Do not immerse the power cord or the charger in water or any other liquid.
• Check the appliance and the charger cord for damage regularly.
• Never switch on a damaged appliance.
• Before cleaning and after use of the appliance, switch off the appliance and allow it to cool down.
• Before vacuuming, remove all large or sharp objects from the surface intended for vacuum cleaning, such objects may damage the vacuum cleaner filter.
• Do not use the appliance with dirty filters.
• Do not put the battery in fire or expose it to temperatures above 40^ .
• Do not touch the moving parts of the appliance during operation.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision.
• Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

PRODUCT DESCRIPTION

1 Accumulator
2 Dust container
3Dirt ejection button
4 Telescopic pole
5Large turbo brush
6. Play
7Off/on button
8 Small turbo brush UVC
9 Upholstery nozzle

10 Gravel nozzle

1. Gravel nozzle with brush
   12 Flexible joint
   13 Flexible hose
2. Cleaning brushes
   15 Power adapter

EN

concept

concept

EN

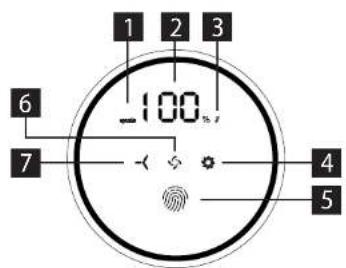

DISPLAY DESCRIPTION

1. Blocked brush indicator
2. Battery status
3. Clogged coarse filter indicator
4. High power indicator
5. Power change button
6. Medium power
7. Low power

OPERATING INSTRUCTIONS

Vacuum cleaner assembly

Always switch off and remove the charging adapter from the power socket before assembling or removing accessories!

1. Insert the suction tube into the vacuum cleaner's handheld unit, you will hear a click. To remove the tube from the handheld unit, press the lock button and pull to disconnect.
2. Insert the turbo brush into the suction pipe, you will hear a click. To remove the Turbo Brush from the extension tube, press the lock button and pull to disengage. The turbo brush can be attached to the handheld unit in the same way.

BATTERY INSTALLATION

Insert the battery into the body of the handheld unit and install to prevent it from coming loose. If an audible signal sounds, the battery has been successfully installed. To release the battery, press the release buttons and pull to disconnect.

Note: To extend battery life, keep the battery charged between 20% and 80%. Do not store or recharge the appliance in environment with temperatures below 0^ or higher than 40^ . These temperatures may damage the appliance. During the charging process, the temperature of the appliance may increase, this is normal.

If you do not use the vacuum cleaner for more than 3 months, allow it to charge for 12 hours. Then place the vacuum cleaner in a dry and cool place.

USE

Before installing the battery, check if it is fully charged.

1. Press the ON/OFF button to switch on the appliance.

2. Press the power button to switch to suction power.

3. Press the ON/OFF button again to switch off the vacuum cleaner.

Note: We recommend using the maximum power of the hand-held unit in the case of a heavily soiled area or on carpets with medium or high pile.

ACCESSIONS

Select the accessories according to the nature of the surface to be cleaned.

Small turbo brush UVC-clogged coarse filter indicator
Slot nozzle suitable for wall corners, car cushioning, radiators, etc.
Slot nozzle with brush - suitable for bed linen, fabric, sofas, etc.
Upholstery sponge - suitable for upholstered surfaces. Sofas, chairs, etc.

EMPTYING THE DUST CONTAINER

To empty the dust container, press the empty button. Open the container, empty the dust and close the container cover.

REMOVING THE DUST CONTAINER

Press the button to release the dust container and remove the container.

FILTER DISASSEMBLY

Remove the filters from the dust container upwards. Remove the hepa filter and coarse filter by moving upwards. The filters can be rinsed in water. Allow the filters to dry before placing them back in the dust container.

REMOVING THE BRUSH

There is a brush release button on the side of the turbo brush, slide the button to release the brush, then the brush can be removed

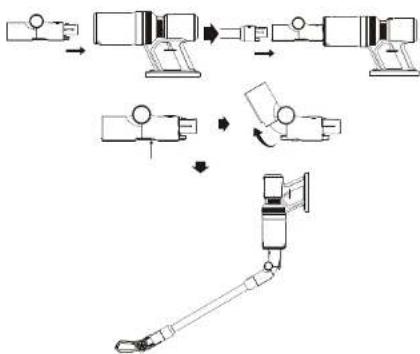

THE FLEXIBLE KLOUB

1. Insert the flexible joint into the body of the vacuum cleaner.
2. Insert the telescopic tube into the flexible joint and then the large turbo shaft.
3. Press the release button on the flexible joint to release it and vacuum at the desired angle.

FLEXIBLE HOSE

1. Insert the flexible hose into the body of the vacuum cleaner.
2. The flexible hose can be fitted with small accessories such as: brush nozzle, brush nozzle with brush.

CHARGING WITHOUT THE WALL BRACKET

Plug the adapter into the charging connector on the appliance handle. The percentage indicator will flash during charging. When fully charged, it will light up at 100% .

Problem Solution
The engine indicator lights up	1/ Empty the dust container. 2/ Check the appliance for blockages. 3/ Check the filters and clean if necessary. 4/ Check the brush in the turbo brush.
Appliance not working	1/ Charge the battery. 2/ Check that the appliance is not clogged. 3/ Check the brush in the turbo brush.
The battery is not charging	1/ Check that the adapter is properly connected. 2/ Check the mains voltage. 3/ Check the adapter for damage.
Blocked brush indicator lights up Clean the brush in the turbo brush.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.
