Table of Contents

ENGLISH INSTRUCTIONS 5

SAFETY 5

SAFETY GUIDELINES AND DEFINITIONS 5

SAFETY RULES 5

LIFTING HOOK ASSEMBLY 7

RAISING OR SUSPENDING GENERATOR....7

Limited warranty 8

FEDERAL EVAPORATIVE EMISSION CONTROL WARRANTY....9

EVAPORATIVE EMISSION CONTROL SYSTEM....10

CALIFORNIA EMISSION CONTROL WARRANTY....11

OPERATION 12

GENERAL INFORMATION 12

BEFORE START-UP 12

OPERATION 12

GENERATOR APPLICATION 14

LOADING YOUR GENERATOR SET 14

RECEPTACLE DETAILS 14

ENGINE LIMITATIONS ON GENERATOR PERFORMANCE....14

GENERATOR CLEANING....14

GENERAL STORAGE GUIDELINES 15

GENERAL MAINTENANCE....15

Engine Specifications and Capacities....15

Oil Selection 16

Engine Maintenance Schedule 16

DAILY INSPECTION 16

SPARK ARRESTER....17

FAULT FINDING GUIDE....17

FRENCH INSTRUCTIONS 18

SÉCURITÉ....18

DIRECTIVES EN MATIÈRE DE SÉCURITÉ ET DÉFINITIONS 18

All information provided in this manual is believed to be correct at the time of printing. The manufacturer reserves the right to correct any errors and omissions.

ENGLISH INSTRUCTIONS

SAFETY

SAFETY GUIDELINES AND DEFINITIONS

▲ DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors and vents.

Avoid other generator hazards. READ MANUAL BEFORE USE.

DANGER

This instruction manual contains information important for you to know and understand so that your generator may properly, safely, and effectively applied and operated. All operators, users and subsequent owners of this generator must read and understand all instructions before operating the generator. Save these instructions for future reference.

To help you recognize information important to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS, we use the symbols below.

DANGER

Indicates and imminently hazardous

situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous

situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous

situation which, if not avoided, may result in minor or moderate injury.

NOTICE:

Indicates a practice not related to personal

injury which, if not avoided, may result in property damage.

SAFETY RULES

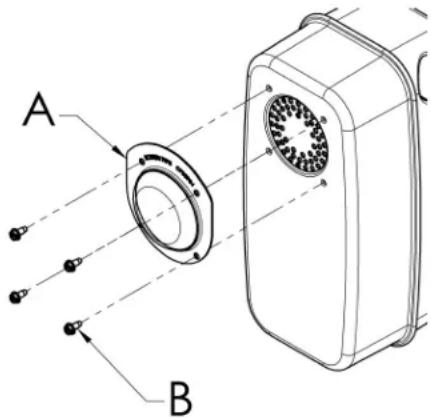

SPARK ARRESTING MUFFLER

Certain States and Jurisdictions require that engine driven equipment be fitted with spark arresting mufflers. Depending on the generator model, spark-arresting mufflers may or may not be fitted. If spark-arresting mufflers are required for your location and the generator muffler is not spark arresting, contact your local dealer for instructions for a retrofit.

SPARK ARRESTER

If the product will be used around flammable materials, such as agricultural crops, forests, brush, grass, or other similar items, then an approved spark arrester should be installed and is legally required in the State of California. The California statutes requiring a spark arrester are Sections 13005(b), 4442 and 4443. Spark Arresters are also required on some U.S. Forest Service land and may also be legally required under other statutes and ordinances. An approved spark arrester is available from our product dealers, or may be ordered from DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286. 1-888-431-6871.

English

EXHAUST EMISSION CONTROL SYSTEM

The exhaust emission control system for this generator complies with the standards set forth by the California Air Resources Board (CARB) and the Environmental Protection Agency (EPA). The respective engine manufacturers administer warranties for the exhaust emission system. Refer to the engine documentation for warranty information.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

RISK OF ASPHYXIATION

DANGER

DO NOT OPERATE THIS

GENERATOR WITHIN AN ENCLOSED AREA. THE EXHAUST GASES OF THIS GENERATOR EMIT "DEADLY" CARBON MONOXIDE. EXPOSURE TO CARBON MONOXIDE CAN CAUSE CARBON MONOXIDE POISONING, HEADACHES, NAUSEA, SEVERE SICKNESS OR DEATH.

RISK OF ELECTROCUTION OR SHOCK

DANGER

THIS GENERATOR SET PRODUCES

ELECTRICAL CURRENT. THEREFORE, SAFETY GUIDELINES MUST BE FOLLOWED. IMPROPER USE OF THIS GENERATOR CAN RESULT IN ELECTROCUTION, INJURY OR DEATH. DO NOT OPERATE, SERVICE OR REPAIR THIS GENERATOR UNLESS FULLY QUALIFIED TO DO SO.

DANGER

THIS GENERATOR SET IS

DESIGNED TO BE OPERATED IN DRY CONDITIONS AND FOR OUTDOOR AREAS ONLY. NEVER OPERATE THIS GENERATOR INDOORS. NEVER OPERATE THIS GENERATOR IN RAIN, SNOW, SLEET OR GENERALLY WET CONDITIONS. DAMAGE TO THE GENERATOR, BODILY INJURY, OR DEATH COULD RESULT FROM ELECTROCUTION.

DANGER

IF THIS GENERATOR IS CONNECTED

TO A BUILDING, HOME, BUSINESS, OR ANY OTHER ELECTRICAL CIRCUIT NORMALLY FED BY UTILITY POWER, STEPS MUST BE TAKEN TO INSURE THE GENERATOR OUTPUT AND THE UTILITY POWER ARE POSITIVELY ISOLATED. THIS IS TYPICALLY ACCOMPLISHED THROUGH THE USE OF A PROPERLY INSTALLED TRANSFER SWITCH. FAILURE TO ISOLATE THE UTILITY AND GENERATOR ELECTRICAL SYSTEMS WILL RESULT IN GENERATOR DAMAGE AND COULD RESULT IN INJURY OR DEATH TO UTILITY WORKERS DUE TO THE BACKFEED OF ELECTRICITY.

DANGER TO AVOID BACKFEEDING INTO UTILITY SYSTEMS, ISOLATION OF THE RESIDENCE ELECTRICAL SYSTEM IS REQUIRED. BEFORE CONNECTION OF A GENERATOR TO THE RESIDENCE ELECTRICAL SYSTEM TURN OFF THE MAIN SWITCH. BEFORE MAKING PERMANENT CONNECTIONS A DOUBLE THROW TRANSFER SWITCH MUST BE INSTALLED. TO AVOID ELECTROCUTION OR PROPERTY DAMAGE, ONLY A TRAINED ELECTRICIAN SHOULD CONNECT GENERATOR TO RESIDENCE ELECTRICAL SYSTEM. CALIFORNIA LAW REQUIRES ISOLATION OF THE RESIDENCE ELECTRICAL SYSTEM BEFORE CONNECTING A GENERATOR TO RESIDENCE ELECTRICAL SYSTEMS. TEMPORARY CONNECTION NOT RECOMMENDED DUE TO BACKFEEDING.

ALWAYS FOLLOW LOCAL CODES AND REGULATIONS THAT APPLY TO THE INSTALLATION OF ANY ITEM THAT CONCERNS THIS PRODUCT.

1. NFPA 70 - National Electrical Code.
2. NFPA 37 - Standard for Installation and Use of Stationary Combustible Engines.
3. Agricultural Wiring handbook of Farm Standby Electric Power.

⚠️ DANGER DO NOT MODIFY OR MISAPPLY YOUR GENERATOR SET. OPERATION OF THE GENERATOR OTHER THAN INTENDED COULD RESULT IN GENERATOR SET DAMAGE, BODILY INJURY OR EVEN DEATH FROM ELECTROCUTION.

DANGER NEVER TOUCH A RECEPTACLE OR BARE WIRE. ELECTROCUTION OR SHOCK COULD RESULT.

RISK OF FIRE OR EXPLOSION

WARNING ALWAYS INSURE THAT AT LEAST 6 FEET OF CLEARANCE ON ALL SIDES OF THE GENERATOR ARE MAINTAINED DURING OPERATION. FAILURE TO MAINTAIN PROPER CLEARANCE COULD DAMAGE YOUR GENERATOR AND POTENTIALLY LEAD TO FIRES.

WARNING GASOLINE IS HIGHLY FLAMMABLE AND ITS VAPORS ARE EXPLOSIVE. FAILURE TO PROPERLY HANDLE GASOLINE CAN RESULT IN EXPLOSION OR FIRE. DO NOT PERMIT SMOKING WITHIN 50FT OF THIS GENERATOR SET.

WARNING NEVER REFILL A HOT GENERATOR WITH FUEL. NEVER REFILL THE GENERATOR WHILE IT IS RUNNING. SPILLAGE ONTO THE ENGINE OR GENERATOR COULD RESULT IN AN EXPLOSION OR FIRE. ALWAYS ALLOW THE GENERATOR SET TO COOL BEFORE REFILLING.

WARNING DO NOT STORE THIS GENERATOR SET IN ANY LOCATION WHERE GASOLINE FUMES COULD POTENTIALLY COME INTO CONTACT WITH SPARKS, A PILOT LIGHT OR AN OPEN FLAME. IMPROPER STORAGE OF THIS GENERATOR COULD RESULT IN AN EXPLOSION OR FIRE.

WARNING INSPECT THE SPARK ARRESTOR PERIODICALLY. SPARK ARRESTORS ARE REQUIRED IN SOME AREAS AND MINIMIZE THE RISK OF FIRE FROM SPARKS EMMITTED FROM THE EXHAUST.

WARNING DO NOT OPERATE THIS GENERATOR IF THE AMBIENT TEMPERATURE EXCEEDS 104°F/40°C.

WARNING DO NOT EXCEED THE RATED CAPACITY OF THE GENERATOR. THE TOTAL ELECTRICAL LOADS AT EACH OUTLET MUST BE ADDED TO DETERMINE THE TOTAL ELECTRICAL LOAD. THE TOTAL LOAD MUST NOT EXCEED THE RATED CAPACITY OF THE GENERATOR. IF THE DRIVEN APPARATUS DOES NOT LIST WATTAGE, BUT ONLY AMPERAGE, WATTAGE MAY BE DETERMINED BY MULTIPLYING AMPERAGE TIMES VOLTAGE (WATTS = AMPS X VOLTS).

GENERAL SAFETY

Always follow National and Local electrical codes pertaining to generators. All local and national codes supersede rules or information provided in this manual.

WARNING REFER TO LOCAL AND NATIONAL ELECTRICAL CODES TO DETERMINE GROUNDING REQUIREMENTS AS THIS CAN VARY PER APPLICATION. THE GENERATOR IS GROUNDED INTERNALLY NEUTRAL TO FRAME. WHERE APPLICATIONS REQUIRE EXTERNAL GROUNDING, A CONNECTION MUST BE MADE FROM THE GENERATOR TO A SOLID EARTH GROUND. A CONTINUOUS LENGTH OF SPLICE-FREE COPPER CABLE, NO SMALLER THAN 6 AWG, SHALL BE USED FOR THE CONDUCTOR.

• When moving or transporting this generator, take proper precautions to avoid fuel spillage. Further, always use common sense when lifting this generator. An adequate number of people and proper lifting methods must be used.
• Do not cover the generator while it is running or immediately after shutdown. Always allow time to cool down before covering.
• Do not operate this generator unless it is in good mechanical and electrical condition.
  • Always keep hands, body parts, hair and clothing well away from the rotating parts of the generator.
• Do not start this generator with connected devices turned "ON". Always make sure that connected devices are disconnected from the generator or turned "OFF" before starting the generator.
• Generators operating on job or construction sites may be required to have GFCI (Ground Fault Circuit Interrupters) receptacles.
• Use only grounded extension cords in good condition and make sure that the wire size within the extension cords is of sufficient size to safely carry the surge output of the generator.
• Never handle extension cords or electrical circuits if standing in water or if standing in a damp area.

RISK OF BODILY INJURY

WARNING KEEP HANDS, BODY PARTS, HAIR AND CLOTHING AWAY FROM THE "HOT" PARTS OF THE GENERATOR SET DURING AND AFTER OPERATION. THE EXHAUST SYSTEM, AND THE GENERATOR IN GENERAL, CAN REMAIN VERY HOT EVEN AFTER BEING SHUT DOWN.

WARNING DO NOT TAMPER WITH THE ENGINE-GOVERNED SPEED. THE GENERATOR OPERATES AT A NOMINAL SPEED OF 3600 RPM. INCREASES IN SPEED OVER THE 3600 RPM NOMINAL WILL INCREASE THE CHANCE OF PERSONAL INJURY DUE TO ROTATIONAL STRESSES ON THE ROTATING MEMBERS. OPERATION OF THE GENERATOR AT SPEEDS BELOW THE NOMINAL 3600 RPM COULD CAUSE DAMAGE TO THE GENERATOR OR DRIVEN APPARATUS DUE TO LOW VOLTAGE OUTPUT.

BATTERY SAFETY

WARNING STORAGE BATTERIES PRODUCE AND RELEASE EXPLOSIVE HYDROGEN GAS WHEN CHARGING. THE SLIGHTEST SPARK, FLAME OR BURNING ASH CAN IGNITE THESE GASES CAUSING A SERIOUS EXPLOSION THAT COULD RESULT IN BLINDNESS OR OTHER SERIOUS INJURIES. WEAR EYE PROTECTION, RUBBER APRON AND RUBBER GLOVES WHEN WORKING AROUND A BATTERY OR PERFORMING BATTERY SERVICE. BATTERY FLUID IS AN EXTREMELY CAUSTIC SULFURIC ACID, WHICH CAN CAUSE SEVERE BURNS. ALWAYS DISCONNECT THE NEGATIVE (-) BATTERY CABLE FROM THE BATTERY BEFORE PERFORMING BATTERY SERVICE OR BEFORE PERFORMING ANY ELECTRICAL SERVICE ON THE GENERATOR OR ENGINE.

ENVIRONMENTAL PROTECTION

CAUTION INSPECT THE EXHAUST SYSTEM REGULARLY TO ENSURE IT IS FUNCTIONING PROPERLY. LEAKY EXHAUST SYSTEMS WILL INCREASE NOISE LEVELS.

CAUTION DIRECT THE "LOUD" SIDES OF THE GENERATOR INTO OPEN SPACES AVOIDING REVERBERATION FROM WALLS OR BUILDINGS THUS AMPLIFYING THE SOUND.

NOTICE: NEVER DRAIN OR DISPOSE OF ENGINE OIL INTO THE GROUND OR DOMESTIC WASTE WATER SYSTEMS.

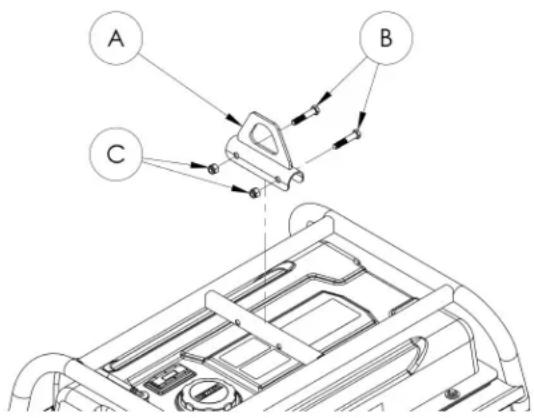

LIFTING HOOK ASSEMBLY

Attach the lifting hook (A) to the carrier with 3/8 x 2.00" bolts (B) and 3/8 nyloc nuts (C) as shown in the illustration. Tighten the bolts firmly.

A B C

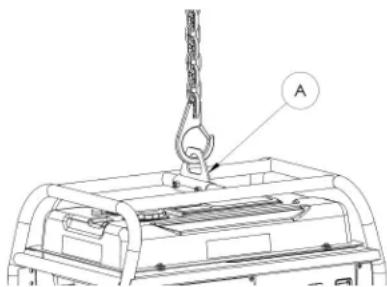

RAISING OR SUSPENDING GENERATOR

WARNING Failure to properly connect lifting cables, chains or straps can cause property damage, serious injury or death, and void the manufacturer's warranty.
WARNING Always use cables, chains or straps rated at 2000 lbs. working load or more to raise or suspend generator.
WARNING Never operate generator while suspended. This could cause property damage, serious injury or death.
WARNING DO NOT suspend objects other than generator from lifting hook.
WARNING Make sure all fasteners in frame and lifting hook are tight.

Route cable, chain or strap through lifting hook (A) as shown. ALWAYS use lifting hook when raising or suspending generator.

Technical diagram showing a crane hook assembly with labeled component A

NOTICE: Make sure the generator is in a level position before raising or suspending to prevent damage.

Accessories

Recommended accessories for use with your tool are available for purchase from your local dealer or authorized service center. If you need assistance in locating any accessory for your tool, please contact DEWALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-888-431-6871 or visit our website www.dewalt.com.

Service Information

Please have the following information available for all service calls: Model Number ____ Serial Number ____ Date and Place of Purchase ____

Repairs

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by a DEWALT factory service center, a DEWALT authorized service center or other qualified service personnel. Always use identical replacement parts.

Three Year Warranty - U.S.A. and Canada

DEWALT heavy duty generators are warranted for three (3) years from date of purchase in the United States and Canada. We will repair, without charge, any defects due to faulty materials or workmanship. For warranty repair information, call 1-888-431-6871. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

One Year Warranty - Mexico

DEWALT heavy duty generators are warranted for one (1) year from date of purchase in Mexico. We will repair, without charge, any defects due to faulty materials or workmanship. For warranty repair information, call 1-888-431-6871. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states.

LATIN AMERICA (EXCEPT MEXICO): This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained either in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-431-6871 for a free replacement.

DANGER Using a generator indoors CAN VILL the generator exhaust cordins carbon monoxide. This is a pose you cannot see or small. NEVER use inside of the front of the storage, EVEN if doors and windows are open. Only use: O'or 'O' or 'I' for away from windows, doors and vests. Use Pulsifier as a power source, d'une mation in an air gap between 1000 and 2000, but has been portes et latrines sont cements. Utilize-in le requiemant L'EXTREIRE et la de la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il est la car, il en PELIGRO La atticación de un generador en el 2013 del year de MARRADO a L'ESTRÓN EN MÁTIMOS. Las genres de escape del generador y los menales de la generation de una parte de sucho que un sido por ser ni elir. No uso número el generador de un motoridad para sucho a un tipo de sucho y la puerter y las puerter y las vencillas y sus artreras. Use el generador en el 2013 del year de MARRADO a L'ESTREIRE y el periodo de las puerter y las puerter y las vencillas y sus artreras.

WARNING Read Service Libraries: Improper: Control of this equipment could result in property damage, damage injury or death. Total power drawn from all respective must not be recorded on the transportation route. Warning: Hages, engine subcutaneous times per case; purpose of injury or death. Always cause a gradual increase in damage to the vehicle. The vehicle is used to reduce the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain the damage. The vehicle is used to maintain it. Risk of Fire or Exploration, if necessary is not for any end-of-end engine before adding an electric vehicle, or if its operation is necessary, the car operation can be made up, so far as much as the car operation is necessary. Risk of Surface, contact with the pavement and engine parts could cause damage injury. After adequate cold water then before exercising. ADVERTENCIA Law of manual or automatic, (i.e., cars, cars) cannot provide process errors, leases or parking or commute, etc. Use the change in demand or costs due to less than 40% greater than 100% greater than 200%. Use the change in demand or cost due to less than 40% greater than 100% greater than 200%. Use the change in demand or cost due to less than 40% greater than 100% greater than 200%. Use the change in demand or cost due to less than 40% greater than 100% greater than 200%. Use the change in demand or cost due to less than 40% greater than 150%. Use the change in demand or cost due to less than 40% greater than 100%. Use the change in demand or cost due to less than 40% greater than 100%. Use the change in demand or cost due to less than 40% greater than 150%. Use the change in demand or cost due to less than 40% greater than 150%. Use the change in demand or cost due to less than 40% greater than 200%. Use the change in demand or cost due to less than 40% greater than 200%. Use the change in demand or cost due to less than 40% greater than 200%. Use the change in demand or cost due to less than 40% greater than 250%. Use the change in demand or cost due to less than 40% greater than 250%. Use the change in demand or cost due to less than 40% greater than 250%. Use the change in demand or cost due to less than 40% greater than 300%. Use the change in demand or cost due to less than 40% greater than 300%. Use the change in demand or cost due to less than 40% greater than 350%. Use the change in demand or cost due to less than 40% greater than 350%. Use the change in demand or cost due to less than 40% greater than 350%. Use the change in demand or cost due to less than 40% greater than 350%. Use the change in demand or cost due to less than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than 40% greater than 350%. Use the change in demand or cost due to more than, but not more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more, but not more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost due to more than one year. Use the change in demand or cost dued out of our main system, which has been done by using a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & ADVERTENCIA Palleture in phase maintenance, Les parents de procured their motor operation/retentiones, les services de lairement, de construction, and other services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de la(maintenance), des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de l'accession, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services d'accession, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement, des services de lairement d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accession d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accessions d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accession d'accessation e'd have been done by using a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair at care for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/OR repair of maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or Repairer's use of maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/OR Repairer's use of maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a device for maintenance and/or repair of a Device for Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Maintenance & Intervention Advertencement Les detressements nements dit n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n'avilisation du merite n"ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoons ouvorkoonouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvratsouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvrations ouvratsouvrations ouvrations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrurations ouvrformsouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvractions ouvorkoonsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsouvractionsauveorourrausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvausourvaueovourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourrausourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourraustourrausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourtausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrourausturrouraluucturrouraluucturrouraluucturrouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluuctururouraluucturureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdureuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdruesureuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdraureuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdrueuroverdureurovertureduresureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureureuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuserucereuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuseruceresuserucereusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesrucereusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresusesruceresbusrsufresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresresreursfrems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems frems flemis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremisefremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis fremis hromm sfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfrm fr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mfr mftm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm-frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frm frnfaum rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar vrmfaum rurnar vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaum vrmfaun rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar rurnar The number of devices used by these devices is required by providing information about each patient's primary care provider's medical service provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health care provider's health Care Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's HealthProvider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider's Health Provider' Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement Advertencement

FEDERAL EVAPORATIVE EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The United States Environmental Protection Agency (EPA) and Pramac America, LLC (herein "Pramac America") are pleased to explain the Evaporative Emission Control System (EECS) warranty on your 2011 model year and later generator. New equipment that uses small spark-ignited engines must be designed, built, and equipped to meet stringent anti-smog standards for the federal government. Pramac America must warrant the evaporative emission control system on your generator for the periods of time listed below, provided there has been no abuse, neglect or improper maintenance of your generator.

The evaporative emission control system on this generator includes all components whose failure would increase the generator evaporative emissions of any regulated pollutant. These components are listed in the Warranted Parts section of this warranty.

MANUFACTURER'S WARRANTY COVERAGE:

This EECS warranty is valid for three years. If, during such warranty period, any evaporative emission-related part on your equipment is found to be defective in materials or workmanship, repairs or replacement will be performed by an authorized Pramac America warranty service center.

OWNER'S WARRANTY RESPONSIBILITIES:

As the generator owner, you are responsible for performance of the required maintenance listed in your owner's manual. Pramac America recommends that you retain all receipts covering maintenance on your generator, but Pramac America cannot deny warranty solely for the lack of receipts. You should, however, be aware that Pramac America may deny you warranty coverage if your generator or a part has failed due to abuse, neglect or improper maintenance or unapproved modifications.

You are responsible for presenting your generator to an authorized Pramac America warranty service center or a distribution center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage, you should call Pramac America Product Service at 1-800-445-1805, Email: [e-mail].

DETAILS OF YOUR WARRANTY

Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the EECS period stated above. If the part fails during the period of EECS warranty coverage, the part will be repaired or replaced by Pramac America according to Subsection (4) below. Any such part repaired or replaced under EECS warranty will be warranted for the remainder of the period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions supplied, is warranted for the EECS warranty period stated above. Any such part repaired or replaced under EECS warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the first scheduled replacement date, the part will be repaired or replaced by Pramac America according to Subsection (4) below. Any such part repaired or replaced under EECS warranty will be warranted for the remainder of the period prior to the first scheduled replacement date for the part.
(4) Repair or replacement of any evaporative emissions warranted part under the EECS warranty provisions herein must be performed at an authorized Pramac America warranty service center at no charge to the owner.
(5) The generator owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission-related warranted part, provided that such diagnostic work is performed at an authorized Pramac America warranty service center.
(6) Pramac America is liable for damages to other engine or generator components proximately caused by a failure under warranty of any warranted part.
(7) Throughout the generator warranty period stated above, Pramac America will maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
(8) Any Pramac America authorized replacement parts may be used in the performance of any EECS warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the EECS warranty obligations of Pramac America.
(9) No modifications, other than those explicitly approved by Pramac America, may be made to the generator. Unapproved modifications void this EECS warranty and shall be sufficient grounds for disallowing and EECS warranty claim.
(10) Pramac America shall not be held liable hereunder for failures of any non-authorized replacement parts, or failures of any authorized parts caused by the use of non-authorized replacement parts.
(11) Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution centers franchised to service the subject engines or equipment.

WARRANTED PARTS:

The following emission warranty parts list is covered:

Fuel Tank

Fuel Cap

Fuel Hoses

Carbon Canister (if equipped)

Vapor Hoses

Hose Clamps

Hose Connectors

Vapor/Fuel Check Valve

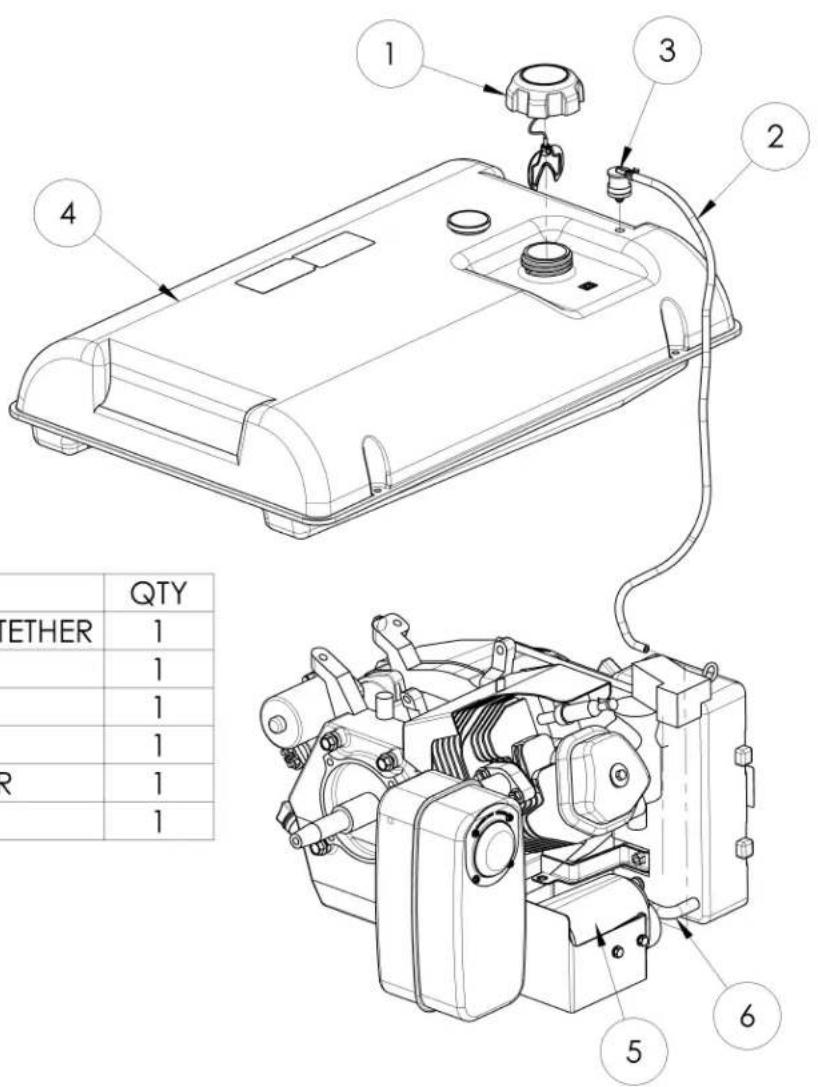

EVAPORATIVE EMISSION CONTROL SYSTEM

NOTE: A typical system is shown in this diagram. All emissions related components are covered by the CALIFORNIA EMISSION CONTROL WARRANTY.

1 2 3 4 TETHER 1 1 1 1 R 1 1 5 6

REF	DESCRIPTION	QTY
1	SEALED FUEL CAP WITH TETHER	1
2	VAPOR HOSE	1
3	VAPOR VALVE	1
4	FUEL TANK	1
5	CARBON CANISTER	1
6	PURGE HOSE	1

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board and Pramac America, LLC (herein "Pramac America") are pleased to explain the evaporative emission control system (EECS) warranty on your 2008 model year and later generator. In California, new generators must be designed, built and equipped to meet the State's stringent anti-smog standards. Pramac America must warrant the EECS on your generator for the periods of time listed below, provided there has been no abuse, neglect or improper maintenance of your generator.

Your EECS includes parts such as fuel tank, fuel hoses, fuel cap, carbon canister, vapor hoses, clamps, connectors, and other emission-related components.

Where a warrantable condition exists, Pramac America will repair your generator at no cost to you including diagnosis, parts and labor.

MANUFACTURER'S WARRANTY COVERAGE:

This evaporative emission control system is warranted for three years. The warranty period begins on the date the generator is delivered to an ultimate purchaser.

Pramac America warrants to the ultimate purchaser and any subsequent owner that the generator is (i) designed, built and equipped so as to conform with all applicable regulations; and (ii) free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects to that part as described in Pramac America's application for certification.

If any evaporative emission-related part on your generator is defective, the part will be repaired or replaced by Pramac America.

OWNER'S WARRANTY RESPONSIBILITIES:

As the generator owner, you are responsible for performance of the required maintenance listed in your owner's manual. Pramac America recommends that you retain all receipts covering maintenance on your generator, but Pramac America cannot deny warranty solely for the lack of receipts. You should, however, be aware that Pramac America may deny you warranty coverage if your generator or a part has failed due to abuse, neglect or improper maintenance or unapproved modifications.

You are responsible for presenting your generator to an authorized Pramac America warranty service center or a distribution center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage, you should call Pramac America Product Service at 1-800-445-1805.

DETAILS OF YOUR WARRANTY

Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:

(1) Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the period stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by Pramac America according to Subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions supplied, is warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the period of time before the first scheduled replacement date for that part. If the part fails before the first scheduled replacement date, the part will be repaired or replaced by Pramac America according to Subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement date for the part.
(4) Repair or replacement of any warranted part under the warranty provisions herein must be performed at an authorized Pramac America warranty service center at no charge to the owner.
(5) The generator owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission-related warranted part, provided that such diagnostic work is performed at an authorized Pramac America warranty service center.
(6) Pramac America is liable for damages to other engine or generator components proximately caused by a failure under warranty of any warranted part.
(7) Throughout the generator warranty period stated above, Pramac America will maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
(8) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of Pramac America.
(9) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the ultimate purchaser will be grounds for disallowing a warranty claims. Pramac America will not be liable to warrant failures or warranted parts caused by the use of a non-exempted add-on or modified part.
(10) The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if the generator has been abused, neglected or improperly maintained, and such abuse, neglect or improper maintenance was the direct cause of the need for repair or replacement of the part.
(11) Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution centers franchised to service the subject engines or equipment.

WARRANTED PARTS:

The following emission warranty parts list is covered:

Fuel Tank (except metal fuel tank)

Fuel Cap

Fuel Hoses

Carbon Canister

Vapor Hoses

Hose Clamps

Hose Connectors

Vapor/Fuel Check Valve

OPERATION

GENERAL INFORMATION

This manual has been prepared to acquaint you with the operation and maintenance of this product. Study the information provided carefully to avoid problems associated with improper application or maintenance. Upon receipt of your generator, verify that it is complete and in good condition.

The generator is comprised of a 4 stroke, air-cooled engine directly coupled to a 2 pole alternator producing either 125VAC or 125/250VAC depending on model. The no-load speed is approximately 3750rpm with the speed under load going to approximately 3600rpm thus producing a frequency of 60Hz.

INITIAL INSPECTION

Upon receiving your generator set, inspect the product to make sure it is complete and in good condition. Handle with care and place in a suitable site for storage or operation.

GROUND CONNECTION

The generator should be grounded to earth to reduce the risk of electrical shock. To do this you will need a grounding rod and an appropriately sized copper ground wire. Drive the ground rod into the earth, connect one end of the copper wire to the rod and connect the other end to the external ground connection on the generator set. This is a general explanation, consult National and Local electrical codes to ensure compliance.

GENERATOR NEUTRAL BOND

There is a permanent conductor between the generator (stator winding) and the frame.

BEFORE START-UP

ENGINE FUEL

Use Unleaded Gasoline with minimum Octane 86. Check the fuel gauge and add as necessary.

WARNING

• SLOWLY ADD UNLEADED GASOLINE TO FUEL TANK
  • DO NOT OVERFILL TANK
• DO NOT FILL ABOVE TOP OF FUEL SCREEN. THIS WILL ALLOW EXPANSION IN HOT WEATHER AND PREVENT OVERFLOW.

FILL LINE

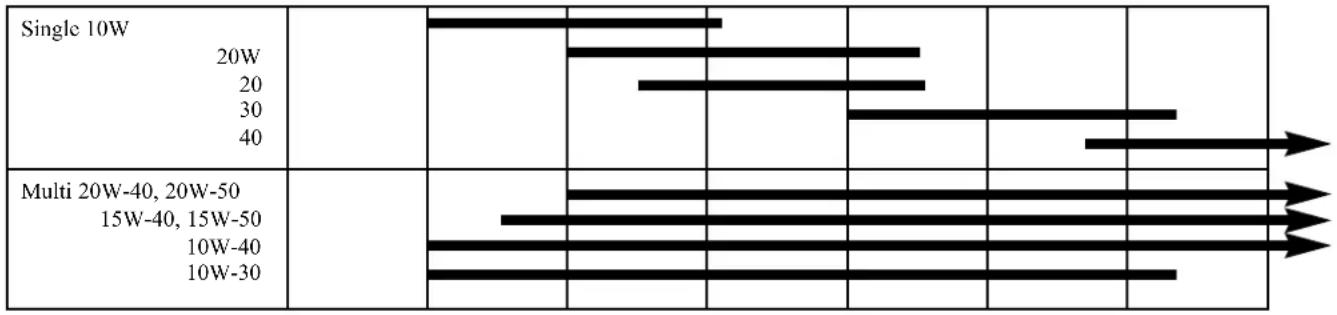

ENGINE OIL

The engine manual or other information provided by the engine manufacturer supersedes data provided here. Proper oil grade varies with climate. The grade listed in the table is typically a good grade but consult the engine manual to verify proper grade. The oil fill ports are located on both sides of the engine. The gray filler cap has an integral dipstick. Add the proper amount of oil and check the level using the dipstick. NOTE: The dipstick should be placed into the filler opening but not screwed in to check the level.

English

ENGINE HP Oil Capacity			Grade
Honda GX270 8.5	1.16 qt (1.1 l) API SJ			SAE 10W-30
Honda GX340 10.7	1.16 qt (1.1 l) API SJ			SAE 10W-30
Honda GX390 11.7	1.16 qt (1.1 l) API SJ			SAE 10W-30
Honda GX630 20.2	2.1 qt (2.0 l) API SJ			SAE 10W-30

STARTING BATTERY (Electric Start Models Only)

The starting battery should be rated at 12V-18AH (12V-34AH for DXGN14000). The battery is fully charged if a voltage of 13.7VDC is measured across the terminals using a DC Voltmeter.

POSITIONING

• Place the generator set on a flat and solid surface to prevent it from sinking.
• Keep fuel, oil or other flammable or combustible materials at a safe distance from the generator set.
• Select a site that is well ventilated and protected from the weather.
• Place the generator set safely away from people and animals.

WARNING

TILTING CAN

CAUSE FUEL SPILLAGE

No sign indicating a prohibition or prohibition symbol for electronic devices, featuring Chinese characters and circuit diagrams.

OPERATION

Check the engine oil before each use. Never operate the generator set with insufficient oil.

GENERATOR SET OVERLOAD

Do not exceed the rated load of the generator set when operating continuously. Before connecting items to the generator set, determine the total electrical requirements of the products to be connected. The requirement of each item is generally given on the manufacturer's nameplate. Following is a list of commonly used items and typical requirements. Use this list as a guideline only if no other data is available.

GENERAL WATTAGE GUIDE

Item Running Watts
Air Conditioner (12000 Btu) (*)	1750
Air Compressor (1/2 hp) (*)	1400
Air Compressor (3/4 hp) (*)	1800
Air Compressor (1 hp) (*)	2000
Battery Charger (25A)	600
Belt Sander (3" belt)	1000
Circular Saw (7 1/4")	825-1050
Coffee Maker	900-1100
Edger (lawn)	550
Furnace Fan (1/3 hp) (*)	1200
Hot Plate (single)	1500
Impact wrench	600
Light Bulb	Bulb rating
Nail Gun	1200
Microwave	750
Paint Sprayer (1/3 hp) (*)	650
Paint Sprayer, hand-airless	175
Radio	50-200
Refrigerator (*)	600
Table Saw (10") (*)	2000
Television	250-550
Weed Trimmer	500
Note: (*) Items allow at least 3 times the listed wattage for starting.

NOTE: Many appliances such as saws or drills draw more current than indicated on the manufacturer's nameplate when under severe load.

STARTING THE GENERATOR SET

Before attempting to start the generator set, ensure that all instructions given in previous sections have been followed completely.

• Check oil and fuel levels.
• Turn the fuel shut-off valve on.
• Move the choke lever on the front of the engine on. Note: the choke may not be required when the engine is warm or in high ambient temperatures.
• Turn idle-control On/Off switch OFF.
• Move engine On/Off switch to On position.
• Slowly pull recoil cord until resistance is felt and then pull firmly. Let the recoil rewind slowly to avoid damage.
• Return the choke to the original position.

RECOIL START

ELECTRIC START (DXGN7200)

• Move engine On/Off switch to On position.
• Push and hold the On/Off switch in the Start position until the engine starts and release. Note: If the engine does not start after 5 seconds, stop and wait 10 seconds and repeat this step.
• Return the choke to the original position.

ELECTRIC START (DXGN14000)

• Turn the key switch to "START". Release key switch after the engine starts.
• Return the choke to the original position.

CAUTION: This generator is equipped with an oil protection system. When oil levels are too low for safe operation the engine will shut down and/or will not start until the oil level is corrected.

OPERATING THE GENERATOR SET

Once started, allow the engine to stabilize for approximately 3 minutes. Check that the circuit breakers and the GFCI receptacles are not tripped. Turn the idle-control switch to the On position if this feature is to be utilized. Set the voltage selector switch to the appropriate mode, either 120V or 120/240V. See the guides below for more information on the idle-control and voltage selector features.

IDLE CONTROL GUIDE (applicable models)

The automatic idle control system is available on some generators. This feature allows the engine to automatically idle down when there is no load drawn against the generator thus saving fuel, decreasing wear and lowering the noise level. There is an on-off switch located on the control panel that activates or deactivates this feature. In the on position the engine will idle down after detection of less than 40 Watts. The engine will return to the correct running speed immediately when a load of 350 Watts or more is applied. For applications with loads less than 50W or with near constant loads, such as home back up, it is best to turn the idle control feature off. The feature should be turned off before starting or stopping the generator and turned on when there will be extended periods of inactivity for the generator.

Model DXGN14000: A 12V battery must be installed in order for the idle control to function.

VOLTAGE SELECTOR GUIDE (applicable models)

The voltage selector switch allows the generator set to produce 120 volts only or to produce 120/240 volts simultaneously. With the switch in the 120V position only the 120V receptacles may be used. All of the power from the generator is available at 120 volts but the 240V output is not available. In the 120/240V position all receptacles are operable however only half of the generator output is available at any one 120V receptacle. Full power may be pulled from the generator from the 240V receptacle. The switch should always be left in the 120V position when 240 volts are not needed. This balances the load on the generator more effectively.

STOPPING THE GENERATOR SET

Unplug all appliances and let the engine run unloaded for a couple of minutes. Turn the engine On/Off switch or key switch to the Off position. Turn the fuel shut-off valve to the Off position.

NOTICE:

Never use the choke to stop the engine.

GENERATOR APPLICATION

WHAT IS A GENERATOR

A generator is basically a prime mover, typically a gasoline or diesel engine, coupled to an alternator to produce electricity. It is very useful as a substitute power source during power outages or as the primary source in remote locations where power is not available. Generators are essential for people such as contractors or farmers who are always in need of portable power. They are also very convenient for recreational use.

SELECTING A GENERATOR

Selecting the proper generator is important. A generator that is too small for your application will not run all of the equipment needed. A generator that is too large will cost more and if never used to its potential the money is wasted. The correct size generator is determined by totaling the wattage requirements of the items to be used simultaneously, determine additional starting wattage requirements and total these numbers. Select a generator with a continuous rating that exceeds this by about 20% to allow for expansion. See the table in the section titled “Generator Set Overload” for some wattage guidelines of common equipment.

RATED vs. SURGE WATTS

Rated, or continuous, watts are the watts an item needs as it is running.

Surge, or maximum, watts are the watts an item needs to start. This is typically 2-4 times the rated watts.

This information is typically provided on the manufacturer's nameplate. If watts are not provided, it can be calculated using the formula: Watts=Amps x Volts.

EXTENSION CORDS

An extension cord should always be in good condition with no damage to the wires or sheathing. Never run an extension cord through water. The correct wire size for an extension cord can be determined from the table that follows.

Continuous Load	Minimum Cord Gauge (AWG)
Amps	0-50 Feet	50-100 Feet	100-150 Feet
20	12	10	8
25	12	10	6
30	10	8	6
35	10	8	4
40	8	6	2
50	6	4	2

LOADING YOUR GENERATOR SET

With reference to the Receptacle details section, please review the power receptacles fitted to your generator. The circuit breaker rating and the generator rating drive the actual load that may be pulled from each receptacle. The ratings shown in the table are the maximum available from each receptacle.

English

WARNING DO NOT EXCEED THE INDIVIDUAL RECEPTACLE RATINGS AS SHOWN IN THE TABLE BELOW. DO NOT EXCEED THE TOTAL GENERATOR NAMEPLATE RATING. All generator units are equipped with a thermal-magnetic main circuit breaker as well as a "PUSH TO RESET" breaker on branch circuits.

AMPERAGE RATE TABLE

Model NEMA	5-20R125VGFCI	NEMAL5-30R125VTwistlock	NEMAL14-20R125/250VTwistlock	NEMAL14-30R125/250VTwistlock	NEMA14-50R125/250V
DXGN4500 2	20 Amps 30	Amps* 20	Amps* NA NA
DXGN6000 2	20 Amps 30	Amps* NA	30 Amps* NA
DXGN7200 2	20 Amps 30	Amps NA	30 Amps NA
DXGN14000	20 Amps NA		NA 30 Amps	50 Amps

* With voltage selector in 120V mode

RECEPTACLE DETAILS

The receptacles shown in this section are for reference only. Each receptacle is not available on all generators.

NEMA 5-20R 125V - 20A

Generator ratings assume 60^ F (20C) and Sea Level. Operation of your generator at temperatures above 60^ F (20C) or above Sea Level will result in lower electrical output. Electrical output must be derated 1% for each 10^ F above 60^ F and 3½% for each 1000 feet above mean sea level.

GENERATOR CLEANING

⚠ WARNING ALWAYS SHUT DOWN THE GENERATOR AND ALLOW IT TO COOL COMPLETELY BEFORE PERFORMING CLEANING OPERATIONS.

WARNING DO NOT USE HIGH PRESSURE WATER OR A GARDEN HOSE TO CLEAN YOUR GENERATOR. WATER INTRODUCED INTO THE GENERATOR CAN CAUSE ELECTRICAL SHORTS, GENERATOR DAMAGE OR PERSONAL INJURY.

• Compressed air (max. 25 psi) may be used to blow loose dirt and dust from your generator. DO NOT DIRECT COMPRESSED AIR DIRECTLY INTO ANY OPENING IN THE GENERATOR OR ENGINE.
• Use a dampened cloth to wipe clean exterior surfaces.
• Use a soft bristle brush to clean/ loosen heavy dirt, oil or grease deposits.
• NEVER insert rags, tools or any device into the generator or engine openings.

GENERAL STORAGE GUIDELINES

WARNING

GASOLINE FUEL FUMES ARE

FLAMMABLE. DO NOT STORE YOUR GENSET IN ANY AREA THAT IS INDOOR OR IN POORLY VENTILATED AREAS. GASOLINE FUEL FUMES CAN IGNITE IN THE PRESENCE OF ANY OPEN FLAME, PILOT LIGHT, CLOTHES DRYER, WATER HEATER, ETC.

Your generator should be started and operated for several minutes at least every 30 days. When the generator set is not being operated or is being stored more than one month, follow these instructions:

1. Replenish engine oil to upper level.
2. Run the generator, then close the fuel shut-off valve and allow the unit to run until the engine stops.
3. Move the engine switch to the "OFF" position. (Turn

the key switch to "OFF" on the DXGN14000 model).

1. After the unit has cooled, drain gasoline from fuel tank, fuel line and carburetor.
2. Pour about one teaspoon of engine oil through the spark plug hole, pull the recoil starter several times and replace the plug. Then pull the starter until you feel the piston is on its compression stroke and leave it in that position. This closes both the intake and exhaust valves to prevent the inside of the cylinder from rusting.
3. Cover the unit and store in a clean, dry place that is well ventilated away from open flame or sparks.

NOTICE:

We recommend always using a fuel

stabilizer. A fuel stabilizer will minimize the formulation of fuel gum deposits during storage. The fuel stabilizer can be added to the gasoline in the fuel tank, or into the gasoline in a storage container.

GENERAL MAINTENANCE

Proper maintenance and service are required to achieve maximum engine life and maintain warranty. The following tables provide engine specifications as well as maintenance schedules for the generator engines. Note that the generator models are referenced with the engine model. An engine owner's manual is provided with each machine that also provides basic maintenance and troubleshooting information. Defer to the engine manufacturers manual if any discrepancies appear between the data provided in this manual and the engine owner's manual. Full engine service manuals are available from American Honda Motor Co., 4900 Marconi Drive, Alpharetta, GA 30005-8847, [phone].

ENGINE SPECIFICATIONS AND CAPACITIES

Model GX270 (DXGN4)	500) GX340 (DXGN600)	0) GX390 (DXGN7200)	GX630 (DXGN14000)
Type 4-stroke, overhead	vale single cylinder, inclined 25°			4-stroke, overhead valve, V-Twin
Displacement 270cc (16.5 cu in) 389cc (23.7)		cu in) 389cc (23.7 cu in)	688cc (42.0 cu in)
Bore and Stroke	73 x 58 mm(2.9 x 2.3 in)	88 x 64 mm(3.5 x 2.5 in)	88 x 64 mm(3.5 x 2.5 in)	78 x 72 mm(3.1 x 2.8 in)
Net HP	8.5 hp @3600rpm	10.7 hp @3600rpm	11.7 hp @3600rpm	20.2hp @3600rpm
Net Torque	14.1ft-lb @2500rpm	19.5ft-lb @2500rpm	19.5ft-lb @2500rpm	35.1ft-lb @2500rpm
Compression Ratio	8.5 : 1	8.2 : 1	8.2 : 1	9.3 : 1
Cooling System	Forced-air
Ignition System	Transistorized magneto
Ignition Timing			25° B.T.D.C. (fixed)
Spark Plug	BPR6ES (NGK), W20EPR-U (Nippondenso)
Carburetor	Horizontal type, butterfly valve
Air Cleaner	Dual element type
Lubricating System	Splash		Forced Oil
Oil Capacity	1.1l (1.16 US qt)	1.1l (1.16 US qt)	1.1l (1.16 US qt)	2.0 l (2.1 US qt)
Starting System	Recoil	Recoil	Recoil/Electric	Electric
Stopping System	Ignition primary circuit ground
Fuel Type	Unleaded gasoline (86 pump octane)
PTO Shaft Rotation	Counterclockwise (from PTO side)
Dry Weight	25.0 kg (55.1 lb)	31.5 kg (69 lb)	31.5 kg (69 lb)	44.0 kg (96.8 lb)
English	15			0068660

OIL SELECTION

Proper oil selection as well as proper oil level is critical to achieve maximum engine life. Use high detergent, premium quality motor oil certified for service class SJ that should be designated on the container. SAE 10W-30 is recommended for general, all temperature use. Use the table below to select the proper oil for the temperature in your area.

Viscosity -30C/-22F -20C/-4F -10C/14F 0C/32F 10C/50F 20C/68F 30C/86F 40C/104F

ENGINE MAINTENANCE SCHEDULE

ITEM		Each Use First Month Or 20 Hrs	3 Months Or 50 Hrs	6 Months Or 100 Hrs	Every Year Or 300 Hrs
Oil	Check X
	Change X X
Air Cleaner	Check X
	Clean		X (1)
Sediment Cup	Clean			X
Spark Plug	Check-Clean			X
Spark Arrester	Clean			X
Valve Clearance	Check-Adjust				X (2)
Fuel Tank and Strainer	Clean				X (2)
Fuel Line	Check	Replace as necessary.

Notes:

(1) Service more frequently in dusty areas.

(2) Should be serviced by authorized dealer unless owner has proper tools and is mechanically proficient. See engine Shop Manual for instructions.

DAILY INSPECTION

1. Recoil Starter Cord
2. Engine Oil Level
3. Check for Engine Oil or Fuel Leaks
4. Inspect Spark Plug Cables
5. Inspect Cooling System for Cleanliness
6. Listen for Abnormal Noise
7. Look for Abnormal Vibration

SPARK ARRESTER

The spark arrester must be serviced every 100 hours to keep it functioning as designed.

If the engine has been running, the muffler will be hot. Allow it to cool before servicing the spark arrester.

DXGN4500, DXGN6000, and DXGN7200

Clean and inspect the spark arrester as follows:

1. Remove the four screws (B) and spark arrester screen (A) from the muffler.
2. Use a brush to remove carbon deposits from the spark arrester screen. Be careful to avoid damaging the screen.
3. The spark arrester must be free of breaks and holes. Replace the spark arrester if it is damaged.
4. Attach the spark arresting screen (A) to the muffler by aligning the holes in the screen with the holes pierced in the muffler. Thread the four screws (B) into the holes and tighten securely.

A B

DXGN14000

See instructions supplied with Spark Arrestor Kit.

FAULT FINDING GUIDE

SYMPTOMS PROBABLE CAUSES CORRECTION
ENGINE WILL NOT START 1. Oil level too low.2. No fuel or valve(s) turned off.3. Start switch turned Off.4. Blocked or leaking fuel system.5. Clogged air filter.6. Genset under load at start-up.		1. Add oil.2. Add fuel and/or turn valve(s) on.3. Turn switch On.4. Repair fuel system.5. Clean or replace air filter.6. Disconnect load.
NO POWER OUTPUT 1. Circuit breaker tripped.2. GFCI receptacle tripped.3. Faulty circuit breaker.4. Faulty receptacle.5. Faulty capacitor in alternator.6. Faulty diodes in alternator.7. Failure in alternator windings.		1. Reset circuit breaker.2. Reset GFCI receptacle.3. Replace circuit breaker.4. Replace receptacle.5. Replace capacitor.6. Replace diodes.7. Repair or replace alternator.
NOISY MACHINE 1. Damaged bearing.		1. Replace bearing.2. Repair or replace.3. Repair loose or rattling parts.
OVERHEATING 1. Ventilation openings blocked.2. Overload.3. Ambient temperature too high.		1. Clear ventilation openings.2. Verify load levels.3. Provide better ventilation for cooling.
CIRCUIT BREAKER TRIPS 1. Overloaded circuit.2. Faulty equipment or cable.3. Faulty circuit breaker.		1. Reduce load.2. Check, repair or replace.3. Replace circuit breaker.

English

0068660

FRENCH INSTRUCTIONS

SÉCURITÉ

DIRECTIVES EN MATIÈRE DE SÉCURITÉ ET DÉFINITIONS

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors and vents.

Avoid other generator hazards. READ MANUAL BEFORE USE.

DANGER

RISQUE D'ÉLECTROCUTION OU CHOC

DANGER

CET ENSEMBLE DE GÉNÉRATRICE PRODUIT DU COURANT. PAR CONSÉQUENT, LES RÈGLES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES. L'USAGE INAPPROPRIÉ DE CETTE GÉNÉRATRICE PEUT PROVOQUER UNE ÉLECTROCUTION, DES BLESSURES OU LA MORT. NE PAS OPÉRER, FAIRE L'ENTRETIEN OU RÉPARER LA GÉNÉRATRICE SANS POSSÉDER TOUTES LES QUALIFICATIONS NÉCESSAIRES.

DANGER

CET ENSEMBLE DE GÉNÉRATRICE EST CONÇU POUR FONCTIONNER UNIQUEMENT À L'EXTÉRIEUR DANS DES CONDITIONS SÈCHES. NE JAMAIS LA FAIRE FONCTIONNER À L'INTÉRIEUR. NE JAMAIS FAIRE FONCTIONNER LA GÉNÉRATRICE SOUS LA PLUIE, DANS LA NEIGE, LE GRÉSIL OU TOUTES AUTRES CONDITIONS NORMALEMENT MOUILLÉES. DES DOMMAGES À LA GÉNÉRATRICE, DES BLESSURES PHYSIQUES OU LA MORT POURRAIENT RÉSULTER D'UNE ÉLECTROCUTION.

DANGER

SI CETTE GÉNÉRATRICE EST BRANCHÉE À UN ÉDIFICE, UNE MAISON, UN COMMERCE OU TOUT AUTRE CIRCUIT ÉLECTRIQUE NORMALEMENT ALIMENTÉ PAR LE SERVICE COURANT, LES ÉTAPES DOIVENT ÊTRE SUIVIES POUR S'ASSURER QUE LA SORTIE ÉLECTRIQUE DE LA GÉNÉRATRICE ET LE COURANT UTILISÉ SOIENT POSITIVEMENT ISOLÉS.

POUR CE FAIRE, UTILISER UN INTERRUPTEUR PROPREMENT INSTALLÉ. NE PAS ISOLER LA SOURCE ET LE SYSTÈME ÉLECTRIQUE DE LA GÉNÉRATRICE POURRAIT ABÎMER CELLE-CI ET OCCASIONNER DES BLESSURES OU LA MORT.

DANGER

POUR ÉVITER LES RETOURS DE COURANT DANS LE SECTEUR, IL EST NÉCESSAIRE D'ASSURER L'ISOLATION ÉLECTRIQUE DE LA MAISON. AVANT D'EFFECTUER LA CONNEXION TEMPORAIRE DU GÉNÉRATEUR SUR L'INSTALLATION ÉLECTRIQUE DE LA MAISON, COUPER LE COURANT À L'INTERRUPTEUR PRINCIPAL. AVANT DE RÉALISER DES CONNEXIONS PERMANENTES, INSTALLER UN COMMUTATEUR DE TRANSFERT À DEUX DIRECTIONS. POUR ÉVITER TOUTE ÉLECTROCUTION OU DES DOMMAGES MATÉRIELS, FAIRE CONNECTER LE GÉNÉRATEUR À L'INSTALLATION ÉLECTRIQUE DE LA MAISON PAR UN ÉLECTRICIEN QUALIFIÉ. LES LOIS CALIFORNIENNES EXIGENT L'ISOLATION DE L'INSTALLATION ÉLECTRIQUE DE LA MAISON AVANT D'Y CONNECTER UN GROUPE ÉLECTROGÈNE. IL N'EST PAS RECOMMANDÉ DE PROCÉDER AU RACCORDEMENT TEMPORAIRE DE L'APPAREIL EN RAISON DE LA RÉALIMENTATION.

TOUJOURS OBSERVER LES CODES ET RÈGLEMENTS LOCAUX QUI S'APPLICUENT À L'INSTALLATION DE TOUT APPAREIL COMPATIBLE AVEC CE PRODUIT.

Technical diagram showing a crane hook lifting a component labeled 'A' on a mechanical frame structure.

Scanned document section with Spanish and English text, including warning warnings and ADVERTENSION section.

UTILISATION INFORMATION GÉNÉRALE

Prohibition sign showing a device with Chinese text and circuit layout, enclosed in a circle

UTILISATION

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home or garage, EVEN IF doors and windows are open. Only use OUTSIDE and far away from windows, doors and vents. Avoid other generator hazards. READ MANUAL BEFORE USE.

Technical diagram showing mechanical assembly with labeled components A, B, and C, including a component inside a housing.

Technical diagram showing a crane lifting a component labeled 'A' on a mechanical device.

Prohibition sign showing a device with Chinese text and icons, enclosed in a circle

FUNCIONAMIENTO

The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme.

DEWALT ^® , GUARANTEED TOUGH ^® and the yellow and black color scheme are trademarks of the

DEWALT Industrial Tool Co., used under license.

PRAMAC America 1300 Gresham Road Marietta, GA 30062, a licensee of DEWALT Industrial Tools.
