USER MANUAL 304674 Aplic

Abstract geometric logo with a black semicircle inside a white arch (no text or symbols)

BEDIENUNGSANLEITUNG

USER MANUAL

BARCODE SCANNER

Mod.-Nr.: 304674

Table of contents

1. Deutsch .... 3
2. English 21
3. Français......41
4. Italiano....62
5. Español....81
6. Code pages....100
7. Connection reset....2/105

Connection / Adapter Reset

Black and white barcode image with vertical bars

Reset factory default

Black and white barcode image with vertical stripes

Wireless mode

Wired USB mode

Black and white barcode image with vertical lines and a central bar

Match enforced Remove the original

Match enforced Remove the original

Match For the mismatch device

3. Produkt-Details

Black and white barcode image with vertical lines on both sides

Reset factory default

7. Scan-Modi

Black and white barcode image with vertical stripes

Default mode

Barcode image with black and white vertical bars, no visible text or symbols

Auto continuous scan

Black and white barcode image with vertical stripes

Scan delay

Single scan no trigger

Reading delay no trigger

Auto light flash lamp

7.1 Scan-Ton

Black and white barcode image with vertical lines and a small number '1' at the bottom

On(default)

Black and white barcode image with vertical lines on both sides

Off

No upload quantity Preview

Upload all data and delete

upload one piece data and delete

Upload all data and not deleted

Upload one piece data and not deleted

Beeper forbidden for upload success

Beeper enable for upload success

Receiver address display

Transmission address display

Shutdown

8 Standby-Modi

Auto-Standby After 30sec Non-Operate

Auto-Standby After 60sec Non-Operate

Auto-Standby After 5min Non-Operate

Auto-Standby After 10min Non-Operate

Auto-Standby After 20min Non-Operate

Hiding the blank in front of the barcode

No hiding the front CHAR (Default)

Hiding the blank behind the barcode

No hiding the behind CHAR (Default)

Hiding the "-"of the bar code

No hiding CHAR- in the middle of barcode(Default)

Replacing the "O" with "A" in barcode

No replacing the "O" with "A" in barcode(Default)

Upper /lower case transformation

Transformation closed

All is upper case

All is lower case

Upper /lower case transformation

Barcode image with vertical black and white stripes on white background

Fastest

Black and white barcode image with vertical stripes

Moderate (default)

Black and white barcode image with vertical stripes

Lower

Lowest

9.4 Terminatoren

Prefix & suffix setting

Termination CHAR-Enter

Black and white barcode image with vertical lines and a central dot

Termination CHAR-double Enter

No termination format CHAR

Black and white barcode image with vertical lines and a central vertical bar

O

Black and white barcode image with vertical lines on both sides

K

Black and white barcode image with vertical lines and a small number 'n' in the center.

Exit prefix-suffix adding mode

Black and white barcode image with vertical lines and a central dot

Delete all suffix

Black and white barcode image with vertical lines and a central pattern

Delete all prefix

America, China (American English) Default

Canada (French)

Netherlands (Dutch)

Spain (Spanish)

Argentina (Latin language)

Brazil (Portuguese)

Denmark (Danish)

United Kingdom (English)

Italy (Italian 142)

France (French)

Germany (German)

Norway (Northern Sami)

Sweden, Finland (Swedish, Finnish)

Slovakia (Slovak)

Portugal (Portuguese)

Czech Republic (Czech)

Belgium (Dutch)

Turkish-F

Turkish-Q

Poland (Polish 214)

Switzerland (German, French)

Croatia (Croatian)

Hungary (Hungarian)

Japan (Japanese)

Russia (Russian)

Egypt (Arabic)

10. Barcode Settings

Code39

Code 39 / On

Code 39 / Off

Code 39 ID Character"m"

Code 39 Full ASCLL / Off

Code 39 Full ASCLL(Default) / On

Code 39 MOD43 Check / ON

Code 39 MOD43 Check / Off

Transmit Check / On

Transmit Check / On

Transmission Lead / On

Transmission Lead / Off

Verification Multiply / Off(Default)

Verification Multiply / On

Code 32 / Off

Code 32 / On Remark: It affects the Code 39 when it is on

Code 39 TAB Mode

UPC-A

Black and white barcode image with vertical lines and a central dot

UPC A Code / On (Default)

Black and white barcode image with vertical lines and a small number '1' at the bottom

UPC A / Off

Black and white barcode image with vertical bars of varying widths

UPC A Code ID Character "m"

Transform Into EANI3 / OFF(Default)

Transform Into EANI3 / ON

Do Not Transmit Check Code

Transmit Check Code (Default)

Hide The System Character

Do Not Hide The System Character

UPC-E

EAN13

EAN13 / ON(Default)

EAN13 / OFF

EAN13 ID Character "D"

Transmit Check Code (Default)

Transform Into ISBN / On

Transform Into ISSN / On

Verification Multiply / On

Do Not Transmit Check Code

Transform Into ISBN / OFF(Default)

Transform Into ISSN / OFF(Default)

Verification Multiply / OFF

EAN8

Additional Code

Code93

Black and white barcode image with vertical lines and a small number 'n' in the center.

Code 93 / ON(Default)

Black and white barcode image with vertical lines and a central pattern

Code 93 / OFF

Black and white barcode image with vertical lines and patterns

Code 93 ID Character "I"

Code93

Code128

Black and white barcode image with vertical lines forming a pattern of repeating patterns

Verification Multiply /OFF(Default)

CodaBar

Black and white barcode image with vertical lines

Codabar / On

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

CodaBar / Off

Black and white barcode image with vertical stripes

Codabar ID Character "V"

Black and white barcode image with vertical lines on both sides

Setting Stop/Start Character / Off

Black and white barcode image with vertical lines

Setting Stop/Start Character / On

Black and white barcode image with vertical lines on both sides

Verification Multiply /On

Black and white barcode image with vertical lines and a small number '1' at the bottom

Verification Multiply /OFF

Code25

Black and white barcode image with vertical lines and a central vertical bar

Cross Code 25 / On

Black and white barcode image with vertical stripes

Cross Code 25 / Off

Black and white barcode image with vertical bars of varying widths

Industrial Code 25 / On (Default)

Black and white barcode image with vertical stripes

Verification Multiply / Off

Black and white barcode image with vertical stripes

Industrial Code 25 / Off

Black and white barcode image with vertical stripes

Verification Multiply / Off

Code25

Black and white barcode image with vertical lines and a horizontal bar at the bottom

MIS / Off

Black and white barcode image with vertical lines on both sides

MIS Code / On

Verification Multiply / Off

MIS Code ID Character 's"

Verification Multiply / On

Code11

Code25

Barcode image with vertical black and white bars, no visible text or symbols

Matrix Code 25 ID Character "q"

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Post Code 25 / On

Black and white barcode image with vertical lines and a central black square

Post Code 25 / Off

Black and white barcode image with vertical lines and a central dot

Post Code 25 ID Character"r"

ENA, ISBN ans transformate ISSN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISBN

Black and white barcode image with vertical lines and a central bar

EVAN Transform Into ISBN

Black and white barcode image with vertical lines

All EVAN Transform Into ISSN

Compulsive / Off

Black and white barcode image with vertical stripes

EVAN Transform Into ISSN
Compulsive / Off

Thank you for choosing an aplic product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of supply

• Barcode scanner
  • RJ45 to USB charging cable
• USB receiver
• Mounting
• User manual

2. Technical data

Power supply DC 5V (via	USB)
Frequency band 2402-24	78 MHz
Transmission power 0,55	dBm
Battery capacity 2600 mAh
Scanning modes	• Manual scanning• Automatic scanning• Continuous scanning
Scanning speed 300 scans/sec.
Laser class Class 1 (laser	safety regulations)
ESD protection 15 kV air	discharge
Shock resistance Falling	height from 1 m onto solid surfaces
Compatible barcodes	2of5 Datalogic, 2of5 Interleaved, 2of5 Industrial, CODABAR, Code93, Code11, Code39, Code128, EAN8, EAN13, EAN14, EAN128, ISBN, MSI, UCC-14, UPC-A, UPC-E, etc.
Features • Inventory mode	• Prefix/Suffix function• Different terminators

Interface mode

Choose between wireless and wired mode. Scan the desired barcode.

Wired USB mode

Wireless mode

Match enforced Remove the original

Match For the mismatch device

3. Product details

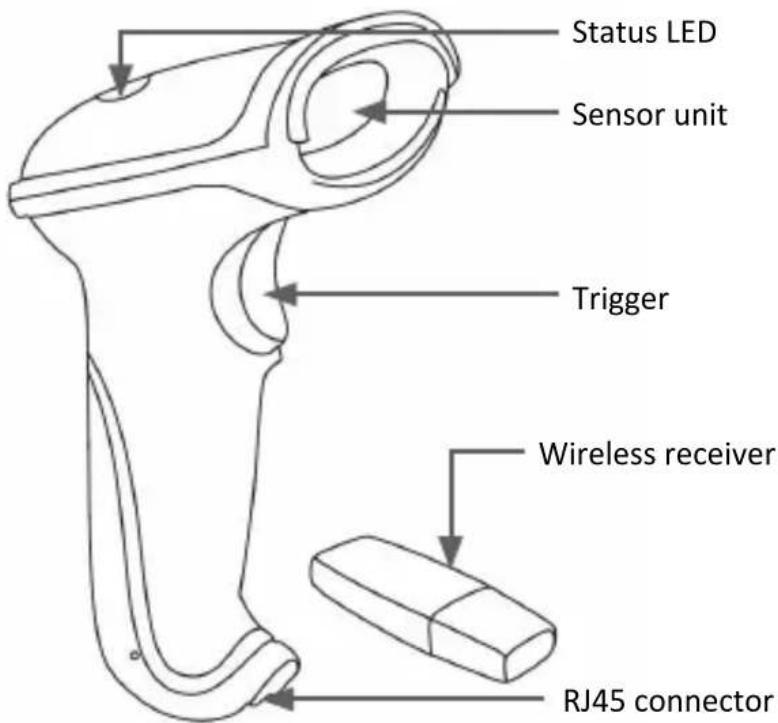

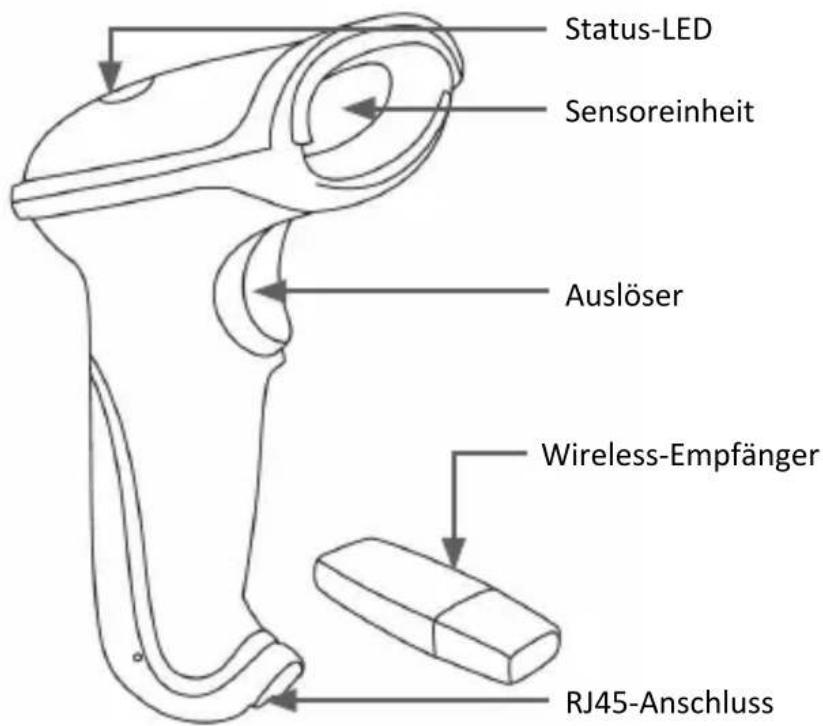

Status LED Sensor unit Trigger Wireless receiver RJ45 connector

4. Commissioning

Take the device and the accessory out of the package and remove all the packaging material. Charge the barcode scanner fully before using it for the first time. For this, connect the RJ45 to the USB cable via the RJ-45 connector with the barcode scanner and plug the USB connector into a free USB port of your computer or into a 5 V USB power adapter. To remove the cable at the bottom of the barcode scanner, press the latch of the RJ-45 connector downwards and disengage the cable. To operate the device, the USB receiver must be connected to a free port of your computer, notebook or tablet. The driver is installed automatically. The device is now ready to be used. For advanced settings, continue with chapter "6 Advanced Settings".

Note: the barcode scanner works only when the USB receiver is plugged in.

The charging cable is only meant for charging the device.

5. Scanning angle

To ensure correct scanning, make sure that the scanner is not held at a 90^ angle to the barcode. The scanner has to be pointed towards the bar code and the laser should cover the entire barcode. If this is not the case, errors might occur.

6 Resetting to factory settings

To reset the bar code scanner to factory settings, you have to scan the following code. After you have scanned the code, select the desired connection method (Wireless Mode or Wired Mode) as explained at the beginning of this manual:

Reset factory default

7 Scanning modes

The following barcodes can be scanned to activate the various scanning modes.

Barcode image with black and white vertical bars, no visible text or symbols

Default mode

Black and white barcode image with vertical stripes

Auto continuous scan

Black and white barcode image with vertical stripes

Scan delay

Single scan no trigger

Reading delay no trigger

Auto light flash lamp

7.1 Scanner sound

Scan the following barcodes to turn the scanner sound on or off.

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

On(default)

Black and white barcode image with vertical lines and a central dot

Off

7.2 Scanner settings

The barcode scanner has a Normal mode and an Inventory mode.

• In conventional normal mode, the scanned barcode is transferred to a computer, notebook or tablet in real me. If the receiver is outside the transmission range, the code is saved in the internal memory.
• In the Inventory mode, you can use the internal memory of the barcode scanner. The barcode scanner saves the read barcodes.
• “Upload all data and delete”: you can read the saved barcodes with this barcode. They are displayed on your computer, notebook or tablet. The internal memory of the barcode scanner is then deleted.
• “Inventoried Barcode quan ty display”: with this barcode, you can see how many barcodes are currently stored in the scanner.
• “Clear Data”: this barcode deletes all the saved codes, which have been saved with the “Inventory mode”, from the memory.
• With barcodes “Beeper forbidden for upload success” and “Beeper enable for upload success”, it is possible to enable or disable the sound (beeper) for successful upload.

Normal Mode

Inventory Mode

Inventoried Barcode quantity display

Clear data

Keep uploading data

No upload quantity Preview

Upload all data and delete

upload one piece data and delete

Upload all data and not deleted

Upload one piece data and not deleted

Beeper forbidden for upload success

Beeper enable for upload success

Receiver address display

Transmission address display

Shutdown

8 Standby modes

Auto-Standby After 30sec Non-Operate

Auto-Standby After 60sec Non-Operate

Auto-Standby After 5min Non-Operate

Auto-Standby After 10min Non-Operate

Auto-Standby After 20min Non-Operate

9 Additional barcode configuration options

Hiding the blank in front of the barcode

No hiding the front CHAR (Default)

Hiding the blank behind the barcode

No hiding the behind CHAR (Default)

Hiding the "-"of the bar code

No hiding CHAR- in the middle of barcode(Default)

Replacing the "O" with "A" in barcode

No replacing the "O" with "A" in barcode(Default)

9.1 Display or hide barcode elements

Specific characters of the barcode can be hidden using the following barcodes. You can choose between the first, middle and last 5 characters. Scan only the relevant barcode for this.

9.2 Upper/lower case

With the following barcodes, you can choose whether the scanner should display the scanned barcode in the upper or lower case, or whether the upper and lower cases should be swapped.

Scan "Transformation closed" to disable this function.

Upper /lower case transformation

Transformation closed

All is upper case

All is lower case

Upper /lower case transformation

9.3 Upload speed

Barcode image with black and white vertical bars on both sides

Fastest

Black and white barcode image with vertical stripes

Moderate (default)

Black and white barcode image with vertical lines and a central pattern

Lower

Barcode image with black and white vertical bars on white background

Lowest

9.4 Terminators

Prefix & suffix setting

Termination CHAR-Enter

Black and white barcode image with vertical stripes

Termination CHAR-double Enter

No termination format CHAR

Scan the desired barcode to change a terminator. The barcode scanner will then execute the configured terminator after every scanned code. If you select another terminator, it can be done with the help of the suffix function. For this, you have to scan „No termination format CHAR“. This command causes that the barcode scanner will not set up a terminator. Use the suffix function in order to scan the required terminator (e.g. blank key, TAB, 2x TAB, etc.).

9.5 Prefix/Suffix

Proceed as follows to add a prefix or suffix:

Scan one of the following codes if you want to add a suffix or a prefix.

Black and white barcode image with vertical stripes

Add Prefix setting

Add Suffix setting

Then scan the barcodes of the desired characters. The corresponding “Character barcodes” are in the table at the end of this user manual. To configure a suffix with the letters "OK", scan the characters "O" and "K" one after the other.

Black and white barcode image with vertical lines and a central vertical bar

O

Black and white barcode image with vertical lines on both sides

K

Once you have configured the desired prefix and suffix, you need to scan the next barcode "Exit prefix-suffix adding mode" to save the prefix/suffix.

Black and white barcode image with vertical bars of varying widths

Exit prefix-suffix adding mode

If you scan a barcode now, the newly scanned code is displayed in front of (prefix) or after (suffix) the scanned barcode.

Black and white barcode image with vertical lines on both sides

Delete all suffix

Black and white barcode image with vertical lines on both sides

Delete all prefix

To delete the prefix or suffix, scan the "Delete all prefix" barcode for deleting the prefix and the "Delete all suffix" barcode for deleting the suffix.

9.6 Language setting (wired mode only)

America, China (American English) Default

Canada (French)

Netherlands (Dutch)

Spain (Spanish)

Argentina (Latin language)

Brazil (Portuguese)

Denmark (Danish)

United Kingdom (English)

Italy (Italian 142)

France (French)

Germany (German)

Norway (Northern Sami)

Sweden, Finland (Swedish, Finnish)

Slovakia (Slovak)

Portugal (Portuguese)

Czech Republic (Czech)

Belgium (Dutch)

Turkish-F

Turkish-Q

Poland (Polish 214)

Switzerland (German, French)

Croatia (Croatian)

Hungary (Hungarian)

Japan (Japanese)

Russia (Russian)

Egypt (Arabic)

10. Barcode settings

Code 39

Code 39 / On

Code 39 / Off

Code 39 ID Character"m"

Code 39 Full ASCLL / Off

Code 39 Full ASCLL(Default) / On

Code 39 MOD43 Check / ON

Code 39 MOD43 Check / Off

Transmit Check / On

Transmit Check / On

Transmission Lead / On

Transmission Lead / Off

Verification Multiply / Off(Default)

Verification Multiply / On

Code 32 / Off

Code 32 / On Remark: It affects the Code 39 when it is on

Code 39 TAB Mode

UPC-A

Black and white barcode image with vertical lines forming a pattern of repeating patterns

UPC A Code / On (Default)

Black and white barcode image with vertical lines and a central dot

UPC A / Off

Black and white barcode image with vertical lines and a small number 'n' in the center.

UPC A Code ID Character "m"

Transform Into EANI3 / OFF(Default)

Transform Into EANI3 / ON

Do Not Transmit Check Code

Transmit Check Code (Default)

Hide The System Character

Do Not Hide The System Character

UPC-E

EAN13

Do Not Transmit Check Code

Transform Into ISBN / OFF(Default)

Transform Into ISSN / OFF(Default)

Verification Multiply / OFF

EAN8

Black and white barcode image with vertical lines and a central pattern

EAN8 /On

Black and white barcode image with vertical lines and a central dark bar

EAN8 / OFF

Black and white barcode image with vertical stripes

EVAN ID Character "C"

Transmit Check Digit

Do Not Transmit Check Digit(Default)

Hide The System Digit

Do Not Hide The System Digit Default

Additional code

Five Digit Additional Code / On

Two Digit Additional Code / On

Two & Five Digit Additional Code / On

Additional Code / OFF

Code 93

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Code 93 / ON(Default)

Black and white barcode image with vertical lines and a central dot

Code 93 / OFF

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Code 93 ID Character "I"

Code 93

Verification Multiply / On

Verification Multiply /OFF(Default)

Code 93 MOD47 / On (Default)

Code 93 MOD47 / OFF

Code 128

Black and white barcode image with vertical stripes

Code 128/ ON (Default)

Barcode image containing machine-readable data, no human-readable text visible

Code 128/ OFF

Black and white barcode image with vertical lines and a central dot

Code 128 ID Character "a"

Black and white barcode image with vertical lines and a central dot

Verification Multiply / On

Black and white barcode image with vertical lines and a small white dot in the bottom right corner.

Verification Multiply /OFF(Default)

CodaBar

Black and white barcode image with vertical stripes

Codabar / On

Barcode image with black and white vertical bars, no visible text or symbols

CodaBar / Off

Black and white barcode image with vertical stripes

Codabar ID Character "V"

Black and white barcode image with vertical stripes

Setting Stop/Start Character / Off

Barcode image with black and white vertical bars, no visible text or symbols

Setting Stop/Start Character / On

Black and white barcode image with vertical lines forming a pattern of repeating patterns

Verification Multiply /On

Black and white barcode image with vertical lines and a horizontal bar at the bottom

Verification Multiply /OFF

Code 25

Black and white barcode image with vertical stripes

Cross Code 25 / On

Black and white barcode image with vertical stripes

Cross Code 25 / Off

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Industrial Code 25 / On (Default)

Black and white barcode image with vertical stripes

Verification

Multiply / Off

Black and white barcode image with vertical lines and a horizontal bar at the bottom

Industrial Code 25 / Off

Black and white barcode image with vertical stripes

Verification Multiply / Off

Code 25

Code 11

Code 25

Black and white barcode image with vertical bars of varying widths

Matrix Code 25 / On (Default)

Black and white barcode image with vertical lines

Matrix Code 25 / Off

Code25

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Matrix Code 25 ID Character "q"

Black and white barcode image with vertical lines and a small number '1' in the bottom right corner.

Post Code 25 / On

Black and white barcode image with vertical lines and finder patterns

Post Code 25 / Off

Black and white barcode image with vertical lines and a central dot

Post Code 25 ID Character"r"

ENA, ISBN ans transformate ISSN

All EVAN Transform Into ISBN

Black and white barcode image with vertical lines forming a pattern of stripes

EVAN Transform Into ISBN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISSN

Compulsive / Off

Black and white barcode image with vertical stripes

EVAN Transform Into ISSN
Compulsive / Off

11. Cleaning and Care

Before cleaning, make sure that the barcode scanner is not connected to any USB port. The device must be switched off. Wipe the barcode scanner with a soft cloth which is moistened with a cleaning liquid. Do not immerse the device into water.

12. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.e.

13. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 304674 conforms to the principle requirement of 2014/53/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30719 Hanover, https://model.ganzeinfach.de/304674

Match enforced Remove the original

Match For the mismatch device

Black and white barcode image with vertical lines on both sides

Reset factory default

7. modes de lecture

Black and white barcode image with vertical stripes

Default mode

Barcode image with black and white vertical bars, no visible text or symbols

Auto continuous scan

Black and white barcode image with vertical stripes

Scan delay

Single scan no trigger

Reading delay no trigger

Auto light flash lamp

7.1 Son de lecture

Black and white barcode image with vertical lines and a small number '1' at the bottom

On(default)

Black and white barcode image with vertical lines and a central dot

Off

7.2 Configuration de la lecture

No upload quantity Preview

Upload all data and delete

upload one piece data and delete

Upload all data and not deleted

Upload one piece data and not deleted

Beeper forbidden for upload success

Beeper enable for upload success

Receiver address display

Transmission address display

Shutdown

8. Modes de veille

Auto-Standby After 30sec Non-Operate

Auto-Standby After 60sec Non-Operate

Auto-Standby After 5min Non-Operate

Auto-Standby After 10min Non-Operate

Auto-Standby After 20min Non-Operate

Hiding the blank in front of the barcode

No hiding the front CHAR (Default)

Hiding the blank behind the barcode

No hiding the behind CHAR (Default)

Hiding the "-"of the bar code

No hiding CHAR- in the middle of barcode(Default)

Replacing the "O" with "A" in barcode

No replacing the "O" with "A" in barcode(Default)

Upper /lower case transformation

Transformation closed

All is upper case

All is lower case

Upper /lower case transformation

Barcode image with vertical black and white stripes on white background

Fastest

Black and white barcode image with vertical stripes

Moderate (default)

Black and white barcode image with vertical stripes

Lower

Lowest

9.4 Terminateurs

Prefix & suffix setting

Termination CHAR-Enter

Black and white barcode image with vertical lines and a central dot

Termination CHAR-double Enter

No termination format CHAR

Black and white barcode image with vertical lines and a central vertical bar

O

Black and white barcode image with vertical lines on both sides

K

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Exit prefix-suffix adding mode

Black and white barcode image with vertical lines and a central dot

Delete all suffix

Black and white barcode image with vertical lines and a central pattern

Delete all prefix

Code 39 ID Character"m"

Code 39 Full ASCLL / Off

Code 39 Full ASCLL(Default) / On

Code 39 MOD43 Check / ON

Code 39 MOD43 Check / Off

Transmit Check / On

Transmit Check / On

Transmission Lead / On

Transmission Lead / Off

Verification Multiply / Off(Default)

Verification Multiply / On

Code 32 / Off

Code 32 / On Remark: It affects the Code 39 when it is on

Code 39 TAB Mode

UPC-A

Black and white barcode image with vertical lines and a central dot

UPC A Code / On (Default)

Black and white barcode image with vertical lines and a small number '1' at the bottom

UPC A / Off

Black and white barcode image with vertical bars of varying widths

UPC A Code ID Character "m"

Transform Into EANI3 / OFF(Default)

Transform Into EANI3 / ON

Do Not Transmit Check Code

Transmit Check Code (Default)

Hide The System Character

Do Not Hide The System Character

UPC-E

EAN13

Transmit Check Code (Default)

Do Not Transmit Check Code

Transform Into ISBN / On

Transform Into ISBN / OFF(Default)

Transform Into ISSN / On

Transform Into ISSN / OFF(Default)

Verification Multiply / On

Verification Multiply / OFF

EAN8

Additional Code

Code93

Black and white barcode image with vertical lines and a small number 'n' in the center.

Code 93 / ON(Default)

Black and white barcode image with vertical lines on both sides

Code 93 / OFF

Black and white barcode image with vertical lines and patterns

Code 93 ID Character "I"

Code93

Code128

Black and white barcode image with vertical lines forming a pattern of repeating patterns

Verification Multiply /OFF(Default)

CodaBar

Black and white barcode image with vertical lines and a central dot

Codabar / On

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

CodaBar / Off

Black and white barcode image with vertical stripes

Codabar ID Character "V"

Black and white barcode image with vertical lines on both sides

Setting Stop/Start Character / Off

Black and white barcode image with vertical stripes

Setting Stop/Start Character / On

Black and white barcode image with vertical lines on both sides

Verification Multiply /On

Black and white barcode image with vertical lines and a small number '1' at the bottom

Verification Multiply /OFF

Code25

Black and white barcode image with vertical stripes

Cross Code 25 / On

Black and white barcode image with vertical stripes

Cross Code 25 / Off

Black and white barcode image with vertical lines and patterns

Industrial Code 25 / On (Default)

Black and white barcode image with vertical stripes

Verification Multiply / Off

Black and white barcode image with vertical stripes

Industrial Code 25 / Off

Black and white barcode image with vertical stripes

Verification Multiply / Off

Code25

MSI-Code

Black and white barcode image with vertical stripes

MIS / Off

Black and white barcode image with vertical bars of varying widths

MIS Code / On

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Verification Multiply / Off

Black and white barcode image with vertical stripes

MIS Code ID Character 's"

Verification Multiply / On

Code11

Code25

Black and white barcode image with vertical lines and a central dot

Matrix Code 25 / On (Default)

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Matrix Code 25 / Off

Code25

Black and white barcode image with vertical lines and a small number 'n' in the center.

Matrix Code 25 ID Character "q"

Black and white barcode image with vertical stripes

Post Code 25 / On

Black and white barcode image with vertical stripes

Post Code 25 / Off

Black and white barcode image with vertical lines and a central dot

Post Code 25 ID Character"r"

ENA, ISBN ans transformate ISSN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISBN

Black and white barcode image with vertical stripes

EVAN Transform Into ISBN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISSN

Compulsive / Off

Black and white barcode image with vertical stripes

EVAN Transform Into ISSN
Compulsive / Off

Black and white barcode image with vertical lines and a central dot

Wireless mode

Match enforced Remove the original

Match For the mismatch device

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Reset factory default

7. Modalità Scan

Black and white barcode image with vertical stripes

Default mode

Black and white barcode image with vertical stripes

Auto continuous scan

Black and white barcode image with vertical stripes

Scan delay

Single scan no trigger

Reading delay no trigger

Auto light flash lamp

7.1 Suono Scan

Black and white barcode image with vertical lines and a central bar

On(default)

Black and white barcode image with vertical lines and a central dot

Off

No upload quantity Preview

Upload all data and delete

upload one piece data and delete

Upload all data and not deleted

Upload one piece data and not deleted

Beeper forbidden for upload success

Beeper enable for upload success

Receiver address display

Transmission address display

Shutdown

8 Modalità Standby

Auto-Standby After 30sec Non-Operate

Auto-Standby After 60sec Non-Operate

Auto-Standby After 5min Non-Operate

Auto-Standby After 10min Non-Operate

Auto-Standby After 20min Non-Operate

Hiding the blank in front of the barcode

No hiding the front CHAR (Default)

Hiding the blank behind the barcode

No hiding the behind CHAR (Default)

Hiding the "-"of the bar code

No hiding CHAR- in the middle of barcode(Default)

Replacing the "O" with "A" in barcode

No replacing the "O" with "A" in barcode(Default)

Upper /lower case transformation

Transformation closed

All is upper case

All is lower case

Upper /lower case transformation

9.3 Velocità Upload

Barcode image with black and white vertical bars on white background

Fastest

Barcode image with black and white vertical bars on white background

Moderate (default)

Black and white barcode image with vertical lines and a central pattern

Lower

Black and white barcode image with vertical lines and a central dot

Lowest

9.4 Terminatori

Prefix & suffix setting

Termination CHAR-Enter

Black and white barcode image with vertical lines and a small number 'n' in the center.

Termination CHAR-double Enter

No termination format CHAR

Black and white barcode image with vertical lines on both sides

Add Prefix setting

Add Suffix setting

Black and white barcode image with vertical lines on both sides

O

Black and white barcode image with vertical lines and a central vertical bar

K

Black and white barcode image with vertical bars of varying widths

Exit prefix-suffix adding mode

Black and white barcode image with vertical lines on both sides

Delete all suffix

Black and white barcode image with vertical lines on both sides

Delete all prefix

Code 39 ID Character"m"

Code 39 Full ASCLL / Off

Code 39 Full ASCLL(Default) / On

Code 39 MOD43 Check / ON

Code 39 MOD43 Check / Off

Transmit Check / On

Transmit Check / On

Transmission Lead / On

Transmission Lead / Off

Verification Multiply / Off(Default)

Verification Multiply / On

Code 32 / Off

Code 32 / On Remark: It affects the Code 39 when it is on

Code 39 TAB Mode

UPC-A

Black and white barcode image with vertical lines on both sides

UPC A Code / On (Default)

Black and white barcode image with vertical lines and a central '1' mark

UPC A / Off

Black and white barcode image with vertical lines and dots

UPC A Code ID Character "m"

Transform Into EANI3 / OFF(Default)

Transform Into EANI3 / ON

Do Not Transmit Check Code

Transmit Check Code (Default)

Hide The System Character

Do Not Hide The System Character

UPC-E

EAN13

EAN13 / ON(Default)

EAN13 / OFF

EAN13 ID Character "D"

Transmit Check Code (Default)

Do Not Transmit Check Code

Transform Into ISBN / On

Transform Into ISBN / OFF(Default)

Transform Into ISSN / On

Transform Into ISSN / OFF(Default)

Verification Multiply / On

Verification Multiply / OFF

EAN8

Black and white barcode image with vertical lines and a central dark bar

EAN8 /On

Black and white barcode image with vertical lines and a central bar

EAN8 / OFF

Black and white barcode image with vertical stripes

EVAN ID Character "C"

Transmit Check Digit

Do Not Transmit Check Digit(Default)

Hide The System Digit

Do Not Hide The System Digit Default

Two Digit Additional Code / On

Two & Five Digit Additional Code / On

Additional Code / OFF

Code93

Black and white barcode image with vertical lines forming a pattern of repeating patterns

Code 93 / ON(Default)

Black and white barcode image with vertical lines forming a pattern of repeating patterns

Code 93 / OFF

Black and white barcode image with vertical lines and patterns

Code 93 ID Character "I"

Code93

Verification Multiply / On

Verification Multiply /OFF(Default)

Code 93 MOD47 / On (Default)

Code 93 MOD47 / OFF

Code128

Black and white barcode image with vertical stripes

Code 128/ ON (Default)

Black and white barcode image with vertical lines and a central dot

Code 128/ OFF

Barcode image with black and white vertical bars on both sides

Code 128 ID Character "a"

Black and white barcode image with vertical lines and a central dot

Verification Multiply / On

Black and white barcode image with vertical lines and a central bar

Verification Multiply /OFF(Default)

CodaBar

Barcode image with black and white vertical bars, no visible text or symbols

Codabar / On

Black and white barcode image with vertical stripes

CodaBar / Off

Black and white barcode image with vertical stripes

Codabar ID Character "V"

Black and white barcode image with vertical stripes

Setting Stop/Start Character / Off

Black and white barcode image with vertical lines and a small number '1' at the bottom

Setting Stop/Start Character / On

Barcode image with black and white vertical bars, no visible text or symbols

Verification Multiply /On

Black and white barcode image with vertical lines on both sides

Verification Multiply /OFF

Code25

Black and white barcode image with vertical stripes

Cross Code 25 / On

Black and white barcode image with vertical stripes

Cross Code 25 / Off

Black and white barcode image with vertical lines and a central bar

Industrial Code 25 / On (Default)

Black and white barcode image with vertical stripes

Verification Multiply / Off

Black and white barcode image with vertical bars of varying widths

Industrial Code 25 / Off

Black and white barcode image with vertical stripes

Verification Multiply / Off

Code25

Codice MSI

Black and white barcode image with vertical stripes

MIS / Off

Black and white barcode image with vertical lines and a central dot

Verification Multiply / Off

Black and white barcode image with vertical stripes

MIS Code / On

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

MIS Code ID Character 's"

Verification Multiply / On

Code11

Code25

Black and white barcode image with vertical bars of varying widths

Matrix Code 25 / On (Default)

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Matrix Code 25 / Off

Code25

Black and white barcode image with vertical lines and a central dot

Matrix Code 25 ID Character "q"

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Post Code 25 / On

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Post Code 25 / Off

Black and white barcode image with vertical lines and a central dot

Post Code 25 ID Character"r"

ENA, ISBN ans transformate ISSN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISBN

Black and white barcode image with vertical stripes

EVAN Transform Into ISBN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISSN

Compulsive / Off

Black and white barcode image with vertical stripes

EVAN Transform Into ISSN
Compulsive / Off

Match enforced Remove the original

Match For the mismatch device

Black and white barcode image with vertical lines on both sides

Reset factory default

7. Modos de escaneo

Black and white barcode image with vertical stripes

Default mode

Black and white barcode image with vertical stripes

Auto continuous scan

Black and white barcode image with vertical stripes

Scan delay

Single scan no trigger

Reading delay no trigger

Auto light flash lamp

Black and white barcode image with vertical lines and a small number '1' at the bottom

On(default)

Black and white barcode image with vertical lines and a central dot

Off

No upload quantity Preview

Upload all data and delete

upload one piece data and delete

Upload all data and not deleted

Upload one piece data and not deleted

Beeper forbidden for upload success

Beeper enable for upload success

Receiver address display

Transmission address display

Shutdown

8. Modos de espera

Auto-Standby After 30sec Non-Operate

Auto-Standby After 60sec Non-Operate

Auto-Standby After 5min Non-Operate

Auto-Standby After 10min Non-Operate

Auto-Standby After 20min Non-Operate

Hiding the blank in front of the barcode

No hiding the front CHAR (Default)

Hiding the blank behind the barcode

No hiding the behind CHAR (Default)

Hiding the "-"of the bar code

No hiding CHAR- in the middle of barcode(Default)

Replacing the "O" with "A" in barcode

No replacing the "O" with "A" in barcode(Default)

Upper /lower case transformation

Transformation closed

All is upper case

All is lower case

Upper /lower case transformation

Barcode image with black and white vertical bars, no visible text or symbols

Fastest

Black and white barcode image with vertical stripes

Moderate (default)

Black and white barcode image with vertical stripes

Lower

Barcode image with black and white vertical bars, no visible text or symbols

Lowest

9.4 Terminadores

Prefix & suffix setting

Termination CHAR-Enter

Black and white barcode image with vertical stripes

Termination CHAR-double Enter

No termination format CHAR

Black and white barcode image with vertical lines and a central vertical bar

O

Black and white barcode image with vertical lines and a central dot

K

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Exit prefix-suffix adding mode

Black and white barcode image with vertical lines and a central dot

Delete all suffix

Black and white barcode image with vertical lines and a central pattern

Delete all prefix

Code 39 ID Character"m"

Code 39 Full ASCLL / Off

Code 39 Full ASCLL(Default) / On

Code 39 MOD43 Check / ON

Code 39 MOD43 Check / Off

Transmit Check / On

Transmit Check / On

Transmission Lead / On

Transmission Lead / Off

Verification Multiply / Off(Default)

Verification Multiply / On

Code 32 / Off

Code 32 / On Remark: It affects the Code 39 when it is on

Code 39 TAB Mode

UPC-A

Black and white barcode image with vertical lines and a central dot

UPC A Code / On (Default)

Black and white barcode image with vertical lines and a small number '1' at the bottom

UPC A / Off

Black and white barcode image with vertical stripes

UPC A Code ID Character "m"

Transform Into EANI3 / OFF(Default)

Transform Into EANI3 / ON

Do Not Transmit Check Code

Transmit Check Code (Default)

Hide The System Character

Do Not Hide The System Character

UPC-E

EAN13

Transmit Check Code (Default)

Do Not Transmit Check Code

Transform Into ISBN / On

Transform Into ISBN / OFF(Default)

Transform Into ISSN / On

Transform Into ISSN / OFF(Default)

Verification Multiply / On

Verification Multiply / OFF

Black and white barcode image with vertical lines and a small number 'n' in the center.

Code 93 / ON(Default)

Black and white barcode image with vertical lines and a central pattern

Code 93 / OFF

Black and white barcode image with vertical lines and patterns

Code 93 ID Character "I"

Code93

Verification Multiply / On

Verification Multiply /OFF(Default)

Code 93 MOD47 / On (Default)

Code 93 MOD47 / OFF

Code128

Black and white barcode image with vertical lines forming a pattern of repeating patterns

Code 128/ ON (Default)

Black and white barcode image with vertical lines and a central dot

Code 128/ OFF

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Code 128 ID Character "a"

Black and white barcode image with vertical lines and a central dot

Verification Multiply / On

Black and white barcode image with vertical bars of varying widths

Verification Multiply /OFF(Default)

CodaBar

Black and white barcode image with vertical lines and a central dot

Codabar / On

Black and white barcode image with vertical lines and a small number 'n' in the center.

CodaBar / Off

Black and white barcode image with vertical lines and patterns

Codabar ID Character "V"

Black and white barcode image with vertical stripes

Setting Stop/Start Character / Off

Black and white barcode image with vertical stripes

Setting Stop/Start Character / On

Black and white barcode image with vertical lines on both sides

Verification Multiply /On

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Verification Multiply /OFF

Code25

Black and white barcode image with vertical lines and dots

Cross Code 25 / On

Black and white barcode image with vertical stripes

Cross Code 25 / Off

Black and white barcode image with vertical lines and patterns

Industrial Code 25 / On (Default)

Black and white barcode image with vertical stripes

Verification Multiply / Off

Black and white barcode image with vertical stripes

Industrial Code 25 / Off

Black and white barcode image with vertical stripes

Verification Multiply / Off

Code25

Código MSI

Black and white barcode image with vertical stripes on both sides

MIS / Off

Black and white barcode image with vertical stripes

MIS Code / On

Code11

Code25

Black and white barcode image with vertical stripes

Matrix Code 25 / On (Default)

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Matrix Code 25 / Off

Code25

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Matrix Code 25 ID Character "q"

Black and white barcode image with vertical lines and a horizontal bar at the bottom

Post Code 25 / On

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Post Code 25 / Off

Black and white barcode image with vertical lines and a central dot

Post Code 25 ID Character"r"

ENA, ISBN ans transformate ISSN

All EVAN Transform Into ISBN

Black and white barcode image with vertical lines forming a pattern of stripes

EVAN Transform Into ISBN

Black and white barcode image with vertical stripes

All EVAN Transform Into ISSN

Compulsive / Off

Black and white barcode image with vertical stripes

EVAN Transform Into ISSN
Compulsive / Off

Warning symbol with exclamation mark inside triangle

Connection / Adapter Reset

If your bar code scanner no longer scans EAN codes or outputs an error signal, please reset this and the Interface mode by using the following steps:

1. A first, Scan the following code

Black and white barcode image with vertical lines on both sides

Reset factory default

1. Select the desired interface mode (wireless or wired) and scan it.

Barcode image with vertical black and white bars on white background

Wireless mode

Wired USB mode

1. For wireless connection, also scan the following code in order to connect to the wireless adapter.

Black and white barcode image with vertical lines and a central pattern

Match enforced Remove the original

If the setup fails, we recommend using the USB wireless adapter on a USB port directly on your mainboard.

Warning symbol with exclamation mark inside triangle

Black and white barcode image with vertical stripes

Reset factory default

Black and white barcode image with vertical lines and a central pattern

Match enforced Remove the original

Warning symbol with exclamation mark inside triangle

Black and white barcode image with vertical bars of varying widths

Reset factory default

Black and white barcode image with vertical lines and a central bar

Match enforced Remove the original

Warning symbol with exclamation mark inside triangle

Black and white barcode image with vertical bars of varying widths

Reset factory default

Barcode image with vertical black and white bars, no visible text or symbols

Wireless mode

Wired USB mode

Black and white barcode image with vertical lines and a central pattern

Match enforced Remove the original

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text
