Owner's Manual

Mode d'emploi

Using Pioneer ARC APP 23

Using the Karaoke Function.... 25

Audio Adjustments 25

Settings 26

FUNCTION settings 27

AUDIO settings 29

SYSTEM settings.... 31

ILLUMINATION settings.... 34

MICROPHONE settings.... 34

Connections/Installation 35

Additional Information 40

About this manual:

- In the following instructions, a USB memory or USB audio player are referred to as "USB device".

- When an iPhone is connected to the unit, the source name on the unit appears as [iPod]. Please note that this unit supports only iPhones (iPhone 5 or later) regardless of the source name (for details, refer to page 45).

Manufacturer:

Pioneer Corporation

28-8, Honkomagome 2-chome, Bunkyo-ku,

Tokyo 113-0021, Japan

EU Representative's & Importer:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

http://www.pioneer-car.eu

[*] DEH-S4000BT, DEH-S040BT, DEH-S3000BT

English:

Hereby, Pioneer declares that the radio equipment type [*] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.pioneer-car.eu/compliance

Suomi:

Thank you for purchasing this PIONEER product

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device.

CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.
  • Always keep the volume low enough to hear outside sounds.
• The Pioneer CarStereo-Pass is for use only in Germany.
• This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065.

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007

CLASS 1 LASER PRODUCT

If you experience problems

Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.

Getting Started

Basic operation

DEH-S4000BT/S040BT/S3000BT

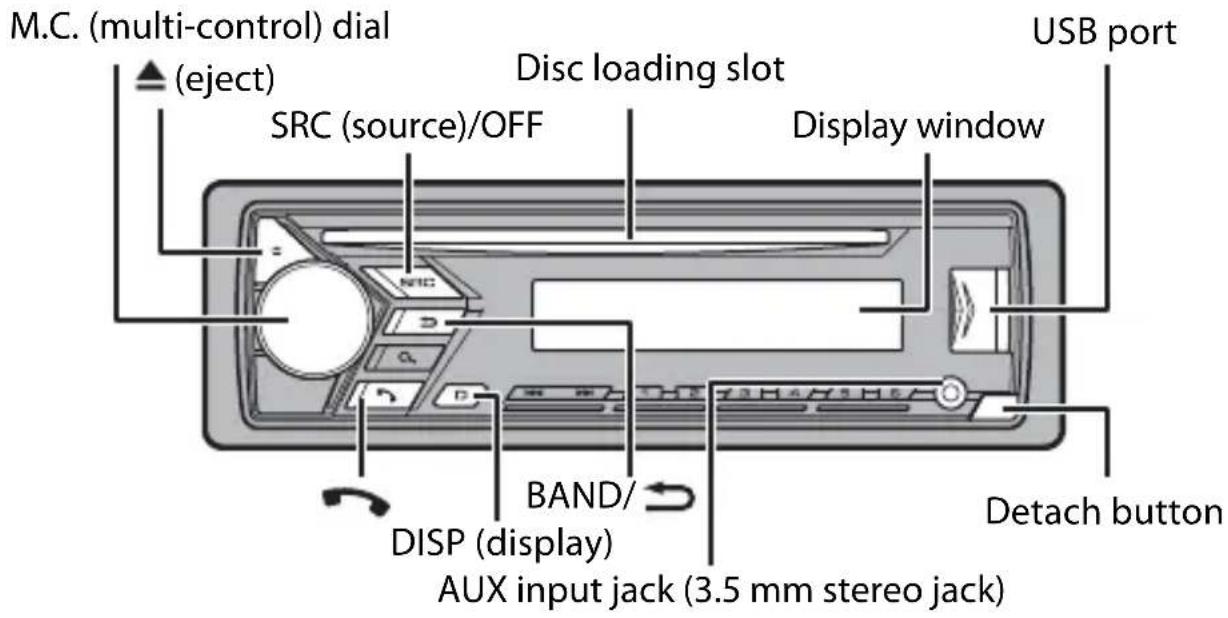

M.C. (multi-control) dial (eject) Disc loading slot SRC (source)/OFF Display window USB port BAND/ DISP (display) Aux input jack (3.5 mm stereo jack) Detach button

* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.
Frequently used operations

Purpose Operation
Turn on the power* Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press DISP repeatedly.
Return to the previous display/list Press BAND/. ➕
Return to the normal display from the menu	Press and hold BAND/. ➕.
Change the display brightness Press and hold BAND/. ➕
Answering/ending a call Press .

Display indication

Indication Description
Appears when a lower tier of the menu or folder exists.
	Appears when the button is pressed.
TP Appears when a traffic program is received.
TA Appears when the TA (traffic announcements) function is set (page 27).
BASS	Appears when [HI]/[LOW] is selected in [D.BASS] (page 30).
	Appears when random/shuffle play is set (except when BT AUDIO is selected as the source).
	Appears when repeat play is set (except when BT AUDIO is selected as the source).
	Appears when a Bluetooth connection is made (page 14).

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

Detach Attach

Diagram illustrating the process of inserting air filters into a back panel, with labeled steps ① and ②.

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
  • Always store the detached front panel in a protective case or bag.

Resetting the microprocessor

The microprocessor must be reset in the following situations:

– Before using this unit for the first time after installation
- If the unit fails to operate properly
- When strange or incorrect messages appear on the display

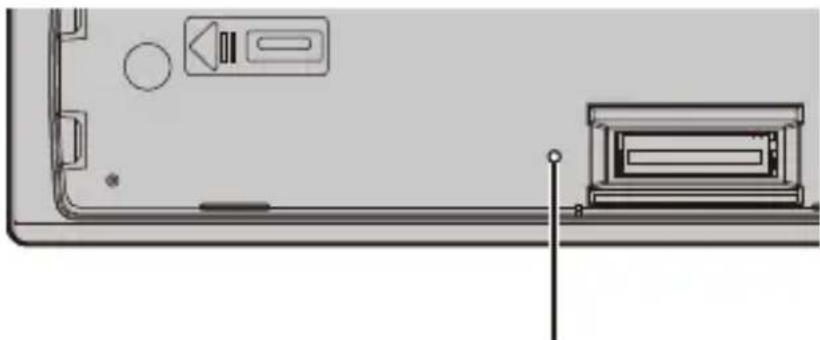

1 Remove the front panel (page 7).

2 Press the RESET button with a pointed instrument longer than 8 mm.

Diagram of a device panel with a left-side control panel and a screen, no text or symbols present

RESET button

Setup menu

When you turn the ignition switch to ON after installation, the setup menu appears in the display.

1 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display the text information from a language to display 1.
[ENG](English), [PYC](Russian), [TUR](Turkish), [FRA](French)	compressed audio file.
CLOCK SET Set the clock.
	1 Turn the M.C. dial to adjust the hour, then press to confirm.The indicator moves to the minute setting automatically.2 Turn the M.C. dial to adjust the minute, then press to confirm.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.
[100], [50]

2[QUIT :YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.

3 Press the M.C. dial to confirm the settings.

NOTE

These settings can be made at any time from the SYSTEM settings (page 31) and INITIAL settings (page 9).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press and hold SRC/OFF to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

Menu Item Description
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]
SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].
SYSTEM UPDATE Select [SYSTEM INFO], [S/W UPDATE]	[SYSTEM INFO] to confirm the latest system information on the unit.Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
SYSTEM RESET Select [YES], [NO]	ES] to initialize the unit settings. The unit will be restarted automatically.

Radio

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/ → to select the band from [FM1], [FM2], [FM3], [MW] or [LW].
3 Press a number button (1/∧ to 6/⇐).

NOTE

You can select a preset channel by pressing 🔒 and turning the M.C. dial.

TIP

The /buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 28).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/∧ to 6/⇐).

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press / to select a station.

Press and hold V then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press /

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 28).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

NOTE

You can select a preset channel by pressing 🔒 and turning the M.C. dial. After selecting a channel, press and hold the M.C. dial to store a station.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1 Press and hold during FM reception.
2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].
3 Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

• To cancel the search, press the M.C. dial.
- The program of some stations may differ from that indicated by the transmitted PTY.
- If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

CD/USB/iPhone/AUX

NOTE

iPhone function is not available for DEH-S3000BT.

Playing back

Disconnect headphones from the device before connecting it to the unit.

CD

1 Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press ▲

USB devices (including Android™)/iPhone

1 Open the USB port cover.
2 Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to [USB] source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 32).

CAUTION

Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

For details on AOA connection, see page 23.

MTP connection

A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats.

NOTE

If you use an MTP connection, [PHONE CONNECT] needs to be set to [USB MTP] in the SYSTEM settings (page 32).

AUX

1 Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 31).

Operations

You can make various adjustments in the FUNCTION settings (page 27).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

Purpose Operation
Select a folder*1	Press 1/ ∧ or 2/ ∨ .
Select a track/song (chapter) Press or .	|←→ |→→|
Fast forward or reverse*2 Press and hold or	. |←→ |→→|
Search for a file from a list (CD/USB only)	1 Press 🔒 to display the list.2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Repeat play Press 6/ .	↔
Random/shuffle play Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Sound retriever*1	Press 3/S.Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates
Return to root folder (CD/USB only)*1	Press and hold 1/ ∧ .
Switch between compressed audio and CD-DA (CD only)	Press BAND/ →.

*1 Compressed audio files only
*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

Bluetooth connection

Important

If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.

1 Turn on the Bluetooth function of the device.

If you make a Bluetooth connection from the device, proceed to step 6.

2Press to display the phone menu.
3 Turn the M.C. dial to select [BT SETTING], then press to confirm.
4 Turn the M.C. dial to select [ADD DEVICE], then press to confirm.

The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SEARCH].
• If there is no device available, [NOT FOUND] appears in the display.

5 Turn the M.C. dial to select a device from the device list, then press to confirm.

Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.

If you make a Bluetooth connection from the unit, proceed to step 7.

6Select [Pioneer BT Unit] shown in the device display.
7 Make sure the same 6-digit number appears on this unit and the device, then select "Yes" on the device.

NOTES

• [DEVICE FULL] appears if the unit has already been paired with ten other devices. In this case, delete one of the paired devices. See [DEL DEVICE] in the Bluetooth settings (page 15).
• Depending on the device, the PIN code is required in step 7. In this case, input [0000].

TIP

The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISIBLE] in the Bluetooth settings needs to be set to [ON]. For details on Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.

Bluetooth settings

Menu Item Description
DEVICELIST Display the	list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established.When no device is selected in the device list, this function is not available.
DEL DEVICE Delete the [DELETE YES], [DELETE NO]	device information.
ADD DEVICE Register a	new device.If ten devices are already paired, this function is not available.You can check the number of paired devices on the [DEVICELIST] setting.
A.CONN Select [ON] to [ON], [OFF]	connect to a Bluetooth device automatically.
VISIBLE Select [ON] so that [ON], [OFF]	that a Bluetooth device can detect the unit when the unit is connected via Bluetooth to another device.
PIN CODE Change the PIN code.	1 Press the M.C. dial to display the setting mode.2 Turn the M.C. dial to select a number.3 Press the M.C. dial to move the cursor to the next position.4 After inputting the PIN code, press and hold the M.C. dial.After inputting the PIN code, pressing the M.C. dial returns you to the PIN code input display, and you can change the PIN code.
DEV. INFO Switch the device information on the display between the device name and Bluetooth device address.
A.PAIRING Select [ON] to pair the unit and iPhone or Android device automatically when an iPhone or Android device is connected to the unit via USB. (This function may not be available depending on the version of iOS you are using.)• This function for the iPhone is not available for DEH-S3000BT.• When you are using an Android device, this function is available in the following situations:– Your device has Android OS 4.4 or later installed.– Be sure to turn on the Bluetooth function of the device and confirm that the device is not connected to the unit via Bluetooth.– [P.APP AUTO ON] needs to be set to [ON] (page 32).– Pioneer ARC APP needs to be installed on your Android device and [PHONE CONNECT] needs to be set to [APP CONTROL] (page 23).– A confirmation button should be pressed on the caution window displayed on Pioneer ARC APP after a connection with the Pioneer ARC APP is made.

Bluetooth telephone

First, make a Bluetooth connection with the Bluetooth telephone (page 14). Up to two Bluetooth telephones can be connected simultaneously.

Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.

To make a phone call

1 Press to display the phone menu.
When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again.
2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4.
3 Turn the M.C. dial to select [MISSED], [DIALLED] or [RECEIVED], then press to confirm.
4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts.

To answer an incoming call

1 Press when a call is received.

TIP

When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call.

Basic operations

Purpose Operation
End a call Press .
Reject an incoming call Press and hold when a call is received.
Switch between the current caller and a caller on hold	Press the M.C. dial.
Cancel a caller on hold Press and hold .
Adjust the volume of the caller's voice (When private mode is on, this function is not available.)	Turn the M.C. dial during the call.
Turn the private mode on or off	Press BAND/ during the call.

To preset phone numbers

1 Select a phone number from a phone book or call history.
2 Press and hold one of the number buttons (1/∧ to 6/⇐).

The contact is stored in the selected preset number.

To make a call using a preset number, press one of the number buttons (1/ ∧ to 6/ ⇌), then press the M.C. dial.

Voice recognition (Only for iPhone)

(Not available for DEH-S3000BT)

This function is only available when an iPhone equipped with voice recognition is connected to the unit via Bluetooth.

1 Press and hold to activate the voice recognition mode.
2 Press the M.C. dial and then talk into the microphone to input voice commands.

To exit the voice recognition mode, press BAND/

NOTE

For details on the voice recognition features, refer to the manual supplied with your iPhone.

Phone menu

Menu Item Description
RECENTS Display the missed call history.[MISSED]
[DIALLLED] Display the dialed call history.
[RECEIVED] Display the received call history.
PHONE BOOK Display the contacts in your phone. Set [VISIBLE] in the Bluetooth settings to [ON] to browse the contacts via this unit.
PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/^ to 6/⇌) .
A.ANSR* Select [ON] to answer an incoming call automatically.[ON], [OFF]
R.TONE Select [ON] if the ring tone does not come out from the car speakers. Depending on the connected phone, this function may not work.
PB INVT	Invert the order of names in the phone book (name view).
BT SETTING	You can adjust various settings for Bluetooth connections. For details on Bluetooth settings, see page 15.

* If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call.

Bluetooth audio

Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:
  – A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.
• AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.
  • The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

1 Make a Bluetooth connection with the Bluetooth audio player.

2 Press SRC/OFF to select [BT AUDIO] as the source.
3 Press BAND/ → to start playback.

Basic operations

You can make various adjustments in the FUNCTION settings (page 27).

Purpose Operation
Fast forward or reverse Press and hold or .	|◀◀ ▶▶▶|
Select a track Press or .	|◀◀ ▶▶▶|
Repeat play* Press 6/ .	↔
Random play* Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Search for a file from a list	1 Press 🔒 to display a list.2 Turn the M.C. dial to select the desired folder name, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
Switch the Bluetooth device name in the device list according to the connection order	Press 1/ ∧ or 2/ √.

* Depending on the connected device, these operations may not be available.

App Mode

NOTE

iPhone connection is not available for DEH-S3000BT.

You can enjoy listening to an application on an iPhone/Android device via the unit. In some cases, you can control an application by using the unit.

For details on compatible devices, visit our website.

Important

Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.

ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP.

For iPhone users

This function is compatible with iPhones installed with iOS 6.0 or later.

For Android device users

This function is compatible with devices that have Android OS 2.3 or later installed.

NOTE

PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER.

Playback of an application via the unit

1Connect this unit with the mobile device.

• iPhone via USB (page 12)
• iPhone/Android device via Bluetooth (page 14)

2 Press the M.C. dial to display the main menu.

3 Turn the M.C. dial to select [SYSTEM], then press to confirm.

4 Turn the M.C. dial to select [PHONE CONNECT], then press to confirm.

5 Turn the M.C. dial to select one of the below, then press to confirm.

• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device.

6 Turn the M.C. dial to select one of the below.

• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed.

7 Press SRC/OFF to select [APP].

8Operate the mobile device to start up the application.

NOTE

When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 27).

Purpose Operation
Select a track Press or .
Fast forward or reverse Press and hold or .	|◀◀ ▶▶▶|
Pause/resume playback Press BAND/.	⊃

Spotify®

NOTE

iPhone connection is not available for DEH-S3000BT.

Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https://support.spotify.com/ for the latest compatibility information.

To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes App Store or Google Play™. Choose a free account or a paid Premium account, either in the app or at spotify.com. A Premium account gives you more features, like offline listening.

Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https://www.spotify.com/us/select-your-country/.

Listening to Spotify

Update the firmware of the Spotify application to the latest version before use.

1Connect this unit with the mobile device.

• iPhone via USB (page 12)
• iPhone/Android device via Bluetooth (page 14)
  If you choose a USB connection, proceed to step 6.

2 Press SRC/OFF to select [SPOTIFY].
3 Press and hold 1/∧ to display [PHONE CONNECT].
4 Turn the M.C. dial to select one of the below, then press to confirm.

- Select [IPHONE] for iPhone.

- Select [ANDROID] for Android device.

5 Turn the M.C. dial to select [BLUETOOTH] for iPhone/Android device via Bluetooth.

NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed.

6 Press SRC/OFF to select [SPOTIFY].

7 Launch the Spotify application on the mobile device and start playback.

NOTE

When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 27).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play.

Purpose Operation
Skip a track Press or .
Search for a track from a list	1 Press 🔒 (list) to display the list.2 Turn the M.C. dial to select the desired category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
Pause/resume playback Press 4/PAUSE.
Thumbs Up (Only for radio) Press 1/.	^
Thumbs Down (Only for radio) Press 2/.	∨
Random play (Only for track/album/artist/playlist)	Press 5/Ⓧ.
Repeat play (Only for track/album/artist/playlist)	Press 6/ ⇌.
Start a radio channel based on the song currently being played.	1 Press and hold 5/Ⓧ to start a radio.2 Press the M.C. dial.• This function may not be available depending on the selected song.

NOTE

Some functions of Spotify may not be operated from the unit.

Using Pioneer ARC APP

NOTE

iPhone connection is not available for DEH-S3000BT.

You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device.

In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iPhones (iPhone 5 or later) installed with iOS 8.0 or later. You can download Pioneer ARC APP on iTunes App Store.

For Android device users

This function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0.

You can download Pioneer ARC APP on Google Play.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

Making a connection with Pioneer ARC APP

1 Connect this unit with the mobile device.

• iPhone/Android device via USB (page 12)
• iPhone/Android device via Bluetooth (page 14)

2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [SYSTEM], then press to confirm.
4 Turn the M.C. dial to select [PHONE CONNECT], then press to confirm.
5 Turn the M.C. dial to select one of the below, then press to confirm.

- Select [IPHONE] for iPhone.

- Select [ANDROID] for Android device.

NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to

select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed.

6 Turn the M.C. dial to select one of the below.

When [IPHONE] is selected in step 5

• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

When [ANDROID] is selected in step 5

• Select [APP CONTROL] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

When you select the USB connection, Pioneer ARC APP on the Android device starts automatically if [ON] is selected in [P.APP AUTO ON] (page 32).

NOTE

If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 32).

7 Press SRC/OFF to select any source.

8Launch Pioneer ARC APP on the mobile device via USB connection.

Press and hold M.C. dial via Bluetooth connection.

NOTE

When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [WIRED] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Listening to music on Android

1 Press SRC/OFF to select [ANDROID].

Basic operations

Purpose Operation
Select a track Press or .	|◀◀ ▶▶|
Fast forward or reverse Press and hold or .	|◀◀ ▶▶|
Pause/resume playback	Press 4/PAUSE.
Sound retriever	Press 3/S.Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates

Using the Karaoke Function

WARNING

• A driver should never sing with a microphone while driving. Doing so may result in an accident.
• Do not carelessly leave a microphone for preventing an accident.

CAUTION

It is extremely dangerous to allow the microphone lead to become wound around the steering column, brake pedal or shift lever, which may cause an accident. Be sure to install the microphone in such a way that it will not obstruct driving.

NOTES

• Use a commercially available dynamic mic and not the supplied microphone.
• This function is not available when the selected source is the following.
  -RADIO
• AUX

1 Insert the stereo mini plug of your microphone into the AUX input jack.

2Press and hold to activate the karaoke mode.

When the karaoke mode is activated, the volume on the unit is muted. Adjust the microphone volume on the [MIC VOL] setting.

NOTE

You can also activate the karaoke mode in the MICROPHONE settings (page 26).

To adjust the microphone volume

1 Press and hold to display [MIC VOL].
2 Turn the M.C. dial to adjust the volume level.

NOTES

• You can also adjust the microphone volume in the MICROPHONE settings (page 26).
• If howling occurs when using the microphone, keep the microphone away from the speaker or lower the microphone volume.

Audio Adjustments

You can also make various adjustments in the AUDIO settings (page 29).

Adjusting the cut-off frequency value and the slope value

You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

[FRONT], [REAR], [SUBWOOFER]

NOTE

[SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 29).

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [AUDIO], then press to confirm.
3 Turn the M.C. dial to select [CROSSOVER], then press to confirm.
4 Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm.
5 Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm.
6 Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm.
[25HZ] to [250HZ]
7 Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4.
[-6] to [-24] (if you choose [FRONT] or [REAR])
[-6] to [-36] (if you choose [SUBWOOFER])

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.

2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 27)
• AUDIO settings (page 29)
• SYSTEM settings (page 31)
• ILLUMINATION settings (page 34)
- MICROPHONE settings (page 34)

3 Turn the M.C. dial to select the options, then press to confirm.

NOTE

iPhone-related menu items in the following tables are not available for DEH-S3000BT.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

FM SETTING

RADIO

[TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)

BSM

RADIO

Store the six strongest stations on the number buttons (1/∧ to 6/⇐) automatically.

REGIONAL

RADIO

[ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)

LOCAL

RADIO

FM: [OFF], [LV1], [LV2], [LV3], [LV4] Restrict the tuning station according to the MW/LW: [OFF], [LV1], [LV2] signal strength.

TA

RADIO

[ON], [OFF] Receive current traffic information if available. (Available only when FM band is selected.)

AF

RADIO

[ON], [OFF] Allow the unit to return to a different frequency providing the same station. (Available only when FM band is selected.)

NEWS

RADIO

[ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.)

Menu Item Description
SEEK [MAN], [PCH] Assign or buttons to seek the station one by one (manual tuning) or select a station from the preset channels.
SAVE SPOTIFY	Store the information about the song currently being played to your music list on Spotify.
UNSAVE SPOTIFY	Remove the song information stored in [SAVE].
SEL DEVICE iPod APP BT AUDIO SPOTIFY	Connect a Bluetooth device in the list.
S.RTRV CD USB iPod APP BT AUDIO ANDROID SPOTIFY AUX[1] (effective for low compression rates), [2] (effective for high compression rates), [OFF]	Enhance compressed audio and restore rich sound.
PAUSE APP	Pause or resume playback.
PLAY BT AUDIO	Start playback.
STOP BT AUDIO	Stop playback.

AUDIO settings

Menu Item Description
EQ SETTING[SUPER BASS], [POWERFUL],[NATURAL], [VOCAL], [CUSTOM1],[CUSTOM2], [FLAT]Select an equalizer band and level for further customising.Equalizer band: [50HZ] to[12.5kHz]Equalizer level: [-6] to [+6]	Select or customise the equalizer curve.When you select a setting other than[CUSTOM1] and [CUSTOM2], you can alsocustomise the equalizer curve by pressing and holding theM.C.dial, then store thecustomised equalizer curve in [CUSTOM1].
FADER*1	Adjust the front and rear speaker balance.
BALANCE	Adjust the left and right speaker balance.
SUBWOOFER[ON], [OFF] Set to [ON] when using a subwoofer speaker.
SUBWOOFER*2[NOR], [REV] Select the subwoofer phase.
SPEAKER LEVELTypes of speaker: [FRONT L],[FRONT R], [REAR L], [REAR R],[SUBWOOFER]Output level: [-24] to [10]	Select a speaker unit (filter) and adjust the output level.Each value you have adjusted changes when you change the [POSITION] setting (page 29).
CROSSOVER	Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit.For details on the [CROSSOVER] setting, see page 26.
POSITION[OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL]	Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats.
TIME ALGNMNT
[INITIAL], [OFF], [CUSTOM]	Select or customise the time alignment settings to reflect the distance between the listener's position and each speaker.
Select a type of speaker and adjust the speaker distance for further customising in [CUSTOM].	Select [INITIAL] to initialize the setting value.
Types of speaker: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]	Select [OFF] to reset all setting values to 0.
Speaker distance (cm): [350] to [0.0]	The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is selected in [POSITION] (page 29).
	The [CUSTOM] setting is not available when [OFF] is selected in [SUBWOOFER] (page 29).
SAVE SETTINGS
[YES], [NO] Save to later recall the following sound settings at their current values: [CROSSOVER], [SPEAKER LEVEL], [EQ SETTING], [POSITION], [TIME ALGNMNT], [D.BASS], [SUBWOOFER].
LOAD SETTINGS
	Load the sound settings, when you have already performed [SAVE SETTINGS].
D.BASS
[OFF], [LOW], [HI] Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system.
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SLA
[+4] to [-4] Adjust the volume level for each source except FM.
	Each of the below combinations are set to the same setting automatically.
	When making a USB connection, set USB, iPod, ANDROID, SPOTIFY, and APP.
	When making a Bluetooth connection, set BT AUDIO, iPod, ANDROID, SPOTIFY, and APP.

*1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 9).
*2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 9).

SYSTEM settings

You can also access to these menus when the unit is turned off.

* [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition does not have an ACC (accessory) position.

Menu Item Description
LANGUAGE[ENG](English), [PYC](Russian), [TUR](Turkish), [FRA](French)	Select the language to display the text information from a compressed audio file.
CLOCK SETSet the clock (page 8).
12H/24H[12H], [24H] Select the time notation.
BEEP TONE[ON], [OFF] A beep can be heard when any button is pushed.Select [OFF] to disable this function.
INFO DISPLAY[SOURCE/SPEANA], [CLOCK/SPEANA], [SRC/LIVE FX], [CLOCK/LIVE FX], [SOURCE], [SPEANA], [OFF]	Display the item on the sub information display.When [SOURCE/SPEANA] or [CLOCK/SPEANA] is selected, display the antenna instead of the speana on the radio source.
AUTO PI[ON], [OFF] Search for a different station with the same programming, even if using a preset station.
AUX[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.
BT AUDIO[ON], [OFF] Set the Bluetooth signal on/off.
SPOTIFY[ON], [OFF] Set to [ON] when using the Spotify function.
PW SAVE*[ON], [OFF] Reduce the battery power consumption.Turning on the source is the only operation allowed when this function is on.
BT MEM CLEAR[YES], [NO] Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit.[CLEARED] appears when data is successfully deleted.
PHONE CONNECT[IPHONE]*, [ANDROID], [OTHERS]* Only for DEH-S4000BT/S040BT	Select the type of device and the appropriate connection method according to your device.See page 32 for details on the connections for each device.Select [OTHERS] when you connect a mobile device other than iPhone/Android.
P.APP AUTO ON[ON], [OFF]	Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Only available when [APP CONTROL] is selected in [PHONE CONNECT].)
USB AUTO[ON], [OFF] Select [ON] to automatically switch to [USB]source when a USB device/iPhone is connected to the unit.Select [OFF] when a USB device/iPhone is being connected to the unit just for charging.

Information on the connections for each device

The available sources differ depending on the setting value.

Please set [PHONE CONNECT] according to the table for the source you want to use.

For details on Pioneer ARC APP connection, see page 23.

NOTE

iPhone-related menu items in the following tables are not available for DEH-S3000BT.

When Pioneer ARC APP connection is NOT performed

Setting Value	Device	Connection method	Available source(s)
[WIRED] (When [IPHONE] or [OTHERS] is selected)	iOS USB iPod	APP, SPOTIFY
		Bluetooth -
	Android USB	ANDROID (AOA)
		Bluetooth -
[USB MTP](MTP) (When [ANDROID] is selected)	iOS USB iPod	APP, SPOTIFY
		Bluetooth -
	Android USB	USB MTP
		Bluetooth -
[APP CONTROL](AOA) (When [ANDROID] is selected)	iOS USB iPod	APP, SPOTIFY
		Bluetooth -
	Android USB	ANDROID (AOA)
		Bluetooth -
[BLUETOOTH] iOS USB -
		Bluetooth iPod, APP, SPOTIFY
	Android USB	USB MTP
		Bluetooth APP, SPOTIFY

When Pioneer ARC APP connection is performed

Setting Value	Device	Connection method	Available source(s)
[WIRED] (When [IPHONE] or [OTHERS] is selected)	iOS USB iPod	, SPOTIFY
		Bluetooth -
	Android USB	ANDROID (Android	Music)
		Bluetooth -
[USB MTP](MTP) (When [ANDROID] is selected)	iOS USB iPod	, SPOTIFY
		Bluetooth -
	Android USB	USB MTP
		Bluetooth -
[APP CONTROL](AOA) (When [ANDROID] is selected)	iOS USB iPod	, SPOTIFY
		Bluetooth -
	Android USB	ANDROID (Android	Music)
		Bluetooth -
[BLUETOOTH] iOS USB -
		Bluetooth iPod, SPOTIFY
	Android USB	USB MTP
		Bluetooth ANDROID (Android Music), SPOTIFY

ILLUMINATION settings

Menu Item Description

DIM SETTING

[SYNC CLOCK], [MANUAL] Change the display brightness.

BRIGHTNESS

[1] to [10] Change the display brightness.

The available setting ranges differ depending on [DIM SETTING].

MICROPHONE settings

Menu Item Description

MICROPHONE

[ON], [OFF] Set to [ON] when using the karaoke function.

MIC VOL Adjust the microphone volume.

Connections/Installation

Connections

Important

- When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

ACC position No ACC position

- Use of this unit in conditions other than the following could result in fire or malfunction.

– Vehicles with a 12-volt battery and negative grounding.

- When speaker output is used by 4 channels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.

- When rear speaker output is used by 2 of subwoofer, use speakers over 70 W (maximum input power).

* Please refer to connections for a connection method.

- To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.

- Disconnect the negative terminal of the battery before installation.

- Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.

- Place all cables away from moving parts, such as the shift lever and seat rails.

- Place all cables away from hot places, such as near the heater outlet.

- Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.

- Cover any disconnected cable connectors with insulating tape.

-Do not shorten any cables.

- Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.

– Use a fuse of the rating prescribed.

- Never wire the negative speaker cable directly to ground.

–Never band together negative cables of multiple speakers.

- When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300 mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.

- Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.

- The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

- The graphical symbol placed on the product means direct current.

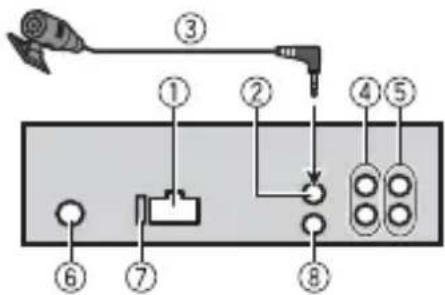

This unit

Diagram of a device or signal processing system with numbered components and connections

① Power cord input
② Microphone input
③ Microphone (3 m)
④ Rear output or subwoofer output
⑤ Front output
⑥ Antenna input
⑦ Fuse (10 A)
⑧ Wired remote input Hard-wired remote control adapter can be connected (sold separately).

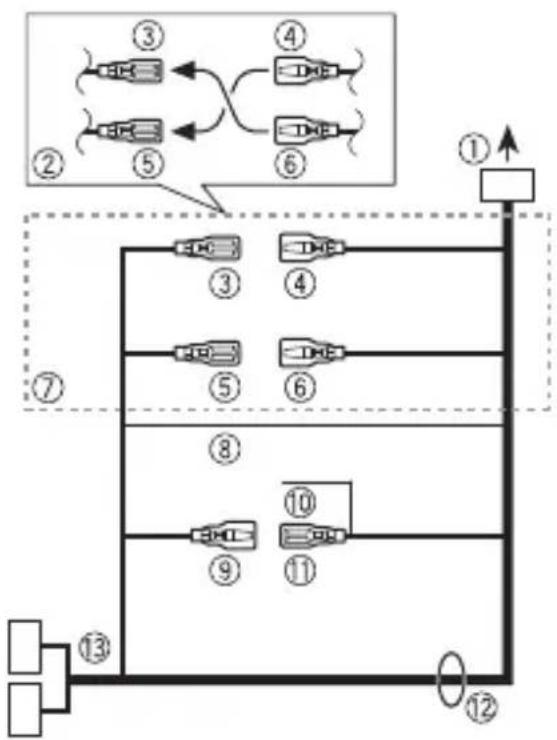

Power cord

① To power cord input
② Depending on the kind of vehicle, the function of ③ and may be different. In this case, be sure to connect to ⑤ and ⑥ to .

③ Yellow
Back-up (or accessory)
④ Yellow Connect to the constant 12 V supply terminal.

⑤ Red Accessory (or back-up)

⑥ Red Connect to terminal controlled by the ignition switch (12 V DC).

⑦ Connect leads of the same colour to each other.

⑧ Black (chassis ground)

⑨ Blue/white The pin position of the ISO connector will differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another type of vehicle, never connect and

⑩ Blue/white Connect to the system control terminal of the power amp (max. 300 mA 12 V DC).

⑪ Blue/white Connect to the auto-antenna relay control terminal (max. 300 mA 12 V DC).

⑫ Speaker leads White: Front left ⊕ White/black: Front left ⊖ Gray: Front right ⊕ Gray/black: Front right ⊖ Green: Rear left or subwoofer ⊕ Green/black: Rear left or subwoofer ⊖

Violet: Rear right or subwoofer Violet/black: Rear right or subwoofer

⑬ ISO connector In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

NOTES

- Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 9). The

subwoofer output of this unit is monaural.

- When using a subwoofer of 2 , be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.

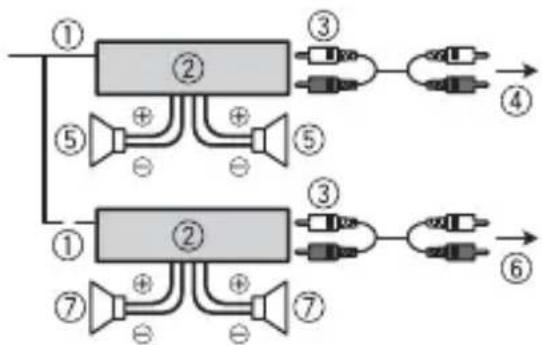

Power amp (sold separately)

Perform these connections when using the optional amplifier.

① System remote control Connect to blue/white cable.
② Power amp (sold separately)
③ Connect with RCA cables (sold separately)
④ To front output
⑤ Front speaker
⑥ To rear output or subwoofer output
⑦ Rear speaker or subwoofer

Installation

Important

• Check all connections and systems before final installation.
• Do not use unauthorized parts as this may cause malfunctions.
• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
• Do not install this unit where:

- it may interfere with operation of the vehicle.

- it may cause injury to a passenger as a result of a sudden stop.

• Install this unit away from hot places such as near the heater outlet.
- Optimum performance is obtained when the unit is installed at an angle of less than 60^ .
- When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

Leave ample space

5 cm 5 cm

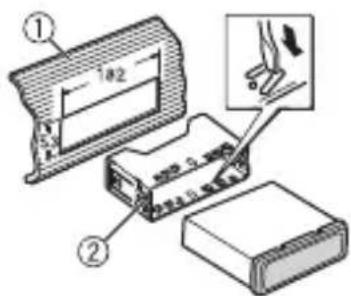

DIN mount installation

1 Insert the supplied mounting sleeve into the dashboard.
2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

Diagram showing labeled parts of an electronic device with numbered annotations and a magnified inset view.

① Dashboard
② Mounting sleeve

- Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.

When not using the supplied mounting sleeve

1 Determine the appropriate position where the holes on the bracket and the side of the unit match.

Diagram showing particle motion with arrows indicating direction (no text or symbols)

2 Tighten two screws on each side.

Technical diagram of a mechanical assembly with numbered components and labeled parts

① Tapping screw (5 mm × 9 mm, not supplied with product)
② Mounting bracket
③ Dashboard or console

Removing the unit (installed with the supplied mounting sleeve)

1 Remove the trim ring.

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

① Trim ring
② Notched tab
- Releasing the front panel allows easier access to the trim ring.
- When reattaching the trim ring, point the side with the notched tab down.

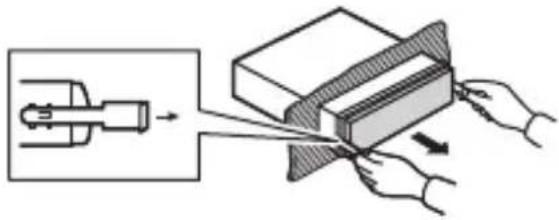

2 Insert the supplied extraction keys into both sides of the unit until they click into place.
3 Pull the unit out of the dashboard.

Diagram showing a mechanical device being processed into a block, with hands operating the process (no text or symbols present)

Installing the microphone

The microphone should be placed directly in front of the driver at a suitable distance to pick up their voice clearly.

CAUTION

It is extremely dangerous to allow the microphone lead to become wound around the steering column or shift lever. Be sure to install the microphone in such a way that it will not obstruct driving. It is recommended to use the clamps (sold separately) to arrange the lead.

NOTE

Depending on the vehicle model, the microphone cable length may be too short when you mount the microphone on the sun visor. In such cases, install the microphone on the steering column.

To install on the sun visor

1 Fit the microphone lead into the groove.

Technical diagram of a mechanical device with labeled parts ① and ②

① Microphone lead
② Groove

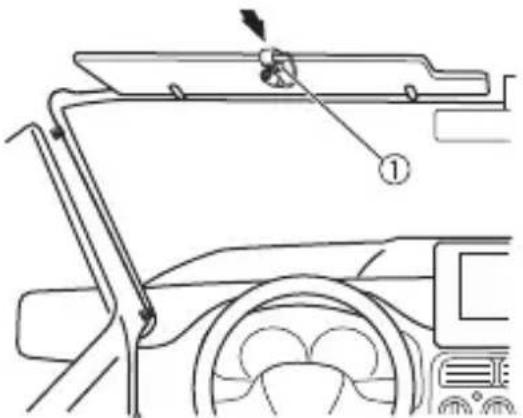

2 Install the microphone clip on the sun visor.

Lowering the sun visor reduces the voice recognition rate.

Diagram of a car interior showing dashboard, steering wheel, and engine components (no text or labels)

① Microphone clip

To install on the steering column

1 Slide the microphone base to detach it from the microphone clip.

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

① Microphone
② Microphone clip
③ Microphone base

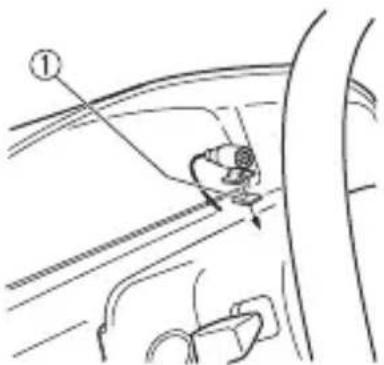

2 Install the microphone on the rear side of the steering column.

Diagram of a car interior showing a valve inserted into the side of the window, with labeled component ①

① Double-sided tape

Additional Information

Troubleshooting

The display automatically returns to the normal display.

→No operations have been made for about 30 seconds. -Perform an operation.

The repeat play range changes unexpectedly.

→Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. –Select the repeat play range again.

A subfolder is not played back.

→Subfolders cannot be played when [FLD] (folder repeat) is selected. –Select another repeat play range.

The sound is intermittent.

→You are using a device, such as a cellular phone, that may cause audible interference. -Move electrical devices that may be causing the interference away from the unit.

The sound from the Bluetooth audio source is not played back.

→There is a call in progress on a Bluetooth-connected cellular phone. –The sound will be played back when the call is terminated.

→A Bluetooth-connected cellular phone is currently being operated. -Stop using the cellular phone.

→The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.

- Make a Bluetooth connection between the unit and the cellular phone again.

Error messages

Common

AMP ERROR

→This unit fails to operate or the speaker connection is incorrect. →The protective circuit is activated. - Check the speaker connection. - Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

→There is no embedded text information. - Switch the display or play another track/file.

CD player

ERROR-07, 11, 12, 17, 30

→The disc is dirty. –Clean the disc. →The disc is scratched. –Replace the disc.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

→There is an electrical or mechanical error. –Turn the ignition switch OFF and back to ON, then back to the CD player.

ERROR-15

→The inserted disc is blank. -Replace the disc.

ERROR-23

→Unsupported CD format. -Replace the disc.

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→The inserted disc does not contain any playable files.
-Replace the disc.

SKIPPED

→The inserted disc contains DRM protected files.
–The protected files are skipped.

PROTECT

→All the files on the inserted disc are embedded with DRM.
-Replace the disc.

USB device/iPhone

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→There are no songs.
-Transfer the audio files to the USB device and connect.
→The connected USB device has security enabled.
–Follow the USB device instructions to disable the security.

SKIPPED

→The connected USB device contains DRM protected files.
–The protected files are skipped.

PROTECT

→All the files on the connected USB device are embedded with DRM.

-Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit.
- Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→The USB device connected via a USB hub is not supported by this unit.
-Connect the USB device directly to this unit using a USB cable.

CHECK USB

→The USB connector or USB cable has short-circuited.
- Check that the USB connector or USB cable is not caught in something or damaged.
→The connected USB device consumes more than maximum allowable current.
- Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.
→The iPhone operates correctly but does not charge.
- Make sure the connection cable for the iPhone has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPhone and reconnect.

ERROR-19

→Communication failed.
-Perform one of the following operations, then return to the USB source.
- Turn the ignition switch OFF and back to ON.
- Disconnect the USB device.
- Change to a different source.

→iPhone failure.

- Disconnect the cable from the iPhone. Once the iPhone's main menu is

displayed, reconnect the iPhone and reset it.

ERROR-23

→USB device was not formatted properly.
-Format the USB device with FAT12, FAT16 or FAT32.

ERROR-16

→The iPhone firmware version is old.
-Update the iPhone version.
→iPhone failure.
- Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

STOP

→There are no songs in the current list.
-Select a list that contains songs.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.
-Connect the unit and iPhone via Bluetooth (page 14).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed.
-Press BAND/ to m a connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed.
-Press BAND to m a connection again.

Bluetooth device

ERROR-10

→The power failed for the Bluetooth module of the unit.
-Turn the ignition switch OFF and back to ACC or ON.

APP

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.
-Connect the unit and the device via Bluetooth (page 14).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BAND to make k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BAND to make k connection again.

CHECK APP

→Connection to the application failed.
–Follow the instructions that appear on the screen.

NOT FOUND

→The application has not started running yet.
-Operate the mobile device to start up the application.

^k Spotify ^a

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.
-Connect the unit and the device via Bluetooth (page 14).

CONN. FAILED PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BAND to make k connection again.

CHECK APP PRESS BAND KEY TO RETRY

→Connection to the Spotify application failed.

-Press BAND to m a connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost.

-Press BAND/ to m a connection again.

CHECK APP

→Connection to the Spotify application failed.

-Follow the instructions that appear on the screen.

Handling guidelines

Discs and player

- Use only discs that feature either of the following two logos.

• Use 12-cm discs.
• Use only conventional, fully circular discs.
• The following types of discs cannot be used with this unit:

-DualDiscs
- 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction.
- Oddly shaped discs
- Discs other than CDs
– Damaged discs, including discs that are cracked, chipped or warped
- CD-R/RW discs that have not been finalized

• Do not write on or apply chemicals to the surface of the discs.
  • To clean a CD, wipe the disc with a soft cloth outward from the center.
• Condensation may temporarily impair the player's performance. Let it rest for about one hour to adjust to a warmer

k temperature. Also, wipe any damp discs off with a soft cloth.

- When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not

k be possible. Using such discs may result in damage to this equipment.

- Do not attach commercially available labels or other materials to the discs.

• The discs may warp making the disc unplayable.
• The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment.

USB storage device

• Connections via USB hubs are not supported.
• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
  • Depending on the USB storage device, the following problems may occur.

-Operations may vary.
- The storage device may not be recognized.
- Files may not be played back properly.
- The device may cause audible interference when you are listening to the radio.

iPhone

• Do not leave the iPhone in places with high temperatures.
• Firmly secure the iPhone when driving. Do not let the iPhone fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Incompatible text saved on the iPhone will not be displayed by the unit.

Compressed audio compatibility

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
• The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.
• Russian text to be displayed on this unit should be encoded in one of the following character sets:

- Unicode (UTF-8, UTF-16)

- A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave discs or a USB storage device in any place that is subject to high temperatures.

WMA files

File extension .wma
Bit rate 48 kbps to 320	kbps(CBR), 48 kbps to 384kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48kHz

Windows MediaTMAudio Professional, Lossless, Voice/DRM Stream/Stream with video

Not compatible

MP3 files

File extension .mp3
Bit rate 8 kbps to 320 kbps(CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4(ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

- WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM), 4(MSADPCM)
Sampling frequency 16	kHz to 48 kHz(LPCM), 22.05 kHz and44.1 kHz (MS ADPCM)

AAC files (DEH-S4000BT/S040BT only)

Compatible format AAC	encoded by iTunes
File extension .m4a
Sampling frequency 11.025 kHz to 48 kHz
Transmission rate 16 kbps to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (.m4p file extension)	Not compatible

FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder.

File extension .flac
Sampling frequency 8/1	1.025/12/16/22.05/24/32/44.1/48/96 kHz
Quantization bit rate 16/24 bit
Channel mode 1/2 ch

Disc

- Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level 1 and 2, Romeo, Joliet
Multi-session playback	Compatible
Packet write data transfer	Not compatible

USB device

- There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 1	500
Playable files Up to 15	00
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

iPhone compatibility

This unit supports only the following iPhone models. Supported iPhone software versions are shown below. Older versions may not be supported.

Made for

-iPhone 7

-iPhone 7 Plus

-iPhone SE

-iPhone 6s

- iPhone 6s Plus

-iPhone 6

-iPhone 6 Plus

-iPhone 5s

-iPhone 5c

-iPhone 5

• Operations may vary depending on the generation and/or software version of the iPhone.
• Users of iPhone with the Lightning Connector should use the Lightning to USB Cable (supplied with iPhone).
• Refer to the iPhone manuals for information about the file/format compatibility.
  • Audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit.

Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

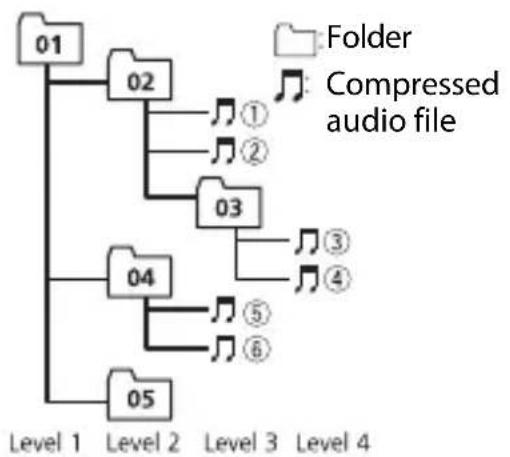

Example of a hierarchy

01 to 05: Folder number

① to :Playback sequence

Russian character chart

D: Display C: Character

Copyright and trademark

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

-Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this

software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

iPhone and Lightning

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

Siri®

Works with Siri through the microphone.

Android & Google Play

Android, Google Play, and the Google Play logo are trademarks of Google Inc.

Spotify®

SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https://www.spotify.com.

T-Kernel 2.0

This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org).

MP3

Copyright (C) 1998-2009 PacketVideo

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type Maximum current consumption: 10.0 A

Dimensions (W × H × D):

DIN

Chassis: 178 mm × 50 mm × 165 mm

Nose: 188 mm × 58 mm × 16 mm D

Chassis: 178 mm × 50 mm × 165 mm

Nose: 170 mm × 46 mm × 16 mm

Weight: 1 kg

Audio

Maximum power output:

- 50 ~W × 4 ch / 4 (for no subwoofer)

- 50 ~W × 2 ch / 4 + 70 ~W × 1 ch / 2 (for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15 000 Hz, 5 %

THD, 4 Ω load, both channels driven)

Load impedance: 4 Ω (4 Ω to 8 Ω (2 Ω for 1 ch) allowable)

Preout maximum output level: 2.0 V

Equalizer (13-Band Graphic Equalizer):

Frequency: 50 Hz/80 Hz/125 Hz/200

Hz/315 Hz/500 Hz/800 Hz/1.25 kHz/2

kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz

Gain: ±12 dB (2 dB step)

High pass filter:

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer/Low pass filter:

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/ oct, OFF

Gain: +10 dB to -24 dB (1 dB step)

Phase: Normal/Reverse

Speaker level:

+10 dB to -24 dB (1 dB step)

Time alignment:

0 cm to 350 cm (2.5 cm/Step)

CD player

System: Compact disc audio system

Usable discs: Compact disc

Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A network)

Number of channels: 2 (stereo)

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio), Ver. 10, 11, 12 (Windows Media Player)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier) (DEH-S4000BT/S040BT only)

WAV signal format: Linear PCM (Non-compressed)

USB

USB standard specification: USB 2.0 full speed

Maximum current supply: 1.5 A

USB Protocol: MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio), Ver. 10, 11, 12 (Windows Media Player)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier) (DEH-S4000BT/S040BT only)

FLAC decoding format: v1.2.1 (Free Lossless Audio Codec)

WAV signal format: Linear PCM (Non-compressed)

FM tuner

Frequency range: 87.5 MHz to 108.0 MHz

Usable sensitivity: 11 dBf (1.0 V/75 , mono, S/N: 30 dB)

Signal-to-noise ratio: 65 dB (IEC-A network)

MW tuner

Frequency range: 531 kHz to 1 602 kHz

Usable sensitivity: 25 V (S/N: 20 dB)

Signal-to-noise ratio: 60 dB (IEC-A network)

LW tuner

Frequency range: 153 kHz to 281 kHz

Usable sensitivity: 28 μV (S/N: 20 dB)

Signal-to-noise ratio: 60 dB (IEC-A network)

Bluetooth

Version: Bluetooth 4.0 certified

Output power: +4 dBm Maximum (Power class 2)

Frequency band(s): 2 400 MHz to 2 483.5 MHz

Bluetooth profiles:

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control

Profile) 1.5

SPP (Serial Port Profile) 1.1

NOTE

Specifications and the design are subject to modifications without notice.

Table des matières

Raccordements/Installation.... 36

Diagram illustrating the process of inserting air filters into a device, showing two steps with labeled components.

Important

Diagram of a device panel with a left-side control panel and a screen, no text or symbols present

RESET le bouton

Menu de configuration

MW/LW : [OFF], [LV1], [LV2]

TA RADIO

Raccordements/Installation

Raccordements

Important

Diagram of a device with numbered components and labeled parts, including a sensor and control elements.

Technical diagram showing labeled components of an electronic component with numbered parts and a magnified detail view.

Diagram showing particle interaction with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a device or component layout.

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

Diagram showing a mechanical device being processed into a block, with hands operating the component (no text or symbols present)

Installation du microphone

Technical diagram of a mechanical device with labeled parts ① and ②

① Fil du microphone
② Rainure

Diagram of a vehicle's front suspension system showing steering wheel, dashboard, and engine components (no text or labels)

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

① Microphone
② Pince du microphone
③ Base du microphone

Diagram showing car seatbelt insertion mechanism with labeled component ①

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Pente : -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, DÉSACTIVÉE

Pente : -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, DÉSACTIVÉE

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

REMARQUE

Diagram illustrating the process of inserting air filters into a device, showing two steps with labeled components.

Importante

Diagram of a device panel with an open lid and control buttons, no text or symbols present

Pulsante RESET

Best stations memory (BSM)

Diagram of a device with numbered components and labeled parts, including a sensor and control elements.

Technical diagram showing labeled components of an electronic component with numbered parts and a magnified inset view.

Diagram showing particle interaction with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components

Diagram showing two labeled mechanical components with directional arrows indicating movement or force

Diagram showing a mechanical device being processed into a block, with hands adjusting the component (no text or symbols present)

Technical diagram of a mechanical device with labeled parts ① and ②

① Interlinea microfono
② Scanalatura

Technical line drawing of a vehicle's front wheel and dashboard assembly (no text or symbols)

① Gancio microfono

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Technical diagram showing a car interior with labeled component ① and directional arrow indicating movement or assembly.

① Nastro biadesivo

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson

Copyright © 2011-2014 Xiph.Org

Foundation

Copyright (C) 1998-2009 PacketVideo

Dimensioni (L × A × P):

DIN

Telaio: 178 mm × 50 mm × 165 mm

Testata: 188 mm × 58 mm × 16 mm D

Telaio: 178 mm × 50 mm × 165 mm

Testata: 170 mm × 46 mm × 16 mm

Peso: 1 kg

Audio

Potenza massima:

• 50 W × 4 canali/4 Ω (senza subwoofer)
• 50 W × 2 canali/4 Ω + 70 W × 1 canale/2 Ω (per il subwoofer)

Potenza continua:

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

Specifica standard USB: USB 2.0 full speed

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

(Windows Media Player)

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5 SPP (Serial Port Profile) 1.1

NOTA

Diagram illustrating the process of inserting air filters into a device, showing two steps with labeled components.

Importante

Diagram of a device panel with an open lid and control buttons, no text or symbols present

Botón RESET

Diagram of a device with numbered components and labeled parts, including a sensor and control elements.

Pure diagram of mechanical components without any text, numbers, or symbols

Technical diagram of a mechanical assembly with numbered components

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or force, likely illustrating a mechanical or electrical assembly.

Diagram showing a mechanical device being cut with force lines, no text or symbols present

Technical diagram of a mechanical device with labeled parts ① and ②

Technical line drawing of a vehicle's front wheel assembly with no visible text or symbols

Diagram of a mechanical device with numbered parts and directional arrows indicating motion or force

Diagram of car interior showing seatbelt insertion mechanism with labeled component ①

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Pendiente: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Pendiente: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

Diagram illustrating the process of inserting air filters into a refrigerator, with labeled steps 1 and 2.

Wichtig

Diagram of a device rear panel with a monitor and control panel, no text or symbols present

RESET-Taste

Einrichtungsmenü

Diagram of a device control or signal processing system with numbered components and connections

Diagram showing labeled components of an electronic device with numbered parts and a magnified view of the component.

① Armaturenbrett
② Montagerahmen

Diagram showing particle motion with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or force.

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

Diagram showing a mechanical device being processed into a block, with hands operating the process (no text or symbols present)

Technical diagram of a mechanical device with labeled parts ① and ②

① Mikrofonkabel
② Rille

Technical line drawing of a vehicle's front suspension system with labeled component (no text or symbols)

① Mikrofonklemme

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force

① Mikrofon
② Mikrofonklemme
③ Mikrofonsockel

Diagram of a car interior showing a seatbelt mechanism with labeled component ①

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright (C) 1998-2009 PacketVideo

AOA (Android Open Accessory) 2.0

(Windows Media Player)

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

HINWEIS

KLASSE 1 LASERPRODUCT

Bij problemen

Diagram illustrating the process of inserting a printer into a wall-mounted device, with labeled steps ① and ②.

Belangrijk

Diagram of a device rear panel with a monitor and control panel, no text or symbols present

RESET-knop

Instellingenmenu

Best stations memory (BSM)

Diagram of a device or system with numbered components, likely for electrical or control system analysis.

Technical diagram showing assembly steps of a device with labeled components and a magnified detail view

① Dashboard
② Installatiekoker

Diagram showing particle motion with arrows indicating direction (no text or symbols)

Technical diagram of a mechanical assembly with numbered components

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or force, likely illustrating a mechanical or electrical assembly.

① Sierkader
② Gekeepte lip

Diagram showing a mechanical device being processed into a block with force arrows (no text or symbols)

Technical diagram of a device with labeled parts ① and ②, showing a cylindrical component connected to a base with a cable.

Technical line drawing of a vehicle's front wheel assembly with no visible text or symbols

① Microfoonklem

Diagram showing a mechanical device with numbered parts and directional arrows indicating motion or force

Technical diagram showing a car interior with a labeled component (①) and a screwdriver inserted into the seat.

ERROR-07, 11, 12, 17, 30

→De disc is vuil. – Reinig de disc.

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2014 Xiph.Org Foundation

Copyright (C) 1998-2009 PacketVideo

Helling: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, UIT

Helling: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, UIT

USB-protocol: MSC (Mass Storage Class) MTP (Media Transfer Protocol) AOA (Android Open Accessory) 2.0

Bestandsysteem: FAT12, FAT16, FAT32

MP3-decoderingsformaat: MPEG-1 & 2 Audio Layer 3

WMA-decoderingsformaat: Versie 7, 8, 9, 9.1, 9.2 (2-kanaalsaudio), Versie 10, 11, 12 (Windows Media Player)

AAC-decoderingsformaat: MPEG-4 AAC (alleen iTunes-gecodeerd) (versie 10.6 en ouder) (alleen DEH-S4000BT/S040BT)

FLAC decodeerformaat: v1.2.1 (Free Lossless Audio Codec)

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

OPMERKING

Pioneer CarStereo-Pass

Please fill out immediately after purchase.

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

Корпорация Пайонир

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia TEL: [phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

BND. Manuel Ávila Camacho 138, 10 piso Col.Lomas de Chapultepec, México, D.F. 11000 Tel: [phone]. Fax: [phone]

先鋒股份有限公司
