USER MANUAL 772-2/16 Hazet

Operating Instructions

Universal Axle and Slotted Nut Wrench

Set 16 pieces

Mode d'emploi

Black metal toolbox labeled 'HAZET 772-2' with various mechanical components inside (no readable text beyond label)

de .... 3 ...10 en .... 11...18 fr .... 19...26

Ursprungsprache deutsch – original language: German – Langue d'origine allemand

Illustration of a butterfly with a wrench and leaf, no text or symbols present

Mechanical assembly diagram showing a chain clamp mechanism and its component, with no visible text or symbols.

Black HAZET 772-2 precision tool with adjustable handle and base (no text or symbols on the device itself)

Black HAZET 772-2 precision tool with two cylindrical arms (no visible text or symbols on body)

Bild ①

Black HAZET 772-2 mechanical clamp device with chain link and mounting bracket (no visible text or symbols on main body)

Close-up of a car tire with a mechanical clamp and bracket, mounted on a tripod (no visible text or symbols)

Black HAZET 772-2 precision tool with adjustable grip and adjustment knob (no text or symbols on the device itself)

Black metal mechanical clamp device labeled 'HAZET 772-2' with two vertical posts (no additional text or symbols visible)

Bild ①

Black HAZET 772-2 mechanical clamp device with chain link (no visible text or symbols on main body)

Bild ②

Close-up of a black mechanical component with threaded end and flanged top (no visible text or symbols)

Bild ⑦

Close-up of a car tire with a mechanical clamp and a tool, no visible text or symbols

• Please make sure that the user of this tool carefully reads these operating instructions and fully understands all information given before it is used.
• These operating instructions contain important advice that is necessary for a safe and trouble-free operation of your HAZET tool.
• For effective use of the tool as intended, it is essential that all safety and other information in these operating instructions is adhered to.
• For this reason, always keep these operat - ing instructions together with your HAZET tool.
• This tool has been designed exclusively for specific applications. HAZET emphasizes that any modification to the tool and/or use on an application not detailed to its intended application are strictly forbidden.
• HAZET will not be liable for any injuries to persons or damage to property originating from improper application, misuse of the tool or a disregard of the safety instructions.
• Furthermore, the general safety regulations and regulations for the prevention of accidents valid for the application area of this tool must be observed and respected.

2. Explanation of Symbols

ATTENTION: Please pay attention to these symbols!

Read the Operating Instructions!

The user/owner of this tool is obliged to observe the operating instructions and should ensure that all users of this tool use it according to the information given in this manual.

NOTICE!

This symbol marks advice which is helpful when using the tool.

CAUTION!

This symbol marks important specifications, dangerous conditions, safety risks and safety advice.

ATTENTION!

This symbol marks advice which if disregarded results in damage, malfunction and/or functional failure of the tool.

3. Liability and Warranty

• Any deviation from the intended use and/or any misapplication of the tool is not allowed and will be considered as improper use.
• Any claims against the manufacturer and/or its authorized agents because of damage caused by improper use of the tool are void.
• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the operator and user.

① For Your Information

4. Spare Parts

• Only use the manufacturer's original spare parts.
• Unsuitable or defective spare parts may cause damage, malfunction or total failure of the tool.
• The use of unapproved spare parts will void all warranty, service and liability claims as well as all claims for compensation against the manufacturer or its agents, distributors and sales representatives.

5. Disposal

- For disposal, clean tool and disassemble it according to the regulations for work safety and environmental protection. Components can be recycled.

The reduction of the pollution as well as the protection of the environment are the central points of our activities.

Illustration of a butterfly with a walking stick and a small plant, no text or symbols present.

HAZET - environmental protection is of fundamental importance for us.

This paragraph gives an overview of important security advice to help to ensure the optimal protection of the personnel as well as the safe and trouble-free operation of the tool.

Additionally, the different chapters contain security advice that is marked with symbols in order to avert immediate danger. Furthermore, all stickers and labels on the tool must be observed and kept legible.

1. General Aspects

• This tool was developed and manufactured according to the technical norms and standards valid at the time and is considered to be operationally reliable.
  Nevertheless, the tool can present a danger when it is not used as intended or in an inappropriate way by unqualified personnel. Please make sure that any person using this tool or carrying out maintenance work carefully reads these operating instructions and fully understands all information given, before using the tool.
• Any modification of the tool is strictly forbidden.
• All security advices, warning and operation notices on the tool have to be kept legible. Replace all damaged labels or stickers.
• All indications concerning setting values and setting ranges must be observed.

2. User's / Owner's Liability

• Keep the operating instructions together with the tool at all times.
• The tool must only be used if it is in good working order. If damages are visible, the tool is to be put out of operation and checked.
• All safety equipment, e.g. fire extinguisher etc., must always be within reach and should be checked regularly.
• In addition to the safety advice given in these operating instructions, the general safety regulations, regulations for the prevention of accidents and regulations for environmental protection being valid for the application area of this tool have to be observed and respected.

3. AppropriateUse

Operational reliability can only be ensured, if the tool is used as intended and in compliance with the indications given in the operating instructions. In addition to the safety advice given in these operating instructions, the general safety regulations, regulations for the prevention of accidents and regulations for environmental protection being valid for the application area of this tool have to be observed and respected.

Always ensure that the tools are used, inspected and maintained in compliance with the respective local, state, national or federal regulations.

• The HAZET Universal Axle and Slotted Nut Wrench is used for removal and installation of axle and slotted nuts of the sizes 35-170 mm. Max. torque 700 Nm.
  • Overloading may cause the failure of the tool and therefore cause personal injury or damage to property.
• Do not exceed the maximum load.
• The improper use of the HAZET Universal Axle and Slotted Nut Wrench or the disregard of the safety advice may cause severe injury or death.
• Any deviation from the intended use and/or any misapplication of the tool is not allowed and will be considered as improper use.
• Any claims against the manufacturer and/or its authorized agents because of damage caused by improper use of the tool will be void.
• Any personal injury or material losses caused by improper use are the sole responsibility of the operator and user.

4. Storage

The tool has to be stored according to the following conditions:

• Keep tool in a dry and dust-free place.
• Do not expose the tool to liquids or aggressive substances.
• Do not store the tool outdoors.
• Keep the tool out of reach of children.
• Storage temperature: 0°C up to +40°C with low air humidity.

5. Dangers emanating from the tool

Before each use, check the HAZET Tool for full functional efficiency. Do not use the tool if its functional efficiency cannot be ensured or if damage is detected. If the tool is used, when it is not in full working order, you risk severe injuries to persons and damage to property.

• Any service or repair work must be carried out by qualified personnel only. In order to guarantee long term operational safety, only original spare parts of the manufacturer must be used.
• Do not remove any safety devices and/or housing parts.
• Do not operate the tool, if safety covers or safety devices are missing or defective.
• For safety reasons any modification of HAZET tools is strictly forbidden. Any modification of the tool will result in immediate exclusion from warranty and liability.
• Keep children away from tools. Unattended tools could be used by unauthorized persons and injure them or other persons.
• Pay attention to the loading. The maximum load must be equal to or below the author - ized load. The operated nuts must be able to absorb the load.
  • Overloading may cause the failure of the system and therefore cause personal injury or damage to property.

• Only use spare parts, attachments and accessories that are recommended by the manufacturer.

• The tool must only be used if it is in good working order.
  • Always keep the working area clean, well ventilated and well lit.

• Do not use the tool under the influence of alcohol or drugs.
• Any repair-work must be carried out by authorized persons only.
• Make sure that there is no unauthorized person nel and/or unnecessary devices in your working area.

③ Design and Function

1. Technical Data / Components of the Tool

		772-2/16
Max. torque Nm 700
Square drive mm (“) 20 (		^3/_4 )
Clamping range mm 35 -170
Weight (tool without insert) kg 4,5
Dimensions basic appliance	(L x W x H) mm	220 x 160 x 74

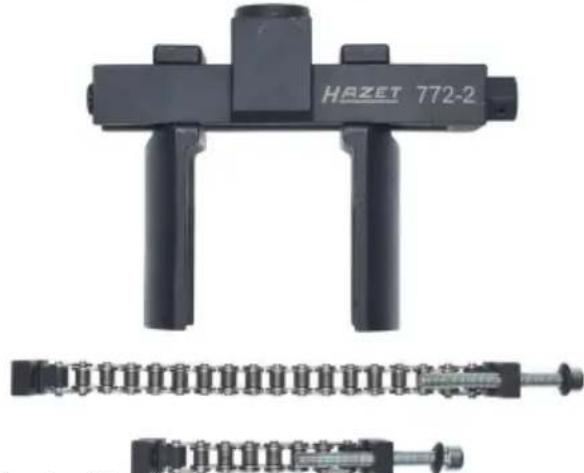

2. Included

Universal Axle and Slotted Nut Wrench Set

Description
Basic appliance 1
Square adapters for slotted nuts (6 mm, 8 mm, 10 mm) 3 pairs
Round adapters for slotted nuts (6 mm, 8 mm, 10 mm) 3 pairs
Offset screwdriver 1
Safebox with 4 fixing screws for adapter 1
Safety chain (2 pieces) 1

Technical illustration of a mechanical clamp device with chain and gear components (no text or symbols)

3. Prior to Operation

Universal Axle and Slotted Nut Wrench have to be used, inspected and maintained with the respective local, state, national or federal regulations.

• Prior to using the HAZET Universal Axle and Slotted Nut Wrench must be checked for damages and if the tool is not in a consistently impeccable condition, put it out of operation.
• Choose an appropriate drive tool with 20 mm external square (for example Reversible Ratchet with Handle Bar HAZET 1016/2). Provide a support for operation (for example HAZET 217-3/2 Jack Stand).

4. Operation

• Keep these instructions. Read and follow the information given for your own safety.
  Make sure that the user knows about the risks which may occur while using this product.
• Follow the instructions of the respective car manufacturer.
• Prior to operation, make sure that the tools are in correct position to avoid damages of vehicle parts.

4.1 Operation of axle nuts (installation / removal)

• Secure the vehicle from rolling away.
• Adjust the basic appliance to the size of the axle nut by using the spindle.

Black HAZET 772-2 precision tool with adjustable handle and base (no text or symbols on the device itself)

It is not possible to operate conical axle nuts.

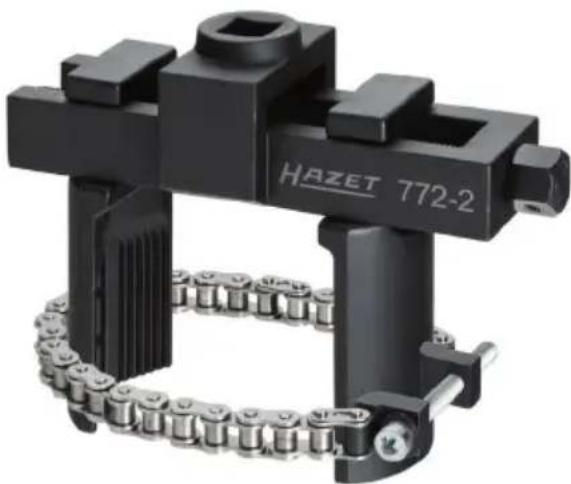

- Fasten the safety chain (if needed by the use of the extension chain) to fix the jaws of the basic appliance as well. At this the gripping mechanism is to be operated by the hexagon screw size 6 (see illustration ① and ②)

Technical illustration of a HAZET 772-2 mechanical clamp tool with two supporting legs and three separate ball screw components (no text or symbols on the main components)

Illustration ①

Black HAZET 772-2 mechanical clamp device with chain link (no text or symbols on the device itself)

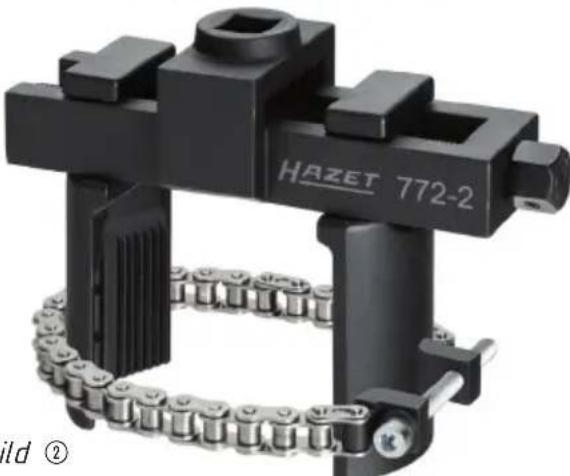

Illustration ②

- Provide a support for operation (for example HAZET 217-3/2 Jack Stand). (see illustration ③)

Close-up of a car tire with brake calipers and a mechanical lever attachment (no text or symbols visible)

• Install / remove the axle nut.

③ Design and Function

4.2 Operation of slotted nuts (installation / removal)

• Secure the vehicle from rolling away.

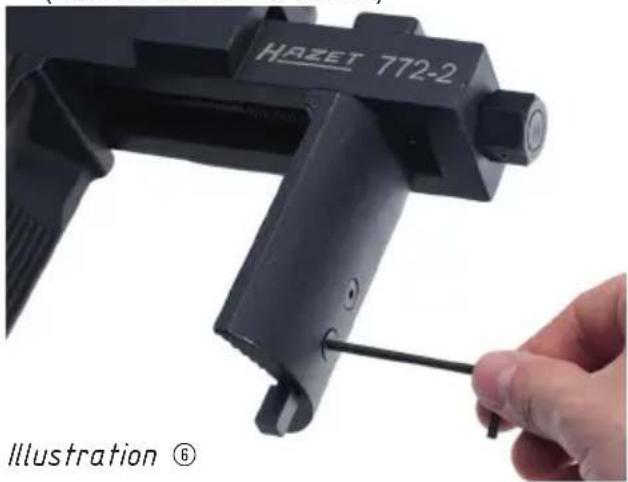

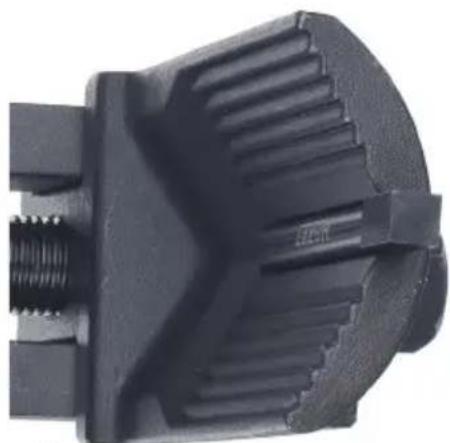

• Fix an appropriate adapter to the jaws of the basic appliance by using the fixing screws. (see illustration ⑥ and ⑦)

HAZET TT2-2 Illustration ⑥

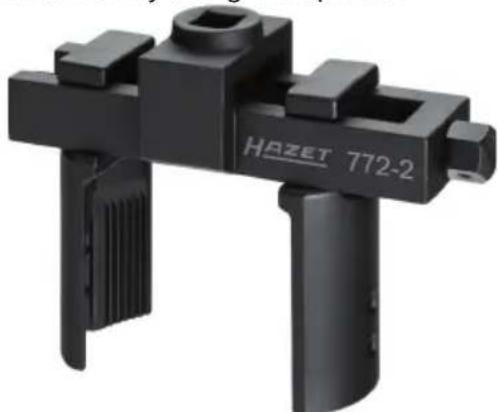

- Adjust the basic appliance to the size of the slotted nut by using the spindle.

Black HAZET 772-2 precision tool component with adjustable handle and base (no visible text or symbols on the device itself)

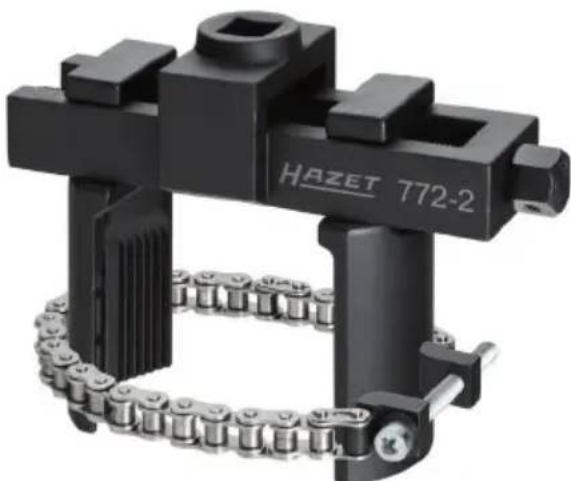

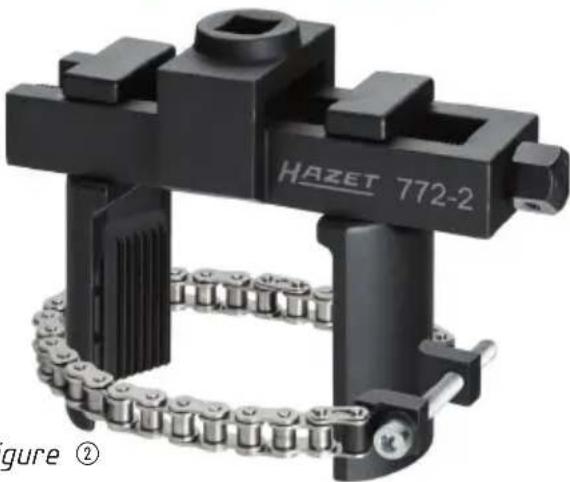

- Fasten the safety chain (if needed by the use of the extension chain) to fix the jaws of the basic appliance as well. At this the gripping mechanism is to be operated by the hexagon screw size 6 (see illustration ① and ②)

Technical illustration of a mechanical clamp device labeled 'HAZET 772-2', with three separate views of the clamp assembly (no text or symbols on the devices themselves)

Illustration ①

Black HAZET 772-2 mechanical clamp device with chain link (no visible text or symbols)

Illustration ②

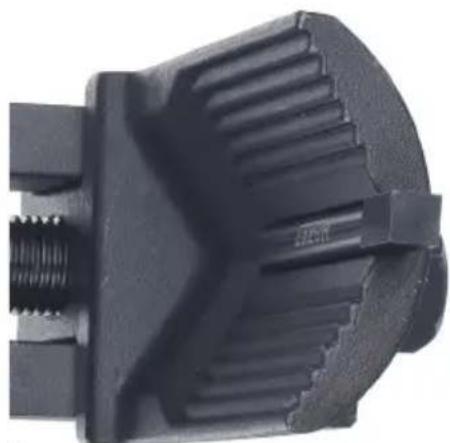

Close-up of a black mechanical component with grooves and threaded shaft (no visible text or symbols)

Illustration ⑦

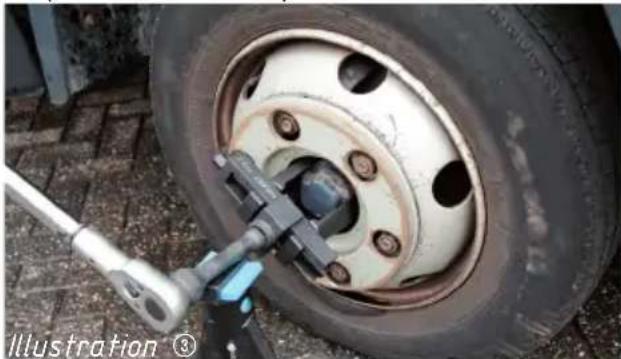

- Provide a support for operation (for example HAZET 217-3/2 Jack Stand). (see illustration ③)

Close-up of a car tire with a mechanical clamp and mounting bracket, no visible text or symbols

• Install / remove the slotted nut.

5. Maintenance and Cleaning

The threaded spindle is to be lubricated before each use

Indicate the HAZET article number when ordering spare parts and accessories.

Maintenance

• Always keep the Universal Axle and Slotted Nut Wrench clean, regularly check it for corrosion and if necessary, clean it with an oily cloth.
• Only use spare parts recommended by the manufacturer, otherwise the warranty will be void.
• Repair work must only be carried out by the manufacturer or by qualified personnel, using the original spare parts.
• When disposing of components, lubricants, etc., please take care that the valid regulations for environmental protection are observed.
• For cleaning the tool or its components, we recommend to use an oily cloth.
• Do not use solvents or acids, esters (organic compounds of acids, esters (organic compounds of acids and alcohol), acetone (ketone), chlorinated hydrocarbons or nitrocarbonic oils to clean the tool. Do not use chemicals with a low flashing point.
• For after sales service, please contact your retailer/distributor.
