USER MANUAL DW076 DEWALT

Technical line drawing of a DHW alt register device with control panel and base mount (no text or symbols)

B

8 DeWALT D 5 4 D

C1

12 4

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a top component and base (no text or symbols)

C2

12 4

Line drawing of an open plastic tray with a black arrow indicating the opening area (no text or symbols)

Technical diagram of a mechanical component with labeled part '13' (no text or symbols beyond label)

C3

Cross-sectional diagram of a mechanical device with internal components (no text or symbols)

A

Cross-sectional diagram of a mechanical device with internal components (no text or labels)

B
C4

Simple 3D corner diagram with two shaded faces and a white base (no text or symbols)

Line drawing of a portable air conditioner unit (no text or symbols)

D1

16 15 14

D2

Line drawing of a vacuum cleaner on a workbench in a room with no visible text or symbols

E1

Line drawing of a surveying instrument on a tripod inside a room with walls (no text or symbols)

E2

Line drawing of a handheld electronic device with control buttons and a display screen (no text or symbols)

F

Line drawing of a surveying instrument mounted on a tripod against a plain background (no text or symbols)

G2

ROTATIONSLASER DW076

Tillykke!

LASERPRODUKT DER KLASSE 3R

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

	DW076
Voltage V 9.6/12/14.4/18
Rotary speed min	-1 600
Laser class 3R
Protection class IP54
Accuracy mm/m +/- 0.1
Self-leveling range ° +/- 5
Operating temperature °C -5 - +45
Receptacle thread 5/8" x 11
Weight (without battery pack) kg 2.5

Battery pack DE9095 DE9039
Battery type NiCd NiMH
Voltage V 18	18
Weight	kg 1.1	1.1

Charger	DE9116
Mains voltage	V_AC 230
Approx. charging time	min 60
Weight kg 0.4

Fuses:
Europe	230 V tools 10 Amperes, mains
U.K. & Ireland	230 V tools 13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Fire hazard.

EC-Declaration of conformity

DW076

DeWALT declares that these tools have been designed in compliance with: 73/23/EEC, 98/37/EEC, 89/336/EEC, EN 60335, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 60825-1 & EN 61010-1.

For more information, please contact DEWALT at the address below or refer to the back of the manual.

		DW076
L_pA (sound pressure)	dB(A)*	< 70
Weighted RMS acceleration value	m/s2	< 2.5

* at the operator's ear

Director Engineering and Product Development Horst Großmann

X. fopsmann

When using power tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before operating the tool. Also refer to the manual of any power tool that will be used with this tool.

Save this manual for future reference.

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose power tools to humidity.

Keep work area well lit. Do not use power tools in the presence of flammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

6 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Keep all controls dry, clean and free from oil and grease.

7 Store idle tools

When not in use, power tools must be stored in a dry place and locked up securely, out of reach of children.

8 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

9 Remove the battery pack

Remove the battery pack when not in use, before servicing and when changing accessories.

10 Have your tool repaired by an authorized DEWALT repair agent

This power tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety instructions for lasers

- This laser complies with class 3R according to DIN EN 60825-1:2001-11 (max 5 mW, 600-680 nm). Do not replace a laser diode with a different type. If damaged, have the laser repaired by an authorised repair agent.

Only qualified and trained persons are allowed to install, adjust and operate the laser equipment.

Areas in wich class 3R lasers are used have to be posted with an appropriate laser warning sign.

- Do not use the laser for any purpose other than projecting laser lines.

- Before first use, check that the safety warnings on the label have been formulated in your language. Do not use the tool if it does not carry the warnings in your language!

- Do not remove any of the warning labels from the tool.

- Do not let children come in contact with the laser.

As the beam of a class 3R laser provides high visibility over longer distances, the potential risk of damage to the eye remains unchanged within the radius of application.

- Never look into the laser beam directly and intentionally.

- Never shine other persons in the eyes with the laser beam.

- Do not use optical tools to view the laser beam unless specifically approved by a laser officer.

• Always set up the tool at a position where the laser beam cannot cross any person at eye level. Be extra alert for the presence of stairs and specular surfaces.

Additional safety instructions for battery packs

Fire hazard! Avoid metal short circuiting the contacts of a detached battery pack. Do not store or carry the battery pack without the battery cap placed over the contacts.

- The battery fluid, a 25-30% solution of potassium hydroxide, can be harmful. In case of skin contact, flush immediately with water. Neutralize with a mild acid such as lemon juice or vinegar. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.

- Never attempt to open a battery pack for any reason.

Labels on charger and battery pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:

Battery charging

Battery charged

Battery defective

Do not probe with conductive objects

Do not charge damaged battery packs

Read instruction manual before use

Use only with DeWALT battery packs, others may burst, causing personal injury and damage

Do not expose to water

Have defective cords replaced immediately

Charge only between 4 °C and 40 °C

Discard the battery pack with due care for the environment

Do not incinerate the battery pack

Labels on tool

The following pictographs are shown on the tool:

Read the instruction manual before use

Laser warning

Class 3R laser

Do not look into the laser beam.

Protection class: IP54

No remote capability

Package contents

The package contains:

1 Rotary laser

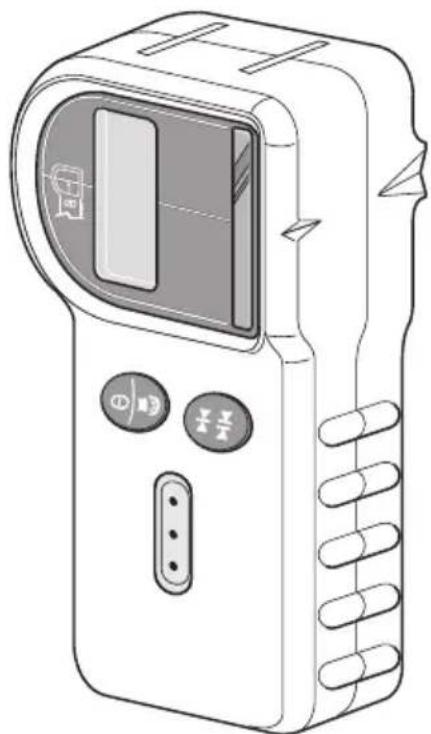

1 Digital laser detector
1 Kitbox
1 Charger
1 Battery pack
1 Instruction manual

- Take the time to thoroughly read and understand this manual prior to operation.

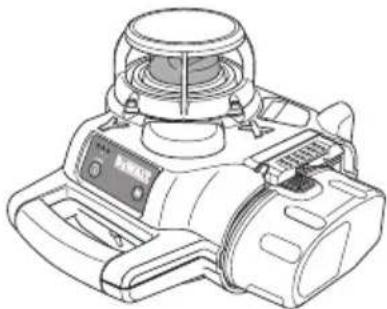

Description (fig. A)

The rotary laser DW076 has been designed to project laser lines to aid in professional applications.

The tool can be used both inside and outside for horizontal (level) alignment. The applications range from drop-ceiling installation to foundation leveling and deck building.

The tool accepts DEWALT battery packs of 9.6, 12, 14.4 and 18 V.

1 On/off switch
2 Carrying handle
3 Rotary laser head
4 Battery pack

Charger

Your DE9116 charger accepts DEWALT NiCd and NiMH battery packs ranging from 7.2 V to 18 V.

4 Battery pack
5 Release buttons
6 Charger
7 Charging indicator (red)

Display

8 Power indicator
9 Leveling indicator (X-axis)
10 Leveling indicator (Y-axis)
11 Manual adjustment key (for servicing only)

Self-leveling feature

The self-leveling feature realises a quick adjustment of the rotary laser head. Initiated as the tool is switched on, the self-leveling feature will level the laser head in the described tool set-ups at ranges up to +/- 5°.

Electrical safety

The electric motor has been designed for various voltages (see technical data). Always check that the battery pack power corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN 60335.

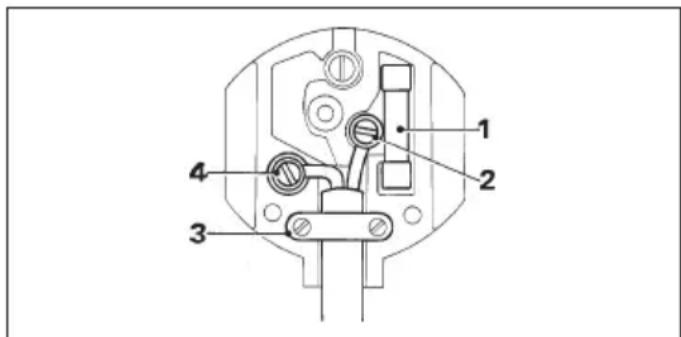

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

Never use a light socket. Never connect the live (L) or neutral (N) wires to the earth pin marked E or 1±

Using an extension cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data).

The minimum conductor size is 1 mm^2 ; the maximum length is 30 m.

Unpacking

Fitting the warning label (fig. B)

The safety warnings on the label shown on the tool must be formulated in the language of the user.

For that purpose, a separate sheet of self-adhesive labels has been supplied with the tool.

- Check that the safety warnings on the label have been formulated in your language.

The warnings should read as follows:

LASER RADIATION

DO NOT STARE INTO BEAM

CLASS 3R LASER PRODUCT

- If the warnings are in a foreign language, proceed as follows:

– Draw the required label from the sheet.
- Carefully place the label over the foreign language.
- Press the label in place.

Assembly and adjustment

• Prior to assembly and adjustment, always remove the battery pack.
• Always switch off the tool before inserting or removing the battery pack.

Use only DEWALT battery packs and chargers.

Battery pack (fig. A & C1 - C4)

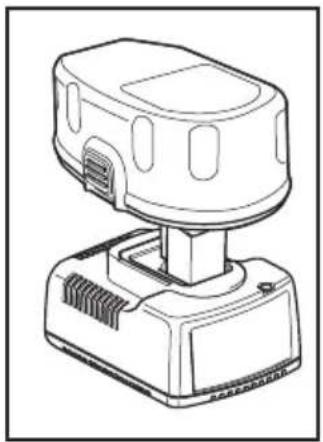

Charging the battery pack (fig. A)

When charging the battery pack for the first time, or after prolonged storage, it will only accept an 80% charge. After several charge and discharge cycles, the battery pack will attain full capacity.

Always check the mains prior to charging the battery pack. If the mains is functioning but the battery pack does not charge, take your charger to an authorised DEWALT repair agent. Whilst charging, the charger and the battery pack may become warm to touch. This is a normal condition and does not indicate a problem.

Do not charge the battery pack at ambient temperatures < 4 °C or > 40 °C. Recommended charging temperature: approx. 24 °C.

• To charge the battery pack (4), insert it into the charger (6) as shown and plug in the charger. Be sure that the battery pack is fully seated in the charger. The red charging indicator (7) will blink. After approx. 1 hour, it will stop blinking and remain on. The battery pack is now fully charged and the charger automatically switches to equalise mode. After approx. 4 hours, it will switch to maintenance charge mode. The battery pack can be removed at any time or left in the connected charger indefinitely.
• The red charging indicator flashes rapidly to indicate a charging problem. Reinsert the battery pack or try a new one. If the new pack also refuses to charge, have your charger tested by an authorized DEWALT repair agent.
• When plugged into power sources such as generators or sources that convert DC to AC, the red charging indicator may blink twice, switch off and repeat. This indicates a temporary problem of the power source. The charger will automatically switch back to normal operation.

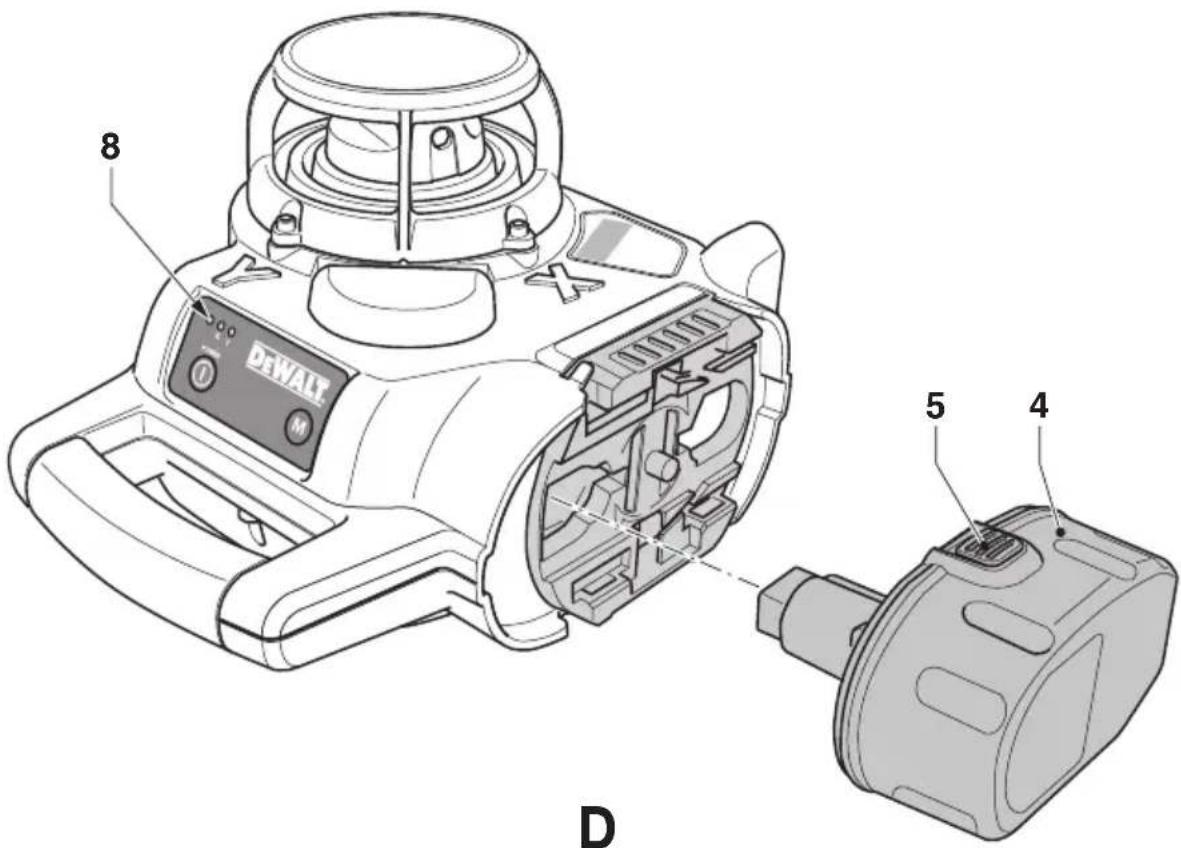

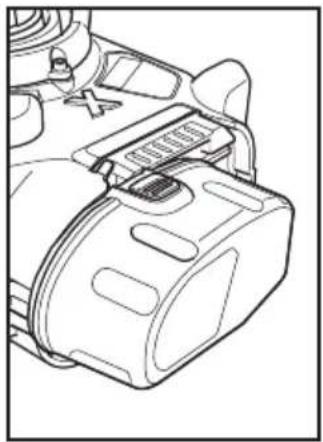

Inserting and removing the battery pack (fig. C1)

• Insert the battery pack (4) into the tool until it clicks in place.
• To remove the battery pack, press the two release buttons (5) simultaneously and pull the pack out of the tool.

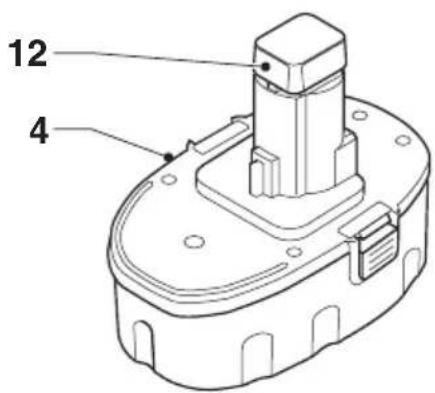

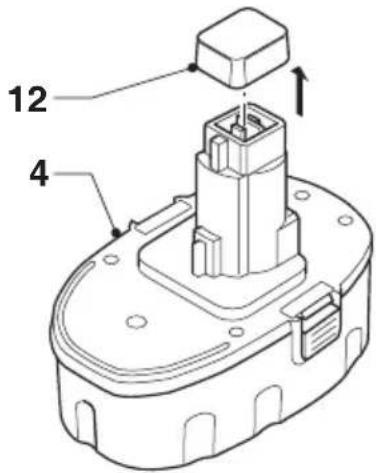

Battery cap (fig. C2)

A protective cap is supplied to cover the contacts of a detached battery pack. Without the protective cap in place, loose metal objects could short circuit the contacts, causing a fire hazard and damaging the battery pack.

• Take off the protective cap (4) before placing the battery pack (12) in the charger or tool.
• Place the protective cap over the contacts immediately after removing the battery pack from the charger or tool.

Make sure the protective cap is in place before storing or carrying a detached battery pack.

Equalization mode

The equalization mode helps to maintain the optimum capacity of the battery pack. It is therefore recommended to use the equalization mode weekly or every 10 charge/discharge cycles.

• Charge the battery pack as described above.
• When the charging indicator stops blinking, leave the battery in the charger for approx. 4 hours.

Hot Pack Delay

When the charger detects a battery that is hot, it automatically starts a Hot Pack Delay, suspending charging until the battery has cooled. After the battery has cooled, the charger automatically switches to the pack charging mode. This feature ensures maximum battery life. The red indicator (7) blinks long, then short while in the Hot Pack Delay mode.

Low battery indicator (fig C1)

The tool has been equipped with a low battery indicator (8) located on the control panel. The low battery indicator is lit while the tool is switched on. It will blink to indicate that the battery pack needs to be recharged and the tool will automatically shut down.

- Switch off the tool and take out the battery pack (4) to charge it as soon as the indicator blinks.

The tool remains non-operational as long as a low battery pack is attached to it.

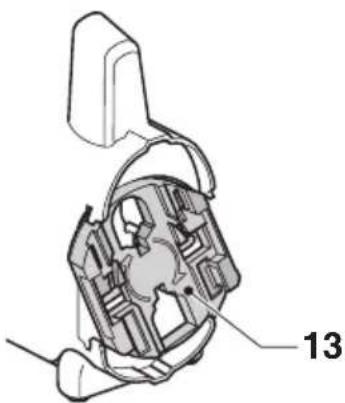

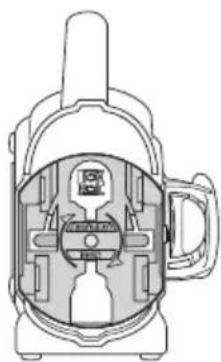

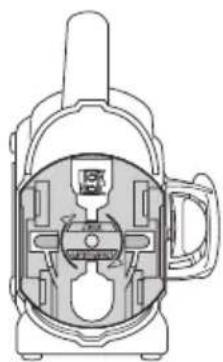

Battery type (fig. C3 & C4)

The tool is suitable for battery packs with different voltages.

• To fit battery packs of 18 volt, rotate the adapter plate (13) into position A.
• To fit battery packs of 9.6, 12 or 14.4 volt, rotate the adapter plate (13) into position B.

Refer to the table in the back for a selection of applicable battery packs.

Setting up the tool (fig. D1 & D2)

The tool facilitates various set-ups, making it useful for several applications.

Floor set-up (fig. D1)

• Place the tool on a relatively smooth and level surface.
• Adjust the tool for a level application.

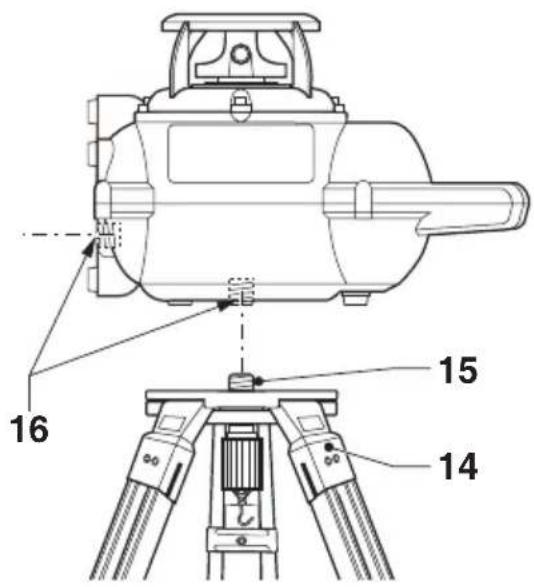

Tripod set-up (fig. D2)

The tool has been equipped with a tripod receptacle for mounting to the DE0735/DE0736 tripod (optional) or any other tripod with the required ratings stated in the technical data.

• Place the tripod (14) on a relatively smooth and level surface.
• Mount the tool to the tripod by turning the threaded pin (15) into the receptacle (16) in the base.
• Adjust the tool for a level application.

Adjusting the tool (fig. A)

• Place the tool into the required position as shown.
• To initiate the leveling procedure, switch on the tool. The leveling procedure is indicated by the flashing of the leveling indicators (9 & 10) and the laser beam. Once the tool has found its level position the leveling indicators and the laser beam will stop flashing and remain on.
• The leveling indicators and the laser beam repeatedly flash three times rapidly to indicate that the tool has been set up at a slope that is beyond the self-leveling range of 5°. Switch the tool off, re-adjust the tool set-up within the self-leveling range and switch the tool on again.

Aligning the laser line (fig. E1 & E2)

• With the tool switched on and the laser head rotating, align the laser line with the position mark.
• If adjustment is required, proceed as follows:

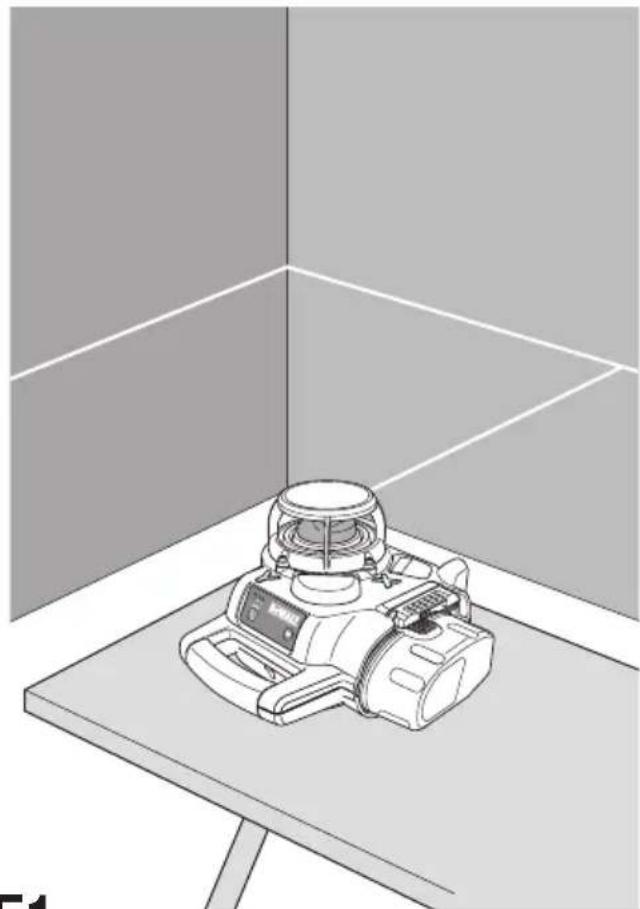

With tool in floor set-up (fig. E1):

- The tool can be placed on any sturdy object to obtain the required height.

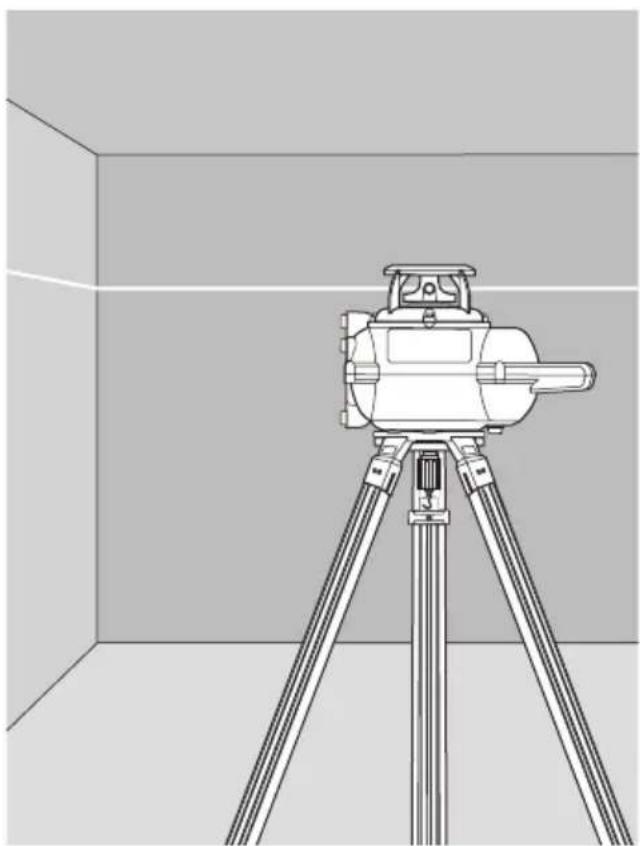

With tool in tripod set-up (fig. E2):

- Adjust the tripod to set the tool to the required height.

Instructions for use

Always observe the safety instructions and applicable regulations.

• Always mark the center of the laser line or dot.
- To increase working distance and accuracy, set up the tool in the middle of your working area.
- Extreme temperature changes cause movement of internal parts that may affect the accuracy of the tool. Regularly check the accuracy while using the tool under these circumstances.
- Although the tool corrects small out-of-level errors automatically, when it has registered a bump, re-adjustment to balance or set-up may be required.
- If the tool has been dropped or has tipped over, have the laser head calibrated by a qualified repair agent.

Prior to operation:

• Carry out the field calibration checks to confirm its accuracy.
• Make sure the tool has been set up securely.

Switching on and off (fig. A)

• To switch the tool on, press the on/off switch (1).
• To switch the tool off, press the on/off switch (1) again.

Out-of-level alert

The out-of-level alert activates automatically 8 seconds after the leveling procedure has been completed.

Once the out-of-level alert is activated, the tool monitors its level position continuously.

Depending on the registered level of deviation the tool will respond to level errors as follows:

• Deviations < 2mm over 10m : a level error is automatically corrected without notifying.
• Deviations 2 - 20 mm over 10 m: a level error is automatically corrected. The laser head temporarily stops rotating and the laser beam starts flashing to indicate that the tool re-adjusts to level position.
• Deviations > 20 mm over 10 m: a level error leads to interruption of the tool's operation. The laser head stops rotating and the laser beam goes off.

A rapidly beeping audio signal is produced and the on/off indicator flashes simultaneously.

To resume the operation:

- Switch the tool off. Check the balance and setup and re-adjust if required before switching the tool on again.

Digital laser detector (fig. F)

The detector helps locating the position of a laser beam in bright light conditions or over long distances. It produces both visual and audio signals as the rotating laser beam crosses the detector.

The attachment can be used both indoor and outdoor whenever it is difficult to locate the laser beam.

Accuracy

When the tool is operated using the detector, the accuracy level of the detector needs to be added to that of the tool.

• Constant accuracy (detector in narrow setting) +/- 1.0 mm/m
• Nominal accuracy (detector in wide setting) +/- 3.0 mm/m

- For most accurate results, start the operation using the wide setting and finish in the narrow setting.

Optional accessories

Consult your dealer for further information on the appropriate accessories.

These are:

• DE0734 Grade rod
• DE0735 Tripod
• DE0736 Tripod

Battery packs

Voltage NiCd NiMH

9.6 DE9061 DE9036

12 DE9071/DE9075 DE9037

14.4 DE9091/DE9092 DE9038

18 DE9095/DE9096 DE9039

Maintenance

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Field calibration check (fig. G1 & G2)

The field calibration checks must be performed securely and accurately to make a correct diagnosis. Whenever an error is registered, have the tool calibrated by a qualified repair agent.

Always have the laser head calibrated by a qualified repair agent.

• Place the tool in an area at about 15 m from a vertical surface.
• With the tool in a tripod set-up, adjust the tool for a level application.

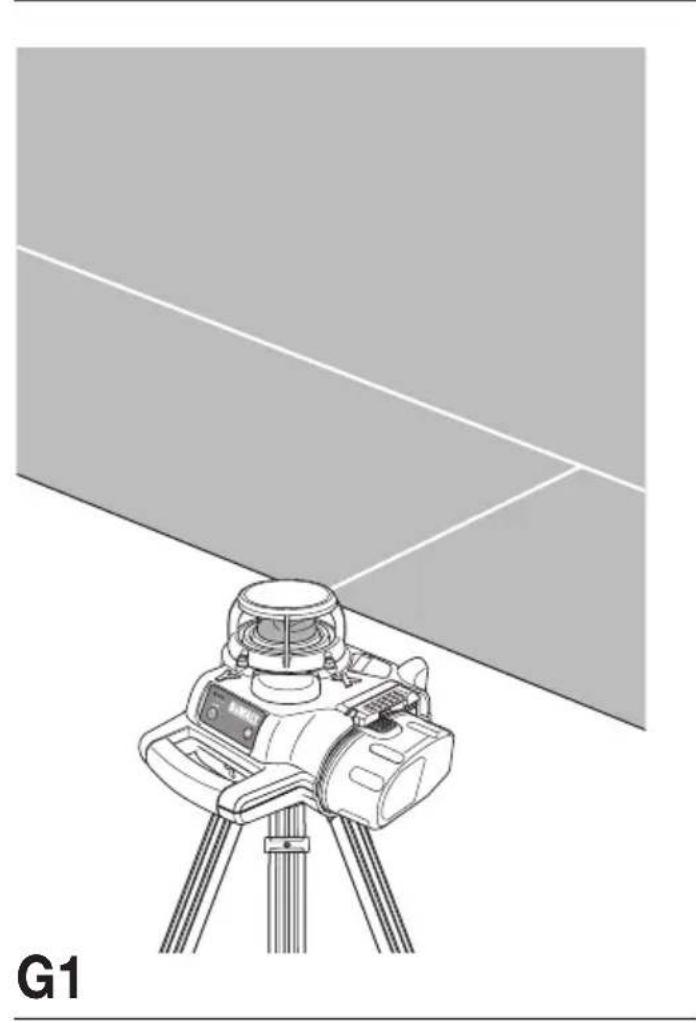

To perform a level check of the X-axis (fig. G1)

• Position the tool so that the X-axis is parallel with the vertical surface.
• Switch on the tool and rotate the head until the laser dot appears on the vertical surface.
• Mark the centre of the laser beam.
• Switch off the tool and rotate it 180^ so that the X-axis is parallel with the vertical surface the other way around.
• Switch on the tool, rotate the head and once again mark the centre of the laser dot on the surface. Switch off the tool.
• Measure the difference between the markings.
• If the difference between the markings is 3.2 mm or less, the laser head is properly calibrated.
• If the difference between the markings is more than 3.2 mm, the laser head must be calibrated.

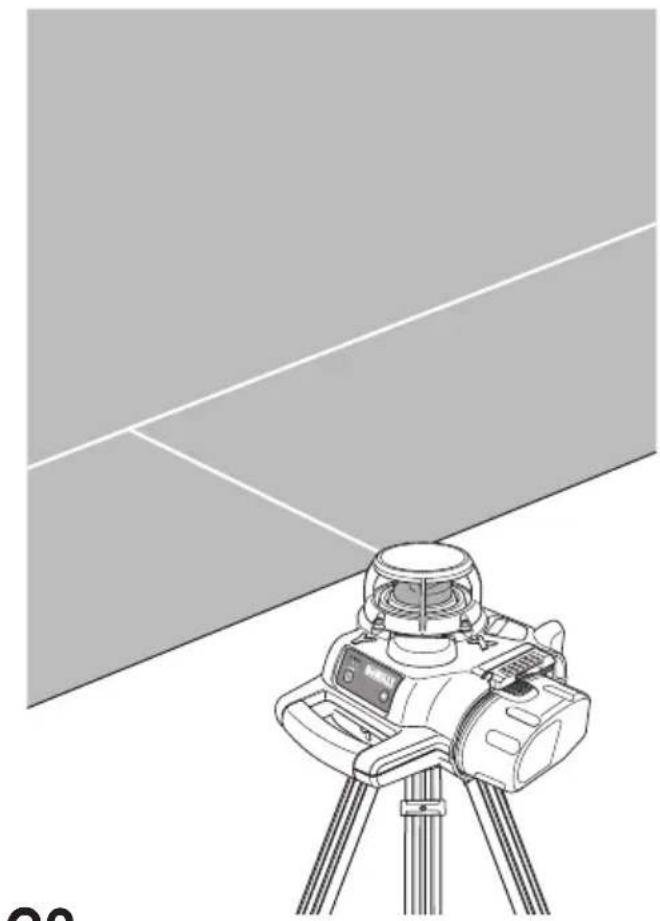

To perform a check of the Y-axis (fig. G2)

• Position the tool so that the Y-axis is parallel with the vertical surface.
• Following the same procedure as described above, mark the centre of the laser dot on the surface with the tool in this position, after which the tool is rotated 180^ to mark the centre of the laser dot once again.
• Measure the difference between the markings.
• If the difference between the markings is 3.2 mm or less, the laser head is properly calibrated.
• If the difference between the markings is more than 3.2 mm, the laser head must be calibrated.

Cleaning

• Unplug the charger before cleaning the housing with a soft cloth.
• Remove the battery pack before cleaning your power tool.
• Keep the ventilation slots clear and regularly clean the housing with a soft cloth.
• When necessary, clean the lens using a soft cloth or a cotton bud soaked in alcohol. Do not use any other cleaning agents.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Rechargeable battery pack

This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• NiCd and NiMH cells are recyclable. Take them to your dealer or a local recycling station.
  The collected battery packs will be recycled or disposed of properly.

GUARANTEE

- 30 DAY NO RISK SATISFACTION GUARANTEE If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at

www.2helpU.com

LÁSER ROTATORIO DW076

¡Enhorabuena!

Director Engineering and Product Development Horst Großmann

X. fopsmann

Pack-batteries chargé

L'emballage contient:

1 Laser giratoire

PRODUIT LASER DE CLASSE 3R

Pack-batteries (fig. A & C1 - C4)

Packs-batteries rechargeables

Director Engineering and Product Development Horst Großmann

X. fopsmann

DeWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Duitsland

KLASSE-3R-LASERPRODUCT

Director Engineering and Product Development Horst Großmann

X. fopmann

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Tyskland

LASERPRODUKT I KLASSE 3R

• DE0734 gradstang
• DE0735 tripod
• DE0736 tripod

Batteripakker

Spenning NiCd NiMH

9,6 DE9061 DE9036

12 DE9071/DE9075 DE9037

14,4 DE9091/DE9092 DE9038

18 DE9095/DE9096 DE9039

Vedlikehold

Director Engineering and Product Development Horst Großmann

X. fopsmann

DeWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Alemanha

1 Interruptor on/off

2 Asa de transporte

Director Engineering and Product Development Horst Großmann

X. fopsmann

Director Engineering and Product Development Horst Großmann

X. fopsmann

DeWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Tyskland

KLASS 3R LASERPRODUKT
