Opal Titanium BS4950 - Blender UFESA - Free user manual and instructions

Product type	Blender
Brand	Ufesa
Model	Opal Titanium BS4950
Bowl capacity	1.8 L
Bowl material	Glass
Number of speeds	Progressive (min to max)
Special functions	Pulse, Ice crusher, Smoothie
Power supply	220-240 V ~ 50/60 Hz
Power	Not specified in the manual
Weight	Not specified
Dimensions	Not specified
Cord length	Not specified
Dishwasher-safe removable parts	Jug (bowl), bowl lid, measuring cup
Self-cleaning function	Yes (water + detergent, Pulse position)
Safety	Sharp blades, do not immerse the body, unplug before cleaning, do not use empty
Warranty	2 years
Usage	Domestic use only

Frequently Asked Questions - Opal Titanium BS4950 UFESA

What is the bowl capacity of the Ufesa Opal Titanium BS4950 blender?

The glass bowl has a capacity of 1.8 liters.

What special functions are available?

This blender offers three special functions: Pulse (pulse), ice crusher (30-second cycle) and smoothie (one-minute cycle at variable power).

How to use the Pulse function?

Press the Pulse button continuously during preparation; release it to stop.

Can I put the glass bowl in the dishwasher?

Yes, the jug (bowl), lid and measuring cup are dishwasher safe.

How to effectively clean the blender?

Use the self-cleaning function: pour water and a little detergent into the bowl, then select the Pulse position. You can also disassemble the blades by turning the fixing ring for a deeper clean.

Are the blades removable?

Yes, unscrew the blade fixing ring by turning clockwise. Caution, the blades are very sharp.

Can I blend hot liquids?

Be careful: pouring hot liquid can cause sudden vaporization and eject the contents. Allow to cool before blending.

What is the warranty period for this blender?

The warranty is 2 years for conformity defects, according to European Directive 1999/44/EC.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service or a qualified person to avoid any risk.

Can the blender be used by children?

No, this appliance should not be used by children. It may be used by persons with reduced capabilities if they are supervised and informed of the risks.

USER MANUAL Opal Titanium BS4950 UFESA

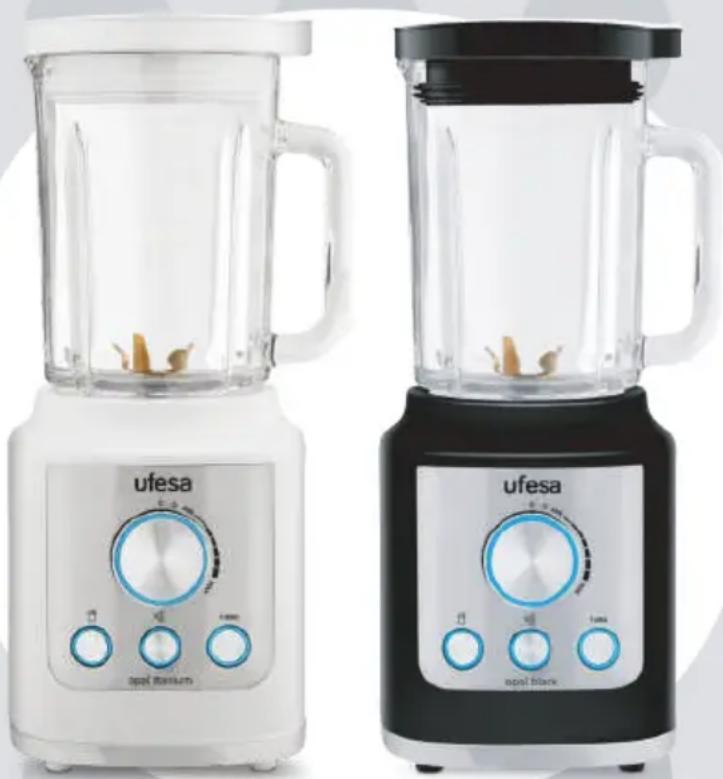

BS4950 Opal Titanium

BS4950B Opal Black

Two modern kitchen blisters with control knobs and food items, one white and one black, displayed side by side (no visible text or symbols on the devices themselves)

Diagram showing a mechanical component with a downward arrow and a circular label (1), no readable text or symbols present.

2

Illustration of a blender with a plug inserted, showing the blade and control panel (no text or symbols)

4

5 ① ②

7

Illustration of hands operating a blender with a black upward arrow indicating action (no text or symbols present)

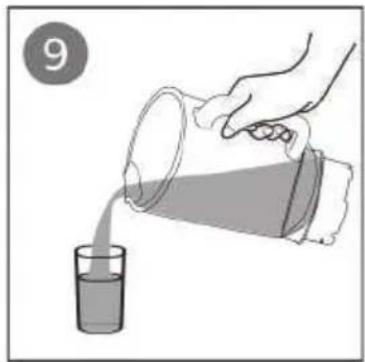

Illustration of a hand pouring liquid from a glass to a cup (no text or symbols)

1 2 3 4 5 6 7 8 9 10

Line drawing of a blender with a lid and handle, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a blender with control panel and lid, no text or symbols present

ESPAÑOL

LE AGRADECEMOS QUE HAYA ELEGIDO UFESA Y ESPERAMOS QUE EL PRODUCTO LE SATISFAGA.

ATENCIÓN

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

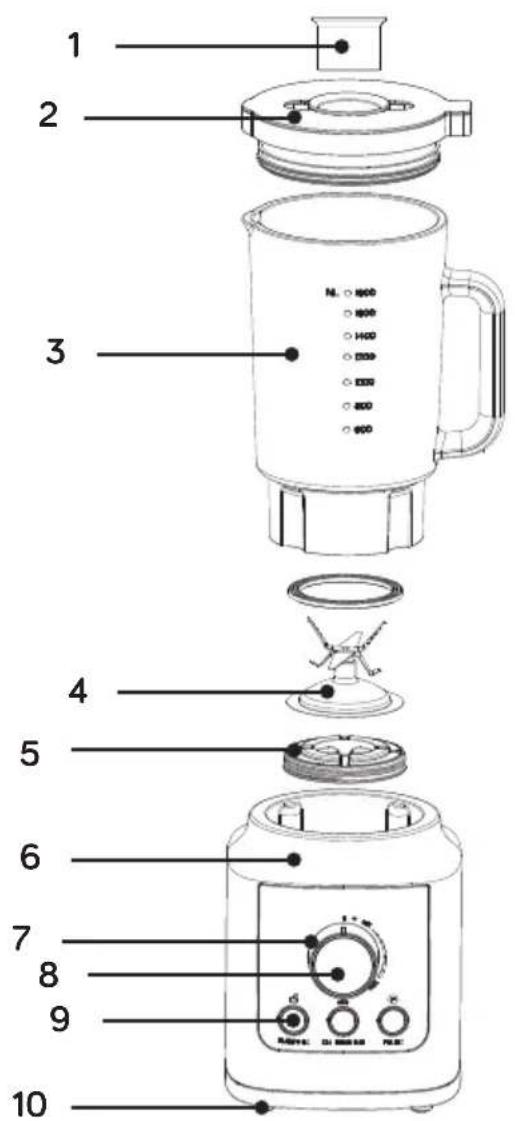

DESCRIPTION

1. Measuring Cup
2. Lid
3. Glass Bowl
4. Blade
5. Glass Bowl Holder
6. Body
7. LED Indicator Light
8. Start Knob
9. Function Button
10. Rubber Feet

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact

an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Connect the appliance to the power and put the start button in position I, the LED lights will come on and the mixer will be ready for operation.

The start knob allows you use variety speeds from minimum power to max power.

- When you use start knob for your speed control, the function button can not work in the mean time.

SPECIAL FUNCTION BUTTONS

- Pulse function. * Ice Crushing function. * Smoothie function.

- With these 3 buttons, you can change the buttons base on your need. Besides can

also choose to use the start knob for speed control, after you do that, you cannot use the function button in the mean time.

- The glass jar capacity is 1.8 l.

BLENDING WITH SPEED KNOB

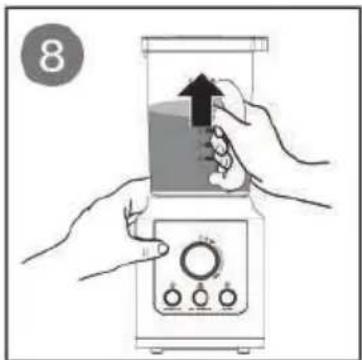

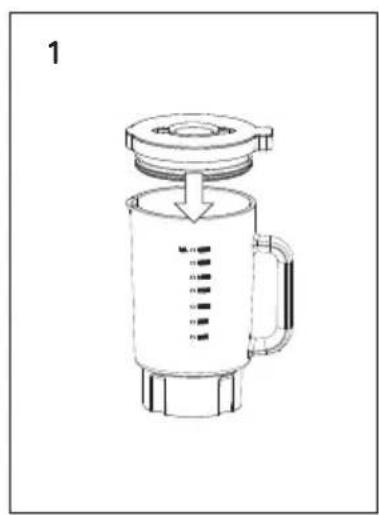

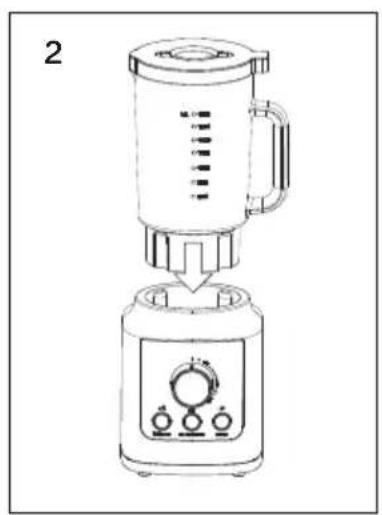

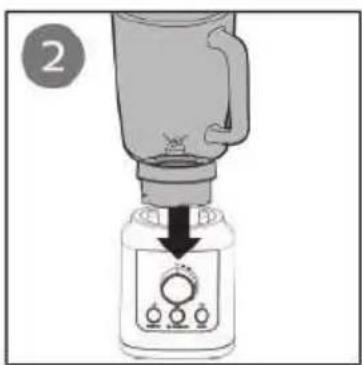

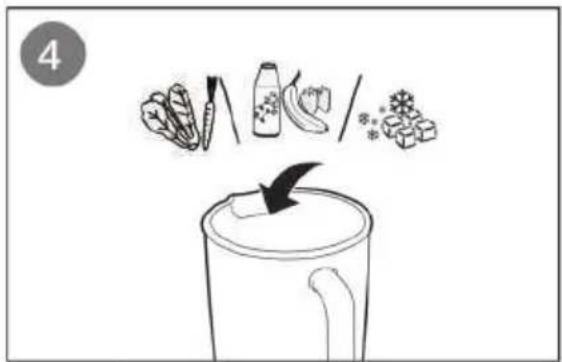

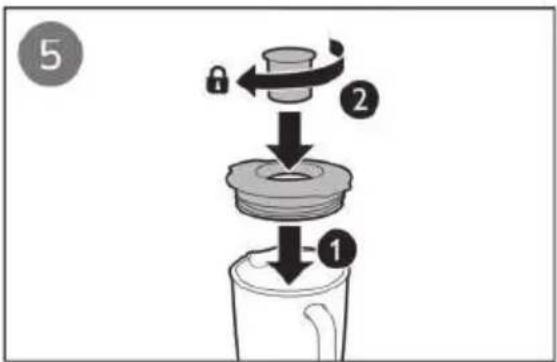

-Pour in the ingredients and cover the glass bowl (Fig. 1), and then place the bowl into the host (Fig. 2) and turn clockwise (Fig. 3). Lift the glass bowl to check it is locking whether or not.

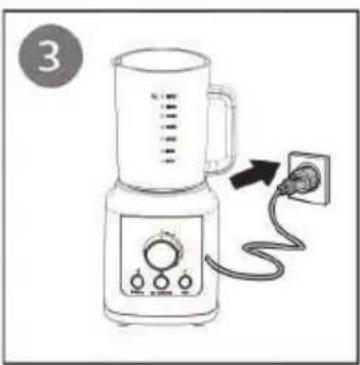

- Plug in the appliance and rotate the start knob to which speed you need.

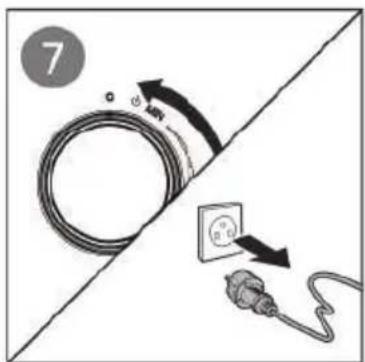

- At the end of preparation, rotate the start knob to position ⏻, unplug the appliance and wait until the blades come to a complete stop..

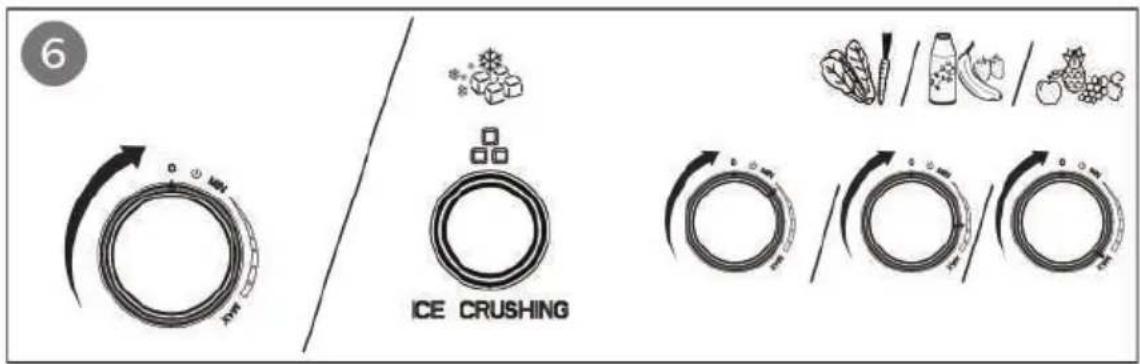

BLENDING WITH FUNCTION BUTTON

Turbo function

When you press button "Turbo", you should press it continuously, when the foods are finished, please release it.

Ice Crushing function

When you press this button, a cycle is working and all process will last for 30s.

Smoothie function

When you press this button, it will work close to variable power for 1 min.

MAINTENANCE AND CLEANING

Before cleaning, always turn off the appliance and unplug it from the power supply.

Do not immerse the appliance and power cord in water or other liquids or wash them in the dishwasher.

Wipe off the toaster with a damp cloth and a little dish washing detergent. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

During the cleaning process, special care must be taken with the blades and they are very sharp.

It is recommended to clean the appliance regularly and remove all traces of food.

If the appliance is not maintained in good cleaning condition, its surface can degrade and inexorably affect the life of the appliance and lead to a dangerous situation.

The following parts are suitable for cleaning in the dishwasher: Jug. Jar lid, measuring cup.

Self-cleaning function

Introduce water and a small amount of detergent into the jar.

Select the position "Pulse"

Removable blades for effective cleaning

Loosen the fixing ring of the blades by turning it clockwise.

Remove the fixing ring from the blades and clean all the parts.

Once clean, replace the blade assembly and turn the blade fixing ring in the opposite direction.

Table of recipes

Load Time Speed
Soaked carrot: 700gWater: 1.050g	40” MÁX.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS TENONS À VOUS REMERCIER D'AVOIR CHOISI UFESA. NOUS ESPÉRONS QUE VOUS SEREZ PLEINEMENT SATISFAIT DE CE PRODUIT ET QU'IL RÉPONDRA À VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

ÉLIMINATION DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully com-

pleted and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
