USER MANUAL Elite MI1400 UFESA

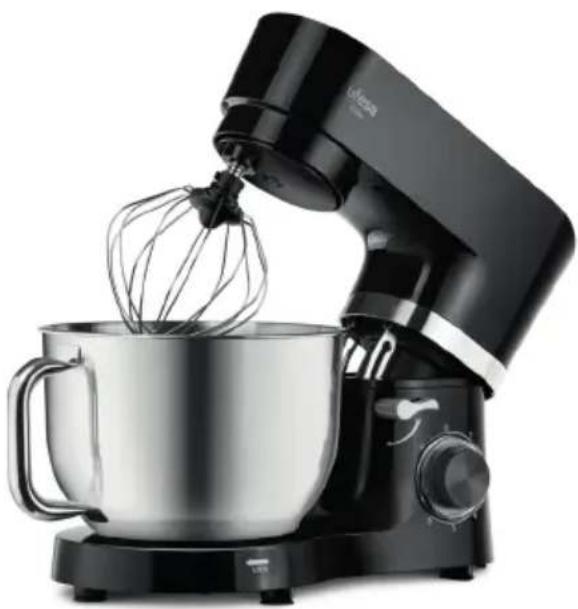

Modern kitchen mixer with whisk inside a bowl, no visible text or symbols on the device itself.

Black kitchen stand mixer with whisk inside a metal bowl (no visible text or symbols)

Simple line drawing of a bowl with a side-mounted base and an arrow indicating direction (no text or symbols)

Simple line drawing of a balloon-like shape with internal vertical lines and a small top object, labeled '8' at the bottom (no text or symbols on the diagram itself)

Line drawing of a kitchen mixer with control knob and handle (no text or symbols)

Fig. 1

Diagram of a kitchen mixer with labeled parts showing mixing and rotation steps

Fig. 2

Line drawing of a kitchen mixer with a control panel and directional arrow (no text or symbols)

Fig. 3

Line drawing of a kitchen mixer with handle and control panel (no text or symbols)

Fig. 4

Line drawing of a kitchen mixer with a side panel and control knob (no text or symbols)

Fig. 5

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Output shaft
2. Rise knob
3. Speed knob
4. Power cord
5. Mixing bowl*
6. Dough hook
7. Beater
8. Whisk

*MI1450 bowl version with handle

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling

or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

USING THE MIXING BOWL

1. In order to lift the arm, clockwise rotation the Rise knob (2). The arm will now move upwards. (FIG 1)

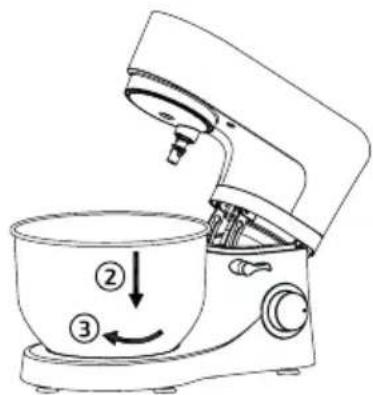

2. Place the mixing bowl into its holding device (Step1) and turn the bowl clockwise until it locks into place (Step 2). (FIG 2)

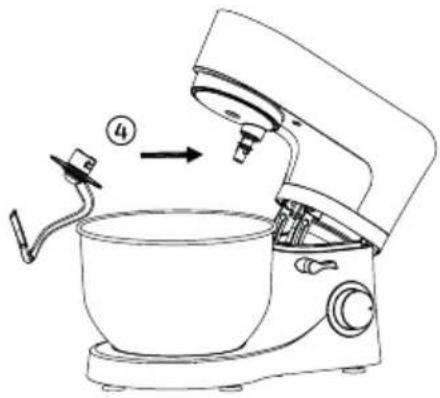

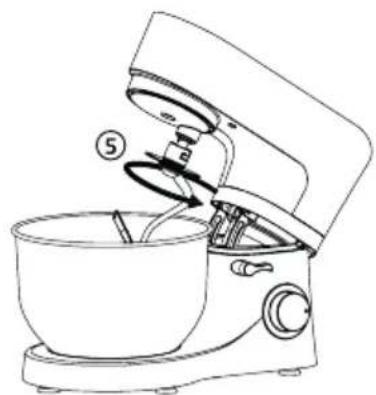

3. Mount the required utensil (Dough hook or Beater or Whisk) by inserting the top into the output shaft, and turn anti-clockwise until it locks into place. (FIG 3 & FIG 4)
4. Now fill in your ingredients. Do not overfill the machine - the maximum quantity of ingredients is 1.5kg.
5. Lower the arm using the rise knob (2). (FIG 5)
6. Insert the mains plug into a properly installed 220-240V 50-60Hz safety power socket.
7. Switch the machine using the speed knob to a speed between 1 and 6 (corresponding to the mixture).
8. For pulse operation (kneading at short intervals), turn the switch to the "PULSE" position. The switch has to be held in this position according to the desired interval length. When the switch is released it returns automatically to the "0" position.
9. After kneading/stirring turn the speed knob (3) back to the "0" position as soon as the mixture has formed a ball. Then, remove the mains plug.
10. Push the rise knob (2) downwards and the arm will be raised.
11. The mixture can now be released with the help of a spatula and removed from the mixing bowl.
12. The mixing bowl can now be removed.
13. Clean the parts as described under "Cleaning".

Adjusting the Levels and Using the Dough Hook for not more than 1.5kg of Mixture:

Use Picture Levels		Time(-Min)	Maximum Remarks
Dough hook 1-3 3			1000g flour and 538g water	Heavy mixtures(e.g. bread or short pastry)
Beater 2-4 3			660g flour and 660-840g water	Medium-heavy mixtures(e.g.crepes or sponge mixture)
Whisk 5-6 3			3 egg whites (Mini-mum)	Light mixtures (e.g. cream,egg white, blanc-mange)

TROUBLESHOOTING

N.° Troubles Solution
1	The machine doesn't work	·Check if the plug is in good contact with the socket. ·Check if the rise button spring back in place. ·Check if the machine works continuously more than 10 minutes, and wait until the motor cool down.
2	Noise in the mixing bowl when working (the accessory scraped the bowl)	·Check if the mixing bowl is properly installed. ·Check if the accessory installed properly on machine.
3	The machine doesn't work on certain speed	·Check if the mark on speed knob correspond to the speed silkscreen on housing. ·Rotate speed knob to 0 ,and re-check if the machine works .
4	Movements when the machine working	·Check if the anti-slip feet fall off. ·Check if the machine is placed on a smooth and flat tabletop.
5	The rise button didn't spring back in place after installing the mixing bowl and pot cover	·Check if the pot cover placed on the machine properly. ·Check if the mixing bowl is properly installed.

TABLE OF RECIPES

Load Time Accessory Speed
Flour: 1000gWater: 538g	5' Dough hook		Progressive:30'' at Speed 130'' at Speed 24' at Speed 3

MAINTENANCE AND CLEANING

Before cleaning, always turn off the appliance and unplug it from the power supply.

Do not immerse the appliance and power cord in water or other liquids or wash them in the dishwasher.

Prompt: it is suggested that clean the appliance immediately after use, which is easy for cleaning. In the event of disassembling the appliance, rotate the appliance on the opposite direction of installation direction.

When disassembling all mincing chamber or body of shredder, press on the lock button 1 with one hand and screw off the mincing chamber or body of shredder with the other hand as the direction of the arrow shown in the right picture.

Please be careful for the disassembly of the appliance, so as not to scratch your fingers.

Do not use abrasives, scrubbers, acetone and alcohol to clean juicer.

Since some parts are relatively sharp, clean them with a brush, so as not to scratch fingers;

Neither immerse the motor in water, nor rinse it under the water tap. Water temperature for cleaning should not exceed 60^ C.

Only plastic parts are suitable for dishwashing machine.

It is forbidden to wash metal accessories in the dishwasher, as the aggressive cleaning agents used

in these devices may discolour the metal parts and damage them.

Those parts should be rinsed under running water and dried immediately.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET VOUS FASSE PLAISIR.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÛR POUR UN USAGE ULTÉRIEUR.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
