USER MANUAL MRF29D2AST MIDEA

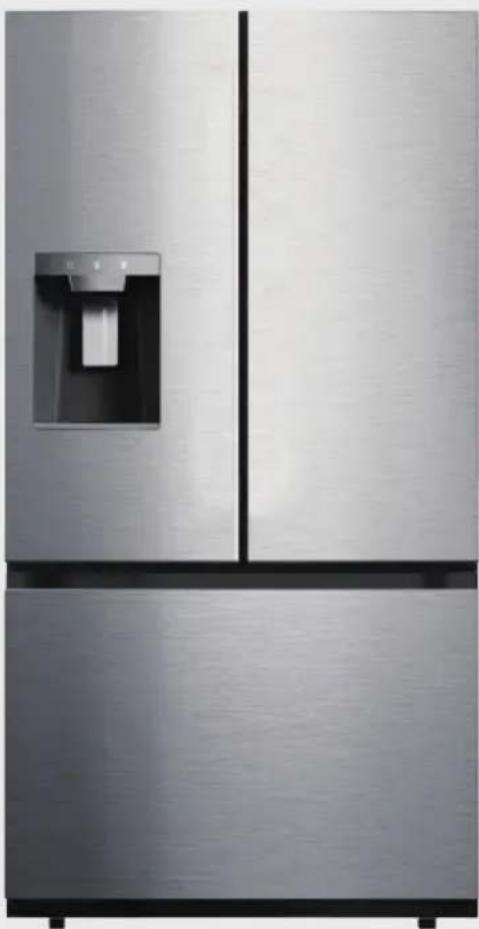

Exterior view of a modern stainless steel refrigerator with open door and front panel (no visible text or symbols)

Refrigerator Freezer

FRENCH DOOR REFRIGERATOR SERIES

SmartHome

QR code image containing encoded data, no visible human-readable text

Download the app & activate product

USER MANUAL

MRF29D2AST

LANGUAGES

EN English

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 02

SPECIFICATIONS 03

PRODUCT OVERVIEW 04

PRODUCT INSTALLATION 05

OPERATION INSTRUCTIONS 11

CLEANING AND MAINTENANCE 17

TROUBLESHOOTING 21

DOC AND CERTIFICATIONS 23

SPECIFICATIONS

Product model	MRF29D2AST
Volume 29.3cu.ft.(828L)
Rated Voltage	115V~
Rated Frequency 60 Hz
Rated Current 2.7 A
Rated Defrost Power 280 W
Refrigerant R600a
Amount 2.75 oz (78 g)
Unit Dimensions	35.8 x 33.9 x 69.9 in(91,0 x 86,2 x 177,5 cm)

Wireless Network Module Model MWB-S-WB01
Antenna type Printed PCB antenna
Frequency band 2400-2483.5 MHz
Operating temperature	0 °C ~ 85 °C /32 °F ~ 185 °FOperation humidity: 10%~85%
Power input	DC5V/500mA MaximumTransmission power: <20dBm

EN

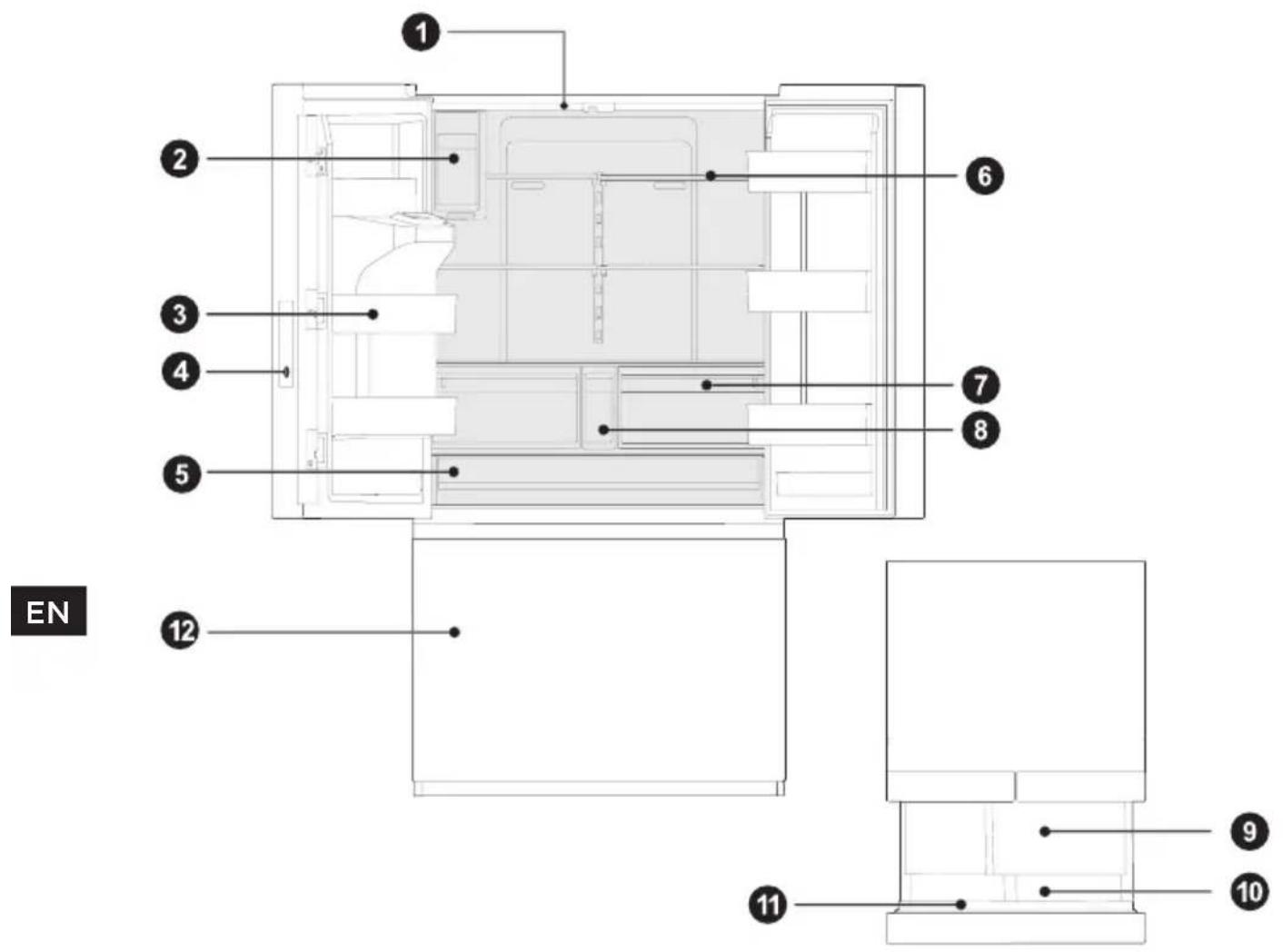

PRODUCT OVERVIEW

Names of components

1 2 3 4 5 6 7 8 EN 12 9 10 11

1 LED lighting
2 Ice maker
3 Door tray
4 Control panal
5 Big drawer
6 Shelf

7 Crisper drawer
8 Small drawer
9 Upper freezer drawer
10 Lower freezer drawer
11 Freezer tray
12 Freezer drawer

ATTENTION

• The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor
• Small drawers suggest placing items suitable for its size, such as smaller milk cartons.

PRODUCT INSTALLATION

Install Instruction

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be recessed or built-in.
• The refrigerator should be placed in a well-ventilated indoor place; the ground shall be flat and sturdy.
• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect.

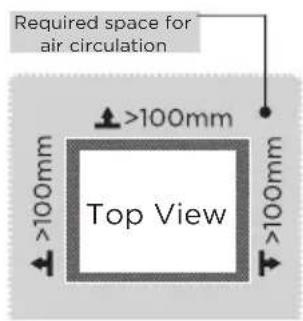

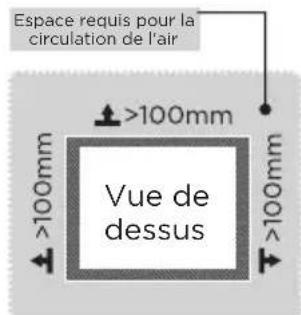

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

>100mm >100mm >100mm

Required space for air circulation >100mm Top View >100mm >100mm

Providing a proper power supply

• Check your local power source. This refrigerator requires a AC115 V, 60 Hz power supply.
• Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator.

CAUTION

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

WARNING: When positioning the appliance, ensure the supply cord is not trapped ordamaged.

Start to use

• The refrigerator shall stay for half an hour before connecting power when it is firstly started.
• The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the refrigerator shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

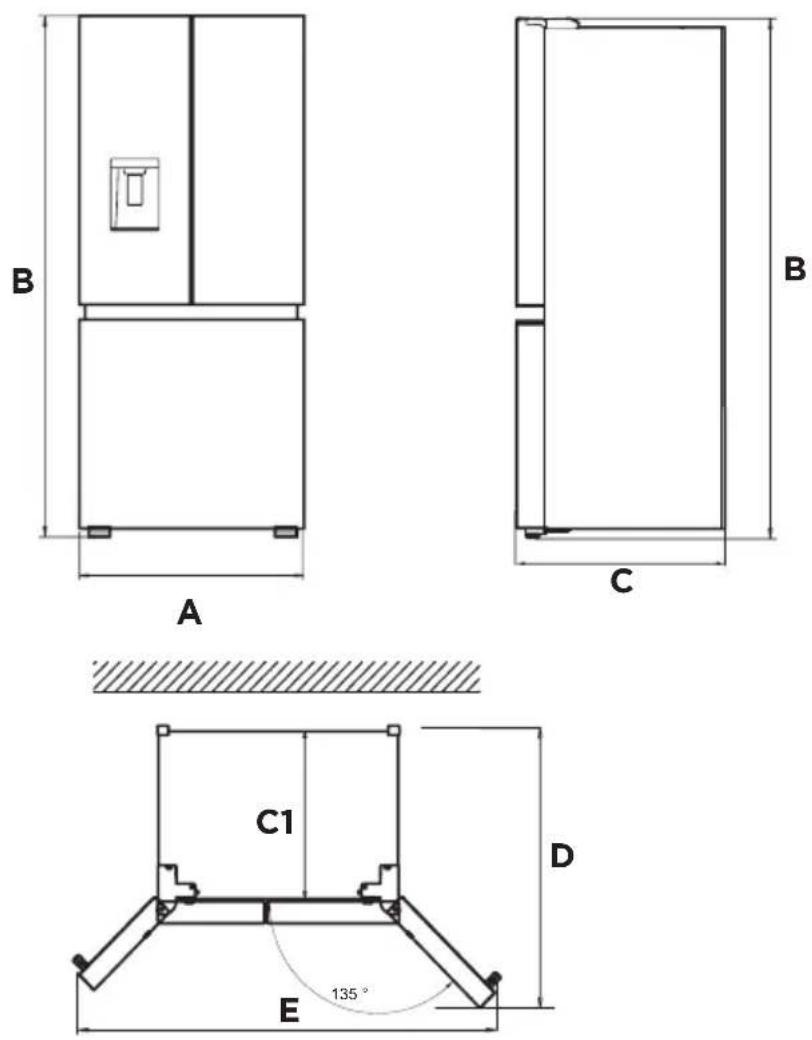

Space requirement diagram (when the door is open and when the door is closed)

Width	Overall Height	Depth	Depth Only Cabinet	Depth doors open 135°	Width doors open 135°
A B C C1 D E
910 1775	862 745 1127	1596

Notice: All dimensions in mm

Installing the Water Line

Installing the Water Line

• Water line installation kits are available as an additional accessory from your dealer or at a local hardware store.
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold water supply valve.
3. After connecting the water supply to the water valve, turn your main water supply back on and flush several gallons of water to clear the water supply line.

Connecting the Water Line to The Refrigerator

• There are several items that you need to purchase to complete this connection.
- You will find these items sold as a kit at your local hardware store.
1. First, close the main water supply and locate the nearest cold water line.
2. Second, connect the water valve to the cold water line.
3. Turn water valve on and check for any leakage.
4. When moving the refrigerator, you can hang the power cord on the power cord hook.

Connecting the Water Line to A Drinkable Water Source

• If your water line is not drinkable, please add an external water filter.
• If you must repair or disassemble the water line, cut off the plastic tubing to make sure you get a snug, leak-free connection.

ATTENTION

The minimum inlet water pressure: 276kPa. The maximum inlet water pressure: 689kPa. WARNING: Connect to potable water supply only. New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

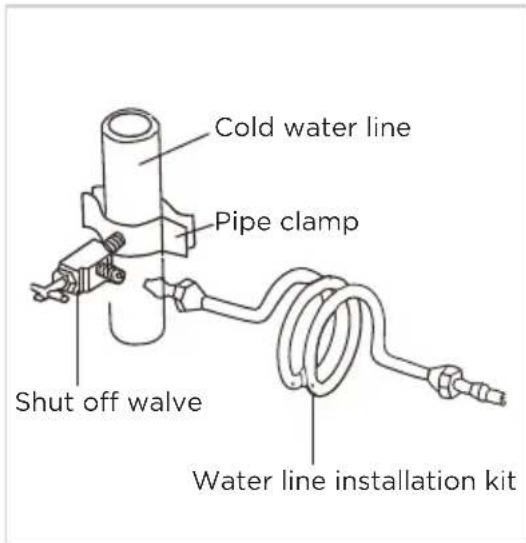

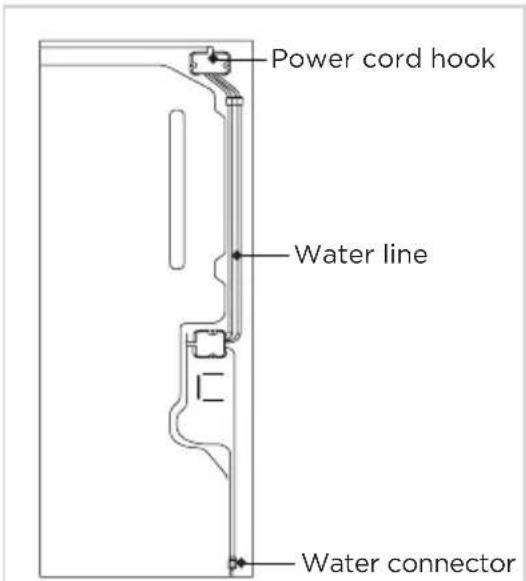

Cold water line Pipe clamp Shut off valve Water line installation kit

Power cord hook Water line Water connector

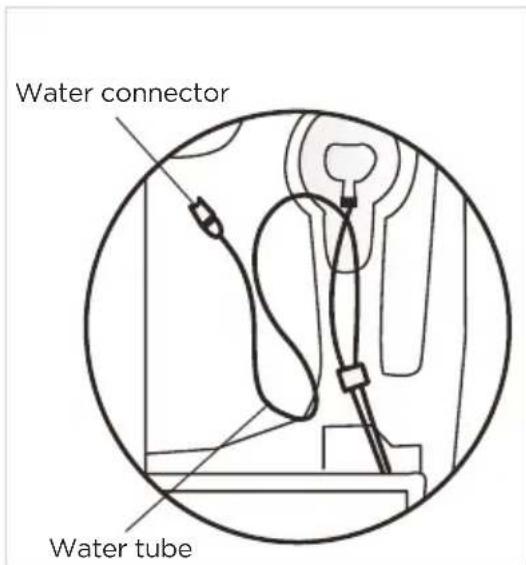

Water connector Water tube

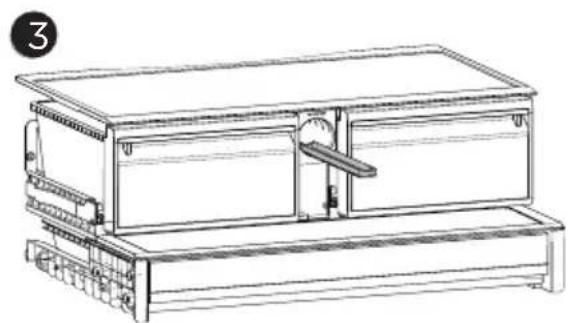

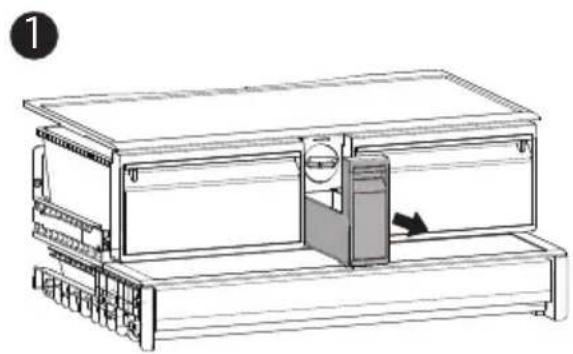

Installing Filter

Technical line drawing of a server rack with ventilation unit and directional arrow (no text or symbols)

• Pull out the small drawer in the middle

Line drawing of a mechanical device with a cylindrical component inserted into a housing (no text or symbols)

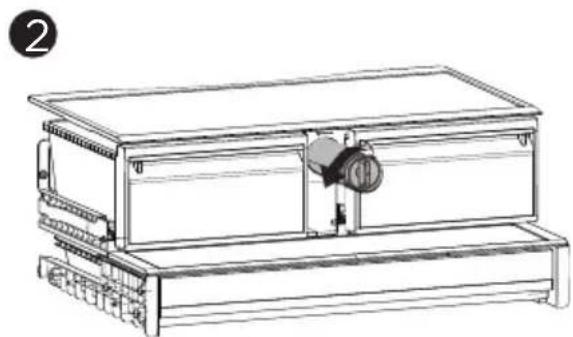

- Press the filter knob and rotate 90^ counterclockwise, the filter will disengage from the connector and the filter can be removed.

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

- Check the water tray under the strainer with your finger, take out and dump the overflow water.

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise ↩ to raise the unit, clockwise ↑ lower it.

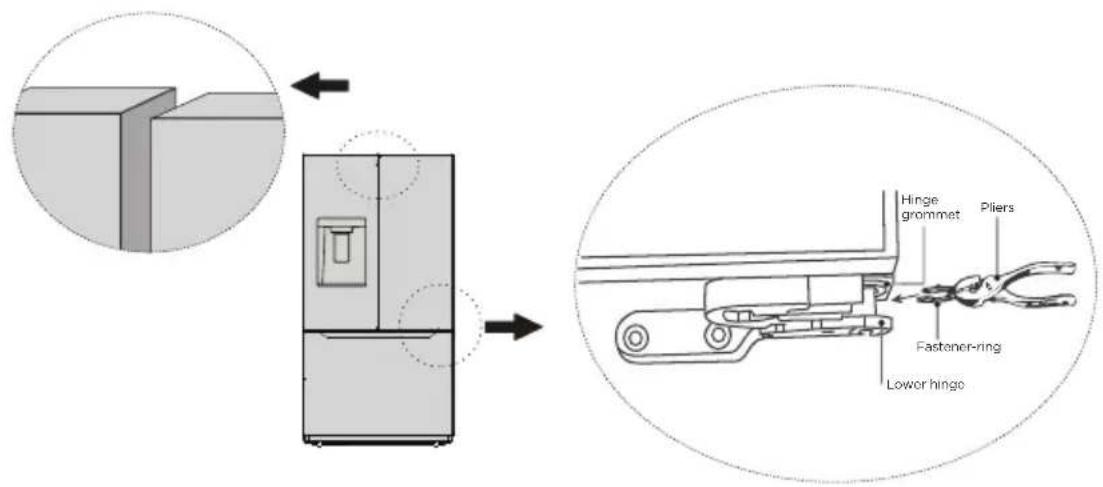

Leveling doors

List of tools to be provided by the user

Pliers

1. Raise the lower door up to the level of the higher door.
2. Insert the supplied fastener-ring by using plier in the gap between the hinge-grommet and the lower hinge. The number of fasten-rings you will need to insert depends on the gap.

Hinge grommet Pliers Fastener-ring Lower hinge

Moving the appliance

1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to switch on the appliance.

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

• After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Precautions before operation:

• Before making changes the refrigerator must be disconnected from power.
• precautions should be taken to prevent any personal injury.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and racks as shown in the illustration offers the most efficient use of energy and should therefore be retained as far as possible. All drawers and shelves should remain in the appliance to keep the temperature stable and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers can be removed. The top and bottom drawers and shelves should be removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has already cooled down increases energy efficiency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.
• Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

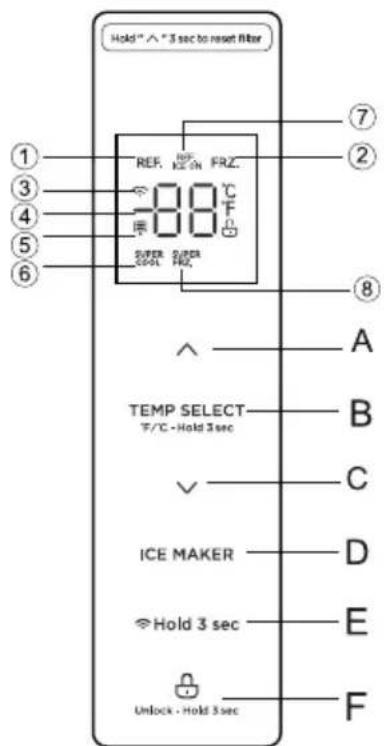

Control panel

Hold™ ^ * 3 sec to reset filter ① ③ ④ ⑤ ⑥ REF. 120 IN FRZ. 88 °C OFFER OFFER OFFR OFFER A TEMP SELECT F/°C - Hold 3 sec B ✓ C ICE MAKER D ✓ Hold 3 sec E Unlock - Hold 3 sec F

	DisplayButton
1	Refrigerating icon	A	Temperature up button
2	Freezer icon	B	Temperature zone selection button
3	Wireless Network icon	C	Temperature down button
4	Temperature display icon	D	Ice maker button
5	Filter replacement reminder icon	E	Connect button
6	Super cool icon	F	Lock/Unlock button
7	Ice on icon
8	Super freezer icon

Display

• When electrify the refrigerator, the display screen will totally display for 3 seconds, meanwhile the starting up bell rings, then the display screen enters the normal display of operation. (if power-on for first time, the default set temperature of the refrigerator room and the freezer room is 39^ / 0^ ).
• It will display the set temperature of both refrigerator and freezer rooms when there is no fault.

ATTENTION

The actual control panel may differ from model to model.

- Under normal circumstances, the display light will go out after 30 seconds in lock state, button operation on display panel would wake up the display screen; if the opening door action wakes up the display screen, the display light would go out immediately when the door is closed; when the “fault code visible” type of fault occurs, the display screen lights up, and will go out after 30 seconds.

Operating instructions

Lock/Unlock

• In the unlock state, press and hold the button for 3 seconds to enter the lock state and the buzzer sound rings.
• In the lock state, press and hold the button for 3 seconds to enter the unlock state and the buzzer sound rings.
• It will enter the lock state if there is no opening door action or any buttons operation within 30 seconds.
• The alarm sound can be stopped by pressing any one button in lock state, but all other button operations need to be performed in unlock state. If you operate in the lock state.

Refrigerator temperature setting

- Click the button to change the set temperature of refrigerator room, Each time click the √ or ↑, the set temperature will drop 1°F or will rise 1°F. The temperature setting will take effect after the display panel is locked.

Freezer temperature setting

- Click the button to change the set temperature of freezer room, Each time click the √ or ↑, the set temperature will drop 1°F or will rise 1°F. The temperature setting will take effect after the display panel is locked.

Mode setting

• After setting the minimum fridge temperature at 34^ F, continue to press √ button once to enable the super cool function, and the SUPER COOL light is on; If you want to manually exit the super cool mode, press the button first, and then press ∧ button to set the temperature;
• After setting the minimum freezer temperature to -7^ , continue to press √ button once to enable the super freeze function, and the SUPER FRZ. light is on; If you want to manually exit the super freeze mode, press the button first, and then press ∧ button to set the temperature;
• Press the button to switch on/off the fridge ice maker. When the function setting of the ice maker is switched on, the indicator light REF. ICE ON of the ice maker will be on, otherwise it will be off.

Filter element time reset

- Hold down for 3 seconds to perform the "RESET FILTER" function. At this time, the FILTER the element data is cleared.

Celsius transformation

- Long press the 3 seconds to achieve Celsius Fahrenheit conversion function.

Forcing AP mode

- Long press ≈ H for 2 seconds to forcibly set the wireless network module of the refrigerator to AP mode and display AP in the temperature display area. After the module enters AP mode successfully, it automatically exits AP mode, and the temperature display area restores to normal temperature display.

Sabbath mode

• Press simultaneous the and make for 3 seconds to enter or exit the Sabbath mode.
• If the refrigerator is connected to the Internet, you can enter or exit the Sabbath mode through the corresponding function buttons in the SmartHome refrigerator control interface, and the APP can select the automatic exit time.
• 6s after entering the Sabbath mode lock, the display goes out, the buzzer does not sound, the door opening lamp does not light up, and the distributor only displays the selected function in low brightness.
• When the APP terminal enters the Sabbath function, the APP terminal may send a command to turn off the ice maker function at the same time.

Anti-condensation heating element on/off mode.

• Press the Unlock - Hold 3 sec and √ for 3 seconds, the Fahrenheit icon flashed, and then press the button for 3 seconds, and the anti-condensation heating wire shutdown function is successfully set.
• Under the above settings, unlock and enter again, continue to press the and for 3 seconds, the Fahrenheit icon no longer flashes, press the button to release the anti-condensation heating element off function.

- At the same time, press and button 3 seconds, close or open the door prompt tone.

ATTENTION

- If the rear door is not closed after power-on, the APP or machine will give an alarm, call three times after exceeding 2 minutes, and then add one alarm every 1 minute.

Fault indication

- When the following tips to appear on the display screen, it indicates a problem with the refrigerator. Although the refrigerator in the following fault case can still provide cool/freeze functions, but the user should contact maintenance personnel, ensure the normal use of refrigerator.

Fault Code Fault Description
E1 Temperature sensor failure of refrigerator room
E2 Temperature sensor failure of freezer room
E5 Defrost sensor error of freezer room
E6 Communication error
E7 Ambient temperature sensor error
EH The humidity sensor fails
F4 The sensor at the bottom of refrigerating ice maker fails
F5 Refrigerating ice maker fails to turn over ice
CC The defrosting sensor in ice making chamber fails
C9 The sensor in ice making chamber fails
CA	The communication between main control board and ice making board fails

ATTENTION

The quick-freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the quick-freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

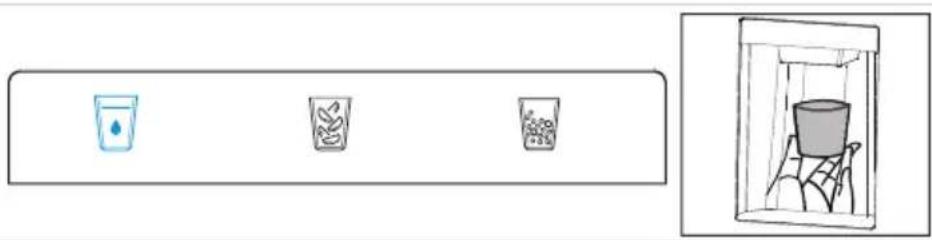

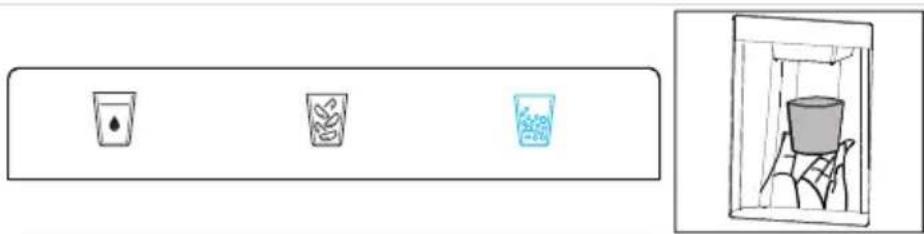

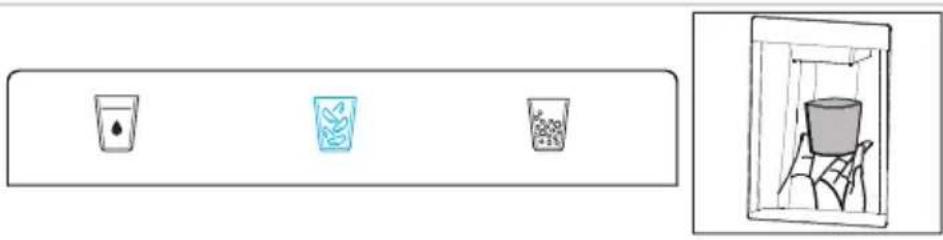

Dispensing water and Ice

- The ice/water dispenser is located on the outside of refrigerating chamber door. It offers a choice of cubed or crushed ice, or cold water. The dispenser only works when the refrigerating chamber door is closed.

1. Dispensing cold water

Simple line drawing showing three cups of water and a bucket inside a container, with no text or symbols present.

• Keep pressing the buttons WATER until the indicator turns on.
• Push the container in the direction of dispense paddle, Cold water starts to flow into the container.

• Remove the container from dispense water paddle and end the exporting of water.

• Dispensing crushed ice

Simple line drawing of a kitchen sink with three cups and a side view of a bucket (no text or symbols)

• Keep pressing the buttons of CRUSHED 📋 until the signal turns up.
  • Make the container tight with mouth of water dispenser to prevent the side jet.
• Press the container in the direction of dispense paddle. Fill the container with crushed ice.

• Remove the container from dispense paddle and end the exporting of water.

• Dispensing ice cubes

Simple line drawing showing three cups with different colors and shapes, alongside a wireframe illustration of a bucket inside a container (no text or symbols)

• Keep pressing the buttons CUBED 📋 until the signal lights up.
• Push the container in the direction of dispense paddle, Ice cubes start to fall into the container.

Remove the container from dispense paddle and end the exporting of ice.

ATTENTION

• When the user presses the dispensing paddle for water/ice, there will be a 2 seconds delay.
• When taking ice, the user should try to keep the container close to the ice outlet to prevent the ice from splashing.

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1-2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

Recommended Temperature

The optimal temperature setting for food storage:

- Fridge: 4 °C(39 °F), Freezer: -18 °C(0 °F)

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C .

CLEANING AND MAINTENANCE

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

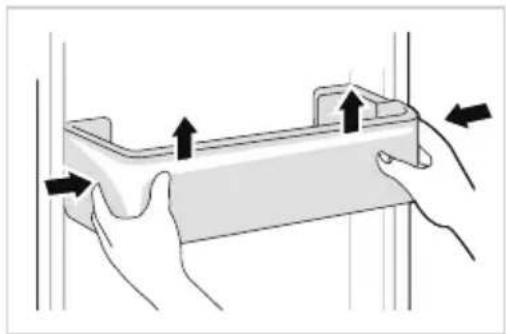

Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
  • After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

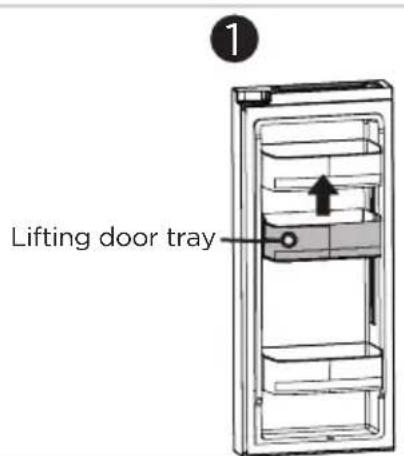

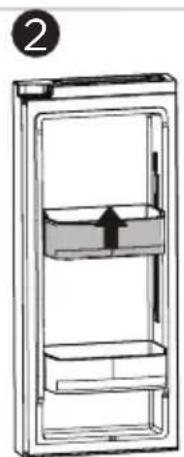

Removal of lifting door tray

Lifting door tray ①

Diagram of a multi-tiered storage unit with internal compartments and an upward arrow indicating flow (no text or symbols)

• Take down the first layer of bottle frame, pull the handle backward, unlock the lifting bottle frame, and take it down.

ATTENTION

• Usage: using both hands to support the adjustable door tray, squeeze and hold the trigger underneath.
• Position bin to the desired height, and release the trigger to lock in place. Always confirm bin is secure after moving.

Line drawing of hands cleaning a door frame (no text or symbols)

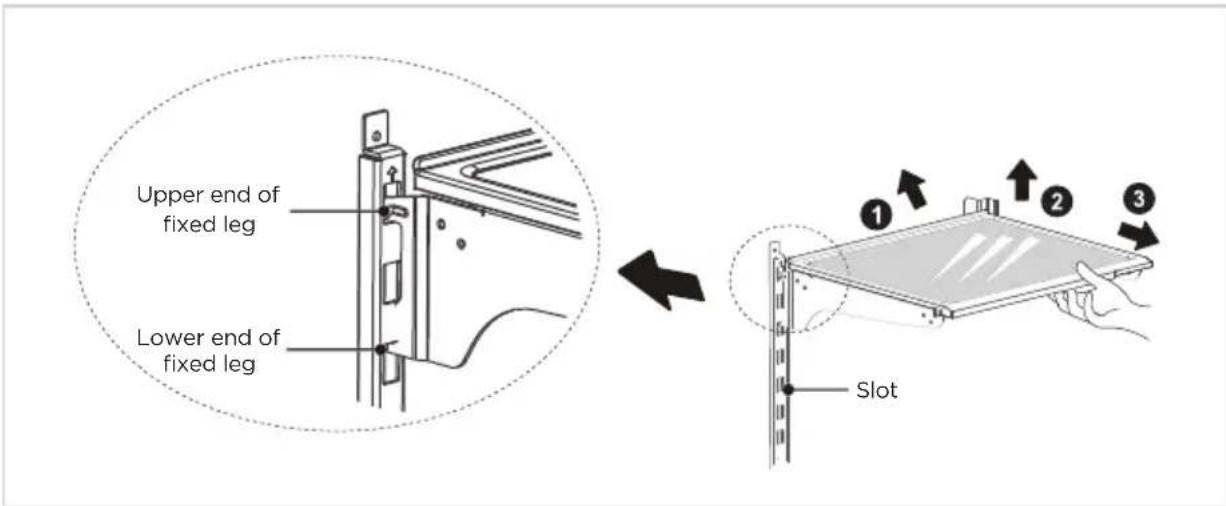

Cleaning of glass shelf

Upper end of fixed leg Lower end of fixed leg Slot

Please dismantle the cantilever shelf according to the arrows shown as above:

1. Please hold the front edge of shelf, and tilt the shelf inwards until the lower end of fixed leg is separated from the slot of supporting iron;
2. Uplift the whole shelf until it can not rise anymore;
3. Take out the shelf horizontally.

During installation, put the upper end of the fixed leg into one of the upper slots on the supporting iron first and then put the lower end of the fixed leg into the third slot on the lower part of the supporting iron.

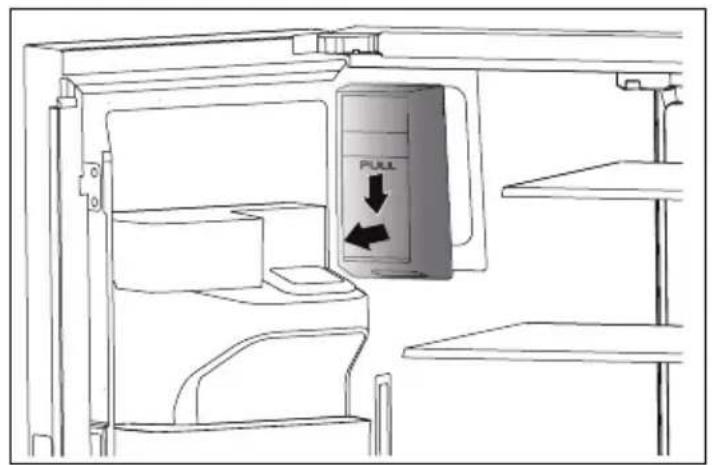

Cleaning of ice storage box

- When you need to use a lot of ice, or take ice abnormally, or need to clean the ice storage box, you can take out the ice storage box, but please put it back in time.

1

Line drawing of a room interior with a wall-mounted device labeled 'FULL' and directional arrows indicating flow or movement (no text or symbols beyond the label)

- Hold the button of the ice storage box with your hand, press it gently, and then pull it out horizontally.

2

Diagram of a computer monitor with a tower and scroll, showing an open screen and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a circular component and directional arrow (no text or symbols)

- Push the ice storage box in slightly after cleaning

ATTENTION

• In the process of pulling out, if ice cubes fall into the ice making room, please clean it up in time.
• If the ice cubes are not used for a long time, please clean them up in time.
• When you need to use a lot of ice cubes, take abnormal ice or need to clean the ice storage box, you can take out the ice storage box and put it back in time.
• When the ice storage box cannot be installed in place, rotate the tail as illustrated to align it with the corresponding position in the ice tank.

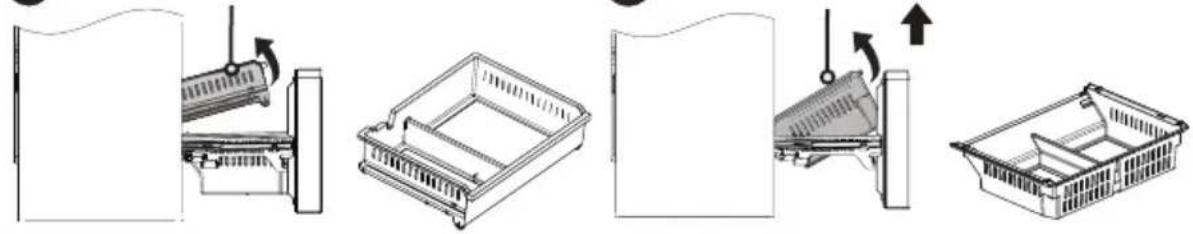

Cleaning of freezer drawer

1 Upper freezer drawer Lower freezer draw 2

Diagram showing four steps of a kitchen or storage procedure: opening, folding into a tray, dropping with arrows, and finally adding a net (no text or symbols present)

Upper freezer drawer:

- Open the freezing chamber door to the maximum stroke, lift the tail of the upper drawer of the freezing chamber, take out the upper freezer drawer.

Lower freezer drawer:

- Open the freezing chamber door to the maximum stroke, lift the end of the lower freezer drawer and lift it up.

ATTENTION

Note: Don't remove the lower freezer drawer if not necessary.

Stop using

Power failure:

In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse:

The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving:

Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·when the ambient temperature is high It is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages Too much food is placed
	·The refrigerator is tilted.
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations

EN

Problem Possible reason
Door seal fails to be tight	Remove foreign matters on the door seal
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal when housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.
	Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

DOC AND CERTIFICATIONS

Federal Communications Commission (FCC) Compliance Statement for USA

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Industry Canada (IC) Compliance Statement for Canada

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(B)/NMB-003(B)

Midea is not responsible for any changes or modifications not expressly approved by Midea. Such modifications could void the user's authority to operate the equipment.

For model: MWB-S-WB01

FCC ID: 2ADQOMWB-SWB01

FC

Exterior view of a modern stainless steel refrigerator with open door and front panel (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

INSTALLATION DU PRODUIT 05

MODE D'EMPLOI 11

NETTOYAGE ET ENTRETIEN 17

DÉPANNAGE 21

DOC ET CERTIFICATIONS 23

CARACTÉRISTIQUES

Technical diagram of a computer system with numbered components for identification

INSTALLATION DU PRODUIT

>100mm >100mm >100mm

C1 D E 135°

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and base frame (no text or symbols)

Line drawing of a mechanical device with a handle and control panel (no text or symbols)

Simple line drawing of a water bottle, two cups with leaves, and a bucket inside a container (no text or symbols)

Simple line drawing of a water container with three cups and a bucket inside a container (no text or symbols)

Simple line drawing showing three cups with different colors and a separate empty container (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Diagram of a refrigerator interior showing storage compartments and a handle (no text or labels)

Line drawing of hands installing or adjusting a door panel (no text or symbols)

Line drawing of a room interior with a wall-mounted device labeled 'FULL' and directional arrows indicating flow or movement (no text or symbols beyond the label)

Diagram of a computer monitor with a tower and front panel, showing a scroll wheel (no text or symbols)

Technical line drawing of a mechanical device with a circular component and directional arrow (no text or symbols)

Diagram showing four steps of a kitchen or storage procedure: opening, folding into a rack, lifting a lid, and finally adding a basket (no text or symbols present)

make yourself at home
