USER MANUAL Stage 280F JBL

Thank you for choosing JBL

For more than 75 years, JBL has been providing audio equipment for concert halls, recording studios, and movie theaters around the world and has become the trusted choice of leading recording artists and sound engineers. The Stage 2 Series speakers deliver exceptional audio performance to today's music and movie enthusiasts. This Quick Start Guide will get you up and running quickly. For additional information on the operation of these products, please visit the JBL product page for access to the owner's manual at jbl.com/specialty-audio/

Should further assistance be required feel free to contact our Customer Support at the numbers below: Inside the US and Canada: +1 888.691.4171 Outside the US and Canada: [phone]

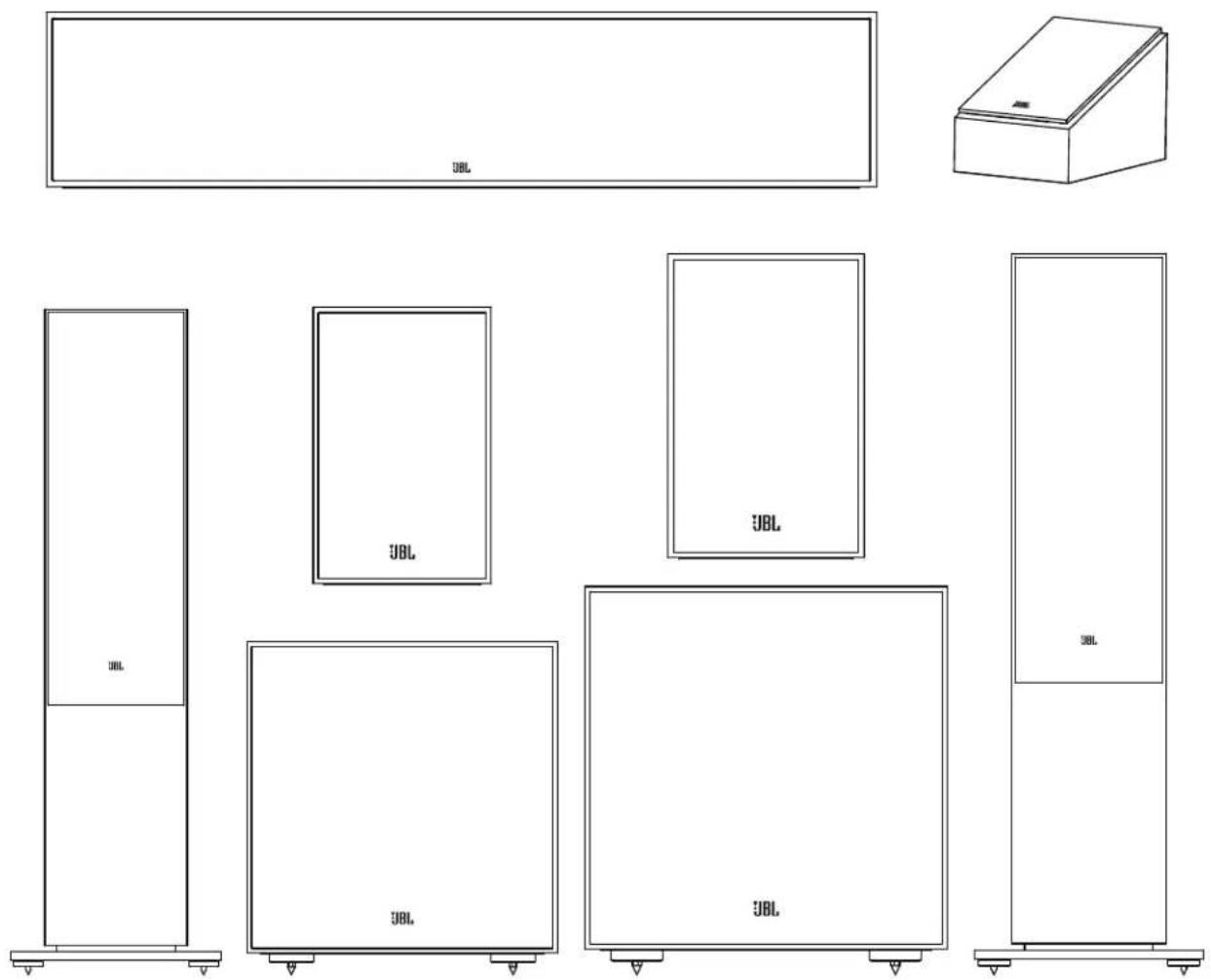

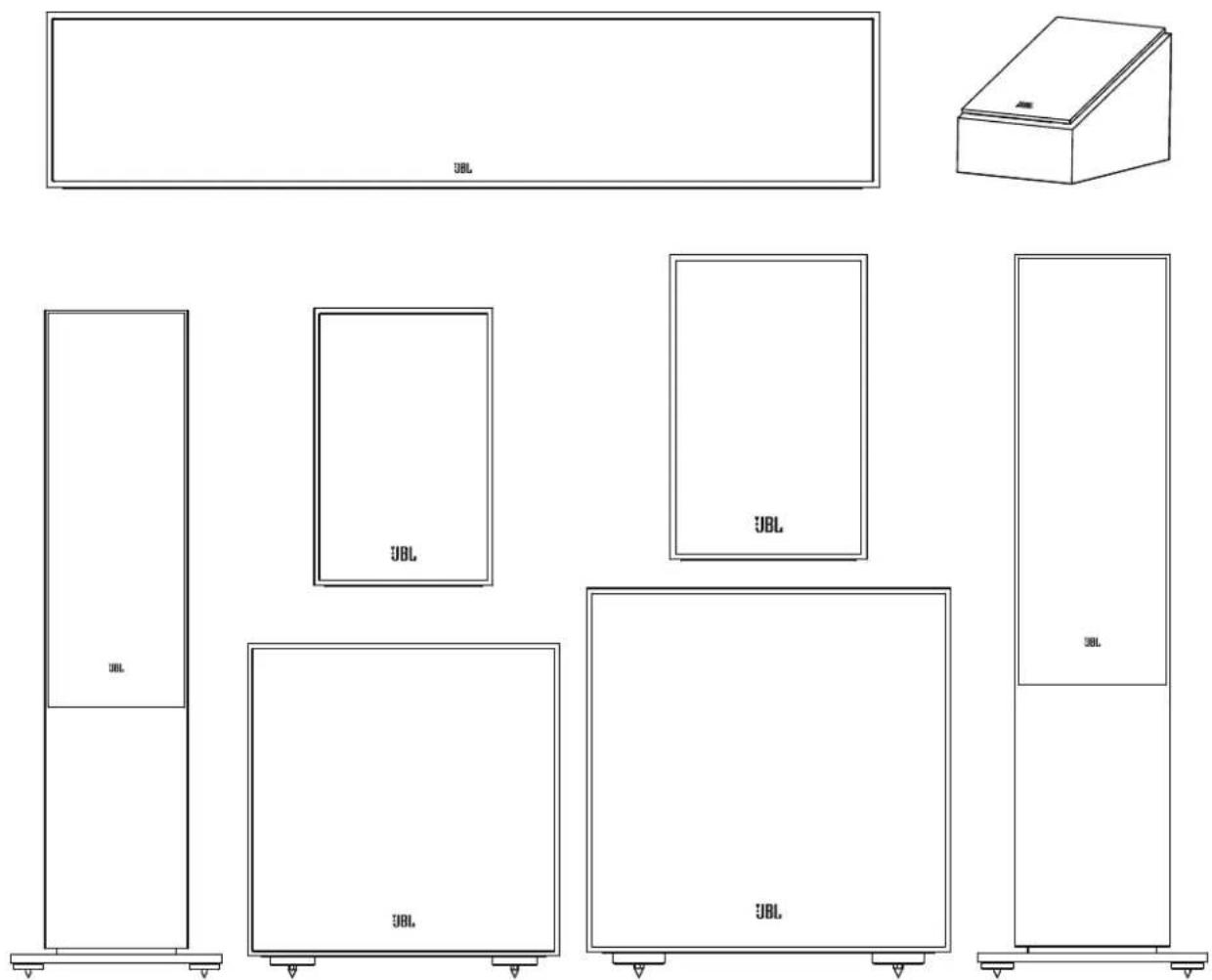

Included Items

Each box contains one or two loudspeakers, depending on the model.

240B Speaker

JBL.

250B Speaker

Wall Brackets 240B

Anti-Slip Pad 240B/250B

Foam Plugs 240B

Screws Brackets 240B

Simple line drawing of a vertical rectangular structure with a base and two small vials at the bottom (no text or symbols)

260F Speaker

Simple line drawing of a vertical rectangular structure with base and supports, no text or symbols present.

280F Speaker

Spikes 260F/280F

Mounting Screws 260F/280F

Tool 260F/280F

240H Speaker

Anti-Slip Pad 240H

3BL

245C Speaker

Anti-Slip Pad 245C

If you suspect that there has been shipping damage or missing any of the reference above contents, report it immediately to your dealer or contact our Customer Support at the telephone number referenced in the opening introduction.

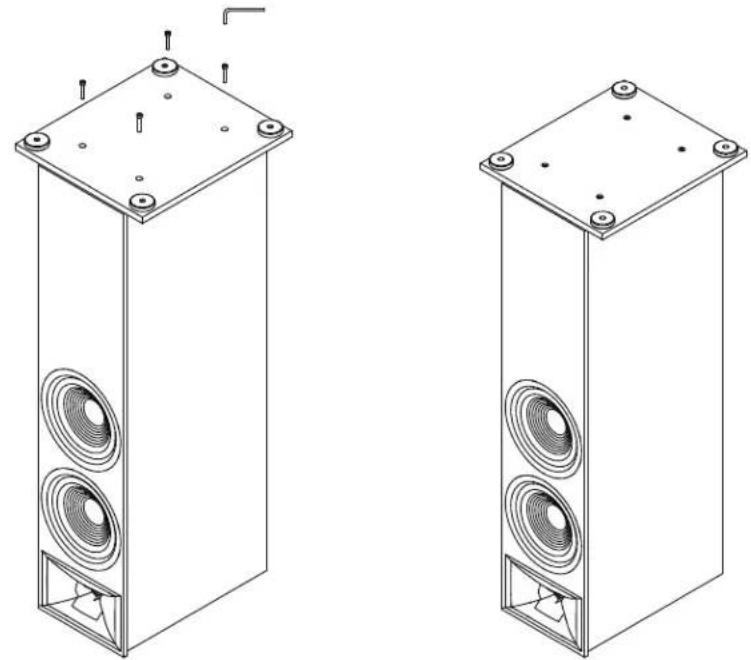

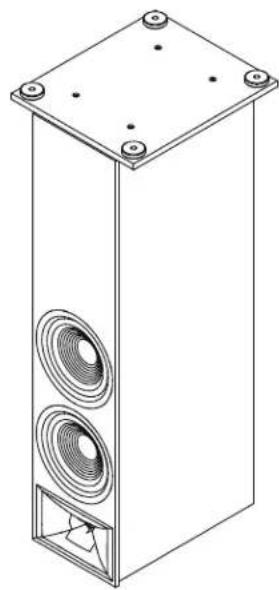

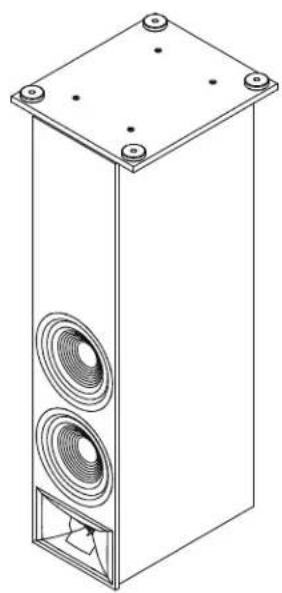

Assembly 280F/260F

1. Remove the box containing the plinth (base), parts and accessories.
2. On a clean, dry surface turn the speaker upside down (with the tweeter at the bottom)
3. Align the plinth (base) with the screw holes located on the bottom of the speaker.
4. Using the 4 mounting screws and the provided tool attach the base to the speaker. Do not over tighten.

Technical line drawing of two identical 3D views of a speaker tower with two speakers and mounting feet (no text or symbols)

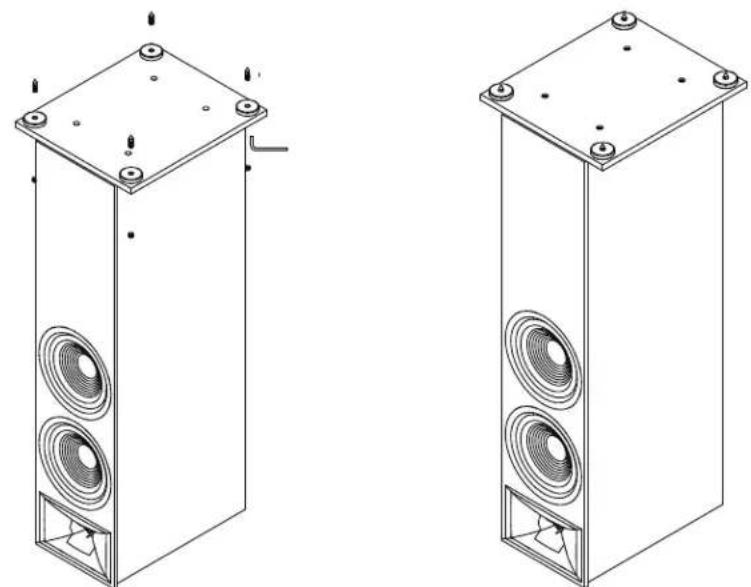

Installing the Optional Spikes

1. Place the loudspeaker on its side on a soft surface.
2. Screw the spikes into the fittings on the bottom of the loudspeaker with the spikes facing down.
3. Spikes can be adjusted, and the speaker leveled from the top using the supplied tool.
4. Insert the decorative rubber covers into the top of the holes.

Technical line drawing of two identical cylindrical speakers with dual speakers and mounting flamps (no text or symbols)

CAUTION: Floorstanding (tower) loudspeakers have a high center of gravity and may become unstable and tip over during earthquakes or if they are rocked, tipped, or improperly positioned. Consider anchoring these speakers to the wall behind them, using procedures and hardware customary for bookcases and wall units. You are responsible for proper installation and proper selection of hardware.

Determine Speaker Location

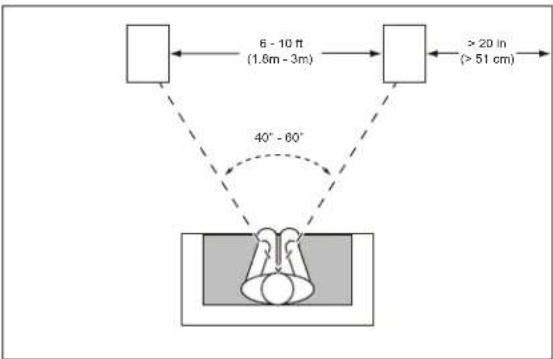

280F/260F Floorstanding Left and Right Channels

For the best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening position improves imaging. The speakers will produce the most accurate soundstage when the angle between the listener and the speakers is between 40 and 60 degrees.


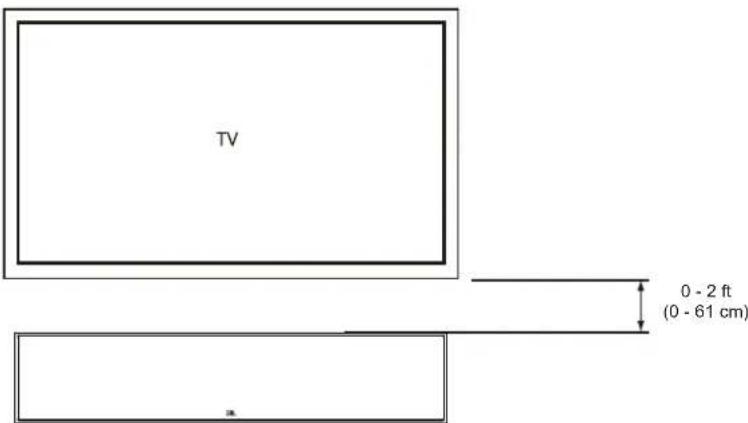

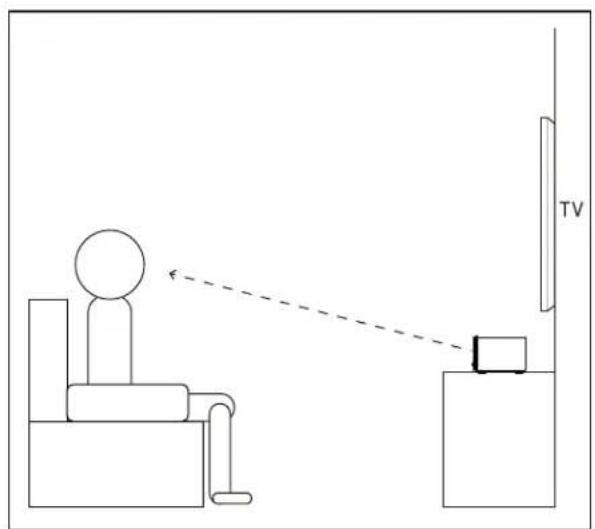

245C Center Channel Speaker

You should place the center channel speaker directly below the center of your display.

TV 0 - 2 ft (0 - 61 cm)

245C Center Channel Speaker

Simple line drawing of a person sitting in a chair facing a TV, with a dashed line indicating direction (no text or symbols)

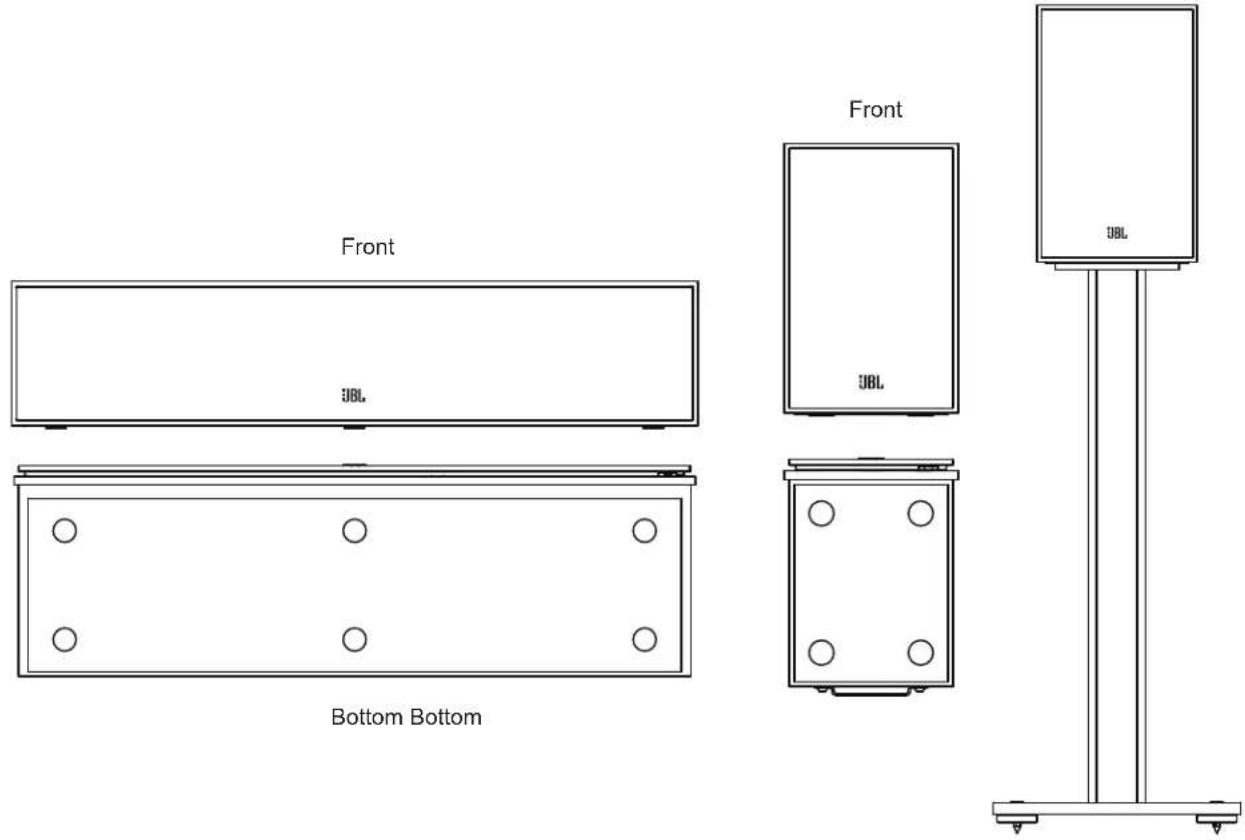

Anti-Slip Pad's

Use the included Anti Slip Pads on the 250B/240B and 245C to prevent them from moving. Optional Floorstands for the 250B/240B are available.

Front JBL Bottom Bottom Front JBL JBL

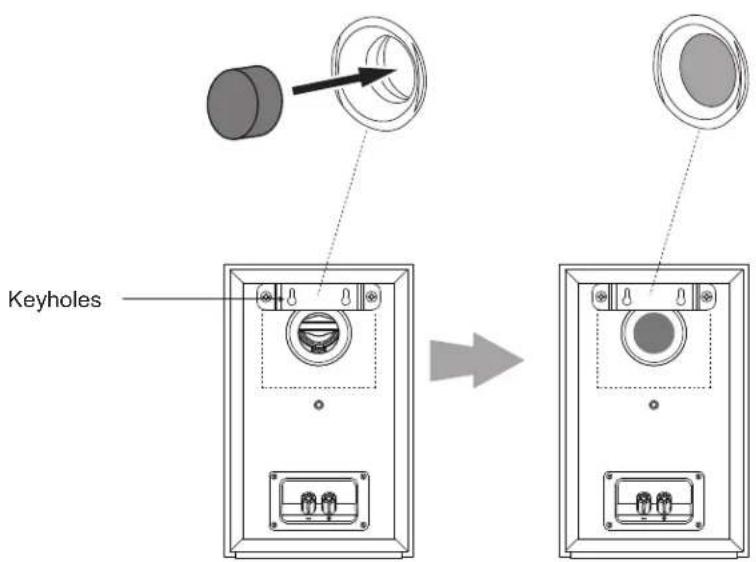

Wall Mounting 240B

The 240B is designed with multiple mounting options. It can be used on a bookshelf, with the optional FL Floorstands, mounted to the wall using the include wall brackets and hardware or utilizing the 12 -20 threaded insert to use aftermarket mounting brackets.

When using the included wall bracket:

• Use the included wall brackets to mark the positions on the wall where you would like to place the mounting screws.
• Mount the include bracket to the rear of each speaker using the included hardware (2 screws)
• Each bracket has two keyholes on the back and will require 2 4.0 x 38mm wood screws or equivalent fastened to a wall stud. If a wall stud is not available install a wall anchor capable of supporting the weight of the speaker and can use 4.0 x 38mm screws.
• Insert the Foam Plug.

Keyholes

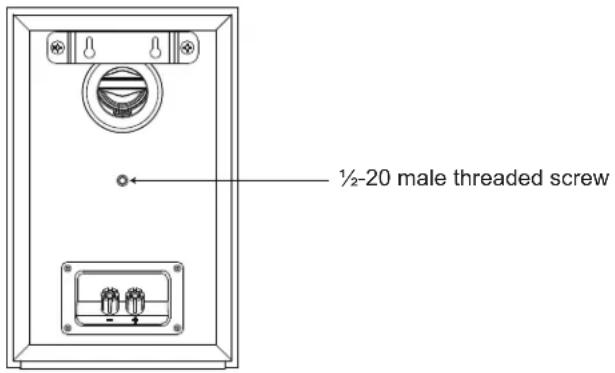

When using the aftermarket mounting bracket:

• The 240B can be attached to any surface using an aftermarket bracket with a 12 -20 male threaded screw.
• Insert the Foam Plug.

½-20 male threaded screw

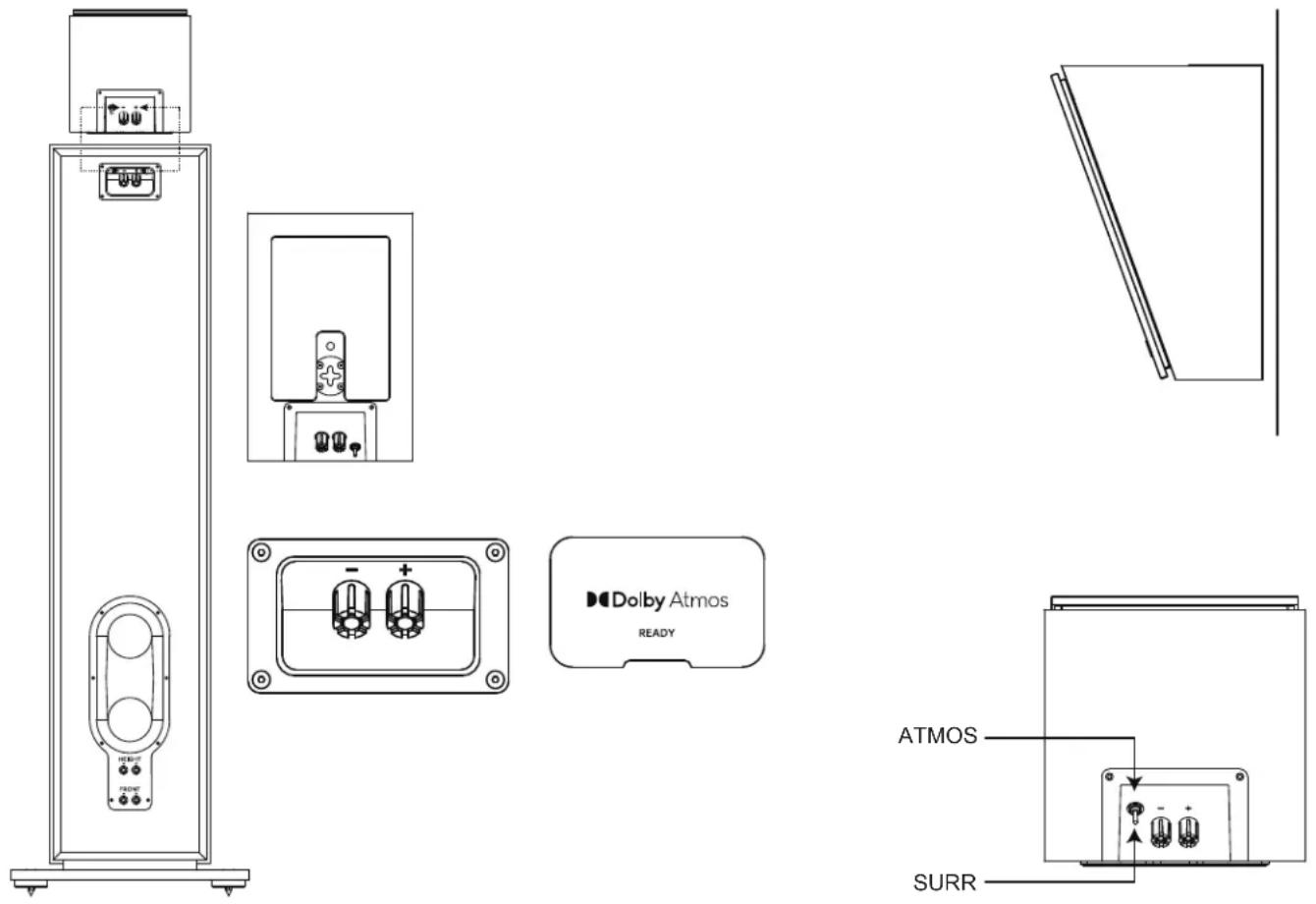

240H Setup and Placement

The 240H is designed with multiple mounting and usage options. It can be used as an Atmos ^® add on module by placing it on top of the 280F or 260F and using the connection terminals. Set the switch on the terminals to ATMOS. Remove the protective film on the anti-slip pad and attach it the bottom of the 240H with the pattern facing out to securely hold it in place.

Please refer to the Dolby Atmos® speaker setup guides for detailed information. https://www.dolby.com/about/support/guide/speaker-setup-guides/

The 240H can also be used as a surround or elevation speaker by setting the switch by the terminals to SUR. The 240H can be mounted to any surface using the key-hole slots or the 12 -20 threaded insert to use aftermarket mounting brackets.

Surround Channel Setup

When you use the 240B, 250B or 240H speakers as surround-channel speakers in a multi-channel system, use the examples below for proper locations or visit https://www.dolby.com/about/support/guide/speaker-setup-guides/

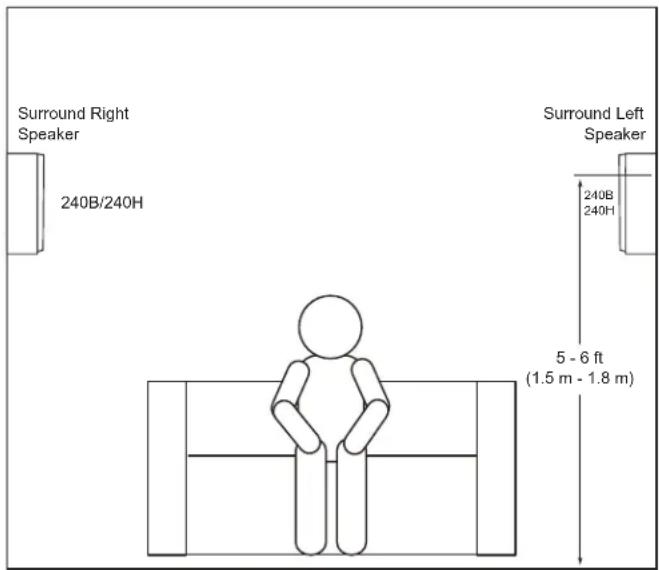

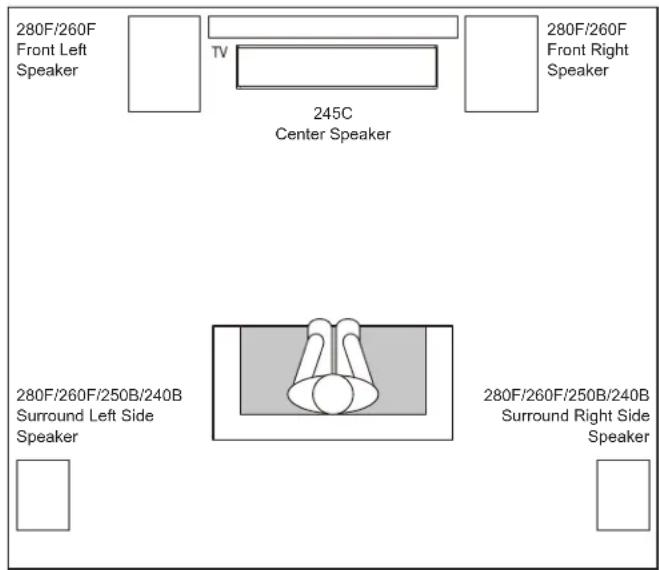

STAGE 240B-SURROUND CHANNELS (5.1-CHANNEL SYSTEM)

When you use these speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind the listening position, facing each other. Ideally, they should be 5-6 feet (1.5m-1.8m) above the floor. An alternate location would be on a wall behind the listening position, facing forward. The surround speakers should not call attention to themselves while they're playing. Experiment with their placement until you hear a diffuse, ambient sound accompanying the sounds that you hear from the front left, front right and center speakers.

280F/260F Front Left Speaker TV 245C Center Speaker 280F/260F Front Right Speaker 280F/260F/250B/240B Surround Left Side Speaker 280F/260F/250B/240B Surround Right Side Speaker

Surround Right Speaker 240B/240H Surround Left Speaker 240B 240H 5 - 6 ft (1.5 m - 1.8 m)

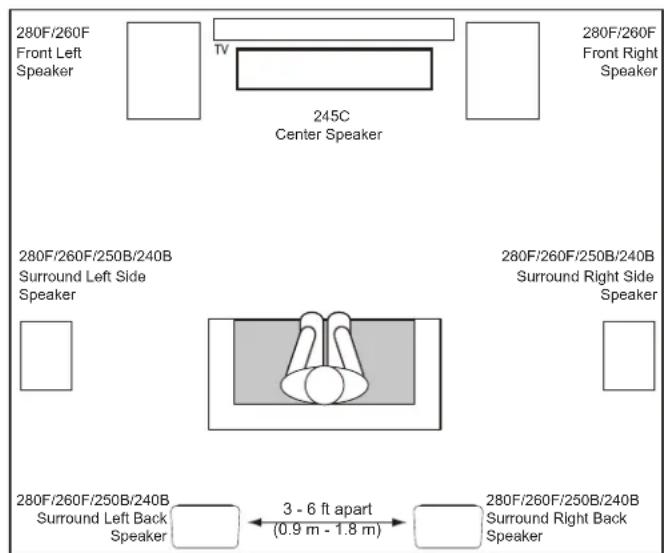

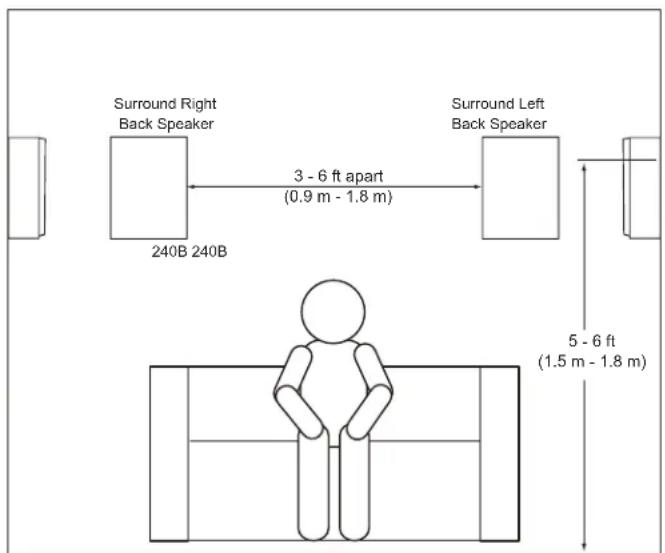

STAGE 240B-SURROUND CHANNELS (7.1-CHANNEL SYSTEM)

When you use these speakers as surround-channel speakers in a 7.1-channel system, place the surround side speakers directly to the sides of the listening position, at least 5-6 feet (1.5m -1.8m) above the floor.

280F/260F Front Left Speaker TV 245C Center Speaker 280F/260F/250B/240B Surround Left Side Speaker 280F/260F/250B/240B Surround Right Side Speaker 280F/260F/250B/240B Surround Left Back Speaker 3 - 6 ft apart (0.9 m - 1.8 m) 280F/260F/250B/240B Surround Right Back Speaker

Surround Right Back Speaker 240B 240B 3 - 6 ft apart (0.9 m - 1.8 m) Surround Left Back Speaker 5 - 6 ft (1.5 m - 1.8 m)

Connections

CAUTION: Make sure that all the system's electrical components are turned OFF (and preferably unplugged from their AC outlets) before making any connections.

Speakers and amplifiers have corresponding positive and negative (+" and"-") connection terminals. All Stage series speakers have connection terminals that are marked "+" and "-" on the terminal-cup assembly. Additionally, the "+" terminals have red markings, while the "-" terminals have black markings.

To ensure proper polarity, connect each "+" terminal on the back of the amplifier or receiver to the respective "+" (red) terminal on each speaker. Connect the "-" terminals in a similar way. Do not reverse polarities (i.e., "+" to "-" or "-"to"+) when making connections. Doing so will cause poor stereo imaging and diminished bass performance.

Connections, Bare Wire Connectors:

1.

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Diagram of a hammer striking a cylindrical object with a handle, showing motion direction (no text or symbols)

3.

Diagram of a mechanical component with a curved handle and rotating arrow (no text or symbols)

USING SPADE CONNECTORS:

1.

Simple line drawing of a cylindrical object with a curved arrow indicating rotational motion (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component and a handle, showing a curved arrow indicating motion (no text or symbols present)

1.

Diagram of a mechanical press or lifting device with a cylindrical component and curved arrows indicating motion (no text or symbols)

USING BANANA CONNECTORS:

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

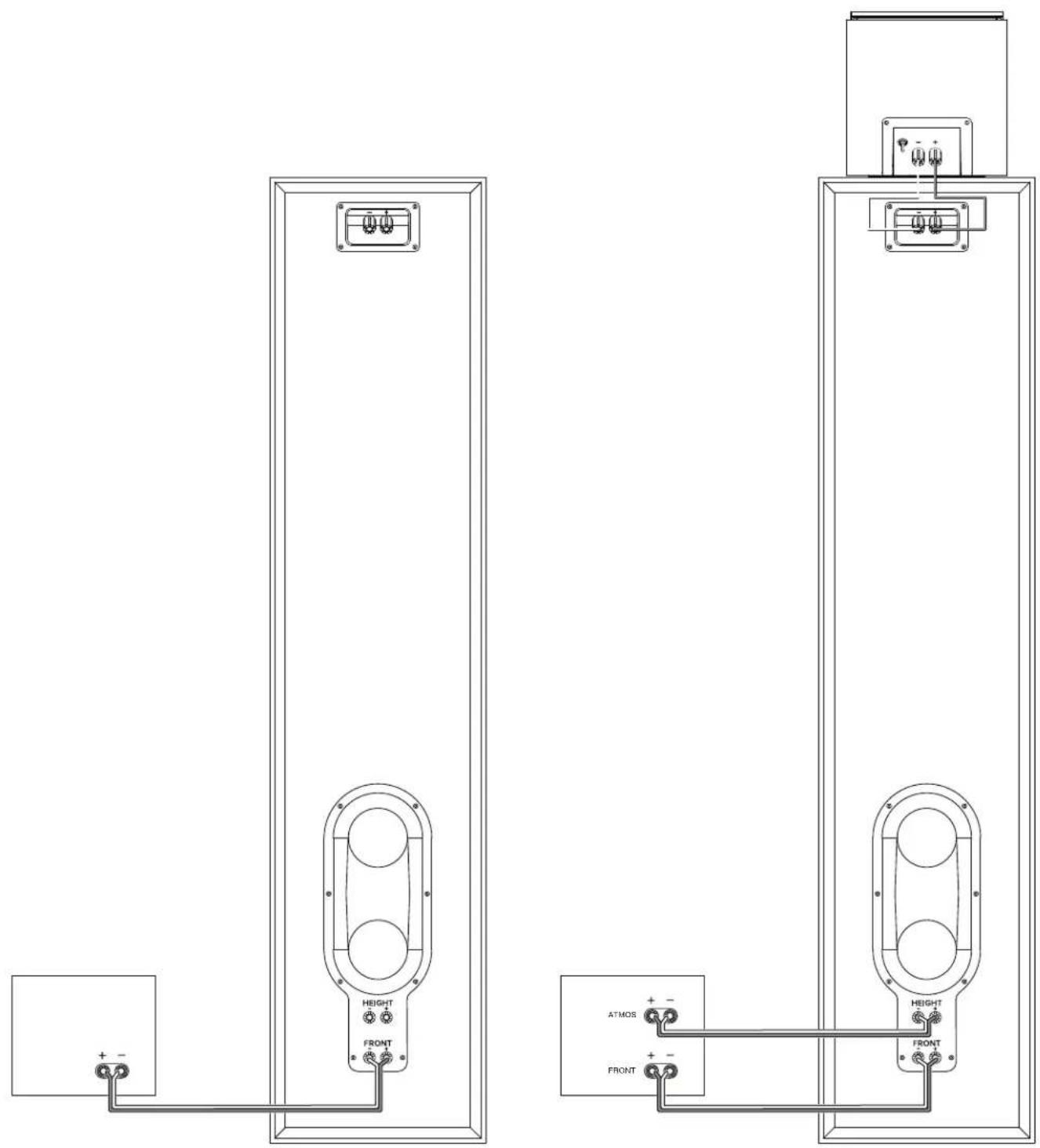

Using The Pass Through ATMOS Connectors

Use the Pass Through ATMOS connectors on the bottom of the 280F and 260F and connect the 240H to the top terminals.

NOTE: If you are not using an ATMOS module these connectors will not be used.

HEIGHT FRONT + - ATMOS FRONT HEIGHT FRONT

Specifications

STAGE 280F

Type:	Floorstanding Loudspeaker System
Low Frequency Driver:	Dual 8-inch (200 mm) Polycellulose Ribbed Cone
High Frequency Driver:	1-inch (25 mm) Anodized Aluminum
Waveguide:	Next Generation HDITM
Recommended Amplifier Power:	20-225 W
RMS power:	125 W
Frequency Response -6 dB:	33 Hz-25 kHz
Frequency Response -3 dB:	39 Hz-25 kHz
Sensitivity @ 1 M, 2.83 V:	91 dB
Nominal Impedance:	6 Ohms
Crossover Frequencies:	1.1 kHz/2.2 kHz
Enclosure Tuning:	Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
Finish:	Espresso or Latte
Dimensions (H x W x D):	43.8 in x 14.1 in x 16.5 in (1113 mm x 357 mm x 420 mm)
Dimensions (H x W x D) without Base:	43.8 in x 9.5 in x 16.1 in (1113 mm x 241 mm x 409 mm)
Product Weight:	55.2 lbs. (25.1 kg)
Shipping Weight:	67.5 lbs. (30.6 kg)
Shipping Units of Measure:	Each

STAGE 260F

Type:	Floorstanding Loudspeaker System
Low Frequency Driver:	Dual 6.5-inch (165 mm) Polycellulose Ribbed Cone
High Frequency Driver:	1-inch (25 mm) Anodized Aluminum
Waveguide:	Next Generation HDITM
Recommended Amplifier Power:	20-225 W
RMS power:	125 W
Frequency Response -6 dB:	40 Hz-25 kHz
Frequency Response -3 dB:	45 Hz-25 kHz
Sensitivity @ 1 M, 2.83 V:	90 dB
Nominal Impedance:	6 Ohms
Crossover Frequencies:	1.3 kHz/1.7 kHz
Enclosure Tuning:	Bass Reflex via Dual Flared Racetrack Rear-Firing Tuned Ports
Finish:	Espresso or Latte
Dimensions (H x W x D):	40.8 in x 12.2 in x 14.3 in (1036 mm x 310 mm x 362 mm)
Dimensions (H x W x D) without Base:	40.8 in x 7.9 in x 13.9 in (1036 mm x 200 mm x 354 mm)
Product Weight:	43.0 lbs. (19.5 kg)
Shipping Weight:	67.5 lbs. (30.6 kg)
Shipping Units of Measure:	Each

STAGE 250B

Type:	Bookshelf Loudspeaker System
Low Frequency Driver:	5.25-inch (130 mm) Polycellulose Ribbed Cone
High Frequency Driver:	1-inch (25 mm) Anodized Aluminum
Waveguide:	Next Generation HDITM
Recommended Amplifier Power:	20-150 W
RMS power:	75 W
Frequency Response -6 dB:	50 Hz-25 kHz
Frequency Response -3 dB:	55 Hz-25 kHz
Sensitivity @ 1 M, 2.83 V:	86 dB
Nominal Impedance:	6 Ohms
Crossover Frequencies:	1.7 kHz
Enclosure Tuning:	Bass Reflex via Dual Rear-Firing Tuned Ports
Finish:	Espresso or Latte
Dimensions (H x W x D):	12.6 in x 7.9 in x 9.5 in (321 mm x 200 mm x 241 mm)
Product Weight:	12.4 lbs.(5.6 kg)
Shipping Weight:	30 lbs. (13.6 kg)
Shipping Units of Measure:	Pair

STAGE 240B

Type:	Bookshelf Loudspeaker System
Low Frequency Driver:	4.5-inch (114 mm) Polycellulose Ribbed Cone
High Frequency Driver:	1-inch (25 mm) Anodized Aluminum
Waveguide:	Next Generation HDITM
Recommended Amplifier Power:	20-150 W
RMS power:	75 W
Frequency Response -6 dB:	53 Hz-25 kHz
Frequency Response -3 dB:	65 Hz-25 kHz
Sensitivity @ 1 M, 2.83 V:	85 dB
Nominal Impedance:	6 Ohms
Crossover Frequencies:	1.4 kHz
Enclosure Tuning:	Bass Reflex via Rear-Firing Tuned Port
Finish:	Espresso or Latte
Dimensions (H x W x D):	10.7 in x 6.9 in x 8.5 in (272 mm x 175 mm x 217 mm)
Product Weight:	10.1 lbs. (4.6 kg)
Shipping Weight:	22.9 lbs. (10.4kg)
Shipping Units of Measure:	Pair

STAGE 245C

Type:	Floorstanding Loudspeaker System
Low Frequency Driver:	Quad 4.5-inch (114 mm) Polycellulose Ribbed Cone
High Frequency Driver:	1-inch (25 mm) Anodized Aluminum
Waveguide:	Next Generation HDITM
Recommended Amplifier Power:	20-150 W
RMS power:	75 W
Frequency Response -6 dB:	55 Hz-25 kHz
Frequency Response -3 dB:	82 Hz-25 kHz
Sensitivity @ 1 M, 2.83 V:	91 dB
Nominal Impedance:	6 Ohms
Crossover Frequencies:	1.3 Khz/2.0 kHz
Enclosure Tuning:	Bass Reflex via Dual Rear-Firing Tuned Ports
Finish:	Espresso or Latte
Dimensions (H x W x D):	6.1 in x 29.1 in x 8.5 in (156 mm x 740 mm x 217 mm)
Product Weight:	26.4 lbs. (12.0 kg)
Shipping Weight:	32.2 lbs. (14.7 kg)
Shipping Units of Measure:	Each

STAGE 240H

Type:	Dolby Atmos® Surround Sound Loudspeaker System
Low Frequency Driver:	4.5-inch (114 mm) Polycellulose Ribbed Cone
High Frequency Driver:	1-inch (25 mm) Anodized Aluminum
Waveguide:	Next Generation HDITM
Recommended Amplifier Power:	20-150 W
RMS power:	75 W
Frequency Response -6 dB:	85 Hz-25 kHz
Frequency Response -3 dB:	100 Hz-25 kHz
Sensitivity @ 1 M, 2.83 V:	85 dB
Nominal Impedance:	6 Ohms
Crossover Frequencies:	1.6 kHz
Enclosure Tuning:	Sealed
Finish:	Espresso or Latte
Dimensions (H x W x D):	6.9 in x 7.1 in x 10.6 in (176 mm x 180 mm x 270 mm)
Product Weight:	7.6 lbs. (3.5 kg)
Shipping Weight:	18.8 lbs. (8.5 kg)
Shipping Units of Measure:	Pair

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

JBL

JBL® STAGE 2 SERIES

ENCEINTES

Simple line drawing of a vertical rectangular structure with a base and two small vials at the bottom (no text or symbols)

Enceinte 260F

Simple line drawing of a vertical cabinet with a base and wheels at both ends (no text or symbols)

Enceinte 280F

Pointes 260F/280F

Simple line drawing of a rectangular box with a lid (no text or symbols)

Enceinte 240H

Patin antidérapant 240H

30L

245C Enceinte

Patin antidérapant 245C

Technical line drawing of two identical 3D views of a speaker tower with two speakers and mounting feet (no text or symbols)

Technical line drawing of two identical 3D views of a speaker tower with dual speakers and mounting feet (no text or symbols)

Diagram showing a person seated at a desk facing a TV, with a dashed line indicating direction of observation.

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Simple line drawing of a gavel and a mechanical component (no text or symbols)

3.

Diagram of a mechanical component with a curved handle and rotating arrow (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component inserted into a base plate, showing a black arrow indicating direction (no text or symbols present)

1.

Diagram of a mechanical device with a rotating cylindrical component and a handle, showing motion direction (no text or symbols)

UTILISATION DES FICHES BANANES :

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

Technical diagram showing two identical layout views of a speaker or audio device with labeled components including height, front, and ATMOS.

Spécifications

STAGE 280F

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

STAGE240B,250B,240H,245C,200P,220P

Isometric line drawing of a multi-tiered speaker tower with two circular speakers and mounting feet (no text or symbols)

Isometric line drawing of a multi-tiered speaker tower with two circular vent holes and mounting feet (no text or symbols)

Isometric line drawing of a multi-tiered speaker tower with two circular speakers and mounting feet (no text or symbols)

Isometric line drawing of a multi-tiered speaker or audio unit with two circular speakers and mounting holes (no text or symbols)

Diagram showing a person seated at a desk facing a TV, with a dashed line indicating direction of viewing from the TV.

Pad antiscivolo

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Diagram of a hammer fastening a cylindrical object with a handle, showing mechanical assembly (no text or symbols)

3.

Simple line drawing of a mechanical component with a curved handle and rotating arrow (no text or symbols)

UTILIZZO DI CONNETTORI A FORCELLA:

1.

Simple line drawing of a cylindrical object with a curved arrow indicating rotation (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component and a handle, showing a curved arrow indicating motion (no text or symbols present)

1.

Diagram of a mechanical press or lifting device with a curved arrow indicating rotation (no text or symbols present)

UTILIZZO DI CONNETTORI A BANANA:

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

JBL

JBL® STAGE 2 系列

扬声器

JBL JBL JBL JBL JBL

感谢你选择 JBL

Simple line drawing of a vertical rectangular structure with a base and two small vials at the bottom (no text or symbols)

260F扬声器

Simple line drawing of a vertical cabinet with a base and wheels at both ends (no text or symbols)

280F扬声器

支脚 260F/280F

安装螺钉260F/280F

工具 260F/280F

240H 扬声器

防滑垫 240H

3BL

245C 扬声器

防滑垫 245C

Technical line drawing of two identical 3D views of a speaker tower with two speakers and mounting feet (no text or symbols)

安装可选支脚

Technical line drawing of two identical cylindrical speakers with dual speakers and mounting brackets (no text or symbols)

Diagram showing a person seated at a desk facing a TV, with a dashed line indicating direction of observation.

防滑垫

Simple line drawing of a cylindrical object with a curved arrow indicating rotation (no text or symbols)

2.

Simple line drawing of a hammer fastening a cylindrical object with a handle (no text or symbols)

3.

Diagram of a mechanical component with a curved handle and rotating arrow (no text or symbols)

使用平接线片：

1.

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Diagram of a mechanical clamp or bracket with a cylindrical component inserted, showing a force application (no text or symbols present)

3.

Diagram of a mechanical press or lifting device with a rotating roller and handle (no text or symbols)

使用香蕉式插头：

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

3.

使用直通式 ATMOS 连接器

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

JBL

JBL® STAGE 2 系列

音箱

JBL JBL JBL JBL JBL

感謝您選擇JBL

Simple line drawing of a vertical rectangular structure with a base and two small vials at the bottom (no text or symbols)

260F 音箱

Simple line drawing of a vertical cabinet with a base and wheels at both ends (no text or symbols)

280F 音箱

托架螺絲 240B

釘腳 260F/280F

安裝螺絲
260F/280F

工具
260F/280F

Simple line drawing of a rectangular box with a lid (no text or symbols)

240H 音箱

防滑垫 240H

3BL

2450 音箱

防滑垫 2450

Isometric line drawing of a multi-tiered speaker tower with two circular speakers and mounting holes (no text or symbols)

Isometric line drawing of a multi-tiered electronic device with two circular cutouts and mounting holes (no text or symbols)

安裝可選的釘腳

Technical line drawing of a multi-tiered speaker tower with two circular speakers and mounting feet (no text or symbols)

Isometric line drawing of a multi-tiered speaker or audio unit with two circular speakers and mounting holes (no text or symbols)

Diagram showing a person seated at a desk facing a TV, with a dashed line indicating direction of observation.

防滑垫

Simple line drawing of a cylindrical object with a curved arrow indicating rotation (no text or symbols)

2.

Diagram of a hammer fastening a cylindrical object with a handle, showing mechanical assembly (no text or symbols)

3.

Diagram of a mechanical component with a curved handle and rotating arrow (no text or symbols)

使用 Y 型接頭：

1.

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Diagram of a mechanical device with a cylindrical component and a curved component, showing motion direction (no text or symbols)

3.

Diagram of a mechanical press or lifting device with a cylindrical component and curved arrows indicating motion (no text or symbols)

使用香蕉接頭：

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

3.

使用直通 ATMOS 接頭

Note 1: "Exceeding 0.1 wt%" and "exceeding 0.01 wt %" indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.

Note 2: "o" indicates that the percentage content of the restricted substance does not exceed the percent age of reference value of presence.

Note 3: The "—" indicates that the restricted substance corresponds to the exemption.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

JBL

JBL® STAGE 2 シリーズ

ラウドスピーカー

Simple line drawing of a vertical rectangular structure with a base and two small vials at the bottom (no text or symbols)

260F スピーカー

Simple line drawing of a vertical cabinet with a base and wheels at both ends (no text or symbols)

280F スピーカー

締めねじ 240B

スパイク 260F/280F

取り付けねじ 260F/280F

工具 260F/280F

Simple line drawing of a rectangular box with a lid (no text or symbols)

Technical line drawing of two identical 3D views of a speaker tower with two speakers and mounting feet (no text or symbols)

オプションのスパイクを取り付ける

Technical line drawing of two identical cylindrical speakers with visible speaker holes and mounting brackets (no text or symbols)

Diagram showing a person seated at a desk facing a TV, with a dashed line indicating direction of observation.

滑り止めパッド

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Simple line drawing of a hammer striking a cylindrical object with a handle (no text or symbols)

3.

Diagram of a mechanical component with a curved handle and rotating arrow (no text or symbols)

スペードコネクタを使用する場合:

1.

Simple line drawing of a cylindrical object with a curved arrow indicating rotational motion (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component and a curved component, showing a black arrow indicating motion (no text or symbols present)

1.

Diagram of a mechanical press or lifting device with a curved arrow indicating rotation (no text or symbols present)

バナナコネクタを使用する場合:

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

JBL

JBL® STAGE 2 시리즈

라우드 스피커

JBL을 선택해 주셔서 감사합니다

Technical line drawing of two identical 3D views of a speaker tower with two speakers and mounting feet (no text or symbols)

옵션 스파이크 설치

Technical line drawing of two identical cylindrical speakers with dual speakers and mounting flamps (no text or symbols)

TV 0~61cm (6~2ft)

245C 중앙 채널 스피커

Diagram showing a person seated at a desk facing a TV, with a dashed line indicating direction of viewing from the TV.

미끄럼 방지 패드

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

2.

Diagram of a hammer turning a gavel into a cylindrical component (no text or symbols)

3.

Simple line drawing of a mechanical component with a curved handle and rotating arrow (no text or symbols)

스페이드 커넥터 사용 :

1.

Simple line drawing of a cylindrical object with a curved arrow indicating rotation (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component and a handle, showing a curved arrow indicating motion (no text or symbols present)

1.

Diagram of a mechanical press or lifting device with a cylindrical component and curved arrows indicating motion (no text or symbols)

바나나 커넥터 사용 :

1.

2.

Simple line drawing of a cylindrical object with a pin inserted, and an arrow pointing to it (no text or symbols)

3.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

JBL

JBL® SÉRIE STAGE 2

CAIXAS DE SOM

JBL JBL JBL JBL JBL

Simple line drawing of a vertical rectangular structure with a base and two small supports at the bottom (no text or symbols)

Caixa de som 260F

Simple line drawing of a vertical rectangular structure with a base and mounting feet, no text or symbols present.

Caixa de som 280F

Isometric line drawing of a multi-tiered speaker tower with two circular speakers and mounting feet (no text or symbols)

Isometric line drawing of a multi-tiered speaker or audio unit with two circular speakers and mounting holes (no text or symbols)

Technical line drawing of a multi-tiered speaker tower with two speakers and mounting holes (no text or symbols)

Isometric line drawing of a multi-tiered speaker or audio device with two circular speakers and mounting holes (no text or symbols)

TV 0 a 2 pés (0 a 61 cm)

Caixa de som 245C para canal central

Simple line drawing of a person sitting in a chair facing a TV, with a dashed line indicating direction (no text or symbols)

Suportes antiderrapantes

Technical line drawing of a door panel with front and side views (no text or symbols)

Diagram illustrating three-step mechanical assembly steps: rotating cylindrical components, fastening a bolt, and connecting a curved pipe.

USANDO CONECTORES DE FORQUILHA:

1.

Simple line drawing of a cylindrical object with an arrow indicating rotational motion (no text or symbols)

1.

Diagram of a mechanical device with a cylindrical component inserted into a base plate, showing a black arrow indicating direction (no text or symbols present)

1.

Diagram of a mechanical device with a rotating shaft and handle, no text or symbols present

USANDO CONECTORES BANANA:

1.

2.

Simple line drawing of a cylindrical object with a small protrusion and an arrow pointing to it (no text or symbols)

3.

Technical diagram showing two identical electrical or mechanical components with labeled connectors and ground connections, including height and front indicators.

Especificações

STAGE 280F

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

Harman International Industries, Incorporated.

8500 Balboa Blvd, Northridge CA 91329 United States.

European Representative: Harman International Industries, Incorporated. EMEA

Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.

UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, HP3 9TD, United Kingdom.

© 2024 Harman International Industries, Incorporated. All Rights Reserved. JBL is a trademark of Harman International Industries, Incorporated registered in the United States and other countries.

Features, Specifications, and Appearance subject to change without notice.

EN : For additional languages, please JBL.com/Specialty-Audio/
