USER MANUAL K10 Ultenic

Black and gold-colored O'itenic air fryer with a golden handle (no visible text or symbols on the device itself)

User Manual

Smart Air Fryer

Model: K10

Contents

English 1-12

Deutsch 13-24

Français 25-36

Italiano 37-48

Español 49-60

Packing List

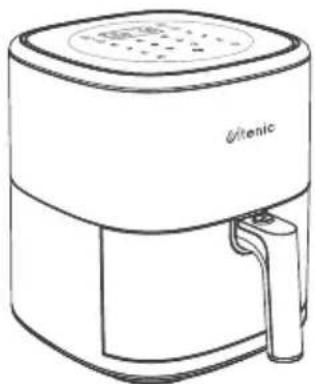

Line drawing of a modern air fryer with a handle and control panel (no text or symbols)

Ultenic Air Fryer x1

Simple line drawing of a cylindrical container with a handle and side arm (no text or symbols)

Frying Basket x1

Product image of a black air fryer with a handle, labeled 'User Manual' (no other text or symbols visible)

User Manual x1 APP User Guide x1

Gritenio Institute for A.T.

CREPES

Recipe x1

Specifications of Product

Rated power supply (US)	AC 120V, 60Hz
Rated power supply (UK)	AC 220V-240V, 50Hz
Rated power supply (EU)	AC 220V-240V, 50Hz
Rated power supply (JP)	AC 110V, 50/60Hz
Rated power	1500W
Capacity	5L / 5.2qt
Temperature range	75-205°C (165-400°F)
Timing range	1-60 Min
Weight	5.5kg

Important Safeguards

Warning

• Before using your air fryer, read all safety instructions and warnings.
- To avoid electric shock, check if the voltage in your home matches the voltage on the appliance. Always use a grounded socket. Do not use adapters or extension cords.
• To avoid fire hazard, remove all packaging from the air fryer including all temporary labels.

Safety and Precautions

• Place the air fryer in a dry environment. This product is for home use only, do not use it outdoors.
• To avoid contamination of furniture by fumes or fire caused by heat during operation of the product, please keep a certain distance from walls and cabinets.
• Please place the air fryer on a flat surface with heat insulation. Keep the air fryer at least 10cm or 4inch away from the wall and the surface to ensure air circulation.

- Do not place the air fryer near flammable materials or heat sources, and keep it away from curtains and other similar items to avoid fire.

- WARNING: Do not immerse the wire, plug or body in water or other liquids to prevent electric shock.

- Avoid the power cord entangled with the body, and do not contact with other hot bodies such as high-temperature gas, electric heaters, heating lamps, or heating appliances.

- NEVER pull the power cord. You need to unplug before moving the air fryer, and use both hands to move the air fryer.

- Do not move the air fryer when there is oil with high heat or other liquid inside the air fryer.

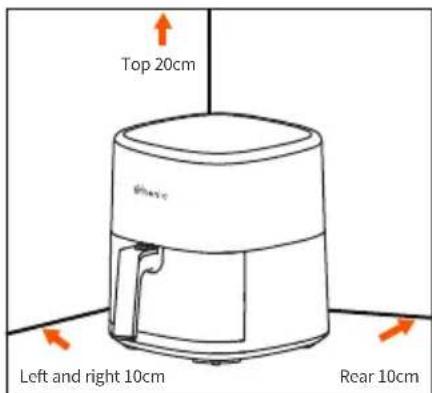

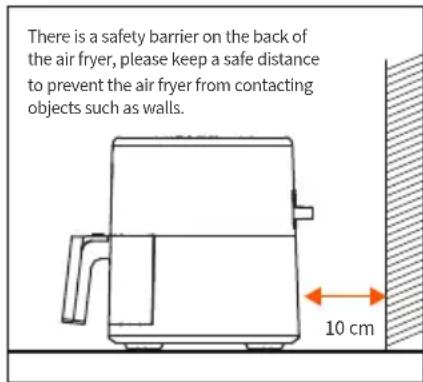

Top 20cm Left and right 10cm Rear 10cm

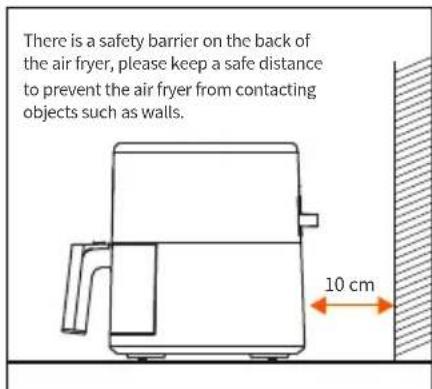

There is a safety barrier on the back of the air fryer, please keep a safe distance to prevent the air fryer from contacting objects such as walls. 10 cm

- When using the air fryer, the product should not be covered with flammable items (such as cloth, paper, plastic, etc.). Do not store such items in the air fryer to avoid fire hazards.

- To avoid fire or injury, please use the supporting accessories provided by the manufacturer. Do not put accessories not provided by the manufacturer in the product, or use accessories not recommended by the manufacturer.

- Please wear oven gloves when putting in or taking out the food.

- Do not touch the outer surface of the air fryer when it is hot during or after use.

- When cleaning the air fryer, unplug it and wait until it cools down to room temperature.

• Use a soft, damp cloth to clean the air fryer. To prevent damage, do not use sharp cleaning instruments.
• Never allow children to operate the product. The air fryer should be placed out of the reach of children.
• Never use the air fryer for other purposes than heating or defrosting food.
  • To avoid fire, never place any objects on the top of the air fryer when it is operating.
• Never heat the closed container in the air fryer to avoid explosion.
  • After using the air fryer or when it is not used for a long time, turn it off and unplug the power plug. This product cannot be operated with an external timer or remote-control system.
• When heating food, leave enough space in the container to prevent the liquid from boiling and pouring. When using glass or metal containers, be careful to prevent danger or burns.

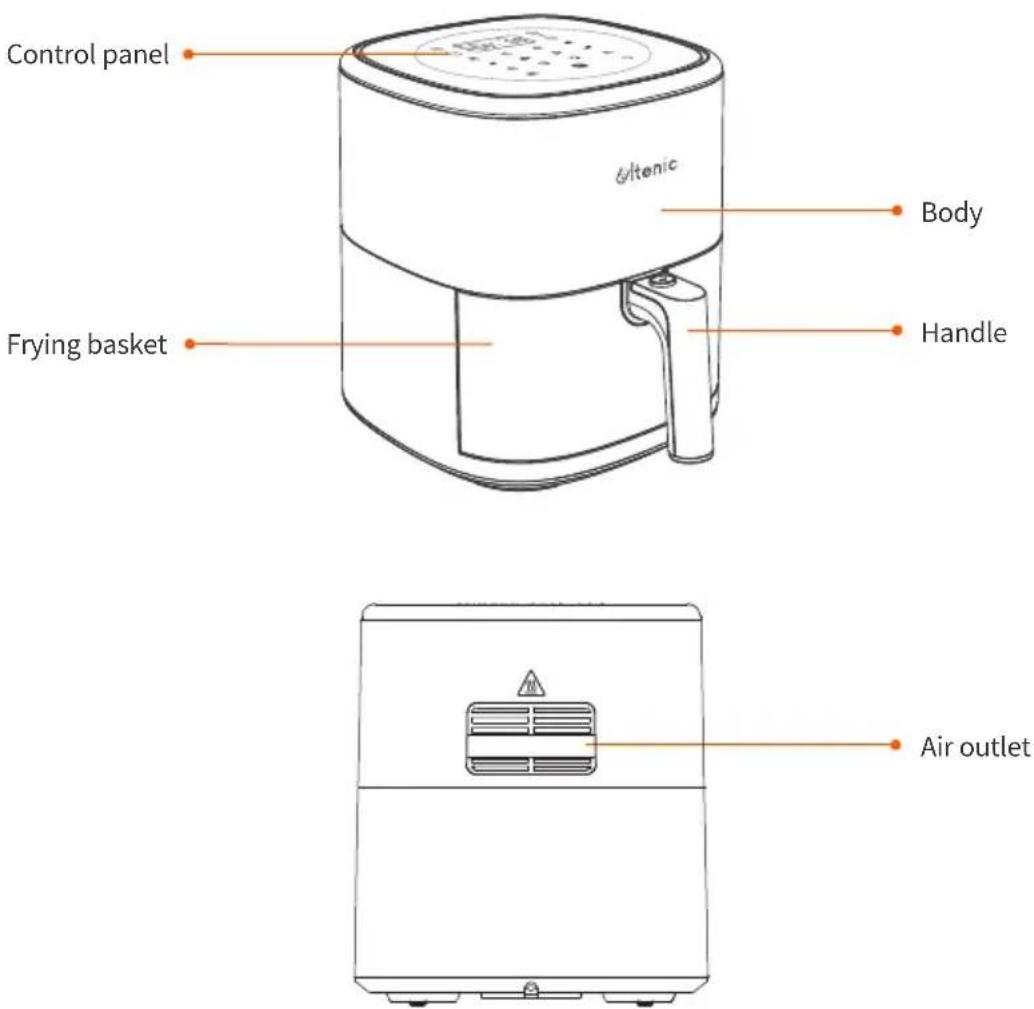

Getting to Know Your Air Fryer

Control panel Frying basket Body Handle Air outlet

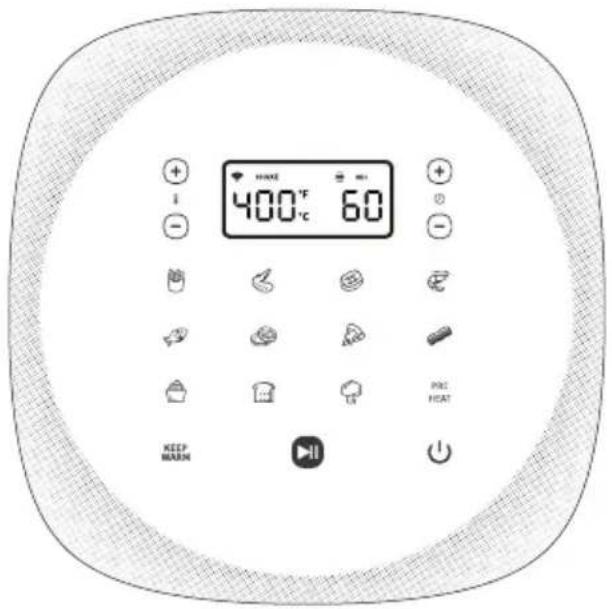

Display Panel

400°F 60 KEEP WARN

	On/Off
[CGKY]	Start/Pause
[068A]	Press to keep warm and press the "⊕" or "⊖" buttons to change the time (1-60min)
[2DG0]	Press the button and the display will show "400°F" and "5 Min"
Recipe	11 preset smart recipes
400°C	Display cooking temperature (the temperature unit can be swiched between °C and °F)
	Display cooking time
	Press to adjust temperature or timeLong press to quickly adjust temperature or time
SHAKE	The icon "SHAKE" will flash, to remind you to shake, mix or flip the food
	Flashing: not connectedOn: connected
	"APP" will be flashing when using the in-App recipes
End	"End" will be shown when the cooking ends

Before First Use

! Warning

• Check whether the voltage of your home matches the voltage on the appliance.
• Remove all packaging of the air fryer, including all temporary labels.
  • To avoid burns, wear heat-insulating gloves when taking out food.

1 Plug in the power supply and pay attention to the placement position to keep a distance of at least 10cm or 4inch from the surrounding walls or furniture.

Line drawing of a standard air fryer with a power outlet connected to its side (no text or symbols)

2 Put the ingredients on the baking tray or other related accessories, put them into the cavity of the air fryer and close the door.

Diagram of a air fryer with an arrow indicating the right-hand rule, showing a hand pulling the air.

3 Touch to select one of the recipes on the display. You can also adjust the time and temperature as you like and touch to start cooking.

Line drawing of a portable air fryer with a hand touching the lid (no text or symbols)

4 Take out the food after cooking. Be careful not to burn yourself. Turn off the air fryer after use.

Line drawing of a basic air fryer with a hand pointing to the side panel (no text or symbols)

Using Your Air Fryer

Preheating

We recommend preheating the air fryer before placing in the food, unless the air fryer is already hot. Preheating will make the cooking more effective.

1 Plug in and press "⏻" to turn on.
2 Press the "Preheat" button. The display will show "400°F" and "5 Min".
3 Press the "⊕" or "⊖" button (optional) to adjust the temperature. The time will adjust automatically.
4 Press "播放" to start preheating.
5 The air fryer will beep when preheating is done.

Temperature	Time
205°C (400°F) 5 minutes
200°C (390°F) 5 minutes
195°C (385°F) 5 minutes
190°C (375°F) 4 minutes
185°C (365°F) 4 minutes
180°C (355°F) 4 minutes
170°C (340°F) 4 minutes
165°C (330°F) or lower 3 minutes

Cooking

Attention:

• Do not place any objects on the top of the air fryer. Otherwise, it will disturb the airflow and affect the cooking effect.
• The air fryer is not an oil air fryer. Do not pour cooking oil, frying fat or any other liquid into the air fryer.
• Be careful of hot steam when removing food from the air fryer.
• Actual cooking results may vary. Please refer to the frying guide and recipe to customize your recipes.

1 Turn on the air fryer.
2 Touch to select one of the recipes. You can also adjust the time and temperature as you like.
3 Press "播放" to start cooking.
4 The air fryer will beep when finished.

Range of temperature: 75-205°C / 165-400°F

Range of time: 1-60min

Symbol Preset		Preset Temperature	Preset Time^*	Supplementary Functions^**
	Shrimp	370°F190°C	6 min
	French Fries	385°F195°C	20 min	SHAKE
	Wings	385°F195°C	25 min	SHAKE
[XD78]	Steak	400°F205°C	6 min
	Vegetable	300°F150°C	10 min	SHAKE
[K758]	Fish	350°F175°C	8 min
[XSD3]	Onion Rings	370°F190°C	20 min	SHAKE
	Pizza	350°F175°C	8 min
	Bacon	320°F160°C	8 min
	Cake	300°F150°C	30 min
	Toast	380°F195°C	3 min

* The preset time is a reference value. We kindly recommend you to adjust the cooking time according to the weight of the food.
** Supplementary functions marked with "SHAKE!" means that the recipe will automatically remind you to shake, mix or flip the food during cooking.

Keep Warm

① Turn on the air fryer.
2 Touch to select one of the recipes.
3 Press " KEEP WARM".
4 Press "播放" to start cooking.

Symbol	Preset	Preset Temperature	Range of Temperature	Preset Time	Range of Time
KEEP WARM	Keep Warm	170°F 75°C	/	5 min 1-60	min

* The taste of the food might be affected if to be heated for too long.

Shaking Food

How to Shake

During cooking, take the baskets out of the air fryer and shake, mix or flip the food.

Note:

When you take the baskets out, the air fryer will pause cooking automatically. When you replace the baskets, cooking will automatically resume. (Avoid shaking longer than 30 seconds as the air fryer may start to cool down.)

What to Shake

• Small foods that are stacked, such as fries or nuggets, will usually need shaking.
  • Without shaking, food may not be crispy or evenly cooked.
• You can flip other food, such as steak, to ensure even browning.

Shake Reminder

• The "Shaking Reminder" will beep to remind you, and a flashing "SHAKE" will appear on the display.
• If you do not remove the baskets, the "Shaking Reminder" will beep again after 1 minute, and the display will show "SHAKE".
  • The Shake Reminder will go away once you take out the baskets.

Cooking Guide

Overfilling

- If there is too much food, it will be cooked unevenly.

Using Oil

• Adding a small amount of oil to your food will make it crispier. Use no more than 2 US tbsp / 30 mL of oil.
• Oil sprays are excellent for applying small amounts of oil evenly to all food items.

Tips On Cooking and Frying Food:

• You can air fry any frozen foods or goods that can be baked in an oven.
- To make cakes, hand pies, or any food with filling or batter, place food in a heat-safe container before placing it in the baskets.
• Air frying high-fat foods will cause fat to drip to the bottom of the baskets. To avoid excess smoke while cooking, pour out fat drippings after cooking.
- Liquid- marinated foods create splatter and excess smoke. Pat these foods dry before air frying.

French Fries:

• Add 12 -1 US tbsp / 8-15 mL oil for crispmess.
• When making fries from raw potatoes, soak uncooked fries in water for 15 minutes to remove starch. Pat dry with a towel before adding oil.
• Cut uncooked fries smaller for crispier results. Try cutting fries into 14 - by 3-inch / 0.6- by 7.6-cm strips.

Meat:

• Before cooking large pieces of meat, make sure to defrost completely.
• Use a thermometer for cooking meat to ensure that it reaches the minimum internal temperature that is safe for consumption. The following table is used to check the temperature of cooked meat.

Food Type Internal Temperature
Beef + Veal	Ground	160°F (70°C)
	Steaks, Roasts: Medium	160°F (70°C)
	Steaks, Roasts: rare	145°F (63°C)
Chicken + Turkey	Breasts	165°F (75°C)
	Ground, Stuffed	165°F (75°C)
	Whole bird, legs, thighs, wings	165°F (75°C)
Fish + Shellfish	Any type	145°F (63°C)
Lamb	GroundSteaks, Roasts: mediumSteaks, Roast: Rare	160°F (70°C)160°F (70°C)145°F (63°C)
Pork	Chops, Ground, Ribs, RoastsFully cooked Ham	160°F (70°C)140°F (60°C)

Note: for more information about Ultenic kitchen, please check the recipe books and tips provided by our professional chefs, download our Ultenic APP and log in to our recipe community.

More Functions

Switching Temperature Units

• Press and hold the "⊕⊖" buttons at the same time for more than 5 seconds to switch between Fahrenheit and Celsius.
  • The air fryer will beep and the temperature unit will change from Fahrenheit to Celsius.
• Repeat the step to switch the temperature unit back to Fahrenheit.

Pausing

• Press 🚗 to pause frying. The air fryer will stop heating until you press 🚗 to continue airfrying.
  • After 30 minutes of stopping the operation, the air fryer will shut down.

Automatically Resume Cooking

• If you pull out the baskets, the air fryer will pause automatically. The display will turn off temporarily as a safety feature.
• When you replace the baskets, the air fryer will automatically resume based on your previous settings.

Automatic Shutdown

If the air fryer has no active cooking programs, it will clear all settings and turn off after 5 minutes of inactivity.

Overheating Protection

If the air fryer overheats, it will automatically stop for safety. The air fryer can be used again after it has cooled down completely.

Troubleshooting

Serial Number	Error	Possible Effective Solutions
1	The product has a lot of oily smoke when it is fried	·Pour off the oil from the fryer and continue to use
2	The food is not fully fried	·Appropriately reduce the amount of food. If the food is overfilled, the frying temperature will be insufficient.·Increase the frying temperature or extend the frying time.
3	The food is not cooked evenly	·Foods that are stacked on top of each other or close to each other need to be shaken or flipped during cooking (see "Shaking food" on page 8).
4	The food after cooking is not crispy enough	·Spraying or brushing a small amount of oil on the food will improve the crispness
5	The French fries are not cooked properly	·See "French fries" on page 9.
6	The air fryer cannot be turned on	·Plug in the power supply correctly.·Close the basket.
7	The air fryer has a plastic smell.	·Any air fryer may have a plastic smell from the manufacturing process. This is normal and the smell will dissipate gradually. If a plastic smell is still present, please contact our Customer Support.
8	Il display mostra Errore Codice "E1"	·Unplug the air fryer and retry, if the error code "E1" is still displayed, please contact our Customer Support.
9	Il display mostra Errore Codice "E2"	·Unplug the air fryer and retry, if the error code "E2" is still displayed, please contact our Customer Support.
10	APP connection failed	·Make sure you've entered the right password.·Keep the air fryer, mobile device and your router being as close as possible.·Make sure you selected a 2.4GHz WiFi, the 5GHz band is not supported.

Cleaning and Maintenance

This product should be used regularly to maintain the appliance in good working conditions. If not used for a long period of time, please keep this product in a dry and ventilated place to prevent it from getting damp. Store the device in the correct combination for next use.

• Please wash the equipment carefully to keep it tidy. If you do not use it for a long time, please unplug it and clean it after cooling down.
• Use a special kitchen cleaner (for dishes and cooking utensils) and a soft sponge or rag.
• Please do not use a diluent, scouring powder, bleaching powder, metal spatula, nylon brush, etc. or other corrosive cleaning products to clean the device, this can prevent damaging the baking tray and other accessories.
• Please do not put the main unit into a dishwasher, dryer, etc.
• Please do not excessively scrub the main outer case, empty frying pan, drip pan and baking tray to avoid wear and tear.
• Please do not immerse the body of the product in water or pour water on it.

Cleaning of Parts

• Soak in warm water for a while if there is any dirt attached.
• Use a sponge to wash in diluted detergent solution or warm water, and rinse with water.
• The baking tray, drip pan, etc. can be soaked in hot water and then washed, or washed in the dishwasher.
• Wipe off the water with a dry cloth and allow to dry well.
• Do not wipe the heating tube randomly. If the metal heating tube is not used for a long time, please use a small amount of cooking oil to gently wipe the surface of the heating tube.

Cleaning of the Main Body

• When cleaning the outer case of the main unit, first soak the cloth in the diluted detergent solution, wring it out and wipe the main body. Wipe off the remaining detergent and moisture with a dry cloth.
• When cleaning the inside of the main body, you must unplug the power supply and wipe it with a dry paper towel or dry cloth after the whole equipment has cooled down.

Lieferumfang

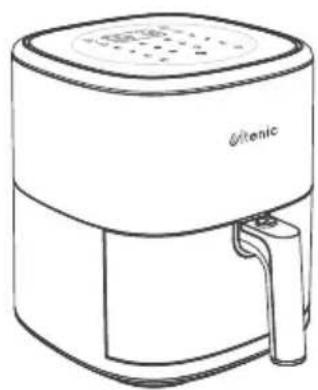

Line drawing of a modern air fryer with a handle and control panel (no text or symbols)

Line drawing of a cylindrical container with a handle and side port (no text or symbols)

Frittierkorb x1

User Manual

400°F 60 KEEP MASN

Line drawing of a simple electric air fryer with power outlet and cable (no text or symbols)

Line drawing of a standard air fryer with a hand touching the lid (no text or symbols)

Line drawing of a modern air fryer with a hand pointing to the side arm (no text or symbols)

Line drawing of a modern air fryer with a handle and control panel (no text or symbols)

Simple line drawing of a cylindrical container with a handle and side port (no text or symbols)

Panier x1

Product image of a black air fryer with a handle, no visible text or symbols on the device itself.

Gittenic Document No. 41

REPOES

Recette x1

400°C 60 KEEP WARM

Line drawing of a standard air fryer with a power outlet connected to its side (no text or symbols)

Line drawing of a portable air fryer with a hand pointing to the side arm (no text or symbols)

Line drawing of a modern air fryer with a hand touching the lid (no text or symbols)

Line drawing of a basic air fryer with a hand pointing to the side panel (no text or symbols)

Nettoyage du Corps Principal

Line drawing of a modern air fryer with a handle and top panel (no text or symbols)

Ultenic friggitrice ad aria x1

Simple line drawing of a rectangular container with a handle and side port (no text or symbols)

Cestello fritto x1

Product image of a black air fryer with a handle, labeled 'User Manual' (no other text or symbols visible)

Oitenic Institute for AI

REPOES

Ricetta x1

Top 20cm Left and right 10cm Rear 10cm

There is a safety barrier on the back of the air fryer, please keep a safe distance to prevent the air fryer from contacting objects such as walls. 10 cm

400℃ 60 KEEP WARM

Line drawing of a simple air fryer with a power outlet connected to its side (no text or symbols)

Line drawing of a modern air fryer with a hand pointing to the side arm (no text or symbols)

Line drawing of a portable air fryer with a hand adjusting its lid (no text or symbols)

Line drawing of a Starix air fryer with a hand pointing to it (no text or symbols)

Cottura del Cibo

Preriscaldamento

Line drawing of a Eltonic air fryer (no text or symbols on the device itself)

Freidora de aire Ultenic x1

Simple line drawing of a cylindrical container with a handle and side port (no text or symbols)

Cesta de freidora x1

Product image of a black air fryer with a golden handle, labeled 'User Manual' (no other text or symbols visible)

Gitenic Institute for AI

STARS RECIPLS

Libro de Recetas x1

400°C 60 KEEP MUSH L1 FIRE HEAT

Line drawing of a standard air fryer with a hand touching the lid (no text or symbols)

Line drawing of a modern air fryer with a hand pointing to the side arm (no text or symbols)

Cocinando la Comida

Precalentado
