USER MANUAL DO740BL DOMO

Dollop of a modern salad blender with lettuce, radishes, and cucumber in clear glass (no text or symbols visible)

NL Handleiding Blender

EN Instruction booklet Blender

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Exploded view diagram of a blender with numbered parts and control panel visible

Two-step diagram showing a mechanical component with a red arrow indicating rotation, no text or symbols present.

Two-step diagram showing a device with black plastic casing and red arrows indicating internal components (no text or symbols)

Two views of a black appliance with a circular component and a transparent lid, showing internal components and motion arrows (no text or symbols)

Close-up of a kitchen blender with a glass lid and red arrows indicating the process (no text or symbols visible)

GEBRUIK

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Exploded view diagram of a blender with numbered parts and close-up details

AVANT LA PREMIÈRE UTILISATION

Two-step diagram showing a mechanical component with a red arrow indicating rotation or assembly (no text or symbols present)

Two-step diagram showing a device's internal structure with red arrows indicating motion or flow (no text or symbols)

Close-up of a black mechanical component with a circular head and internal structure, showing motion arrows (no text or symbols)

Two-panel image showing a kitchen blender with a handle and lid, no text or symbols visible.

UTILISATION

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Exploded view diagram of a blender with numbered parts and control panel visible

Two-step diagram showing a mechanical component being rotated, with no visible text or symbols.

Two-step diagram showing a device's internal structure with red arrows indicating motion or flow (no text or symbols)

Close-up of a black mechanical component with red arrows indicating rotation, shown from top and side (no text or symbols)

Close-up of a kitchen blender with red arrows indicating the blade and handle (no text or symbols visible)

GEBRAUCH

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

• Do not use this appliance for other than intended use.
• Never leave the appliance unattended while it is functioning.
• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

• Do not use the appliance if there is any water in it or the parts are still wet after cleaning.
• Do not use the appliance without ingredients.
• Never use the device with hot liquids above 60^ .
• Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

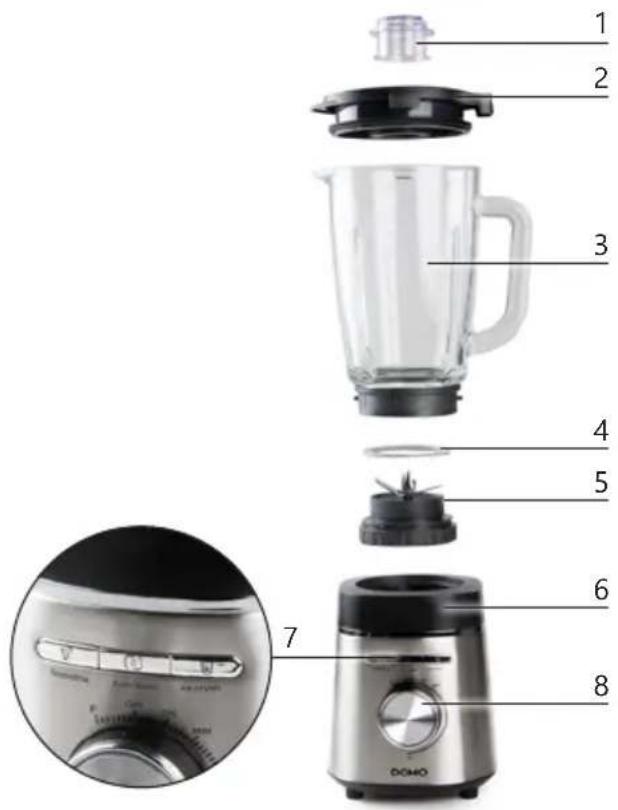

PARTS

1. Measuring cup
2. Lid
3. jug
4. Blade sealing ring
5. Blade piece
6. Motor unit
7. 3 function buttons: smoothie, auto clean, ice crush
8. Speed knob

Labeled diagram of a blender with numbered parts, showing internal structure and interior view

BEFORE THE FIRST USE

• Take the appliance out of the packaging
- Disassemble the different parts of the appliance and clean all removable parts according to the instructions described in the section "Cleaning and maintenance".
- Reassemble all parts when they are dry:

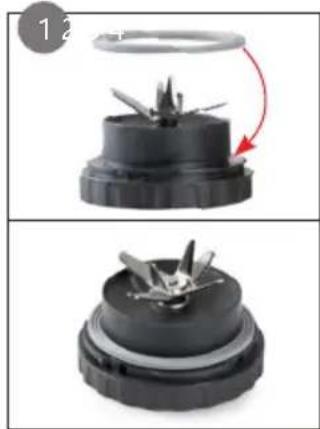

1. Position the seal on the blade piece.
2. Hold the jug upside down. Place the blade with the sealing ring on the underside of the jug, using the recesses provided. Turn the blade anti-clockwise until it locks into place. Turn over the jar so that the base is at the bottom again.
3. Place the lid on the jug in the recesses provided and turn the lid clockwise until it locks into place. Position the measuring cup in the lid and jug and screw it tight in a clockwise direction.
4. Place the jug on the motor unit in the provided recesses and turn the jug clockwise until it locks into place. The blender is now ready for use.

Two-step diagram showing a black plastic component being rotated, with a red arrow indicating the motion (no text or symbols present)

Two-step diagram showing a device with black plastic casing and red arrows indicating motion or force (no text or symbols)

Close-up of a black plastic kitchen brush head with red directional arrows indicating rotation (no text or symbols)

Two-step kitchen cleaning process showing a blender with liquid being removed, no text or symbols visible

USE

1. Always use the appliance on a steady, dry and level surface. Make sure that the speed regulation button is at "OFF".
2. Place the glass jug on the motor unit.
3. Fill the container with the desired ingredients. Make sure that you do not exceed the maximum amount of 1.75 l. Place the lid with measuring beaker on the pitcher.
4. Put the plug in the outlet.
5. Turn the speed control to the desired speed or the pulse position ("P") for quick and delicate mixing.

6. Or use the function buttons. Turn the speed control to "ON". The blue 3 function buttons light will flicker. Press one of the function buttons:

7. Smoothie: this function is perfect for making smoothies. The blender works for 1 minute with the speed varying.

8. Auto clean: see section "Cleaning and maintenance".

9. Ice crush: this function is designed to crush ice cubes. The blender will alternate between on and off for 30 seconds.

10. If you want to add ingredients while you are blending, remove the measuring cup from the lid and put the extra ingredients into the jar through this fill opening.

11. Turn off the blender by setting the speed knob to 0ff.

12. Unplug the blender after use. Then remove the pitcher from the motor part by turning it anticlockwise.

⚠ For each use, the consecutive operation time should not exceed 3 minutes. Between two continuous cycles at least 10 minutes resting time should be maintained. The appliance needs to cool down to room temperature before starting the next blending cycle.

⚠️Do not use the appliance without ingredients. ⚠️Never use the device with hot liquids above 60°C.

⚠️ You cannot select any of the function buttons when using the speed control. First switch the control to the "ON" position.
⚠️ If the pitcher is not mounted correctly, the appliance will not work.
Always fill with enough liquid to achieve a perfect mixture. We also recommend you add some water to the pitcher when mixing ice cubes with the "Ice crush" feature.

CLEANING AND MAINTENANCE

AUTO CLEAN

Always clean the blender immediately after us for easy cleaning. Do not let food dry in the jar or the blade piece, this will make them harder to clean.

1. Pour some warm soapy water into the pitcher. Turn the speed control to 'on'. Press the 'Auto clean' button. When the 'auto clean' programme is finished, the appliance will automatically turn off. Turn the speed control to 'off'. Then empty the pitcher and rinse it with clean water.
2. Unplug the blender before continuing with cleaning.
3. Wipe the motor unit clean with a damp cloth and dry thoroughly.

THOROUGH CLEANING

1. First clean the appliance using the "Auto clean" feature.

2. Disassemble the removable parts. Remove the lid from the container and the measuring cup from the lid. Turn the jug upside down and unscrew the blade piece clockwise.

3. Clean the measuring cup, the lid and the jar and dry. These parts are also dishwasher safe.

4. Wipe the blade with hot soapy water and rinse under the tap. Do not touch the sharp blades and take extra care. Leave the blade to dry upside down, ensuring it remains out of the reach of children.

5. Make sure all parts are dry before reassembling the blender.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️Never use aggressive or abrasive cleaning agents.

⚠️ Store the blender with the lid off. This will help you avoid unpleasant odours.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not work. • Ensure the	blender jug is installed correctly. When using the bottle, ensure that the blade attachment is firmly screwed into the motor housing. If you have not turned the blade attachment clockwise or not far enough (until it clicks into place), the appliance will not work.The motor may overheat. Let the appliance cool down for 30 minutes and try again.Make sure the blade attachment is not blocked. Check for large pieces blocking the blades. Cut these into smaller pieces.When using the function buttons, the speed control must be in the 'on' position.
The appliance has a strange smell. • When	first used, it is normal for the engine to have an odour. If the problem still occurs after using it several times, contact the after-sales service.
The appliance is making a strange noise.	Always place the appliance on a flat, stable surface.Check that the blade attachment is properly installed.
When disassembling after use, the bottle's blade attachment remains stuck in the motor housing.	Put enough pressure on the bottle and turn counter-clockwise while pressing down. Then the blade attachment should come off.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Exploded view diagram of a blender with numbered parts and control panel visible

Two-step diagram showing a black plastic component being rotated, with a red arrow indicating the process (no text or symbols present)

Two-panel image showing a device with a black lid and red arrows indicating motion or flow, no visible text or symbols.

Close-up of a black mechanical component with red directional arrows indicating rotation or movement (no text or symbols visible)

Two-step kitchen cleaning process showing a blender with liquid being removed, no text or symbols visible

USO

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Exploded view diagram of a DCMO blender with numbered parts and control panel visible

PRIMA DELL'USO

Two-step diagram showing a black plastic brush tool with a red arrow indicating the process (no text or symbols present)

Two-step diagram showing a device with a black lid and red arrows indicating motion or movement, no text or symbols present.

Close-up of a black mechanical component with red arrows indicating rotation, showing internal structure and motion (no text or symbols)

Two-step kitchen cleaning process showing a blender with handle and lid, no text or symbols visible

UTILIZZO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

smoothie, auto clean, ice crush

Labeled diagram of a modern blender with numbered parts and interior view

PŘED PRVNÍM POUŽITÍM

Two-step diagram showing a mechanical component with a red arrow indicating rotation or assembly (no text or symbols present)

Two-panel image showing a device's top-down view of a black plastic lid with red arrows indicating motion or airflow direction (no text or symbols)

Close-up of a black plastic kitchen brush head with red directional arrows indicating rotation (no text or symbols)

Two-step kitchen cleaning process showing a blender with red arrows indicating the blade and handle (no text or symbols visible)

POUŽITÍ

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Exploded view diagram of a modern blender with labeled parts including a 7-segment display and control panel.

PRED PRVÝM POUŽITÍM

Two-step diagram showing a black plastic component being rotated, with a red arrow indicating the process (no text or symbols present)

Two-step diagram showing a device with a black lid and red arrows indicating motion or flow, no text or symbols present.

Close-up of a black mechanical component with red arrows indicating rotation, showing internal structure and motion (no text or symbols)

Two-step illustration of a kitchen blender with a handle and lid, showing the process from pressing down to blending (no text or symbols present)

POUŽITIE

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
