Introduction

Welcome to the Philips Sonicare family! This toothbrush enables you to obtain superior plaque removal, whiter teeth and healthier gums. Using Sonicare's combination of gentle sonic technology and clinically developed and proven features, you can be confident that you're getting the very best clean, every time.

Further support and product registration are available to you at:

www.philips.com/support

Important safety information

Only use the product for its intended purpose. Read this information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries.

WARNINGS

- Only use original Philips accessories or consumables. If supplied, only use the original USB cable and USB power supply unit.

- This appliance contains no user-serviceable parts. If the appliance is damaged, stop using it and contact the Consumer Care Center in your country. If the USB cable is damaged, stop using it.

- Keep the chargers away from water.

- After cleaning, make sure the chargers and travel charger cases are completely dry before you connect these.

- This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the product.

- Do not clean any part of the product in the dishwasher.

- Do not use adapters and chargers outdoors or near heated surfaces.

- This appliance has only been designed for cleaning teeth, gums and tongue.

- Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear appear.

- Avoid direct contact with products that contain essential oils or coconut oil. Contact may result in bristles dislodging.

- The maximum altitude of use is 4500 meters.

MEDICAL WARNINGS

• Stop using the appliance and consult your dentist/doctor if excessive bleeding occurs after use, if bleeding continues to occur after 1 week of use or if you experience discomfort or pain.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use this appliance.
• If you have a pacemaker or other implanted device, contact your doctor or the manufacturer of the implanted device prior to use.
• If you have medical concerns, consult your doctor before you use this appliance.
• This appliance is a personal care device and is not intended for use on multiple patients in a dental practice or institution.

BATTERY SAFETY INSTRUCTIONS

• This appliance contains batteries that are only removable by skilled persons.
• Only use the product for its intended purpose. Read this information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries. Accessories supplied may vary for different products.
• Only use original Philips accessories and consumables.
• Keep product and batteries away from fire and do not expose them to direct sunlight or high temperatures.
• If the product becomes abnormally hot or smelly, changes color or if charging takes longer than usual, stop using and charging the product and contact Philips.
• Do not place products and their batteries in microwave ovens or on induction cookers.
• Do not open, modify, pierce, damage or dismantle the product or battery to prevent batteries from heating up or releasing toxic or hazardous substances. Do not short-circuit, overcharge or reverse charge batteries.
• This appliance contains batteries that are non-replaceable. When the battery is at end of life, the appliance shall be properly disposed of, see section on Recycling.
• Charge only with Philips HX6110 input ratings: 4.75-5.25VDC, 1.5W.
• Charge and use the product at a temperature between 0 °C and 40 °C (32°F and 104 °F).
• To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal object (e.g. coins, hairpins, rings). Do not wrap batteries in aluminium foil. Tape battery terminals or put batteries in a plastic bag before you discard them.

- This appliance contains a Lithium-ion rechargeable cell. MUST BE RECYCLED OR DISPOSED OF PROPERLY.

Storage and transportation conditions

Temperature -20^ to +60^ (-4 °F to 140 °F).

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Radio Equipment Directive

Hereby, Philips declares that electric toothbrushes with radio equipment type (Bluetooth, NFC) are in compliance with Directive 2014/53/EU.

• The Bluetooth radio frequency interface in applicable products operates at 2.4 GHz.
• The maximum output power by the Bluetooth appliance is 3 dBm.
• The NFC radio frequency interface in applicable products operates at 13.56 MHz.
• The maximum RF power transmitted by the appliance is 30.16 dBm.

The full text of the EU declaration of conformity is available at the following internet address: www.philips.com/support

Note: The Features of different models may vary. Some models may not be equipped with Bluetooth or NFC.

SAVE THESE INSTRUCTIONS

The following symbols may appear on the product:

Simple line drawing of an open book with no text or symbols visible

This symbol means read the instructions for use, before using the appliance.

XXXXXX

This symbol means to use the indicated power supply.

Intended use

Sonicare power toothbrushes are intended to remove adherent plaque and food debris from the teeth to reduce tooth decay and improve and maintain oral health.

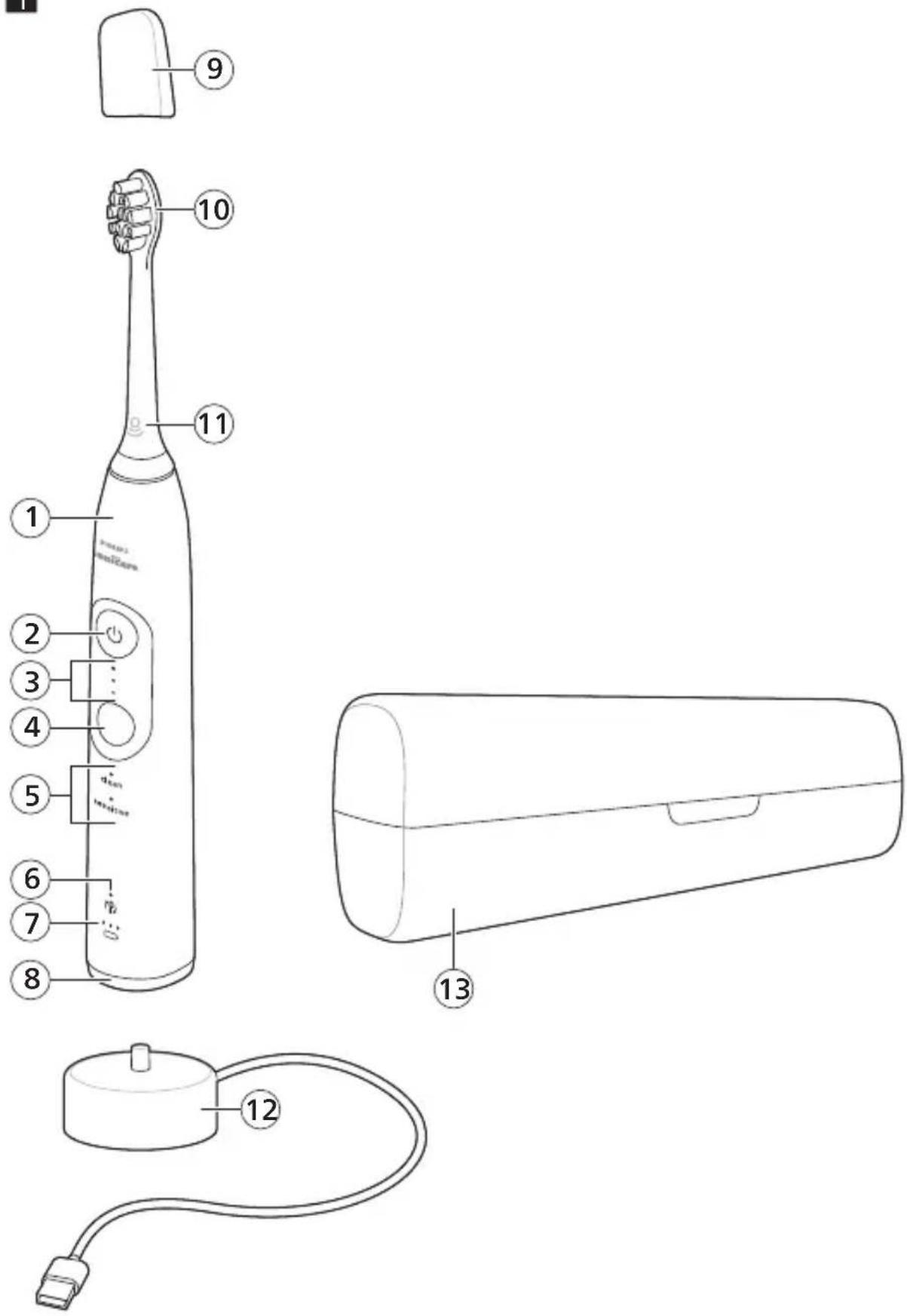

Your Philips Sonicare (Fig 1.)

1 Handle
2 Power on/off button
3 Intensity indicator
4 Mode/intensity button
5 Mode indicator
6 Brush head replacement reminder
7 Battery indicator
8 Light ring

Accessories:

9 Brush head cap

10 Smart brush head(s)
11 BrushSync symbol
12 USB charger (wall adapter not included)
13 Travel case

Note: Accessories included may vary based on the model purchased.

Getting started

Attaching the brush head

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

1 Align the brush head so the bristles point in the same direction as the front of the handle.

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

2 Firmly press the brush head down onto the metal shaft until it will not go any further.

Note: It is normal to see a slight gap between the brush head and the handle.

Using your Philips Sonicare toothbrush

If you are using your Sonicare toothbrush for the first time, it is normal to feel more vibration than when using a non-electric toothbrush. It is common for first-time users to apply too much pressure. Only apply gentle pressure and let the toothbrush do the brushing for you. Please follow the brushing instructions below for the best experience.

To help you transition to your new Sonicare power toothbrush, use a lower setting for the first 1-2 weeks, then transition to a higher setting.

Brushing instructions

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Wet the bristles and apply a small amount of toothpaste.

45°

2 Place the toothbrush bristles against the teeth at a slight angle (45 degrees). Pressing firmly to make the bristles reach the gumline or slightly beneath the gumline.

Note: Keep the center of the brush in contact with the teeth at all times.

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

3 Press the power on/off button to switch on the Philips Sonicare.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols beyond the angle marker)

4 Gently keep the bristles placed on the teeth and in the gumline. Brush your teeth with small back and forth motion so the bristles reach between the teeth. Continue this motion throughout your brushing cycle.

Note: The bristles should slightly flare. It is not recommended to scrub as you would with a manual toothbrush.

Note: If you apply too much pressure, you will be alerted by a change in vibration of the handle and a flashing purple brushing feedback light.

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

5 To clean the inside surfaces of the front teeth, tilt the brush handle semi-upright and make several vertical overlapping brushing strokes on each tooth.
6 After you have completed the brushing cycle, you can spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You can also brush your tongue, with the toothbrush switched on or off, as you prefer.

Note: Your Philips Sonicare toothbrush is safe to use on braces (brush heads wear out sooner when used on braces) and dental restorations (fillings, crowns, veneers) if they are properly adhered and not compromised.

BrushPacer

To make sure you brush evenly throughout the mouth, divide your mouth into 6 sections using the BrushPacer feature. The BrushPacer divides the brushing time into 6 equal segments and indicates when you should move to the next area. The segments are indicated with a brief pause in vibration. The toothbrush automatically stops at the end of the brushing session.

Note: Additional time may be added when you use the White or Gum Health modes.

English

Modes

Your power toothbrush is equipped with two modes: Clean and Sensitive. Based on the smart brush head you use, the optimal mode and intensity will be selected automatically by the BrushSync technology.

clean sensitive

To manually change the mode, press the mode/intensity button when the toothbrush is off. All brush heads work with each mode.

Clean Sensitive

Benefit Plaque removal Extra gentle mode for		sensitive teeth and gums
Recommended intensity level	High Low*
Total brushing time 2 minutes 2 minutes
How to brush Brush each segment for 20 seconds		Brush each segment for 20 seconds

Intensities

Intensity settings

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Your power toothbrush comes with 3 different intensity settings:

• High intensity (three lights)
• Medium intensity (two lights)
• Low intensity (one light)

Note: We recommend high intensity for best results.

×3 ×2 ×1

To manually select your desired intensity, press the mode/intensity button when the toothbrush is on, to cycle through the options. The intensity setting can only be changed when the toothbrush is on.

BrushSync technology

Diagram of a microphone with a Wi-Fi symbol and signal icon, no text or labels present

BrushSync technology enables your brush head to communicate with your handle using a microchip. The symbol at the bottom of the brush head indicates that the brush head is equipped with this technology.

BrushSync technology enables:

• Brush head replacement reminder
• BrushSync mode pairing

Philips Sonicare offers a wide range of smart brush heads, equipped with BrushSync technology. To explore our full range of toothbrush brush heads,

and find the brush head that is best for you, go to www.philips.com/toothbrush-heads for more information.

Features

• Pressure Sensor Feedback
• BrushPacer
• SmarTimer
• EasyStart
• Brush Head Replacement Reminder
• Brush Head Mode Pairing

Pressure Sensor Feedback

Your Sonicare toothbrush measures the pressure you apply while brushing, to protect your gums and teeth from damage.

Line drawing of a person holding a pen, no text or symbols present

If you apply excess pressure, the handle changes its sound and vibration while the brushing feedback light flashes purple at the bottom of the handle until you reduce the pressure.

Note: Your product comes with the Pressure Sensor Feedback activated. To deactivate this feature (see 'Activating or deactivating features').

BrushPacer

The BrushPacer is an interval timer that helps you to brush evenly through the mouth by dividing your mouth into 6 sections.

SmarTimer

The SmarTimer indicates that your brushing cycle is complete by automatically switching off the toothbrush at the end of the brushing cycle.

Dental professionals recommend brushing no less than 2 minutes twice a day.

Note: If you press the power on/off button after you started the brushing cycle, the toothbrush pauses. If you press the on/off button within 30 seconds, the timer resumes to allow you to finish your brushing cycle. After a pause of 30 seconds, the SmarTimer resets.

EasyStart

This Philips Sonicare model comes with the EasyStart feature deactivated. The EasyStart feature gently increases the power over the first 14 brushings to help you get used to brushing with the Philips Sonicare. The EasyStart feature works with all modes.

*Disclaimer

When the Philips Sonicare toothbrush is used in clinical studies, it must be used at high intensity with the handle fully charged and the EasyStart feature deactivated.

To activate EasyStart (see 'Activating or deactivating features').

Brush Head Replacement Reminder

Your Philips Sonicare is equipped with BrushSync technology that tracks the wear of your brush head.

Note: This feature only works with Philips Sonicare smart brush heads with BrushSync technology.

1 When you attach a new smart brush head for the first time, the handle recognizes that you have a Philips brush head with BrushSync technology and begins tracking brush head wear.

2 Over time, based on the pressure you apply and the total time the brush head has been used, the handle tracks brush head wear in order to determine the optimal time to replace your brush head. This feature guarantees the best cleaning and care of your teeth.

3 When the Brush Head Replacement Reminder indicator lights up amber, you should replace your brush head.

Note: All smart brush heads come with the brush head replacement reminder feature activated. To deactivate the brush head replacement reminder see 'Activating or deactivating features'.

Brush head mode pairing

Brush heads with BrushSync technology are equipped with a microchip which communicates with the handle and automatically pairs it with the recommended mode and intensity. Most brush heads with BrushSync technology will auto pair to Clean Mode. Brush heads with specific benefits will pair with the corresponding mode (when available), e.g. S2 Sensitive: Sensitive Mode.

Note: If you choose to change mode/intensity from the recommended setting, the brush head will remember the your chosen setting for future brushing sessions.

Activating or deactivating features

You can activate or deactivate the following features of your toothbrush:

• EasyStart
• Brush Head replacement reminder
• Pressure Sensor Feedback

Note: The brush head replacement reminder is only compatible with Sonicare smart brush heads. The smart brush head must be attached to the toothbrush in order to activate or deactivate the replacement reminder.

From handle:

Step 1: Place the handle on a plugged in charger/charging travel case.

Step 2: Press and hold power on/off button for:

EasyStart Brush Head Replacement Reminder Pressure Sensor Feedback

Up to 3 seconds Up to 5 seconds Up to 7 seconds

Step 3: Let go of the power on/off button when you hear:

	1 beep 1 beep and then2 beeps	1 beep, 2 beeps andthen 3 beeps
	↓ ↓ ↓
	Together with:
	If you see the left LED for the battery indicator flash green 2 times and hear 3 tones low to high, then the feature has been activated.
	OR
	If you see the left LED for the battery indicator flash amber 1 time and hear 3 tones high to low, then the feature has been deactivated.

Charging and battery status

This Philips Sonicare toothbrush is designed to provide on average 42 brushing sessions, each session lasting 2 minutes (21 days if used twice per day) on a fully charged battery. The battery indicator shows the battery status when you complete the 2-minute brushing session, when you pause the toothbrush, or while it is charging.

Note: It can take up to 24 hours to fully charge the battery before first use, but you can use the Philips Sonicare toothbrush before it is fully charged.

Note: Charging your Philips Sonicare toothbrush in the travel case can take up to 48 hours.

Charging

Charging on charger

1 Attach the USB charging cord to a wall adapter, plug the wall adapter into an electrical wall outlet.

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

2 Place the handle on the charger.
3 Connect the attached USB cable to the 5V DC input power supply unit.

- Charge only with Philips compatible chargers or safety approved adapters with input ratings: 100 - 240V\~; 50/60Hz; 3.5W and output ratings 5VDC; 2.5W.

- A UL-listed or certified 1310 Class 2 power supply (NAM only)

4 The battery indicator and light ring illuminate, the handle beeps twice, and all lights on the handle illuminate upward from the bottom of the handle.
5 The flashing light of the battery indicator shows that the toothbrush is charging.
6 When the handle is on the charger and the battery is fully charged, the LED lights of the battery indicator start flashing green. Once the battery is full, the green light remains solid for 30 seconds and then turns off.

Battery status

Battery status (handle on plugged-in charger/charging travel case)

When the handle is placed on the charger or in the charging travel case, the battery indicator shows the battery level.

Battery status
Number of flashing LEDs
LED color

Low 1 Flashing green
Partially full 2 Flashing green
Full 3 Flashing green until full,	then green for 30 seconds and then switches off

Battery status (when handle is not on plugged-in charger/charging travel case)

When the toothbrush is awake, the battery indicator at the bottom of the handle shows the battery level.

Battery status Number of LEDs LED color

Full 3 Solid green

Partially full 2 Solid green
Medium low 1 Solid green
Low 1 with 3 beeps after brushing	Flashes amber
Empty 1 with 2 beeps after brushing	Flashes amber

Note: To save energy, the battery indicator will switch off when not in use.
Note: When the battery is completely empty, the toothbrush switches off. Place the toothbrush on the charger to charge it.
Note: To keep the battery fully charged at all times, you may keep your toothbrush on the charger when not in use.

Cleaning

Toothbrush handle

Line drawing of a biological or anatomical structure with a central rod and branching structures (no text or symbols)

1 Remove the brush head and rinse the metal shaft area and buttons with warm water. Make sure you remove any residual toothpaste on the handle and around the buttons at least once a week, but preferably after each use.

Caution: Do not push on the rubber seal on the metal shaft or around buttons with sharp objects, as this may cause damage.

2 Wipe the entire surface of the handle with a damp cloth.

Note: Do not tap the handle on the sink to remove excess water.

3 Dry the handle with a soft cloth or towel.

Brush head

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

1 Rinse the brush head and bristles after each use.
2 Remove the brush head from the handle and rinse the brush head connection with warm water at least once a week. Rinse the travel cap as often as needed and air dry. Use only on a dry brush head.

Note: The brush head cap is used for shipping purposes and is not intended for continued use.

Charger

1 Unplug the charger before you clean it.
2 Wipe the surface of the charger with a damp cloth.
3 Dry the charger with a soft cloth or towel.

Travel case

Rinse with warm water and use a damp cloth to clean the travel case and allow to air dry.

Storage

If you are not going to use the product for an extended period of time, unplug it from the electrical outlet, clean it and store it in a cool and dry place away from direct sunlight.

Replacement

Replace Philips Sonicare brush heads every 3 months to achieve optimal results. Use only Philips Sonicare replacement brush heads.

Locating the model number

Look on the bottom of the Philips Sonicare toothbrush handle for the model number (e.g.HX740x).

Troubleshooting (ROW)

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the

information below, visit www.philips.com/support and insert your model number for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible Cause Solution

I cannot fully attach the brush head. There is a gap between the brush head and handle.		This gap is normal and is needed for the brush head to vibrate appropriately. The brush head must be able to move to create the right amount of vibrations.
My Philips Sonicare toothbrush vibration is less powerful than before.	The brush head is too close to the body of the handle.	Remove the brush head from the handle and re-set it on the metal shaft leaving a small gap.(1-2mm).
The toothbrush stops working.	The battery is empty. Charge the toothbrush handle on the charger.
I charged my toothbrush, but it only works for a short time.	The toothbrush handle is not placed vertically on the charger, resulting in no charge.	Place the handle vertically on charger base and make sure the charger is plugged in.

WARRANTY EXCLUSIONS

What is not covered under warranty:

• In mouth attachments including brush heads and nozzles.
• Damage caused by use of unauthorized replacement parts or unauthorized brush heads.
• Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
• Normal wear and tear, including chips, scratches, abrasions, discoloration or fading.

IMPLIED WARRANTIES

ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE EXPRESS WARRANTIES SET FORTH ABOVE. IN SOME STATES LIMITATIONS ON DURATION OF IMPLIED WARRANTIES DO NOT APPLY.

LIMITATION OF REMEDIES

IN NO EVENT SHALL PHILIPS OR ANY OF ITS AFFILIATED OR SUBSIDIARY COMPANIES BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, LOSS OF SAVINGS OR REVENUE; LOSS OF PROFIT; LOSS OF USE; THE CLAIMS OF THIRD PARTIES INCLUDING, WITHOUT LIMITATION, DENTISTS AND DENTAL HYGIENISTS; AND COST OF ANY SUBSTITUTE EQUIPMENT OR SERVICES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Warranty and support (ROW)

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty exclusions

What is not covered under warranty:

• In mouth attachments including brush heads and nozzles.
• Damage caused by use of unauthorized replacement parts or unauthorized brush heads.
• Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
• Normal wear and tear, including chips, scratches, abrasions, discoloration or fading.

Recycling

• This symbol means that electrical products and batteries shall not be disposed of with normal household waste.
• Follow your country's rules for the separate collection of electrical products and batteries.

- The built-in rechargeable battery must be removed by a qualified professional when the product is discarded. Instructions for removal of built-in rechargeable batteries can be found on www.philips.com/support. Use the Philips support home search bar to enter the toothbrush model number and find your product. The model number begins with "HX" (e.g. HX123A) and can be found on the bottom of your toothbrush. The battery removal instructions are in the Troubleshooting and Repair section of the product's support page.

- If batteries are damaged or leaking, avoid contact with the skin or eyes. If this occurs, immediately rinse well with water and seek medical care.

- When you handle batteries, make sure that your hands, the product and the batteries are dry.

Giriş

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a bulb-like shape with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

Diagram showing a mechanical joint with an arrow indicating 45° angle (no text or symbols present)

Diagram showing dental alignment with a tool interacting with teeth (no text or labels)

Azərbaycanca

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean diffuse

Pure electrical circuit lines without any symbols

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a bulb-like shape with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'C'.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

clean sensitive

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Illustration of a toothbrush with a circular icon showing a sensor symbol (no text or labels)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small central object, connected to a circular base (no text or symbols)

Simple line drawing of a fork with a pen inserted, no text or symbols present

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'On'.

Diagram showing a hand holding a small object with directional arrows, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

Dansk

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean diffusive

Pure electrical circuit lines without any symbols

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pen to apply a small object, with an inset showing a magnified view of a textured surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'OK' pointing to it.

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

clean surface

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a toothbrush with a sensor icon and a circle highlighting the sensor area (no text or symbols present)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square component on a circular base (no text or symbols)

Simple line drawing of a fork with a knife inserted, no text or symbols present

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

www.philips.com/support

Tähtis ohutusteave

MEDITSIINILISED HOIATUSED

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Simple line drawing of a bulb-like shape with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pen to apply a sample onto a surface, with an inset showing a magnified view of the sample (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified view (no text or symbols)

Eesti

clean sensitive

Simple line drawing of a vertical panel with three circular components and a separate circular component (no text or symbols)

Diagram of a toothbrush with a sensor icon and magnified view of its base (no text or symbols)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Illustration of a medical procedure involving an incision or needle inserted into a patient's abdomen (no text or symbols present)

Illustration of two hands using a tool to cut or mark a mechanical component, with no visible text or symbols.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'C'.

Diagram showing dental tool interacting with teeth (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

dashed dotted

Clean Sensitive (suave)

Pure electrical circuit lines without any symbols

Diagram of a toothbrush with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square component on a circular base (no text or symbols)

Line drawing of a medical procedure with a tool and tubing (no text or symbols)

Illustration of two hands holding a rifle with a diagonal line crossing through (no text or symbols)

GARANTÍAS IMPLÍCITAS

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean diffuse

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Illustration of a toothbrush with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing two dental arch structures with numbered labels indicating different tooth positions or regions.

Simple diagram showing a device pressing into a circular component with a cable (no text or symbols)

Simple line drawing of a medical procedure with a tool and tubing (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

EXCLUSIONS DE GARANTIE

www.philips.com/support

www.philips.com/support

Napomena: značajke različitih modela mogu se razlikovati. Neki modeli možda nisu opremljeni sustavom Bluetooth ili NFC.

POHRANITE OVE UPUTE

Na proizvodu se mogu pojaviti sljedeći simboli:

Simple line drawing of an open book with no text or symbols visible

Ovaj simbol znači da prije upotrebe uređaja morate pročitati upute za upotrebu.

XXXXXX

Ovaj simbol znači da morate upotrijebiti naznačeno napajanje.

Namjena

Električne četkice za zube Sonicare namijenjene su za uklanjanje naslaga i ostataka hrane sa zuba kako bi se smanjio karijes te poboljšalo i održavalo oralno zdravlje.

Vaš Philips Sonicare (Slika 1)

1 Drška
2 gumb za uključivanje/isključivanje
3 indikator intenziteta
4 gumb za način rada / intenzitet
5 indikator načina rada
6 podsjetnik o zamjeni glave četkice
7 indikator baterije
8 svjetlosni prsten

Dodaci:

9 poklopac glave četkice

10 pametne glave četkice

11 simbol značajke BrushSync

12 USB punjač (zidni adapter nije uključen)

13 putna torbica

Napomena: priloženi dodaci mogu se razlikovati ovisno o kupljenom modelu.

Početak korištenja

Postavljanje glave četkice

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

2 Glavu četkice čvrsto pritisnite prema dolje na metalnu osovinu drške sve do kraja.

Napomena: Uobičajeno je vidjeti blagi razmak između glave četkice i drške.

Uporaba četkice za zube Philips Sonicare

Ako prvi put upotrebljavate četkicu za zube Sonicare, normalno je da osjećate više vibracija nego pri upotrebi četkice za zube koja nije električna. Korisnici pri prvoj upotrebi često primjenjuju preveliki pritisak. Samo blago pritisnite i četkanje prepustite četkici za zube. Za najbolje iskustvo slijedite upute za četkanje u nastavku.

Da biste se jednostavnije prebacili na svoju novu električnu četkicu za zube Sonicare, upotrebljavajte nižu postavku prvih 1 – 2 tjedna, a zatim prijeđite na višu postavku.

Upute za četkanje

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Smočite vlakna četkice i nanesite malu količinu paste za zube.

45°

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

Diagram showing dental tool application on upper teeth with a magnified view of tooth structure (no text or labels)

clean sensitive

Da biste ručno promijenili način rada, pritisnite gumb za način rada / intenzitet dok je četkica za zube isključena. Sve glave četkice rade u svakom načinu rada.

Clean Sensitive

Prednost uklanjanje naslaga izuzetno osjetljivi način
		rada za osjetljive zube i desni
Preporučena razina intenziteta	visoka niska*
Ukupno vrijeme četkanja	2 minute 2 minute
Kako četkati četkajte svaki segment20 sekundi		četkajte svaki segment20 sekundi

Jačine

Postavke jačine

Pure electrical circuit lines without any symbols

Vaša električna četkica za zube ima tri različite postavke intenziteta:

• Visok intenzitet (tri svjetla)
• Srednji intenzitet (dva svjetla)
• Nizak intenzitet (jedno svjetlo)

Napomena: za najbolje rezultate preporučujemo visok intenzitet.

×3 ×2 ×1

Illustration of a toothbrush with a circular icon showing wireless signal (no text or symbols)

Tehnologija BrushSync omogućava glavi četkice da komunicira s drškom s pomoću mikročipa. Šimbol na donjem dijelu glave četkice naznačuje da je glava četkice opremljena tom tehnologijom.

Tehnologija BrushSync omogućuje:

Line drawing of a person holding a pen, no text or symbols present

Simple diagram showing a device with a circular component being inserted into a cylindrical base (no text or symbols)

2 Stavite dršku na punjač.

Line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

1 Odvojite glavu četkice i isperite prostor oko metalne osovine i tipki toplom vodom. Najmanje jednom tjedno, a po mogućnosti nakon svake upotrebe, obavezno uklonite svu preostalu zubnu pastu s drške i oko tipki.

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'OK' pointing to it.

Diagram showing dental tool application on upper teeth with magnified view of tooth structure (no text or labels)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean improve

Simple line drawing of a vertical panel with three circular components and a separate circular component (no text or symbols)

Diagram of a microphone with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a toothbrush (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

Simple diagram showing a circular icon with directional arrows and a small circle connected by a line (no text or symbols)

Diagram showing a mechanical component with a downward arrow and a small square component on a circular base (no text or symbols)

Simple line drawing of a medical procedure with a tool and tubing (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Samitriniet sarus un uzklājiet mazliet zobu pastas.

45°

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a switch or control interface.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Illustration of dental arching technique showing tooth arrangement and tooth removal (no text or symbols)

Latviešu

clean diffuse

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a toothbrush with a sensor icon and a circle highlighting the sensor area (no text or symbols present)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Line drawing of a medical procedure with a needle inserted into a tube (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

www.philips.com/support

Svarbi saugos informacija

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a pointed tip, showing a force or grip (no text or symbols present)

Simple line drawing of a vertical pipe or tube with a checkmark indicating a detail (no text or symbols present)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'On' pointing to it.

Illustration of a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a toothbrush with a sensor icon and a circle highlighting the sensor area (no text or symbols present)

Line drawing of a person holding a toothbrush (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth positions or regions.

Simple diagram showing a device with a circular component and a small square object on a base, no text or symbols present.

Line drawing of a medical procedure involving an incision or needle inserted into a patient's abdomen (no text or labels)

Lietuviškai

Illustration of two hands holding a tool with a diagonal line crossing through (no text or symbols)

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a bulb-like shape with a checkmark mark (no text or symbols)

Illustration of a hand holding a pen, with an inset showing a magnified view of a cylindrical object (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'C'.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean SINEMA

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Illustration of a toothbrush with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a cigarette (no text or symbols)

Diagram showing a mechanical component with a downward arrow and a small rectangular object on a base (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand holding a pen, with an inset showing a magnified view of a cylindrical object (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'C'.

Illustration of dental tool application on upper teeth with magnified detail (no text or symbols)

Simple line drawing of a vertical panel with three circular components and a separate circle connected to the top panel (no text or symbols)

Diagram of a toothbrush with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a pen, no text or symbols present

Simple diagram showing a device with a circular component and a small square object on a base, no text or symbols present.

Line drawing of a medical procedure involving an incision and needle insertion (no text or symbols)

272 Nederlands

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a bulb-like object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a switch or control.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols beyond the angle marker)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

Diagram showing two types of dental arches with numbered labels indicating different tooth positions or regions.

clean diffuse

Pure electrical circuit lines without any symbols

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Simple line drawing of a biological structure with a pointed tool inserted, no text or symbols present

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

www.philips.com/support

Xavfsizlikka oid muhim axborot

Mahsulotdan faqat to'g'ri maqsadda foydalaning. Mahsulotdan hamda uning batareyalari va aksessuarlaridan foydalanishni boshlashdan oldin ushbu axborotni diqqat bilan o'qib chiqing va keyinchalik murojaat qilish uchun uni saqlab qo'ying. Noto'g'ri foydalanish xavflarga yoki jiddiy jarohatlarga olib kelishi mumkin.

OGOHLANTIRISHLAR

• Faqat original Philips aksessuarlaridan va sarf materiallaridan foydalaning. Agar to'plamda mavjud bo'lsa, faqat original USB kabeldan va USB ta'minot blokidan foydalaning.
• Jihoz foydalanuvchi xizmat ko'rsata olmaydigan qismlarga ega. Agar jihoz shikastlangan bo'lsa, undan foydalanishni to'xtating va mamlakatingizdagi Mijozlarga xizmat ko'rsatish markaziga murojaat qiling. Agar USB kabel shikastlangan bo'lsa, undan foydalanishni to'xtating.
• Quvvatlagichlarni suvdan uzoqda tuting.
• Tozalashdan keyin quvvatlagichlar va sayohat quvvatlagich g'iloflarini tarmoqqa ulashdan avval to'liq quriganini tekshiring.
• Ushbu jihoz bolalar hamda jismoniy, hissiy yoki aqliy qobiliyatlari cheklangan yoki tajriba va bilimga ega bo'Imagan shaxslar tomonidan, agar ularga jihozdan xavfsiz foydalanish bo'yicha ko'rsatmalar berilgan bo'lsa yoki ular nazorat ostida bo'lsalar va agar ular undan kelib chiqishi mumkin bo'Igan xavfni tushunsalar, ishlatilishi mumkin. Bolalar jihozni tozalash va unga xizmat ko'rsatish ishlarini nazoratsiz amalga oshirmasliklari lozim.
• Bolalar mahsulot bilan o'ynamasliklari nazorat ostida bo'lishi lozim.
• Mahsulotning hech bir qismini idish yuvish mashinasida tozalamang.
• Adapterlar va quvvatlagichdan tashqarida yoki isitiladigan yuzalar yaqinida foydalanmang.
• Jihoz faqat tishlarni, milklarni va tilni tozalash uchun ishlab chiqilgan.

- Tuklari singan yoki bukilgan cho'tka kallagidan foydalanishni to'xtating. Cho'tka kallagini har 3 oyda yoki agar eskirganlik belgilari namoyon bo'lsa – undan ham tezroq almashtiring.

- Tarkibida efir moylari yoki kokos moyi bo'lgan mahsulotlarning bevosita teginishidan saqlaning. Teginish – cho'tkaning siljib qolishiga olib kelishi mumkin.

- Foydalanishning maksimal balandligi – 4500 metr.

TIBBIY OGOHLANTIRISHLAR

• Agar foydalanishdan keyin ortiqcha qon chiqishi kuzatilsa, qon chiqishi 1 hafta foydalangandan keyin ham davom etsa yoki noqulaylik va og'riq his qilsangiz, jihozdan foydalanishni to'xtating va stomatolog/shifokorga murojaat qiling.
• Agar oxirgi 2 oy ichida og'izda yoki milklarda jarrohlik ishlari olib borilgan bo'lsa, jihozdan foydalanishdan avval shifokor bilan maslahatlashing.
• Agar sizga kardiostimulyator yoki boshqa qurilma implantatsiya qilingan bo'lsa, foydalanishdan oldin shifokor bilan yoki implantatsiya qilingan qurilma ishlab chigaruvchisi bilan maslahatlashing.
• Agar salomatligingizda masalalar bor bo'lsa, ushbu jihozdan foydalanishdan avval shifokor bilan maslahatlashing.
• Ushbu jihoz shaxsiy parvarish qurilmasi bo'lib, stomatologik klinikada yoki muassasada bir necha bemorlar foydalanishi uchun mo'ljallanmagan.

BATAREYA XAVFSIZLIGIGA OID KO'RSATMALAR

• Bu jihozda faqat malakali shaxslar chiqara oladiğan batareyalar mavjud.
• Mahsulotdan faqat to'g'ri maqsadda foydalaning. Mahsulotdan hamda uning batareyalari va aksessuarlaridan foydalanishni boshlashdan oldin ushbu axborotni diqqat bilan o'qib chiqing va keyinchalik murojaat qilish uchun uni saqlab qo'ying. Noto'g'ri foydalanish xavflarga yoki jiddiy jarohatlarga olib kelishi mumkin. Taqdim etilayotgan aksessuarlar turli mahsulotlarda o'zaro farqlanishi mumkin.
• Fagat original Philips aksessuarlari va sarf materiallaridan foydalaning.
• Mahsulotni va batareyalarni olovdan nari tuting va quyosh yoki yuqori harorat ta'sirida goldirmang.
• Agar mahsulot noodatiy qizib ketsa yoki hid chiqarsa yoki rangini o'zgartirsa yoki odatdagidan uzoq vaqt quvvatlansa, undan foydalanishni va quvvatlashni to'xtating va Philips kompaniyasiga murojaat giling.

• Mahsulotni va uning batareyalarini mikroto'lqinli pechga yoki induksiyali plitaga qo'ymang.

• Batareyalar qizishi yoki zaharli va xavfli moddalar ajralishining oldini olish uchun jihozni yoki batareyani ochmang, o'zgartirmang, teshmang, shikastlamang yoki qismlarga ajratmang. Qayta quvvatlanadigan batareyalarning qisqa tutashuviga, ortiqcha quvvatlanishiga yoki teskari quvvatlanishiga yo'l qo'ymang.

• Bu jihozda almashtirib bo'Imaydigan batareyalar mavjud. Batareya xizmat muddatining oxiriga yetganida jihoz tegishli tarzda chiqindiga tashlanishi kerak, Qayta ishlash bo'limiga qarang.
• Faqat Philips HX6110 kirish nominallari bilan quvvatlang: 4,75-5,25VDC, 1,5 Vt.
• Mahsulotni 0 °C va 40 °C orasidagi haroratda quvvatlang va ishlating.
• Batareyani ajratib olgach, qisqa tutashuv sodir bo'lmasligi uchun batareya klemmalariga metall buyum (masalan, tanga, soch qadagich, uzuk) tegishining oldini oling. Batareyalarni zarqog'ozga o'ramang. Batareyani chiqindiga tashlashdan avval, uning klemmalarini skotch bilan o'rang yoki batareyani paketga soling.
• Bu jihozda litiy-ionli qayta quvvatlanadigan batareya mavjud. TEGISHLI TARTIBDA QAYTA ISHLANISHI YOKI CHIQITGA CHIQARILISHI KERAK.

Saqlash va tashish sharoitlari

Harorat -20^ to +60^ ( -4^ dan 140^ gacha) gacha.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

1 Cho'tka tuklari dastaning old qismi bilan bir xil yo'nalishda bo'lishi uchun cho'tka kallagini tekislang.

Simple line drawing of a funnel with a checkmark indicating completion (no text or symbols)

2 Cho'tka kallagini u boshqa kirmagunigacha metall valga qattiq bosing.

Izoh: Cho'tka kallagi va dasta orasida kichik tirqish ko'rinishi – normal holat.

Philips Sonicare tish pastangizdan foydalanish

Agar Sonicare tish pastasidan birinchi marta foydalanayotgan bo'lsangiz, elektr bo'Imagan tish cho'tkasidan foydalanishga qaraganda ko'proq tebranish sezish normal holat. Odatda birinchi marta foydalanayotgan foydalanuvchilar ortiqcha bosim beradi. Faqat yumshoq bosib bering va tish cho'tkasi siz uchun tozalashiga imkon bering. Eng yaxshi taassurot uchun tish tozalash ko'rsatmalariga amal qiling.

Yangi Sonicare motorli tish cho'tkasiga o'tishingizga yordam berish uchun ilk 1-2 hafta pastroq sozlamada foydalaning, keyin yuqoriroq sozlamaga o'ting.

Tish tozalash ko'rsatmalari

Illustration of a hand holding a pipette with a magnified inset showing a droplet on a surface (no text or symbols)

1 Cho'tkani namlang va unga kam miqdorda tish pastasi surting.

45°

2 Tish cho'tkasini tishlar qarshisida kichik (45 daraja) burchak ostida tuting. Cho'tkalar milk chizig'iga yoki uning tagiga yetishi uchun uni qattiq dosing. Izoh: Cho'tka markazini tishlarga doimi to'liq tekkizib turing.

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'OK'.

3 Philips Sonicare qurilmasini yoqish uchun yoqish/o'chirish tugmasini bosing.

45°

4 Cho'tkani tishlar va milk chizig'iga yengil tutib turing. Cho'tkalar tishlar orasiga kirishi uchun cho'tka kallagini oldinga-orqaqa kichik harakatlar bilan tishlaringizni tozalang. Bu harakatlarni tish tozalash siklingiz yakunlangunga qadar bajaring.

Diagram showing dental tool application on upper teeth with magnified view (no text or symbols)

clean sensitive

Bu rejimni oddiy usulda almashtirish uchun tish cho'tkasi o'chiq paytda rejim/jadallik tugmasini bosing. Barcha cho'tka kallaklari alohida rejim bilan ishlaydi.

Clean Sezuvchan

Foydasi Qasmoqlarni ketkazish Sezuvchan tishlar va		milklar uchun juda yumshoq rejim
Tavsiya etilgan jadallik darajasi	Yuqori Past*
Jami tish tozalash vaqti	2 daqiga 2 daqiga
Tozalash usuli Har bir segmentni 20 soniyadan tozalang		Har bir segmentni 20 soniyadan tozalang

Intensivlik

Jadallik sozlamalari

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Motorli tish cho'tkangiz 3 turdagi jadallik sozlamalari bilan jihozlangan:

• Yuqori jadallik (uchta chiroq)
• O'rta jadallik (ikkita chiroq)
• Past jadallik (bitta chiroq)

Diagram of a microphone with a sensor icon and signal symbol (no text or labels)

BrushSync texnologiyasi cho'tka kallagining dasta bilan mikrochip orqali muloqot qilishiga yordam beradi. Cho'tka kallagi ostidagi Belgisi cho'tka kallagi ushbu texnologiya bilan jihozlanganini anglatadi.

BrushSync texnologiyasi quyidagilarni faollashtiradi:

• Cho'tka kallagini almashtirishni eslatish funksiyasi
• BrushSync rejimini jiftlash

Philips Sonicare BrushSync texnologiyasiga ega keng turdagi smart cho'tka kallaklarini taklif qiladi. Tish cho'tkasining cho'tka kallaklari to'liq ko'lami bilan

tanishish va sizga eng mos keladigan cho'tka kallagini topish uchun

www.philips.com/toothbrush-heads veb-saytiga kiring.

Funksiyalar

• Bosim sensori bildirgisi
• BrushPacer
• SmarTimer
• EasyStart
• Cho'tka kallagini almashtirishni eslatish funksiyasi
• Cho'tka kallagini juftlash rejimi

Line drawing of a person holding a pen, no text or symbols present

Ortiqcha bosim qo'llasangiz, bosimni kamaytirmaguningizgacha dasta tovushi va tebranishini o'zgartiradi va dasta quyi qismidagi cho'tkalash bildirgi chirog'i miltillaydi (binafsharang).

Izoh: Mahsulotingizda bosim sensori bildirgisi faol holatda taqdim etiladi. Bu funksiyani faolsizlantirish uchun (qarang "Funksiyalarni faollashtirish yoki faolsizlantirish").

BrushPacer

Diagram showing dental arch anatomy with numbered labels for different tooth positions or regions

Diagram showing a mechanical component with a downward arrow and a small square base, no text or symbols present.

2 Dastani quvvatlash moslamasiga joylang.

3 Biriktirilgan USB kabelni quyidagi 5V kuchlanishli doim tok ta'minot blokiga ulang.

- Faqat Philips bilan muvofiq quvvatlagichlar yoki nominal kirish quvvatlari bilan xavfsizligi tasdiqlangan adapterlarida quvvatlang: 100 - 240V\~; 50/60Hz; 3,5 Vt va chiqish kuchlanishi 5VDC; 2,5 Vt.

- UL bilan qayd etilgan yoki 1310 Toifa 2 bilan sertifikatlangan quvvat ta'minoti (faqat NAM)

4 Batareya indikatori va chiroq halqasi yonadi, dasta ikki marta signal beradi va dastadagi barcha chiroqlar dastaning yuqori qismidan ostiga qarab yonadi.

5 Batareyaning miltillovchi indikatori tish cho'tkasi quvvatlanayotganini bildiradi.

6 Dasta quvvatlagichda bo'lsa va batareya to'liq quvvatlansa, batareya indikatorining LED chiroqlari yashil rangda miltillashni boshlaydi. Batareya to'liq quvvatlansa, yashil chiroq 30 soniya yonib turadi va keyin o'chadi.

Batareya holati

Batareya holati (dasta quvvatlagich/sayohat g'ilofiga ulangan)

Dasta quvvatlagichga yoki sayohat quvvatlagich g'ilofiga joylanganda batareya indikatori batareya darajasini aks ettiradi.

Batareya holati

Miltillovchi LED chiroqlar soni

LED rang

Past 1 Miltillovchi yashil

Qisman to'Igan 2 Miltillovchi yashil

To'Igan 3 To'Igunicha yashil

rangda miltillaydi, keyin 30 soniya yashil rangda yonib turadi va keyin o'chadi

Batareya holati (dasta quvvatlagich/sayohat g'ilofiga ulanmaganida)

Tish cho'tkasi faolligida dasta ostidagi batareya indikatori batareya darajasini aks ettiradi.

Batareya holati LED chiroqlar soni LED rang

To’lgan 3 Yaxlit yashil
Qisman to’lgan 2 Yaxlit yashil
O’rtacha past 1 Yaxlit yashil
Past Tozalashdan keyin 3 ta qisqa signal bilan 1 marta	Sariq rangda miltillaydi
Bo’sh Tozalashdan keyin 2 ta qisqa signal bilan 1 marta	Sariq rangda miltillaydi

Izoh: Energiya tejash uchun batareya indikatori ishlatilmayotganida o'chadi.

Line drawing of a biological specimen with an arrow pointing to a needle inserted into a tubular structure (no text or labels)

1 Cho'tka kallagini chiqarib oling va metall val atrofi va tugmalarini iliq suv bilan yuving. Dasta va tugmalar atrofidagi tish pastasi qoldiqlarini haftada kamida bir marta, lekin yaxshisi har foydalanishdan keyin tozalang.

Ogohlantirish: Metall valdagi yoki tugmalar atrofidagi rezina zichlagichni o'tkir narsalar bilan bosmang, bu shikastlanishga olib kelishi mumkin.

2 Dastaning butun yuzasini nam mato bilan artib oling.

Izoh: Ortiqcha suvni yo'qotish uchun dastani rakovinaga urmang.

3 Dastani yumshoq mato yoki sochiq bilan quriting.

Cho'tka kallagi

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

1 Cho'tka kallagi va cho'tkani har foydalanishdan keyin yuving.
2 Cho'tka kallagini dastadan chiqarib oling va cho'tka kallagi ulanish qismini kamida haftada bir marta iliq suv bilan yuving. Sayohat qopqog'ini zarur bo'lgancha tez-tez yuving va havoda quriting. Faqat quruq cho'tka kallagida ishlating.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a pointed tip and arrow indicating direction (no text or symbols)

Simple line drawing of a funnel with a checkmark mark (no text or symbols)

Illustration of a hand using a pen to apply a small object to a surface, with an inset showing a magnified view of a textured surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

Illustration of dental tool application on upper teeth with magnified detail (no text or symbols)

clean MOSO

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a toothbrush with a circular icon showing wireless signal (no text or symbols)

Line drawing of a person holding a toothbrush (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth positions or regions.

Simple diagram showing a device pressing into a cylindrical component with a cable (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a pointed tip and arrow indicating direction (no text or symbols)

Simple line drawing of a curved object with a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'C'.

Illustration of dental tool application on upper teeth (no text or symbols)

clean MINTOATE

Simple line drawing of a vertical panel with three circular components and a separate circular component (no text or symbols)

Diagram of a microphone with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a toothbrush (no text or symbols)

Diagram showing a mechanical component with a downward arrow and a small rectangular object on a base (no text or symbols)

Simple line drawing of a fork with a knife inserted, no text or symbols present

Illustration of two hands using a tool to tie or stand on a diagonal line (no text or symbols)

GARANTIAS IMPLÍCITAS

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'OK' pointing to it.

Illustration of dental tool application on upper teeth (no text or symbols)

clean diffuse

Simple line drawing of a device with three circular components and a vertical panel (no text or symbols)

Diagram showing a microphone with a Wi-Fi symbol and a speech bubble, likely illustrating a wireless signal or notification.

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, no text or symbols present.

Simple line drawing of a medical procedure with a tool inserted into tissue (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component (no text or symbols visible)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a pointed tip, showing a force or grip (no text or symbols present)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'C'.

Diagram showing a hand holding a small object with directional arrows, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

clean sensitive

Pure electrical circuit lines without any symbols

Diagram of a toothbrush with a sensor icon and a magnified circular detail (no text or symbols)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square component on a circular base (no text or symbols)

Simple line drawing of a medical procedure with a tool and tubing (no text or symbols)

Illustration of two hands using a tool to tie or stand on a diagonal line (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Ta simbol pomeni, da morate pred uporabo aparata prebrati navodila za uporabo.

XXXXXX

Ta simbol pomeni, da morate uporabiti navedeni napajalnik.

Predvidena uporaba

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a vertical pipe or tube with a checkmark indicating a specific point (no text or symbols present)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a switch or control interface.

3 Zobno ščetko Philips Sonicare vklopite tako, da pritisnete gumb za vklop/izklop.

Diagram showing a hand holding a tool with an arrow indicating rotation, labeled '45°' (no text or symbols on the diagram itself)

Diagram of dental arching with tooth structure and shaded area (no text or labels)

clean Eggsive

Simple line drawing of a device with three circular components and a vertical bar (no text or symbols)

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Diagram showing dental arch anatomy with numbered labels for different tooth positions or regions

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

www.philips.com/support

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Tento symbol znamená, aby ste si pred použitím zariadenia prečítali návod na použitie.

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'Control' pointing to it.

Diagram showing dental tool application on upper teeth with magnified view of tooth structure (no text or labels)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

clean diffuse

Pure electrical circuit lines without any symbols

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a toothbrush (no text or symbols)

Simple diagram showing a device with a circular component and a small square object on a base, no text or symbols present.

Line drawing of a medical procedure involving an incision or needle inserted into a patient's abdomen (no text or labels)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Ovaj simbol označava da je potrebno pročitati uputstvo za upotrebu pre korišćenja uređaja.

XXXXXX

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

1 Poravnajte glavu četkice tako da su vlakna okrenuta u istom smeru kao i prednja strana drške.

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

2 Čvrsto pritisnite glavu četkice na metalnu osovinu do kraja.

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Pokvasite vlakna i nanesite malu količinu paste za zube.

45°

2 Postavite vlakna četkice za zube na zube tako da budu pod blagim uglom (45 stepeni). Čvrsto pritisnite kako bi vlakna stigla do desni ili malo ispod desni.

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a switch or control interface.

Diagram showing a hand holding a small object with directional arrows, labeled '45°' (no text or symbols on the diagram itself)

4 Nežno držite vlakna na zubima i desnima. Perite zube blagim pokretima unapred i unazad tako da vlakna mogu da dosegnu između zuba. Nastavite sa ovakvim pokretima tokom celog ciklusa pranja zuba.

Diagram showing dental tool application on upper teeth with magnified view of tooth structure (no text or labels)

clean sensitive

Da biste ručno promenili režim, pritisnite dugme za režim/intenzitet kad je četkica za zube isključena. Sve glave sa četkicom rade u svakom režimu.

Clean Osetljivi

Pogodnost Uklanjanje plaka Veoma nežan režim za		osetljive zube i desni
Preporučeni nivo intenziteta	Visok Nizak*
Ukupno vreme pranja zuba	2 minuta 2 minuta
Kako se pere perite svaki segment 20 sekundi		perite svaki segment 20 sekundi

Intenziteti

Postavke intenziteta

Pure electrical circuit lines without any symbols

Električna četkica za zube ima 3 različitih postavki za intenzitet:

• Veliki intenzitet (tri svetla)
• Srednji intenzitet (dva svetla)
• Mali intenzitet (jedno svetlo)

Napomena: za najbolje rezultate preporučujemo visok intenzitet.

×3 ×2 ×1

Da biste ručno izabrali željeni intenzitet, pritisnite dugme za režim/intenzitet dok je četkica za zube uključena da biste se kretali kroz opcije. Postavka intenziteta se može prilagoditi samo kada je četkica za zube uključena.

Tehnologija BrushSync

Diagram of a toothbrush with a sensor icon and a magnified circular detail (no text or symbols)

Tehnologija BrushSync omogućava glavi četkice da komunicira sa drškom pomoću mikročipa. Simbol 🚠a dnu glave četkice pokazuje da glava četkice posjeduje ovu tehnologiju.

Tehnologija BrushSync omogućava:

Line drawing of a person holding a pen, no text or symbols present

Ako prekomerno pritiskate, drška menja zvuk i vibraciju, a svetlo povratnih informacija o pranju zuba treperi ljubičasto na dnu drške dok ne smanjite pritisak.

Napomena: Proizvod se isporučuje sa aktiviranim povratnim informacijama senzora pritiska. Da biste deaktivirali ovu funkciju (pogledajte 'Aktiviranje ili deaktiviranje funkcija').

BrushPacer

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

2 Postavite dršku na punjač.
3 Povežite priloženi USB kabl na ulazno napajanje jednosmerne struje od 5 V.

Simple line drawing of a fork being inserted into a tube (no text or symbols)

1 Skinite glavu četkice i isperite prostor oko metalne osovine i dugmadi toplom vodom. Najmanje jednom nedeljno, a po mogućnosti nakon svake upotrebe, obavezno uklonite svu preostalu zubnu pastu sa drške i oko dugmadi.

Oprez: Nemojte da gurate gumenu zaptivku na metalnoj osovini ili u području oko dugmadi oštrim predmetima pošto to može da dovede do oštećenja.

2 Čitavu površinu drške obrišite vlažnom krpom.

Napomena: Nemojte da udarate ručkom o sudoperu da biste uklonili višak vode.

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

1 Glavu četkice i vlakna isperite nakon svake upotrebe.
2 Bar jednom nedeljno skinite glavu četkice sa drške i toplom vodom isperite njen priključak. Putni poklopac isperite kad god je to potrebno i osušite na vazduhu. Stavljajte ga samo na suvu glavu četkice.

Napomena: Poklopac glave četkice upotrebljava se u transportu i nije namenjen za stalnu upotrebu.

Punjač

1 Isključite punjač iz električne mreže pre čišćenja.
2 Obrišite površinu punjača vlažnom krpom.
3 Osušite punjač mekom krpom ili peškirom.

Putna torbica

Putnu torbicu isperite toplom vodom i očistite vlažnom krpom i ostavite da se osuši na vazduhu.

Skladištenje

Ako proizvod nećete koristiti duže vreme, isključite ga iz zidne utičnice, očistite ga i odložite na hladno i suvo mesto, dalje od direktne sunčeve svetlosti.

Zamena

Zamenite Philips Sonicare glave četkice na svaka 3 meseca kako biste postigli optimalne rezultate. Koristite samo zamjenske glave četkice Philips Sonicare.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force (no text or symbols)

Simple line drawing of a vertical structure with a checkmark indicating a detail (no text or symbols present)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Simple line drawing of a hand pressing a button on a power button (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Illustration of dental arching technique with tooth arrangement and tool (no text or symbols)

clean MOSOLED

Diagram of a dental arch with numbered labels indicating different tooth positions or regions.

Tehoasetukset

Tehoasetukset

Simple line drawing of a device with three circular components and a vertical bar (no text or symbols)

Diagram of a toothbrush with a circular icon showing wireless signal (no text or symbols)

Line drawing of a person holding a pen, no text or symbols present

Simple diagram showing a mechanical component with a downward arrow and a small cylindrical object on a base (no text or symbols)

Line drawing of a biological specimen with an arrow pointing to a rod inserted into a bulb-like structure (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a vertical pipe or tube with a checkmark indicating a detail (no text or symbols present)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

474 Svenska

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'On' pointing to it.

Diagram showing a hand holding a small object with directional arrows, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

clean diffuse

Diagram showing a circular arrangement of circles next to a vertical line with three circles and a small circle, no text or symbols present.

Diagram of a microphone with a sensor icon and signal symbol, no text or labels present

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Illustration of a medical procedure showing a syringe inserted into an anatomical structure (no text or symbols present)

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

www.philips.com/support

Möhüm howpsuzlyk maglumaty

Bu önümi diñe onuň niyetlenilýän maksady üçin ulanyň. Önümi we onuň batareýalaryny hem-de esbaplaryny ulanmazdan ozal, şu maglumatı üns bilen okaň hem-de geljekde gollanmak üçin ýygnap goýuň. Nädogry ulanmak howplara yá-da agyr şikeslere eltip bilýär.

DUYDURYSLAR

• Diñe hakyky Philips esbaplaryny a-da sarp ediş materiallaryny ulanyň. Eger berlen bolsa, diñe original USB kabelini we USB tok üpjünçilik bloguny ulanyň.
• Bu enjamda ulanyjynyň tehniki hyzmat edip biljek şaýlary ýokdur. Eger enjama zeper ýetse, ony ulanmagy bes ediň we ýurduňyzdaky Müşderi goldawy merkezine ýüz tutuň. USB kabele zeper ýeten bolsa, ony ulanmagy bes ediň.
• Zarýadnikleri suwdan uzakda saklaň.
• Arassalanyňyzdan soň zarýad berijileri we syýahat wagtynda zarýad beriş çehollaryny birikdirmezden ozal olaryň doly gurandygyna göz yetiriň.
• Enjamy çagalar, şeyle hem enjamy howpsuz görnüşde ulanmak boyunça gözükdirijiler berlen ya-da howpsuz ulanmak boyunça gözegçilik astyndaky we değişli howplar özlerine mälim edilen yagdaýnda fiziki, duýgurlyk yada zehin ukyplary pes ya-da tejribesi we bilimi bolmadyk şahslar hem ulanyp biler. Çagalar gözegçilik astynda däl wagty enjamda arassaçylyk we ulanyjy tarapyndan geçirilmäge değişli abatlayış işlerini geçirmeli däl.
• Çagalaryň önlem bilen oýnamazlygyny úpjün etmek üçin olary gözegçilikde saklamaly.
• Önümiň hiç bir bölegini gap-gaç yuwujyda arassalamaň.
• Adapterleri we zarýad berijileri açık howada yá-da gyzdyrylýan üstleriň vákynynda ulanmaň.
• Bu enjam diñe dişleri, diş etini we dili arassalamak üçin dizayın edilendir.

• Gyllary mynjiyan yá-da eplenen çotga nasadkasyny ulanmagy bes ediň. Nasadkany her 3 aydan yá-da könelme alamatlary yüze çyksa, ondan hem ir çalşyryň.

• Düzüminde efir yaglary ya-da kokos yagy bar bolan önümler bilen gönümel galtaşdyrmaň. Galtaşma gyllaryň gopmagyna eltip biler.

• Ulanmagyň maksimum beýikligi 4500 metrdir.

LUKMANÇYLYK DUÝDURYŞLARY

• Eger ulanyşdan soň çendenaşa ganama yüze çyksa, ganama ulanyşdan 1 hepde geçensoň yüze çykmaga dowam etse ya-da bimazalyk ya-da agyry duýsaňyz, enjamy ulanmagy bes ediň we stomatolog/lukman bilen maslahatlaşyn.
• Eger öňki 2 aýda agyz yá-da diş eti operasiýasyny geçiren bolsaňyz, bu enjamy ulanmazdan öň stomatologyňyz bilen maslahatlaşyn.
• Eger size kardiostimulýator yá-da başga bir implant enjam goýlan bolsa, ulanmazdan öň lukmanyňyza yá-da implant enjamyň öndürijisine yüz tutuň.
• Eger lukmançylyk taýdan şübhelenseňiz, bu enjamy ulanmazdan öz lukmanyňyz bilen maslahatlaşyn.
• Bu önüm şahsy ideg enjamy bolup, stomatologik klinikada yá-da edarada birnäge näsagda ulaşmak üçin niyetlenilmeyär.

BATAREYİN HOWPSUZLYGY BOYUNÇA GÖZÜKDIRIJILER

Simple line drawing of an open book with no text or symbols visible

Bu nysan enjamy ulanmazdan ozal ulanyş gözükdirijilerini okaň diýmegi aňladýar.

XXXXXX

Bu nyşan görkezilen elektrik üpjünçiligini ulanmalydygyny aňladýar.

Niyetlenilýän ulanys

Illustration of a hand holding a tool with a pointed tip and arrow indicating direction (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

2 Nasadkany metal walyň üstüne ol aňryk baryp direyänçă közümli basyň.

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

1 Gyllary öllän we üstüne azajyk diş pastasyny çalyn.

45°

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'C' pointing to it.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

clean sensitive

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Elektrikli diş çotgaňyz 3 dürli ýygjamlyk sazlamasy bilen gelýär:

• Yokary yygjamlyk (üç çyra)
• Orta ýygjamlyk (iki çyra)
• Pes yygjamlyk (bir çyra)

Bellik: Iň oňat netijeler üçin ýokary ýygjamlygy maslahat berýāris.

×3 ×2 ×1

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Eger artykmaç basyş etseñiz, tutawaç tä basyşy azaldyançaňyz öz sesini hem-de titremesini üýtgedýär we tutawajyň aşagyndaky çotgalama seslenme çyrasy mawy reňkde ýanyp-öçýär.

Diagram showing a mechanical component with a downward arrow and a small rectangular object on a base (no text or symbols)

2 Tutawajy zarýadnige yerleşdiriň.
3 Dakylgy USB kabelini 5V hemişelik tok çeşmesine birikdiriň,

- Diñe Philips bilen sazlaşykly ya-da giriş derejesi aşakda berlen howpsuzlygy tassyklanan adapterler bilen zarýad berin: 100 - 240V\~; 50/60Hz; 3,5W we çykyş derejeleri 5V hemişelik tok; 2,5W.

- UL talaplaryna laýyk gelýän ya-da 1310 Class 2 standardy boýunça sertifisirlenen tok çeşmesi (diñe NAM)

4 Batareyi görkeziji we çyraly halka ak reňkde ÿanýar, tutawaç iki gezek sesli duýduryş berýär we tutawaçdaky hemme çyralar tutawajyň aşagyndan ýokarlygyna ÿanýar.

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical part, with no visible text or symbols.

1 Her ulanyşdan soň nasadkany we gyllary yuwup durlaň.
2 Azyndan hepdede bir gezek nasadkany tutawaçdan aýryp, nasadkanyň birikmesini ýyly suw bilen ýuwup durlaň. Syýahat gapagyny näçe ýygylykda zerur bolsa ýuwup durlaň we howa bilen guradyň. Diňe gury nasadkany ulanyň.

Bellik: Nasadkanyň gapagy ony daşamakda ulanylýar we hemişe ulanylmaga niyetlenilmeýär.

Zarýadnik

Kepillik we goldaw (ROW)

Maglumat yá-da goldaw gerek bolsa, www.philips.com/support salgysyna girin yá-da halkara kepillik hatyny okaň.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a circular mark and a checkmark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a button labeled 'Power' pointing to it.

Illustration of dental tool application on upper teeth with magnified detail (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

Diagram showing three circular components connected to a vertical line with circular elements (no text or symbols)

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a cigarette (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth positions or regions.

Diagram showing a mechanical component with a downward arrow and a small circular component attached to a base (no text or symbols)

Illustration of a medical procedure showing an incision being inserted into a patient's abdomen (no text or labels)

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand holding a pipette over a surface with an inset showing a droplet on a surface (no text or symbols)

Hand-drawn diagram showing a power button with an 'OK' icon and a button labeled 'OK' pointing to it.

Illustration of a tooth being brushed with a tool, showing teeth and jawbone structure (no text or symbols)

clean MOSO

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a microphone with signal icon and speech bubble, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Simple diagram showing a circular icon with a traffic symbol and a small circle connected by an arrow (no text or labels)

Diagram showing a mechanical component with a downward arrow and a small square component on a circular base (no text or symbols)

Line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to tie or stand on a diagonal line (no text or symbols)

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or movement (no text or symbols)

Simple line drawing of a bulb-like shape with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'OK' pointing to it.

Diagram showing dental tool application on upper teeth with magnified view of tooth structure (no text or labels)

Diagram showing two dental arch structures with numbered labels indicating different tooth positions or regions.

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a microphone with signal icon and connection point (no text or symbols)

Line drawing of a person holding a toothbrush, no text or symbols present

Diagram showing two dental arch structures with numbered labels indicating different tooth positions or regions.

Simple diagram showing a device pressing a small component into a circular base (no text or symbols)

2 Кармагычты кубаттагычтын устүне коюңуз.
3 Камтылган USB кабелин 5V DC кубат булагына туташтырыңыз.

Simple line drawing of a medical procedure with a tool and tubing (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a funnel with a checkmark indicating completion (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a switch or power function.

Diagram showing a mechanical joint or tool interacting with a body, labeled with a 45° angle indicator (no text or symbols beyond the angle marker)

Diagram showing dental tool interacting with teeth (no text or labels)

clean MINTOATE

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a toothbrush with a circular icon showing wireless signal, no text or symbols present

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square component on a circular base (no text or symbols)

Simple line drawing of a medical procedure with a tool and tubing (no text or symbols)

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or pressure (no text or symbols)

Simple line drawing of a curved object with a checkmark indicating a detail (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button with a pointer, likely indicating a control or operation step.

Diagram showing a hand holding a small object with directional arrows, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified detail (no text or labels)

Diagram showing two types of dental arches with numbered labels indicating different anatomical or structural features.

clean surface

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Illustration of a toothbrush with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a pen, no text or symbols present

Simple diagram showing a device pressing into a cylindrical component with a cable (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a pointed tip and arrow indicating direction (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand holding a pen with a dropper, showing a magnified inset of a brush (no text or symbols)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'n', connected by a line to a vertical line.

3 Барои фаьол кардани «Philips Sonicare» тугмаи фаьол/хомўшро пахш кунед.

45°

Diagram showing dental tool application on upper teeth with tooth width measurement (no text or labels)

5 Барои тоза кардани сатххои дарунии дандонхои пеш, дастаки чўткаро нимамудй хам кунед ва дар хар як дандон чанд зарбаи амудии якхеларо анчом дихед.
6 Пас аз анчом додани давраи дандоншуй, шумо метавонед вақти иловагиро барои тоза кардани сатхи хояндаи дандонхо ва чойхое, ки дар он догхо пайдо мешаванд, сарф кунед. Шумо инчунин метавонед забони худро бо чёткаи дандоншуйи фаьол ё гайрифаьолшуда ба таври дилхох тоза кунед.

clean no more clean

Diagram showing a circular arrangement of circles next to a vertical line with three circles and a plus sign, no text or symbols present.

Diagram of a toothbrush with a sensor icon and a circular label (no text or symbols)

Line drawing of a person holding a toothbrush, no text or symbols present

3 Вакте ки нишондихандаи ёдраси ивазкунии саракаи чутка бо ранги зард дурахш мезанад, шумо бояд сараки чуткаро иваз намоед.

Simple diagram showing a device pressing into a cylindrical component with a cable (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a black arrow pointing to it (no text or symbols present)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a circular button, likely indicating a control or operation step.

Illustration of a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool application on upper teeth with magnified view (no text or symbols)

clean servative

Diagram showing a circular arrangement of circles connected to a vertical line with three circles and a plus sign, no text or symbols present.

Diagram of a toothbrush with a sensor icon and a circular label (no text or symbols)

Line drawing of a person holding a pen, no text or symbols present

Diagram showing a mechanical component with a downward arrow and a small square base, connected to a circular base (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of two hands using a tool to cut or mark a surface, with no visible text or symbols

www.philips.com/support

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a curved object with a checkmark mark (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a microplate (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'Control' pointing to it.

Diagram showing a hand holding a small object with directional arrows indicating movement, labeled '45°' (no text or symbols on the diagram itself)

Diagram showing dental tool interacting with teeth (no text or labels)

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Diagram of a microphone with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a toothbrush (no text or symbols)

Diagram showing two dental arch structures with numbered labels indicating different tooth locations or regions.

Simple diagram showing a circular icon with directional arrows and a small circle connected by a line (no text or symbols)

Simple diagram showing a device pressing into a circular component with a cable (no text or symbols)

Simple line drawing of a medical procedure with a needle inserted into tissue (no text or symbols)

Illustration of hands using a tool to cut or adjust a mechanical component, with no visible text or symbols.

Simple line drawing of an open book with no text or symbols visible

Uju 'u2wùn gnìg ٤ unwìhu, nn wùhnpudt2un ٤ lqwnŋwì oqinwqnndúwù hnwhwùquttn` 'uwìhpwù uwnpù oqinwqnndótn:

XXXXXX

Uju ǔ2wùn gnìg ǐ unwìhu, nn wùhnwdtī2n ǐ oqúnwqqnnδtǐ ǔ2uìwǒ hǐtǐyùnpwúwùnwwlqwnwnniún:

Lwwinnwlywjhù oqinwqnδniú

Sonicare winwuttnp uwpntni htiynnwlywu hunqwuwyttnp uwhwintuqlw6 tiu ynwnwylw6 winwutwwwnn u uuuwnjhù uuwgnnnuttnp winwuttnhg htnwgutni hwuiwn, husu oquni5 t'ulwqtgutl winwuttnh ywnhtun u pwntluwlty lyuú wwhwutl ptnwuh hunnzh winnnqnupniun:

2tn Philips Sonicare-n (Uy. 1.)

1 Enuwl
2 3nuwùph úhwúguìwù/wùgùnúwù lynǎwù
3 hùntùuhùnìpàwù gnighs
4 Ναθυή/ηιούμηνηρων ηαων
5 Ntduhutph gnighs
6 lunqwùwlyh qìhuh yhnhuwnhùu wù hì2tigniú
7 Uwnunlngh gnighs
8 Lniuwjhu onwly

Uputuniwnutn.

9 lunqwuwlyh qlhuhlyh ywwwnhs

10 lunqwùwlyh hutlugh qihuhy(utn)

11 BrushSync ǔ2wǔ

12 USB lhgpwulnnhs (wwunh hwnfwnwlyghyn utnwnuqw s5)

13 Azwúhnnwnlywù wwnjwù

^12 niú 3tún unnúwùnnúnn wputuniwnútnn ywnnn tǔ unwnptnúti qùu wǒ ùnntiŋg ywhuylwǒ:

hùzhg ulutl

Uunwqntp hunqwùwlyh qlhuhyn

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

1 lonquuwlyh qihuhyn hwwuwwntgntp wjuwtu, nn uwqhutnu ninnylwsh hutu unju ninnnajwup, hus pnuwlyh nhuwgh lnnun:

Simple line drawing of a funnel with a checkmark indicating completion (no text or symbols)

2 Uúnín utnútāp hunqwùwuh qíhuhyn útnplù útunwnwlywù jhutzh útg, u̅hùzì wǔ yu wùq wūzǔh:

^12 nui' funquwuhgh qihuhh u pnuwuh uhgl uhnpn wugph wnlywnjajniun unnuwl 5:

2tn Philips Sonicare wunwutph hunqwuwgh oqunwqndnniun

tpt wnwghù wùquú tīp oqunwqnδnú ðtn Sonicare winwúh hunqwùwln, wultih 2wn jænæng qawlín ˈunnúwɪl ʃ' hwiútuwinwó nʒ ʃtlynnwlywù hunqwùwlyh htún: lnnúwɪl ʃ, tnp wnwghù wùquú oqunwqnδnŋútnŋ zwiŋhg 2wn tǔ utŋúniú qnnðwnpníu: Uhwjù yhnwnbtp üninp utŋúniú u janjì nuítp, nnwtauqh winwúh hunqwùwlyn ðtn yhnhuwntù úwpnh: hùnnniú tǔp htunutì uunnnu ïtrnlywjwgluwó hunqwùwlyhg oqunuṭlǐní gnigniúutnhù ˈwwlwqnyjù wnnjniúpūtn uwnwùwlni hwiúwn: Uugniún ðtn ñnp Sonicare ʃtlynnwlywù winwúh hunqwùwlyhù ht2unwgútlni hwiúwn winwghù 1-2 zwpwra¶w nǚpawgpníú oqunwqnδtpr wultih guòn ywnqwulnnniú, wjùnihtunl uìgtp wultih puàn ywnqwulnnúwù:

Uwpnúwù hnwhuìqùtn

Illustration of a hand holding a pen, with an inset showing a magnified view of a cylindrical object (no text or symbols present)

Hand-drawn diagram showing a power button with an 'Power' icon and a circular button labeled 'OK' pointing to it.

3 Utnútip hnuwúph úhwugúwù/wùgwnúwù lynǎwʊŋ` Philips Sonicare-n úhwugútɪni hwuśwn:

45°

4 Unpntu wuhtp hunquuwlyh uwqtnu wunwutph ynu untwnwnluw du juntinh tanwqdnui: Uwpntp wunwutpn p#p#uwlyh htun ni wizw 2wndniwutnnu, nnwtuqh hunquuwlyh uwqhutpn hwutu winwutphu: Cwnniuwytip wju 2wndniun atn uwpnuwu ynh wupnng np#wgpnui:

L2niú hunquùwuh uwqhúutnp whtnp t úh únnp ljuìwùwù: hunphnngh unnuíu wunwúutnp uwpntl wjùwtu, hùswtu nnip lúwwpnthp unluŋnwlywù wunwúh hunquùwlnyú:

L2niù 2wihwqwug utò àu2niú qnnδwnntjni ntāwpniú Tnip wjn úwwuhú yhuówuwp prùwlyh panpangh yhnhhnuúwù u úwùni2wlywqnjuìnú pəwnpann lniuwjhù gnighzh úhqngnu:

Diagram showing dental alignment with a tooth and a tool, no text or symbols present

5 Ungluh wunwutuh utnuh uwltytnunyjutyn iwpntini hwuwipatptp hunqwuwlyh pnuwlyn yhuwninhn nhnpnyu u uh pwuh ninnwhwjwg iwpnnn 2wpndiwutn ywuunwtp jninwpwuyjnin wunwuh ynw:

6 Uwpntini hnniù wuupuntinig htinn lwwnn tpr jnwgnighs dwúwúwly hwnlywgutl wunwúutnh dwiúnn úwytntuúttn úwpntiniù u wjù hwnylwòutnhù, npuntn wnwgwùniú 5 pówuynnniú: Uwpnn tpr ūwu lwwpti lqniiù hunqwùwln ywwhtinul úhwgulwó lwwí wúgwùnwó, hùswtu ùwwhupūunnniú tpr:

^12 niú 2tn Philips Sonicare wunwúh hunquúwʊŋ wùuːnwiúq 5 wunwúutnh pntlytunutnh (hunquúwʊŋ qihʊln 2niun 5 uw2ʊniú pntlytunutnh uŋwi) u wunwúutnh ytnwʊwúqūnn hwnúwnwúputnh (ignùniúutn, 2wwyhlúutn, ytǔhnúttn) oqnwɑqnɒsuwi ñtiwpnui, tpti ŋnwup wwnɪn2wá tǔ oqnwɑqnɒluniú l u ʒtiú huuhuːnjuːi:

BrushPacer

Diagram showing two types of dental arches with numbered labels indicating different anatomical or structural features.

Зwinqutni hwiwn, np hwiwwwnwwh tp úwpnniú wúpnng ptnwùn, ptnwùn 6 úwuh pudwutp` oqnuwqnòtlnu BrushPacer qnnðwnnyjən: BrushPacer unthuünqhwù hunqwüwlyúwù dwúwüwlyn pudwūnui 5 6 hwiwwwn úwuh u waŋwù2wǔnui 5, pà tnp 5 hwnywlhn wùgutl hwgnnn hwnylwòhù: Zwinylwòutnh wqnwu2wùnuiún untnh 5 niútuniú panpangh ywnðwinlu wnwnph úhongnu: Umwùh hunqwüwlyù wujinnúwn lytnwnu wùgwunylnui 5 hunqwüwlytini utuhwjh wylwnuhù:

^1 2niú' White lywú Gum Health nbdhúutnú oqunwqnɒtʃu lywnn ʒ wultlwgʊtʃi lnwgnighs dwuwùwly:

Ntchutn

Etiynnwlywù hunqwùwlyù niùh tnplnì ntādhú' Clean u Sensitive: 2tn oqunwqnndowò hutiugh hunqwùwlyh qihuhyh hhúwù ynw` BrushSync nthuúnqhwjh úhqngnu wujnnúwun ytwnynu ynùunnultù owunhúwì ntādhún u hàuntüuhylnjəjniùn:

clean SINEMA

ntdchún átnpnu chnhutni hwiúwn hunqwùwly ùwǔwùnlu wǒ dwúwùwly utnútp ntdhúh/hùntbùuhlnipajwù lynǎwlyn: Fnnn hunqwùwlyútph qihuhýutpù wzhuwinni ßù jnnwpwùyjnn ntdhúnú:

Clean Sensitive

Unwultinipjniù	Unwùwuhwnhhtnugniú	2whwquig utnúntdhu qawjnùwunwùtph ni juntphhwúwn
fùntùuhlnipjwiwwngwnlhynnwunhǎwùn	Fwnàn 8wòn*
funqwùwlytini pùnhwùnin dwaúwùwùn	2 pnwt 2 pnwt
fùzwytu funqwùwlytli	3nnpwùyjnnhwunljuònfunqwùwlytsp 20qujnljuòu	3nnpwùyjnnhwunljuònfunqwùwlytsp 20qujnljuòu

hùntùuhǔnīpājwù wùunhǎwùutn hùntùuhǔnīpājwù yuŋqūwǔnniūutn

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

Etiqunnwlywù hunqwùwlyu niǔh hùntàuhulniājwù 3 unwnptán lqnqwwlnnnui.

• Fwnàn hùntùuhúlníjniù (tʌtp lnyu)
• Uhghù hùnbuuhuŋniŋiǔ (tŋlni lnyu)
• 3ωδη ḥιοντίμυμηληραμι (υθε γινυ)

^12 Niù' Lwúwqniù wnnjniùpùtnh hwiúwn hunphnnŋ bùp unwìhu pwnàn hùntiùuhúnjniù:

×3 ×2 ×1

hùntùuhúlníjwù wùhnwdt2n úwlywnnwyn ótnípnú nùunntīni hwiúwn, utnútp ntdhúh/hùntùuhúlníjwù lynówyn, tnp hunqwùwwyn úhwgulwó t' nùnnwùpùtnnu wùgútīni hwiúwn: hùntùuhúlníjwù ywnqwulnniún lqwnn t s ynhuúti úhwjù, tnp hunqwùwwyn úhwgulwó t:

BrushSync unthuünlnqhw

Diagram of a toothbrush with a sensor icon and a circle highlighting the sensor area (no text or symbols present)

BrushSync unthuünlnqhwiù àtn hunqwùwlyh qihuhlyhù jenjì t̄ unwīhu hwnnnnwulgūti pnùwlyh htún u̅hlunnzhwh oqùnjiēwúp: hunqwùwlyh qihuhlyh uunnnhù hwnluwðniú qunülnn 32wùn gnjg t̄ unwīhu, nn hunqwùwlyh qihuhlyù wwwwhnlqiwò t̄ wju unthuünlnqhwiŋnu:

BrushSync unthuunnqhwiwwwhnlnui 5.

• lunqwùwlyh qlhuhlyh yhnhuwnhùu wù hh2tigniù
• BrushSync nǎdʒuǐh qniqwùlnniú

Ruijtntu

Philips Sonicare-ù wùwǔwǔnǐu lǐ BrushSync (lúnquùwǔhUḥúpnnùwǔnǐu) unthuünlnqhwnjnl hutlwgh hunqwüwwlh qlhuhüutnh lwjt untuwlywuh:

Unqwùwùyǔtnh qìhuìyǔtnh útān wúpnnq unjuwùwùniù dàuùnpàwùwùnì lù dǎq wútiùwhwúwwuwwunwuhuwù qìhuìyīn qúnùtǐnì lù jnugnighz untnǚlníŋajniùutnh hwuìwn wjgtīlāp www.philips.com/toothbrush-heads:

9nρδωνηγρεύτη

• ดูรุณี ดูรุณี ดูรุณี ดูรุณี
• BrushPacer
• SmarTimer
• EasyStart
• lunqwùwlyh qìhuhlyh yhnhuwnhùuòu hìh2tigniú
• lunqwùwuh qihuhuh ntāchūh qniqwulnniū

Line drawing of a person holding a toothbrush (no text or symbols)

tpt wultinnq duzniu bp qnndwnnnui, wuw pnuwlyh dujun u panpengn ynhuyniu bi, huy pnuwlyh uunnphu hwunluwoniu qnuulnn inuwjhu gnighn pwnpaniu uwutni2wlywqnijuni' ushu lu ynlyh uyuqwtagutp duzniun:

^12 niú Ûwnpnú ßwùhuwnnúwó ytnwnú wlnhúwgúwó t zú2úwù utüunnh wnàwqwùpn: Uju qnnòwnnýjāu wwwwwlnhúwgǔtǐn huuíwn (Stu qlnìhu «Ulnhúwgǔtǐ lyuú wwwwwlnhúwgǔtǐ qnnòwnnýjāutīnn»):

BrushPacer

BrushPacer-ŋ hùntŋuŋwɪtʃn h dwiʊwʒwɪh ʒ, nnù oqūniú ʒ àtiq hwiʊwwwnwʒwɪh u̅wpntəl pɛtnwɪŋ` pəwdwʊtʃnʊ wju 6 hwiunlʊwɔħ:

SmarTimer

SmarTimer-n gnjg 5 unwju, nn úwpnúwú yhnú wulwnunlwið 5 úwpnúwú yhnúh útnqniú wulnnúwin ytnwnú wúgwintinú wunwúh hunquíwyn: Uunwúwwpnýd-úwuùwqtaunúttn hunphninn tiú unwju úwpnti wunwúuttn onwlywú 2 wùqwúhg nz uwwlyuu:

^12 niù ^b à utnútp hnuwùph úhwúwù/wùgwinúwù lynǎwln úwpnúwù hnliŋ ulyutīng htunn, wunwúh hunqwúwln ywùq lwnùh: ^b àt 30 úwjnljwùh nùwgpniù utnútp hnuwùph úhwúwù/wùgwinúwù lynǎwln, www dwuówzwiwn yultnulyuqh` janyl unwlnú àtq wylwnntl úwpnúwù uhnliŋ: 30 úwjnljwù nwnwnhg htunn SmarTimer-n útnwlqwjlniú t:

EasyStart

Uju Philips Sonicare ünntülu wunwqwnluylniú § EasyStart qnnðwnnynjau wunwwuynhulwgulwó uħawlynú: EasyStart qnnðwnnynjæn ywúwug-lywúwug wultugüniú § hqnnnijajniúu wunwghù 14 úwpnniúutnh dwúwúwú` oqūtīnu àtiq unylnnti Philips Sonicare wunwúh hunqwúwúhg oqunlątniú: EasyStart qnnðwnnynjæn qnnòniú § pninn nzhduutynú:

*3pnwdwnwqh tnp Philips Sonicare wunwúh hunqwùwlyu oqunwqnδυniú 5 ylhùhlywlywù htunwqnunnipajniùutpniú, wju wtup 5 oqunwqnδυh puynàn hùntùuhylnipajwù ynw` pnùwlyn wúpnηqnijawúp lhgrwulnnulwó, huly EasyStart qnnδwnnynjān` wùgwnuŋwó:

EasyStart qnnðwnnyjəu wlyunhulwɡutni hwiúwn (Stu qinju «Ulyunhulwɡutl ywu wwwwwluynhulwɡutl qnnðwnnyjəutqn»):

funqwùwuh qlhuhuh yhnhuwnhùwù hh2tgniú

2tn Philips Sonicare-tu niúh BrushSync (UwppnuwuUhuppnuwgniu) unthuunqhwuu, nnp htunwqdnui t 2tn hunqwuwlyh qlhuhyh uw2quwnpajniùn:

U2niú Uju qnnðwnnyjəu w2huwunniú ʒ úhwjù Philips Sonicare hutlugh hunqwúwlyh qihuhyutn BrushSync (hunqwúwlyhUhúpnnüwgniú) unthuüninqhwjnú:

1 bnp wnwghu wiuqwi un hutlwgh hunqwuwlyh qihuhly tpr wunwguni, pnuwln dawuwwniul 5, nn nnp niutp Philips hunqwuwly BrushSync (funqwuwlyhUhuppnnwwniul) unthuuninqhwynl u uluniul 5 htunwqdtj hunqwuwlyh qihuhlyh uww2luwdnupjnniun:

2 dwuwuwlyh npawgpnui, ywhuulwδ δtn lynuhg yhnwnzluwδ δu2niuhg u qihuhy h oqunwqnδsuwi nunhwünin dwuwuwlyhg, pnuwlyn htunwqdnui t lunqwuwlyh qihuhy uww2lwδnupniun` nnn2tini hwuwn δtn hunqwuwlyh qihuhy uhnhutini hwuwn lwuwqnju dwuwuwlyn: Uju qnnδwnnyjæn tnww2hwuwnnui t δtn wunwuutph lwuwqnju ùwpnniū ni huuwúpn:

3 tnp hunqwùwlyh qjhuhyh yhnhuwnhùwù wù hħ2tɕgúwù gniŋghʒn qwnuŋniú t̄ ntŋħù qnyùnu, niptúšu ẉtunp t̄ yhnħutip hunqwùwlyh qjhuhyn:

^12 niù húliwgh hunqwùwlyh pninn qihuhyùtinh ynhhuwnhùu wù hh2tgúwù qnnòwnnýrǎu wlnhluwguìwǒ t: hunqwùwuh qihuhyh ynhhuwnhùu wù hh2tgniúu wwwwwlunhluwgǔtǐnì huuwùn untóu "Ulnhluwgǔtǐ lyuú wwwwwlunhluwgǔtǐ qnnòwnnýrǎutīŋn":

unqwùwlyh qlhuhyh ntādhúh qniqwulnniú

BrushSync unthuünqhwjnu lunquuwlyh qjhuhyttnn uhlynzhu niutü, nnp hwnnnnwuglniú t pnuwynah htun u wulnnuwin ytpwnu qniqwulnniú wju wnwgwnyunn ntadhúh u huintuuhynijawu htun: BrushSync unthuünqhwjnu lunquuwlyh qjhuhytphg 2wntnu wulnnuwin ytpwnu qniqwulnniú t Clean ntadhúh htun: Nnn2wlyh wnwultinipajniuttnu lunquuwlyh qjhuhyttnn yqniqnnnultu hwuiwwwnwuhiwu ntadhúh htun (wnlywjnipawu ntawpniu), on.' S2 Sensitive. Sensitive ntadhú:

^12 nui' tpat nnn2tp ynhuti ntchup/huuntuuhunpajniun hunphnnn unnuun lwnqwulnnniuhg, hunqwuwuh qihuhyn yhh2h 2tn lynnyhg piuunnluw dwnqwulnnniun htinwqw w2huwwnw2ngwutph hwiwn:

Ulnhluwgutl ywi wwwwnlnhluwgutl qnpdwnnyrautp

2tn wunwuh hunqwuwlyh ynw 7nip lywnnn tip wlnhulwgutl ywu wwwwluynhulwgutl htunljwi qnnδwnnijrautnn`

- EasyStart

- lunqwùwlyh qlhuhlyh yhnhuwnhùuìwù hh2tigniú

Diagram showing a mechanical component with a downward arrow and a small rectangular object on a base (no text or symbols)

Simple line drawing of a biological or anatomical structure with a tool interacting with a central rod (no text or symbols)

1 3tizwqntp hunqwùwlyh qihuhyn u lquwgtp útünwnwlywù jhutnh hwnuwrwn u lynǎwyluttn unwp qnnu: 3wúnqultp, nn htizwqntl tpr pniwlyh ynwjh u lynǎwylutnh 2ningn qunùulnn wunwúh úwðnilh úwugnnnúttn wnzuwrqu 2wprwran úty wùquwú, pwjg gwúlywuh f' wútu wùquwú oqnwwqnötinig htunn:

2qn12wgniu' Uh hntp ntnuhut yuhpn unin wnwnlywutpnuŋ ntguh jhutnh utg ywu lynawylutph 2ninqn, pwuh nn wju lwwnn t hwuqtguti yluwuuwoph:

2 Frùwlyh wúpnng úwyltntun úwpntp hùnùwú qnnóu wǒdpnu:

U2niU'Uh hwnylwdtp pnIuwlynyluWgwnwuhu' wyltlnnn.2ninn htnwgutjni hwiUwn:

3 Enuwyn ynwngntp ywhnly yunnnyl yww unphynl:

hunquwuh qihuh

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

1 3nipwpuynin oqunwqnndniuhg htunn yuwgtp hunqwüwwlyh qihuhyn u uwqhylutnp:
2 3twnwgntp hunqwùwuh qlnihn pnùwlyhg l u wnùuqwù 2wpwρen úthi luwgtp hunqwùwuh qihuhyn unwp znnu: Lluwgtp āwúhnnnwlywù luwhwnhsù wjùpwù hwǎwhu, nnpwù wùhnwdt2un 5, l penntp, nn znpwùw: Oqunwqnndtp úhwjù znn hunqwùwuh qihuhyh ynw:
^12 niù ^1 nquùwuh qihuh ywhwnhzu oqnuwqnδu niú 5 wnwpúwù ^1 wwwnwynu l u whuwntuqlwó 2wnniuwlywù oqnuwqnδu wù hwiwn:

Lhgpwunnhz

1 Utgwuntp Ihgpwulnnhyn` uwhupwù wju ùwpntln:
2 Lhgpwulnnhsh uwwytntun uwwpntap huniwwu qnndwlwdpnu:
3 Lhgpwulnnhsn znnwgntp chwuhny lynnnnu lywi unphsnu:

Δωύψηρηλωμώ υωμημώ

Nnnntp qnl gnnu l u oqnwnqnndtp huntuw l yunn' ǎwúhnnnwlywù wjuinjwùn úwpntlni hwúwn, u janntp, nn znnwùw:

الله

tātā sīp wùnnpwùunlniú tǐnywn dūwǔwǔ y oqnwqnpòtī uwwpn, wǔgwntp wjù tǐtynnpwùnigúwù yuunnwǔhg, úwpntp wjù lì wùwhtp qnu lì znn untnniú' wnhuh nínhhǎwīnwqwjēutphg hūzni:

Φnhuwphùniú

Φnhuunhútp Philips Sonicare hunquùwlyh qihuhyutnù wútu 3 wúhun útly` owunhúwì wnnjniúpūtn wwwhnuṭīnì hwiúwn: Oqunwqnòtap úhwuj Philips Sonicare-h ynhuunhúulnn qihuhyutnŋ:

phosphorus phosphate

Simple line drawing of an open book with no text or symbols visible

gul bndàmmmm bndbuzl, bunznmbmm zsdmyj6gònl nblphnyjgn dmbymànmmmònl zsdmyj6gòsdqg.

XXXXXX

glunodommm bndbsz, gudmnygmon dnnnnngdymn 33gdnl bysfm.

Illustration of a hand holding a toothbrush with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a funnel with a checkmark indicating completion (no text or symbols)

Illustration of a hand using a pipette to apply liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols present)

Hand-drawn diagram showing a power button with an icon and a hand pressing a button, likely illustrating a control or operation.

3 Philips Sonicare-nu Bubunmuzoo, qusgfngm bumoz/30dmmnznu mnmosb.

Diagram showing a hand holding a tool interacting with a textured surface, labeled 45° (no text or symbols on the diagram itself)

4 ghmbnngq dmsuzlgn tsgmyngon zdnngduu qo mndmnl bs88j. gunbdnbgom zdnngon dqnng bnb qo yzub dmdmsdom nl, hmd tsgmyngon bzogdom6gb zdnngdu dmhnl. gubsgmdgm slgmn dmdmsmds bdgconu yuzmnl zubdszmmdsdn.

Diagram showing dental tool application on upper teeth with magnified view of tooth structure (no text or labels)

Diagram showing two types of dental arches with numbered labels indicating different tooth positions or regions.

clean sensitive

Simple line drawing of a device with three circular components and a vertical connector (no text or symbols)

zònmùn l gāngfēnmtsgānnl 3 lbbzqoubbzs n6fghbunzmònl 3smsdghfēn sjd3l:

Diagram of a toothbrush with a sensor icon and a circle highlighting the sensor area (no text or symbols present)

Line drawing of a person holding a toothbrush (no text or symbols)

Diagram showing dental arch anatomy with numbered labels for different tooth positions or regions

Simple diagram showing a circular icon with a traffic symbol and a small circle connected to a vertical line (no text or labels)

Diagram showing a mechanical component with a downward arrow and a small square component, no text or symbols present.

odds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds funds Funds

ඉංක්‍යා අංක්‍ය

153603 _330m63560

phosphorus phosphate

Line drawing of a medical procedure involving an incision or needle inserted into a patient's leg (no text or labels)

Illustration of two hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

PHILIPS ৬ partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-partial non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive non-positive,

zsmbgns ωs dbmρρρρρ (ROW)

Mount 301-2018 www.philips.com/support 301-2018

zsmbfngb zsdmbzqngd

Simple line drawing of an open book with no text or symbols visible

Illustration of a hand holding a tool with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a bulb-like shape with a checkmark indicating a measurement or inspection (no text or symbols present)

הכלה 2

Illustration of a hand holding a pipette with a dropper, showing a magnified view of a dropper inside a tube (no text or symbols)

Hand-drawn diagram showing a power button with an 'Power' icon and a button labeled 'OK' pointing to it.

Diagram showing dental tool application on upper teeth with magnified detail (no text or symbols)

CLEAR SMILEVE

Simple diagram showing a circle with three circles and a vertical line with three circles connected by a line (no text or symbols)

Illustration of a toothbrush with a sensor icon and signal symbol (no text or labels)

Line drawing of a person holding a pen, no text or symbols present

EasyStart is. This is EasyStart is. This is Philips Sonicare is. This is. This is EasyStart is. This is Philips Sonicare is.

*הכלה

Philips Sonicare 77.

Simple diagram with a circular icon containing a vehicle and a vertical line with a small circle labeled 'n' (no text or symbols beyond the label)

:הכלה/הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה:2

Simple diagram showing a mechanical component with a downward arrow and a small protrusion on a circular base (no text or symbols)

Simple line drawing of a fork with a pen inserted, no text or symbols present

Illustration of two hands using a tool to lift or stand (no text or symbols present)

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

-ロナ クロナ ヨウ

www.philips.com/Sonicare

©2024 Koninklijke Philips N.V. (KPNV). All rights reserved. Philips and the Philips shield are trademarks of KPNV. Sonicare and the Sonicare logo are trademarks of Philips Oral Healthcare, LLC and/or KPNV.

300012731221 (10/04/2024)

PHILIPS
