USER MANUAL SSR-808R-IHR Master

User's Manual & Operating Instructions

Model Numbers

SSR-808R-IHR / SSR-808G-IHR

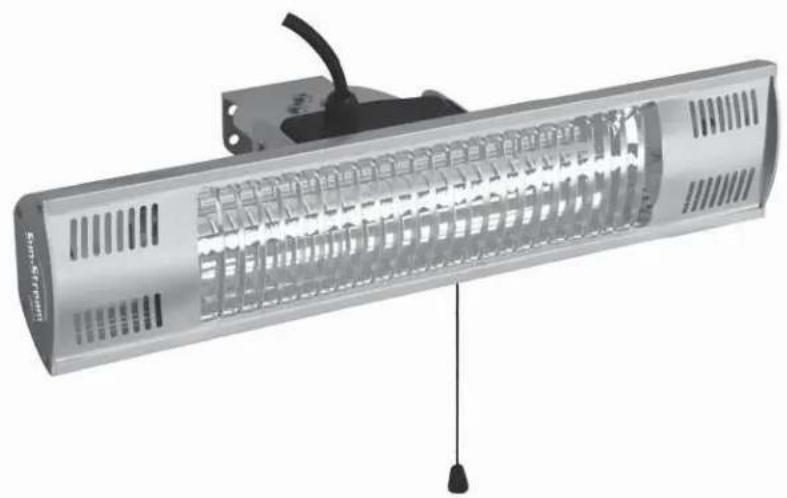

Exterior view of a modern indoor air conditioner unit with ventilation slots and a black cable (no text or symbols visible)

Intertek 3098007

CONSUMER: READ AND SAVE THESE INSTRUCTIONS

DANGER

DO NOT operate in the presence of explosives and/or flammable fumes.

▲WARNING

USE THIS HEATER ONLY AS DESCRIBED IN THIS MANUAL. ANY OTHER USE NOT RECOMMENDED BY THE MANUFACTURER MAY CAUSE FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.

Table Of Contents

Safety Information	1-2
Specifications and Features	3
Assembly	4-5
Operation	6
Maintenance	7

Troubleshooting Guide	8
Exploded View	9
Parts List	9
Warranty	10

Safety Information

⚠ WARNING	FIRE OR EXPLOSION MAY OCCUR! Heater has hot arching or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored.
⚠ WARNING	RISK OF FIRE. To prevent a possible fire, Do not block intakes or exhaust in any manner. Do not use on soft surfaces, like a bed where openings may become blocked. Heater must be kept clear of all obstructions. Maintain a 3 foot minimum clearance from front and 12 inches from sides. Heaters must be kept clean of lint, dirt, and debris.
⚠ WARNING	BURN HAZARD. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving the heater.
⚠ WARNING	OVERHEATING OR FIRE MAY OCCUR. Do not place heater behind doors.
⚠ WARNING	To protect against electrical shock, do not immerse unit, plug, or cord in water or spray with liquids.
⚠ WARNING	DO NOT route cord under carpeting. DO NOT cover cord with throw rugs, runners or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
⚠ WARNING	DO NOT Operate any heater with a damaged cord or plug. Discard heater or return to an authorized service facility for examination and/or repair.
⚠ WARNING	RISK OF ELECTRICAL SHOCK. Connect to properly grounded outlets only. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater. Unplug heater before performing any maintenance or when not in use, to disconnect heater, turn control to low, then remove plug from outlet.
⚠ WARNING	NEVER SUSPEND ANY OBJECTS FROM MOUNTED HEATER.
⚠ WARNING	Close supervision is necessary when any appliance is used by or near children.
⚠ WARNING	CALIFORNIA RESIDENTS: This product contains chemicals, including lead, known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Safety Information

▲WARNING

Turn the electrical power off at the electrical panel board (circuit breaker or fuse box) and lock or tag the panel board door to prevent someone from power while you are working on the heater. When using electrical appliances, ons should always be followed to reduce the risk of fire, electric shock and ns, including the following:

▲WARNING

Read all instructions before using this heater.

• Extreme caution is necessary when any heater is used by or near children or invalids.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not use heater in wet or moist locations.
• Always locate heater on a stable and level surface.
• Do not place the heater against paperboard or low-density fiberboard surfaces.

▲WARNING

RISK OF ELECTRIC SHOCK!

• ALWAYS use only the electrical power (voltage and frequency) specified on the model plate of the heater.
• ALWAYS use only three-prong, grounded outlet and extension cord.
• ALWAYS unplug the heater when not in use.
• ALWAYS locate heater on a stable and level surface.
• ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water, or wind.

▲WARNING

CAUTION! HOT WHILE IN OPERATION. DO NOT

TOUCH. KEEP CHILDREN, ANIMALS, CLOTHING AND COMBUSTIBLES AWAY FROM HEATER.

- Keep all combustible materials away from this heater

Minimum Clearance From Combustibles
	SSR-808R-IHR S	SR-808G-IHR
Front 3 ft.	3 ft.
Top 1 ft. 1 ft.
Sides 1 ft.	1 ft.

Look for this icon throughout the manual for helpful tips on how to assemble, use and clean your Halogen Infrared Heater.

Specifications

Model # SSR-808R-IHR SSR-808G-IHR
Bulb Type Ruby Red Gold Coated
Power (Watts) 1,500 1,500
Power (BTU) 5,100 5,100
Power 120V~60Hz 120V~60Hz
Amps 12.5 12.5
Heating Area (Ft. ^2 )	100

Specifications subject to change without notice.

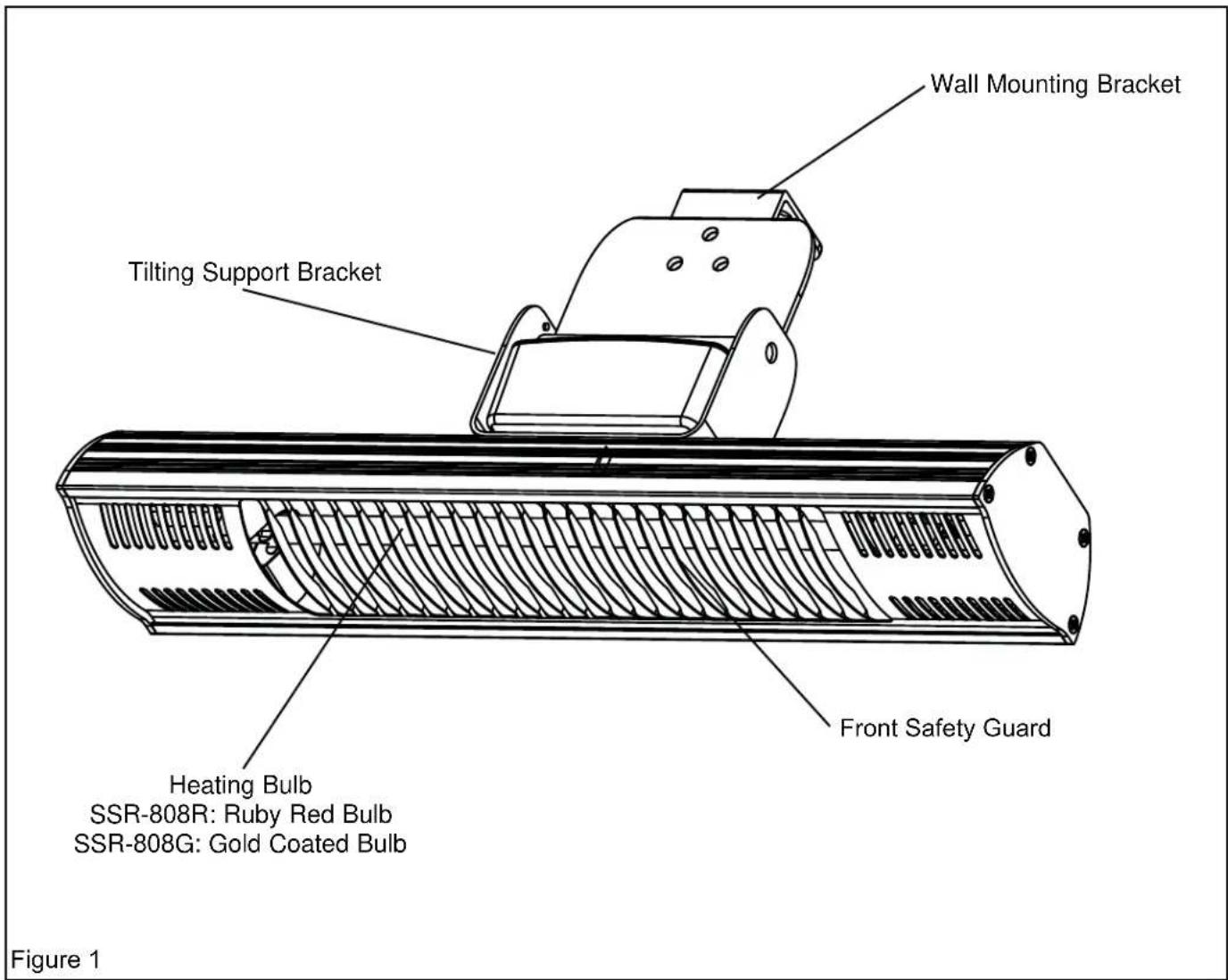

Features

Wall Mounting Bracket Tilting Support Bracket Front Safety Guard Heating Bulb SSR-808R: Ruby Red Bulb SSR-808G: Gold Coated Bulb Figure 1

© 2015, Pinnacle Products International, Inc. Halogen Infrared Heater User's Manual

Assembly

- Remove heater and all packaging materials from shipping carton.

What's In The Box

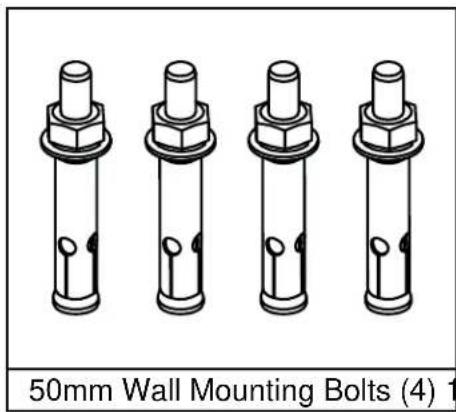

50mm Wall Mounting Bolts (4)

0mm Allen Bolts (3) Nuts (3)

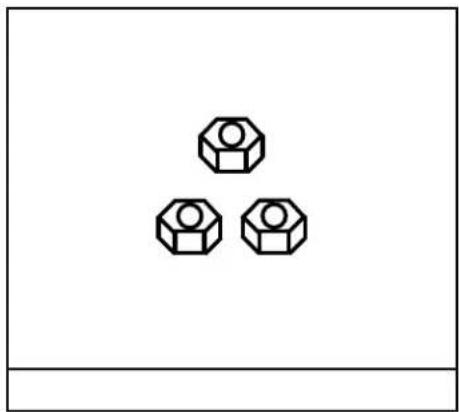

Three hexagonal nuts arranged in a triangular pattern (no text or symbols)

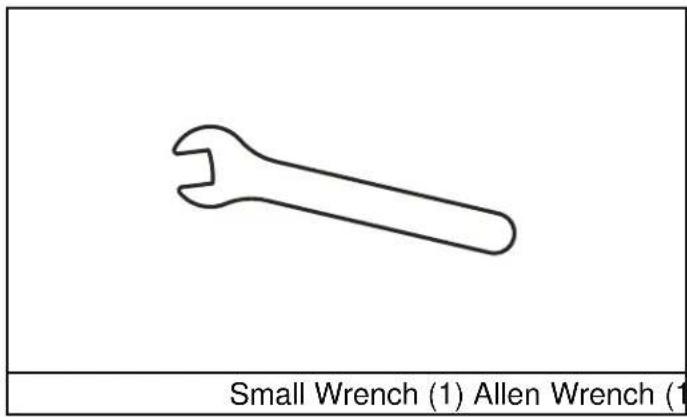

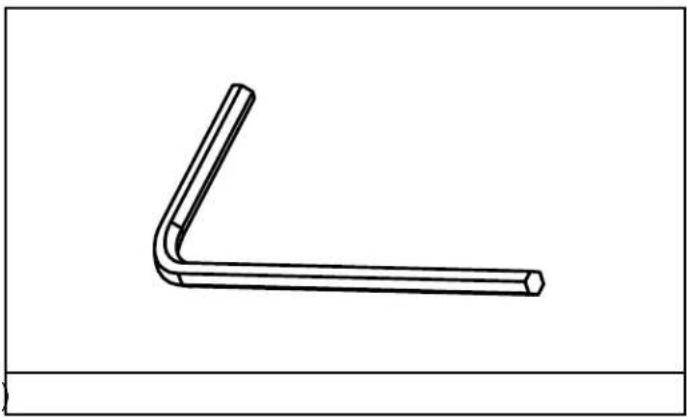

Small Wrench (1) Allen Wrench (1)

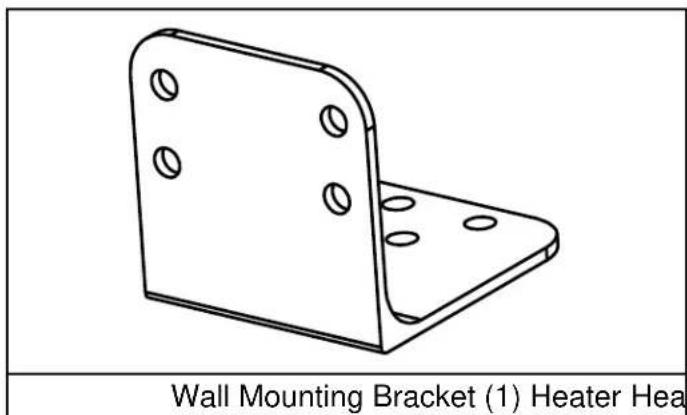

Simple line drawing of a bent L-shaped metal bracket (no text or symbols)

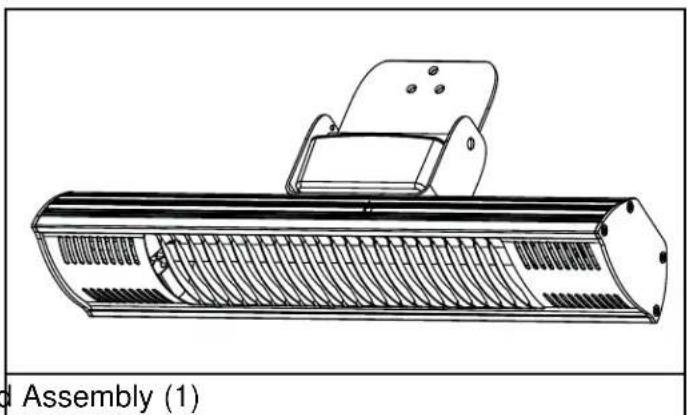

Wall Mounting Bracket (1) Heater Hea

Technical line drawing of a mechanical component assembly (no text or symbols on the diagram itself)

Missing Parts? Please Call 800-641-6996 For Assistance

Assembly

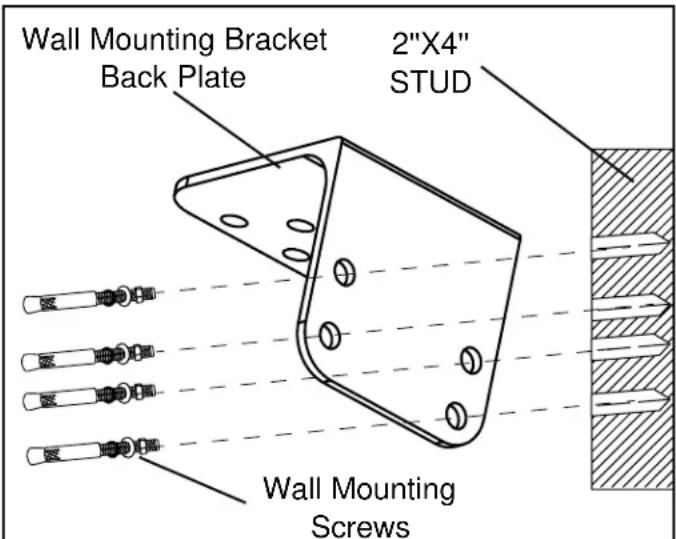

Mounting:

Hanging Wall Mount

1. Attach the mounting bracket to a wall stud as shown below using the four (4) included wall mounting screws. (Figure 2)

Tip: Use the back plate of the wall mounting bracket as a template to pre-drill the holes for the mounting screws.

Wall Mounting Bracket Back Plate 2"X4" STUD Wall Mounting Screws

Figure 2

CAUTION

The installer MUST be certain the wall mounting bracket is attached to a minimum of a 2"X4" wall STUD that is able to support 25 pounds continuously.

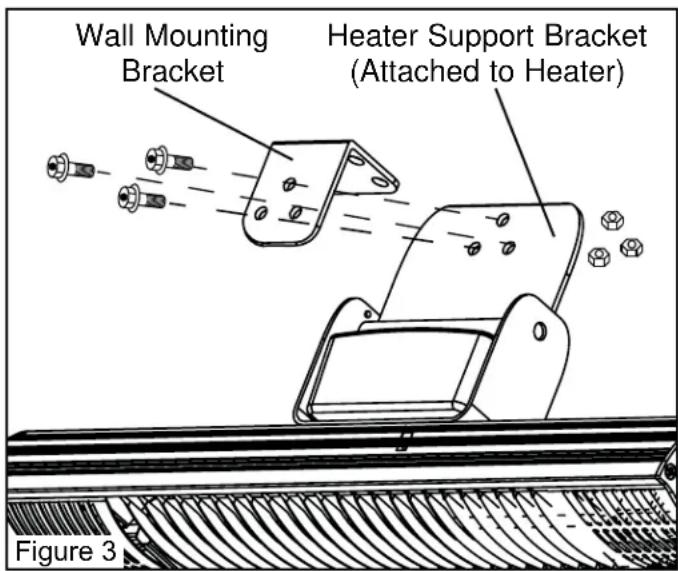

Attaching Heater to Wall Mount

1. The heater support bracket is attached to the heater body.
2. Attach heater support bracket to wall mounting bracket using three (3) 10mm allen bolts and three (3) nuts. (Figure 3)

Wall Mounting Bracket Heater Support Bracket (Attached to Heater) Figure 3

NOTE: The mounting bracket is designed to support the weight of the heater only. DO NOT hang any object other than the heater from the wall mounting bracket, swivel arms or support bracket.

▲WARNING

DO NOT MOUNT HEATER ON THE CEILING. MOUNT ONLY

AS DESCRIBED ABOVE ON A 2"X4" WALL STUD.

Operation

Operating The Heater:

Heater Controls

1. Plug power cord into 120V AC power outlet. (See Grounding Methods)
2. Use pull cord to turn power to heater on and off.

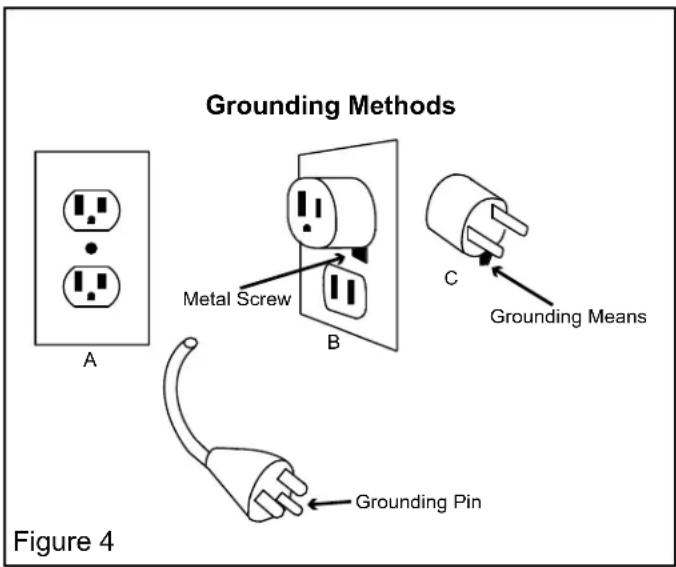

Grounding Instructions

SSR-808R-IHR / SSR-808G-IHR:

- This heater is for use on 120 Volts. The cord has a plug as show at A (below). An adapter as shown at C is available for connecting three-blade grounding-type plugs two-slot receptacles. The green grounding lug extending from the adapter must be connected to the permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.

Grounding Methods Metal Screw B C Grounding Means Grounding Pin Figure 4

Maintenance

▲ WARNING

ALWAYS DISCONNECT HEATER FROM POWER SUPPLY BEFORE SERVICING.

▲ WARNING

RISK OF BURNS! THIS HEATER IS HOT WHILE OPERATING. ALLOW TO COOL COMPLETELY BEFORE PERFORMING MAINTENANCE OR STORAGE.

WARNING

When servicing or replacement of a component in the heater requires the removal or disconnection of a safety device, that safety device must be properly before operating the heater.

Cleaning:

1. Clean the outer shell of the heater with a soft damp cloth.
2. Dry the outer shell of the heater with a soft cloth and allow to dry completely before operating heater.
3. Do Not use abrasives, rough brushes or scrubbing pads to clean the heater.

▲ WARNING

FIRE OR EXPLOSION MAY OCCUR! Do Not use alcohol, sure / metal polish or any other instances to clean this heater.

Tip: Use compressed air to clean any dirt or debris from the front guard or around bulb.

1. Do Not submerge the heater in water or other liquid to clean.

Storage:

Short Term Storage

1. Disconnect heater from power supply. NOTE: For heaters used outdoors, do not store outdoors while not in use.

Long Term Storage

1. Disconnect heater from power supply.
2. Remove heater from wall mount.

Tip: Leave wall mounting bracket hanging during off-season for easy installation in heater is taken out of storage.

1. Complete all cleaning procedures.
2. Wrap cord and heater in plastic shipping bags.
3. Store in a cool, dry place.

Tip: Keep original shipping materials to store heater during off-season.

Troubleshooting

Problem Possible	Cause Solution
No power	Unit is not plugged in properly.Defective fuse.	Connect unit to proper power supply.Replace fuse.

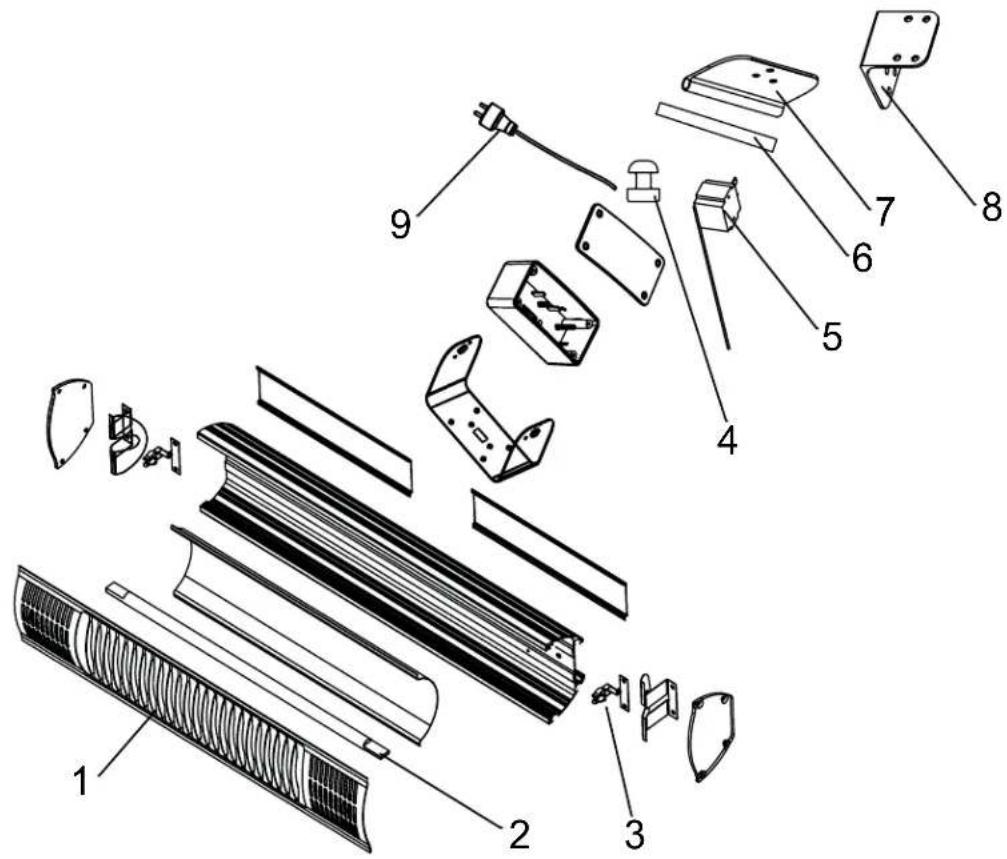

Exploded View

Exploded view diagram of a device with numbered parts for identification

Parts List

Item # Description SSR-808R-IHR $SR-808G-IHR
1 Safety Guard 40-001-0110 40-001-0110
2 Halogen Bulb 40-002-0110 40-002-0210
3 Lamp Clip 40-001-0030 40-001-0030
4 Connector 40-001-0040 40-001-0040
5 Power Switch		40-003-0510 40-003-0510
6 Screw Pole		40-001-0315 40-001-0315
7 Heater Support Plate		40-001-0310 40-001-0310
8 Wall Mounting Bracket		40-001-0410 40-001-0410
9 Power Cord		40-003-0610 40-003-0610

LIMITED WARRANTY

Pinnacle Products International, Inc. warrants this heater to the original retail purchaser only, to be free from defects in material and workmanship for a period of one (1) year from the date of initial purchase. This product must be properly installed, maintained and operated in accordance with the instructions provided.

Pinnacle Products International, Inc. requires reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should keep your sales slip, invoice or cancelled check from the original purchase. This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use and service within the warranty period, and which Pinnacle Products International, Inc. shall determine at its reasonable discretion.

This warranty does not apply to products purchased for rental use.

This Limited Warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance and service by you or any third part. Failure to perform normal and routine maintenance on the heater, shipping damage, damage related to insects, birds or animals of any kind, and damage due to weather conditions are also not covered. In addition, the Limited Warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.

All transportation costs for the return of damaged product or parts will be the responsibility of the purchaser. Upon receipt of damaged item, Pinnacle Products International, Inc. will examine the item and determine if defective. Pinnacle Products International, Inc. will repair or replace and return the item, freight pre-paid.

If Pinnacle Products International, Inc. finds the item to be in normal operating condition, or not defective the item will be returned freight collect. This Limited Warranty is in lieu of all other express warranties. Pinnacle Products International, Inc. disclaims all warranties for products that are purchased from sellers other than authorized dealers or distributors.

AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS WARRANTY EXPIRES, Pinnacle Products International, Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR APPLICATION. FURTHER, Pinnacle Products International, Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FRO ANY SPECIAL, INDIRECT, PUNITIVE INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle

Products International, Inc. assumes no responsibility for any defects caused by third parties. This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she lives. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may not apply to you.

Pinnacle Products International, Inc. does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return or replacement of its equipment, and no such representations are binding on Pinnacle Products International, Inc.

Always be sure to specify the model number and serial number when making any claim with Pinnacle Products International, Inc. For your convenience, use the space provided below to list this information.

Register Your Product Online at: http://www.remingtonheater.com/Product_Registration.php

Locating Your Serial Number:

Your serial number can be found on the heater's rating label. For Example: 1400001. Have your Serial Number ready before calling customer service at 800-641-6996.

Model #:

Serial #:

Date of Purchase:

PINNACLE INTERNATIONAL

© 2015 Pinnacle Products International, Inc.

668 Stony Hill Road #302 Yardley, PA 19067 USA • Toll Free (800)-641-6996

Fax: [phone] • Web: www.pinnacleint.com • Email: [e-mail]

Exterior view of a modern indoor lighting fixture with ventilation grilles and a black cable (no text or symbols visible)

Intertek 3098007

CONSUMIDOR: GUARDE ESTE MANUAL PARA FUTURAS CONSULTAS

PELIGRO

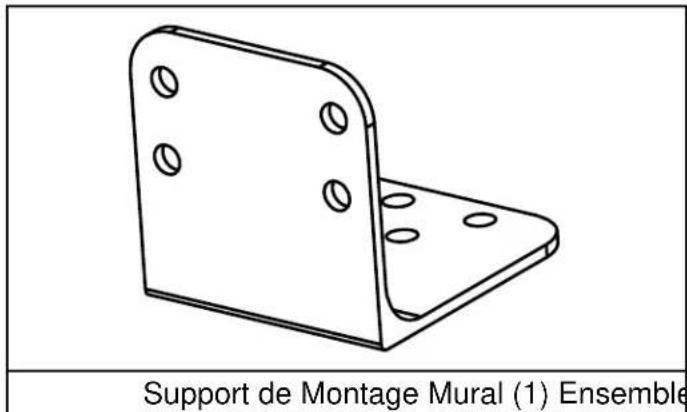

Simple line drawing of a bent L-shaped metal bracket (no text or symbols)

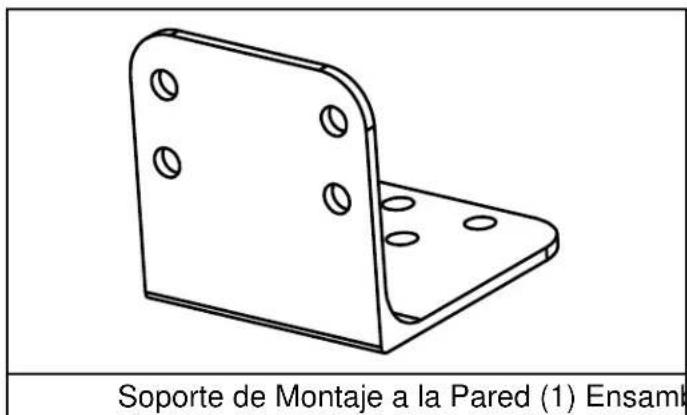

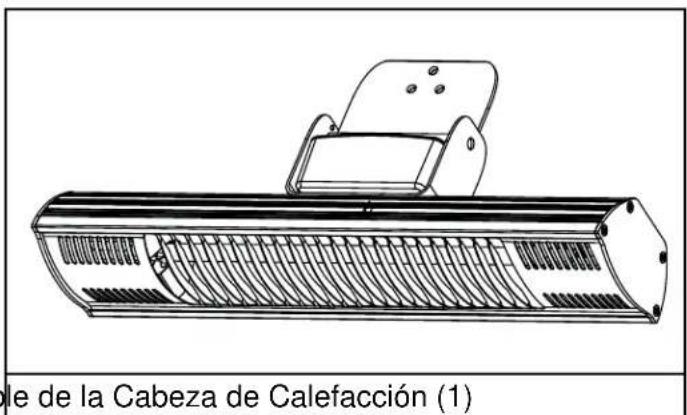

Soporte de Montaje a la Pared (1) Ensamt

Missing Parts? Please Call 800-641-6996 For Assistance

Montaje

Montaje:

Hanging Wall Mount

Attaching Heater to Wall Mount

Exploded view diagram of a device with numbered parts for identification

Lista de Recambios

Item #	Descripción SSR-808R-IHR SSR-808G-IHR
1 Protección 40-001-0110 40-001-0110
2 Bombilla Halógena 40-002-0110 40-002-0210
3 Clip de lámpara 40-001-0030 40-001-0030
4 Corrector 40-001-0040 40-001-0040
5 Interruptor de Alimentación 40-003-0510	40-003-0510
6 Poste de tornillo	40-001-0315 40-001-0315
7 Placa de soporte del calentador	40-001-0310 40-001-0310
8 Soporte de Montaje a la Pared	40-001-0410 40-001-0410
9 Cordon de Alimentación	40-003-0610 40-003-0610

GARANTÍA LIMITADA

PINNACLE INTERNATIONAL

© 2015 Pinnacle Products International, Inc.

668 Stony Hill Road #302 Yardley, PA 19067 USA • Toll Free (800)-641-6996

Fax: [phone] • Web: www.pinnacleint.com • Email: [e-mail]

Exterior view of a modern indoor air conditioner unit with ventilation slots and a black cable (no text or symbols visible)

Intertek 3098007

CLIENT: CONSERVER CE MANUEL POUR CONSULTATION ULTÉRIEURE

DANGER

Three hexagonal nuts arranged in a triangular pattern (no text or symbols)

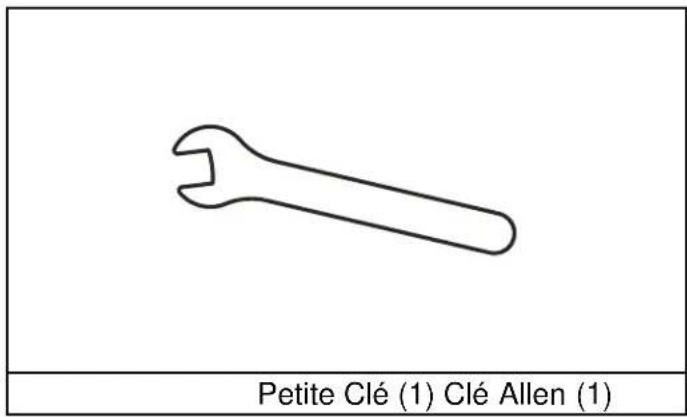

Petite Clé (1) Clé Allen (1)

Simple line drawing of a bent L-shaped metal bracket (no text or symbols)

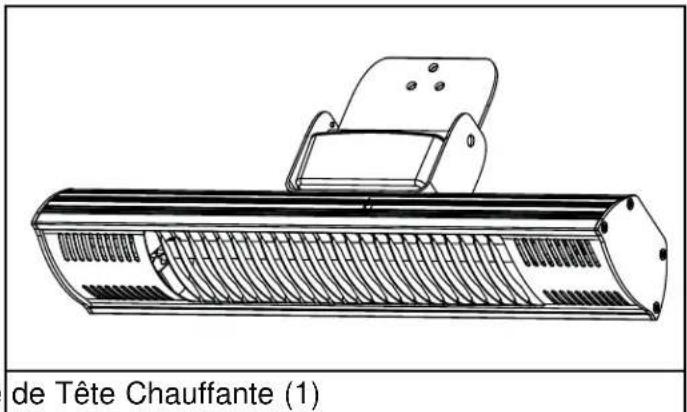

Support de Montage Mural (1) Ensemble
