USER MANUAL EP22769 COSTWAY

⚠️ Please read all instructions carefully.
⚠️ Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.

FR

Avant de Commencer

Your safety and the safety of others are very important.

We have provided many important safety messages manual and your appliance.

Always read and obey all safety messages.

This is the safety alert symbol:

All safety messages will follow the safety alert symbol and the word "DANGER" or "WARNING".

DANGER

WARNING

These words mean:

You can be killed or seriously injured if you don't immediate follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property.

Read all instructions before using any appliance.

- Do not operate this, or any other appliance with a damaged cord.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

This ice-maker must be positioned so that the plug is accessible.

Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.

- Do not run the power cord over carpeting or other heat insulators. Do not cover the cord.

Keep cord away from traffic areas, and do not submerge in water.

• We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.
• Unplug the ice maker before cleaning or making any repairs or servicing.
• Exercise caution and use reasonable supervision when appliance is used near children.
• Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 4 inches of space between the back of your unit and wall.

Keep a minimum distance of 4 inches on each side of your unit free.

• Do not use other liquid to make the ice-cube other than water.
• Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not tip over.
• If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room temperature before plugging it in.

WARNING: This appliance must be earthed.

- DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.

- DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.

• CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed.
• CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.
• CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used.

- The ice maker should be installed in accordance with the safety standard for Refrigeration Systems, ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.

- If the unit is with problem need to be maintained, that replacing with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

IMPORTANT:

The wires in this mains lead are colored in accordance with the following code:

Green or Green with a strip yellow: Grounding

White: Neutral

Black: Live

To avoid a hazard due to instability of the appliance, it must be placed at an even or flat surface.

GETTING TO KNOW YOUR UNIT

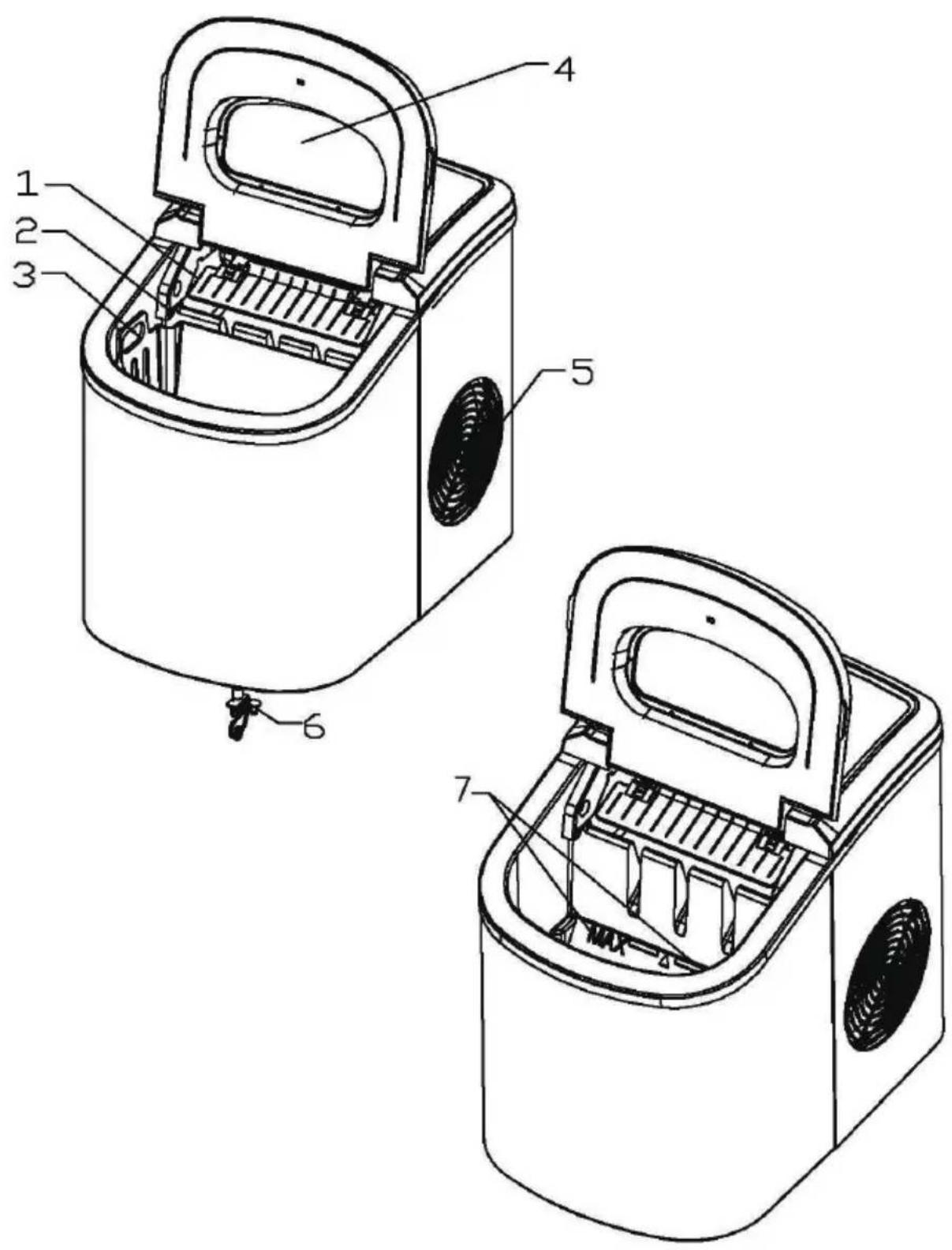

General instrucion

1. Ice scoop.
2. Ice full sensor
3. Ice basket
4. Top cover with transparent window
5. Air outlet
6. Water drain cap: at front bottom side of the unit.
7. MAXIMUM WATER LEVEL:

Remove the ice basket, you can see the water level mark.

Technical diagram of a two-part appliance with labeled parts, showing internal structure and mounting points.

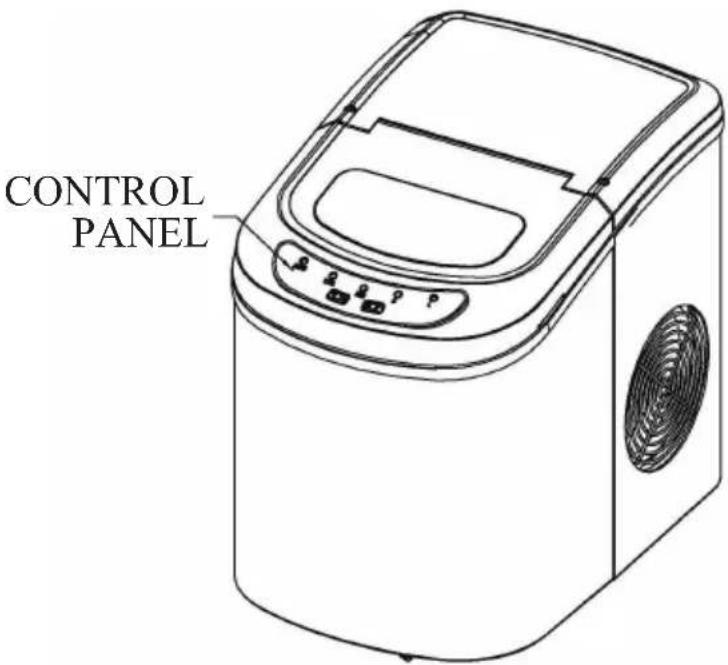

Postion of control panel & function

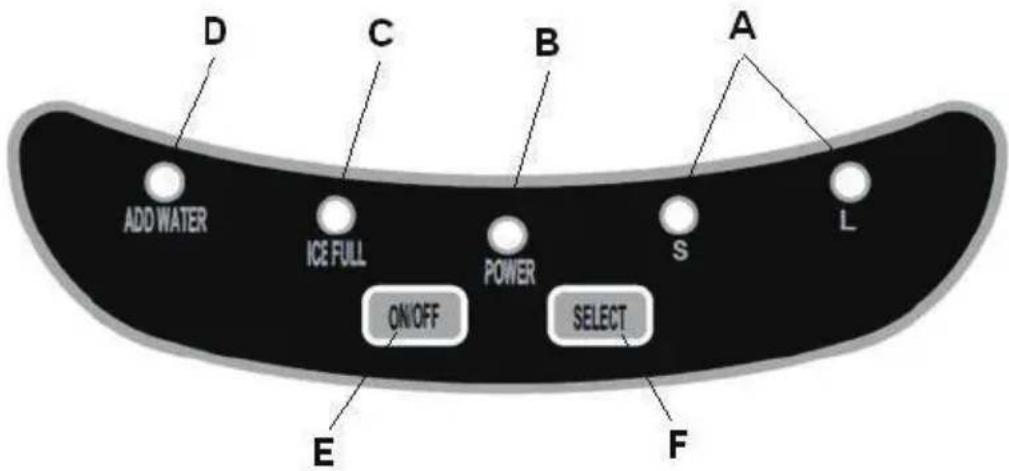

Control Panel: Easy to use, visible functions touch display setting.

B. Power indicator
C. Ice-Full indicator
D. Water shortage indicator
E. Button to turn on/off the unit.
F. Button to select ice cube size.

A. Selected ice size displaying: Small and Large.

CONTROL PANEL

ADD WATER ICE FULL POWER ON/OFF SELECT S A L D C B E F

UNPACKING YOUR ICE MAKER

1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 4 inches gap between the back & LH/RH sides with the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.

WARNING: fill with potable water only. Only use drinking water. CONNECTING YOUR ICE MAKER

DANGER

* Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged please call our customer service.

1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician.
3. This appliance requires a standard 110-120volt, 60Hz electrical outlet with three-prong ground.

CLEANING AND MAINTAINING YOUR ICE MAKER

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Take out the ice basket.

2. Clean the interior with diluted detergent, warm water and a soft cloth.

3. Then use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on front bottom side.

4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.

5. Dry the interior and exterior with a clean soft cloth.

6. When the machine is not to be used for a long time, drain water completely & dry the interior.

USING YOUR ICE MAKER

1. Open the cover, remove the ice basket and pour water into tank. Keep water level below the water level mark.

2. Press "Power" button on the control panel to begin the ice making cycle.

3. Select the ice cube size by pressing the “Select” button. If the room temperature is lower than 60^ F, it is recommended to select small ice cube in order to avoid ice sticking together.

4. The ice making cycle lasts approx. 6 to 13 minutes, depending on selection of ice cube size and the room temperature. The recommended room temperature is 50^ to 105^ .

5. If water pump can't inject water, the ice maker will stop automatically, and the “Add Water” indicator will be on. Press “Power” button, fill water up to the max. water level mark and press “Power” button again to turn on the unit again. Allow the refrigerant liquid inside the compressor at least 3 minutes to settle before restarting.

6. The ice maker stops when the ice basket is full and the “Ice” indicator will be on. Warning: Direct sunlight or sunlight reflection may cause infrared sensor malfunction. If the unit doesn’t stop even ice cubes obstruct sensor, move the unit where no sunlight.

7. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level.

If unit isn't to be used, drain all the water and dry the tank.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
“Add Water” indicator is on.	Lack of Water.	Stop the ice maker, fill water, and press “Power” button again to restart the unit.
“Ice” indicator is on.	Ice is full in basket.	Remove ice from ice basket. Continuous press “Select” button 5 seconds, the unit could make ice 10 cycles even “Ice” indicator is on.
Ice cubes stick together.	The ice making cycle is too long.	Stop the ice maker, and restart it when the ice blocks melt. Select the small size ice cube selection.
	Water temperature in inner tank is too low.	Replace the water. Temperature of water recommended at 45 °F -90 °F
Ice making cycle is normal but no ice formed.	Room temperature or water temperature in inner tank is too high.	The room temperature should be 50 °F -105 °F, water temperature should be 45 °F -90 °F
	Refrigerant in cooling system leaks.	Verify by a qualified technician.
	Pipe in the cooling system is blocked.	Verify by a qualified technician.

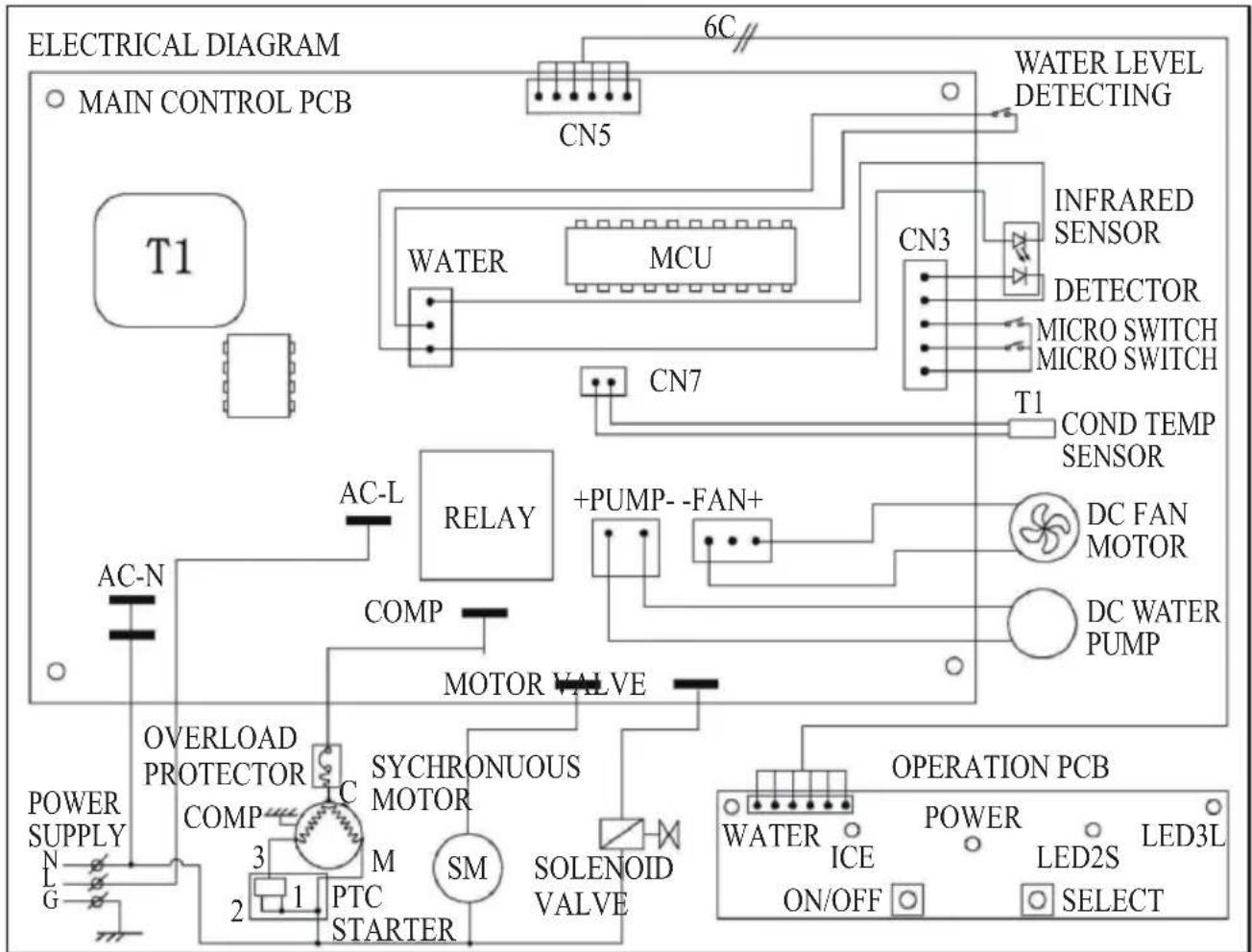

TECHNINCAL PARAMETERS & CIRCUIT DIAGRAM

Model	EP22769
Protection Type	I
Power	115V/60Hz
Ice Making Current	1.7A
Ice Harvest Current	2.0A
Refrigerant	R600a 0.81Oz/23g
Design Pressure
High Side	290Psig
Low Side	88Psig
Vesicant	C_5H_10
Net Weight	16 lbs
Enclosure	Plastic


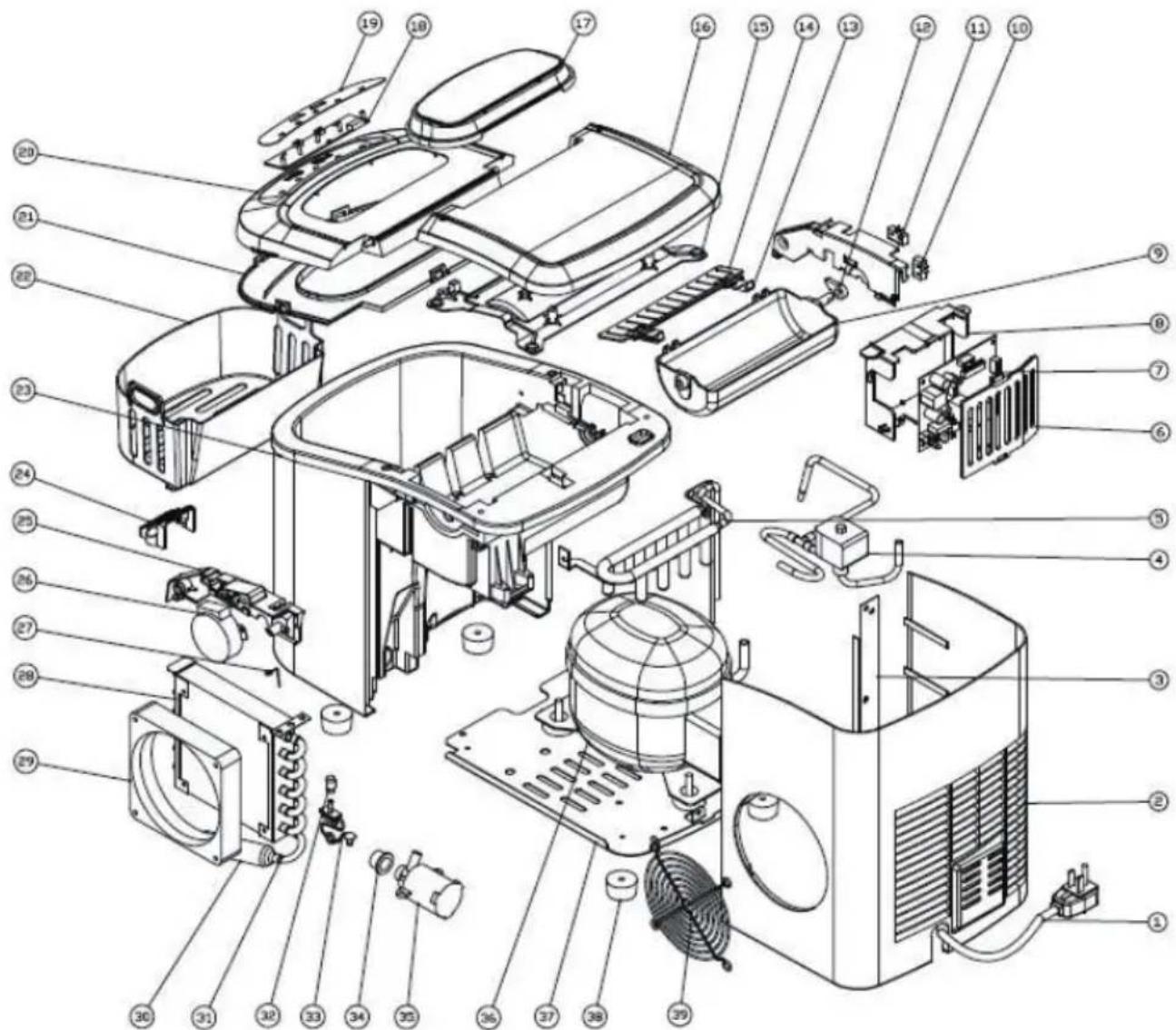

EXPLOSIVE DRAWINGS

Exploded view diagram of an air conditioner unit with numbered parts for identification

1. Power cord
2. Back panel
3. Plate inforce
4. Magnetism valve
5. Evaporator
6. Control box cover
7. Main PCB
8. Control box
9. Ice making box
10. Micro switch
11. Inner tank bracket, LH
12. Cam

13. Ice scoop link

14. Ice scoop

15. Back btm panel
16. Back top panel
17. Clear window
18. Displaying PCB
19. Touch pad
20. Front top panel
21. Front btm panel
22. Ice basket
23. Foaming asm
24. Water filter
25. Inner tank brackt, RH

26. Synchronous motor

27. Stainless wire

28. Condenser
29. DC Fan motor
30. Filter dryer
31. Copper tube filter
32. Silicon plug drain
33. Nylon plug drain
34. Silicon sealing pump
35. DC water pump
36. Compressor
37. Plate bottom
38. Rubber foot
39. Air grille

PRÉPARATION DE VOTRE PRODUIT À GLACE POUR L'UTILISATION

Technical diagram of a two-part electric water heater with labeled parts 1 through 7

PROCÉDURES DE FONCTIONNEMENT ET MAINTENANCE

ADD WATER ICE FULL ON/OFF POWER SELECT S A L D C B E F

DÉBALLAGE DE VOTRE FABRIQUE À GLACE

Exploded view diagram of an air conditioner unit with numbered parts for identification
