USER MANUAL FP10242US-SL COSTWAY

Meet delights for your home here

Home of Delights

USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville

If you're having difficulty, our friendly customer team is always here to help.

USA:[e-mail] AUS:[e-mail] GBR:[e-mail] FRA:cs.fr @costway.com

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

COST WAY

EN

Before You Start

⚠️ Please read all instructions carefully.
⚠️ Retain Instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.

FR

Avant de Commencer

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance.

Use this appliance only for its intended purpose as described in this owner's manual. This ice-maker must be properly installed in accordance with the installation instructions before it is used.

This unit must be positioned so that the plug is accessible. Do not run cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away from traffic areas, and do not submerge in water. No other appliance should be plugged into the same outlet, and be sure that the plug is fully inserted into the receptacle.

We do not recommend the use of extension cord as it may overheat and cause a risk of fire. If you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.

If the supply cord is damaged, it must be replaced by the manufacturer or a similarly qualified person in order to avoid a hazard.

Disconnect the mains plug from the supply socket when not in use for a long term, where supply connection is via mains plug.

Remove power plug or disconnect from the mains before cleaning or servicing the appliance.

NOTE: If for any reason this product requires service, we strongly recommend that a certified technician perform the service.

Never unplug the unit by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.

Do not use your unit outdoors. Keep the unit away from direct sunlight and make sure that

there is at least 6 inches of space between the back of your unit and wall and keep the front free. Keep ventilation opening in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not tip over the unit which will cause abnormal noise and make the ice-cube size abnormal. And seriously, it may cause water leakage from the unit.

If the unit is brought in from outside in the winter season, give it a few hours to warm up to room temperature before plugging it in.

Do not use other liquid to make the ice-cube other than water.

Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.

COSTWAY

* WARNING: This appliance must be earthed. Use the proper power source according to the nameplate.
* WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
* WARNING: Do not damage the refrigerant circuit.
* WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
* WARNING: Children should be supervised to ensure that they do not play with the appliance.
* WARNING: This appliance must be earthed. And use the 110-120V/60Hz earthed power supply.
* WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
* DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.

DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not *Puncture Refrigerant Tubing.

* CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed.
* CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.
* CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used.
* The ice maker should be installed in accordance with the safety standard for Refrigeration Systems, ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
* If the device is faulty, maintenance is required. Replace the same parts and have them repaired by factory authorized maintenance personnel to reduce the risk of deviation due to incorrect parts or incorrect maintenance.
* WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

COSTWAY

* WARNING: This appliance is intended to be used in household and similar applications such as

Eg.staff kitchen areas in shops, offices and other working environments; Eg. farm houses and by clients in hotels, motels and other residential type environments; Eg.bed and breakfast type environments; Eg.catering and similar non-retail applications.

IMPORTANT:

The wires in this mains lead are colored in accordance with the following code:

Green or Green with a strip yellow: Grounding

White: Neutral

Black: Live

To avoid a hazard due to instability of the appliance, it must be placed at an even or flat surface.

SPECIFICATIONS

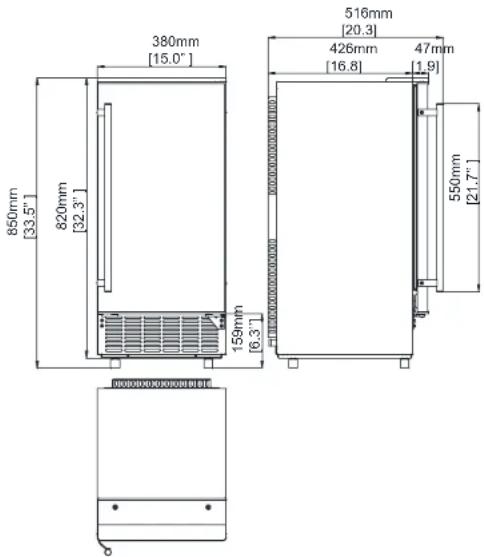

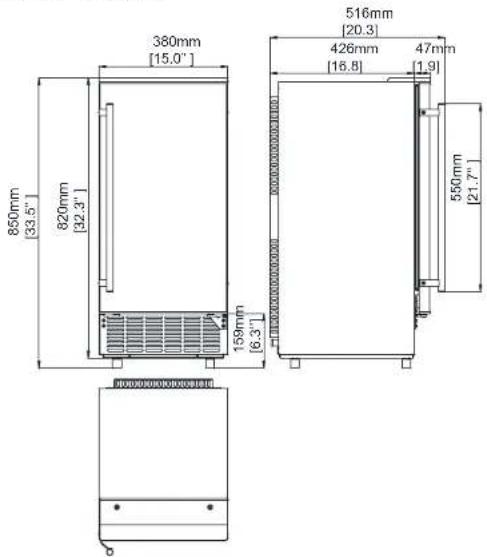

1) DIMENSIONS/CONNECTIONS

380mm [15.0°] 850mm [33.5°] 820mm [32.3°] 516mm [20.3] 426mm [16.8] 47mm [1.9] 159mm [6.3°] 550mm [21.7°] 000000000000000000000000000000000000000000000000000000000000000000000000000000000000

COSTWAY

2)Rating

MODEL	FP10242US-SL
POWER SUPPLY VOLTAGE	1Phase, 115V/60Hz
CLIMATE CLASS	50-104°F
ELECTRICAL PROTECTION CLASS	I
ICE MAKING RATING (Amps)	2.6Amp
ICE HARVEST RATING (Amps)	3.0Amp
ICE MAKING CAPACITY (KG/24H)	80LBS/24Hour *
REFRIGERANT CHARGE	R290 2.65Oz / 75g
NET WEIGHT(lbs)	53 lbs
VESICANT	C5H10
UNIT DIMENSIONS(W X D X H) (inch)	15x20.3x33.5 inch
MAX ICE STORAGE CAPACITY(lbs)	24lbs
ACCESSORIES	SHOVEL, INSTALLATION KITS, HANDLE
CONNECTION	POWER CORD 18AWG
	WATER SUPPLY----6.35mm in diameter
	DRAIN Φ16 SYLPHON BELLOWSS(REAR)
RUNNING CONDITIONS	ROOM TEMP 50-110 Fahrenheit
	WATER SUPPLY TEMP 41-95 Fahrenheit
	WATER SUPPLY PRESSURE 0.04-0.6 MPa

NOTE*: TESTED AT 70 Fahrenheit ROOM TEMPERATURE AND 50 Fahrenheit WATER TEMPERATURE.

COSTWAY

GENERAL INFORMATION

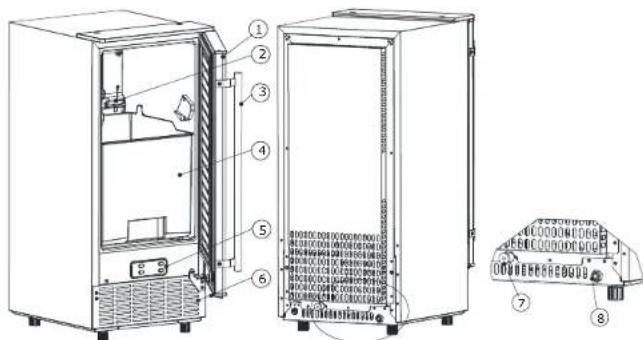

1) Main Unit Construction

Technical diagram of an industrial refrigerator with numbered components and a close-up view of the internal structure.

1. Door

1. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump and some detecting parts

2. Handle

3. Ice tank

5.Operation panel

1. Air Outlet: Must maintain good air circulation. Hot air will be blown out when the unit is running.

2. Water drain outlet: Under normal circumstances, the cover is blocked. When the water needs to be drained, remove the cover and connect the white drainpipe.

3. Water supply inlet: Used to connect the water supply pipe.

Accessory: 6.5 ft long and white color water drain pipe

water quick connector of the water faucet

6.35mm diameter and white color water supply pipe(10 ft long).

COSTWAY

COSTWAY

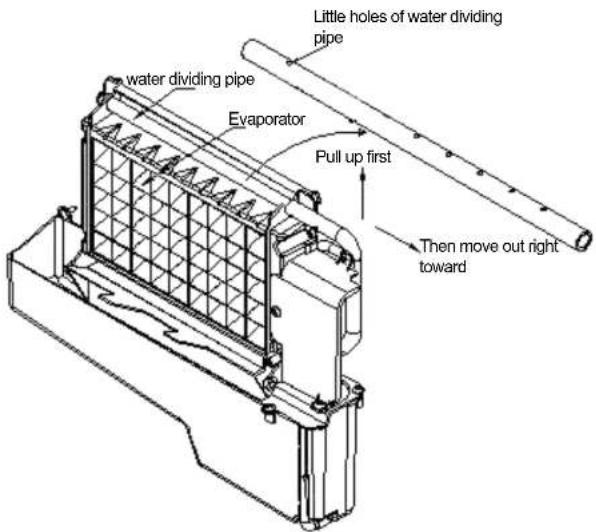

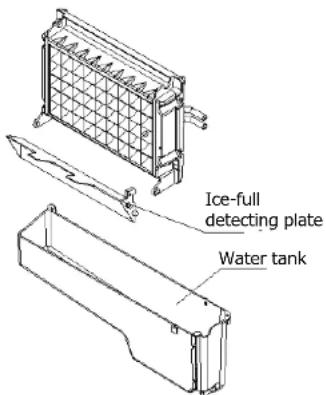

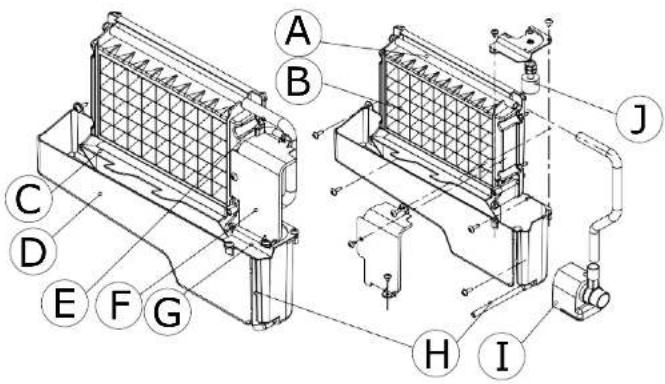

2) Ice-making and its water tank parts

Technical diagram of a mechanical assembly with labeled components A through J, showing internal structure and connections.

Water dividing pipe: with nine little holes, water will flow out from these little holes. And if no water flows out, can be disassembled and cleaned.

A. Evaporator (ice-making module)

B. Ice full detecting board: Used to check whether the inner cabinet is full of ice and whether the ice removal process is complete.

C.Water tank:

D. Water supplying pipe:

E.Cover board on the right side of the evaporator:

F. Water level switch installing plate:

G. Water drain pipe of the water tank: When making ice, this pipe should be stuck in the slot on the wall of the water tank. And when draining, this pipe should be pulled out.

H.Water pump:

I. Water level detecting switch

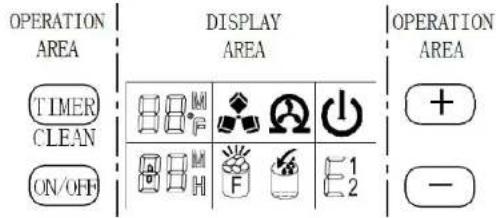

3) Operation panel

A. "TIMER CLEAN" button:

setting program; And press this button for more than 5 seconds, to enter the Cleaning program.

B. "ON/OFF" button: When the unit is off, press this button to turn on the unit; And during the Self-cleaning program,

or normal ice-making state, press this button to turn off the unit at once; And also if the unit is

set with the Timer, press this button to cancel the Timer setting. When the unit is making the ice cube, press this button for more than 5 seconds, the unit will switch to ice harvest process by force.

C. LCD display window

A B C D E TIMER CLEAN ON/OK + - -

1234

8 7 6 5

1. Ambient temperature display & Ice making time countdown display. Display the reciprocal of ice making time in unit M, and display the ambient temperature in unit F.

2. Making ice & Deicing symbol display. The machine is making ice when the symbol rotates, and the machine is deicing when the symbol flashes.

3. Automatic self-cleaning symbol display.

4. On/off symbol display.

5. Error code display. E1 means the environmental temperature sensor is damaged. E2 means ice making anomaly or the refrigerant leakage.

6. Water flow in and water shortage display. The arrow flashing indicates that there is water in the machine; the whole symbol is bright to indicate that the machine is short of water.

7. Ice full alarm. The machine will make ice again when you take out the ice.

8. Setting display. Display timing switch machine with H unit; Display ice making time setting with M unit.

D&E. "-" "+" button:

Used to adjust the duration of the ice making process. The default value is zero. You can add or subtract one minute each time you press the "+" or "-" button. You can also adjust the delay time of the timer. The default value is zero. Press "+" or "-" every time to increase or decrease the delay time by one hour.

COSTWAY

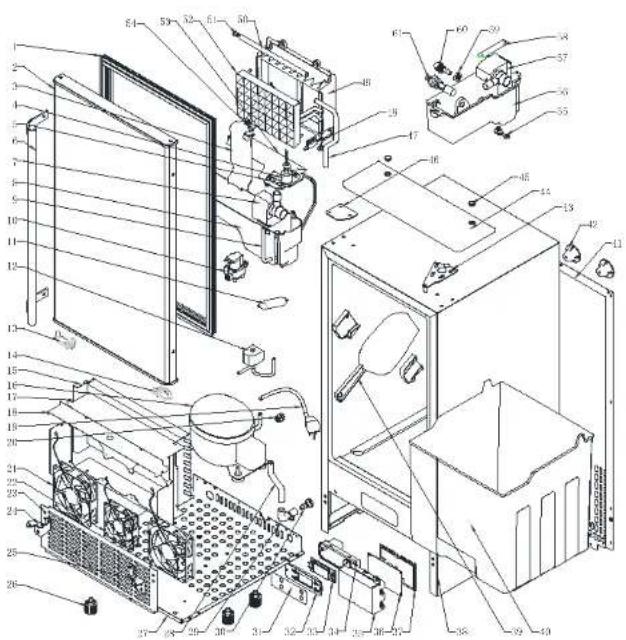

4) EXPLOSIVE DRAWING

Exploded view diagram of a refrigerator with numbered components and Chinese labels

COSTWAY

NO.	Part Name	Specifications	Qty
1	Door seal	PVC	1
2	Door	SUS & Foams	1
3	Water tank side cover	ABS White	1
4	Float switch	Electrical part DC5V	1
5	Water tank cover	ABS White	1
6	Handle	SUS	1
7	Pump	Electrical part AC115V	1
8	Water Tank	ABS White	1
9	Drain tube for water tank	Silicone tube,FDA	1
10	Water inlet solenoid	Electrical part DC12V	1
11	Filter Dryer	Copper and dryer	1
12	Solenoid valve for ice release	Electrical part AC115V	1
13	Left fix piece	POM	1 (accessory)
14	Right fix piece	POM	1
15	Condenser	Copper and aluminum	1
16	Compressor & accessory	Electrical part AC115V	1
17	Fan fix plate	Zinc-Plate sheet δ=0.8	1
18	Fan fix cover plate	Zinc-Plate sheet δ=0.6	1
19	Plug +Power cord	Electrical part AC115V	1
20	Strain relief bushing	PP black	1
21	Fan	Electrical part DC12V 120mm	2
22	Fan	Electrical part DC12V 90mm	1
23	Air outlet panel	SUS430 δ=0.8	1
24	Left bottom hinge	SPCC δ=2.5mm Chrome Plated	1 (accessory)
25	Right bottom hinge	SPCC δ=2.5mm Chrome Plated	1
26	Adjusted foot	M8*30mm	4
27	Bottom plate	Zinc-Plate sheet δ=1.2	1
28	Drain tube on liner Silicone tube,FDA		1
29	Water drainage port	ABS Gray,FDA	1
30	Water drainage cap	Rubber Black	1
31	Operation panel paper	PET,thickness 0.25mm	1
32	Operation panel PCB fix board ABS Black		1
33	Operation panel PCB Electrical part DC5V		1
34	Operation panel PCB box ABS Black		1
35	Main PCB box ABS 5V Black		1

COSTWAY

36	Main PCB	Electrical part AC115V	1
37	Main PCB cover	ABS 5V Black	1
38	Foaming cabinet	Sheet metal +foams	1
39	Ice scoop	ABS White	1
40	Ice basket	PP White	1
41	Back-cover plate	Zinc-Plate sheet δ=0.6	1
42	Back support column	PP Black	4
43	Top hinge	SPCC δ=2.5mm Zinc-plated	1
44	Top cover	ABS Black	1
45	Screw hole cover	ABS Black	1
46	Fix plate	SPCC δ=2.5mm Zinc-plated	1
47	Water outlet tube form pump	Silicone tube,FDA	1
48	Magnet switch	Electrical part DC5V	1
49	Evaporator frame	ABS White	1
50	Water dividing pipe, eight holes	ABS White	1
51	Cap of the water dividing pipe	Silicone,FDA	1
52	Evaporator	Copper Nickle plated	1
53	Ice full detecting plate	ABS White	1
54	LED light	Electrical part DC5V white light	1
55	Drain water plug Silicon		1
56	Drain water tank PP		1
57	Drain pump Electrical part AC115V		1
58	Fix plate for drain pump SUS304		1
59	Nut PA		1
60	Elbow adaptor PP		1
61	Water level sensor Electrical part DC5V		1

COSTWAY

1. Remove the exterior and interior packaging. Check if all the accessories, including instruction manual, ice scoop, white water inlet pipe, 4 ways to 2 ways water quick connector and the water draining pipe, etc., are inside or not. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing the door and inner cabinet, ice scoop, etc.. Roughly clean the inner cabinet & ice scoop with wet cloth.
3. Put the ice maker on a level & flat floor, without direct sunlight and other sources of heat (i.e.: slove, furnace, radiator). Make sure that there is at least 20 inch gap between the air outlet and the obstacles, and at least 2 inch between the wall.
4. Allow 4 hours for the refrigerant fluid to settle before plugging the ice maker in if the unit maybe fall upside down during shipping or transportation.
5. The appliance must be positioned so that the plug is accessible.
   WARNING: connect to the potable water supplying only. Only use drinking water.

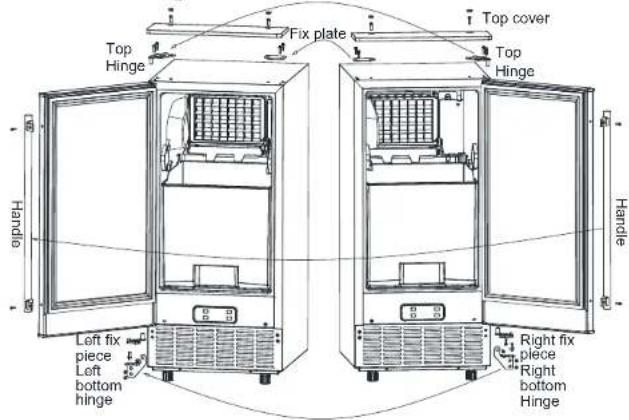

DOOR REVERSING (Optional)

If you want the refrigerator door to open from the opposite side, you can reverse the door swing.

Fix plate Top cover Top Hinge Handle Left fix piece Left bottom hinge Right fix piece Right bottom Hinge Handle

COSTWAY

1. Ensure the unit is unplugged before starting door reversal.
2. Remove the 2 Screw hole cover on the top cover, unscrew 2 screws which fix the top over.
3. Remove the 2 screws from the top hinge, and 2 screws from the fix plate.
4. Lift the door up and take off the door.
5. Set the freezer door on a non-scratching surface with the outside up.
6. Unscrew the 2 screws on the handle, fix on the opposite side of the door. Remove the screw on the right fix piece, fix the left fix piece(from accessory bag) to the door.

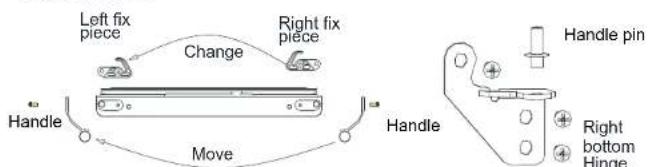

Left fix piece Change Right fix piece Handle Move Handle Handle pin Right bottom Hinge

1. Remove the right bottom hinge by removing the 3 screws, than fix the 3 screws back without hinge.
2. Remove the hinge pin on the right bottom hinge and reinstall on the left bottom hinge.
3. Remove the 3 screws from the left side and fix the left bottom hinge on the unit.
4. Place the door on the left bottom hinge. With the magnetic gasket holding the door in place, make sure the door is aligned with the unit, and secure the top hinge on the left with 2 screws.
5. Open and close both the door several times to confirm the door is positioned correctly and the gasket is sealed well. If this is not the case, please adjust the door again.
6. Fix the Fix plate back on the right side. Fix the top cover with 2 screws, cover the screw hole with the Screw hole cover.
7. Wait at least 30 minutes before plugging in the refrigerator to allow the refrigerant to settle down. Then plug in the unit.

Top cover Screw hole cover Top Hinge Unit top surface Fix plate

COSTWAY

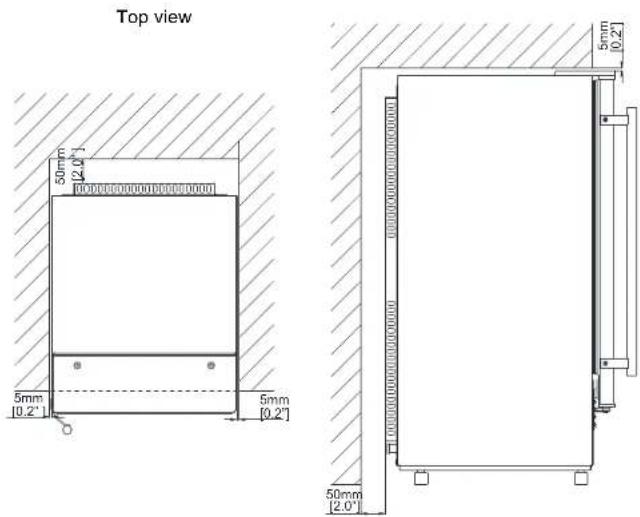

INSTALLATION LOCATION REQUIREMENT

a) This unit is not for outdoor use. Keep the proper room temperature and inlet water temperature according to above specification table. Otherwise it will affect the ice making performance.
b) This unit should not be located near any heat resource.
c) The unit should be located on a firm & level foundation at normal counter top height.
d) There must be at least 2 inch clearance at rear side for connection and 10 inch clearance in front to open the door and keep good air circulation.
e) Do not put anything on the top of the ice maker. Installation clearance

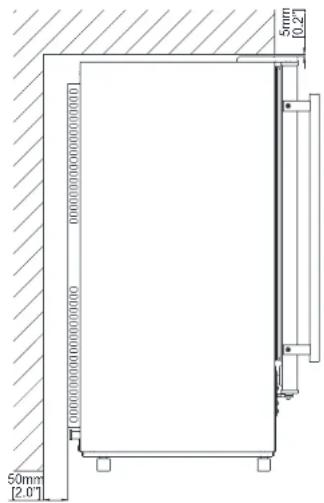

Side view

Top view 50mm [0.2°] 5mm [0.2°] 5mm [0.2°] 50mm [2.0°]

COSTWAY

To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed (at least 16 inch free space). Allow about 0.2 inch clearance at rear, and 0.2 inch at top for proper air circulation. The installation should allow the ice maker to be pulled forward for servicing if necessary.

When installing the ice maker under a counter, follow the recommended spacing dimensions shown above. Place electrical and water supplies and drain fixtures in the recommended locations as shown.

Choose a well-ventilated area with temperatures above 50 Fahrenheit and below 90 Fahrenheit. This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips. The ice maker requires a continuous water supply with pressure 1-8 Bar as required in above specification table. The temperature of the water feeding into the ice maker should be between 41 Fahrenheit and 77 Fahrenheit for proper operation.

ELECTRICAL REQUIREMENT & CONNECTIONS

WARNING: THIS UNIT MUST BE EARTHED.

Electrical Shock Hazard Plug into a grounding wall outlet.

Never remove the ground prong.

Use separate power supply or receptacle. Never use an adapter.

Never use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Before you move your ice maker into its final location, it is important to make sure you have the proper electrical connection.

It is recommended that a separate circuit, serving only your ice maker, be provided. Use receptacles that cannot be turned off by a switch or pull chain. If the supply cord or plug to be replaced, it should be done by a qualified service engineer.

This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good grounding means.

COSTWAY

Recommended grounding method

For your personal safety, this appliance must be properly grounded. This appliance is equipped with a power supply cord having a grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating grounding-type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounding wall receptacle installed by a qualified electrician.

CLEANING YOUR ICE MAKER BEFORE FIRST USING

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Open the ice getting door.
2. Clean with diluted detergent, warm water and a soft cloth.
3. Repeatedly clean the water contacting inner parts, you can pull the Water drain pipe of the water tank indicating "H" in above illustration to drain the cleaned water in the water tank, then clean inner ice-storing cabinet, till all of inner parts are clean, then drain out all of the cleaned water from the water drain port located at unit back indicating "7" in above illustration. And must reinstall back the water drain pipe of the water tank and the cap of the unit water drain port, otherwise, the unit will not make the ice normally. And suggest that you should discard the
   ice-cube made by the first ice making cycle after cleaning.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
5. Dry the interior and exterior with a clean soft cloth.

COSTWAY

WATER CONNECTION FOR YOUR ICE MAKER

Important: Be sure to use the new hose-sets supplied with the appliance to connect to water mains and that old hose-sets should not be reused.

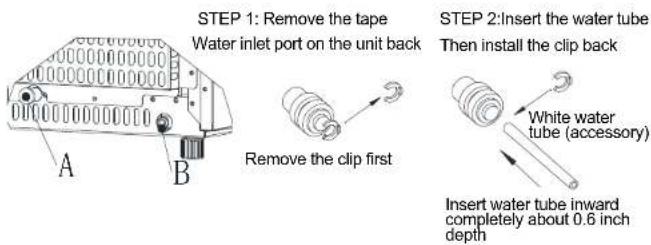

1. Connect the water supplying hose to the unit

Step 1: First remove the tape on the water inlet port for water supply (indicated in the following illustration "B") located at unit back, then use your other hand's finger to press the out circle.

Step 2: Insert the one end of the white water hose into the water inlet port, and push inward completely, and install back the clipper, then water hose connection is completed.

STEP 1: Remove the tape Water inlet port on the unit back A B Remove the clip first STEP 2: Insert the water tube Then install the clip back White water tube (accessory) Insert water tube inward completely about 0.6 inch depth

1. Connecting the water drain pipe

Pull out the water drainage cap with black color (indicated A in above illustration), then connect the white drainage pipe included in accessory, again connect the other end of this drainage to the main water drainage pipeline.

1. Connect the water hose to the water faucet of the water main supply system

First, install the supplied water quick-connector to the water faucet by screw thread; Second, remove the clipper from the water quick-connector, insert another end of the water hose into this quick-connector port completely, then install back the clipper, also this step is completed. Note: The water faucet should be supplied by the customer himself.

COSTWAY

Important: The water pressure of main water supply system must be 0.04-0.6 MPa at least.

STEP 1: Quick-connect or the water faucet

STEP 2: Screw the quick-connector on the water faucet by the screw thread, and remove the clipper

STEP 3: Insert the water hose completely

STEP 4: Install back the clipper

OPERATING YOUR UNIT

Operation button and display area diagram

OPERATION AREA TIMER CLEAN ON/OFF DISPLAY AREA OPERATION AREA + - 1 2

Operation of the ice-making process

1. Starting up: Plug in the power plug, the symbol will flash in the display window, press the ON/OFF button on the control panel, the machine will start to make ice when the external pipe add water to reach the standard level on the water tank through the electromagnetic water valve, then the symbol will change to light on always in display window and symbol rotates; The ambient temperature will be displayed in the upper left of the display window, "80F" means the ambient temperature is 80°F, several minutes later, the flashing numbers will be displayed in the ambient temperature display area, the flashing number "10M" means it still needs 10 minutes to finish this ice making cycle.

COSTWAY

1. Every ice making cycle finished, enter deicing process, the symbol flashes, the external pipe can add water to the water tank through the electromagnetic valve, and the arrow on the symbol will flash until the water reach the standard level, then the symbol extinguishes, the unit enter the next ice making cycle; When the water can not reach the standard level, the symbol is always bright, the unit stop working. After water shortage, the unit needs to be restarted, otherwise it will start up automatically after 15 minutes.

Note: Each ice making cycle is around 11-20 minutes, the ice making time will be changed according to the ambient temperature and the water temperature change. Especially the first ice making cycle, the ice making cycle will be longer because of the high water temperature in the water tank. But the ice making cycle will not be over 30 minutes.

1. Adjust the ice thickness; Press the "+"、"-" button on the control panel to adjust the ice thickness; The number in the bottom left of the display window is the setting of the ice making time, default is "0", press "+" button one time the ice making time will add one minute, the ice will be thicker; Press "—" button one time the ice making time will reduce one minute, the ice will be thinner. Restart the machine it will go back to default "0".

Note: The time currently set only changes the next and subsequent ice making cycle.

1. When the symbol lights up, the machine stops working, it will work again after you take out the ice.

5.Shut down the unit: When the unit is making ice, press the"ON/OFF"button on the control panel, the unit shuts down and will be into standby mode.If you press "ON/OFF" longer than 5S during ice making, then the unit enters the deicing process directly, this function can help remove the ice on the ice plate. Press "ON/OFF" to shut down the machine.

1. Timing setting: Setting range: 1-24 hours

Time shutdown: When the unit is running, it can set up the timing shutdown.

Time on: When the unit is on standby, you can set the unit with ON-TIMER.

COSTWAY

How to set up the timing

Press the TIMER button, the default timing time is "1H" in display window, then press "+" button to adjust the timing time you need, every time you press the "+" button, the time add 1 hour; Press "-" button can reduce the timing time. During the process of time adjustment, The "H" in the lower corner of the number will flash, then after 5 seconds flashing without pressing, the "H" letter will change from flashing to always displaying, means the timer program has been completed.

In standby condition display 5H, it means the unit will start automatically after 5 hours; In ice making condition display 5H, it means the machine will shut down automatically after 5 hours, the "H" in the display screen indicates that the machine currently has timing function, and the number in front will be smaller and smaller. Until it becomes zero, the timing ends, and the machine enters the mode you need.

How to cancel timing

When the unit has a timing (the display window will display XXH), press "TIMER" button, the timing is canceled after the number on the screen and "H" are extinguished.

When the unit has a timing, the display area in the lower left corner will display the timing time and the ice making setting time, and the display content will be switched every 5S.

7. Automatic self-cleaning program, The default cleaning time is 20 minutes.

Start the self-cleaning program: After connecting all of the water pipe, plug on the main power supply plug, then press "TIMER CLEAN" button on control panel for more than 5 seconds, to enter the self-Cleaning program, the symbol rotate on display screens, time count down area display 20M. And the "CLEAN" light will always be on during this period, the digit window will indicate the left time, the water pump runs for 8 minutes and stops for 3 minutes, always recycle. The total duration time is 20 minutes for one self-cleaning program. Also when the water pump stops, the water will supply to the water tank automatically.

Cancel the self-cleaning program: It takes about 20 minutes to complete one self-cleaning program. When the program is over, the system will be in off-state automatically. And also you can press the "ON/OFF" button on control panel to cancel the self-cleaning program by force.

8.How to switch Fahrenheit(°F) to Celsius(°c)?

Press +"or"- "button longer than 5s, It will automatically switch.

COSTWAY

COSTWAY

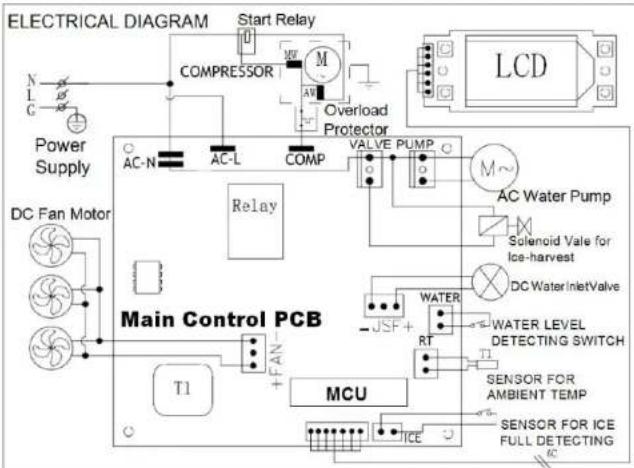

WIRING DIAGRAM

Normal Sounds

Your new ice maker may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

-You will hear a swooshing sound when the water valve opens to fill the water tank for each cycle.

-Rattling noises may come from the flow of the refrigerant or the water line. Items stored on top of the ice maker can also make noises.

-The high-efficiency compressor may make a pulsating or high-pitched sound. -Water running from the water tank to the evaporator plate may make a splashing sound.

-Water running from the evaporator to the water tank may make a splashing sound. -As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your ice maker.

-You may hear air being forced over the condenser by the condenser fan. During the harvest cycle, you may hear the sound of ice cubes falling into the ice storage bin. -When you first start the ice maker, you may hear water running continuously. The ice maker is programmed to run a rinse cycle before it begins to make ice.

Preparing the Ice Maker for Long Storage

If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary to drain out all of the water in the system.

1. Allow all of the ice cubes to be ejected from the evaporator of ice maker.

2. Tum off the unit, and unplug the power cord.

3.Shut off the water supply at the main water supply.

1. Disconnect the water supply hose from the water inlet valve.

2. Pull out the Water drain pipe of the water tank indicating "H" in above illustration to drain out the water in the water tank. When all of the water have been drained out, to reinstall back the water drain pipe of the water tank.

3. Then drain out all of the water from the water drain port located at unit back indicating "7" in above illustration.

4. Disconnect the water drain pipe to the main drain pipeline or floor drain, plug on the drain cap again.

5. Drop the door open to allow for circulation and prevent mold and mildew.

9.Leave water supply hose and power cord disconnected until ready to reuse.

1. Dry the interior & wipe the outside of the unit.

2. Put a plastic bag on the unit to resist out dust & dirt.

CLEANING & MAINTENANCE

WARNING: Before carrying out any cleaning or maintenance operations, unplug the ice maker from the main power supply electricity. (EXCEPTION: Ice maker self-cleaning program).

Do not use any alcohol or fume for cleaning/sanitization of the ice maker. It may cause cracks on the plastic parts.

Ask a trained service person to check and clean the condenser at least once a year, in order to let the unit work properly.

This appliance must be cleaned by use of a water jet.

CAUTION

If the ice maker has been left unused for a long time, before the next use it must be thoroughly cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the ice maker after cleaning.

Periodic cleaning and proper maintenance will ensure efficiency, top performance, hygienic, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets, or the unit is used outdoors, or there are other special considerations.

COSTWAY

What shouldn't be done

Never keep anything in the ice storage bin that is not ice: objects like wine and beer bottles are unsanitary, and also its labels may slip off and obstruct the drain pipe.

Exterior Cleaning

The door and cabinet may be cleaned with a mild detergent and warm water solution such as 28g/1 ounce of dish washing liquid mixed with 7.5L/1.6 gallon of warm water.

Do not use solvent-based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting.

Stainless steel models can discolor when exposed to chlorine gas and should be cleaned. Clean stainless steel models with a mild detergent and warm water solution and a damp cloth. Never use abrasive cleaning agents.

NOTICE: Stainless steel models exposed to chlorine gas and moisture, such as in areas with spas or swimming pools, may have some discoloration of stainless steel. Discoloration from chlorine gas is normal.

Interior Cleaning For Ice Storage Bin

The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is used for the first time and reused after stopping for an extended period of time. It is usually convenient to sanitize the bin after the ice making system has been cleaned, and the storage bin is empty.

1. Disconnect power to the unit.

2. Open the door and with a clean cloth, wipe down the interior with a sanitizing solution made of 28g/1 ounce of household bleach or chlorine and 7.5L/1.6 gallon of hot water(95°F to 115°F).

3. Rinse thoroughly with clear water. The waste water will be drained out through the drain pipe.

4. Reconnect power to the unit.

The ice scoop should be washed regularly. Wash it just like any other food container.

WARNING

DO NOT use solvent cleaning agents or abrasives on the interior. These cleaners may transmit odour to the ice cubes, or damage or discolor the interior.

Ice Making Parts Cleaning

During the using, periodically to clean these main system of your ice-maker.

Little holes of water dividing pipe water dividing pipe Evaporator Pull up first Then move out right toward

1. Repeat above step to clean the water tank and other inner parts of the unit.

2. Especially, to the water dividing pipe on the evaporator, when the compressor and the water pump run normally, but if there is no water flowing out from the water dividing pipe or the water flowing is very small, please discharge this water dividing pipe to clean carefully. Clean each little holes on the water dividing pipe displayed in the following illustration, make sure each hole is not clogged by something, then install back to the original location.

3. When there are ice cubes on the surface of the evaporator, but can't fall down easily, do not use the mechanical substance to remove it by force; Only press the "ON/OFF" button for more than 5 seconds, the unit will enter the ice melting process, after some while, the big ice-cubes will fall down, then turn off the unit and unplug the power cord to clean the surface of the evaporator.

COSTWAY

COSTWAY

4. For the water tank and ice-full detecting plate

Also the water tank and the ice-full detecting plate is very important to keep your ice cube hygienic. Put mixture of neutral cleaner & water into a clean water jet, then spray to all the inner surface of tank & the ice detecting plate. Wipe these surfaces as far as possible with a clean cloth. And then, spray the surfaces with clean water, wiping with a dry clean cloth. Then drain out the cleaned water in the water tank by pulling out the Water drain pipe of the water tank indicating "H" in above illustration. When all of the cleaned water has been drained out, to reinstall back the water drain pipe of the water tank.

Ice-full detecting plate Water tank

Suggestion: After cleaning the interior parts and install back to its respective position, and return machine to work, discard first batch of ice. Ice Making Assembly System Cleaning by Using Nu-Calgon Nickle Safe Ice-machine Cleaner

Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends upon how hard your water is. With hard water of 4 to 5 liter (0.8 to 1 gallon), you may need to clean the system as often as every 6 months.

1. Turn off the ice maker. Keep the ice maker connected to the water supply and drainpipe. But shut off the water faucet of main water supply.
2. Open the door and scoop out all of the ice cubes. Either discard them or save them in an ice chest or cooler.
3. Making the cleaning solution. Please mix the Nu-Calgon Nickle Safe Ice Machine Cleaner with water to make the cleaning solution.

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols visible)

COSTWAY

WARNING

Wear rubber gloves and safety goggles (and/or face shield) when handing Ice Machine Cleaner or sanitizer.

Use a plastic or stainless container with more than 4 liter/0.8 gallon capacity,mix 300ml/10.5oz Nu-Calgon Nickle Safe Ice-machine Cleaner with 2.8 liter/0.6 gallon warm water about 120^ - 140^ . Then divide them for 2 shares equally in 2 cups. It is better to keep the temperature of each cup of the cleaning solution.

1. Check to be sure that the water drain pipe of the water tank has been installed properly in the slot of the tank wall. Then Pour one cup of Nickel-Safe Ice Maker Cleaning Solution into the water tank. Wait about for 5 minutes.

2. Turn on the power to the ice maker, then press "TIMER CLEAN" button on control panel for more than 5 seconds, to enter the self-Cleaning program. Same as above explanation, the water pump runs for 8 minutes and stops for 3 minutes, one cycle, again one cycle. The total duration time is 30 minutes for one self-cleaning program.

During this process, the "CLEAN" light will always be on during this period, and the digit window will indicate the remain time.

1. After 30 minutes of one self-cleaning program completing, pull out the drain pipe of the water tank, drain the cleaning solution down to the lower ice storage bin. Shake the unit slightly to drain out all of the cleaning solution completely.

Then install back the drain pipe to the slot of the water tank.

1. Repeat steps 4--6 to clean the ice making assembly system again.

WARNING

The ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based cleaner products. Use rubber gloves to protect hands. Carefully read the material safety instructions on the container of the ice machine cleaner.

COSTWAY

1. Then open the water faucet of the main water supply, Let the water flow in the unit. Again press the "TIMER CLEAN" button on control panel for more than 5 seconds, to enter the self-Cleaning program. Same as above explanation, the water pump runs for 8 minutes and stops for 3 minutes, one cycle, again one cycle. The total duration time is 30 minutes for one self-cleaning program. During this process, the "CLEAN" light will always be on during this period, and the digit window will indicate the left time. Through this process, it will rinse the water dividing pipe, evaporator, water pump, silicone pipe, and water tank, etc.. 9. After one self-cleaning program is completed, then pull out the drain pipe of the water tank, drain the cleaning solution down to the lower ice storage bin, also shake the unit slightly to drain out all of the water completely. Then install back the drain pipe to the water tank slot tightly.

2. Repeat the step 8-9 again for 2 times.

11.Following the above program to clean the ice storage bin.

1. Then this special cleaning program finish, you can return to the regular ice making mode. And suggest to discard the first batch of ice cube.

Cleaning Suggestion

1) DAILY CLEANING

The ice shovel, door and the water dividing pipe should be cleaned by yourself per each day. At the end of every day, rinse the ice shovel and wipe the both sides of the door with a clean cloth.

2) SEMI-MONTHLY CLEANING

The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the evaporator are to be cleaned by yourself semi-monthly according to interior cleaning program.

3) SEMI-ANNUAL CLEANING

All the components & surfaces exposed to water or ice cubes, like ice storage bin, water tank, door, evaporator, water pump, silicone tube, water dividing pipe, etc. should be cleaned by Using Nu-Calgon Nickle Safe Ice-machine Cleaner every 6 months. They should be cleaned by the serviceman according to ice making assembly system cleaning program.

COSTWAY

NORMAL TROUBLE SHOOTING
Problem Possible Cause Solution

indicator is on.	No water supply	Check the main water supply pressure or check the water supply hose is blocked or not, adding the water pressure or cleaning the hose if necessary.
	Floating ball of the water level detecting switch is blocked, can't be raised up	Clean the water tank and the water level detecting switch.
	Water flows out from the water tank	Place the unit on the level position, not on the slope.
	Water flows out from the water drain pipe of the water tank.	Pull out the pipe and install back to the slot of the water tank properly.
The unit starts to enter the ice making process, but no water flowing in the unit, and the " indicator flashes	Water supplying hose breakdown, or water flows in very slowly.	Check the main water supply pressure or check the water supply hose is blocked or not, adding the water pressure or cleaning the hose if necessary.
Water pump is working, but no water flow out from the water dividing pipe	The little holes on the water dividing pipe is blocked.	Clean these little holes.
The transparency of the ice cube is not very good	Water quality is bad	Change the water supply, or use the water filter to soften or filter the water.

NORMAL TROUBLE SHOOTING

Problem	Possible Cause	Solution
Ice cube shape is irregular	Water quality is not good or the water tank is very dirty	Clean the water tank, and change with new water.
	The little holes on the water dividing pipe is some blocked	Clean the water dividing pipe, make sure all nine holes are unclogged
Ice cube is very thin	Ambient temperature is too high	Move the unit to low temperature space, or lengthen the time of each ice making cycle.
	Air circulation around the unit is not good	Make sure there is more than 20cm/8 inch space between the unit back & front and the obstacle
Ice cube is too thick	Ambient temperature is too low	Reduce the time of each ice making cycle.
“” indicator is on	The ice storage bin is full of the ice cube.	Take out some ice cube
Ice making cycle is normal, but there is no ice cube produced	The temperature of Ambient, or water in water tank is too high	Move to the place with temperature lower than 90 Fahrenheit, and change to the low temperature water
	Refrigerant leakage	Need the technical serviceman to maintain
	Cooling system tube is clogged	Need the technical service person to maintain

ERROR INDICATOR

a) Ambient temp sensor breakdown Display E1 in digital window.
b) The machine not make ice or the gas leak Display E2 in digital window
c) Magnetic control switch cutoff----"Full" light will be on when plugging on or just turning on the unit. And it will delete the breakdown display if this switch is electric shorted.
d) During the ice making process, press the "ON/OFF" button for more than 5 seconds, the unit starts to enter the ice harvest program. And after the ice harvest program, it continues to enter the ice making process.
e) The drain pump dose not work, Display E in digital window.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems. They can take this product for environmentally safe recycling.

SÉCURITÉ IMPORTANTE

1) DIMENSIONS/CONNEXIONS

380mm [15.0"] 850mm [33.6"] 820mm [32.3"] 159mm [6.3"] 516mm [20.3] 426mm [16.8] 47mm [1.9] 550mm [21.7"]

COSTWAY

2) Évaluation

MODÈLE	FP10242US-SL
TENSION D'ALIMENTATION	1Phase, 115V/60Hz
CLASSE CLIMATIQUE	10-40°C (50-104°F)
CLASSE DE PROTECTION ÉLECTRIQUE	I
COTE DE FABRICATION DE GLACE (Amps)	2,6 Amp
COTE DE RÉCOLTE DE GLACE (Amps)	3,0 Amp
CAPACITÉ DE FABRICATION DE GLACE (KG/24H) 36 KG (80 LBS)/24 Heures
CHARGE DE RÉFRIGÉRANT	R290 2,65 oz/75 g
POIDS NET	24 kg (53 lbs)
VÉSICANT	C5H10
DIMENSIONS DE L'UNITÉ (L X P X H)	38x51,6x85 cm (15x20.3x33.5 inch)
CAPACITÉ MAXIMALE DE STOCKAGE DE GLACE	11 kg (24 lbs)
ACCESSOIRES	PELLE, KITS D'INSTALLATION, POIGNÉE
CONNEXION	CORDON D'ALIMENTATION 18AWG ALIMENTATION EN EAU --- 6,35 mm de diamètreDRAIN Φ16 SOUFFLET SYLPHON (ARRIÈRE)
CONDITIONS DE FONCTIONNEMENT	TEMPÉRATURE AMBIANTE 50-110 FahrenheitTEMPÉRATURE D'ALIMENTATION EN EAU 41-95 FahrenheitPRESSION D'ALIMENTATION EN EAU 0,04-0,6 MPa

REMARQUE*: TESTÉ À UNE TEMPÉRATURE AMBIANTE DE 70 Fahrenheit ET À UNE TEMPÉRATURE DE L'EAU DE 50 Fahrenheit.

INFORMATIONS GÉNÉRALES

Technical diagram of an industrial refrigerator with numbered components and a close-up view of the internal structure.

Technical diagram of a mechanical assembly with labeled components A through J, showing cross-sectional views and structural details.

B. Bouton ON/OFF (MARCHE/ARRÊT) s

Exploded view diagram of an air conditioner unit with numbered components and labeled parts

COSTWAY

50mm [2.0°] 5mm [0.2°] 5mm [0.2°]

Vue de côté

5mm [0.2] 0000000000000000000000000000000000000000000000000000000000000000000000000 50mm [2.0°]

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols visible)

Technical line drawing of a mechanical component with a hand holding a tool (no text or symbols visible)

COSTWAY

COSTWAY

AVERTISSEMENT

ÉLIMINATION CORRECTE DE CE PRODUIT

DO NOT discard the box / original packaging.
In case a return is required, the item must be returned in original box. Without this your return will not be accepted.
Take a photo of the box markings.
A photo of the markings (text) on the side of the box is required in case a part is needed for replacement. This helps our staff identify your product number to ensure you receive the correct parts.
Take a photo of the damaged part (if applicable).
A photo of the damage is always required to file a claim and get your replacement or refund processed quickly. Please make sure you have the box even if it is damaged.
Send us an email with the images requested.
Email us directly from marketplace where your item was purchased with the attached images and a description of your claim.

Instructions De Retour / Réclamation De Dommages
