USER MANUAL Conga 8290 Immortal Ultra Power Home X-Treme CECOTEC

Exterior view of a modern robotic vacuum cleaner with visible brand logo (no text or symbols on device body)

cecòtec

Safety instructions 7

1. Parts and components 52

2. Before use 53

3. Operation 56

4. Cleaning and maintenance 59

5. Troubleshooting 62

6. Technical specifications 64

7. Disposal of old electrical and electronic appliances 65

8. Technical support and warranty 65

9. Copyright 65

10. Declaration of conformity 65

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance must be used in accordance with these operating instructions. Cecotec will not be held liable or responsible for any damages or injuries caused by improper use.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.

• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use this appliance on concrete, asphalt, or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Turn off and unplug the appliance from the mains supply when it is not going to be used for a long period of time, before cleaning or repairing, before attaching components, and before removing the battery. Pull from the plug, not the cable, to disconnect it from the outlet.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Never touch the cable or the power socket with wet hands.
• Do not expose the appliance to direct sunlight, fire, water, or moisture.
• Do not sit or place sharp or heavy objects on top of the appliance.
• Before operating the robot vacuum cleaner, prepare the room and supervise it. To do so, remove any objects and cables that may affect its operation.
• Keep the appliance away from clothing, curtains, and similar materials.
• Always place the appliance on a flat and stable surface. Avoid placing it on unstable surfaces it could fall from (such as tables or chairs).
• Before switching on the robot vacuum cleaner, check that all connections, both on the robot and on the self-emptying base, are in good condition.
• Avoid operating the robot vacuum cleaner under extremely high or low temperatures.
• The appliance must only be used with the battery supplied with the appliance or with compatible charging units approved by Cecotec.
• Non-rechargeable batteries should not be recharged.
• Make sure the appliance is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Make sure the self-emptying base is not connected to a power outlet before cleaning.

BATTERY INSTRUCTIONS

• The appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Batteries may leak under extreme conditions. Should that be the case, do not touch the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves when handling the battery or cells and dispose of it immediately in accordance with local regulations.
• Avoid contact between batteries and small metal objects such as paper clips, coins, keys, nails, or screws.
• Never modify the charger in any way.
• Batteries must be removed from the appliance for safe disposal.
• Keep batteries out of the reach of children if they can be swallowed.
• Battery ingestion can cause burns, perforation of soft tissue, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical help immediately.
• WARNING: to recharge the battery, use only the self-emptying base supplied with the appliance.
• The batteries' supply terminals must not be short-circuited.
• If the appliance is to be stored for a long period of time, it is advisable to remove the batteries.
• Batteries must be inserted in the correct position. Pay attention to polarity when inserting it.

INSTRUCTIONS DE SÉCURITÉ

1. Back Home button
2. Start/Pause button
3. Laser sensor

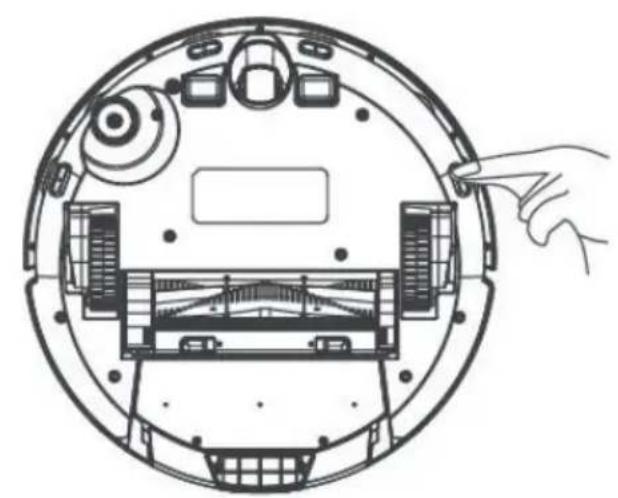

4. Reset button
5. Bumper
6. Top cover
7. Mixed-tank release tab
8. Fall-detection sensors
9. Side brush
10. Drive wheels
11. Mixed tank
12. Charging terminals
13. Omnidirectional wheel
14. Main brush
15. Battery

Robot vacuum cleaner accessories. Fig. 1.2:

1. Self-emptying base
2. Power cable
3. Bracket with mop
4. Instruction manual
5. Self-cleaning brush
6. Side brush
7. Dirt-disposal bag
8. Spare mop

Self-emptying base. Fig. 2:

1. Power cable
2. Dirt-disposal bag
3. Cover
4. LED indicator light
5. Charging terminals
6. Dirt collection channel

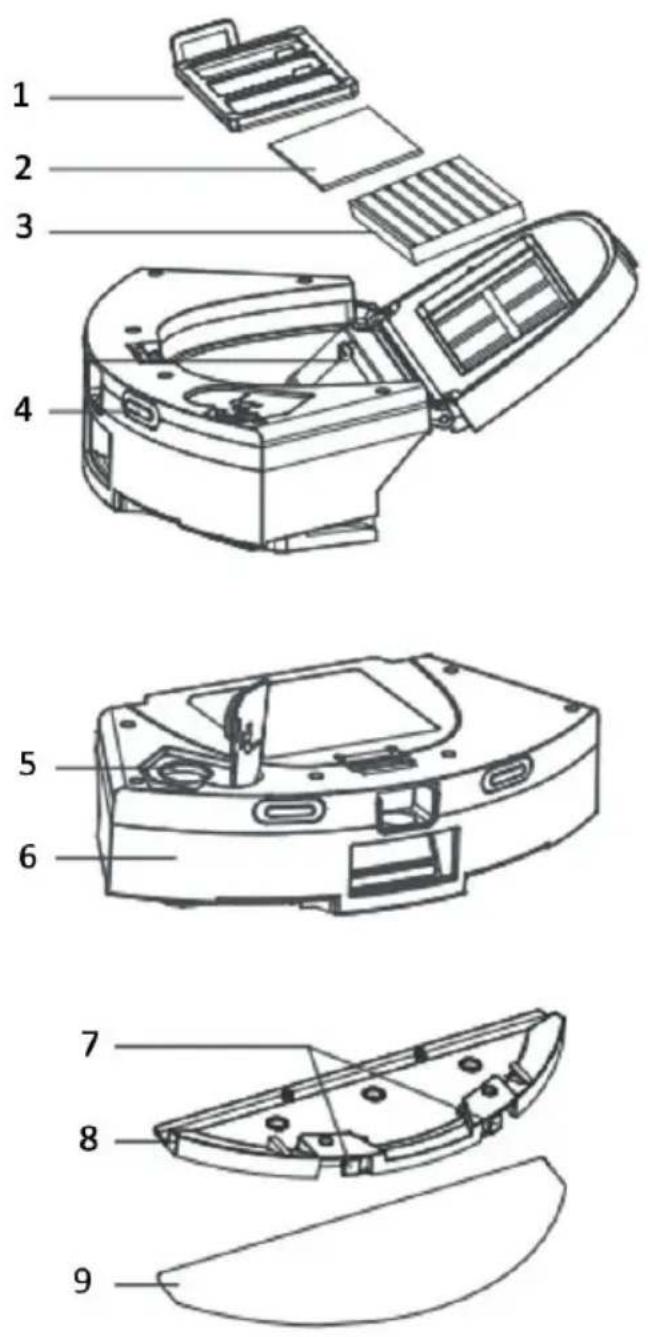

Mixed tank. Fig. 3:

1. High-efficiency filter cover
2. Sponge filter

3. High-efficiency filter

4. Charging terminals

5. Water inlet
6. Water tank
7. Bracket anchor button
8. Mop bracket
9. Mop

Please note

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This robot vacuum cleaner includes a package designed to protect it during transport.
  Take the robot vacuum cleaner out of the box. Keep the original box and other elements in a safe place, as this will help you prevent damage to the robot vacuum cleaner when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.

Warnings

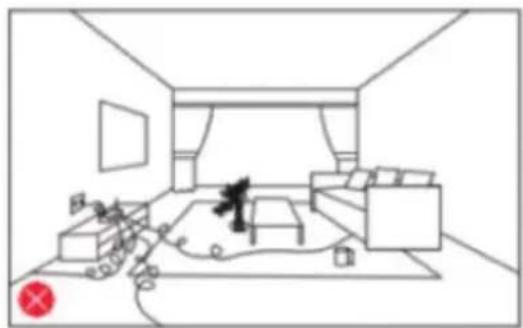

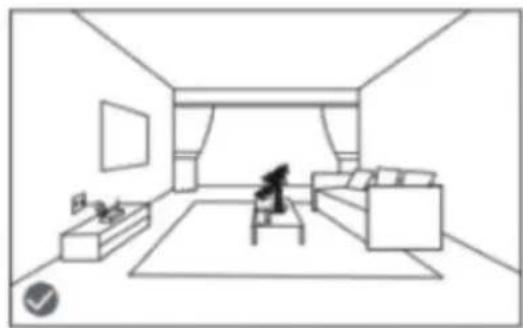

• Remove all objects around the robot vacuum cleaner such as clothing, papers, cables, curtains, or other fragile objects which may block or slow down the operation of the robot vacuum cleaner. Fig. 4

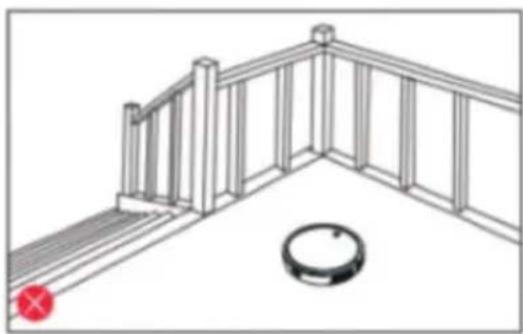

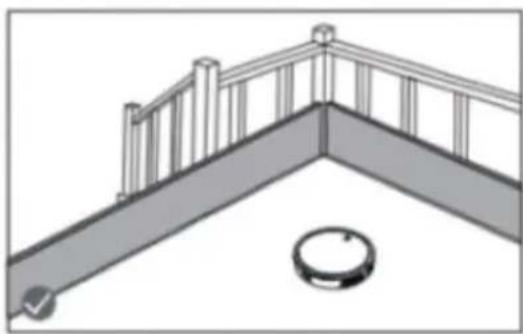

• If the room to be cleaned is near a balcony or stairs, a physical barrier should be placed to prevent the robot vacuum cleaner from falling and getting damaged, thus ensuring safe operation. Fig. 5
• Do not use the robot vacuum cleaner for liquids. Fig. 6
• Direct exposure to sunlight or heavy light contrasts may affect the correct operation of the sensors. If this happens, the robot vacuum cleaner will cease operation. Move it to a new location for it to start running again.
• Please note that the total height of the robot vacuum cleaner is 9,3 cm and the sensors are at the bottom, so it is advisable to prevent access to all areas below 9,3 cm to avoid damaging the laser.

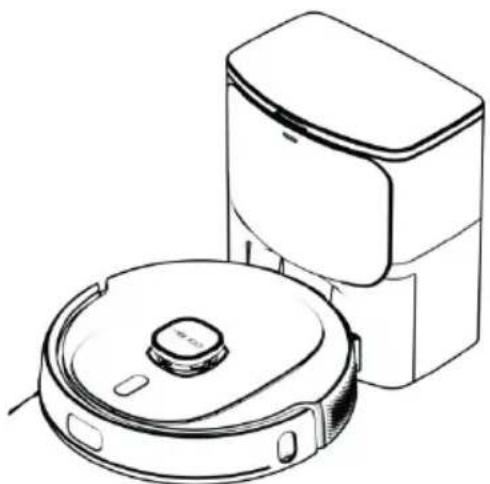

Installing the robot vacuum cleaner and the self-emptying base

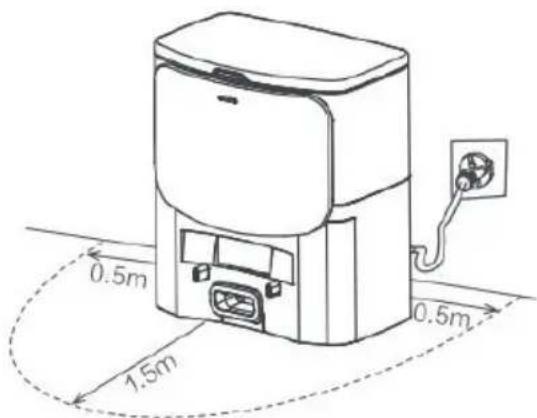

1. Place the self-emptying base against a wall and leave a minimum free space of 1.5 metres to the front and 0.5 metres to each side. Fig. 7

ENGLISH

1. Plug the self-emptying base to a power socket. Wind and store the remaining cable to prevent accidents.

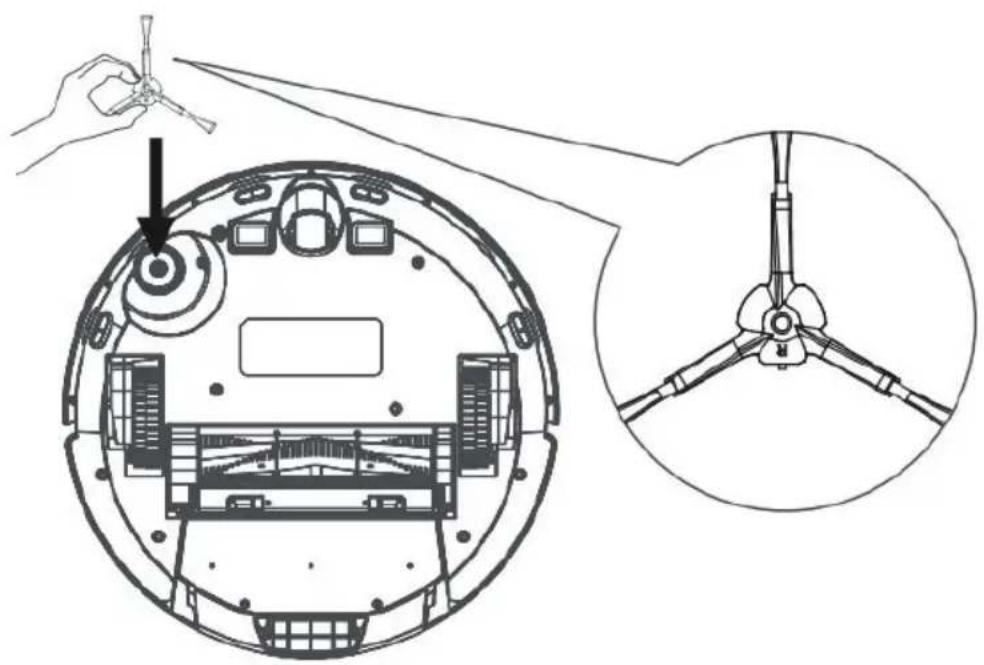

2. Install the side brush. Fig. 8
3. Hold down the Start/Pause button for a few seconds.
4. When the indicator light turns on, put the robot vacuum cleaner in the self-emptying base and make sure the charging terminals of the robot match those of the base. If the light is flashing blue, it means the battery is not completely charged. To ensure the maximum cleaning time, wait until the light turns into steady blue, as this indicates that the battery is fully charged and that the robot vacuum cleaner is ready to clean. Fig. 9

Note

• Take the robot vacuum cleaner to the self-emptying base if battery is low. The robot vacuum cleaner may not turn on if battery is too low.
• The robot vacuum cleaner will turn on automatically when placed in the self-emptying base.
• The robot vacuum cleaner cannot be turned off during recharge.

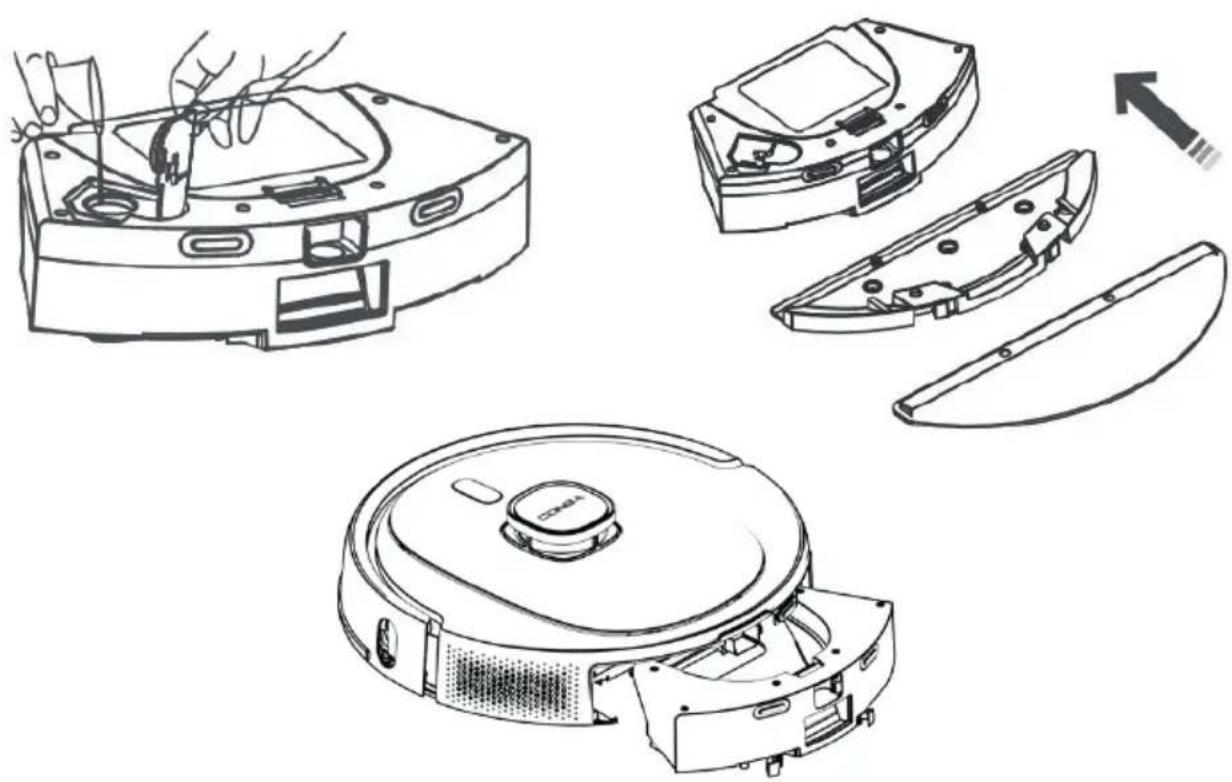

Installing the mixed tank. Fig. 10

• Open the water-tank silicone lid and carefully fill up the tank while avoiding spillages. Make sure the lid is properly closed. Never immerse the tank in water or other liquids.
  • Install the mop on the mop bracket.
• To install the tank on the robot vacuum cleaner, follow the direction shown in figure 10 and manually press the tab and push it into the correct position. You will hear a click when it is properly fixed.
  • Install the mop bracket following the direction shown in Figure 10.

Recommendations

• It is not suggested to use the scrubbing function during the first-time use.
• It is recommended to be present when the robot vacuum cleaner is scrubbing.
• To remove the mop bracket, press the release button and pull from it outwards.
• Uninstall the mop bracket when the robot vacuum cleaner is charging or when not in use.
• Add a few drops of cleaning agent to the water, if necessary, as long as it is non-corrosive.
• Using cleaning agents in excess might block water outlets.
• In order to achieve perfect scrubbing, it is suggested to moisten the mop before using it.

Wi-Fi connectivity and mobile App

In order to link your robot vacuum cleaner to your mobile phone, you will need to follow the steps below:

Automatic-scanning mode

• Download the Cecotec app from Google Play or App Store or scan the QR code on your robot vacuum cleaner.
• If it is the first time you use it, register an account. If not, log in.
• Once in the app, press on the "+" symbol in the top right corner and the Add device option.
• On your robot vacuum cleaner, press and hold for a few seconds the Home button until the robot beeps and the buttons change their flashing frequency.
• The device will appear on the display, press on it.
• Enter the Wi-Fi password to which the mobile device is connected and select next. Remember the Wi-Fi network must be 2.4 GHz.
• Wait for the connection to complete.

Manual-connection mode:

• Download the Cecotec app from Google Play or App Store or scan the QR code on your robot vacuum cleaner.
• If it is the first time you use it, register an account. If not, log in.
• Once in the app, press on the "+" symbol in the top right corner and the Add device option.
• On your robot vacuum cleaner, press and hold for a few seconds the Home button until the robot beeps and the buttons change their flashing frequency.
• Press on the robot option you are using.
• Enter your home Wi-Fi password. Remember the Wi-Fi network must be 2.4 GHz.
• Follow the steps shown in the app until the linking process is completed.

First use

• Once the robot vacuum cleaner and the self-emptying base are installed, follow the steps below before the first cleaning.
• First of all, fully charge the robot vacuum cleaner. It is suggested to allow the robot to charge overnight. Once fully charged, it may carry out the first cleaning cycle and save the first map. To do this, press the start/pause button in the app and the robot will map your house to continue cleaning in the edge and zigzag mode.
• If your house is very large and the robot vacuum cleaner runs out of battery, it will return to the self-emptying base, save both complete and incomplete maps, and, once recharged, it will resume cleaning where it left off until the entire cleaning surface has been mapped. The robot vacuum cleaner is constantly mapping, so it adapts in an individualised and personalised way to the particularities of each house while constantly improving its map.

About the self-emptying base

- The self-emptying base includes a loading and emptying function and a new dirt-disposal bag. After cleaning, the robot will automatically return to the self-emptying

ENGLISH

base to recharge. The self-emptying base will empty the dirt tank based on the emptying scheduled selected on the app.

- If the robot vacuum cleaner is charging in the self-emptying base, you can force the robot to self-empty. To do so, press the Self-emptying option in your application.

3. OPERATION

Robot vacuum cleaner's buttons

Auto Mode

• Press the Start/Pause button on the robot vacuum cleaner or select it in the app to make it start cleaning automatically in Edge mode and then perform a cleaning cycle in an orderly zigzag pattern while it also recognises which areas have been cleaned and which have not. The robot vacuum cleaner will automatically plan the cleaning route during cleaning.
• If you control the robot vacuum cleaner manually during this mode, the robot will recalculate the route, so it may pass through already cleaned areas. To ensure efficient cleaning, do not operate the robot vacuum cleaner manually during automatic cleaning.
• Thanks to its Total Surface 2.0 technology, if the battery is low during the cleaning cycle, the robot vacuum cleaner will smartly return to the charging base automatically and once fully charged, it will resume the cleaning process from the same point.
• During cleaning, the robot vacuum cleaner will stop briefly to evaluate the area and calculate the cleaning route (this stop will vary depending on the house conditions).

Back Home mode

• Press the Back Home button on the robot vacuum cleaner or from the app to send the robot vacuum cleaner to the self-emptying base. The robot vacuum cleaner will stop vacuuming until it reaches the base.
• This mode can be activated during any cleaning cycle.
• The robot vacuum cleaner will take the shortest route back to the self-emptying base thanks to its map-memorisation feature and the smart Back Home function.
• Upon completing a cleaning cycle or when the battery is low, thanks to its TotalSurface 2.0 technology, the robot vacuum cleaner will automatically return to the self-emptying base to avoid running out of battery. Once the robot has recharged, it will resume cleaning from the point it has stopped.

Note

The robot vacuum cleaner will not be able to return to the self-emptying base if it can't easily access it. If this happens, manually place it in the self-emptying base.

Functions

Pause

While the robot vacuum cleaner is running, press the Start/Pause button on the robot vacuum cleaner or select it in the app to pause the cleaning process. Press the Start/Pause button on the robot vacuum cleaner or on the app to resume the cleaning process.

Standby

• The robot vacuum cleaner will automatically enter standby mode after 10 minutes of inactivity.
• Press the Start/Pause button on the robot vacuum cleaner or in the app to activate it again.

Cleaning modes

• The robot vacuum cleaner includes different modes and functions that can be toggled from the app.
• In addition, in every one of the cleaning modes on the app, you will be able to select the Turbo mode on carpets, which activates the maximum suction power when the robot vacuum cleaner detects a carpet, and the x2 option which allows the selected cleaning mode to be doubled.

Complete cleaning mode

• Select this mode to perform a deep cleaning of your house. The robot vacuum cleaner will clean in Edge mode and continue zigzagging horizontally and vertically. It will then return to the self-emptying base.
• To activate this mode, select the Complete Cleaning option on the app.

Edge mode

• When this mode is selected, the robot vacuum cleaner will clean along walls and around furniture (e.g., table or chair legs).
• Press the edge cleaning mode in the app.

Spiral mode

• When this mode is enabled, the robot vacuum cleaner will thoroughly clean a specific area. It will start cleaning at a specific spot and will move outwards in a spiral motion, and it will return to the starting spot in an inwards spiral motion again.
• Once finished, the robot vacuum cleaner will return to the self-emptying base directly.
• Before using this mode, place it in the spot you wish to clean.
• Select the spiral cleaning mode on the app.

Square Spiral mode

- When this mode is enabled, the robot vacuum cleaner will thoroughly clean a specific area. It will start cleaning at a specific spot and will move outwards in a square-spiral

ENGLISH

motion, and it will return to the starting spot in an inwards square-spiral motion.

• Once finished, the robot vacuum cleaner will return to the self-emptying base directly.
• Before using this mode, place it in the spot you wish to clean.
• Select the spiral cleaning mode on the app.

Scrubbing Mode

1. Attach the mop to the bracket and the latter to the mixed tank. Fill up the water tank.
2. Insert the mixed tank into the robot vacuum cleaner and select the cleaning mode and scrubbing level in the application: off, low, medium, or high.
3. Once you have selected the desired scrubbing level, the robot vacuum cleaner will start the All in One function to vacuum, scrub, and sweep simultaneously thanks to its mixed tank.

Note

• If you wish to mop, do not fill the water tank.
• To ensure a perfect scrubbing from the start, it is suggested to dampen the mop evenly with water before fixing it to the mixed tank. It is also recommended to wash the mop after every use.
• It is recommended to be present when the robot vacuum cleaner is scrubbing.
• When the robot vacuum cleaner returns to the self-emptying base, the mop must be removed. Do not leave the robot vacuum cleaner charging with the mop assembled.

Manual mode

The robot vacuum cleaner can be moved manually by selecting manual mode in the application and using the arrow keys.

Back Home mode

Press the Back Home button on the robot vacuum cleaner or from the app to send the robot to the self-emptying base during any cleaning mode. The robot vacuum cleaner will stop vacuuming until it reaches the self-emptying base.

Spot mode

• Select this mode if you want to thoroughly clean a specific point in the map, making the most of the robot vacuum cleaner's maximum power. The robot vacuum cleaner will clean an area of 1.6 m x 1.6 m in a zigzag pattern and return directly to the self-emptying base once finished. The robot vacuum cleaner will only clean the area selected on the map; therefore, it will go to said area and return to the self-emptying base without vacuuming.
• To activate this mode, select the spot cleaning option on the app.

Power Level function

Select the power level on the app to control the robot vacuum cleaner's suction power during cleaning. There are four levels of suction power: Off, Eco, Normal, and Turbo.

Cleaning schedule

• To make cleaning easier, the robot vacuum cleaner has a function that allows it to be programmed daily from the app. According to the setting, the robot vacuum cleaner will automatically start cleaning in the selected days at the desired time.
• Before setting the time and the options on the robot vacuum cleaner, make sure it is on.

Quick cleaning modes

In addition, the robot vacuum cleaner already has pre-selected quick cleaning modes in which you can define the cleaning area and settings and save your selection. In this way, by simply selecting the quick cleaning mode you wish to use, the robot vacuum cleaner will automatically clean as defined in that mode.

Other Functions

Do not Disturb function

A Do Not Disturb time slot can be selected to control the operation of the robot vacuum cleaner, and it can be modified or cancelled from the app. During the set time, the robot vacuum cleaner will disable the automatic, continuous cleaning and timer functions.

Map Editing function

• This function allows you to edit generated maps: rename cleaning areas, split or combine areas, and edit cleaning mode, suction power, and scrubbing level in each selected area.
• You can also restrict areas by marking out specific areas on the map that you do not want the robot vacuum cleaner to clean. You can select more than one restricted area on the map.

Robot vacuum cleaner's Location function

Allows to locate the robot vacuum cleaner on the map.

4. CLEANING AND MAINTENANCE

Cleaning the main brush

• The main brush rotates at high speed and helps pushing the dirt into the suction mouth. This brush is in contact with the floor, and therefore with dirt, so it can wear out overtime, negatively affecting cleaning efficiency. For this reason, it is suggested to replace the main brush after a maximum of 320 hours or less.

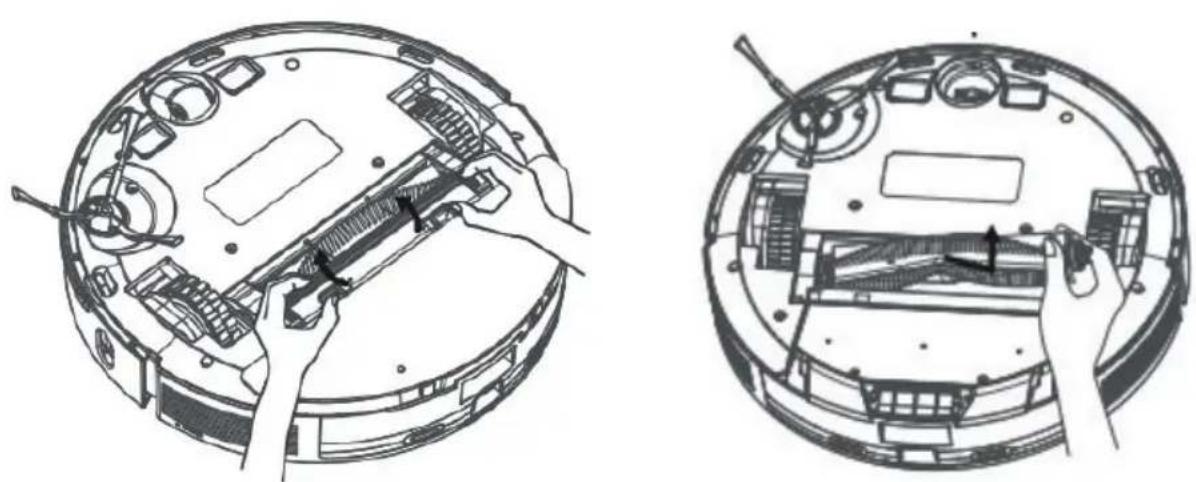

• Slightly press the main brush frame's tabs to open the main brush compartment and remove it. Fig. 11

ENGLISH

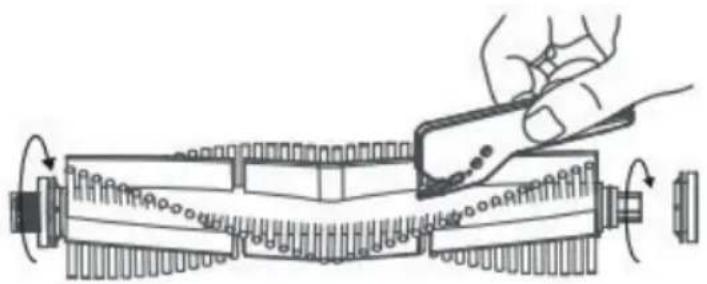

• Remove hair, lint, and other dirt trapped in the brush and around the shafts with the help of the self-cleaning brush. Fig. 12
• Clear and clean the robot vacuum cleaner's suction channel.
• Reinstall the main brush and its frame.

Recommendation

It is recommended to clean the main brush once a week with the help of the self-cleaning brush.

Side brush. Fig. 13

The side brush is designed with many bristles that push dirt into the suction mouth and thoroughly clean edges and corners. This brush may wear out overtime, which will negatively affect cleaning efficiency.

Recommendation

• It is recommended to clean the side brush once a week with the help of the self-cleaning brush.
• Remove the side brush by pulling it outwards and clean it regularly.

Recommendation

To ensure perfect cleaning, it is recommended to change the side brush every 3 months (depending on frequency and type of use).

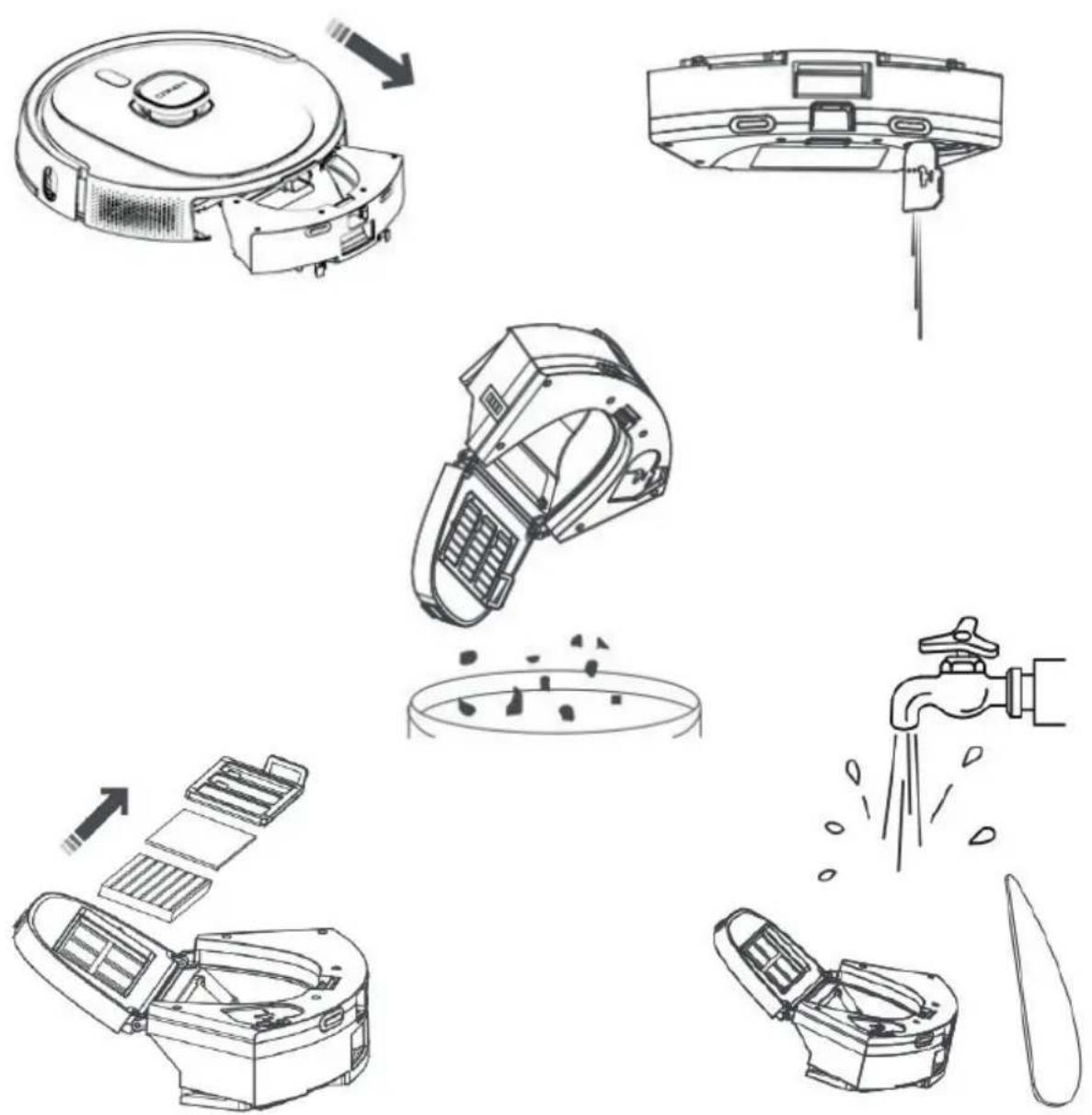

Mixed tank. Fig. 14:

• Remove the mixed tank.
• Open the mixed tank cover and empty it.
• Remove the filter and filter holder as shown in Figure 14.
• Use the self-cleaning brush to clean the inside of the mixed tank.
• You can clean the dust compartment with water, without immersing the tank. Male sure the tank is completely dry before re-installation to prevent water to reach the motor and damage the robot vacuum cleaner.
• Reinstall the mixed tank on the robot vacuum cleaner.

High-efficiency filter. Fig. 15:

- The high-efficiency filter is designed with fibres that help trap dust particles, dust mites, pollen... It is very important to periodically clean the filter, to prevent these particles from building up in the filter, causing efficiency loss. It is convenient to carry out this maintenance once a week.

- Replace the high efficiency filter every 3 months, depending on the frequency and type of use.

Recommendation

You can remove dirt from the high-efficiency filter with a small brush or gently shake the filter on a hard surface to remove the dust. The high-efficiency filter cannot be washed.

Primary mesh filter and sponge filter

The filtering system is featured with a primary mesh filter and a sponge filter, located next to the high-efficiency filter. It is suggested to replace them either after a maximum of 160 hours of use or when they are worn out due to operation.

Recommendation

Dirt can be removed with a small brush or by shaking carefully against a hard surface for dust to fall off. You can also use warm water without detergents to obtain better results. Always make sure they are completely dry before installing them again; otherwise, moisture can reach the robot vacuum cleaner's motor and damage it.

Cleaning the fall-detection sensors

Use a clean, dry, and soft cloth to wipe off any dust from the fall-detection sensors located on the robot vacuum cleaner's lower part.

Sensors. Fig 16:

- The robot vacuum cleaner has different types of sensors, for example, proximity sensors that allow the robot to move around while detecting obstacles, or fall-detection sensors that help the robot detect slopes or possible gaps/unevenness such as staircases. These sensors are always in contact with dust particles, and therefore can deteriorate over time, causing possible navigation errors.

- It is recommended to clean all sensors of the robot vacuum cleaner every 35 hours of use or less, using a soft, dry cloth.

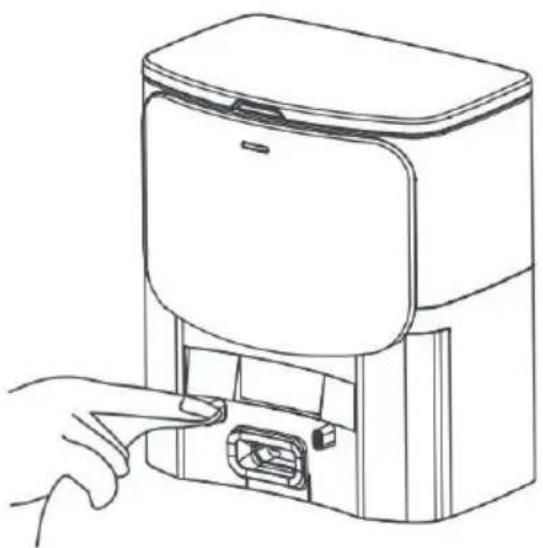

Charging base. Fig. 17:

Likewise, the self-emptying base includes charging terminals and a signal transmission zone. Use a clean, dry, soft cloth to wipe dust from these areas.

Charging and replacing the battery

• To extend battery life, leave the robot vacuum cleaner charging on the self-emptying base whenever not in use.
• Remove the battery and store it in a safe, dry place if the robot vacuum cleaner will not be used for a long period of time.

- To replace the battery, follow the instructions below:

1. Unscrew the screws on the lower housing, remove the latter, and take out the battery.

2. Insert the new battery.

3. Put the battery and the lower housing back in place and re-tighten the screws.

5. TROUBLESHOOTING

Robot vacuum cleaner

Problem Possible cause and solution
The robot vacuum cleaner does not switch on or does not clean	The robot vacuum cleaner does not work when battery is low. Allow it to charge before operation.
	The room temperature is below 0 °C or above 40 °C.
The robot vacuum cleaner isn't charging or returning to the self-emptying base	There are too many obstacles near the self-emptying base. Relocate the base to an obstacle-free area.
	Clean the charging terminals of the robot vacuum cleaner and the self-emptying base.
	Make sure the robot vacuum cleaner is switched on.
	The robot vacuum cleaner is too far away from the self-emptying base. Place it closer and try again.
The robot vacuum cleaner does not work properly	Turn off the robot vacuum cleaner and turn it on again.
	Reset the robot vacuum cleaner by pressing the side Reset button.
The robot vacuum cleaner makes a strange noise during operation	The main brush, side brush, or omnidirectional wheel are blocked or tangled. Stop the robot vacuum cleaner and clean them.
The robot vacuum cleaner does not clean efficiently or doesn't pick up all the dirt	The tank is full. Empty it and clear the high-efficiency filter if it is blocked.
	The high-efficiency filter is blocked. Clean it.
	The main brush is blocked or tangled. Clean it.
The robot vacuum cleaner could not connect to the Wi-Fi network	Bad Wi-Fi signal. Check that the robot vacuum cleaner is located in an area with good Wi-Fi signal.
	The Wi-Fi connection is unstable. Reset the router, check if there are any App updates, and try again. This robot vacuum cleaner only supports the 2.4 GHz band.
	Make sure that your smartphone mobile data are disabled to improve the linking process.
The robot vacuum cleaner did not carry out the scheduled cleaning task	Check if the robot vacuum cleaner is in Sleep mode and change mode. This option can be found on the general settings of the robot vacuum cleaner and allows you to define time slots in which the robot will not perform the scheduled cleaning tasks when in Sleep mode.
	Ensure proper connection of the robot vacuum cleaner to the Wi-Fi: you will not be able to carry out scheduled cleaning without connection and with a low battery.
The robot vacuum cleaner does not return to the self-emptying base after finishing Spot cleaning or changing the starting position	The robot vacuum cleaner will map and calculate a new route after running in Spot cleaning mode or after changing its starting position.
	If the self-emptying base is too far away from the robot vacuum cleaner, the latter won't be able to return to the base. Manually move the robot vacuum cleaner close to the self-emptying base.
The robot vacuum cleaner does not resume cleaning	Make sure the robot vacuum cleaner is not in Sleep mode, as it will not resume cleaning in this mode.
	When manually placed in the self-emptying base, the robot will not resume cleaning.
The robot vacuum cleaner is always offline	Make sure the robot vacuum cleaner is successfully connected to a 2.4 GHz network and always in areas with good Wi-Fi signal.
The connection between the smartphone and the robot vacuum cleaner failed	Make sure the robot vacuum cleaner and the self-emptying base are in an area with good Wi-Fi signal, reset the router, and retry connection.

Self-emptying base

Problem Possible cause and solution
The self-emptying base flashes in red	The dirt-disposal bag is not installed or incorrectly fitted. Check that the bag is correctly fitted.
	The dirt-disposal bag is full, or the dirt collection channel is blocked. Check if the dirt-disposal bag is full and if so, replace it with a new one. If the issue persists, check for foreign objects blocking the dirt collection channel of the self-emptying base. If so, unscrew the transparent cover and remove the obstruction.
	The fan of the self-emptying base doesn't start. Frequent dust collection can lead to overheating of the fan guard or failure. It is recommended to wait 30 minutes before resuming use.
No indicator light turns on No power	supply or damaged plug. Make sure the self-emptying base is connected to the mains and that the plug isn't damaged. Should the latter occur, please contact the official Cecotec Technical Support Service.

6. TECHNICAL SPECIFICATIONS

Product: Conga 8290 Immortal Ultra Power Home X-Treme

Product reference: 08612

Voltage: 19V DC 1A

Rechargeable Li-ion battery

Rated capacity: 14,4 V \~ 5200 mAh

Wi-Fi connection: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz

Maximum power transmission: 20 dBm

Product: Self-emptying base

Input: 220-240 V \~ 50/60 Hz

Output: 19 V DC, 1.2 A

Power: 1000W

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this robot vacuum cleaner, model 08612_Conga 8290 Immortal Ultra Power Home X-Treme is in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website:

www.cecotec.es

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1.1.

5. PROBLEEMOPLOSSING

Robotstofzuiger

Technical diagram of a portable air conditioner unit with numbered parts labeled 1 through 6

Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./Rys. 3

Line drawing of a cozy living room with sofa, coffee table, and scattered objects (no text or symbols)

Line drawing of a minimalist living room interior with sofa, coffee table, and person (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4

Line drawing of a wooden deck railing with a circular object on the floor (no text or symbols)

Architectural diagram of a balcony with railings and a circular object (no text or symbols)

Fig./Img./Abb./Afb./Rys. 5

Simple line drawing of a robotic vacuum cleaner and a floating object with a red cross symbol (no text or labels)

0.5m 1.5m 0.5m

Fig./Img./Abb./Afb./Rys. 6 Fig./Img./Abb./Afb./Rys. 7

Technical diagram showing a mechanical assembly with labeled components and an inset view of the main component.

Fig./Img./Abb./Afb./Rys. 8

Line drawing of a robotic vacuum cleaner with a circular base and adjacent rectangular housing (no text or symbols)

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Diagram of a mechanical assembly with a hand operating a tool, showing rotating components and a separate component (no text or symbols present)

Fig./Img./Abb./Afb./Rys. 12

Technical diagram showing three-step cleaning procedure: tool application, mechanical assembly, and cleaning tool handling.

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Illustration of a hand using a tool to remove particles from a container (no text or symbols)

Technical line drawing of a circular device with internal components and a hand pointing to a component (no text or symbols)

Fig./Img./Abb./Afb./Rys. 15 Fig./Img./Abb./Afb./Rys. 16

Line drawing of a hand inserting a device into a rack (no text or symbols)

Fig./Img./Abb./Afb./Rys. 17

www.cecotec.es

Cecotec Innovaciones, S.L.
