KDC61XE3 - Basket SMEG - Free user manual and instructions

Brand	SMEG
Model	KDC61XE3
Product type	Range hood
Width	60 cm
Height	120 mm (estimation)
Depth	500 mm (estimation)
Weight	12 kg (estimation)
Power supply	220-240 V ~ 50/60 Hz
Insulation class	Class I (mandatory grounding)
Minimum safety distance (cooktop)	650 mm
Minimum exhaust duct diameter	120 mm
Control type	Push buttons
Suction speeds	3 (V1, V2, V3)
Lighting	LED lamp 4 W, socket E14, 220-240 V
Grease filter	Washable metal (every 2 months)
Activated carbon filter	Replace every 4 months (depending on use)
Material	Stainless steel
Functions	Suction, lighting
Installation	Suspended or built-in (depending on model)
Use	Household use only

Frequently Asked Questions - KDC61XE3 SMEG

What is the minimum distance between the hood and the cooktop?

The minimum safety distance is 650 mm. If the gas cooktop instructions specify a greater distance, that must be respected.

How to clean the grease filters?

The grease filters should be cleaned every 2 months (or more often with heavy use). They are dishwasher-safe or can be washed by hand with a mild detergent.

When to replace the activated carbon filter?

The activated carbon filter is neither washable nor regenerable. It should be replaced approximately every 4 months of operation, or more often with heavy use.

How to replace the hood light bulb?

The bulb is a 4 W lamp with E14 socket and 220-240 V voltage. First unplug the appliance, then replace the defective bulb with a new one of the same specifications.

Can the hood be used with gas appliances?

Yes, but the room must be properly ventilated to prevent backflow of combustion gases. Negative pressure must not exceed 0.04 mbar.

What are the controls of the hood?

The hood has four buttons: L for lighting, V1 (1st speed), V2 (2nd speed), and V3 (3rd speed). Press to turn on/off or change speed.

Can the hood be installed in recirculation mode?

Yes, by using an activated carbon filter (not supplied). The hood can operate in extraction mode (external duct) or recirculation mode (charcoal filter).

What type of power cord is required?

The hood must be connected to a grounded power outlet complying with standards. A damaged cable must be replaced by the manufacturer or an authorized technician.

How to clean the exterior of the hood?

Use a damp cloth and a neutral liquid detergent. Avoid products containing alcohol or silicone. For stainless steel, follow the satin lines with a non-abrasive product.

What to do in case of malfunction?

First check the power supply and filters. If the problem persists, contact authorized after-sales service SMEG. Do not attempt to repair the appliance yourself.

USER MANUAL KDC61XE3 SMEG

Isometric line drawing of a chimney with ventilation grilles (no text or symbols)

IT 3

EN 7

FR 11

DE 15

NL 19

ES 23

PT 27

RU 31

SV 35

DA 39

PL 43

NO 47

FI 50

AR 54

IT

Illustration of a hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

- In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide lamps."

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

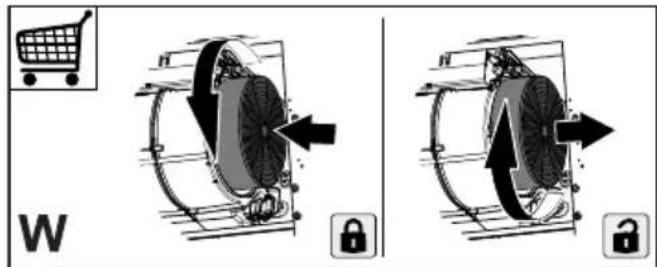

• The activated charcoal filter cannot be washed or regenerated, and must

be changed approximately every 4 months of operation, or more frequently in the case of particularly intensive use (W).

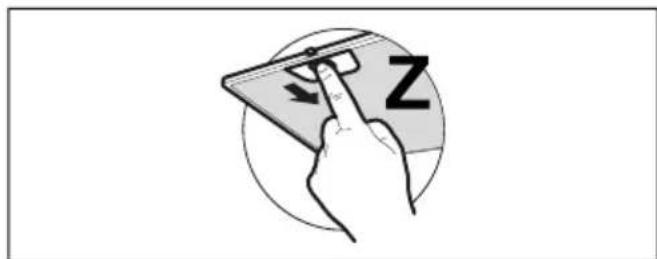

- The grease filters must be cleaned every 2 months of operation, or more frequently in the case of particularly intensive use. They can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with a finger pointing at it, enclosed in a circular frame (no text or symbols)

• Clean the hood using a damp cloth and neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Key	Function
L	Switches the lighting system on and off to maximum brightness.
V1	Switches the extraction motor on and off to the first speed setting.
V2	Turns the motor on at the second speed.
V3	Turns the motor on at the third speed.

5. LIGHTING

Lamp Power (W)	Socket Voltage	(V) Dimension	(nm) ILCO$ Code
	4 E14 220	-240 107x37	DRBB/F-4-220	-240-E14-35/100
