USER MANUAL AP5150 UFESA

Black and white photo of a Ufeso vacuum cleaner with attached hose and control lever (no visible text or symbols)

Technical diagram of a vacuum cleaner with numbered parts labeled for identification.

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with internal cavities and a directional arrow (no text or symbols)

Line drawing of hands assembling a mechanical component (no text or symbols)

Technical line drawing of a vacuum cleaner device with attached housing (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a separate component (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a close-up view of its internal structure (no text or symbols)

TARJETA DEL PRODUCTO

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

Line drawing of hands holding a mechanical device with no visible text or symbols

Hand-drawn sketch of a vacuum cleaner with attached components (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a separate component (no text or symbols)

2. Substituir o filtro exaustor

Technical line drawing of a vacuum cleaner with internal components and a close-up view of its internal structure (no text or symbols)

CARTÃO DO PRODUTO

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Power cord reel switch
2. On/off switch
3. Suction power setting switch
4. Dust bin
5. Flexible hose
6. Telescopic tube
7. Floor brush

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

IMPORTANT WARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not pull on the connection cord in order to unplug it.

Do not use, connect or disconnect the device to the mains with your hands or feet wet.

Proceed according to the conservation and cleaning section of this manual for cleaning.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorised Technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.

Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty.

Do not use the appliance to vacuum liquids (water, etc), sharp objects (pins, pins, nails, glass, etc), incandescent objects (matches, cigarettes)

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

ASSEMBLING THE VACUUM CLEANER

VACUUM CLEANER ASSEMBLING

Before attaching or removing the attachments, always unplug the power cord from the power outlet. Before switching on the appliance, make sure all filters are correctly installed.

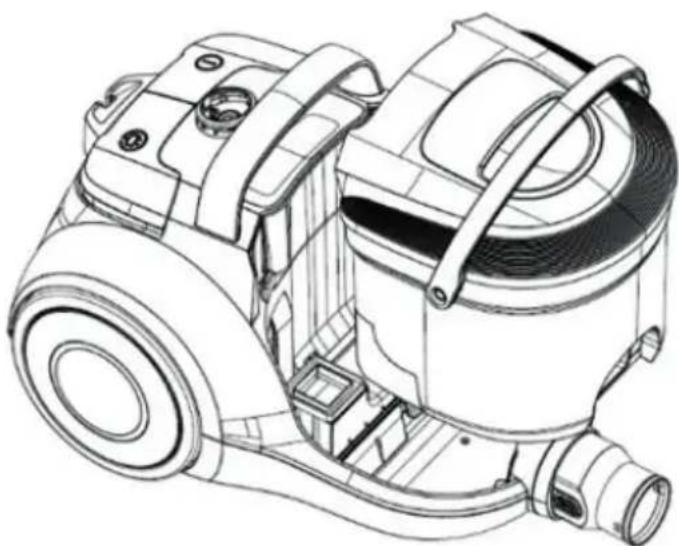

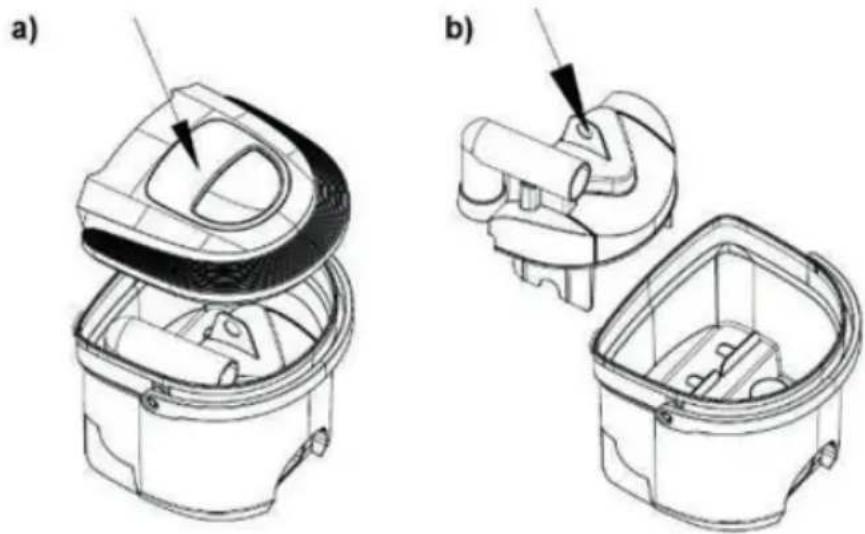

Lift the dust bin from the vacuum cleaner as shown in the figure below.

Technical line drawing of a vacuum cleaner device (no text or symbols present)

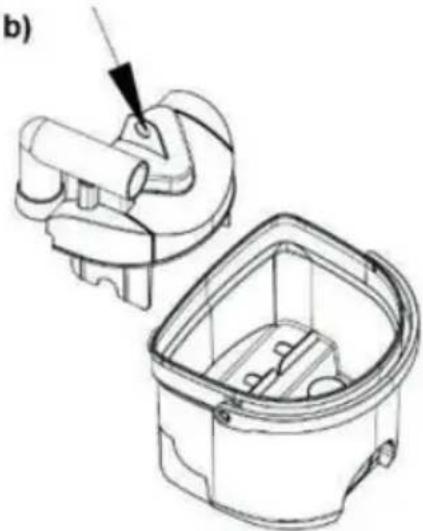

Then, lift the dust bin cover and remove the plastic insert from the bin - see figure below.

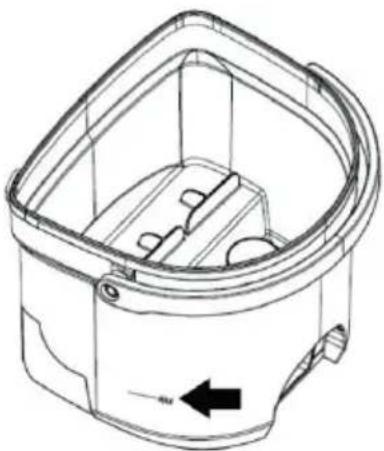

Fill the bin with tap water up to the MAX marking, as shown in the figure below.

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

Required water amount is 0.8 litre. Be careful not to overfill past the MAX marking. When the bin is filled, replace the insert into the dust bin and replace the cover. Then, replace the entire bin assembly onto the vacuum cleaner. Take care to correctly assemble all components.

CONNECTING THE FLEXIBLE SUCTION HOSE

Connect the flexible hose to the suction port and press it until it locks into position.

REMOVING THE HOSE

To remove the suction hose, press the button on the lower part of the flexible suction hose and pull it out of the suction port.

UNWINDING AND RETRACTING THE POWER CORD

- Before using the appliance, unwind an adequate length of the power cord to allow unobstructed work. Then, connect the appliance to the power mains. To retract the power cord, press the automatic cord reel button. Follow the power cord with your hand to prevent it from swinging out of control and causing injury or damage. When using the appliance for a longer period of time, unwind the entire length of the power cord from the reel.

CONNECTING THE TUBE AND ATTACHMENTS

• Press the button to extend the telescopic tube to desired length.
• Insert the flexible hose into the tube.
• Attach the vacuum cleaner brush to the telescopic tube.

- The floor brush is intended for cleaning flat floor surfaces or flooring.

- The crevice/furniture nozzle s intended for cleaning tight corners and gaps in furniture upholstery.

To clean curtains or vacuum the dust from the furniture, turn the attachment as indicated to the brush position.

INSTRUCTIONS FOR USE

• Before using the appliance, unwind an adequate length of the power cord and connect the appliance to the power mains.
• Press on/off button and start the appliance. Press the same button again to switch off the appliance.
  • Airflow can be set using the regulator on the flexible hose:

- when cleaning curtains, dust from books, furniture etc., reduce the airflow;

- when cleaning flat floor, increase the airflow.

To retract the power cord, press the cord reel button. Hold and follow the power cord with you hand to prevent a whip-like strike that could result in injury or damage.

Note: Do not turn the vacuum cleaner during operation to prevent water in the dust bin from entering the motor unit, and to prevent water from spilling over the vacuum cleaner or the floor.

Dry vacuum cleaning

This appliance is used for vacuum cleaning the dust. If the water is very dirty, replace it with fresh water. When an excessive amount of dirt is accumulated in the dust bin, further suction and therefore vacuum cleaning will not be possible. Appliance operation will be slower and louder when you switch on the motor. Note: Never use the vacuum cleaner without any water in the dust bin.

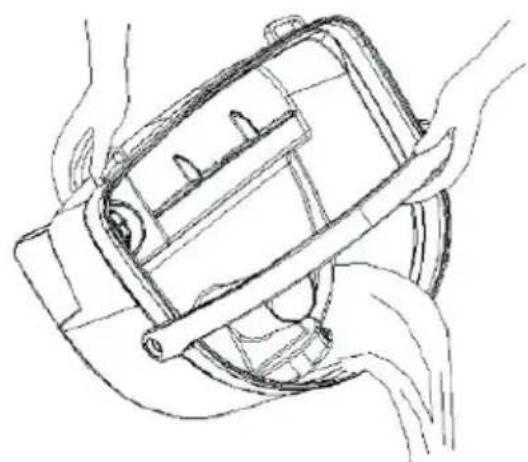

Filling the dust bin

Switch off the appliance using the main switch and pull out the power cord. These precautions provide safety and prevent hazards related to the appliance. To remove the dust bin / water tank from the appliance, hold the dust bin handle. Empty the water from the dust bin. See figure below.

Line drawing of hands assembling a mechanical component (no text or symbols)

TIP: After each use, empty the water from the dust bin to avoid unpleasant odour in the bin.

MAINTENANCE

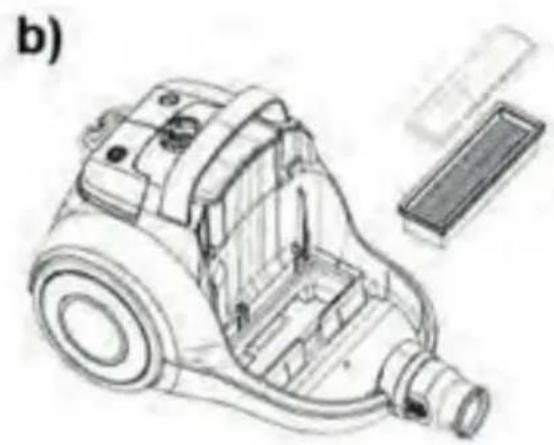

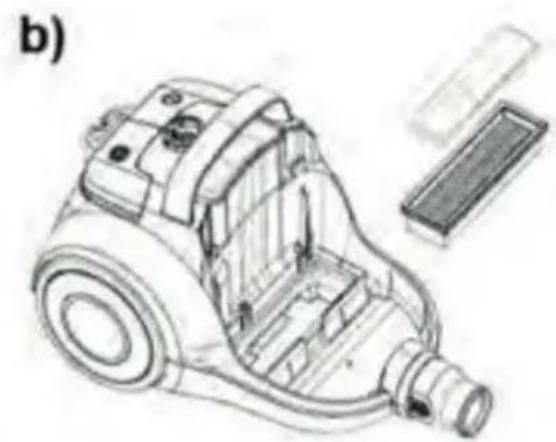

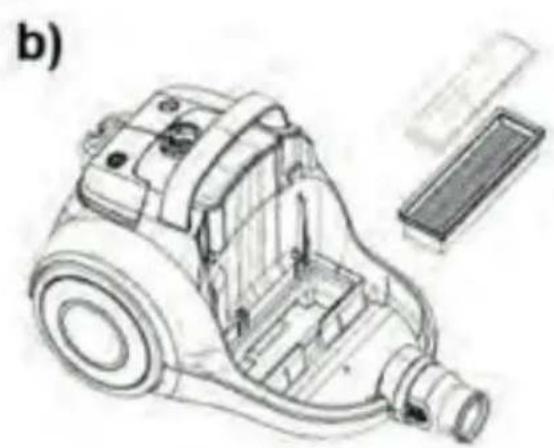

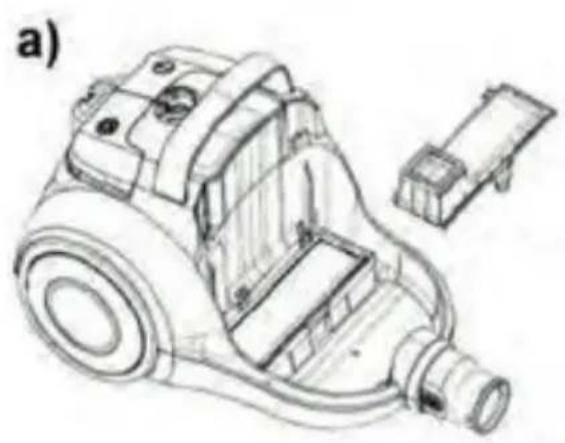

1. Cleaning and replacing the motor filter

• We recommend cleaning the filter after every extended vacuum cleaning session. The filter is located on the vacuum cleaner. To access it, remove the dust bin.

• Regular filter cleaning and maintenance will allow good vacuum cleaning results, and thereby longer appliance useful life. In this respect, we recommend the following cleaning method:

• cleaning with a brush,

• beating the filter or shaking off the dirt from it,
• blowing the filter with compressed air.

- A clean filter will allow unobstructed airflow and optimum suction power.

Line drawing of a vacuum cleaner device with attached housing (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a separate component (no text or symbols)

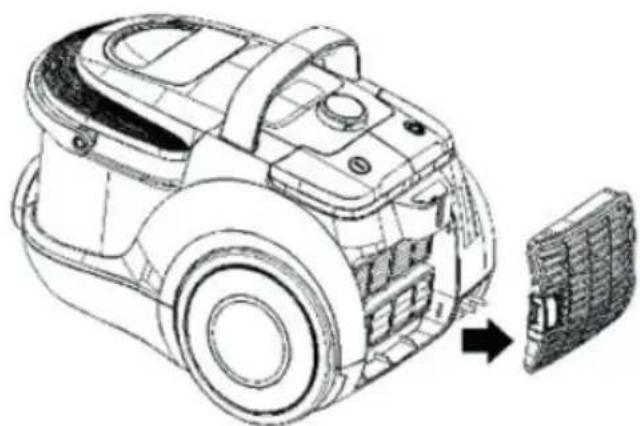

2. Replacing the exhaust filter

The exhaust filter is located behind the grille seen at the back of the vacuum cleaner.

• Open the grille and remove the filter from the vacuum cleaner.
• Clean the filter in a similar way as described in the preceding section. Do not forget the foam filter on the grille.
• When the filter is clean, place it back into the vacuum cleaner and replace the grille.

Technical line drawing of a vacuum cleaner with internal components and a close-up view of its internal structure (no text or symbols)

PRODUCT CARD

Product card in accordance with the Delegate (EU) Commission Regulation 665/2013.

Comercial Brand Ufesa
Model AP5150
Energy efficiency class	B
Target annual energy consumption (kWh per year) calculated based on 50 cleaning sessionsThe real annual energy consumption will depend on how the appliance is used	31,1
Class of rugs and carpets cleaning power D
Class of hard floors cleaning power B
Class of (re-)emission of dust A
Sound power level, db (A) 79
Nominal input power, W 800

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

MERCI D'AVOIR PLACÉ LEUR CONFIANCE EN UFESA ET NOUS ESPÉRONS QUE CE PRODUIT VOUS DONNERA ENTIÈRE SATISFACTION ET PLAISIR.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

Technical line drawing of a vacuum cleaner device (no text or symbols present)

Technical line drawing of a mechanical device with a lid and internal components (no text or symbols)

b)

Technical line drawing of a mechanical component with a magnified inset showing a pin inserted into a housing (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with internal compartments and a directional arrow (no text or symbols)

Line drawing of a hand gripping a mechanical component (no text or symbols)

- A clean filter will allow unobstructed airflow and optimum suction power.

Technical line drawing of a vacuum cleaner device with attached housing (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a separate component (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a close-up view of its internal structure (no text or symbols)

FICHE PRODUIT

ÉLIMINATION DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product for the purpose for which it is intended for a period of two years for the entire Spanish territory. In the case of breakdown during the term of this warranty, you are entitled to repair or to the replacement of the product at no charge if the former is unavailable, unless one of these options prove impossible or disproportionate. In this case, you can then choose a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is unaccredited by B&B TRENDS, SL. This warranty does not affect your rights as a consumer in accordance with the provisions of Law 23/2003 dated 10 July 2003 on warranties on the sale of consumer goods in the Spanish territory.

USE OF WARRANTY

Consumers should contact a technical service centre authorised by B&B TRENDS, SL. for repair of the product as any tampering thereof by persons not authorised by B&B TRENDS, SL., as well as misuse or inappropriate use, will lead to the cancellation of this warranty. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

Claims must take place within three years from delivery of the product according to the provisions of the warranty, and the consumer must inform the sales vendor of the lack of conformity, provided that such claim is made within the statutory period of warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item or by contacting B&B TRENDS, SL.
