1. Safety instructions

Please read the manual thoroughly before operating the equipment. In case of incorrect or improper handling, the warranty becomes void.

Power supply

Before commissioning, please check the correct operating voltage of your power connection. For the operating voltage of the unit, please refer to the technical data in these operating instructions.

Overload

Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.

Liquid

The device must not be exposed to dripping, splashing or other liquids.

Ventilation

Keep the slots on top of the device uncover to allow sufficient airflow to the unit. Do not expose the device to direct light or do not place it near a heater or in humid conditions.

Risk of suffocation

Do not let children play with films or other packaging components, there is a risk of suffocation.

Cleaning

Plug out the device from the wall outlet before cleaning. Clean the device by a soft cloth or mild solution of washing-up liquid (no solvents).

Uncover

Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the device, or contact your dealer.

2. Delivery

Please check whether the following parts are included in the packaging. If any parts are missing or damaged, please contact your dealer.

1. Television
2. Remote control
3. Batteries
4. 12 volt car connection cable
5. 230/12 volt power supply unit
6. Mini AV cable
7. User manual

3. Stand mounting (optional)

how to mount the stand for 19 / 22 / 24 inch TVs

Place the TV on a flat, soft surface (e.g. blanket, foam, etc.) to prevent damage to the TV or display.

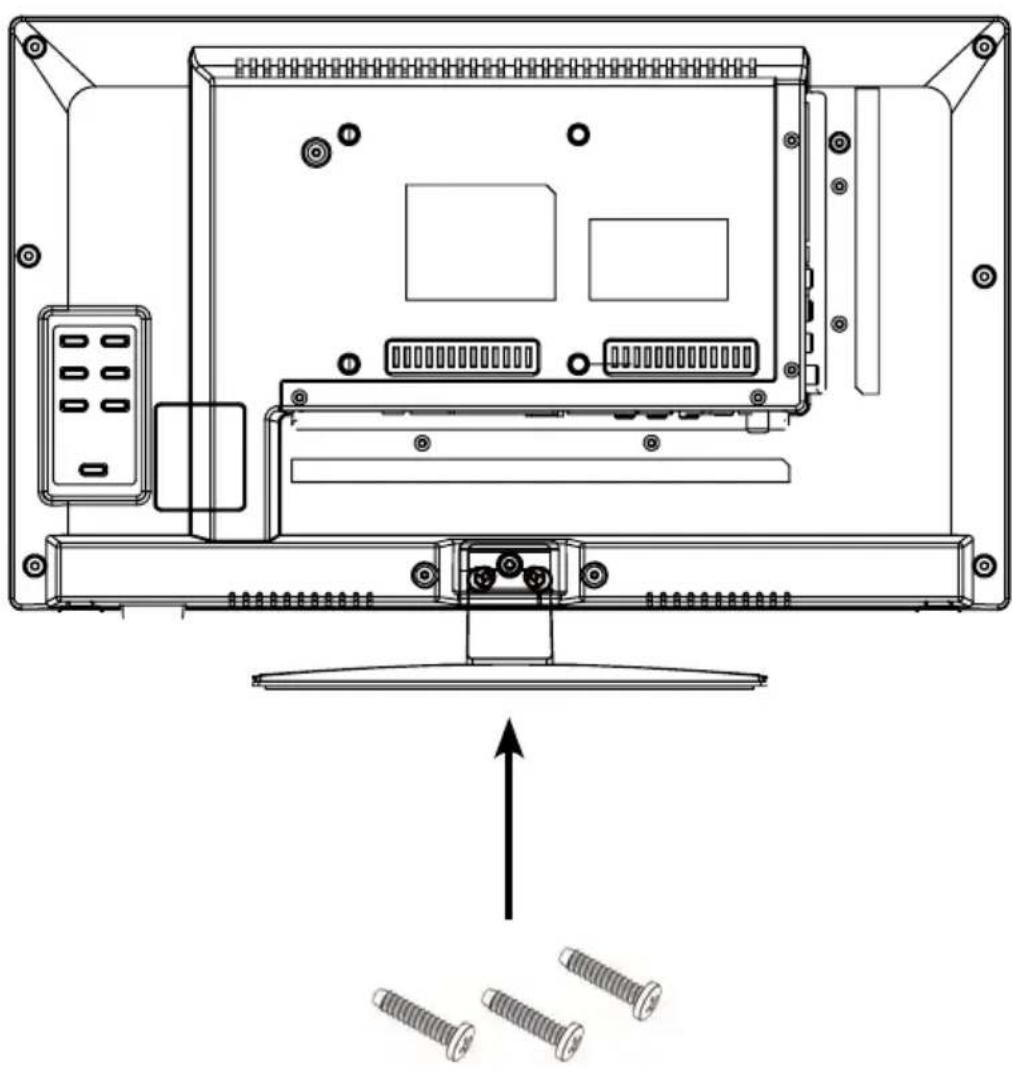

Plug the stand into the TV as shown.

3. Stand mounting (optional)

Use a suitable screwdriver and fasten the feet with the enclosed screws. Make sure that the screws are properly tightened.

4. Designations

4.1 Front and side view

Frontview

Side view

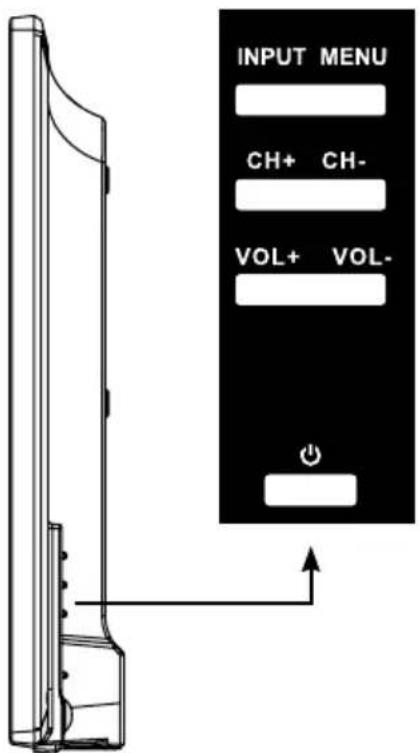

INPUT	Press the button to select the signal source (e.g. DTV, HDMI, ...).
MENU	Press the button to enter the menu.
CH +/-	Switches the programmes up / down.
VOL +/-	Adjusts the volume louder / softer.
◎	Switches the television on or off (standby).

Note:

Press the INPUT key several times to select the desired signal source. After a short waiting time, the TV switches to the desired signal source.

4. Designations

4.2 Connections

Bottom view

DCIN

RJ45

CVBS out LINE Lout LINE Rout

HDMI 1 HDMI 2 DVB-S/S2 DVB-C/T2

DC IN Connection for 230 volt power supply (DC 10~30 volt).

RJ45 Connection to a network via LAN cable.

CVBS out Video input with jack plug.

Line L/R out Audio input with jack plug (right/left).

HDMI 1 HDMI input for connecting a receiver, DVD player, etc.

HDMI 2 HDMI input for connecting a receiver, DVD player, etc.

DVB-S/S2 Antenna input for DVB-S2 (satellite) (max. 500mA ).

DVB-C/T2 Antenna input for cable TV or DVB-T2 antenna.

Side view

COAXIAL

COAXIAL Digital audio output (coaxial).

Common Interface Slot for Cl / Cl+ modules.

Mini AV AV input (FBAS/audio) via adapter cable.

Headphone Output for headphones with 3.5mm jack connection.

USB 1/USB 2 USB connection for media playback or for recording or timeshift function (only with optional software).

4. Designations

4.3 Remote control

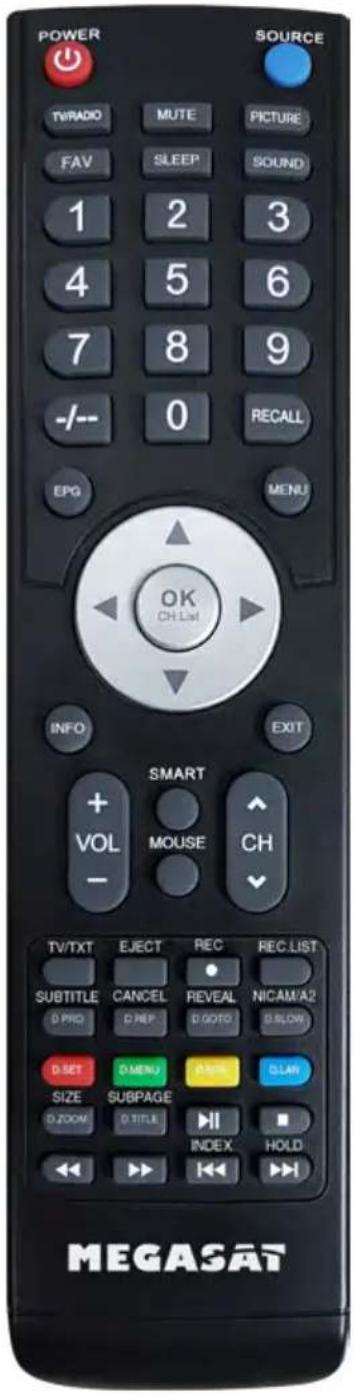

POWER Turn the TV on / off (Standby)

SOURCE Select source

TV/RADIO Switch between TV and radio stations

MUTE Muting the sound

PICTURE Switch to picture presets

FAV Show favorites

SLEEP Setting Automatic-shutdown

SOUND Switch to Sound preferences

NUMMERIC BUTTONS Enter numbers

-- Switches between one and two digits when entering numbers

RECALL Returns to the last channel position

EPG Electronic Program Guide

MENU Opens the main menu

PFEILTASTEN for navigation in the main menu and DVD menu, for program changes and volume control

OK (CH.List) To confirm a selection / program list

INFO Show informations

EXIT Exit the respective menu

VOL +/- Volume control

CH + / - Change channels

SMART no function

MOUSE no Funktion

TV/TXT Show and close Teletext

EJECT Ejects the DVD (only in DVD mode only)

REC Starts recording (optional)

REC.LIST Displays the recording list (optional)

SUBTITLE / D.PRO Show / hide subtitles (if available)

D.PRO edit the play list in DVD mode

CANCEL/D.REP Switch between Teletext/TV

D.REP repeat mode in DVD mode

REVAL/D.GOTO Displays hidden information in Teletext

D.GOTO playing your favorite titel / chapters

NICAM/A2/D.SLOW Switch to Nicam/A2

D.SLOW plays DVDs in slow motion

D. SET: DVD System settings

D.MENU: Show DVD menu

D.SUB: Show DVD-subtitles

D.LAN: Switch languages/ audio tracks in DVD mode

SIZE/D.ZOOM Zoom in on the top and bottom of the teletext

D.ZOOM selects an image in the DVD mode

SUBPAGE/D.TITLE Subpages in teletext Call up/Cancel

D.TITLE shows the DVD title in DVD menu

Start/Pause

Stop

Forward / Rewind backward

Previous Chapter/Next Chapter

INDEX Gets the index page in the DVD menu

HOLD Holds the bottom change in teletext

5. Initial installation

1. Connect the TV to the power supply and switch on the power switch on the back of the housing. The TV is now in standby mode (LED lights RED).
2. Press the Power button on the remote control (LED lights BLUE).

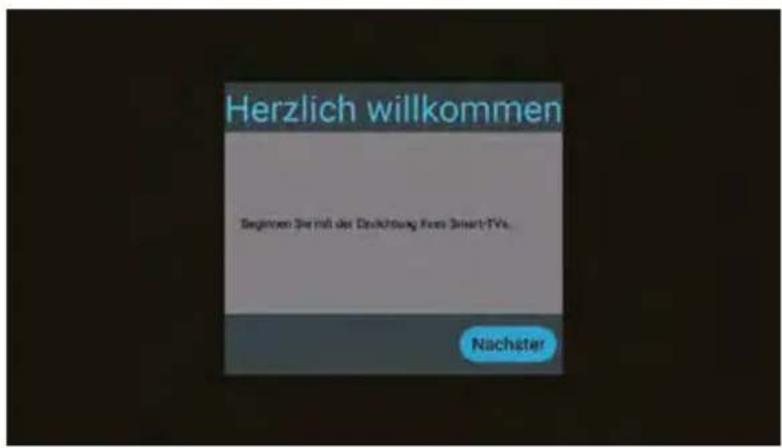

3. After the television has started, the initial installation menu appears. You can now make the following settings:

Note:

Press the buttons to go to the next or previous step.

Select your menu language and then go to the next step.

Select your country and then go to the next step.

5. First installation

Select a TV mode. Preset Scan is selected as default and the pre-installed channel list is loaded.

Switch to Fast Scan Mode to change this option.

Confirm the selection and go to the next step.

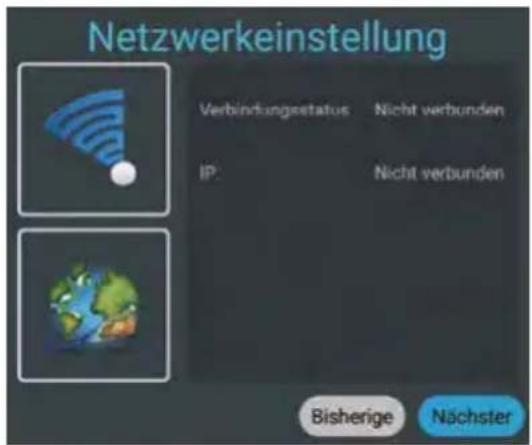

If you want to connect the TV to a router via WLAN, select the name in the list and confirm with OK. Enter the password of the Internet router here. Then press Connect to establish a connection.

Alternatively, the TV can also be operated via a LAN cable (RJ45). Connect the cable to your Internet router to establish a connection to the Internet. Note: You can change the setting at any time via the Settings/Network & Internet menu.

Select Done to complete the initial installation. Select Back to choose another option.

The pre-installed channel list (only in satellite DVB-S mode) is now loaded and the installation is completed.

5. First installation

5.1 Select input

To switch between the respective reception sources, press the INPUT key on the remote control. Select the desired input source and confirm with the OK key on the remote control.

• ATV (reception of analogue TV channels)
  DVB-T (reception via terrestrial antenna)
  DVB-C (reception via cable TV)
  DVB-S (reception via satellite)
• AV (reception via external AV devices, e.g. DVD player, game console)
• HDMI 1 (reception via external devices, e.g. DVD player, game console)
• HDMI 2 (reception via external devices, e.g. DVD player, game console)
  Media (Opens the media player if a USB medium is inserted)

Note:

The TV set is designed to receive satellite TV as standard. An Astra channel list is already programmed. If you want to use cable TV or receive programmes via a DVB-T antenna, you must open the menu after selecting the reception type and start a search via ide option „Programme". (see 6.3)

6. Main menu

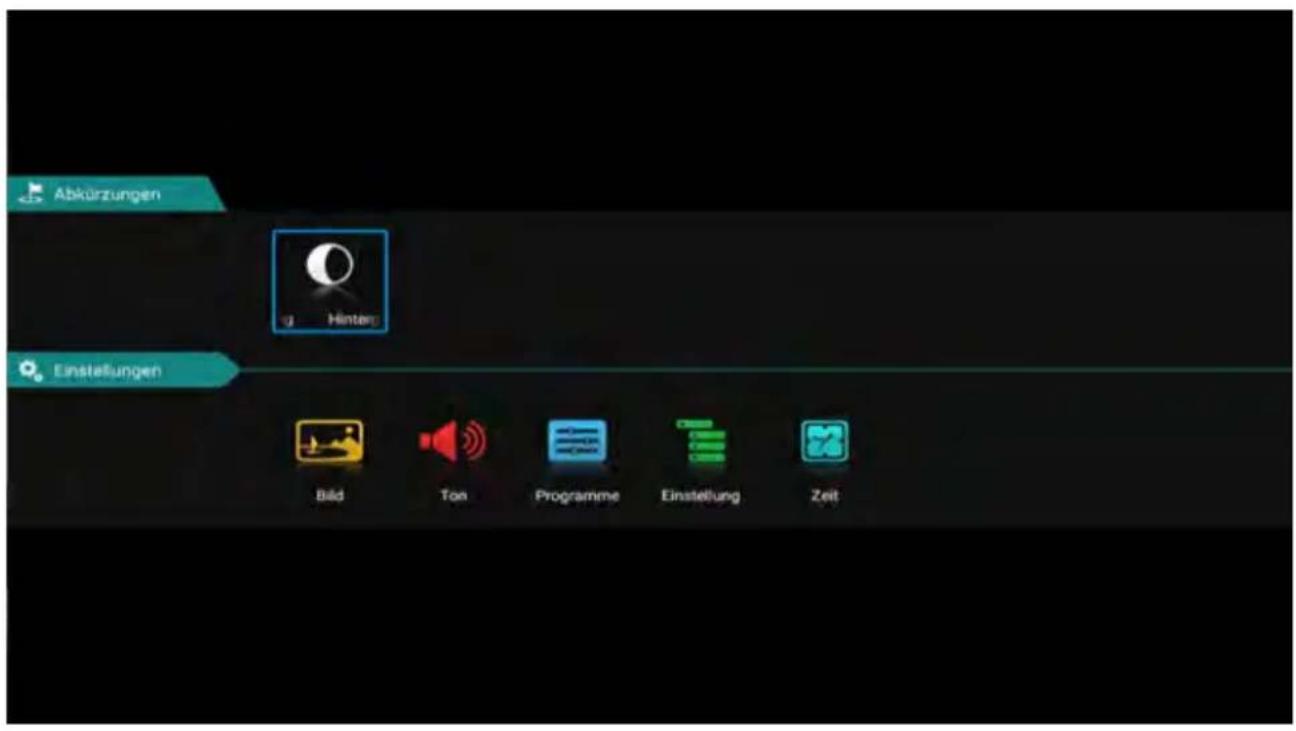

To enter the TV's main menu, press the MENU button on the remote control. In the main menu, you can make basic settings such as picture, sound or channel settings. Use the keys to select the desired setting. Confirm your selection with OK to enter the menu. Once you have made the settings in the Once you have made the settings in the respective menu, exit the menu step by step by pressing the EXIT key.

Backlight

Select the backlight by pressing the OK button.

You can use the buttons to adjust the lighting.

Please note that a higher level of backlighting also changes the energy consumption of the unit. of the unit also changes.

6. Main menu

6.1 Image setting

Picture mode

Select the desired picture mode:

• Standard (default setting)
• Film (for more contrast)
  Vivid (for less contrast)
• User (brightness, contrast, colour and sharpness can be can be adjusted as required)

Aspect ratio

Select the desired aspect ratio of the TV or TV programme:

• Auto (automatic adjustment of the aspect ratio)
  16:9 (adjustment of the TV picture to the 16:9 format)
  4:3 (adjustment of the TV picture to the 4:3:9 format)
• Zoom1 (First method to enlarge the TV picture)
• Zoom2 (Second method to enlarge the TV picture)

Colour temperature

Select the desired colour temperature. The overall image of the TV picture is adjusted accordingly.

Warm (warmer colours)
Normal (normal colours)
Cold (cold colours)

Noise reduction

Select the desired noise reduction. This function smoothes the image and reduces artefacts and grain.

• Off (switches the function off)
  Low (low noise reduction)
  Medium (medium noise reduction)
  High (high noise reduction)
• Auto (automatic noise reduction)

6. Main menu

6.2 Sound setting

Sound mode

• Standard (default sound setting)
• Sport (sound is concentrated on sports acoustics)
• Film (sound is concentrated on voices)
  Music (sound is concentrated on music)
• User (sound settings can be adjusted as required under item „Compensation")

Balance

Select the desired balance between the left (-) and right (+) speakers. By default, the value should be 0 .

Automatic volume

"Automatic volume" ensures a uniform volume when you switch from one TV programme to another. Select "ON" or "OFF".

Surround

Activate this item if you have connected a surround system.

Sound output mode

Select whether you use the digital audio output for e.g. a surround system:

• Auto (automatically detects the connection of an external surround system)
• PCM (sends an encoded audio signal to the external surround system)
• off (deactivates the digital audio output. The sound is reproduced via the TV loudspeakers).

SPDIF-Mode

This is used to convert the digital audio output mode. There are Auto, PCM, RAW, OFF.

6. Main menu

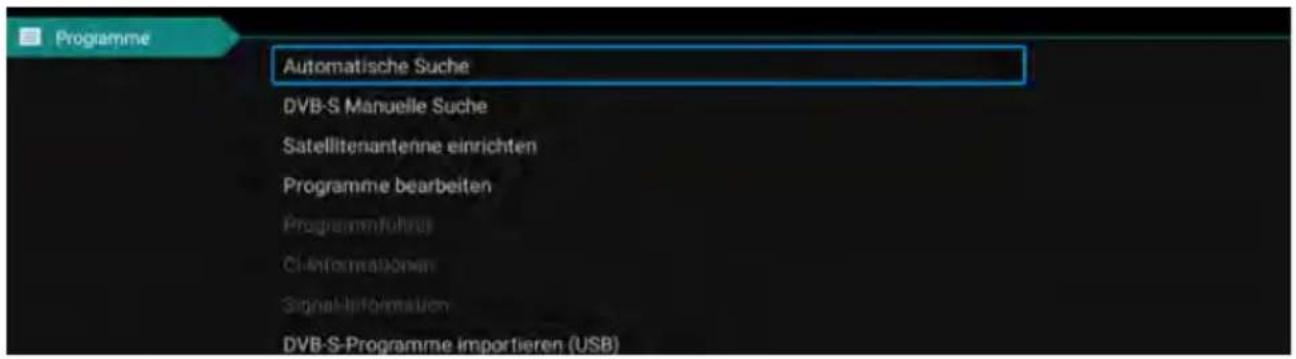

6.3 Programme

Country

Select the desired country in which you are located. This selection may also affect the channel search.

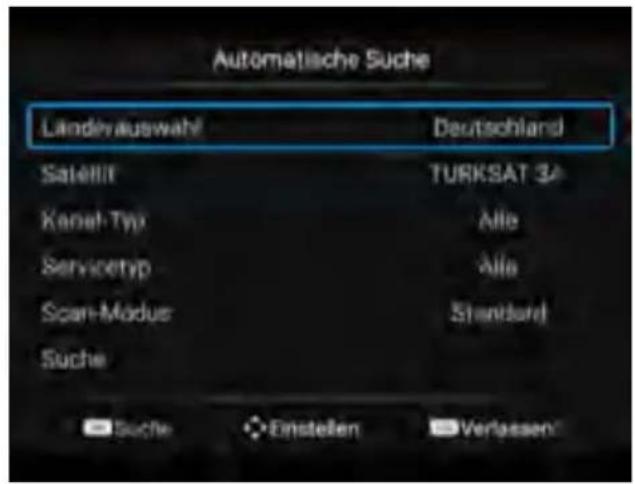

Scan-Modus

Select the desired mode with which you want to start the search

• Standard (Standard setting is used for the search)
  Network (Searches all TP with subfrequencies)
• Blind Scan (Scans the satellite for TP and then searches for channels)
• Fast Scan (Searches for channels via provider; influenced by country selection)
• Preset Scan (Loads the default channel list from the factory)

Satellite

Select the desired satellite.

Channel type

Select the desired programme type.

Free (only free-to-air channels)
- All (free and encrypted channels)
- Encrypted (only encrypted channels)

Service type

Select the service type for your search.

• DTV (Digital TV Channels)
  All (Digital TV and Radio Stations)
  Radio (digital radio stations only)

LCN option

This abbreviation stands for Logic Channel Numbering and causes the receiver to automatically sort the programmes found on the basis of a channel number transmitted by the transmitter. If the search is carried out with LCN, the channel numbers always remain, even if channels are exchanged or deleted. By default, this option is off in order to maintain a consecutive numbering of the channels.

Search

Select the Search option and confirm the selection with OK. The channel search starts num with your pre-selected options.

6. Main menu

6.3 Programs

DTV manual search.

Satellite

Select the desired satellite.

Transponder

Select the Search option and confirm the selection with OK. Now select the desired TP with the buttons and confirm with OK. Now you have the option of searching the transponder for stations. Select the desired options (see automatic search).

Then select the Search option and confirm your selection with OK. The channel search starts num with your pre-selected options.

You also have the option of checking the signal strength and signal quality. You can edit the TP using the RED/GREEN/YELLOW colour selection.

Transponder

Delete (RED button) process with OK.

Deletes the selected transponder. Confirm the irrevocable deletion

Edit (GREEN button) Change the frequency, symbol rate and polarity of the selected transponder. Then confirm with OK.

New (YELLOW button) Add a new transponder. Enter the frequency, symbol rate and polarity of the new transponder. Then confirm with OK.

5V Antenna voltage

5V antenna voltage is only required for active DVB-T antennas.

6. Main menu

Edit channel

In this menu you can edit or arrange the respective programmes. The following options are available:

Delete (RED button) Use the arrow buttons to select a programme and press the RED button to delete it. press the RED button to delete it.

Move (YELLOW button) Select a programme with the arrow keys and press the YELLOW key. Now move the selected programme to the desired position and press the yellow key. Alternatively, you can press the menu key and then enter the desired position number. Confirm the the entry with the yellow key.

Hide (BLUE button) Select a programme with the arrow keys and press the BLUE key. This programme is highlighted and skipped when you switch programmes. Note: You can still ca

channel list or by entering the channel number.

Note: You can still call up the ch

Favourites (FAV button) Use the arrow buttons to select a programme and press the press the FAV key to mark it as a favourite (recognisable by the heart by the heart symbol). From now on, when you press the TV mode, press the FAV key on the remote control, only the programmes which you have marked as favourites will be marked.

Satellite setting

In this menu you can edit the satellites, adjust the LNB type and set DISEqC settings. The following options are available:

SatellitE

Delete (RED button) deletion with OK.

Deletes the selected satellite. Confirm the irrevocable

Edit (GREEN button) Change the name, longitude, latitude and band of the selected satellite. Then confirm with OK.

Add (YELLOW button) Add a new satellite. Enter the name, longitude, latitude and band of the new satellite. Then confirm with OK.

Search (BLUE button) Start the search with the selected satellite. Select the search mode, the channel type and the service type. Then confirm with OK.

6. Main menu

Antenna setting

Press the right arrow key to switch to the configuration. You can switch back with Exit.

LNB type Change the LNB type here (default: 09750 / 10600).

LNB voltage Change the LNB voltage supply here (default: On).

22 KHz Set the 22 KHz setting to on / off (default: Auto)

Unicable setting Select "On" if you want to operate the TV on a Unicable (EN50494).

Select the desired IF channel with the appropriate frequency. If this does not match your system, you must change it manually.

Toneburst Choose between None, Burst A, and Burst B

DiSEqC 1.0 Choose between None, LNB 1 to LNB 4

DiSEqC 1.1 Choose between None, LNB 1 to LNB 16

DiSEqC 1.2 Select "On" if you need motor control.

Note:

You usually do not need to make any changes in the antenna settings. It is recommended that only experienced users change the settings.

Common Interface

This menu shows all information about the CI module if a suitable module has been inserted. (see page 22)

Signal information

This menu displays information about the currently selected satellite, transponder signal strength and signal quality are displayed.

Import DVB-S programs (USB)

In these menu items, you can channel list load from USB. Note that if the existing list is not deleted, it will be added to the end of the list.

DVB-S program export (USB)

In these menu items, you can copy your channel list to USB.

DVB-S program reset

In these menu items, you can delete your channel list to load a new from USB.

5V antenna feed

For active DVB-T2 antennas without their own power supply, you can activate the 5 Volt DC voltage here to supply the antenna with the necessary supply voltage.

6. Main menu

6.4 Settings

Teletext language

Select which teletext language should be used:

• Western Europe, Eastern Europe, Russian, Arabic, Faris

Audio language setting

Audio language setting Choose the preferred audio format

Audio language Select the preferred audio language of the TV channels

Second audio language Select the second audio language of the TV channels

Subtitle language settings

Subtitle language setting Untertitel Ein/Aus

Subtitle language Select the preferred audio language of the TV channels

Second subtitle language Select the second audio language of the TV channels

System lock

You will be prompted to enter a password. The default password is: 0000

Enter the PIN and confirm with OK.

Child lock:

Depending on the program, there are official age restrictions. In this menu, select from how many

years the restriction should be activated. Choose between 4-18 years or "none".

Channel lock:

Press the OK button to get the channel list. Select the desired station and press the blue key. The station is now locked with a PIN code.

Press the blue key again to unlock the station.

Set password (change PIN):

To change the PIN (default: 0000), you must first enter the current PIN. Now enter the new 4-digit

PIN. Confirm the new PIN again to complete the process.

Hotel

In the hotel settings, you can configure the TV so that unauthorized persons cannot access certain functions.

Key lock: locks the keys on the device

Scan lock: locks the channel search

Input lock: Locks any input sources (e.g.: DVB-T, HDMI....)

Default Source: Select the source you want the TV to start with. (e.g.: DVB-S)

Start Channel: Select the channel you want the TV to start with.

Volume: Select the volume with which the TV should start.

Max Volume: Select the maximum volume that can be set.

Database import: Import a preset database.

Database export: Export the current database.

Language: Select the menu language

Aspect ratio: Select the aspect ratio 16:9 or 4:3

Restore: Deletes all hotel settings.

6. Main menu

CEC

"CEC" stands for "Consumer Electronics Control". With HDMI CEC, devices connected via HDMI can be controlled with only one remote control.

Shop mode

Select whether you want to use the TV in Shop mode.

In Shop mode, settings are changed that can affect the power consumption.

Store

Since stores usually have a more garish or brighter lighting atmosphere, the TV should be operated in the "Shop" setting. This results in sharper images, richer colors, stronger contrasts, but also higher power consumption.

Blue screen

Shows a blue screen when switching

H.O.H Hearing impaired

You can enable this option only if the broadcast supports it.

Reset

Select this option if you want to reset the TV to factory default.

The default password:0000

Attention: all settings will be deleted and the initial installation will be started.

6.5 Zeit

OSD time

The OSD time allows you to set the fade-in time of the menu and OSD display.

You can choose between: Always, 5,10, 15, 30, 60, Seconds.

Sleep timer

Select your desired switch-off time.

You can choose between: Off, 10, 20, 30, 60, 90, 120, 180, 240 minutes.

Note:

The sleep timer function can also be accessed directly via the remote control. To do this, press the SLEEP key on the remote control.

Automatic standby

Automatic standby controls the TV's shutdown time when no buttons on the device or remote control are pressed. Ex works, this time is defined as 4 hours.

7. EPG (Electronic Programme Guide)

In the Electronic Programme Guide you can see a 7-day preview of all channels (if the respective channel provides this). Use the arrow keys on the remote control to navigate. Press OK to confirm your selection.

Optional (with PVR software)

With the extended PVR software, you have the option of programming via the EPG system.

Note:

It may happen that the program guide does not provide any or only partial information. It may take a few minutes for the data to be updated.

Explanation of the color keys

• Schedules a recording (only possible with additional software)
  Opens the timer list (only possible with additional software)
• Schedules an event reminder (only possible with additional software)
  Changes the EPG view to „Daily

8. CI+ slot for Pay-TV expansion

You can use the TV to receive not only free-to-air programs, but also encrypted programs, provided you have a smart card and a Cl module from the respective program provider.

1. Insert the smartcard into the CI module:

Carefully insert the smartcard into the CI module.
Make sure that the golden chip of the Smartcard points upwards.

2. Inserting the CI module:

The module only needs to be inserted 2-3 cm
Cl slot can be plugged in. Thus
the CAM module snaps in correctly,
you have to tighten it a little bit at the end
push in. Thereby you feel a
slight resistance.

Note:

• Please install the Cl+ module after you have completed the channel scan and made all other settings.
• At the first use it can take a few minutes until the module and the smartcard are activated. The module checks the activation again each time the TV is switched on, if necessary.
• If a Cl+ module is used, the TV station can prohibit or (time) limit the recording/time shifting of programs. Recordings from stations that require Cl+ are stored encrypted on the USB device. The recordings cannot be transferred to other devices. The restrictions on recording are determined by the TV stations. Device manufacturers must comply with these specifications.
• The Cl+ module can create screen displays. Please refer to the module's manual.

9. Smart-TV-Function

The TV has a Smart TV function. In addition to conventional TV reception, a Smart TV also has various computer functions (e.g. surfing the web, apps, media libraries and games). To use these functions, the TV must be connected to an Internet router via WLAN or LAN.

To access the Smart TV menu, press the SMART key on the remote control.

9.1 Settings

In the settings, you make basic settings for the TV. Set up the connection to the Internet, manage the Bluetooth function, set the time or change the language of the TV menu.

Navigate all the way down using the arrow keys.

Select the "Settings" button and confirm with OK.

9.2 Network & Internet

If you have not yet connected the TV to the Internet during the initial installation, you need to perform the following steps to use the Smart TV function:

Network Ethernet

If you want to connect the TV and the Internet router via LAN cable, plug it into the corresponding port (RJ45) on the back of the TV. Additional settings for connecting to the network can be made in the Network LAN menu.

9. Smart-TV-Function

Wireless network (WLAN)

If you want to connect the TV and the Internet router via WLAN, proceed as follows:

1. Activate the „WiFi option
2. From the „Available networks" list, select the router you want to connect to.
3. Confirm with OK.
4. Now enter the password of the Internet router. To enter letters, use the text field that appears on the screen. To enter numbers, you can use the remote control.
5. Now click "Next" in the text field that appears, then click "Connect".
6. After successful connection to the network, the connection is displayed in the network list.
   7.Exitthemenuwith"Exit".

9.3 Bluetooth remote controls & accessories

The integrated Bluetooth interface enables wireless transmission of audio signals to suitable Bluetooth devices such as a sound bar or headphones. To connect the Bluetooth devices to the TV, proceed as follows:

1. Activate the „Bluetooth option
2. Make sure that your Bluetooth device (e.g. soundbar) is ready for operation.
3. The unit starts searching for compatible Bluetooth devices.
4. After a successful search, select the device you want to connect.
5. After a successful connection, the audio signals of the TV are now transmitted to the Bluetooth device.
   6.Exitthemenuwith"Exit".

9. Smart-TV-Function

9.4 Device settings

i Info

In this menu you can see the current information of the TV.

Device name

Displays the current unit name. With OK, you can change it.

Status

Displays the current status of your unit. (Network, serial number, operating time....)

Legal notice

Displays all legal notices and licences

Model

Displays the model name of the unit.

Version

Displays the current Android version.

Softwareversion

Displays the current software date.

Status of security updates, kernel version...

Displays current system data.

Time setting

In this menu you can set the time, time zone and date of the TV.

Automatic date and time

There are three ways to set the correct time and date:

About network providers

The time and date are automatically synchronised via the Internet.

About Transport Stream

The time and date are automatically synchronised via the TV provider.

Off

The time and date is managed manually.

Time zone

Select the appropriate time zone here (e.g. GMT+01:00 Amsterdam).

Set time

Set the current time here. ATTENTION: This item is only active if you have selected the setting "OFF" in the item "Automatic date and time".

Set date

Set the current date here. ATTENTION: This item is only active if you have selected the setting "OFF" in the item "Automatic date and time".

24 hours

Set here whether the time is to be shown as a 12-hour or 24-hour display.

9. Smart-TV-function

Language

Select your language here (e.g. German).

Keyboard

Select your keyboard version here (e.g. German).

Sound

Select here whether you want to have key tones.

Keyboard

Select your keyboard version here (e.g. German).

Memory

Displays the current memory allocation.

Reset

Resetssallsmartsettingsandaccounts.

Accounts & Registration

In this menu you can manage your accounts. (Google Account)

Apps

In this menu you can manage your apps on your device.

NOTE:

Individual apps are usually operated using the arrow keys on the remote control. However, some apps require the mouse function to be enabled in order to operate the app.

9. Smart-TV-function

9.5 Media

Press the SOURCE button on the remote control and select „Media" or navigate to the „Source" option in the Smart Menu and then select „Media".


Use the up and down keys to select the „picture „ icon, press the confirmation key to confirm, then press right to go to the folder. Press the confirmation key to open the corresponding folder. After selecting the picture, press the confirmation key to open the picture. You can operate by using the left and right buttons.

Music

Use the up and down keys to select the „Audio „ icon, press the confirmation key to confirm, then press right to go to the folder. Press the confirmation key to open the corresponding folder. After selecting the audio, press the confirmation key to open the audio. You can operate by using the left and right buttons.

Video

Use the up and down keys to select the „video „ icon, press the confirmation key to confirm, then press right to go to the folder. Press the confirmation key to open the corresponding folder. After selecting the audio, press the confirmation key to open the video. You can operate by using the left and right buttons.

Installation package

Select the "Installation package" icon, press the enter key to confirm the entry and open the corresponding folder. Press Enter after selecting the installation package to open and install the installation package.

Storage device

It can read external devices, such as U-Disk, hard disk, etc., select files that you need to open.

Local storage

The system's internal files can be read.

Network sharing

access to the same segment, the server shares files.

10. Operating the Smart TV interface

General Information

When you press the button on the remote control, you will enter the Smart TV interface of the TV.

Some apps are preinstalled at the factory. Use the arrow keys to navigate to the desired app, then press OK to open it.

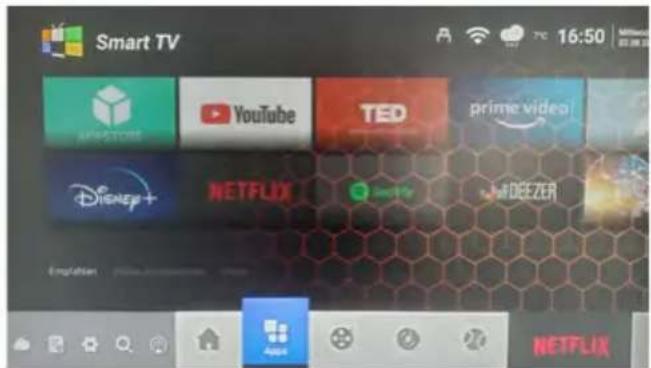

App Store

To install additional apps or manage existing apps, open the App Store.

In the left column different categories are listed:

Search

You can search for apps using the search function. Use the displayed keypad for the input.

Home

Shows suggestions for videos, apps, and media libraries. Use the arrow keys to navigate between apps.

Categories

Displays a list of available apps listed by category.

To download the app, click Download.

My applications

In this menu you will see a list of already installed apps and apps where an update is available.

Setting

In this menu you can update the App Store if a newer version is available.

10. Operating the Smart TV interface

Other useful apps

Media Player

With the Media Player you can play music, videos and pictures from a USB stick or an external hard drive via the USB port of the TV. Applications (apps) that are suitable for Android devices can also be played on it.

TV Source

Press the button with the antenna symbol to enter live TV reception (e.g. DVB-S television). Note: Alternatively, use the SOURCE button to select the corresponding reception source (e.g. DVB-S).

Google Play Store

In the Google Play Store you can search for other apps and install them. Registration is required to use the Google Play Store.

Chrome

You can surf the Internet with the integrated Chrome browser. Almost all functions are available to you as on a conventional PC.

IMPORTANT NOTE:

The download of individual apps on the Smart TV is usually free of charge. However, depending on the provider of the apps, additional costs are incurred or a subscription is required. The provider of the app is solely responsible for the subscription and the resulting costs!

Easier operation of the Smart-TV

The Smart TV interface is usually operated using the arrow keys on the remote control.

Alternatively, you can press the button on the remote control to activate a mouse pointer. Now the mouse pointer can be controlled using the arrow keys on the remote control.

However, you can also connect an ordinary PC keyboard or PC mouse to one of the USB ports. The operation is then carried out in the same way as with a conventional PC.

11. Recording function (optional)

NOTE:

The PVR function of the Royal Line TVs is optional. The corresponding software can be purchased separately. Before you can start recording, you must connect a suitable USB medium to the TV (USB hard drive or USB stick). Please note that not every USB device is suitable. Depending on the speed, size and power consumption of the connected USB device, it may or may not be supported by the TV.

Manual recording

If you want to record a program, just press the Record button on the remote control. If you want to stop the recording, press the stop button. You will then be asked if you really want to stop recording. Confirm with YES, or NO to cancel.

Recording via the EPG

1. Press the EPG button on the remote control to open the EPG.
2. Use the arrow keys to navigate through the different channels or programs. Use the color and other buttons displayed on the screen to switch to the next or previous day or to open additional options.
3. Select a program you want to record.
4. To program the program for recording, press the red button on the remote control, according to the display on the TV. Then the list of preset recording parameters appears. If necessary, you can adjust them. Navigate with the cursor keys to the respective item you want to change.

NOTE:

To program a recording multiple times, for example a series, move the cursor to the „Mode" option and use the left/right cursor to make your selection. (Once, Weekly, Daily, Every Monday to Friday, Every Monday to Saturday.

11. Recording function (optional)

1. Press the "OK" button to confirm the recording and you will see an overview of the programmed timers. The recording is now saved in the timer list.

1. To delete the timer, press the red button.
2. With Exit, you leave the menu and return to Live TV mode. Press the yellow key to return to the EPG menu.

Timer list

1. To call up the list of timers again, press the EPG button on the remote control. You can call up the timer list with the "Yellow" key.
2. To delete a timer, select the timer with the cursor keys and press the "Red" key. The timer is deleted.
3. Another way to open the EPG and the timer list is the menu. Press the Menu button, switch to the „Programs (Channel)“ option and then to the „Program Guide“ item. Menu Programs Program Guide

Note:

Use the color buttons on the remote control to select or adjust options according to the overlay

Schedule recording / Clear timerRED

YELLOW Timer list / back

BLUE Schedule Remind (Reminder Timer)

11. Recording function (optional)

Playback recordings

1. To play back recordings, please switch to the recording list. You can access it in the following ways:

Press the REC/List button on the remote control to get the list of your recordings.

or via the media player Source MEDIA Video

1. Select a recorded program and confirm with OK to play it. To enter the full screen mode, switch to the picture and press

OK again. With EXIT you can cancel the process.

1. To fast forward or rewind in the recording, use the respective buttons on the remote control (see the manual of your TV).

Alternatively, you can also use the screen selection by pressing the OK key.

12. Troubleshooting

Please read the following information to determine the possible cause of a problem before contacting customer service.

The TV will not turn on.	■ Check that the power cable is correctly connected to the socket and the power supply unit. ■ Check that the power supply cable is correctly connected to the TV. ■ The electronic circuit may have been reset. Unplug the power adapter from the power outlet, wait 1 minute, then reconnect the plug.
No picture	■ Check that the antenna cable is connected correctly and that the corresponding F-connectors are mounted correctly. ■ Check that the correct input is selected. Use the SOURCE button on the remote control and check the correct input channel.
No sound ▪ Check if the sound is turned off or the mute is activated (MUTE). ■ Increase the volume carefully. ■ Check that the audio cables are connected to the correct inputs.
Poor image quality	■ Check the connection to the TV. Check the video settings.
The image is too large, too small or distorted.	■ Use the ASPECT button on the remote control to change the aspect ratio of the image (16:9, 4:3, ...)
The remote control reacts poorly or not at all.	■ Replace the batteries. ■ Use the remote control within the specified range (max. 5 meters and 30°) ■ Avoid direct light on the infrared sensor.
The Smart TV menu cannot be opened	■ Check the network settings. ■ Check that you are connected to the Internet.
When streaming movies, series or other content, the picture jerks or is pixelated.	■ The Internet connection may be too slow. ■ A temporarily poor transmission can also be caused by the provider of the streaming content (e.g. server problems).
No more apps can be installed.	■ The internal memory of the TV is full. First delete other apps to install new ones.

13. Specifications

General information
Royal Line IV 19 Smart Royal Line IV 22 Smart

Display LED-Display
Screen size 18,5 inch (47 cm) 21	5 inch (54,6 cm)
Resolution 1366 x 768 1920 x 10	80
Contrast ratio 1000:1 3000:1
Brightness value 250 cd/m2
Viewing angle 178° H / 178° V
Tuner DVB-S / -S2 / -C / -T / -T2
DVB-T2 standard H.265 / HEVC
CI+ Slot HD+ ready
Bluetooth® interface Version 4.2
WLAN interface yes
Smart TV function	Pre-installed apps, app store, media libraries, video portals
Operating system	Android 11.0
Processor ARM Cortex-A53 Processor (1 GB DDR / 8 GB Flash)
Photo Playback Formats JPEG, BMP, PNG
Audio Playback Formats	MP3, AAC, AMR
Video Playback Formats	MPG, AVI, TS, MOV, MKV, DAT, MP4, VOB
Mechanical power switch yes
Hotel-Modus	yes
Speakers	2x 5 watt (Stereo)
VESA-Standard	100 x 100 mm

Connections

ANT input DVB-S / -S2	1x
ANT input DVB-T / -T2 / -C	1x
Audio output coaxial	1x (S/PDIF)
Headphone output	1x (3,5 mm jack)
HDMI port	2x
Video cinch connection (CVBS)	1x
Audio cinch connection (L/R)	2x
USB port	2x
LAN interface	1x
CI+ module slot	1x

Other

Power supply	AC 100-240 Volt, 50/60 Hz DC 12 Volt, 3A (10~30 Volt stabilized)
Power in use / standby	12 Watt / < 0,5 watt	14 watt / < 0,5 Watt
Energy efficiency class	E (Spectrum A to G)
Dimensions with foot (W/H/D)	436 × 304 × 160 mm	501 × 343 × 160 mm
Dimensions without base (W/H/D)	436 × 259 × 49 mm	501 × 298 × 49 mm
Weight	2,3 kg	2,4 kg

13. Specifications

General information	Royal Line IV 24 Smart
Display LED-Display
Screen size 23,8 inch (60,5 cm)
Resolution 1920 x 1080
Contrast ratio 3000:1
Brightness value 250 cd/m2
Viewing angle 178° H / 178° V
Tuner DVB-S / -S2 / -C / -T / -T2
DVB-T2 standard H.265 / HEVC
CI+ Slot HD+ ready
Bluetooth® interface Version 4.2
WLAN interface yes
Smart TV function Pre-installed apps, app store, media libraries, video portals
Operating system Android 11.0
Processor ARM Cortex-A53 Processor (1 GB DDR / 8 GB Flash)
Photo Playback Formats JPEG, BMP, PNG
Audio Playback Formats	MP3, AAC, AMR
Video Playback Formats	MPG, AVI, TS, MOV, MKV, DAT, MP4, VOB
Mechanical power switch yes
Hotel-Modus	yes
Speakers	2x 5 watt (Stereo)
VESA-Standard	100 x 100 mm

Connections

ANT input DVB-S / -S2	1x
ANT input DVB-T / -T2 / -C	1x
Audio output coaxial	1x (S/PDIF)
Headphone output	1x (3,5 mm jack)
HDMI port	2x
Video cinch connection (CVBS)	1x
Audio cinch connection (L/R)	2x
USB port	2x
LAN interface	1x
CI+ module slot 1x

Other

Power supply	AC 100-240 Volt, 50/60 Hz DC 12 Volt, 3A (10~30 Volt stabilized)
Power in use / standby	17 watt / < 0,5 watt
Energy efficiency class	E (Spectrum A to G)
Dimensions with foot (W/H/D)	551 x 370 x 179 mm
Dimensions without base (W/H/D)	551 x 326 x 49 mm
Weight	2,8 kg

Note:

Weight and dimensions are not the absolute exact values. Technical details are subject to change without notice.

Conformity information

Hereby, Megasat Werke GmbH declares that the following product is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/53/EU (RED):

Megasat Royal Line IV 19 Smart (Art.-No.240129)

Megasat Royal Line IV 22 Smart (Art.-No. 240130)

Megasat Royal Line IV 24 Smart (Art.-No. 240131)

The declaration of conformity for this product is located at the company:

The declaration of conformity can be downloaded from our homepage: www.megasat.tv/support/downloads

Notes

PRODUCT REGISTRATION

Registering your Megasat product gives you access to our automatic e-mail notifications. If your product requires new firmware, you will be notified immediately.

For registration please visit our homepage www.megasat.tv

You can find the form in Support Product registration

Version 1.1 (March 2023)

Technical changes, misprints and errors reserved.

Megasat Werke GmbH

Brückenstraße 2a

D-97618 Niederlauer

MEGASAT

Royal Line IV Smart (19 / 22 / 24)

Mode d'emploi
