USER MANUAL XC3000P Generac

Section 1 Introduction and Safety 1

Introduction 1

Safety Rules 1

Safety Symbols and Meanings ..... 1

Exhaust Hazards 2

Fire Hazards 2

Fuel Hazards 3

Before Starting Equipment ...... 3

When Operating Equipment ...... 3

When Transporting or Repairing Equipment 3

When Storing Fuel or Equipment with Fuel In Tank 3

Section 2 General Information and Setup .... 4

Know Your Water Pump 4

Product Specifications 4

Emissions Information 4

Remove Contents from Carton ..... 4

Add Engine Oil 5

Add Fuel 5

Assembly 6

Connect the Hoses 6

Priming the Pump 6

Section 3 Operation ....7

Operation and Use Questions .....7

Pump Output 7

High Altitude Operation ....7

Transporting / Tipping ....8

Before Starting Engine 8

Starting the Engine 8

Preventing Water Hammer 9

Water Pump Shut Down 9

After Each Use 9

Section 4 Maintenance and

Troubleshooting 10

Maintenance Recommendations ...10

Maintenance Schedule 10

Preventive Maintenance ....10

Engine Maintenance ....10

Storage 12

Troubleshooting 13

Notes 15

Section 1 Introduction and Safety

Introduction

Read This Manual Thoroughly

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

If any section of this manual is not understood, contact the nearest Independent Authorized Service Dealer (IASD) or Generac Customer Service at 1-888-436-3722 (1-888-

GENERAC), or visit www.generac.com for starting, operating, and servicing procedures. The owner is responsible for proper maintenance and safe use of the unit.

SAVE THESE INSTRUCTIONS for future reference. This manual contains important instructions that must be followed during placement, operation, and maintenance of the unit and its components. Always supply this manual to any individual that will use this unit, and instruct them on how to correctly start, operate, and stop the unit in case of emergency.

The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice.

Safety Rules

The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The alerts in this manual, and on tags and decals affixed to the unit, are not all inclusive. If using a procedure, work method, or operating technique that the manufacturer does not specifically recommend, verify that it is safe for others and does not render the equipment unsafe.

Throughout this publication, and on tags and decals affixed to the unit, DANGER, WARNING, CAUTION, and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Alert definitions are as follows:

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

(000001)

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

(000002)

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

(000003)

NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual.

These safety alerts cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instructions while performing the action or service are essential to preventing accidents.

Safety Symbols and Meanings

! DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury.

(000103)

DANGER

Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury.

(000104)

! DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (0001)

(000105)

DANGER

Risk of fire. Allow fuel spills to completely dry before starting engine. Failure to do so will result in death or serious injury.

(000174)

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.

(000110)

WARNING

Hearing Loss. Hearing protection is recommended when using this machine. Failure to wear hearing protection could result in permanent hearing loss. (000107)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

WARNING

Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire. (000109)

WARNING

Moving Parts. Keep clothing, hair, and appendages away from moving parts. Failure to do so could result in death or serious injury. (000111)

WARNING

Risk of Falling. Use of machine creates wet areas and trip hazards. Be aware of work area conditions. A fall could result in death or serious injury. (000112)

WARNING

Risk of Falling. Do not use this machine or any components on elevated surfaces. Doing so can result in a fall, serious injury, or death. (000114)

WARNING

Recoil Hazard. Recoil could retract unexpectedly. Kickback could result in death or serious injury. (000183)

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

WARNING

Moving Parts. Do not wear jewelry when starting or operating this product. Wearing jewelry while starting or operating this product could result in death or serious injury. (000115)

WARNING

Vision Loss. Eye protection is required to avoid spray from spark plug hole when cranking engine. Failure to do so could result in vision loss. (000181)

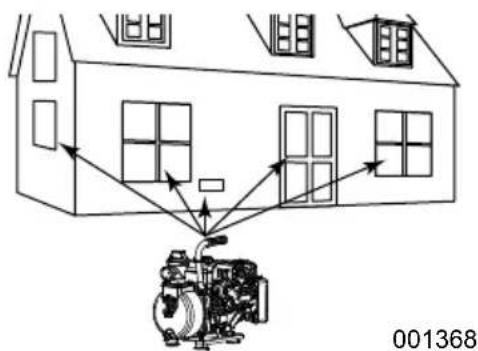

Exhaust Hazards

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000103)

DANGER

Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b)

WARNING

Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury. (000178a)

CAUTION

Equipment or property damage. Do not block air intake or restrict proper air flow. Doing so could result in unsafe operation or damage to unit.

• The water pump MUST be operated outdoors.
- If you start to feel sick, dizzy, or weak after the water pump has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poisoning.
- If operating the water pump in a trench or pit, do not enter the area while the engine is running. Carbon monoxide will accumulate in enclosed areas.
- Use a respirator or mask whenever there is a chance that harmful gas or vapors might be inhaled.

Fire Hazards

DANGER

Explosion and Fire. Do not overfill fuel tank. Overfilling may cause fuel to leak and ignite or explode, resulting in death or serious injury. (000204)

• Wipe up any fuel or oil spills immediately. Verify that no combustible materials are left on or near the water pump.
• Reflective exhaust heat may damage the fuel tank, causing fire. Keep at least five (5) feet (152 cm) of clearance on all sides of the pump for adequate cooling, maintenance, and servicing.
• It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may

have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrestor designed for the exhaust system installed on this engine..

Fuel Hazards

• Turn water pump OFF and let it cool at least two (2) minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
  • DO NOT light a cigarette or smoke.

Before Starting Equipment

• Operate water pump only on level surfaces.
• There is no oil in the engine. The engine crankcase must be filled before starting the engine for the first time. See Add Engine Oil.
• Verify spark plug, muffler, fuel cap, and air cleaner are in place.
• DO NOT crank engine with spark plug removed.
• Keep your hands and body clear from the discharge of the pump.
• Make sure all connections are tight.
• Secure the pump. Loads from the hoses may cause it to tip over.
• Secure the discharge hose to avoid whipping.

When Operating Equipment

• NEVER place discharge hose near a power source.
• Do not allow children near the pump while it is operating.
• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT pump chemicals or flammable liquids, such as fuel, or fuel oils.
• Secure the pump. Loads from the hoses may cause it to tip over.
• Operate water pump only on level surfaces.
• Do not submerge the pump.
• Never use the water pump or any of its parts as a step. Stepping on the equipment can stress and break parts, and may result in dangerous operating conditions from leaking exhaust gases, fuel leakage, oil leakage, etc.
• DO NOT stop the engine by moving the choke lever to the CHOKE position.
• Do not attempt to use pump for providing pressurized water to other pieces of equipment.
• Do not add fuel tanks for extending run time.

When Transporting or Repairing Equipment

• Transport/repair with fuel tank EMPTY.
• Disconnect spark plug wire.
• For safety reasons, it is recommended that the maintenance of this equipment be performed by an Authorized Dealer. Inspect the water pump regularly, and contact the nearest Authorized Dealer for parts needing repair or replacement.
• When working on this equipment, remain alert at all times.
• Never work on the equipment when physically or mentally fatigued.
• Replacement parts must be of the same type, and installed in the same position as the original parts.

When Storing Fuel or Equipment with Fuel In Tank

Store away from furnaces, stoves, water heaters, clothes dryers, or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

Section 2 General Information and Setup

Know Your Water Pump

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

Read this manual thoroughly before assembling and operating this equipment. Save this manual for future and immediate reference. Replacement owner's manuals are available at www.generac.com.

Depending on the model, these pumps are designed to pump clear water or water with sediment and particulates as specified in the product specification sheet. Do not use for pumping the following:

• Seawater
• Drinking water
• Kerosene
• Fuel, oil, or solvents
  • Chemicals (a chemical pump must be used for chemicals)

Product Specifications

Refer to the Product Specification Sheet for detailed information on product features and specifications.

Emissions Information

The U.S. Environmental Protection Agency (and California Air Resource Board for equipment certified to CA standards) requires that this engine comply with exhaust and evaporative emission standards. Locate the emissions compliance decal on the engine to determine what standards the engine meets, and to determine which emissions warranty applies. The engine is certified to meet the applicable emission standards on gasoline. It is important to follow the maintenance specifications in Maintenance and

Troubleshooting to verify that the engine complies with the applicable emission standards for the duration of the product's life. Tampering with or altering the emission control system may increase emissions and may be a violation of Federal or California Law. Acts that constitute tampering include but are not limited to:

• Removal or alteration of any part of the intake, fuel, or exhaust systems.
• Altering or defeating the governor linkage or speed-adjusting mechanism to cause the engine to operate outside its design parameters.

Have the engine inspected and repaired by a servicing dealer if these symptoms develop:

• Hard starting or stalling after starting
• Rough idle
• Misfiring or backfiring under load
  • Afterburning (backfiring)
• Black exhaust smoke or high fuel consumption

NOTE: Maintenance, replacement, or repair of emissions control devices and systems may be performed by a small engine repair establishment or individual. The manufacturer recommends that all emissions control service work be performed by an IASD. See emissions warranty for further details.

Remove Contents from Carton

1. Remove the loose parts, kits, and inserts included with water pump.
2. Open carton completely by cutting each corner from top to bottom.
3. Remove and verify carton contents prior to assembly. Carton contents should contain the following:

- Main Unit

- Loose Parts:

• Oil
• Funnel
• Spark Plug wrench

• Owner's Manual
  – Owner's Registration Card
  – Product Specifications Sheet

• Wheel Kit (if equipped)

• Hose Kit (if equipped)
• Lift Hook (if equipped)
• If any items are missing from carton, please call Generac Customer Service at 1-888-436-3722. When calling for assistance, have the model and serial number from the data tag available.
• Record model, serial number, and date of purchase on front cover of this manual.
• Fill out and send in registration card.

Add Engine Oil

CAUTION

Engine damage. Verify proper type and quantity of engine oil prior to starting engine. Failure to do so could result in engine damage.

(000135)

There is no oil in the engine. The crankcase must be filled before starting the engine for the first time.

1. Place water pump on a level surface.
2. Verify oil fill area is clean.

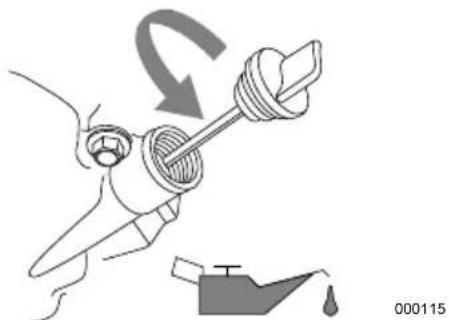

3. See Figure 2-1. Remove oil fill cap/dipstick and wipe dipstick clean.

Illustration of a hand turning a valve with a rotating arrow, next to a water drop (no text or symbols)

Figure 2-1. Remove Dipstick

Only high-quality detergent oils classified for service SJ or higher are recommended. DO NOT use special additives.

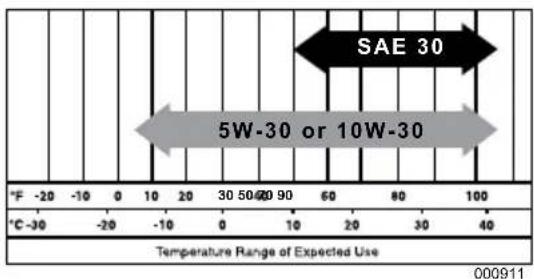

See Figure 2-2. Climate determines proper engine oil viscosity.

SAE 30 5W-30 or 10W-30 Temperature Range of Expected Use °F -20 -10 0 10 20 30 50 60 90 60 80 100 °C -30 -20 -10 0 10 20 30 50 60 90 60 80 100 000911

Figure 2-2. Recommended Oil

1. Thread dipstick into oil filler neck. Oil level is checked with dipstick fully installed.
2. See Figure 2-3. Remove dipstick and verify oil level is within safe operating range above the lower limit (L).

L 000116

Figure 2-3. Safe Operating Range

1. Install oil fill cap/dipstick and hand-tighten.

Add Fuel

DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (00010)

DANGER

Explosion and Fire. Do not overfill fuel tank. Overfilling may cause fuel to leak and ignite or explode, resulting in death or serious injury. (0002)

DANGER

Risk of fire. Allow fuel spills to completely dry before starting engine. Failure to do so will result in death or serious injury. (00017)

Fuel requirements are as follows:

• Clean, fresh, unleaded gasoline.
  • Minimum rating of 87 octane/87 AKI (91 RON).
• Up to 10% ethanol (gasohol) is acceptable.
• DO NOT use E85.
  • DO NOT use a gas oil mix.

• DO NOT modify engine to run on alternate fuels.
  • Stabilize fuel prior to storage.

• Verify equipment is OFF and cooled for a minimum of two minutes prior to fueling.

• Place equipment on level ground in a well ventilated area.
• Clean area around fuel cap and remove cap slowly.

Line drawing of a hand using a lever to lift a car intake manifold, with a fuel pump nearby (no text or symbols)

Figure 2-4. Add Recommended Fuel

1. Slowly add recommended fuel. Do not overfill.
2. Install fuel cap.

IMPORTANT: It is important to prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before

storage of 30 days or longer. See Storage. Never use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.

Assembly

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

Connect the Hoses

CAUTION

Equipment damage. Use only hoses and couplings designed for this pump. Incorrect hoses and couplings can cause performance issues and permanent equipment damage. (000197)

CAUTION

Equipment damage. Use recommended strainer to prevent debris from entering the pump. Failure to do so could result in equipment damage. (000241)

NOTE: Appearance of pump may vary. Discharge ports face 90° from inlet on certain models.

NOTE: Hose kit may be sold separately.

1. Place water pump in desired operating location.
2. Attach the flexible discharge hose to the outlet port (top) by sliding the hose over the barb and securing with a hose clamp.
3. See Figure 2-5. Attach the suction hose to the inlet port (bottom) by sliding the hose over the barb and securing with a hose clamp.

NOTE: Hose attachment styles may vary.

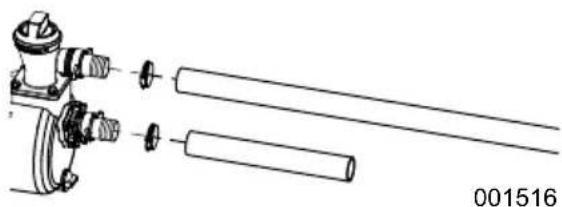

Technical line drawing of a mechanical assembly with cylindrical components and fasteners (no text or symbols)

Figure 2-5. Typical Hose Attachment

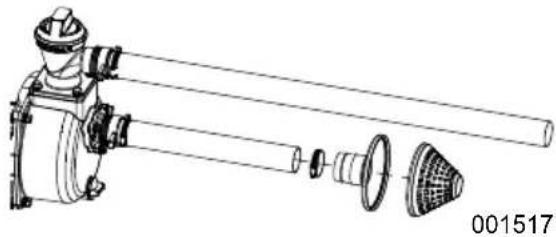

1. See Figure 2-6. Attach the strainer to the suction hose and secure with hose clamp.

Technical line drawing of a mechanical assembly with cylindrical components and flanges (no text or symbols)

Figure 2-6. Typical Strainer Attachment

Priming the Pump

CAUTION

Equipment damage. Before starting engine, verify pump is primed with water and suction strainer is submerged. Failure to do so will cause pump damage and void the warranty. (000203)

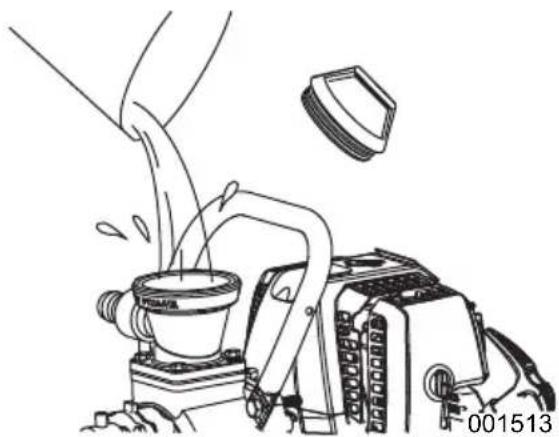

Remove the orange priming cap from the pump and completely fill the pump chamber with clean water. Tighten the cap. DO NOT over tighten.

Technical line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Figure 2-7. Water Priming Plug

Section 3 Operation

Operation and Use Questions

If you have any problems operating your water pump, please call Generac customer service at 1-888-GENERAC (888-436-3722).

Placing Water Pump for Use

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury.

(000103)

!WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.

(000110)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

(000108)

CAUTION

Equipment damage. The hose can be damaged if it comes in contact with the hot engine muffler. Keep hose away from muffler during operation.

(000124)

It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws. Place the pump on a level surface free from any obstructions or potential hazards. The pump should be placed close to the water level to ensure maximum performance.

• Only operate water pump outdoors in a well ventilated area. Never operate water pump indoors, or in a confined space. Be aware of building openings and ventilation systems where exhaust may enter during use.
• Keep at least five (5) ft (152 cm) of clearance on all sides of water pump including overhead.
• Verify water pump is placed on level ground to avoid tipping during operation.
• Submerge strainer.

NOTE: Suspend the strainer if there is any mud or sand present at the bottom of the water.

- Place discharge hose in appropriate location to drain water. Verify that the hose opening is unobstructed.

001368

Figure 3-1. Five Feet of Minimum Clearance

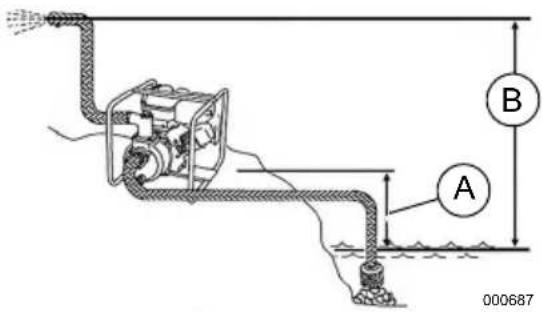

Pump Output

See Figure 3-2. Pump output will be affected by the type, length, and size of the suction and discharge hoses. Suction head is the distance (A) from the water intake to the suction port. The pumping height, total head, is the distance (B) from the water intake to the point of discharge. As total head increases, the pump output decreases. The discharge capacity is greater than the suction capacity. Therefore, it is important to keep the suction head less than the total head. The time required to draw water from the source to the pump (self-priming time) can be decreased by minimizing the suction head.

A B 000687

Figure 3-2. Pump Output

High Altitude Operation

This equipment produces maximum suction lift at elevations below 1000 ft (305 m). For every increase of 1000 ft (305 m) above sea level:

- the engine will lose about 3 % of its power - total head will be reduced by about 10 in (25 cm).

Lower atmospheric pressure results in slower engine speeds and reduced water flow through the pump.

Transporting / Tipping

Do not operate, store or transport the equipment at an angle greater than 15 degrees.

Before Starting Engine

1. Verify equipment is secure on level ground, with proper clearance and is in a well ventilated area.
2. Verify engine oil level is correct.
3. Verify fresh fuel level is correct.
4. Verify all fittings, gaskets, and couplers are properly secured.
5. Verify hoses are properly connected.
6. Remove water priming plug and fill the pump with water to the top of funnel. Replace water priming plug.
7. Refer to quick start decal on unit.

NOTE: Pumping water with solids larger than the maximum stated particle size can damage the pump and void the warranty. Maximum particle size is listed on the product specifications sheet. Ensure that correct strainer is attached to the suction hose to prevent pumping larger solids.

Starting the Engine

WARNING

Recoil Hazard. Recoil could retract unexpectedly. Kickback could result in death or serious injury.

(000183)

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.

(000110)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

(000108)

CAUTION

Equipment damage. Before starting engine, verify pump is primed with water and suction strainer is submerged. Failure to do so will cause pump damage and void the warranty. (000203)

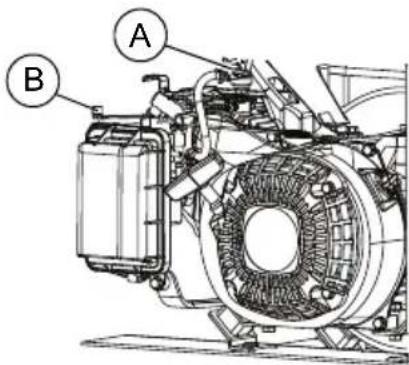

1. See Figure 3-3. Move fuel valve lever (A) to ON position.

A B

010369
Figure 3-3. Starting the Engine

1. Move choke lever (B) to CLOSED position.
   NOTE: For warm engine, leave choke lever in OPEN position.

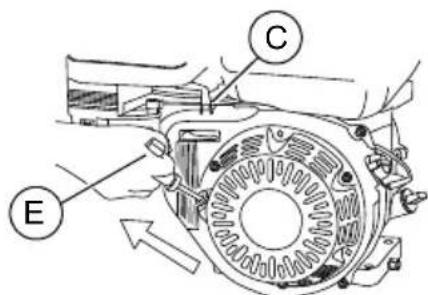

2. See Figure 3-4. Move throttle lever (C) about 1/3 away from the MIN position.

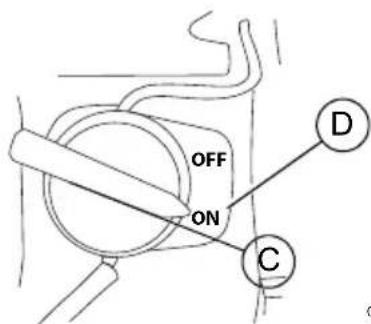

3. See Figure 3-5. Turn engine switch (D) ON.

Technical diagram of a mechanical assembly with labeled components E and C, showing directional arrows indicating movement or force.

000806

Figure 3-4. Engine Recoil (generic image shown)

OFF ON C D

000128
Figure 3-5. Engine Switch (generic image shown)

1. Grasp recoil handle (E) and pull slowly until you feel some resistance. Then pull rapidly to start engine. Return recoil handle slowly. DO NOT let recoil snap back against recoil housing.

2. When engine starts, slowly move choke lever to OPEN position as engine warms. If engine falters, move choke lever to CLOSE position, then to OPEN position.
   If engine fails to start after six pulls, move choke lever to "OPEN" position, and repeat step 6.

3. When the engine is running smoothly, adjust the throttle lever to set the desired engine speed.

Preventing Water Hammer

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.

(000110)

Water hammer occurs when the discharge flow is suddenly blocked or stopped.

Pressurized water trapped inside the pump can crack the pump housing. To prevent water hammer:

• Do not close the discharge valve while the pump is operating.
• Do not allow vehicles to drive over the discharge hose.
• Do not abruptly compress the discharge hose.

Water Pump Shut Down

1. Move throttle lever from fast to slow.
2. Turn engine switch OFF.
3. Move fuel valve lever to OFF position.
4. Allow the engine to cool thoroughly.

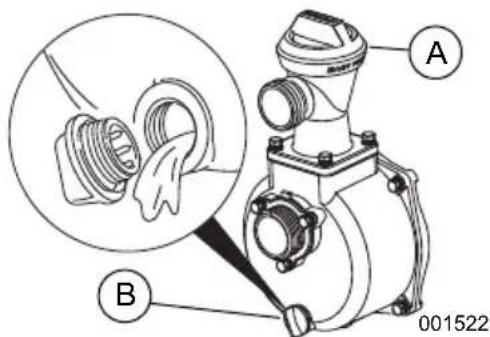

After Each Use

After cooling, remove the priming plug (A) and drain plug (B) from the pump housing and allow it to drain thoroughly.

A B 001522

Figure 3-6. Drain Pump Housing

NOTE: DO NOT allow water to remain in pump after use. Trapped water can freeze and crack the pump housing. Pump damage caused by freezing is not covered by warranty.

Follow these procedures after every use:

1. Drain pump housing.
2. Disconnect hoses.
3. Wipe pump with a clean, dry cloth to remove excess water and dirt.
4. Store equipment in a clean, dry area.

NOTE: If storing for more than 30 days, see Storage.

Section 4 Maintenance and Troubleshooting

Maintenance Recommendations

Regular maintenance will improve performance and extend water pump life. See an IASD for service.

Water pump warranty does not cover items subjected to operator abuse or negligence. To receive full warranty value, operator must maintain water pump as instructed in this manual, including proper storage as detailed in Storage.

NOTE: Call 1-888-GENERAC (888-436-3722) with questions about component replacement.

Maintenance Schedule

Follow maintenance schedule intervals, whichever occurs first according to use.

NOTE: Adverse conditions will require more frequent service.

NOTE: All required service and adjustments should be performed each season as detailed in the following chart.

Before Each Use

Check engine oil level

Check air cleaner element

Check and tighten fasteners

After Each Use

Drain water from pump

Every 3 Months or 50 Hours

Clean air cleaner element*

Every 6 Months or 100 Hours

Change engine oil ‡

Clean sediment cup

Check and adjust spark plug

Clean fuel tank and fuel filter **

Clean spark arrestor (if equipped)

Every Year or 300 Hours

Replace air cleaner element (paper)

Replace spark plug

Check and adjust idle speed **

Check and adjust valve clearance **

Every Two Years

Check condition of fuel lines and replace if necessary

* Service more often in dusty or dirty conditions.** Contact an IASD.‡ Change oil after the first 20 hours of operation, and every 100 hours thereafter.

Preventive Maintenance

Dirt or debris can cause improper operation and equipment damage. Clean water pump daily or before each use. Keep area around and behind muffler free from combustible debris.

• Use a damp cloth to wipe exterior surfaces clean.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum to pick up loose dirt and debris.
• Low pressure air (not to exceed 25 psi [172 kPa]) may be used to blow away dirt.

Engine Maintenance

WARNING

Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.

(000141)

Inspect Engine Oil Level

WARNING

Risk of burns. Allow engine to cool before draining oil or coolant. Failure to do so could result in death or serious injury.

(000139)

Inspect engine oil level prior to each use, or every 8 hours of operation.

Add recommended engine oil as necessary. See Add Engine Oil..

NOTE: If equipped with an "Oil Alert System" the system will automatically stop the engine before the engine oil level falls below a safe limit.

Change Engine Oil

WARNING

Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.

(000141)

When using water pump under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently.

Change oil while engine is still warm from running, as follows:

1. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
2. Place a suitable collection container beneath the engine.

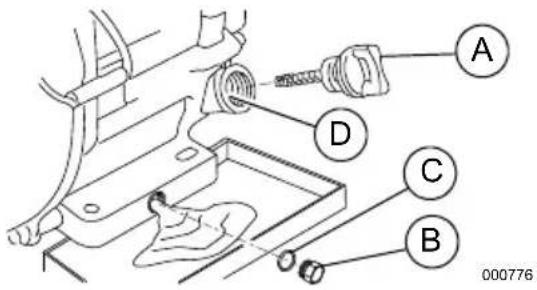

3. See Figure 4-1. Remove oil fill cap (A).

A D C B 000776

Figure 4-1. Changing Engine Oil (generic image shown)

1. Remove the oil drain plug (B) and discard the washer (C). Drain oil completely into a suitable container.
2. Place a new washer on the oil drain plug. Install oil drain plug and tighten securely.
3. Add recommended engine oil as necessary. See Add Engine Oil.
4. Install oil fill cap, and hand-tighten.
5. Wipe up any spilled oil.

NOTE: Properly dispose of used oil in accordance with all local laws and regulations.

Service Air Cleaner

Engine will not run properly and may be damaged if run with a dirty air cleaner. Service air cleaner more frequently in dirty or dusty conditions.

To service air cleaner:

1. Remove air cleaner cover.
2. Remove filter element(s).
3. Inspect filter element(s) and replace if damaged. To order replacements, contact Generac Customer Service at 1-888-GENERAC (888-436-3722) for the name of your nearest IASD.
4. Clean foam filter element in warm soapy water. Rinse, and allow to dry thoroughly. Dip in clean engine oil and squeeze out excess oil.
5. Tap paper filter element several times on hard surface to remove dirt. Compressed air (not exceeding 30 psi (207 kPa) can also be used to blow through filter element from the inside.
6. Use a clean, damp cloth to wipe dirt from inside air cleaner cover.
7. Put cleaned or new filter element(s) in place. Verify gasket is in place (if equipped).
8. Install air cleaner cover.

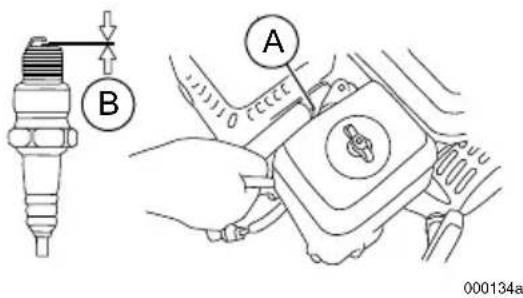

Service Spark Plug

To service spark plug:

1. See Figure 4-2. Clean area around spark plug (A).
2. Remove and inspect spark plug.
3. See Figure 4-2. Inspect electrode gap (B) with feeler gauge and replace spark plug if gap (A) is not within 0.028 - 0.031 in (0.70 - 0.80 mm).

B A 000134a

Figure 4-2. Service Spark Plug (generic image shown)

Illustration of hands assembling a mechanical component (no text or symbols visible)

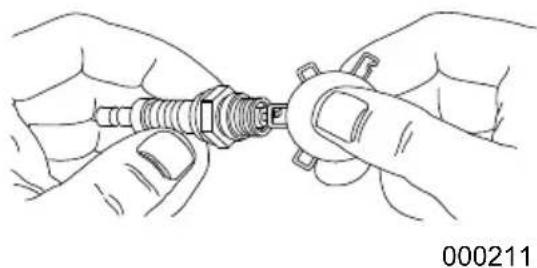

Figure 4-3. Spark Plug Gap

NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug. See product specification sheet.
4. Install spark plug finger tight, and tighten an additional 3/8 to 1/2 turn using spark plug wrench. DO NOT OVERTIGHTEN.

Inspect Muffler and Spark Arrestor (if equipped)

NOTE: It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.

Contact original equipment manufacturer, retailer, or dealer to obtain a spark arrestor designed for exhaust system installed on this engine.

NOTE: Use ONLY original equipment replacement parts.

Inspect muffler for cracks, corrosion, or other damage. Remove spark arrestor, if equipped, inspect for damage or carbon blockage. Replace parts as required.

Inspect Spark Arrestor Screen

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

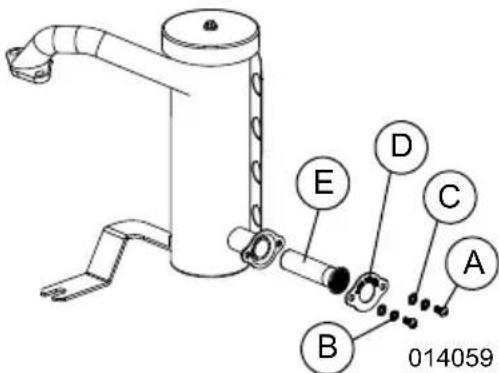

2 Inch Pumps

See Figure 4-4.

1. Remove Screws (A), spring washers (B), washer (C), cover (D) and spark arrestor screen (E).
2. Inspect screen (E) and replace if torn, perforated or otherwise damaged. If screen is not damaged, clean with commercial solvent.
3. Replace spark arrestor screen (E) and install cover (D), washer (C), spring washer (B) and screws (A).

E D C A B 014059

Figure 4-4. Spark Arrestor Screen

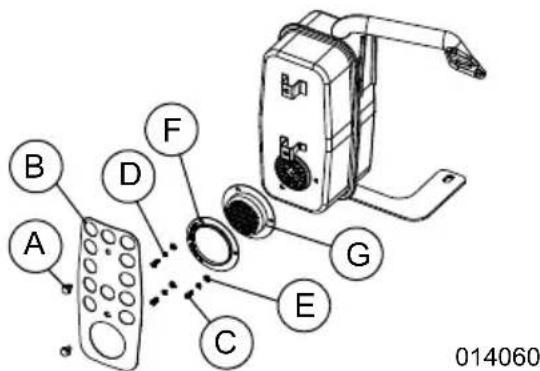

3 Inch Pumps

See Figure 4-5.

1. Remove bolts (A) and heat shield (B).
2. Remove screws (C), spring washers (D), washers (E), cover (F) and spark arrestor screen (G).
3. Inspect screen (G) and replace if torn, perforated or otherwise damaged. If screen is not damaged, clean with commercial solvent.
4. Replace spark arrestor screen (G) and install cover (F), washers (E), spring washers (D) and screws (C).
5. Install heat shield (B) and bolts (A).

B A D F G C E 014060

Figure 4-5. Spark Arrestor Screen

Storage

DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Store fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000143)

WARNING

Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire. (000109)

Refer to the following list to prepare equipment for storage.

• DO NOT place a storage cover on a hot water pump. Allow equipment to cool to room temperature before storage.
  • DO NOT store fuel from one season to another unless properly treated.
• Replace fuel container if rust is present. Rust in fuel will cause fuel system problems.
• Cover equipment with a suitable protective, moisture resistant cover.
• Store equipment in a clean and dry area.
  • Always store water pump and fuel away from heat and ignition sources.

Prepare Fuel System for Storage

CAUTION

Equipment damage. Always run engine with water in the pump priming chamber. Failure to do so could result in equipment damage.

(000243)

! WARNING

Vision Loss. Eye protection is required to avoid spray from spark plug hole when cranking engine. Failure to do so could result in vision loss. (000181)

Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer.

If fuel stabilizer is added to fuel system, prepare and run engine according to Starting the Engine Run engine for 10-15 minutes to circulate stabilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months.

NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

1. Change engine oil.
2. Remove spark plug.
3. Pour a tablespoon (5-10cc) of clean engine oil or spray a suitable fogging agent into cylinder.

4. Pull starter recoil several times to distribute oil in cylinder.

5. Install spark plug.

6. Pull recoil slowly until resistance is felt. This will close valves so moisture cannot enter engine cylinder. Gently release recoil.

Change Oil

Change engine oil before storage. See Change Engine Oil.

Prepare Water Pump for Storage

Protect equipment from freezing temperatures if any water remains in the pump housing. Failure to do so will permanently damage pump and render equipment inoperable. Freeze damage is not covered under warranty.

Protect from freeze damage as follows:

1. Shut pump down. See Water Pump Shut Down.
2. Drain all water from pump housing. See After Each Use.
3. Prepare fuel system and engine. See Prepare Fuel System for Storage.
4. Store equipment in a clean and dry area.

Troubleshooting

PROBLEM CAUSE CORRECTION
Engine will not start, or starts and runs rough.	1. Engine ON/OFF switch in OFF position.2. Dirty air filter3. Out of fuel.4. Stale fuel.5. Fuel switch in OFF position (if equipped).6. Low oil level (units with low oil shutdown system).7. Spark plug wire not connected to plug.8. Bad spark plug.9. Choke position incorrect.10. Water in fuel.11. Excessively rich fuel mixture.12. Impeller obstructed.13. Dirty fuel filter.	1. Place Engine ON/OFF switch in ON position.2. Clean or replace air filter.3. Fill fuel tank.4. Replace with fresh fuel.5. Place fuel switch in ON position.6. Fill oil to proper level.7. Connect wire to spark plug.8. Replace spark plug.9. Adjust choke position.10. Drain fuel tank; replace with fresh fuel.11. Contact IASD.12. Clean impeller.13. Replace fuel filter.
Pump not operating.	1. Air leak in suction hose.2. Suction and/or discharge hoses blocked.3. End of suction hose not submerged.4. Total head exceeds pump capacity.	1. Check suction hose and connections for leaks. Tighten or repair.2. Check hoses and strainer. Clear obstructions.3. Increase suction hose length or move pump closer to water.4. Reduce total head or choose a different pump for the task.
PROBLEM	CAUSE CORRECTION
Weak discharge flow.	1. Air leakage (intake) at suction side.2. Reduced engine power output.3. Damaged mechanical seal.4. Suction lift too high.5. Suction hose too long, or hose diameter too small.6. Leaking discharge hose or connection.7. Pump inlet/impeller obstructed by debris.8. Worn impeller.**9. Engine throttle in SLOW position.10. Hose connection at inlet joint not secure.11. Clogged strainer.	1. Check suction hose and connections for leaks. Tighten or repair.2. Contact IASD.3. Replace mechanical seal.4. Lower suction lift.5. Shorten suction hose, or increase hose diameter.6. Check discharge hose and connection for leaks. Tighten or repair.7. Remove housing cover and clean impeller.8. Replace impeller.9. Increase throttle position.10. Tighten hose connection.11. Clean strainer. Raise and keep strainer away from debris and sediment.
Pump does not prime water, or priming takes a long time.	1. Air leakage (intake) at suction side.2. Insufficient priming water inside pump casing.3. Water drain plug is loose.4. Engine malfunction.5. Damaged mechanical seal.6. Incorrectly sized suction hose.7. Suction hose is too long.8. Excessive suction lift. ***9. Hose connection at inlet joint not secure.	1. Check suction hose and connections for leaks. Tighten or repair.2. Add priming water.3. Tighten water drain plug.4. Contact IASD.5. Replace mechanical seal.6. Use correct suction hose.7. Move pump closer to water.8. ***9. Tighten hose connection.
Pump loses prime.	1. Water level drops below the end of the suction line.	1. Increase length of suction line or move the pump closer to the water source.
Pump shuts down during operation.	1. No fuel.2. Low oil sensor shuts down unit.3. Excess amount of oil in crankcase causing foam. Sensor shuts down unit.	1. Allow engine to cool for 2 minutes, then fill fuel tank.2. Make sure unit is on flat surface. Check oil level and add more if necessary.3. Remove excess oil and verify level is within a safe operating range. See Add Engine Oil.
Oil leakage at muffler or air cleaner.	1. Engine failure. 1. Contact IASD.
Water leakage between engine and pump.	1. Damaged mechanical seal. 1. Replace mechanical seal.

* Mechanical seal damage may be caused by normal wear, overheating, or pumping incompatible fluids.

** Excessive impeller wear is primarily due to cavitation and sand/debris. Causes include restricted suction and excessive suction lift.

*** Total suction head should not exceed 26 ft (8 m).

Notes

Part No. 10000016160 Rev. E 08/05/2022

©2022 Generac Power Systems, Inc.

All rights reserved

Specifications are subject to change without notice.

No reproduction allowed in any form without prior

written consent from Generac Power Systems, Inc.

PRO

Generac Power Systems, Inc.

S45 W29290 Hwy. 59

Waukesha, WI 53189

1-888-GENERAC (1-888-436-3722)

www.generac.com/pro

Bomba de agua

Manual del usuario

MODELO:

SERIE:

FECHA DE COMPRA: ____

Illustration of a hand turning a valve with a water drop, no text or symbols present

Figura 2-1. Sacar la varilla

Technical diagram of a mechanical component with labeled parts and a circular indicator L

Line drawing of a hand using a lever to lift a valve on a car intake manifold, with no text or symbols present.

Technical line drawing of a mechanical assembly with two cylindrical components and adjustment knobs (no text or symbols)

Technical line drawing of a mechanical device with cylindrical components and flanges (no text or symbols)

Technical line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Technical diagram of an electric motor with labeled components A and B

010369

Figura 3-3. Arranque del motor

Technical diagram of a mechanical assembly with labeled parts E and C, showing directional arrows indicating movement or force.

000806

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and a magnified inset view.

Technical diagram showing a spark plug assembly with labeled parts A and B, alongside a close-up of hands adjusting a component.

Illustration of hands holding a small mechanical component (no text or symbols visible)

Pieza N°. 10000016160 Rev. E 05/08/2022

©2022 Generac Power Systems, Inc.

Illustration of a mechanical device with a rotating arrow and component, no text or symbols present

000115

Technical line drawing of a mechanical component with threaded end and threaded base, labeled L (no text or symbols beyond label)

000116

Line drawing of a hand using a lever on a mechanical device (no text or symbols)

Technical line drawing of a mechanical assembly with two cylindrical components and a valve (no text or symbols)

Figure 2-5. Raccord de tuyau type

Technical illustration of a mechanical assembly with cylindrical components and flanges (no text or symbols)

Figure 2-6. Raccord de crépine type

Amorçage de la pompe

MISE EN GARDE

Technical line drawing of a mechanical device pouring liquid into a container (no text or symbols)

Technical diagram of a mechanical component with labeled parts C, E, and directional arrow indicating flow or movement.

Technical diagram showing a spark plug assembly with labeled parts A and B, including a close-up of the component.

Illustration of hands holding a small mechanical component (no text or symbols visible)

©2022 Generac Power Systems, Inc.
