USER MANUAL FFT100 Nostalgia

NOSTALGIA PRODUCTS GROUP™

All products are trademarks of Nostalgia Products Group, LLC.

Worldwide design & utility patented or patents pending.

© 2013 Nostalgia Products Group, LLC.

www.nostalgiaelectrics.com

(rev. 04/10/13)

NOSTALGIA ELECTRICS™

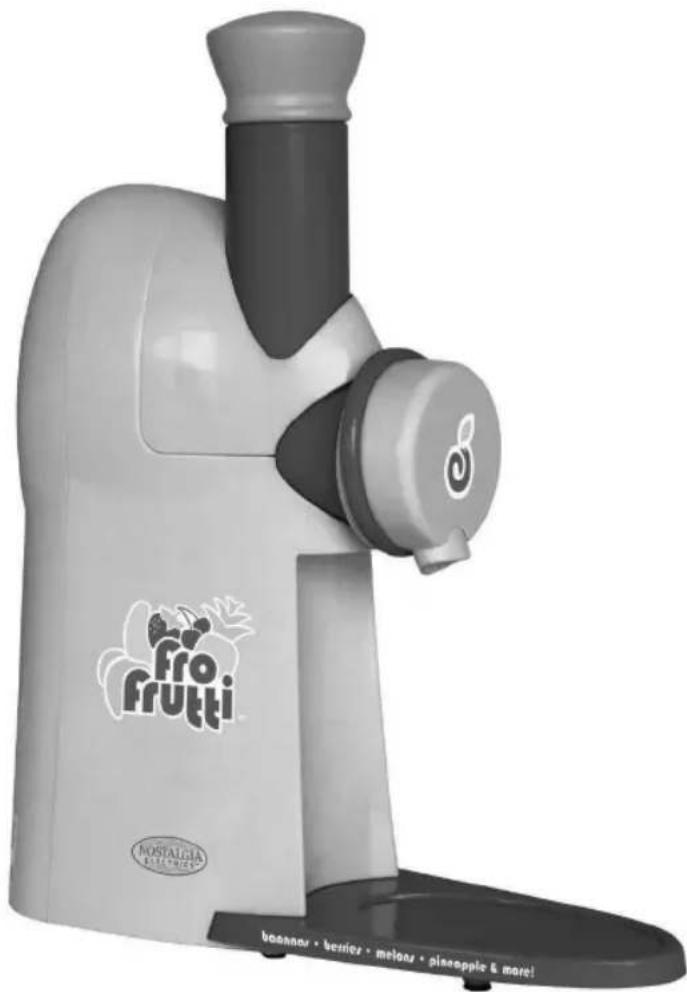

Product photo of a Fro Frutti brand ice cream maker with visible branding and no text or symbols on the device itself.

FFT100

FroFrutti™ Frozen Fruit Dessert Maker Fábrica de Postres con Frutas Congeladas FroFrutti™ Machine à desserts aux fruits congelés FroFrutti™

Instructions and Recipes Instrucciones y recetas Instructions et recettes

$$ \underline{\quad}\mid \underline{\quad}\mid \underline{\quad} $$

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

A single horizontal gray line on a white background (no text or symbols)

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Two isolated horizontal lines, one solid and one outlined, on a plain white background (no text or symbols)

	2017	2016
Cost of sales	3.5	3.4
Gross profit	1.8	1.9

Blank white image with no visible content, text, or symbols

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Make every day a party!

Visit www.nostalgiaelectrics.com for more fun products.

CONTENTS

IMPORTANT PRECAUTIONS 3

IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 7

HELPFUL TIPS 7

CLEANING & MAINTENANCE 8

RECIPIES 9

RETURNS & WARRANTY 13

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hz

120 Watts, ETL Approved

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

IMPORTANT PRECAUTIONS

1. NEVER immerse base in water.
2. NEVER use near water.
3. NEVER use an abrasive sponge or cloth on the appliance.
4. NEVER use a scouring pad on the appliance.
5. NEVER leave appliance unattended while in use.
6. Unplug unit from outlet when not in use and during cleaning.
7. DO NOT operate this appliance with a damaged cord or plug, nor if the appliance ever malfunctions.
8. DO NOT put in a dishwasher.
9. This appliance is for use with food and liquids only.
10. Keep out of reach of children.
11. This appliance is NOT A TOY.
12. Unsupervised young children and cognitively challenged individuals should never operate this appliance.

13. Young children should be supervised while in proximity of the appliance to ensure that they do not play with it.

14. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge of how to operate this appliance.

IMPORTANT SAFEGUARDS

Basic safety precautions should always be followed when using electrical appliances, including the following:

1. Read all instructions before operating this appliance.

2. DO NOT touch moving parts.

3. To protect against electrical shock do not immerse cord, plug or any part of this appliance in water or other liquids.

4. To avoid fire or shock hazard, or damage to the unit, this unit should be plugged into a polarized 120 Volt AC outlet ONLY.

5. Close supervision is necessary when any appliance is used near children.

6. Unplug from outlet when not in use, before removing parts and before cleaning.

7. DO NOT operate any appliance with a damaged cord or plug, nor if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.

8. DO NOT operate the unit continuously for more than 15 minutes. Allow it to rest for 5 minutes before using again. After three cycles, allow the unit to cool completely before using again.

9. The manufacturer does not recommend the use of accessory attachments. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

10. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.

11. Make sure the Chute, Grinder and Dispenser are securely locked in place before operating.
12. Use the Plunger to force frozen fruit into the Shaft. NEVER use your hands to force ingredients into the unit.
13. DO NOT use fingers to scrape food away from Dispenser while unit is operating. This may result in injury.
14. DO NOT let cord hang over edge of table or countertop. Position the appliance as close to the outlet as possible to prevent injury due to tripping over cord.
15. DO NOT place on or near a hot gas or electric burner, nor in a heated oven.
16. Check unit for presence of foreign objects prior to use.
17. DO NOT use the appliance for other than its intended use.
18. An appliance that is plugged into an outlet should not be left unattended while in operation.
19. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
20. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. Exception: An extension cord or longer detachable cord is not recommended for use with this appliance.
21. If a long detachable power-supply cord or extension cord is used: 1) The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance; 2) If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord; and 3) The longer cord should be arranged so that it does not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally.
22. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

With the FROFRUTTI™ FROZEN FRUIT DESSERT MAKER, you can create delicious and healthy frozen fruit desserts at home anytime. Simply freeze your favorite fruits, place in the Chute and enjoy a tasty soft-serve treat the whole family will love. FROFRUTTI™ works with a variety of frozen fruits including:

• Strawberries
• Bananas
• Blueberries
• Raspberries
• Peaches
  and more!

Make nutrient-rich frozen fruit as a guilt-free snack or dessert quickly and easily. The Recipes section offers a variety of tasty options, or you can create your own frozen fruit desserts. Be creative and enjoy your FROFRUTTI™ FROZEN FRUIT DESSERT MAKER!

PARTS & ASSEMBLY

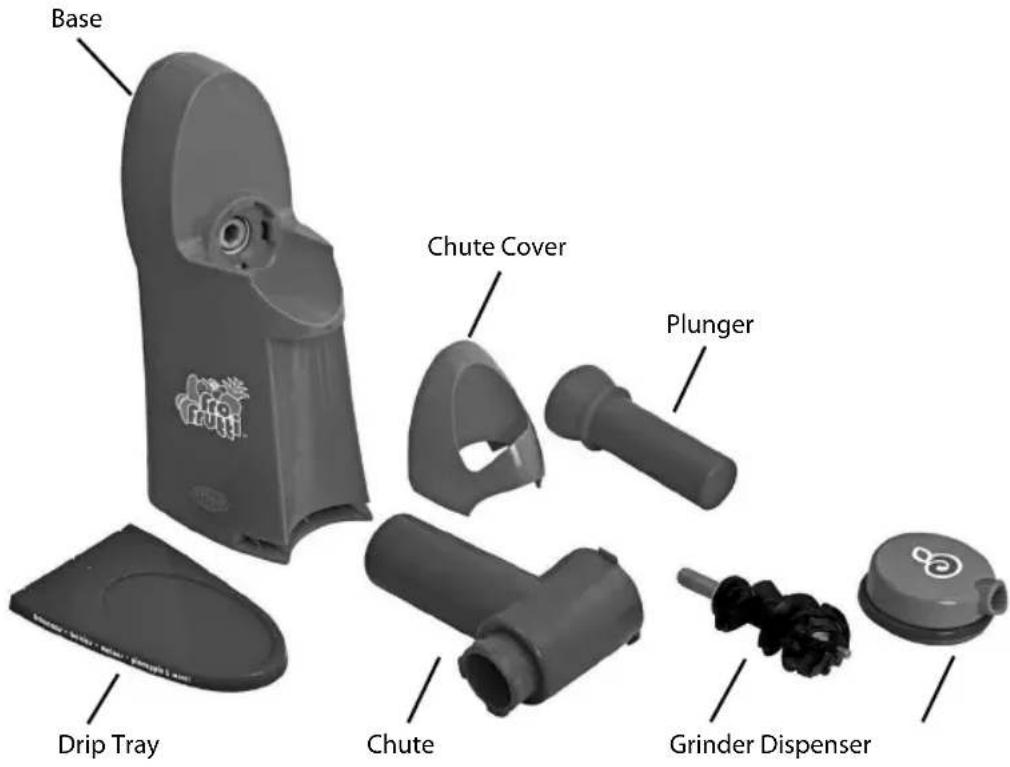

PARTS

• Before first use, wash Drip Tray, Chute, Grinder, Chute Cover, Plunger and Dispenser in warm, soapy water with a non-abrasive moist sponge or cloth. Dry thoroughly with a non-abrasive towel.
• Wipe the Base with a damp, non-abrasive cloth and dry thoroughly. DO NOT immerse the Base or cord in water or any other liquid.

Base Chute Cover Plunger Drip Tray Chute Grinder Dispenser

ASSEMBLY

1. Insert the Grinder into the Chute.

Diagram showing a mechanical assembly with a T-shaped component and a cylindrical component, no text or symbols present.

1. Be sure the gasket is properly placed inside the Dispenser. Then, screw the Dispenser to the Chute by placing on the front and turning counterclockwise until the opening faces down.

Turns counter clockwise to lock

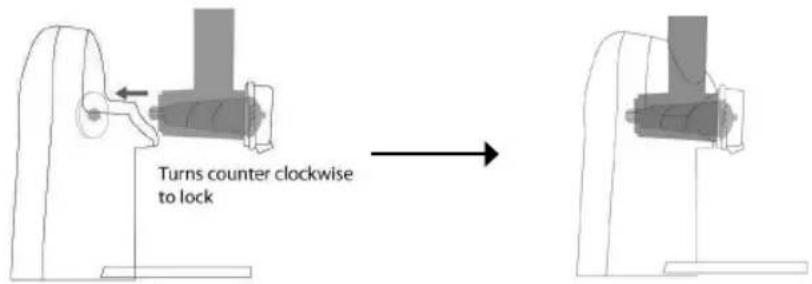

1. Insert the tip of the Grinder into the Base of the unit. Turn counterclockwise to lock the Chute assembly in place. Make sure the Chute, Grinder and Dispenser are properly assembled and affixed to the Base.

Turns counter clockwise to lock

1. Place the Chute Cover over the Chute assembly.

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

1. Insert the Plunger into the Chute and place the Drip Tray under the Dispenser at the bottom of the Base.

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

HOW TO OPERATE

• Freeze your desired fruit for 24 hours. Remove from freezer and allow to thaw slightly (approximately 15 minutes depending on the type of fruit).
• Place FROFRUTTI™ on a stable, waterproof surface near an electrical outlet before starting.
  • Always make sure that the cord is away from a water source.
• Plug in the unit.
• Place a small bowl or serving dish on top of the Drip Tray directly below the Dispenser.
• Remove the Plunger from the Chute and turn the unit ON.
• Insert frozen fruit slowly into the top of the Chute. DO NOT overfill the Chute.
• DO NOT place fruit with pits, honey or ice into FROFRUTTI™.
• Apply steady pressure on the Plunger to slowly press the contents down through the Chute. DO NOT apply too much force to the Plunger. Slowly and gently push the ingredients through.
• The creamy frozen fruit mixture will dispense into your bowl. If using more than one type of fruit per serving, add the different fruits alternately to allow them to mix properly. You may also choose to stir the frozen fruit before serving to ensure it is evenly mixed.
• Repeat the process until you have created the amount of frozen fruit desired.
• If using spices, sugar or sugar substitute, you may add with the fruit.
• DO NOT operate the unit continuously for more than 15 minutes. Allow the motor to rest for 5 minutes before using again. After three cycles, allow the unit to cool completely before using again.
• If the soft-serve fruit mixture stops dispensing, the Chute may be clogged. Turn unit off IMMEDIATELY and unplug from electrical outlet. Remove the Dispenser by turning clockwise and take out the Grinder. Wipe clean and reassemble FROFRUTTI™.
• NEVER try to force fruit through the Chute if it is not dispensing.
• If a variety of fruits are used in one batch, stir the mixture to combine thoroughly. You may also mix honey into the prepared frozen fruit after it has dispensed into the bowl.
• Unplug unit from outlet when finished. Follow the directions in the Cleaning & Maintenance section to clean FROFRUTTI™.

HELPFUL TIPS

NEVER leave the unit unattended while operating.

BURNING ODOR

During first use, you may notice a slight burning odor; this is normal with most new appliances. The odor is caused by the residues burning off the motor. If the smell persists or smoke appears, turn the unit off immediately and discontinue use.

DISPENSER

Make sure the clear gasket is properly affixed inside the Dispenser.

This will prevent fruit from leaking out of the Dispenser.

CLOGGING

Certain fibrous types of fruits, such as pineapple, may clog the Chute and Dispenser. If fruit stops flowing, turn the unit off IMMEDIATELY and unplug from electrical outlet. Remove the Dispenser by turning clockwise and take out the Grinder. Rinse or wipe clean and reassemble FROFRUTTI™.

INGREDIENTS

Fruit should be frozen for a minimum of 24 hours before placing in FROFRUTTI™. Allow fruit to thaw for approximately 15 minutes (time may vary depending on the type of fruit).

The following frozen fruits work best:

• Berries: strawberries, blueberries, blackberries, raspberries, cranberries
• Bananas: should be over-ripe and peeled before freezing; DO NOT freeze un-peeled bananas
• Melon: honeydew, cantaloupe, watermelon
• Pineapple: peeled, cored and cut into long, thin slices
• Peaches
• Pears
• Apples
• Mango

If using a variety of fruits or berries per batch, add the different fruits alternately to allow them to mix properly and ensure proper consistency.

DO NOT place fruit with pits, honey or ice in the FROFRUTTI™ FROZEN DESSERT MAKER.

CLEANING & MAINTENANCE

1. Make sure the unit is unplugged before cleaning.
2. Before first use and continuing after each use, wipe off unit with a damp cloth and dry thoroughly.
3. Remove the Plunger and Chute Cover.
4. Turn the Chute clockwise to remove from the Base.
5. Turn the Dispenser clockwise to unscrew from the Chute. Remove the Grinder.
6. Wash Drip Tray, Chute, Grinder, Chute Cover, Plunger and Dispenser in warm, soapy water with a non-abrasive moist sponge or cloth. Dry thoroughly with a non-abrasive towel.
7. Wipe the Base with a damp, non-abrasive cloth and dry thoroughly. DO NOT immerse the Base or cord in water or any other liquid.
8. To prolong the life of your FROFRUTTI™ FROZEN FRUIT DESSERT MAKER, hand-washing parts is advised. Dishwasher use is not recommended. NEVER place the Base in a dishwasher.
9. Reassemble the unit and insert the cord into the storage area in the Base.

NOTE: Any other servicing should be performed by an authorized service representative.

RECIPES

Use FROFRUTTI™ to create a variety of healthy and delicious fruit sorbets the whole family will love. Keep it simple and use one fruit at a time, or combine an assortment of your favorite berries, melons and more for delightfully unique flavors.

The FROFRUTTI™ FROZEN FRUIT DESSERT MAKER produces a sweet, creamy soft-serve that is delicious on its own. Add your favorite spices, like cinnamon, ground espresso or cocoa powder, to enhance the flavor. You may also mix in honey, sugar or artificial sweeteners with the prepared soft-serve fruit for a sweeter snack. Or, freeze yogurt and add alternately with your choice of fruit for a luscious and creamy treat.

The following recipes make two FROFRUTTI™ servings. You may adjust them according to your desired quantity or substitute different fruits. Use your imagination and have fun!

PINEAPPLE STRAWBERRY SORBET

• 12 Cup Strawberries, frozen
• 12 Cup Pineapple, frozen

Allow the strawberries and pineapple to thaw for approximately 15 minutes.

Following the directions in the HOW TO OPERATE section, place 14 cup slightly thawed frozen strawberries into the chute.

Add 14 cup slightly thawed frozen pineapple. Repeat.

CHOCOLATE BANANA SWIRL

• 2 Over-ripe Peeled Bananas, frozen
• 1-oz. Semi-sweet Chocolate, shaved

Freeze 2 over-ripe, peeled bananas. Allow to thaw for approximately 15 minutes.

Following the directions in the HOW TO OPERATE section, insert 1 banana into FROFRUTTI™.

Add 1-oz. semi-sweet chocolate shavings.

Insert remaining frozen banana.

Stir to combine.

VERY BERRY SORBET

• 1 Cup Mixed Berries, frozen (raspberries, blueberries, strawberries, blackberries)

Allow berries to thaw for approximately 15 minutes.

Following the directions in the HOW TO OPERATE section, place berries in the FROFRUTTI™.

Stir to combine.

CINNAMON BANANA GRANOLA CRUNCH

• 2 Over-ripe Peeled Bananas, frozen

Freeze 2 over-ripe, peeled bananas. Allow to thaw for approximately 15 minutes.

• 1 Tsp. Cinnamon

Sprinkle with 1 teaspoon of cinnamon.

- 14 Cup Granola

Following the directions in the HOW TO OPERATE SECTION, insert bananas into FROFRUTTI™ one at a time.

Stir to combine. Garnish with granola.

MANGOLICIOUS SORBET

• 1 Cup Mango, chopped and frozen

Freeze chopped mango. Allow to thaw for approximately 15 minutes.

• 2 Tsp. Honey

Following the directions in the HOW TO OPERATE section, place slightly thawed frozen mango into the chute.

Divide mango sorbet into two serving bowls. Stir 1 teaspoon of honey into each.

MELON-BERRY SORBET

• 1 Cup Watermelon, chopped and frozen

Freeze chopped watermelon. Allow to thaw for approximately 15 minutes.

- 14 Cup Blueberries

Following the directions in the HOW TO OPERATE section, place slightly thawed frozen watermelon into the chute.

Garnish with blueberries.

HAWAIIAN SORBET

- 12 Cup Mango, chopped and frozen

Freeze chopped mango and pineapple. Allow to thaw for approximately 15 minutes.

- 12 Cup Fresh Pineapple, cored, chopped and frozen

Following the directions in the HOW TO OPERATE section, place 14 cup slightly thawed frozen mango into FROFRUTTI ^™ .

Add 14 cup slightly thawed frozen pineapple. Repeat.

STRAWBERRY KIWI SORBET

- 12 Cup Strawberries, frozen

Allow the strawberries and kiwi to thaw for approximately 15 minutes.

- 12 Cup Ripe Kiwi, frozen

Following the directions in the HOW TO OPERATE section, place 14 cup slightly thawed frozen strawberries into the chute.

Add 14 cup slightly thawed frozen kiwi. Repeat.

CHERRY YOGURT CRISP

• 12 Cup Light Vanilla Yogurt, frozen

Freeze yogurt and cherries. Allow fruit to thaw for approximately 15 minutes.

- 12 Cup Cherries, stems removed, pitted and frozen

Following the directions in the HOW TO OPERATE SECTION, insert 14 cup yogurt into the chute.

- 14 Cup Granola

Add 14 cup of cherries. Repeat.

Stir to combine. Garnish with granola.

BANANA JAVA FREEZE

• 2 Over-ripe Peeled Bananas, frozen

Freeze 2 over-ripe, peeled bananas. Allow to thaw for approximately 15 minutes.

• 2 Tsp. Espresso Powder, finely ground

Sprinkle espresso powder onto bananas.

• 1 Tbsp. Mini Semi-sweet Chocolate Chips, optional

Following the directions in the HOW TO OPERATE SECTION, insert bananas into FROFRUTTI™ one at a time.

Stir to combine.

Garnish with mini chocolate chips if desired.

"RASPEARY" YOGURT

• ¼ Cup Light Plain Yogurt, frozen

Freeze yogurt, pears and raspberries. Allow fruit to thaw for approximately 15 minutes.

- 14 Cup Pears, peeled, chopped and frozen

Following the directions in the HOW TO OPERATE SECTION, insert ingredients one at a time into FROFRUTTI™.

- 14 Cup Raspberries

Stir to combine.

BANANA PEANUT BUTTER SWIRL

• 2 Over-ripe Peeled Bananas, frozen

Freeze 2 over-ripe, peeled bananas. Allow to thaw for approximately 15 minutes.

• 1 Tbsp. All-Natural Peanut Butter

Following the directions in the HOW TO OPERATE SECTION, insert bananas into FROFRUTTI™ one at a time.

Stir in the peanut butter to combine.

KEY LIME PIE YOGURT

• 1 Cup Light Vanilla Yogurt, frozen

Freeze yogurt.

• 1 Tbsp. Lime Zest

Following the directions in the HOW TO OPERATE SECTION, place yogurt and lime zest into the chute.

- 12 Cup Graham Crackers, crushed

Stir to combine. Sprinkle with crushed graham crackers.

JUST PEACHY FREEZE

• 1 Cup Peaches, sliced and frozen

Freeze sliced peaches. Allow to thaw for approximately 15 minutes.

• 2 Tsp. Honey, optional

Following the directions in the HOW TO OPERATE section, place slightly thawed frozen peaches into the chute.

Divide peach sorbet into two serving bowls. Stir in 1 teaspoon of honey into each if desired.

ORANGE DREAMSICLE

• 1 Cup Light Vanilla Yogurt, frozen

Freeze yogurt and orange segments. Allow fruit to thaw slightly.

• 2 Cups Orange Segments, peeled and frozen

Following the directions in the HOW TO OPERATE SECTION, insert yogurt and orange segments alternately into FROFRUTTI™.

Stir to combine.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

FROFRUTTI™ FROZEN FRUIT DESSERT MAKER / FFT100

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products Group LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaelectrics.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaelectrics.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

This appliance is designed and built to provide many years of satisfactory performance under normal household use. The distributor pledges to the original owner that should there be any defects in material or workmanship during the first 90 days of purchase, we will repair or replace the unit at our option. Our pledge does not apply to damages caused by shipping, mishandling or unit being dropped. A product deemed defective either from manufacturing or being mishandled is up to the distributor's discretion. In order to obtain service under this warranty, please contact Nostalgia Products Group, LLC at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaelectrics.com.

This product is not recommended for use outside of North America. The warranty is void if products are exported outside of the USA, Canada or Mexico.

This warranty does not apply to re-manufactured merchandise.

Please read these instructions carefully. Failure to comply with these instructions, damages caused by improper replacement parts, abuse or misuse will void this pledge to you and is being made in place of all other expressed warranties.

For more information, visit us online at www.nostalgiaelectrics.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

CÓMO FUNCIONA

Nostalgia Products Group LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Servicio al cliente

CONSERVEZ CES INSTRUCTIONS! INTRODUCTION

Diagram showing a mechanical assembly with a T-shaped component and a cylindrical component, alongside a separate view of a flat object (no text or symbols)

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

COMMENT FAIRE FONCTIONNER

CROQUANT AU YAOURT ET AUX CERISES

Nostalgia Products Group, LLC

1471, Boul. Partnership

Green Bay, WI 54304-5685

Pure geometric lines forming a symmetrical shape without any text, numbers, or symbols
