USER MANUAL Premier M 60 L DR Hoshizaki

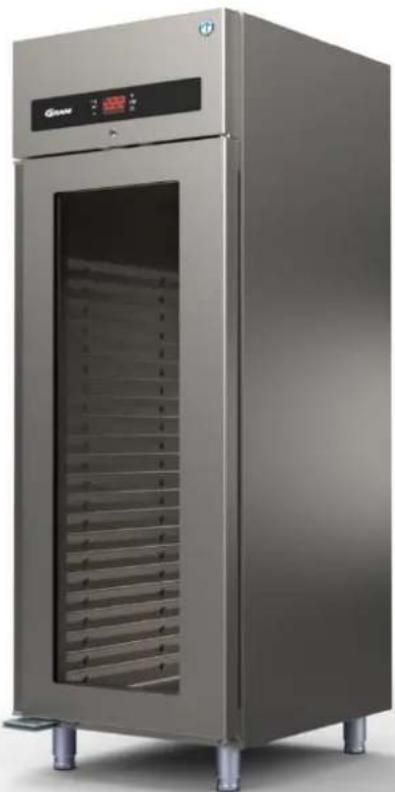

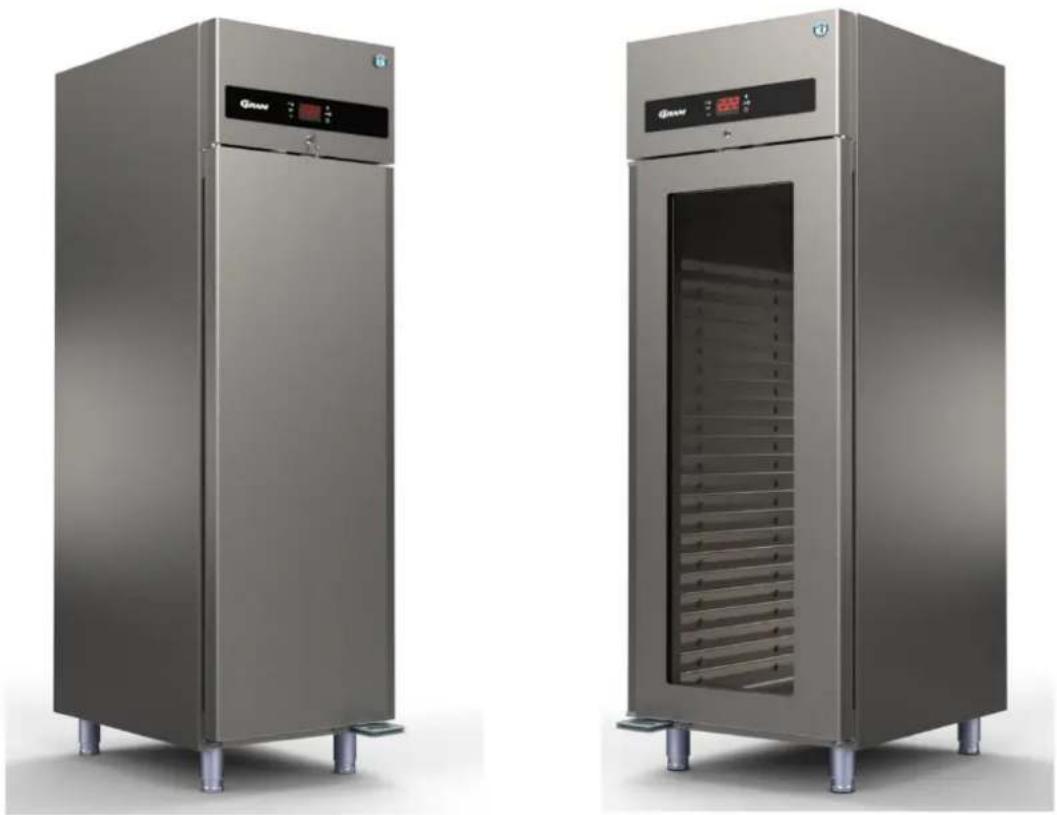

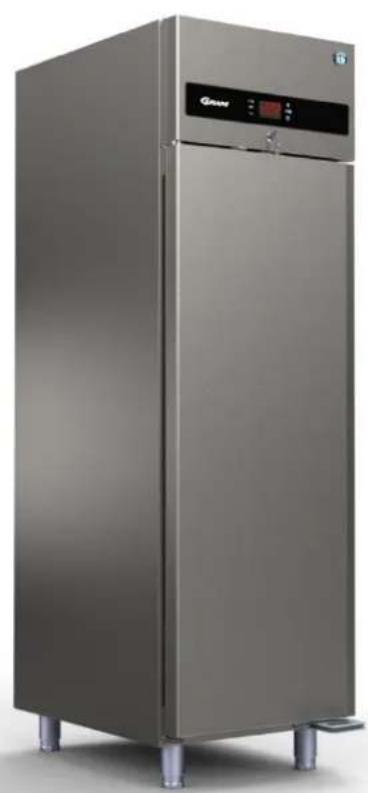

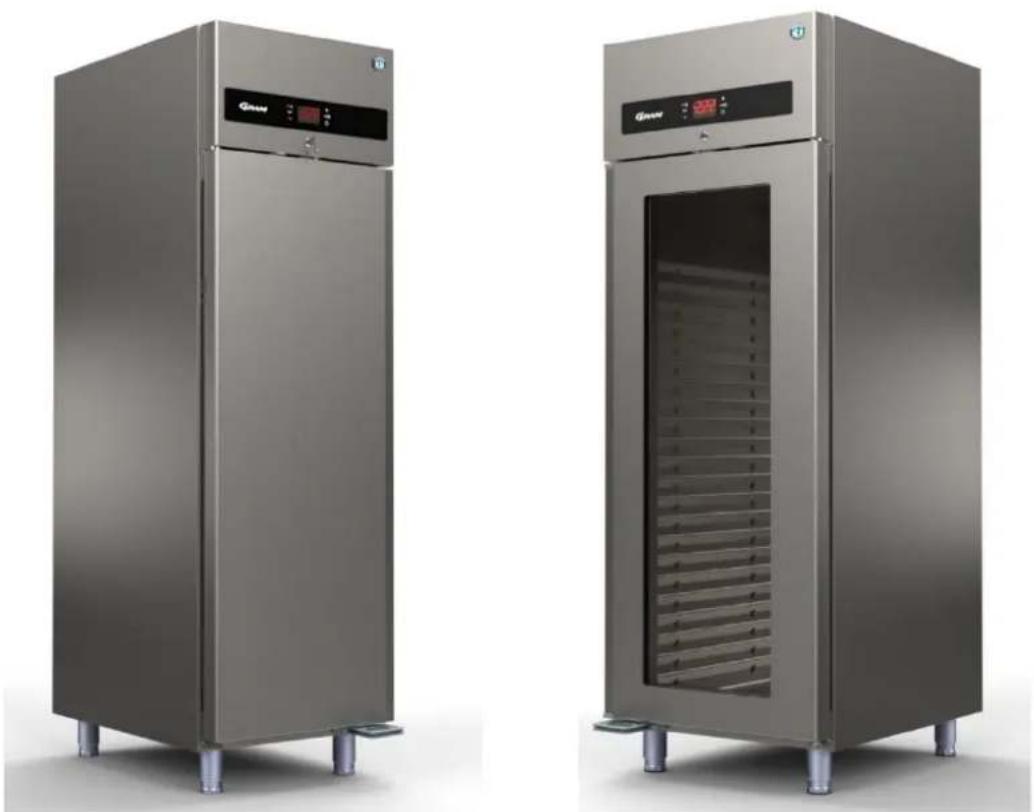

Exterior view of a stainless steel commercial kitchen refrigerator (no visible text or symbols)

Exterior view of a stainless steel commercial kitchen oven with digital display and side legs (no visible text or symbols)

EN: OPERATION, MAINTENANCE AND INSTALLATION MANUAL

FR: MANUEL D'UTILISATION, D'ENTRETIEN ET D'INSTALLATION

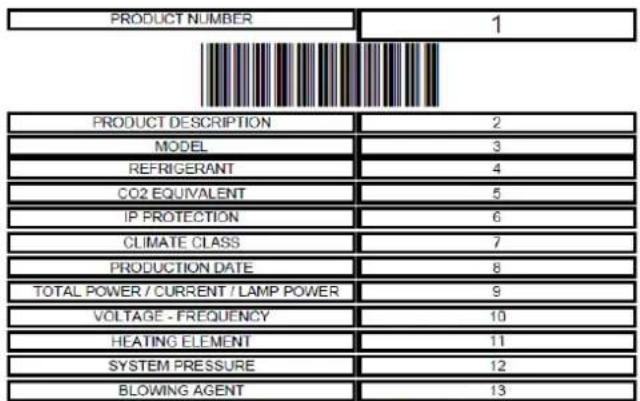

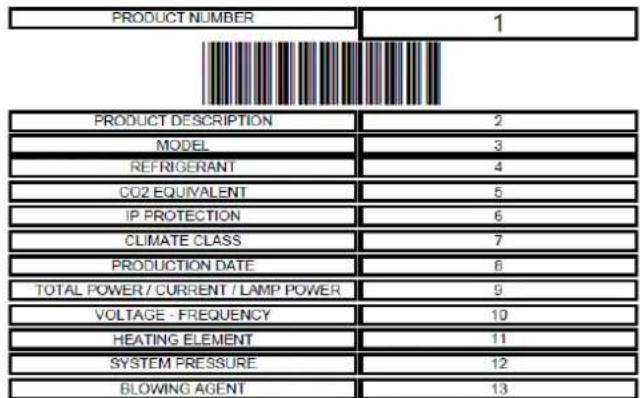

1 - Product Number

2 - Product Description

3 - Model

4 - Refrigerant (GWP)

5 - CO2 Equivalent

6 - IP Protection

7 - Climate Class

8 - Production Date

9 - Total power / Current / Lamp power

10 - Voltage – Frequency

11 - Heating Element

12 - System Pressure

13 - Blowing Agent

14 - Serial Number

PRODUCT NUMBER 1 PRODUCT DESCRIPTION 2 MODEL 3 REFRIGERANT 4 CO2 EQUIVALENT 5 IP PROTECTION 6 CLIMATE CLASS 7 PRODUCTION DATE 8 TOTAL POWER / CURRENT / LAMP POWER 9 VOLTAGE - FREQUENCY 10 HEATING ELEMENT 11 SYSTEM PRESSURE 12 BLOWING AGENT 13

S/N: 14

HOSHIZAKI EUROPE B.V. Burgemeester Stramanweg 101 1101 AA Amsterdam, The Netherlands

THE PURPOSE OF USAGE

• This product is suitable for use in indoor areas only and solely for the purpose of storing food and beverages. Storage units are designed to maintain products already at refrigerator/freezer temperature.
• The manufacturer will not be held responsible for any damages arising as a result of usage contrary to stated guidelines in this book.
• While storing food in this cabinet, it is necessary to ensure that food never comes in contact with the body of this cabinet.
• All foods must be completely covered. To avoid contamination and corrosion of internal components all products should be wrapped or stored in sealed containers.
• Do not store hot foods or liquids in this cabinet.
• Beverages stored in boxes and glass bottles should not be stored at temperatures below 0°C (freezing point). Cans and glass bottles may burst due to expansion. All containers with lids should not be filled completely: a small amount of space should be left for expansion.
• This cabinet is equipped with an automatic self-defrosting facility. It is also possible to perform manual defrosting. The manual defrosting does not involve turning the cabinet off for long periods but can be performed via the controller. Under no circumstances should force or hand tools be used to de-ice this cabinet, any damage arising from such action is difficult to repair.
• Do not employ any mechanical or alternative means of defrosting.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.
  • Children being supervised not to play with the appliance.
  • Cleaning and user maintenance shall not be made by children without supervision.

HOSHIZAKI

Premier 70-W80-60

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Any electrical or mechanical changes to this cabinet will void the warranty. Changes carried out by non-authorized service engineers and changes other than those described in this manual will also void the warranty. The manufacturer will not accept any responsibility for damages arising from such changes.

CLIMATE CLASS

The cabinet is designed to run within specific ambient temperature and humidity levels. These are set out in the climate class system. These levels are never to be exceeded. The climate class for this product can be found on the product description label. The refrigerator is not suitable for use in temperatures below 16 °C ambient temperature.

Climate Class	Ambient Temperatures and Humidity
4	+30°C with %55 RH
5	+40°C with %40 RH

FIRST ACCEPTANCE AND CONTROLS

This cabinet was packed in protective packaging material for shipping. On delivery, please check the cabinet for any possible transport damage and that the cabinet model is what you ordered.

IMPORTANT

All operations listed below must fully comply with all local bylaws and safety regulations. Observe all current safety rules when operating this product.

TRANSPORTING

When lifting the product using machinery, the lifting capacity of any machinery must be verified prior to undertaking any such procedures.

IMPORTANT

When using a fork truck to move the product, please ensure that the forks are inserted into the appropriate openings in the pallet.

Once moving, attention must be paid to the stability of the product. If the center of gravity is not central to the product, which will make it prone to tip over. When lowering the product with a fork truck ensure this is done slowly and with care.

Should it become necessary to transport any upright cabinets in a horizontal position, please make sure the cabinet has been upright for at least 2 hours before operating. It is not recommended to transport upright cabinets in the horizontal position and any damage arising from such action is not covered by a warranty.

HOSHIZAKI

Premier 70-W80-60

ATTENTION

Recommendations written on the outside of the transport packaging are for the user's benefit. Therefore, the following recommendations should be observed:

- Carry the product carefully.

- Keep the product dry. Do not use the top of the cabinet for storage!

OPENING THE PACKAGING

• Remove the cardboard and any other packaging material.
• Lift the cabinet to disconnect and remove it from the pallet.
• Place the cabinet in the desired location, standing on its own base.
• Check for any visible damage.
  • Packaging materials can be recycled according to local recycling regulations.
• Verify that the product code and serial number match the same on any shipping documents.

Trade mark			HOSHIZAKI
Model name			PREMIER K 70	PREMIER KG 70	PREMIER M 70	PREMIER F 70
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature			X	X	X
Frozen operating temperature						X
Multiuse cabinet
Vertical cabinet			X	X	X	X
Counter cabinet
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	A	B	A	C
Energy Efficiency Index	EEI	-	24.56	32.49	24.56	46.45
24 hour Energy Consumption	E24h	kWh	0.935	1.237	0.935	4.853
Annual Energy Consumption	AEC	kWh	341.27	451,51	341.27	1771.34
Net volume for compartment 1	Vn or Vn1	litre	475	475	475	475
Net volume for compartment 2	Vn2	litre	-	-	-	-
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	475	475	475	475
Climate Class	CC		5	4	5	5
Refrigerant			R600a	R600a	R600a	R290
Charge		kg	0.080	0.080	0.080	0.115
GWP			3	3	3	3
CO2 Equivalent			0,24	0,24	0,24	0,345
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X		X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/
Model name			PREMIER K W80	PREMIER KG W80	PREMIER M W80	PREMIER F W80
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature			X	X	X
Frozen operating temperature						X
Multiuse cabinet
Vertical cabinet			X	X	X	X
Counter cabinet
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	A	B	A	C
Energy Efficiency Index	EEI	-	24.29	31,62	24.29	46.58
24 hour Energy Consumption	E24h	kWh	0.925	1.204	0.925	4.87
Annual Energy Consumption	AEC	kWh	337,63	439,46	337,63	1777,55
Net volume for compartment 1	Vn or Vn1	litre	475	475	475	475
Net volume for compartment 2	Vn2	litre	-	-	-	-
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	475	475	475	475
Climate Class	CC		5	4	5	5
Refrigerant			R600a	R600a	R600a	R290
Charge		kg	0.080	0.080	0.080	0.085
GWP			3	3	3	3
CO2 Equivalent			0,24	0,24	0,24	0,255
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X		X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/
Model name			PREMIER K 60	PREMIER KG 60	PREMIER M 60	PREMIER F 60
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature			X	X	X
Frozen operating temperature						X
Multiuse cabinet
Vertical cabinet			X	X	X	X
Counter cabinet
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	A	B	A	C
Energy Efficiency Index	EEI	-	24.71	32,20	24.71	48,23
24 hour Energy Consumption	E24h	kWh	0.785	1.023	0.785	4,127
Annual Energy Consumption	AEC	kWh	286,53	373,4	286,53	1506,36
Net volume for compartment 1	Vn or Vn1	litre	335	335	335	335
Net volume for compartment 2	Vn2	litre	-	-	-	-
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	335	335	335	335
Climate Class	CC		5	4	5	5
Refrigerant			R600a	R600a	R600a	R290
Charge		kg	0.080	0.080	0.080	0,085
GWP			3	3	3	3
CO2 Equivalent			0,24	0,24	0,24	0,255
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X		X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/

II. OPERATING INSTRUCTIONS

ELECTRICITY

Before connecting the product to electrical power, please verify that the specified electrical power supply on the product description label corresponds with the local network electrical power supply.

The Product Description label with the specified electrical power supply can be found on the inside of the cabinet, on the top left-hand side.

Installation of the product must only be undertaken by qualified and trained service personnel as per the specifications listed in this manual.

The electrical safety of this cabinet can only be valid if it's earthed in accordance with current local laws and regulations.

Earthing of the product is always required.

The manufacturer will not accept any responsibility for any damage arising from improper grounding.

Adhere to all electricity requirements stipulated by the local electrical regulations. The product's electricity plug and wall socket must have the correct earth connectivity reading. If necessary employ a qualified electrician.

GENERAL PRELIMINARY CHECKS

Make sure the cabinet is standing on level ground and is upright. If necessary, the adjustable feet of the cabinet can be used to achieve this. All feet should be in contact with the ground. This is necessary for the proper operation of the cabinet door.

Do not place the cabinet next to any heat-generating devices such as ovens, grills, and deep fryers. Do not expose to direct sunlight. The heat that may be radiated by walls or floors must be insulated with appropriate insulating material. The cabinet should be placed as far as possible from any heat source.

If the cabinet is re-located, allow three hours before re-starting. Plastic protection or tape should be removed from the outer surfaces.

Ensure the cabinet is positioned so sufficient fresh air can flow to/from the cooling circuit and around the surfaces of the cabinet. Leave at least 500 mm free space from the top of the cabinet.

If two refrigerators or freezers are to be placed side by side, there should be at least 50 mm space between them.

Do not block any vent holes.

PRELIMINARY ELECTRICAL CHECKS

• Check that the mains voltage and frequency of the socket conform to the information on the product description label.
  • The cabinet is connected to the main outlet with a 13-16 Amp fuse as a serial connection.
• Turn off the main fuse connected to the power cable.
• Check that the plug on the cabinet is suitable for use with the available main socket and that they fit together.

FIRST OPERATIONS AND CONTROLS

After the above checks have been completed, the cabinet can be operated. The

ON/OFF switch operates the cabinet.

After the cabinet is turned ON, the compressor will start running. The compressor will run until the factory's pre-set temperature is reached. Foods should not be placed in the cabinet until the temperature setting has been adjusted to suit the foods to be cooled.

New temperature settings can be done through the controller as described in this manual.

IMPORTANT

Allow the product to cool to the set temperature before placing food items inside.
Never exceed the maximum load capacity. The maximum shelf capacity is an even load of 40 kg each for shelves in upright cabinets and 20 kg for shelves and drawers in counter cabinets.
Refer to the "General Preliminary Checks' section of this manual for information on the amount of space required for good air ventilation around the product.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING:

Do not block any ventilation openings on the appliance at any time.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the cabinet.
Do not damage power cord, wiring or any key component.

STORAGE CONDITIONS AND PERFORMANCE

Correct storage conditions are not only paramount to food hygiene and safety but improve the quality of service and reduce energy consumption. The best performance can be achieved if the following tips and guidelines are observed: keep all food items on shelves only and never place food items on the floor of the cabinet. Food items must be placed in the cabinet or counter in such a way as to allow good airflow all around, leaving space between items and the walls of the product. If required shelf distance can be adjusted accordingly.

HOSHIZAKI Premier 70-W80-60

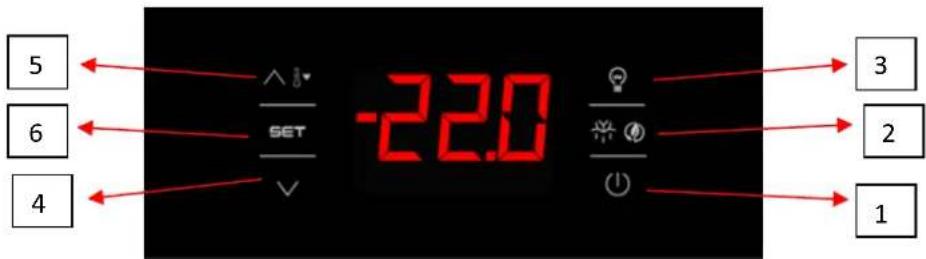

III. CONTROL PANEL

5 6 4 SET -22.0 3 2 1

FRONT PANEL FUNCTIONS

To lock the front panel keys, hold AUX (3) and hold On / Stand By (1) for 2 seconds: "Loc" text will be on the screen when keys are locked, if it isn't locked, "UnL" text will be on the screen.

1) When holding ON/STAND BY for 4 seconds; the device opens or closes. (On/Off)
2) MANUAL DEFROST; if the button is pressed for 4 seconds, manual defrost starts. If excessive cooling is active and evaporator temperature is not suitable, manual defrost will not start.
3) It is used only for models with glass doors to open or close the cabin interior Lighting (On / Off) or if there is, the auxiliary output turns on and off the ignition (On / Off).
4) DOWN key: Scroll down the menu or reduce the value; if held down for 4 seconds super cooling becomes active. When an excessive cooling function is active, the set temperature can be reduced; the time and temperature are determined with the help of the parameters. When an excessive cooling function is activated, the device never does defrost.
5) UP Key: Scroll up the menu or increase the value; if held down for 4 seconds, the percentage of low and high relative humidity function is engaged. (For some models) “rhL” is written on the screen (A low percentage of relative humidity function is operating.) or “rhH” is written on the screen (A high percentage of relative humidity function is operating.) These functions appear on the screen for 10 seconds. If humidity control is not available, “----” appears on the screen for 1 second.
6) SET key: input and change key for adjustable values.

OPERATING

Operation cases are available below:

"On" status: The device is energized and the device operates.

"Stand-By" status: The device is switched off, but the device is still powered.

"Of" status: To turn the device off, remove the plug from the socket, or by turning the main fuse off, the device is turned off.

IMPORTANT

Do not carry out any maintenance or repair while the cabinet is in on or standby mode. Only when the power supply is completely isolated from the cabinet can any work be done.

IV. MAINTENANCE INSTRUCTIONS

The device must be cleaned regularly. The intervals depend on the usage and level of soiling (at least annually).

Before carrying out any cleaning or maintenance operations, unplug the unit

Don't touch or wet the machine compartment parts. This could result in failure or breakdown.

To prevent possible damage, don't clean the plastic parts with water above 40^ or in a dishwasher.

Interior & Exterior of Cabinet and Shelves

Clean the interior and exterior at least once a week for sanitary use.

Clean off the interior and exterior of the cabinet with a soft cloth soaked in cold or warm water containing the proper amount of neutral cleaner and wrung dry. Don't use a water jet to clean the machine compartment.

Chemical agents other than neutral cleaner might cause damage to the interior and exterior surfaces.

Any remaining detergent will damage metal or plastic surfaces. Use a soft cloth dampened with warm water to wipe it off.

Don't use the following items, they could damage painted or plastic surfaces:

- Polishing powder, alcohol, thinner, benzene, acidic or alkaline detergent, hot water, petroleum, soap powder, metal scourer or brush, etc. Especially detergent to clean grease on ventilator or microwave.

Pulsifying powder Alcohol Thinner Banda Addictants Detergent Hot Water

Note: Some solutions other than the above may also damage painted or plastic surfaces. Immediately stop using such solutions if they cause any problems!

HOSHIZAKI

Premier 70-W80-60

The door gasket and its contact surface get soiled easily. Clean every surface of these parts thoroughly. Remnants of food will accelerate aging.

Use a cloth to wipe off any water staying inside the cabinet.

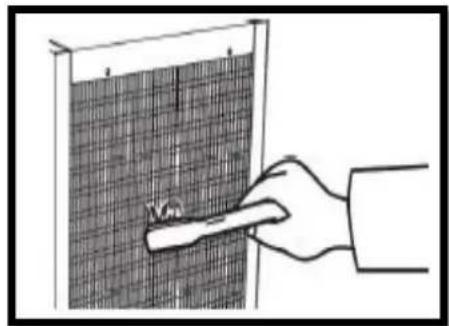

Condenser

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Use a vacuum cleaner or a soft brush to remove dust and stains from the condenser.

Warning: If users clean the condenser with a hard brush, such as a dishwasher brush, the coating of the condenser may peel off.

\*Air Filter

To prevent deformation do not wash the air filter hot water above 40^ C

Plastic mesh air filters remove dirt or dust from the air and keep the condenser from getting clogged. If the filters get clogged, the refrigerator/freezer's performance will be reduced.

Check the filters at least twice a month. When clogged or when the temperature controller shows "cH" use warm water and a neutral cleaner to wash the filters. Don't operate the unit with the air filters removed, or the condenser will get clogged, resulting in failure.

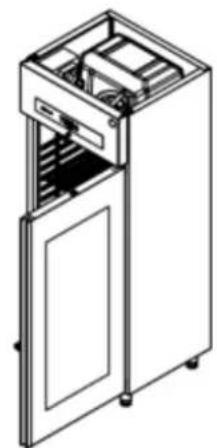

1) Open the front panel and remove the air filter. To prevent injury, don't touch the condenser fins directly.
2) Wash the air filter carefully with cold or warm water containing the proper amount of neutral cleaner. Rinse and dry the air filter thoroughly.
3) To refit the air filter put the two tabs into the heat exchanger or fins in a condenser and tightly attach the air filter over the condenser.

Note (*): Air filter is used in Premier W80, Premier 60 for this manual.

HOSHIZAKI

Premier 70-W80-60

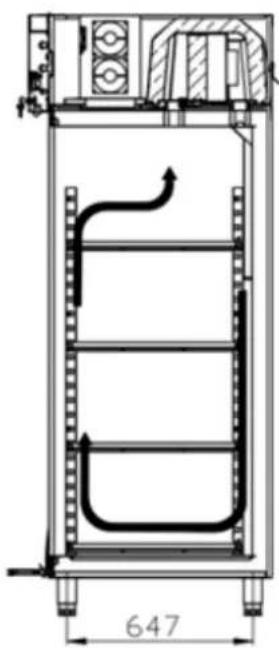

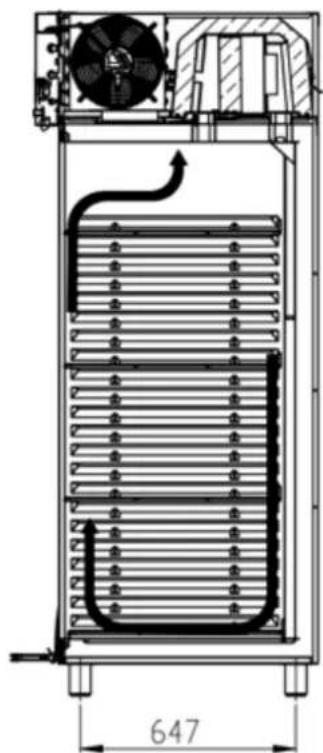

V. TECHNICAL INFORMATIONS

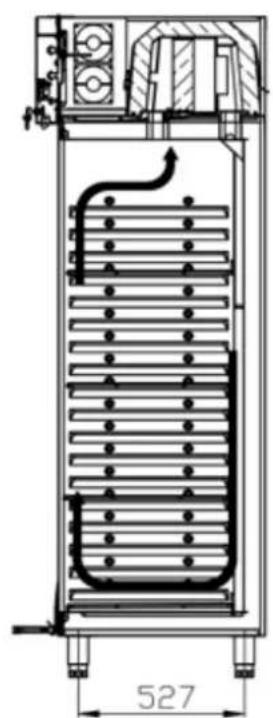

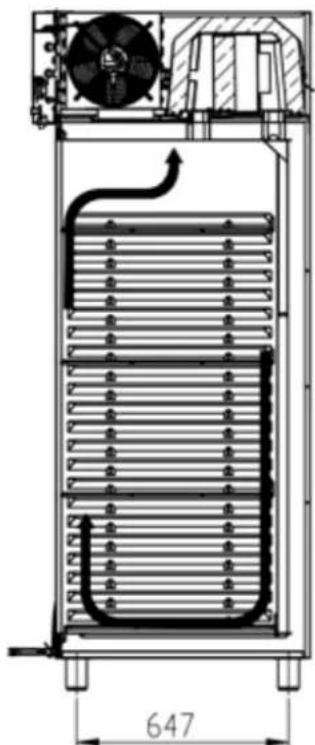

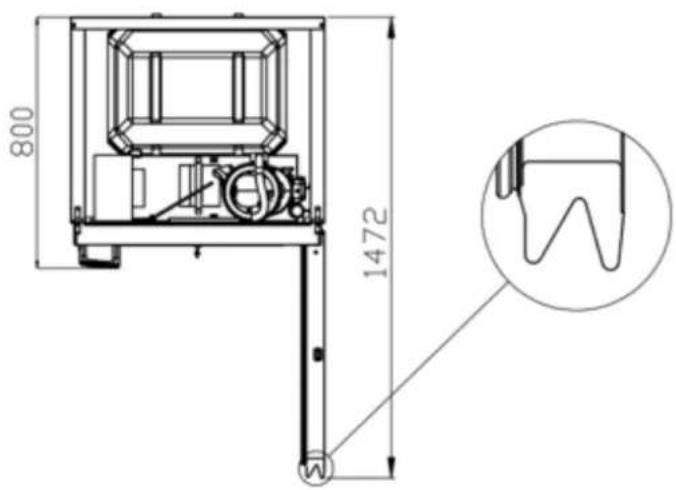

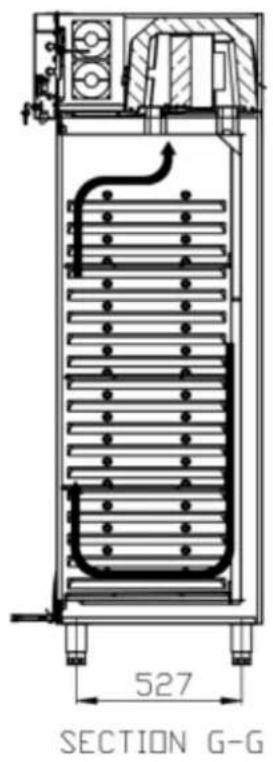

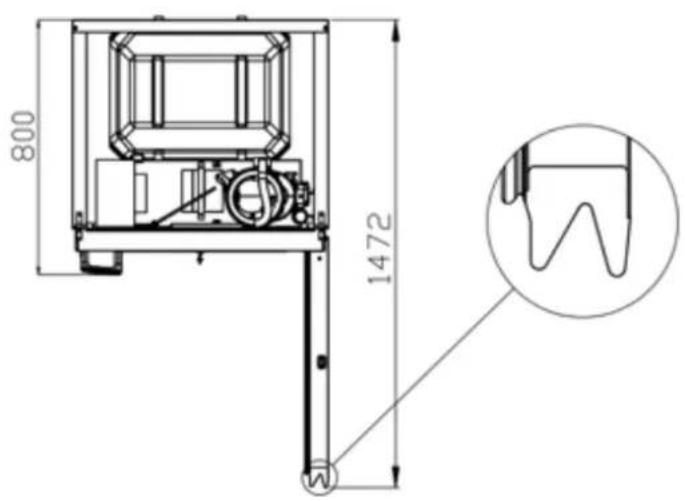

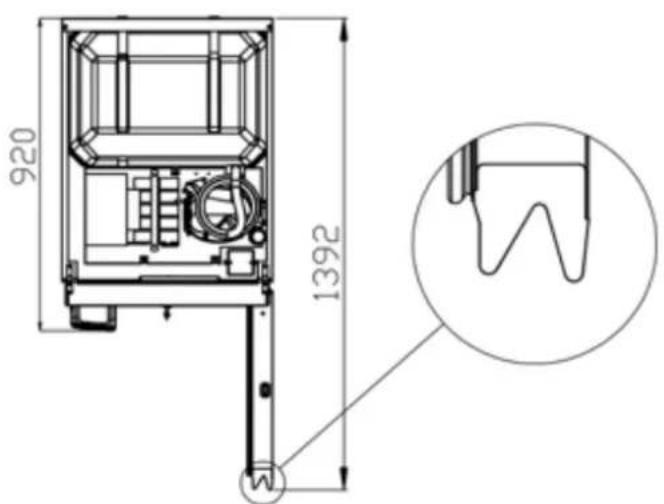

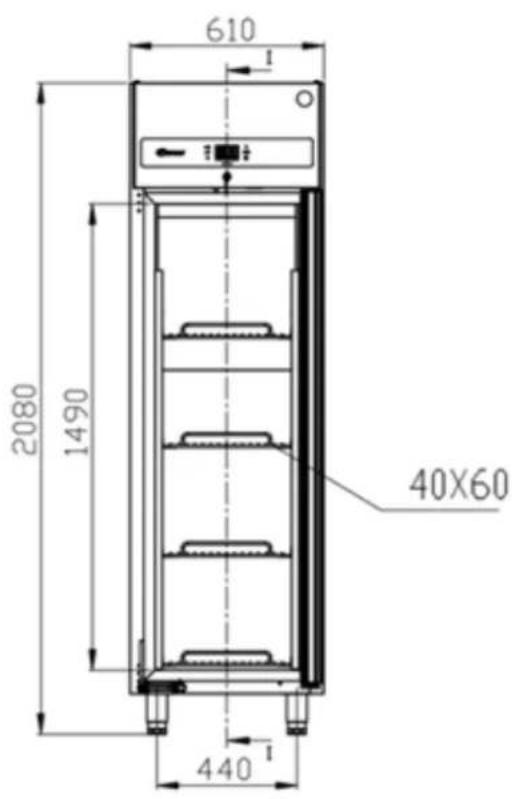

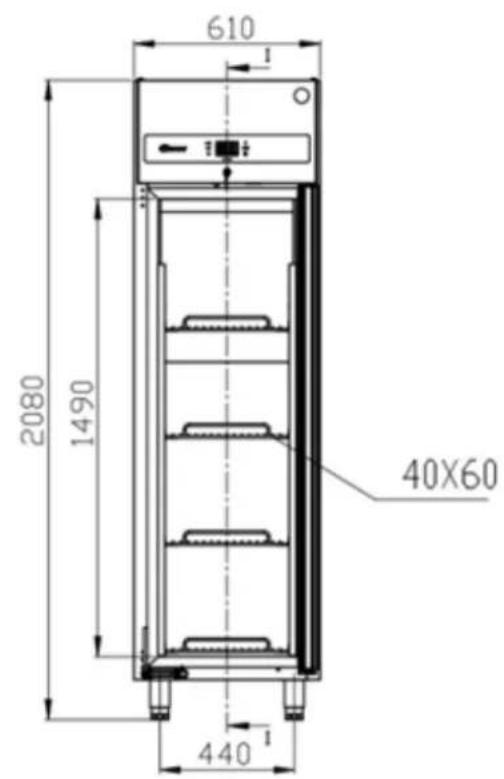

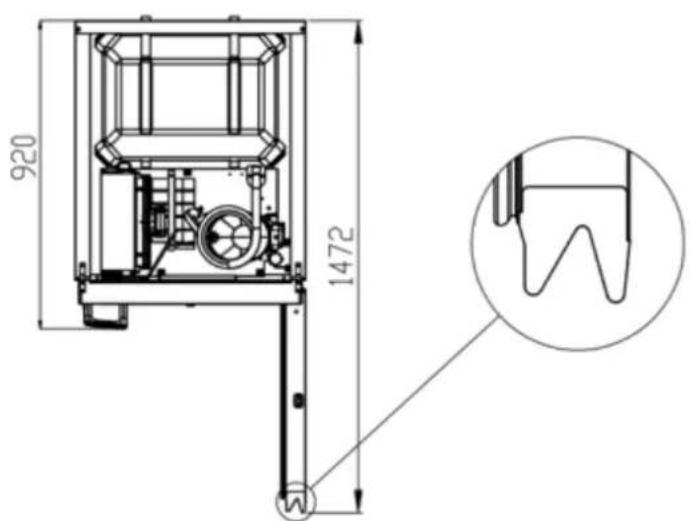

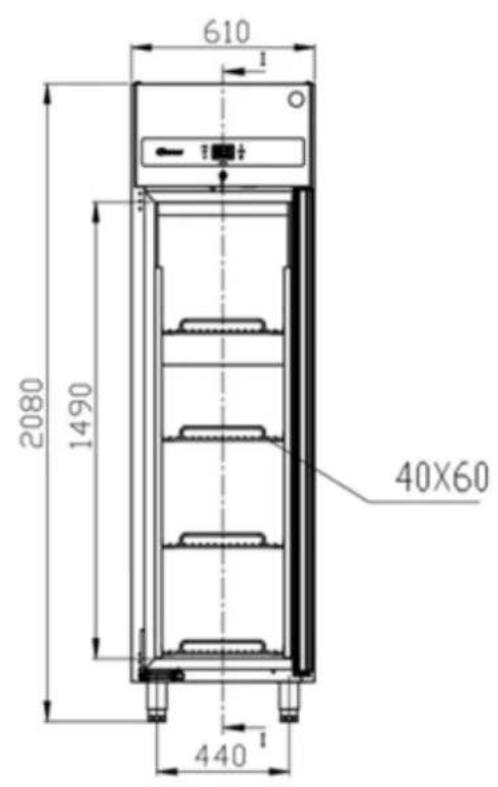

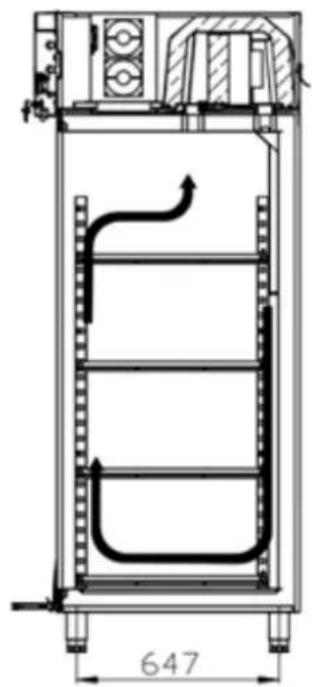

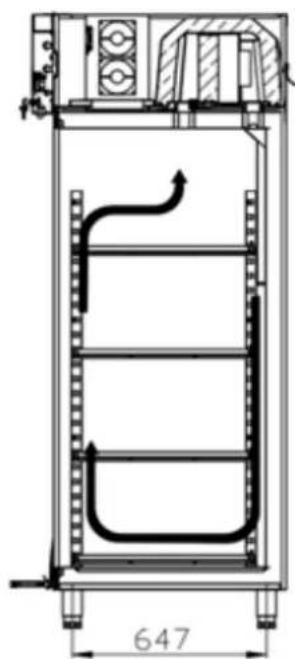

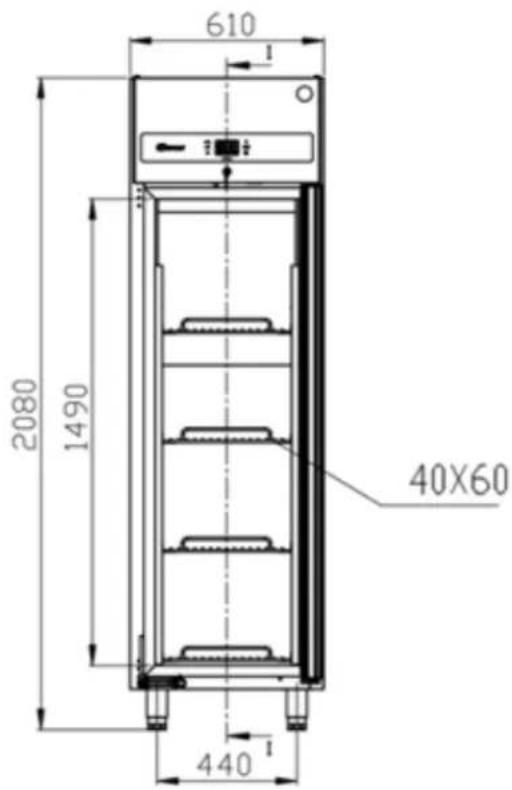

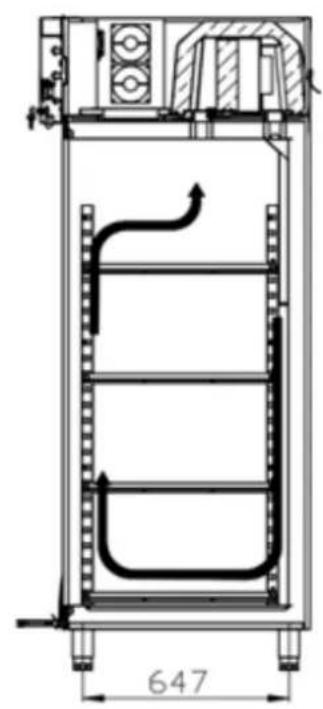

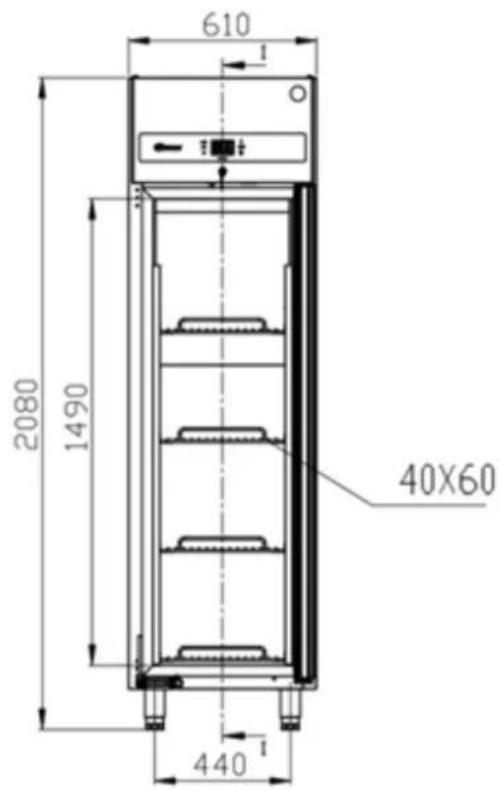

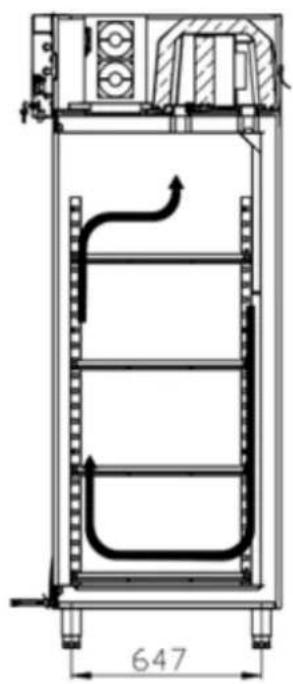

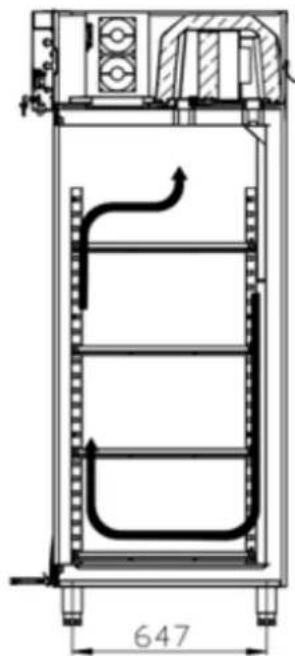

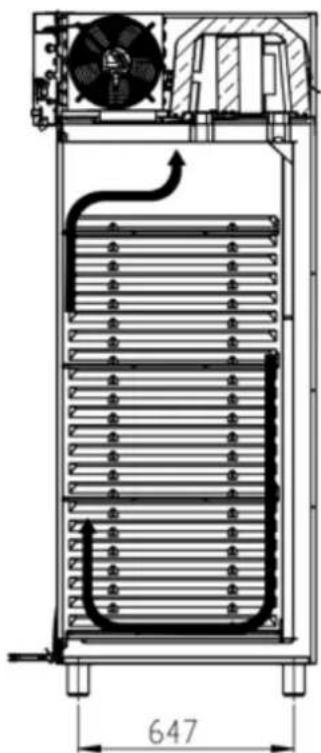

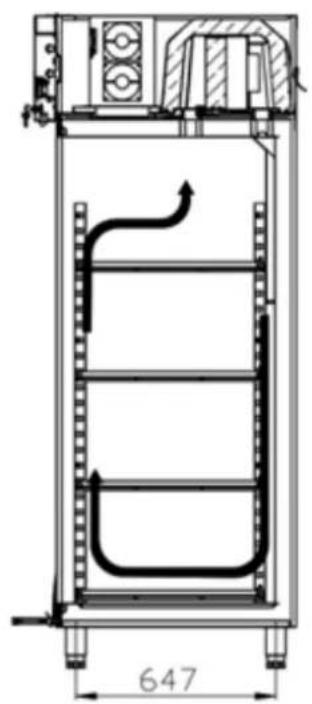

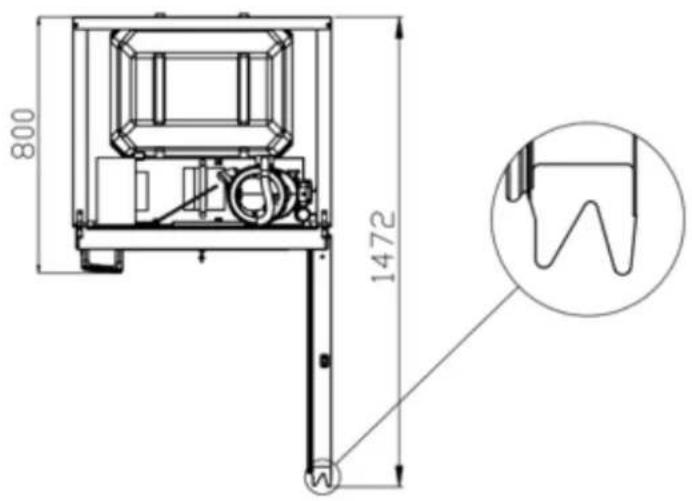

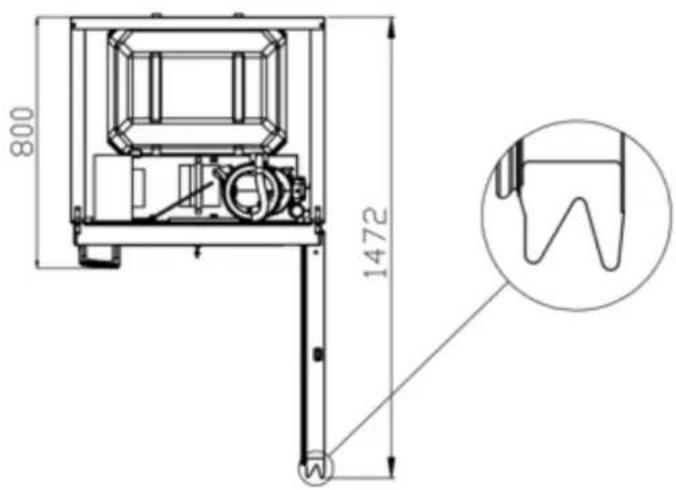

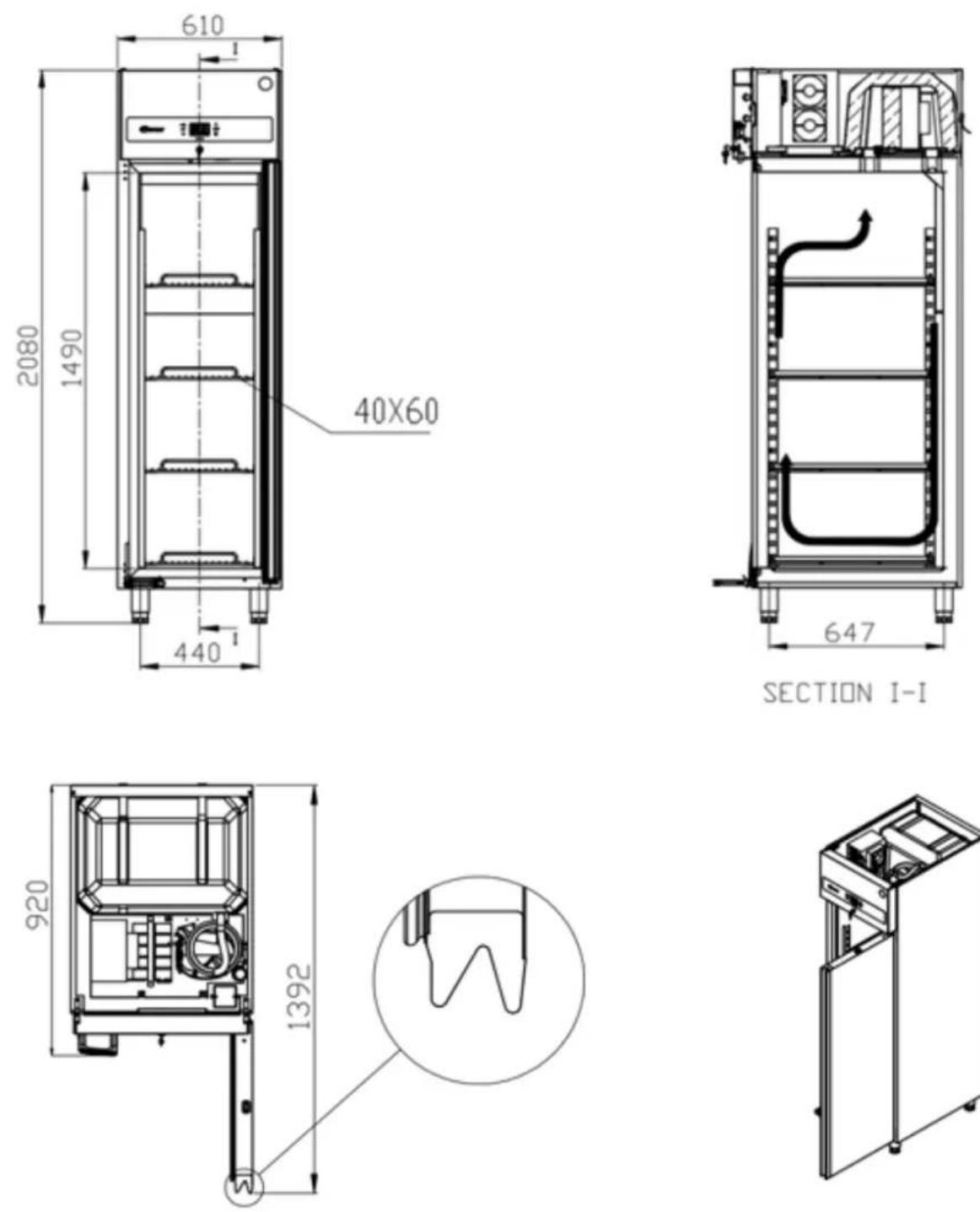

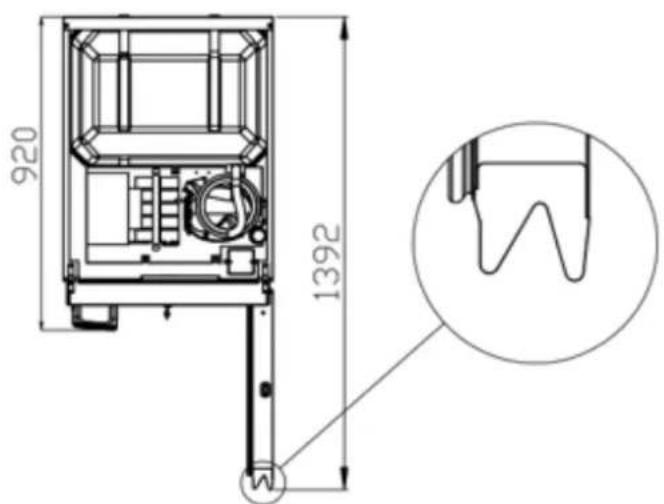

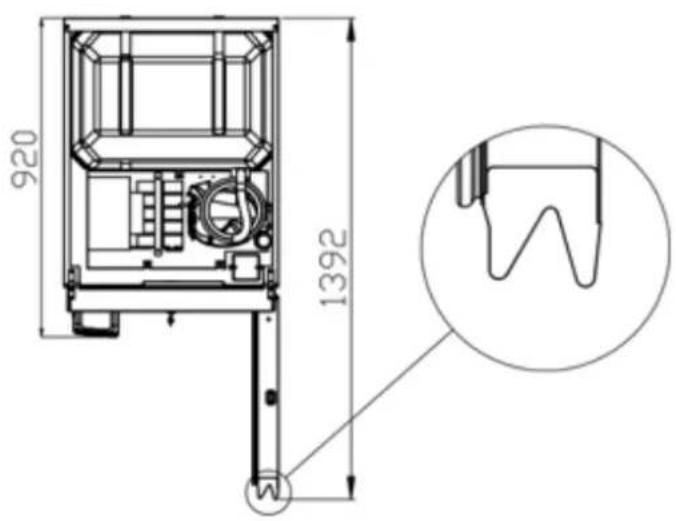

DIMENSIONS OF THE DEVICES

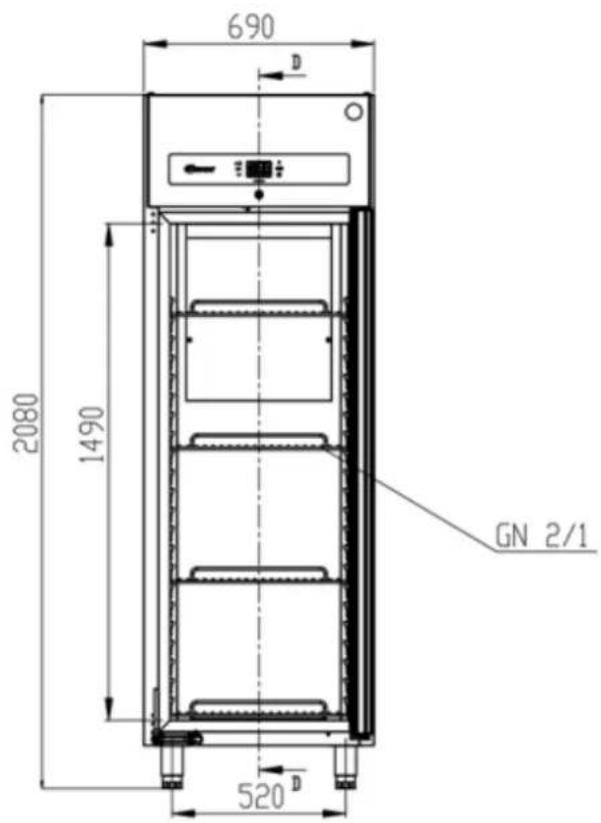

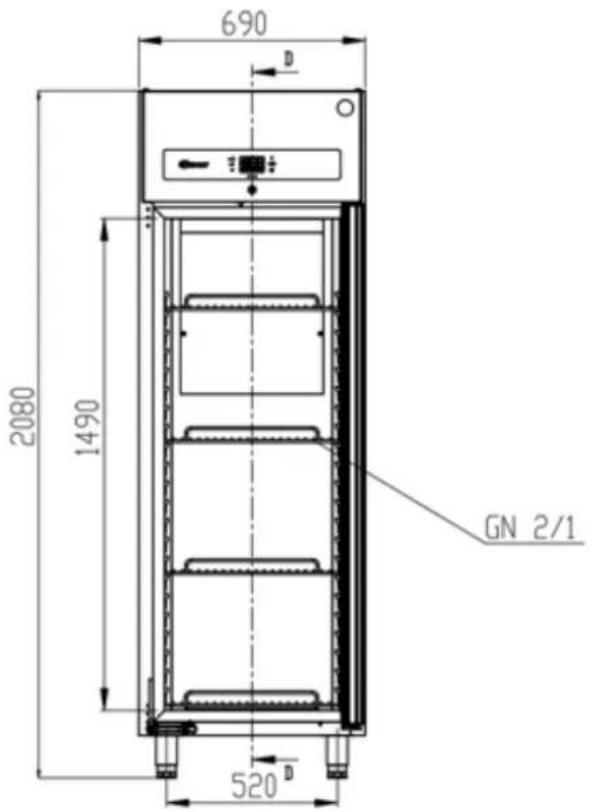

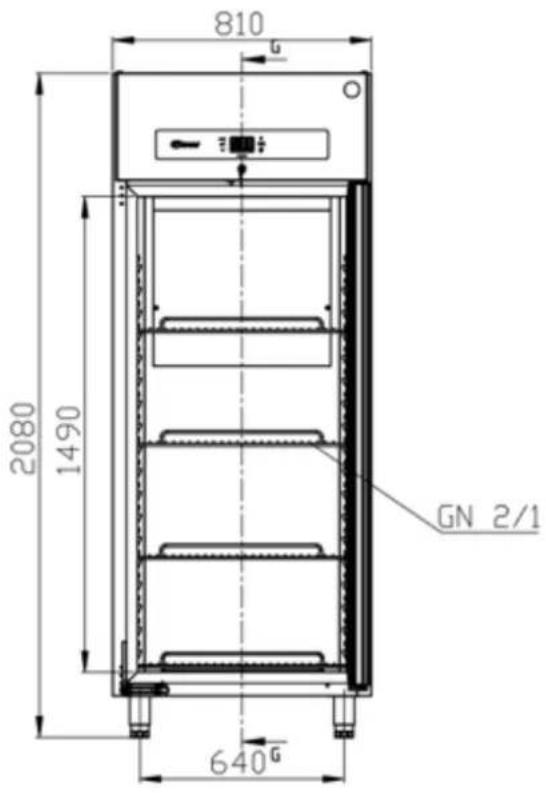

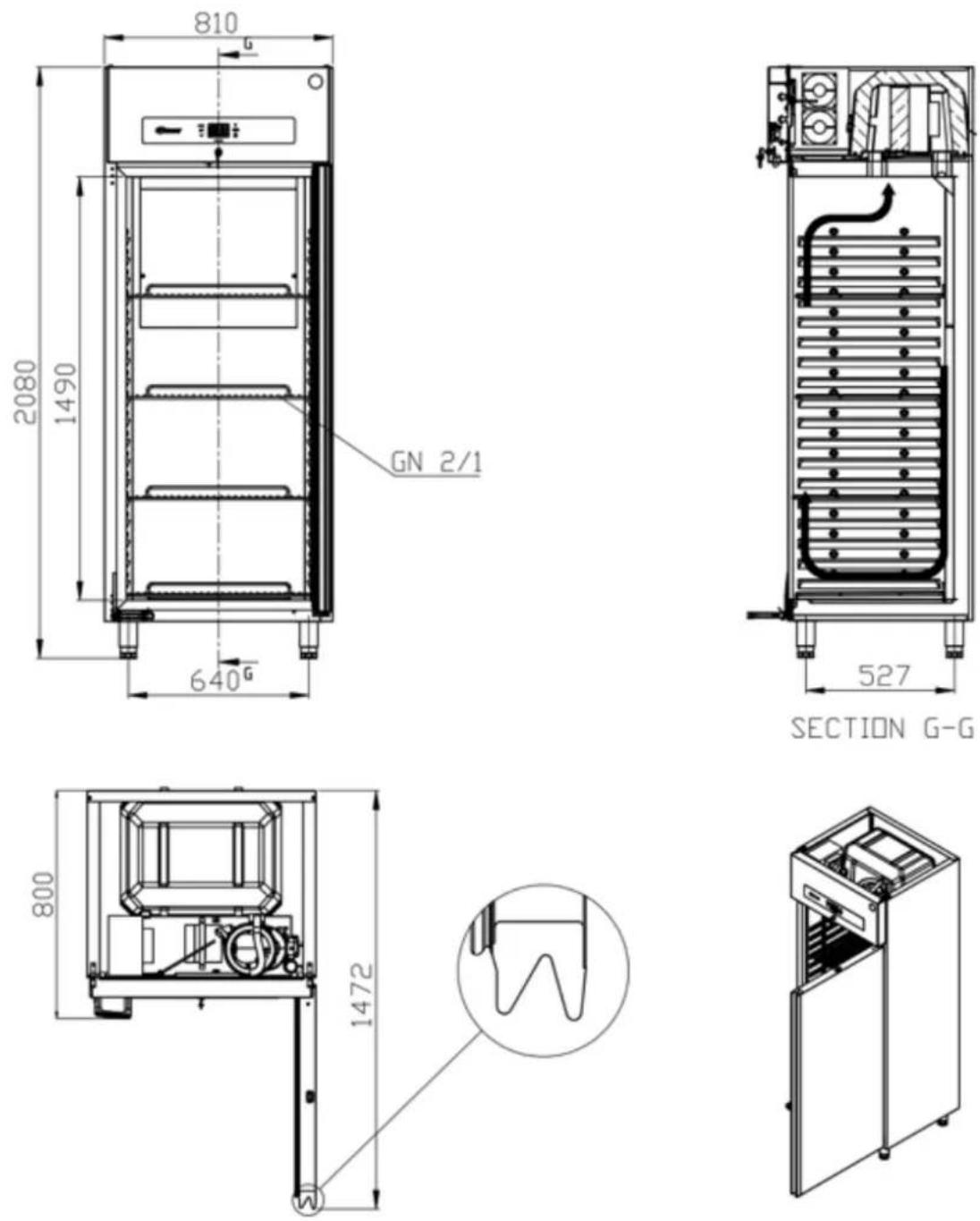

PREMIER K 70 - PREMIER M 70 - PREMIER F 70

690 D 2080 1490 GN 2/1 520

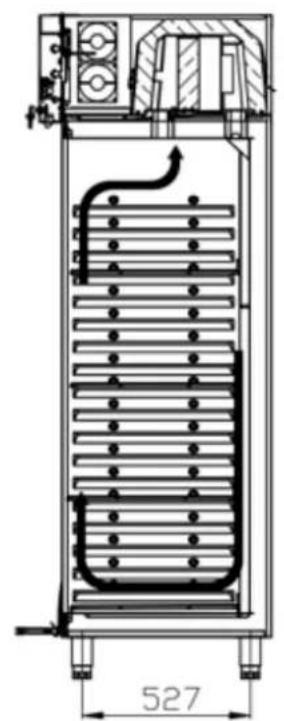

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow and dimension (no text labels)

SECTION D-D

920 1472

Isometric line drawing of a multi-tiered open refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow paths and dimension label (647) — no text or symbols beyond the dimension marker.

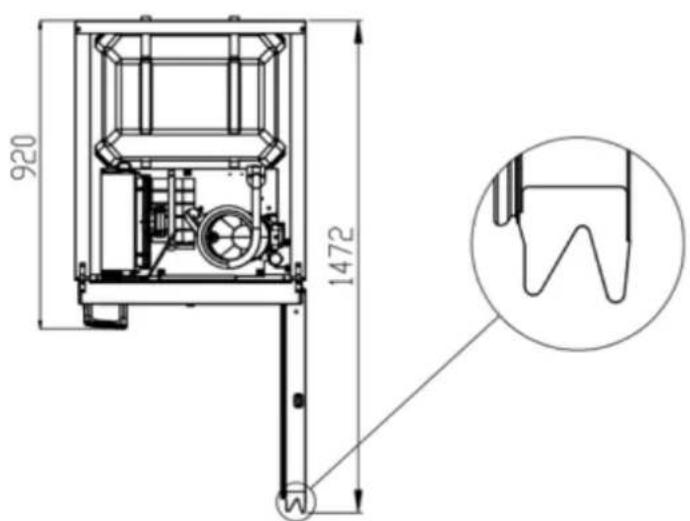

SECTION D-D

920 1472

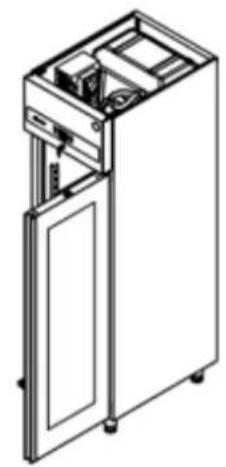

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and structural elements (no text or symbols)

SECTION I-I

920 1392

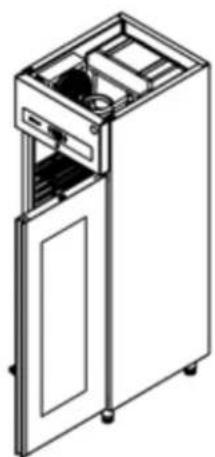

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a multi-chamber refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

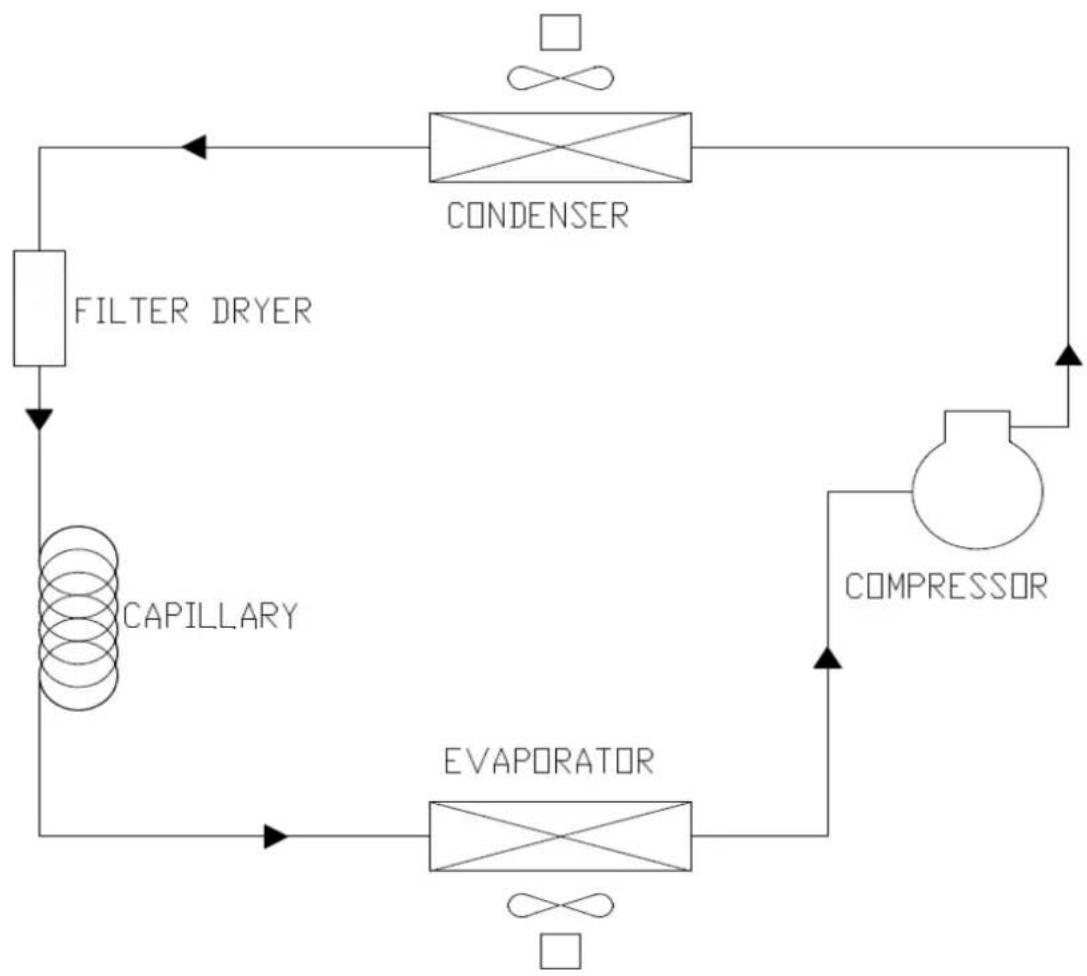

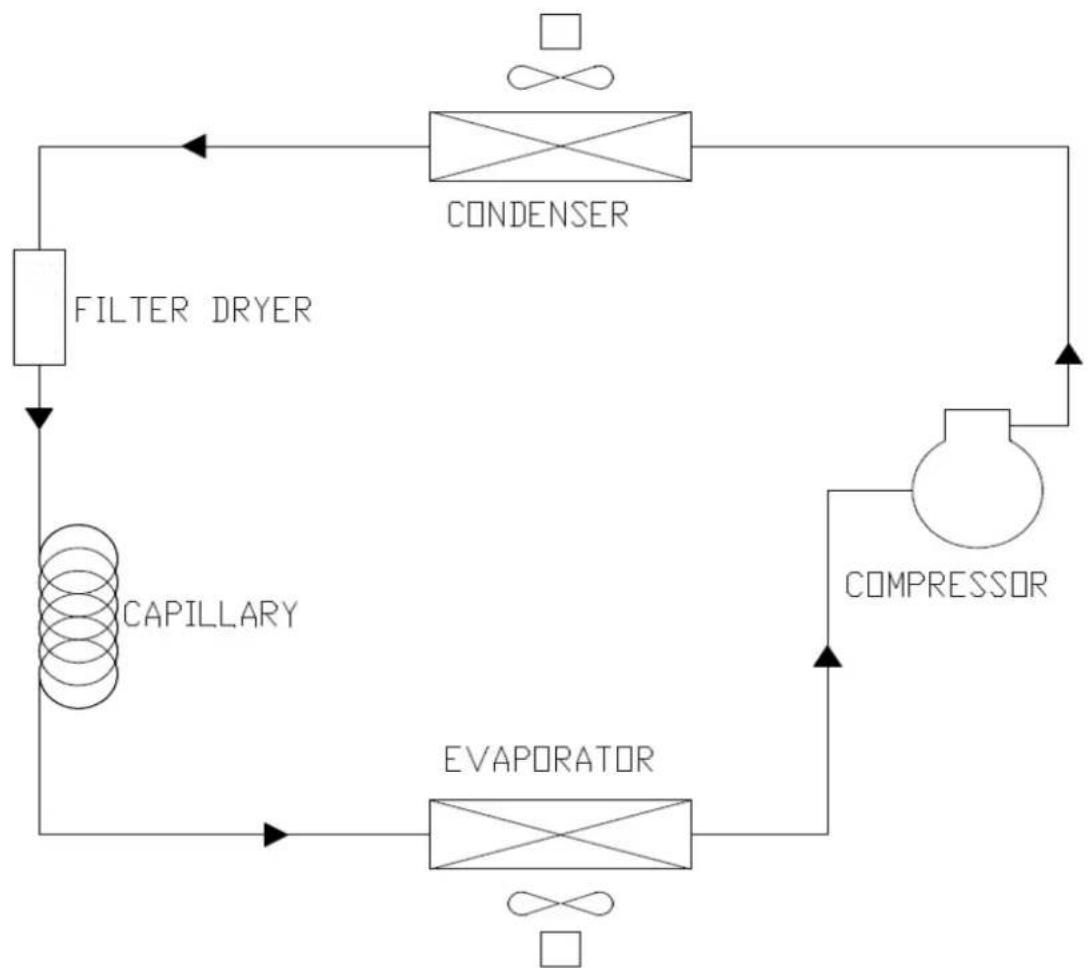

VI. COOLING DIAGRAM & ELECTRICAL WIRING DIAGRAMS


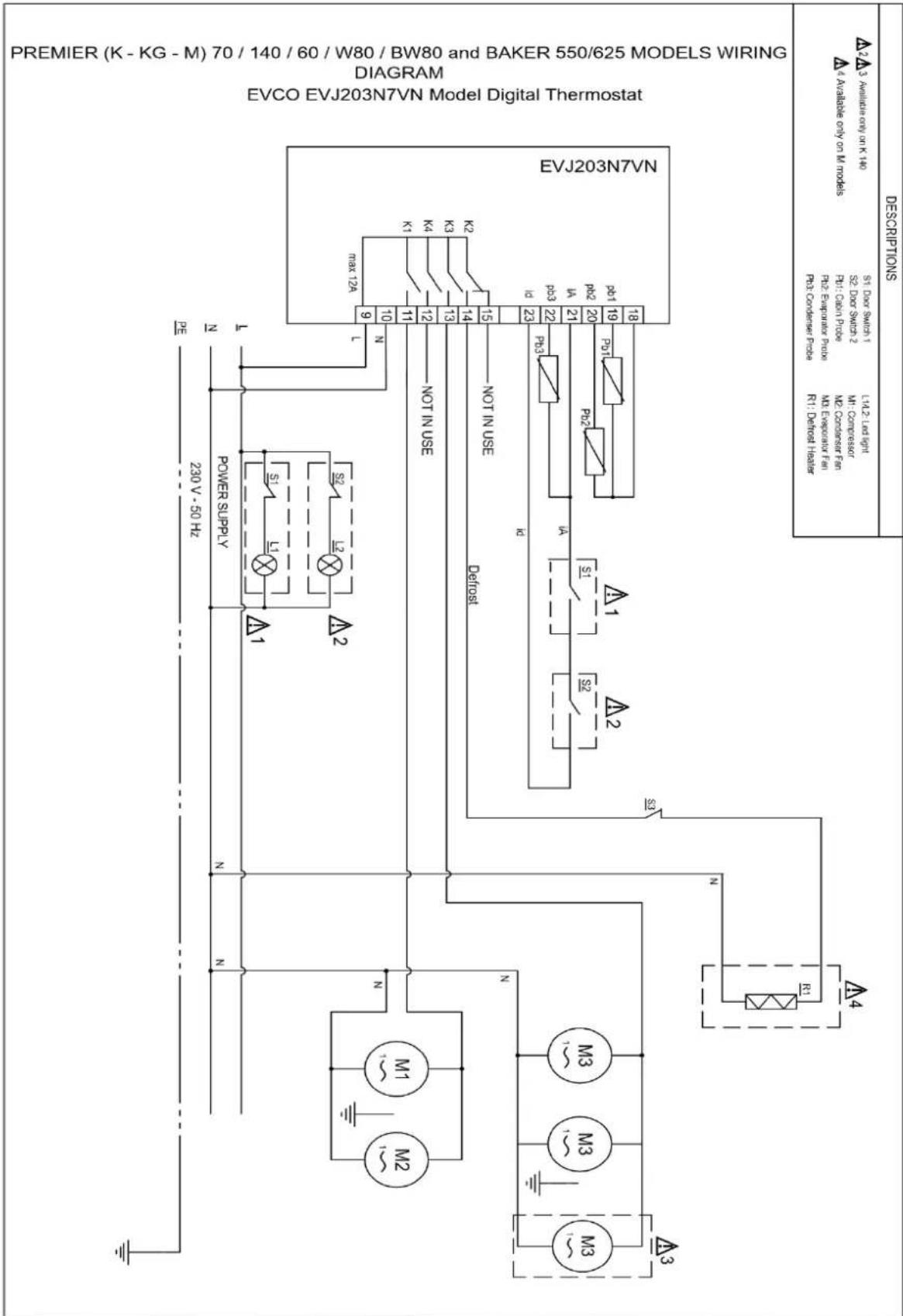

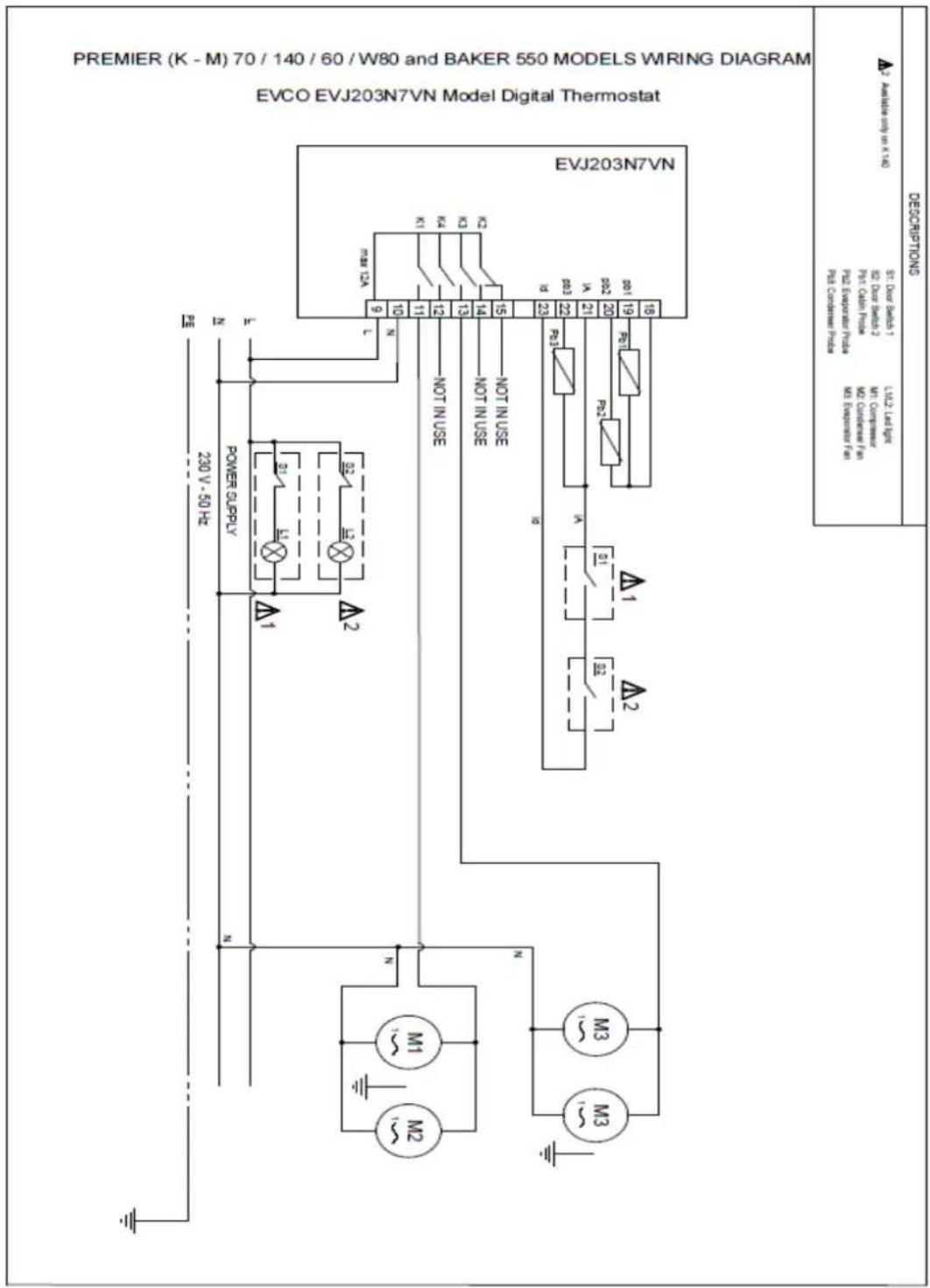

ELECTRICAL WIRING DIAGRAM (FOR CABINET REFRIGERATOR MODELS)

PREMIER (K - KG - M) 70 / 140 / 60 / W80 / BW80 and BAKER 550/625 MODELS WIRING EVCO EVJ203N7VN Model Digital Thermostat DIAGRAM EVC O EVJ203N7VN EVC O EVJ203N7VN DESIPPIFIONS A. Available only on all modes S1 Door Switch 1 S2 Door Switch 2 S3 Door Switch 3 PDL Con 10 Pin PDL Emitter Pd 2 PDL Emitter Pd 3 PDL Emitter Pd 4 PDL Con 10 Pin PDL Emitter Pd 2 PDL Con 10 Pin PDL Emitter Pd 3 PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Emitter Pd 2 PDL Emitter Pd 3 PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PDL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 10 Pin PPL Con 12A MAX 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

ELECTRICAL WIRING DIAGRAM (FOR CABINET FREEZER MODELS)

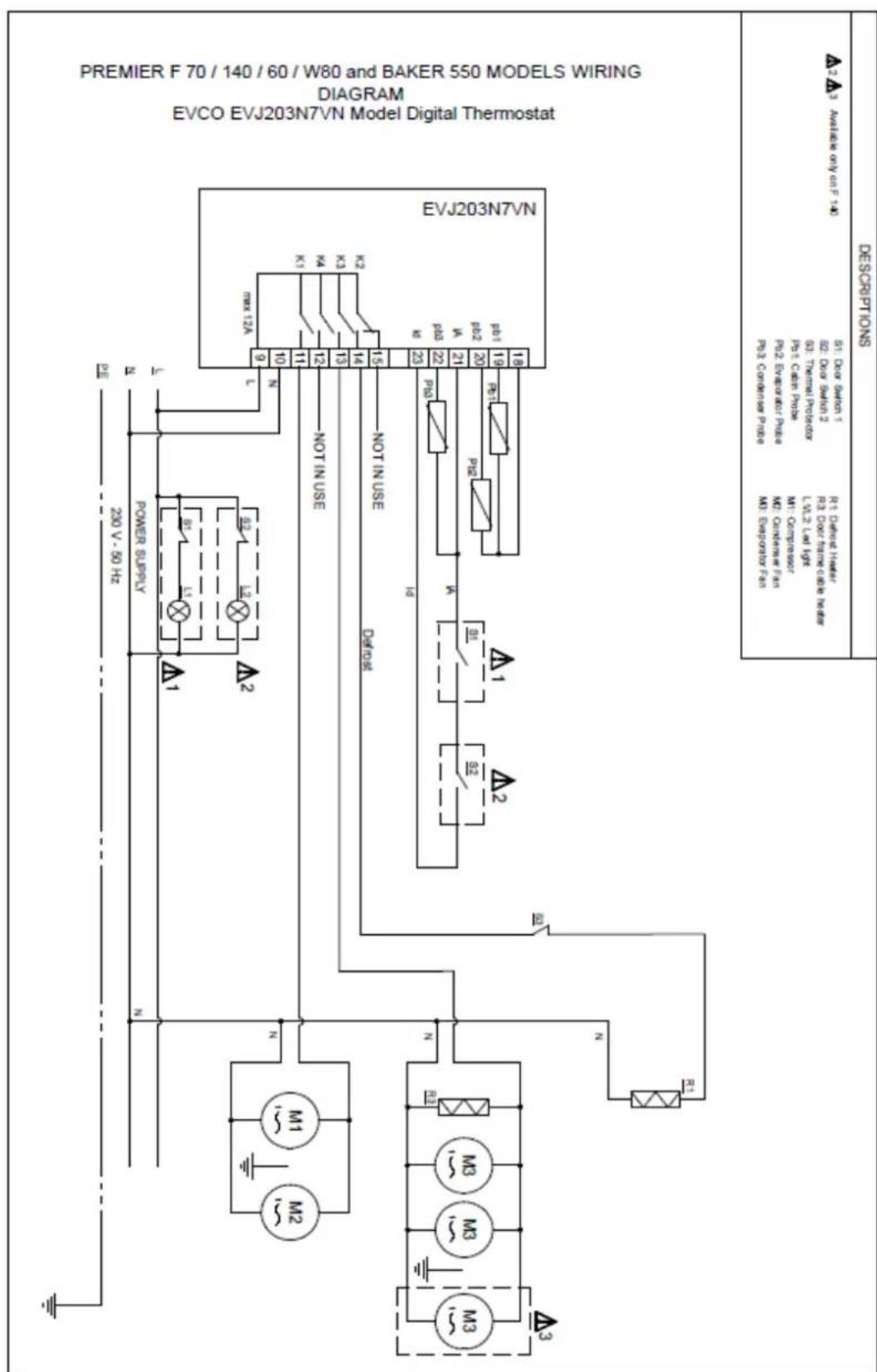

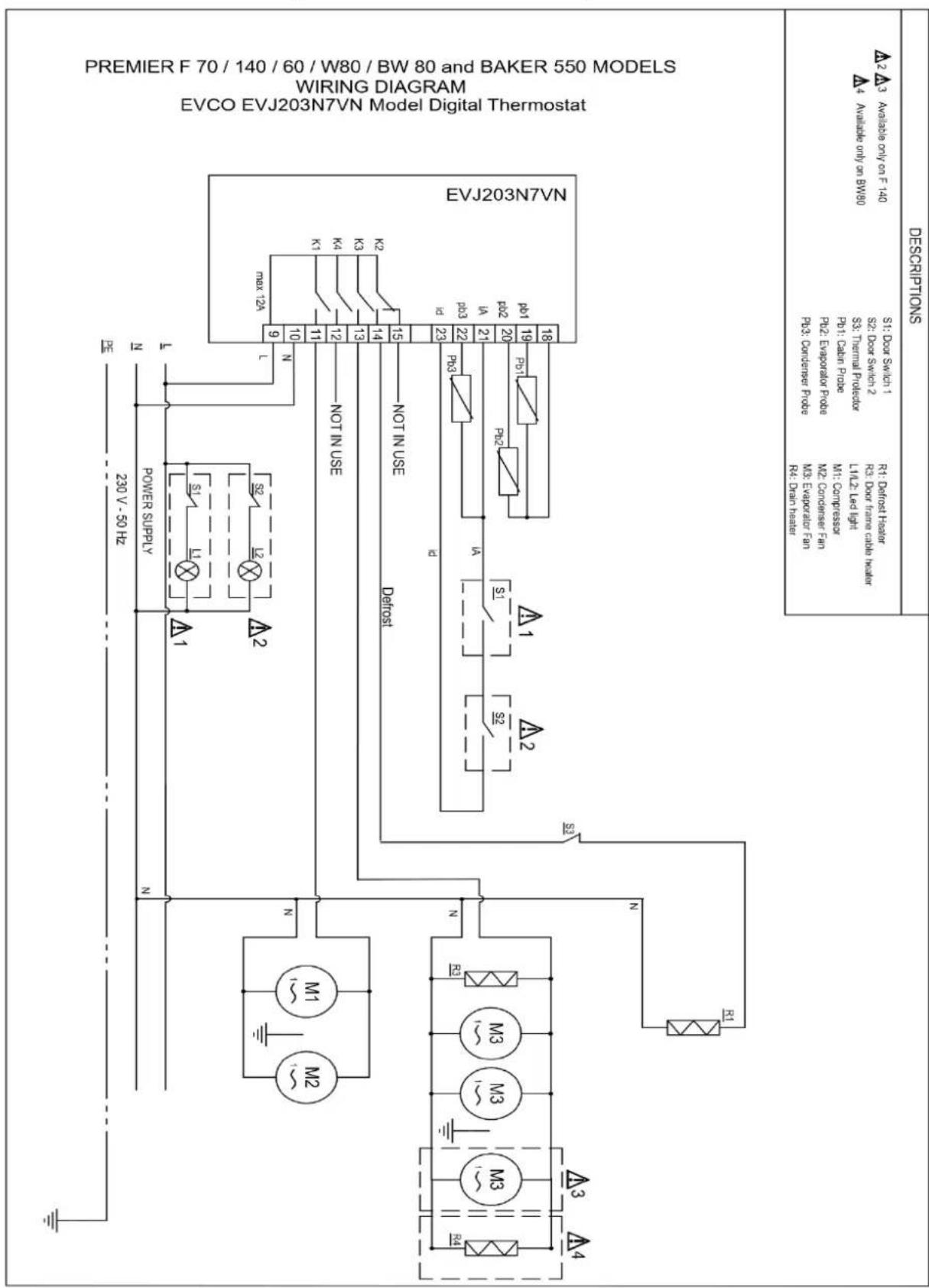

PREMIER F 70/140/60/W80/BW 80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat AVAILADE only on F 140 A2 A3 Available only on FBW90 ST: Door Switch 1 R1: Darcell Heater 52: Door Switch 2 RS: Door flame cable heater 53: Terminal Protection M2: Condenser Fan Pb2: Evaporator Phase MS: Evaporator Fan Rs: Drain heater Pb3: Condenser Phase MS: Evaporator Fan Pb1: Cabin Phase M1: CompRESS Pb2: Evaporator Phase MS: Condenser Fan Pb1: Cabin Phase M2: CompRESS Pb2: Evaporator Phase MS: Evaporator Fan Rs: Drain heater PB1: Pd2: Pd3: Pd4: Pd5: Pd6: Pd7: Pd8: Pd9: Pd10: Pd11: Pd12: Pd13: Pd14: Pd15: Pd16: Pd17: Pd18: Pd19: Pd20: Pd21: Pd22: Pd23: Pd24: Pd25: Pd26: Pd27: Pd28: Pd29: Pd30: Pd31: Pd32: Pd33: Pd34: Pd35: Pd36: Pd37: Pd38: Pd39: Pd40: Pd41: Pd42: Pd43: Pd44: Pd45: Pd46: Pd47: Pd48: Pd49: Pd50: Pd51: Pd52: Pd53: Pd54: Pd55: Pd56: Pd57: Pd58: Pd59: Pd60: Pd61: Pd62: Pd63: Pd64: Pd65: Pd66: Pd67: Pd68: Pd69: Pd70: Pd71: Pd72: Pd73: Pd74: Pd75: Pd76: Pd77: Pd78: Pd79: Pd80: Pd81: Pd82: Pd83: Pd84: Pd85: Pd86: Pd87: Pd88: Pd89: Pd90: Pd91: Pd92: Pd93: Pd94: Pd95: Pd96: Pd97: Pd98: Pd99: Pd100: POWER SUPPLY N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N Pb1 Pb2 Pb3 Pb4 Pb5 Pb6 Pb7 Pb8 Pb9 Pb10 Pb11 Pb12 Pb13 Pb14 Pb15 Pb16 Pb17 Pb18 Pb19 Pb20 Pb21 Pb22 Pb23 Pb24 Pb25 Pb26 Pb27 Pb28 Pb29 Pb30

VII. SERVICE DIAGNOSIS

The table below lists several problems that you may encounter. If an alarm code is displayed, a malfunction has occurred. Please correct any possible causes before resetting the cabinet. Potential causes and remedies are listed below.

If an error code persists after you have carried out the checks below, please contact an authorized technician. The characteristics of the error message must be determined. Product details including the serial number can be found on the nameplate of the product.

PROBLEM	POSSIBLE CAUSE	REMEDY
The cabinet is not working	No power is supplied to the cabinet	Check the power plug and cable are fault free
The compressor seldom stops running	The ambient temperature is too high	Ventilation needs to be improved
	Condenser or condenser filter are blocked	Check and clean condenser filter regularly
	Door gaskets are not sealing properly	Call an authorized technician to replace seals
	The evaporator is iced up	Do not place hot food items in the cabinet
		Do not place food items with high water content inside the cabinet unless they are stored in sealed
		Start a manual defrosting cycle
	Evaporator fan/fans are faulty	Call an authorized technician to replace the fan/fans
Overflowing water from the condenser water tray	Frequent placement of hot food items in the cabinet	Do not place hot food items in the cabinet
		Only place food items with high water content in sealed containers in the cabinet
	Frequent opening of doors or drawers	Verify whether cabinet specifications confirm it is suitable for current usage
Cabinet temperature is high	The condenser is blocked with dirt and dust	Check and clean condenser filter regularly
	Airflow within cabinet is blocked	Remove items of food blocking the airflow
	Ambient air is entering the cabinet	Ensure the door is closed
		Check for damage to the door and drawer seals
		Contact an authorized technician
	The evaporator is iced up	Start a manual defrosting cycle

HOSHIZAKI

Premier 70-W80-60

VIII. REMOVAL AND REPLACEMENT

REPLACING THE INTERIOR LIGHT BULB

• Turn off the power at the main isolator or remove the cabinet plug from the socket.
• Open the door.
• Remove the screw securing the canopy and then lift the canopy.
• Ensure that the new bulb has the same rating as the old bulb. Voltage and wattage are printed on the bulb.
• Remove and replace the lightbulb.

DISPOSING OF THE CABINET

• The cooling gas present in the cabinet can be identified from the nameplate.
- The cabinet is produced from recyclable materials in accordance to EU regulations. Therefore, at the end of its economic life, the cabinet must be passed to the appropriate recycling center for disposal.
- Do not recycle the cabinet as metal or household waste.
- Do not compact the cooling plant refrigeration circuit.

IMPORTANT

Adhere to local by-laws and regulations during disposal of the cabinet.

HOSHIZAKI

Premier 70-W80-60

All Rights Reserved

Hoshizaki reserves the right to change any features and the information in this manual.

Contact Details

Headquarters

Hoshizaki Europe B.V - All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Branches

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

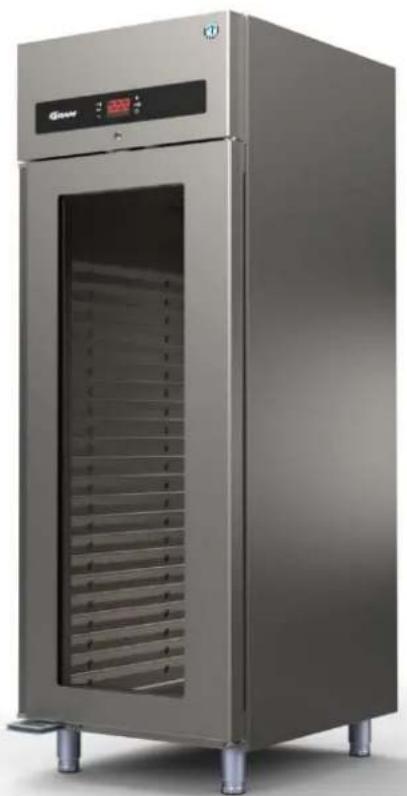

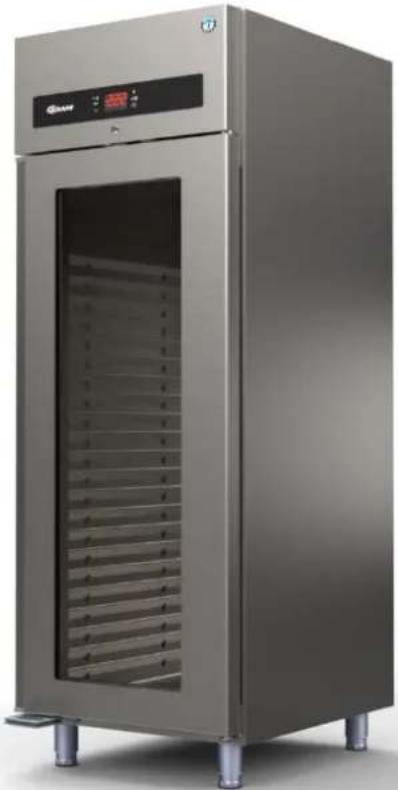

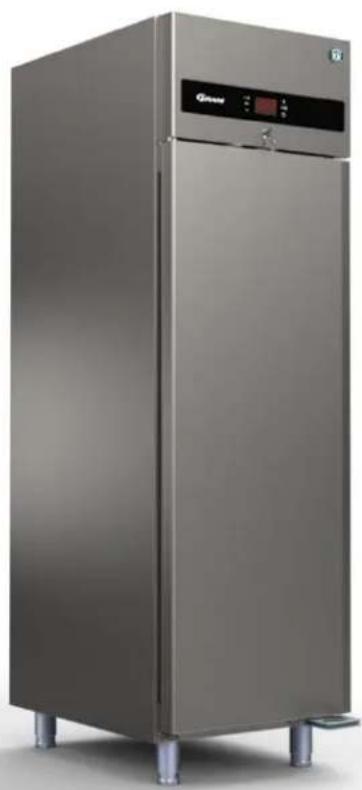

Exterior view of a stainless steel kitchen refrigerator with control panel and side legs (no visible text or symbols)

Exterior view of a stainless steel industrial oven with digital display and side-mounted cooling fins (no visible text or symbols)

I. INFORMATIONS GENERALES	25
II. CONSIGNES D’UTILISATION	30
III. PANNEAU DE CONTROLE	31
IV. INSTRUCTIONS D’ENTRETIEN	33
V. INFORMATIONS TECHNIQUES	35
VI. SCHEMA DE REFROIDISSEMENT – SCHEMA DE CABLAGE	41
VII. TABLEAU DE DIAGNOSTIC	44
VIII. DEPOSE ET REMPLACEMENT	45

Contact :

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FONCTIONS DU PANNEAU AVANT

Pasting powder Alcohol Thinner Bottle Adderials detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtre à air

DIMENSIONS DES APPAREILS

PREMIER K 70 - PREMIER M 70 - PREMIER F 70

690 D O 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-free refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and structural elements (no text or symbols)

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and structural elements, labeled with dimension 647 (no text or symbols beyond the label)

SECTION I-I

920 1392

Technical line drawing of a cabinet or enclosure with open door and internal compartments (no text or symbols)

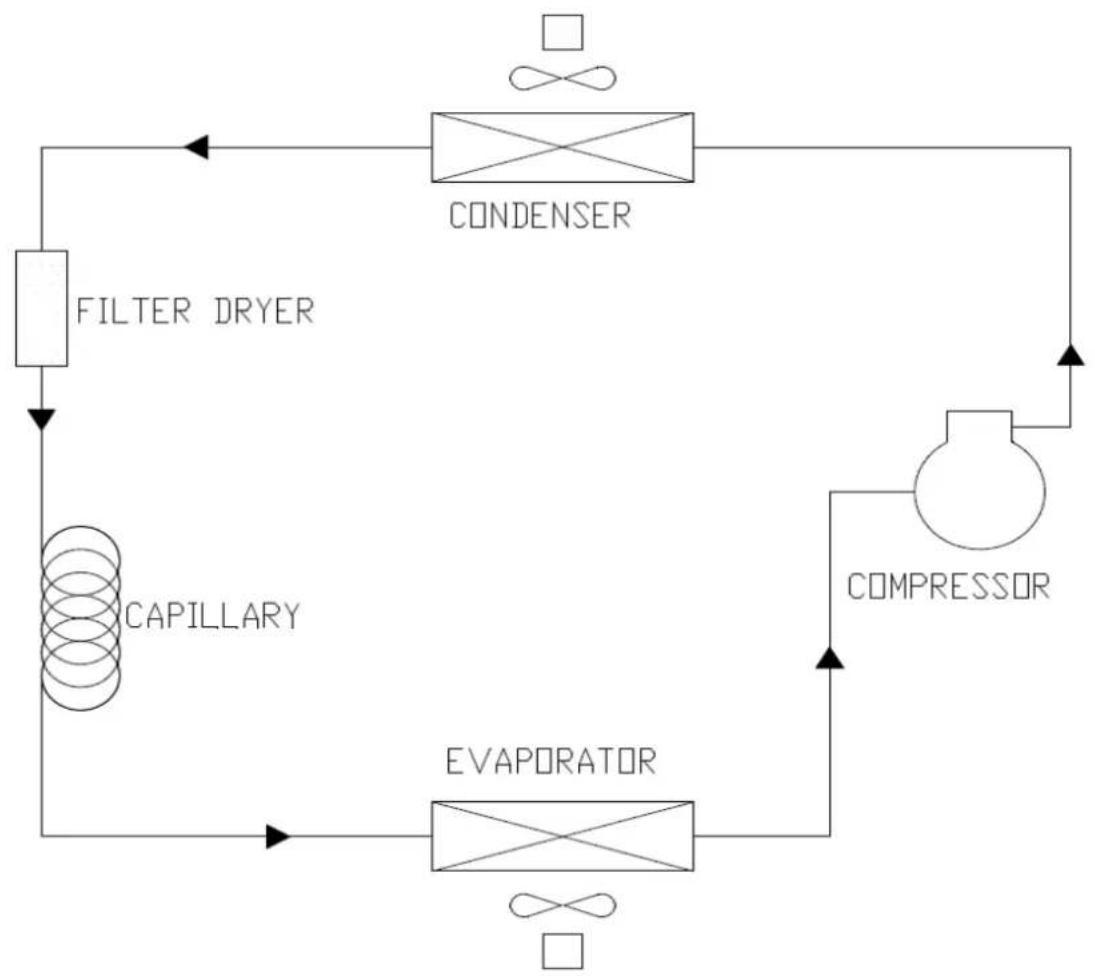

VI. SCHEMA DE REFROIDISSEMENT - SCHEMA DE CABLAGE ELECTRIQUE


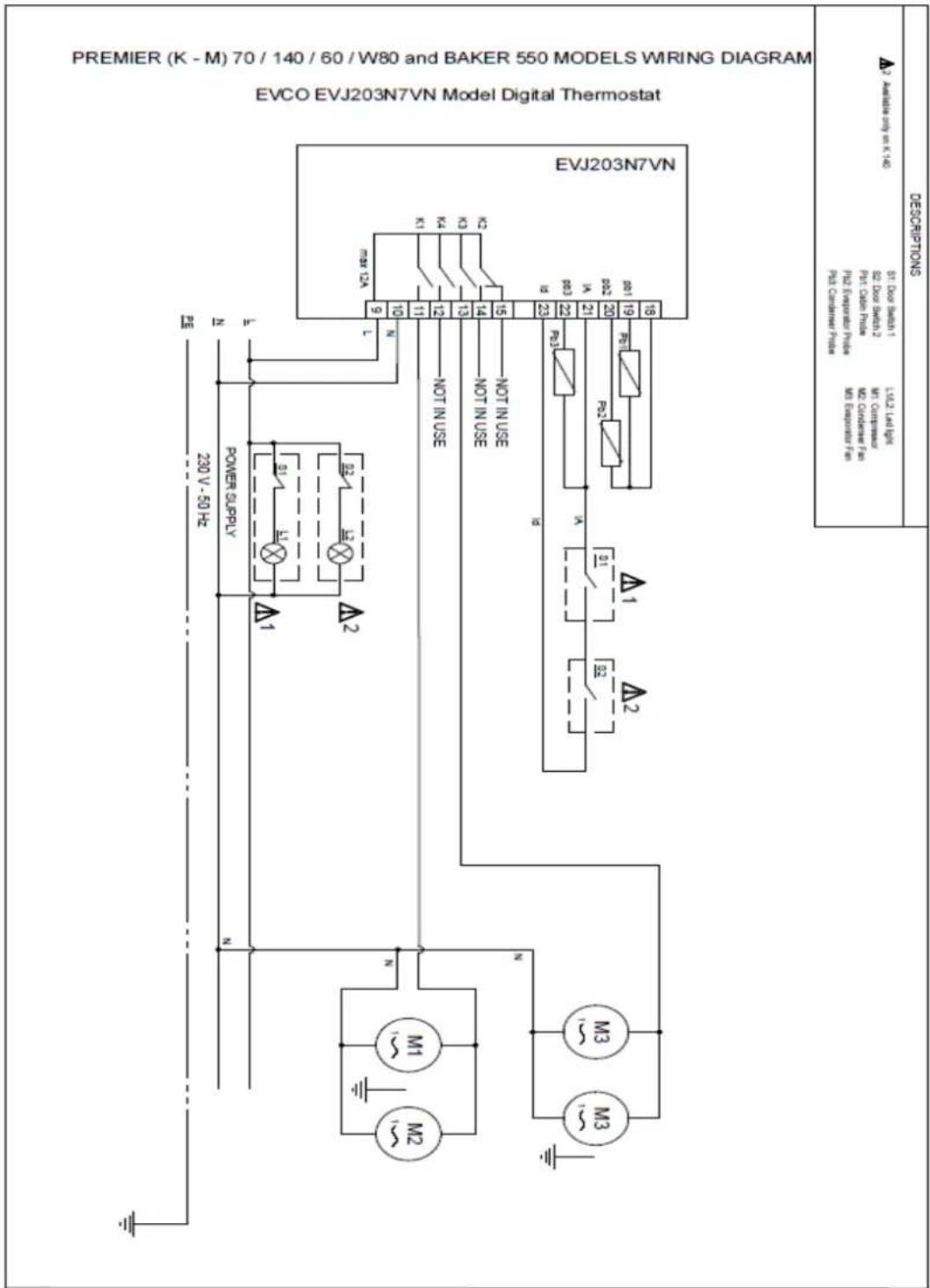

SCHEMA DE CABLAGE ELECTRIQUE (POUR LES MODELES D'ARMOIRES DE REFRIGERATION)

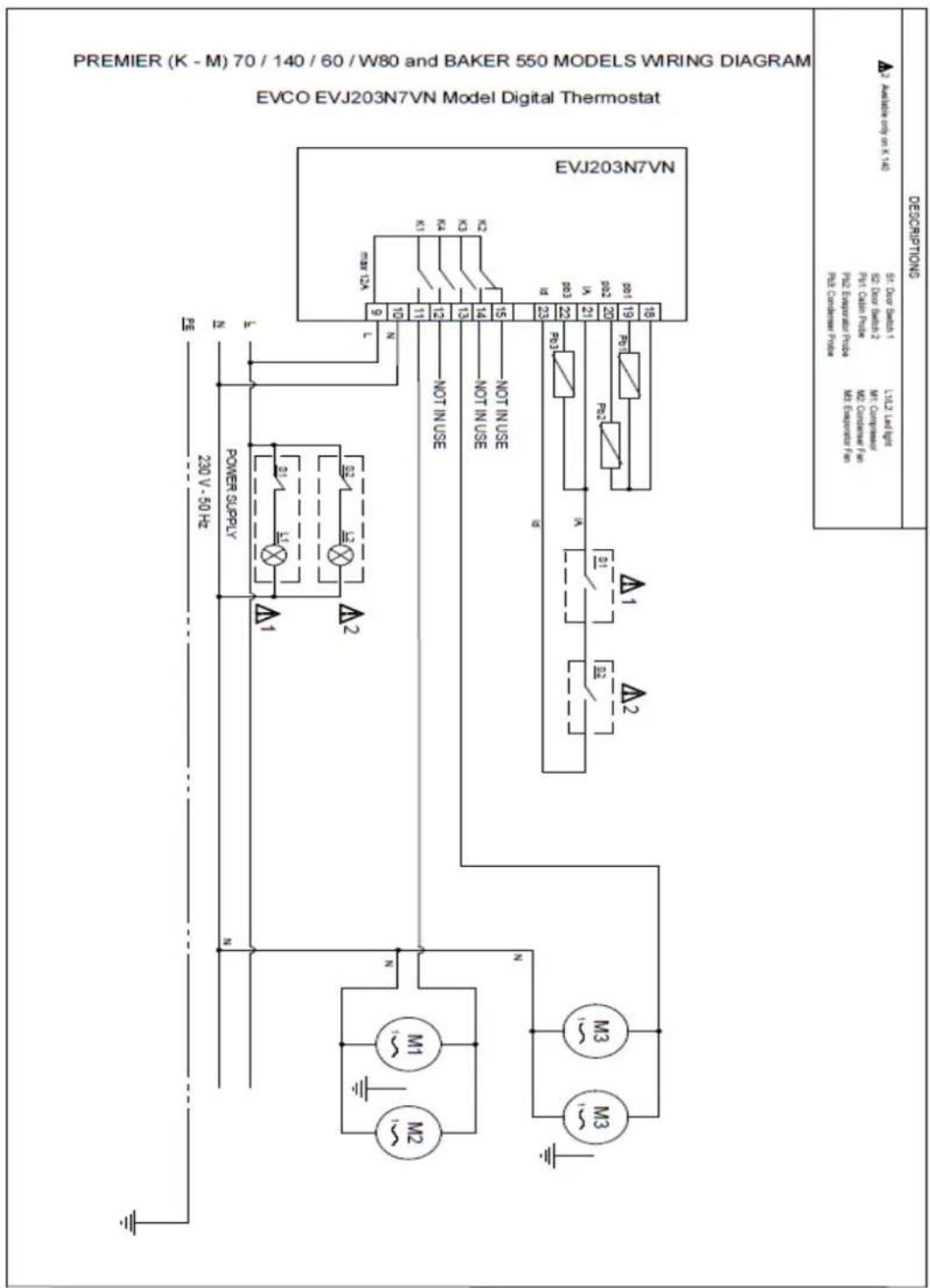

PREMIER (K - M) 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST Live Switch 1 L122 Litter PDL Control Pin 2 PDL Control Pin 3 PDL Control Pin 4 PDL Control Pin 5 PDL Control Pin 6 PDL Control Pin 7 PDL Control Pin 8 PDL Control Pin 9 PDL Control Pin 10 PDL Control Pin 11 PDL Control Pin 12 PDL Control Pin 13 PDL Control Pin 14 PDL Control Pin 15 PDL Control Pin 16 PDL Control Pin 17 PDL Control Pin 18 PDL Control Pin 19 PDL Control Pin 20 PDL Control Pin 21 PDL Control Pin 22 PDL Control Pin 23 PDL Control Pin 24 PDL Control Pin 25 PDL Control Pin 26 PDL Control Pin 27 PDL Control Pin 28 PDL Control Pin 29 PDL Control Pin 30 PDL Control Pin 31 PDL Control Pin 32 PDL Control Pin 33 PDL Control Pin 34 PDL Control Pin 35 PDL Control Pin 36 PDL Control Pin 37 PDL Control Pin 38 PDL Control Pin 39 PDL Control Pin 40 PDL Control Pin 41 PDL Control Pin 42 PDL Control Pin 43 PDL Control Pin 44 PDL Control Pin 45 PDL Control Pin 46 PDL Control Pin 47 PDL Control Pin 48 PDL Control Pin 49 PDL Control Pin 50 230 V - 50 Hz POWER SUPPLY N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N MEN 12A MAX 12A M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M16 M17 M18 M19 M20 M21 M22 M23 M24 M25 M26 M27 M28 M29 M30 M31 M32 M33 M34 M35 M36 M37 M38 M39 M40 M41 M42 M43 M44 M45 M46 M47 M48 M49 M50 M51 M52 M53 M54 M55 M56 M57 M58 M59 M60 M61 M62 M63 M64 M65 M66 M67 M68 M69 M70 M71 M72 M73 M74 M75 M76 M77 M78 M79 M80 M81 M82 M83 M84 M85 M86 M87 M88 M89 M90 M91 M92 M93 M94 M95 M96 M97 M98 M99 M100 N

SCHEMA DE CABLAGE ELECTRIQUE (POUR LES MODELES D'ARMOIRES DE CONGELATION)

PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7VN Model Digital Thermostat DIAGRAM ESCRPITIONS A2 A3 Return on or on line STI DRY SANDI 1 GS DOV SANSO 2 RS1 DRIVE HAW PS1 CACONAR PSND PS2 ECONOR PSND MS CANDINAR PAN PS2 CACONAR PND MS CANDINAR PND MS CTAMAL PNDOR ML12 LAD LRT PS1 CACONAR PND MS CANDINAR PAN PS2 ECONOR PND MS CANDINAR PAN PS2 CACONAR PND MS CANDINAR PAN PS1 DRY SANDI 1 RS1 DRIVE HAW PS1 CACONAR PND MS CANDINAR PAN PS2 ECONOR PND MS CANDINAR PAN PS2 CACONAR PND MS CANDINAR PAN EVS/203N7VN POWER SUPPLY 230 V - 50 Hz L N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M16 M17 M18 M19 M20 M21 M22 M23 M24 M25 M26 M27 M28 M29 M30 M31 M32 M33 M34 M35 M36 M37 M38 M39 M40 M41 M42 M43 M44 M45 M46 M47 M48 M49 M50 M51 M52 M53 M54 M55 M56 M57 M58 M59 M60 M61 M62 M63 M64 M65 M66 M67 M68 M69 M70 M71 N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N-N

HOSHIZAKI

Premier 70-W80-60

VII. TABLEAU DE DIAGNOSTIC

VIII. DEPOSE ET REMPLACEMENT

REMPLACEMENT DE L'AMPOULE INTERIEURE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filiales

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

5 6 4 SET -12.5 3 2 1

FUNKTIONEN AN DER FRONTPLATTE

Pulsifying powder Alcohol Thinner Bottle Add octahydrone detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Line drawing of a mechanical device with internal components and mounting base (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and structural supports (no text or symbols)

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Isometric line drawing of a multi-chamber refrigerator with doors and internal compartments (no text or symbols)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN DESCRIPTIONS 51. DVA Switch 1 LT12 Lungen PS2 Transformer Pitch PS1 Cavity Pitch PS2 Elbow Pitch PS1 Cavity Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch PS1 Elbow Pitch PS2 Elbow Pitch

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Niederlassungen

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

▶ FUNCIONES DEL PANEL FRONTAL

Pasting powder Alcohol Thinner Bayered Adderating detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtro de aire

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-chamber refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal flow paths and dimension标注 (no text labels or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

PREMIER KG W80

810 2080 1490 640 GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 – PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical or electrical enclosure with internal channels and structural elements (no text or symbols)

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and structural supports (no text or symbols)

SECTION I-I

920 1392

Line drawing of a refrigerator interior showing open door, front panel, and internal compartments (no text or labels)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN DESCRIPTIONS 51.2A Dashed Line 52.0A Dashed Line 52.1A Dashed Line 52.2A Dashed Line 52.3A Dashed Line 52.4A Dashed Line 52.5A Dashed Line 52.6A Dashed Line 52.7A Dashed Line 52.8A Dashed Line 52.9A Dashed Line 53.0A Dashed Line 53.1A Dashed Line 53.2A Dashed Line 53.3A Dashed Line 53.4A Dashed Line 53.5A Dashed Line 53.6A Dashed Line 53.7A Dashed Line 53.8A Dashed Line 53.9A Dashed Line 54.0A Dashed Line 54.1A Dashed Line 54.2A Dashed Line 54.3A Dashed Line 54.4A Dashed Line 54.5A Dashed Line 54.6A Dashed Line 54.7A Dashed Line 54.8A Dashed Line 54.9A Dashed Line 55.0A Dashed Line 55.1A Dashed Line 55.2A Dashed Line 55.3A Dashed Line 55.4A Dashed Line 55.5A Dashed Line 55.6A Dashed Line 55.7A Dashed Line 55.8A Dashed Line 55.9A Dashed Line 56.0A Dashed Line 56.1A Dashed Line 56.2A Dashed Line 56.3A Dashed Line 56.4A Dashed Line 56.5A Dashed Line 56.6A Dashed Line 56.7A Dashed Line 56.8A Dashed Line 56.9A Dashed Line 57.0A Dashed Line 57.1A Dashed Line 57.2A Dashed Line 57.3A Dashed Line 57.4A Dashed Line 57.5A Dashed Line 57.6A Dashed Line 57.7A Dashed Line 57.8A Dashed Line 57.9A Dashed Line 58.0A Dashed Line 58.1A Dashed Line 58.2A Dashed Line 58.3A Dashed Line 58.4A Dashed Line 58.5A Dashed Line 58.6A Dashed Line 58.7A Dashed Line 58.8A Dashed Line 58.9A Dashed Line 59.0A Dashed Line 59.1A Dashed Line 59.2A Dashed Line 59.3A Dashed Line 59.4A Dashed Line 59.5A Dashed Line 59.6A Dashed Line 59.7A Dashed Line 59.8A Dashed Line 59.9A Dashed Line

ESQUEMA ELÉCTRICO (PARA MODELOS CON CONGELADOR DE ARMARIO)

DESCRIPTIONS S1: DDX Segment 1 S2: DDX Segment 2 S3: TINM Processors S4: Transmission Processors S5: Transmission Processors S6: Transmission Processors S7: Transmission Processors S8: Transmission Processors S9: Transmission Processors S10: Transmission Processors S11: Transmission Processors S12: Transmission Processors S13: Transmission Processors S14: Transmission Processors S15: Transmission Processors S16: Transmission Processors S17: Transmission Processors S18: Transmission Processors S19: Transmission Processors S20: Transmission Processors S21: Transmission Processors S22: Transmission Processors S23: Transmission Processors S24: Transmission Processors S25: Transmission Processors S26: Transmission Processors S27: Transmission Processors S28: Transmission Processors S29: Transmission Processors S30: Transmission Processors S31: Transmission Processors S32: Transmission Processors S33: Transmission Processors S34: Transmission Processors S35: Transmission Processors S36: Transmission Processors S37: Transmission Processors S38: Transmission Processors S39: Transmission Processors S40: Transmission Processors S41: Transmission Processors S42: Transmission Processors S43: Transmission Processors S44: Transmission Processors S45: Transmission Processors S46: Transmission Processors S47: Transmission Processors S48: Transmission Processors S49: Transmission Processors S50: Transmission Processors S51: Transmission Processors S52: Transmission Processors S53: Transmission Processors S54: Transmission Processors S55: Transmission Processors S56: Transmission Processors S57: Transmission Processors S58: Transmission Processors S59: Transmission Processors S60: Transmission Processors S61: Transmission Processors S62: Transmission Processors S63: Transmission Processors EVO/203N7V N Model Digital Thermostat PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EV/203N7V N Model Digital Thermostat

HOSHIZAKI

Premier 70-W80-60

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Sucursales

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

KOELKASTEN EN DIEPVRIEZERS HANDLEIDING VOOR BEDIENING, ONDERHOUD EN INSTALLATIE

Exterior view of a stainless steel commercial refrigerator with control panel and side legs (no visible text or symbols)

Exterior view of a stainless steel commercial kitchen oven with digital display and side-mounted cooling fins (no visible text or symbols)

I. ALGEMENE INFORMATIE	94
II. BEDIENINGSINSTRUCTIES	99
III. BEDIENINGSPANEL	100
IV. AANWIJZINGEN VOOR ONDERHOUD	102
V. TECHNISCHE INFORMATIE	104
VI. KOELSCHEMA – BEDRADINGSSCHEMA	110
VII. OPSPOREN EN VERHELPEN VAN STORINGEN	113
VIII. VERWIJDEREN EN VERVANGEN	114

Contactinformatie:

DE VERPAKKING OPENEN

5 6 4 SET -12.5 3 2 1

▶ FUNCTIES VAN VOORPANEEL

Pulsifying powder Alcohol Thinner Bottler Add-on-lining Biscuit Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luchtfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-free refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

810 2080 1490 640G GN 2/1

Technical line drawing of a heat exchanger or cooling unit with internal flow paths and dimension label (527), no readable text or symbols beyond the dimension marker.

SECTION G-G

800 1472

Isometric line drawing of a multi-chamber refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Isometric line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

VI. KOELSCHEMA - BEDRADINGSSCHEMA

BEDRADINGSSCHEMA (VOOR KASTMODEL KOELKASTEN)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch I LT12 LAdams PS1 CDA Block PS2 Emitter Block PS3 CDA Block PS4 Emitter Block PS5 CDA Block PS6 CDA Block PS7 Emitter Block PS8 Emitter Block PS9 CDA Block PS10 Emitter Block PS11 CDA Block PS12 Emitter Block PS13 CDA Block PS14 Emitter Block PS15 CDA Block PS16 Emitter Block PS17 CDA Block PS18 Emitter Block PS19 CDA Block PS20 Emitter Block PS21 CDA Block PS22 Emitter Block PS23 CDA Block PS24 Emitter Block PS25 CDA Block PS26 Emitter Block PS27 CDA Block PS28 Emitter Block PS29 CDA Block PS30 Emitter Block PS31 CDA Block PS32 Emitter Block PS33 CDA Block PS34 Emitter Block PS35 CDA Block PS36 Emitter Block PS37 CDA Block PS38 Emitter Block PS39 CDA Block PS40 Emitter Block PS41 CDA Block PS42 Emitter Block PS43 CDA Block PS44 Emitter Block PS45 CDA Block PS46 Emitter Block PS47 CDA Block PS48 Emitter Block PS49 CDA Block PS50 Emitter Block PS51 CDA Block PS52 Emitter Block PS53 CDA Block PS54 Emitter Block PS55 CDA Block PS56 Emitter Block PS57 CDA Block PS58 Emitter Block PS59 CDA Block PS60 Emitter Block PS61 CDA Block PS62 Emitter Block PS63 CDA Block PS64 Emitter Block PS65 CDA Block PS66 Emitter Block PS67 CDA Block PS68 Emitter Block PS69 CDA Block PS70 Emitter Block PS71 CDA Block PS72 Emitter Block PS73 CDA Block

BEDRADINGSSCHEMA (VOOR KASTMODEL VRIEZERS)

DESCRIPTIONS PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7V N Model Digital Thermostat DIAGRAM EVC M1 M2 M3 M3 M3 M2 200 V - 50 Hz Power Supply Power Supply Power Supply MAX 12A K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 K14 K15 K16 K16 K17 K17 K18 K18 K19 K19 K20 K20 K21 K21 K22 K22 K23 K23 K24 K24 K25 K25 K26 K26 K27 K27 K28 K28 K29 K29 K30 K30 K31 K31 K32 K32 K33 K33 K34 K34 K35 K35 K36 K36 K37 K37 K38 K38 K39 K39 K40 K40 K41 K41 K42 K42 K43 K43 K44 K44 K45 K45 K46 K46 K47 K47 K48 K48 K49 K49 K50 K50 K51 K51 K52 K52 K53 K53 K54 K54 K55 K55 K56 K56 K57 K57 K58 K58 K59 K59 K60 K60 K61 K61 K62 K62 K63 K63 K64 K64 K65 K65 K66 K66 K67 K67 K68 K68 K69 K69 K70 Pb1 Pb2 Pb3 Pb4 Pp5 Pp6 Pp7 Pp8 Pp9 Pp10 Pp11 Pp12 Pp13 Pp14 Pp15 Pp16 Pp17 Pp18 Pp19 Pp20 Pp21 Pp22 Pp23 Pp24 Pp25 Pp26 Pp27 Pp28 Pp29 Pp30 Pp31 Pp32 Pp33 Pp34 Pp35 Pp36 Pp37 Pp38 Pp39 Pp40 Pp41 Pp42 Pp43 Pp44 Pp45 Pp46 Pp47 Pp48 Pp49 Pp50 Pp51 Pp52 Pp53 Pp54 Pp55 Pp56 Pp57 Pp58 Pp59 Pp60 Pp61 Pp62 Pp63 Pp64 Pp65 Pp66 Pp67 Pp68 Pp69 Pp70 Pp71 Pp72 Pp73 Pp74 Pp75 Pp76 Pp77 Pp78 Pp79 Pp80 Pp81 Pp82 Pp83 Pp84 Pp85 Pp86 Pp87 Pp88 Pp89 Pp90 Pp91 Pp92 Pp93 Pp94 Pp95 Pp96 Pp97 Pp98 Pp99 Pn MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem PI n MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem Plan MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC Ecosystem I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n MC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I n NC E throughput I in

HOSHIZAKI

Premier 70-W80-60

VII. OPSPOREN EN VERHELPEN VAN STORINGEN

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Vestigingen

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

K∅LESKABE OG FRYSESKABE

BETJENINGS-, VEDLIGEHOLDELSES- OG INSTALLATIONSVEJLEDNING

I. GENERELLE OPLYSNINGER	117
II. BETJENINGSANVISNINGER	122
III. STYREPANEL	123
IV. VEDLIGEHOLDELSESANVISNINGER	125
V. TEKNISKE OPLYSNINGER	127
VI. K∅LEDIAGRAM – ELEKTRISK LEDNINGSDIAGRAM	133
VII. SERVICEDIAGNOSE	136
VIII. AFMONTERING OG UDSKIFTNING	137

Kontaktoplysninger:
HOSHIZAKI EUROPE B.V.
Adresse: Burgemeester Stramanweg 101 1101 AA Amsterdam, Holland
Tlf.: [phone] http://hoshizaki-europe.com/

HOSHIZAKI

Premier 70-W80-60

I. GENERELLE OPLYSNINGER

MÄRKAT MED PRODUKTBESKRIVELSE

1 - Produktnummer

2 - Produktbeskrivelse

3 - Model

4 - Kølemiddel (GWP)

5 - CO2-ækvivalent

6 - IP-beskyttelse

7 - Klimaklasse

8 - Produktionsdato

9 - Samlet strømforbrug / strøm / lampeeffekt

10 - Spænding - Frekvens

11 - Varmeelement

12 - Systemtryk

13 - Drivmiddel

14 - Serienummer

PRODUCT NUMBER 1 PRODUCT DESCRIPTION 2 MODEL 3 REFRIGERANT 4 CO2 EQUIVALENT 5 IP PROTECTION 6 CLIMATE CLASS 7 PRODUCTION DATE 8 TOTAL POWER / CURRENT / LAMP POWER 9 VOLTAGE - FREQUENCY 10 HEATING ELEMENT 11 SYSTEM PRESSURE 12 BLOWING AGENT 13

S/N: 14

HOSHIZAKI EUROPE B.V. Burgemeester Stramanweg 101 1101 AA Amsterdam, The Netherlands

ANVENDELSESFORMÅL

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FRONTPANELFUNKTIONER

Pulsifying powder Alcohol Thinner Bottles Add or Heating Refrigerant Hot Water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-tiered refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal structure and dimension (647 mm), no text or symbols present.

SECTION D-D

920 1472

Line drawing of a closed refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Line drawing of a closed refrigerator with doors open and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

VI. K∅LEDIAGRAM - ELEKTRISK LEDNINGSDIAGRAM

ELEKTRISK LEDNINGSDIAGRAM (FOR K∅LESKABSMODELLER)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST. DOW SHMNT L42.1 LDGNS PIT. DOW SHMNT PIS. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. CANDRIN PISA PID. MAX 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

ELEKTRISK LEDNINGSDIAGRAM (FOR FRYSESKABSMODELLER)

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filialer

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

FRIGORIFERI E CONGELATORI

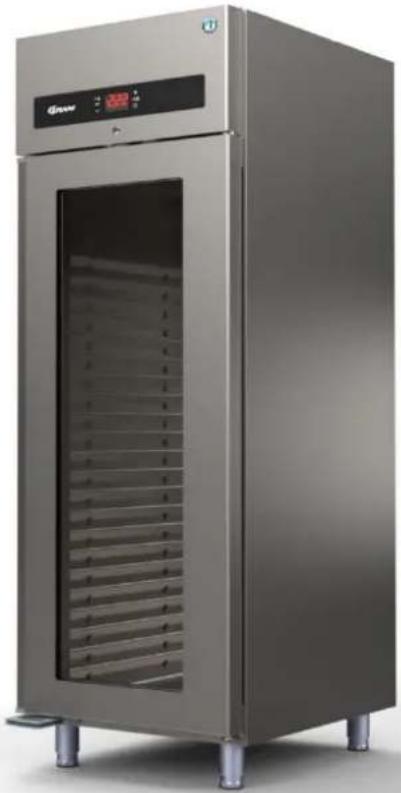

Exterior view of a stainless steel commercial refrigerator with control panel and side legs (no visible text or symbols)

Exterior view of a stainless steel commercial kitchen oven with digital display and side legs (no visible text or symbols)

I. INFORMAZIONI GENERALI	140
II. ISTRUZIONI PER L’USO	145
III. PANNELLO DI CONTROLLO	146
IV. ISTRUZIONI PER LA MANUTENZIONE	148
V. INFORMAZIONI TECNICHE	150
VI. SCHEMA DI RAFFREDDAMENTO - SCHEMA ELETTRICO	156
VII. RISOLUZIONE DEI PROBLEMI	159
VIII. RIMOZIONE E SOSTITUZIONE	160

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FUNZIONI DEL PANNELLO ANTERIORE

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtro dell'aria

DIMENSIONI DEI DISPOSITIVI

PREMIER K 70 - PREMIER M 70 - PREMIER F 70

690 D O 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Isometric line drawing of a multi-free refrigerator with open door and internal compartments (no text or symbols)

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

PREMIER KG W80

810 2080 1490 640 G GN 2/1

527

SECTION G-G

800 1472

Line drawing of a double-door refrigerator with internal compartments and ventilation slots (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a closed refrigerator with internal compartments and mounting feet (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

VI. SCHEMA DI RAFFREDDAMENTO - SCHEMA ELETTRICO

SCHEMA ELETTRICO (PER I MODELLI DI FRIGORIFERO AD ARMADIO)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch I LT12 Lufing PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PS2 Emitter Block PS1 CDAI Block PES 230 V - 50 Hz POWER SUPPLY N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V - 50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz PES 230 V-50 Hz

SCHEMA ELETTRICO (PER I MODELLI DI CONGELATORE AD ARMADIO)

DESCRIPTIONS S1: 10A: 52A S2: 10A: 52B S3: 10A: 52C S4: 10A: 52D S5: 10A: 52E S6: 10A: 52F S7: 10A: 52G S8: 10A: 52H S9: 10A: 52I S10: 10A: 52J S11: 10A: 52K S12: 10A: 52L S13: 10A: 52M S14: 10A: 52N S15: 10A: 52O S16: 10A: 52P S17: 10A: 52Q S18: 10A: 52R S19: 10A: 52S S20: 10A: 52T S21: 10A: 52U S22: 10A: 52V S23: 10A: 52W S24: 10A: 52X S25: 10A: 52Y S26: 10A: 52Z S27: 10A: 52A S28: 10A: 52B S29: 10A: 52C S30: 10A: 52D POWER SUPPLY MAX 124 N L N A N B N C N D N E N F N G N H N I N J N K N L N M N N N O N P N Q N R N S N T N USE NOT IN USE NOT IN USE DeFiOS NOT IN USE Pb1 Pb2 Pb3 Pb4 Pb5 Pb6 Pb7 Pb8 Pb9 Pb10 Pb11 Pb12 Pb13 Pb14 Pb15 Pb16 Pb17 Pb18 Pb19 Pb20 Pb21 Pb22 Pb23 Pb24 Pb25 Pb26 Pb27 Pb28 Pb29 Pb30 PwCwcrn# Pwdr Mg. Diode Hmter MΩ. Diode S#### R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr R3 Door Tramp Cable Tnbr S1 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R3 Door S#### R8 PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7V N Model Digital Thermostat

HOSHIZAKI

Premier 70-W80-60

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filiali

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

KYLSKÅP OCH FRYSAR HANDBOK FÖR ANVÄNDNING, UNDERHÅLL OCH INSTALLATION

Exterior view of a stainless steel commercial refrigerator with control panel and digital display (no visible text or symbols)

Exterior view of a stainless steel kitchen oven with digital display and ventilation slots (no visible text or symbols)

I. ALLMÄN INFORMATION	163
II. ANVÄNDNINGSINSTRUKTIONER	168
III. KONTROLLPANEL	169
IV. UNDERHÅLLSANVISNINGAR	171
V. TEKNISK INFORMATION	173
VI. KYLSCHEMA – ELEKTRISKT KOPPLINGSSCHEMA	179
VII. SERVICEDIAGNOS	182
VIII. DEMONTERING OCH BYTE	183

Kontaktuppgifter:

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FUNKTIONER PÅ FRONTPANELEN

Purifying powder Alcohol Thinner Bened to Add onlamine detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, dimension标注 647 (no text or symbols beyond measurement)

SECTION D-D

920 1472

Line drawing of a closed industrial refrigerator with internal compartments and ventilation slots (no text or symbols)

PREMIER KG 70

690 D 2080 1490 GN 2/1 520

Technical line drawing of a heat exchanger or cooling unit with fan and cooling fins, showing internal structure and dimension (647 mm), no text or symbols present.

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a closed refrigerator with internal compartments and mounting feet (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical device with internal channels and a dimension label (647), no readable text or symbols beyond the dimension marker.

SECTION I-I

920 1392

Line drawing of a refrigerator interior showing open door, front panel, and internal compartments (no text or labels)

HOSHIZAKI

Premier 70-W80-60

VI. KYLSCHEMA - ELEKTRISKT KOPPLINGSSCHEMA

ELEKTRISKT KOPPLINGSSCHEMA (FÖR KYLSKÅPSMODELLER)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST. DAU Switch 1 LT12 Lndgus PS1 CDAI Rnss 2 PS2 Energrise Pin 6 PS3 CDAI Rnss 2 PS4 CDAI Rnss 2 PS5 Energrise Pin 6 PS6 CDAI Rnss 2 PS7 CDAI Rnss 2 PS8 CDAI Rnss 2 PS9 CDAI Rnss 2 PS10 CDAI Rnss 2 PS11 CDAI Rnss 2 PS12 CDAI Rnss 2 PS13 CDAI Rnss 2 PS14 CDAI Rnss 2 PS15 CDAI Rnss 2 PS16 CDAI Rnss 2 PS17 CDAI Rnss 2 PS18 CDAI Rnss 2 PS19 CDAI Rnss 2 PS20 CDAI Rnss 2 PS21 CDAI Rnss 2 PS22 CDAI Rnss 2 PS23 CDAI Rnss 2 MSR 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

ELEKTRISKT KOPPLINGSSCHEMA (FÖR FRYSSKÅPSMODELLER)

PREMIER F 70 / 140 / 60 / W80 and BAKER 550 MODELS WIRING EVCO EVJ203N7V N MODEL Digital Thermostat DIAGRAM EVC DESCRIPTIONS A2 ▲ A5 S1: DDX Segment 1 S2: DDX Segment 2 S3: TINM1 Proactor S4: TINM1 Proactor S5: TINM1 Proactor S6: TINM1 Proactor S7: TINM1 Proactor S8: TINM1 Proactor S9: TINM1 Proactor S10: TINM1 Proactor S11: TINM1 Proactor S12: TINM1 Proactor S13: TINM1 Proactor S14: TINM1 Proactor S15: TINM1 Proactor S16: TINM1 Proactor S17: TINM1 Proactor S18: TINM1 Proactor S19: TINM1 Proactor S20: TINM1 Proactor S21: TINM1 Proactor S22: TINM1 Proactor S23: TINM1 Proactor S24: TINM1 Proactor S25: TINM1 Proactor S26: TINM1 Proactor S27: TINM1 Proactor S28: TINM1 Proactor S29: TINM1 Proactor S30: TINM1 Proactor S31: TINM1 Proactor S32: TINM1 Proactor S33: TINM1 Proactor S34: TINM1 Proactor S35: TINM1 Proactor S36: TINM1 Proactor S37: TINM1 Proactor S38: TINM1 Proactor S39: TINM1 Proactor S40: TINM1 Proactor S41: TINM1 Proactor S42: TINM1 Proactor S43: TINM1 Proactor S44: TINM1 Proactor S45: TINM1 Proactor S46: TINM1 Proactor S47: TINM1 Proactor S48: TINM1 Proactor S49: TINM1 Proactor S50: TINM1 Proactor S51: TINM1 Proactor S52: TINM1 Proactor S53: TINM1 Proactor S54: TINM1 Proactor S55: TINM1 Proactor S56: TINM1 Proactor S57: TINM1 Proactor S58: TINM1 Proactor S59: TINM1 Proactor S60: TINM1 Proactor S61: TINM1 Proactor S62: TINM1 Proactor S63: TINM1 Proactor

HOSHIZAKI

Premier 70-W80-60

VII. SERVICEDIAGNOS

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filialer

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

KJ∅LESKAP OG FRYSESKAP DRIFTS-, VEDLIKEHOLDS- OG INSTALLASJONSHÅNDBOK

Two stainless steel kitchen cabinets side by side, one with digital display and control panel, the other with a closed door (no visible text or symbols)

I. GENERELL INFORMASJON	186
II. BRUK	191
III. KONTROLLPANEL	192
IV. VEDLIKEHOLDSINSTRUKSJONER	194
V. TEKNISK INFORMASJON	196
VI. KJ∅LESKJEMA – ELEKTRISK KOBLINGSSKJEMA	202
VII. VEDLIKEHOLDSDIAGNOSE	205
VIII. FJERNING OG UTSKIFTING	206

Kontaktinformasjon:

5 6 4 SET -12.5 3 2 1

HOSHIZAKI

Premier 70-W80-60

FUNKSJONER PÅ FRONTPANELET

Tastene på frontpanelet låses ved å holde inne AUX (3) og On/Stand By (1) i 2 sekunder. Teksten «Loc» vises på skjermen när tastene er låst, og de er ikke låst när teksten «UnL» vises.

1) Når du holder inne ON/STAND BY i 4 sekunder, åpnes og lukkes apparatet (på/av). 2) MANUELL AVISING-tasten: Manuell avising starter når du holder inne knappen i 4 sekunder. Manuell avising starter ikke hvis ekstra kjøling er aktivert og temperaturen i fordamperen ikke er egnet.

Pulsifying powder Alcohol Thinner Bottle Add oil/lining detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Technical line drawing of a heat exchanger or cooling unit with cooling fan and cooling pipes (no text or symbols)

SECTION D-D

920 1472

Line drawing of a single refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K W80 - PREMIER M W80 - PREMIER F W80

810 2080 1490 640G GN 2/1

Technical line drawing of a vertical heat exchanger or cooling unit with internal flow pipes and no visible text or symbols

SECTION G-G

800 1472

Isometric line drawing of a multi-compartment refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG W80

810 2080 1490 640G GN 2/1

527 SECTION G-G

800 1472

Isometric line drawing of a double-door refrigerator with internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER K 60 - PREMIER M 60 - PREMIER F 60

610 2080 1490 440 40X60

647

SECTION I-I

920 1392

Technical line drawing of a multi-chamber refrigerator with doors and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

PREMIER KG 60

610 2080 1490 440 40X60

Technical line drawing of a mechanical enclosure or enclosure with internal channels and a dimension label (647), no readable text or symbols present.

SECTION I-I

920 1392

Line drawing of a refrigerator with open door and internal compartments (no text or symbols)

HOSHIZAKI

Premier 70-W80-60

VI. KJ∅LESKJEMA - ELEKTRISK KOBLINGSSKJEMA

ELEKTRISK KOBLINGSSKJEMA (TIL KJ∅LESKAPSMODELLER)

PREMIER (K-M) 70/140/60/W80 and BAKER 550 MODELS WIRING DIAGRAM EVCO EVJ203N7VN Model Digital Thermostat DESCRIPTIONS ST DAV Switch I LT12 LAdams PS1 CDA Block PS2 Emitter Block PS3 CDA Block PS4 Emitter Block PS5 CDA Block PS6 CDA Block PS7 Emitter Block PS8 Emitter Block PS9 CDA Block PS10 Emitter Block PS11 CDA Block PS12 Emitter Block PS13 CDA Block PS14 Emitter Block PS15 CDA Block PS16 Emitter Block PS17 CDA Block PS18 Emitter Block PS19 CDA Block PS20 Emitter Block PS21 CDA Block PS22 Emitter Block PS23 CDA Block PS24 Emitter Block PS25 CDA Block PS26 Emitter Block PS27 CDA Block PS28 Emitter Block PS29 CDA Block PS30 Emitter Block PS31 CDA Block PS32 Emitter Block PS33 CDA Block PS34 Emitter Block PS35 CDA Block PS36 Emitter Block PS37 CDA Block PS38 Emitter Block PS39 CDA Block PS40 Emitter Block PS41 CDA Block PS42 Emitter Block PS43 CDA Block PS44 Emitter Block PS45 CDA Block PS46 Emitter Block PS47 CDA Block PS48 Emitter Block PS49 CDA Block PS50 Emitter Block PS51 CDA Block PS52 Emitter Block PS53 CDA Block PS54 Emitter Block PS55 CDA Block PS56 Emitter Block PS57 CDA Block PS58 Emitter Block PS59 CDA Block PS60 Emitter Block PS61 CDA Block PS62 Emitter Block PS63 CDA Block PS64 Emitter Block PS65 CDA Block PS66 Emitter Block PS67 CDA Block PS68 Emitter Block PS69 CDA Block PS70 Emitter Block PS71 CDA Block PS72 Emitter Block PS73 CDA Block

ELEKTRISK KOBLINGSSKJEMA (TIL FRYSESKAPSMODELLER)

DESCRIPTIONS S1: 10k ohms-1 S2: 10k ohms-2 S3: 10k ohms-3 S4: 10k ohms-4 S5: 10k ohms-5 S6: 10k ohms-6 S7: 10k ohms-7 S8: 10k ohms-8 S9: 10k ohms-9 S10: 10k ohms-10 S11: 10k ohms-11 S12: 10k ohms-12 S13: 10k ohms-13 S14: 10k ohms-14 S15: 10k ohms-15 S16: 10k ohms-16 S17: 10k ohms-17 S18: 10k ohms-18 S19: 10k ohms-19 S20: 20k V - 50 Hz S21: 20k V - 50 Hz S22: 20k V - 50 Hz S23: 20k V - 50 Hz S24: 20k V - 50 Hz S25: 20k V - 50 Hz S26: 20k V - 50 Hz S27: 20k V - 50 Hz S28: 20k V - 50 Hz S29: 20k V - 50 Hz S30: 20k V - 50 Hz POWER SUPPLY MAX 12A MAX 13A MAX 14A MAX 15A MAX 16A MAX 17A MAX 18A MAX 19A MAX 20A MAX 21A MAX 22A MAX 23A MAX 24A MAX 25A MAX 26A MAX 27A MAX 28A MAX 29A MAX 30A MAX 31A MAX 32A MAX 33A MAX 34A MAX 35A MAX 36A MAX 37A MAX 38A MAX 39A MAX 40A MAX 41A MAX 42A MAX 43A MAX 44A MAX 45A MAX 46A MAX 47A MAX 48A MAX 49A MAX 50A MAX 51A MAX 52A MAX 53A MAX 54A MAX 55A MAX 56A MAX 57A MAX 58A MAX 59A MAX 60A MAX 61A MAX 62A MAX 63A MAX 64A MAX 65A MAX 66A MAX 67A MAX 68A MAX 69A MAX 70A MAX 71A MAX 72A

HOSHIZAKI

Premier 70-W80-60

VII. VEDLIKEHOLDSDIAGNOSE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Avdelinger

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]
